AUDIO PRO C10 ACTIVE WIRELESS LOUDSPEAKER User Manual

AUDIO PRO AB ACTIVE WIRELESS LOUDSPEAKER

User Manual

ww
ADDON C10
Quick Guide manual
WELCOME TO
AUDIO PRO
CONNECTED
HIFI
The Audio Pro Connected HiFi products lets you enjoy wireless
multi-room sound that enables you to enjoy your favorite
music anywhere and
everywhere around your home. By utilizing your existing home
network and the Audio Pro app on your iOS or Android™ de-
vice, you can explore, browse, and play music from your own
music library or from many online streaming music services.
In addition to easy wifi connection there is also Bluetooth
wireless technology if you dont have a wireless network. You
can also connect your TV, turntable or cd-player by cable to
enjoy all your music.
The legendary Audio Pro sound quality is included!
© AUDIO PRO AB, SWEDEN. ALL RIGHTS RESERVED. TRADEMARKS ARE THE PROPERTY OF AUDIO PRO AB,
SWEDEN.
Audio Pro, Garnisonsgatan 52, SE-250 24 Helsingborg, Sweden
© Audio Pro AB Sweden
Audio Pro®, the Audio Pro logotype, the ‘a’ symbol, and ace-bass® are all registered trademarks of Audio Pro AB,
Sweden. All rights reserved. Audio Pro follows a policy of continuous advancement in development. Specifications
may be changed without notice.
Google, the Google logo, Google Apps, Android, Android Market, Google Places, Google Maps, YouTube, Google
Navigation, Google Calendar, Gmail and Google Search are trademarks of Google Inc. The Android robot is crea-
ted and shared by Google and used according to the Creative Commons 3. 0 Attribution License.
All other products and services mentioned may be trademarks or service marks of their respective owners.
THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE.
Your new device has Spotify Connect built in.
You need a Spotify premium account to take advantage of Spotify Connect.
Spotify Connect lets you control the music playing on your device, using the Spotify app on your
mobile, tablet or PC. Listening is seamless. You can take calls, play games, even switch your
phone o all without interrupting the music. Learn more at spotify.com/connect
The Spotify software is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses
© Apple, the Apple logo,
Airplay, iPad, iPhone, and iPod
touch are trademarks of Apple
Inc., registered in the U.S. and
other countries. App Store is a
service mark of Apple Inc.
The Bluetooth® word mark and
logos are registered trade-
marks owned by Bluetooth SIG,
Inc. and any use of such marks
by AUDIO PRO AB, is under
license. Other trademarks and
trade names are those of thier
respective owners.
The Wi-Fi CERTIFIED Logo is
a certification mark of the
Wi-Fi Alliance.
CONTROLS
On/O Pair Bluetooth
Select source Play/Pause 3.5mm input
Wifi PresetsVolume control
REAR VIEW
MAX 1000mA
ADDON C10
Connect to
network
Input switch
USB port is only for
charging of external
devices, could not
support Apple devices.
NOTE:
CONNECT TO NETWORK
IMPORTANT REQUIREMENTS
NETWORK: Your network must have a high-speed Internet
connection, as the Audio Pro system is designed to provide you
with free, online software updates.
PLEASE NOTE:
Audio Pro speakers communicates over a 2.4GHz home
network supporting 802.11 b/g/n wireless technology. 5GHz
networks are not supported in an Audio Pro setup.
ROUTER; High-speed DSL/Cable modem, or fiber-to-the-home
broadband connection for proper playback of Internet-based
music services.
There is dierent performance of dierent routers.
Please use a good wireless router for best performance.

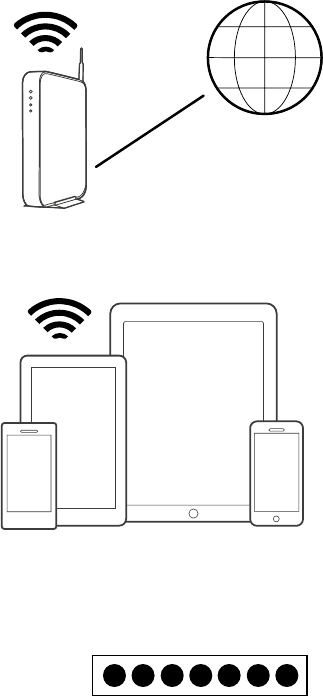

You need this:
Wireless router with high
speed internet connection.
iOS or Android device
connected to your network
Have your network
password ready.
PSWRD
!
ADDON C10
2. DOWNLOAD THE AUDIO PRO APP
Start adding speakers
Search for ”Audio Pro Control”
Launch app and follow instructions
1. CONNECT TO POWER
TIPS
Place speaker close to your router when
doing the setup. You can later view
signal strength in the app for other
placements.
Connect to wired network with ethernet cable.
OPTION  OPTIONAL
100-240V
50-60Hz
APP OVERVIEW
1. Music services
and sources.
2. Player view 3. Speaker list
Speaker Settings
Play All/Pause All
Change name
Adjust Bass/Treble
Set sleeptimer
Check units
WiFi connection
Preset List
Unit info
Select Stereo, Left or
Right channel
Grouped units,
Master at top
Add speaker
Volume controls
To Player view
THREE MAIN VIEWS
SWIPE
SWIPE

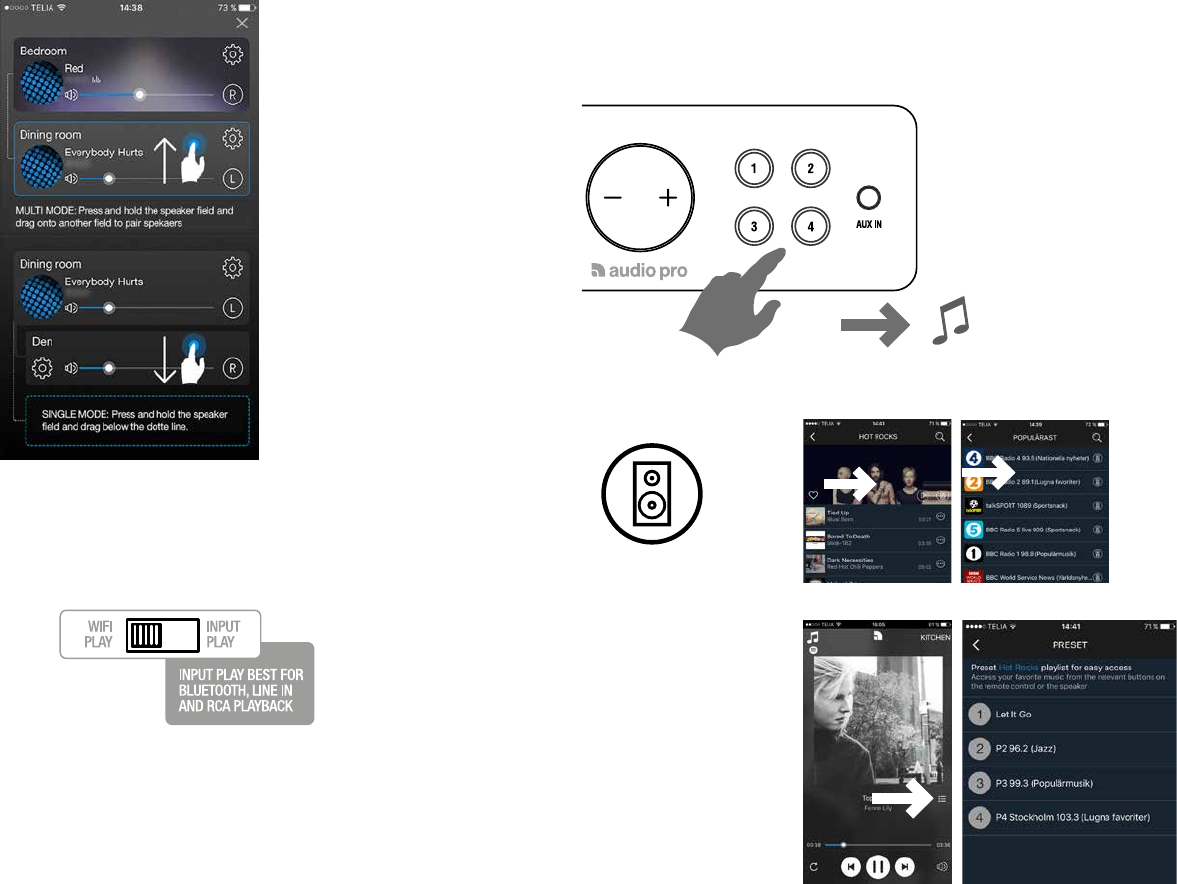

GROUPING SPEAKERS
Press and hold unit field, and
drag onto other field to group.
To ungroup, press and hold
speaker field and drag below the
dotted line.
Making a preset lets you access your favourite radio channel or playlist
with a touch of a button. You dont have to have your smartphone or
tablet there!
NOTE
The speaker onto which you release
speaker field on becomes Master
speaker. Music will play on all speakers
in group. Volume can be adjsusted
separately. Up to 8 units can be in one
group.
1. ON SPEAKER
2. IN APP
Play content in app.
Push preset button for ca 2 s
until sound is heard. Done!
In the app using the
dierent music
services, find and push
the speaker icon to make
a preset.
Tune-in
Spotify
Tidal
2 s
MAKE A WIFI PRESET
PLAYBACK SETTING SWITCH
WIFI PLAY
Use this setting when playing
audio in your wifi network.
INPUT PLAY
Use this setting when playing
from devices connected by
cable, or Bluetooth.
Necessary for lip sync when
speaker connected to TV.

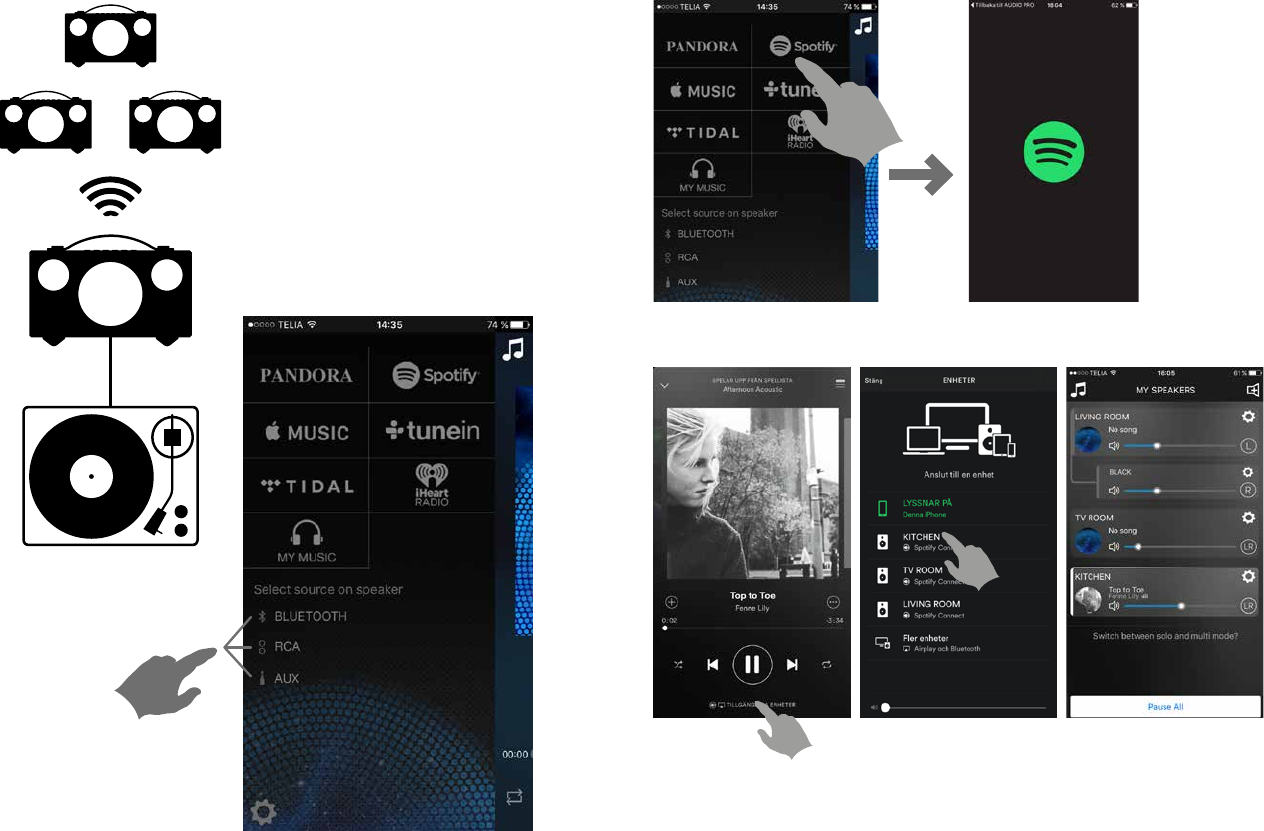

RESTREAMING MUSIC
Restreaming makes it possible to
stream audio connected by cable
to one speaker wirelessly to more
speakers.
Connect a device by cable to RCA
or AUX inputs.
Make a group of speakers and
play content connected to Master
speaker.
Note: Using Spotify Connect requires a Spotify Premium account.
Choose input
as source
PLAYING SPOTIFY USING SPOTIFY CONNECT
Spotify app launches
Play music and tap Av-
ailable Units at bottom. Select your speaker in
device list.
Go back to Audio Pro app
to manage music.
FAQ/TROUBLESHOOTING
HOW MANY SPEAKERS CAN BE
USED AT ONE TIME?
The system can support up to 32 Audio Pro music
players/speakers on the network at once.
WHAT MUSIC SOURCES IS SUPPORTED?
Spotify, Napster, TuneIn, iHeartRadio, TIDAL and
we will continue to add more all the time. Deezer,
Pandora and Soundcloud is upcoming services.
Plus you can enjoy music on your phone or tablet,
in your network or NAS and from analog sources
connected to Aux or RCA inputs.
Note:
With Bluetooth you can play any
music service.
CAN I PLAY APPLE MUSIC?
Yes, you can. As the speakers have
Apple AirPlay® incorporated, just choose your
speaker in the Airplay setting on your iOS device.
CAN I USE SPEAKERS AS A STEREO PAIR?
Yes, all speakers can be set to stereo, left or right.
Make a group of two speakers, and set them to
Left and Right to make a stereo pair.
MY SPEAKER WON’T CONNECT
TO MY WIFI NETWORK
• Place your speaker closer to your router
• Speaker can only connect to 2,4Ghz network
• Make sure you connect to your wireless network
with the right password
• If it’s a really long distance you can use ethernet
cable
• Restart your Router
CAN’T CONNECT WITH BLUETOOTH
• Activate Bluetooth on your device, Push the
“pair Bluetooth” button on the speakers control
panel. Your speaker should be visible within 20
seconds on your device with the products name.
push the name to pair the devices.
• Place your speaker closer to your Bluetooth
device. Maximum distance is around 10 meters.
NO SOUND FROM THE SPEAKER
• Increase volume
• Make sure you use the right input
• Press the play/pause button if music is paused
when streaming
• Check your internet connection
THERE IS A SOUND DELAY WHEN
CONNECTED TO TV BY CABLE
• Change the input switch on the back panel of
the speaker
MY PRESETS WILL NOT PLAY
• Check your internet connection

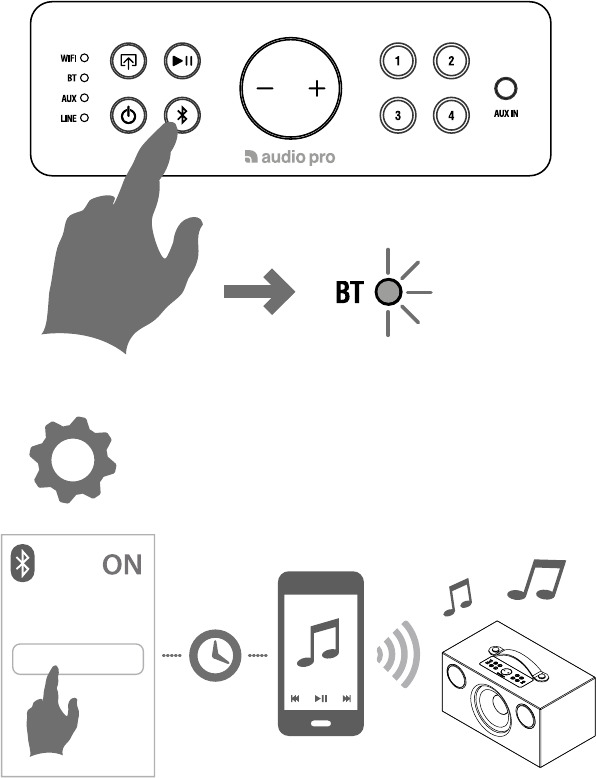

PAIR BLUETOOTH
LED flashes
Device Bluetooth
Settings
1.
2.
5-20s
AUDIO PRO C5
EN: SPECIFICATIONS
Type: Powered stereo speaker with bass reflex
Amplifier: Digital Class D amplifier, 2x8W + 25W
Tweeter: 2 x ¾” textile dome tweeter
Woofer: 1 x 4”
Frequency range: 50–20.000Hz
Crossover frequency: 3.800Hz
Dimensions HxWxD: 130 x 250 x 150 mm
Inputs:
- Wifi
- Bluetooth standard V4.0
- Aux In 3.5mm stereo
- RCA in
Ethernet Wlan port
Technology: Airplay, Spotify Connect, DLNA
Outputs: USB DC OUT /max 5V, 1000mA
Wireless LAN
Network type: Conforming to IEEE 802.11a/b/g/n
Used frequency range: 2.4 GHz
BOX CONTENTS
1 x Addon T10 Speaker
1 x Quick Start Guide
2 x Power cable
ADDON C10
SV: Den pilförsedda blixtsymbolen i en liksidig triangel är avsedd att varna användaren för förekomsten av oisolerad
”farlig spänning” innanför produktens hölje. Spänningen kan vara så hög att människor riskerar att utsättas för
elektriska stötar.
EN: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
DE: Das Blitzsymbol mit Pfeilspitze im gleichseitigen Dreieck ist der Hinweis auf stromführende Teile im Geräteinneren,
bei deren Berührung die Gefahr eines lebensgefährlichen Stromschlags droht.
SV: Utropstecknet i en liksidig triangel är avsett att uppmärksamma användaren på att det finns viktiga instruktioner för
bruk och underhåll (service) i det referensmaterial som medföljer utrustningen.
EN: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
DE: Das Ausrufezeichen im gleichseitigen Dreieck soll auf wichtige Bedienungs- und Wartungs-Hinweise in dieser
Bedienungsanleitung aufmerksam machen.
VARNING:
FÖR ATT MINSKA RISKEN FÖR BRAND ELLER ELEKTRISK
STÖT, UTSÄTT INTE PRODUKTEN FÖR REGN ELLER
FUKT.
OBSERVERA:
FÖR ATT MINSKA RISKEN FÖR ELEKTRISKA STÖTAR
SKA DU EJ AVLÄGSNA ENHETENS HÖLJE ELLER DEN
BAKRE PANELEN. UTRUSTNINGEN INNEHÅLLER INGA
KOMPONENTER SOM KAN REPARERAS AV ANVÄN-
DAREN. ALL SERVICE SKA UTFÖRAS AV SÄRSKILT
UTBILDAD PERSONAL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNUNG:
UM BRAND - UND STROMSCHLAGGEFAHREN ZU
VERMEIDEN, DARF DIESES GERÄT WEDER NÄSSE
NOCH FEUCHTIGKEIT AUSGESETZT SEIN (Z. B.
REGEN, DAMPF).
VORSICHT:
ZUR VERMEIDUNG ELEKTRISCHER SCHLÄGE DÜRFEN
WEDER DIE VORDERE NOCH DIE HINTERE GEHÄU-
SEABDECKUNG ENTFERNT WERDEN. IM INNERN DES
GERÄTES BEFINDEN SICH KEINERLEI BEDIENUNGSELE-
MENTE FÜR DEN BENUTZER. REPARATUR- UND WAR-
TUNGSARBEITEN DÜRFEN NUR VON GESCHULTEN
FACHKRÄFTEN DURCHGEFÜHRT WERDEN.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Operating temperature (˚C) 5–40
Humidity (%) no condensation 30–90
8. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
9. Minimum distances around the apparatus
for sufficient ventilation, 10cm.
10. The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains,
etc.
11. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
12. Protect the power cord from being walked
on or pinched particularly at plugs, conven-
ience receptacles, and the point where they
exit from the apparatus.
13. Only use attachments/accessories speci-
fied by the manufacturer.
14. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
15. Refer all servicing to qualified service per-
sonnel. Servicing is required when the appa-
ratus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally,
or has been dropped.
16. Damage Requiring Service
Unplug the apparatus from the wall outlet
and refer servicing to qualified service person-
nel under thee following conditions:
A. When the power-supply cord or plug is
damaged,
B. If liquid has been spilled, or objects have
fallen into the apparatus,
C. If the apparatus has been exposed to rain
or water,
D. If the apparatus does not operate normally
by following the operating instructions. Adjust
only those controls that are covered by the
operating instructions as an improper adjust-
ment of other controls may result in damage
and will often require extensive work by a
qualified technician to restore the apparatus
to its normal operation,
E. If the apparatus has been dropped or dam-
aged in any way, and
F. When the apparatus exhibits a distinct
change in performance this indicates a need
for service.
17. Object and Liquid Entry
Never push objects of any kind into the ap-
paratus through openings as they may touch
dangerous voltage points or short-out parts
that could result in a fire or electric shock. The
apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids,
such as vases shall be placed on the appara-
tus. No naked flame sources such as lighted
candles etc., should never be placed on the
apparatus.
18. Batteries
Always consider the environmental issues and
follow local regulations when disposing of
batteries.
19. The power supply and power cord for this
apparatus is intended for indoor use only.
VIKTIGA SÄKERHETSFÖRESKRIFTER
1. Läs igenom dessa anvisningar.
2. Spara dessa anvisningar.
3. Respektera samtliga varningar.
4. Följ samtliga anvisningar.
5. Använd ej produkten i närheten av vatten.
6. Rengör endast med torr trasa.
7. Drifttemperatur (˚C) 5–40
Luftfuktighet (%) ingen kondens 30–90
8. Blockera ej ventilationsöppningarna. Följ
tillverkarens anvisningar när du installerar
produkten.
9. Minsta avstånd runt apparaten för tillräck-
lig ventilation, 10cm.
10. Ventilationen får inte hindras genom att
täcka över ventilationsöppningarna med
föremål såsom tidningar, dukar, gardiner
m.m.
11. Installera ej produkten nära värmekällor
såsom element, varmluftsutsläpp, spisar
eller annan värmealstrande utrustning (t ex
förstärkare).
12. Skydda nätsladden från tramp- och
klämskador, i synnerhet vid anslutningen till
stickkontakten, vid grenuttag och där sladden
är fäst i produkten.
13. Använd endast den extrautrustning och de
tillbehör som tillverkaren rekommenderar.
14. Drag ur produktens nätkontakt vid
åskväder eller då produkten ej används under
längre tid.
15. All service ska utföras av särskilt utbildad
servicepersonal. Service erfordras då produk-
ten har utsatts för skada. Exempel är skador
på nätsladden eller dess kontakt, att vätska
spillts eller främmande föremål kommit in i
produkten, att produkten utsatts för regn eller
fukt, att den inte fungerar normalt eller att
den har tappats.
16. Skador som erfordrar service
Drag ut produktens nätkontakt ur väggutta-
get och låt särskilt utbildad servicepersonal
ombesörja service då något av följande
inträffar:
A. Om nätsladden eller dess kontakt skadats,
B. Om vätska spillts eller främmande föremål
kommit in i produkten,
C. Om produkten utsätts för regn eller vatten,
D. Om produkten ej fungerar normalt då den
används enligt bruksanvisningen. Justera
enbart med de reglage som omfattas av
bruksanvisningen. Felaktig justering med
andra reglage kan orsaka skador som ofta
fordrar omfattande arbete av särskilt utbildad
reparatör för att få utrustningen att fungera
normalt igen,
E. Om produkten har tappats eller skadats på
något sätt, samt
F. Om produkten prestanda förändras påtag-
ligt indikerar detta behov av service.
17. Införande av föremål och vätska
Inga som helst föremål får införas i produk-
ten genom dess öppningar, eftersom de kan
komma i beröring med komponenter som står
under farlig spänning eller orsaka kortslut-
ning, vilket kan vålla brand eller elektrisk stöt.
Produkten får ej utsättas för vätskedropp
eller stänk. Inga vätskefyllda föremål som t
ex blomvaser får ställas på utrustningen. Inga
öppna lågor, t.ex. tända stearinljus m.m. får
aldrig placeras på apparaten.
18. Batterier
Visa alltid miljöhänsyn och följ lokala bestäm-
melser vid avfallshantering av batterier.
19. Se till att det finns tillräcklig ventilation om
du installerar produkten i kringbyggda utrym-
men, exempelvis bokhyllor eller rack. Lämna
ett avstånd på 20 cm över och på ömse
sidor om produkten och 10 cm bakom den.
Bakkanten av hyllplan eller skiva som ligger
närmast ovanför produkten ska dras fram så
att det uppstår en glipa på cirka 10 cm till den
bakre plattan eller väggen. På så vis bildas en
utsugsliknande kanal där uppvärmd luft kan
strömma upp.
20. Använd endast medföljande strömsladd.
WICHTIGE SICHERHEITSHINWEISE
1. Lesen Sie bitte diese Hinweise gründlich
durch.
2. Bewahren sie diese Bedienungsanleitung
sorgfältig auf.
3. Beherzigen Sie alle Warnhinweise.
4. Befolgen Sie sämtliche Instruktionen.
5. Verwenden Sie dieses Gerät nie in der Nähe
von Wasser
(Badezimmer, Schwimmbecken, Ufer).
6. Reinigen sie das Gerät nur mit einem
weichen, trockenen,
nicht fusselnden Tuch.
7. Betriebstemperatur (˚C): 5–40
Luftfeuchtigkeit (%, nicht kondensierend):
30–90
8. Die Lüftungsschlitze dürfen nicht verdeckt
sein daher auch bitte keine Gegenstände
auf dem Gerät oder unter der Bodenplatte
ablegen (Kassettenschachteln, CD-Schatul-
len, Plattenhüllen, Bedienungsanleitungen,
Programmzeitschriften etc.) denn diese
behindern die Durchlüftung und somit die
Kühlung der Bauteile im Innern. Nehmen Sie
das Gerät nur an den vom Hersteller erlaubten
Orten in Betrieb.
9. Mindestabstand um das Gerät für ausre-
ichende Lüftung: 10 cm.
10. Die Lüftung sollte nicht durch Abdecken
der Lüftungsöffnungen mit Gegenständen wie
beispielsweise Zeitungen, Tischtüchern oder
Vorhängen blockiert werden.
11. Betreiben Sie das Gerät niemals in der
Nähe von starken Wärmequellen wie etwa
Heizstrahlern, Öfen und Herden oder anderen
Wärme erzeugenden Geräten (z.B. HiFi-End-
stufen).
12. Mit dem Netzkabel vorsichtig umgehen
stets so legen, dass man nicht drauf treten
kann, auch nicht unter Teppichböden verlegen
und darauf achten, dass es nirgends geknickt
wird, vor allem nicht in Stecker- bzw. Steck-
dosennähe oder dort, wo es aus dem Gerät
kommt.
13. Verwenden Sie bitte nur vom Hersteller
zugelassenes bzw. empfohlenes Zubehör.
14. Bei Unwetter oder Gewitter trennen sie das
Gerät durch Ziehen des Steckers bitte ganz
vom Stromnetz und auch dann wenn sie es
länger nicht benutzen.
15. Das Gehäuse nicht öffnen die Kompo-
nenten im Geräteinneren können und dürfen
nur von autorisiertem Fachpersonal gewartet
und repariert werden. Bei jeglichen Änderun-
gen am Gerät erlischt der Garantieanspruch.
Sollte versehentlich Wasser oder ein Metall-
gegenstand (Büroklammer, Heftklammer,
Draht) in das Gehäuse fallen, ziehen Sie bitte
sofort den Netzstecker aus der Dose und
bringen das Gerät zu einer Vertragswerkstatt.
Dasselbe gilt für den Fall, dass das Netzkabel
schadhaft sein sollte, Flüssigkeit ins Gehäuse
gelangen, das Gerät nass wird oder intensiver
Luftfeuchtigkeit ausgesetzt war, bzw. nicht
mehr einwandfrei arbeitet oder herunterge-
fallen ist.
16. Bei Schäden, die eine Reparatur durch
Fachkräfte erfordern, trennen Sie das Gerät
bitte durch Ziehen des Steckers vollständig
vom Netz und wenden sich an den Kundendi-
enst, und zwar stets dann, wenn:
A. Das Netzgerät oder das Netzkabel bes-
chädigt sind,
B. Flüssigkeit über das Gerät verschüttet
wurde oder Gegenstände ins Gerät gefallen
sind,
C. Das Gerät im Regen stand bzw. Spritzwas-
ser oder starker Luftfeuchtigkeit ausgesetzt
war,
D. Das Gerät nicht einwandfrei funktioniert,
obwohl Sie sich an die Bedienungsanleitung
halten (betätigen Sie bitte alle Bedienungse-
lemente nur so, wie in der Bedienungsan-
leitung angegeben, denn unsachgemäße
Handhabung kann teure Reparaturen durch
Fachkräfte erfordern),
E. Falls das Gerät heruntergefallen ist oder auf
sonstige Weise beschädigt wurde und
F. Das Gerät nicht mehr die gewohnte Leis-
tung bringt (Empfang, Tonqualität, Bedienung
etc.).
17. Fernhalten von Gegenständen und Flüssig-
keiten aus dem
Geräteinneren Versuchen Sie niemals, mit
irgendwelchen Gegenständen durch die
Öffnungen des Geräts im Inneren herumzus-
tochern, denn dabei laufen Sie Gefahr,
spannungsführende Teile zu berühren oder
kurzuschließen, was zu
einem lebensgefährlichem Stromschlag
führen kann.
Nasse oder tropfende Gegenstände bitte vom
Gerät fernhalten, ebenso flüssigkeitsgefüllte
offene Behälter (Gläser, Blumenvasen), und
diese vor allem niemals auf dem Gerät abstel-
len. Offenes Feuer, beispielsweise Kerzen, darf
nicht auf dem Gerät platziert werden.
18. Akkupack
Beim Entsorgen des Akkupacks beachten Sie
bitte die jeweils gültigen Umweltvorschriften.
19. Bitte achten Sie beim Aufstellen darauf,
dass zur Belüftung des Gerätes oben und
unten genügend Abstand bleibt: ca. 20 cm
oberhalb und an beiden Seiten des Geräts
sowie etwa 10 cm auf der Rückseite. Sonst
werden die elektronischen und mechanischen
Bauteile nicht genügend gekühlt. Sofern das
Gerät in einem Schrank oder einem Regal be-
trieben werden soll, achten Sie bitte auf aus-
reichende Luftzufuhr und Entlüftung. Dabei
sollte die rückwärtige Kante des Regalbretts
oberhalb vom Gerät von der Regalrückwand
rund 10 cm entfernt sein, damit warme Luft
nach oben abziehen kann.
20. Netzteil und Kabel sind nur für den Ge-
brauch in geschlossenen Räumen und nicht
für den Betrieb im Freien geeignet.
21. Verwenden Sie bitte NUR das mitgelieferte
Netzteil.
FCC ID: 2AGNC - C10
FCC WARNING
Any Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interfer-
ence received, including
interference that may cause undesired
operation.
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.This equipment
should be installed and operated with minimum
distance 20cm between the radiator & your
body.
Note: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to part 15
of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined
by turning the equipment o and on,
the user is encouraged to try to correct
the interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet
on a circuit dierent
ww
www.audiopro.com | www.audiopro.se
www.facebook.com/audiopro

Navigation menu
