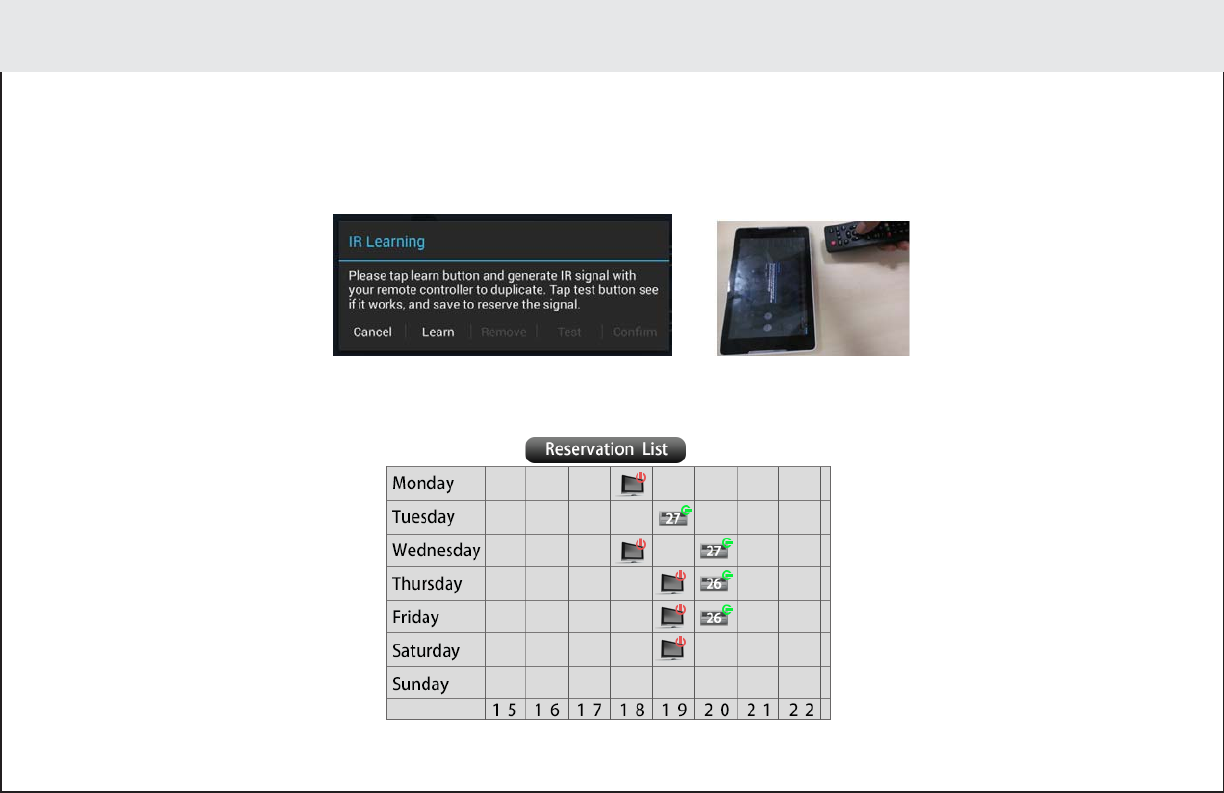

3.20.2 IR Learning 39
3.20.3 Reservation 40
3.20.4 Reservation Setup 41
3.20.5 Mobile remote control 42
3.20.6 Motion detection 45
3.21 Home care 47
3.22 Widisplay 54
3.22.1 Source 54
3.22.2 Sink 56
3.22.3 Attentions 58

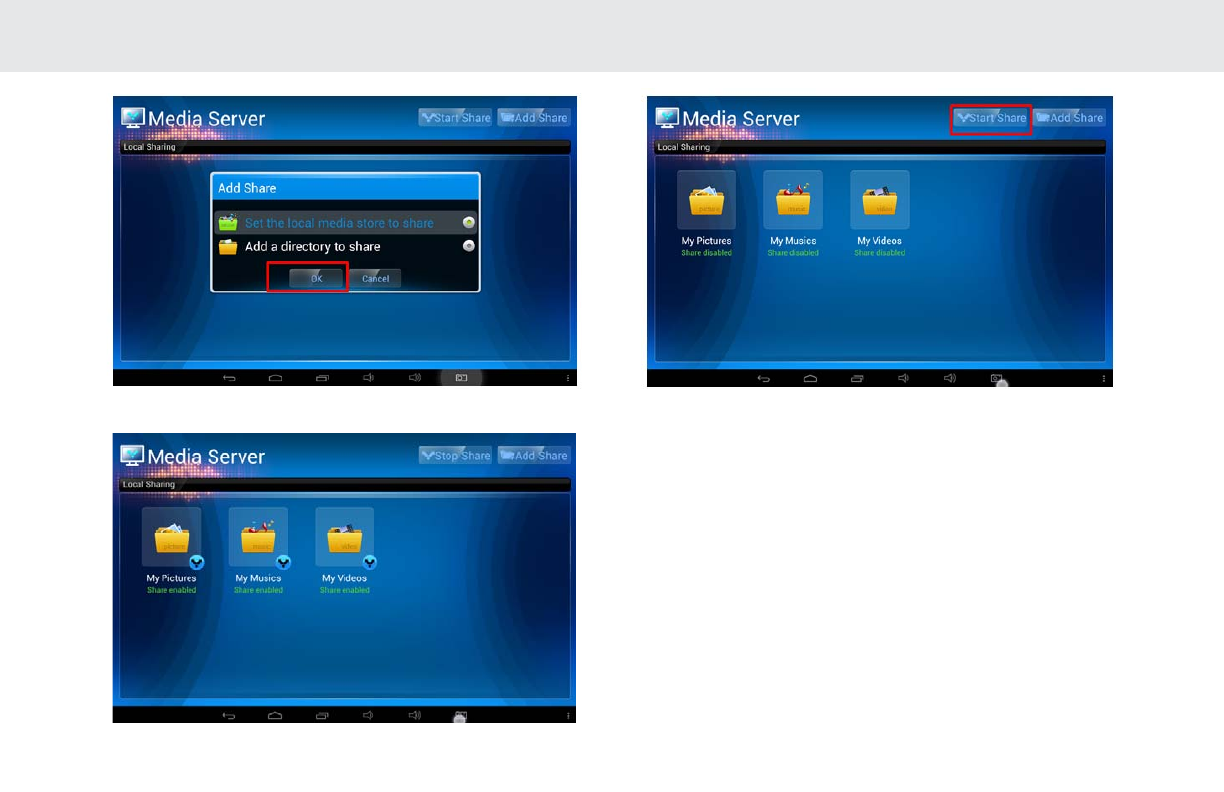

3.23 DLNA 60
3.23.1 Wi-Fi connection 60
3.22.2 The brief introduction of interactions between tablet and modile phone 63
4 THE CONNECTION BETWEEN DOCK PHONE AND TABLE 67
4.1 Voice call Services 68
4.1.1 Making a call 68
4.1.2 Answering a call 69
4.1.3 Ending a call 69
4.1.4 Selecting area code 69
4.1.5 Favorites 70
4.1.6 Memo 70
4.1.7 Importing/exporting contacts 70
4.1.8 Changing ringtones 71
4.1.9 Contacts 71
4.2 Dock phone entertainment functions 73
4.2.1The speaker box function 73
4.3 Dock Phone Wi Function 77
4.3.1 Interface Specication 77
4.3.2 Function and Conguration of WI-FI router 77
4.3.3 Wi-Fi router conguration interface 78

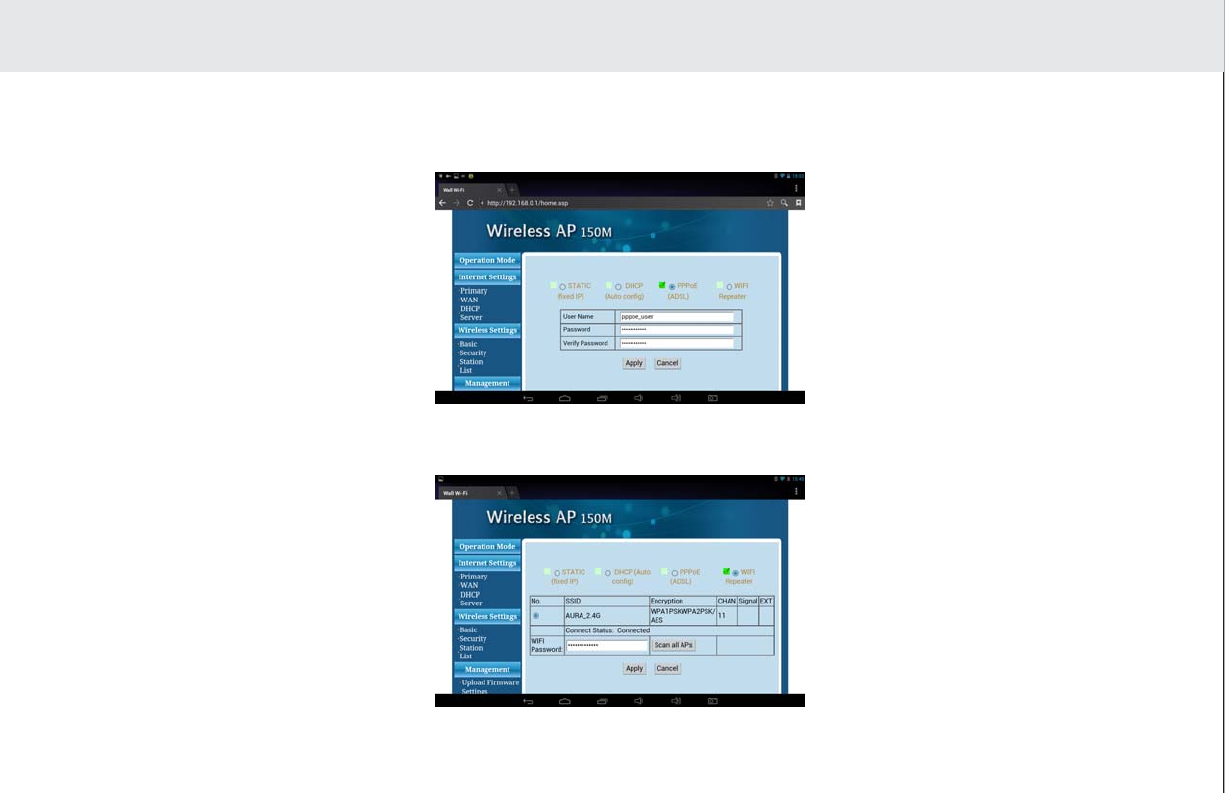

4.3.4 Setting of wired broadband internet parameters 79
4.3.5 WiFi basic setting 82
4.3.6 The restoration of wireless router to factory setting 82
4.3.7 To charge through dock phone USB 5V output 82
5 BASIC TROUBLESHOOTING FOR THE TELPAD 83
5.1 Tablet not powering up 84
5.2 No dial tone 84
5.3 Distorted audio on speaker 84
5.4 Tablet Dialler cannot make a call 84
5.5 No audio response in the Handset 84
6 FAQs 85
7 WARNINGS AND PRECAUTIONS 91
8 PERSONAL INFORMATION AND DATA SECURITY 96
9 LEGAL NOTICE 98
10 DISCLAIMER OF WARRANTIES 100
11 INDEX 102
1 GETTING STARTED
1.1 About your TELPAD
The Telpad is the world’s rst Tablet and landline in one, a device that that not only gives you access to basic
communication services, but also brings to your home a world of productivity and entertainment – powered
by Android™, the world’s leader in smartphone technology. With its stunning 7 inch touchscreen display, sleek
design, built-in camera & Wi-Fi, and access to hundreds of thousands of free and paid Android™ Apps, the
Telpad is denitely a device you will want to become acquainted with to be able to maximize its full set of
features!
02
2
TELPAD INTRODUCTION

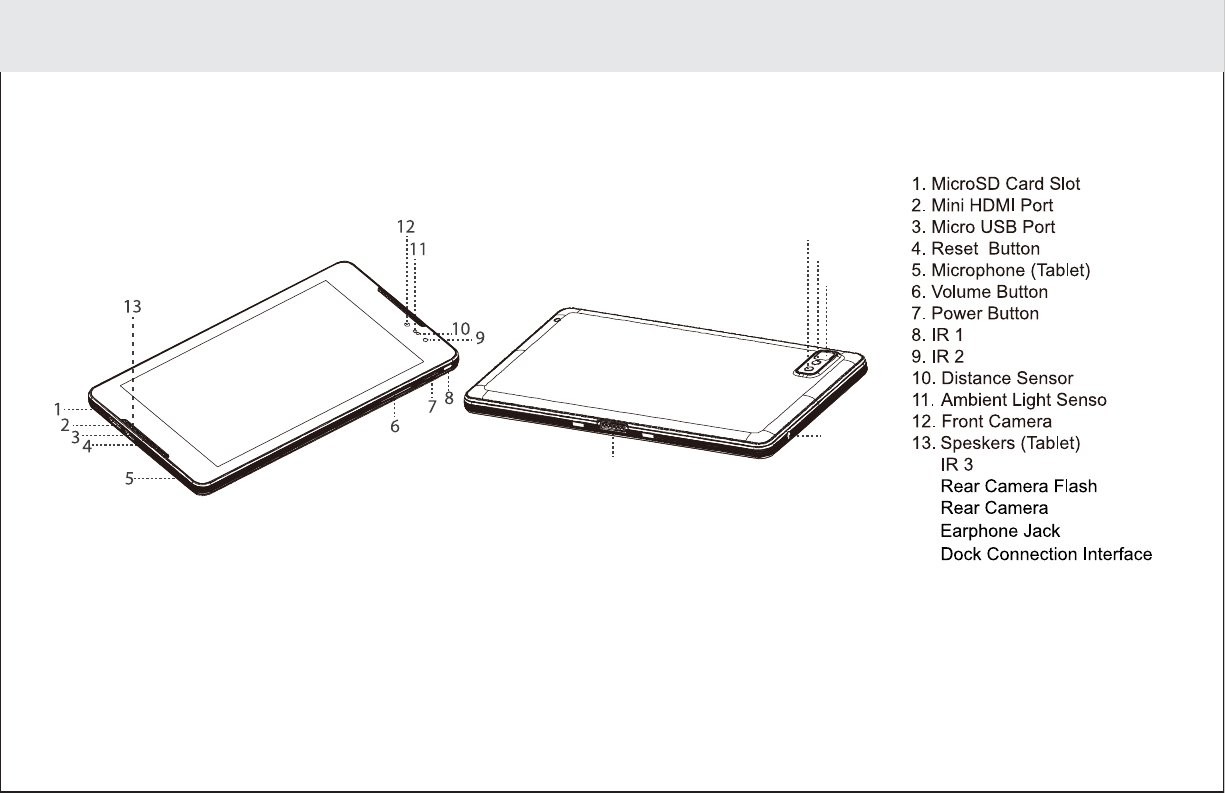

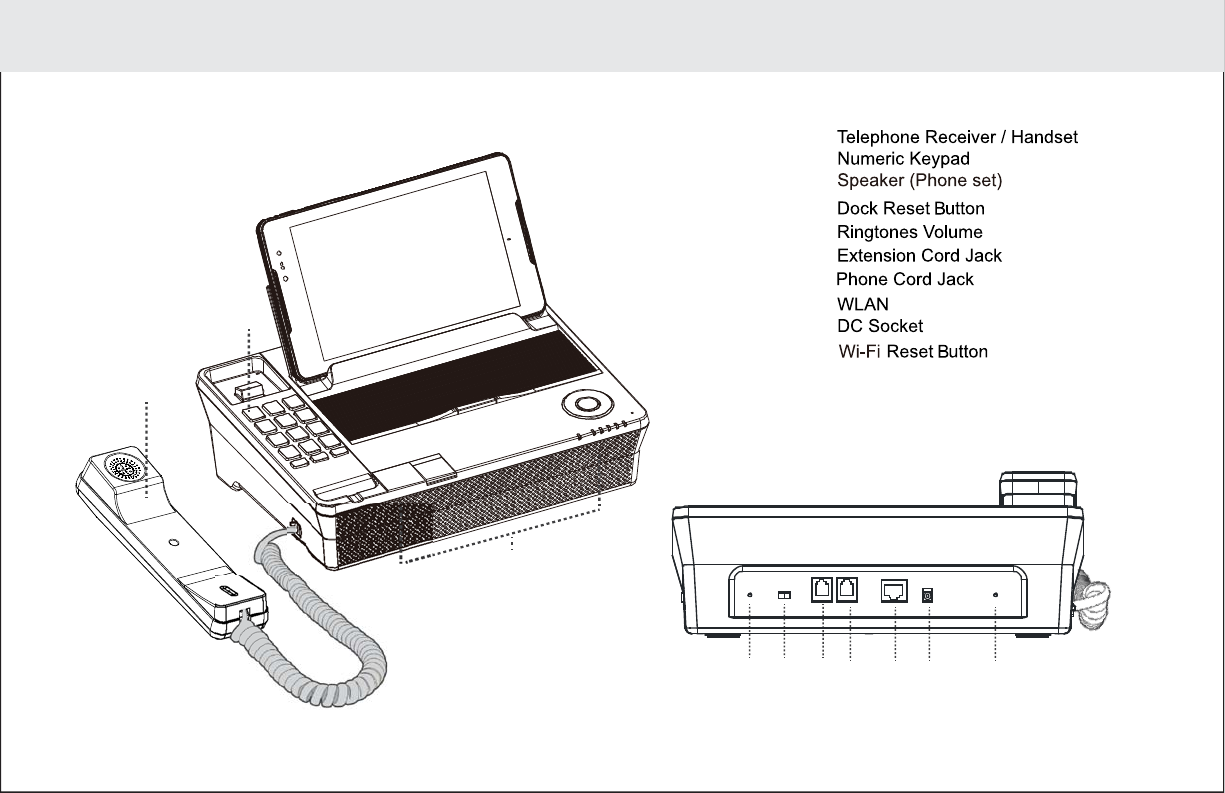

2.1 Getting to know your TELPAD
14
15
16
17
18
14.
15.
16.
17.
18.
04
19
20
21
22 23 24 25 26 27 28
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
05

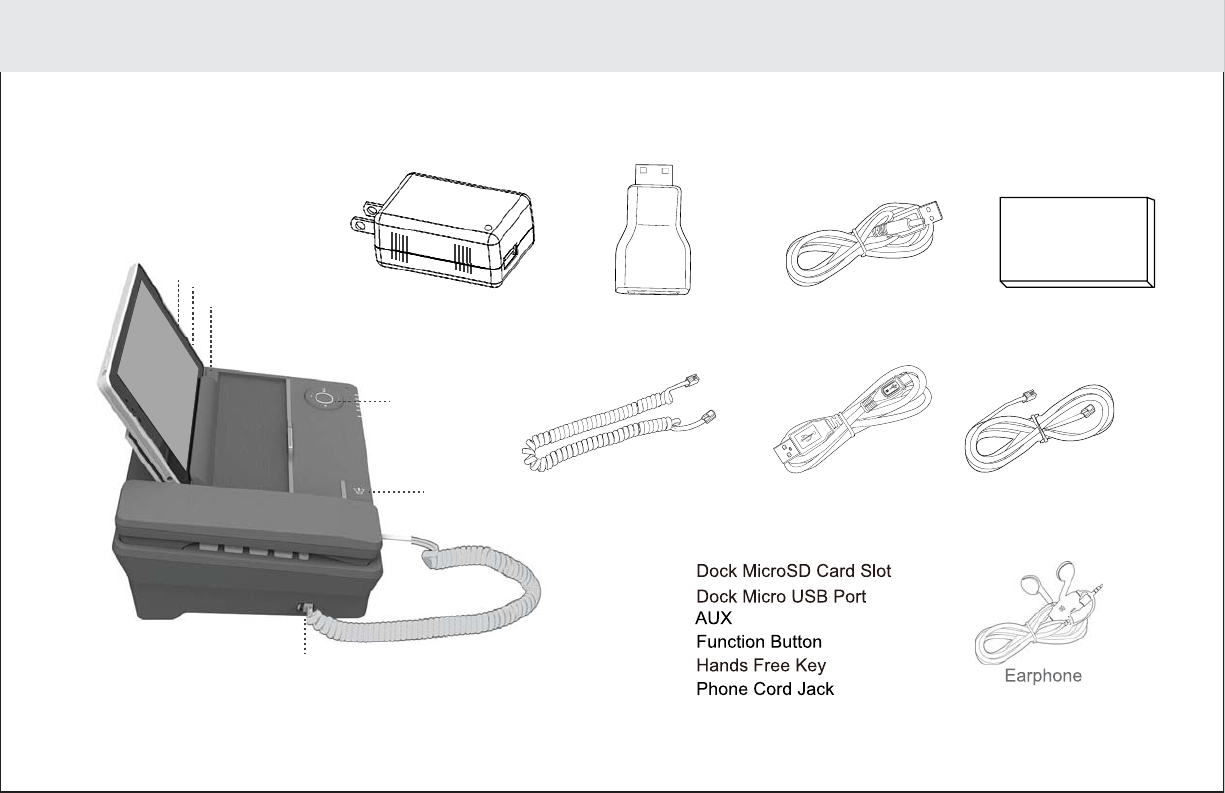

Accessories
USB Data Cable
Coiled Phone Cord Phone Line
HDMI ConverterUSB Charger USB Power Cable DC4.0 Battery
29
3031
32
33
34
29.
30.
31.
32.
33.
34.
06
2.2 Product Speciciation
GENERAL SPECIFICATIONS AND DISPLAY
DIMENSION 114 mm x 193 mm x 10 mm
7 Inch HD IPS (1280X800)DISPLAY AND RESOLUTION
Android™ 4.2.2 SYSTEM SOFTWARE
Wi-Fi - 802.11b/g/n
24-bit
AIR INTERFACE
Capacitive 5-Points-Touch MULTI-TOUCH PANEL
3 Standard Soft Keys: Home, Back, Recent Applications PRIMARY KEYPAD
DISPLAY COLOR DEPTH
CONNECTIVITY
BLUETOOTH Bluetooth 4.0 + EDR
Micro USB OTG USB
HDMI V 1.4A / Supports 3D outputDIGITAL TV OUT
Built-in-speaker SPEAKER
Built-in-microphone MICROPHONE
3-Axis Accelerometer for UI Auto Rotate Ambient Light sensor SENSOR
Standard 3.5 mm headphone jack AUDIO OUT
HANDSET
PSTN Support (POTS) RJ9 (4P4C)
Built-in SPEAKER
Built-inMICROPHONE
07
SMART DIALER
PSTN
Call Hold
Speed Dial
Speaker
Volume Adjustment
COMMUNICATION AND ORGANIZER
EMAIL Protocols: SMTP, POP3 and IMAP4
Supports Exchange Calendar, Contacts synchronous
MEDIA PERFORMANCE
VIDEO DECODING
AUDIO DECODING
3GPP2, 3GPP, RMV, TS, 3GP, VOB, AVI, MP4, FLV, WMV, MKV
AAC, AMR, APE, FLAC, MID, MP3, OGG, WAV, WMA
PICTURE FORMATS
STREAMING MEDIA
JPEG, JPG, BMP, PNG
RTSP/HTTP, Support Download play, Progressive play
BATTERY AND POWER
TABLET BATTERY STD Lithium-Ion Polymer battery, 5500 mAh rechargeable
STD Lithium-Ion Polymer battery, 1000 mAh rechargeable DOCK BATTERY
Input - 100 -240 Vac, Output – 5V DC/2.1A 10.5 W POWER ADAPTER
08

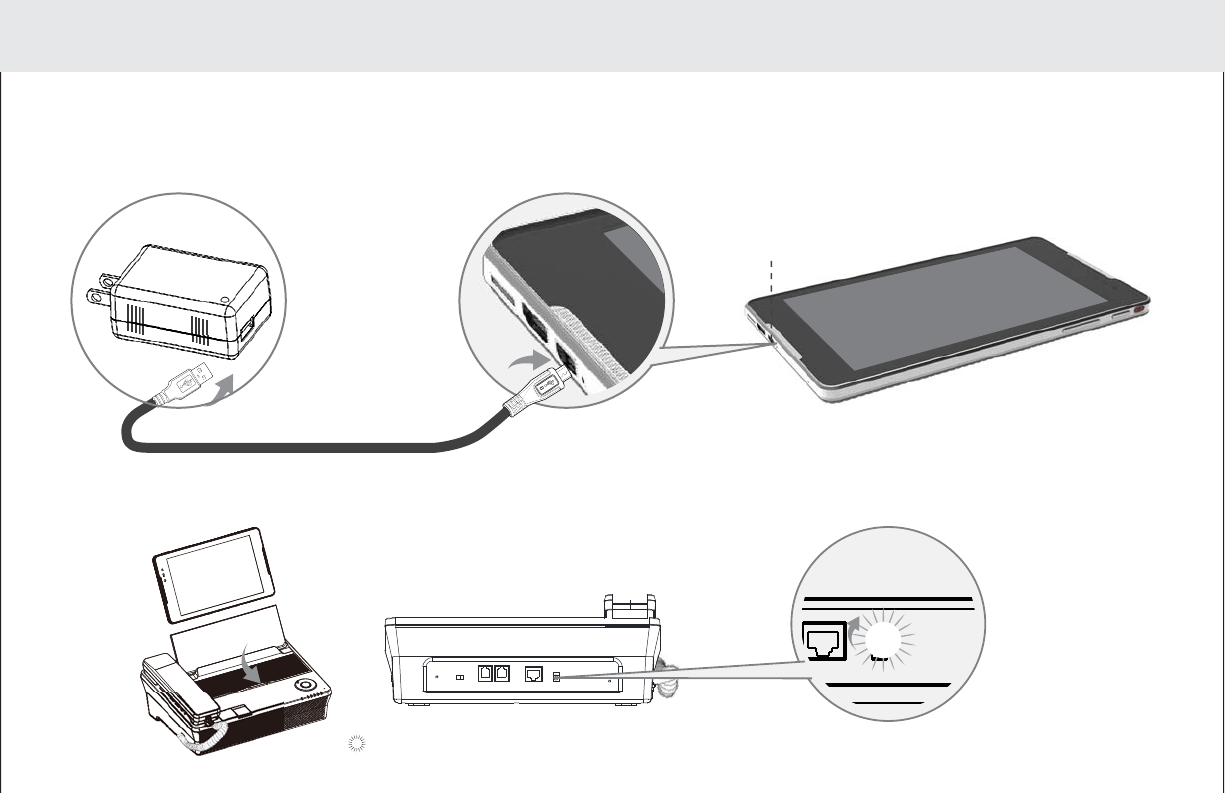

2.3 Installation
DC power adapter
telephone jack
USB charger
extension
cord jack
line 1
WLAN

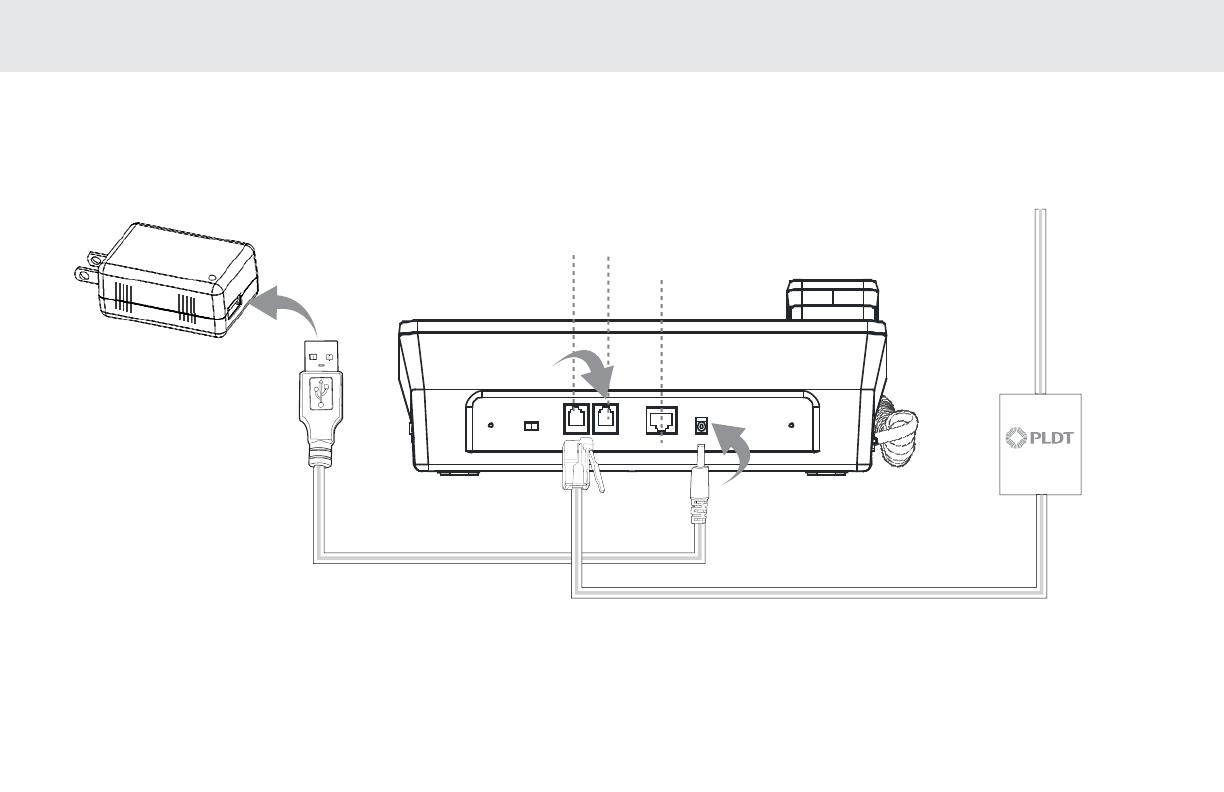

2.3.1 Basic Installation
Before installing or removing the adapter, telephone line or the dock battery, ensure the tablet is o the dock.
09

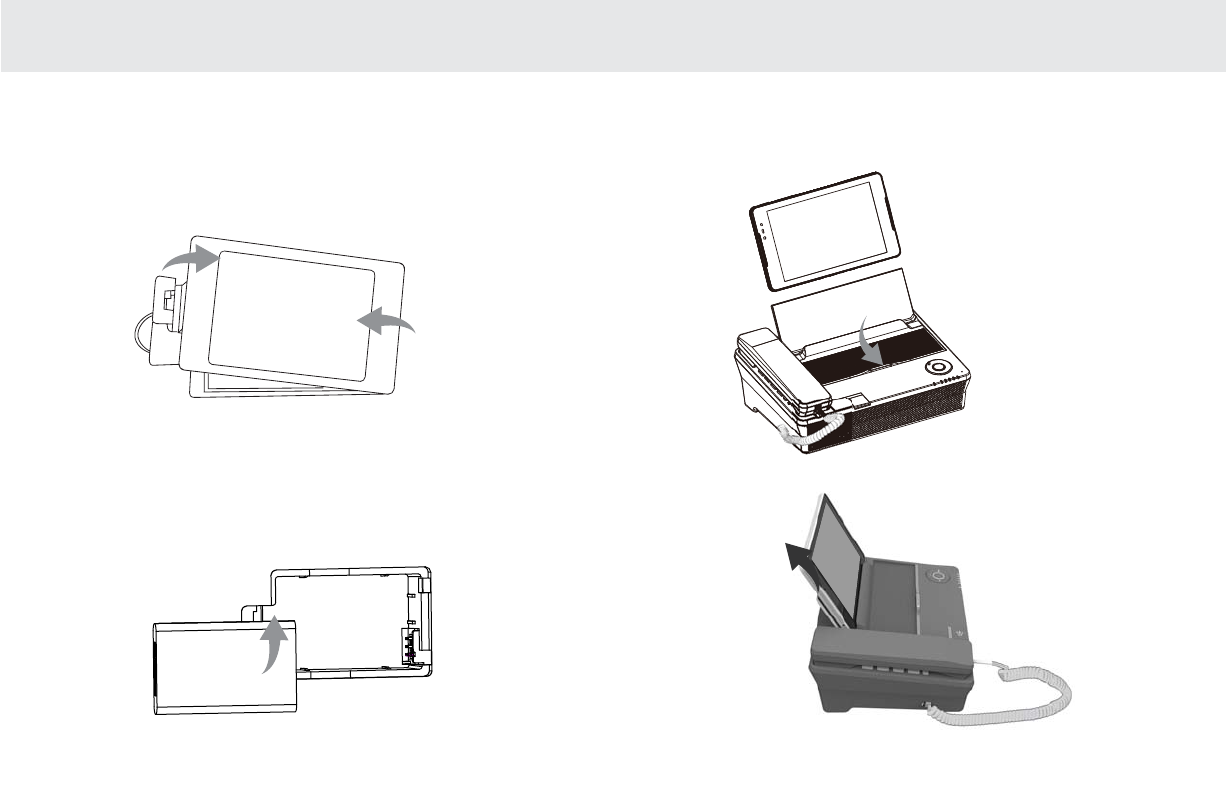

2.3.2 Installing the dock battery 2.3.3 Docking and undocking the Tablet
1. Removing the back cover
To remove the back cover,
refer to the following gure.
2. Installing the battery
To install the battery,
refer to the following gure.
1
2
To install the tablet on to the dock, refer to
the following gure.
To remove the tablet from the dock, do as shown
in this gure.
10
3
TABLET FUNCTIONS

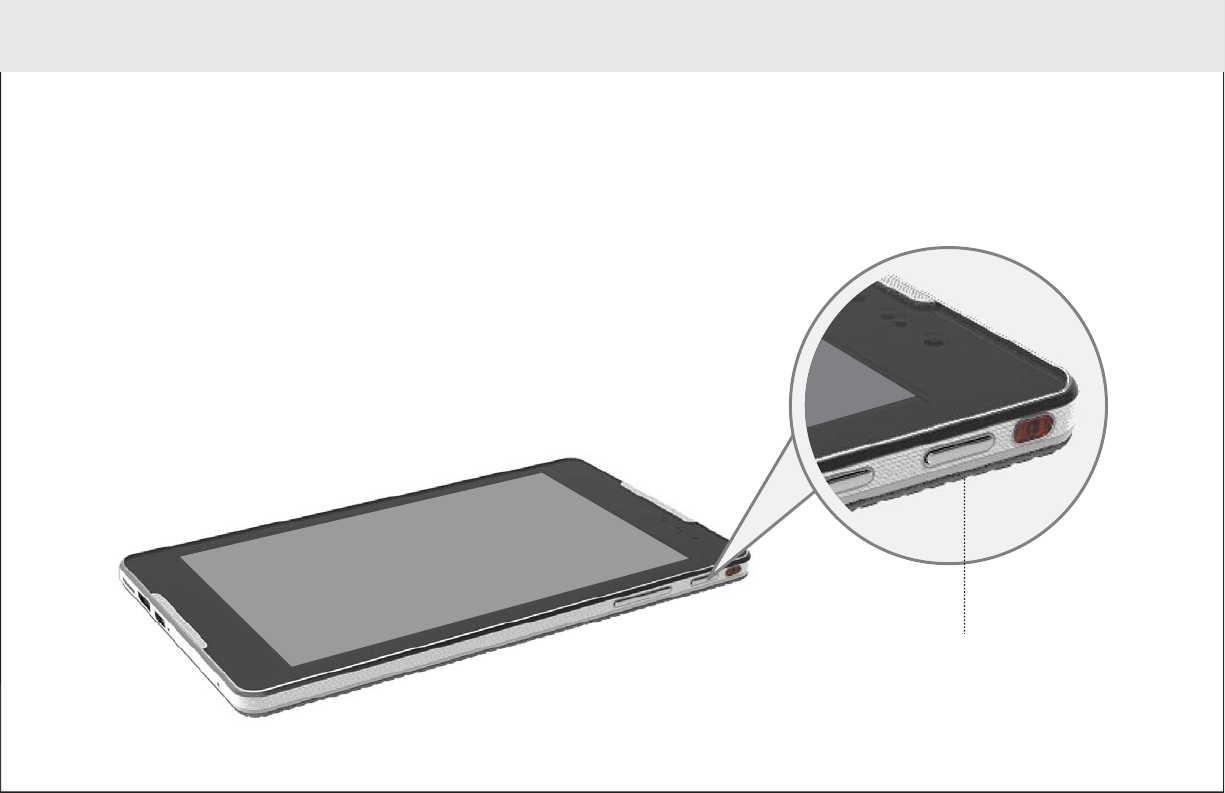

Power key
3.1.1 To turn on your Tablet
Before you turn on your tablet. ensure that the battery is correctly installed or the Tablet is properly connected to the
power supply.
To turn on your tablet, press the Power key.
3.1.2 To turn the Tablet o
1. Press and hold Power key to open the Tablet options menu.
2. Choose Shut Down.
3. Touch OK to conrm shutdown.
3.1 Turning the Tablet on or o
12
USB power cable
3.2.1 Charging the tablet battery
The Tablet is powered by a rechargeable Li-ion battery. There are two ways to charge the Tablet:
1. Place the Tablet on the dock with the power cord supplying power to the dock.

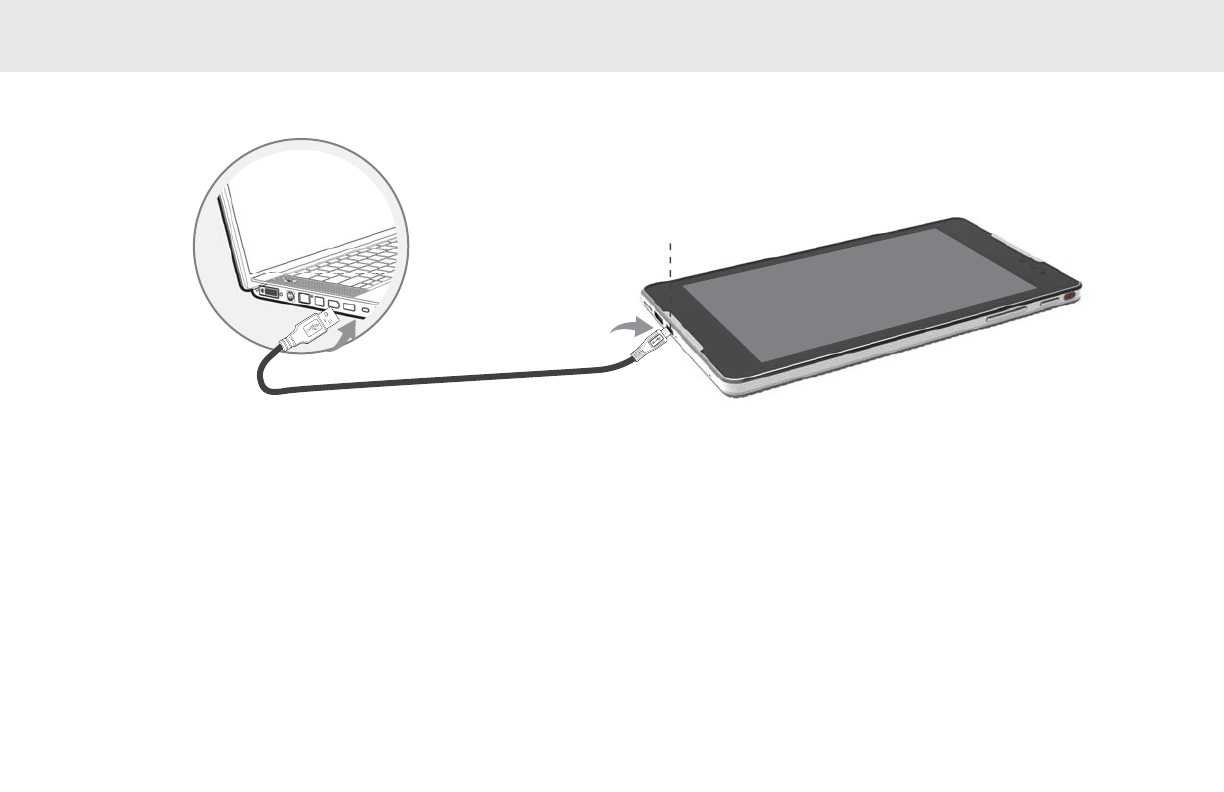

2. Turn the Tablet o, and connect the Tablet to adapter using a USB cable.
3.2.2 Charging the dock battery
Before charging the battery, ensure that the battery is properly installed in your dock.
Connect the dock to the power adapter, as shown in the following gure:
The Tablet also starts charging after being correctly installed on the Dock
USB Micro port
3.2 Charging the battery
13
3.3.2 Working the touchscreen keys
Back
Touch to return to the previous screen.
Touch to exit from the running application.
If the on-screen keyboard is open, touch to close the keyboard.
Home
Touch to open the Home screen. It will bring you to the rst panel of the Home screen.
Navigation
Touch to open a list of thumbnail images displaying recently operated apps.
Touch the thumbnail image of the app to open it.
Touch and hold and ick o rightward to remove the app from the list.
Increase sound Decrease sound
Press to increase sound press to decrease sound

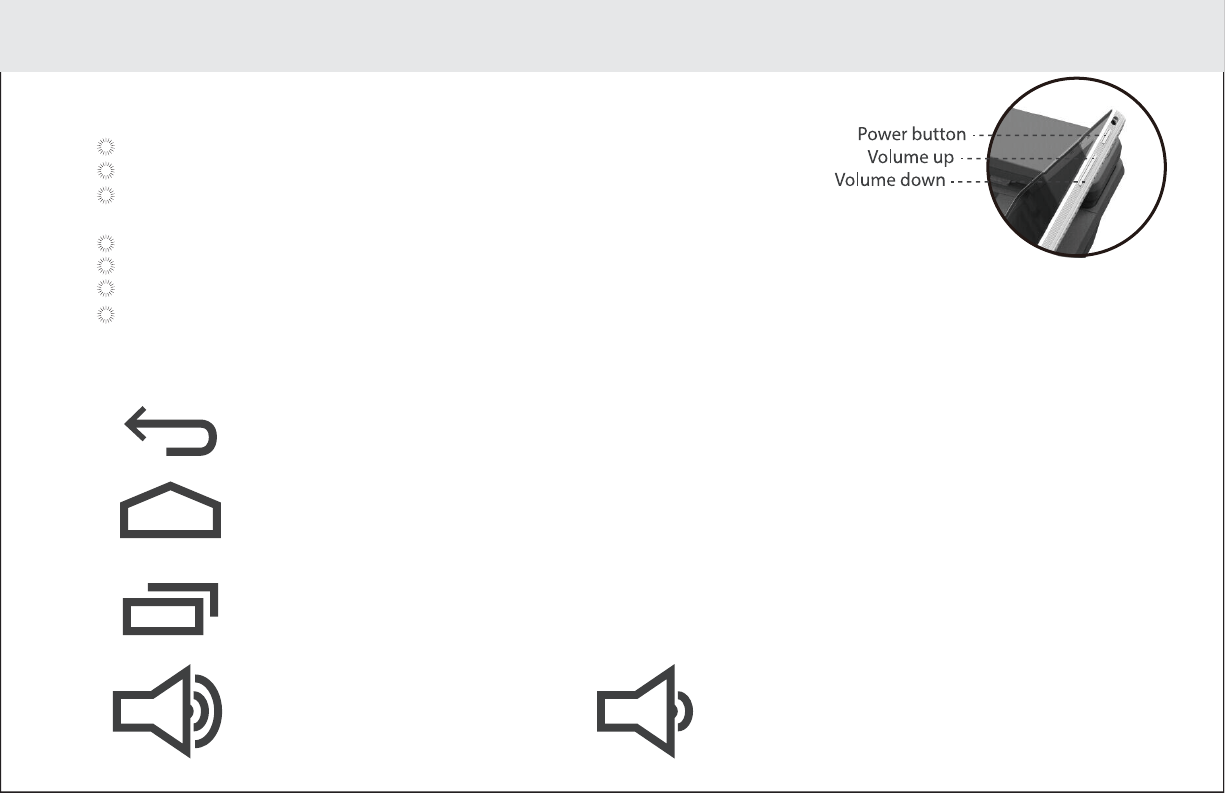

3.3.1 Using the physical keys
Power
Press and hold to power the Tablet on or o.
Press shortly to lock/unlock the screen.
Press and hold to open a menu displaying options for Silent mode and Power o
Volume Up/Down
When the Tablet is ringing, press any of the volume buttons if you want to mute the ringer.
On the Home screen, press to increase of decrease the ringtone volume, or set the Tablet to silent mode.
When using other applications, press to control the volume of music, spoken directions, and other audio sounds.
Press and hold to immediately adjust the ringtone volume to the maximum, or minimum.
3.3 Working with the keys
14

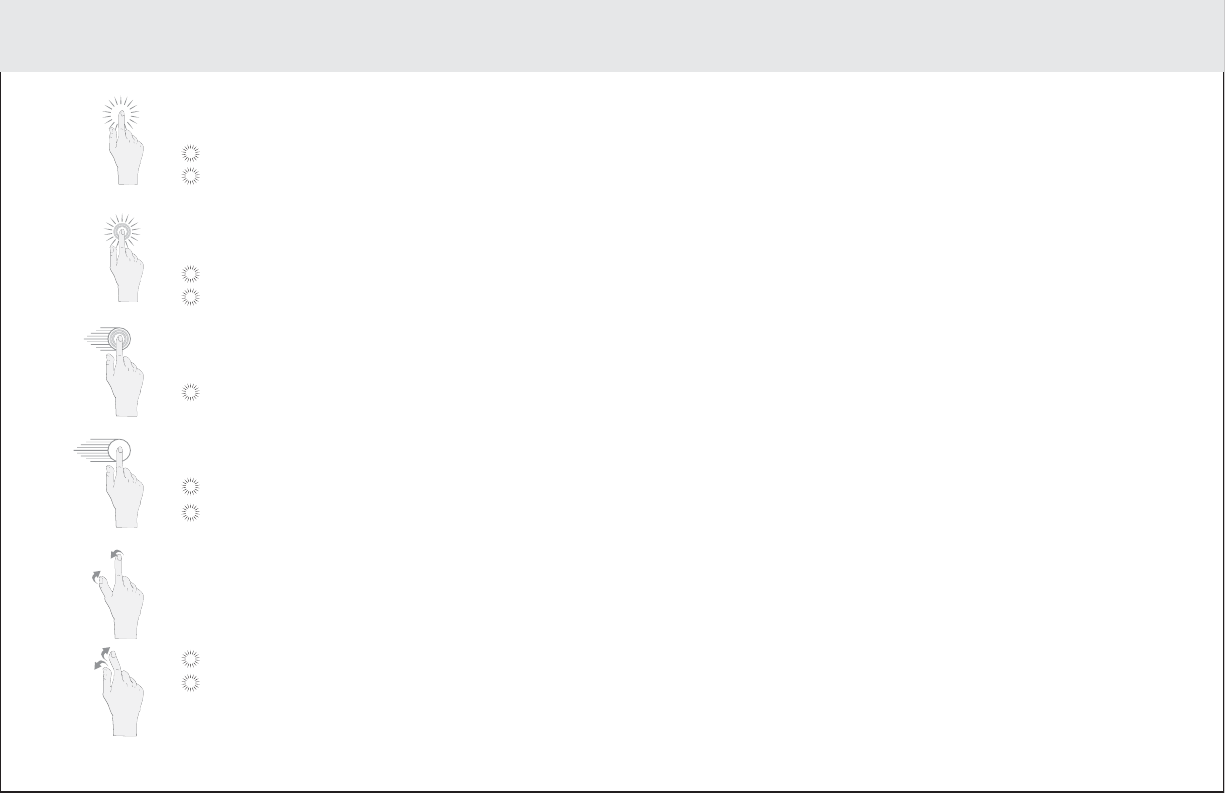

Touch
By touching an item, you can select the item or launch it. For example:
Touch the on-screen keyboard to insert text and/or characters.
Touch an application icon to launch it.
Touch and Hold
Touching and holding items will activate them. For example:
Touch and hold an application/widget to move it.
Touch and hold on a eld and a menu with options will pop up.
Drag
Touch and hold an item, move your nger on the screen to the target position.
Dragging a shortcut icon to the trash will delete it.
Flick, Slide, Swipe
Change screens by icking, sliding, and swiping your nger on the screen. For example:
Slide your nger to unlock the screen
Flick and/or swipe your nger to scroll the screen or menu, to move from screen to screen, or to view next object in
the gallery.
Pinch
Using two ngers (like your thumb and index nger), pinching inward will cause the screen to zoom out; pinching
outward will cause the screen to zoom in. For example:
Pinch outward to see zoomed in details of a photo in Gallery.
Pinch inward to zoom out and see the whole page of a browser.
3.4 Using the touchscreen
15
The Home screen is the starting point in using the Tablet
Touch the Home key to display the Home screen. You can customize the Home screen with various
wallpapers and create shortcuts for items you want to easily access.
3.5 Home screen
3.5.1 Getting to know the Home screen

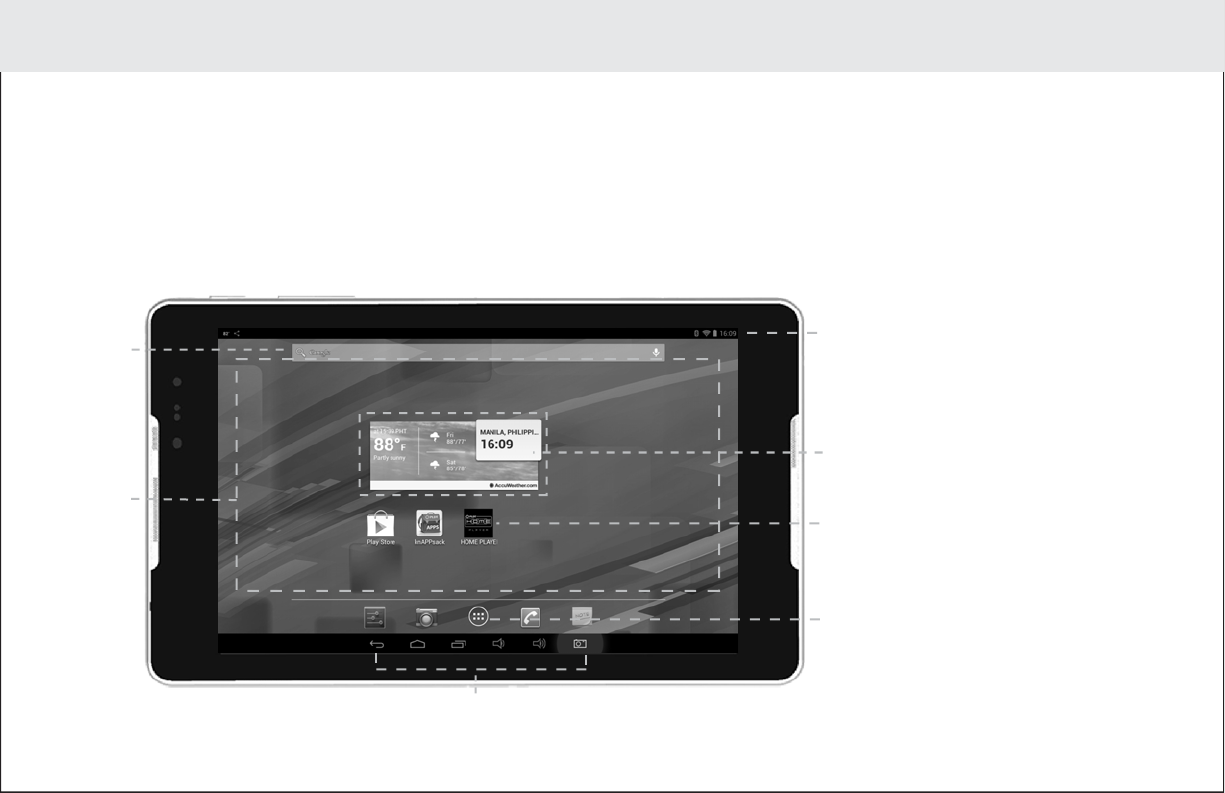

1. Main display area
2. Google Search
3. Weather &Clock Widgets
4. Short Cut Buttons
5. Touch Screen Keys
6. Status Bar
7. Application Button
7
1
2
5
3
4
6
16
3.5.3 Customizing the Home screen
Slide your nger horizontally across to the left or the right of your main Home screen to see your additional home
screens. These screens provide more space for shortcuts or widgets. The small indicator shows the current position.
The Home touchscreen button brings the screen back to your main Home screen.
3.5.2 Home screen extensions
1Main display area: This area displays application shortcuts, widgets, and other items that can
be easily accessed by touching them.
2Google Search： Touch to search using Google, or touch the microphone to search
using your commands.
3Weather Widgets: The weather widget informs you of the time, date, and weather in your location.
It can be customized based on your preference.
4Short Cut Buttons: These are shortcuts for various applications. You may change and customize
these according to your needs.
5
6
Touch Screen Keys: Back, Home, Navigation, Volume Down, Volume Up
Status bar: It shows the status of the device such as Wi-Fi connection status, battery status, and
other information. You can touch to open a more detailed status menu.
7Applications button: Touch to open the Applications screen, where you can view the applications
installed on the Tablet. Touch any application icon to run it.
To change your wallpaper:
1 On the Home screen, press the Menu key and touch Wallpaper on the bottom menu.
2 Choose one of the following steps from the pop-up menu.
Live wallpapers to select a wallpaper with animation.
Pictures to select one of your pictures and set it as the wallpaper.
Wallpaper gallery to select one of the pre-installed wallpapers.
Gallery to select one of your pictures and set it as the wallpaper
17
When the Tablet is powered on, press the Power key and the screen will turn o and lock.
When the Tablet is left idle for a specied time period that you have set, the screen will automatically turn o and
lock.
Always lock the screen to save the battery or prevent accidental taps when the Tablet is not in use.
3.6.1 Locking the screen
When the screen is o, press the Power key to turn it back on, and then unlock the screen
If you have not set a screen lock, the screen will just turn back on when you press the power button.
If you have set up a screen lock, you will be asked to input the relevant unlocking pattern, number, or password to unlock it.
3.6.2 Unlocking the screen
To set up a screen lock, touch the Applications key from the Home screen.
Go to Settings > Personal > Security
Touch Screen lock and choose from None, Slide, Face Unlock, Pattern, PIN, or Password, and follow the instructions on the
screen to set your screen lock.
3.6.3 Setting up a screen lock
To set the time between the last screen touch or key touch and automatic screen lock,go to your the Home screen.
touch the Applications key, and touch Settings > Display >Sleep
3.6.4 Setting up a screen timeout period
3.6 Locking and unlocking the screen
18
3.7 Inputting text
You can enter and edit text in text elds and use menu commands to cut, copy, and paste text within or across
applications.
To open the onscreen keyboard, touch a text eld where you want to enter text.
To switch the input method, touch the icon located at the lower right corner of the keyboard.
The following section takes the Android™ keyboard as an example.
When you are typing, the characters you are entering will appear in a line above the keyboard, along with some
suggestions for the word you are typing. Press space or a punctuation mark to enter what you are typing, or touch the
suggestion you want to enter. You can touch and hold the leftmost word to save it to the dictionary.
To capitalize the letter you are about to type, touch the upward arrowhead key once. To capitalize all the letters,
touch the upward arrowhead key twice.
When you touch a key, a larger key will show up briey over the keyboard. Keys with alternate characters display an
ellipsis (...) below the character.
Touch and hold a vowel or the C, S, or Y key to open a small window where you can touch an accented vowel or other
alternate letters.
Touch and hold the Period key (.) to open a small window with a set of common symbol keys.
Touch the DEL key to delete a character to the left of the cursor. Touch and hold the key to delete all
characters to the left of the cursor.
Touch the Symbols key to switch to the numbers and symbols keyboard, and touch the alphabet key (ABC) to
switch back.
On the numbers and symbols keyboard, touch the ALT key to view additional symbols, and touch it again to return to
the rst numbers and symbols keyboard.
Touch and hold almost any of the number and symbol keys to open an array of additional symbols.
To edit the text you have entered, touch to move the cursor to the location where you want to add or delete text. The
cursor is a vertical bar that designates where the text you type or paste is inserted.
To close the keyboard when you are done typing, touch Go/Done button on the keyboard. Or touch the icon on
the lower left corner of the touchscreen.
3.7.1 Entering text using the onscreen keyboard
19
To quickly cut or copy all the text in a text eld:
3.7.2.1 Touch and open the text eld that contains the text that you want to cut or copy.
3.7.2.2 Touch and hold the text eld to display the Edit text menu.
3.7.2.3 Touch Select all, Cut all, or Copy all.
3.7.2.4 Touch Cut or Copy to cut or copy the text
To cut or copy selected text in a text eld:
1. Touch and hold the text that you want to cut or copy. Once the text is highlighted, tabs will appear at the ends of the
text, as well as the editing command menu.
2. Drag the respective tabs left and/or right to select the full text you want to cut or copy. The text between the tabs will
appear highlighted.
3. Touch Cut or Copy to cut or copy the selected text.
The cut or copied text will be stored in a temporary area so you can paste it into another text eld.
In order to paste the text, you must have cut or copied the text at least once. Once you have cut or copied the text, you
can paste it multiple times.
To paste the most recent text that you have cut or copied into another text eld:
1. Touch the text eld where you want to paste the text.
2. Touch the location where you want to paste the text. A tab will show up.
3. Touch the tab and the Paste option will show up.
4. Touch Paste.
3.7.2 Cutting or copying text
20

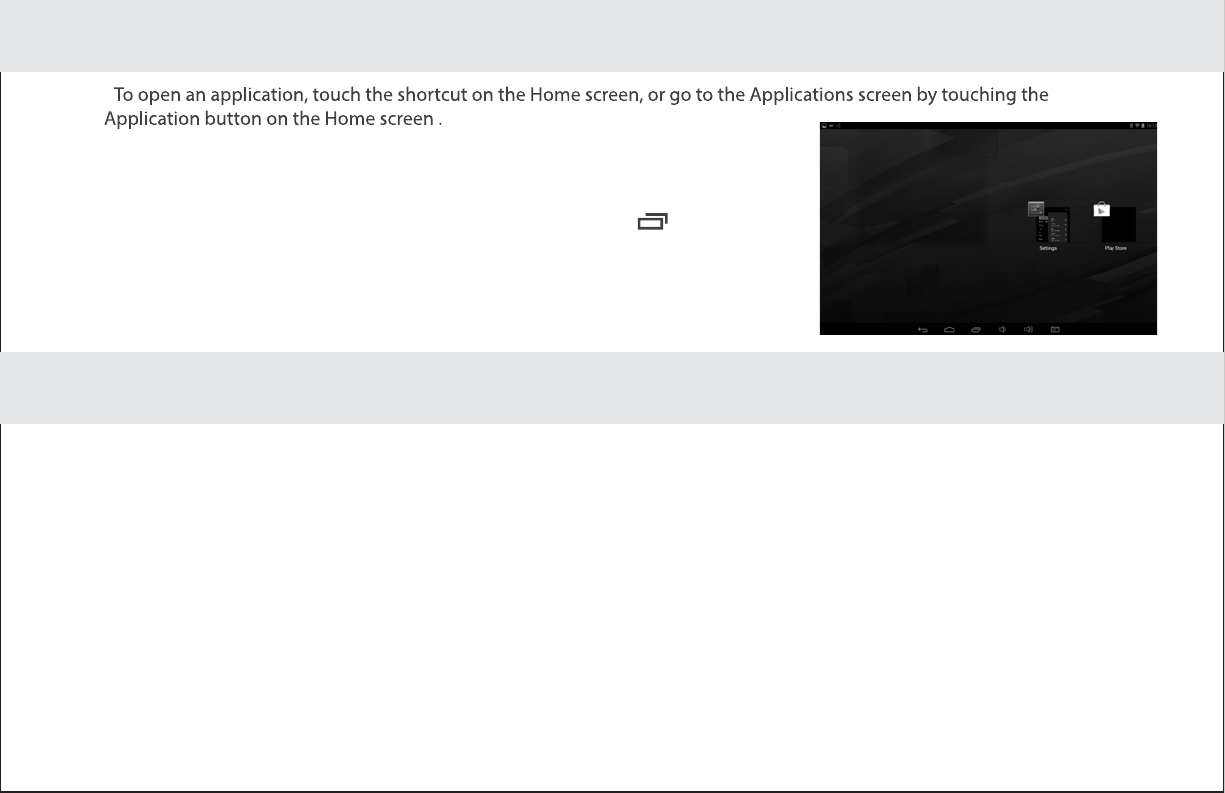

3.8 Opening and switching applications
To open an application, touch the shortcut on the Home screen, or go to the
Applications screen by touching the Application button on the Home screen .
To open and switch to a recently used application, touch the key at the
lower left corner of the touchscreen.
3.9 Accessing the Tablet’s Settings
To access the Settings to view or change your wireless and cellular networks, sound and display, location and security,
applications, language and keyboard, date and time, and other settings:
3.9.1 From the Home screen, touch the Status Bar.touch menu key on the right corner of screen.
3.9.2 From the Home screen, touch the Application button and touch Settings shortcut.
3.9.3 If you recently have accessed the Settings, you can touch the Navigation key on the lower left corner of the
touchscreen to display the list, and touch Settings in the thumbnails list that opens.
21
3.10.1Languages setting
1. Open setting list;
2 .Click languages & input;
3. Select language from the following scrolling list.
3.10.2Input method setting
1.Open setting list;
2.Click languages & input;
3.Click keyboard & input;
4. The default input method is English(Unite States)-android keyboard(AOSP).It will be added into the input method
list automatically when you have installed other input method.
5.You can open right side to select or cancel the relative input methods
3.10.3 Setting to add account
1.Open setting list;

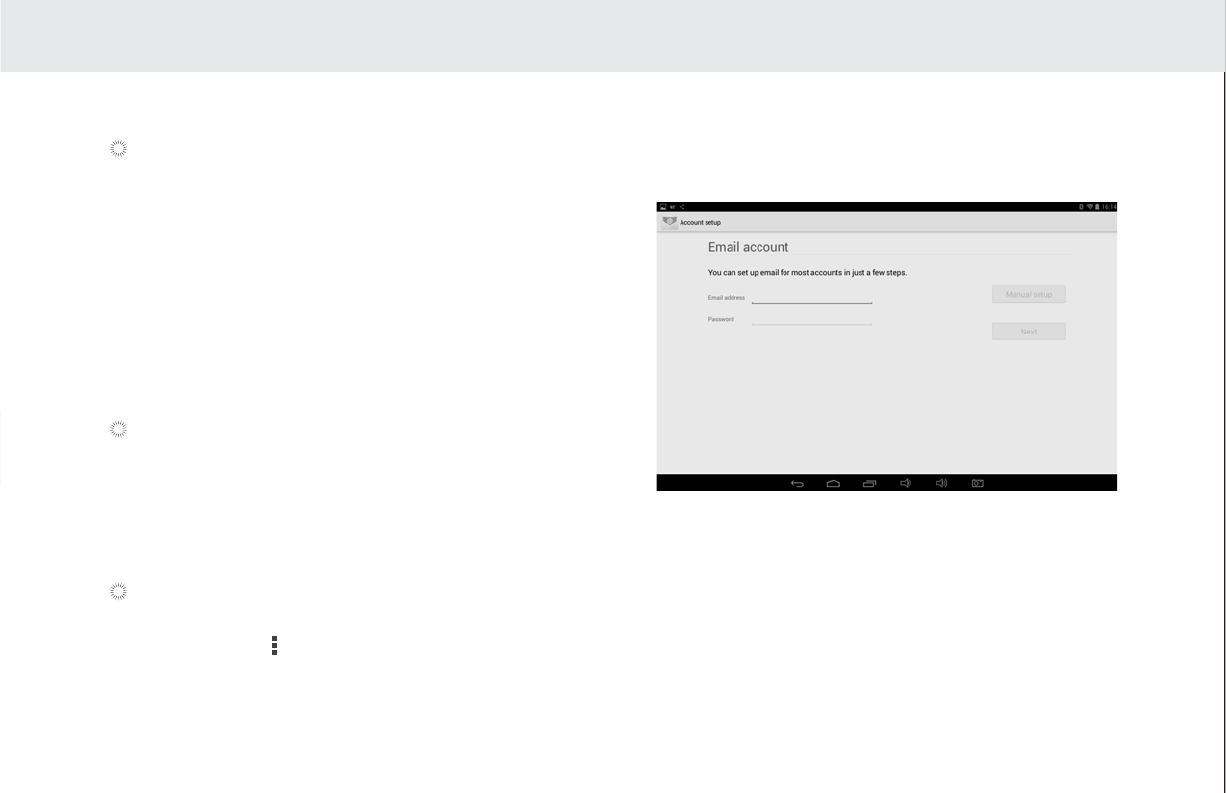

2.Click Add Account;
3.Google,copany,email will show in the popping up interface.
4.Click GOOGLE to register or log in Google account.
5.Click COMPANY & EMAIL to register or log in email accounts
3.10 Languages& input method & account setting
22
3.11.1 To automatically set date and time
1. Open the Settings list.
2. Touch Date & time.
3. Check the box for Automatic date & time.
4. Touch Select time zone, then scroll down and select the correct time zone from the list.
5. Choose whether or not to set the time to display in 24-hour format, check or uncheck the box to enable or disable
this option.
6 .To choose your preferred date format, choose from the options provided.
3.11.2 To manually set date and time:
1. Open the Settings list.
2. Touch Date & time.
3. Touch Set date, then scroll down the roll to adjust the date, month, and year. Touch Done when nished
4. Touch Select time zone, scroll down and select the correct time zone from the list
5. Touch Set time, then scroll down to adjust the hour and minute,Touch done when nished.
6. To choose whether or not to set the time to display in 24-hour format, check to enable or uncheck to disable.
7. To choose your preferred date format, choose from the options provided.
3.11 Setting the date and time
When the time provided by the network is automatically used, you cannot set the date, time, and time zone
by yourself.
23

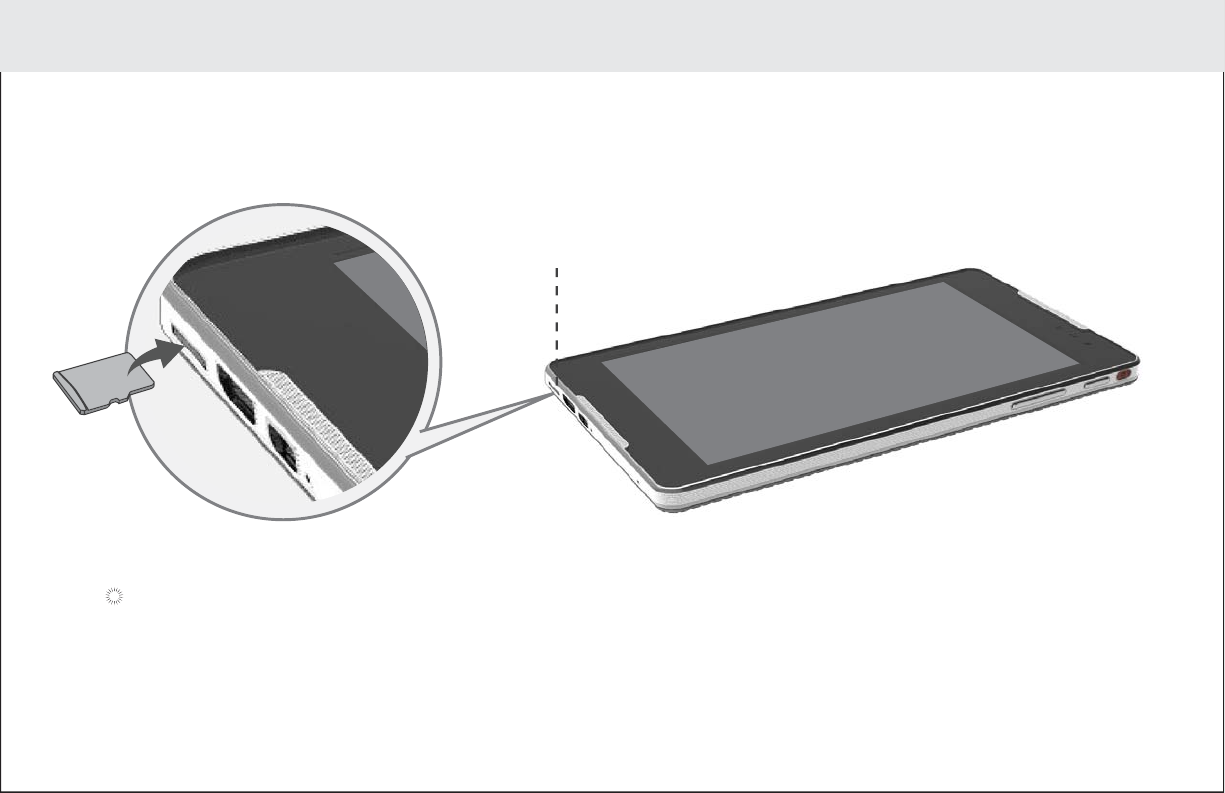

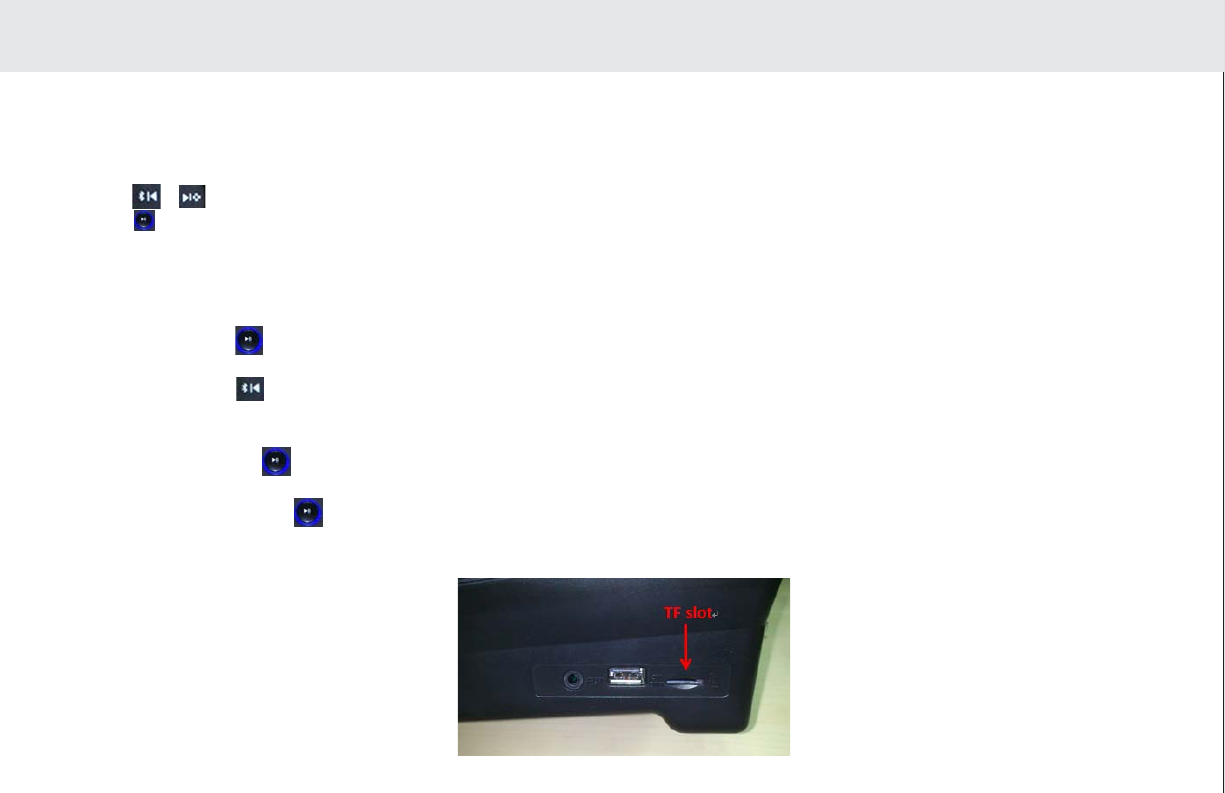

Insert your microSD card into the microSD card slot until it clicks into position as shown in the following gure.
3.12 Installing or removing the microSD card
Remove the microSD card by gently pushing the card further into the slot, and then release it. The card will eject from the
slot, and can be removed.
Micro SDcard slot
24
USB Micro port
3.13 Connecting to or disconnecting from computer using USB
3.13.1 Connecting the Tablet to a computer using USB cable:
USB power cable
1. Use the appropriate USB cable (micro USB connector) to connect the Tablet to a USB port on your computer. Once
it is properly connected, the Tablet displays a notication indicating that the USB is connected.
2. Touch the lower right corner to open the Status Bar and touch USB connected in the Notications list.
3. Touch Turn on USB storage to conrm transferring of music, pictures, and other les between the Tablet storage or
microSD card storage and the computer.
3.13.2 To disconnect the Tablet from the computer safely and to avoid any loss of information, follow the computer operating
system’s instructions to disconnect USB devices, and additionally follow the steps below:
1. Open the Status Bar by touching the lower right corner.
2. Touch Turn o USB storage in the Notications list.
3. Touch Turn o USB storage in the dialogue that opens.
25
3.14 Connecting the Tablet to a TV
You can use the Tablet to play audio and
video les on a high-denition TV, using a
High-Denition Multimedia Interface
(HDMI) cable. The HDMI cable is an
optional accessory that’s not included
with your Telpad.
When purchasing an HDMI cable, please
check the connector type of the cable.
You may purchase and use any Standard
HDMI Cable Version 1.0 ~ 1.4, but HDMI
cable version 1.4 is the most apt cable to
use for 3D functions.
Mini HDMI Port
HDMI
adapter
HDMI Cable
If there are problems with 3D using other version cables, please purchase the appropriate cable.
The Tablet supports various resolution output formats, so you can select the appropriate resolution option when
connecting the Tablet to the TV.
Note: Some TVs may not support HDMI resolution. Please refer to your TV manufacturer’s information for details on HDMI
support.

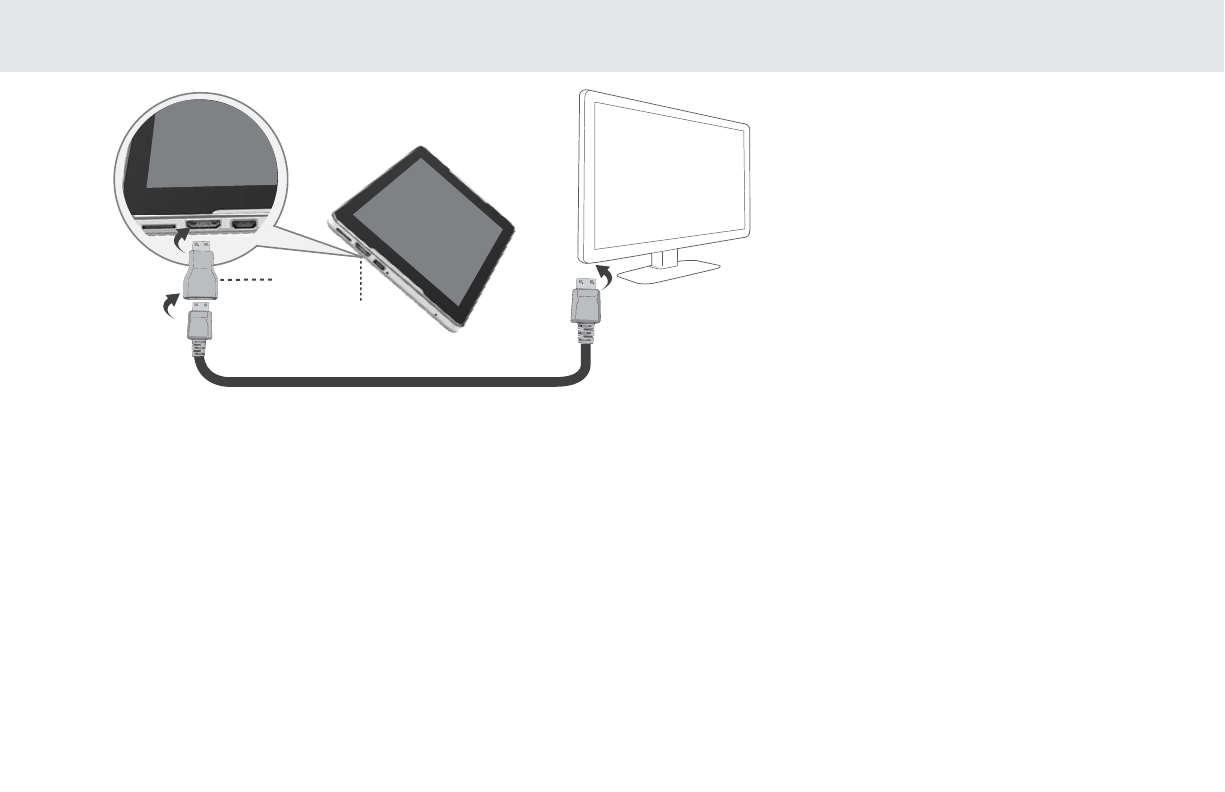

Connecting the Tablet to the TV:
1. Connect the HDMI cable and HDMI convertor together.
2. Plug the HDMI convertor to the Tablet’s HDMI port and connect the cable to the TV.
3. Select the appropriate program source on the TV for the HDMI interface.
26
Wi-Fi
Wi-Fi is a wireless networking technology. Wi-Fi technology can provide wireless Internet connection over distances of
up to 100 meters, however the connectivity of the Wi-Fi depends on the Wi-Fi router, and the surrounding environment in
which it operates.
By accessing a wireless access point or "hotspot" the tablet can be connected to the internet. Some access points are
open and can be easily connected to, but others are hidden or have security protection such as authentication or
encryption, which will require conguration to gain access.
Wi-Fi settings allows you to turn Wi-Fi on or o, turn the open network notication on or o, connect to a Wi-Fi network
and add Wi-Fi networks.
Open the Settings list. (Through the shortcut on the Home Screen, Applications screen, or Status Bar.)
Touch Wireless & networks, and then touch Advanced.
The tablet is able to connect to various wireless networks and devices. Including Wi-Fi data networks, and Bluetooth
devices such as headsets for voice and data transmission.
3.15.1 Opening Wi-Fi settings
There are two ways to turn the Wi-Fi On of O.
Open Settings, locate the Wi-Fi tab
Touch the On/O button to turn on or o the Wi-Fi.
Open the Status Bar
Touch the Status window to lengthen the Status bar.
Touch Wi-Fi to access Wi-Fi settings
When not using the Wi-Fi, please turn it o in order to elongate the battery life.
3.15.2 Turning Wi-Fi on or o
3.15 Wireless networks
27
When Wi-Fi is already on, touch Network notication to check or uncheck the box to turn the open network
notication on or o in the Wi-Fi settings list. The tablet will display or stop displaying notications in the status bar when
the device detects open networks in range.
3.15.4 Turning open network notication on or o
To add a Wi-Fi network, rstly follow the above steps to turn the Wi-Fi on, and then follow the steps listed below:
Under the Wi-Fi settings list, scroll down and touch Add Wi-Fi network.
Network SSID: Enter the name (SSID) of the network in the text eld.
Security: Select the security scheme in the menu that opens
Password: Enter any required security credentials.
Touch Save to nish adding the Wi-Fi network.
3.15.5 Adding a Wi-Fi network

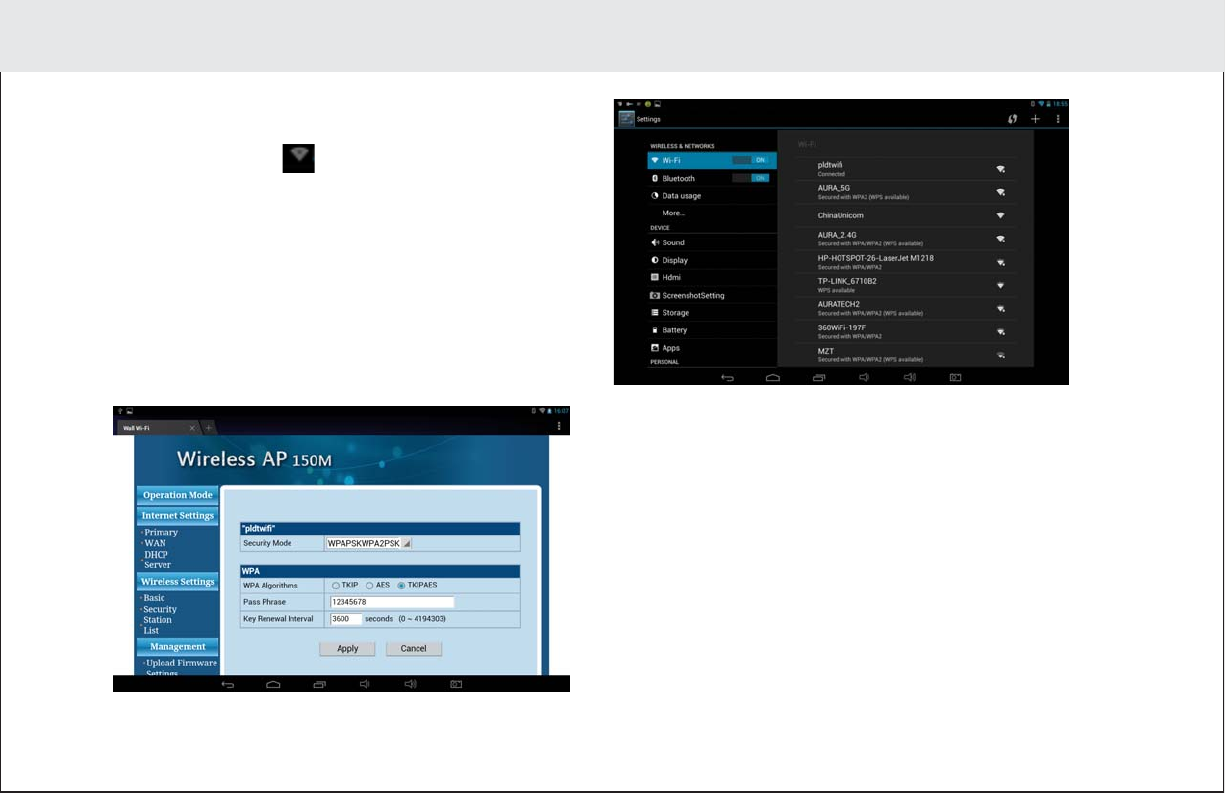

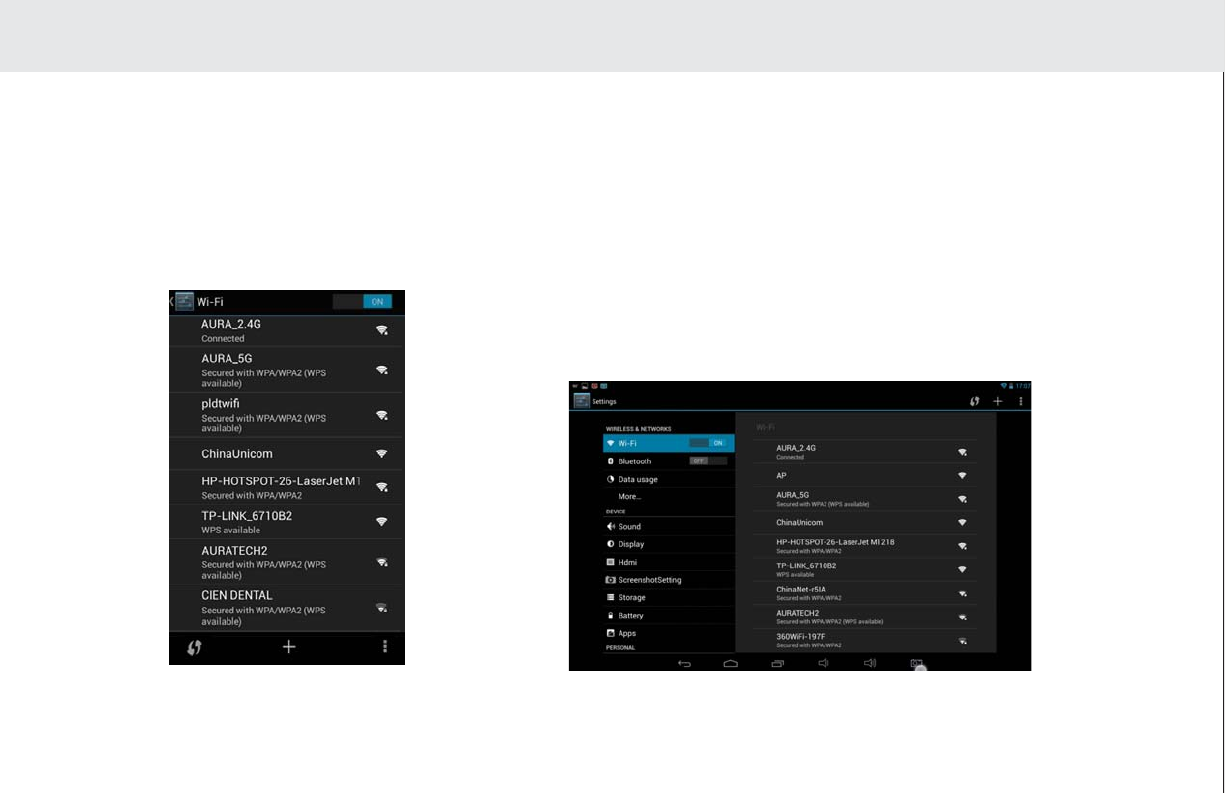

When the Wi-Fi is turned on, the device searches for available networks accessible within range.
Inside Settings, when the Wi-Fi is turned on, the available networks will be listed on the side.
Select the network you would like to connect to.
If the network is open, it will automatically connect as soon as you select it.
If the network is secured, there will be a lock icon beside the name. Enter the correct password to connect.
Touch and open the Status Bar.
Touch Wi-Fi and it will show the Wi-Fi settings
Select the network name you would like to connect to.
If the network is open, it will automatically connect.
If the network is secured, a window will show up to enter the password.
To view detailed information about the network the tablet is connected to, touch the name of the network and the
information will show up such as IP address, speed, etc.
3.15.3 Connecting to a Wi-Fi network
28
Tap Settings > Wi-Fi
Touch the network name you want to remove from the Wi-Fi networks list
Touch Forget in the menu that opens.
3.15.6 Forgetting a Wi-Fi network
29
3.16 Bluetooth
Bluetooth is a wireless communications technology for exchanging information over short distances. The connectivity
between the Bluetooth devices may be aected by their surroundings and is altered or reduced by obstacles such as
walls or other electronic devices.
To congure the Bluetooth settings of the tablet in the Bluetooth settings list:
Touch and open the Settings from the Home screen or Applications screen
Touch Wireless & networks, and touch Bluetooth settings.
3.16.1 Opening Bluetooth settings
Open the Settings
Under Wireless & Network > Bluetooth
Touch the On/O button to activate or deactivate Bluetooth
To extend the battery life of the tablet, turn Bluetooth o when not in use.
3.16.2 Turning Bluetooth on or o
The Bluetooth name of your tablet is the identication of your device to other Bluetooth Devices.
Open the Settings.
Under Wireless & Network touch Bluetooth.
Touch the Menu button. at top right corner of screen.
Touch Rename tablet in the options given.
Type the new name in the window prompted.
Touch Rename to conrm change.
3.16.3 Changing the Bluetooth name of your Tablet
30
Connecting to a already paired Bluetooth device
Once a device is paired, the name of the newly paired device will show up under a separate category as Paired devices.
After a device has been paired, it stays paired unless the paring is disconnected manually.
To automatically disconnect your tablet from a paired device, simply turn o the tablet’s Bluetooth or the target device.
To manually disconnect your tablet from a paired device or to be unpaired from this device by erasing all the pairing
information;
Touch Unpair.
3.16.5 Disconnecting from or to be unpaired from a Bluetooth device
Pairing with a Bluetooth device
Search for a Bluetooth device, pair with it, and exchange information between devices.
Open the Settings
Under Wireless & Network touch Bluetooth.
Touch the name of your device to make it visible to nearby devices.
Touch Search for devices at top to begin or reinitiate search for other devices.
Touch the name of device that you want your device to pair up with.
Window will show up asking for conrmation, touch Pair to conrm.
3.16.4 Connecting to Bluetooth devices
31
3.17 GOOGLE SERVICES
3.17.1 Creating a Google Account
When accessing a Google service for the rst time with your device, you will be asked to sign in using your Google
account.
Make sure the Tablet is connected to a network to sign in or create a Google account.
If you already have a Google account, simply enter your
information and sign in.
If you do not have a account, to create a Google account:

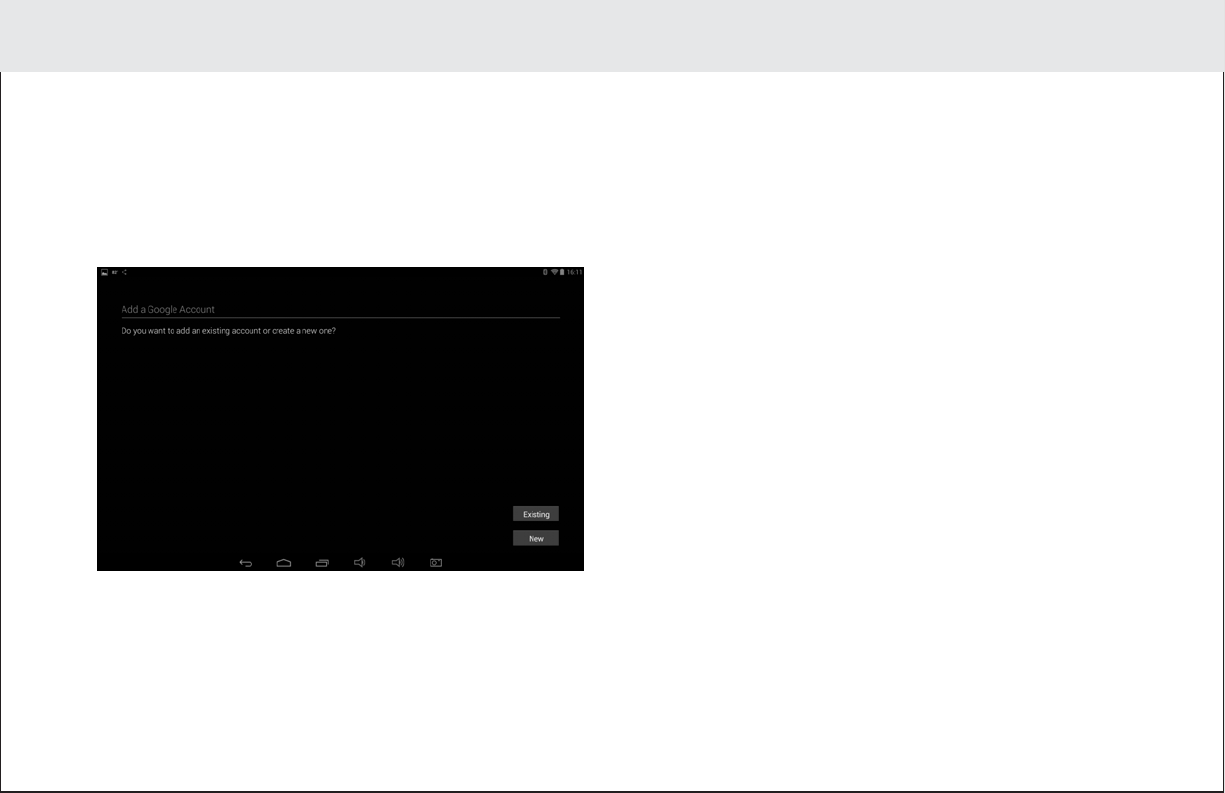

1. When asked if you have a Google account or not,
touch New.
2. Insert you last and rst name, touch Next.
3. Type in the e-mail address you would like to use, and
touch Next.
4. Insert the password, making sure that you correctly
type in the password twice when prompted.
5. Type in your Recovery e-mail address and set up a security question to help you access your account in case you
forget your password.
6. Check the box that to agree to the Google Terms of Service and additional privacy policies, and touch “I accept”.
7. Input the authentication keys that appear. Your new Google account has been successfully created!
32
3.17.2 Using the Play Store
Within the each option, you can easily search for
applications by name or keyword.

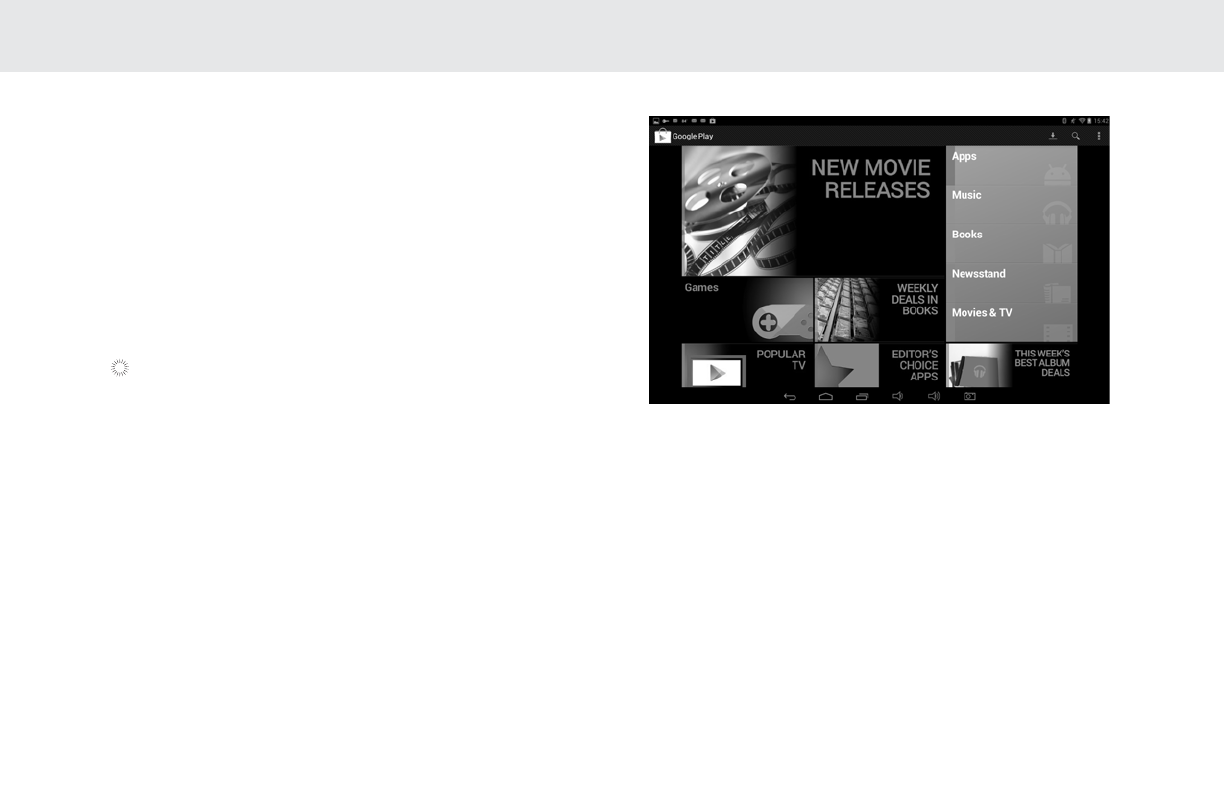

You can access thousands of easily downloadable applica-
tions and games for your Tablet via the Google Play Store.
3.17.3 Searching for Applications
There are several ways to search for applications in the Play
Store, through:
1. Featured applications.
2. Categories
3. Search function.
4. Your downloads.
3.17.4 Installing an Application
1. Go to Play Store from the Home screen or Applications screen.
2. Touch a category, and then touch the application you want to download.
3. To install, touch FREE (for free apps) or Buy (for paid apps) to begin download and installation.
4. Download progress can be checked from the notication panel.
Most applications will be downloaded within seconds.
5. After the application has been downloaded and installed on your Tablet, the content download icon appears in
the Status bar.
6. To download and install an application from sources other than the Play Store, touch Settings > Security, and check
the box for Unknown sources.
33
3.17.6 Backing up and restoring apps and settings from a Google account
1. Access the Settings list from the Home screen or Application screen.
2. Scroll down the Personal section, and touch Backup & reset.
3. Check the box for Back up my data and Automatic restore.
3.18.1 Opening E-mail
1. Go to Play Store, touch the My apps button.
2. Touch the application to uninstall, and then touch Uninstall.
3. When asked for conrmation, touch OK to remove the application from your Tablet.
3.17.5 Uninstalling an Application
Touch E-mail on the Home screen or on the Applications screen to open E-mail.
3.18 E-MAIL
34
3.18.2 Adding and deleting e-mail accounts
Adding an e-mail account
1. Touch New account.
2. Enter your e-mail address and password, and touch Next.
3. Within Account settings, type in the name that will represent
the account that you would like to be displayed when you send
e-mails.
4. Touch Next to nish setting up your new e-mail address on
your device.
Manual setup
1. Touch New account.
2. Type in your e-mail address and password, and touch
Manual set up.
3. Select the type of e-mail account. (Check your e-mail provider for more information if necessary.)
4. Enter the correct account details, and touch Next when done.
The rst time you open E-mail, you are prompted to set up an e-mail account. If you have an existing e-mail account,
you can add this by touching Add account.
Automatic setup:
Deleting an e-mail account
1. Open the E-mail screen.
2. Touch Menu at the upper right corner. Touch Settings.
3. Scroll down and touch Remove Account.
4. Touch OK in the dialog to conrm your delete action.
35
3.18.3 Gmail
Gmail is an e-mail service provided by Google. Gmail can be accessed from the Applications screen by touching the
Gmail icon.
To add a Gmail account:
1. After opening Gmail, touch Add existing.
2. Enter the e-mail address and password of your Gmail account.
3. Touch Sign In to complete the process.
To create a Gmail account
1. At the Gmail screen, touch New.
2. Insert you last and rst name, and touch Next.
3. Type in the e-mail address you would like to use, and touch Next.
4. Insert the password.
5. Type in your Recovery e-mail address and set up a security question to help you access your account in case you
forget your password.
6. Check the box that says “Agree to the Google Terms of Service and additional privacy policies”,and touch “I accept”.
7. Input the authentication keys that appear.
Your new Gmail account has been successfully created!
To remove a Gmail account
1. Open the Settings list from the Applications screen.
2. Under Personal, touch Accounts & sync.
3. Touch the e-mail account that you would like to remove.
4. Touch the Menu button at the top corner.
5. Touch Remove account from the menu and conrm.
36
To start taking pictures or shooting videos, touch Camera on the Home screen or on the Applications screen to open the
camera. Be sure to clean the protective lens cover with a microber cloth before taking pictures. A lens cover with
ngerprint smudges can cause blurry pictures with a “halo” eect.

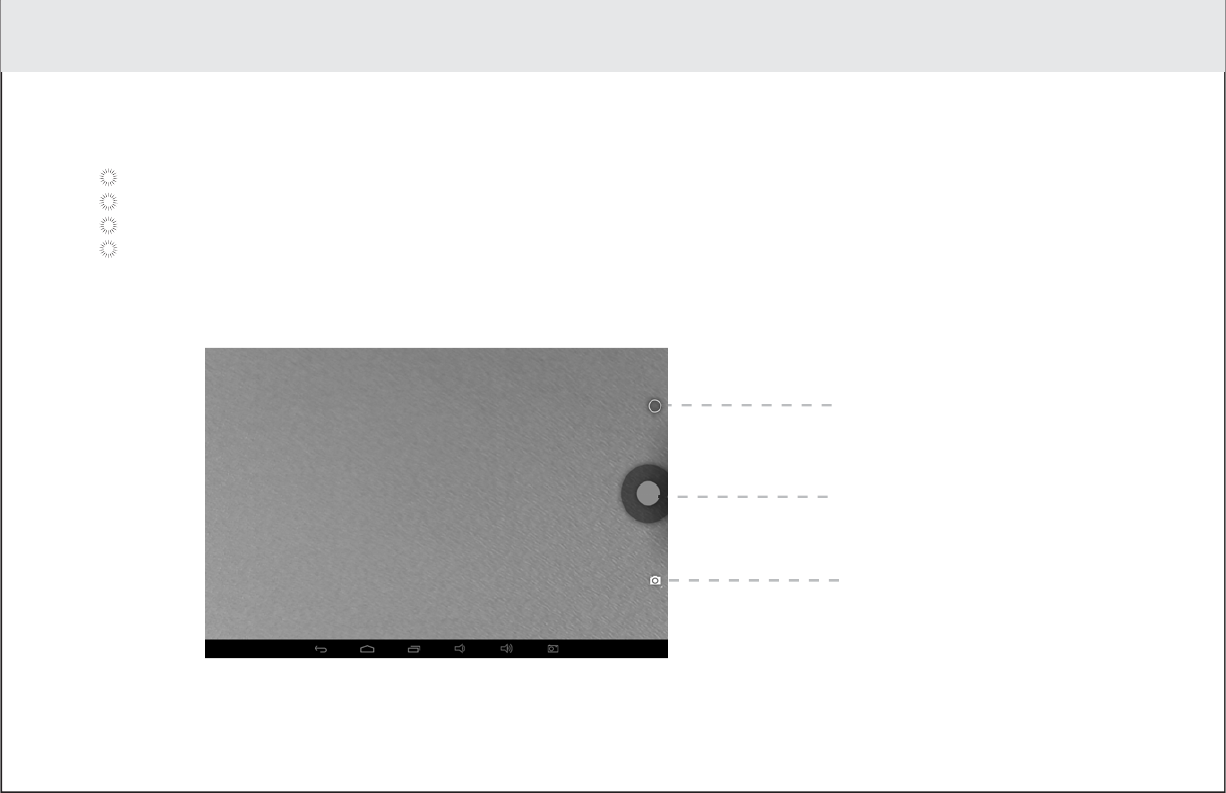

From the Camera app, touch the circle button to take a picture.
To record video, touch the Video Camera icon, and touch the circle button to start recording.
Touch the Prism icon to take a panorama shot.
Touch Photo icon to access the Gallery.
3.19 USING THE CAMERA
Camra & Video Recording Switch
Press to take a picture.
Camra funtion Swith
37
This section contains a description of Home Control application which includes (1) IR (infrared) universal remote, (2)
Reservation, (3) mobile remote control and (4) motion detection.
Telpad Home control will work with the devices that are already in your home. It can control your TV, Cable Box,
Radio, DVD, DVR, VCR, Blu-Ray, CD, Audio, Air Con (A/C), Amplier and Satellite and much more.

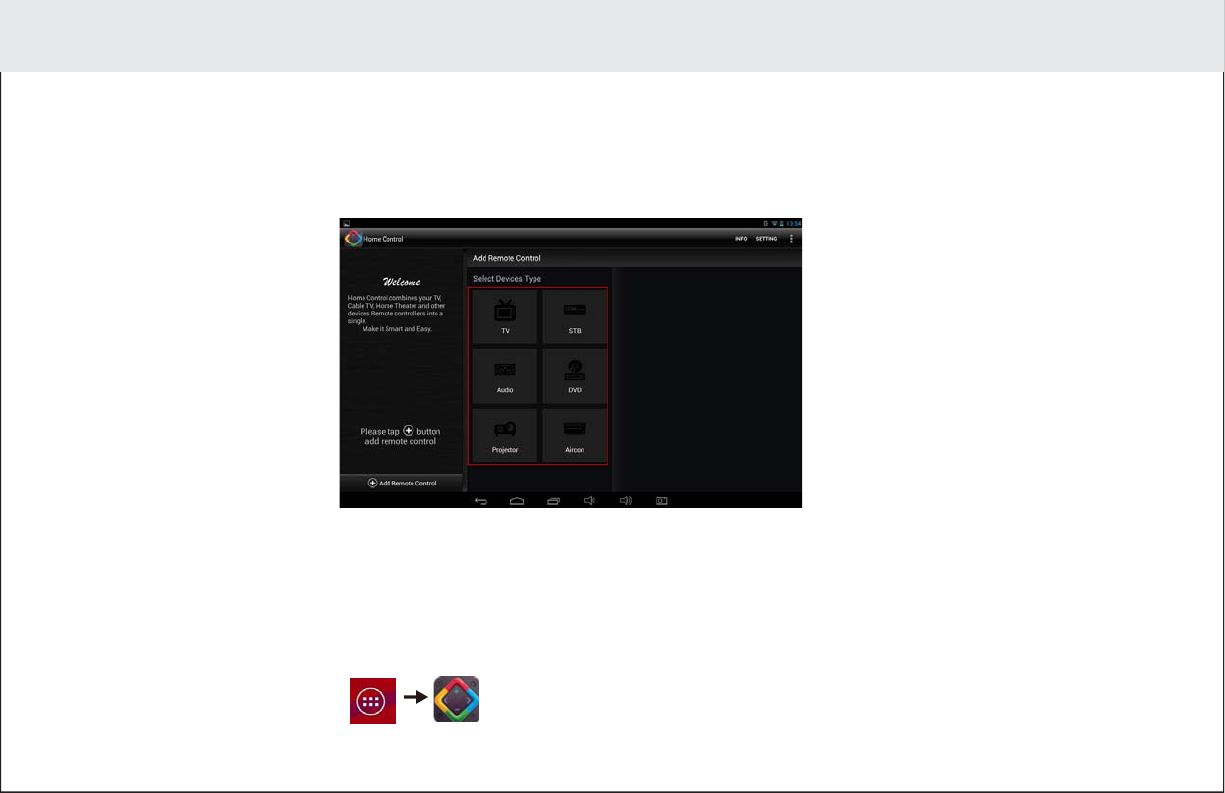

3.20.1 IR Universal remote Initial Conguration
-From the Home screen, tap
NOTE: The Home Control operates the same way as an ordinary remote control IR signals. Please be careful not to
cover the IR sensor marked with Red of the Telpad when you use the IR Remote function. This function may not be
supported depending on the model, the manufacturer or service company.
3.20 Home control
38
3.20.2 IR Learning
-If you want customized remote, please select “Customize” when selecting Brand.
-Once installed, it will show learning function interface. Each button have to be assigned a signal with IR Learning
process by touching it until tapping “Finish” button.

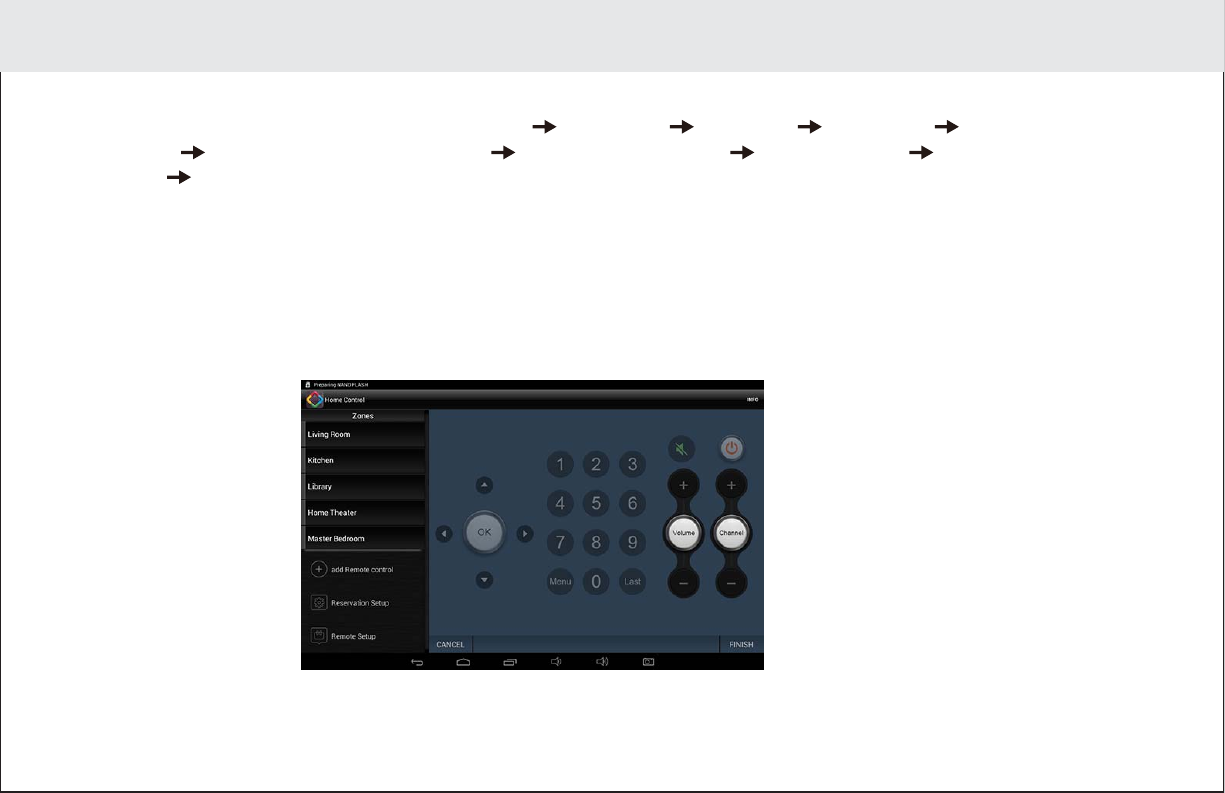

-From the main menu tap “add Remote control” Select Device Select Brand Select Model Conrm if signal is
working Save remote with “Remote Name” Select Zone and tap save Tap selected Zone tap saved “Remote
Name” you can nd installed IR remote UI.
When conrm signals, please point the Red part of Telpad towards the device you are trying to control just like a
standard remote control.
39
-Please point your original remote controller with the Red part of Telpad like right picture. And follow on-screen
instructions to congure the device.
-Please check if your device is working just like original remote controller with “Test” button. If not, please tap “Learn”
button and repeat several times until it works. Tap “Conrm” to save the changes.
3.20.3 Reservation
-You can make scheduled Power On/O on your device with IR control. This allows you to generate a IR signal at a
specic time.

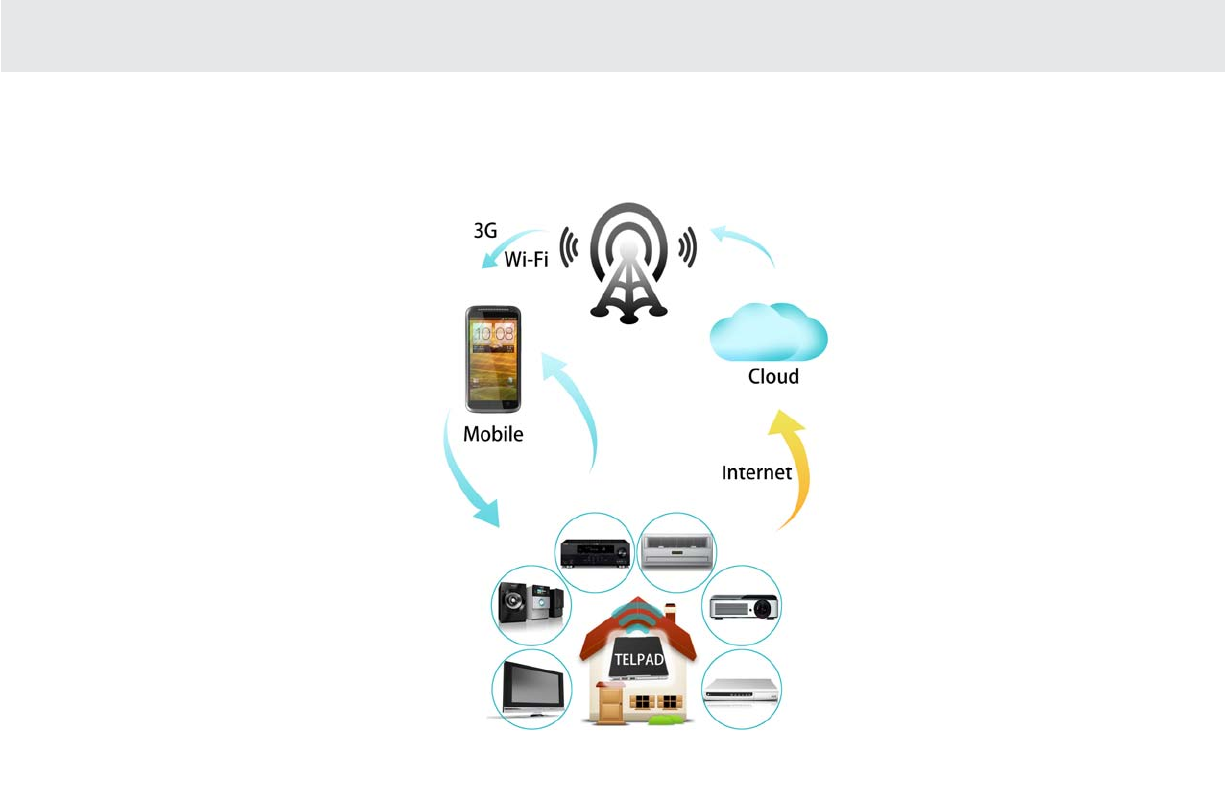

Concept diagram
40
3.20.4 Reservation Setup
-Reservation is just like Alarm App. The dierence is we have to assign a IR signal rather than a melody. Please install required
IR signal with “IR Universal remote Initial Conguration” process before reservation setup.

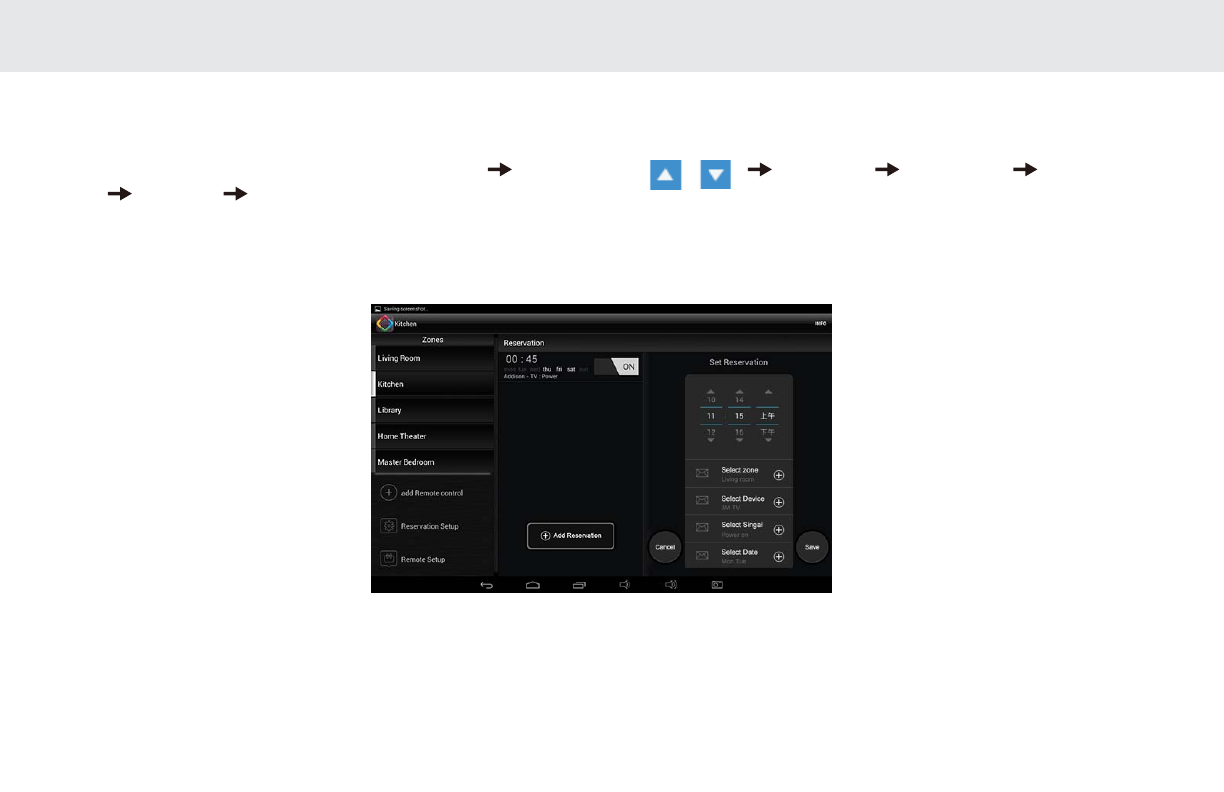

-From the main menu tap “Reservation Setup” Select Time (tap , ) Select Zone Select Device Select Signal
Select Day Save reservation.
“Power On” signal make the device always on. “Power Toggle” signal is used to toggle power signal On and O.
- Please make sure “Mobile remote Setup “ process is done if you want receive notication on mobile.
41
3.20.5 mobile remote control
Telpad provides mobile remote control feature. All you have to do is pairing your mobile and Telpad. You can control
your home device like air-conditioner or IR controllable light system with your android mobile from Anywhere with
your 3G or WIFI connection. If you want check the result. Of course, Telpad can be provided for remote camera for
home monitoring.
42
Mobile remote Setup

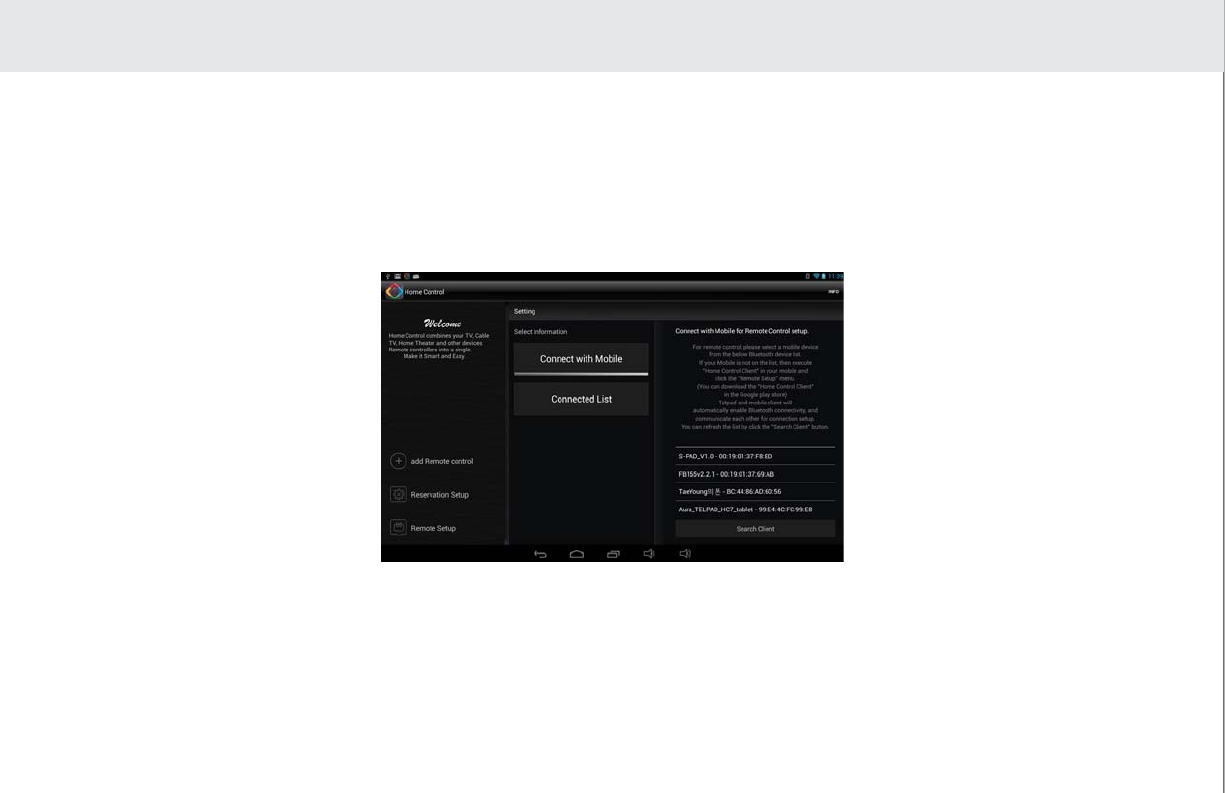

“Mobile remote Setup “ is just like Bluetooth pairing process.It allows you to establish connection between Telpad and
mobile device. Please follow on-screen instructions to connecting the device. Please execute “Home Control Remote” in
your mobile and click the “Remote Setup” menu with on-screen instruction.
Telpad and “mobile remote” will automatically enable Bluetooth connectivity and communicate each other for
connection setup. You can refresh the list by click the “Search Remote” button.
43
Mobile remote control
-Please make sure “Mobile remote Setup “ and IR Universal remote Initial Conguration process is done before this process.

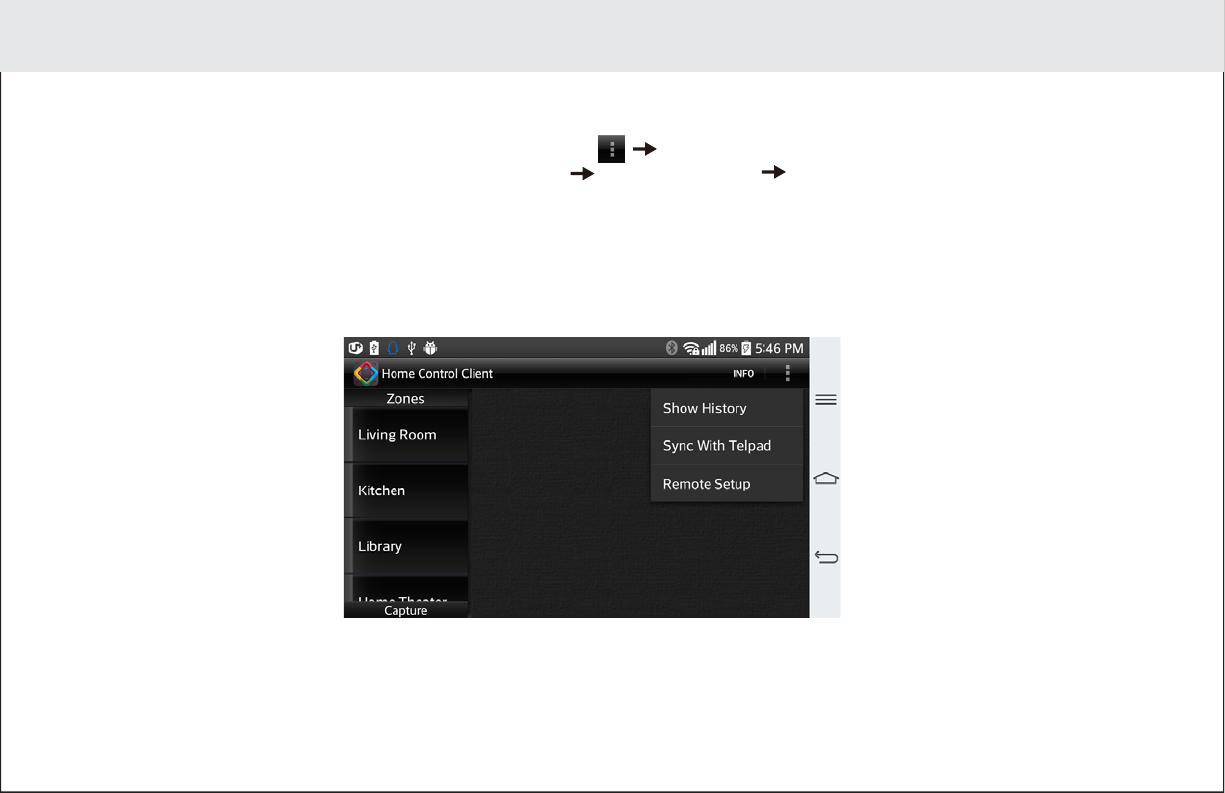

-From the main menu in your “Home Control Remote” tap tap “Sync With Telpad”. Once downloaded, mobile remote
can control Telpad with IR Remote menu( Select Zone tap “Remote Name” tap required signal.
-From the main menu in your “Home Control Remote” tap “Capture” for request Telpad Camera still image.
-Please follow on-screen instructions and wait for seconds until a still image pop-up.
-See the image and Tap <Back> key to return to main menu.
-Only the latest captured image (Automatically replace with new one) will be stored in the server with security code algorithm.
-Please provide Telpad with continuous power supply for operation.
44

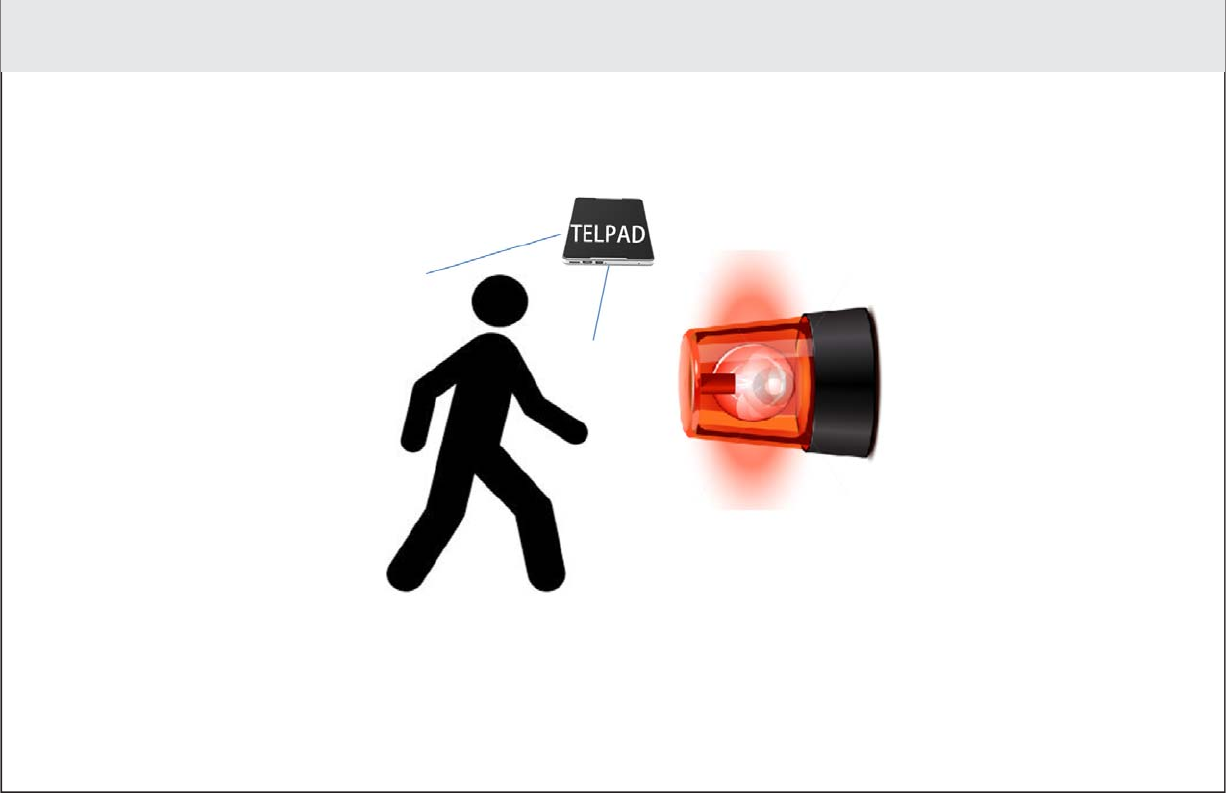

3.20.6 Motion detection
- “Motion detection” feature will take and send photo of what it is in front of Telpad. You can use it for intruder detection.
Use Telpad built in camera as a motion detection triggers. It will provide notications to your mobile with captured images
45
Motion detection
-Please make sure “Mobile remote Setup “ process is done if you want receive notication on mobile.

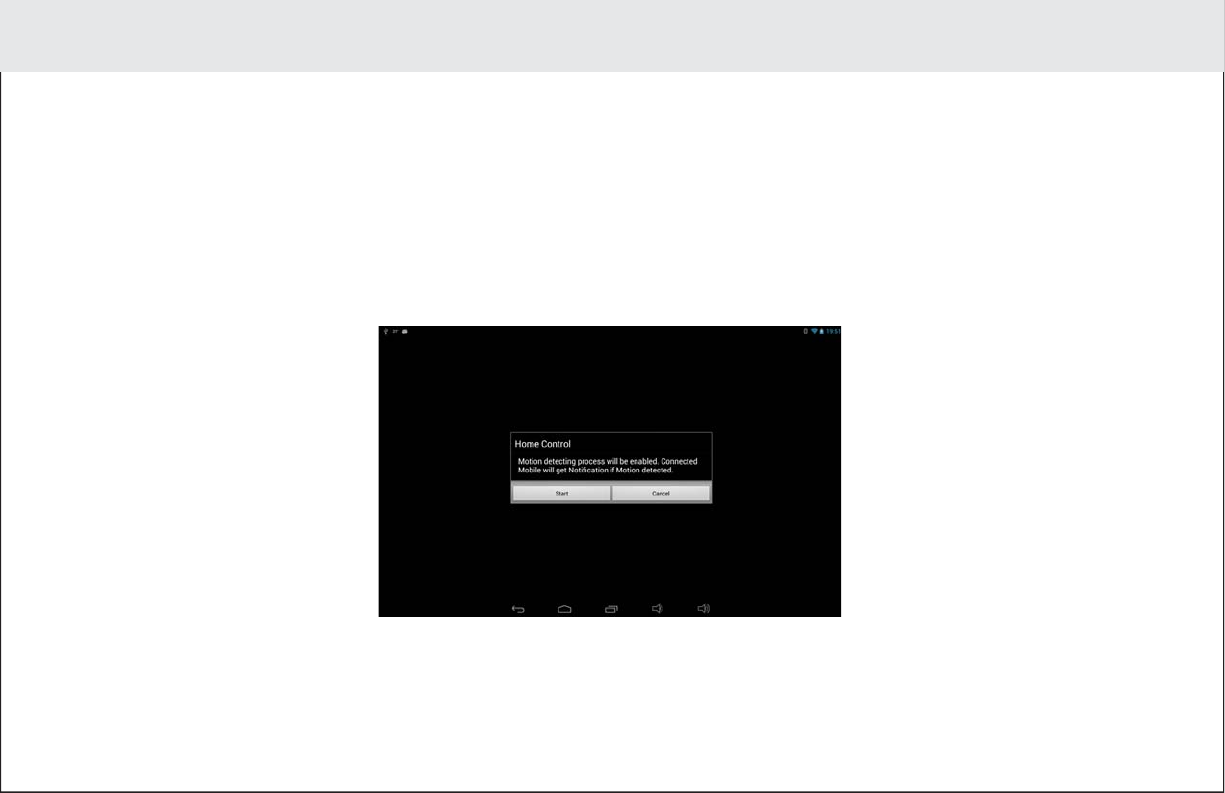

-From the main menu in Telpad, please tap “Motion Detection” and follow on-screen instructions. The notication will be
forwarded to connected mobile once started. If Telpad camera faces continuous change, it will not send all of the pictures.
- Please provide Telpad with continuous power supply for operation. The camera is always on even though LCD is black.
46

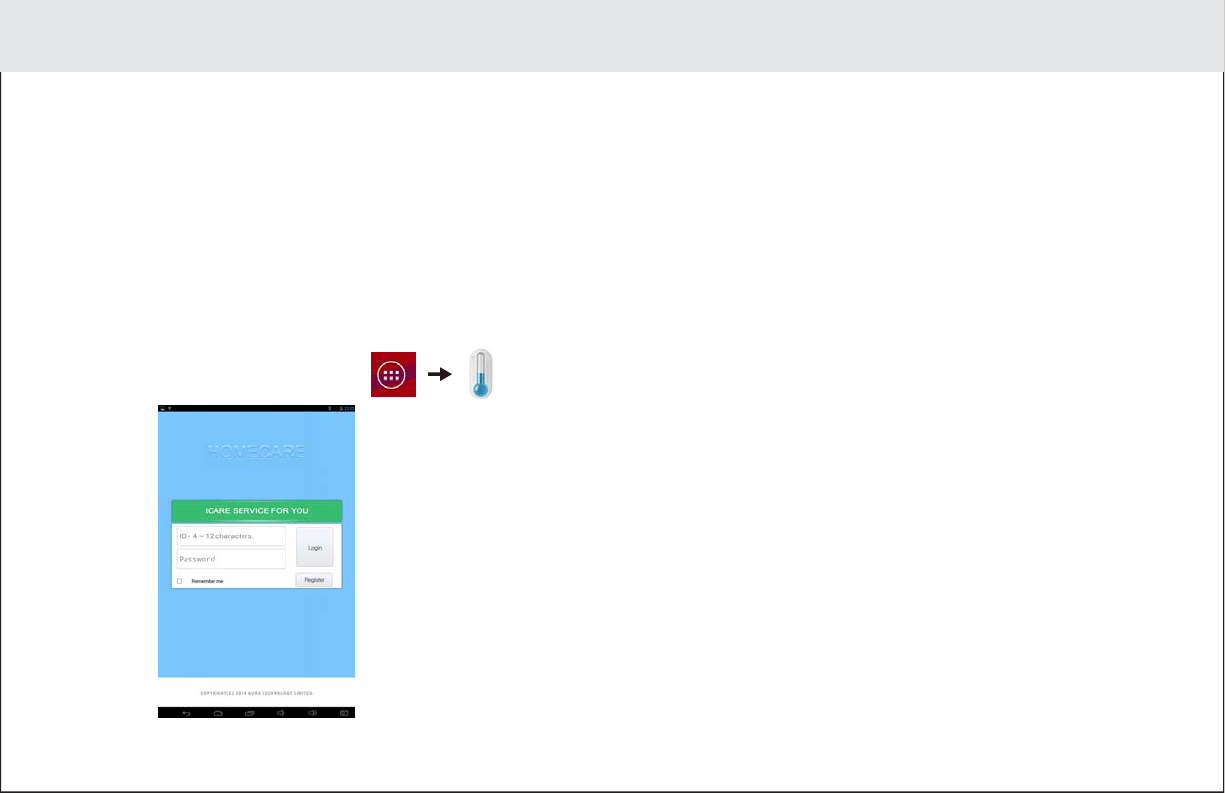

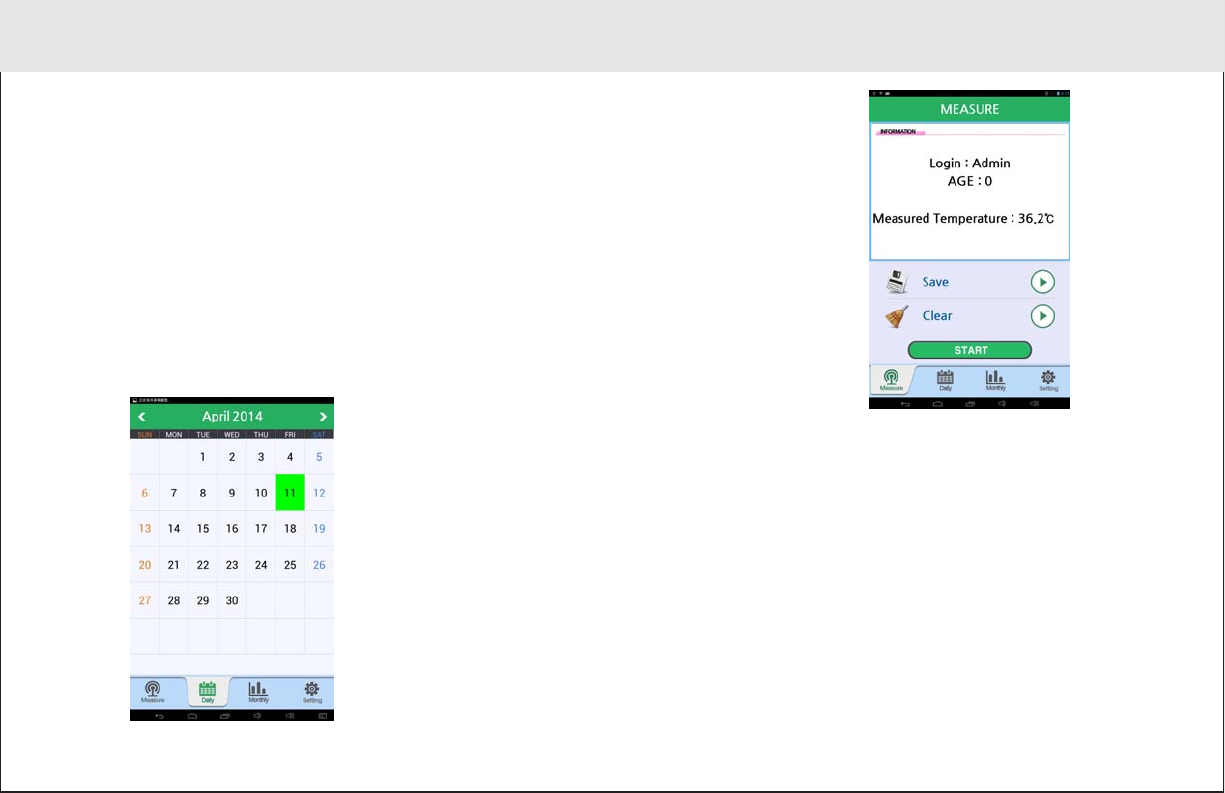

1. From the Home screen, tap
This section contains a description of Home Care application which is working with ‘iFever manager” dongle. iFever
Manager enable your Telpad for body temperature measurement. You can keep history of your family temperature for a
long time.

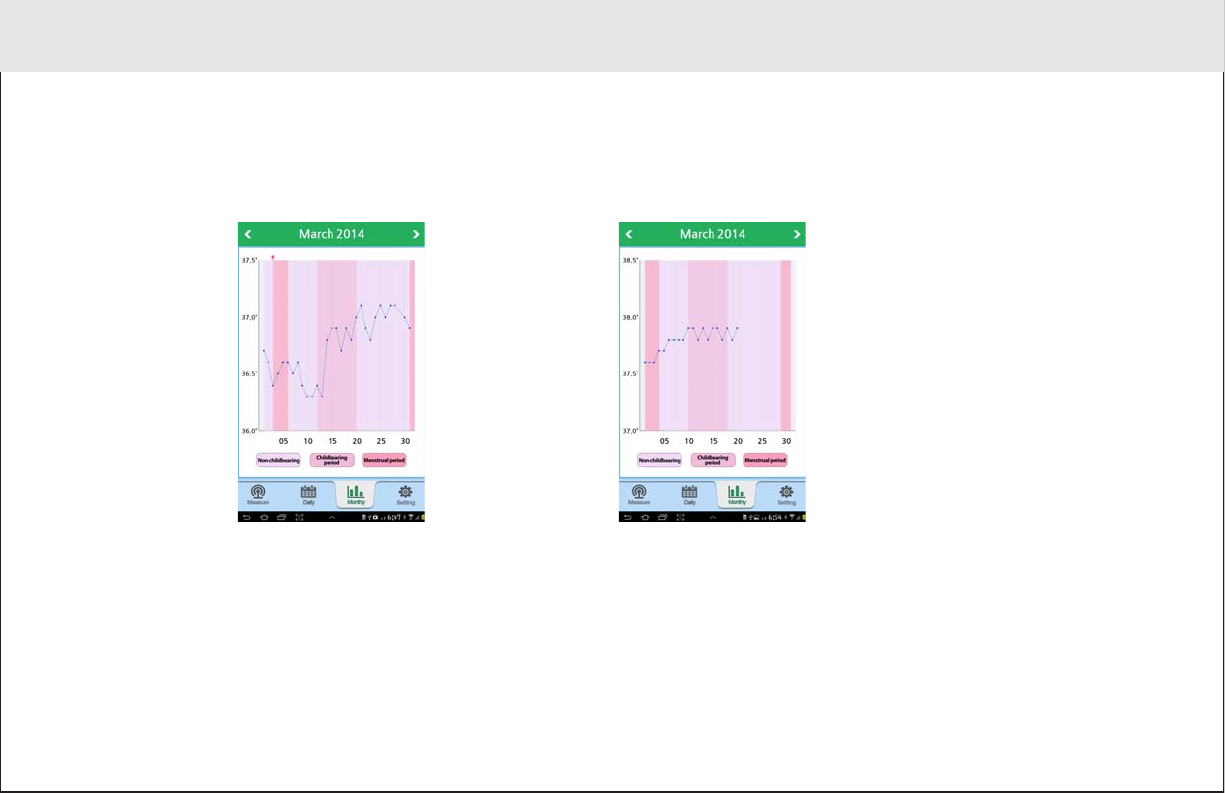

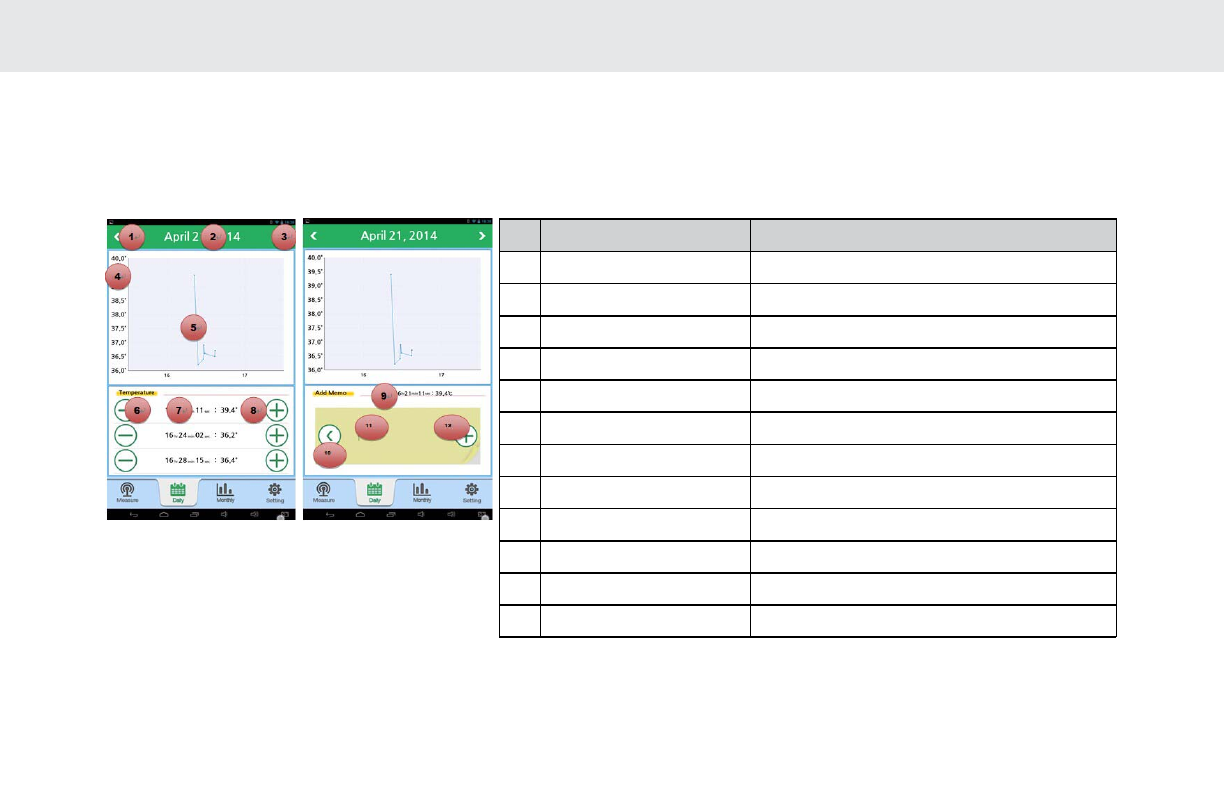

If your baby gets a fever, you can show doctor with the daily graph screenshot. (Show body temperature variation
based on time axis)

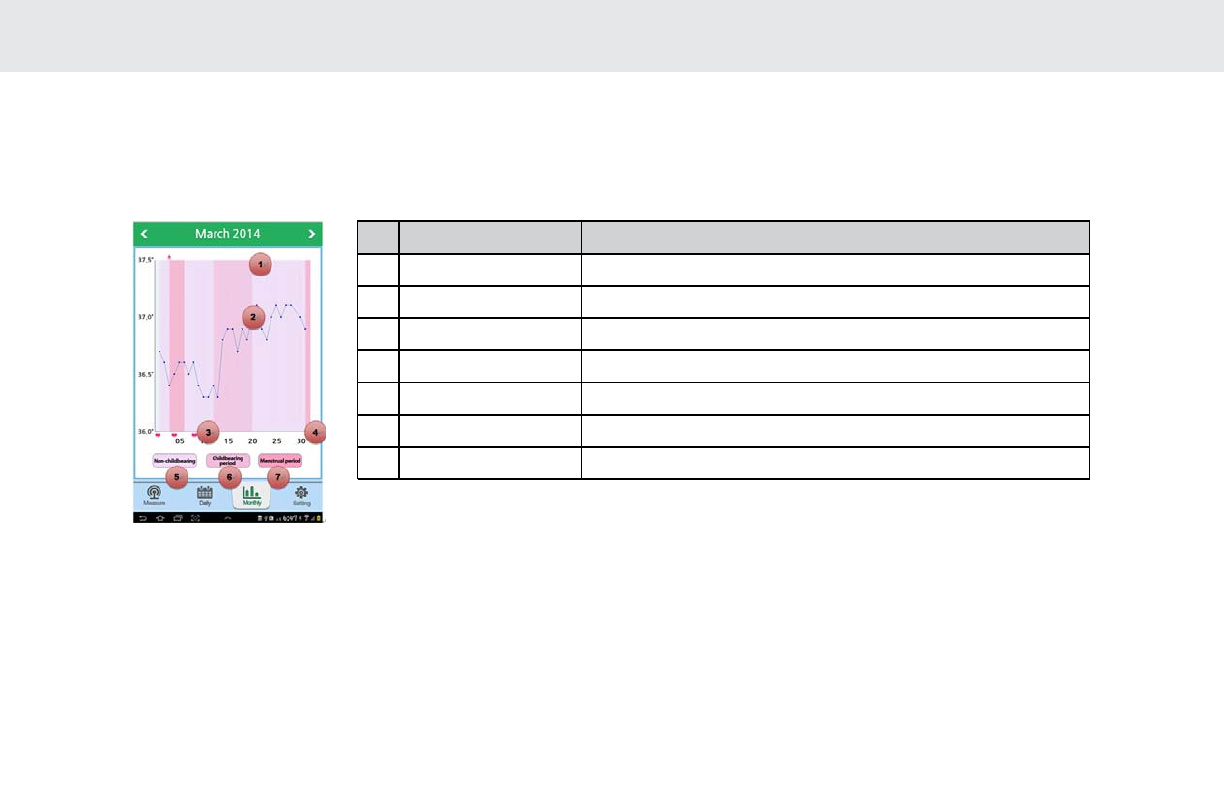

If you are woman, Telpad monthly view can help you to keep track of your fertility/menstrual cycles. Just measure
temperature each morning per day, and then Telpad does the rest.
With Monthly view, you can monitoring your average body temperature and keep your body healthy. Average body
temperature of a healthy adult is 36.50-36.80°C. But, average daytime body temperature of a healthy adult is above 37°C.
Cancer patients have low body temperature, usually less than 36°C.
2. If you are using this application for the rst time, please tap the register
button to add your ID and password. You can bypass this process simply by long
press the “Login” button. Please use it for testing purpose. In this case, you could
not manage your personal data with dierent user name.
3. Insert your homecare hardware, iFeverManager dongle in Audio jack.
3.21 Home care
47
4. Tap the Start button or volume up hard key to begin temperature measurement.
5. Please move your iFever Manager sensor part to close your (or others) forehead
position during three seconds. Measured distance is within 1 cm.
6. Please see the measured value, and tap the save button to store the data. Tap Clear
button to clear last measured value if needed.
7. Supported body Temperature range is from 34.3° C to 43.1° C. It will not save the
data if out of range occur
.
8. You can see the measured data, and time in Daily tab by press
the date. Monthly tab can show you a graph with your accumulated
data.
(See Appendix 1, 2, 3 and 4 for more description)
48

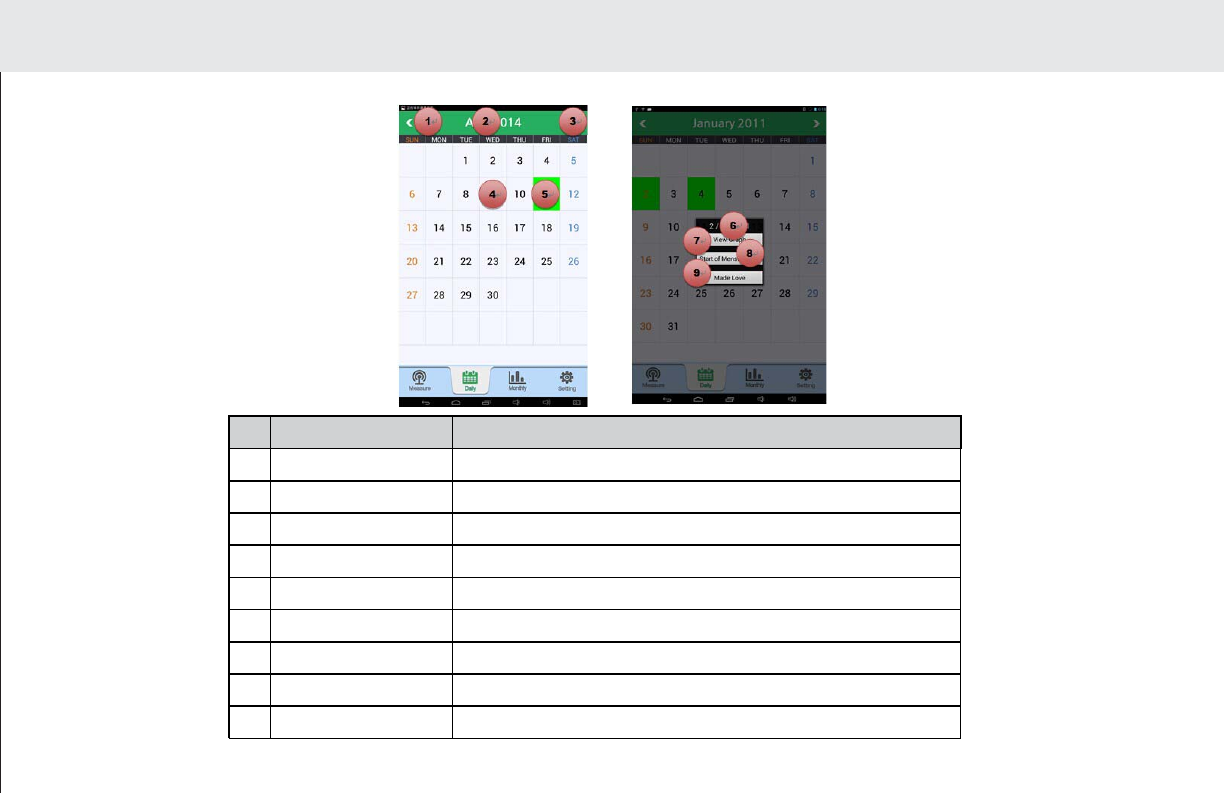

Appendix 1. Daily Graph
No ltem Description
1 Last month button Move to previous month
2 Calendar Display current date
3 Next month button Move to next month
4 No measured If no measured date, will be displayed with pale sky blue
5 Today Tody is Green background
6 Selected date This date can be selected when user touched
7 View Graph Display temperature date with graph
8 Start of menstruation Mark as menstruation start date.On/O Start menstruation date
9 Made love On/O record for the event(For information only)
49
* If Basel body temperature option is not ON in the Setting menu, No 7, 8, 9 menus will not be displayed, and if user
selects a date it will show Graph View.
No ltem Description
1 Last month button Move to previous month
2 Calendar title Display current date
3 Next month button Move to next month
4 Measured range Measured temperature data range
5 Temperature graph Show the measured data with line
6 Temperature delete button Delete selected temperature data
7 Temperature time Show measured time and data
8 Add memo Move to Add memo window
9 Temperature value Show temperature and time for adding memo
10 Back button Back to previous screen
11 Memo content Show Memo
12 Delete memo Delete Memo
50
Appendix 2. Monthly Graph
No ltem Description
1 Start menstruation First day of menstruation (Marked in Daily graph)
2 Graph Show graph with temperature
3 Made love Made love date( Marked in Daily graph)
4 Y axis Date for the month
5 Non-Childbearing Indicate non Childbearing period
6 Childbearing period Indicate Childbearing period
7 Menstrual period Indicate Menstrual period
51

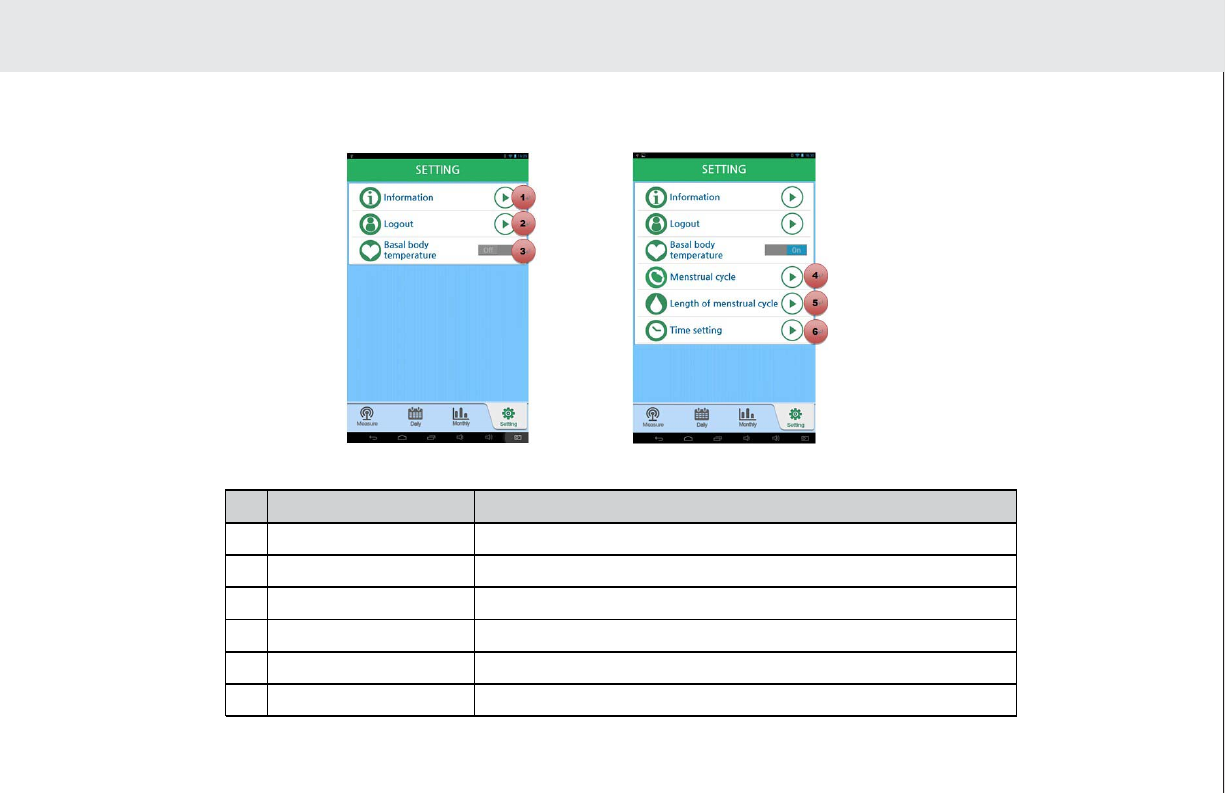

Appendix 3. Setting
No ltem Description
2 Logout Logout for another user login
1 Information Show software version number & release date
3 Basal body temperature Enable/ Disable BBT
4 Menstrual cycle Menstrual cycle can be set up to 20-40 days
5 Length of menstrual cycle Menstrual period can be set up to 1-7 days
6 Time setting Setting time range for BBT temperature measurements (00:00 ~ 23:59)
52
Basal body temperature (BBT) is our lowest temperature during rest, which is usually during the time we're sleeping.
This is the reason why BBT should be taken before getting out of bed for accurate fertility charting. Ovulation causes one
half to one-degree rise in BBT, so monitoring BBT helps provide information on the best time for conception.
Note
The calculated forecasts of Home Control may not be accurate and should not be used to prevent unwanted pregnancy.
The forecast accuracy depends on a number of factors including how regular one’s cycle length is, how many periods have
been measured with the app. Anxiety, stress, age and other factors can also aect one’s cycle from month to month.
Normal temperature pregnancy temperature
Appendix 4. Basal body temperature
53
3.22 Widisplay
3.22.1SOURCE
1. MOBILE PHONE
Our HC7 tablet can support“ wi display”and please operate as following:
2. You need a mobile phone as source port, but the version of the android must be 4.2 and above (only version 4.2 of
android can support miracast),such as nexus 4.Please make sure you have turned on the Wi-Fi before using, it won’t aect
whether the mobile phone is connected the router or not.

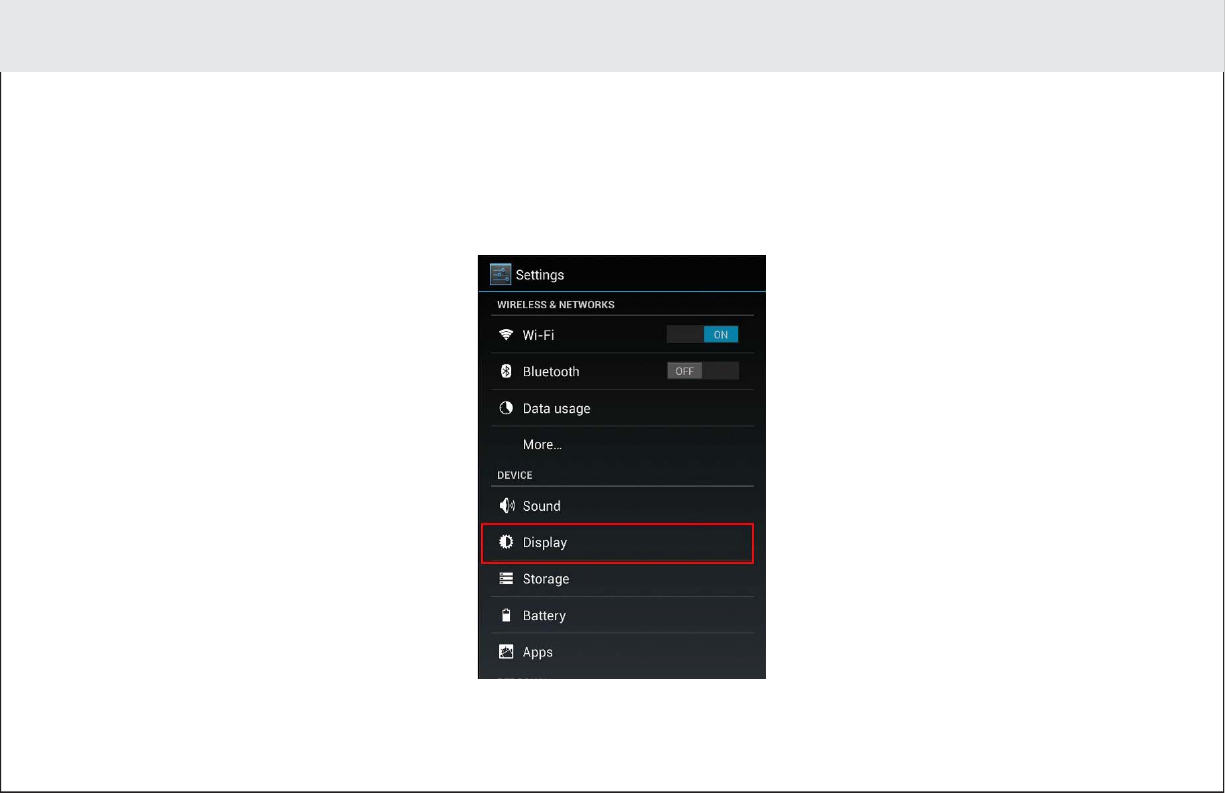

Figure 1.1 Display option on Nexus 4
54

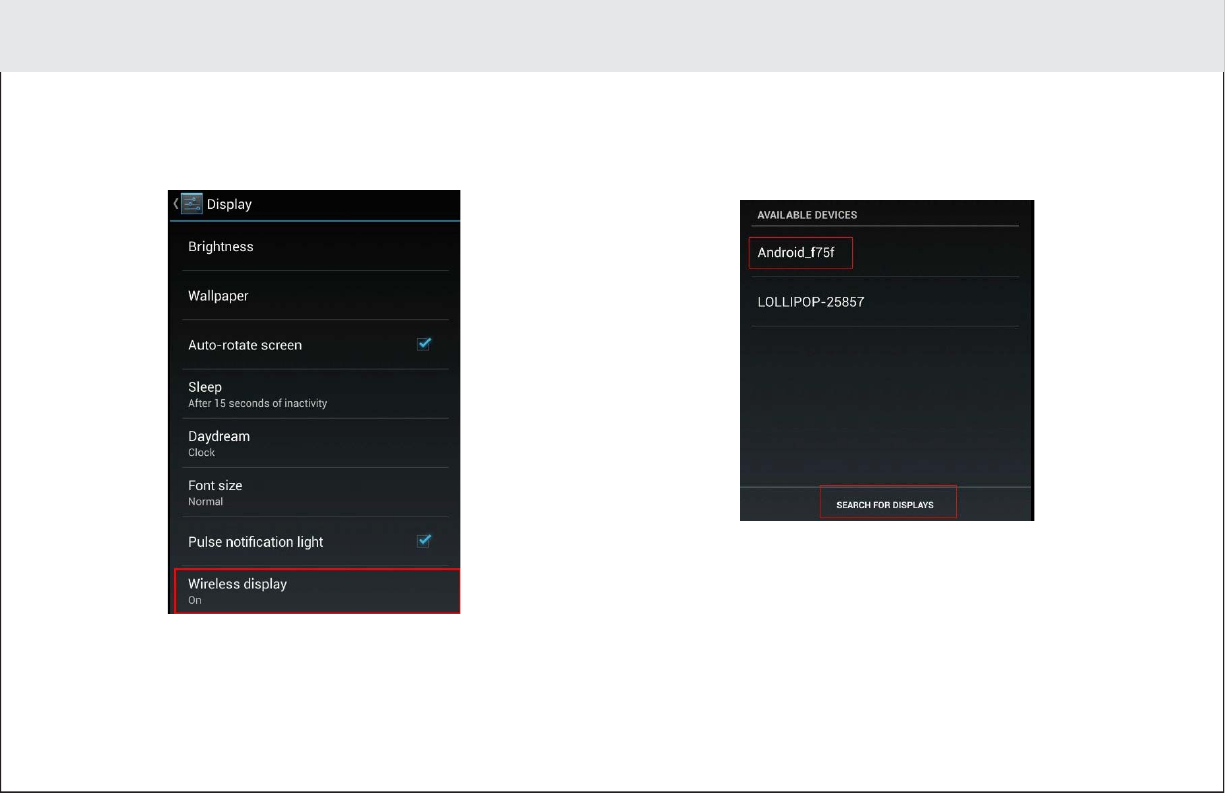

2. Click the Display option, you will nd Wireless
display option:
3. Click the Wireless display, you will nd paired
devices, click the SEARCH FOR DISPLAYS to refresh
the paired device list:

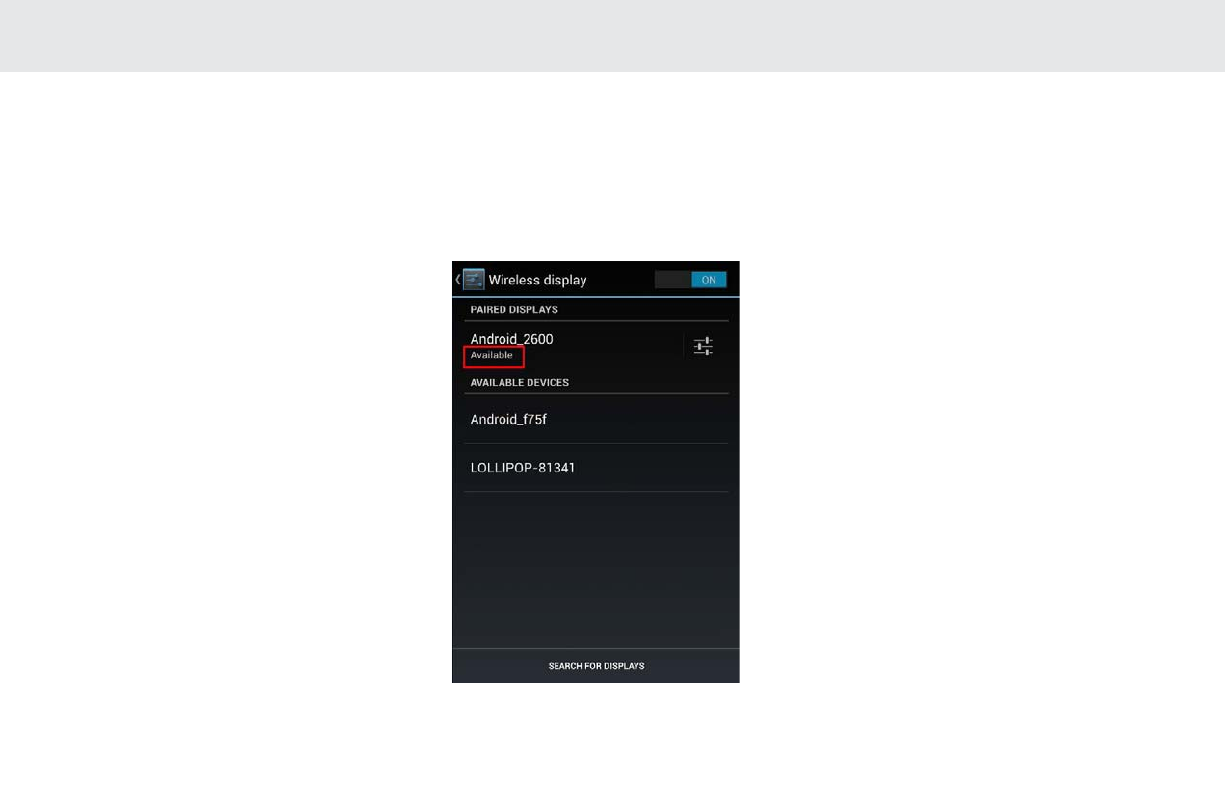

Figure 1.2 Wireless display option on Nexus 4
Figure 1.3 refresh for nding more devices
55
3.22.2 SINK
HC7 tablet

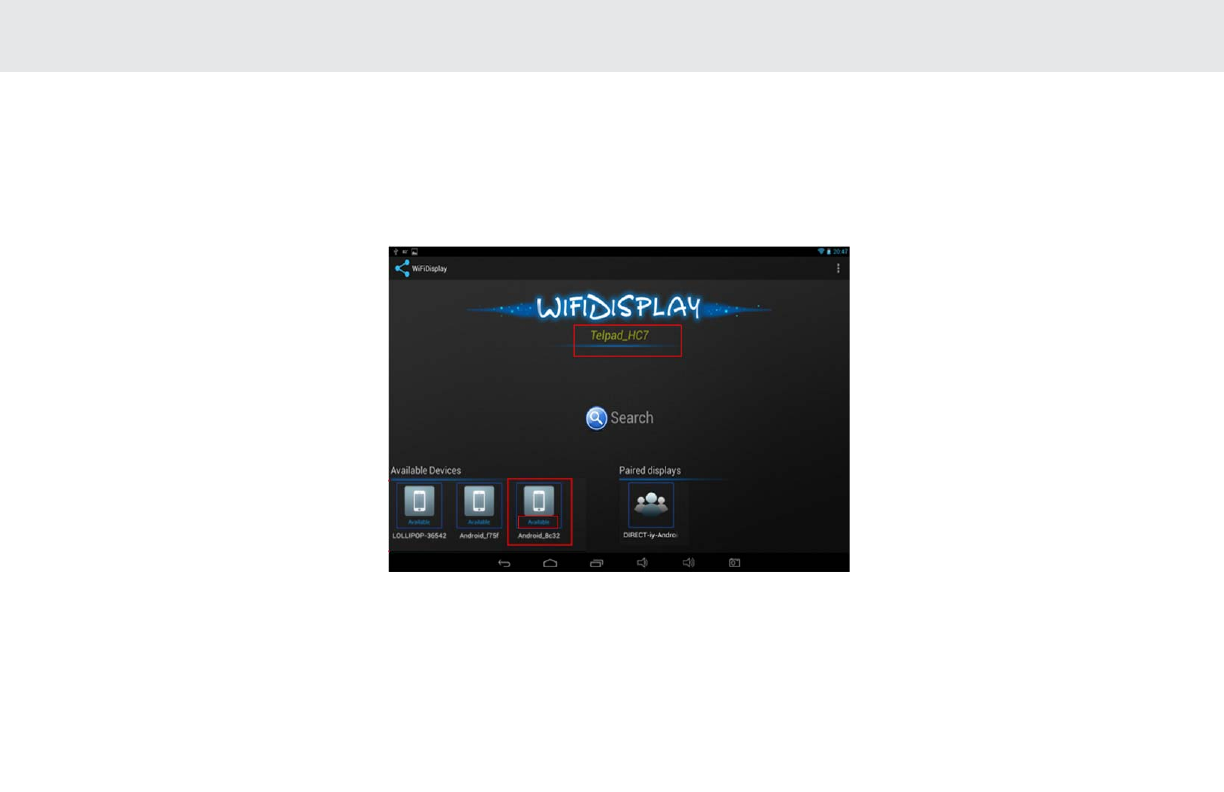

1. Please make sure that you have turned on wi on HC7 pad; Then start the apk
2. WiDisplay: ,you can nd your device name“Telpad_HC7”once accessed this apk.

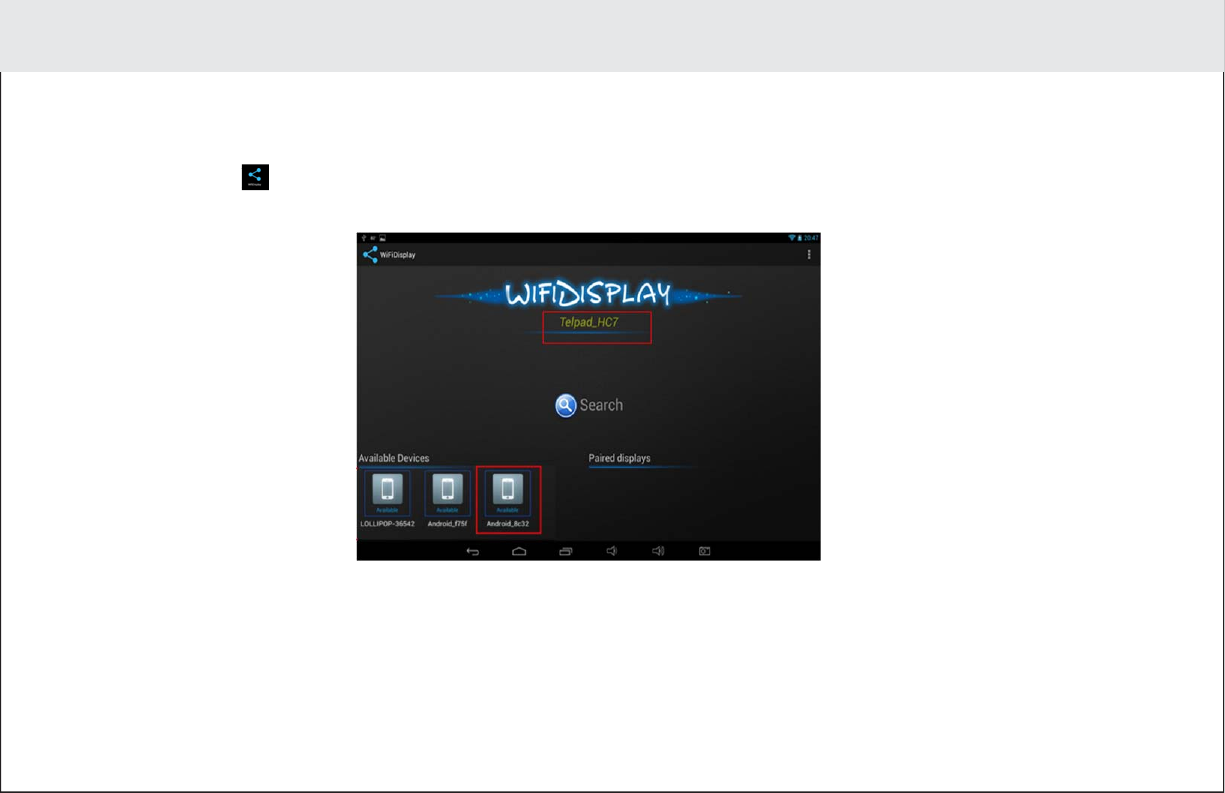

Figure 1.4 The app wi display on HC7 tablet Dongle
56
3. You will nd the name from Nexus 4,its name is Android_8c32.If you can’t nd the paired device on tablet, you can
click Search for device name on Nexus 4.
4. You can use HC7 tablet to enjoy the wi display once above setting nished. Our wi display can support wi
mode:RTL8188EUS,Broadcom BCM43362,BCM4330,APXX.

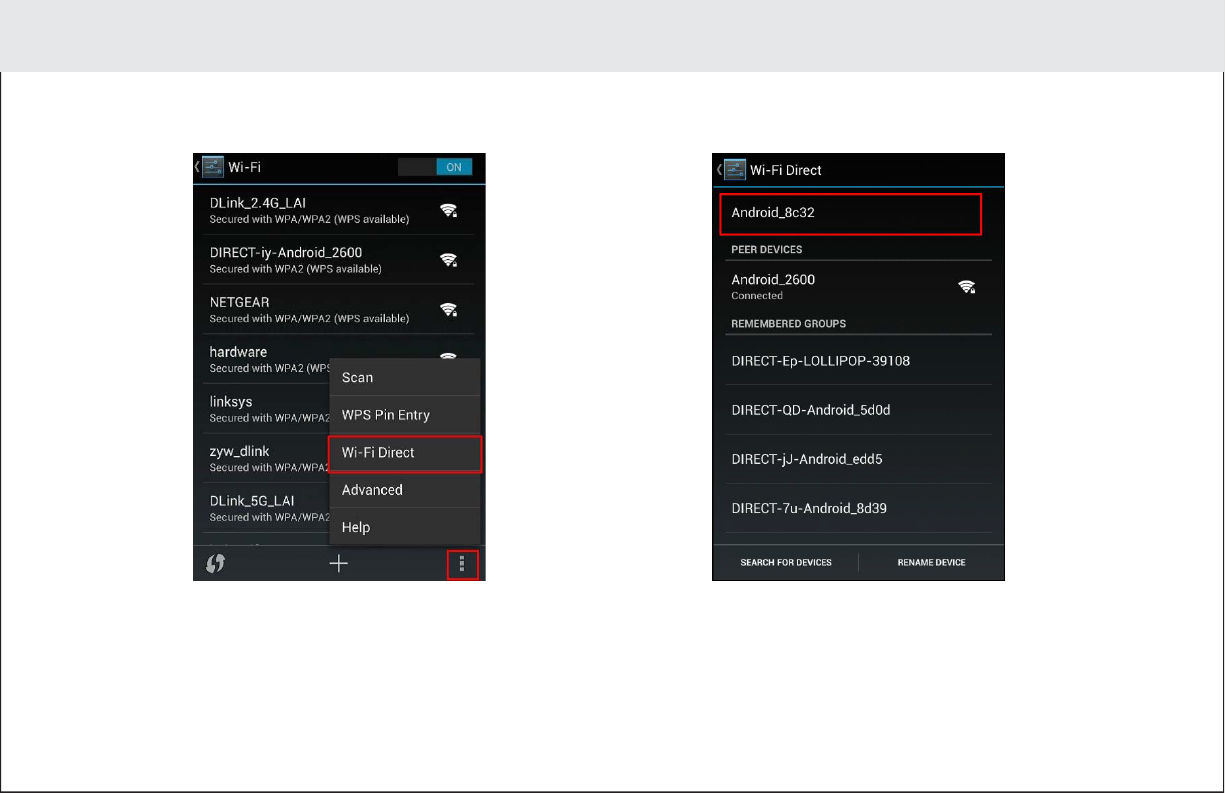

Figure 1.5 How to checkout you device name on Nexus4 Figure 1.6 Android_8c32 is you device name on Nexus4
57
3.22.3 ATTENTIONS
This step is very important, please read it carefully.
3.22.3.1 Source:
When you use nexus 4 as source port, you should make sure that the paired device name on you mobile phone is
available, just like the picture:
Figure 1.7 Second connect to HC7 tablet
58
2. Please make sure that the device which you need to pair with HC7 tablet
Shows on tablet “available Devices”.
3. After you have click the the available Devices,please wait for 10-15 seconds,then connect success.
3.22.3.2 Sink:
1. When you open the app wi display on HC7 tablet, please ensure the paired device name on tablet is available, just like
the picture:
The Wi-Fi source name will be displayed on HC7 tablet once connected successfully at rst time. if you want to connect it
again, you can start to connect HC7 pad by cilcking the peer device name on Nexus 4 untill HC7 pad has been ready for being
connected,so when the HC7 pad has been ready,you can look at step3.22.2.
Figure 1.8 Available means HC7 tablet has been ready
59
3.23 DLNA
3.23.1 Control device discovery and connection
Our HC7 can support DLNA and you can operate as below:
Please use mobile phone as source port and ensure the version of the android must be 2.3 and above(because only
version 2.3 of android can support miracast) such as nexus 4.
3.23.1.1 Wi-Fi connection
Please make sure two devices are in same Wi-Fi network, such as AURA_2.4g
Figure1.1 nexus 4 has connected WIFI Figure1.2 HC7 tablet has connected WIFI
60
3.23.1.2 Start Application

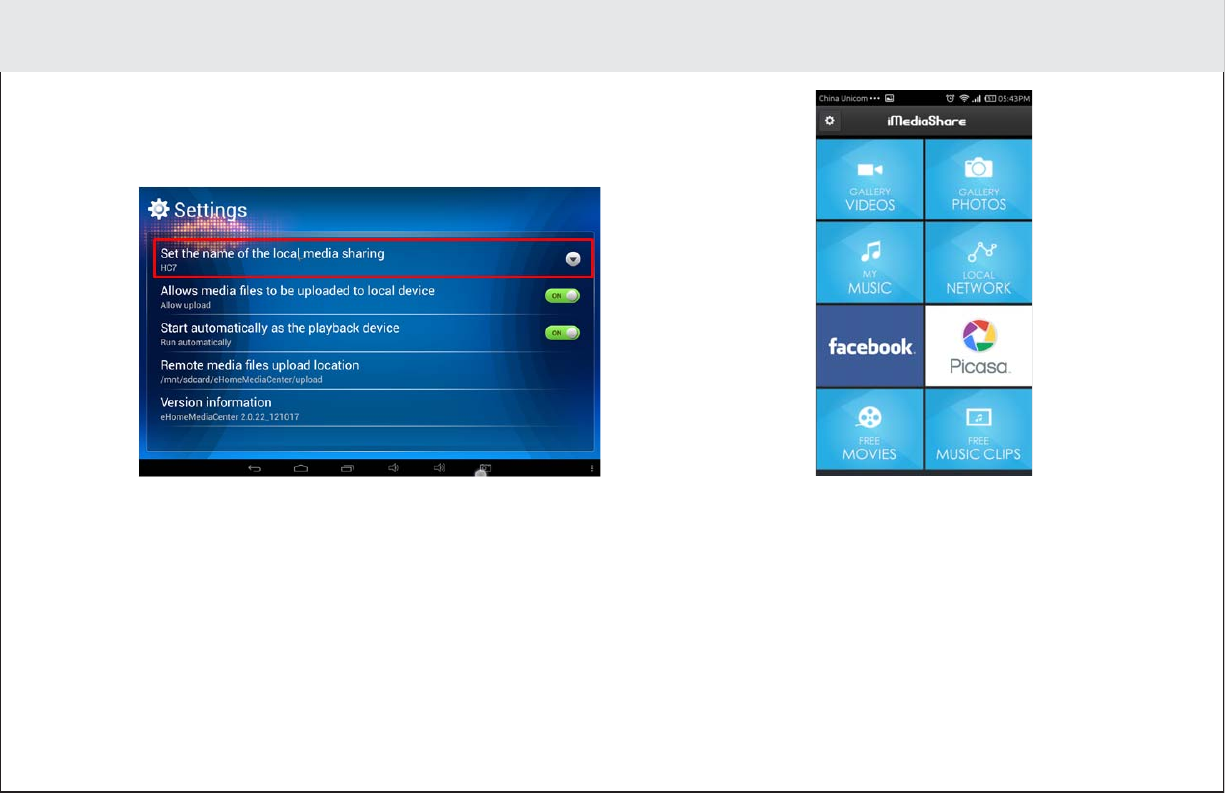

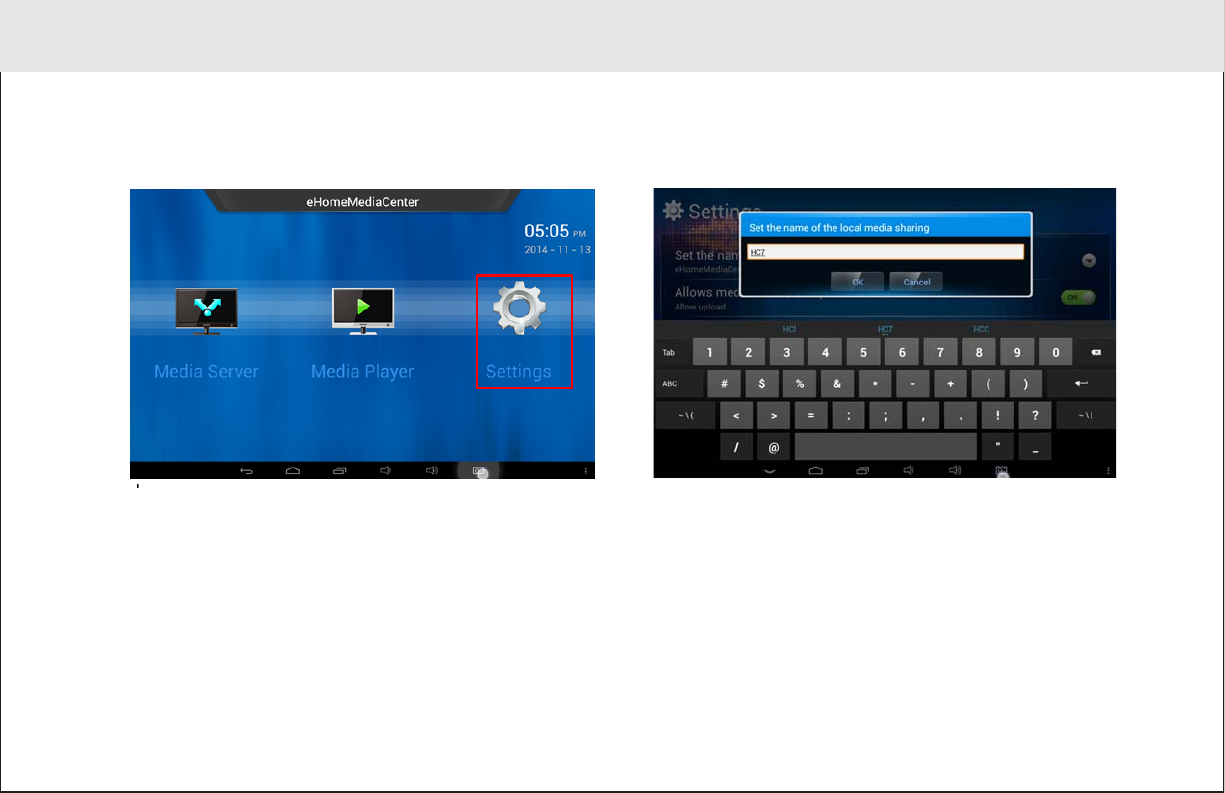

1. Please open “eHomeMediaCenter” in HC7 tablet and click “Settings” to change your device name for easy identication .
Such as “HC7”.
Figure1.3 click settings Figure1.4 Change device name
61
Figure1.5 nish Figure1.6 apk-iMediaShare interface
2. Please start “apk-iMediaShare” and the interface Figure1.6.
62
Figure1.7 start Media Figure1.8 start iMediaShare
3.23.2 The brief introduction of interactions between tablet and mobile phone
3.23.2.1To push local video, music or photo to display on your mobile phone to tablet.
Please refer to picture 1.6 “GALLERY VIDEOS”、“GALLERY PHOTOS” and“GALLERY MUSIC”. For example, click “Gallery
Music” select music click “choose a Screen” and select “HC7" Operate as the interface instruction Tablet
will play music which is pushed from mobile phone.
3.23.2.2To push the live video or music to display on your mobile phone to tablet.
Please refer to Picture 1.6 “FREE MOVIES” and “FREE MUSIC CLIPS”.
It will link to download “iMedia share lite” interface automatically when you operate rst time and click“install”, you can
choose any of music or video in “pps” interface once installation nished and “Choose a Screen”HC7 as the tablet
device in the same time.
Remark: In order to guarantee the smooth playback of device, please operate above in good environment of network.
3.23.2.3 HC7 tablet can share the music and video on mobile phone.
Please start “apk-iMediaShare” on mobile phone, and start “eHomeMediaCenter”in HC7 tablet “Media Player”interface.
63

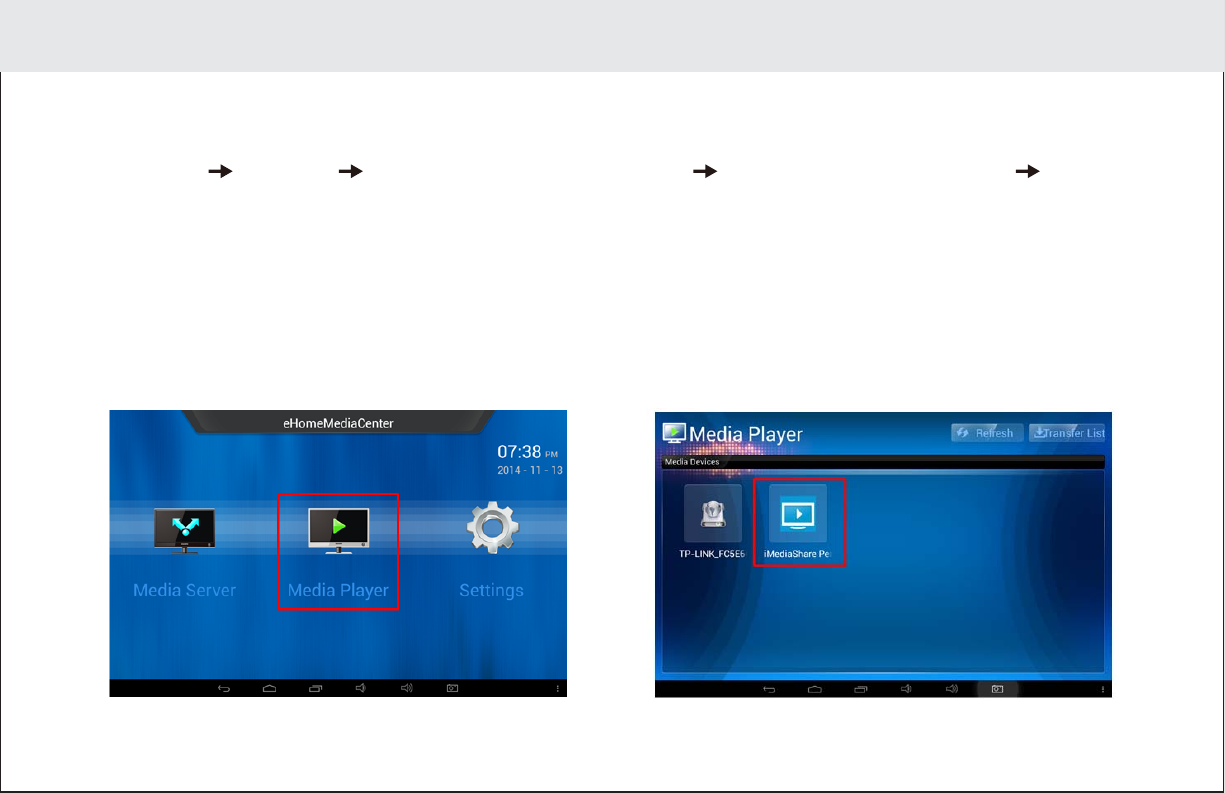

When you start “Media Player” and the interface will show shared music, video and photos. You can click the les which you
want to play.
3.23.2.4 HC7 tablet can share local music, video or pictures to mobile phone.
Please start the “Media server” in “eHomeMediaCenter”interface on HC7 tablet when apk-iMediaShar is started on mobile
phone.
Figure1.9 Start Media server Figure1.10 click top corner “Add Share”
64
Figure1.11click“OK” Figure1.12 select top right corner“start
Figure1.13 the shared les from HC7tablet
65
Please start the “local network” in mobile phone “iMediaShare” interface when the local les on HC7 tablet have been
shared. The picture below for your reference.

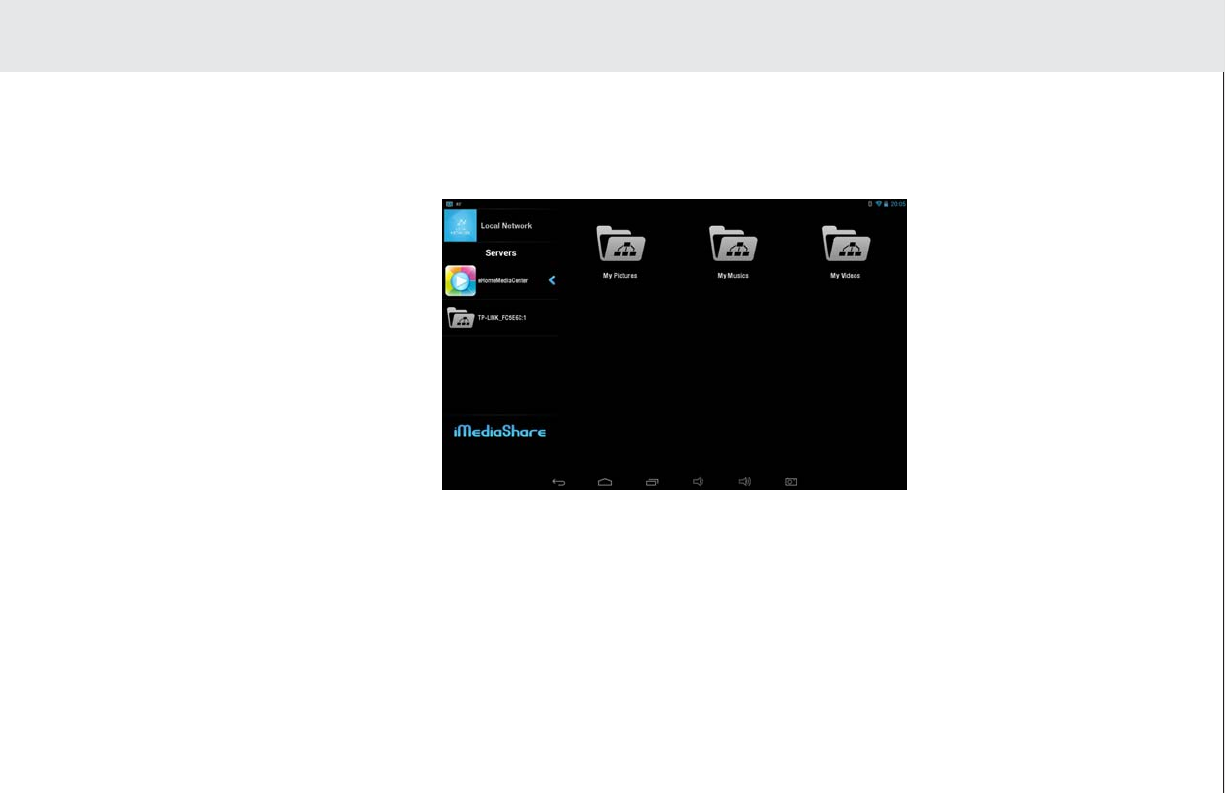

Figure 1.14 handsets apk - iMediaShare Shared interface display
66
4
THE CONNECTION BETWEEN DOCK PHONE AND TABLE
67
The touchscreen Dialer can be accessed by touching the Dialer shortcut.
The Dialer is automatically launched when the Tablet is placed on the dock. When the Tablet’s dock interface comes into
contact with the dock connector, the keypad on the dock is automatically disabled.
With this set-up, you must use the Tablet dialler to make calls.
Please take note of the following when using the Dialer:
Line 1- Landline
Line 2- VoIP (requires network support)
When the Tablet is docked, the handset keypad and the speaker button are automatically disabled. The user must use
the Tablet for dialing.
The Tablet’s touchscreen Dialer is used as the primary phone. The handset provided serves as a secondary phone so users
can make calls if there is a power outage or when the Tablet is removed from the dock.
4.1.1.1 Making a call without the Tablet
You can use the handset base like an ordinary xed phone to make calls when the Tablet is removed from the dock.
4.1.1.2 Making a call using the onscreen Dialer
1. Lift the handset from the dock.
2. Dial the number using the onscreen dialer.
3. To end the call, return the handset to the dock.
4.1.1.3 Making a call on the speakerphone using the onscreen Dialer
1. Touch to enable the speakerphone.
2.Dial the number using the onscreen dialer.
3. Touch to end the call.
4.1.1 Making a call
4.1 VOICE SERVICES
68
When the phone rings and displays the incoming call image:
Lift the handset to o from the dock to answer the call
Touch to answer the call.
Only one of the two modes will be active at a time.
To end a call, please make sure both the handset and Tablet is o-hook
4.1.1.4 Switching from handset to speakerphone and vice versa
1. Touch to switch from handset call to speakerphone.
2. To return to using the handset, lift the handset. The call will be continued via handset.
4.1.1.5 Making a call from the Contacts
1. Touch the Contacts tab above the onscreen dialer.
2. If there are already saved entries, simply touch the icon of the person you wish to call.
To clear the Call log, touch Clear call log.
To remove just one entry from the log, touch an entry.and then touch Remove from call log.
4.1.2 Answering a call
4.1.3 Ending a call
Place the handset down on the dock to end the call.
Touch to end the call.
4.1.4 Selecting area code
4.1.1.6 Making a call through the Call log
1. Touch Call log tab above the onscreen dialer.
2. Scroll to locate the contact you wish to call.
3. Press Dial icon.
69
Within the Dialer, touch the Phone Settings tab.
Touch the Select Area Code on the list
Touch the Menu button at the top corner.
Touch Settings in the menu displayed.
The default preset area code will be Metro Manila (02).
Select your area from the list and the phone will now be set to the conrmed area code.
When the area you are in has been selected, the phone will automatically recognize the similar area code for all
incoming and outgoing calls, and will display the phone number without the area code. You will also be able to direct
dial the phone number within the same area.
4.1.5 Favorites
Touch Favorites tab above the onscreen dialer
If there are saved entries already, tap the icon of the person you wish to call. Touching the contact image will upload
the detailed information of the contact.
4.1.6 Memo
When you have an ongoing call, you may write notes through the Memo Pad. To create a memo during your phone
call, touch at the lower right corner.
4.1.7 Importing/exporting contacts
Access the Dialer, touch the Contacts tab
Touch the Menu button at the top corner.
Touch Import/export in the menu displayed.
Select from the list whether you would like to import or export or other actions.
70
4.1.8 Changing ringtones
Within the Dialer, touch the Phone Setting tab.
Touch the Ringtones & Volume from the list
Touch the Menu button at the top corner.
Touch Settings in the menu displayed.
From the options that shows up touch Phone ringtone.
Select the ringtone you would like from the list provided.
4.1.9 CONTACTS
4.1.9.1 Opening Contacts
4.1.9.2 Creating a contact
1. Open the Contacts screen.
2. Touch new contact.
3. Enter the contact’s information:
Enter the contact name, and touch the picture frame to select a picture to display next to the name in the contacts
list and in other applications.
Touch a contact information category, such as phone numbers and e-mail addresses, to enter information about your
contact. Flick up and down to view all categories.
Touch the plus button to the right of a category to add more than one entry for that category. Touch the minus button
to the right of an entry to remove the entry.
Touch the label button to the left of the contact information items such as Phone and E-mail to open a menu with
preset labels for a phone number. You can touch to select a preset label or touch Custom in the menu to create your
own label.
You can open your contacts by touching Contacts on the Home screen or on the Applications screen. In the contact
tab pages, you can touch a contact image to open the contact details screen.
Contacts enables you to save and manage information such as phone numbers, e-mail addresses and chat addresses of
your contacts, and provides quick and easy access to communicate with the people you want.
71
4.1.9.3 Searching for contacts
1. Open the Contacts screen.
2. Touch Search.
3. Enter the name of the contact you are searching for. As you type, contacts with matching names appear elow
the search box.
4. Touch a matching contact in the list to open its Details screen.
4.1.9.4 Editing contacts
To change or add details for your contacts:
1. Open Contacts.
2. Touch the contact whose details you want to edit, and touch contact image in the menu that opens. You can
also touch Edit contact while viewing details of the contact.
3. Edit the contact information, using the same controls as when you create a contact.
Editing contact details
Deleting a contact
1. Open Contacts.
2. Touch and hold the contact you wish to delete, and touch Delete in the menu that opens. (You can also
touch Delete while viewing details of the contact.)
3. Touch OK to conrm that your want to delete the contact.
4. Once you have nished entering details, ick to the bottom of the page and touch Done to save the contact
details to your Tablet.
While viewing the Call log, touch and hold the call log list to show contact details. You can add numbers to the contacts
via the virtual screen.
72
4.2.1The speaker box function
4.2.1.1Dock phone can support music play in Bluetooth mode

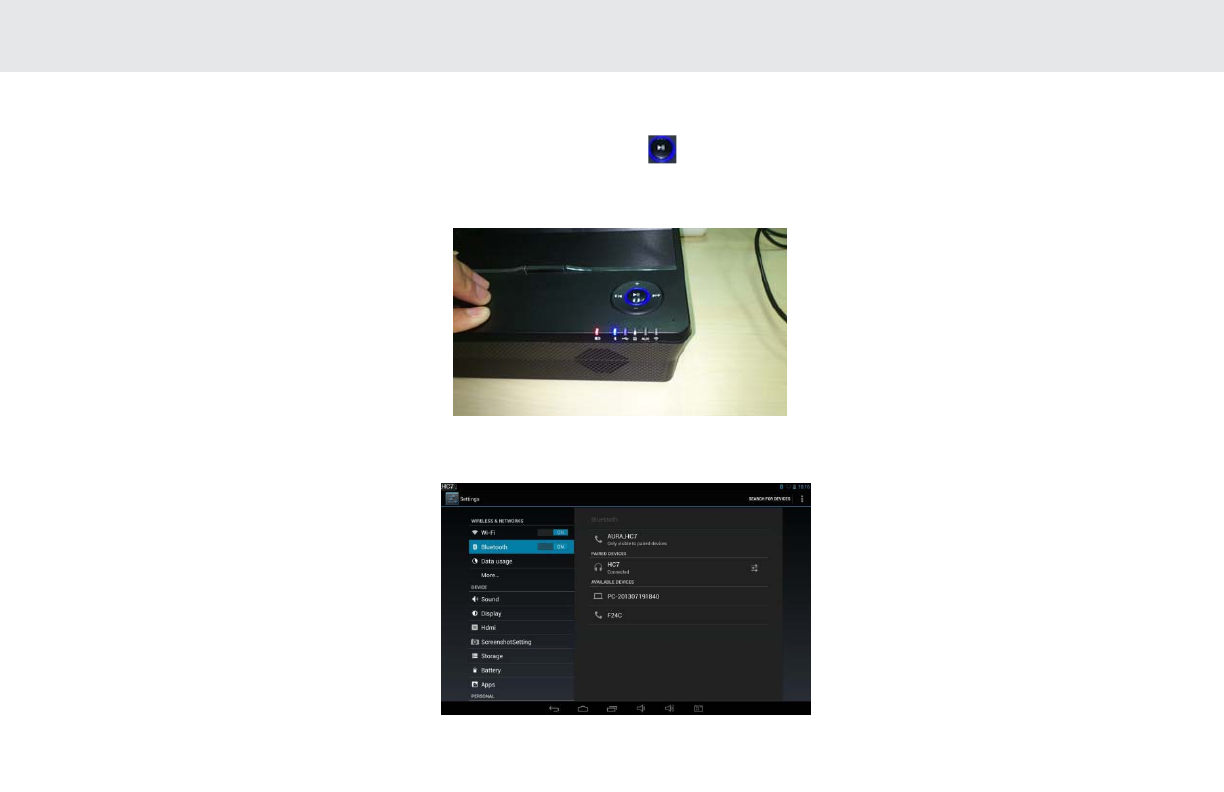

1. Please connect power supply of dock phone and long press to start Bluetooth. The dock phone will make a
voice prompt and Bluetooth indicator will display in blue light and ashing constantly .
Please refer to the picture below.
2. Please start Bluetooth function on your tablet,mobile phones or notebooks and search dock phone Bluetooth
device named“HC7”.Then pair and connect them. Please refer to the below picture
4.2 Dock phone entertainment functions
73

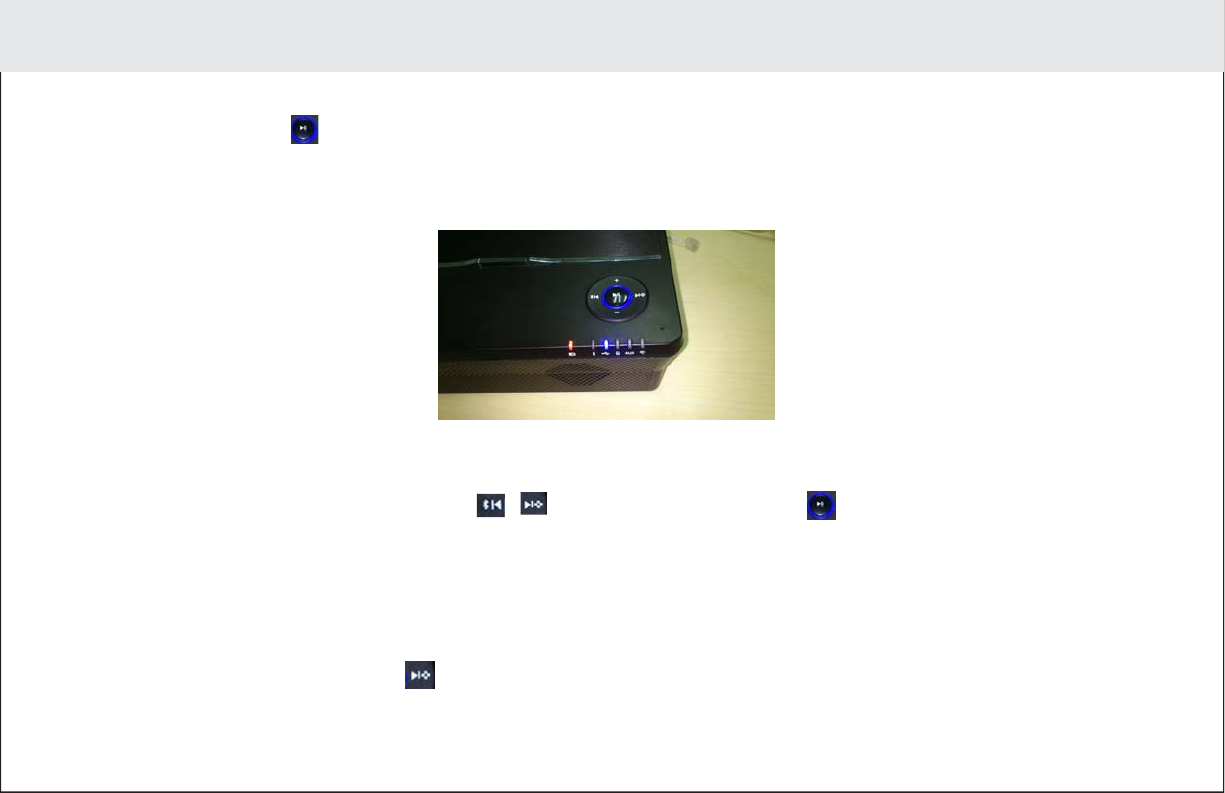

3. The dock phone will make a voice prompt once connected successfully. The dock phone can play any of audio
les on your tablet/mobile phone or notebook.
Please short press the below buttons on dock phone to control:
Volume key +/- to adjust dock phone volume
、for up/down program switch operation
the pause/play button
Remark:
1. Open Bluetooth of dock, the indication light will light and sound beep,under connecting mode, the light will ash
after connected will keep light;
2. The Bluetooth indicator will keep long bright once connected successfully;
3. Long press to turn o Bluetooth. It can be connected in 10m automatically next time once connected successfully
at rst time;
4. Long press to disconnect Bluetooth. Dock phone will make a voice prompt once disconnected,so you can easy
change other Bluetooth device;
5. The music will be paused under Bluetooth mode once call’s coming or you make phones. You can click “play” on
tablet or press to play music continuously once calls nished
4.2.1.2 Dock play music by insert TF card
1. Please long press to start Bluetooth on dock phone, the Bluetooth indicator will display and dock phone
will make a voice prompt meanwhile.
2. Please insert TF card into TF socket, please refer to the picture below:
74

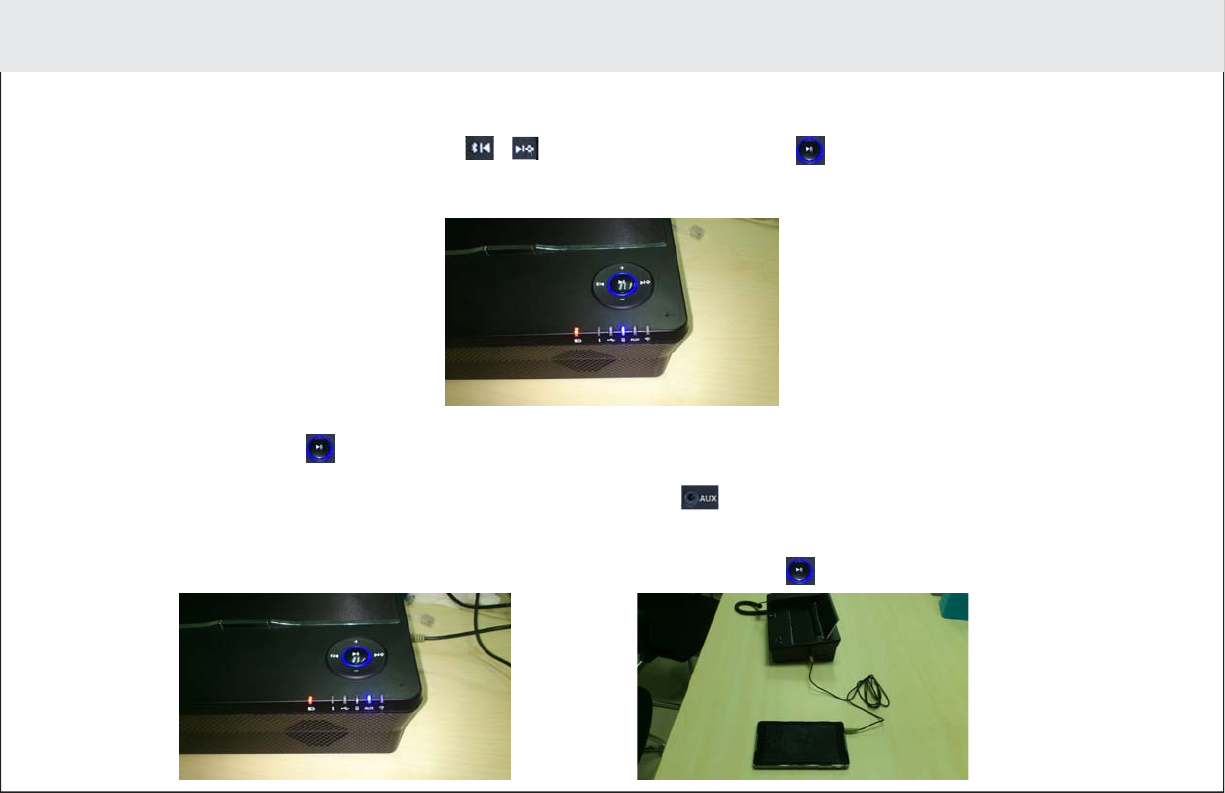

3. Dock will shift to TF mode automatically and beep sound indicating, and meantime TF indicate light will lighting as
below picture .the dock could read the TF card storage music le and play automatically .during playing could press
Volume key +/- to adjust volume, press 、 to shift previous or next ,press to pause or stop.
Remark: The music will be paused under TF mode once call’s coming or you make phones. Stay out hang up the phone,
can automatically switch to this mode to continue playing
4.2.1.3 Dock play music by connected AUX cable
1. Please long press to start Bluetooth, the Bluetooth indicator will display and dock phone make a voice prompt
meanwhile.
2. Insert the end of Aux cable to Dock as below picture showing , Dock will shift to Aux mode automatically from
Bluetooth mode,meantime Aux indicate light will keep light as Figure 1 below, the other end of Aux cable should plug into
tablet ,mobile phone or MP3,etc.after connected ,you can play music on your tablet or phone or MP3.connection manner as
below Figure 2. during playing could press Volume key +/- to adjust volume, press to pause or stop
Figure1 Figure2 75
4.2.1.4 Dock play music under USB HiFi Audio mode
1. Please long press to start Bluetooth, the Bluetooth indicator will display and dock phone will make a voice
prompt meanwhile.
2. Please connect tablet with dock phone well. Then the dock automatically switch to USB HiFiAudio mode. The
indicator of HiFi Audio will display in blue and keep long bright. Please refer to the picture below.
3. Click music play on tablet and speaker box of dock phone will play the music from tablet. during playing could press
Volume key +/- to adjust volume, press 、 to shift previous or next ,press to pause or stop
Remark: when the USB HiFi Audio mode play music calls or make a phone call, Tablet on music playback exit application,
stay out hang up the phone, can automatically switch to the mode and then click on the tablet music player to play.
4.2.1.5 Switchover between four music playback modes
1. Automatic switchover: You insert TF card and connect electronic equipments or tablet with line cable when the
music is playing under one mode. The current mode will be switch automatically.
2. Manual switchover: Long press to switch modes. The premise is that the corresponding device must have
been connected with dock phone.
76
HC7 dock phone Wi is equipped with functions of Wi-Fi router and Wi-Fi repeaters.
Wi-Fi router: It supports traditional wired broadband ADSL dial-up, dynamic network and static network access.
Wi-Fi repeaters: It can increase the network coverage without network cable.
4.3.1 Interface Specication
4.3.2 Function and Conguration of WI-FI router
Wi- router support through a web browser to access and conguration, we can use the common Microsoft's Internet
explorer browser, apple's Safari and the Android operating system's built-in browser login to the router, to browse the
contents of the mobile storage device, the parameters of the conguration of a router.Below is the introduction to operation
Attention: Please don’t plug network cable into WLAN interface of dock phone while you are using router.
Step one: Open HC7 tablet main interface select “setting” “Wireless and Internet” access Wi-Fi setting interface. Tablet
will search the available wireless network automatically. We found SSID “pldtwi” router and click to connect
4.3 Dock Phone Wi Function
Interface Name Function description
DC IN Power port
WLAN WAN and LAN interfaces are compatible
RESET Long press 5 seconds and release, the router will restore
factory setting.
77
Step two: Please input router initial password 1~8,“
connected” will display below SSID once connected
successfully, and will show on the top right
corner of screen meanwhile. Please double check
your password if the connection failed.
4.3.3 Wi-Fi router conguration interface
Please click Android system browser and input
http://192.168.1.1, click “GO”.
78
In order to ensure data security, please remember to change WIFI password in “WIFI security” when you are using your
device at rst time.
Reminder: a) in order to guarantee your Wi-Fi not to be accessed by other persons, you can set up Wi-Fi encryption.
And we suggest you to encrypt through WPA-PSK/WPA2-PSK.
b) You will be required to input new password once Wi-Fi encryption nished.

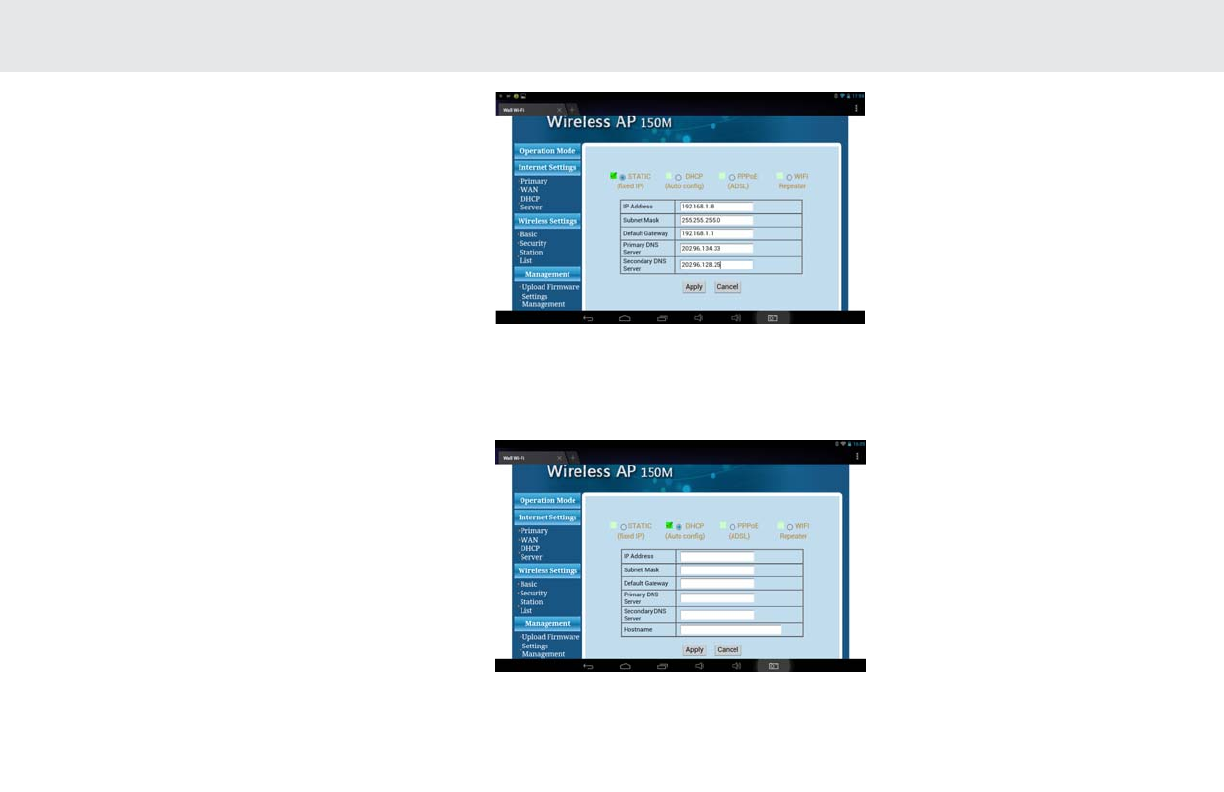

a) Static IP
If network supplier provides you the accessing way as static IP, you need to input ISP or the IP address, subnet mask ,
gateway, DNS server, secondary DNS server which are from webmaster .
4.3.4 Setting of wired broadband internet parameters
Cable - WiFi mode, Ethernet front-end ports as the WAN port, all of the wireless terminal can only access to the Internet
through WiFi connection to the router Click “network setting” →”WAN” and access internet according to front-end wideband
lines. Router supports 4 kinds of wired internet ways: static IP, dynamic IP, PPPoE, Repeater.
79

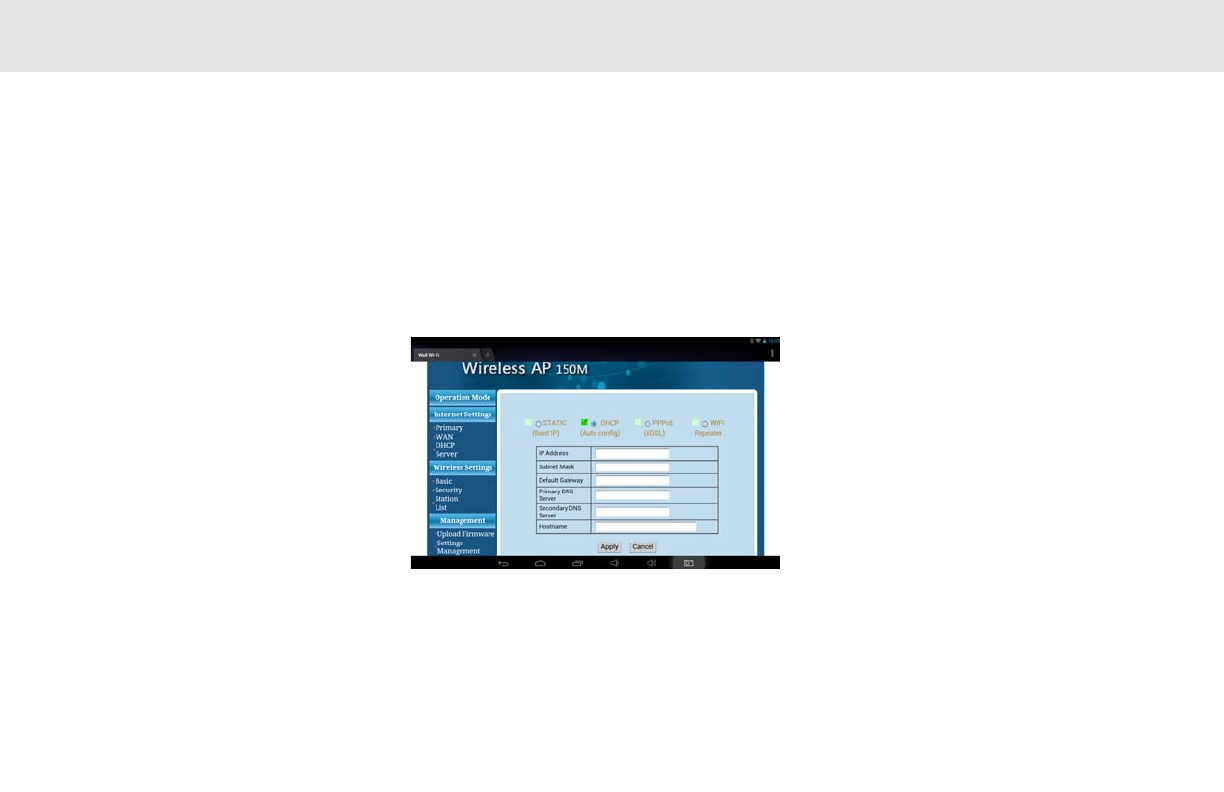

b)Dynamic IP
If network supplier provides you the accessing way as dynamic IP, you no need to make any setting here, just click
“ok”. Dynamic IP is the accessing internet way at guesthouses, hotels and some other public places.
80
d) Repeater
Click Scan AP, select the target AP and input the password, the Apply to complete
c)PPPoE
If your Internet connection as a "virtual ADSL dial-up" way, only needs to be in the "user name" and "password" in
the input box enter the ISP to provide your account information, set up, click "ok"
81
4.3.7 To charge through dock phone USB 5V output
You mobile, tablet or other USB electronic equipments can be charged through dock phone USB output. And this is the
only function for USB output of dock phone.
4.3.6 The restoration of wireless router to factory setting
You will encounter some problems once modied some parameters of router. For instance, we modied the password
but forgot the modied password after a period of time. You need to restore router to factory setting manually at such
circum stance. Please refer to the operation below:
a）Through manual : Please long press “WiFi Reset” ve seconds rstly and release.
b）Through software : management->set management->load Factory Defaults。

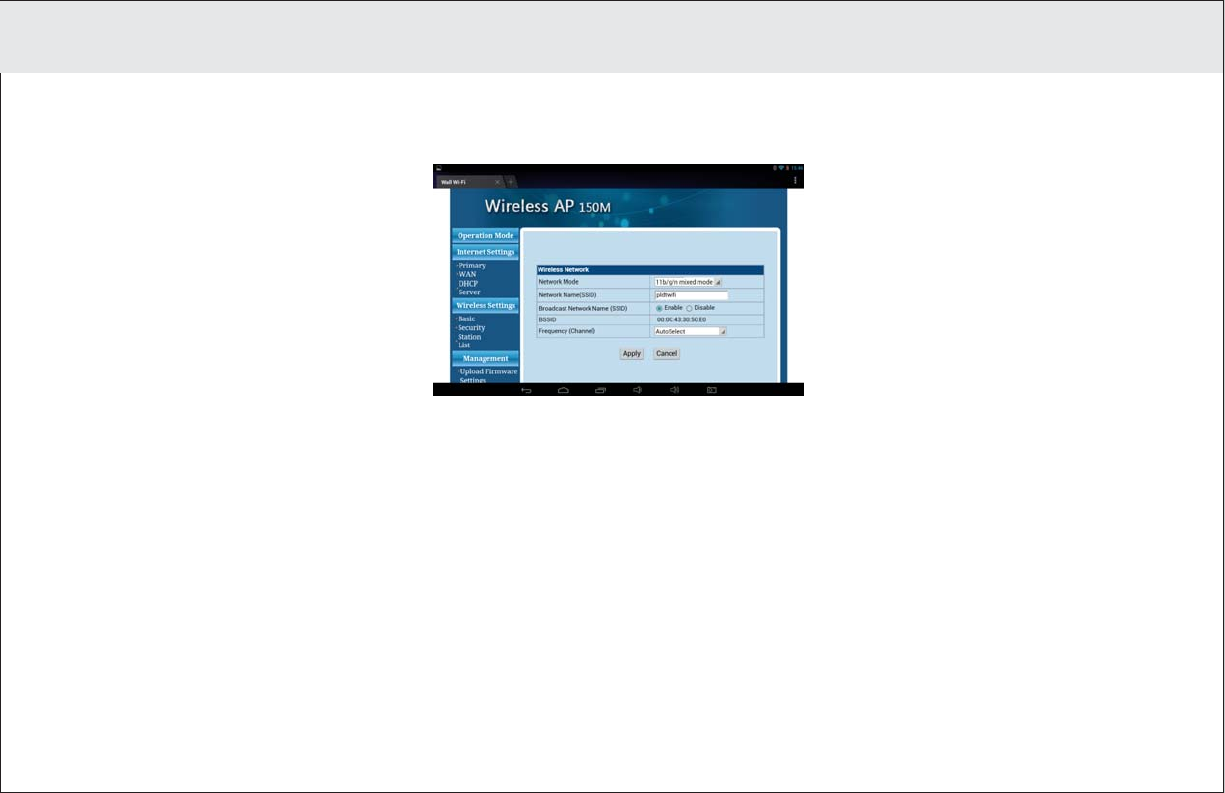

4.3.5 WiFi basic setting
Click left menu bar, “WiFi setting” -> “basic setting”, you can set network modes, SSID, wireless channel and etc.
82
5 BASIC TROUBLESHOOTING FOR THE TELPAD
83
5.1.1. Press Tablet power key and check whether the PLDT Telpad logo appears upon initialization.
5.1.2. If the Android™ Tablet doesn’t launch, connect the Tablet to the power supply through the dock.
5.1.3. If the problem still exists, please contact the PLDT Business Oce.
5.1 Tablet not powering up
5.2.1. If there is an electronic device emitting radio frequencies near you, switch it o or put it away from the Tablet.
5.2.2. Remove any peripheral equipment such as DSL splitter or fax machine and connect your phone directly to the
modular box.
5.2.3. If the problem still exists, please contact the PLDT Business Oce.
5.2 No dial tone
5.3.1. If there is an electronic device emitting radio frequencies near you, switch it o or put it away from the Tablet.
5.3.2. Remove any peripheral equipment such as DSL splitter or fax machine and connect your phone directly to the
modular box.
5.3.3. If the problem still exists, please contact the PLDT Business Oce.
5.3 Distorted audio on speaker
5.4.1. Check if there is a dial tone. If there is none check your RJ11 connection and make sure it is properly connected.
5.4.2. Look at your screen and make sure that the Dialer is set to Line 1; otherwise, touch the Line 1 button. Make sure
thatthe screen shows the message “Telpad is on the dock”.
5.4.3. If the problem still exists, please contact the PLDT Business Oce.
5.4 Tablet Dialer cannot make a call
5.5.1. Check if the RJ9 cable is properly connected.
5.5.2. Unplug and re-plug the coiled cable to eliminate the possibility of a loose RJ9 connector.
5.5.3. Try a dierent telephone unit, if possible, to check if it’s a line problem.
5.5.4. If the problem still exists, please contact the PLDT Business Oce.
5.5 No audio response in the Handset
84
6 FAQs
85
86
Telpad can’t work when tablet
is inserted into dock phone.
There is no sign when tablet is
charged by adaptor.
The WiFi function of dock phone
can’t work.
Reason: It may be caused by the poor contact between Dock Phone and Tablet.
Solutions:
In order to guarantee the well connection, please clean those connected points
between dock phone and tablet with naphtha.
Reason: The adaptor may be damaged or the poor contact of DC power cable.
Solution:
-Please check and make sure the DC power cable is well connected with both
tablet and adaptor.
-Please change good adaptor or DC power cable if it still can’t rechargeable after
above check.
Reason: It may be caused by poor internet connection or the wrong setting of WiFi
router.
Solution:
- Please pull out of net cable and re-plug it into WLAN slot and make sure it has
been well connected;
-Please reset WiFi router according to “WiFi User Manual”.
The SD card is unworkable once
inserted into tablet.
Reason: It may be the poor contact between SD card and tablet or SD card has
been damaged.
Solution:
- Please pull SD card out and re-plug it into tablet;
- Please change another good SD card;
- Please restart tablet and re-plug SD card.
The camera can’t capture photos.
Reason: It may be caused by the wrong conguration of cameras.
Solution:
- Please check if the conguration of cameras is right or not;
- Please turn o the camera APK and restart it;
- Please restart tablet and reopen camera APK.
87
The tablet Bluetooth can’t be
paired with other devices.
The touch panel of tablet is
non-response when you are
touching it.
The tablet can’t be turned on
Reason: The Bluetooth of tablet didn’t open or its setting is wrong.
Solution:
- Please check if Bluetooth of tablet is opened or not;
- Please check Bluetooth’s setting;
- Please restart tablet and open Bluetooth again.
Reason: The tablet is may on standby.
Solution:
- Please press power key to let tablet return to normal mode;
- Please restart tablet
Reason: It may be caused by the low battery of tablet or the power key has
been damaged.
Solution:
- Please check if power key has been damaged or not;
- Please recharge tablet with adaptor rstly. And press power key once “in
recharge” remark is showing on tablet.
Telpad can’t make calls
Reason: It may be caused by the poor contact of coiled phone cable.
Solution:
- Please check if the coiled phone cable has been well connected with dock
phone handset and dock phone;
- Please change good coiled phone cable or dock phone handset.
Telpad can’t answer incoming calls
Reason: It may be caused by the poor contact of phone line cable.
Solution:
Please check if phone line cable has been connected well or change another
good one.
88
The indicator on dock phone
didn’t display once battery
installed.
The adaptor charging is unstable
once connected.
There is noise when answering
calls with dock phone handset
or dock phone speaker.
Reason:
- Please check if dock phone battery has been installed well or not;
- Please re-install battery or clean the metal terminals of battery holder with
naphtha.
Reason: The terminals of DC cable wasn’t enough plugged into the bottom of
power socket.
Solution:
-Please check and make sure the terminals of DC cable has been plugged
into the bottom of power socket.
Reason: This may be caused by the abnormal working from adaptor.
Solution:
- Please pull out the adaptor of dock phone and re-plug it to check
if the noise disappeared or not;
- Please change another good adaptor.
The on-hook button of dock phone
can’t hang up calls.
Reason: The on-hook button may be stuck.
Solution:
- Please pat the on-hook button gently;
- Please adjust the on-hook button position by a small knife to restore its
exibility.
The dock phone can’t be placed
steady.
Reason: It may be caused by the unsteady silicone foot pad on the back of
dock phone.
Solution:
-Please check if the silicone foot pad on the back of dock phone is steady or not.
The speaker box of dock phone
can’t work.
Reason: The adaptor wasn’t connected well or the power key was damaged.
Solution:
- Please check if the adaptor has been connected well or not rstly;
- Please check if the power key has been damaged or not.
89
The music in TF card can’t be
played.
Dock phone AUX can’t play music.
The Bluetooth function of dock
phone can’t work.
Reason: It may be caused by the poor contact between TF card and tablet or the
TF card has already been damaged.
Solution:
- Please check the speaker box of dock phone has been opened rstly, pull out
TF card and re-plug it into tablet;
- Please change another good TF card.
Reason: It may be caused by the poor contact of line in or the line in has been
damaged.
Solution:
- Please check the AUX has been opened rstly, pull out of line in and re-plug it;
- Please change another good line in cable.
Reason:
- Please check speaker box is opened and work under Bluetooth mode and
check the Bluetooth setting meanwhile;
- Please disconnect the Bluetooth and pair device again;
USB HiFi can’t play music.
What will aect WiFi signal?
Reason: It may be caused by poor contact between tablet and dock phone.
- Solution: Please check if tablet and dock phone has been well connected
rstly, then switchover to USB HiFi mode.
- The crowded space in your family and the main barrier is from wall. WLAN
adapts wireless microwave frequencies which is close to vertical transmission
and diraction ability is very weak. Therefore ,the WiFi receiving electronic
equipments behind barriers will receive very weak WiFi signal or even no WiFi
signal can be received.
How to get the correct DNS server
address?
- Please consult with internet service provider for DNS parameters;
- Please login to the management interface of router once it connected with
your device me select menu running to see DNS parameters and record it
How ADSL user to apply “account”
and “password”? -Please ask internet service provider for it.
90
- The metal barrier which is not only resist WiFi signal but also absorb electromagnetic
energy. Therefore, the biggest metal barrier in your family is those oors with bar-mat
reinforcement and the WiFi signal from this directionis impossible to penetrate. The
signal will be very weak even though it penetrated.
- The standard working frequency band for IEEE 802.11 b/g is 2.4GHz. However, many
industrial equipments are also working in such frequency band. Such as microwave oven,
Bluetooth equipment, cordless phone, refrigerator and etc.
The WiFi signal will be aected if it’s near to a very strong magnetic eld.
- It may be caused the problems of channel conict and WiFi signal crosstalk if there are
many WiFi equipments in WiFi environment.
- Those strong signal interference sources which are within 100 meters distance rom WiFi
devices and cable line may also have strong interference on WiFi signal and WiFi
equipments. Such as radio transmitting tower, electric welding machine, electric car, high
voltage power transformer and etc.
- The weather can also aect WiFi signal greatly. The WiFi signal will be very weak in thun
derstorm day or cloudy day. And the WiFi signal can be transmitted farther in sunny day.
- Please choose a best place for your Wireless AP. And the requirements for this place are
as follows:
a>The place should be a little higher which is good for WiFi signal downward radiates.
This can reduce the blocking from barriers and minimize signal blind area;
b>The position for wireless AP should let its signal to be penetrated wall as less as possible.
And the best positions for AP client and wireless AP are in both of their visual range.
- Please change frequency band to reduce wireless crosstalk. Please note that wireless
frequency band should be away from others’ frequency band more than 5 when you set
wireless signal.
- Please reduce interference from electric appliances in your family to guarantee good
signal. Please keep your wireless AP far away from those above mentioned equipments.
- You can change antennas of wireless AP to enhance wireless signal if the antennas is
removable.
How to improve the quality
of WiFi signal transmission?
7 WARNINGS AND PRECAUTIONS
91
Please read the following instructions carefully. Abide by the safety warnings described in order to use the device safely and
properly as it is designed for. These instructions apply to the whole device including all the accessories.
Basic Requirements
Keep the device dry at all times and prevent from any collision with other objects, including during storage, transportations,
and using of the device.
Please do not disassemble the device in any case. Contact an authorized service center for repair and/or assistance of any kind.
An organization or individual cannot change the mechanical, safety, or performing design of the device without authorization.
Please abide by all related laws and regulations, and respect the legal rights of other people when using the device.
When making a call, please do not touch the pogo pin connector in the dock.
Environmental Requirements for Using the Device
Before connecting and disconnecting cables, stop using the device, and then disconnect it from the power supply. Ensure
that your hands are dry during operation.
Keep the device far from sources of heat and re, such as a heater or a candle.
Keep the device far from electronic appliances that generate strong magnetic or electric elds, such as a microwave
oven or a refrigerator.
Place the device on a stable surface.
Place the device in a cool and well-ventilated indoor area. Do not expose the device to direct sunlight.
Keep the ambient temperature between 0°C and 35°C while the device is being charged.
Keep the ambient temperature between 0°C to 40°C for using the device powered by a battery.
Do not block the openings on the device with any object. Reserve a minimum space of 10 cm around the device for
heat dissipation.
Do not place any object (such as a candle or a water container) on the device. If any foreign object or liquid enters the
device, stop using the device immediately, power it o, remove all the cables connected to it, and then contact an
authorized service center.
During thunderstorms, power o the device, and then remove all the cables connected to it to prevent it from getting
damaged due to lightning strikes.
92
Never install telephone wiring during an electrical storm
Never install telephone line jacks in wet locations unless the jack is specically designed for wet locations.
Never touch exposed (insulation broken) telephone wires or terminals unless the telephone line has been disconnected
at the network interface
Precautions for Using Wireless Devices
When using the device, ensure that the antenna of the device is at least 20 cm away from all persons.
Do not use the device where using wireless devices is prohibited or may cause interference or danger.
The radio waves generated by the device may interfere with the operation of electronic medical devices. If you are
using any electrical medical device, contact its manufacturer for the restrictions on the use of the device.
Do not take the device into operating rooms, intensive care units (ICUs), or coronary care units (CCUs).
Areas with Inammables and Explosives
Do not use the device where inammables or explosives are stored, for example, in a gas station, oil depot, or
chemical plant. Otherwise, explosions or res may occur. In addition, follow the instructions indicated in text or symbols.
Do not store or transport the device in the same box as inammable liquids, gases, or explosives.
Accessory Requirements
Use only the accessories supplied or authorized by the device manufacturer. Otherwise, the performance of the device
may be aected, the warranty for the device or the laws and regulations related to telecommunications terminals
may become null and void, or an injury may occur.
Do not use the power adapter if it’s cable is damaged. Otherwise, electric shock or re may occur.
Ensure that the power adapter meets the specications indicated on the device nameplate.
For electric plugs, the socket-outlet should be installed near the device and should be easily accessible.
Battery and Charger
Unplug the charger from the electrical plug and the device when not in use.
The battery can be charged and discharged hundreds of times before it eventually wears out. When the standby time
and the talk time are shorter than the original time, replace the battery.
93
Use the appropriate power supply dened in the specications of the charger. An improper power voltage may cause a
re or amalfunction of the charger.
Do not connect two poles of the battery with conductors, such as metal materials, keys, or jewelries. Otherwise, the
battery may be short-circuited and may cause injuries and burns on your body.
Do not disassemble the battery or solder the battery poles. Otherwise, it may lead to electrolyte leakage, overheating,
re, or explosion.
If battery electrolyte leaks out, ensure that the electrolyte does not touch your skin and eyes. When the electrolyte
touches your skin or splashes into your eyes, wash your eyes with clean water immediately and consult a doctor.
If there is a case of battery deformation, color change, or abnormal heating while you charge or store the battery, remove
the battery immediately and stop using it. Otherwise, it may lead to battery leakage, overheating, explosion, or a re.
If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens, stop using the cable at
once. Otherwise, it may lead to an electric shock, a short circuit of the charger, or a re.
Do not dispose of batteries in re as they may explode. Batteries may also explode if damaged.
Danger of explosion if battery is incorrectly replaced. Recycle or dispose of used batteries according to the local
regulations or reference instruction supplied with your device.
Prevention of Hearing Damage
Using a headset at high volume can damage your hearing. To reduce the risk of damage to hearing, lower the headset
volume to a safe and comfortable level.
Safety of Children
Keep the device and its accessories out of the reach of children. Otherwise, they may damage the device and its accessories
by mistake, or they may swallow the small components of the device, causing suocation or other dangerous situations.
MaintenanceIf the device is not used for a long time, power it o, and then remove all connected cables.
If any exceptional event occurs, such as if the device emits smoke, unusual sounds or smells, stop using the device
immediately, power it o, remove all the cables connected to it, and then contact an authorized service center.
94
If the device screen is damaged, do not touch or try to remove the broken part. In this case, stop using the device
immediately, and then contact an authorized service center in time.
Do not trample, pull, or over bend any cable. Otherwise, the cable may get damaged, causing malfunction of the device.
Before cleaning the device, stop using it, power it o, and then remove all the cables connected to it.
Use a clean, soft, and dry cloth to clean the device shell. Do not use any cleaning agents or sprays.
Emergency Call
You can use your device for emergency calls in the service area. The connection, however, cannot be guaranteed in all
conditions.
You should not rely solely on the device for essential communications.
Disposal and Recycling Information
This symbol on the device (and any included batteries) indicates that the device (and any included batteries) should
not be disposed of as normal household garbage. Do not dispose of your device or batteries as unsorted municipal waste.
The device (and any batteries)should be handed over to a certied collection point for recycling or proper disposal at the
end of its life. For more detailed information about the recycling of the device or batteries, contact your local city oce,
the household waste disposal service, or the retail store where you purchased this device.
95
8 PERSONAL INFORMATION AND DATA SECURITY
The use of some functions or third-party applications on your device could result in your personal information and
data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and
condential information.
Place your device in a safe area to prevent it from unauthorized use.
Set your device screen to lock and create a password or unlock pattern to open it.
Periodically back up personal information kept on your memory card, or stored in your device memory. If you change
to a dierent device, be sure to move or delete any personal information on your old device.
If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without
opening them.
If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your
personal information.
If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access.
When these services are not in use, turn them o.
Install or upgrade device security software and regularly scan for viruses.
Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should
be scanned for viruses.
To secure your personal information and downloaded applications, it is highly suggested that the user
downloads appropriate security and/or anti-virus applications.
Some applications require and transmit location information. As a result, a third-party may be able to share your
location information.
Your device may provide detection and diagnostic information to third-party application providers. Third party
vendors use this information to improve their products and services.
97
9 LEGAL NOTICE
Copyright © 2014 by AURA Technology Limited.
All rights reserved. No part of this document may be reproduced, distributed, or transmitted in any form or by any means
without prior written approval of AURA Technology Limited.
For the device explained in this manual may contain copyright software of AURA Technology Limited. and other possible licensors.
No person shall not or is permitted in any manner to reproduce, distribute, modify, decompile, disassemble, decrypt,
extract, reverse engineer, lease, assign, or sublicense the software, unless such restrictions are outlawed by related laws
or permitted by individual copyright holders.
Notice
Depending on the capacities and settings of the local network, there may be some limitations to using certain software.
Thus the functions of the device that rely on certain software might be not fully available or not able to activate. The
descriptions enlisted thus may not exactly be reenacted within the device and the accessories purchased.
Changes or modications to the manual may occur without previous notications or without any liability, by the right
reserved to AURA Technology Limited.
Third-Party Software Statement
Any intellectual properties, software, applications of the third-party that are provided with the device are not owned by
AURA Technology Limited. Thus there will be no responsibility or liability held towards AURA Technology Limited. for the
functions of the software and applications along with warranties and/or support for them. Third-party software and
applications services may be changed or concluded at any time. AURA Technology Limited. to the degree allowed by
related laws, states that it will not be responsible, liable, or compensate for the services provided by third-party providers.
Any aspects of any software and application installed and used on the device, AURA Technology Limited.shall not be held
responsible or reliable such as legitimacy or quality of the software/application. The users shall accept the risk of any
results caused by the software/application being possibility incompatible with the device. This device runs on Android
operating system but there has been appropriate changes made by AURA Technology Limited. Thus this device might
not fully support all the functions supported by standard Android operating system. AURA Technology Limited. shall not
be liable for any related situations.
Trademarks and Permissions
All the trademarks, products, services and company names mentioned are the property of their respective owners
99
10 DISCLAIMER OF WARRANTIES
The information within this manual are provided “AS IS”, except required by applicable laws, no warranties of any kind;
either expressed or implied, including without limitation, the implied warranties of merchantability and tness for a particular
purpose, are made in relation to the accuracy, reliability, or information of this manual.
LIMITATIONS OF LIABILITY
In no event shall AURA Technology Limited. be liable for any special, incidental, indirect, or consequential manages
or lost prots, business, revenue, data, goodwill or anticipated savings, that arises from the use or misusage of the device.
(This limitation shall not apply to liability for personal injury to the degree applicable law rules out such limitation.)
101
11 INDEX
103
104
Warranty card
NAME:
TEL. NO.:
ADDRESS:
DATE OF PURCHASE:
VERSION:
SERIAL NO.:
105
TELPAD HC7
USER MANUAL
AURA Technology Limited
Address: FLAT/RM810, Star House, 3 Salisbury Road, Tsimshatsui, Hong Kong
E-mail: info@auratech.hk
for Android™ Android™ is a trademark of Google Inc. Use of this trademark is subject to Google Permissions.
FCCStatement
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,
pursuanttopart15ofFCCRules.Theselimitsaredesignedtoprovidereasonableprotection
againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesandcan
radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,
maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful
interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment
offandon,theuserisencouragedtotrytocorrect
Theinterferencebyoneormoreofthefollowingmeasures:
Reorientorrelocatethereceivingantenna.
Increasetheseparationbetweentheequipmentandreceiver.
Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThisdevicecomplieswithPart15ofFCCRules.
Operationissubjecttothefollowingtwoconditions:
Thisdevicemaynotcauseharmfulinterference,andthisdevicemustacceptanyinterference
received,includinginterferencethatmaycauseundesiredoperation.
Note:ThemanufacturerisnotresponsibleforanyradioorTVinterferencecausedby
unauthorizedmodificationstothisequipment.Suchmodificationscouldvoidtheuser’sauthority
tooperatethisequipment.
WhenonlyuseMIDbyportablemeetFCCRFExposureInformation(FCCSAR)
TheDevicemeetsthegovernment’srequirementsforexposuretoradiowaves.
ThedeviceIdesignedandmanufacturednottoexceedtheemissionlimitsforexposuretoradio
frequency(RF)energysetbytheFederalCommunicationCommissionoftheU.S.Government.
Theexposurestandardforwirelessmobiledevicesemploysaunitofmeasurementknowsasthe
SpecificAbsorptionRate,orSAR.TheSARlimitsetbytheFCCis1.6W/Kg.TestsforSARare
conductedusingstandardoperatingpositionsacceptedbytheFCCwiththedevicetransmitting
atitshighestcertificatedpowerlevelinalltestedfrequencybands.AlthoughtheSARis
determinedatthehighestcertificatedpowerlevel,theactualSARlevelofthedevicewhile
operatingcanbewellbelowthemaximumvalue.Thisisbecausethedeviceisdesignedto
operateatmultiplepowerlevelssoastouseonlytheposerrequiredtoreachthenetwork.In
general,thecloseryouaretoawirelessbasestationantenna,thelowerthepoweroutput.
ThehighestSARvalueforthedeviceasreportedtotheFCCwhentestedforusewhenwornon
thebody,asdescribedinthisuserguideis0.885W/KgforBodyandsummationis0.885W/Kgfor
Body.
WhiletheremaybedifferencebetweentheSARvalueslevelsofvariousdevicesandatvarious
positions,theyallmeetthegovernmentrequirement.
Talpad’salsomeetFCCRFRadiationExposureStatementwhenenduserusetogetherwithMID.
ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolled
environment.Thisequipmentshouldbeinstalledandoperatedwithaminimumdistanceof20
centimetersbetweentheradiatorandyourbody.
