AUTOSLIDE AS8 Pedestrian MULTIDRIVE Sliding Door Operator User Manual multidrive installation manual as8

AUTOSLIDE PTY LTD Pedestrian MULTIDRIVE Sliding Door Operator multidrive installation manual as8

User Manual

© 2018 Autoslide Pty Ltd MultiDriveMultiDrive TMInstallation instructions

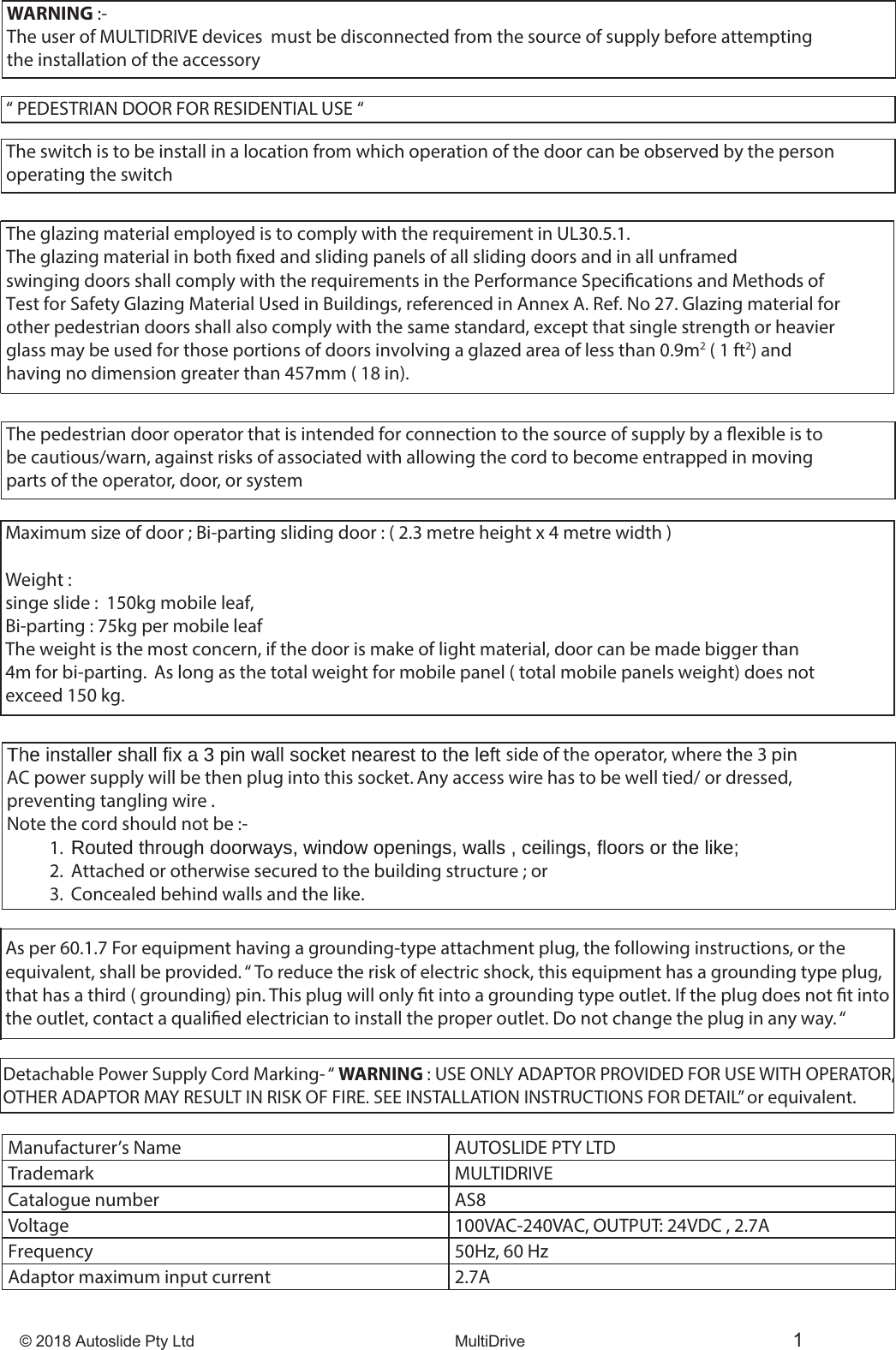

© 2018 Autoslide Pty Ltd MultiDrive 1WARNING :-The user of MULTIDRIVE devices must be disconnected from the source of supply before attempting the installation of the accessory“ PEDESTRIAN DOOR FOR RESIDENTIAL USE “The switch is to be install in a location from which operation of the door can be observed by the person operating the switchThe glazing material employed is to comply with the requirement in UL30.5.1.The glazing material in both xed and sliding panels of all sliding doors and in all unframed swinging doors shall comply with the requirements in the Performance Specications and Methods of Test for Safety Glazing Material Used in Buildings, referenced in Annex A. Ref. No 27. Glazing material forother pedestrian doors shall also comply with the same standard, except that single strength or heavier glass may be used for those portions of doors involving a glazed area of less than 0.9m2 ( 1 ft2) and having no dimension greater than 457mm ( 18 in).The pedestrian door operator that is intended for connection to the source of supply by a exible is to be cautious/warn, against risks of associated with allowing the cord to become entrapped in moving parts of the operator, door, or systemMaximum size of door ; Bi-parting sliding door : ( 2.3 metre height x 4 metre width ) Weight : singe slide : 150kg mobile leaf,Bi-parting : 75kg per mobile leafThe weight is the most concern, if the door is make of light material, door can be made bigger than 4m for bi-parting. As long as the total weight for mobile panel ( total mobile panels weight) does not exceed 150 kg. side of the operator, where the 3 pin AC power supply will be then plug into this socket. Any access wire has to be well tied/ or dressed, preventing tangling wire .Note the cord should not be :-1. 2. Attached or otherwise secured to the building structure ; or 3. Concealed behind walls and the like.Manufacturer’s Name AUTOSLIDE PTY LTDTrademark MULTIDRIVECatalogue number AS8Voltage 100VAC-240VAC, OUTPUT: 24VDC , 2.7AFrequency 50Hz, 60 HzAdaptor maximum input current 2.7AAs per 60.1.7 For equipment having a grounding-type attachment plug, the following instructions, or the equivalent, shall be provided. “ To reduce the risk of electric shock, this equipment has a grounding type plug, that has a third ( grounding) pin. This plug will only t into a grounding type outlet. If the plug does not t into the outlet, contact a qualied electrician to install the proper outlet. Do not change the plug in any way. “Detachable Power Supply Cord Marking- “ WARNING : USE ONLY ADAPTOR PROVIDED FOR USE WITH OPERATOR, OTHER ADAPTOR MAY RESULT IN RISK OF FIRE. SEE INSTALLATION INSTRUCTIONS FOR DETAIL” or equivalent.

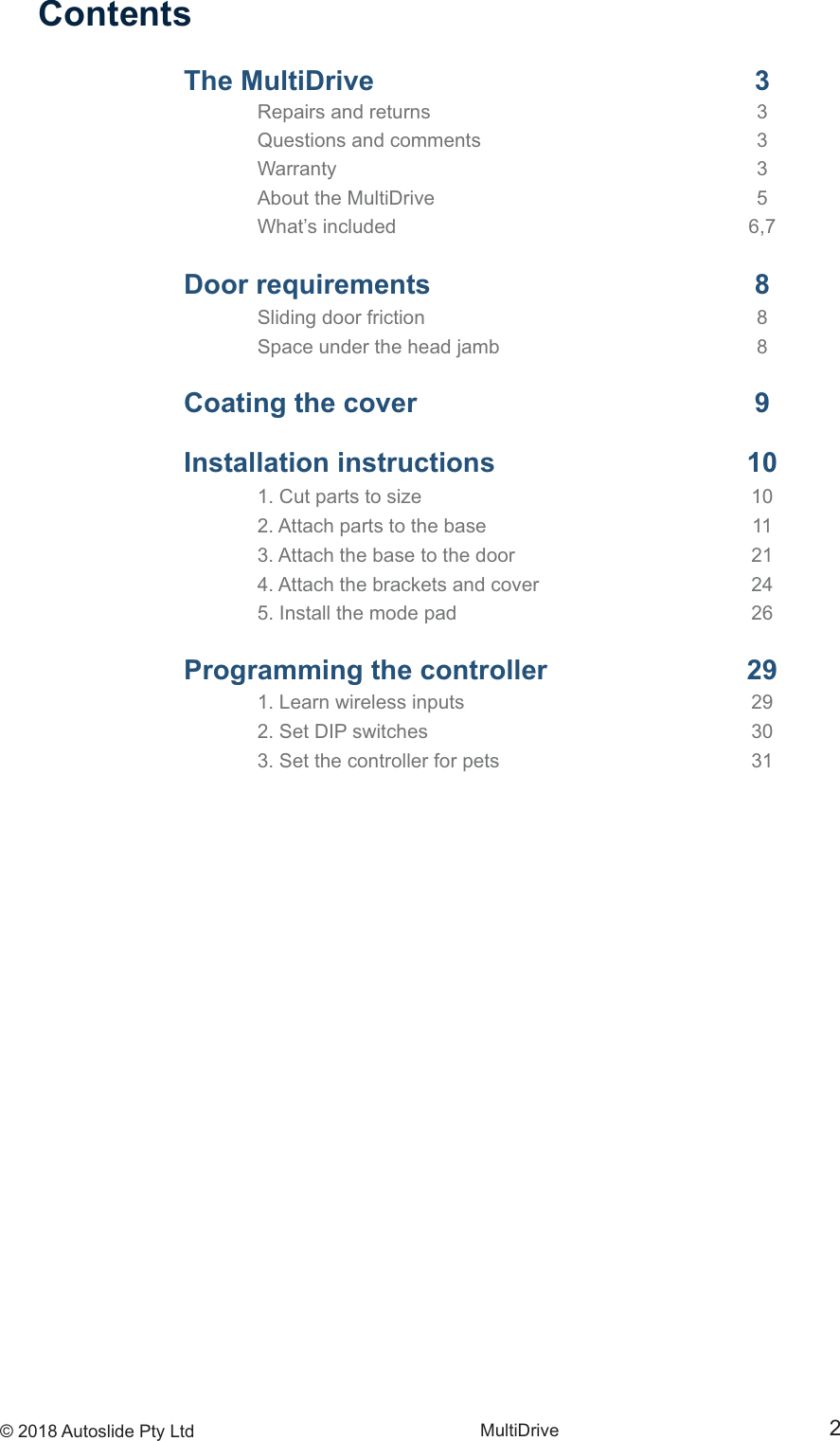

© 2018 Autoslide Pty Ltd MultiDrive 2ContentsThe MultiDrive 3 Repairs and returns 3 Questions and comments 3 Warranty 3 About the MultiDrive 5 What’s included 6,7 Door requirements 8 Sliding door friction 8 Space under the head jamb 8 Coating the cover 9Installation instructions 10 1. Cut parts to size 10 2. Attach parts to the base 11 3. Attach the base to the door 21 4. Attach the brackets and cover 24 5. Install the mode pad 26Programming the controller 29 1. Learn wireless inputs 29 2. Set DIP switches 30 3. Set the controller for pets 31

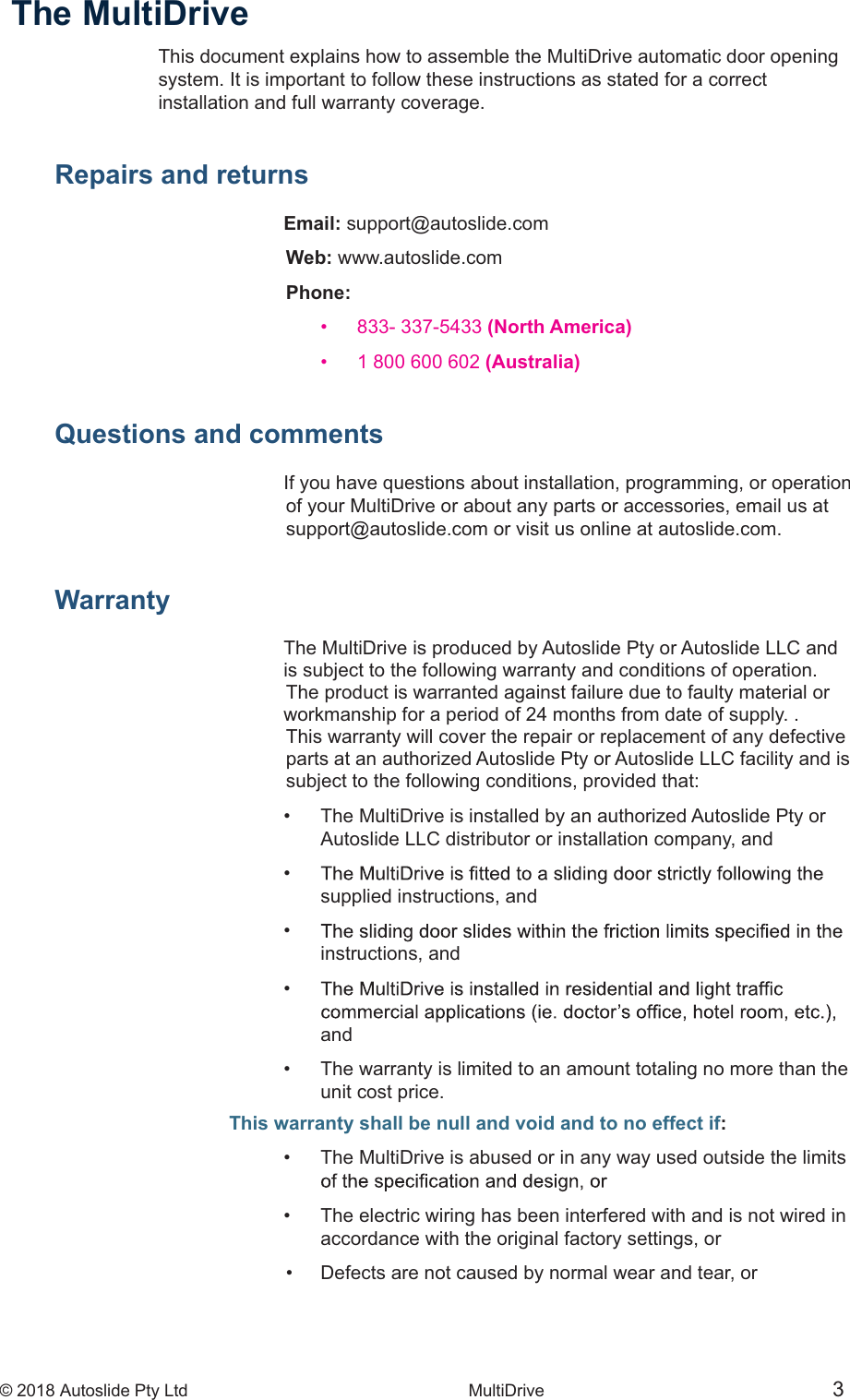

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 3The MultiDrive This document explains how to assemble the MultiDrive automatic door openingsystem. It is important to follow these instructions as stated for a correctinstallation and full warranty coverage.Repairs and returns Email: support@autoslide.com Web: www.autoslide.com Phone:  833- 337-5433 (North America)  1 800 600 602 (Australia) Questions and commentsIf you have questions about installation, programming, or operation of your MultiDrive or about any parts or accessories, email us at support@autoslide.com or visit us online at autoslide.com.Warranty The MultiDrive is produced by Autoslide Pty or Autoslide LLC andis subject to the following warranty and conditions of operation. The product is warranted against failure due to faulty material orworkmanship for a period of 24 months from date of supply. . This warranty will cover the repair or replacement of any defective parts at an authorized Autoslide Pty or Autoslide LLC facility and is subject to the following conditions, provided that: The MultiDrive is installed by an authorized Autoslide Pty or Autoslide LLC distributor or installation company, and supplied instructions, and instructions, and and The warranty is limited to an amount totaling no more than the unit cost price.This warranty shall be null and void and to no effect if: The MultiDrive is abused or in any way used outside the limits  The electric wiring has been interfered with and is not wired in accordance with the original factory settings, or  Defects are not caused by normal wear and tear, or

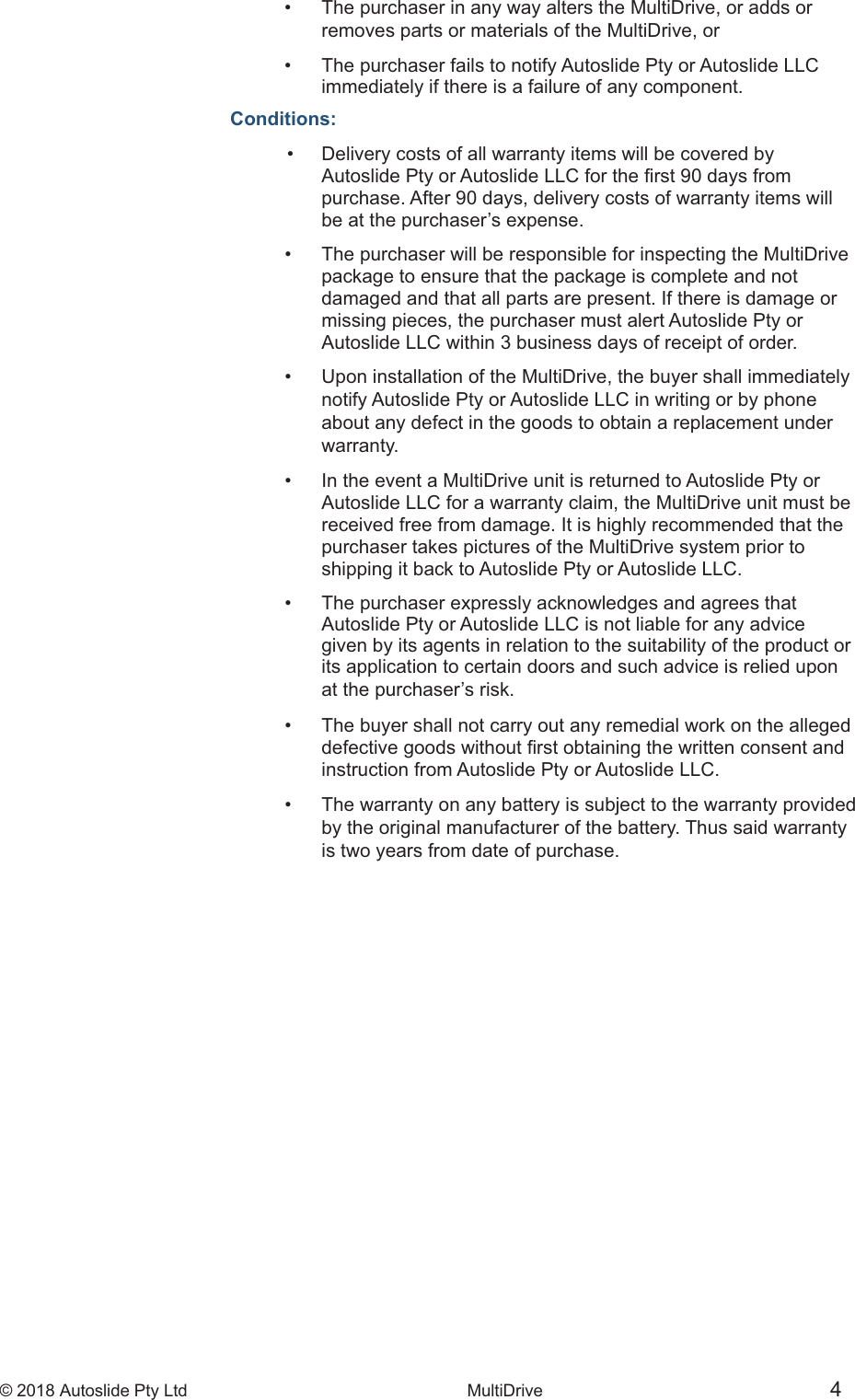

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 4• The purchaser in any way alters the MultiDrive, or adds or removes parts or materials of the MultiDrive, or• The purchaser fails to notify Autoslide Pty or Autoslide LLC immediately if there is a failure of any component.Conditions: • Delivery costs of all warranty items will be covered by  purchase. After 90 days, delivery costs of warranty items will be at the purchaser’s expense.• The purchaser will be responsible for inspecting the MultiDrive package to ensure that the package is complete and not damaged and that all parts are present. If there is damage or missing pieces, the purchaser must alert Autoslide Pty or Autoslide LLC within 3 business days of receipt of order.• Upon installation of the MultiDrive, the buyer shall immediately notify Autoslide Pty or Autoslide LLC in writing or by phone about any defect in the goods to obtain a replacement under warranty.• In the event a MultiDrive unit is returned to Autoslide Pty or Autoslide LLC for a warranty claim, the MultiDrive unit must be received free from damage. It is highly recommended that the purchaser takes pictures of the MultiDrive system prior to shipping it back to Autoslide Pty or Autoslide LLC.• The purchaser expressly acknowledges and agrees that Autoslide Pty or Autoslide LLC is not liable for any advice given by its agents in relation to the suitability of the product or its application to certain doors and such advice is relied upon at the purchaser’s risk.• The buyer shall not carry out any remedial work on the alleged  instruction from Autoslide Pty or Autoslide LLC.• The warranty on any battery is subject to the warranty provided by the original manufacturer of the battery. Thus said warranty is two years from date of purchase.

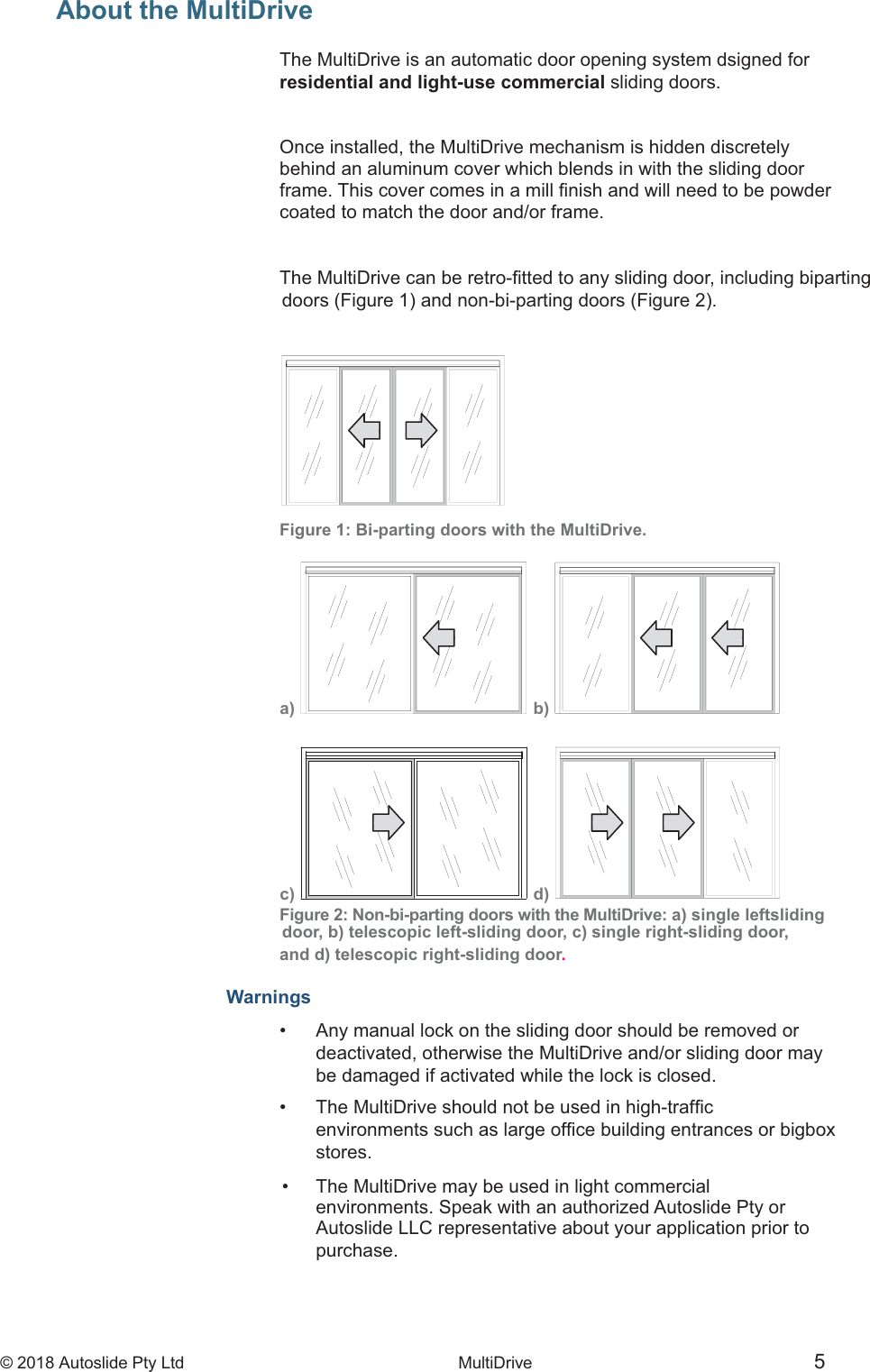

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 5c) d) a) b) About the MultiDrive The MultiDrive is an automatic door opening system dsigned forresidential and light-use commercial sliding doors. Once installed, the MultiDrive mechanism is hidden discretelybehind an aluminum cover which blends in with the sliding doorcoated to match the door and/or frame.Figure 1: Bi-parting doors with the MultiDrive. Figure 2: Non-bi-parting doors with the MultiDrive: a) single leftsliding door, b) telescopic left-sliding door, c) single right-sliding door, and d) telescopic right-sliding door.Warnings• Any manual lock on the sliding door should be removed or deactivated, otherwise the MultiDrive and/or sliding door may be damaged if activated while the lock is closed.•   stores. • The MultiDrive may be used in light commercial environments. Speak with an authorized Autoslide Pty or Autoslide LLC representative about your application prior to purchase.

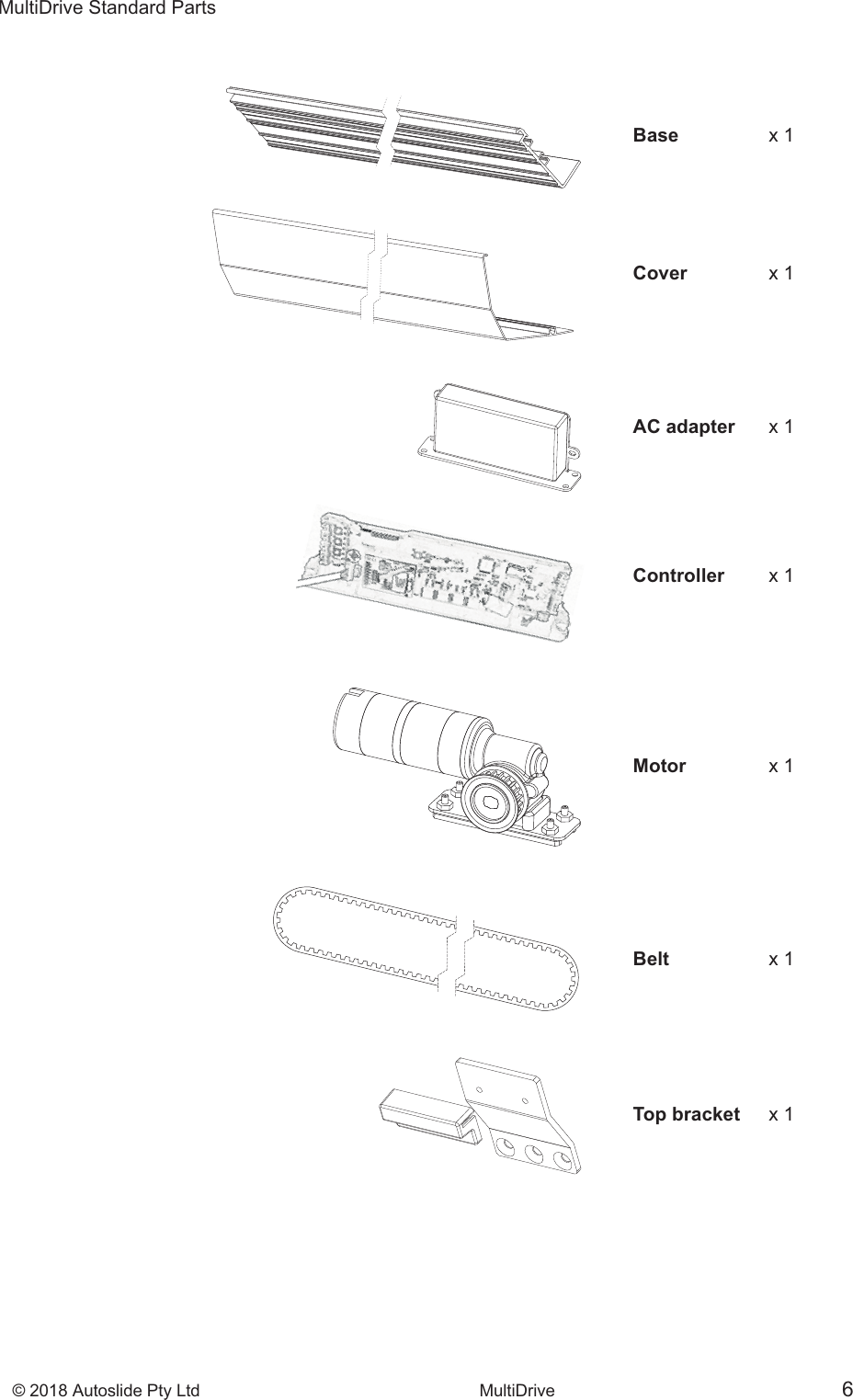

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 6MultiDrive Standard Parts Base x 1 Cover x 1 AC adapter x 1 Controller x 1 Motor x 1Belt x 1Top bracket x 1

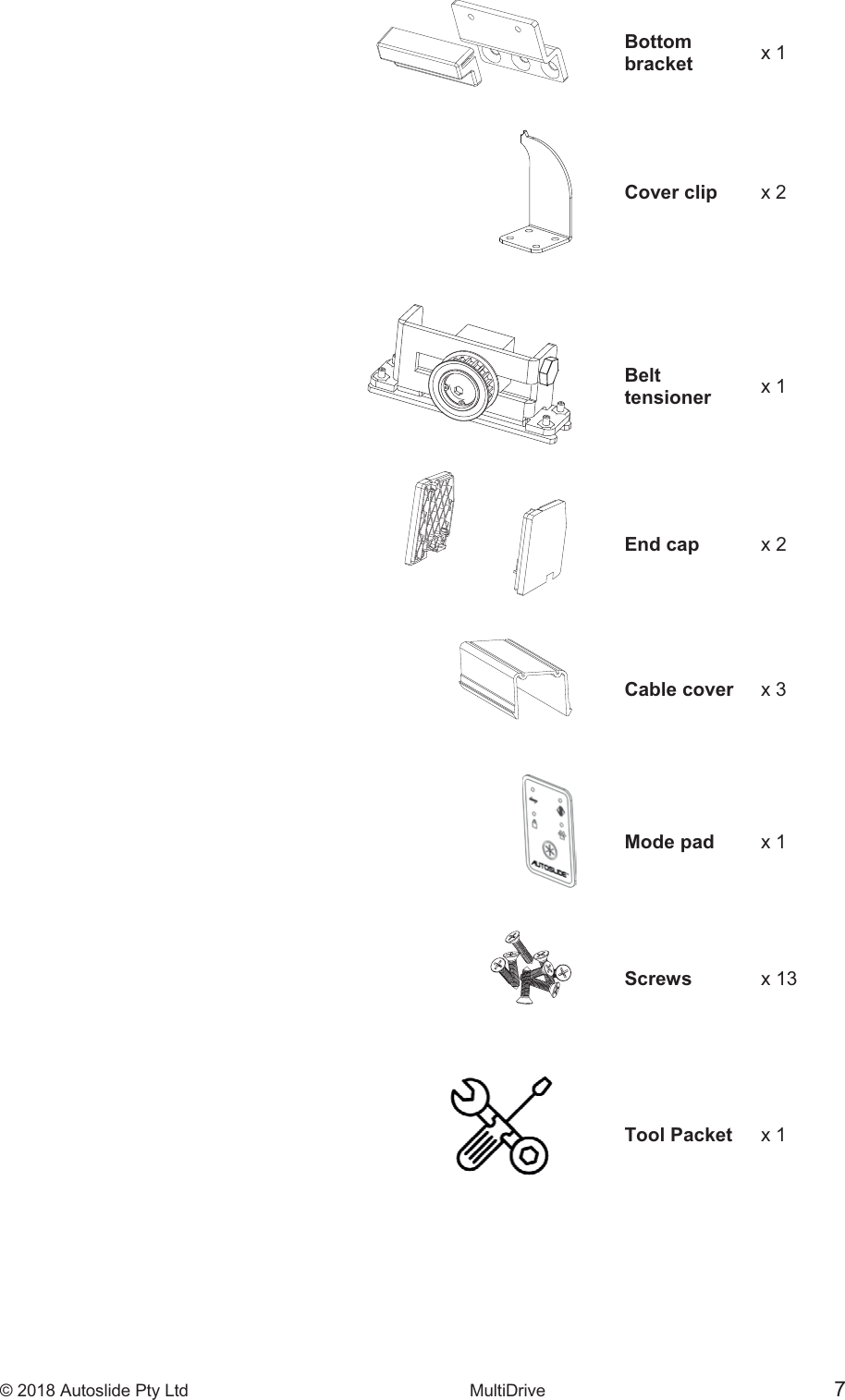

© 2018 Autoslide Pty Ltd MultiDrive 7Bottom bracket x 1Cover clip x 2Belt tensioner x 1End cap x 2 Cable cover x 3Mode pad x1 Screws x 13Tool Packet x1

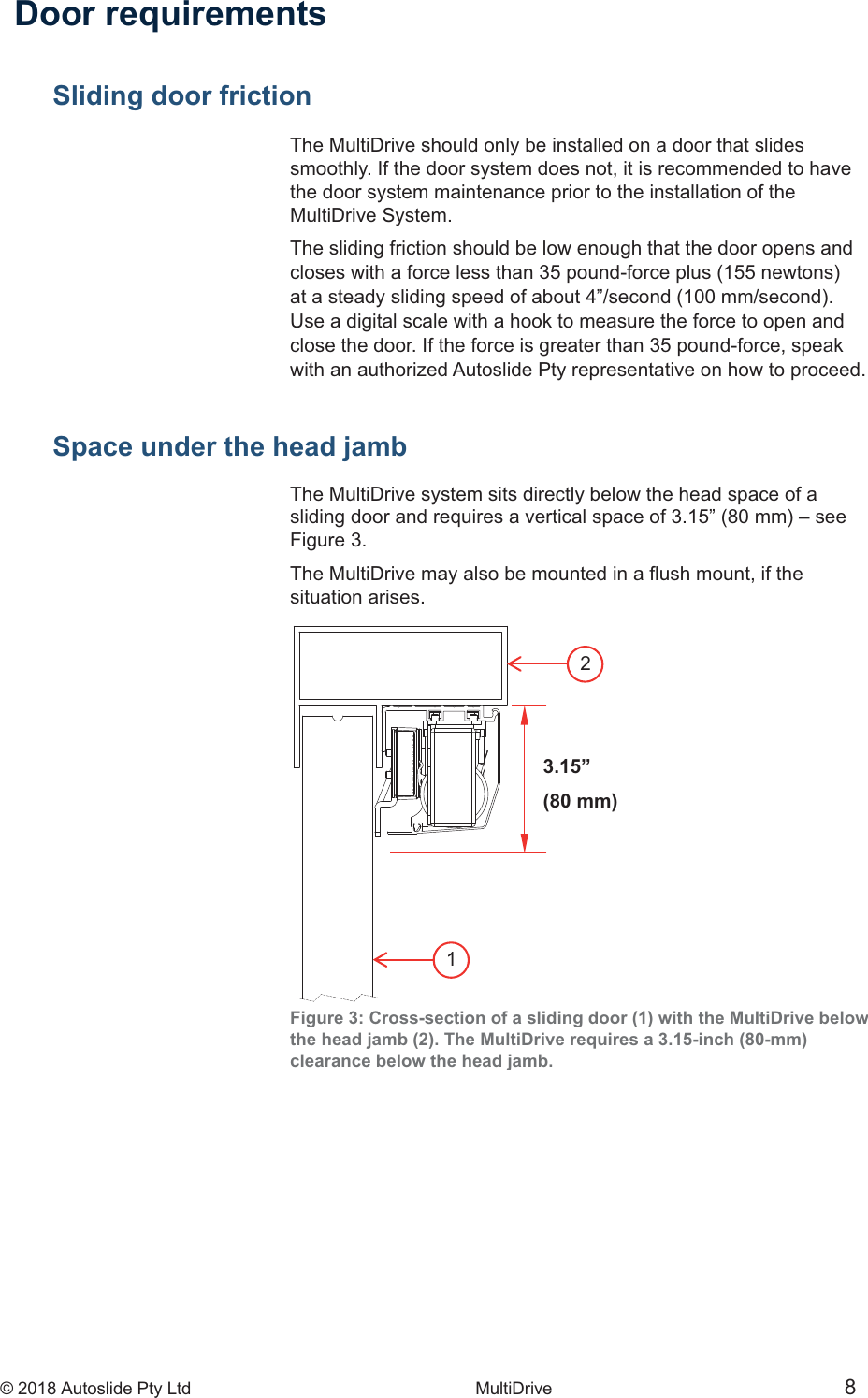

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 8123.15”(80 mm) Door requirementsSliding door frictionThe MultiDrive should only be installed on a door that slidessmoothly. If the door system does not, it is recommended to havethe door system maintenance prior to the installation of theMultiDrive System.The sliding friction should be low enough that the door opens andUse a digital scale with a hook to measure the force to open andclose the door. If the force is greater than 35 pound-force, speakwith an authorized Autoslide Pty representative on how to proceed.Space under the head jambThe MultiDrive system sits directly below the head space of aFigure 3.situation arises.Figure 3: Cross-section of a sliding door (1) with the MultiDrive belowthe head jamb (2). The MultiDrive requires a 3.15-inch (80-mm)clearance below the head jamb.

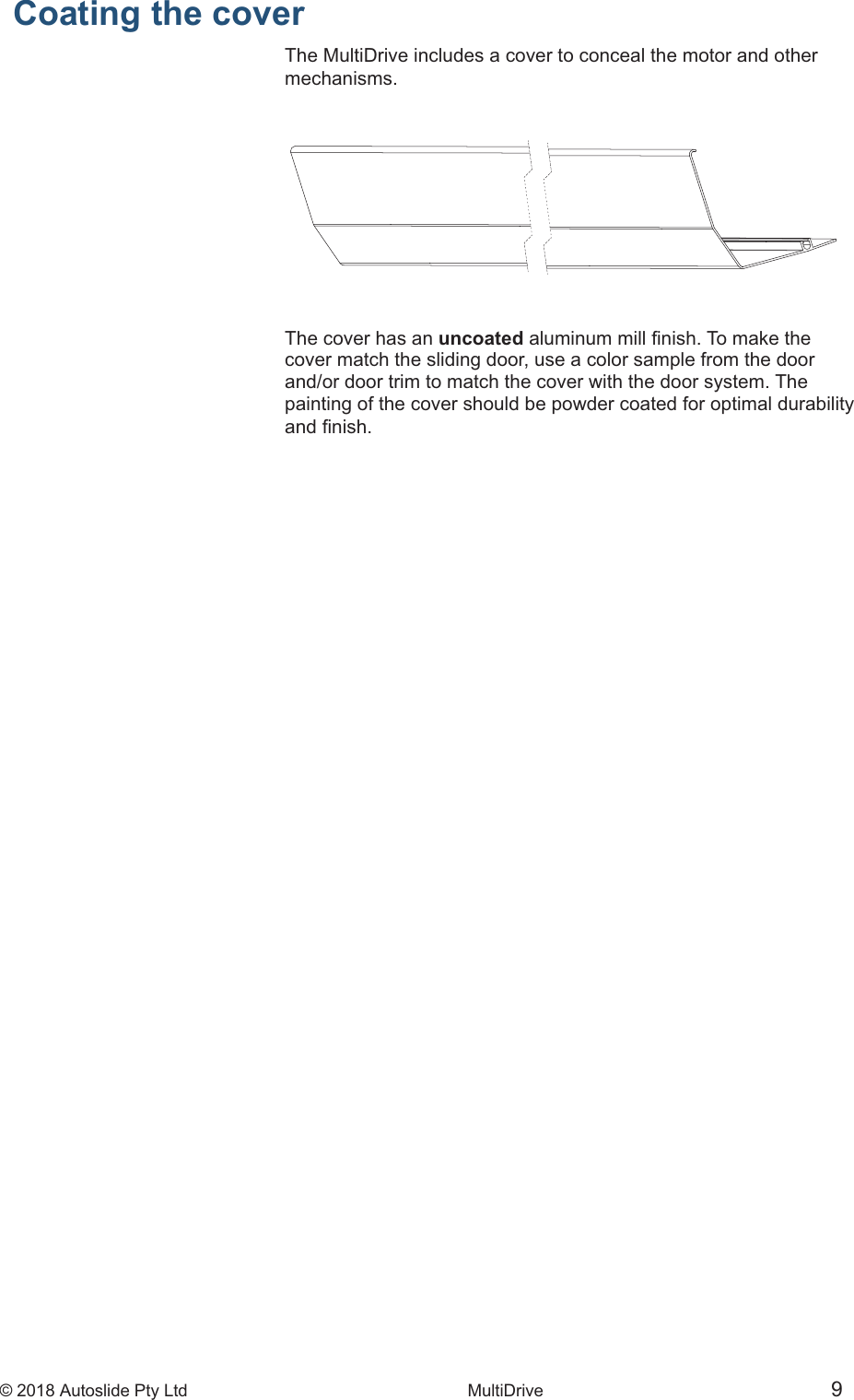

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 9Coating the coverThe MultiDrive includes a cover to conceal the motor and othermechanisms.The cover has an uncoatedcover match the sliding door, use a color sample from the doorand/or door trim to match the cover with the door system. Thepainting of the cover should be powder coated for optimal durability

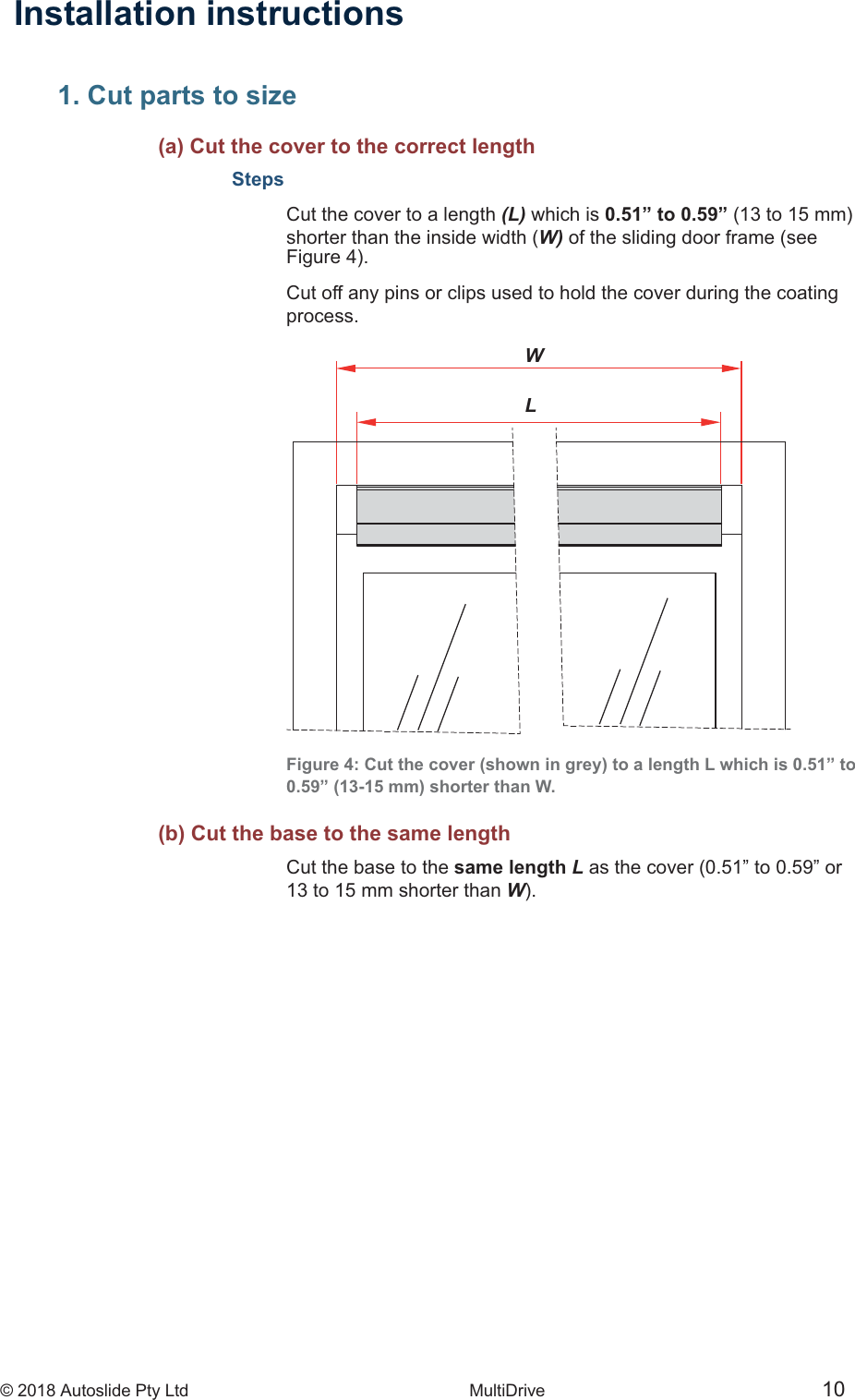

© 2018 Autoslide Pty Ltd MultiDrive <1>WL© 2018 Autoslide Pty Ltd MultiDrive 10Installation instructions1. Cut parts to size (a) Cut the cover to the correct lengthStepsCut the cover to a length (L) which is 0.51” to 0.59” shorter than the inside width (W) of the sliding door frame (seeCut off any pins or clips used to hold the cover during the coatingprocess.Figure 4: Cut the cover (shown in grey) to a length L which is 0.51” to0.59” (13-15 mm) shorter than W. (b) Cut the base to the same lengthCut the base to the same length L as the cover (0.51” to 0.59” or13 to 15 mm shorter than W

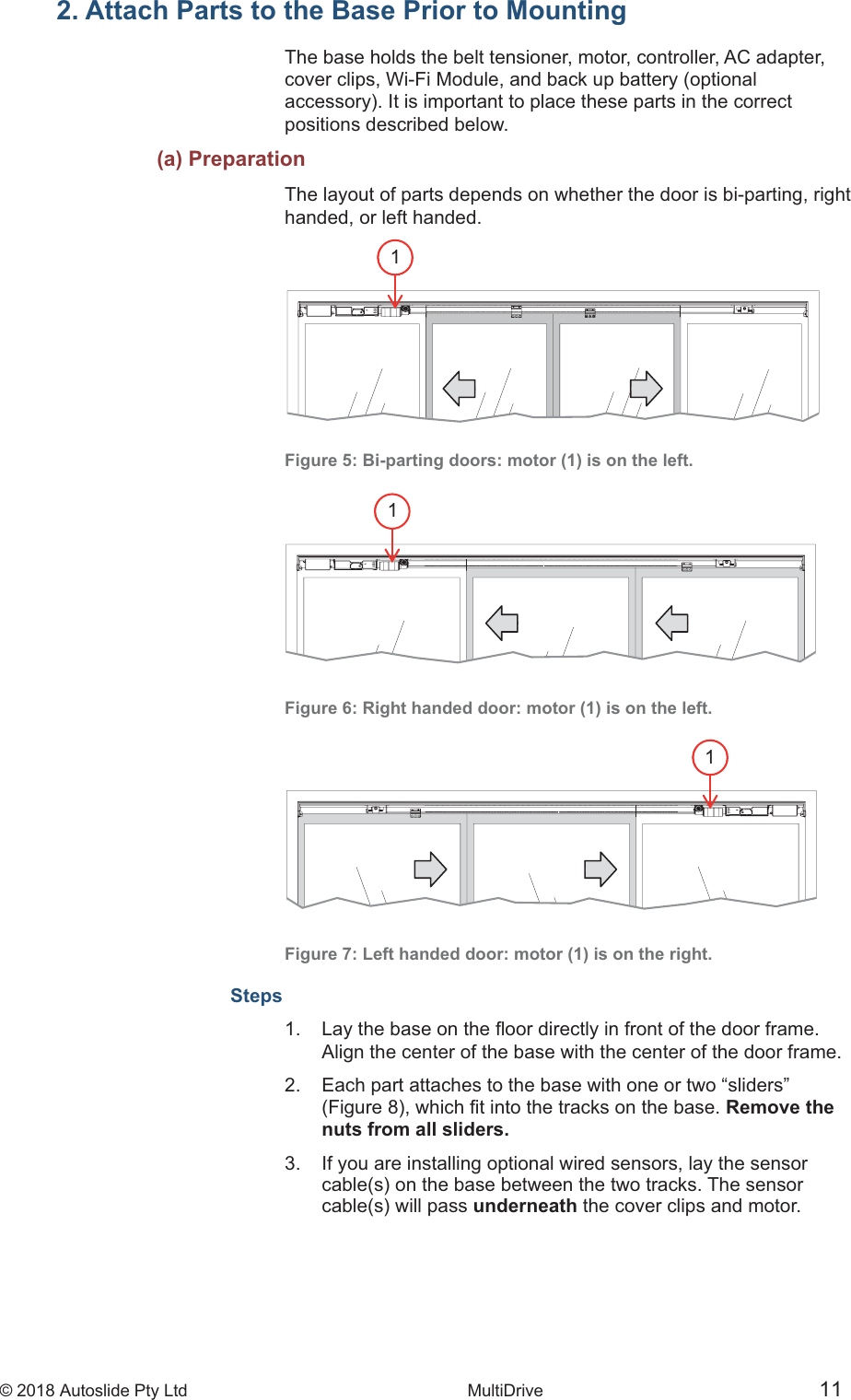

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 111112. Attach Parts to the Base Prior to MountingThe base holds the belt tensioner, motor, controller, AC adapter,cover clips, Wi-Fi Module, and back up battery (optionalpositions described below. (a) PreparationThe layout of parts depends on whether the door is bi-parting, righthanded, or left handed.Figure 5: Bi-parting doors: motor (1) is on the left.Figure 6: Right handed door: motor (1) is on the left.Figure 7: Left handed door: motor (1) is on the right.Steps1  Align the center of the base with the center of the door frame.2. Each part attaches to the base with one or two “sliders” Remove the nuts from all sliders.3. If you are installing optional wired sensors, lay the sensor  underneath the cover clips and motor.

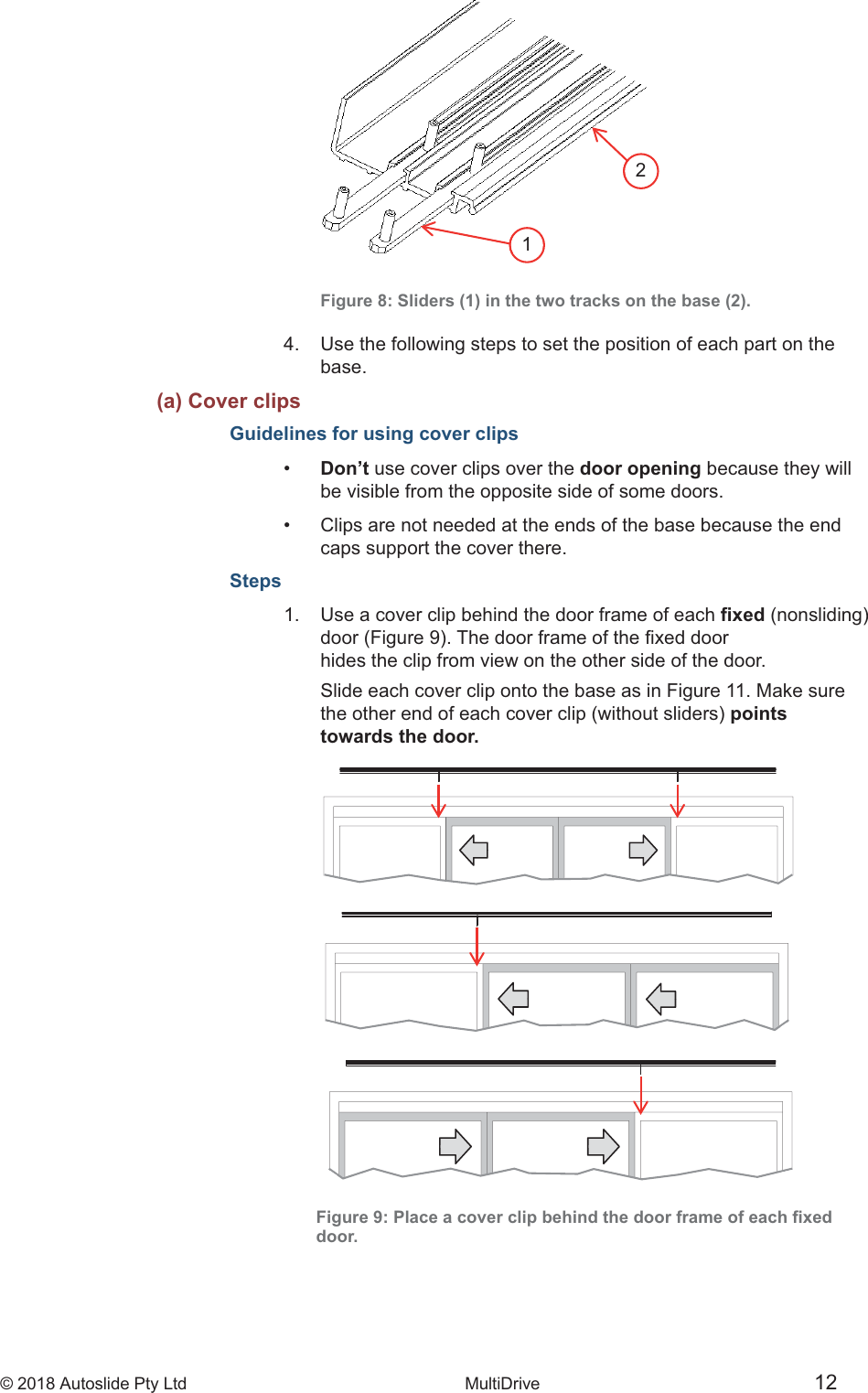

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 1212 Figure 8: Sliders (1) in the two tracks on the base (2).4. Use the following steps to set the position of each part on the base. (a) Cover clipsGuidelines for using cover clips• Don’t use cover clips over the door opening because they will be visible from the opposite side of some doors.• Clips are not needed at the ends of the base because the end caps support the cover there.Steps1. Use a cover clip behind the door frame of each   hides the clip from view on the other side of the door. Slide each cover clip onto the base as in Figure 11. Make sure points towards the door.door.

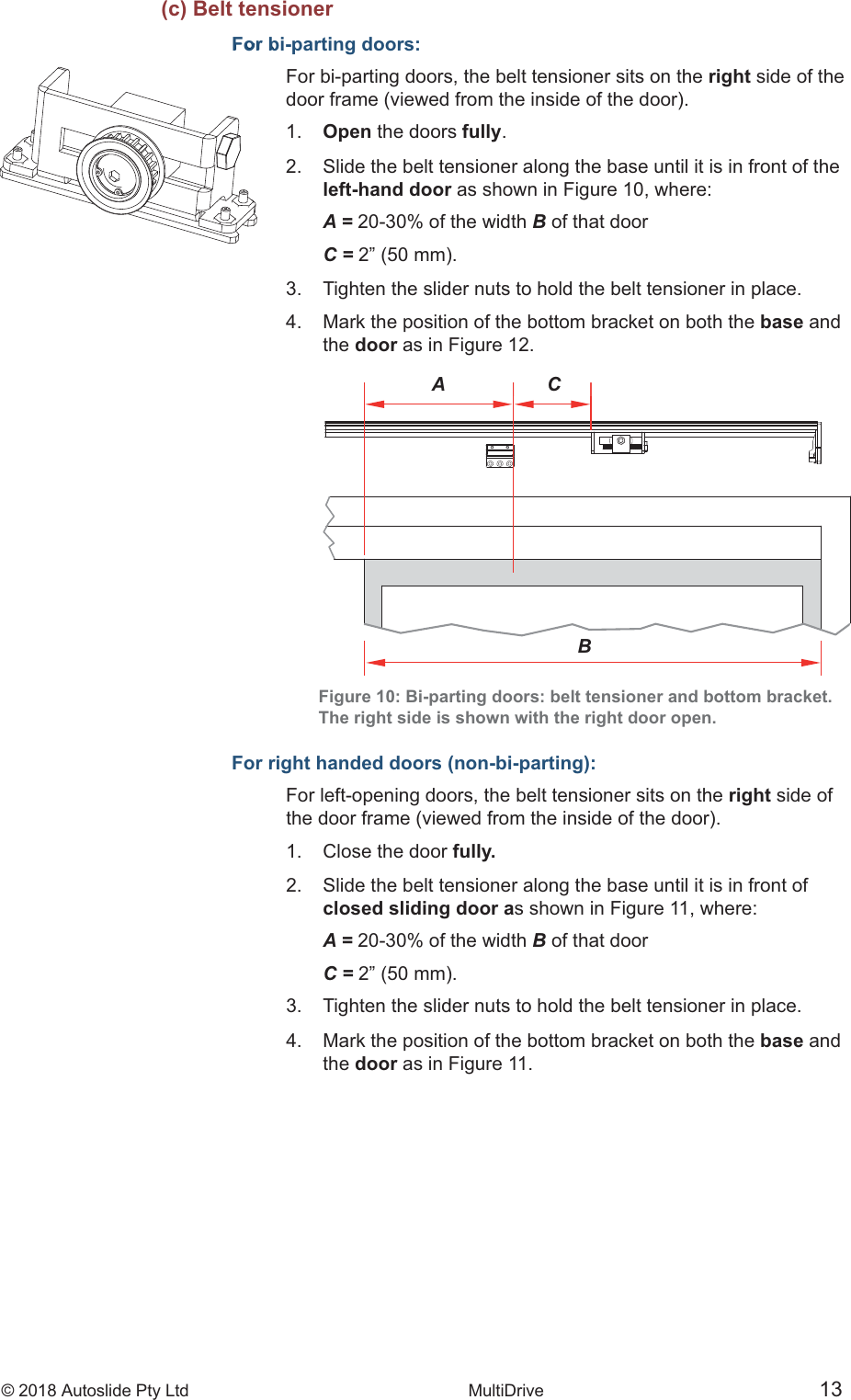

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 13A CBFor b(c) Belt tensionerFor bi-parting doors:For bi-parting doors, the belt tensioner sits on the right side of the1. Open the doors fully.2. Slide the belt tensioner along the base until it is in front of the left-hand door as shown in Figure 10, where: A = 20-30% of the width B of that door C =3. Tighten the slider nuts to hold the belt tensioner in place.4. Mark the position of the bottom bracket on both the base and the door as in Figure 12.Figure 10: Bi-parting doors: belt tensioner and bottom bracket.The right side is shown with the right door open.For right handed doors (non-bi-parting):For left-opening doors, the belt tensioner sits on the right side of1. Close the door fully.2. Slide the belt tensioner along the base until it is in front of closed sliding door as shown in Figure 11, where: A = 20-30% of the width B of that door C =3. Tighten the slider nuts to hold the belt tensioner in place.4. Mark the position of the bottom bracket on both the base and the door as in Figure 11.

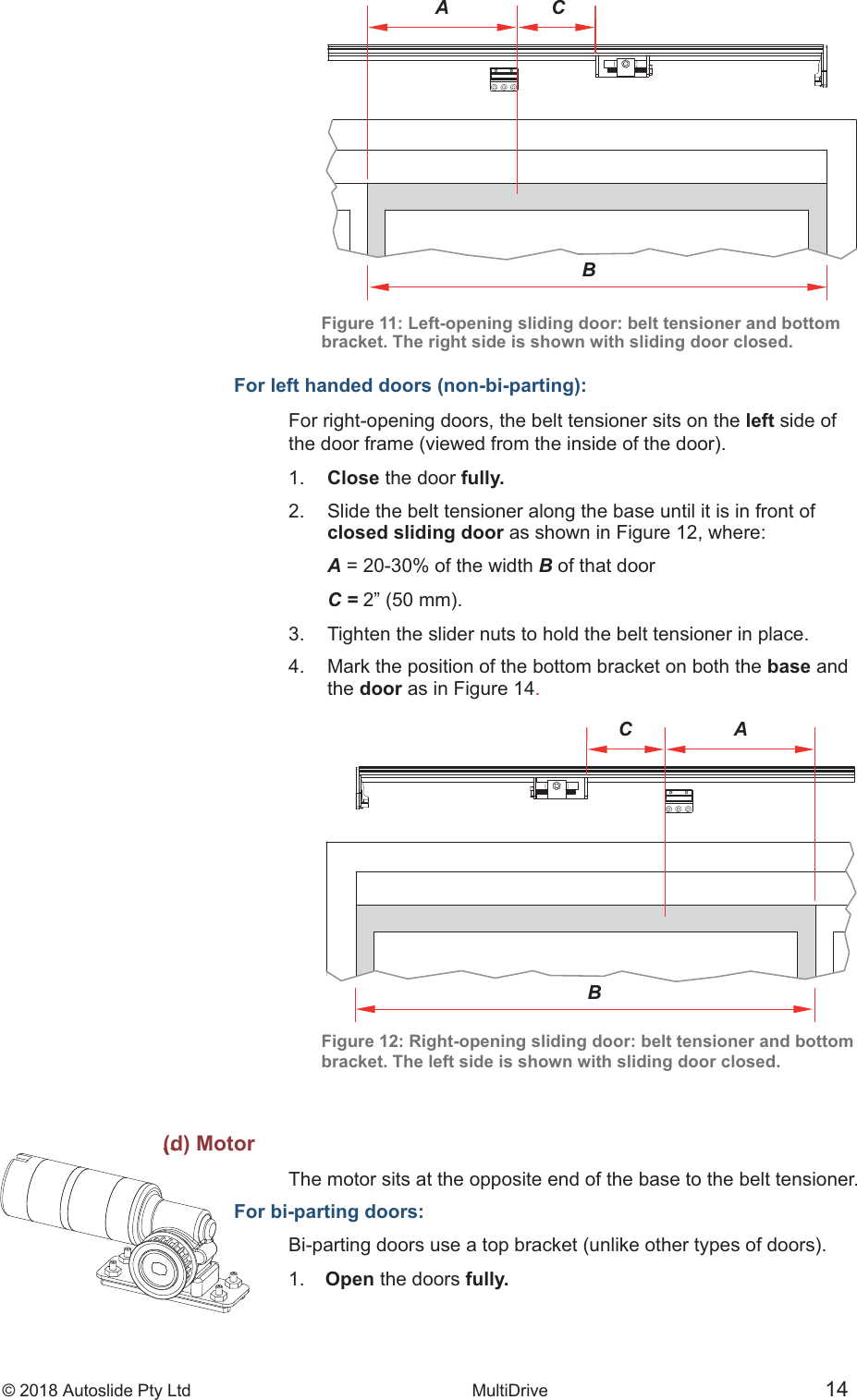

© 2018 Autoslide Pty Ltd MultiDrive <1>(d) MotorFo© 2018 Autoslide Pty Ltd MultiDrive 14ACBA CBFigure 11: Left-opening sliding door: belt tensioner and bottombracket. The right side is shown with sliding door closed.For left handed doors (non-bi-parting):For right-opening doors, the belt tensioner sits on the left side of1. Close the door fully.2. Slide the belt tensioner along the base until it is in front of closed sliding door as shown in Figure 12, where: A = 20-30% of the width B of that door C =3. Tighten the slider nuts to hold the belt tensioner in place.4. Mark the position of the bottom bracket on both the base and the door as in Figure 14.Figure 12: Right-opening sliding door: belt tensioner and bottombracket. The left side is shown with sliding door closed.(d) MotorThe motor sits at the opposite end of the base to the belt tensioner.For bi-parting doors:1. Open the doors fully.

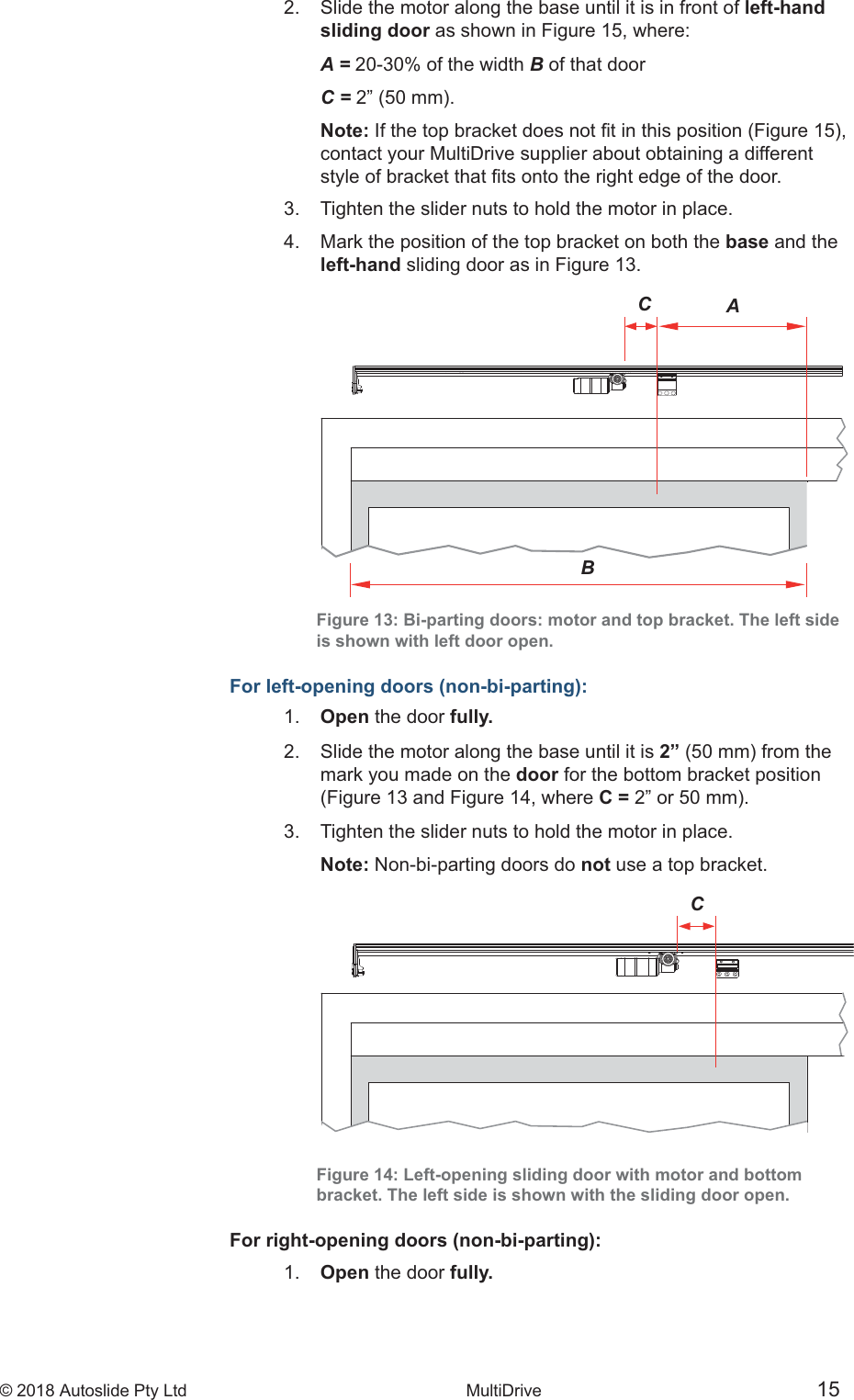

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 15CBAC2. Slide the motor along the base until it is in front of left-hand sliding door as shown in Figure 15, where: A = 20-30% of the width B of that door C = Note: contact your MultiDrive supplier about obtaining a different  3. Tighten the slider nuts to hold the motor in place.4. Mark the position of the top bracket on both the base and the left-hand sliding door as in Figure 13.Figure 13: Bi-parting doors: motor and top bracket. The left sideis shown with left door open.For left-opening doors (non-bi-parting):1. Open the door fully.2. Slide the motor along the base until it is 2” mark you made on the door for the bottom bracket position (Figure 13 and Figure 14, where C =3. Tighten the slider nuts to hold the motor in place. Note: Non-bi-parting doors do not use a top bracket.Figure 14: Left-opening sliding door with motor and bottombracket. The left side is shown with the sliding door open.For right-opening doors (non-bi-parting):1. Open the door fully.

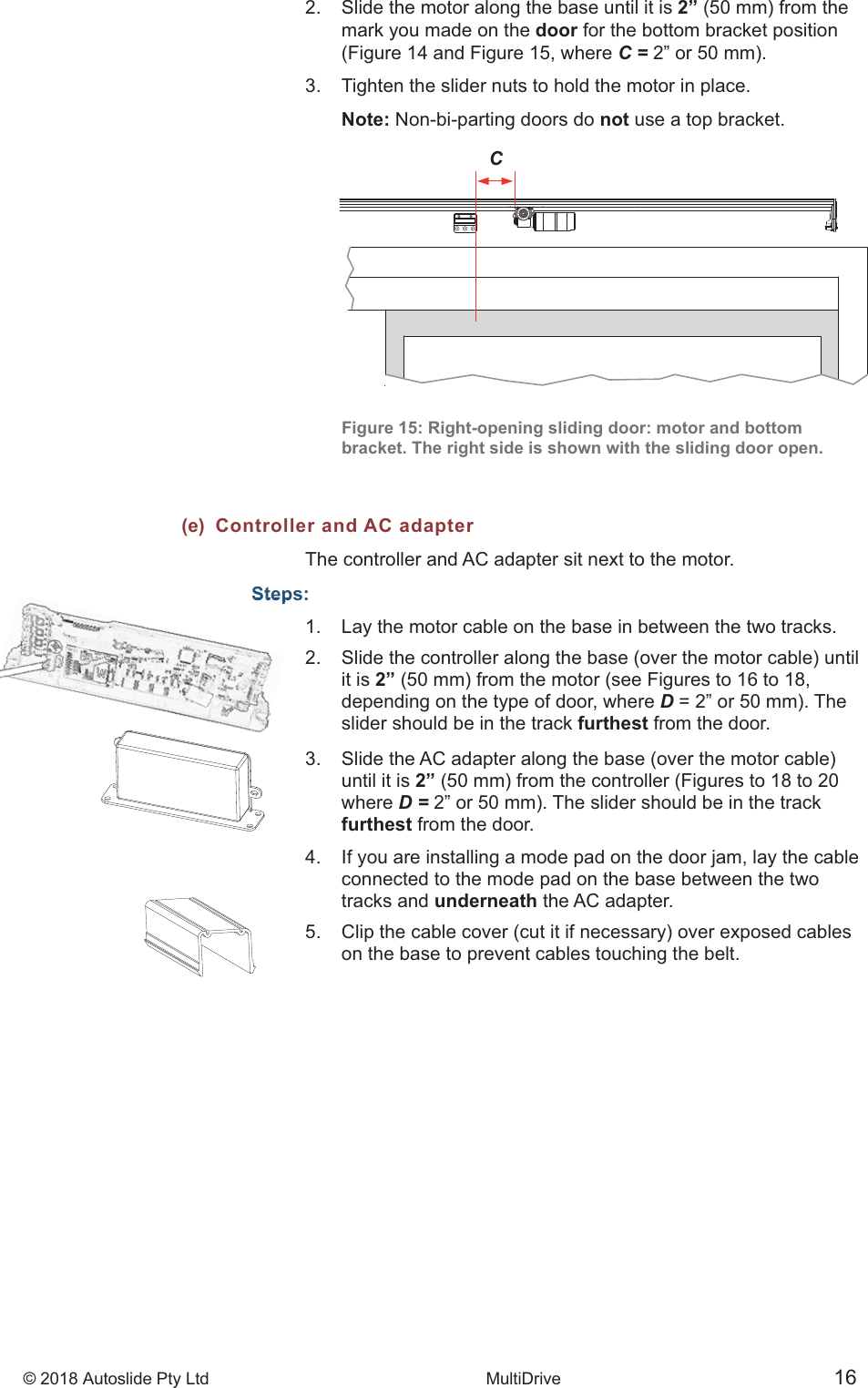

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 16CStep2. Slide the motor along the base until it is 2” mark you made on the door for the bottom bracket position (Figure 14 and Figure 15, where C =3. Tighten the slider nuts to hold the motor in place. Note: Non-bi-parting doors do not use a top bracket. Figure 15: Right-opening sliding door: motor and bottom bracket. The right side is shown with the sliding door open.(e) Controller and AC adapterThe controller and AC adapter sit next to the motor.Steps:1. Lay the motor cable on the base in between the two tracks.  it is 2” depending on the type of door, where D slider should be in the track furthest from the door.  until it is 2” where D = furthest from the door.4. If you are installing a mode pad on the door jam, lay the cable connected to the mode pad on the base between the two tracks and underneath the AC adapter.  on the base to prevent cables touching the belt.

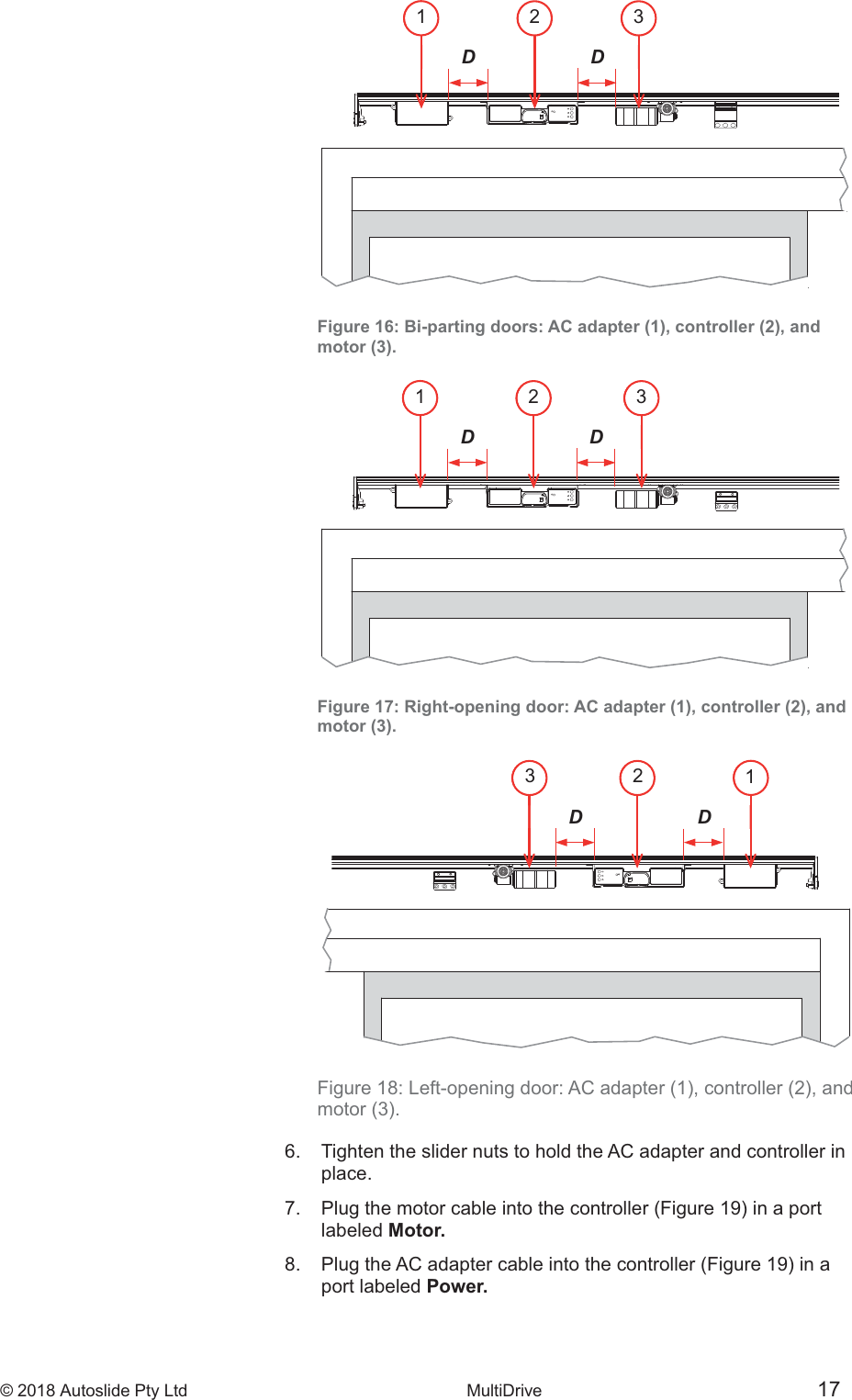

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 17321DD321DD3 2 1D DFigure 16: Bi-parting doors: AC adapter (1), controller (2), andmotor (3).Figure 17: Right-opening door: AC adapter (1), controller (2), andmotor (3).6. Tighten the slider nuts to hold the AC adapter and controller in place.  labeled Motor.  port labeled Power.

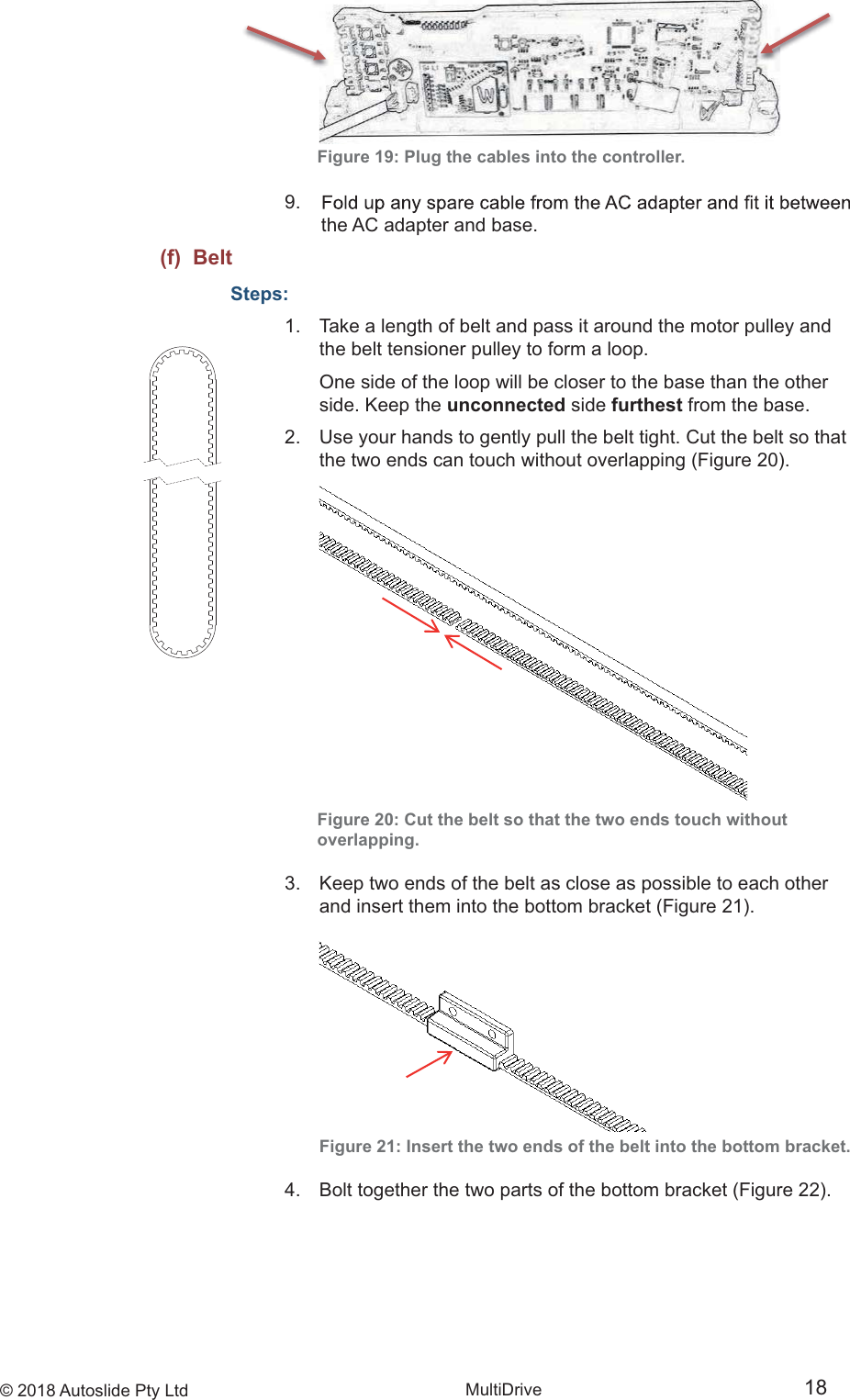

© 2018 Autoslide Pty Ltd MultiDrive 18Figure 19: Plug the cables into the controller.9. the AC adapter and base.(f) BeltSteps:1. Take a length of belt and pass it around the motor pulley and the belt tensioner pulley to form a loop. One side of the loop will be closer to the base than the other side. Keep the unconnected side furthest from the base.2. Use your hands to gently pull the belt tight. Cut the belt so that the two ends can touch without overlapping (Figure 20).Figure 20: Cut the belt so that the two ends touch withoutoverlapping.3. Keep two ends of the belt as close as possible to each other and insert them into the bottom bracket (Figure 21). Figure 21: Insert the two ends of the belt into the bottom bracket.4. Bolt together the two parts of the bottom bracket (Figure 22).

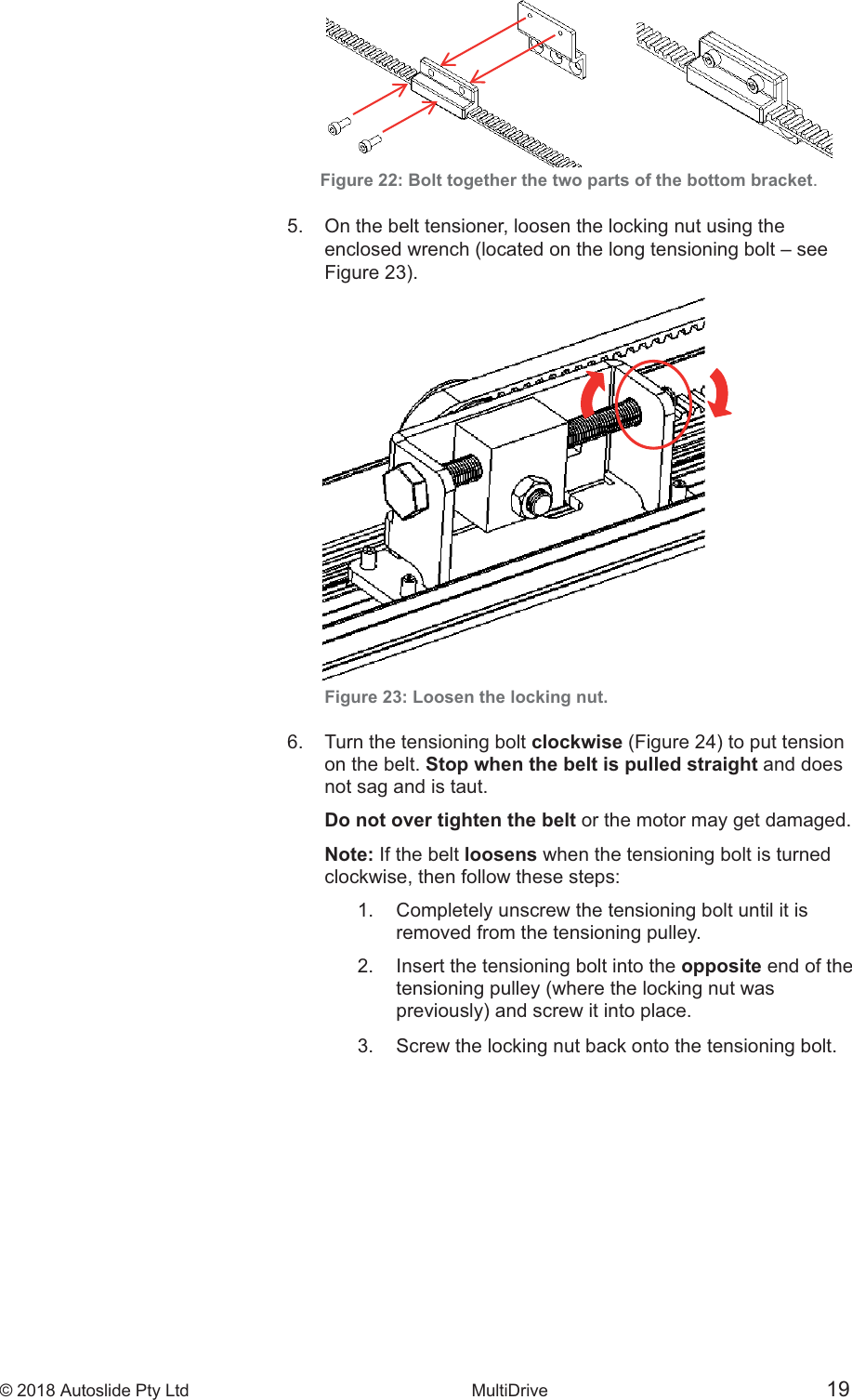

© 2018 Autoslide Pty Ltd MultiDrive <1> © 2018 Autoslide Pty Ltd MultiDrive 19© 2018 Autoslide Pty Ltd MultiDrive 19Figure 22: Bolt together the two parts of the bottom bracket.5. On the belt tensioner, loosen the locking nut using the   Figure 23: Loosen the locking nut.6. Turn the tensioning bolt clockwise  on the belt. Stop when the belt is pulled straight and does not sag and is taut. Do not over tighten the belt or the motor may get damaged. Note: If the belt loosens when the tensioning bolt is turned clockwise, then follow these steps: 1. Completely unscrew the tensioning bolt until it is removed from the tensioning pulley. 2. Insert the tensioning bolt into the opposite end of the tensioning pulley (where the locking nut was    3. Screw the locking nut back onto the tensioning bolt.

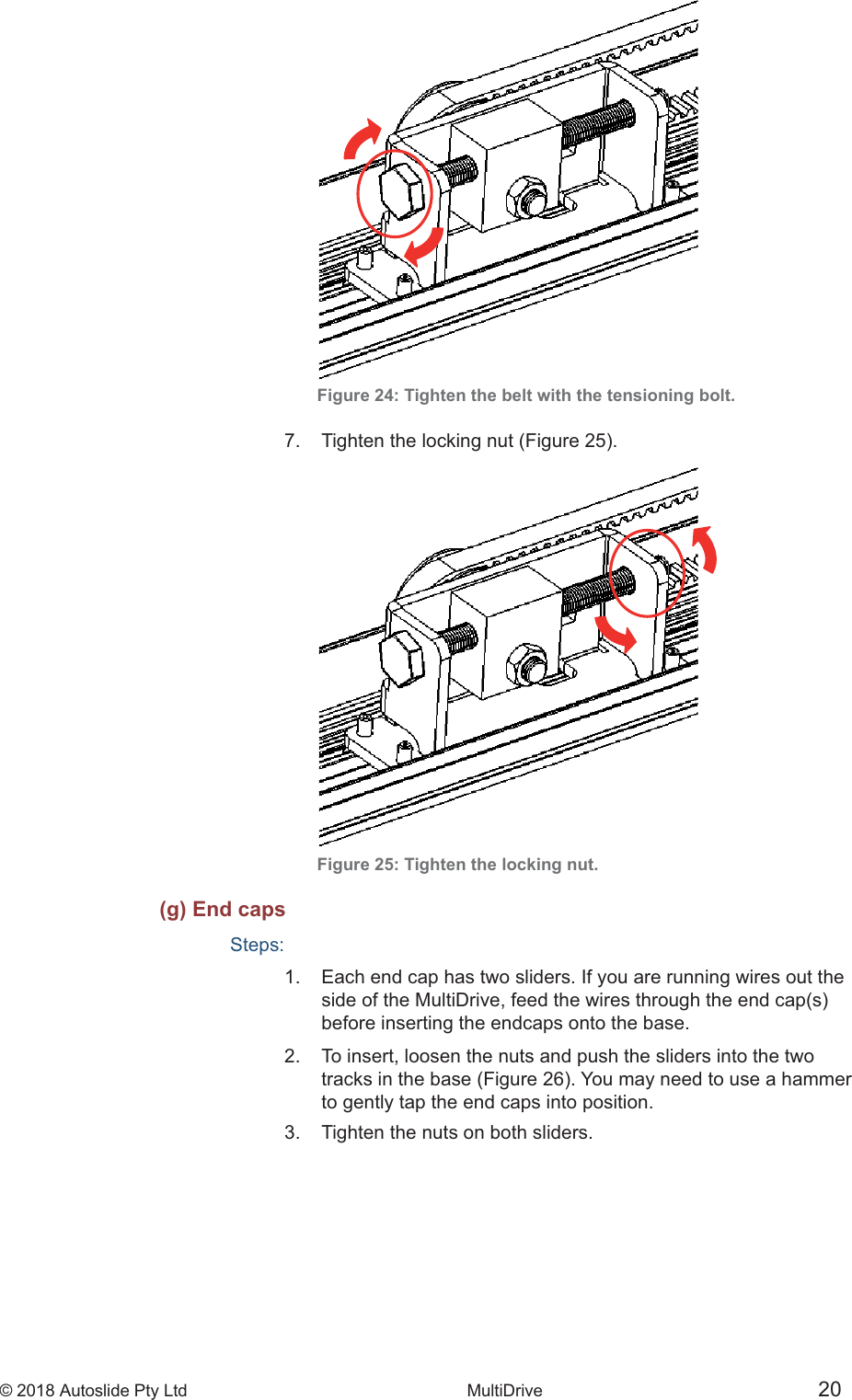

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 20Figure 24: Tighten the belt with the tensioning bolt. Figure 25: Tighten the locking nut.(g) End capsSteps:1. Each end cap has two sliders. If you are running wires out the  before inserting the endcaps onto the base.2. To insert, loosen the nuts and push the sliders into the two  to gently tap the end caps into position.3. Tighten the nuts on both sliders.

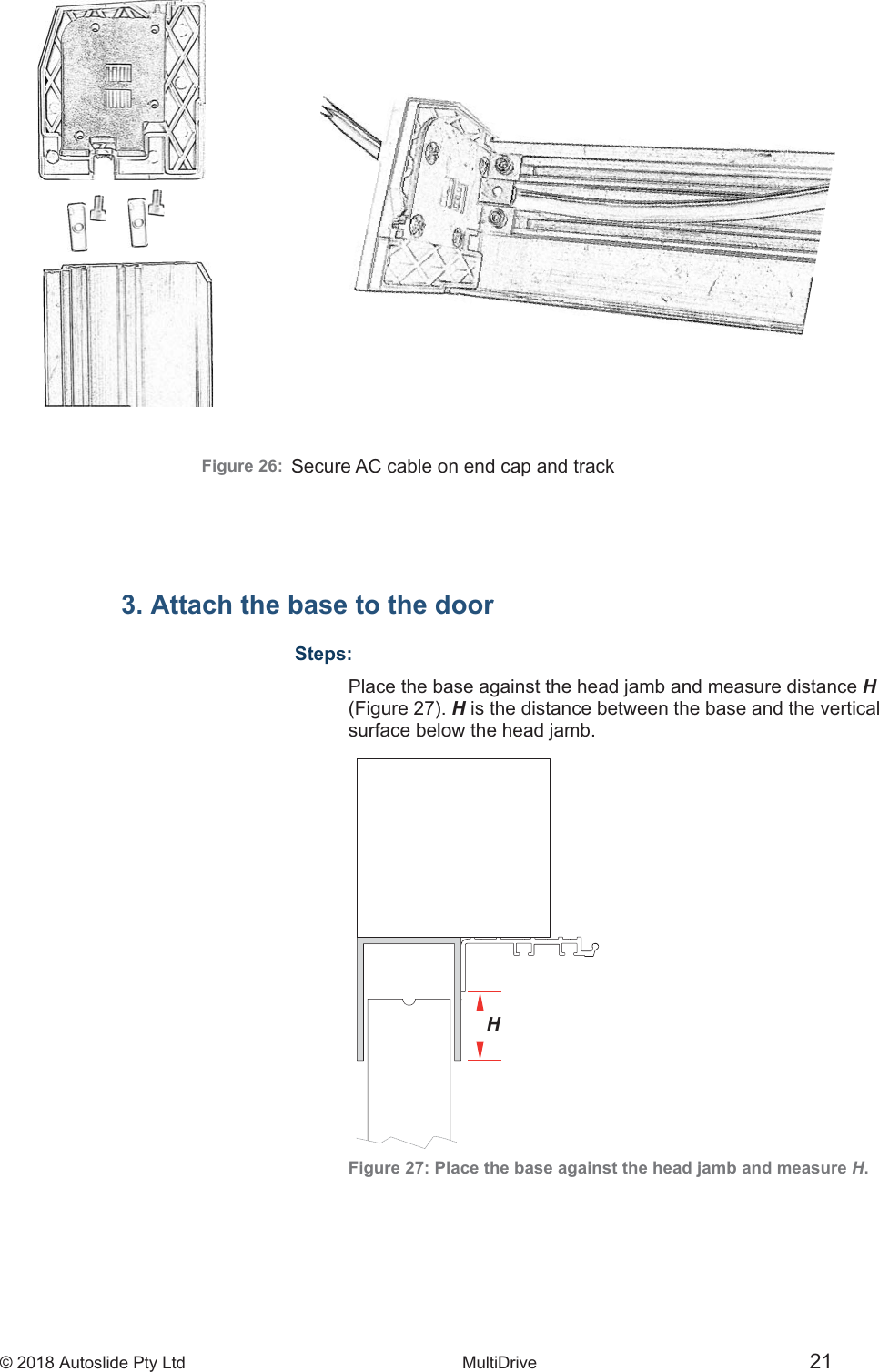

© 2018 Autoslide Pty Ltd MultiDrive 21Figure 26:3. Attach the base to the doorSteps:Place the base against the head jamb and measure distance H (Figure 27). His the distance between the base and the vertical surface below the head jamb. Figure 27: Place the base against the head jamb and measure H. HSecure AC cable on end cap and track

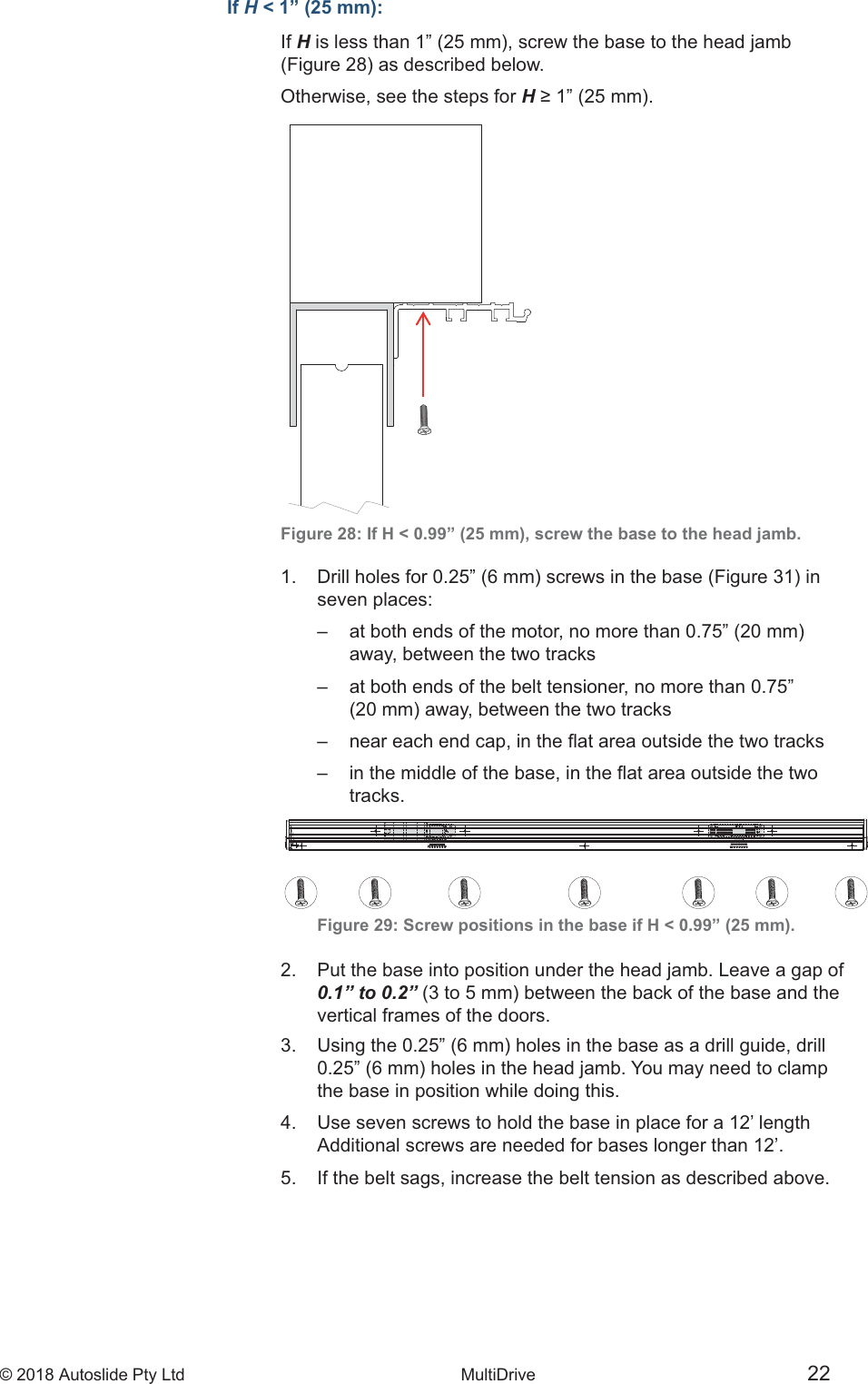

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 22If H < 1” (25 mm):If HOtherwise, see the steps for HFigure 28: If H < 0.99” (25 mm), screw the base to the head jamb.  seven places:   away, between the two tracks          tracks. Figure 29: Screw positions in the base if H < 0.99” (25 mm).2. Put the base into position under the head jamb. Leave a gap of 0.1” to 0.2”  vertical frames of the doors.   the base in position while doing this.4. Use seven screws to hold the base in place for a 12’ length Additional screws are needed for bases longer than 12’.5. If the belt sags, increase the belt tension as described above.

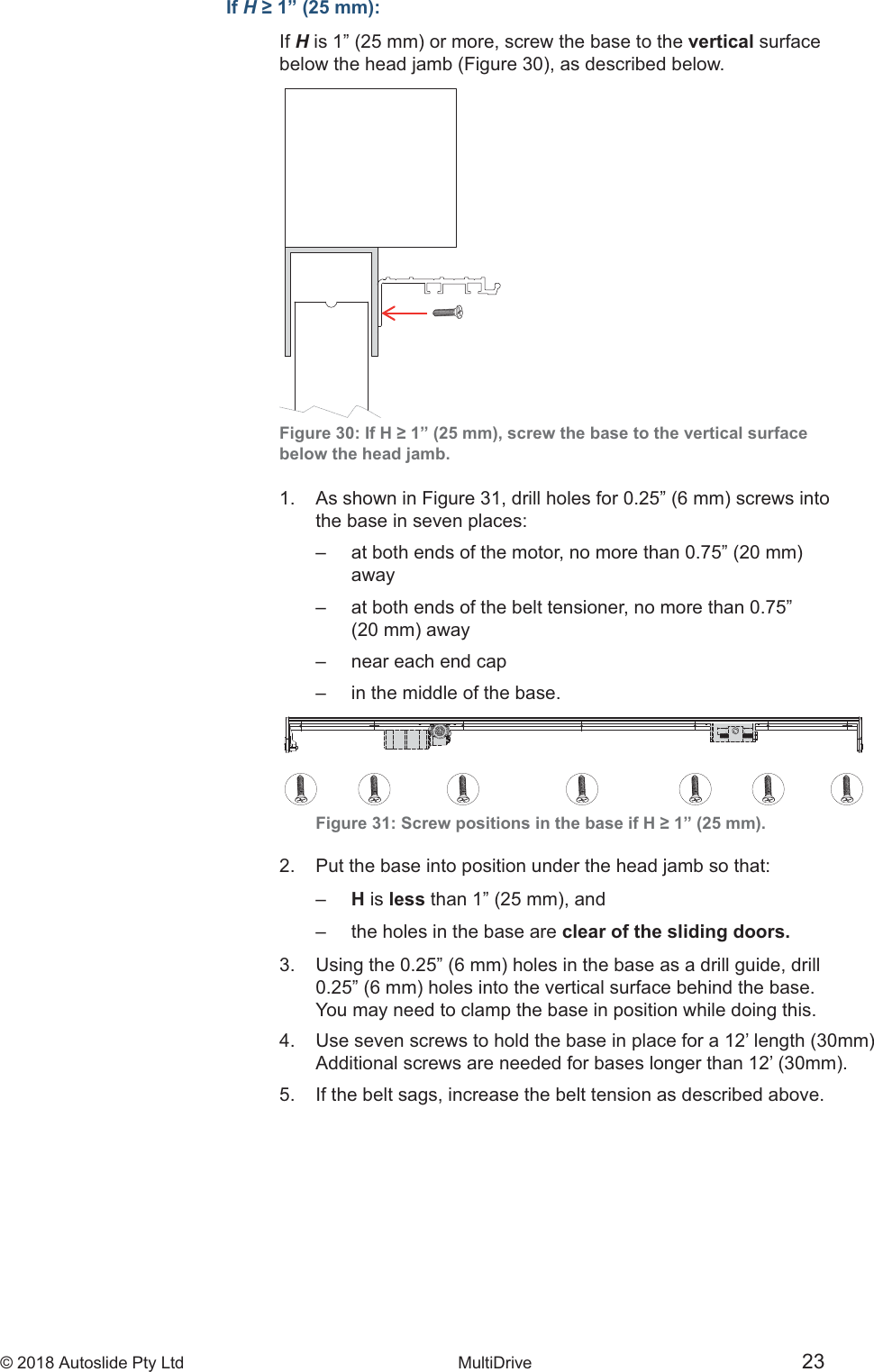

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 23If HIf Hvertical surfacebelow the head jamb.  the base in seven places:   away          2. Put the base into position under the head jamb so that:  H is less  clear of the sliding doors.     5. If the belt sags, increase the belt tension as described above.

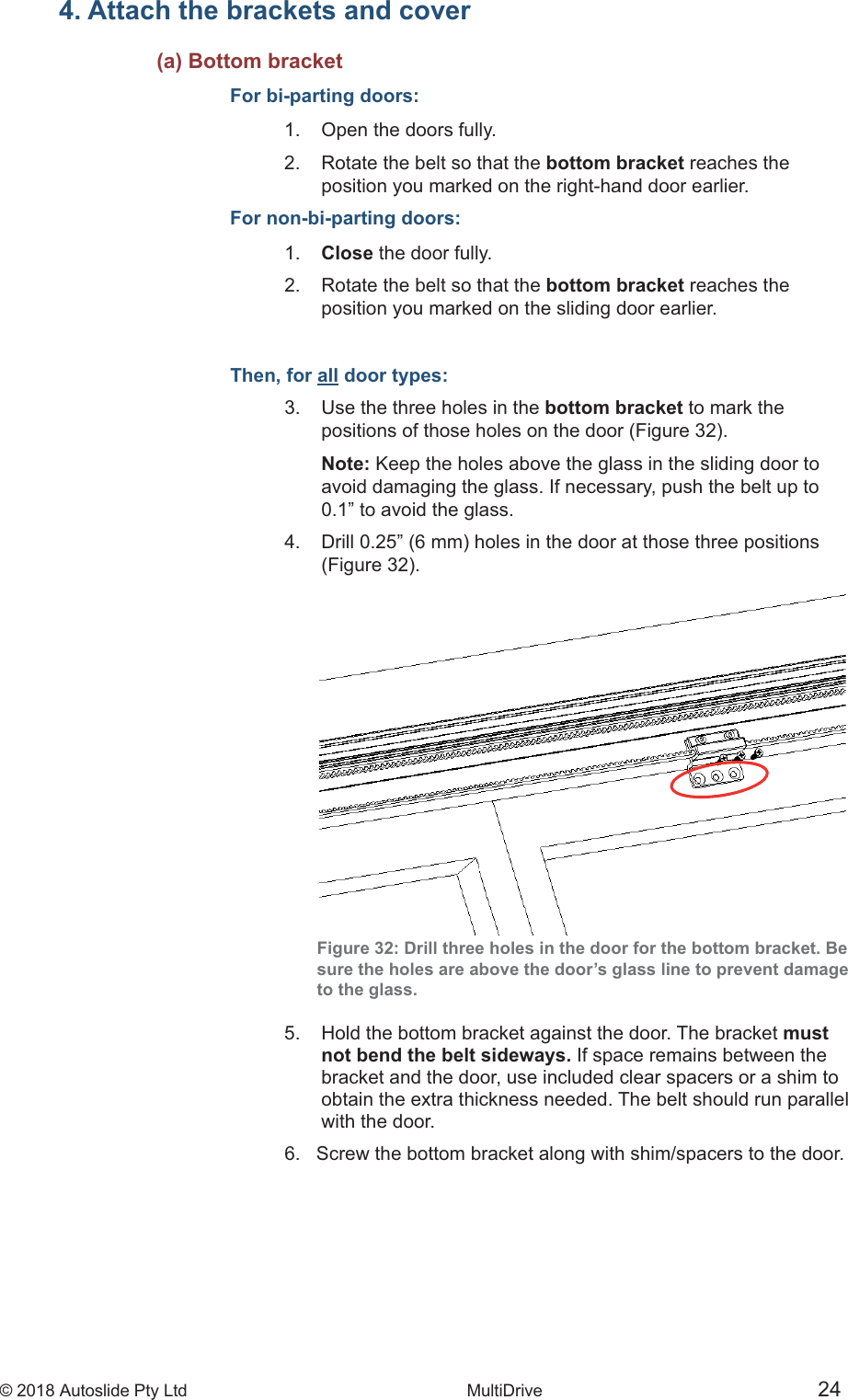

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 24 4. Attach the brackets and cover (a) Bottom bracketFor bi-parting doors:1. Open the doors fully.2. Rotate the belt so that the bottom bracket reaches the position you marked on the right-hand door earlier.For non-bi-parting doors:1. Close the door fully.2. Rotate the belt so that the bottom bracket reaches the position you marked on the sliding door earlier.Then, for all door types:3. Use the three holes in the bottom bracket to mark the  Note: Keep the holes above the glass in the sliding door to avoid damaging the glass. If necessary, push the belt up to 0.1” to avoid the glass.  Figure 32: Drill three holes in the door for the bottom bracket. Besure the holes are above the door’s glass line to prevent damageto the glass.5. Hold the bottom bracket against the door. The bracket must not bend the belt sideways. If space remains between the bracket and the door, use included clear spacers or a shim to obtain the extra thickness needed. The belt should run parallel with the door.6. Screw the bottom bracket along with shim/spacers to the door.

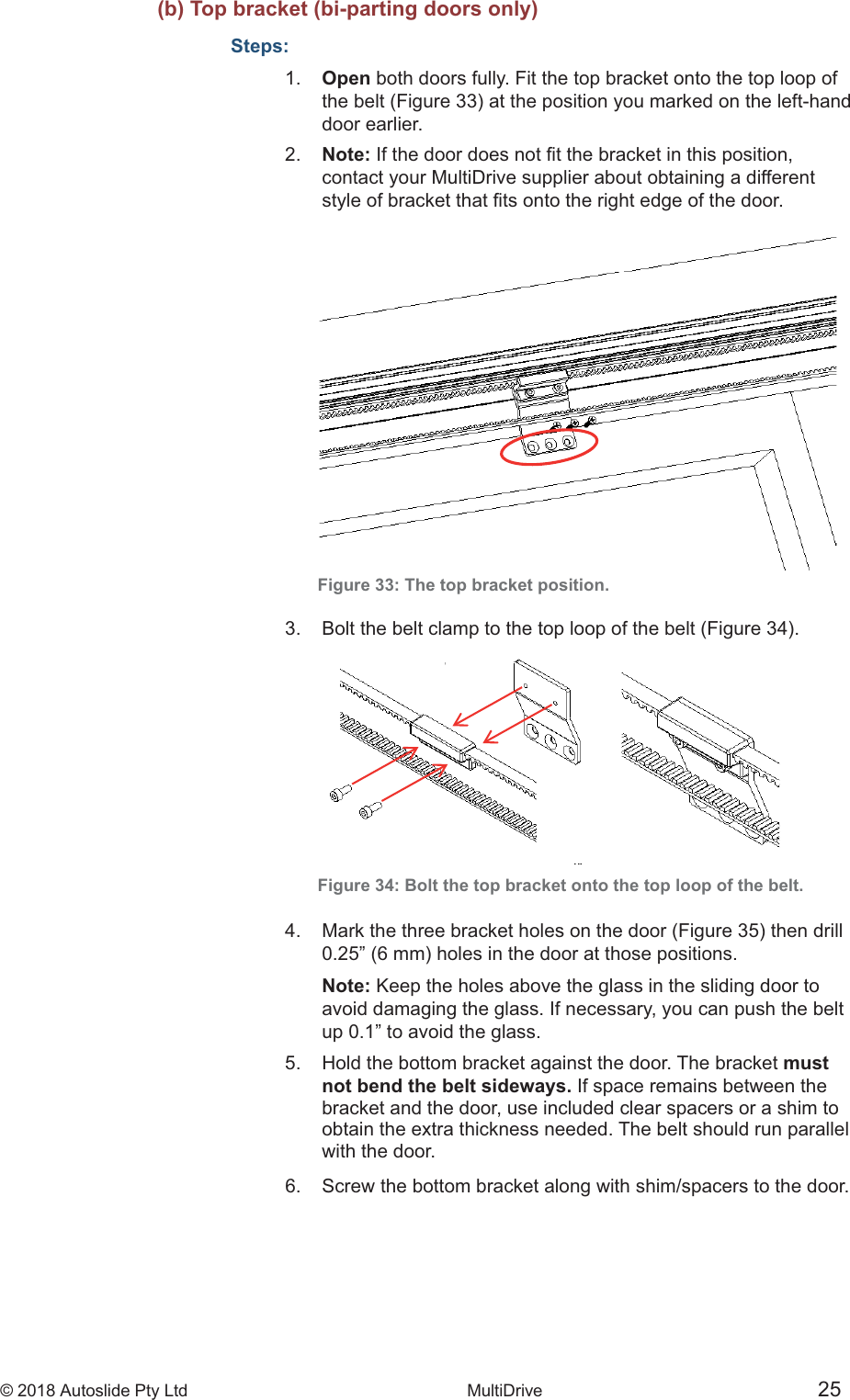

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 25 (b) Top bracket (bi-parting doors only)Steps:1. Open both doors fully. Fit the top bracket onto the top loop of  door earlier.2. Note:  contact your MultiDrive supplier about obtaining a different Figure 33: The top bracket position. Figure 34: Bolt the top bracket onto the top loop of the belt.   Note: Keep the holes above the glass in the sliding door to avoid damaging the glass. If necessary, you can push the belt up 0.1” to avoid the glass.5. Hold the bottom bracket against the door. The bracket must not bend the belt sideways. If space remains between the bracket and the door, use included clear spacers or a shim to obtain the extra thickness needed. The belt should run parallel with the door.6. Screw the bottom bracket along with shim/spacers to the door.

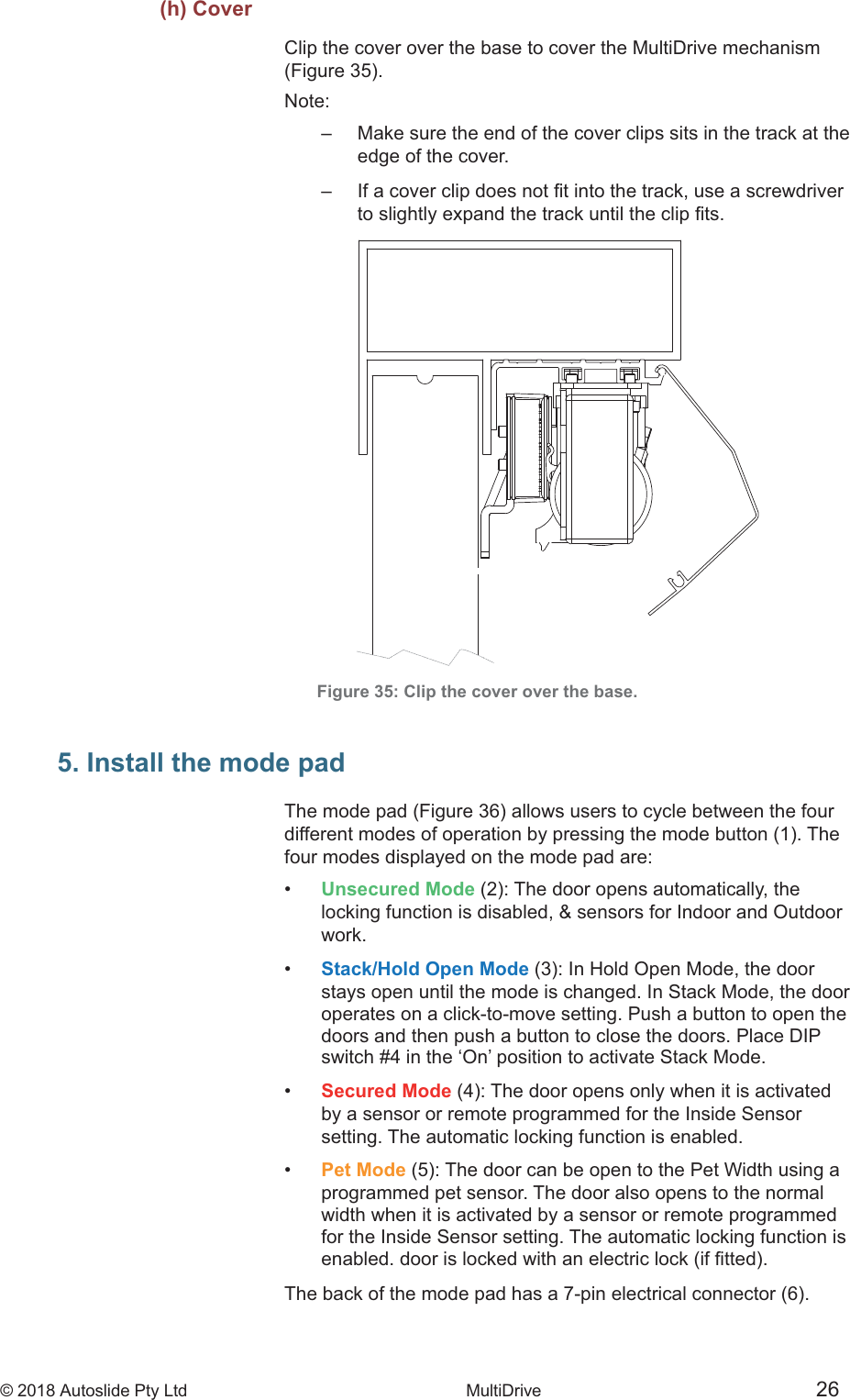

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 26(h) CoverClip the cover over the base to cover the MultiDrive mechanismNote:   edge of the cover.    Figure 35: Clip the cover over the base.5. Install the mode padfour modes displayed on the mode pad are:• Unsecured Mode  locking function is disabled, & sensors for Indoor and Outdoor work.• Stack/Hold Open Mode stays open until the mode is changed. In Stack Mode, the door operates on a click-to-move setting. Push a button to open the doors and then push a button to close the doors. Place DIP switch #4 in the ‘On’ position to activate Stack Mode.• Secured Mode by a sensor or remote programmed for the Inside Sensor setting. The automatic locking function is enabled.• Pet Mode programmed pet sensor. The door also opens to the normal width when it is activated by a sensor or remote programmed for the Inside Sensor setting. The automatic locking function is T
© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 27a) b) 324156 Fimode pad with 7-pin connector.Steps1. Mark the position of the mode pad on a surface near the door.2. Plug one end of the cable connected to the mode pad into the port of the controller. The cable should pass underneath the AC adapter. Feed the other end of the cable into the cavity behind the door jamb.3   the cable through the hole.4. Peel backing paper from one side of the double-sided foam. Press the sticky side of the foam onto the back of the mode 

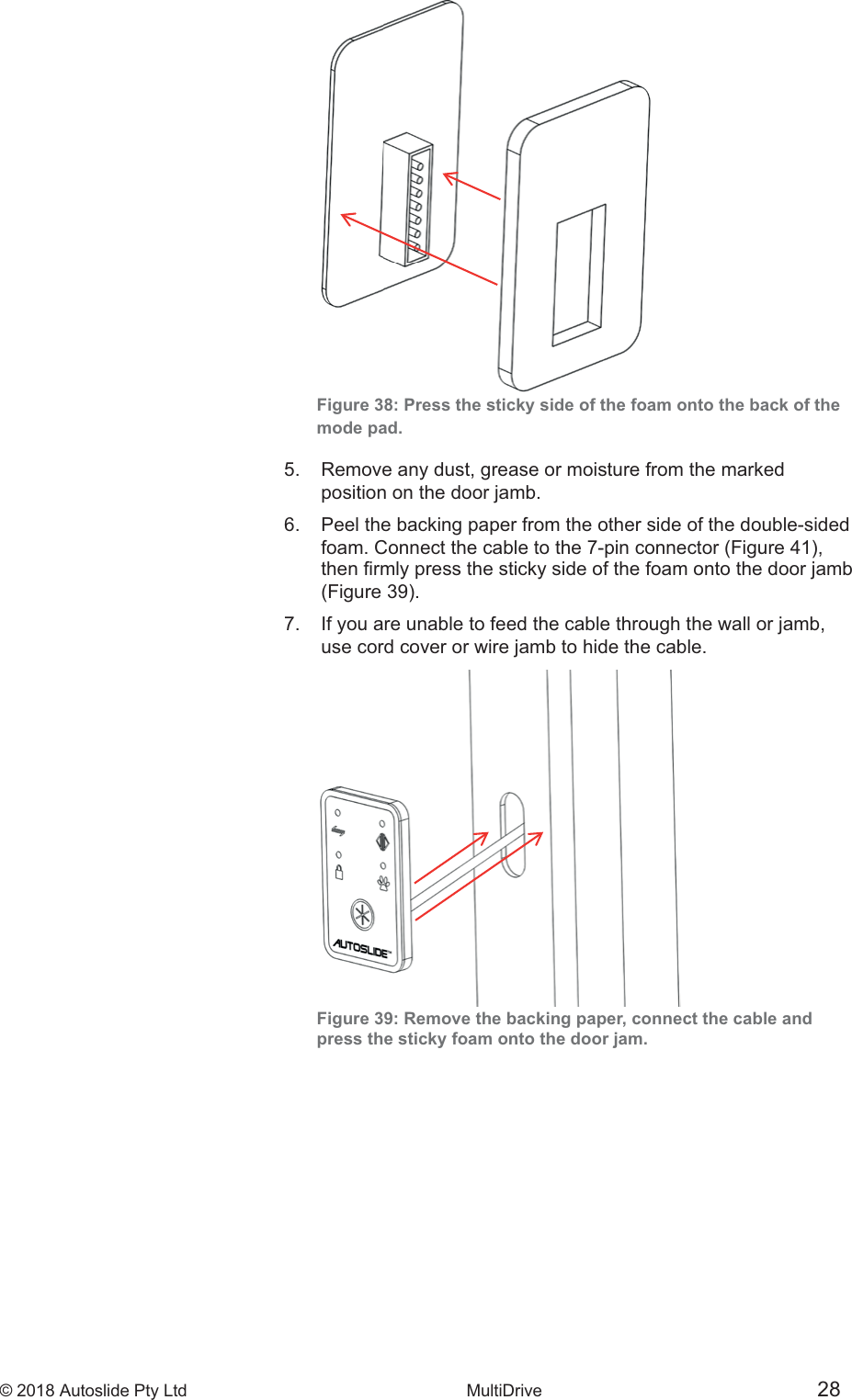

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 28Figure 38: Press the sticky side of the foam onto the back of themode pad.5. Remove any dust, grease or moisture from the marked position on the door jamb.6. Peel the backing paper from the other side of the double-sided   7. If you are unable to feed the cable through the wall or jamb, use cord cover or wire jamb to hide the cable.Figure 39: Remove the backing paper, connect the cable andpress the sticky foam onto the door jam.

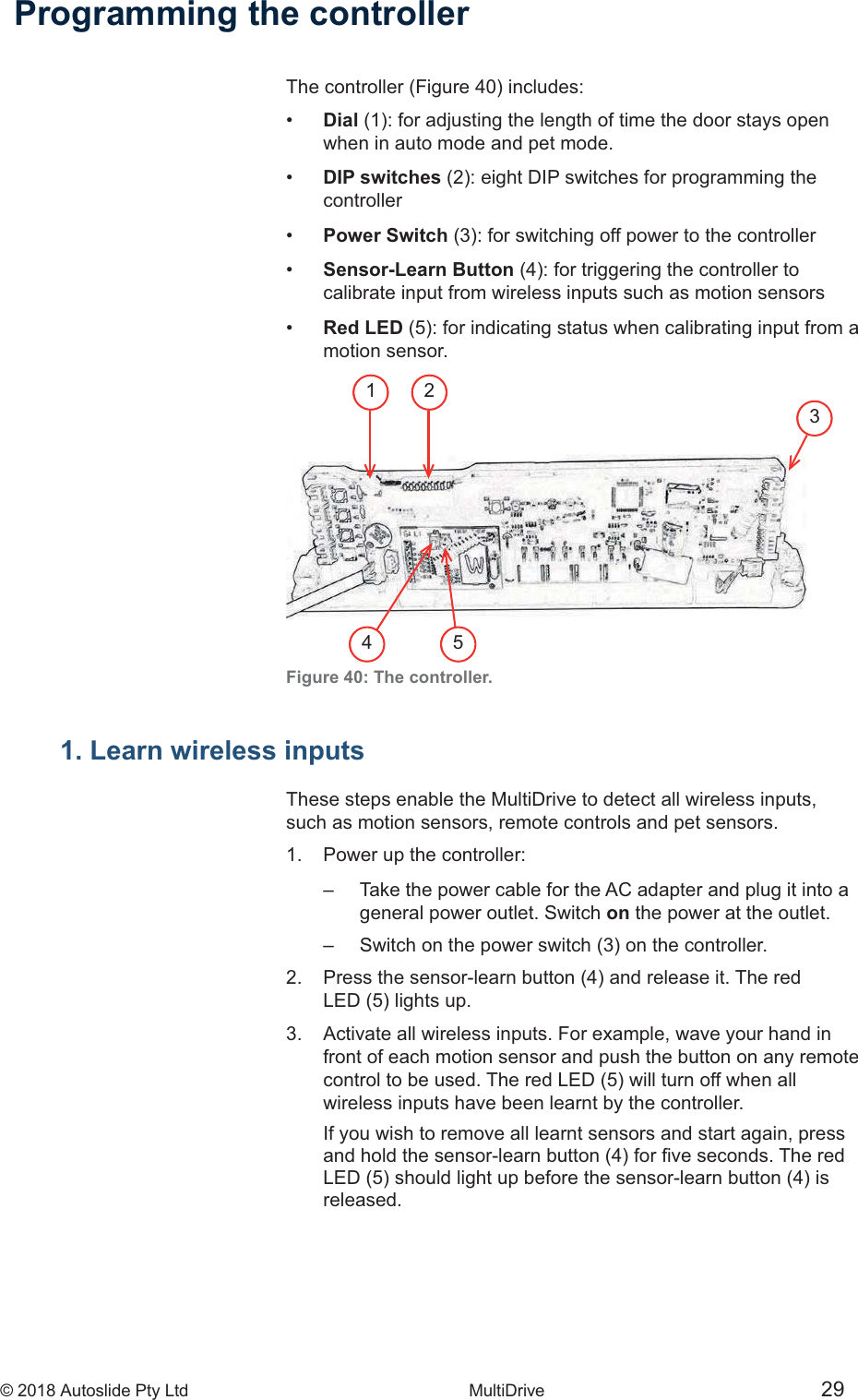

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 2935421Programming the controller• Dial  when in auto mode and pet mode.• DIP switches  controller• Power Switch• Sensor-Learn Button calibrate input from wireless inputs such as motion sensors• Red LED motion sensor.Figure 40: The controller. 1. Learn wireless inputsThese steps enable the MultiDrive to detect all wireless inputs,such as motion sensors, remote controls and pet sensors.1. Power up the controller:  Take the power cable for the AC adapter and plug it into a general power outlet. Switch on the power at the outlet.  2  3. Activate all wireless inputs. For example, wave your hand in front of each motion sensor and push the button on any remote  wireless inputs have been learnt by the controller. If you wish to remove all learnt sensors and start again, press   released.

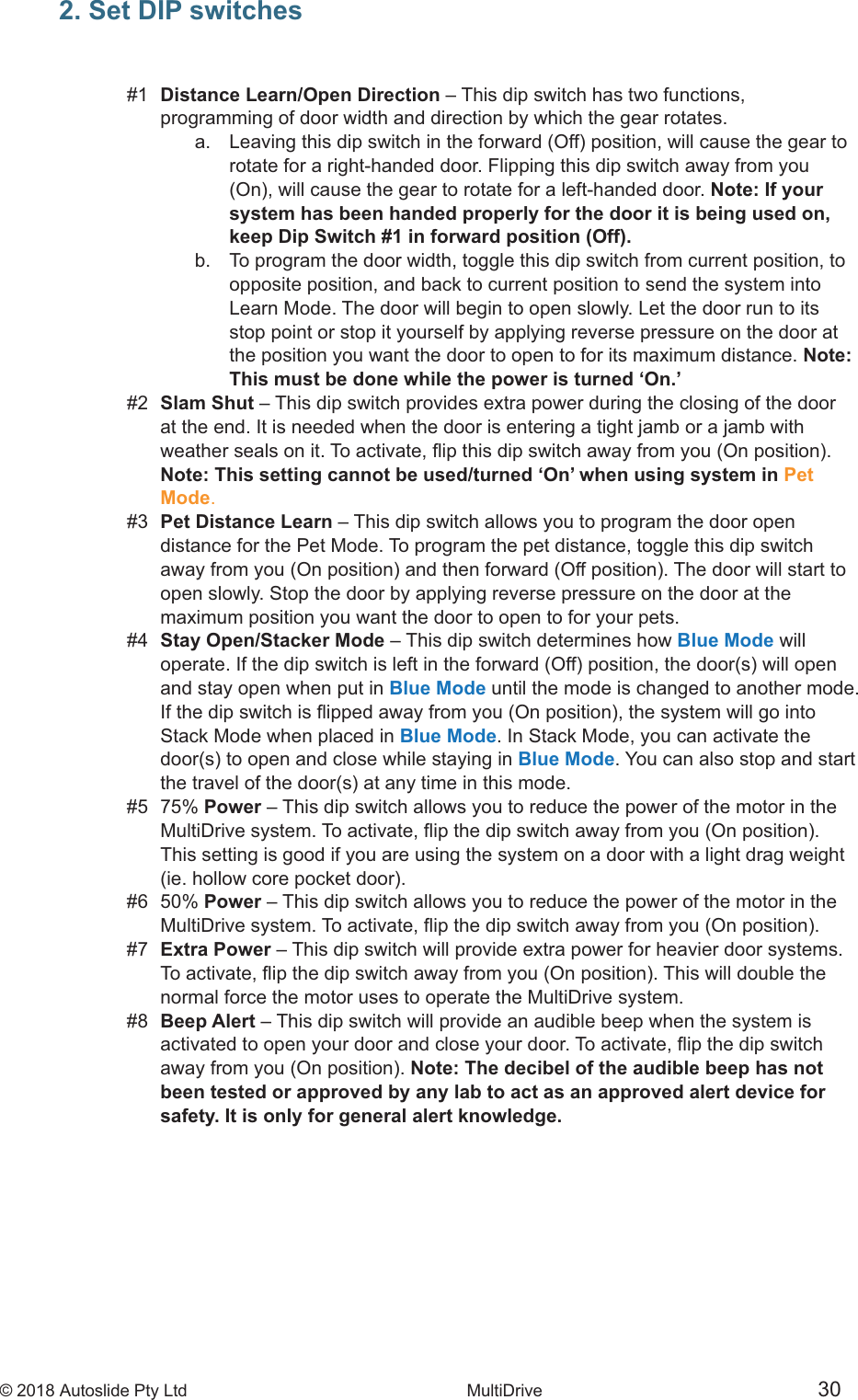

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 30 2. Set DIP switches#1 Distance Learn/Open Direction programming of door width and direction by which the gear rotates.   rotate for a right-handed door. Flipping this dip switch away from you   Note: If your system has been handed properly for the door it is being used on, keep Dip Switch #1 in forward position (Off). b. To program the door width, toggle this dip switch from current position, to opposite position, and back to current position to send the system into Learn Mode. The door will begin to open slowly. Let the door run to its stop point or stop it yourself by applying reverse pressure on the door at the position you want the door to open to for its maximum distance. Note: This must be done while the power is turned ‘On.’#2 Slam Shut  at the end. It is needed when the door is entering a tight jamb or a jamb with  Note: This setting cannot be used/turned ‘On’ when using system in Pet Mode.#3 Pet Distance Learn distance for the Pet Mode. To program the pet distance, toggle this dip switch  open slowly. Stop the door by applying reverse pressure on the door at the maximum position you want the door to open to for your pets.#4 Stay Open/Stacker ModeBlue Mode will  and stay open when put in Blue Mode until the mode is changed to another mode.  Stack Mode when placed in Blue Mode. In Stack Mode, you can activate the Blue Mode #5 75% Power  This setting is good if you are using the system on a door with a light drag weight #6 50% Power  #7   normal force the motor uses to operate the MultiDrive system.#8 Beep Alert  Note: The decibel of the audible beep has not been tested or approved by any lab to act as an approved alert device for safety. It is only for general alert knowledge.

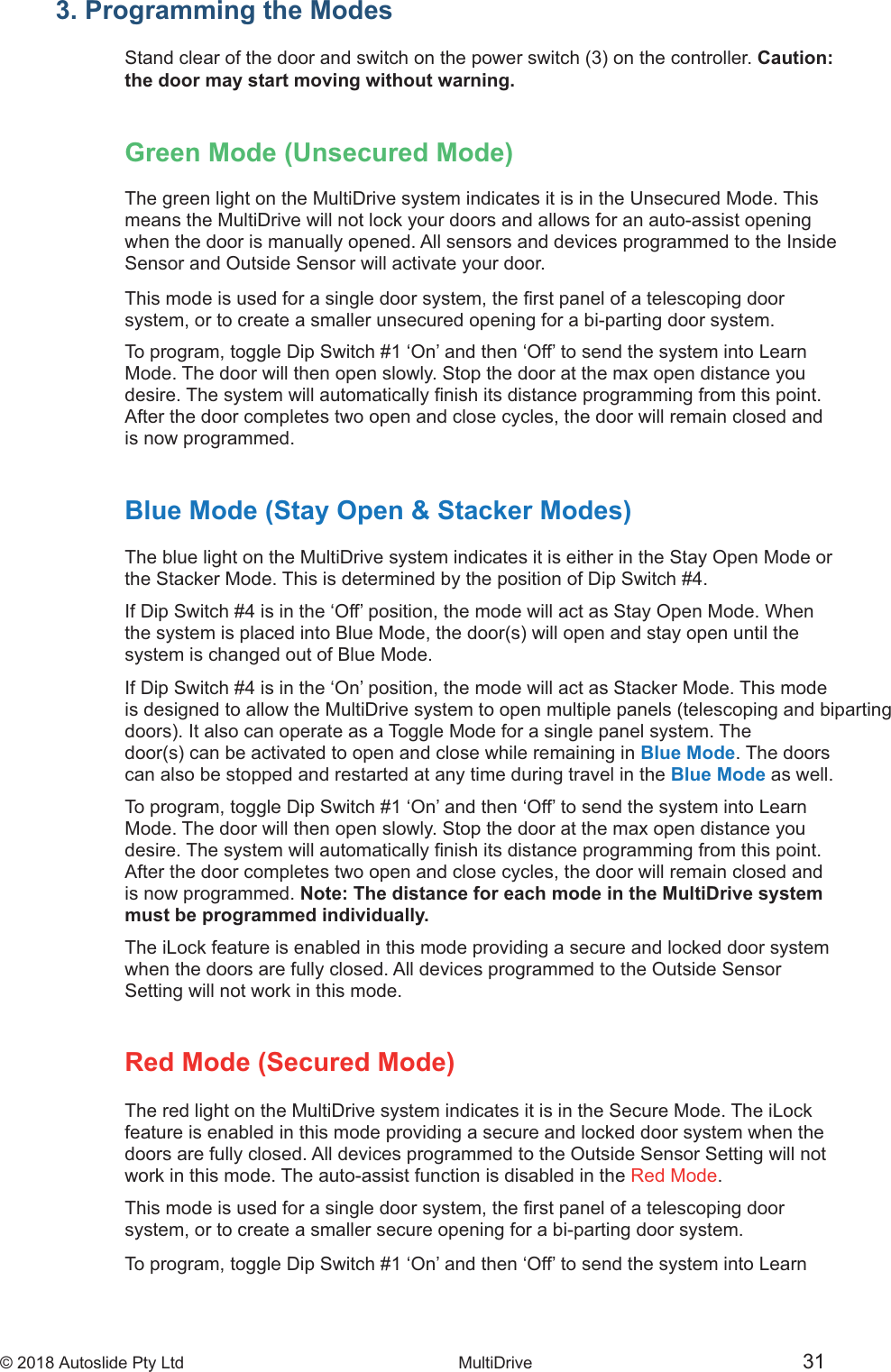

© 2018 Autoslide Pty Ltd MultiDrive <1>© 2018 Autoslide Pty Ltd MultiDrive 313. Programming the ModesCaution:the door may start moving without warning.Green Mode (Unsecured Mode)The green light on the MultiDrive system indicates it is in the Unsecured Mode. Thismeans the MultiDrive will not lock your doors and allows for an auto-assist openingwhen the door is manually opened. All sensors and devices programmed to the InsideSensor and Outside Sensor will activate your door.system, or to create a smaller unsecured opening for a bi-parting door system.To program, toggle Dip Switch #1 ‘On’ and then ‘Off’ to send the system into LearnMode. The door will then open slowly. Stop the door at the max open distance youAfter the door completes two open and close cycles, the door will remain closed andis now programmed.Blue Mode (Stay Open & Stacker Modes)The blue light on the MultiDrive system indicates it is either in the Stay Open Mode orthe Stacker Mode. This is determined by the position of Dip Switch #4.If Dip Switch #4 is in the ‘Off’ position, the mode will act as Stay Open Mode. Whensystem is changed out of Blue Mode.If Dip Switch #4 is in the ‘On’ position, the mode will act as Stacker Mode. This modeis designed to allow the MultiDrive system to open multiple panels (telescoping and bipartingBlue Mode. The doorscan also be stopped and restarted at any time during travel in the Blue Mode as well.To program, toggle Dip Switch #1 ‘On’ and then ‘Off’ to send the system into LearnMode. The door will then open slowly. Stop the door at the max open distance youAfter the door completes two open and close cycles, the door will remain closed andis now programmed. Note: The distance for each mode in the MultiDrive systemmust be programmed individually.The iLock feature is enabled in this mode providing a secure and locked door systemwhen the doors are fully closed. All devices programmed to the Outside SensorSetting will not work in this mode.Red Mode (Secured Mode)The red light on the MultiDrive system indicates it is in the Secure Mode. The iLockfeature is enabled in this mode providing a secure and locked door system when thedoors are fully closed. All devices programmed to the Outside Sensor Setting will notwork in this mode. The auto-assist function is disabled in the Red Mode.system, or to create a smaller secure opening for a bi-parting door system.To program, toggle Dip Switch #1 ‘On’ and then ‘Off’ to send the system into Learn

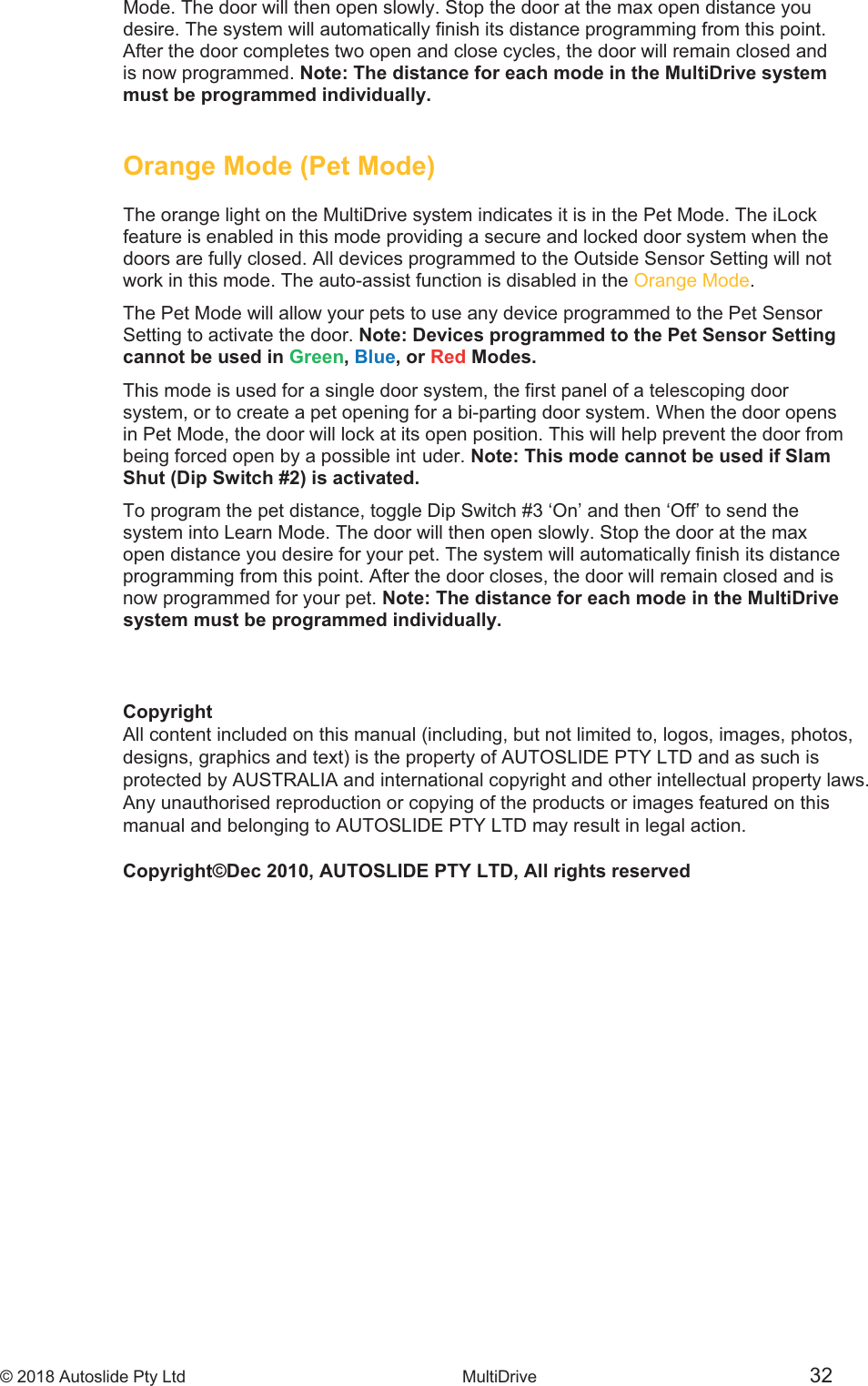

© 2018 Autoslide Pty Ltd MultiDrive 32Mode. The door will then open slowly. Stop the door at the max open distance you desire. The system will automatically finish its distance programming from this point. After the door completes two open and close cycles, the door will remain closed and is now programmed. Note: The distance for each mode in the MultiDrive system must be programmed individually.Orange Mode (Pet Mode)The orange light on the MultiDrive system indicates it is in the Pet Mode. The iLock feature is enabled in this mode providing a secure and locked door system when the doors are fully closed. All devices programmed to the Outside Sensor Setting will not work in this mode. The auto-assist function is disabled in the Orange Mode. The Pet Mode will allow your pets to use any device programmed to the Pet Sensor Setting to activate the door. Note: Devices programmed to the Pet Sensor Setting cannot be used in Green, Blue, or Red Modes. This mode is used for a single door system, the first panel of a telescoping door system, or to create a pet opening for a bi-parting door system. When the door opens in Pet Mode, the door will lock at its open position. This will help prevent the door from being forced open by a possible intCopyrightAll content included on this manual (including, but not limited to, logos, images, photos, designs, graphics and text) is the property of AUTOSLIDE PTY LTD and as such is protected by AUSTRALIA and international copyright and other intellectual property laws.Any unauthorised reproduction or copying of the products or images featured on this manual and belonging to AUTOSLIDE PTY LTD may result in legal action.Copyright©Dec 2010, AUTOSLIDE PTY LTD, All rights reserveduder. Note: This mode cannot be used if Slam Shut (Dip Switch #2) is activated.To program the pet distance, toggle Dip Switch #3 ‘On’ and then ‘Off’ to send the system into Learn Mode. The door will then open slowly. Stop the door at the max open distance you desire for your pet. The system will automatically finish its distance programming from this point. After the door closes, the door will remain closed and is now programmed for your pet. Note: The distance for each mode in the MultiDrive system must be programmed individually.

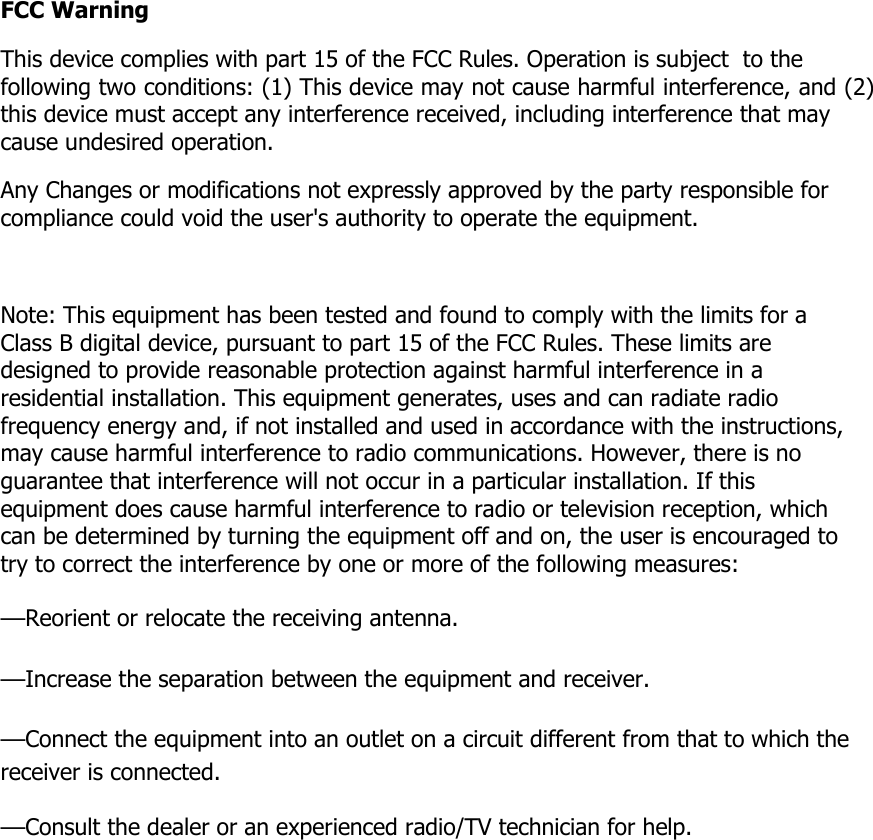

FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.
