AVALUE TECHNOLOGY ORPORATION AID173 Panel PC User Manual AID 173S QRG 2011 05 13 STD

By Jason Lin

Avalue Intelligent Display & Systems

AID-173S

All-In-One Bedside Terminals

Quick Reference Guide

1

st

Ed- 15 October 2010

.

AID-173S Quick Reference Guide

2

Federal Communication Commission Interference Statement

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT

TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL

INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,

INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

•

••

• Reorient or relocate the receiving antenna.

•

••

• Increase the separation between the equipment and receiver.

•

••

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•

••

• Consult the dealer or an experienced radio/TV technician for help.

Notice:

(1) A Unshielded-type power cord is required in order to meet FCC emission limits and

also to prevent interference to the nearby radio and television reception. It is

essential that only the supplied power cord by used.

(2) Use only shielded cables to connect I/O devices to this equipment.

(3) Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

AID-173S Quick Reference Guide

3

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for

an uncontrolled environment. This equipment should be installed and

operated with minimum distance 20cm between the radiator & your body.

For product available in the USA/Canada market, only channel 1~11 can

be operated. Selection of other channels is not possible. The antenna(s)

used for this transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter. Shielded interface

cables must be used in order to comply with emission limits.

AID-173S Quick Reference Guide

4

CONTENT

1. AID-173S Bedside Terminals Features...........................................................5

1.1 Front Look.........................................................................................6

1.2 Rear & Bottom Look.........................................................................7

1.3 Handset..............................................................................................8

2. Setting Up AID-173S Bedside Terminals........................................................9

2.1 Mounting..........................................................................................10

2.2 Cabling.............................................................................................11

2.3 System Activation & Registration .................................................12

2.4 Connecting to the Internet .............................................................13

3. Using AID-173S Bedside Terminals...............................................................14

3.1. Turn ON/OFF the System ..............................................................15

3.2 Using LCD Display and Touch Screen..........................................16

3.3 Using Earphone and Microphone ..................................................17

3.4 Using the Smart Card Reader........................................................18

3.5 Using Magnetic Strip Reader.........................................................19

3.6 Using RFID Reader/Writer..............................................................20

3.7 Using Handset.................................................................................21

3.8 Using Barcode Scanner .................................................................23

4. Upgrading AID-173S Bedside Terminals..................................................24

4.1 Adding/Removing/Replacing Memory ..........................................25

4.2 Adding/Removing/Replacing TV Tuner.........................................26

4.3 Removing and Replacing the Wireless Card................................27

4.4 Adding 3rd Party Mini-PCIe Cards ................................................28

4.5 Removing and Replacing the Hard Disk Drive.............................29

.

AID-173S Quick Reference Guide

5

1. AID-173S Bedside Terminals Features

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

In this chapter, you will learn all of the features of AID-173S bedside

terminals.

1.1 Front Look

1.2 Rear & Bottom Look

1.3 Handset

AID-173S Quick Reference Guide

6

1.1 Front Look

Camera

Handset

Magnetic Strip Reader

Smart Card Reader

RFID Reader/Writer

17.3” TFT-LCD & Touch Screen

Cord

3 x USB

Volume

Up/down

Brightness

Up/down

Reserved

Power on/off

AID-173S Quick Reference Guide

7

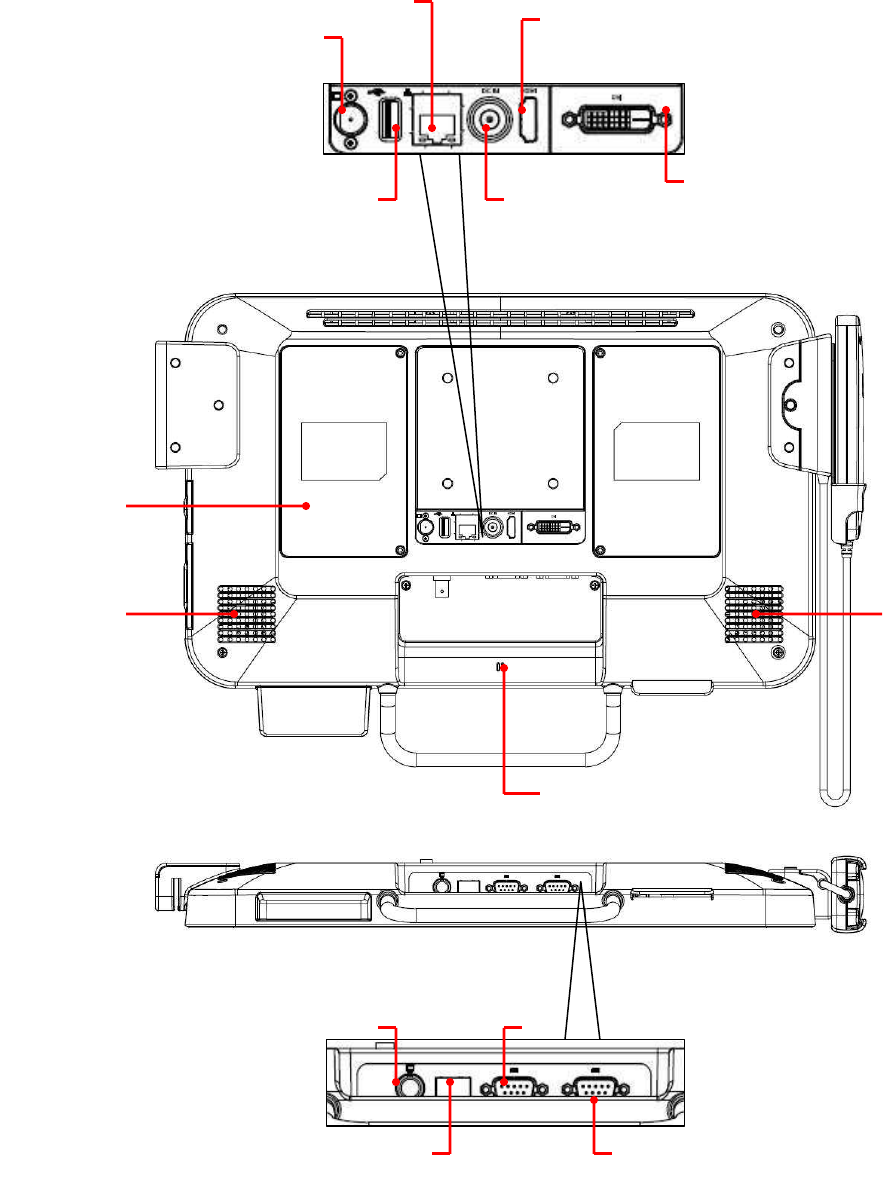

1.2 Rear & Bottom Look

Microphone

Service Door

COM1

Speaker Speaker

DVI-I Output (Optional, 1024*768)

HDMI Output (optional)

TV Antenna Input (optional)

USB Port DC in

LAN

COM2

Nursing Call Input

BNC Video Input (Optional)

AID-173S Quick Reference Guide

8

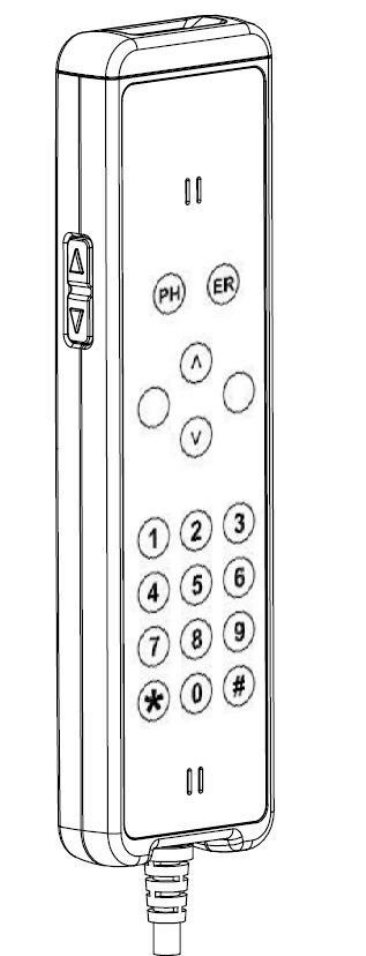

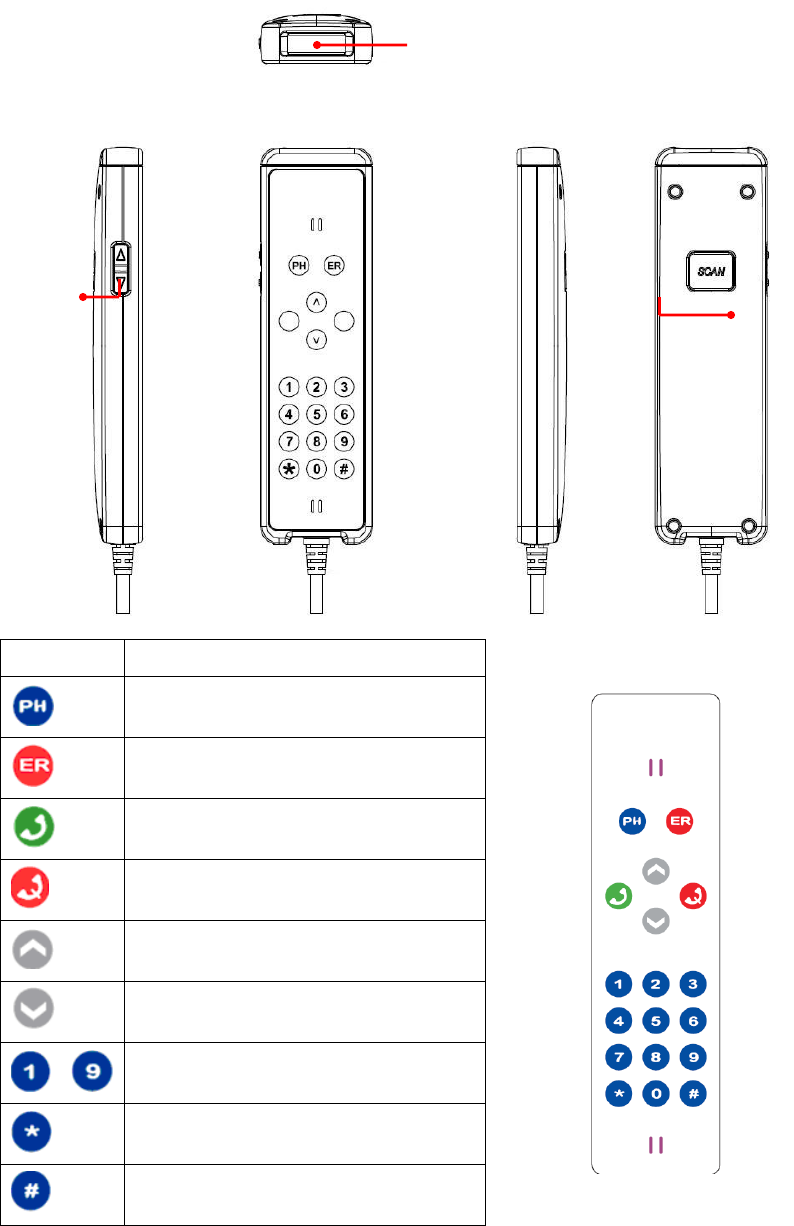

1.3 Handset

Key Descriptions

Activate the phone software (i.e. Skype)

Nurse Call

Answer

Hang Up

Contact List Up

Contact List Down

~

Numeric Keys

* Key

# Key

Barcode Scanner

Volume Scan button

AID-173S Quick Reference Guide

9

2. Setting Up AID-173S Bedside Terminals

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

In this chapter, you will learn how to set up AID-173S bedside

terminal hardware and cable connection. Finally, with Internet ISP

setting information, you will be able to connect AID-173S bedside

terminal to the Internet.

2.1 Mounting

2.2 Cabling

2.3

System Activation & Registration

2.4

Connecting to the Internet

AID-173S Quick Reference Guide

10

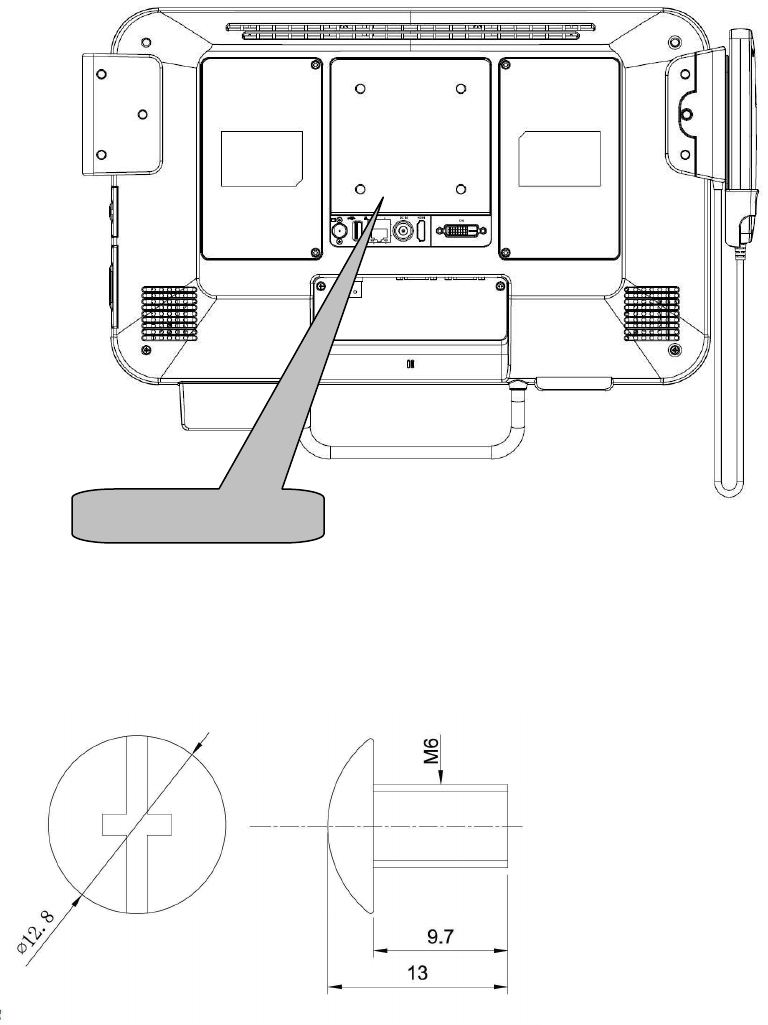

2.1 Mounting

Suggested Mounting Screws

Note: 4 pieces of M6x10 screws

VESA 75 Mounting

AID-173S Quick Reference Guide

11

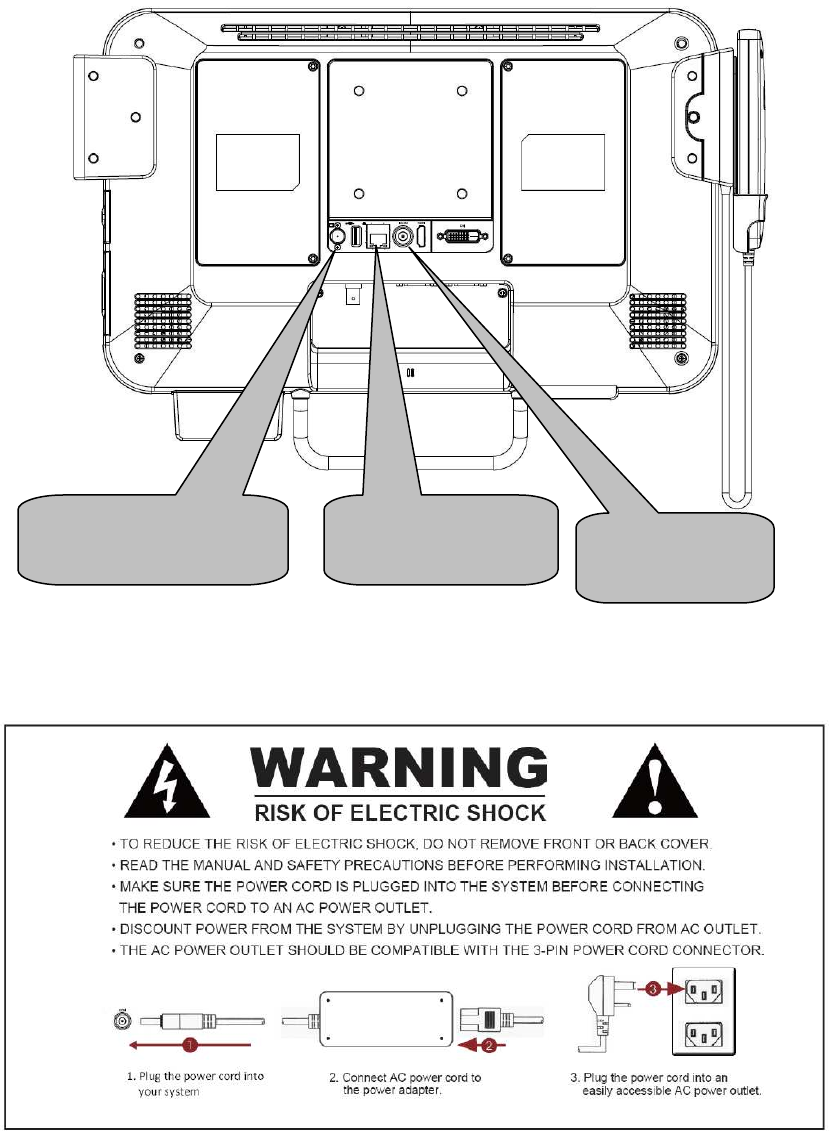

2.2 Cabling

1. Power Cable

2. Ethernet (RJ-45) Cable (Optional)

3. TV (Coaxial) Cable (Optional)

Please follow below steps to connect the power cable and the system.

Coaxial connector Ethernet (RJ-45)

Connector Power Jack

AID-173S Quick Reference Guide

12

2.3 System Activation & Registration

1. When you first receive the system, a system activation and software

registration might be performed before the use of this system.

2. Please consult your local service providers for more details.

AID-173S Quick Reference Guide

13

2.4 Connecting to the Internet

1. Use built-in wireless LAN to connect to the Internet.

2. Use Ethernet (RJ-45) to connect to the Internet.

3. Consult your Internet Service Provider (ISP) for software settings.

Note: ISP, IP, (wireless) router, Access Point, DSL modem, Access ID &

Password, and so on, are needed for Internet access.

AID-173S Quick Reference Guide

14

3.

Using AID-173S Bedside Terminals

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

In this chapter, you will learn how to use all the features of

AID-173S bedside terminal.

3.1 Turn ON/OFF the System

3.2 Using LCD Display and Touch Screen

3.3 Using Ear Phone and Microphone

3.4 Using Smart Card Reader

3.5 Using Magnetic Strip Reader

3.6 Using RFID Reader/Writer

3.7 Using Handset

3.8 Using Barcode Scanner

AID-173S Quick Reference Guide

15

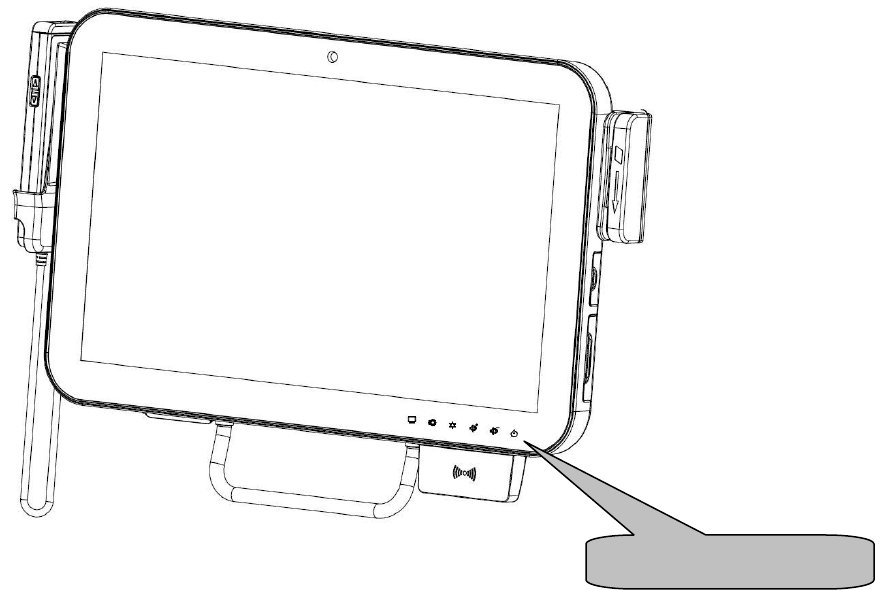

3.1. Turn ON/OFF the System

3.1.1 Turn ON the System

1. Check if the led on the Power ON/OFF icon is red.

2. Move your finger on the top of the Power ON/OFF icon.

3. The led on the Power ON/OFF icon turns green.

4. Now the system is turned ON.

3.1.2 Turn OFF the System

1. Move your finger on the top of the Power ON/OFF icon for about 4

seconds.

2. The led on the Power ON/OFF icon turns red.

3. The system is turned OFF.

Note: We recommend use the operating system shut down procedures to turn

OFF the system.

ON/OFF Touch Button

AID-173S Quick Reference Guide

16

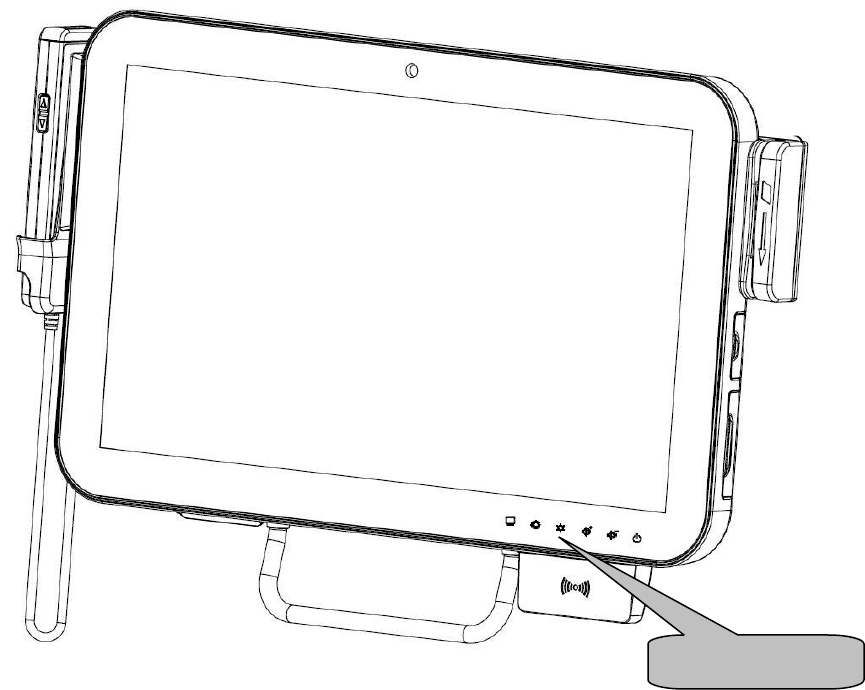

3.2 Using LCD Display and Touch Screen

3.2.1 Adjust System Volume

1. Move your finger on the top of the Volume Up or Volume Down icon.

2. The volume will be adjusted accordingly.

3.2.2 Adjust LCD Display Brightness

1. Move your finger on the top of the Brightness Up or Brightness Down

icon.

2. The brightness of the LCD display will be adjusted accordingly.

3.2.3 Using Touch Screen

1. To select the item on the touch screen, press the item once.

2. To select and open the item, press the item twice quickly.

3. To open the secondary menu, press and hold until the menu appears and

then moving your finger to select the menu item. When you determine

the menu item, release your finger and the item is selected.

Control Buttons

AID-173S Quick Reference Guide

17

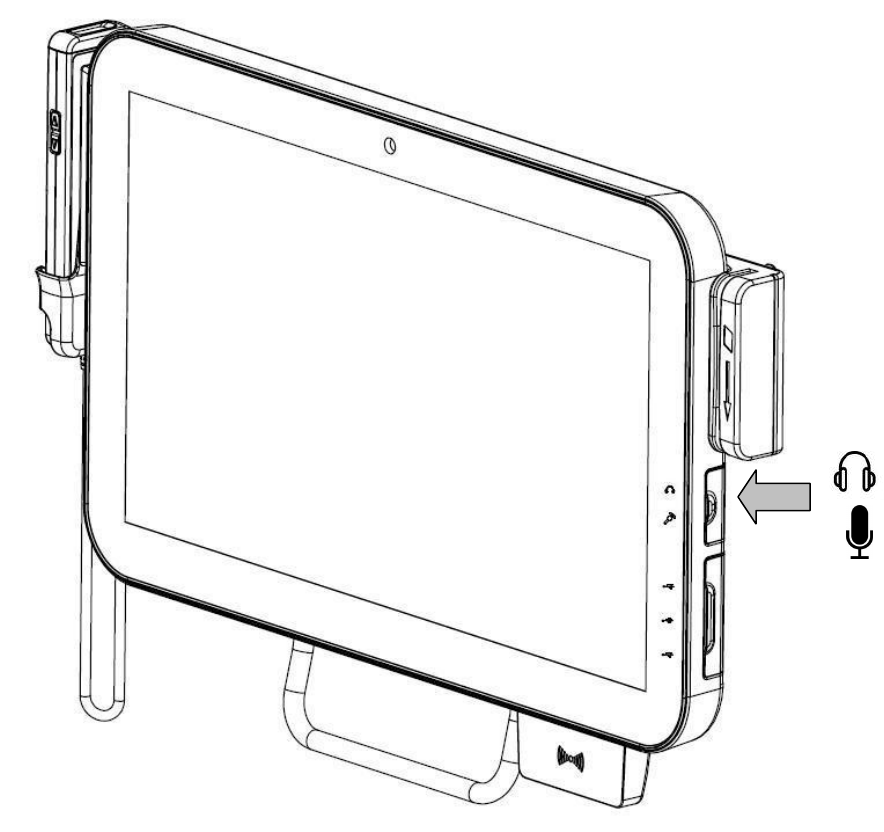

3.3 Using Earphone and Microphone

1. Open the rubber cover on the right side of the system.

2. Insert the earphone phone or microphone into the jacks.

AID-173S Quick Reference Guide

18

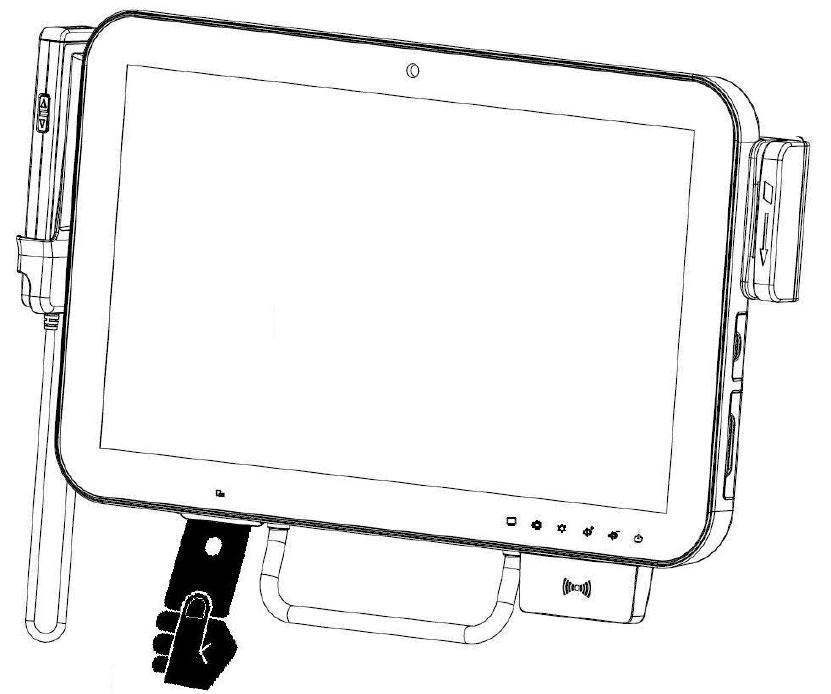

3.4 Using the Smart Card Reader

1. Have the IC card face up.

2. Insert the IC card into the Smart Card Reader slot.

AID-173S Quick Reference Guide

19

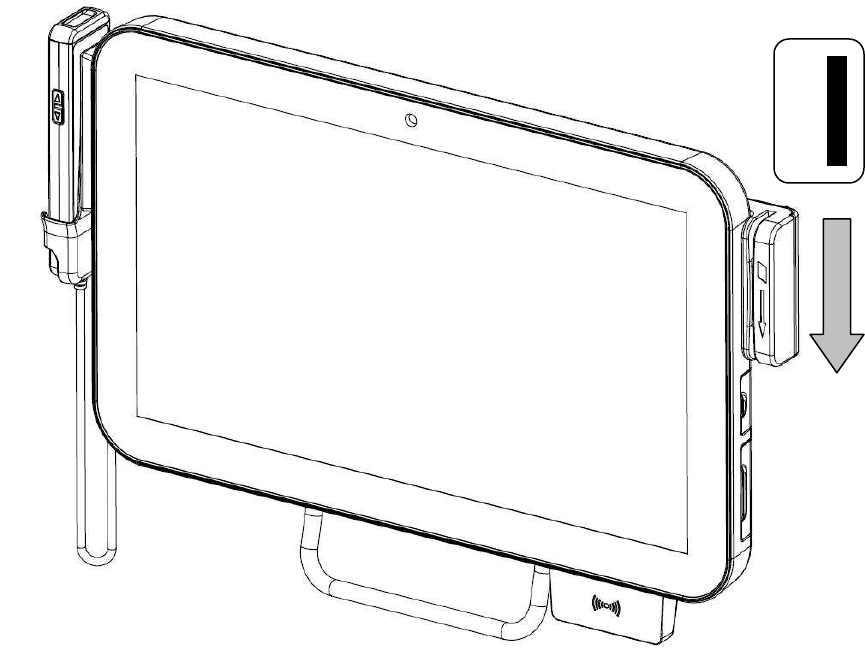

3.5 Using Magnetic Strip Reader

1. Have your card with the magnetic strip facing outside.

2. Slide the card from top to the bottom.

AID-173S Quick Reference Guide

20

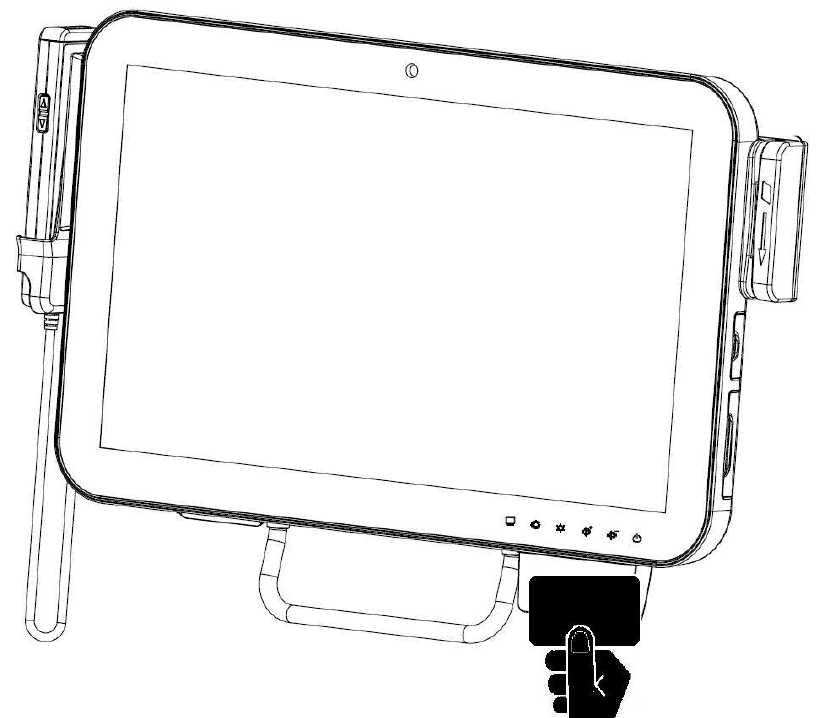

3.6 Using RFID Reader/Writer

1. Attach the card to the RFID Reader/Writer. Keep card close to the

reader no greater than 5cm.

2. The RFID will beep if the card is read or written successfully.

Note: The RFID Reader/Writer accepts ISO 14443A standard cards ONLY.

AID-173S Quick Reference Guide

21

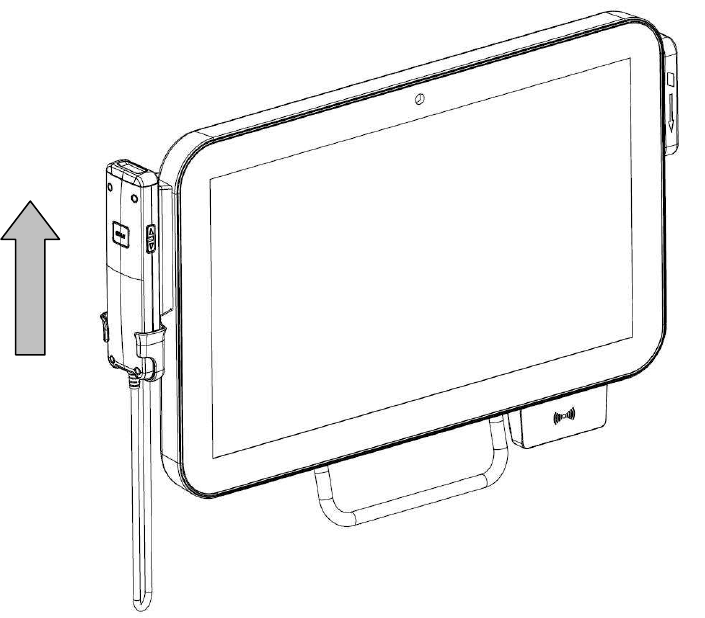

3.7 Using Handset

Take the Handset

1. When you want to use the handset, lift the handset from the cradle.

2. Replace the handset back to the handset cradle with keypad facing

inside.

AID-173S Quick Reference Guide

22

Start and End a Phone Conversation

1. To make a phone call, enter the

numbers by press the number on

the keypad and press “Dial” icon.

2. To end a phone conversation,

press the “Hang Up” icon.

3. Use the volume control to adjust

the volume of the handset.

Note: Phone application software and

Internet connection are required.

AID-173S Quick Reference Guide

23

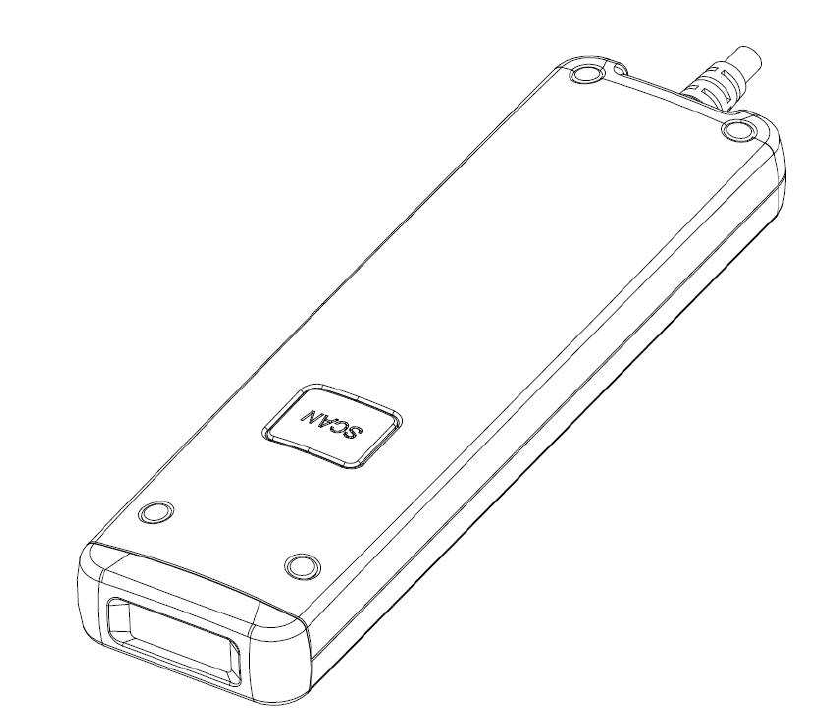

3.8 Using Barcode Scanner

1. Take the handset and turn it over.

2. Aim the barcode and maintain an appropriate distance between and

barcode and scanner.

3. Press SCAN button.

4. The Barcode Scanner will “Beep” when the barcode is successfully read.

AID-173S Quick Reference Guide

24

4. Upgrading AID-173S Bedside Terminals

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

In this chapter, you will learn several peripherals upgrade or

replacement. Please perform these steps with care.

▲ WARNING: Turn OFF the system and disconnect the power

cable before performing the following tasks.

▲CAUTION: Only a certified service technician is authorized to

remove the cover and access the components inside the system.

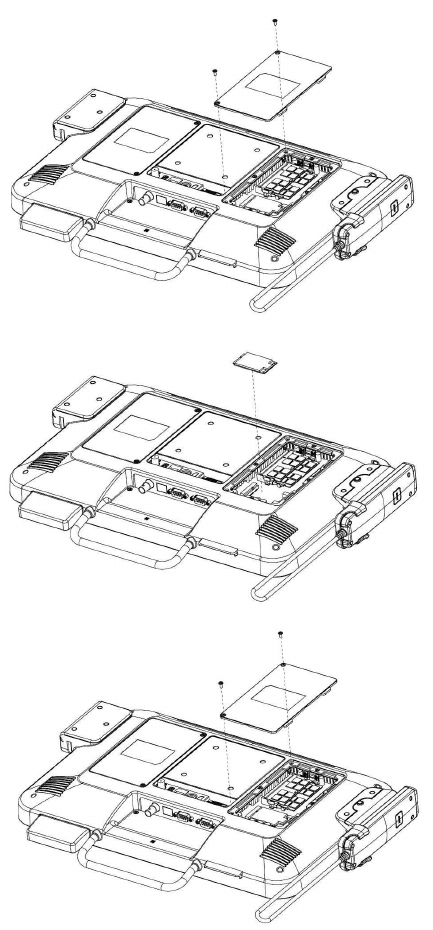

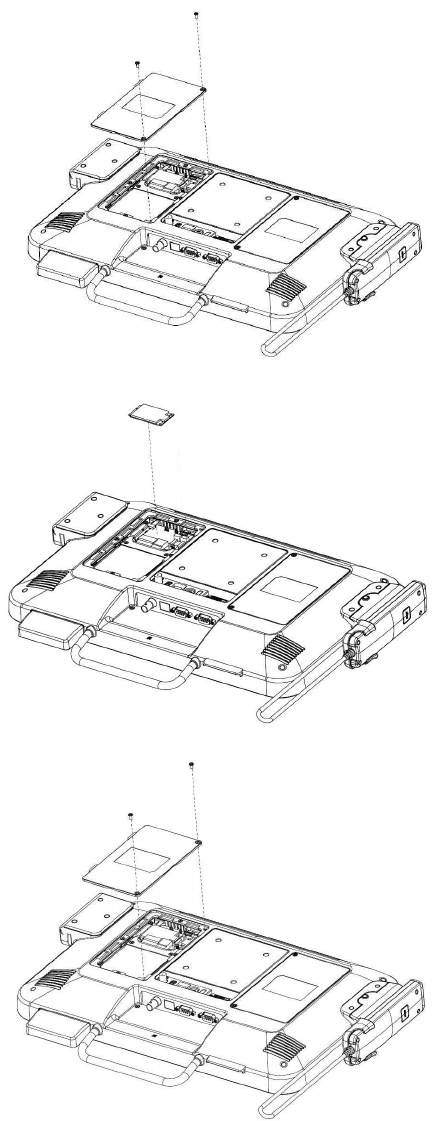

4.1 Adding/Removing/Replacing Memory

4.2 Adding/Removing/Replacing TV Tuner

4.3 Removing and Replacing the Wireless Card

4.4 Adding 3rd Party Mini-PCIe Cards

4.5 Removing and Replacing the Hard Disk Drive

AID-173S Quick Reference Guide

25

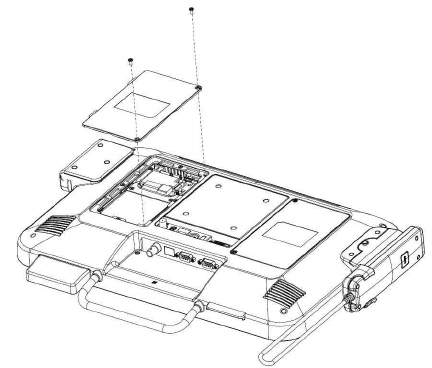

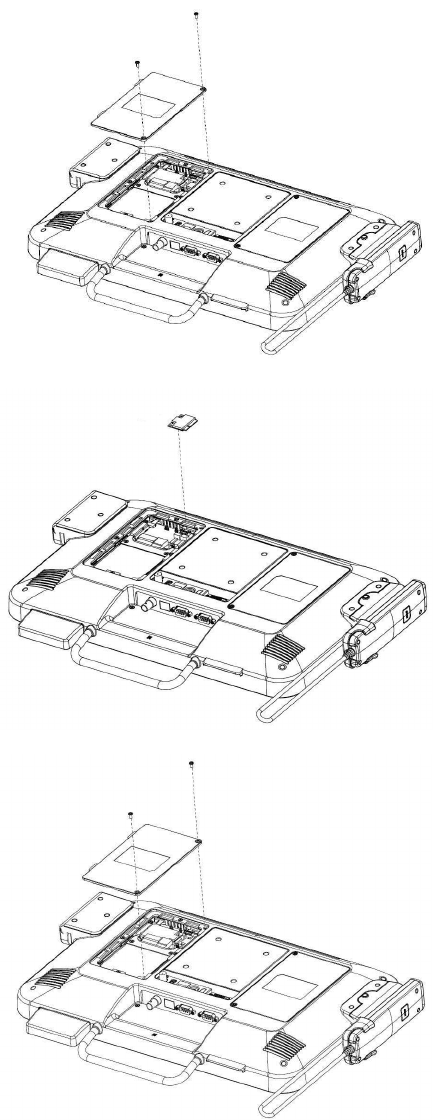

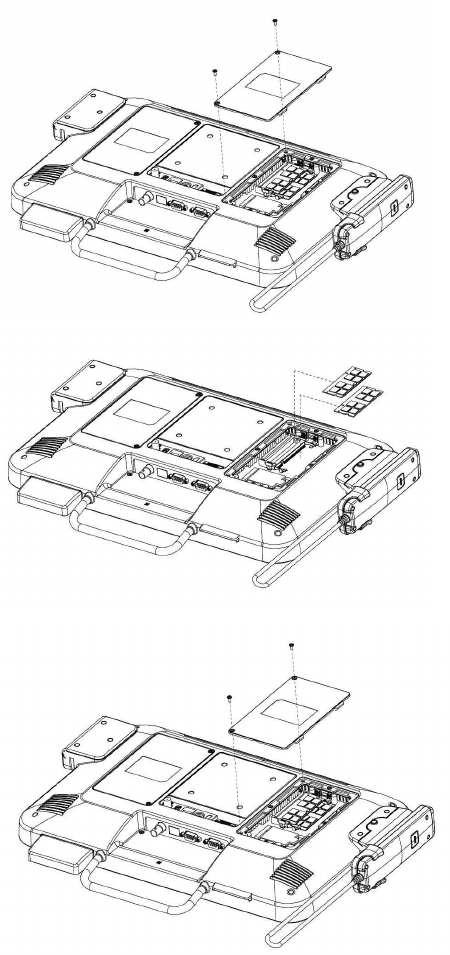

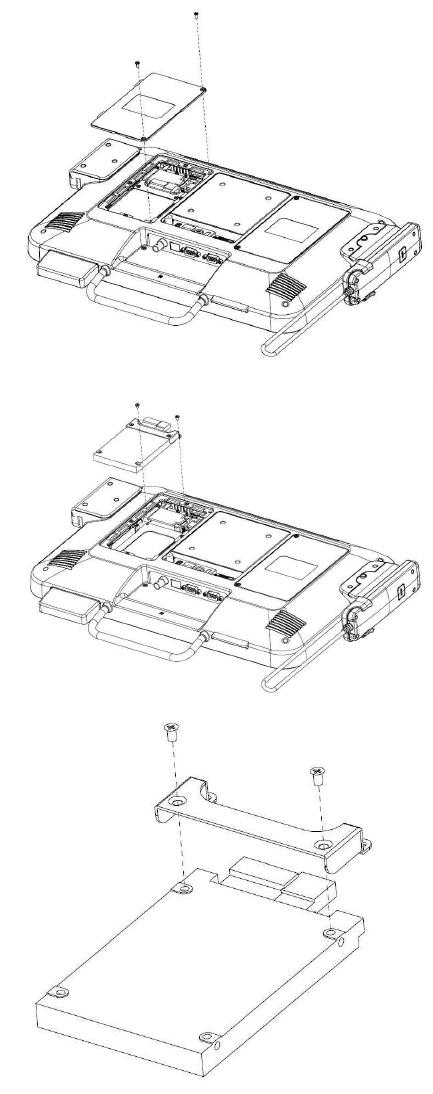

4.1 Adding/Removing/Replacing Memory

1. Remove the two screws from

the service door.

2. Open the service door.

1. Push the two latches of the

retaining clips away from the

memory module.

2. The memory module will pop

up at an angle.

3. Lift the memory module from

the memory socket.

1. Align the correct location of

the key slot on the connector

edge.

2. Slide the memory module into

the memory socket.

3. Push the memory module

down until the retaining clip

latches catch.

4. Close the service door.

5. Insert the two screws on the

service door.

Note: Please use the correct type of memory on both memory sockets.

AID-173S Quick Reference Guide

26

4.2 Adding/Removing/Replacing TV Tuner

1. Remove the two screws from

the service door.

2. Open the service door.

1. Unplug the TV signal cable.

2. Unlock the mini-PCIe socket.

3. Pull the TV module out of the

socket.

1. Place the TV module into the

mini-PCIe socket.

2. Lock the mini-PCIe socket.

3. Connect the TV signal cable to

the TV module.

4. Close the service door.

5. Insert the two screws on the

service door.

AID-173S Quick Reference Guide

27

4.3 Removing and Replacing the Wireless Card

1. Remove the two screws from

the service door.

2. Open the service door.

1. Unplug the two antennas from

the wireless module.

2. Unlock the mini-PCIe socket.

3. Pull the wireless module out of

the socket.

1. Place the wireless module into

the mini-PCIe socket.

2. Lock the mini-PCIe socket.

3. Connect the two antenna to the

wireless module.

4. Close the service door.

5. Insert the two screws on the

service door.

AID-173S Quick Reference Guide

28

4.4 Adding 3rd Party Mini-PCIe Cards

1. Remove the two screws from

the service door.

2. Open the service door.

1. Insert the 3

rd

party mini-PCIe

card into the empty mini-PCIe

expansion socket.

2. Lock the mini-PCIe socket.

Close the service door and insert

two screws.

AID-173S Quick Reference Guide

29

4.5 Removing and Replacing the Hard Disk Drive

1. Remove the two screws from

the service door.

2. Open the service door.

1. Remove the two top screws

from the hard bracket from the

hard disk cage.

2. Disconnect the power and data

cables from the back of the hard

disk drive.

3. Lift the top of the hard disk drive

bracket and pull the hard disk

drive from the cage.

Remove the two screws on the

bracket from the hard disk.

Continue on next page…

AID-173S Quick Reference Guide

30

1. Insert the two screws on the

bracket.

2. Place the hard disk drive into

the cage.

3. Insert two screws on the

bracket and the cage.

4. Connect the power and data

cable to the hard disk drive.

5. Close the service door and

insert two screws.

End of This Document

AID-173S Quick Reference Guide

31

Thank you for purchasing and using AID-173S Bedside Terminals.

We hope you have a joyful experience with our products and services.

AVALUE TECHNOLOGY ORPORATION AID173 Panel PC User Manual AID 173S QRG 2011 05 13 STD

Avalue Technology Inc. Panel PC AID 173S QRG 2011 05 13 STD

manual

Navigation menu

Namespaces

Views

Navigation
