AVATARCONTROLS AFCS01 Bluetooth Speaker User Manual

SHENZHEN AVATARCONTROLS CO., LTD. Bluetooth Speaker

User Manual

Bluetooth Speaker
( User Manual )
Item No: AFCS01
www.avatarcontrols.com
User Manual
Packing List:
Bluetooth Speaker * 1
User Manual * 1

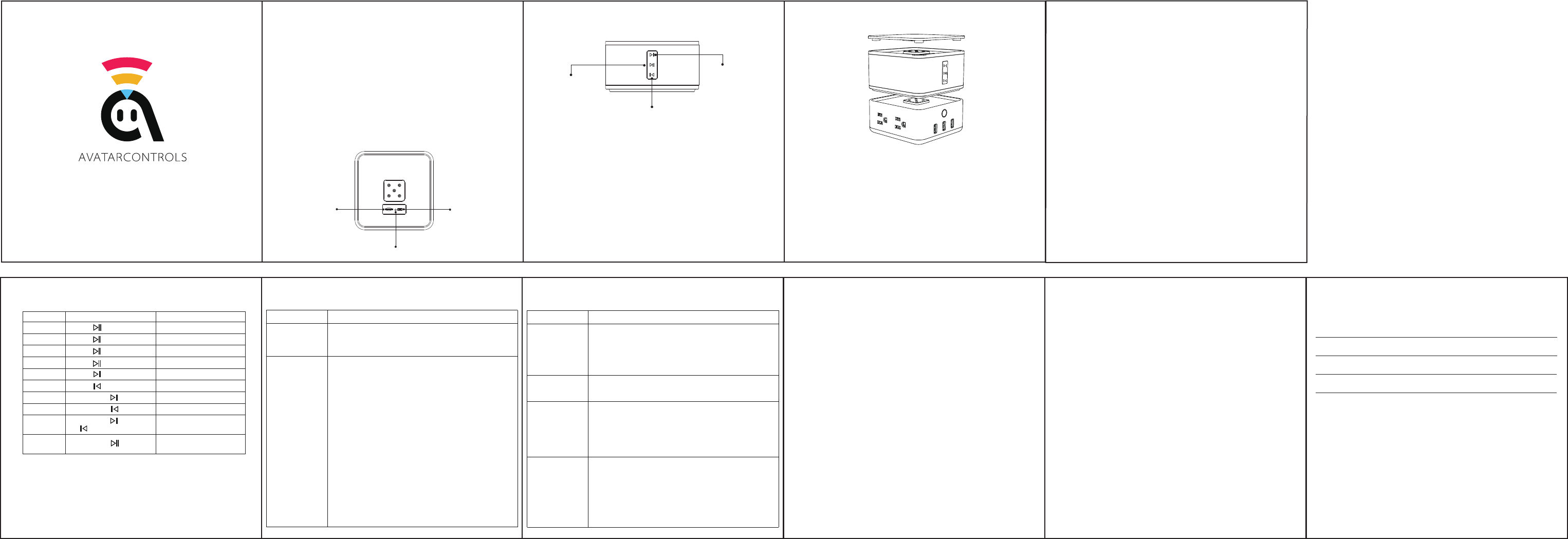

Product Appearance:
Thank you for choosing the Bluetooth Speaker by AvatarControls. This product is part
of the Freecube series and will function with the AvatarControls Freecube USB power
Socket Base or independently on its own. For the best experience with your Bluetooth
Speaker, please read the user manual carefully before use. The user manual includes
an introduction to the product, detail directions and as well as important safety
information.
TF Card Slot Micro USB
For Charging
Reset Hole
Next / Volume Up
Play / Pause Button
Previous / Volume Down
• SNR : 89DB
• Micro USB Input : 5V/1A
• Input Voltage : 5V/24V DC
• Built in Battery: 2200mAh
• Audio Power Output : 5W*2
• Bluetooth Connection Distance: ≤32.8ft ( ≤10m)
• Working Temperature: 14°F~140°F （-10℃~60℃）
• Dimensions(WxDxH) : 4.6 x 4.6 x 2.5 in（116 x 116 x 63mm）
Specification：
How to use:
1. Assembly
• The Bluetooth Speaker can be placed on any layer and any direction of the
Freecube. The Bluetooth Speaker can be used once the metal connection is
placed on the Freecube. The Freecube will automatically charge the speaker
while in use.
2. External powered
• The Bluetooth Speaker can be used independently without the Freecube USB
power Socket Base. A micro USB cable can be used to supply the power and
charge the battery. In external powered mode, if the machine is turned off, the
indicator light will show the battery's charging state by illuminating a red light.
3. Battery powered
• The Bluetooth Speaker comes with a built-in battery, which allows the speaker work
independently for 4-12 hours.
4. Bluetooth music playback
• Search and pair "Freecube" Bluetooth settings on your phone. Once the connection
is successful, you can start using it.
5. TF Card music playback
• Insert TF card, the speaker will automatically start playing music files stored in the TF card.
If the bluetooth is connected at the same time, you can easily switch between TF card
mode and Bluetooth mode by double clicking the play button.
Note: The device has Bluetooth mode and TF card mode. You can play audio files
transmitted by Bluetooth in Bluetooth mode. You can also play MP3 and WAV files
stored in TF card while in TF Card mode.
Operation Instruction:
Switches Mode
Turn on Press “ ” Green
Turn off Press “ ” and Hold for 2s Off
Play Press “ ” Green
Pause Press “ ” Green Flashing
Next Press “ ” No change
Previous Press “ ” No change
Volume Up Press & Hold “ ” Beep Sound
Volume Down Press & Hold “ ” Beep Sound
Disconnect
Bluetooth Beep Sound
Double Click “ ” Voice prompts
Press & Hold “ ” &
“ ” at the same time
Function Operation Indicator light
• Don't hit Bluetooth speaker badly.
• Don’t contact benzene, diluent and other chemicals.
• Don't get close to magnetic and electric field.
• Avoid direct rays or heating appliances.
• Don't disassemble, repair and rebuild.
• Please properly classify and dispose of waste packaging, batteries, old electronic products.
Attention:
Troubleshooting:
Problem What to do
No power
(Battery Mode)
The state of battery may be in protection mode or discharged.
Please charge it and it is recommended to use the speaker after
2 hours charging.
No sound from your
Bluetooth speaker
• Power on the speaker.
• Make sure the speaker is in Bluetooth mode or TF card mode.
• Increase the volume on the speaker, your mobile device and
music source.
• Move your mobile device closer to the speaker and away from
any interference or obstructions.
• Use a different music source.
• Pair another mobile device.
• If two mobile devices are connected, pause your other mobile
device first.
• On your mobile device:
- Turn off and on the Bluetooth feature.
- Remove the speaker from the Bluetooth menu. Pair again.
• Clear the speaker’s pairing list.
• Reset the speaker.
• Check your mobile device for compatibility. Refer to your mobile
device owner’s guide.
Problem What to do
Poor sound quality
• Use a different music source
• Pair another mobile device.
• Disconnect the second device.
• Move your mobile device closer to the speaker and away from
any interference or obstructions.
No music plays
from TF card
The speaker only supports music in MP3 and WAV formats.
Other formats of music are not supported.
The Bluetooth
Speaker does
not respond
when the power
supply is connected
Push the reset button to return the Bluetooth Speaker to its
original factory settings.
After a few hours
of charging, the
battery does not
perform for the
expected time.
Please make sure the music function is off during charge.
The charging time will be extended while playing music.
FCCSTATEMENT
1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing
twoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.

2.Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser’sauthoritytooperatetheequipment.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital
device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereaso-
nableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinst-
alled andusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto
radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurina
particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevi-
sionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the useris
encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures:
— Reorientorrelocatethereceivingantenna.
— Increasetheseparationbetweentheequipmentandreceiver.
— Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver
isconnected.
— Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Warranty Card
User Name:
Address:
Contact :
Order Date:
Guarantee Clause:
• Within 7 days since goods are sold, if there is performance failure, commodity itself
and the outer package is complete (no scratches), can replace the sample type of
goods, not including man-made damage.
• The goods are guaranteed for one year from the date of sale. The accessories are
not covered by the warranty.
• The warranty service will be only effective under normal use.
• All the man-made damage, disassemble, stripping, improper use etc., is not covered
by warranty.
• The warranty card must be provided when ask for warranty. Failure to provide this card
or alter the card without permission, the company has privilege to refuse warranty.
FCCRadiationExposureStatement:
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled
environment.InordertoavoidthepossibilityofexceedingtheFCCradiofrequencyexposure
limits,Humanproximitytotheantennashallnotbelessthan20cm(8inches)duringnormal
operation.
Made in China
