User Manual
User Manual
Table of Contents
1.0 Introduction……………………………………………………..1
2.0 Features…............................................................................1
3.0 Specification……………………………………………...........1
4.0 Package Contents………………………………………….….2
5.0 Panel Descriptions..............................................................2
6.0 Network Connection…………………………………………..4
7.0 The connection diagram……………………………………...4
8.0 The operation for Android mobile phone………………….5
9.0 The operation for computer………………………………….7
Appendix:The difference of DLNA and Bluetooth Audio…..11
DLNA Audio Receiver
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety,
DLNA Audio Receiver
１
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
1.0 Introduction
Over this DLNA Audio Receiver, you can push your music wirelessly from your
mobile phone or computer with Windows media player on your home audio
system. You'll not only enjoy superior quality music on your stereo speakers or
Amplifier Receiver, but also the convenience of a wireless connection. With WPS
button, you can connect to network by pressing a pairing button on this Receiver
and on wireless access point.
It is ideal for your mobile phones, portable devices, or personal computers.
2.0 Features
z Stream directly to an existing Stereo and Toslink port
z Control and listen to your favorite music wirelessly using this product through
home audio system.
z Digital Media Renderer(DMR DLNA )
z Support Digital Media Player(DMC DLNA)
z Support Media format:
MP3 (up to 48 kHz, CBR & VBR)
AAC (up to 48 kHz, 8-320 kbps)
WMA (up to 48 kHz, CBR & VBR) including Lossless
LPCM, WAV (up to 48 kHz, up to 1.44 Mb/s)
z Support wire or wireless connection
Wire:10/100Mbps Ethernet, RJ45
Wireless: high-performance 802.11b/g/n with WEP/WPA encryption, WPS
3.0 Specification
Transmission protocol DLNA ,Digital Media Renderer(DMR)
Network interface Wire:10/100Mbps Ethernet, RJ45
Wireless:
high-performance802.11b/g/n with
WEP/WPA encryption, WPS
Audio output interface 3.5mm Stereo
Toslink
USB interface USB 2.0 A Female
Mechanical
Size(L-W-H) 125×95×25mm
Weight(Net) 150g
Environmental
Operating Temperature 0 to +7℃0℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10 to +80℃℃
DLNA Audio Receiver
２
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply 5V DC@ 2A
Power consumption (Max) 1.65W
Warranty
Limited Warranty 1 Year Parts and Labor
Accessories Adapter
AC Power Adapter US standard, UK standard and so on
User Manual English Version
Note: Specifications are subject to change without notice.
4.0 Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
z Main unit x1
z 5V/2A DC Power Supply.
z User's Manual x1

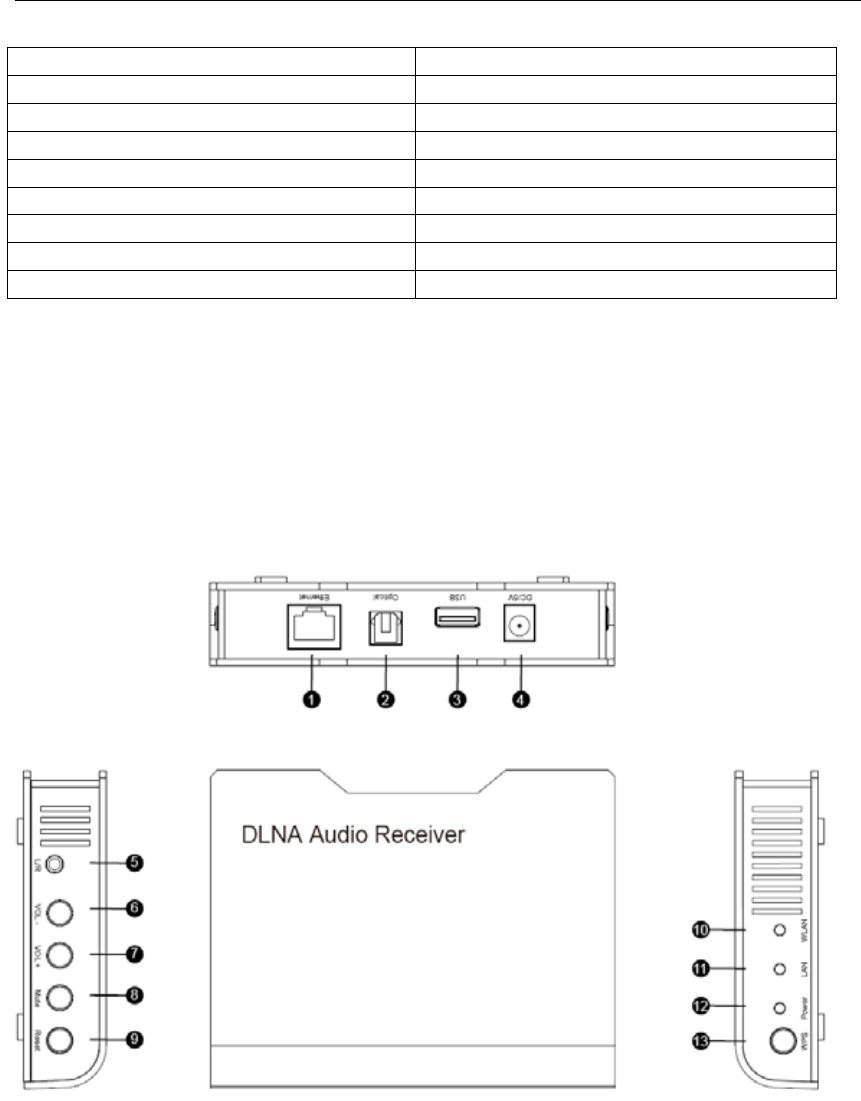

5.0 Panel Descriptions
1. Ethernet Connection:
The Ethernet connection gets priority than the Wi-Fi connection.
If user starts the product with the Ethernet cable plugged, then the product will
be connect to network through Ethernet.
If the product has be connected in Wi-Fi, or in non-connected state, then
plugging the Ethernet cable to the product will automatically launch the Ethernet
DLNA Audio Receiver
３
connection process.
2. Optical
Output audio to Amplifier Receiver
3. USB
Connect this port to USB storage device, and mobile phone can play the music
from the USB storage device.
4. DC/5V
Connect this port to the Power adapter.
5. Stereo Female:
Connect this port to Stereo Speaker or Amplifier Receiver via one piece of
stereo cable.
6. VOL-
Decrease volume
7. VOL+
Increase volume
8. Mute
9. Reset
10. WLAN LED (monocolor red)
OFF when the product is connected/connecting in Ethern
‐et.
Blinking while the product is connecting to Wi
‐-Fi.
Blinking when the product fail to connect to Wi
‐-Fi (e.g., cannot get an IP
address).
Stable OFF after a configurable time (to show the ‘not connected state’)
Stable ON when the device is successf
‐ully connected
11. LAN LED (monocolor red)
OFF when no Ethernet cable is connected
‐
OFF when the product is connected in Wi
‐-Fi.
Blinking while the product is connecting through Ethernet..
‐
Blinking when the product fail to connect to Ethernet. (e.g.,
‐ cannot get an IP
address).
Goes stable OFF after a configurable time (to show the ‘not connected state’)
Stable ON when the device is successfully connected
‐
12. Power LED (bicolor red/blue)
Stable RED during boot.
‐
Stable BLUE after boot.
‐
Blinking
‐BLUE during firmware upgrade.
Blinking RED during factory reset.
‐
13. WPS button (Wi-Fi connection)
As of today, the Wi-Fi connection process can be launched only through WPS.
1. Press the WPS button of your access point
2. Press the WPS button of the product
3. The connection is successful once the Wi-Fi LED gets stable ON.
Later on, once the access point mode will be available, user will be able to
connect from an Android phone to this product and configure the Wi-Fi
connection manually.
DLNA Audio Receiver
４
6.0 Network Connection
Before all operation start, please make sure all devices are connected to a
network.
When providing power to this product, it will take about 30 seconds to start this
product.
Ethernet connection
The Ethernet connection gets priority than the Wi-Fi connection.
If user starts the product with the Ethernet cable plugged, then the product will be
connect to network through Ethernet.
If the product has be connected in Wi-Fi, or in non-connected state, then plugging
the Ethernet cable to the product will automatically launch the Ethernet
connection process.
Wi-Fi connection
As of today, the Wi-Fi connection process can be launched only through WPS.
1. Press the WPS button of your access point
2. Press the WPS button of the product.
3. The connection is successful once the Wi-Fi LED gets stable ON.
Later on, once the access point mode will be available, user will be able to
connect from an Android phone to product and configure the Wi-Fi connection
manually.
FCC ID warnings
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept
any interference received, including interference that may cause undesired
operation.
changes or modifications not expressly approved by the party responsible for
compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
DLNA Audio Receiver
５
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines, This equipment
should be installed and operated with minimum distance between 20cm the
radiator your body: Use only the supplied antenna.

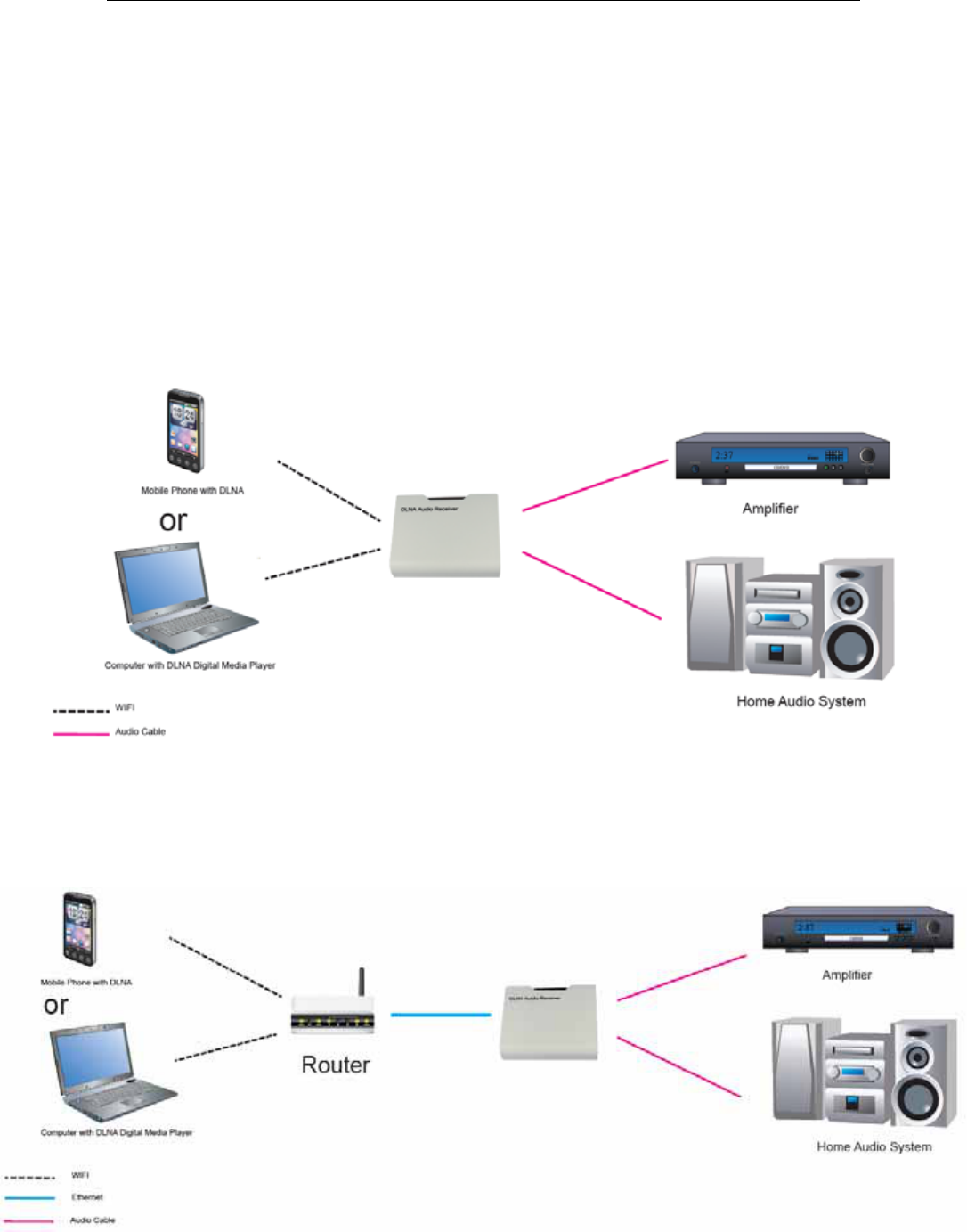

7.0 The connection diagram
Application 1: This product itself is a Wi-Fi access point, mobile phone or
computer can find it and push music to this product to play on Amplifier or Home
audio system.

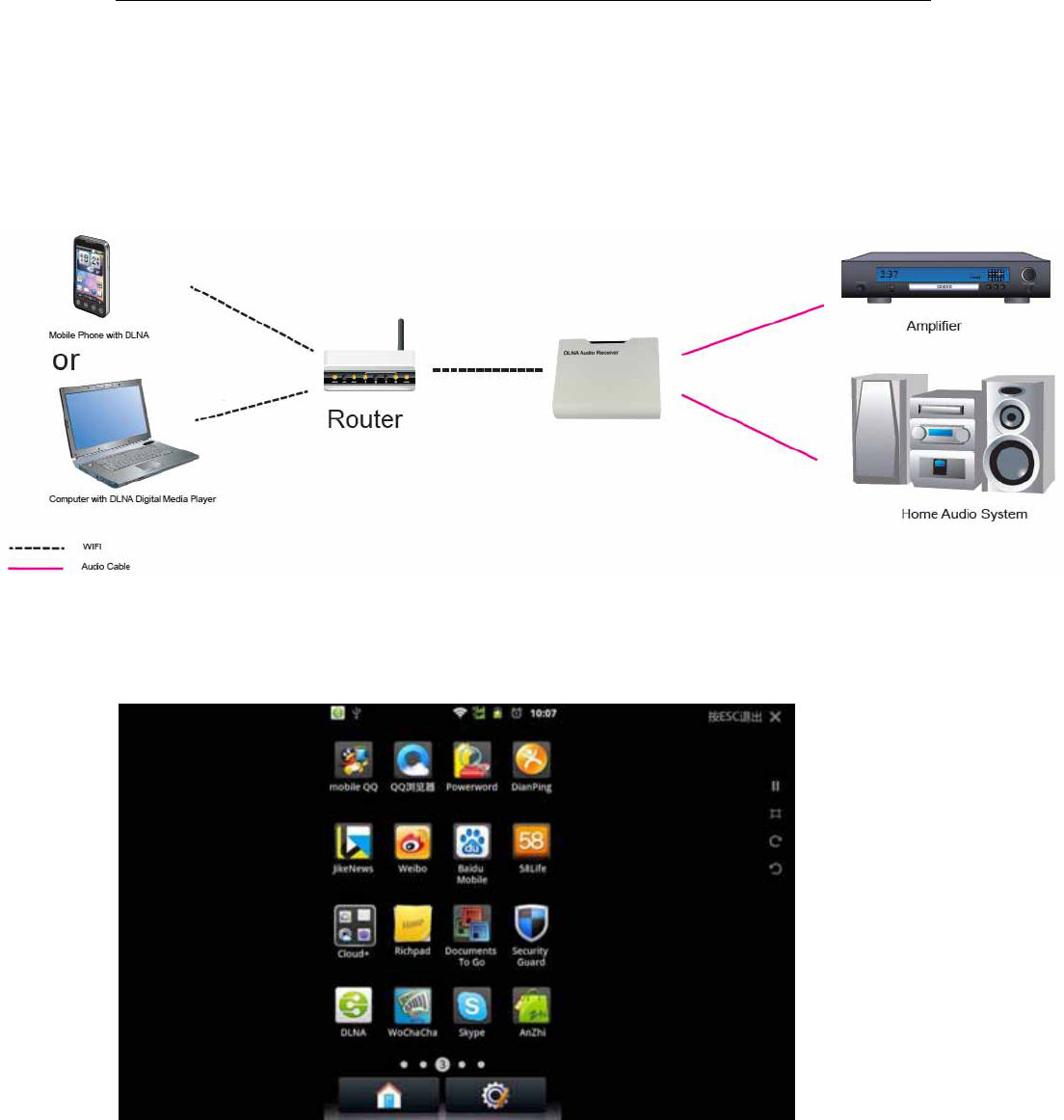

Application 2: Via a network Router, let all Ethernet devices be connect to the
same network using wire or wireless way. In this segment all mobile phones or
computers can all find this product and push their music to this product to play on
Amplifier or Home audio system.
DLNA Audio Receiver
６
8.0 The operation for Android mobile phone
Before the operation starts, please make sure the mobile have been connected to
this product

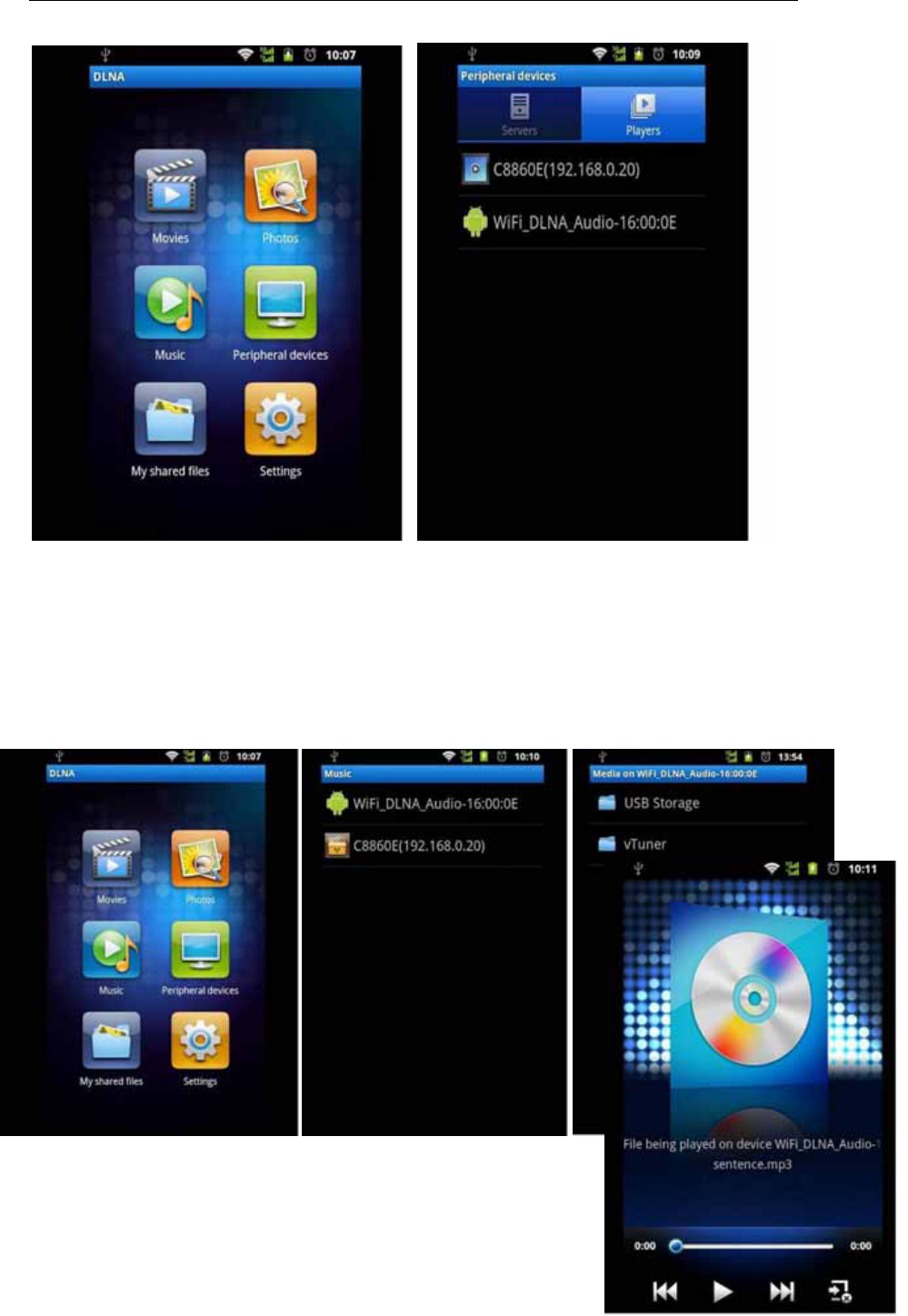

①Open the DLNA application of the mobile phone
②in the "Peripheral Device", you can find the product’s Player's
name:"WiFi_DLNA_Audio" or Local Player's name,for
example,"C8860E(192.168.0.20)"
DLNA Audio Receiver
７
③Then in the “Music” you can select the music from mobile phone or USB
storage device of the product

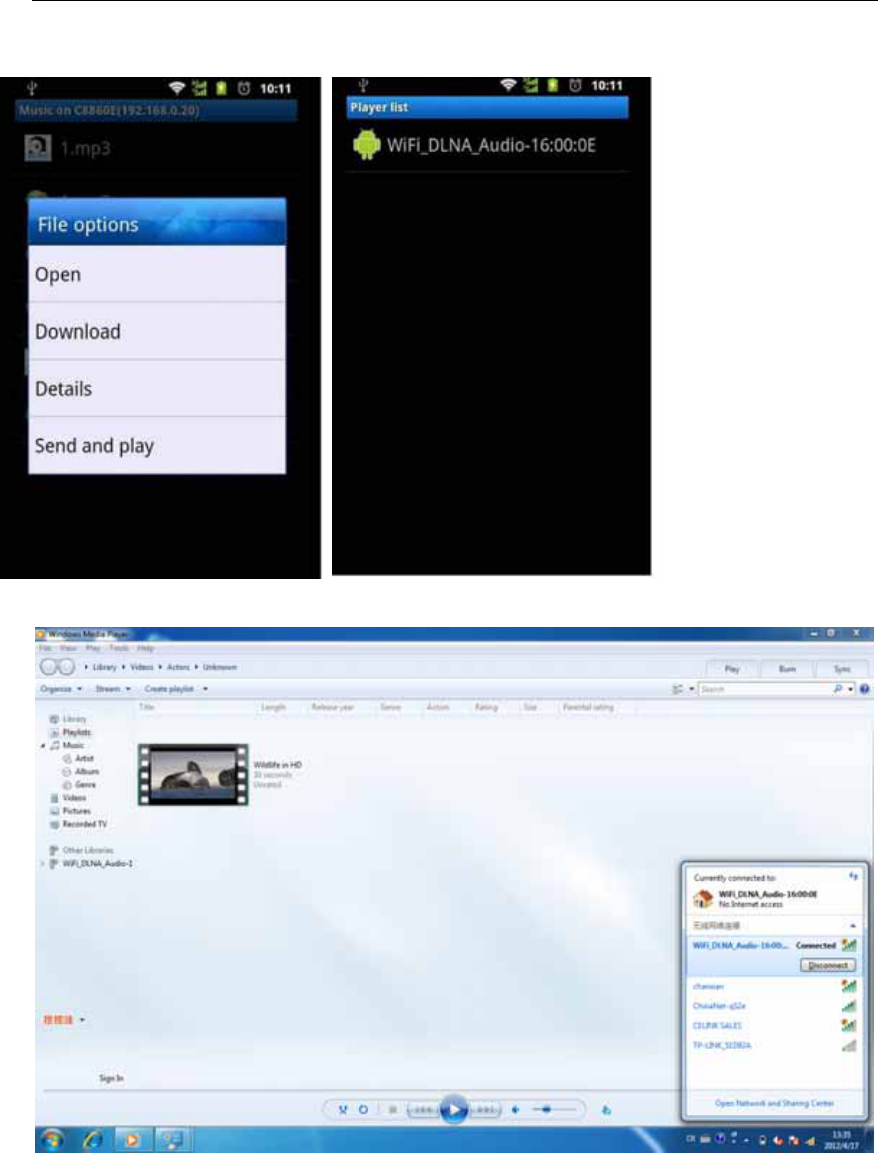

④Then send music to “WiFi_DLNA_Audio” of the product
DLNA Audio Receiver
８
to play
9.0 The operation
for computer
Before the
operation starts,
please make sure:
a. The computer
has been
connected to
this product.
b. The operation
system of the
computer is
Windows 7
① Connect to this
product via
wire or
wireless.

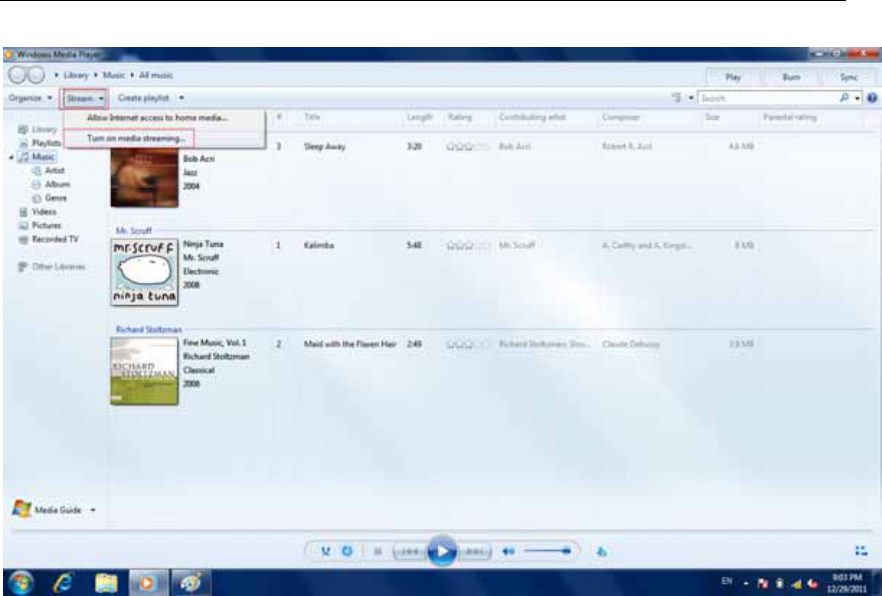

② Start Windows Media Player then click “Turn on media streaming” from
“Stream” in menu.
DLNA Audio Receiver
９

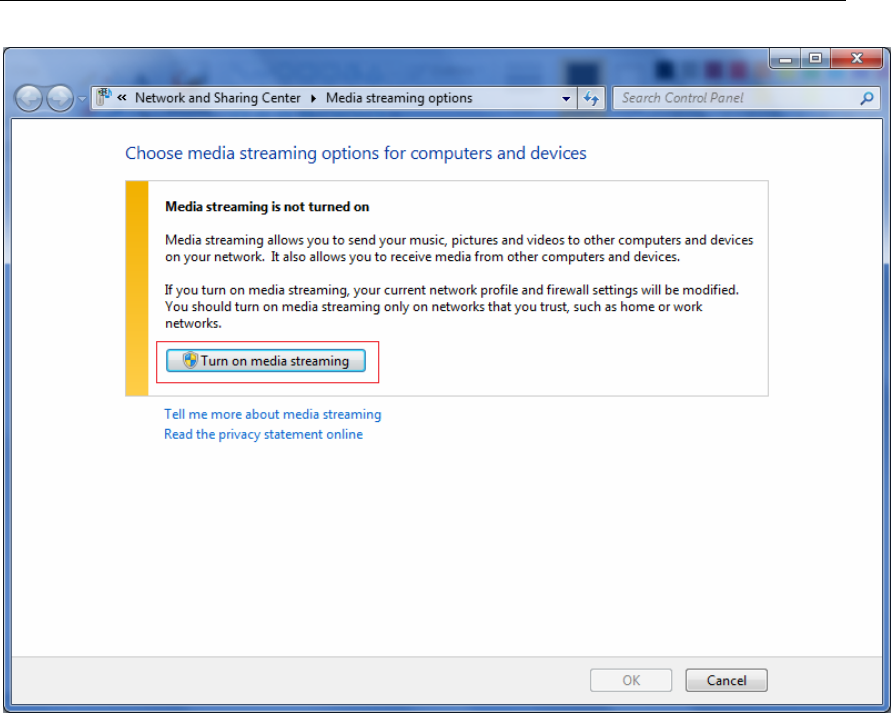

③ Click “Turn on media streaming” button.
DLNA Audio Receiver
１０

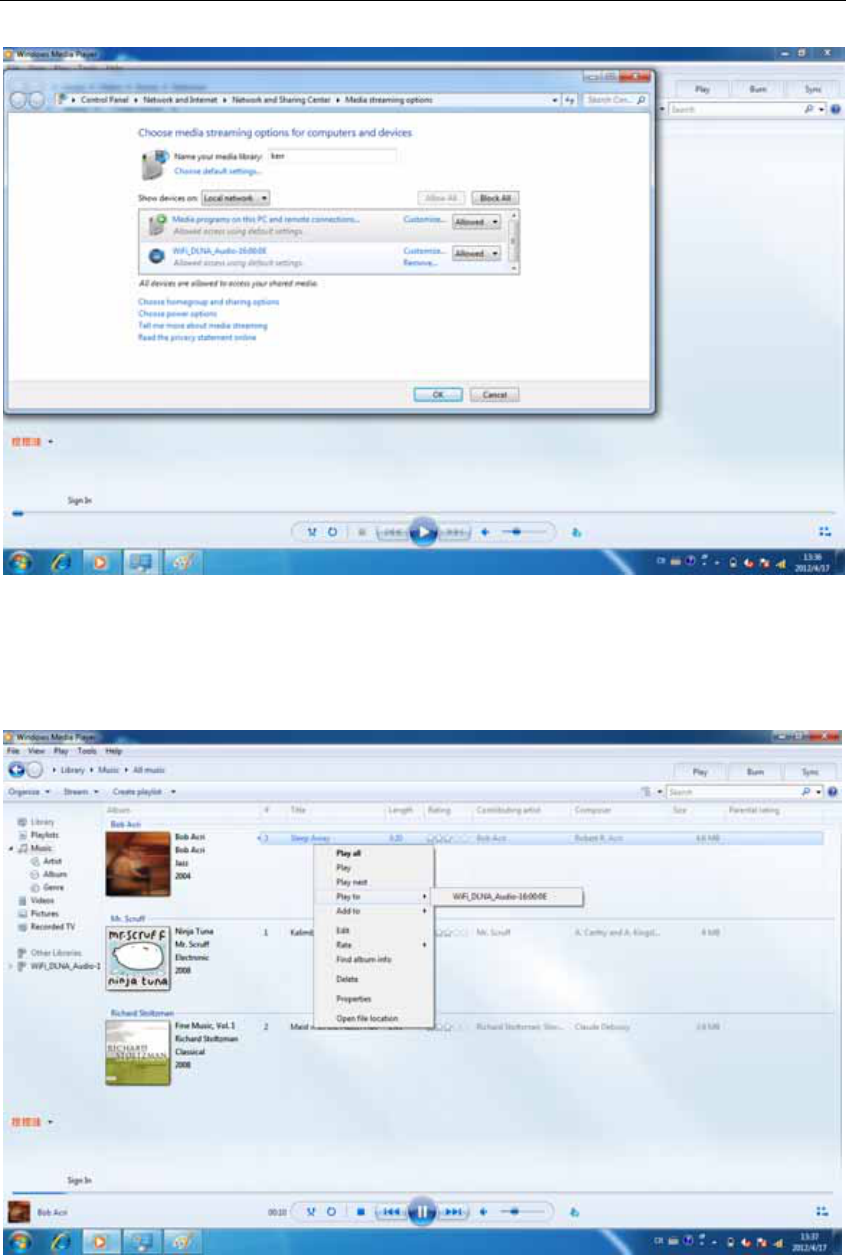

④ Select “All networks” from “Show device on:” and make sure
“WiFi_DLNA_Audio” is selected as “Allowed” then click OK button to finish
setting. After finished setup, you can stream media content to DMR device
direct.
DLNA Audio Receiver
１１
⑤ Music streaming: Go to Music Library then right-click on photo file you want to
stream. Then select WiFi_DLNA_Audio device from menu list of Play to. After
that, the music is streamed on your Home audio system which connected with
your WiFi_DLNA_Audio device.
DLNA Audio Receiver
１２
Appendix: The difference of DLNA and Bluetooth Audio
The difference of DLNA and Bluetooth Audio
Solutio
n
Feature
DLNA Bluetooth
Transmissi
on medium Operates through regular
network, can be any kind of Wi-Fi
or Ethernet. Wi-Fi is 2.4GHz with
rates reaching 150MBits/s
(802.11n 1T1R capable on DLNA
module).
RF 2.4 GHz only
Transmissi
on distance No limit. As soon as there is a
network (can be mixed, Wired
and Wireless) DLNA can
operate. If we take the most
simple connection : Regular
Wi-Fi Access point + DLNA
module, the in house range can
be easily 30 to 40m even with
walls between both devices.
Several meters depending on
the Bluetooth
transmitter/receiver RF power.
Stops working as soon as one
wall is between both devices.
Audio quality becomes very
poor with distance.
Power
Consumpti
on
DLNA module total average
power consumption during
operation (Wi-Fi connected and
Audio playing) is less than 1W.
Connected idle mode power is
around 700mW.
Depends on the Bluetooth IC,
comparable with Wi-Fi.
Audio
quality and
Parameter
Allows all audio CODECs,
sample rates from 8KHz to
96KHz and audio resolution up
to 24 bits. Lossless audio
formats are compatible with
DLNA. All playback information
is exchanged (Title, Artist, Album
Artwork, Duration, …)
Fixed SBC or MP3 CODECs
depending on both devices
common capabilities. Lossy
audio formats, and worse,
transmission delay is introduced
due to streamer/receiver
distance and link quality
calculation.
Other
points --Allows discovering Music on
network DMS (PC or NAS),
internet music content such as
web radios or premium music
content.
--Allows DMR/DMS
simultaneous discovery and use
from several devices (DMC)
--When you turn off you phone or
leave the room or receive a call,
--Only shares the content from
the phone to the Bluetooth
system. Only one simultaneous
connection allowed.
--When you turn off you phone
or leave the room or receive a
call, no more music playback
possible.
DLNA Audio Receiver
１３
the music playback can continue.
P/N:5022
