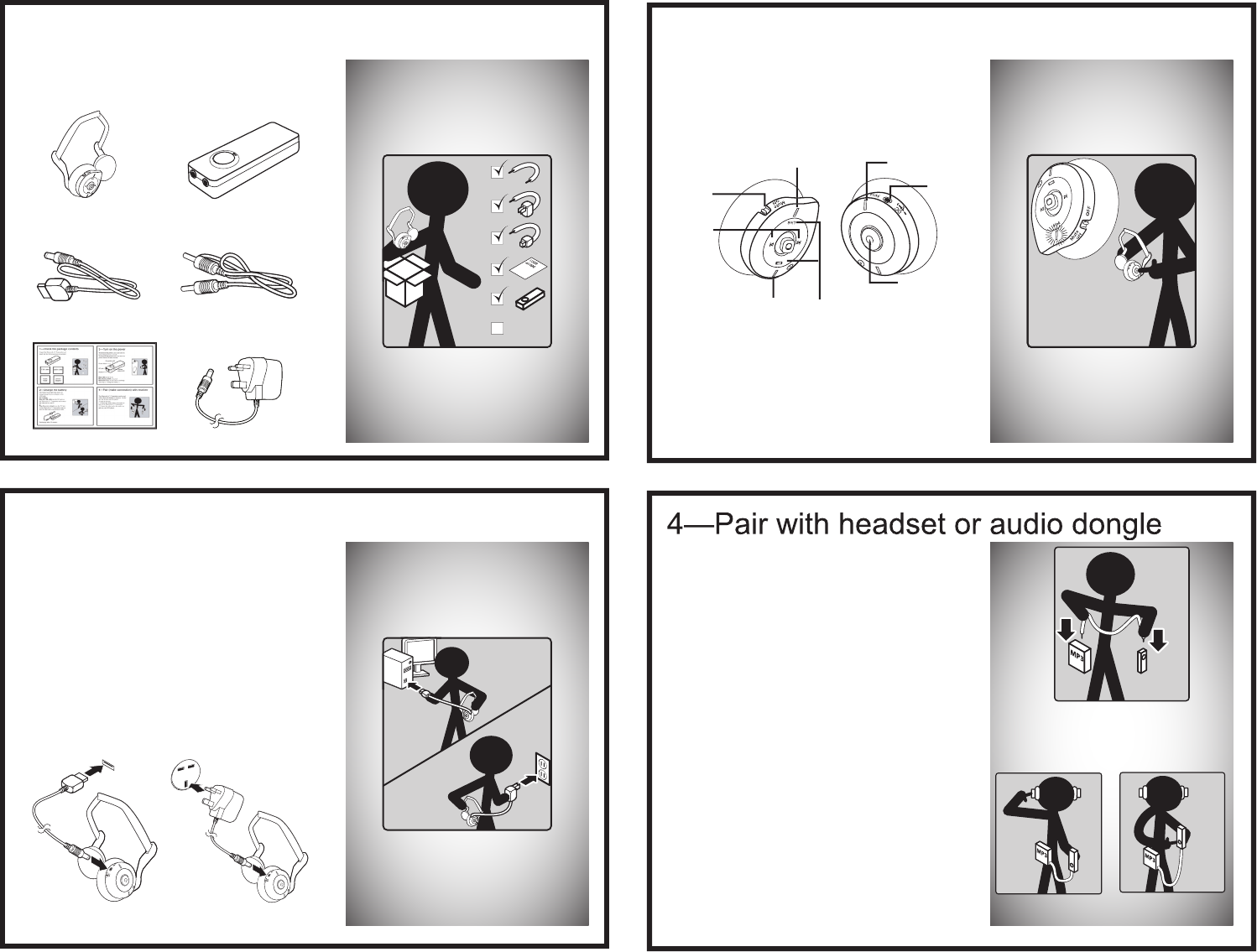

1—Check the package contents
OFF
2—Charge the battery
3—Turn on the power
4—Pair with headset or audio dongle
Unpack the Bluetooth Headset and check
that the following items are included:
The battery lasts eight hours and is re-
charged using the power adapter or the
USB cable. To recharge:
Plug the USB cable
into the DC jack on
the Bluetooth Headset and connect the
other end to your PC.
or
Plug the power adapter
into the DC jack
on the Bluetooth Headset and connect the
other end to an electrical outlet.
The Bluetooth Headset can be used with
a Bluetooth A/V Transmitter or Bluetooth
Audio Dongle. On fi rst use, the devices must
be paired.
To pair the devices.
1. Connect your transmitter to an audio
device.
2. Turn on the power on your Bluetooth
Headset.
3. Turn on the power on the transmitter.
Recharging takes 90 minutes.
OFF
OFF
Bluetooth A/V Transmitter
or
Bluetooth Audio Dongle
or Bluetooth Audio Dongleor
USB Cable
Audio Cable
Quick Guide
Power Adapter
Bluetooth Headset
To turn on the power
, press and hold the
power button until the power LED lights blue.
To turn off the power
, press and hold the
power button until the power LED turns off.
Blue LED
power is on
Blue fl ashing LED
connected to device
Red LED
battery is charging, turns off when
charged
Red fl ashing LED
battery is low, recharge
before LED turns off
Charging LED
Battery low LED
Power button
Mute
on/off
DC jack
Volume +/-
Power/link LED
Forward/
Forward/
backward

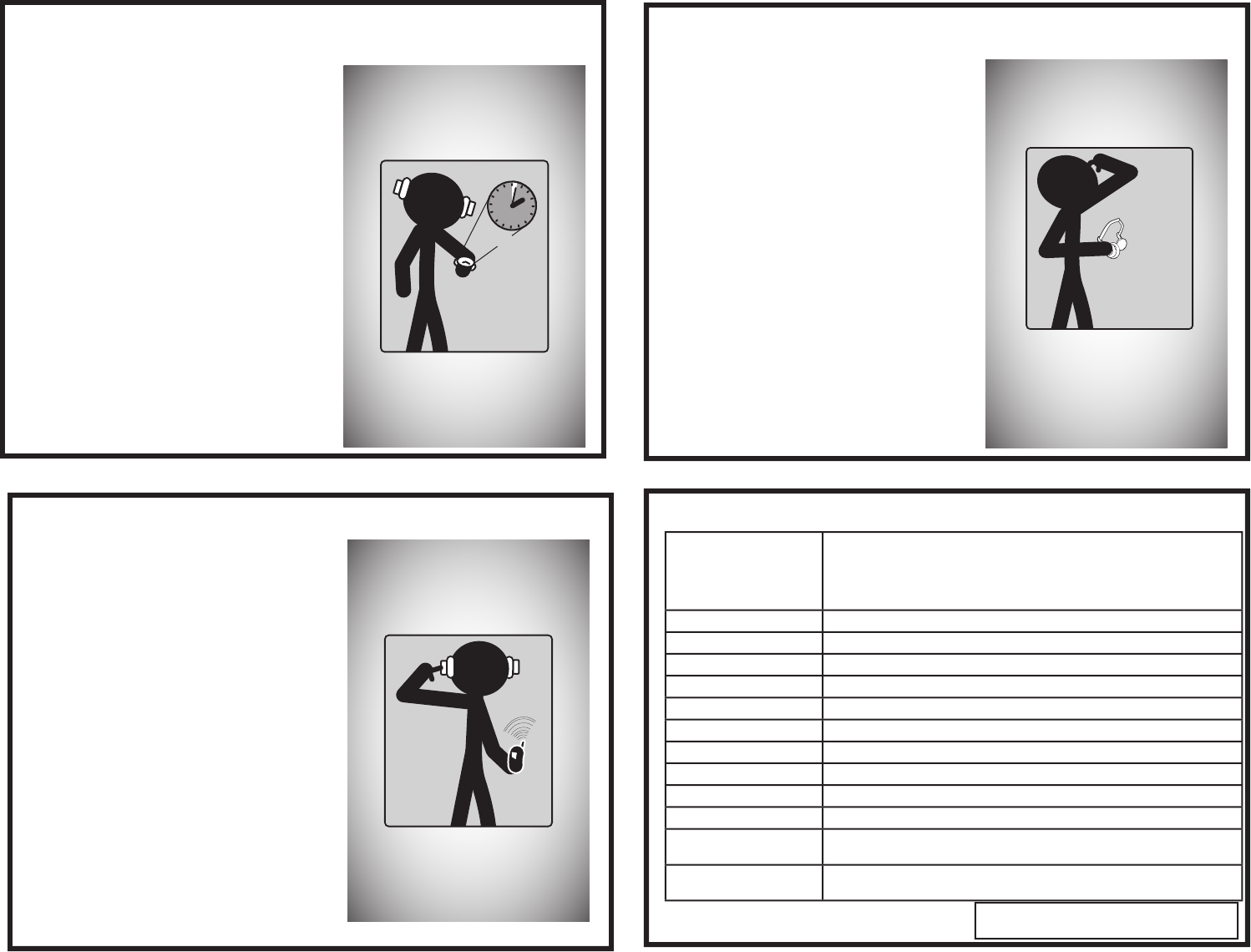

5—Wait for devices to connect
90 seconds
7—Troubleshooting
8—Specifi cations
The devices connect (pair) after 90 seconds.
Serial number & Firmware version:
Standards
Bluetooth specifi cation V1.2 compliant.
Bluetooth A2DP profi le (AV Profi le)
Bluetooth AVRCP profi le
Headset and Hand free
Power save mode (power sleep mode).
Frequency Band
2402 ~ 2480 MHz
Tx Power
0.25 ~ 2.5mW (Bluetooth Power Class II)
Rx Sensitivity
< -80dBm (BER 0.1%)
Distance
> 10m (open space)
Audio Streaming Format
SBC 48.000 kHz
Audio Frequency Range
20Hz ~ 22 kHz
Audio S/N
> 85dB
Audio THD
< -83dB
Audio Output Power
> 20mWrms
Power supply
Supply by integrated rechargeable battery cell. Music plays : > 5hrs.
Physical Specifi cation:
Dimension: 180x140x60(max), 98x72x75(min)
Weight: 62 gm
Environmental Range:
Operating temperature:-10 ~ +50 degrees centigrade
Humidity: Relative humidity 0 ~ 95%
6—Using with your mobile phone
The
Bluetooth Headset can be used with a
Bluetooth-enabled mobile phone.
To pair with your phone
1. Enable Bluetooth on your phone (refer to
the phone’s user manual).
2. Turn on the headset.
3. In the phone’s Bluetooth menu, search for
devices.
4. Select
Stereo Headset
.
5. Enter the passcode “0000”.
Answering calls
To
answer a call
, push the power button.
To
end a call
, push the power button for
three seconds.
If the Bluetooth Headset does not work, try
the following:
- Ensure connecting devices are charged
- Turn off all devices and then turn them on
in the order shown in this guide
- Ensure devices are within the 10-meter
range
?
