Abocom Systems VM311R01 60GHz Wireless HD Sink Module User Manual

Abocom Systems Inc 60GHz Wireless HD Sink Module

user manual

Draft Version
AboCom systems, Inc. Proprietary & Confidential Information
Specifications are subject to change without notice
1
AboComSystem,Inc.
ProductManual
VM311R
60GHzGen2WirelessHDReceiverModule
Release0.3
Date:
Sep.18,2010
Author:
WayneTseng
Reviewer
CDKuo
Draft Version
AboCom systems, Inc. Proprietary & Confidential Information
Specifications are subject to change without notice
2
TableofContents
1.0 REVISIONHISTORY............................................................................................................................. 3
2.0 RELATEDDOCUMENTS....................................................................................................................... 3
3.0 INTRODUCTION.................................................................................................................................. 4
4.0 FEATURES ........................................................................................................................................... 4
5.0SPECIFICATION ......................................................................................................................................... 6
5.1.HARDWARESPECIFICATIONS ....................................................................................................................... 6
5.2RFSPECIFICATIONS .................................................................................................................................... 7
6.0PHYSICALSPECIFICATIONS ...................................................................................................................... 8
6.1ENCLOSURESPECIFICATIONS ........................................................................................................................ 8
6.1.1PROPOSEDFRONTPANELANDSIDECONFIGURATION:..................................................................................... 8
6.1.2PROPOSEDREARPANELCONFIGURATION:.................................................................................................... 8
6.2POWERSUPPLY ......................................................................................................................................... 8
7.0MECHANICALDESIGNS ............................................................................................................................ 8
8.0NECESSARYAPPROVALS .......................................................................................................................... 9
8.1MAJORAPPROVALS .................................................................................................................................... 9
Draft Version
AboCom systems, Inc. Proprietary & Confidential Information
Specifications are subject to change without notice
3
1.0RevisionHistory
DateReleaseAuthorDescription
Apr.22,20100.1SandyChenDraftversion
Jun.8,20100.2WayneTsengModificationforFCCsubmission
Sep.18,20100.3WayneTsengModificationforIC&FCCmodulesubmission



2.0RelatedDocuments
DateAuthorDocument


Draft Version
AboCom systems, Inc. Proprietary & Confidential Information
Specifications are subject to change without notice
4
3.0Introduction
For coming huge flat TV Screen and high definition resolution, user like to set up the AV system in living
room, but the cable placement always be a great harassment to the interior of beautiful house. Also the
HDMI cable is as expensive as the length as be. Users deserve to have a wireless cable replacement to
match their high class AV systems. Here shows up a high edge solution to meet users’ equipment:
60GHz wirelessHD Audio-Video Adapters, VM311R. This elegant and practical product has HDMI
interface to take multiple content sources like multimedia center, Blue ray player and Set-Top Box,
without compression of content, the WirelessHD technology will offer multiple gigabit throughout for
FullHD video transmission. Users do not need to sacrifice video quality for lower transmission
bandwidth anymore. VM311R also has compliance to WirelessHD, HDMI and DTCP for content security
and quality assurance.
4.0Features
Input
HDMIX1
WIRELESS
Frequency:60GHz
VideoFormat
VideoFormatVerticalRefreshColorSpace SamplingBits/Pixel
04:02:0224/30/36bitsYCbCr
04:04:04224/30/36bits
480i59.94/60Hz
RGB04:04:0424/30/36bits
04:02:0224/30/36bitsYCbCr
04:04:0424/30/36bits
480p59.94/60Hz
RGB04:04:0424/30/36bits
YCbCr04:02:0224/30/36bits
04:04:04224/30/36bits
576i50Hz
RGB04:04:0424/30/36bits
YCbCr04:02:0224/30/36bits
YCbCr04:04:0424/30/36bits
576p50Hz
RGB04:04:0424/30/36bits
04:02:0224/30/36bitsYCbCr
04:04:04224/30/36bits
50Hz
RGB04:04:0424/30/36bits
04:02:0224/30/36bits
720p
59.94/60HzYCbCr
04:04:0424/30/36bits
Draft Version
AboCom systems, Inc. Proprietary & Confidential Information
Specifications are subject to change without notice
5
RGB04:04:0424/30/36bits
04:02:0224/30/36bitsYCbCr
04:04:0424/30/36bits
50Hz
RGB04:04:0424/30/36bits
04:02:0224/30/36bitsYCbCr
04:04:0424/30/36bits
1080i
59.94/60Hz
RGB04:04:0424/30/36bits
04:02:0224/30/36bitsYCbCr
04:04:0424/30/36bits
23.976/24Hz
RGB04:04:0424/30/36bits
04:02:0224bitsYCbCr
04:04:0424bits
50Hz
RGB04:04:0424bits
04:02:0224bitsYCbCr
04:04:0424bits
1080p
59.94/60Hz
RGB04:04:0424bits
VGA60HzRGB04:04:0424/30/36bits
WVGA60HzRGB04:04:0424/30/36bits
SVGA60HzRGB04:04:0424/30/36bits
XGA60HzRGB04:04:0424/30/36bits
SXGA60HzRGB04:04:0424/30/36bits
WSXGA+60HzRGB04:04:0424bits
Specificationsubjecttochangewithoutnotice,Sibeammaychangethefeatures.
AudioFormat
Audioupto8ch.,24bit192kHzLPCM,surroundsoundaudio(6/8ch.PCM,DolbyDigital,DTS)
AudioSampleRate,F's
2/6/8channels2channel
MultiplesofFs
32kHz44.1kHz 48kHz88.2kHz 96kHz176.4kHz192kHz
1284.0965.6456.14411.2912.28822.57924.576
2568.19211.2912.28822.57924.57645.15849.152
38412.28816.93418.43233.86436.864
51216.38422.57924.57645.15849.152
Specificationsubjecttochangewithoutnotice,Sibeammaychangethefeatures.
Dolby and DTS supported in SDK 2.6.0
Draft Version
6
5.0Specification
‐‐Thecolumnof“DesignerInput“isforPM/RDofProductHousetofillin,accordingtoitsproductdefinition
‐‐Thecolumnof“FCSoptions”isforPMtofillin,accordingtomarketingrequirements
‐‐Thecolumnof“Note”isforaddingcommentsorclarificationsoneachfeaturelisted
‐‐Besidesspecificdescriptions,theusablecommentsfor“DesignerInput”and“FCSoptions”arelistedasbelow
1.“Y”meansYES,whichthisproductappliesandsupportssuchafeaturebeforeFCS
2.“TBD”means“ToBeDiscussed”,whichit’snegotiabletosupportafeaturebeforeFCS.
3.“FR”means“FutureReleased”,whichafeaturewillbesupportedAFTERFCS.
4.“TBC”means“ToBeChecked”,whichisNOTCLEARifthisfeatureisorwillbesupportedbeforeFCS.
5.“N”meansNO,whichthisproductwillNOTsupportafeaturenoworfuture
6.“N/A”meansthisfeatureisnotapplicable,ornotnecessarilydefinedforthisproduct.
5.1.HardwareSpecifications
VM311T
1
.HardwareFeaturesDesigner
InputNote
Processors
1.1PrimaryProcessor AT91SAM7S256MU
Memory
SRAM64KB
1.2
FLASH256KB
OperatingEnvironment
1.3OperatingTemp.0OCto40OC
StorageTemp.‐30OCto70OC
OperatingHumidity10%to90%
NonCondensing
StorageHumidity5%to90%
NonCondensing
AVPort
1
.4HDMI1PortHDMIv1.4(3D)
Wireless
WirelessHD60GHz32AntennaArrayCeramicpackage

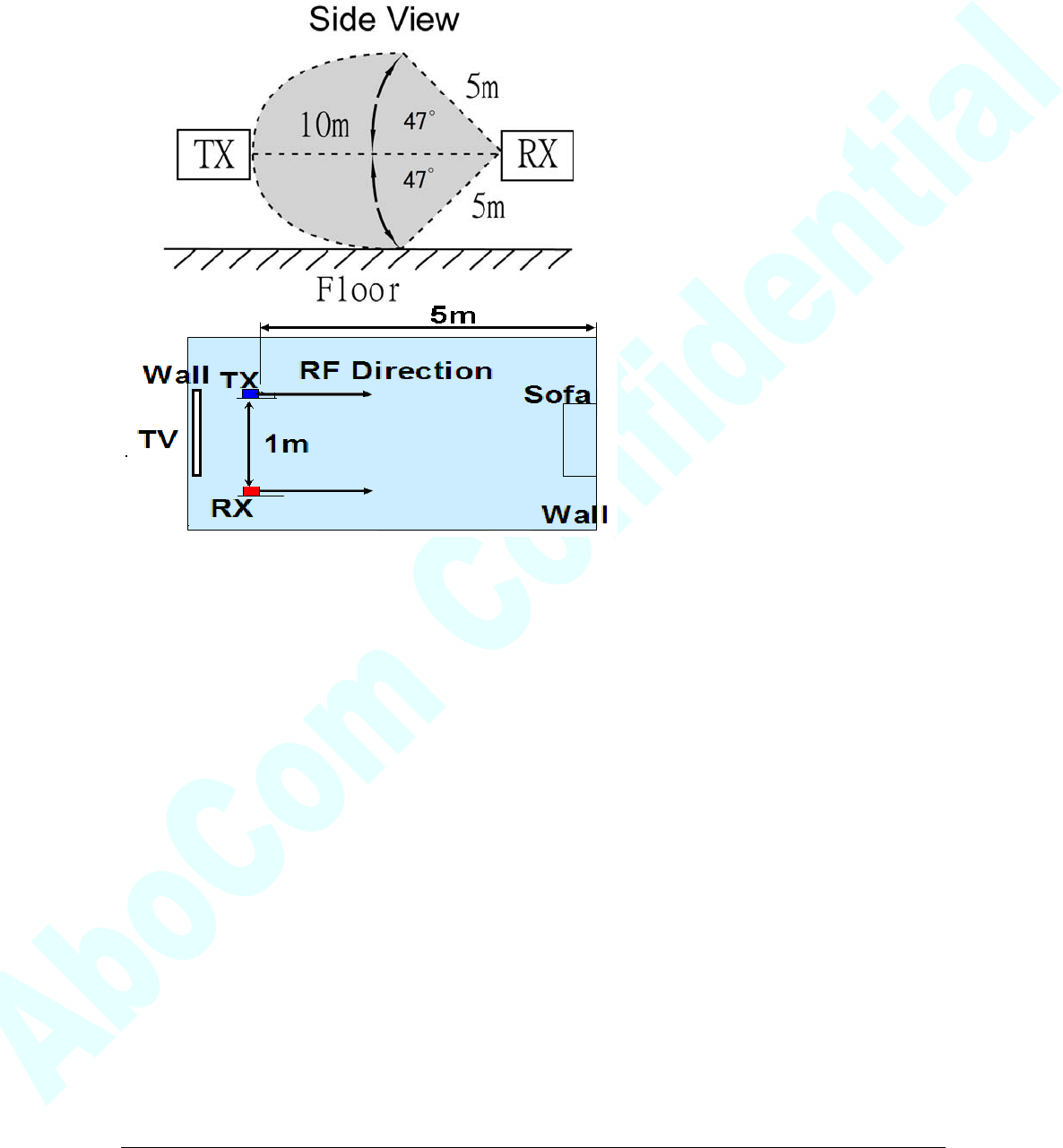

1.5.Range10meterNLOS
Power
1.6.PowerConsumptionTBDW(Max/Typ) Target
Draft Version
7

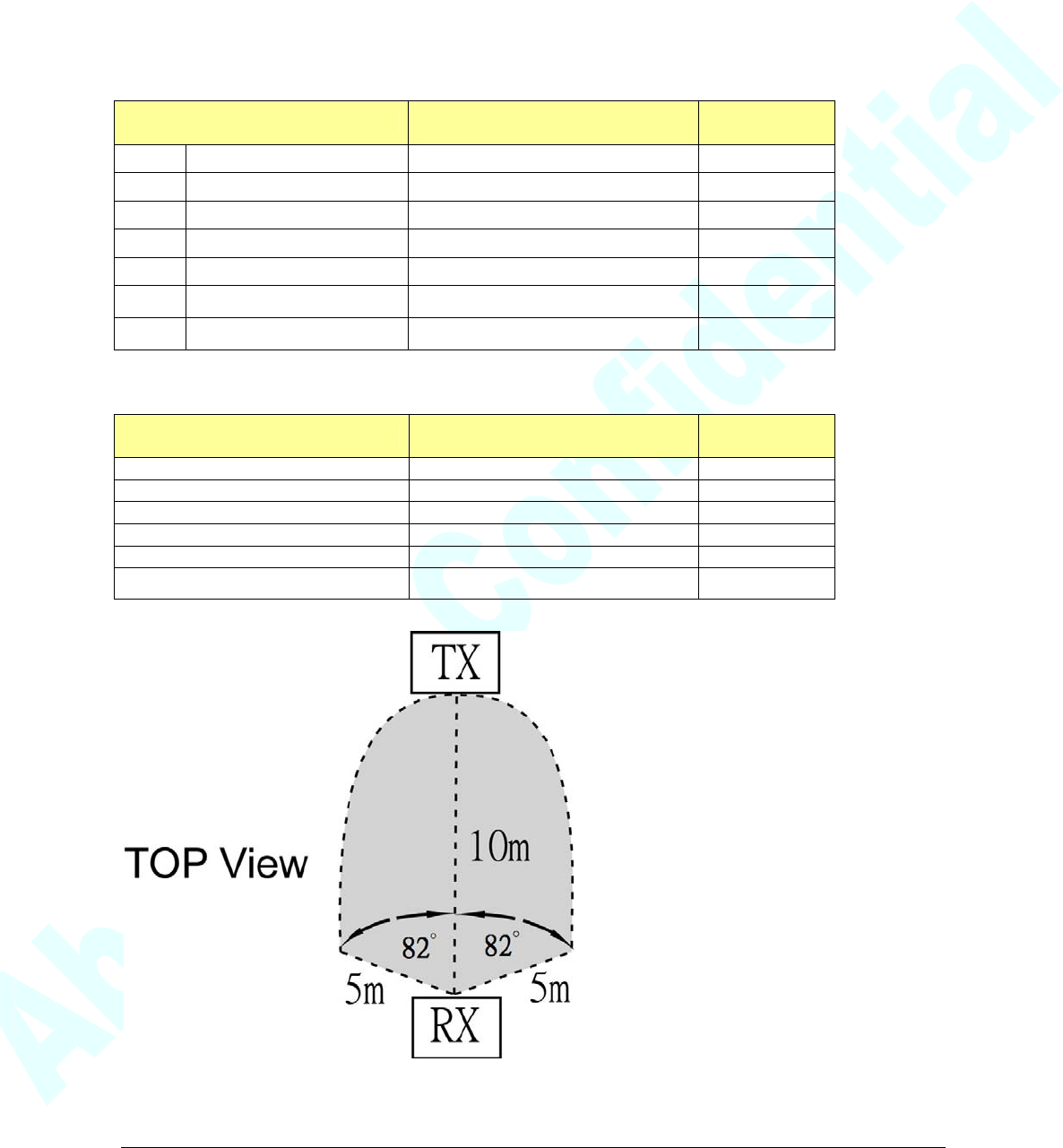

5.2RFSpecifications
TX
1
.RFDesignsDesigner
InputNote
1
.1.
A
ntennaDesigns
A
ntenna32AntennaArray
A
ntennaTypeIntegrateCeramic
1
.2.LRPRadiatedPower(EIRP)Maximum21dBm(Max)
1
.3LRPTransmiteAntennaGainMaximum13dBi(Max)
1
.4LRPRadiatedPower(EIRP)Maximum27dBm(Max)
1.5HRPTransmiteAntennaGainMaximum17dBi(Max)
RX
1
.RFDesignsDesigner
InputNote
1
.1.AntennaDesigns
Antenna32AntennaArray
AntennaTypeIntegrateCeramic
1
.2.LRPRadiatedPower(EIRP)Maximum21dBm(Max)
1
.3LRPTransmiteAntennaGainMaximum13dBi(Max)
ReceiveSensitivityMaximum‐69dBm(Max)Fullrate

Draft Version
8
6.0PhysicalSpecifications
TBD
6.1EnclosureSpecifications
Please refer to above page.
6.1.1Proposedfrontpanelandsideconfiguration:
OneLEDdisplay
6.1.2Proposedrearpanelconfiguration:
PowerJack,HDMIinterface
6.2PowerSupply
ExternalPoweradapterInputAC100240V@60Hz;Output5V2A
7.0MechanicalDesigns
TBD
Draft Version
9
8.0NecessaryApprovals
8.1Majorapprovals
Regulations Regions Standard Status
(Yes, No, or TBD)
Safety North America UL + CUL No
International CB IEC 60950-1, 60065 No
European Union LVD EN 60950-1, 60065 Yes
others TBD No
EMC USA FCC Part15B Class B Yes
Canada ICES-003 Yes
European Union CE EN 301 489-1, 301 489-3 Yes
Japan VCCI Class B No
Korea MIC No
others TBD No
EMF European Union CE EN62311 Yes
RF USA FCC Part15C Yes
Canada IC RSS 210
Able to convert from
FCC
European Union CE EN 302 567 Yes
Japan
Specified low-power radio equipment
Item 8 of Article 2 Paragraph 1
of Certification Ordinance
Yes
Others TBD No
Others International HDMI v1.3 Yes
International WiHD CTS v1.0 Yes
Draft Version
10
FCC module Statement:
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC
compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the
host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for
an population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user has to be
informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or modifications not expressly approved by
the manufacturer could void the user's authority to operate this equipment. If the size of the end product is
smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users
manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
MQ4-VM311R01 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19
statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may cause undesired operation.
IC module Statement:
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC
compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the
host this module is integrated into. Under such configuration, the IC RSS-102 radiation exposure limits set
forth for an population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user has to be
informed that the IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied.
The end user has to also be informed that any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment. IC statement is required to be
available in the users manual: This Class B digital apparatus complies with Canadian ICES-003. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX IC : 2826B
VM311R01 ".
Draft Version
11
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
IC Statement
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the
device.
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.

Navigation menu
