Abocom Systems WMG2400 802.11b/g Wirless LAN mini PCI Card User Manual WMG2400 Antenna Installation

Antenna Installation Manual

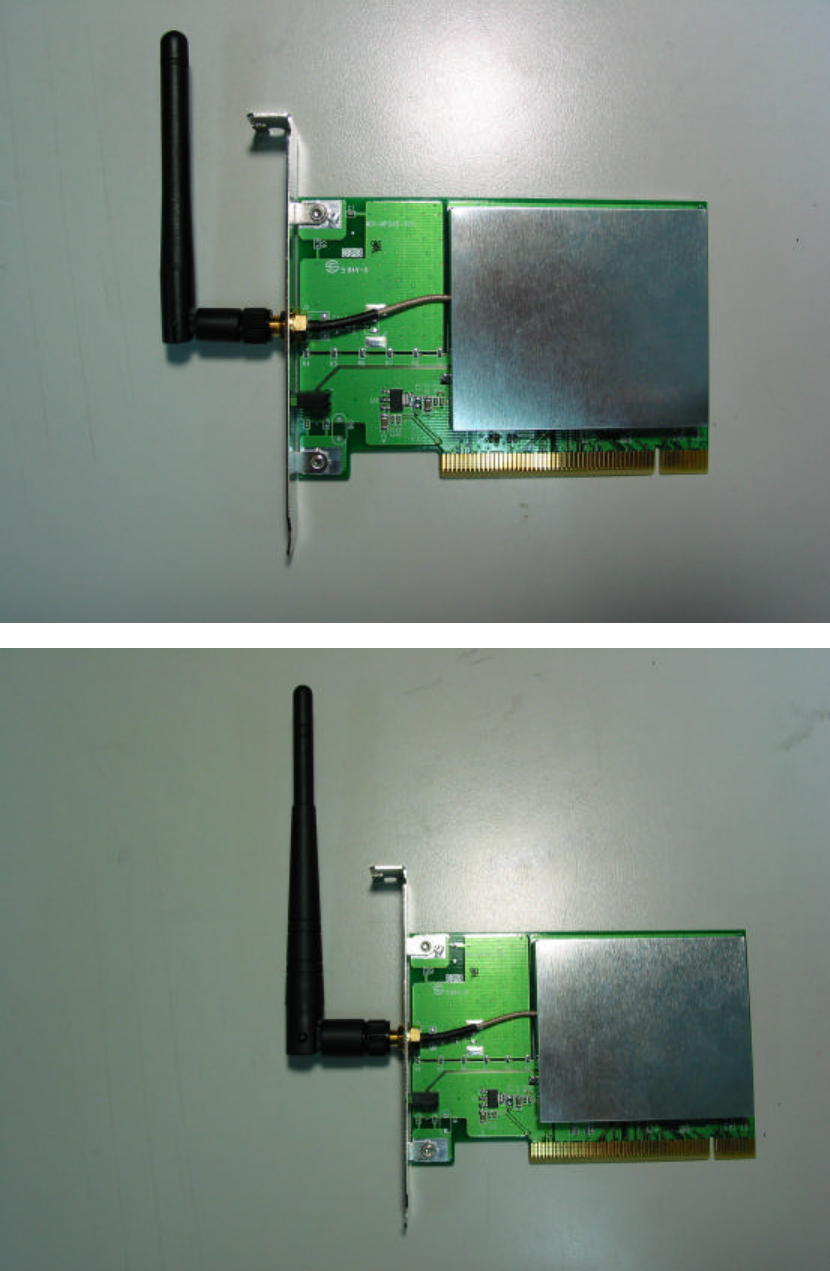

All the antennas tested for WMG2400 will not be used in the notebook computer or

laptop but the antennas will be installed in the desktop computer with PCI extended

adapter. (Please see the figures). The notebook computer manufacturers have their

own antennas to fit their design. If we ship WMG2400 to the notebook computer

manufacturer, we will apply another FCC test with another antenna.

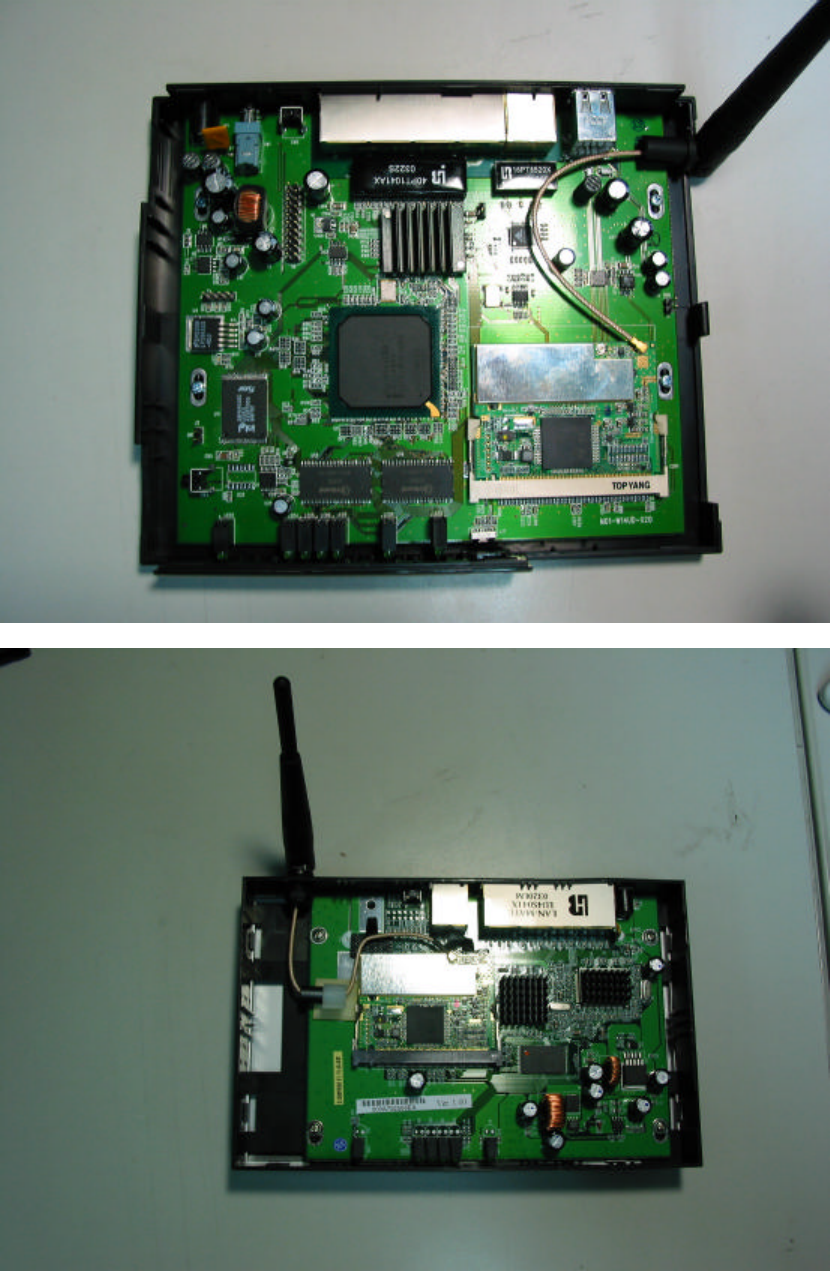

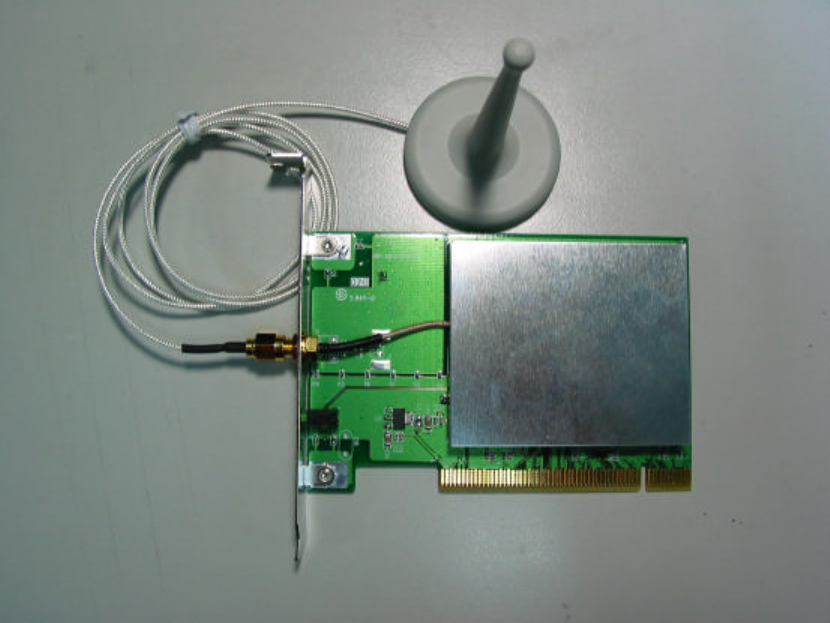

The three antennas will be installed in PCI extended card and wireless router. (or

wireless access point. Please see the figures)
