Manual 3
![](/img.php?id=171700&img=bg1.png)
27

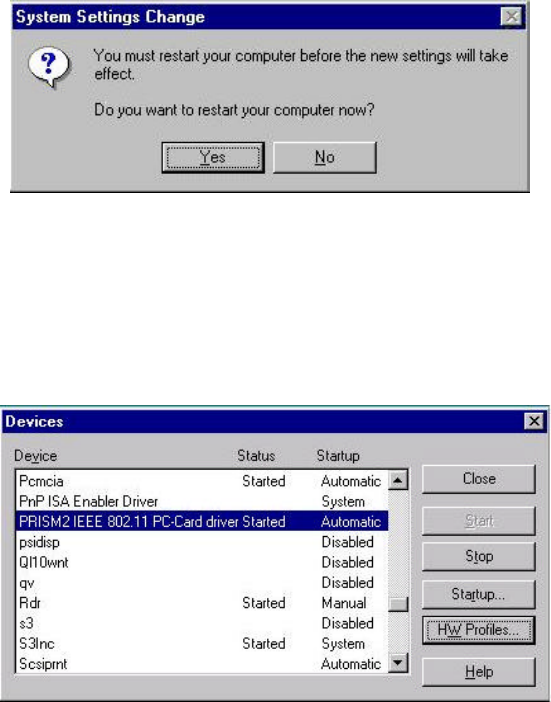

8. You will be prompted to restart your computer, click yes to complete the installation
9. Upon restart, open the โDevicesโ menu from the โControl Panelโ, to confirm that the driver
installation was successful. Your adapters driver should now be listed in the โDevicesโ
menu.
![](/img.php?id=171700&img=bg2.png)
28
Chapter 4 Installing & Navigating the PRISM Configuration Utility
4-1 PRISM CONFIGURATION UTILITY - INSTALLATION
1. Insert the PRISM Network Configuration Utility disk into an available floppy disk drive.
From the "Run" window type "A:\Utility\Setup.exe" (where "A" represents a floppy disk
drive).

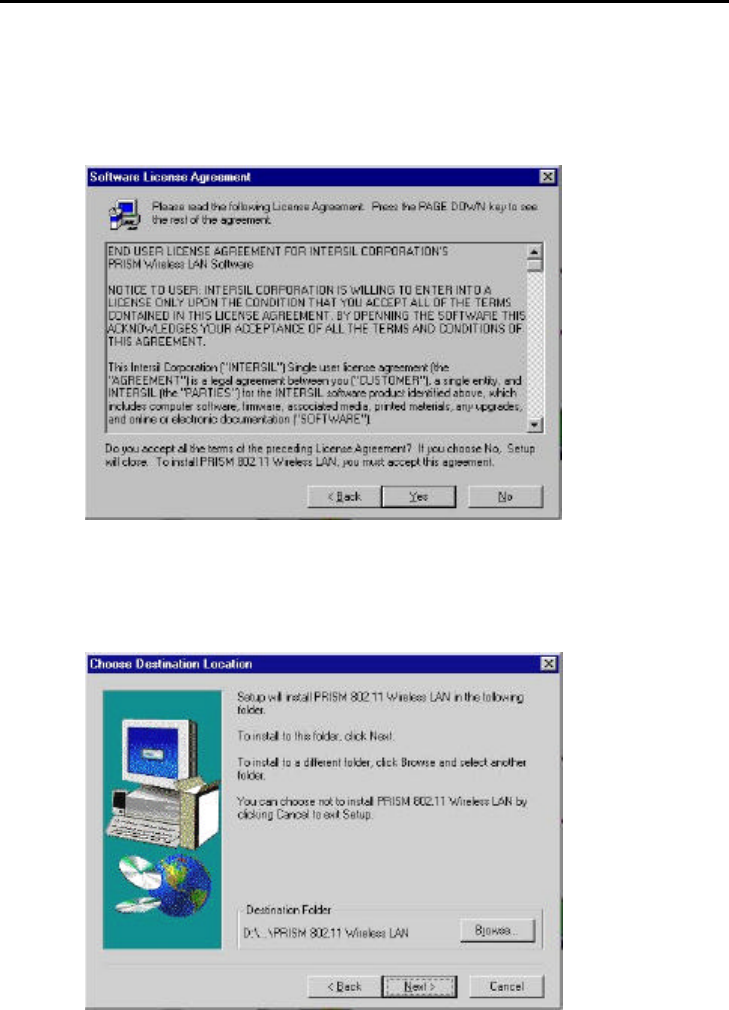

2. Click โYesโ to accept the License Agreement and continue with the installation.
3. Click โNextโ.
![](/img.php?id=171700&img=bg3.png)
29
4. Enter the System ID click โNextโ.
5. Choose the Network Mode, click โNextโ
6. Browse to install the utility in another folder, or confirm the installation and click โNextโ.
![](/img.php?id=171700&img=bg4.png)
30

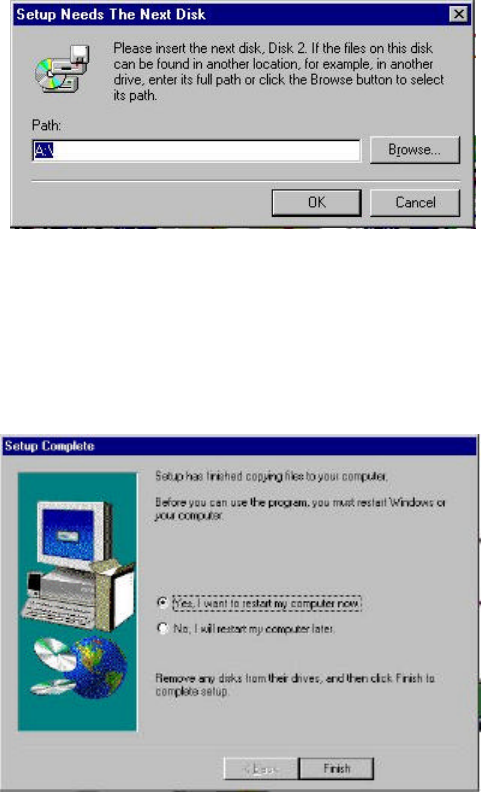

7. You will be prompted to insert Disk 2. Insert the disk and click โBrowseโ. Double-click the
โSetupโ folder; double-click again on the โsetupโ icon. When the path has been
automatically entered in the โSetup Needs The Next Diskโ dialog, click โOKโ.
8. After installation is complete, you will be prompted to restart your computer. Check โYesโ
and click โFinishโ to complete the installation and begin navigating the PRISM
Configuration Utility.
![](/img.php?id=171700&img=bg5.png)
31
4-2 PRISM CONFIGURATION UTILITY- NAVIGATION
The following section describes and defines the various functions of the PRISM Network
Configuration Utility. This utility provides quick access to all adapter settings.
PRISM Quick-Launch Icon: After installation is complete, a PRISM utility icon will appear in
the โQuick-Launchโ menu in the lower right hand corner of the screen, near the clock.
The PRISM Configuration Utility: Double clicking the PRISM icon in the Quick Launch bar

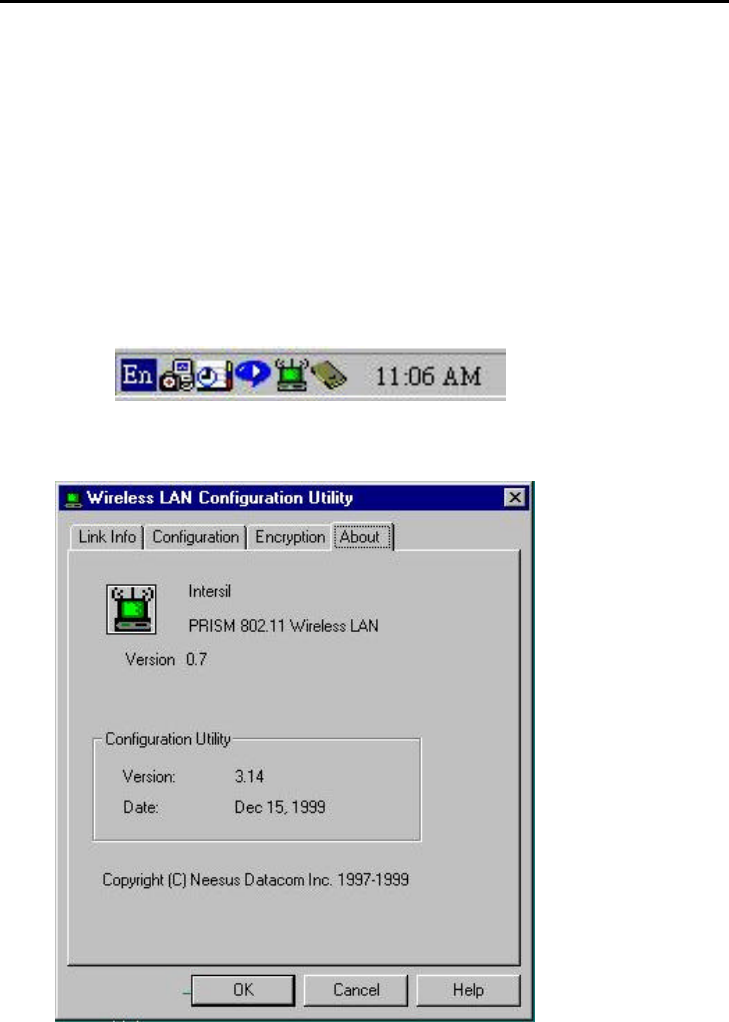

will open the PRISM Configuration Utility main menu, providing quick access to all adapter
settings. The following image shows the PRISM Configuration Utility with the โAboutโ tab
selected, here you will find Version, Copyright and Manufacturer information.
![](/img.php?id=171700&img=bg6.png)
32

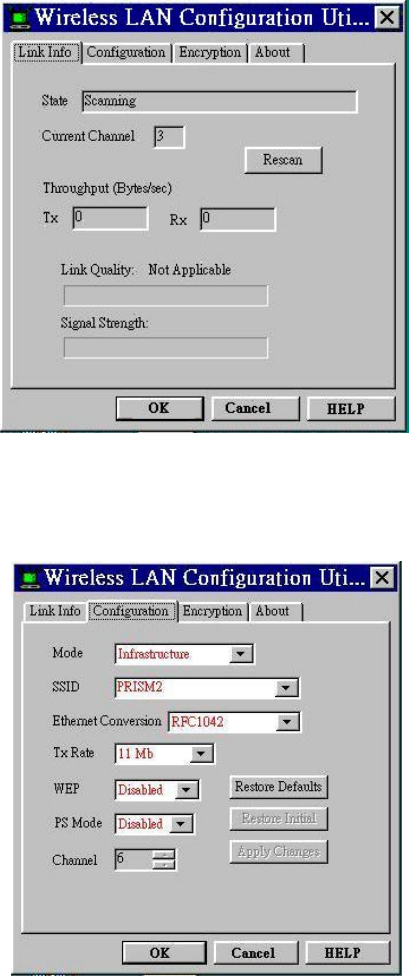

Link Info: The Link Info menu provides information about the current link between the adapter and
the base station.
Configuration: Selecting this tab opens the โConfigurationโ menu. Here you will find options for
configuring your adapter.
Description of Settings
Following is an explanation of each adapter setting presented by the โConfigurationโ menu.
Mode: The Mode setting determines the architecture of your wireless LAN. Choose Ad-Hoc or
Infrastructure Mode depending on your network type. A brief explanation of each mode follows:
ยง Ad-Hoc: This mode is used for a simple peer-to-peer network. This type of network
allows the sharing of local resources only between wireless clients without a wireless
Access Point (AP).
33
ยง Infrastructure: This mode allows a wireless LAN to be integrated into an existing wired
network through an AP. Infrastructure type networks also permit roaming between Access
Points while maintaining connection to all network resources. Infrastructure mode
provides additional features, such as WEP security, power saving and extended range.
SSID: An acronym for Service Set Identifier, SSID is the unique name shared among all clients and
Access Points in a wireless network. The SSID must be identical for all clients or Access Points
participating in the same network. The SSID is case sensitive and must not exceed 30 characters.
Ethernet Conversion: The RFC1042 mode is the 802.11 standard conversion method and is
selected by default. If compatibility with older wireless LAN systems is necessary select another
conversion implementation from the Ethernet Conversion drop down list.
TX Rate: The transmit rate or TX Rate selects the allowable transfer rates of the wireless client. To
optimize performance and range, the TX Rate should be set to Fully Automatic, which will
automatically adjust the transfer speed for best performance and longest range.
Note: the AP must support The TX rate setting. If the AP does not support the TX rate, undesired
results may occur.
WEP: An acronym for Wired Equivalent Privacy, WEP is an encryption scheme used to protect your
wireless data communications. WEP uses a combination of 40-bit keys to provide access control to
your network and encryption security for every data transmission. To decode a data transmission,
each wireless client on the network must use an identical 40-bit key.
NOTE: This feature is only available in Infrastructure Mode and must also be enabled on the
Access Point. Select the WEP tab to enable or disable this feature.
PS Mode: Power Saving Mode enables or disables the power saving features of your wireless
adapter. When enabled on a laptop, the power saving mode can reduce power consumption by the
wireless card and extend the battery life of your laptop. This setting is only implemented in a
network operating in Infrastructure mode.
ยง Changing the PS mode: The PS Mode on your adapter is set to โDisabledโ by default.
To change the setting, select โEnabledโ from the drop-down list, click โOKโ and wait a few
seconds. The screen will then is updated and show the current Connection Status, Link
Quality and Signal Strength.
Channel: This setting specifies the default 802.11 channels used by the Wireless LAN
communication. In an Infrastructure type network without an Access Point active on the default
channel, clients will scan through all available channels searching for a network with matching SSID.
ยง Changing the Channel: Changing the channel is only effective in Ad-Hoc networks.
Networks operating in Infrastructure mode automatically scan for a channel. The following
table presents contains the operational channel frequency for several countries.
![](/img.php?id=171700&img=bg8.png)
34
Regulatory Channel Frequency
Channel Frequency
(MHZ)
FCC Canada ETSI France Spain Japan
1 2412 ห ห ห ห
2 2417 ห ห ห ห
3 2422 ห ห ห ห
4 2427 ห ห ห ห
5 2432 ห ห ห ห
6 2437 ห ห ห ห
7 2442 ห ห ห ห
8 2447 ห ห ห ห
9 2452 ห ห ห ห
10 2457 หหหหหห
11 2462 หหหหหห
12 2467 ห ห ห
13 2472 ห ห ห
14 2484 ห
Encryption: Selecting the Encryption tab allows you to create new WEP keys.
The 40-bit WEP keys can be generated from a user-defined pass phrase (any text string with a
maximum of 32 characters). To generate encryption keys for each client communicating in the
wireless network, complete the following steps:
35
1. Type the exact same case sensitive text in the Pass phrase entry field for each client.
2. Click, โGenerateโ to create the encryption keys. The Pass phrase generates four (4)
unique keys.
3. Select the same Default Key in the drop-down box for each client. This is the key the
clients will use to encrypt data.
4. You must click โWriteโ to store the information in the registry.
5. Select the โConfigurationโ tab and enable WEP by choosing โMandatoryโ.
6. Click โApply Changesโ.
7. Click โOKโ to close the dialog.
![](/img.php?id=171700&img=bga.png)
36
Appendix A Troubleshooting
Problem Solving
My computer does not recognize the WN3301.
Probable Solution:
ยง The WN3301 is not properly inserted into the PCMCIA slot.
ยง Ensure that the WN3301 has been inserted into an available PCMCIA slot.
The WN3301 does not work properly.
Probable Solution:
ยง Insert the PCMCIA adapter into Notebookโs slot again. A beep should be heard if the
adapter is properly inserted.
ยง Check the I/O cable that connects the RF module and the PCMCIA adapter. The power
LED indicator will be active if the cable is properly connected.
ยง For non-Windows 95/98 environments, ensure that a PCMCIA card service driver is
installed in your computer.

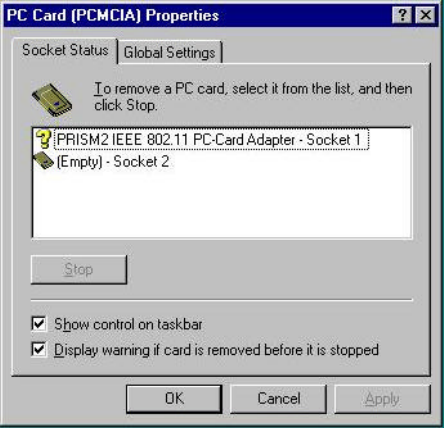

ยง 1) Click on the Control Panel and then on PC-Card. Check whether it has PCMCIA card
in one of the sockets or not. If you find PRISM2 IEEE 802.11 PC-Card Adapter in one of
the sockets, it means the card is detected properly. If you see the yellow sign of
ยง Question-mark (?), the resources are conflicting.

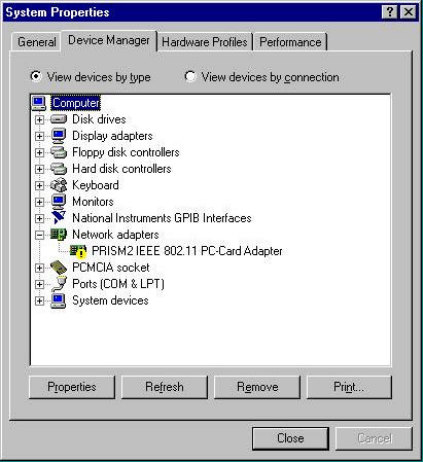

ยง 2) Right click on โMy Computerโ and the select Properties. Select the device Manager
and click on the Network Adapter. You will find PRISM2 IEEE 802.11 PC-Card Adapter if
it is installed successfully. If you see the Yellow sign the resources are conflicting. Click
![](/img.php?id=171700&img=bgb.png)
37
on PCMCIA card and then on PCMCIA Card service, you can see the status of PCMCIA
card. If there are yellow sign either on adapter or PCMCIA card, please check followings.
ยง 2-1) Check if your Notebook supports 3.3V card.
ยง 2-2) Check if your Notebook has a free IRQ
ยง 2-3) Check that you have inserted the right card and have installed the proper driver.
If the WN3301 does not function after attempting the above steps, remove the PCMCIA adapter,
and do the following:
ยง From the run window enter, c:\windows\system, locate and delete the cw10.sys file
ยง Open the โControl Panelโ double-click โSystemโ and delete PRISM2 IEEE 802.11 PC-
card Adapter.
ยง Restart the PC and repeat the hardware and software installation steps outlined in
Chapters 3 and 4.
The WN3301 station cannot communicate with other computers linked via Ethernet in the
Infrastructure configuration.
Probable Solution:
ยง Ensure that the WN3301 with which the station is associated is powered on.
ยง Confirm the station is configured with the same operating radio channel as the WN3301. If
the IDs are different, change the WN3301 and all the stations within the BSS to another
radio channel.
ยง Ensure that the station is configured with the same security options as the WN3301, and
can be turned off and on with the same security key.
ยง Confirm that the BSS ID is the same as the WN3301 for a roaming disabled station.
Alternately confirm that the ESS ID is the same as the WN3301 for a roaming enabled
station.
38
Appendix B Glossary
Access Point - An internetworking device that seamlessly connects wired and wireless networks together.
Ad-Hoc - An Ad-Hoc wireless LAN is a group of computers each with wireless adapters, connected as an
independent wireless LAN.
Backbone - The core infrastructure of a network, the portion of the network that transports information from one
central location to another central location. The information is then off-loaded onto a local system.
Base Station - In mobile telecommunication, a base station is the central radio transmitter/ receiver that
maintains communication with the mobile radiotelephone sets within range. In cellular and personal
communications applications, each cell or micro cell has its own base station; each base station in turn
is interconnected with other cellsโ base.
BSS - Stands for โBasic Service Set.โ An Access Point associated with several wireless stations.
ESS - Stands for โExtended Service Set.โ More than one BSS can be configured as an Extended Service Set. An
ESS is basically a roaming domain.
Ethernet - A popular local area data communications network, originally developed by Xerox Corp., which
accepts transmission from computers and terminals. Ethernet operates on 10 Mbps base band
transmission over shielded coaxial cable or over shielded twisted pair telephone wire.
Infrastructure - An integrated wireless and wired LAN is called an Infrastructure configuration.
PCMCIA - Personal Computer Memory Card International Association, which develops standards for PC cards,
formerly known as PCMCIA cards, are available in three โtypesโ which are about the same length and
width as credit cards, but range in thickness from 3.3 mm (Type I) to 5.0 mm (Type II) to 10.5 mm (Type
III). These cards can be used for many functions, including memory storage, as landline modems and
as wireless LAN.
Roaming - A function that allows one to travel with a mobile end system (wireless LAN mobile station, for
example) through the territory of a domain (an ESS, for example) while continuously connecting to the
infrastructure.
RTS Threshold โ Transmitters contending for the medium may not hear each other. RTS/CTS mechanism can
solve this โ Hidden Node Problemโ.
39
Product Specifications for WN3301F :
Radio: Complies with IEEE 802.11
Frequency Band: 2400 ~ 2483.5MHz ( for US, Canada, and ETSI
2400 ~ 2497MHz (for Japan)
Modulation TYPE: CCK,BPSK,QPSK
Operating Channels: IEEE 802.11 compliant
11 channels (US, Canada)
13 channels (ETSI)
14 channels (Japan)
Radio Technology: Direct Sequence Spread Spectrum
Data Rate: 1 / 2 / 5.5 / 11 Mbps
Output Power: > +15dBm
Receive sensitivity: -80dBm for 11Mbps, 8%@BER 10E-5
-83dBm for 5.5Mbps, 8%@BER 10E-5
-88dBm for 2Mbps, 8%@BER 10E-5
-90dBm for 1Mbps, 8%@BER 10E-5
Antenna Type: De-attached PCB patch diversity antenna or MMCX
connector for external antenna
Current
Consumption : 3.3 V , Tx mode 450 m A (Max.) ; Rx mode 320 m A
(Max.);
Package : PCMCIA Type II
Certification: FCC Part 15
ETSI 300.328
ARIB STD33 & T66
Driver : Windows 95/98/98SE/Me
Windows NT/2000
