Advanced Setup
41
register a new MAC address for your account. Register the
default MAC address of the Router.

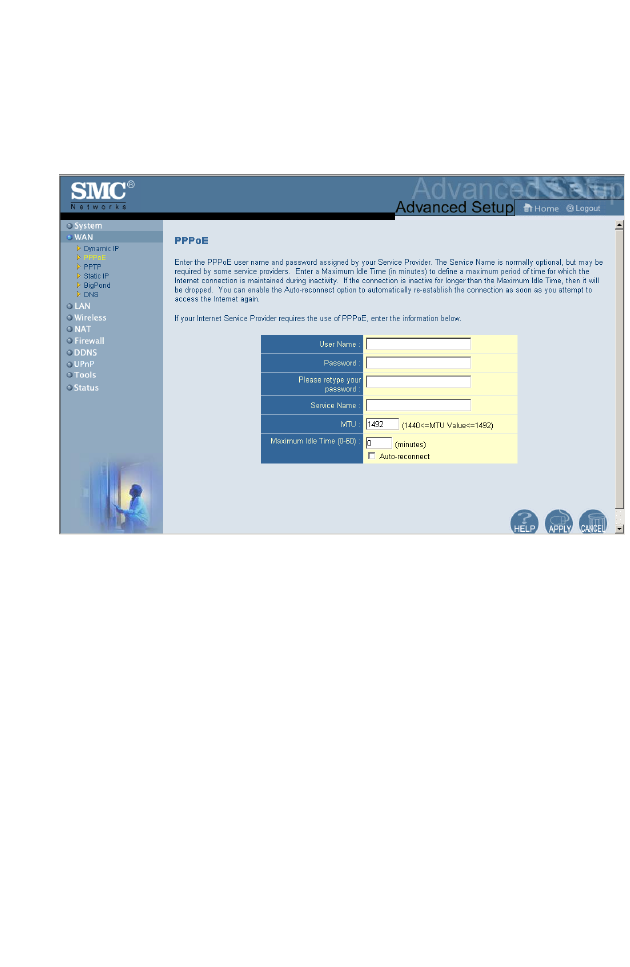

Point-to-Point Over Ethernet (PPPoE)
Enter the PPPoE User Name and Password assigned by your
Service Provider. The Service Name is normally optional, but
may be required by some service providers.
The MTU (Maximum Transmission Unit) governs the maximum
size of the data packets. Leave this on the default value (1454)
unless you have a particular reason to change it.
Enter a Maximum Idle Time (in minutes) to define a maximum
period of time for which the Internet connection is maintained
during inactivity. If the connection is inactive for longer than the
Maximum Idle Time, it will be dropped. (Default: 10 minutes)
Enable the Auto-reconnect option to automatically re-establish
the connection as soon as you attempt to access the Internet
again.
![](/img.php?id=346318&img=bg2.png)
Configuring the Wireless Barricade g Router
42

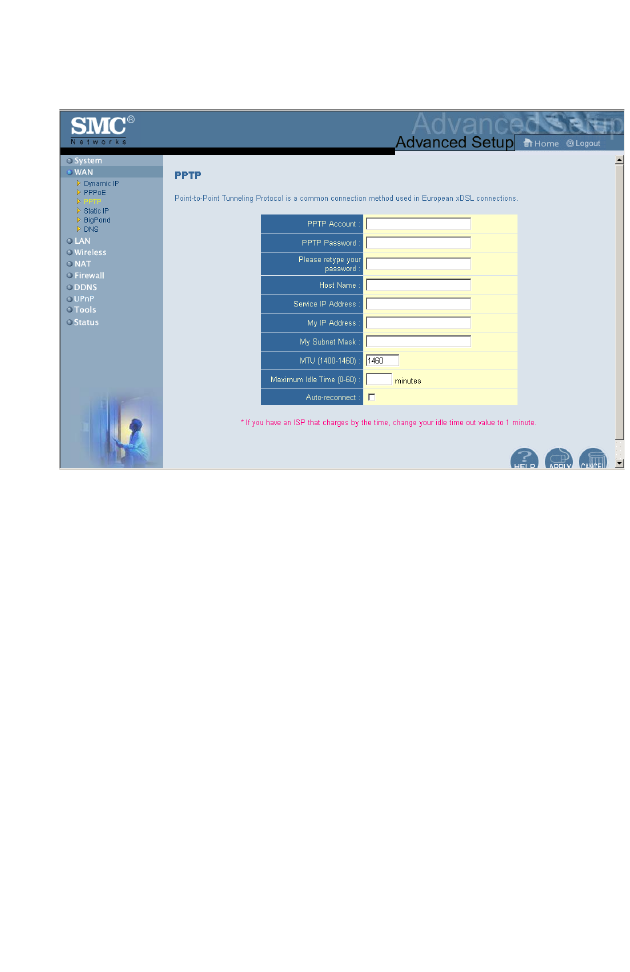

Point-to-Point Tunneling Protocol (PPTP)
Point-to-Point Tunneling Protocol (PPTP) can be used to join
different physical networks using the Internet as an intermediary.
Using the above screen allows client PCs to establish a normal
PPTP session and provides hassle-free configuration of the
PPTP client on each client PC.
Enter the assigned IP address, subnet mask and default gateway
IP address (usually supplied by your ISP), and then the PPTP
User ID, Password and PPPTP Gateway IP address.
Enter a maximum Idle Time Out (in minutes) to define a
maximum period of time for which the PPTP connection is
maintained during inactivity. If the connection is inactive for
longer than the Maximum Idle Time, it will be dropped.
(Default: 10 minutes)
![](/img.php?id=346318&img=bg3.png)
Advanced Setup
43

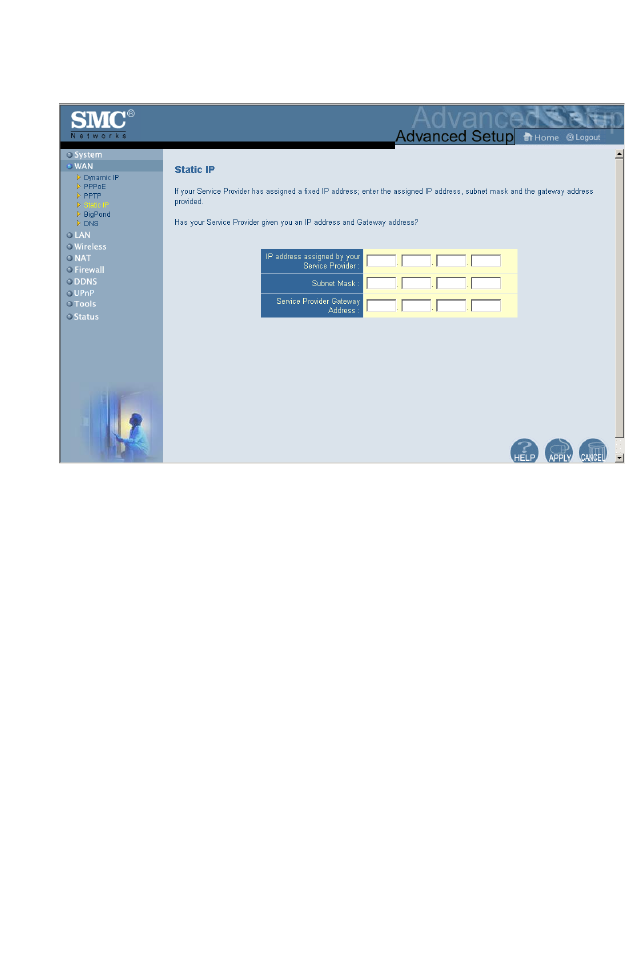

Static IP Address
If your Internet Service Provider has assigned a fixed IP address,
enter the assigned address and subnet mask for the Router, then
enter the gateway address of your ISP.
You may need a fixed address if you want to provide Internet
services, such as a web server or FTP server.
![](/img.php?id=346318&img=bg4.png)
Configuring the Wireless Barricade g Router
44
BigPond
BigPond is a service provider in Australia that uses a heartbeat
system to maintain the Internet connection. Configure the built-in
client with your user name, password and service name to get
online. Leave the Authentication Service Name as “login-server”
for a universal configuration.
![](/img.php?id=346318&img=bg5.png)
Advanced Setup
45

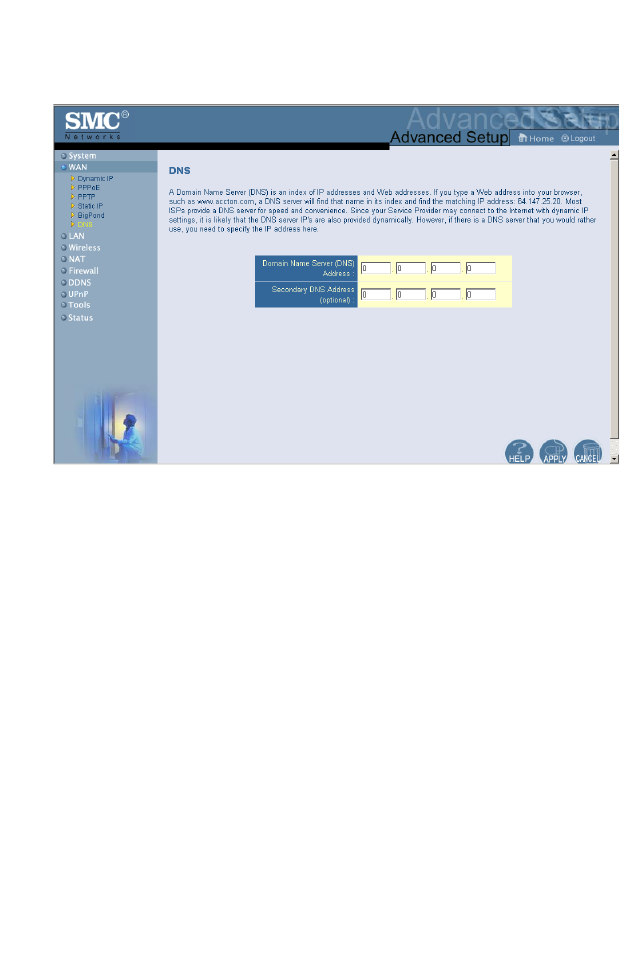

DNS
Domain Name Servers map numerical IP addresses to the
equivalent domain name (e.g., www.smc.com). Your ISP should
provide the IP address of one or more domain name servers.
Enter those addresses in this screen.
![](/img.php?id=346318&img=bg6.png)
Configuring the Wireless Barricade g Router
46

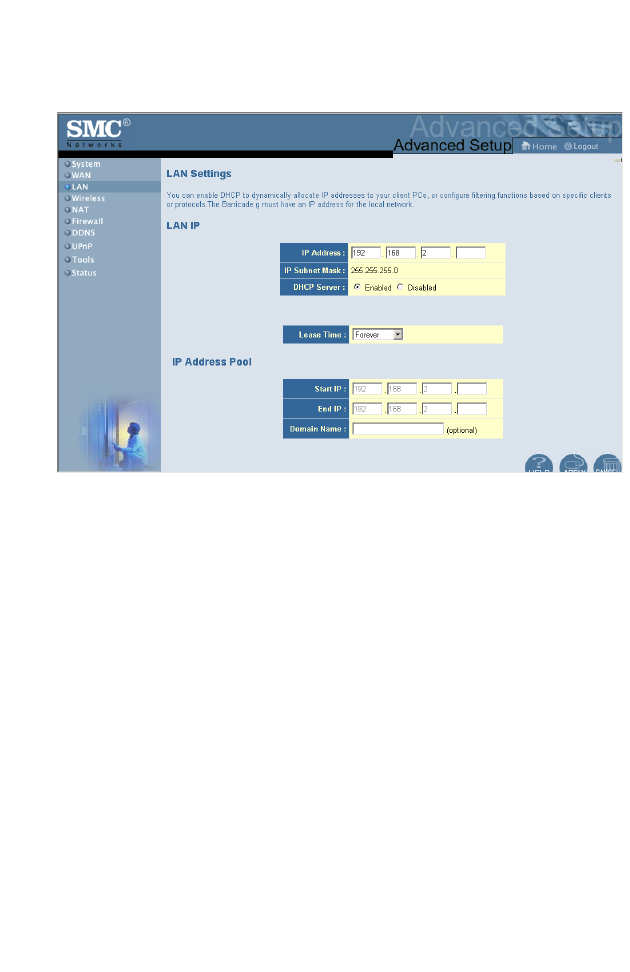

LAN
•LAN IP – Use the LAN menu to configure the LAN IP address
for the Router and to enable the DHCP server for dynamic
client address allocation.
•Set a period for the lease time if required. For home networks
this may be set to Forever, which means there is no time limit
on the IP address lease.
•IP Address Pool – A dynamic IP address range may be
specified (192.168.2.2–254). IP addresses running from
192.168.2.100 to 192.168.2.199 are the default value. Once
the IP addresses, e.g. 192.168.2.100–199, have been
assigned, these IP addresses will be part of the dynamic IP
address pool. IP addresses from 192.168.2.2 to 192.168.2.99,
and 192.168.2.200 to 192.168.2.254 will be available as static
IP addresses.
Remember not to include the address of the Router in the client
address pool. Also remember to configure your client PCs for
dynamic IP address allocation.
![](/img.php?id=346318&img=bg7.png)
Advanced Setup
47
Wireless
To configure the Router as a wireless access point for wireless
clients (either stationary or roaming), all you need to do is define
the radio channel, the Service Set identifier (SSID), and
encryption options.

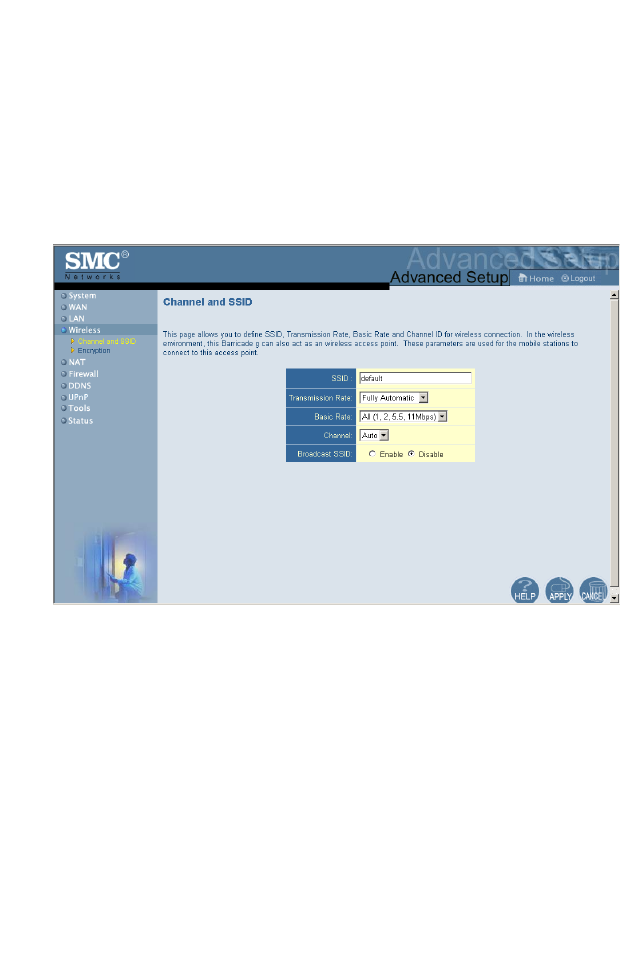

Channel and SSID
You must specify a common radio channel and SSID (Service
Set ID) to be used by the Router and all of your wireless clients.
Be sure you configure all of your clients to the same values.
ESSID: The Service Set ID. This should be set to the same value
as the other wireless devices in your network.
Note: The SSID is case sensitive and can consist of up to 32
alphanumeric characters.
![](/img.php?id=346318&img=bg8.png)
Configuring the Wireless Barricade g Router
48

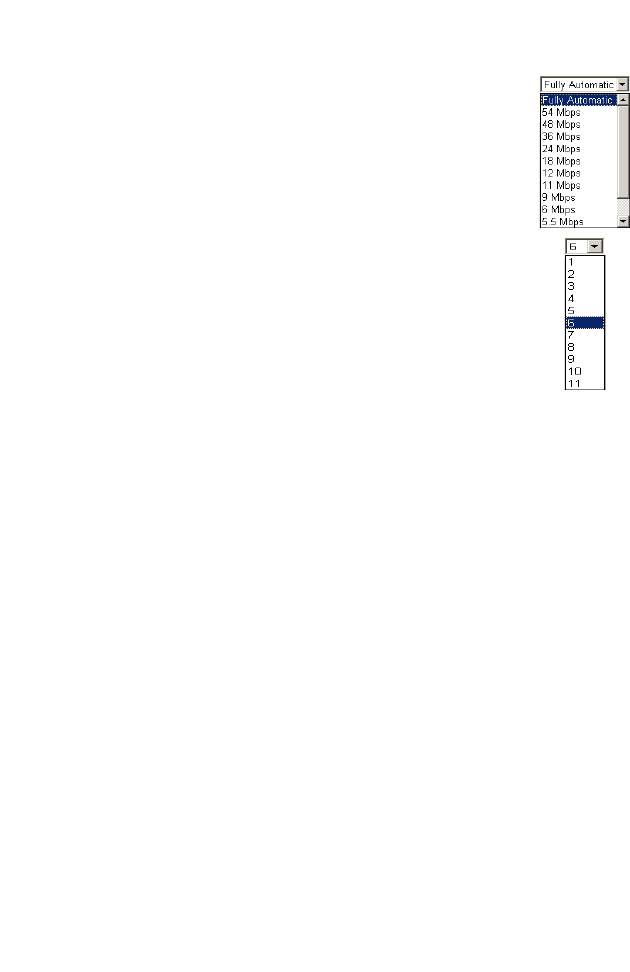

Transmission Rate: Set the rate of data transmitted
from the Router. The lower the data rate, the longer
the transmission distance. (Default: Fully Automatic.)
Channel: The radio channel through which the Router
communicates with PCs in its BSS. (Default: 6)
Note: The available channel settings are limited by
local regulations.
Broadcast SSID: Broadcasting the SSID on the
wireless network for easy connection with client PCs.
For security reason, disable SSID broadcast. (Default: Enable)
![](/img.php?id=346318&img=bg9.png)
Advanced Setup
49

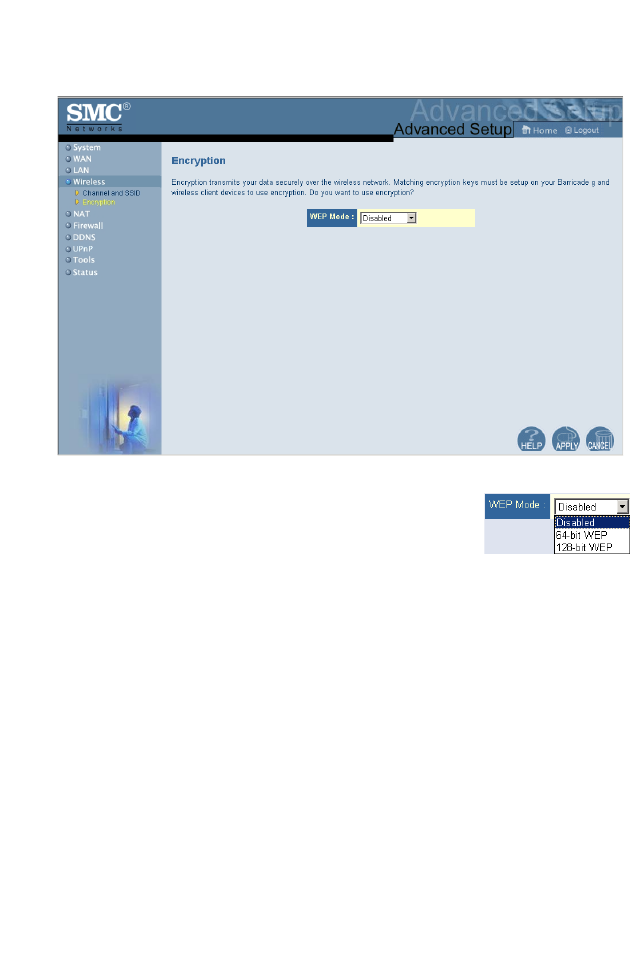

Encryption
If you are transmitting sensitive data across
wireless channels, you should enable Wired
Equivalent Privacy (WEP) encryption.
Encryption requires you to use the same set
of encryption/decryption keys for the Router and all of your
wireless clients. You can choose between standard 64-bit or the
more robust 128-bit encryption.

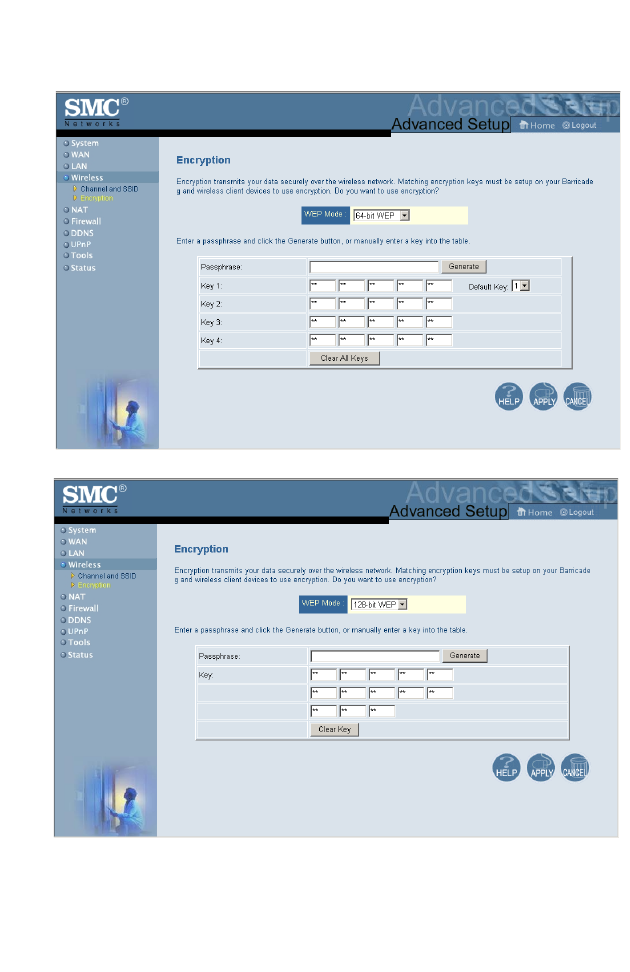

You may manually enter the keys or automatically generate
encryption keys. To manually configure the keys, enter five
hexadecimal pairs for each 64-bit key, or enter 13 pairs for the
single 128-bit key. (A hexadecimal digit is a number or letter in
the range 0-9 or A-F.) For automatic 64-bit security, enter a
passphrase and click Generate. Four keys will be generated (as
shown below). Choose a key from the drop-down list or accept
the default key. Automatic 128-bit security generates a single
key.
![](/img.php?id=346318&img=bga.png)
Configuring the Wireless Barricade g Router
50
If you use encryption, configure the same keys used for the
Router on each of your wireless clients. Note that Wired
Equivalent Privacy (WEP) protects data transmitted between
wireless nodes, but does not protect any transmissions over your
wired network or over the Internet.
![](/img.php?id=346318&img=bgb.png)
Advanced Setup
51
NAT - Network Address Translation
From this section you can configure the Address Mapping, Virtual
Server, and Special Application features that provide control over
the TCP/UDP port openings in the router’s firewall. This section
can be used to support several Internet based applications such
as web, E-mail, FTP, and Telnet

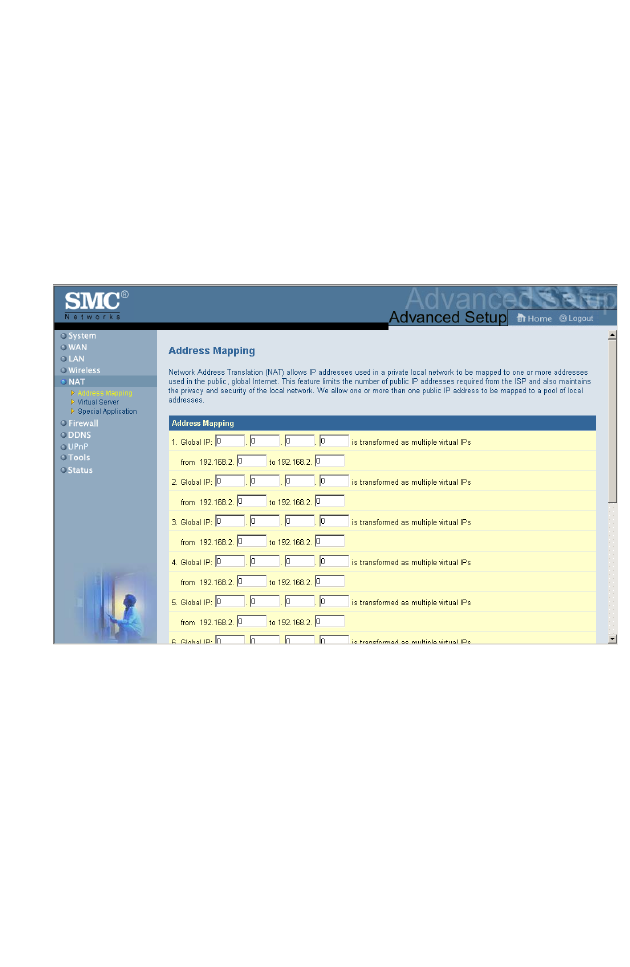

Address Mapping
Allows one or more public IP addresses to be shared by multiple
internal users. Enter the Public IP address you wish to share into
the Global IP field. Enter a range of internal IPs that will share the
global IP.
![](/img.php?id=346318&img=bgc.png)
Configuring the Wireless Barricade g Router
52

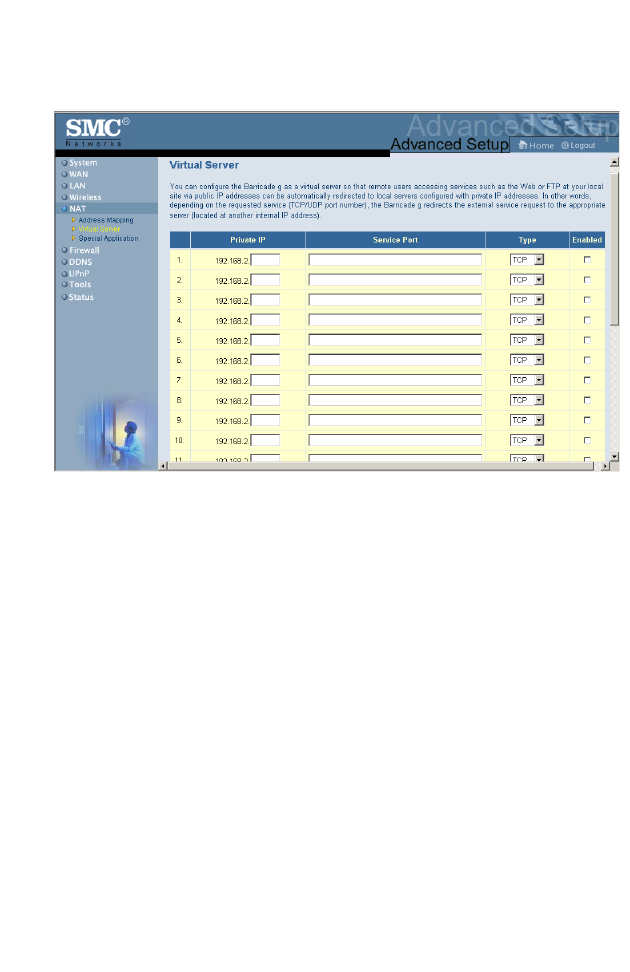

Virtual Server
If you configure the Router as a virtual server, remote users
accessing services such as web or FTP at your local site via
public IP addresses can be automatically redirected to local
servers configured with private IP addresses. In other words,
depending on the requested service (TCP/UDP port number), the
Router redirects the external service request to the appropriate
server (located at another internal IP address).
For example, if you set Type/Public Port to TCP/80 (HTTP or
web) and the Private IP/Port to 192.168.2.2/80, then all HTTP
requests from outside users will be transferred to 192.168.2.2 on
port 80. Therefore, by just entering the IP Address provided by
the ISP, Internet users can access the service they need at the
local address to which you redirect them.
The more common TCP service ports include:
HTTP: 80, FTP: 21, Telnet: 23, and POP3: 110
![](/img.php?id=346318&img=bgd.png)
Advanced Setup
53
Special Applications
Some applications, such as Internet gaming, videoconferencing,
Internet telephony and others, require multiple connections.
These applications cannot work with Network Address
Translation (NAT) enabled. If you need to run applications that

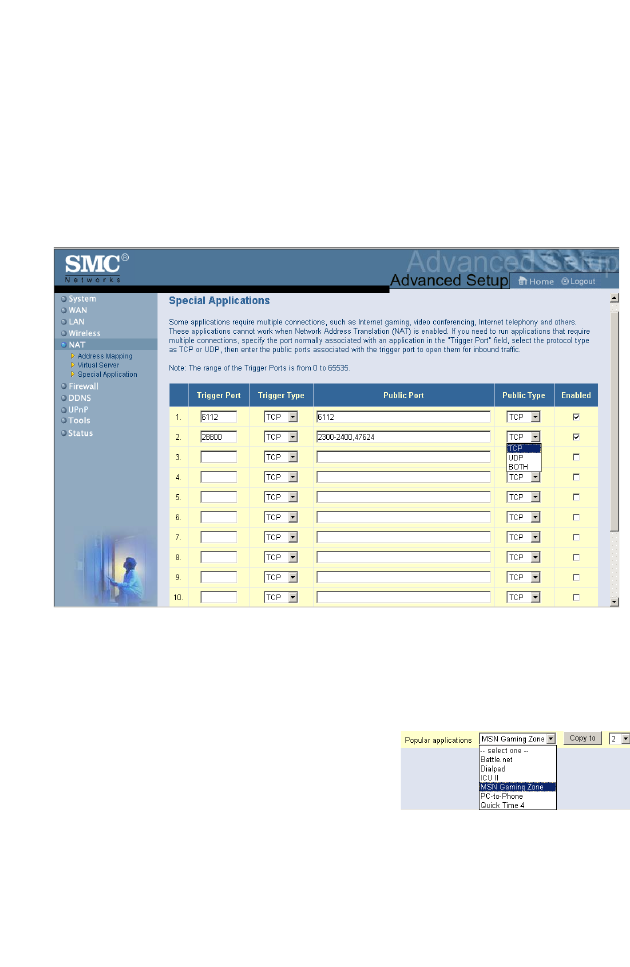

require multiple connections, use the following screen to specify
the additional public ports to be opened for each application.
Specify the public port number normally associated with an
application in the Trigger Port field. Set the protocol type to TCP
or UDP, then enter the ports that the application requires.
Popular applications requiring
multiple ports are listed in the Popular
Applications field. From the
drop-down list, choose the application
and then choose a row number to copy this data into.
Note: Choosing a row that already contains data will
overwrite the current settings.
![](/img.php?id=346318&img=bge.png)
Configuring the Wireless Barricade g Router
54
Example:
For a full list of ports and the services that run on them, see
www.iana.org/assignments/port-numbers.
Firewall
The Router firewall can provide access control of connected
client PCs, block common hacker attacks, including IP Spoofing,
Land Attack, Ping of Death, IP with zero length, Smurf Attack,
UDP port loopback, Snork Attack, TCP null scan, and TCP SYN
flooding. The firewall does not significantly affect system
performance, so we advise leaving it enabled to protect your
network users.
ID Trigger
Port
Trigger
Type
Public Port Public Type Comment
1 6112 UDP 6112 UDP Battle.net
2 28800 TCP 2300-2400,
47624
TCP MSN Game
Zone
![](/img.php?id=346318&img=bgf.png)
Advanced Setup
55

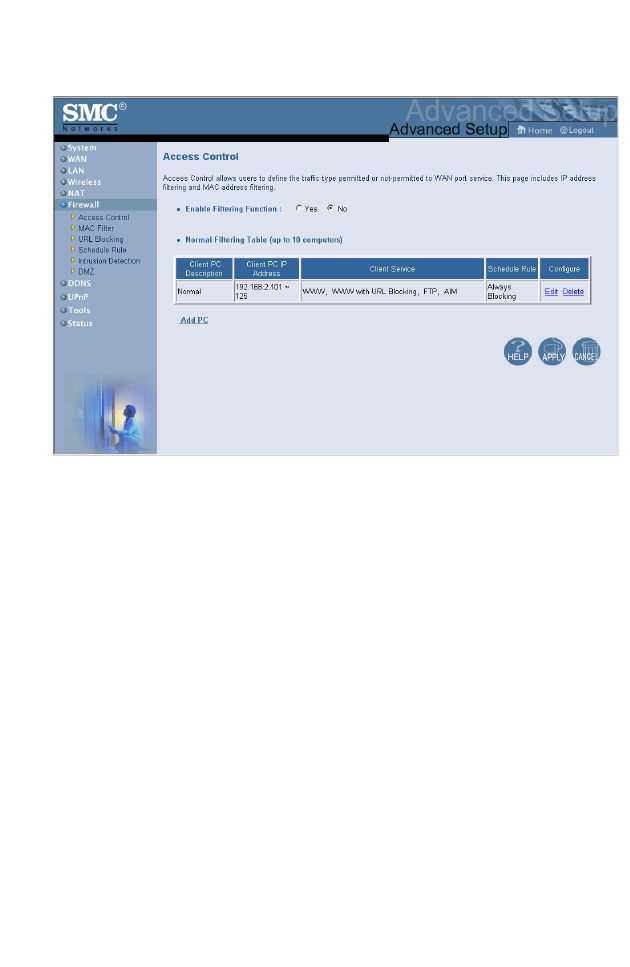

Access Control
Using this option allows you to specify different privileges based
on IP address for the client PCs.
![](/img.php?id=346318&img=bg10.png)
Configuring the Wireless Barricade g Router
56

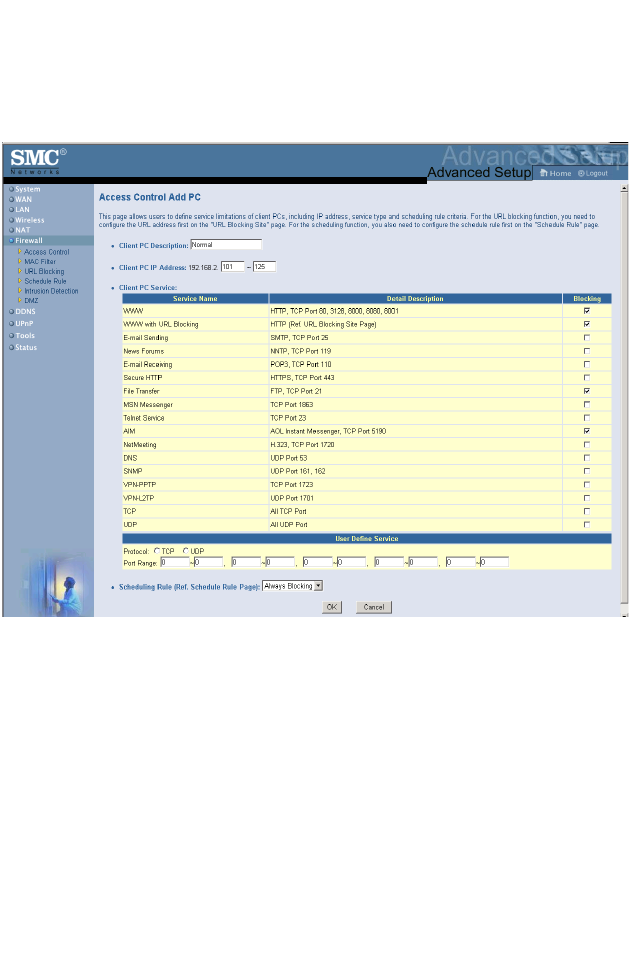

Note: Click on Add PC and define the appropriate settings for
client PC services (as shown in the following screen).
![](/img.php?id=346318&img=bg11.png)
Advanced Setup
57
MAC Filtering Table
The MAC Filtering feature of the Router allows you to control
access to your network for up to 32 clients based on the MAC
(Media Access Control) Address of the client machine. This ID is
unique to each network adapter. If the MAC address is listed in
the table, that client machine will have access to the network.
![](/img.php?id=346318&img=bg12.png)
Configuring the Wireless Barricade g Router
58

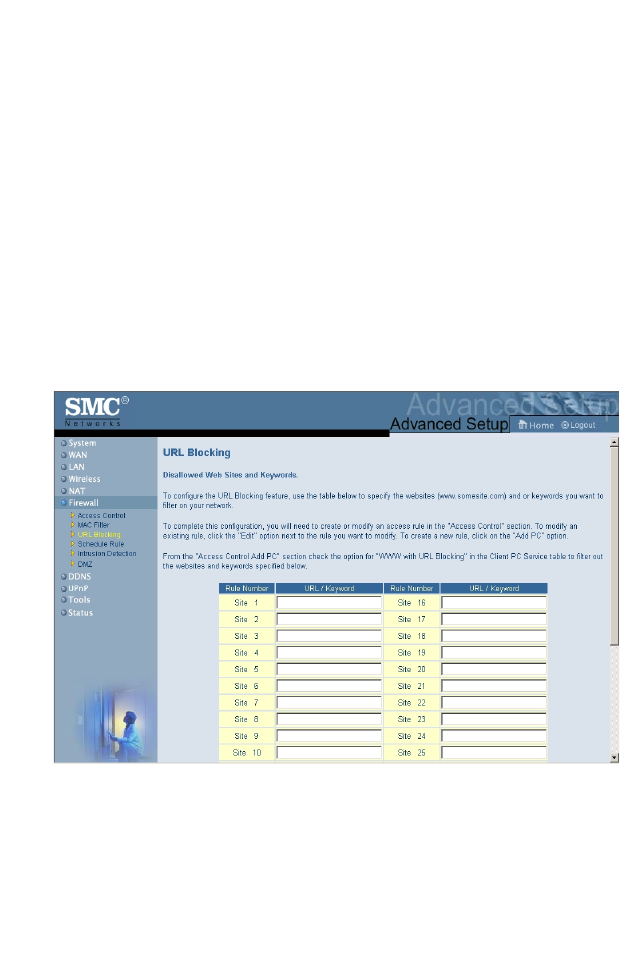

URL Blocking
To configure the URL Blocking feature, use the table below to
specify the web sites (www.somesite.com) and/or keywords you
want to filter on your network.
To complete this configuration, you will need to create or modify
an access rule in “Access Control” on page 55. To modify an
existing rule, click the Edit option next to the rule you want to
modify. To create a new rule, click on the Add PC option.
From the Access Control Add PC section check the option for
“WWW with URL Blocking” in the Client PC Service table to filter
out the web sites and keywords specified below.
Use the above screen to block access to web sites or to web
URLs containing the keyword specified in the table.
![](/img.php?id=346318&img=bg13.png)
Advanced Setup
59
Schedule Rule
The Schedule Rule feature allows you to configure specific rules
based on Time and Date. These rules can then be used to
configure more specific Access Control.
![](/img.php?id=346318&img=bg14.png)
Configuring the Wireless Barricade g Router
60
Enables Schedule-based Internet access control.

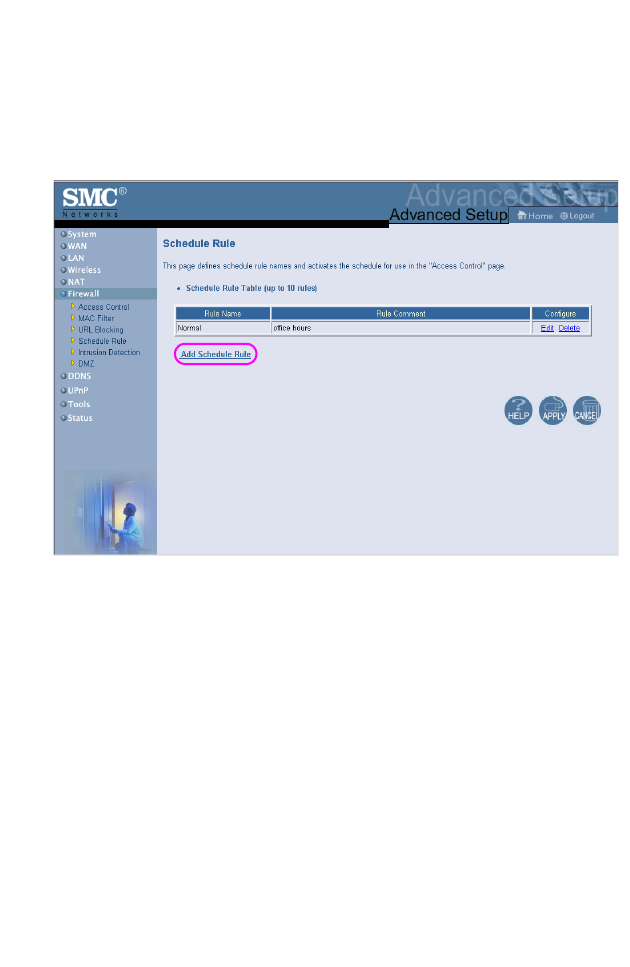

1. Click Add Schedule Rule.

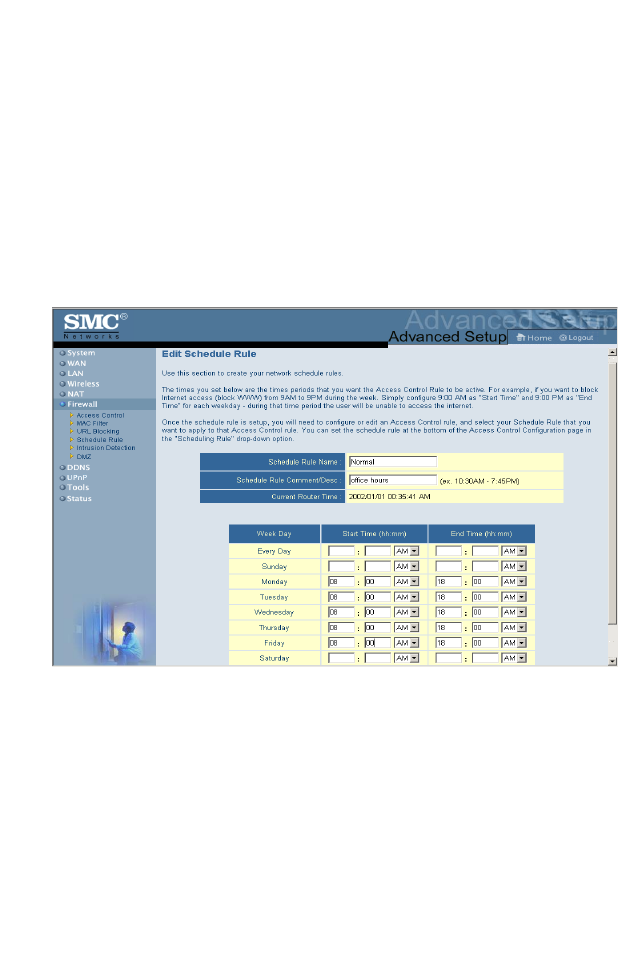

2. Define the settings for the schedule rule (as shown on the
following screen).
3. Click OK and then click the APPLY button to save your
settings.
