User Guide Part 3
44 CHAPTER 4: ACCESS POINT CONFIGURATION
To create a list of Wireless computers that can access the Access Point:
1Press New. The screen shown in Figure 30 opens.
2Select one or more MAC addresses of the Wireless PCs that you want to
allow to connect to the Access Point.
3Click Add.
The list on the Connection Control window contains the MAC addresses
of all Wireless PCs that are in range, currently operating, and have the
same Service Area Name/SSID, channel and encryption settings as the
Access Point. You will find this screen easier to use if you set up and make
a note of all of your wireless PC's on your network first. You may also add
the entries manually if you know the MAC address.
To add a MAC address that is not in the list, enter the MAC address in the
appropriate fields. A MAC address consists of 12 characters. Valid
characters are '0-9', and 'A-F'.
Click Close to discard all changes.
Modifying a MAC Address
1Click on the MAC address to be modified in the table (Figure 31)
2Modify the MAC address. The MAC address can only be edited manually.
3Press Apply to accept the changes.

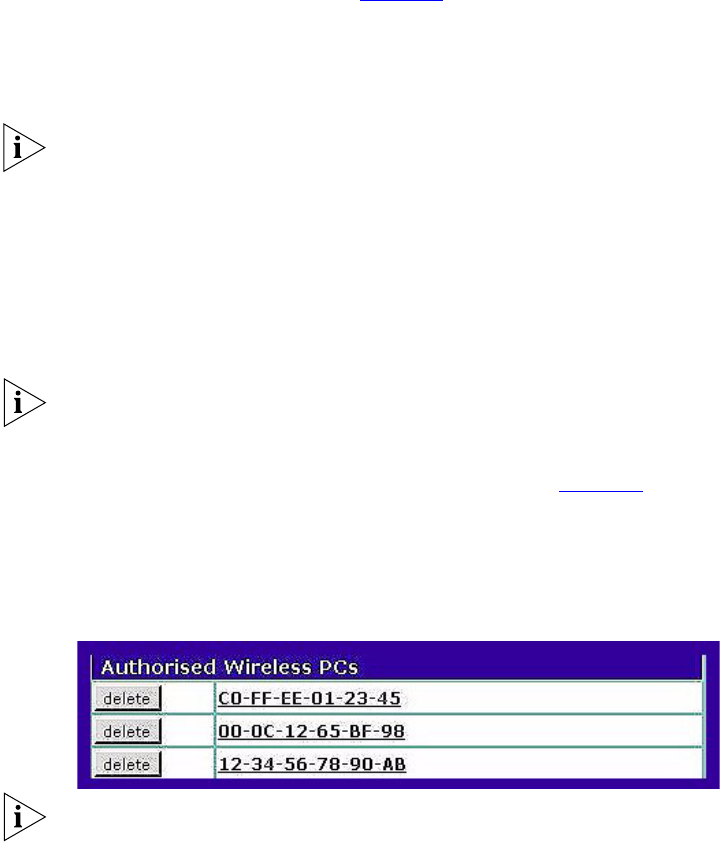

Figure 31 MAC Address Table
Click Close to discard all changes.
Deleting a MAC Address
The connection rights for a Wireless PC listed in the table can be removed
by pressing Delete for that entry in the table.
Wireless Settings 45
Once an entry has been deleted it cannot be undone. Please wait 30
seconds for changes to take effect.

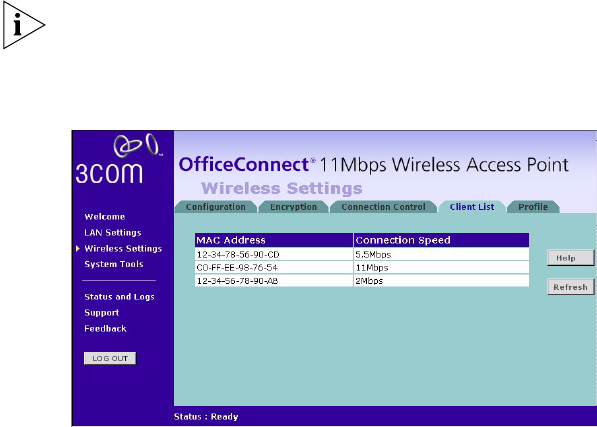

Client List Figure 32 Client List Screen
The Wireless Client List provides details on the devices that are connected
to the Wireless LAN. The list is only created when Wireless Networking is
enabled. For each device that is connected to the Wireless LAN, the MAC
address and Connection Speed of that device is displayed. As you
connect more devices to the Wireless LAN, the client list will grow to a
maximum of 128 (the maximum number of wireless devices that the
Access Point can support).
46 CHAPTER 4: ACCESS POINT CONFIGURATION

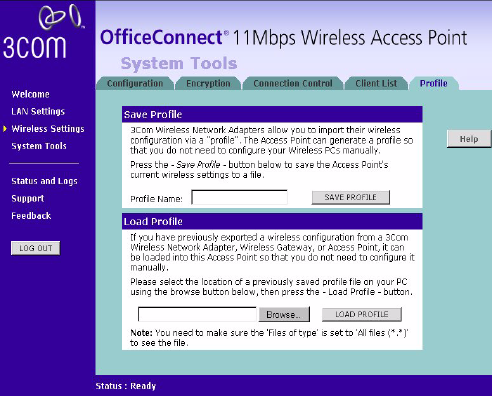

Profile Figure 33 Profile Screen
Some 3Com Wireless Network Adapters allow you to import Wireless
configurations via a ‘profile’. The Access Point can generate a profile so
that you do not need to configure your Wireless PCs manually.
The profile contains three items as follows:
■Service Area Name/SSID of the Access Point
This is configured on the Configuration tab under the Wireless
Settings option.
■Encryption settings from the Access Point
This is configured on the Encryption tab under the Wireless Settings
option.
■Profile Name
This is used to identify the profile once it has been imported into the
Wireless Network Adapter configuration software.
Wireless Settings 47
Saving a Profile
To set up a profile (once the Service Area Name/SSID and Encryption
settings have been configured in the Access Point):
1Enter a Profile Name (up to 25 alphanumeric characters) and then click
Save Profile.
2Your browser will then prompt you to enter a file name and folder
location in which to save the profile. Once the profile has been saved it
can be copied on to another PC and imported into the 3Com Wireless
Network Adapter.
For instructions on how to import a profile, refer to the User Guide that
accompanies your 3Com Wireless Network Adapter(s).
If, once the profile is imported, the Wireless Network Adapter cannot
connect to the Access Point, check that:
■the adapter is within range of the Access Point
if Connection Control has been enabled in the Access Point, the MAC
address of the Wireless Network Adapter must be included in the list of
authorised Wireless PCs.
Importing a Profile
You can import a profile that has already been saved.
1Click Browse and navigate to the folder where you have saved the profile
on your admin computer.
2Select the Profile you want to import and click Load Profile.
Only the Service Area Name and WEP settings will be imported from the
profile.
48 CHAPTER 4: ACCESS POINT CONFIGURATION
System Tools The main frame of the System Tools screen includes three administration
items: Restart, Configuration, and Upgrade (Figure 34).

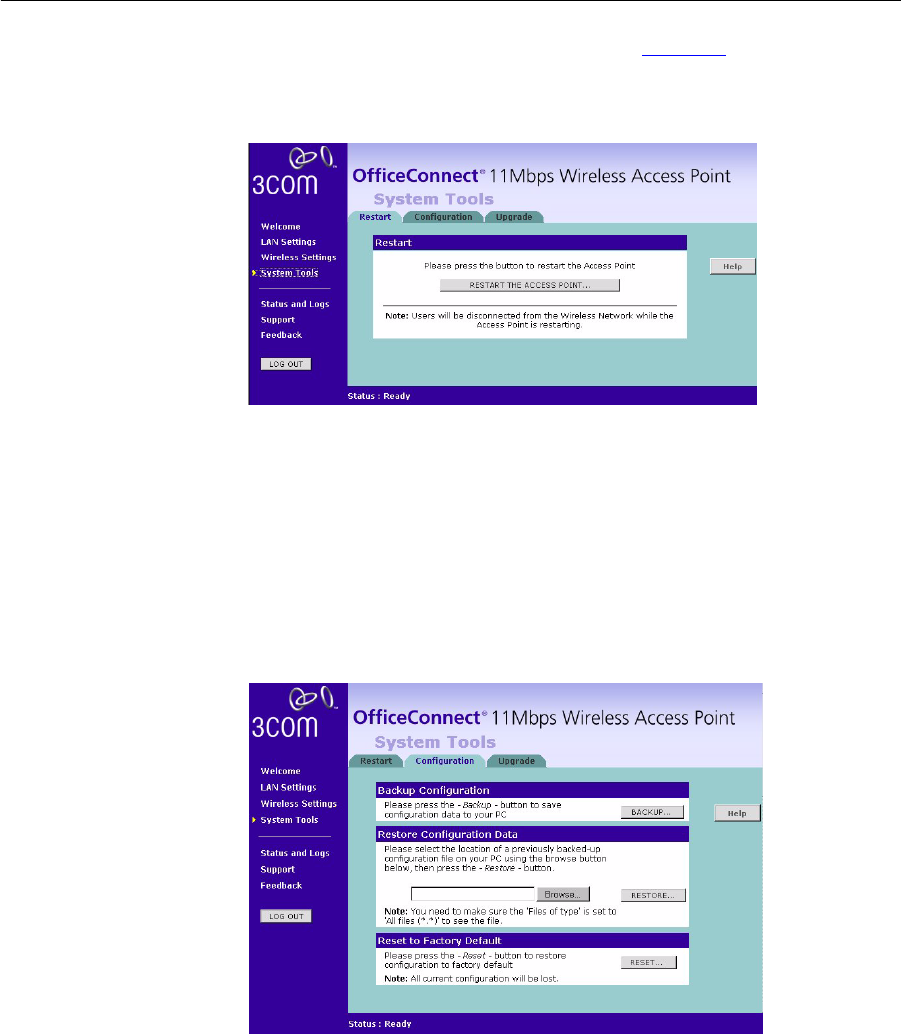

Restart Figure 34 Restart Screen
If your Access Point is not operating correctly, you can choose to restart
the Access Point by selecting Restart the Access Point, simulating the
effect of power cycling the unit. No configuration information will be lost
but the log files will be erased. Any network users who are currently
connected to the Access Point will have their access interrupted whilst the
restart takes place, and they may need to reboot their computers when
the restart has completed and the Access Point is operational again.
Configuration Figure 35 Configuration Screen
System Tools 49
Select the Configuration tab to display the Configuration screen
(Figure 35).
Backup Configuration
Click BACKUP to save the current Access Point configuration. You will be
prompted to download and save a file to disk.
Restore Configuration Data
If you want to reinstate the configuration settings previously saved to a
file, press Browse to locate the backup file on your computer, and then
click RESTORE to copy the data into the Access Point's memory.
The password will remain unchanged.
Reset to Factory Default
If you want to reset the settings on your Access Point to those that were
loaded at the factory, click RESET. You will lose all your configuration
changes. The Access Point reverts to a DHCP client and will therefore
restart requiring a new IP address. To communicate with the Access Point
you may need to rerun the DISCOVERY software to find out the IP
address of the Access Point. See Appendix A for more information. You
may need to reconfigure and restart your computer to re-establish
communication with the Access Point.

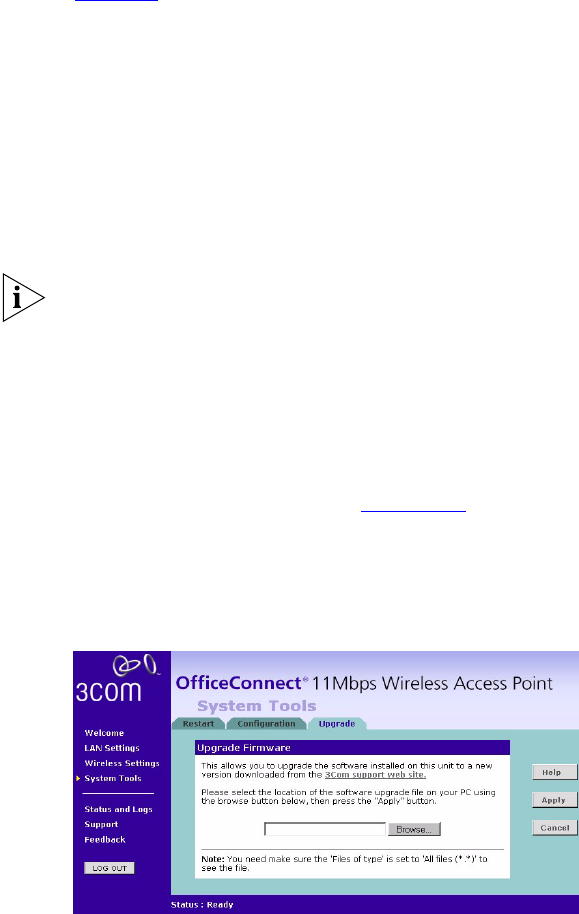

Upgrade Figure 36 Upgrade Screen
The Upgrade facility allows you to install on the Access Point any new
releases of system software that 3Com may make available. To install new
software, you first need to download the software from the 3Com
50 CHAPTER 4: ACCESS POINT CONFIGURATION
support web site to a folder on your computer. Once you have done this,
select Browse to tell your web browser where this file is on your
computer, and then click Apply. The file will be copied to the Access
Point, and once this has completed, the Access Point will restart.
Although the upgrade process has been designed to preserve your
configuration settings, it is recommended that you make a backup of the
configuration beforehand, in case the upgrade process fails for any
reason (for example, the connection between the computer and the
Access Point is lost while the new software is being copied to the Access
Point).
The upgrade procedure can take up to two minutes, and is complete
when the Alert LED has stopped flashing and is permanently off. Make
sure that you do not interrupt power to the Access Point during the
upgrade procedure; if you do, the software may be corrupted and the
Access Point may not start up properly afterwards. If the Alert LED comes
on continuously after a failed upgrade, refer to Chapter 5,
“Troubleshooting”.
Status and Logs 51

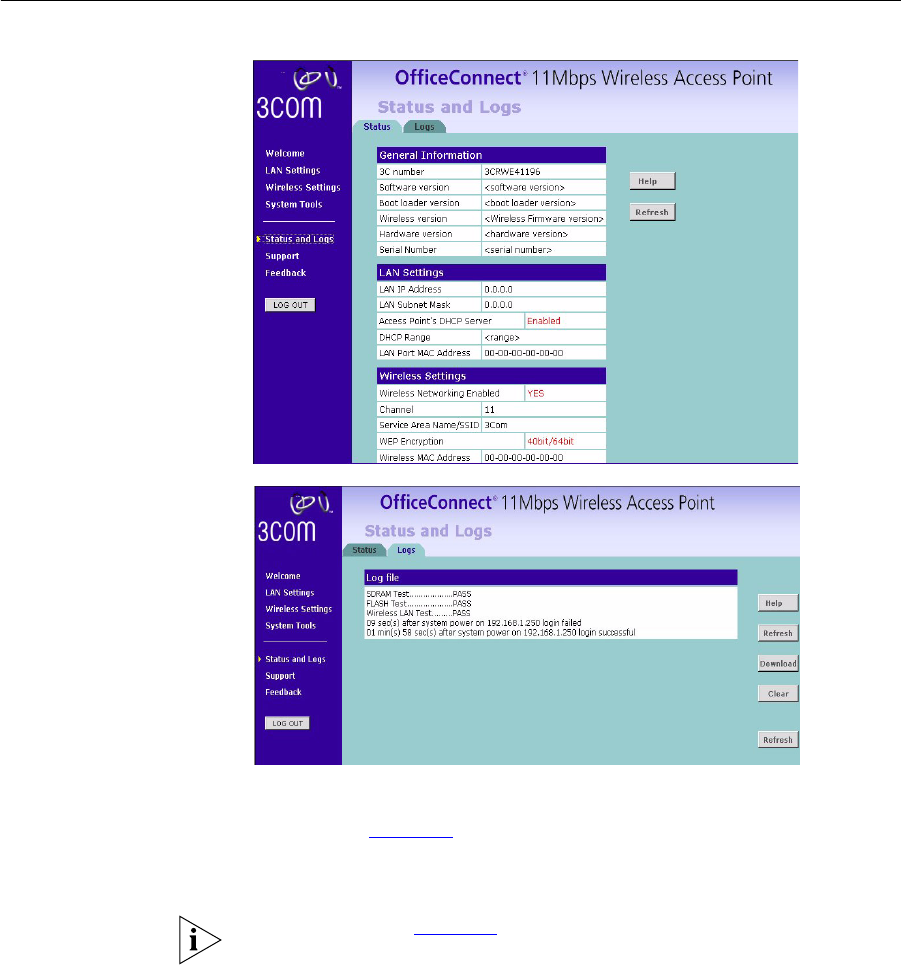

Status and Logs Figure 37 Status and Logs Screen
Selecting Status and Logs from the main menu displays the Status and
Logs screens (Figure 37) in your Web browser window. The Status screen
displays a tabular representation of your network and Internet
connection.
The screen shot in Figure 37 does not show a full status screen and the
screen can be scrolled to view more information.
52 CHAPTER 4: ACCESS POINT CONFIGURATION
Status Status displays the current unit status, including a summary of the
configuration
Logs Logs will allow you to view the events logged by the Access Point
You may be asked to refer to the information on the Status and Logs
screens if you contact your supplier for technical support.

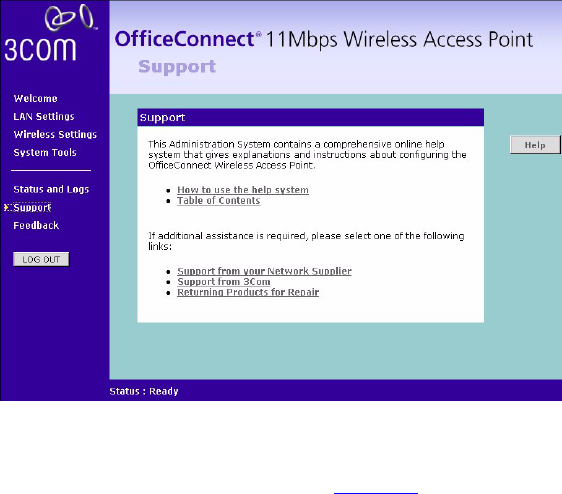

Support Figure 38 Support Screen
Selecting the Support option on the main menu displays the support links
screen, which contains a list of Internet links that provide information and
support concerning the Access Point (Figure 38).
5TROUBLESHOOTING
Basic Connection
Checks
■Check that the Access Point is connected to your switch or hub and
that all the equipment is powered on. Check that the LAN port link
status LED on the Access Point are illuminated, and that any
corresponding LEDs are also illuminated.
■Ensure that the computers have completed their start-up procedure
and are ready for use. Some network interfaces may not be correctly
initialised until the start-up procedure has completed.
■If the link status LED does not illuminate for the LAN port, check that
you do not have a faulty cable. Try a different cable. Check also that
the Uplink/Normal switch is in the correct position.
Browsing to the
Access Point
Configuration
Screens
If you have connected your Access Point, admin computer and switch
together but cannot browse to the Access Point configuration screens,
check the following:
■Confirm that the physical connection between your computer and the
Access Point is OK, and that the link status LEDs on the Access Point
and NIC are illuminated and indicating the same speed (10Mbps or
100Mbps). Some NICs do not have status LEDs, in which case a
diagnostic program may be available that can give you this
information.
■When entering the address of the Access Point into your web browser,
ensure that you use the full URL including the http:// prefix (e.g.
http://192.168.1.1).
■If you cannot browse to the Access Point, re-run the DISCOVERY
software described in Appendix A to discover the Access Point and the
IP address it has been allocated from the DHCP server. If there is no
DHCP server on your network, the DISCOVERY software changes the
IP address of the Access Point so that it is in the same subnet as your
admin computer.
54 CHAPTER 5: TROUBLESHOOTING
Forgotten Password
and Reset to
Factory Defaults
If you can browse to the Access Point configuration screen but cannot log
on because you do not know or have forgotten the password, follow the
steps below to reset the Access Point to it’s factory default configuration.
CAUTION: All your configuration changes will be lost, and you will need
to run the configuration wizard again before you can re-establish your
wireless network. All other computer users will lose their network
connections whilst this process is taking place, so choose a time when
this would be convenient.
1Remove power from the Access Point.
2Hold down the Reset button on the rear of the unit and re-apply power
to the Access Point. The Alert LED will flash as the Access Point starts up,
and after approximately 30 seconds will start to flash more slowly
(typically 2 seconds on, 2 seconds off). Once the Alert LED has started to
flash slowly. Keep Reset button held down and remove power from the
Access Point.
3Release the Reset button.
4Re-apply power to the Access Point, and when the start-up sequence has
completed, browse to the IP address of the Access Point and run the
configuration wizard. You may need to restart your computer before you
attempt this.
5When the configuration wizard has completed, you may reconnect your
network as it was before.
Wireless
Networking
■Ensure that you have a Wi-fi certified 802.11b wireless adapter for
each wireless computer, and that it is correctly installed and
configured. Verify that each Wireless computer has either Windows
95 or higher or MAC OS 8.5 or higher.
■Verify that your wireless computers are configured to work in
Infrastructure mode and not Ad Hoc mode. The Access Point is
designed to operate in Infrastructure mode. Ad Hoc mode is not
supported by the Access Point.
■Check the status of the Access Point Wireless LED, it should be lit if
wireless is enabled and will flash when there is wireless activity. If not
lit go to “Wireless Settings” on page 37 and enable wireless
networking.
■Ensure that the TCP/IP settings for all devices are correct.
Wireless Networking 55
■Ensure that the Wireless Clients are using the same SSID or Service
Area Name as the Access Point. The SSID is case-sensitive
■Ensure that you are using the same level of security on all of your
wireless computers (None, 40/64 or 128 bit) and that all devices are
using the same keys, and the same order of keys where appropriate.
■Ensure that you have the Wireless computer enabled in the list of
allowed MAC addresses if you are using Wireless Connection control
on the Access Point.
■If you are having difficulty connecting or are operating at a low speed
try changing the antenna positions on the rear of the Access Point. For
more effective coverage you can try reorientating your antennae.
Place one antenna vertically and one horizontally to improve coverage.
Additionally consider moving the wireless computer closer to the
Access Point to confirm that the building structure or fittings are not
adversely affecting the connectivity. If this resolves the problem
consider relocating the Wireless computer or select Clear Channel
Select on the Access Point.
■Sources of interference: The 2.4Ghz ISM band is used for 802.11b.
This is generally a licence free band for low power applications, and
you may have other devices at your location that operate in this
frequency band. You should take care to ensure that there are no
devices like microwave ovens for example close to the Access Point or
wireless computers as this could affect receiver sensitivity and reduce
the performance of your network. If you are unsure try relocating both
the wireless computers and the Access Point to establish whether this
problem exists.
■Most wireless computer Adapters will scan the channels for the
wireless Access Point. If a wireless computer has not located the
Access Point then try initiating a search manually if the client software
supports this feature or manually set the channel on your wireless
computer to correspond to the Access Point channel number. Please
refer to your Wireless computer adapter documentation and vendor
to do this.
■Speed of connection: The 802.11b standard will automatically choose
the best speed depending on the quality of your connection. As the
signal quality weakens then the speed falls back to a lower speed. The
speeds are 11Mbps, 5.5Mbps, 2Mbps and 1Mbps. In general the
closer you are to the Access Point the better the speed. If you are not
achieving the speed you had anticipated then try moving the antenna
on the Access Point or moving the Wireless computer closer to the
56 CHAPTER 5: TROUBLESHOOTING
Access Point. In an ideal network the Access Point should be located
in the centre of the network with Wireless computers distributed
around it. Applications are generally available with the computer
wireless card to carry out a site survey. Use this application to find the
optimal siting for your wireless computer. Consult your Wireless Card
documentation and vendor for more details.
Alert LED The Alert LED will flash when the Access Point unit is first powered up
while the system software checks the hardware for proper operation.
Once the Access Point has started normal operation, the Alert LED will go
out.
■If the Alert LED does not go out following start up, but illuminates
continuously, this indicates that the software has detected a possible
fault with the hardware. Remove power from the Access Point, wait
10 seconds and then re-apply power. If the Alert LED comes on
continuously again, then a fault has been detected. Locate the copy of
the Access Point software on the accompanying CD-ROM or 3Com
web site (http://www.3com.com) and upload it to the Access Point to
see if this clears the fault (refer to “Recovering from Corrupted
Software” below). If this does not fix the problem, contact your
supplier for further advice.
Recovering from
Corrupted Software
If the Alert LED remains permanently on following power-up, it is possible
that the system software has become corrupted. In this condition, the
Access Point will enter a “recovery” state; DHCP is disabled, and the LAN
IP address is set to 192.168.1.1. Follow the instructions below to upload
a new copy of the system software to a Access Point unit in this state.
Ensure that one of your computers has a copy of the new software image
file stored on its hard disk or available on CD-ROM.
The latest software is available on 3Com’s Web site at:
www.3com.com.
1Remove power from the Access Point and connect the admin computer
to the LAN port.
2You will need to reconfigure this computer with the following static IP
address information:
Frequently Asked Questions 57
■IP address: 192.168.1.2
■Subnet mask: 255.255.255.0
■Default Gateway address: 192.168.1.1
3Restart the computer, and re-apply power to the Access Point.
4Using the Web browser on the computer, enter the following URL in the
location bar:
http://192.168.1.1.
This will connect you to the Microcode Recovery utility in the Access
Point.
5Follow the on-screen instructions. Enter the path and filename of the
software image file.
6When the upload has completed, the Access Point will restart, run the
self-test and, if successful, resume normal operation. The Alert LED will
go out.
7Reconnect your Access Point to your network. Do not forget to
reconfigure the computer you used for the software upload.
If the Access Point does not resume normal operation following the
upload, it may be faulty. Contact your supplier for advice.
Frequently Asked
Questions
How do I reset the Access Point to Factory Defaults?
See “Forgotten Password and Reset to Factory Defaults” on
page 54.
How many wireless clients does the Access Point support?
A maximum of 128 wireless clients are supported.
58 CHAPTER 5: TROUBLESHOOTING
There is a single LAN ports on the Access Point. How are additional
computers connected?
You can expand the number of connections available on your LAN
by using hubs, switches and wireless access points connected to
the Access Point. 3Com wireless access points and OfficeConnect
hubs and switches provide a simple, reliable means of expanding
your network; contact your supplier for more information, or visit:
http://www.3com.com/
Where can I download software upgrades for the Access Point?
Upgrades to the Access Point software are posted on the 3Com
support web site, accessible by visiting:
http://www.3com.com.
What other online resources are there?
The 3Com Knowledgebase at:
http://knowledgebase.3com.com
is a database of technical information covering all 3Com products.
It is updated daily with information from 3Com technical support
services, and it is available 24 hours a day, 7 days a week.
AUSING DISCOVERY
Running the
Discovery
Application
3Com provides a user friendly Discovery application for detecting the
Access Point on the network.
If you are unable to use the Discovery application, the Access Point on
initial power-up will attempt to obtain an IP address from your local DHCP
server. Consult your DHCP Server log to obtain the IP address that was
allocated to your Access Point.
Windows Installation
(95/98/2000/Me/NT)
1Insert the Access Point CD-ROM in the CD-ROM drive on your computer.
A menu will appear; select Gateway Discovery.
Discovery will find the Access Point even if it is unconfigured or
misconfigured.

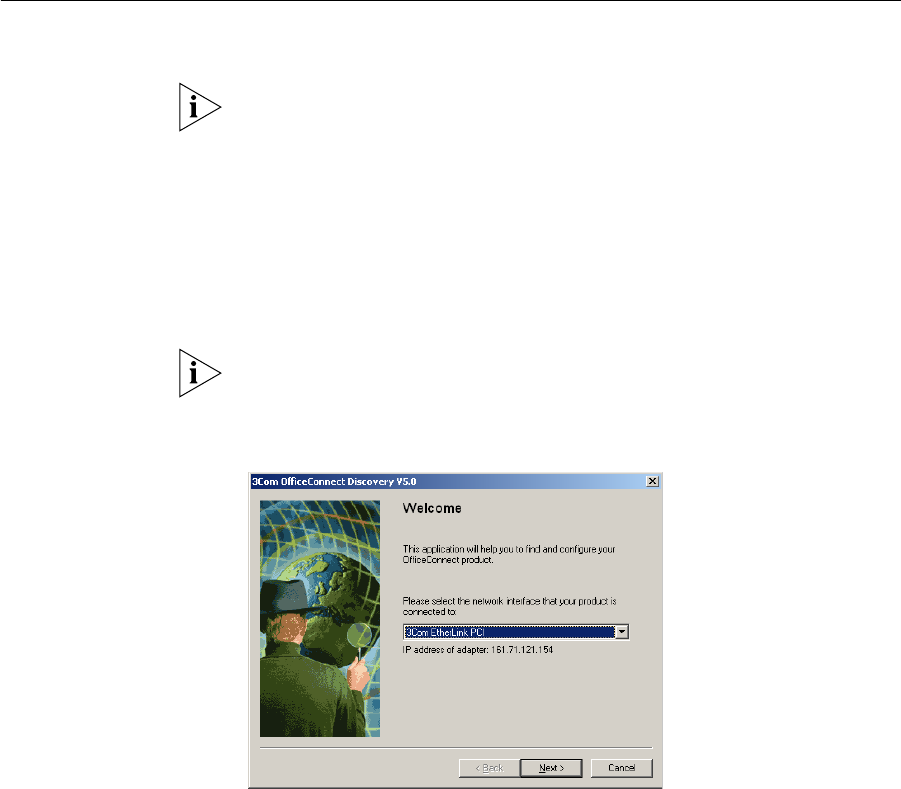

Figure 39 Discovery Welcome Screen
60 APPENDIX A: USING DISCOVERY
2When the Welcome screen is displayed, select the NIC from which the
Access Point will be discovered. Then click on Next and wait until the
application discovers the Access Points connected to your LAN.
Figure 40 Discovered Access Point Screen
3Figure 40 shows an example Discovered Devices screen. Highlight the
11Mbps Wireless Access Point by clicking on it, and press Next.
Figure 41 Discovery Finish Screen
4Click on Finish to launch a web browser and display the login page for
the Access Point.
BIP ADDRESSING
The Internet
Protocol Suite
The Internet protocol suite consists of a well-defined set of
communications protocols and several standard application protocols.
Transmission Control Protocol/Internet Protocol (TCP/IP) is probably the
most widely known and is a combination of two of the protocols (IP and
TCP) working together. TCP/IP is an internationally adopted and
supported networking standard that provides connectivity between
equipment from many vendors over a wide variety of networking
technologies.
Managing the
Access Point over
the Network
To manage a device over the network, the Access Point must be correctly
configured with the following IP information:
■An IP address
■A Subnet Mask
IP Addresses and
Subnet Masks
Each device on your network must have a unique IP address to operate
correctly. An IP address identifies the address of the device to which data
is being sent and the address of the destination network. IP addresses
have the format n.n.n.x where n is a decimal number between 0 and 255
and x is a number between 1 and 254 inclusive.
However, an IP Address alone is not enough to make your device operate.
In addition to the IP address, you need to set a subnet mask. All networks
are divided into smaller sub-networks and a subnet mask is a number
that enables a device to identify the sub-network to which it is
connected.
62 APPENDIX B: IP ADDRESSING
For your network to work correctly, all devices on the network must have:
■The same sub-network address.
■The same subnet mask.
The only value that will be different is the specific host device number.
This value must always be unique.
An example IP address is ‘192.168.100.8’. However, the size of the
network determines the structure of this IP Address. In using the Access
Point, you will probably only encounter two types of IP Address and
subnet mask structures.
Type One
In a small network, the IP address of ‘192.168.100.8’ is split into two
parts:
■Part one (‘192.168.100’) identifies the network on which the device
resides.
■Part two (‘.8’) identifies the device within the network.
This type of IP Address operates on a subnet mask of ‘255.255.255.0’.
See Ta ble 3 for an example about how a network with three computers
and a Access Point might be configured.
Table 3 IP Addressing and Subnet Masking
Type Two
In larger networks, where there are more devices, the IP address of
‘192.168.100.8’ is, again, split into two parts but is structured differently:
■Part one (‘192.168’) identifies the network on which the device
resides.
■Part two (‘.100.8’) identifies the device within the network.
Device IP Address Subnet Mask
PC 1 192.168.100.8 255.255.255.0
PC 2 192.168.100.33 255.255.255.0
PC 3 192.168.100.188 255.255.255.0
Access Point 192.168.100.72 255.255.255.0
How does a Device Obtain an IP Address and Subnet Mask? 63
This type of IP Address operates on a subnet mask of ‘255.255.0.0’.
See Ta ble 4 for an example about how a network (only four computers
represented) and a Access Point might be configured.
Table 4 IP Addressing and Subnet Masking
How does a Device
Obtain an IP
Address and Subnet
Mask?
There are three different ways to obtain an IP address and the subnet
mask. These are:
■Dynamic Host Configuration Protocol (DHCP) Addressing
■Static Addressing
■Automatic Addressing (Auto-IP Addressing)
DHCP Addressing The Access Point contains a DHCP server, which allows computers on
your network to obtain an IP address and subnet mask automatically.
DHCP assigns a temporary IP address and subnet mask which gets
reallocated once you disconnect from the network.
DHCP will work on any client Operating System such as Windows® 95,
Windows 98 or Windows NT 4.0. Also, using DHCP means that the same
IP address and subnet mask will never be duplicated for devices on the
network. DHCP is particularly useful for networks with large numbers of
users on them.
Static Addressing You must enter an IP Address and the subnet mask manually on every
device. Using a static IP and subnet mask means the address is
permanently fixed.
Auto-IP Addressing Network devices use automatic IP addressing if they are configured to
acquire an address using DHCP but are unable to contact a DHCP server.
Automatic IP addressing is a scheme where devices allocate themselves
Device IP Address Subnet Mask
PC 1 192.168.100.8 255.255.0.0
PC 2 192.168.201.30 255.255.0.0
PC 3 192.168.113.155 255.255.0.0
PC 4 192.168.002.230 255.255.0.0
Access Point 192.168.002.72 255.255.0.0
64 APPENDIX B: IP ADDRESSING
an IP address at random from the industry standard subnet of
169.254.x.x (with a subnet mask of 255.255.0.0). If two devices allocate
themselves the same address, the conflict is detected and one of the
devices allocates itself a new address.
Automatic IP addressing support was introduced by Microsoft in the
Windows 98 operating system and is also supported in Windows 2000.
CTECHNICAL SPECIFICATIONS
This section lists the technical specifications for the OfficeConnect
11Mbps Wireless Access Point.
11Mbps Wireless
Access Point
Interfaces
LAN connection - 10Mbps/100Mbps dual speed Ethernet port
(10BASE-T/100BASE-TX)
WLAN Interface
Standard IEEE 802.11b, Direct Sequence Spread Spectrum (DSSS)
Transmission rate: 11Mbps, automatic fallback to 5.5, 2 or 1Mbps
Maximum channels: 13
Range up to 304.8m (1000ft)
Frequency: (US/Canada/Europe) 2.400-2.4835 GHz
Sensitivity: 1,2,5.5Mbps: -80dBm; 11Mbps -76dBm typical
Modulation: CCK, BPSK, QPSK
Encryption: 40/64bit, 128 bit WEP
Maximum clients: 128
O/P Power 18dBm
Operating Temperature
0 °C to 40 °C (32 °F to 105 °F)
Power
7VA, 23.9 BThU/hr
Humidity
0 % to 90 % (non-condensing) humidity
66 APPENDIX C: TECHNICAL SPECIFICATIONS
Dimensions
■Width = 220 mm (8.7 in.)
■Depth = 135 mm (5.3 in.)
■Height = 24 mm (1 in.)
Weight
Approximately 592 g (1.3 lbs)
Standards Functional: ISO 8802/3
IEEE 802.3
IEEE 802.11b, WiFi
Safety: UL 1950, EN 60950
CSA 22.2 #950
IEC 60950
EMC: EN 55022 Class B
EN 55024
AS/NZS 3548 B
FCC Part 15 Class B*
ICES-003 Class B
CNS 13438 Class A
ETS 300-826
Radio CFR 47 FCC Part 15.207, 15.209, 15.247 and 15.249.
ETS 300 328 (2.4 GHz ISM band wide band transmission
systems.
Environmental: EN 60068 (IEC 68)
*See “Safety Information” on page 69 for conditions of operation.
System Requirements Operating Systems
The Access Point will support the following Operating Systems:
■Windows 95/98
■Windows NT 4.0
■Windows ME
■Windows 2000
67
■Windows XP
■Mac OS 8.5 or higher
■Unix
Ethernet Performance The Access Point complies to the IEEE 802.3i, u and x specifications.
Wireless Performance The Access Point complies with the IEEE 802.11b specification and
conforms to the WiFi interoperability test standard.
Cable Specifications The Access Point supports the following cable types and maximum
lengths:
■Category 3 (Ethernet) or Category 5 (Fast Ethernet or Dual Speed
Ethernet) Twisted Pair — shielded and unshielded cable types.
■Maximum cable length of 100m (327.86 ft).
68 APPENDIX C: TECHNICAL SPECIFICATIONS
DSAFETY INFORMATION
Important Safety
Information
WARNING: Warnings contain directions that you must follow for your
personal safety. Follow all directions carefully.
You must read the following safety information carefully before you
install or remove the unit:
WARNING: The Access Point generates and uses radio frequency (rf)
energy. In some environments, the use of rf energy is not permitted. The
user should seek local advice on whether or not rf energy is permitted
within the area of intended use.
WARNING: Exceptional care must be taken during installation and
removal of the unit.
WARNING: Only stack the Access Point with other OfficeConnect units.
WARNING: To ensure compliance with international safety standards,
only use the power adapter that is supplied with the unit.
WARNING: The socket outlet must be near to the unit and easily
accessible. You can only remove power from the unit by disconnecting
the power cord from the outlet.
WARNING: This unit operates under SELV (Safety Extra Low Voltage)
conditions according to IEC 950. The conditions are only maintained if
the equipment to which it is connected also operates under SELV
conditions.
WARNING: There are no user-replaceable fuses or user-serviceable
parts inside the Access Point. If you have a physical problem with the
unit that cannot be solved with problem solving actions in this guide,
contact your supplier.
70 APPENDIX D: SAFETY INFORMATION
WARNING: Disconnect the power adapter before moving the unit.
WARNING: RJ-45 ports. These are shielded RJ-45 data sockets. They
cannot be used as telephone sockets. Only connect RJ-45 data
connectors to these sockets.
Wichtige
Sicherheitshinweise
VORSICHT: Warnhinweise enthalten Anweisungen, die Sie zu Ihrer
eigenen Sicherheit befolgen müssen. Alle Anweisungen sind sorgfältig
zu befolgen.
Sie müssen die folgenden Sicherheitsinformationen sorgfältig
durchlesen, bevor Sie das Geräts installieren oder ausbauen:
VORSICHT: Der Access Point erzeugt und verwendet Funkfrequenz (RF).
In manchen Umgebungen ist die Verwendung von Funkfrequenz nicht
gestattet. Erkundigen Sie sich bei den zuständigen Stellen, ob die
Verwendung von Funkfrequenz in dem Bereich, in dem der Bluetooth
Access Point eingesetzt werden soll, erlaubt ist.
VORSICHT: Bei der Installation und beim Ausbau des Geräts ist mit
höchster Vorsicht vorzugehen.
VORTSICHT: Stapeln Sie das Geräts nur mit anderen OfficeConnect
Gerätes zusammen.
VORSICHT: Aufgrund von internationalen Sicherheitsnormen darf das
Gerät nur mit dem mitgelieferten Netzadapter verwendet werden.
VORSICHT: Die Netzsteckdose muß in der Nähe des Geräts und leicht
zugänglich sein. Die Stromversorgung des Geräts kann nur durch
Herausziehen des Gerätenetzkabels aus der Netzsteckdose
unterbrochen werden.
VORSICHT: Der Betrieb dieses Geräts erfolgt unter den
SELV-Bedingungen (Sicherheitskleinstspannung) gemäß IEC 950. Diese
Bedingungen sind nur gegeben, wenn auch die an das Gerät
angeschlossenen Geräte unter SELV-Bedingungen betrieben werden.
71
VORSICHT: Es sind keine von dem Benutzer zu ersetzende oder zu
wartende Teile in dem Gerät vorhanden. Wenn Sie ein Problem mit
dem Access Point haben, das nicht mittels der Fehleranalyse in dieser
Anleitung behoben werden kann, setzen Sie sich mit Ihrem Lieferanten
in Verbindung.
VORSICHT: Vor dem Ausbau des Geräts das Netzadapterkabel
herausziehen.
VORSICHT: RJ-45-Anschlüsse. Dies sind abgeschirmte
RJ-45-Datenbuchsen. Sie können nicht als Telefonanschlußbuchsen
verwendet werden. An diesen Buchsen dürfen nur RJ-45-Datenstecker
angeschlossen werden.
Consignes
importantes de
sécurité AVERTISSEMENT: Les avertissements présentent des consignes que
vous devez respecter pour garantir votre sécurité personnelle. Vous
devez respecter attentivement toutes les consignes.
Nous vous demandons de lire attentivement les consignes suivantes de
sécurité avant d’installer ou de retirer l’appareil:
AVERTISSEMENT: L’Access Point fournit et utilise de l'énergie
radioélectrique (radio fréquence -rf). L'utilisation de l'énergie
radioélectrique est interdite dans certains environnements. L'utilisateur
devra se renseigner sur l'autorisation de cette énergie dans la zone
prévue.
AVERTISSEMENT: Faites très attention lors de l'installation et de la
dépose du groupe.
AVERTISSEMENT: Seulement entasser le moyer avec les autres moyeux
OfficeConnects.
AVERTISSEMENT: Pour garantir le respect des normes internationales
de sécurité, utilisez uniquement l'adaptateur électrique remis avec cet
appareil.
AVERTISSEMENT: La prise secteur doit se trouver à proximité de
l’appareil et son accès doit être facile. Vous ne pouvez mettre l’appareil
hors circuit qu'en débranchant son cordon électrique au niveau de
cette prise.
72 APPENDIX D: SAFETY INFORMATION
AVERTISSEMENT: L’appareil fonctionne à une tension extrêmement
basse de sécurité qui est conforme à la norme CEI 950. Ces conditions
ne sont maintenues que si l'équipement auquel il est raccordé
fonctionne dans les mêmes conditions.
AVERTISSEMENT: Il n’y a pas de parties remplaceables par les
utilisateurs ou entretenues par les utilisateurs à l’intérieur du moyeu. Si
vous avez un problème physique avec le moyeu qui ne peut pas être
résolu avec les actions de la résolution des problèmes dans ce guide,
contacter votre fournisseur.
AVERTISSEMENT: Débranchez l'adaptateur électrique avant de retirer
cet appareil.
AVERTISSEMENT: Ports RJ-45. Il s'agit de prises femelles blindées de
données RJ-45. Vous ne pouvez pas les utiliser comme prise de
téléphone. Branchez uniquement des connecteurs de données RJ-45 sur
ces prises femelles.
EEND USER SOFTWARE LICENCE
AGREEMENT
3Com Corporation
END USER SOFTWARE LICENSE AGREEMENT
YOU SHOULD CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE DOWNLOADING, INSTALLING AND USING THIS
PRODUCT, THE USE OF WHICH IS LICENSED BY 3COM CORPORATION ("3COM") TO ITS CUSTOMERS FOR THEIR USE ONLY AS SET FORTH
BELOW. DOWNLOADING, INSTALLING OR OTHERWISE USING ANY PART OF THE SOFTWARE OR DOCUMENTATION INDICATES THAT YOU
ACCEPT THESE TERMS AND CONDITIONS. IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT
DOWNLOAD, INSTALL OR OTHERWISE USE THE SOFTWARE OR DOCUMENTATION, DO NOT CLICK ON THE "I AGREE" OR SIMILAR BUTTON.
AND IF YOU HAVE RECEIVED THE SOFTWARE AND DOCUMENTATION ON PHYSICAL MEDIA, RETURN THE ENTIRE PRODUCT WITH THE
SOFTWARE AND DOCUMENTATION UNUSED TO THE SUPPLIER WHERE YOU OBTAINED IT.
LICENSE: 3Com grants you a nonexclusive, nontransferable (except as specified herein) license to use the accompanying software program(s) in
executable form (the "Software") and accompanying documentation (the "Documentation"), subject to the terms and restrictions set forth in this
Agreement. You are not permitted to lease, rent, distribute or sublicense (except as specified herein) the Software or Documentation or to use the
Software or Documentation in a time-sharing arrangement or in any other unauthorized manner. Further, no license is granted to you in the human
readable code of the Software (source code). Except as provided below, this Agreement does not grant you any rights to patents, copyrights, trade
secrets, trademarks, or any other rights with respect to the Software or Documentation.
Subject to the restrictions set forth herein, the Software is licensed to be used on any workstation or any network server owned by or leased to you, for
your internal use, provided that the Software is used only in connection with this 3Com product. You may reproduce and provide one (1) copy of the
Software and Documentation for each such workstation or network server on which the Software is used as permitted hereunder. Otherwise, the
Software and Documentation may be copied only as essential for backup or archive purposes in support of your use of the Software as permitted
hereunder. Each copy of the Software and Documentation must contain 3Com's and its licensors' proprietary rights and copyright notices in the same
form as on the original. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation delivered to
you under this Agreement.
ASSIGNMENT; NO REVERSE ENGINEERING: You may transfer the Software, Documentation and the licenses granted herein to another party in the
same country in which you obtained the Software and Documentation if the other party agrees in writing to accept and be bound by the terms and
conditions of this Agreement. If you transfer the Software and Documentation, you must at the same time either transfer all copies of the Software and
Documentation to the party or you must destroy any copies not transferred. Except as set forth above, you may not assign or transfer your rights under
this Agreement.
Modification, reverse engineering, reverse compiling, or disassembly of the Software is expressly prohibited. However, if you are a European Union
("EU") resident, information necessary to achieve interoperability of the Software with other programs within the meaning of the EU Directive on the
Legal Protection of Computer Programs is available to you from 3Com upon written request.
EXPORT RESTRICTIONS: The Software, including the Documentation and all related technical data (and any copies thereof) (collectively "Technical
Data"), is subject to United States Export control laws and may be subject to export or import regulations in other countries. In addition, the Technical
Data covered by this Agreement may contain data encryption code which is unlawful to export or transfer from the United States or country where you
legally obtained it without an approved U.S. Department of Commerce export license and appropriate foreign export or import license, as required. You
agree that you will not export or re-export the Technical Data (or any copies thereof) or any products utilizing the Technical Data in violation of any
applicable laws or regulations of the United States or the country where you legally obtained it. You are responsible for obtaining any licenses to export,
re-export or import the Technical Data.
In addition to the above, the Product may not be used, exported or re-exported (i) into or to a national or resident of any country to which the U.S. has
embargoed; or (ii) to any one on the U.S. Commerce Department's Table of Denial Orders or the U.S. Treasury Department's list of Specially Designated
Nationals.
TRADE SECRETS; TITLE: You acknowledge and agree that the structure, sequence and organization of the Software are the valuable trade secrets of
3Com and its suppliers. You agree to hold such trade secrets in confidence. You further acknowledge and agree that ownership of, and title to, the
Software and Documentation and all subsequent copies thereof regardless of the form or media are held by 3Com and its suppliers.
UNITED STATES GOVERNMENT LEGENDS: The Software, Documentation and any other technical data provided hereunder is commercial in nature
74 APPENDIX E: END USER SOFTWARE LICENCE AGREEMENT
and developed solely at private expense. The Software is delivered as "Commercial Computer Software" as defined in DFARS 252.227-7014 (June
1995) or as a commercial item as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in this Agreement, which is
3Com's standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov.
1995) or FAR 52.227-14 (June 1987), whichever is applicable.
TERM AND TERMINATION: The licenses granted hereunder are perpetual unless terminated earlier as specified below. You may terminate the licenses
and this Agreement at any time by destroying the Software and Documentation together with all copies and merged portions in any form. The licenses
and this Agreement will also terminate immediately if you fail to comply with any term or condition of this Agreement. Upon such termination you
agree to destroy the Software and Documentation, together with all copies and merged portions in any form.
LIMITED WARRANTIES AND LIMITATION OF LIABILITY: All warranties and limitations of liability applicable to the Software are as stated on the
Limited Warranty Card or in the product manual, whether in paper or electronic form, accompanying the Software. Such warranties and limitations of
liability are incorporated herein in their entirety by this reference.
GOVERNING LAW: This Agreement shall be governed by the laws of the State of California, U.S.A. excluding its conflicts of laws principles and
excluding the United Nations Convention on Contracts for the International Sale of Goods.
SEVERABILITY: In the event any provision of this Agreement is found to be invalid, illegal or unenforceable, the validity, legality and enforceability of
any of the remaining provisions shall not in any way be affected or impaired and a valid, legal and enforceable provision of similar intent and economic
impact shall be substituted therefor.
ENTIRE AGREEMENT: This Agreement sets forth the entire understanding and agreement between you and 3Com and supersedes all prior
agreements, whether written or oral, with respect to the Software and Documentation, and may be amended only in a writing signed by both parties.
Should you have any questions concerning this Agreement or if you desire to contact 3Com for any reason, please contact the 3Com subsidiary serving
your country, or write:
3Com Corporation, 5500 Great America Parkway, P.O. Box 58145, Santa Clara, CA 95052-8145 (408) 326-5000
GLOSSARY
802.11b The IEEE standard to which the 3Com OfficeConnect 11Mpbs Wireless
Access Point conforms. This standard provides for 1,2,5.5 and 11 Mbps
data rates and a set of fundamental signaling methods and other services
(see WECA).
10BASE-T The IEEE specification for 10 Mbps Ethernet over Category 3, 4 or 5
twisted pair cable.
100BASE-TX The IEEE specification for 100 Mbps Fast Ethernet over Category 5
twisted-pair cable.
Access Point An Access Point is a device through which wireless clients connect to
other wireless clients and which acts as a bridge between wireless clients
and a wired network, such as Ethernet. Wireless clients can be moved
anywhere within the coverage area of the access point and still connect
with each other. If connected to an Ethernet network, the access point
monitors Ethernet traffic and forwards appropriate Ethernet messages to
the wireless network, while also monitoring wireless client radio traffic
and forwarding wireless client messages to the Ethernet LAN.
Ad Hoc mode Ad Hoc mode is a configuration supported by most wireless clients. It is
used to connect a peer to peer network together without the use of an
access point. It offers lower performance than infra-structure mode,
which is the mode the gateway uses. (see also Infra-structure mode.)
Auto-negotiation Some devices in the OfficeConnect range support auto-negotiation.
Auto-negotiation is where two devices sharing a link, automatically
configure to use the best common speed. The order of preference (best
first) is: 100BASE-TX full duplex, 100BASE-TX half duplex, 10BASE-T full
duplex, and 10BASE-T half duplex. Auto-negotiation is defined in the IEEE
76 GLOSSARY
802.3 standard for Ethernet and is an operation that takes place in a few
milliseconds.
Bandwidth The information capacity, measured in bits per second, that a channel can
transmit. The bandwidth of Ethernet is 10 Mbps, the bandwidth of Fast
Ethernet is 100 Mbps. The bandwidth for 802.11b wireless is 11Mbps.
Category 3 Cables One of five grades of Twisted Pair (TP) cabling defined by the EIA/TIA-586
standard. Category 3 is voice grade cable and can only be used in
Ethernet networks (10BASE-T) to transmit data at speeds of up to 10
Mbps.
Category 5 Cables One of five grades of Twisted Pair (TP) cabling defined by the EIA/TIA-586
standard. Category 5 can be used in Ethernet (10BASE-T) and Fast
Ethernet networks (100BASE-TX) and can transmit data up to speeds of
100 Mbps. Category 5 cabling is better to use for network cabling than
Category 3, because it supports both Ethernet (10 Mbps) and Fast
Ethernet (100 Mbps) speeds.
Channel Similar to any radio device, the OfficeConnect 11Mbps Wireless Access
Point allows you to choose different radio channels in the wireless
spectrum. A channel is a particular frequency within the 2.4GHz
spectrum within which the Gateway operates.
Client The term used to described the desktop PC that is connected to your
network.
DHCP Dynamic Host Configuration Protocol. This protocol automatically assigns
an IP address for every computer on your network. Windows 95,
Windows 98 and Windows NT 4.0 contain software that assigns IP
addresses to workstations on a network. These assignments are made by
the DHCP server software that runs on Windows NT Server, and Windows
95 and Windows 98 will call the server to obtain the address. Windows
98 will allocate itself an address if no DHCP server can be found.
DNS Server Address DNS stands for Domain Name System, which allows Internet host
computers to have a domain name (such as 3com.com) and one or more
IP addresses (such as 192.34.45.8). A DNS server keeps a database of
host computers and their respective domain names and IP addresses, so
that when a domain name is requested (as in typing “3com.com” into
GLOSSARY 77
your Internet browser), the user is sent to the proper IP address. The DNS
server address used by the computers on your home network is the
location of the DNS server your ISP has assigned.
Encryption A method for providing a level of security to wireless data transmissions.
The OfficeConnect 11Mbps Wireless Access Point uses two levels of
encryption; 40/64 bit and 128 bit. 128 bit is a more powerful level of
encryption than 40/64 bit.
ESSID Extended Service Set Identifier. The ESSID is a unique identifier for your
wireless network. You must have the same ESSID entered into the Access
Point and each of it's wireless clients.
Ethernet A LAN specification developed jointly by Xerox, Intel and Digital
Equipment Corporation. Ethernet networks use CSMA/CD to transmit
packets at a rate of 10 Mbps over a variety of cables.
Ethernet Address See MAC address.
Fast Ethernet An Ethernet system that is designed to operate at 100 Mbps.
Firewall Electronic protection that prevents anyone outside of your network from
seeing your files or damaging your computers.
Full Duplex A system that allows packets to be transmitted and received at the same
time and, in effect, doubles the potential throughput of a link.
Half Duplex A system that allows packets to transmitted and received, but not at the
same time. Contrast with full duplex.
Hub A device that regenerates LAN traffic so that the transmission distance of
that signal can be extended. Hubs are similar to repeaters, in that they
connect LANs of the same type; however they connect more LANs than a
repeater and are generally more sophisticated.
IEEE Institute of Electrical and Electronics Engineers. This American
organization was founded in 1963 and sets standards for computers and
communications.
78 GLOSSARY
IETF Internet Engineering Task Force. An organization responsible for
providing engineering solutions for TCP/IP networks. In the network
management area, this group is responsible for the development of the
SNMP protocol.
Infra-structure mode Infra-Structure mode is the 802.11b configuration supported by the
Access Point. You will need to ensure all of your clients are set up to use
infra-structure mode in order for them to communicate with the Access
Point. (see also Ad Hoc mode)
IP Internet Protocol. IP is a layer 3 network protocol that is the standard for
sending data through a network. IP is part of the TCP/IP set of protocols
that describe the routing of packets to addressed devices. An IP address
consists of 32 bits divided into two or three fields: a network number and
a host number or a network number, a subnet number, and a host
number.
IP Address Internet Protocol Address. A unique identifier for a device attached to a
network using TCP/IP. The address is written as four octets separated with
periods (full-stops), and is made up of a network section, an optional
subnet section and a host section.
ISP Internet Service Provider. An ISP is a business that provides connectivity to
the Internet for individuals and other businesses or organizations.
LAN Local Area Network. A network of end stations (such as PCs, printers,
servers) and network devices (hubs and switches) that cover a relatively
small geographic area (usually not larger than a floor or building). LANs
are characterized by high transmission speeds over short distances (up to
1000 metres).
MAC Media Access Control. A protocol specified by the IEEE for determining
which devices have access to a network at any one time.
MAC Address Media Access Control Address. Also called the hardware or physical
address. A layer 2 address associated with a particular network device.
Most devices that connect to a LAN have a MAC address assigned to
them as they are used to identify other devices in a network. MAC
addresses are 6 bytes long.
GLOSSARY 79
Network A Network is a collection of computers and other computer equipment
that are connected for the purpose of exchanging information or sharing
resources. Networks vary in size, some are within a single room, others
span continents.
Network Interface
Card (NIC)
A circuit board installed into a piece of computing equipment, for
example, a computer, that enables you to connect it to the network. A
NIC is also known as an adapter or adapter card.
Protocol A set of rules for communication between devices on a network. The
rules dictate format, timing, sequencing and error control.
RJ-45 A standard connector used to connect Ethernet networks. The "RJ"
stands for "registered jack".
Server A computer in a network that is shared by multiple end stations. Servers
provide end stations with access to shared network services such as
computer files and printer queues.
SSID Service Set Identifier. Some vendors of wireless products use SSID
interchangeably with ESSID.
Subnet Address An extension of the IP addressing scheme that allows a site to use a single
IP network address for multiple physical networks.
Subnet mask A subnet mask, which may be a part of the TCP/IP information provided
by your ISP, is a set of four numbers configured like an IP address. It is
used to create IP address numbers used only within a particular network
(as opposed to valid IP address numbers recognized by the Internet,
which must assigned by InterNIC).
Subnets A network that is a component of a larger network.
Switch A device that interconnects several LANs to form a single logical LAN that
comprises of several LAN segments. Switches are similar to bridges, in
that they connect LANs of a different type; however they connect more
LANs than a bridge and are generally more sophisticated.
80 GLOSSARY
TCP/IP Transmission Control Protocol/Internet Protocol. This is the name for two
of the most well-known protocols developed for the interconnection of
networks. Originally a UNIX standard, TCP/IP is now supported on almost
all platforms, and is the protocol of the Internet.
TCP relates to the content of the data travelling through a network —
ensuring that the information sent arrives in one piece when it reaches its
destination. IP relates to the address of the end station to which data is
being sent, as well as the address of the destination network.
Traffic The movement of data packets on a network.
WECA Wireless Ethernet Compatibility Alliance. An industry group formed to
certify cross vendor interoperability and compatibility of 802.11b wireless
networking products and to promote the standard for enterprise, small
business and home environments. (see also 802.11b, Wi-Fi)
WEP Wired Equivalent Privacy. A shared key encryption mechanism for wireless
networking. Encryption strength is 40/64 bit or 128 bit.
WiFi Wireless Fidelity. This is the certification granted by WECA to products
that meet their interoperability criteria. (see also 802.11b, WECA)
Wireless Client The term used to describe a desktop or mobile PC that is wirelessly
connected to your wireless network
Wireless LAN Service
Area
Another term for ESSID (Extended Service Set Identifier)
Wizard A Windows application that automates a procedure such as installation
or configuration.
WLAN Wireless Local Area Network. A WLAN is a group of computers and
devices connected together by wireless in a relatively small area (such as a
house or office).
INDEX
A
Access 13
Addresses
IP 61
Administration Password 26, 33
Automatic Addressing 63
C
Cable Specifications 67
Channels 83
Configuration
backup 49
restore 49
Conventions
notice icons, About This Guide 8
text, About This Guide 8
Country Selection 24
D
DHCP 27, 36, 63
Discovery Application 59
F
Forgotten Password 54
I
Internet
addresses 61
IP Address 27, 28, 34, 61
L
LAN 26, 34
LED 14
Login 23, 60
Logs 52
M
MAC Address 37
deleting 44
modifying 44
N
Network
addresses 61
Networking
wireless 54
NIC
wireless 14
P
Password 23, 33
Profile 46
R
Reset to Factory Defaults 49, 54
Restart 48
S
Safety Information 17
Setup Wizard 21, 33
Specifications
technical 65
Static Addressing 63
Status 52
Subnet Mask 27, 28, 61
Summary 30
Support Information 52
Support Links 52
T
TCP/IP 27, 61
Technical
specifications 65
standards 65
Time Zone 48
REGULATORY NOTICES FOR THE
11MBPS WIRELESS ACCESS
POINT
Channels Use of the 11Mbps Wireless Access Point is only authorized for the
channels approved by each country. For proper installation, login to the
management interface and select your country from the drop down list.
Tab le 5 below details the channels permitted by the local regulatory
agencies:
Tab l e 5 Channels
FCC Statement This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules, and the
Canadian Department of Communications Equipment Standards entitled,
“Digital Apparatus,” ICES-003. These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
Channels Country
1 - 13 Australia, Austria, Bahrain, Belarus, Belgium, Chile, China, Costa
Rica, Croatia, Cyprus, Czech Republic, Denmark, Finland, Germany,
Greece, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Italy,
Japan, Liechtenstein, Lithuania, Luxembourg, Malaysia, Netherlands,
New Zealand, Norway, Paraguay, Peru, Philippines, Poland, Portugal,
Russia, Saudi Arabia, Singapore, Slovenia, South Africa, South Korea,
Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom,
Uruguay, Venezuela.
1 - 11 Argentina, Brazil, Canada, Columbia, Mexico, Taiwan, United States
10 - 13 France, Jordan
5 - 7 Israel
84
Information to the
User
If this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
■Reorient the receiving antenna.
■Relocate the equipment with respect to the receiver.
■Move the equipment away from the receiver.
■Plug the equipment into a different outlet so that equipment and
receiver are on different branch circuits.
■Consult the dealer or an experienced radio/television technician for
help.
The user may find the following booklet prepared by the Federal
Communications Commission helpful:
How to Identify and Resolve Radio-TV Interference Problems
This booklet is available from the U.S. Government Printing Office,
Washington, DC 20402, Stock No. 004-000-00345-4. In order to meet
FCC emissions limits, this equipment must be used only with cables which
comply with IEEE 802.3.
FCC Declaration of
Conformity
We declare under our sole responsibility that the
Model:Description:
3CRWE41196 11Mbps Wireless Access Point
to which this declaration relates, is in conformity with the following
standards or other normative documents:
■ANSI C63.4-1992 Methods of Measurement
■Federal Communications Commission 47 CFR Part 15, subpart B
15.107 (a)Class B Conducted Limits
15.109 (a)Class B Radiated Emissions Limits
■15.107 (e)Class B Conducted Limits
15.109 (g)Class B Radiated Emissions Limits
85
Exposure to Radio Frequency Radiation: The radiated output power of the
3Com OfficeConnect 11Mbps Wireless Access Point is far below the FCC
radio frequency exposure limits. Nevertheless, the 3Com OfficeConnect
11Mbps Wireless Access Point shall be used in such manner that the
potential for human contact during normal operation is minimized. The
distance between the antennas and the user should not be less than
20 cm.
CE Statement
(Europe)
This product complies with the European Low Voltage Directive
73/23/EEC, EMC Directive 89/336/EEC as amended by European Directive
93/68/EEC and the Radio and Telecommunications Terminal Equipment
Directive 99/5/EC.
CSA Statement This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
BSMI Statement
FCC CAUTION: To assure continued compliance, (for example, use only
shielded interface cables when connecting to computer or peripheral
devices) any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate this equipment.
86
RF Exposure
Compliance
Statement (U.S.)
CAUTION: The 3Com OfficeConnect 11Mbps Wireless Access Point has
been certified as a mobile computing device as per FCC Section 2.1091.
In order to comply with the FCC RF exposure requirements, the 3Com
OfficeConnect Wireless Cable/DSL Gateway must only be installed with
approved antennas and a minimum separation distance of 20 cm (8 in)
must be maintained from the antenna to any nearby persons.
Potential RF
Interference
(Canada)
CAUTION: To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from windows to
provide maximum shielding. Equipment (or it's transmit antenna) that is
installed outdoors is subject to licensing.
3Com Corporation, Corporate Headquarters,
5500 Great America Parkway, Santa Clara,
CA 95052-8145, USA.
To learn more about 3Com products and services,
visit our World Wide Web site at www.3com.com
All specifications are subject to change without notice.
Copyright © 2003 3Com Corporation. All rights reserved.
3Com and OfficeConnect are registered trademarks of
3Com Corporation. All other company and product names
may be trademarks of their respective companies.
DUA4119-6AAA01
