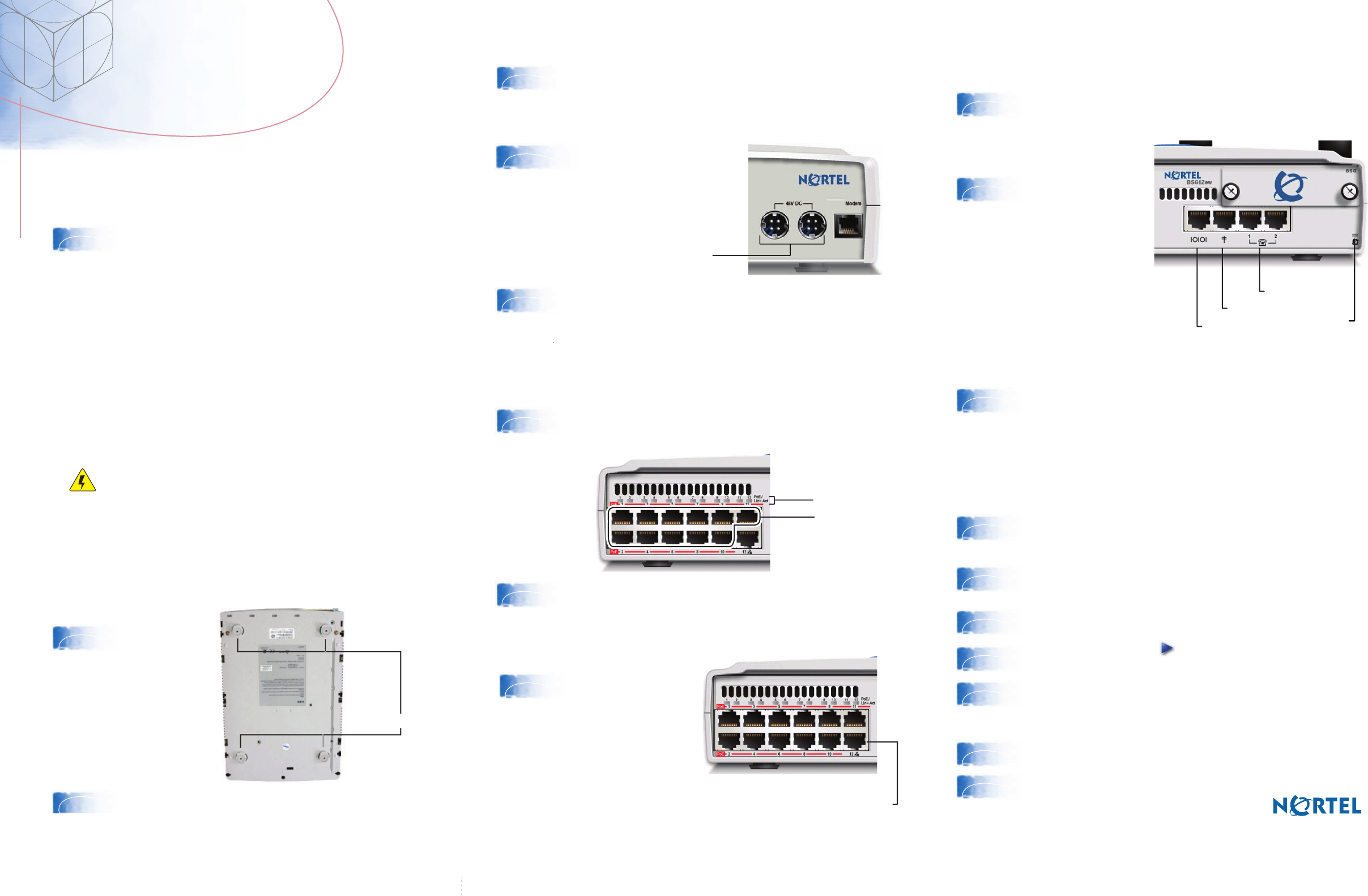

Accton Technology BSG12 BUSINESS SERVICE GATEWAY User Manual BSG12ew Quick Installation Guide

Accton Technology Corp BUSINESS SERVICE GATEWAY BSG12ew Quick Installation Guide

INSTALLATION MANUAL 2

Tools and materials
Installing the BSG unit
For optional methods to install your BSG, see the BSG8ew and
BSG12ew/aw/tw 1.0 Installation Guide (NN47928-302).
Configuring the initial system settings
Complete the following steps using the BSG Quick Start Wizard. Before you start,
contact your Internet service provider (ISP) to obtain your user name, password,
and encapsulation type information (Ethernet, PPPoE).
Connecting wireless
Optional installations
Connecting the Public Switched Telephone
Network
10
12 Plug one end of an RJ-11 telephone cable into the FXO analog
line (RJ-11) port on the front of the BSG. Plug the other end of
the cable into the telephone jack on the wall.
Attach the omni-directional antennas to the wireless LAN
antenna connectors on the back of the BSG.
BSG12ew
BSG12ew
Quick Installation Guide
1
4
6
7
8
13
14
15
16
17
18
19
5
2
3
Before you install the Business Services Gateway (BSG), ensure
that you have the following package contents and materials:
Package Contents
● BSG unit
● power supply and power cord
● two omni-directional antennas
● console cable assembly
● Quick Installation Guide
● four self-adhesive rubber feet
● Regulatory sheet
● Hazardous Substance table
Additional Required Materials (not included)
● standard Ethernet cable (WAN connection)
● two to three RJ-11 telephony cables (if using analog
devices)
You can download all documents referenced in this Quick Installation Guide
at www.nortel.com
Position the BSG on a desktop. Make sure you leave enough
space around the unit for ventilation and access to the cables.
Install the power supply next to the BSG. The power supply must
be within 1.5 m (5 ft) of the BSG and within 1.5 m (5 ft) of the AC
power outlet (wall outlet or universal power supply).
Connect the 48V DC 4-pin DIN
power supply connector into
either of the power outlets at the
back of your BSG.
From a PC connected to the LAN, open a new Web browser, type
http://192.168.1.1 into the address bar, and press Enter to start the
Web user interface.
In the Login window, enter your user name (nnadmin) and password
(PlsChgMe!), and click Login.
In the navigation pane on the left, click Quick Start Wizard.
Click the blue forward button to start the wizard.
Click Next and enter information on each wizard page as required.
On the Review Data page, click
Continue. Congratulations! You have
successfully configured the Nortel
Business Services Gateway!
Enter your ISP name, user name, and password, and confirm your
password by entering it again. For more information about additional
settings within the Quick Start Wizard, see the BSG8ew and
BSG12ew/aw/tw 1.0 Configuration Guide (NN47928-500).
Attach the four
self-adhesive
rubber feet to the
bottom of the BSG
by peeling off the
paper backing and
placing the feet on
the unit.
N0153680
NN47928-304
Standard 01.01
Caution: Risk of equipment damage
To avoid damaging the equipment, you must connect the BSG to
an outlet with a third-wire ground. Use the BSG with only the
supplied BSG power supply and a three-wire power outlet
Plug one end of a standard Ethernet cable into one of the eleven
LAN ports on the front of your BSG. Plug the other end of the
Ethernet cable into your LAN device, such as a VoIP phone or PC.
Ensure that the corresponding LAN port PoE/Link/Act LED lights
up. The corresponding LED will come on only if the device
connecting to that port is powered on.
Connecting the WAN
9
WAN port
Plug one end of the
standard Ethernet
cable into the WAN
port (port 12) of the
BSG. Plug the other
end into the service
provider’s cable
modem or DSL
modem.
Connect one end of the AC power cord into the AC power supply.
Plug the other end of the AC power cord into the AC power outlet
(wall outlet or universal power supply).The System LED on the front
panel lights up.
Printed in Canada. Copyright © Nortel Networks Limited 2007. All Rights Reserved
Connecting LAN devices (VoIP phones
and PCs)
Two power outlets
Connecting analog
or fax devices
11 Plug one end of an
RJ-11 telephone cable
into either of the FXS
analog telephone
(RJ-11) ports on the
front of the BSG. Plug
the other end of the
cable into the analog
device.
Console port
FXO port
FXS ports
Attach feet here
PoE/Link/Act LEDs
LAN ports
