Chapter 7 Using HiveManager

80 Aerohive

•HiveAP management traffic for CAPWAP, SNMP monitoring and notifications, and SCP configuration, captive

web portal file, and HiveOS firmware uploads to managed HiveAPs

When you enable both interfaces, HiveManager management traffic uses the MGT interface while HiveAP

management traffic uses the LAN interface, as shown in Figure2.

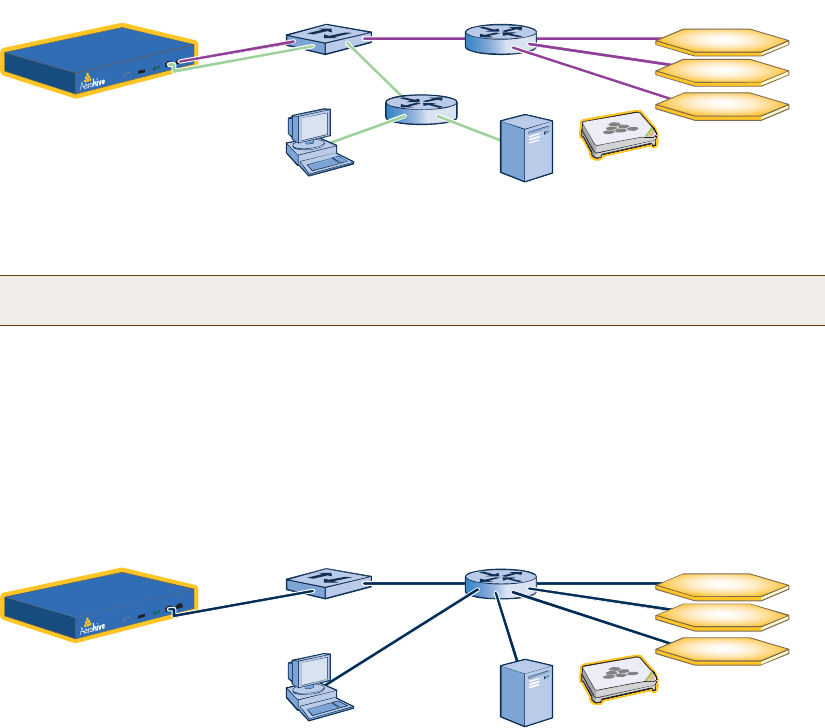

Figure 2 Using Both MGT and LAN Interfaces

When only the MGT interface is enabled, both types of management traffic use it. A possible drawback to this

approach is that the two types of management traffic cannot be separated into two different networks. For

example, if you have an existing management network, you would not be able to use it for HiveManager

management traffic. Both HiveManager and HiveAP management traffic would need to flow on the operational

network because HiveManager would need to communicate with the HiveAPs from its MGT interface (see

Figure3). However, if the separation of both types of traffic is not an issue, then using just the MGT interface is

a simple approach to consider.

Figure 3 Using Just the MGT Interface

8.After you finish configuring the network settings, return to the main menu, and reboot the HiveManager

appliance by entering 5 (5 Reboot HM Appliance).

You can now disconnect the serial cable.

Note: To set static routes after you log in to the GUI, click HM Admin > HiveManager Settings >Routing >

Add, set the destination IP address/netmask and gateway, and then click Apply.

ÓÙÌ

ïðòïòîòèñîì

ÔßÒ

ïðòïòïòèñîì

Í©·¬½¸ Î±«¬»®

Ø·ª»- ·² ¼·ºº»®»²¬ -«¾²»¬-

Î±«¬»®

ïðòïòíòðñîì

ïðòïòìòðñîì

ïðòïòëòðñîì

ïðòïòïòï

ïðòïòîòï

ß¼³·²

ïðòïòéòíì

ÍÝÐ Í»®ª»®

ïðòïòêòïî

Ø·ª»Ó¿²¿¹»®

Û¿½¸ ¸·ª» ½±²¬¿·²-

³«´¬·°´» Ø·ª»ßÐ-ò

Static Routes: HiveManager sends traffic destined for 10.1.6.0/24 to 10.1.2.1.

HiveManager sends traffic destined for 10.1.7.0/24 to 10.1.2.1.

Default Gateway:10.1.1.1 (HiveManager sends traffic here when there are no specific routes to a destination.)

ÓÙÌ

ïðòïòïòèñîì

ÔßÒ

ðòðòðòðñð

Í©·¬½¸ Î±«¬»®

Ø·ª»- ·² ¼·ºº»®»²¬ -«¾²»¬-

ïðòïòíòðñîì

ïðòïòìòðñîì

ïðòïòëòðñîì

ïðòïòïòï

ß¼³·²

ïðòïòéòíì

ÍÝÐ Í»®ª»®

ïðòïòêòïî

Ø·ª»Ó¿²¿¹»®

Û¿½¸ ¸·ª» ½±²¬¿·²-

³«´¬·°´» Ø·ª»ßÐ-ò

Default Gateway:10.1.1.1 (HiveManager sends all traffic to the default gateway.)

Deployment Guide 81

INSTALLINGAND CONNECTINGTOTHE HIVEMANAGER GUI

Connecting to the GUI through the MGT Interface

1.Connect Ethernet cables from the MGT interface and LAN interface—if you are using it—to the network.

2.Connect an Ethernet cable from your management system to the network so that you can make an HTTPS

connection to the IP address that you set for the MGT interface.

3.Open a web browser and enter the IP address of the MGT interface in the address field. For example, if you

changed the IP address to 10.1.1.8, enter this in the address field: https://10.1.1.8

A login prompt appears.

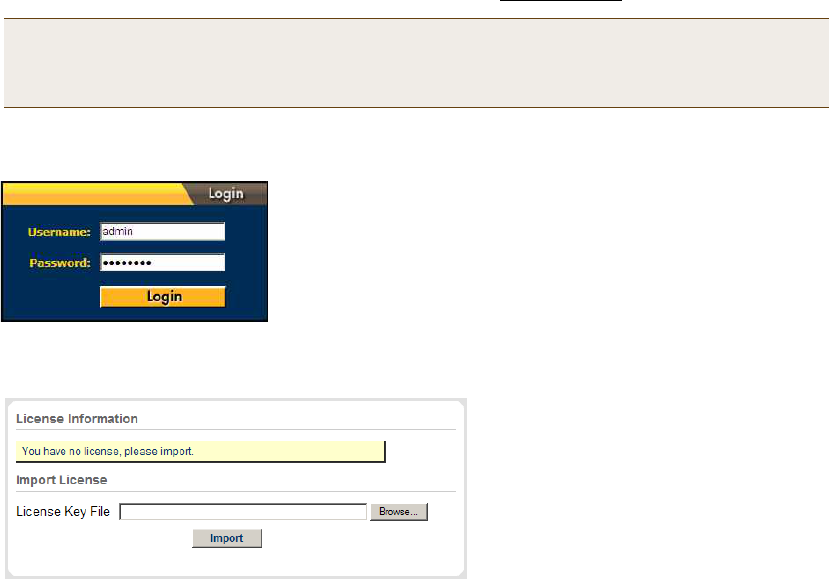

4.Type the default user name (admin) and password (aerohive) in the login fields, and then click Login.

5.If prompted to enter a license key, click Browse, navigate to and select the text file containing the license key

that Aerohive provided when HiveManager was purchased, and then click OK.

You are now logged in to the HiveManager GUI. After logging in, you can check details about the license you

installed on the HM Admin > License Management page.

Note: If you ever forget the IP address of the MGT interface and cannot make an HTTP connection to

HiveManager, make a serial connection to its console port and enter this command: ifconfig . The

output displays data about the MGT interface (internally called "eth0"), including its IP address. The

serial connection settings are explained in "Changing Network Settings" on page79.

Chapter 7 Using HiveManager

82 Aerohive

INTRODUCTIONTOTHE HIVEMANAGER GUI

Using the HiveManager GUI, you can set up the configurations needed to deploy, manage, and monitor large

numbers of HiveAPs. The configuration workflow is described in "HiveManager Configuration Workflow" on page85.

The GUI consists of several important sections, which are shown in Figure4.

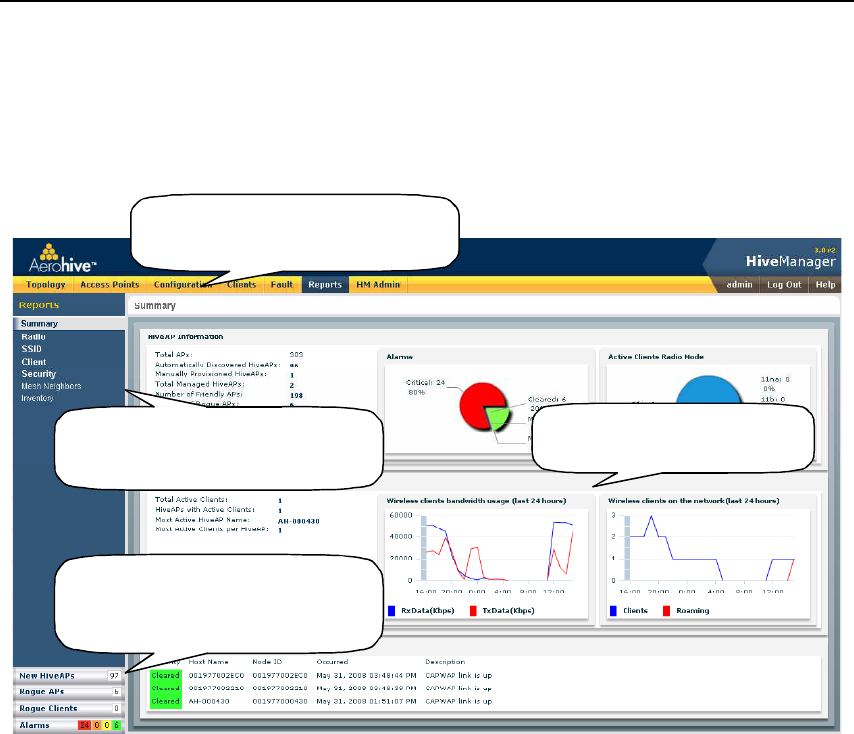

Figure 4 Important Sections of the HiveManager GUI

Some convenient aspects that the HiveManager GUI offers are the ability to clone configurations, apply

configurations to multiple HiveAPs at once, and sort displayed information. Brief overviews of these functions are

presented in the following sections.

Main Panel: The main panel contains

the windows in which you set and view

various parameters.

Notifications: HiveManager displays a

summary of new HiveAPs, rogue APs, rogue

clients, and alarms detected on managed

HiveAPs here. Clicking a displayed number

opens the relevant page with more details.

Menu Bar: The items in the menu bar open

the major sections of the GUI. You can then

use the navigation tree to navigate to more

specific topics within the selected section.

Navigation Tree: The navigation tree contains

all the topics within the GUI section that you

chose in the menu bar. Items you select in the

navigation tree appear in the main panel.

Deployment Guide 83

INTRODUCTIONTOTHE HIVEMANAGER GUI

Cloning Configurations

When you need to configure multiple similar objects, you can save time by configuring just the first object, cloning

it, and then making slight modifications to the subsequent objects. With this approach, you can avoid re-entering

repeated data.

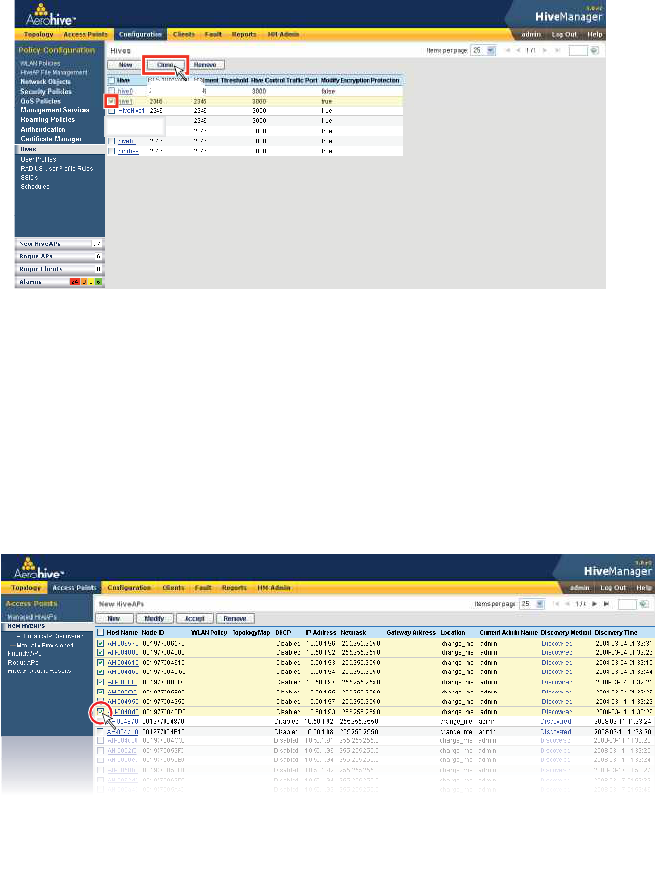

Figure 5 Cloning a Hive

Multiselecting

You can select multiple objects to make the same modifications or perform the same operation to all of them at

once.

Figure 6 Selecting Multiple New HiveAPs

ïò Í»´»½¬

îò Ý´·½µ

To clone an object, select it in an open window, and then click the Clone button.

Retain the settings you want to keep, and modify those you want to change.

Here, you use the shift-click multiselection method to select a set of the topmost eight HiveAPs in

the list; that is, you select the check box for the top HiveAP and hold down the SHIFT key while

selecting the check box for the eighth HiveAP from the top.

Select the check boxes to select multiple noncontiguous objects, or shift-click to select check

boxes for multiple contiguous objects.

Then click Accept to accept all the selected HiveAPs for HiveManager management, or click

the Modify button to configure them with the same settings.

Chapter 7 Using HiveManager

84 Aerohive

Sorting Displayed Data

You can control how the GUI displays data in the main panel by clicking a column header. This causes the displayed

content to reorder itself alphanumerically or chronologically in either ascending or descending order. Clicking the

header a second time reverses the order in which the data is displayed.

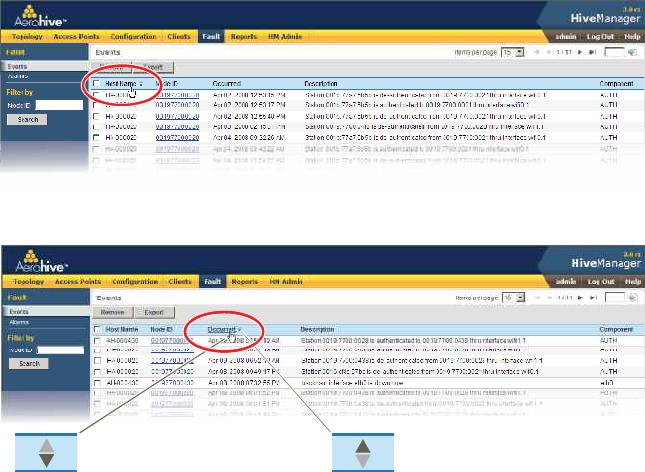

Figure 7 Sorting Event Log Entries by HiveAP Host Name and then Chronologically

×²¼·½¿¬»- ¬¸¿¬ ¬¸» ´·-¬ ¿°°»¿®- ·²

¼»-½»²¼·²¹ ±®¼»® º®±³ ¬¸» ¬±°

×²¼·½¿¬»- ¬¸¿¬ ¬¸» ´·-¬ ¿°°»¿®- ·²

¿-½»²¼·²¹ ±®¼»® º®±³ ¬¸» ¾±¬¬±³

By default, displayed objects are

sorted alphanumerically from the

top by name. If you click the

name again, the order is reversed; that is, the objects are ordered alphanumerically from the bottom.

By clicking the heading of a column, you can reorder the display of objects either alphanumerically or

chronologically, depending on the content of the selected column. Here you reorder the data chronologically.

Deployment Guide 85

HIVEMANAGER CONFIGURATION WORKFLOW

Assuming that you have already installed your HiveAPs, uploaded maps (see "Setting Up Topology Maps" on page91),

accepted the HiveAPs for management, and decided on the features and settings you want to use, you are now

ready to start configuring the HiveAPs through HiveManager1. You can configure numerous objects, some of which

might need to reference other objects. An efficient configuration strategy is to first define any objects that you will

later need to use when configuring others. The typical workflow, shown in Figure8, proceeds like this:

1.Define network objects. You can then reference them when defining other parts of the configuration. If you do

not plan to use network objects, you can skip this step.

2.Configure various features.

3.Define radio profiles (or use default settings).

4 and 5.Compile the features from step 2 into a WLAN policy, assign the radio profiles and WLAN policy to one or

more HiveAPs, and then push the configurations to the physical devices on the network.

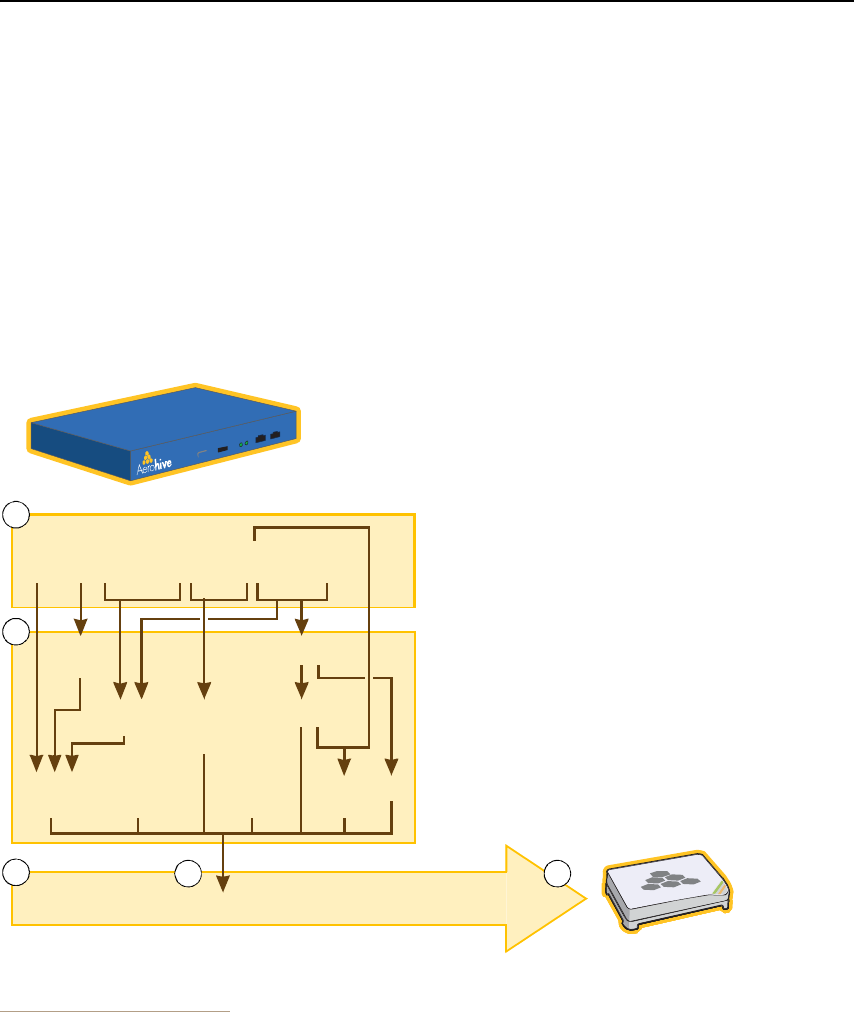

Figure 8 Configuration Workflow

1.When HiveAPs are in the same subnet as HiveManager, they can use CAPWAP (Control and Provisioning of Wireless Access Points)

to discover HiveManager on the network. CAPWAP works within a layer-2 broadcast domain and is enabled by default on all

HiveAPs. If the HiveAPs and HiveManager are in different subnets, then you can use one of several approaches to enable

HiveAPs to connect to HiveManager. For information about these options, see "How HiveAPs Connect to HiveManager" on

page95.

MAC Filters

User

Profiles

SSIDs

Mgt

Services

AAA

Settings

Radio ProfilesWLAN Policy

Hive

HiveManager

Managed

HiveAP

1.If you need to reference network objects in another part of the

configuration, you must define them first. Otherwise, this step

is unnecessary.

4.Compose a WLAN policy by referencing items set in Step 2.

2. Use default settings or configure new settings for various

features that, when combined, constitute a WLAN policy:

•Mobility policies

•Firewall policies

•QoS traffic classification and marking

•MAC Filters

•SSIDs

•User profiles

•Management services (DNS, NTP, SNMP, syslog, location)

•AAA settings (for user authentication using IEEE 802.1X)

•Wireless IDS policy

•Hive

34 5

QoS Traffic

Classification

and Marking 3.Use default settings or define one or more radio profiles.

5.Apply the WLAN policy and radio profiles to one or more

HiveAPs, and then push the configuration to the physical

devices across the network.

MAC

Addresses

Network Objects:

MAC

OUIs

Services

Addresses

Mobility

Policies

IDS

Policy

VLANs

Firewall

Policies

Chapter 7 Using HiveManager

86 Aerohive

UPDATING SOFTWAREON HIVEMANAGER

You can update the software running on HiveManager from either a local directory on your management system or

an SCP (Secure Copy) server. If you download an image and save it to a local directory, you can load it from there. If

you save the image to an SCP server, you can direct HiveManager to log in and load it from a directory there.

1.If you do not yet have an account on the Aerohive Support portal, send an email request to

(support@aerohive.com) to set one up.

2.When you have login credentials, visit www.aerohive.com/support/login, and log in.

3.Navigate to the software image that you want to load onto HiveManager (Customer Support > Software

Downloads > HiveManager software images) and download the file.

4.Save the HiveManager image file to a local directory or an SCP server.

5.Log in to HiveManager and navigate to HM Admin > HiveManager Operations >Update Software.

6.To load files from a directory on your local management system, choose either Update and clear alarm and

event logs or Full update (to keep existing log entries after the upgrade), and then enter the following:

•File from local host: (select); type the directory path and a file name; or click Browse, navigate to the

software file, and select it.

To load a file from an SCP server:

•File from remote server: (select)

•IP Address: Enter the IP address of the SCP server.

•SCP Port: Enter the port number of the SCP server (the default port number for SCP is 22).

•File Path: Enter the directory path and HiveManager software file name. If the file is in the root directory of

the SCP server, you can simply enter the file name.

•User Name: Type a user name with which HiveManager can access the SCP server.

•Password: Type a password with which HiveManager can use to log in securely to the SCP server.

7.To save the new software and reboot HiveManager, click OK.

Deployment Guide 87

UPDATING HIVEOS FIRMWARE

HiveManager makes it easy to update HiveOS firmware running on managed HiveAPs. First, you obtain new HiveAP

firmware from Aerohive Support and upload it onto HiveManager. Then you push the firmware to the HiveAPs and

activate it by rebooting them.

1.Log in to the Aerohive Support portal to obtain a new HiveOS image.

2.Save the HiveOS image file to a directory on your local management system or network.

3.Log in to HiveManager and navigate to Configuration > HiveAP File Management.

4.On the HiveAP Files page, select HiveOS Image for the file type, enter one of the following—depending on how

you intend to upload the HiveOS image file to HiveManager—and then click OK:

To load a HiveOS image file from a directory on your local management system:

•Local File: (select); type the directory path and image file name, or click Browse, navigate to the image

file, and select it.

To load a HiveOS image file from an SCP server:

•SCP Server: (select) IP Address : Enter the IP address of the SCP server.

•SCP Port: Enter the port number of the SCP server (the default port number for SCP is 22).

•File Path: Enter the path to the HiveOS image file and the file name. If the file is in the root directory of the

SCP server, you can simply enter the file name.

•User Name: Type a user name with which HiveManager can access the SCP server.

•Password: Type a password that HiveManager can use to log in securely to the SCP server.

5.Click Access Points >ManagedHiveAPs.

6.In the Managed HiveAPs window, select one or more HiveAPs, and then click Update > Upload and Activate SW

Image.

The Upload and Activate SW Image dialog box appears.

7.Enter the following, and then click Upload:

•From the HiveOS Image drop-down list, select the image that you want to load onto managed HiveAPs.

•In the Activation Time section, select one of the following options, depending on when you want to activate

the software—by rebooting the HiveAPs—after HiveManager finishes loading it:

•Activate at: Select and set the time at which you want the HiveAPs to activate the software. To use this

option accurately, make sure that both HiveManager and managed HiveAP clocks are synchronized.

•Activate after: Select to load the firmware on the selected HiveAPs and activate it after a specified

interval. The range is 0 – 3600 seconds; that is, immediately to one hour. The default is 5 seconds.

Note: When upgrading both HiveManager software and HiveOS firmware, do so in this order:

•Upgrade HiveManager (HiveManager can manage HiveAPs running the current version of HiveOS and

also previous versions).

•Upload the new HiveOS firmware to the managed HiveAPs, and reboot them to activate it.

•Reload the HiveOS configurations to the managed HiveAPs—even if nothing in the configurations has

changed—and reboot them to activate the configuration that is compatible with the new HiveOS image.

Note: To delete an old image file, select the file in the "Available Images" list, and then click Remove.

Chapter 7 Using HiveManager

88 Aerohive

•Activate at next reboot: Select to load the software and not activate it. The loaded software gets

activated the next time the HiveAP reboots.

•Select the check box for each HiveAP whose software you want to update.

Updating HiveAPs in a Mesh Environment

When updating hive members in a mesh environment, be careful of the order in which the HiveAPs reboot. If a

portal completes the upload and reboots before a mesh point beyond it completes its upload—which most likely

would happen because portals receive the uploaded content first and then forward it to mesh points—the reboot

will interrupt the data transfer to the mesh point. This can also happen if a mesh point linking HiveManager to

another mesh point reboots before the more distant mesh point completes its upload. As a result of such an

interruption, the affected mesh point receives an incomplete firmware or configuration file and aborts the update.

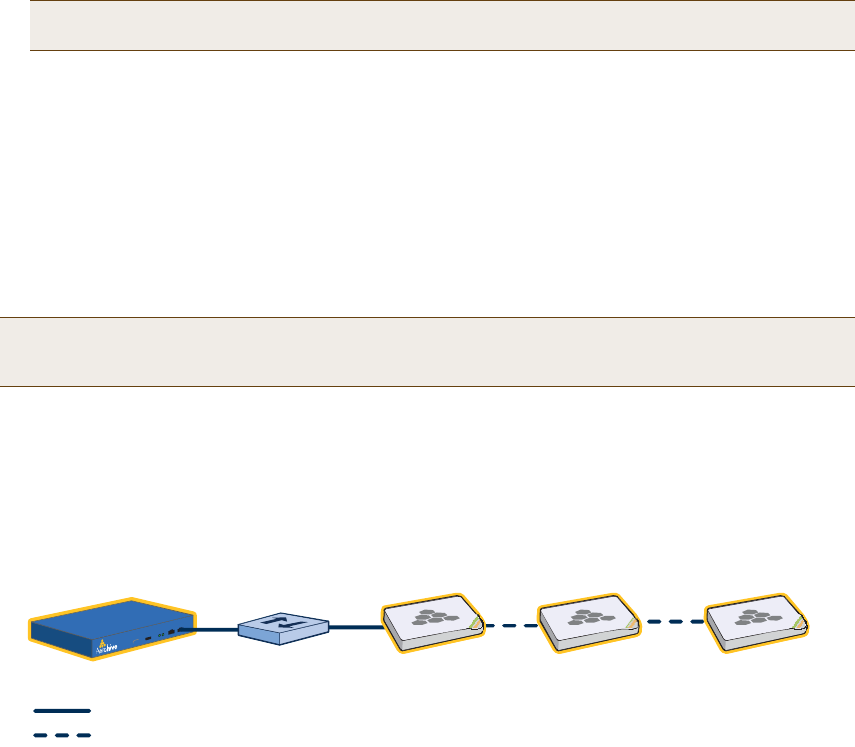

Figure 9 HiveAPs in a Mesh Environment

To avoid the reboot of an intervening HiveAP from interfering with an ongoing upload to a mesh point beyond it,

allow enough time for the firmware to reach the farthest mesh points before activating the firmware. After all the

HiveAPs have the firmware, rebooting any HiveAPs between them and HiveManager becomes inconsequential.

Note: When choosing which option to use, consider how HiveManager connects to the HiveAPs it is updating.

See "Updating HiveAPs in a Mesh Environment".

Note: A mesh point is a hive member that uses a wireless backhaul connection to communicate with the rest of

the hive. HiveManager manages mesh points through another hive member that acts as a portal, which

links mesh points to the wired LAN.

ã É·®»¼ Ô·²µ

ã É·®»´»-- Ô·²µ

Ø·ª»Ó¿²¿¹»®

Í©·¬½¸ Ø·ª»ßÐ

øÐ±®¬¿´÷

Ø·ª»ßÐ

øÓ»-¸ Ð±·²¬ ï÷

Ø·ª»ßÐ

øÓ»-¸ Ð±·²¬ î÷

É¸»² «°¼¿¬·²¹ Ø·ª»ßÐ- ·² ¿ ³»-¸ »²ª·®±²³»²¬ô ¬¸» Ø·ª»Ó¿²¿¹»® ½±³³«²·½¿¬»- ©·¬¸ ³»-¸ °±·²¬- ¬¸®±«¹¸

¬¸»·® °±®¬¿´ ¿²¼ô ·º ¬¸»®» ¿®» ¿²§ ·²¬»®ª»²·²¹ ³»-¸ °±·²¬-ô ¬¸®±«¹¸ ¬¸»³ ¿- ©»´´ò É¸·´» «°¼¿¬·²¹ Ø·ª»ßÐ- ·²

-«½¸ ¿² »²ª·®±²³»²¬ô ·¬ ·- ·³°±®¬¿²¬ ¬± µ»»° ¬¸» °¿¬¸ º®±³ ¬¸» Ø·ª»Ó¿²¿¹»® ¬± ¿´´ Ø·ª»ßÐ- ½´»¿® -± ¬¸¿¬ ¬¸»

¼¿¬¿ ¬®¿²-º»® ¿´±²¹ ¬¸¿¬ °¿¬¸ ·- ²±¬ ¼·-®«°¬»¼ò Ì¸»®»º±®»ô ©¸»² «°¼¿¬·²¹ ¿ º·®³©¿®» ·³¿¹» ±® ½±²º·¹«®¿¬·±²

±² Ø·ª»ßÐ- ·² ¿ ³»-¸ »²ª·®±²³»²¬ô ³¿µ» -«®» ¬¸¿¬ ¬¸» °±®¬¿´ ±® ¿ ³»-¸ °±·²¬ ½´±-»® ¬± ¬¸» °±®¬¿´ ¼±»- ²±¬

®»¾±±¬ ¾»º±®» ¬¸» «°´±¿¼ ¬± ¿ ³»-¸ °±·²¬ º¿®¬¸»® ¿©¿§ ½±³°´»¬»-ò

Deployment Guide 89

Chapter 8HiveManager Configuration Examples

The following examples in this chapter show how to install over 70 HiveAPs at three locations in a corporate

network, use HiveManager to create configurations for them, and then push the configurations to them over the

network. The high-level deployment scheme is as follows:

The general design of the deployment is shown in Figure1.

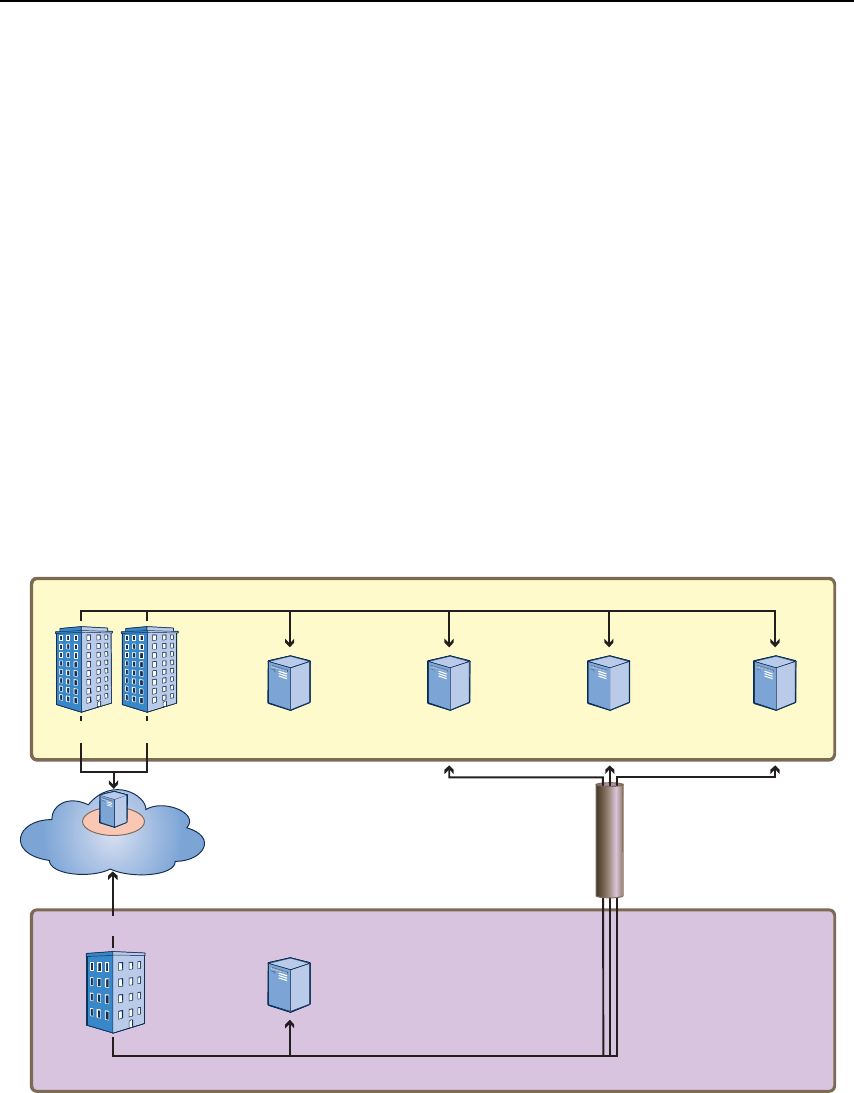

Figure 1 Deployment Overview

You can look at any of the following examples individually to study how to configure a specific feature or view all of

them sequentially as a set to study the workflow for deploying large numbers of HiveAPs and configuring them

through HiveManager.

Headquarters - Building 1 (HQ-B1) Headquarters - Building 2 (HQ-B2) Branch Office (Branch1)

32 HiveAPs32 HiveAPs8 HiveAPs

1 Hive (hive1)1 Hive (hive2)1 Hive (hive3)

1 WLAN policy (WLANpolicy-hq1)1 WLAN policy (WLANpolicy-hq2)1 WLAN policy (WLANpolicy-branch1)

¨ è

Ú´±±®-

ì Ø·ª»ßÐ-

°»® Ú´±±®

¨ è

Ú´±±®- î Ø·ª»ßÐ-

°»® Ú´±±®

¨ ì

Ú´±±®-

Ý±®°±®¿¬»

Ø»¿¼¯«¿®¬»®-

Þ®¿²½¸

Ñºº·½»

êì

Ø·ª»ßÐ-

Ì±¬¿´

Ø·ª»ßÐ-

Ì±¬¿´

Þ®¿²½¸ï

ØÏóÞïØÏóÞî

ÉÔßÒ°±´·½§ó¸¯ï

Ø·ª»ï

ÉÔßÒ°±´·½§ó¸¯î

Ø·ª»î

ÉÔßÒ°±´·½§ó¾®¿²½¸ï

Ø·ª»í

ÊÐÒ Ì«²²»´

Ø·ª»Ó¿²¿¹»®

ø·² •ØÏóÞïŒ÷

Chapter 8 HiveManager Configuration Examples

90 Aerohive

This chapter contains a sequential flow of examples that show how to import and organize maps, install HiveAPs on

the network and link them to maps, configure typically needed features, assign these features to HiveAPs, and push

configurations to the HiveAPs across the network. The examples are as follows:

•"Example 1: Mapping Locations and Installing HiveAPs" on page91

Upload image files of topology maps to HiveManager and use one of two ways to associate physical HiveAPs

with their corresponding icons on the maps.

•"Example 2: Defining Network Objects and MAC Filters" on page97

Define a MAC OUI (organizationally unique identifier), VLANs, and IP addresses for use by other

configuration objects. Define a MAC filter so that QoS classifiers and SSID profiles can reference them. Map

the MAC OUI and several services to Aerohive classes.

•"Example 3: Providing Guest Access" on page104

Provide controlled and limited network access for guests. Two approaches are presented.

•"Example 4: Creating User Profiles" on page113

Define several user profiles, their companion QoS forwarding rates and priorities, and their VLANs.

•"Example 5: Setting SSIDs" on page117

Define sets of authentication and encryption services that wireless clients and HiveAPs use when

communicating with each other.

•"Example 6: Setting Management Service Parameters" on page120

Configure DNS, syslog, SNMP, and NTP settings for HiveAPs.

•"Example 7: Defining AAA RADIUS Settings" on page123

Define AAA RADIUS server settings to use when HiveAPs send 802.1X authentication requests.

•"Example 8: Creating Hives" on page125

Create hives so that sets of HiveAPs can exchange information with each other over the network to

coordinate client access, provide best-path forwarding, and enforce QoS policies.

•"Example 9: Creating WLAN Policies" on page126

Define WLAN policies. These are sets of configuration objects (defined in previous examples) that HiveAPs

use to control how wireless clients access the network.

•"Example 10: Assigning Configurations to HiveAPs" on page135

Assign WLAN policies, radio profiles, and maps to detected HiveAPs so that you can begin managing them

through HiveManager. Also change HiveAP login settings and country codes.

Deployment Guide 91

EXAMPLE 1: MAPPING LOCATIONSAND INSTALLING HIVEAPS

EXAMPLE 1:MAPPING LOCATIONSAND INSTALLING HIVEAPS

HiveManager allows you to mark the location of HiveAPs on maps so that you can track devices and monitor their

status. First, you must upload the maps to HiveManager, and then name and arrange them in a structured hierarchy

(see "Setting Up Topology Maps"). After that, you can follow one of two ways to install HiveAPs so that you can later

put their corresponding icons on the right maps (see "Preparing the HiveAPs" on page94).

Setting Up Topology Maps

In this example, you upload maps to HiveManager showing floor plans for three office buildings and organize them in

a hierarchical structure. You need to make .png of .jpg files of drawings or blueprints showing the layout of each

floor. Also, as an easy means of organizing the maps in the HiveManager GUI, you create a file showing the three

buildings HQ-B1, HQ-B2, and Branch-1. By using this drawing at the top topographical level, you can display icons for

each floor of each building. You can then click an icon to link to its corresponding map. This is shown in Figure2.

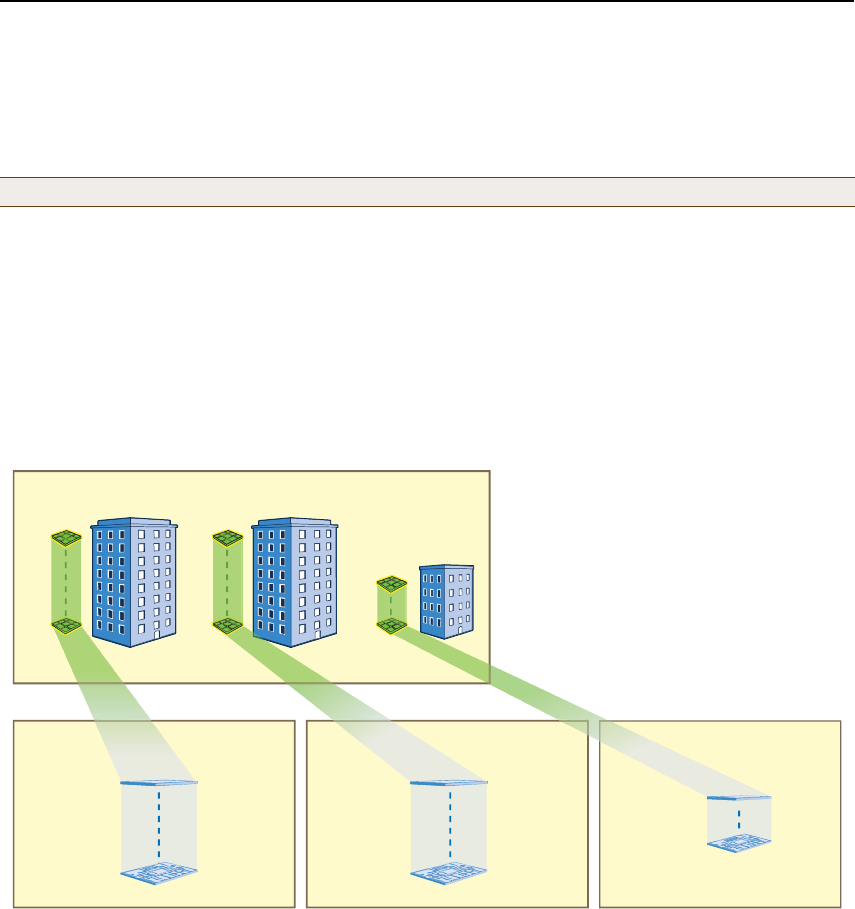

Figure 2 Organizational Structure of Level-1 and -2 Maps

Uploading Maps

1.Log in to the HiveManager GUI as explained in " Installing and Connecting to the HiveManager GUI" on page79.

2.Click Topology, right-click World, and then choose Add/Delete Image from the pop-up menu that appears.

3.In the Add/Delete Image window, click Browse, navigate to the directory containing the image files that you

want to upload, and select one of them.

4.Click Upload.

Note: All image files that you upload to HiveManager must be in .png or .jpg format.

è Ó¿°-

ø±²» °»® º´±±®÷

•ØÏóÞïóÚïŒ

•ØÏóÞïóÚèŒ

è Ó¿°-

•ØÏóÞîóÚïŒ

•ØÏóÞîóÚèŒ

ì Ó¿°-

•Þ®¿²½¸óïóÚïŒ

•Þ®¿²½¸óïóÚìŒ

Ø»¿¼¯«¿®¬»®- Þ«·´¼·²¹ ï øØÏóÞï÷ Ó¿°-Ø»¿¼¯«¿®¬»®- Þ«·´¼·²¹ î øØÏóÞî÷ Ó¿°-Þ®¿²½¸óï Ó¿°-

Ý±®°Ñºº·½»- øÔ»ª»´óï Ó¿°÷

Ì¸·- ³¿° -¸±©- í ¾«·´¼·²¹- ¿²¼ îð ·½±²- ¬¸¿¬ ´·²µ ¬± ´»ª»´óî ³¿°-ò

è ·½±²- ´·²µ·²¹

¬± ´»ª»´óî ³¿°-

è ·½±²- ´·²µ·²¹

¬± ´»ª»´óî ³¿°-

ì ·½±²- ´·²µ·²¹

¬± ´»ª»´óî ³¿°-

Ô»ª»´ ï

Ô»ª»´ î

Double-clicking a floor ic

on on the CorpOffices map

(level 1) opens the corresponding level-2 map.

You can also navigate to any map within the

Topology Maps section of the navigation tree in the

HiveManager GUI.

Chapter 8 HiveManager Configuration Examples

92 Aerohive

The selected image file is transferred from your management system to HiveManager as shown in Figure3.

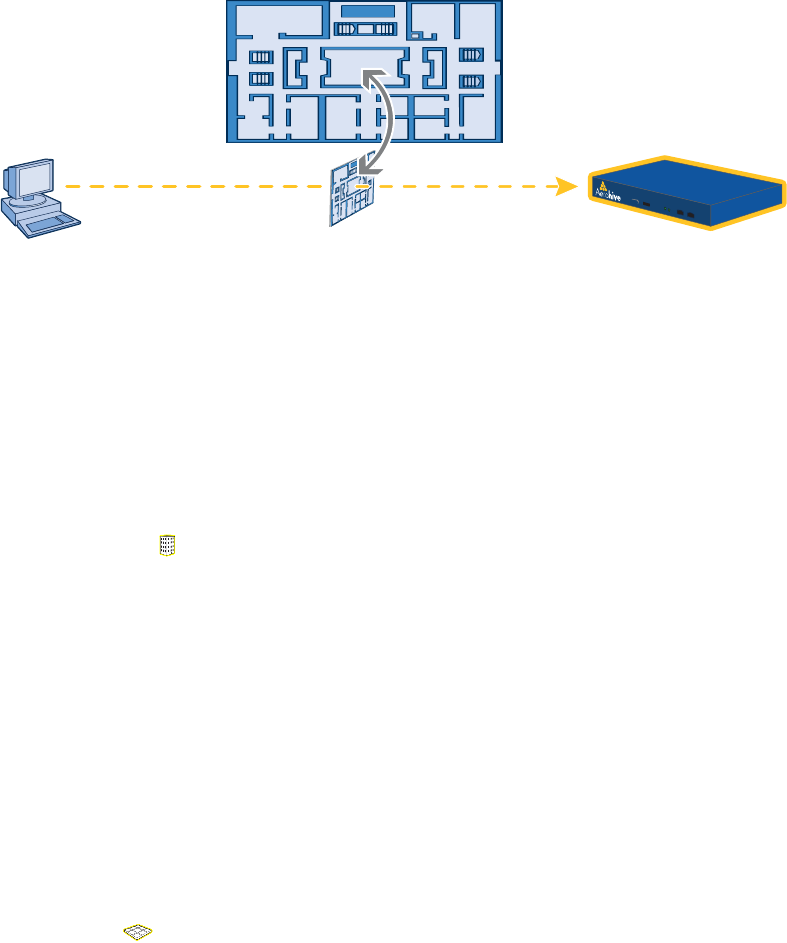

Figure 3 Uploading a Map of a Building Floor Plan

5.Repeat this for all the image files that you need to load. In this example, you load 21 files:

•8 maps for the eight floors in HQ-B1 (Headquarters Building 1)

•8 maps for the eight floors in HQ-B2 (Headquarters Building 2)

•4 maps for the four floors in Branch-1

•1 file (named "corp_offices.png" in this example) that shows a picture of the three buildings

Naming and Arranging Maps within a Structure

1.Click Topology, right-click the top level map "World", and then choose Edit from the pop-up menu that appears.

2.In the Edit Map - World dialog box, enter the following, and then click Update:

•Map Name: CorpOffices (Note that spaces are not allowed in map level names.)

•Map Icon: Building

•Background Image: Choose corp_offices.png from the drop-down list.

•Environment: Because the CorpOffices "map" does not contain any HiveAP icons—it is an illustration of three

buildings that you use to organize the submaps of the floors in each building—the environment setting is

irrelevant. Leave it at its default, Free Space.

•Width (optional): Because the corp_offices.png depicts buildings instead of a floor plan, it is not necessary

to specify the width of the image.

3.Click Topology, right-click the top level map "CorpOffices", and then choose New from the pop-up menu that

appears.

4.In the New Map (Submap for CorpOffices) dialog box, enter the following, and then click Create:

•Map Name: HQ-B1-F

•Map Icon: Floor

•Background Image: Choose HQ-B1-F1.png from the drop-down list.

•Environment: Because the environment is that of a typical office building, choose Enterprise. The

environment assists in the prediction of signal strength and attenuation shown in the heat maps.

•Width: 80 feet (HiveManager automatically calculates the height based on the aspect ratio of the image.)

A white floor icon () labeled "HQ-B1-F1" appears on the CorpOffices image, and a new entry named

"HQ-B1-F1" appears nested under "CorpOffices" in the navigation tree.

5.Click Unlock, select the icon, drag it to the location you want, and then click Save.

6.Click Topology, right-click the top level map "CorpOffices", and then choose New from the pop-up menu that

appears.

Management System HiveManager

Map showing one

of the floor plans

Uploading map to HiveManager

Deployment Guide 93

EXAMPLE 1: MAPPING LOCATIONSAND INSTALLING HIVEAPS

7.In the New Map (Submap for CorpOffices) dialog box, enter the following, and then click Create:

•Map Name: HQ-B1-F2

•Map Icon: Floor

•Background Image: Choose HQ-B1-F2.png from the drop-down list.

•Environment: Enterprise

•Width: 80 feet

A white floor icon labeled "HQ-B1-F2" appears on the CorpOffices image, and a new entry named "HQ-B1-F2"

appears nested under "CorpOffices" in the navigation tree.

8.Click Unlock, select the icon, drag it to the location you want, and then click Save.

After adding the CorpOffices "map" (really an illustration showing three buildings), two floor plans for the first

and second floors of "HQ-B1", and dragging the floor icons into position, the display of the CorpOffices map

looks similar to that in Figure4.

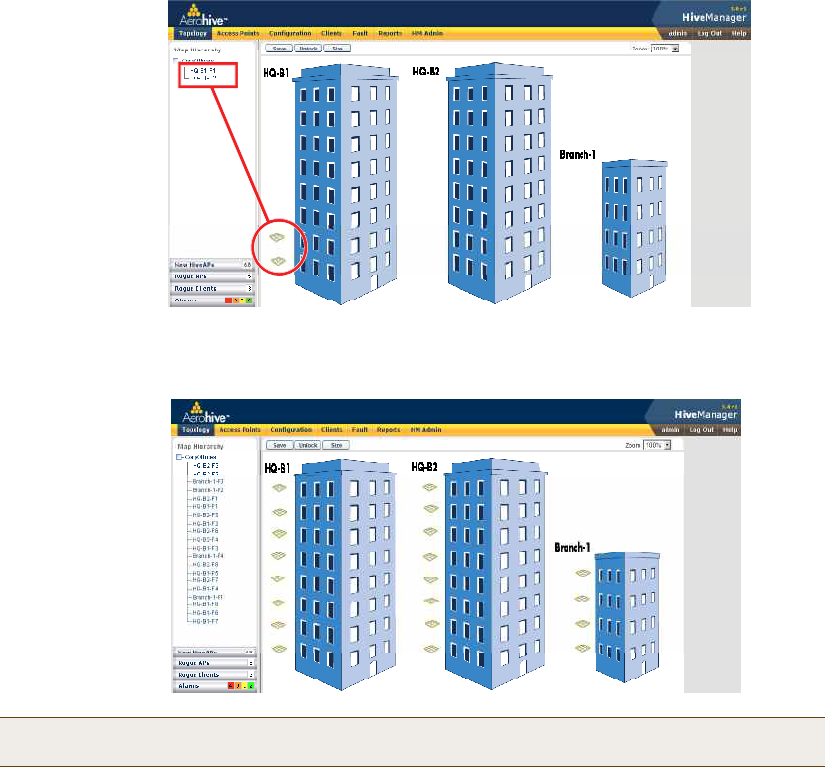

Figure 4 CorpOffice Map (Level 1) with Links to Level-2 Maps HQ-B1-F1 and HQ-B1-F2

9.Repeat this process until you have arranged all the maps and icons in place as shown in Figure5.

Figure 5 CorpOffice Map with Links to All Level-2 Maps

Note: You can add as many levels as necessary to the map hierarchy. You can also delete maps as long as they

do not have any submaps or HiveAP icons on them.

The submaps in the

navigation tree and the

icons on this map link

to other maps.

Click a submap or

double-click an icon to

open the map to which

it links.

Chapter 8 HiveManager Configuration Examples

94 Aerohive

Preparing the HiveAPs

There are several approaches that you can take when mapping the location of installed HiveAP devices. Two

possible approaches are presented below. With the first approach ("Using SNMP"), HiveManager automatically assigns

HiveAPs to maps. This approach does require a small amount of configuration of each HiveAP up front, but after the

HiveAPs form a CAPWAP connection with HiveManager, the automatic assignment of HiveAPs to their appropriate

maps on HiveManager occurs without any further effort. The second approach ("Using MAC Addresses" on page95)

allows you to install HiveAPs without needing to do any extra configurations, but you later have to match each

HiveAP with the right map in HiveManager manually.

Using SNMP

This approach makes use of the SNMP (Simple Network Management Protocol) sysLocation MIB (Management

Information Base) object, which you define on HiveAPs. HiveManager can use this information to associate a HiveAP

with a map and provide a description of where on the map each HiveAP belongs.

1.Make copies of the maps you uploaded to HiveManager, label them, and take them with you for reference when

installing the HiveAPs.

2.For each HiveAP that you install, do the following:

1.Make a serial connection to the console port, and log in (see "Log in through the console port" on page150).

2.Enter the following command, in which string1 describes the location of the HiveAP on the map (in open

format) and string2 is the name of the map:

snmp location string1@string2

For example, if you install a HiveAP in the northwest corner on the first floor of building 1, enter

snmplocation northwest_corner@HQ-B1-F1. If you want to use spaces in the description, surround

the entire string with quotation marks: snmp location "northwest corner@HQ-B1-F1".

If the name of a map is not unique, then include the map hierarchy in the string until the path to the map is

unique. For example, if you have two maps named "floor-1", and the one you want to use is nested under a

higher level map named "building-1" while the other is nested under "building-2", then enter the command

as follows: snmplocation northwest_corner@floor-1@building-1 . Similarly, if there are two

maps named "building-1" nested under higher level maps for two different sites ("campus-1" and "campus-2",

for example), then include that next higher level in the string to make it unique:

snmplocation northwest_corner@floor-1@building-1@campus-1

3.Mount and cable the HiveAP to complete its installation. (For mounting details, see "Mounting the HiveAP

20" on page29. For information about the PoE port on the HiveAP, see "Ethernet and Console Ports" on

page26.)

When a HiveAP connects to HiveManager, HiveManager checks its SNMP location. When you accept the HiveAP for

management, then HiveManager automatically associates it with the map specified in its SNMP location description.

You can then click the icon to see its location and drag it to the specified location on the map. Also, on the Access

Points > New HiveAPs > Automatically Discovered window in the HiveManager GUI, you can sort detected HiveAPs by

map name to assign them more easily to WLAN policies and radio profiles.

Note: For a summary of how HiveAPs use CAPWAP to discover and connect to HiveManager, see "How HiveAPs

Connect to HiveManager" on page95.

Deployment Guide 95

EXAMPLE 1: MAPPING LOCATIONSAND INSTALLING HIVEAPS

Using MAC Addresses

With this approach, you write down the MAC address labelled on the underside of each HiveAP and its location while

installing the HiveAPs throughout the buildings. The MAC address on the label is for the mgt0 interface. Because the

MAC addresses of all HiveAPs begin with the Aerohive MAC OUI 00:19:77, you only need to record the last six

numerals in the address. For example, if the MAC OUI is 0019:7700:0120, you only need to write "000120" to be able

to distinguish it from other HiveAPs later.

1.Make copies of the maps you uploaded to HiveManager, label them, and take them with you when installing the

HiveAPs.

2.When you install a HiveAP, write the last six digits of its MAC address at its location on the map.

When HiveAPs automatically connect with HiveManager, HiveManager displays them in the Access Points > New

HiveAPs > Automatically Discovered window. You can differentiate them in the displayed list by MAC address (node

ID), which allows you to match the HiveAPs in the GUI with those you noted during installation so that you can

properly assign each one to a map, a WLAN policy, and two radio profiles.

How HiveAPs Connect to HiveManager

If HiveAPs are in the same layer-2 broadcast domain (and same VLAN) as HiveManager, they broadcast CAPWAP

(Control and Provisioning of Wireless Access Points) Discovery Request messages to discover and establish a secure

connection with HiveManager automatically. There is no need for any extra configuration on your part.

When HiveAPs and HiveManager are in different subnets, the HiveAPs will not be able to discover HiveManager by

broadcasting CAPWAP Discovery Request messages. In this case, you can use one of the following methods to

configure HiveAPs with the HiveManager IP address or configure them so that they can learn it through DHCP or DNS.

When HiveAPs have the HiveManager IP address, they then send unicast CAPWAP Discovery Request messages to that

address.

•Log in to the CLI on each HiveAP and enter the HiveManager IP address with the following command, in which

the variable ip_addr is the address of the interface through which HiveManager communicates with HiveAPs:

hivemanager ip_addr

•Configure the DHCP server to supply the HiveManager domain name as DHCP option 225 or its IP address as

option 226 in its DHCPOFFER. (If you use a domain name, the authoritative DNS server for that domain must also

be configured with an A record that maps the domain name to an IP address for HiveManager.) HiveAPs request

DHCP option 225 and 226 by default when they broadcast DHCPDISCOVER and DHCPREQUEST messages.

•If HiveManager continues to use its default domain name ("hivemanager"), configure the local authoritative DNS

server with an A record that resolves that name to an IP address. If the HiveAPs do not have a static IP address

configured for HiveManager and do not receive an address or domain name returned in a DHCP option, then they

try to resolve the domain name "hivemanager" to an IP address.

Within the framework of the CAPWAP protocol, HiveAPs are CAPWAP clients and HiveManager is a CAPWAP server.

The client proceeds through a series of CAPWAP states. These states and the basic events that trigger the client to

transition from one state to another are shown in Figure6 on page96.

Note: If you need to change the DHCP option number (perhaps because another custom option with that

number is already in use on the DHCP server), enter this command on each HiveAP with a different

option number for the variable number:

interface mgt0 dhcp client option custom hivemanager number { ip | string }

Note: To illustrate all possible CAPWAP states, Figure6 on page96 begins by showing a HiveAP and HiveManager

already in the Run state. When a HIveAP first attempts to discover a HiveManager—after the HiveAP has an

IP address for its mgt0 interface and has been configured with (or has discovered) the HiveManager IP

address—it begins in the Discovery state.

Chapter 8 HiveManager Configuration Examples

96 Aerohive

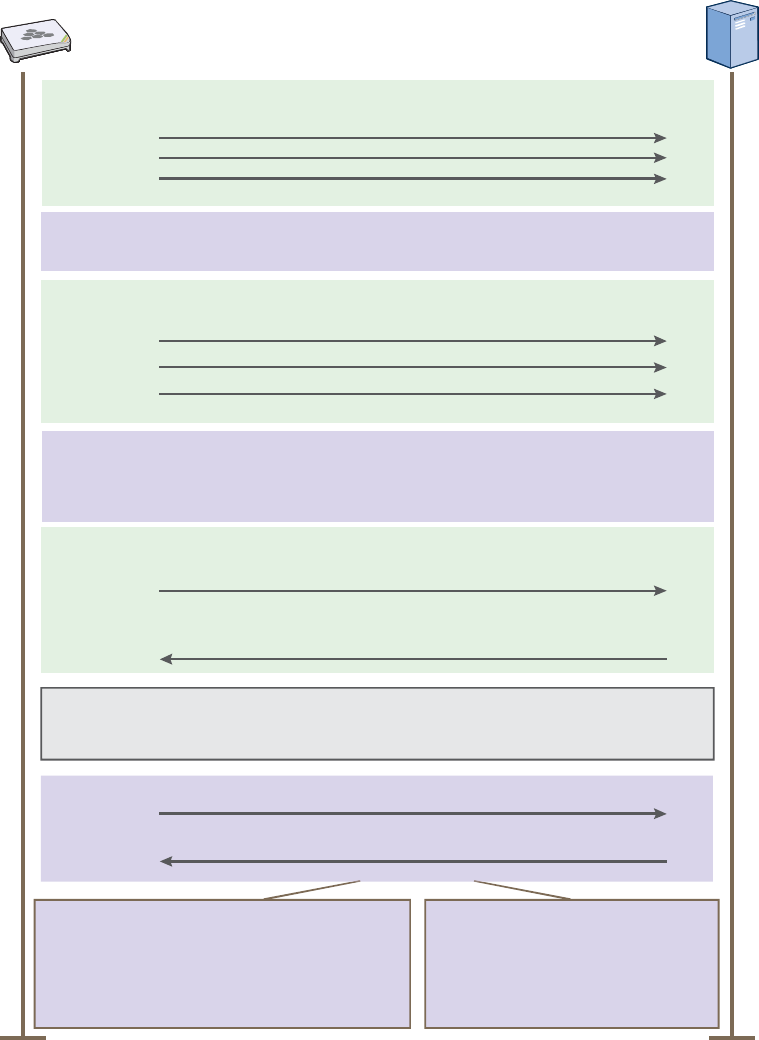

Figure 6 CAPWAP Process—Beginning from the Run State

Ì¸» ÝßÐÉßÐ ½´·»²¬ øØ·ª»ßÐ÷ °·²¹- ¬¸» ÝßÐÉßÐ -»®ª»® øØ·ª»Ó¿²¿¹»®÷

¾«¬ ®»½»·ª»- ²± ®»-°±²-»- ©·¬¸·² ¬¸» ²»·¹¸¾±®ó¼»¿¼ó·²¬»®ª¿´ò

Ì¸» ½´·»²¬ ¬®¿²-·¬·±²- ¬± ¬¸» Ü·-½±ª»®§ -¬¿¬» ¿²¼ ¾»¹·²- -»²¼·²¹

Ü·-½±ª»®§ Î»¯«»-¬ ³»--¿¹»- ø¾®±¿¼½¿-¬ ±® «²·½¿-¬÷ò

×º ¬¸» ½´·»²¬ ½±²¬·²«»- ¬± -»²¼ Ü·-½±ª»®§ Î»¯«»-¬ ³»--¿¹»- «²¬·´ ·¬

®»¿½¸»- ¬¸» ³¿¨ó¼·-½±ª»®§ó·²¬»®ª¿´ ¿²¼ ³¿¨ó¼·-½±ª»®§ó½±«²¬ ¾«¬

®»½»·ª»- ²± Ü·-½±ª»®§ Î»-°±²-»-ô ¬¸» ½´·»²¬ ¬¸»² »²¬»®- ¬¸» Í«´µ·²¹

-¬¿¬» ¿²¼ ®»³¿·²- ·² ¬¸·- -¬¿¬» «²¬·´ ¬¸» -·´»²¬ó·²¬»®ª¿´ »´¿°-»-ò

ÝßÐÉßÐ Ý´·»²¬

øØ·ª»ßÐ÷

ÝßÐÉßÐ Í»®ª»®

øØ·ª»Ó¿²¿¹»®÷

Ü·-½±ª»®§

Í¬¿¬»

Ì¸» ÝßÐÉßÐ ½´·»²¬ ®»¬«®²- ¬± ¬¸» Ü·-½±ª»®§ -¬¿¬» ¿²¼ -»²¼-

Ü·-½±ª»®§ Î»¯«»-¬ ³»--¿¹»-ò

Ì¸» ÝßÐÉßÐ -»®ª»® ®»½»·ª»- ¬¸» Ü·-½±ª»®§ Î»¯«»-¬ ³»--¿¹»

¿²¼ ®»-°±²¼- ©·¬¸ ¿ Ü·-½±ª»®§ Î»-°±²-»ò

Ü·-½±ª»®§

Í¬¿¬»

Í«´µ·²¹

Í¬¿¬»

Ì¸» ½´·»²¬ -»²¼- ¿ Ö±·² Î»¯«»-¬ò

Ö±·²

Í¬¿¬»

ò ò ò

Î«²

Í¬¿¬»

×¼´»

Í¬¿¬»

É¸»² ¬¸» ½´·»²¬ ¼»¬»®³·²»- ·¬- ²»·¹¸¾±® ·- ¼»¿¼ô ·¬ ¬®¿²-·¬·±²-

º®±³ ¬¸» Î«² -¬¿¬» ¬± ¬¸» ×¼´» -¬¿¬»ò

Ì¸» ÝßÐÉßÐ ½´·»²¬ ¿²¼ -»®ª»® °»®º±®³ ¿ ÜÌÔÍ øÜ¿¬¿¹®¿³ Ì®¿²-°±®¬

Ô¿§»® Í»½«®·¬§÷ ¸¿²¼-¸¿µ» ¬± »-¬¿¾´·-¸ ¿ -»½«®» ÜÌÔÍ ½±²²»½¬·±²ò

Ì¸» -»®ª»® -»²¼- ¿ Ö±·² Î»-°±²-»ò

×º ¬¸» Ö±·² Î»-°±²-» ·²¼·½¿¬»- •-«½½»--Œô ¬¸» ½´·»²¬

½´»¿®- ·¬- É¿·¬Ö±·² ¬·³»® ¿²¼ »²¬»®- ¬¸» Î«² -¬¿¬»ò

Ò±¬»æ ×º ¬¸» É¿·¬Ö±·² ¬·³»® »¨°·®»- ¾»º±®» ¬¸» ½´·»²¬

®»½»·ª»- ¿ -«½½»--º«´ Ö±·² Î»-°±²-»ô ¬¸» ½´·»²¬

¬»®³·²¿¬»- ¬¸» ÜÌÔÍ ½±²²»½¬·±² ¿²¼ ®»¬«®²- ¬± ¬¸»

Ü·-½±ª»® -¬¿¬»ò

×º ¬¸» Ö±·² Î»-°±²-» ·²¼·½¿¬»- •º¿·´«®»Œô

¬¸» ÝßÐÉßÐ -»®ª»® »²¬»®- ¿ Î»-»¬

-¬¿¬» ¿²¼ ¬»®³·²¿¬»- ¬¸» ÜÌÔÍ -»--·±²ò

Deployment Guide 97

EXAMPLE 2: DEFINING NETWORK OBJECTSAND MAC FILTERS

EXAMPLE 2:DEFINING NETWORK OBJECTSAND MAC FILTERS

Network objects are the most basic objects that you can configure and only function when other objects such as QoS

classifiers, SSID profiles, and firewall policy rules reference them. IP addresses, network services (HTTP, SMTP,

FTP, …), MAC addresses, MAC OUIs (organizationally unique identifiers), VLANs, Ethernet profiles, and radio profiles

are network objects that make no reference to any other previously defined object.

You define the following network objects that you reference in other examples later in this chapter:

•MAC OUI for filtering VoIP phone traffic

•VLANs that you can apply to user profiles

•IP addresses that you can assign to management services and RADIUS servers

In addition, you define a MAC filter to control access to the SSID for VoIP traffic.

Defining a MAC OUI

You define a MAC OUI for the type of VoIP (Voice over IP) phones in use in the network and assign traffic from it to

Aerohive class 6. Other critical IP telephony services are DHCP and DNS for address and domain name assignments,

and TFTP and HTTP for configuration downloads and software updates. You map traffic using destination port

numbers 53 (DNS) and 67 (DHCP) to Aerohive class 5. This is a fairly high priority level because these services are

vital for VoIP to work properly; however, they are not as high as that for the voice traffic itself. Finally, you map

traffic using destination port numbers 69 (TFTP) and 80 (HTTP) to Aerohive class 2. This is a much lower priority

level, but it is appropriate for these resilient and less time-sensitive services. HiveAPs check if an incoming packet

matches a classifier map by checking for matches in the following order. They then use the first match found:

1.Service

2.MAC OUI

3.Ingress interface

4.Existing priorities used by various standard QoS classification systems (802.11e, 802.1p, and DSCP)

After VoIP clients associate with an SSID and begin sending traffic, the HiveAP maps all DNS and DHCP traffic to class

5, all TFTP and HTTP traffic to class 2, and all remaining traffic—voice traffic in this case—to class 6 (see Figure7).

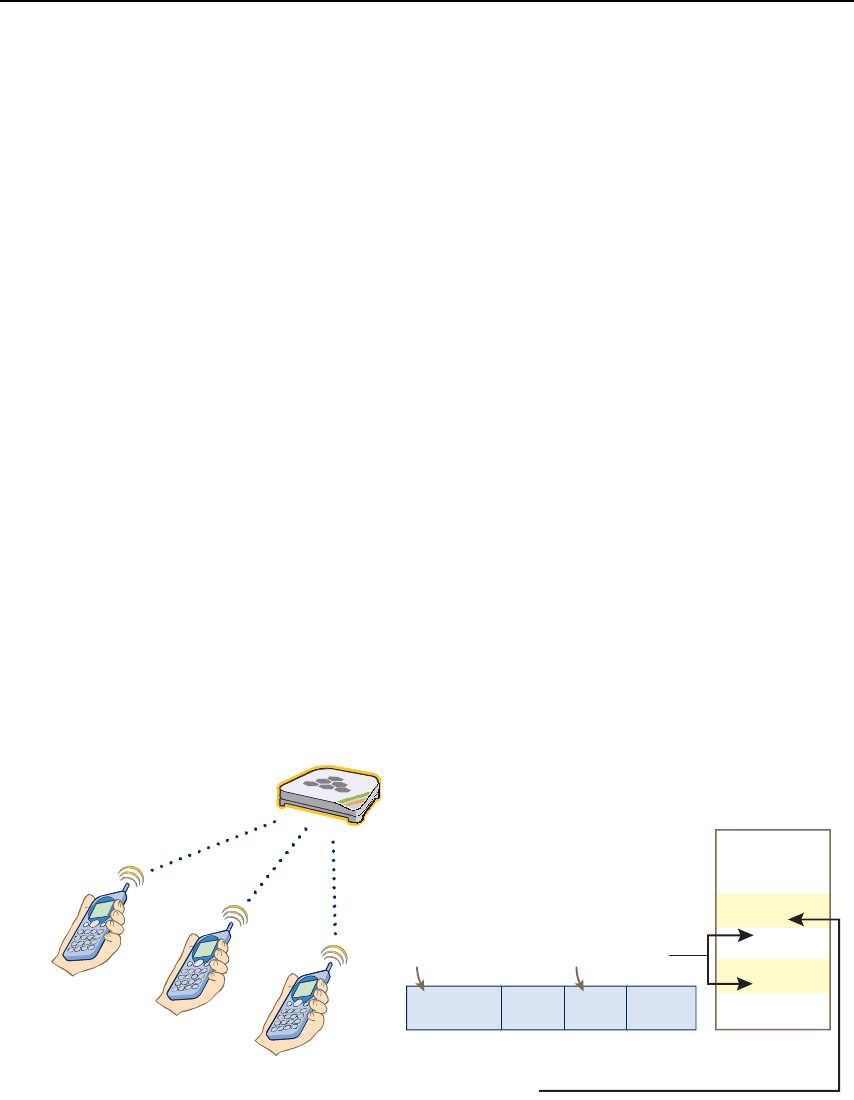

Figure 7 MAC OUI and Service Classifier Maps for VoIP Phones

ðïæîîæíìæÞÚæêÝæðì

ðïæîîæíìæëÜæððæðî

ðïæîîæíìæëéæðÞæíÚ

Ü¿¬¿

Ôí

Ø»¿¼»®

Ôì

Ø»¿¼»®

É·®»´»-- Ôî

Ø»¿¼»®

Ü»-¬·²¿¬·±² Ð±®¬ Ò«³¾»®

Ø·ª»ßÐ

ß»®±¸·ª» Ý´¿--

É¸»² ¬¸» ¼»-¬·²¿¬·±² °±®¬ ²«³¾»® ·² ¬¸» Ôì

¸»¿¼»® ·- ëí øÜÒÍ÷ ±® êé øÜØÝÐ÷ô ¬¸»

Ø·ª»ßÐ ³¿°- ¬¸» °¿½µ»¬ ¬± ß»®±¸·ª» ½´¿-- ëò

É¸»² ·¬ ·- êç øÌÚÌÐ÷ ±® èð øØÌÌÐ÷ô ¬¸»

Ø·ª»ßÐ ³¿°- ·¬ ¬± ß»®±¸·ª» ½´¿-- îò

É¸»² ¬¸» ÓßÝ ÑË× ·² ¬¸» Ôî ¸»¿¼»® ·-

ðïæîîæíìô ¬¸» Ø·ª»ßÐ ³¿°- ¬¸» °¿½µ»¬ ¬±

ß»®±¸·ª» ½´¿-- êò

Ø·ª»ßÐ

Ê±×Ð Ð¸±²»- º®±³ ¬¸» -¿³»

ª»²¼±® øÓßÝ ÑË× ðïæîîæíì÷

ÓßÝ ÑË×

Chapter 8 HiveManager Configuration Examples

98 Aerohive

By distinguishing voice traffic by the clients’ OUI and mapping it to class 6, HiveAPs can prioritize it above other

traffic types (see "Example 4: Creating User Profiles" on page113).

1.Log in to the HiveManager GUI.

2.Click Configuration > Network Objects >MAC Addresses/OUIs > New.

3.Enter the following, and then click Save:

•MAC OUI: (select)

•MAC Name: Type a name such as "VoIP_Phones". You cannot include any spaces when defining a MAC name.

Enter the following, and then click Apply:

•MAC Entry: Type the OUI for the VoIP phones used in the network; that is, type the first six numbers

constituting the vendor prefix of the MAC address. For example, if a MAC address is 01:22:34:AB:6C:04,

the OUI is 01:22:34. Type only the hexadecimal numerals without any formatting symbols such as colons

or dashes. If you do type such symbols, the GUI ignores—and does not display—them.

•Type: Choose Global because you do not need to restrict this network object to a particular set of

HiveAPs, which is what the other three options allow you to do.

•Description: Type a meaningful comment for the MAC OUI, such as the vendor that the OUI identifies.

Mapping the MAC OUI and Services to Aerohive Classes

First, map VoIP phone MAC OUIs to Aerohive class 6. Next, map DNS and DHCP services to Aerohive class 5 and TFTP

and HTTP services to class 2. Because voice traffic is the only remaining type of traffic from phones whose MAC OUIs

you have already mapped to class 6, HiveAPs map voice traffic from those phones to class 6. Although all these

services are critical for IP telephony to function properly, voice traffic is the least resistant to delay, and TFTP and

HTTP file downloads are the most resistant. Therefore, you prioritize the different types of traffic accordingly.

1.Click Configuration > QoS Policies >Classifiers and Markers >New.

The New Classifiers and Markers dialog box appears.

2.Enter the following, and then click Save:

•Name: VoIP-QoS (You cannot include any spaces when defining a QoS policy name.)

•Description: Add a descriptive comment, such as "Mapping for VoIP phone traffic".

•Network Services: (select)

•MAC OUIs: (select)

3.Click Configuration > QoS Policies >Classifier Maps >New >General.

The New Classifier Maps dialog box appears.

4.Enter the following on the General page:

•Name: VoIP-Mapping (You cannot include any spaces when defining the name of a classifier map.)

•Description: Add a descriptive comment, such as "Mapping services and OUIs for VoIP phone traffic".

•Network Services: (select)

•MAC OUIs: (select)

Note: If there are phones from more than one vendor, make a separate MAC OUI entry for each one.

Deployment Guide 99

EXAMPLE 2: DEFINING NETWORK OBJECTSAND MAC FILTERS

5.Click the Network Services tab, enter the following, and then click Apply:

•Service: DNS

•QoS Class: 5 - Video

•Action: Permit

•Logging: Select the check box to enable HiveAPsto log traffic that matches the service-to-Aerohive class

mapping. (HiveAPs log traffic whether the action is permit or deny.) The main use of logging traffic is to see

if the HiveAPs are receiving expected—or unexpected—types of traffic when you debug connectivity issues.

You can see the log entries in the event log on the HiveAPs (show logging buffered). Also, if you

configure the HiveAP to send event logs to a syslog server, you can see the log entries there (see "Example

6: Setting Management Service Parameters" on page120).

6.Enter the following, and then click Apply:

•Service: DHCP-Server

•QoS Class: 5 - Video

•Action: Permit

•Logging: Select the check box to enable traffic logging, or clear the check box to disable it.

7.Enter the following, and then click Apply:

•Service: TFTP

•QoS Class: 2 - Best Effort 1

•Action: Permit

•Logging: Select the check box to enable traffic logging, or clear the check box to disable it.

8.Enter the following, and then click Apply:

•Service: HTTP

•QoS Class: 2 - Best Effort 1

•Action: Permit

•Logging: Select the check box to enable traffic logging, or clear the check box to disable it.

9.Click the MAC OUIs tab, click New, enter the following, and then click Apply:

•MAC OUIs: Choose the name of the MAC OUI that you defined in "Defining a MAC OUI", such as "VoIP_Phones".

•QoS Class: 6 - Voice

•Action: Permit

•Comment: Enter a meaningful comment about the MAC OUI for future reference.

•Logging: Select the check box to enable log traffic that matches the MACOUI-to-Aerohive class mapping, or

clear the check box to disable it.

10.To save the configuration and close the dialog box, click Save.

Chapter 8 HiveManager Configuration Examples

100 Aerohive

Defining VLANs

You define three VLANs that you will later assign to various user profiles (see "Example 4: Creating User Profiles" on

page113). By assigning different VLANs to different user roles, their traffic remains isolated from each other; that

is, voice traffic never shares a broadcast domain with data traffic; and data traffic from guests never shares the

same broadcast domain with employee data traffic. The result is that you can provide access for certain types of

traffic to select areas of the network while blocking unauthorized access to other areas.

The VLAN IDs and the user profiles to which you will assign them are as follows:

•VLAN ID 1 for the Emp and IT user profiles (and for users not yet registered through a captive web portal)1

•VLAN ID 2 for the VoIP user profile

•VLAN ID 3 for the Guests user profile

1.Click Configuration > Network Objects > VLANs > New, enter the following, and then click Save:

•VLAN Name: VLAN-1-EmployeeData

•Enter the following, and then click Apply:

•VLAN ID: 1

•Type: Global

•Description: VLAN for Emp, IT, and unregistered CWP users

2.Click Configuration > Network Objects > VLANs> (check box) VLAN-1-EmployeeData > Clone, make the

following changes, and then click Save:

•VLAN Name: VLAN-2-EmployeeVoice

•VLAN ID: 2

•Type: Global

•Description: VLAN for VoIP traffic

3.Click Configuration > Network Objects > VLANs> (check box) VLAN-2-VoIP > Clone, make the following

changes, and then click Save:

•VLAN Name: VLAN-3-Guests

•VLAN ID: 2

•Type: Global

•Description: VLAN for guests visiting corporate

1.There is a predefined VLAN definition for VLAN ID 1, so it is not really necessary to create a new VLAN object for it. However,

because later examples in this chapter refer to VLAN 1 by the name defined here ("VLAN-1-EmployeeData"), its purpose will

hopefully be clearer than if it were referred to by the simpler name of the predefined VLAN ("1").

Note: When defining the following VLANs, choose Global as the VLAN type because you do not need to restrict

these VLANs to a particular set of HiveAPs, which is what the other three options allow you to do.

Deployment Guide 101

EXAMPLE 2: DEFINING NETWORK OBJECTSAND MAC FILTERS

Creating IP Addresses

You use the IP addresses that you create here when defining management services for the HiveAPs (see "Example 6:

Setting Management Service Parameters" on page120). The IP addresses are used for DNS, SNMP, syslog, and NTP

servers. To understand the locations of the different servers on the network, see Figure15 on page120.

DNS Servers

1.Click Configuration > Network Objects > IP Addresses > New, and after entering all the following, click Save:

•Address Name: DNS-Primary

Enter the following, and then click Apply:

—IP Address: 10.1.1.25

—Netmask: 255.255.255.255

—Type: Classifier

—Value: Tag 1: hq

By classifying the IP address definition as "hq" and then later classifying all HiveAPs deployed at

headquarters as "hq", only those HiveAPs will use the 10.1.1.25 address for their primary DNS

server.

—Description: Primary DNS server located at HQ

Enter the following, and then click Apply:

—IP Address: 10.2.2.251

—Netmask: 255.255.255.255

—Type: Classifier

—Value: Tag 1: branch1

By classifying the IP address definition as "branch1" and then later classifying all HiveAPs deployed

at the branch site as "branch1", only those HiveAPs will use the 10.2.2.251 address for their primary

DNS server. Classifying the different IP address definitions within the same IP address object allows

you to use this one object in multiple locations that have different addressing schemes.

2.Click Configuration > Network Objects > IP Addresses > New, and after entering all the following, click Save:

•Address Name: DNS-Secondary

Enter the following, and then click Apply:

—IP Address: 10.1.1.26

—Netmask: 255.255.255.255

—Type: Global

Because all the HiveAPs at both the headquarters and branch site use the same secondary DNS

server, you classify it as Global. The server is located at headquarters and HiveAPs at the branch

site reach it through a VPN tunnel.

—Description: Secondary DNS server located at HQ

Chapter 8 HiveManager Configuration Examples

102 Aerohive

Syslog Server

Click Configuration > Network Objects > IP Addresses > New, and after entering all the following, click Save:

•Address Name: Syslog-Server

Enter the following, and then click Apply:

—IP Address: 10.1.1.23

—Netmask: 255.255.255.255

—Type: Global

Because all the HiveAPs at both the headquarters and branch site use the same syslog server, you

classify it as Global. The HiveAPs at the branch site reach the syslog server, which is also located at

headquarters, through a VPN tunnel.

—Description: Syslog server at HQ

SNMP Server

Click Configuration > Network Objects > IP Addresses > (check box) Syslog-Server > Clone, change the

following settings, click Save:

•Address Name: SNMP-Server

—IP Address: 10.1.1.24 (This is the IP address of the SNMP management system to which the SNMP

agent running on the HiveAPs sends SNMP traps.)

—Description: SNMP server at HQ

NTP Server

Click Configuration > Network Objects > IP Addresses > (check box) SNMP-Server > Clone, change the

following settings, click Save:

•Address Name: NTP-Server

—IP Address: 207.126.97.57

—Description: NTP admin wjones@time.org

RADIUS Servers

1.Click Configuration > Network Objects > IP Addresses > New, and after entering all the following, click Save:

•Address Name: RADIUS-Server-Primary

Enter the following, and then click Apply:

—IP Address: 10.1.1.15

—Netmask: 255.255.255.255

—Type: Global

Because all the HiveAPs at both the headquarters and branch site use the same RADIUS servers, you

classify them as Global. The HiveAPs at the branch site reach the RADIUS servers, which are also

located at headquarters, through a VPN tunnel.

—Description: Primary RADIUS server at HQ

2.Click Configuration > Network Objects > IP Addresses > (check box) RADIUS-Server-Primary > Clone, and

after making the following changes, click Save:

•Address Name: RADIUS-Server-Secondary

—IP Address: 10.1.2.16

—Description: Secondary RADIUS server at HQ

Deployment Guide 103

EXAMPLE 2: DEFINING NETWORK OBJECTSAND MAC FILTERS

Creating a MAC Filter

A MAC filter is a type of security policy that you can apply to an SSID to allow or deny access to clients attempting to

form associations based on their source MAC addresses. In this example, you define a MAC filter based on the VoIP

phone OUI and apply it to the SSID to which you want VoIP clients to associate. HiveAPs can then filter association

requests and respond only to clients whose OUI matches that in the filter (see "Example 5: Setting SSIDs" on

page117).

The MAC filter that you create here becomes useful when you define the SSID for voice traffic (see "voip SSID" on

page118). You apply this filter to the SSID so that only VoIP phones with the MAC OUI 01:22:34 can form an

association with the HiveAPs.

1.Click Configuration > Security Policies >MAC Filters > New.

The New MAC Filters dialog box appears.

2.Enter the following name and description for the MAC filter:

•Name: corpVoIPphones (You cannot include any spaces when defining a MAC filter name.)

•Description: Use this filter for "voip" SSID

Choose the name that you gave the OUI, such as "VoIP_Phones" (see "Defining a MAC OUI" on page97) from the

MAC Address/OUI drop-down list, choose Permit as the action, and then click Apply.

3.To save the MAC filter configuration and close the dialog box, click Create.

Chapter 8 HiveManager Configuration Examples

104 Aerohive

EXAMPLE 3:PROVIDING GUEST ACCESS

As a convenience for guests visiting the corporate headquarters or branch office, you provide them with wireless

network access. To preserve bandwidth for employees, the rate limit for guests is somewhat minimized. To maintain

security, visitors are restricted to accessing just the public LAN.

Two approaches are presented in this section:

•"Guest Access with Preshared Keys": This approach provides visitors with secured network access by using WPA

or WPA2 with preshared keys and TKIP or CCMP (AES) encryption. It does not include a means for enforcing

visitors to accept a network usage policy before receiving network access.

•"Guest Access with Captive Web Portal" on page105: A captive web portal is a way to control network access by

requiring users to authenticate or register before assigning them network and user profile settings that allow

them network access beyond the HiveAP with which they associated. With this approach, registered visitors’

activity can be tracked and stored in historical logs on a syslog server for security and compliance auditing.

For the first approach, no extra configuration is necessary other than configuring a guest user profile and SSID. For

the second approach, you might want to customize the registration form used on the captive web portal. To do that,

see "Customizing the Registration Page" on page108 and "Loading Customized Captive Web Portal Files" on page111.

Guest Access with Preshared Keys

You can provide visitors with secure but unregistered network access by issuing them a preshared key to use when

associating with the guest SSID. A receptionist can provide visitors with the preshared key along with access

instructions upon their arrival, as shown in Figure8.

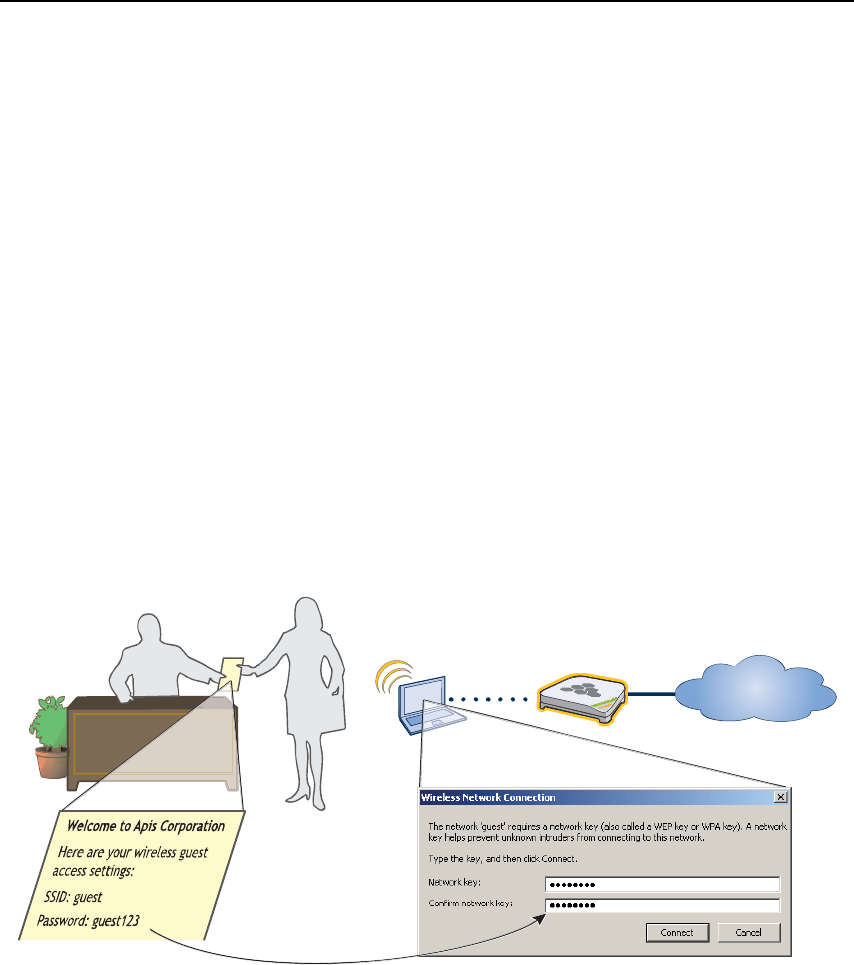

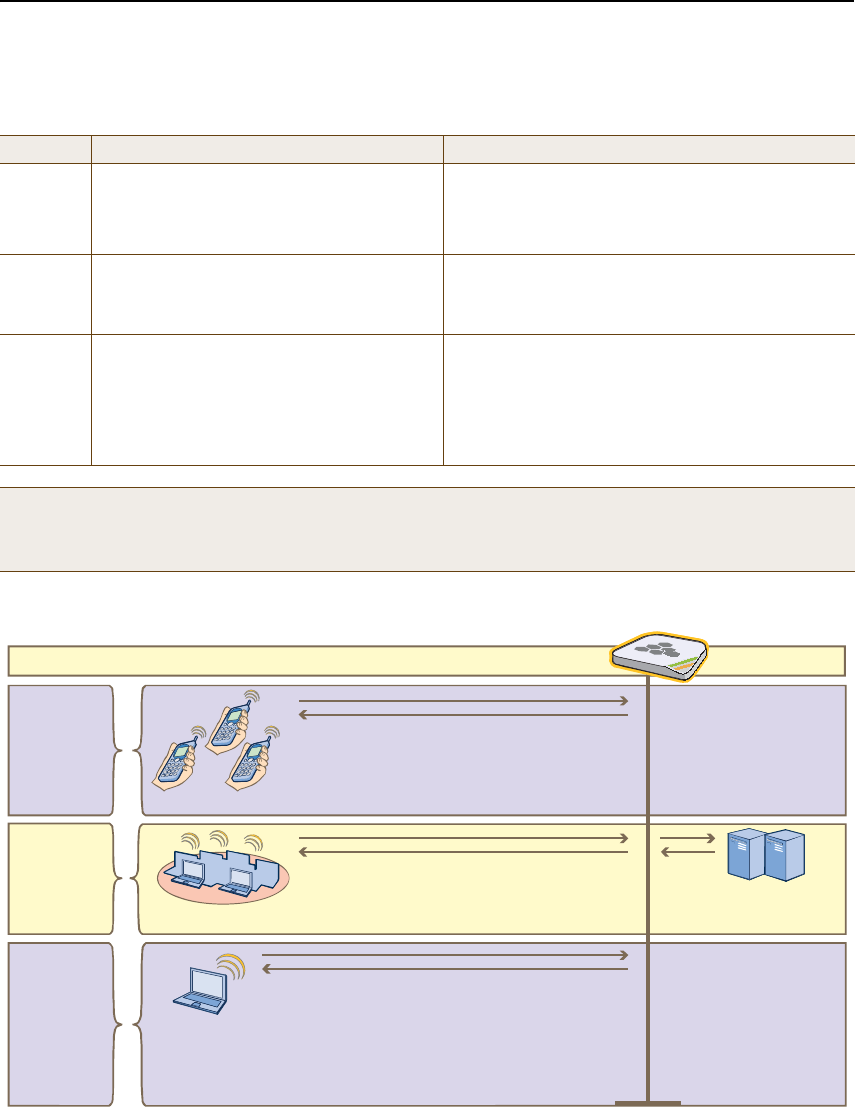

Figure 8 Guest Access Using a Preshared Key

The guest SSID provides secure network access for visitors. Also, by linking visitors to the guest SSID, you can

differentiate them from employees—who associate with other SSIDs (voip and corp)—so that you can apply one set

of QoS (Quality of Service) settings for visitors and other settings for employees. In addition, the user profiles for

employees and guests further separate their traffic into two different VLANs. For instructions on setting up guest

access with a preshared key, see "Guests QoS and User Profile" on page115 and "guest SSID" on page119.

Î»½»°¬·±²·-¬

Ê·-·¬±®

Ê·-·¬±®Ž- Ô¿°¬±° Ø·ª»ßÐ

×²¬»®²»¬

Ì¸» ª·-·¬±® »²¬»®- ¬¸»

°®»-¸¿®»¼ µ»§

•¹«»-¬ïîíŒ ©¸»²

º±®³·²¹ ¿² ¿--±½·¿¬·±²

©·¬¸ ¬¸» Ø·ª»ßÐ «-·²¹

¬¸» ÍÍ×Ü •¹«»-¬Œò

Deployment Guide 105

EXAMPLE 3: PROVIDING GUEST ACCESS

Guest Access with Captive Web Portal

A captive web portal provides registered users with network access while containing unregistered users. Aerohive

offers two approaches to applying a captive web portal, one using external DHCP and DNS servers on the network

and the other using internal DHCP and DNS servers on the HiveAP itself. In the first approach, both registered and

unregistered users must be in the same VLAN because the DHCP and DNS servers that they use initially before they

the unregistered and registered users into two separate VLANs because the unregistered users access the internal

DHCP and DNS servers on the HiveAPs, whereas the registered users access the external DHCP and DNS servers,

which can be in a different VLAN from the internal servers on the HiveAP.

Captive Web Portal with External DHCP and DNS Servers

With this approach, when the client of a previously unregistered visitor first associates with the guest SSID, the

HiveAP assigns the "Unregistered-Guests" user profile to the visitor. It allows DHCP and DNS traffic to pass through so

that the client can receive its address and TCP/IP assignments and resolve domain names to IP addresses. It also

allows ICMP traffic for diagnostic purposes. However, the HiveAP intercepts all HTTP and HTTPS traffic from that

client—and drops all other types of traffic—thereby limiting its network access to just the HiveAP with which it

associated. No matter what website the visitor tries to reach, the HiveAP directs the visitor’s browser to a

registration page. After the visitor registers, the HiveAP stores the client’s MAC address as a registered user, applies

the "Guests" user profile to the visitor, and stops keeping the client captive; that is, the HiveAP no longer intercepts

HTTP and HTTPS traffic from that MAC address, but allows the client to access external web servers. The entire

process is shown in Figure9.

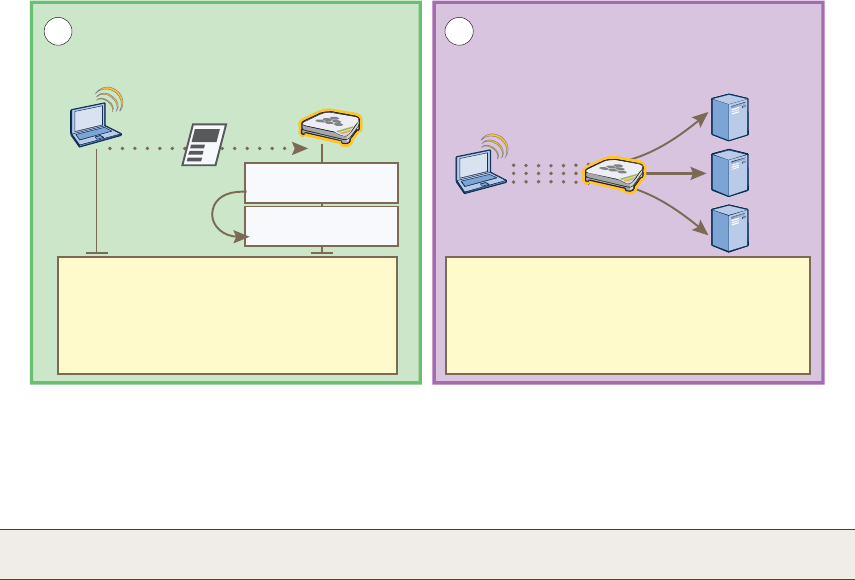

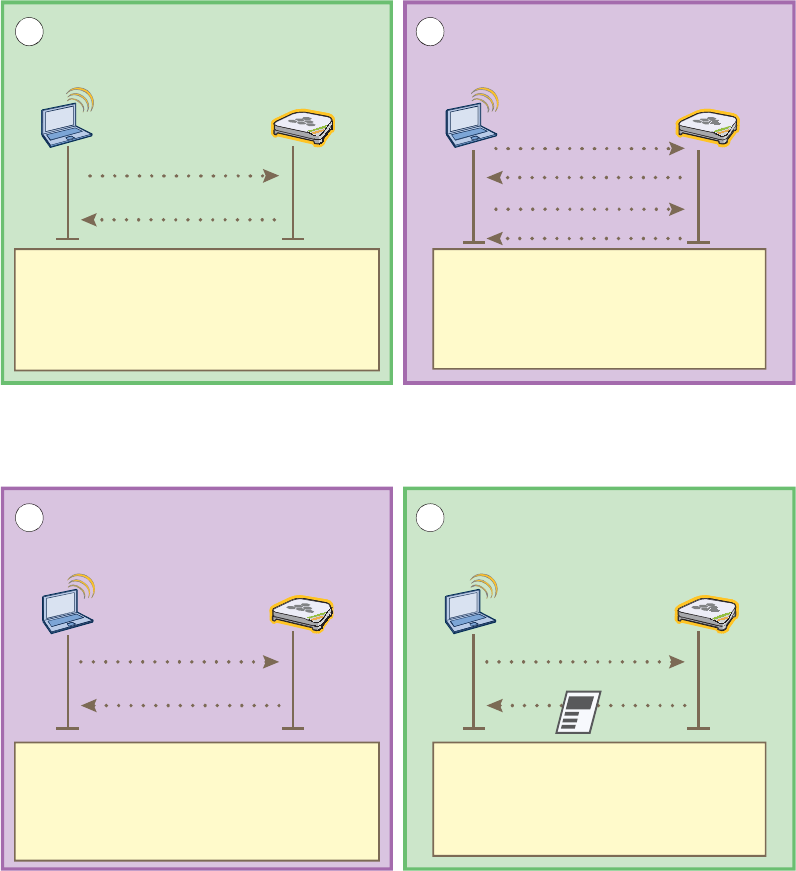

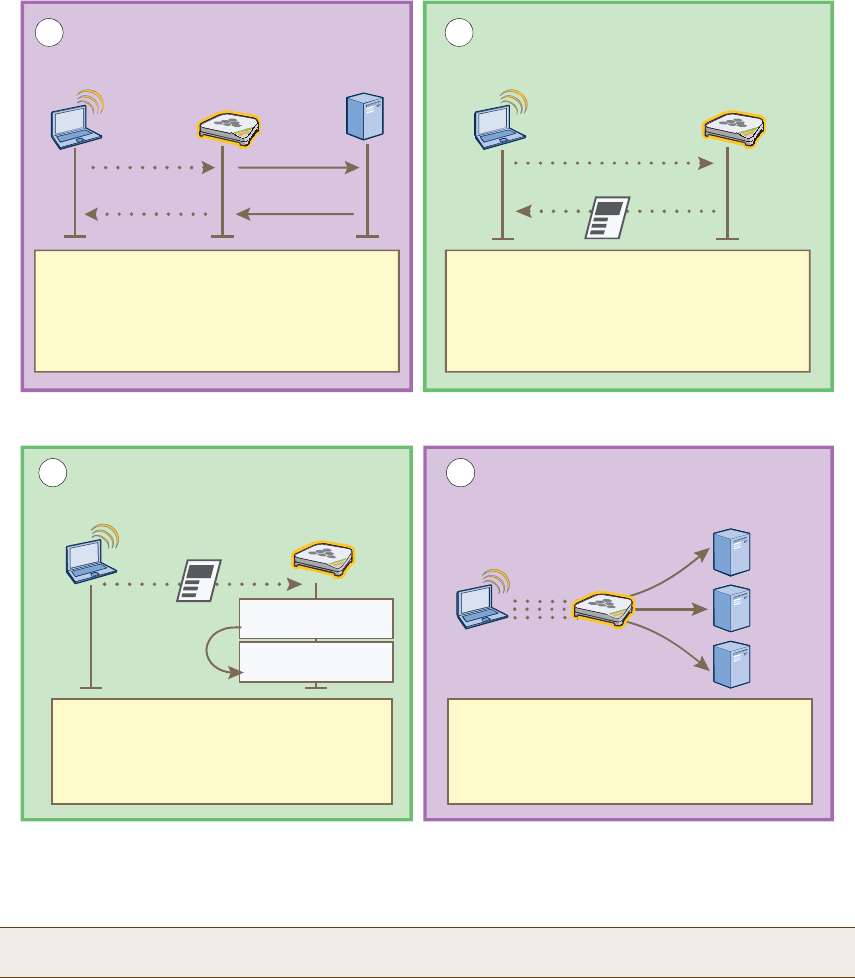

Figure 9 Captive Web Portal Exchanges Using External DHCP and DNS Servers

É·®»´»-- Ý´·»²¬ É·®»´»-- ß½½»-- Ð±·²¬ÜØÝÐ Ý´·»²¬ ÜØÝÐ Í»®ª»®

ß--±½·¿¬·±² Ë-·²¹ ÍÍ×Ü •¹«»-¬Œ ß¼¼®»-- ¿²¼ ÌÝÐñ×Ð ß--·¹²³»²¬-

ß--±½·¿¬·±² Î»¯«»-¬

ß--±½·¿¬·±² Î»-°±²-»

ï î

ÜØÝÐ Î»¯«»-¬

ÜØÝÐ ßÝÕ

ÜØÝÐ Ü·-½±ª»®

ÜØÝÐ Ñºº»®

Ì¸» ½´·»²¬ º±®³- ¿² ¿--±½·¿¬·±² ©·¬¸ ¬¸» Ø·ª»ßÐ

¾«¬ ¬¸» ª·-·¬±® ¸¿- ²±¬ §»¬ ®»¹·-¬»®»¼ò Ì¸»

Ø·ª»ßÐ ¿´´±©- ÜØÝÐô ÜÒÍô ¿²¼ ×ÝÓÐ ¬®¿ºº·½

¬¸®±«¹¸ò ×¬ ®»¼·®»½¬- ¿´´ ØÌÌÐ ¿²¼ ØÌÌÐÍ ¬®¿ºº·½

¬± ·¬- ±©² ©»¾ -»®ª»® ¿²¼ ¼®±°- ¿´´ ±¬¸»® ¬®¿ºº·½ò

Ì¸» Ø·ª»ßÐ ¿´´±©- ÜØÝÐ ¬®¿ºº·½ ¬± °¿--

¾»¬©»»² ¬¸» ½´·»²¬ ±º ¿² «²®»¹·-¬»®»¼ «-»® ¿²¼

¿ ÜØÝÐ -»®ª»® -± ¬¸¿¬ ¬¸» ½´·»²¬ ½¿² ®»½»·ª»

·¬- ×Ð ¿¼¼®»-- ¿²¼ ÌÝÐñ×Ð ¿--·¹²³»²¬-ò

Chapter 8 HiveManager Configuration Examples

106 Aerohive

To enable the captive web portal to forward DHCP and DNS traffic from unregistered users to external servers on the

network, click Configuration > Authentication > Captive Web Portal > New, and select Use external DHCP and

DNS servers on the network.

Note: With this captive web portal implementation, you must assign unregistered and registered users to the

same VLAN.

í ì

ÜÒÍ Ï«»®·»²¬ ÜÒÍ Í»®ª»®ØÌÌÐ Ý´·»²¬ ØÌÌÐ Í»®ª»®

ÜÒÍ ß¼¼®»-- Î»-±´«¬·±² ØÌÌÐ Ý±²²»½¬·±² ¬± ¬¸» Ý¿°¬·ª» É»¾ Ð±®¬¿´

ØÌÌÐ ÙÛÌ

Î»°´§

É¸»² ¬¸» ½´·»²¬ -»²¼- ¿² ØÌÌÐ ±® ØÌÌÐÍ

ÙÛÌ ½±³³¿²¼ô ¬¸» Ø·ª»ßÐ ·²¬»®½»°¬- ·¬ ¿²¼

-»²¼- ·¬ ¬± ·¬- ØÌÌÐ -»®ª»®ô ©¸·½¸ ®»°´·»- ©·¬¸

¿ ¹«»-¬ ¿½½»-- ®»¹·-¬®¿¬·±² °¿¹»ò Ì¸» «-»®

³«-¬ ¿¹®»» ¬± ¿² ¿½½»°¬¿¾´» «-» °±´·½§ô º·´´ ·²

-±³» º·»´¼-ô ¿²¼ ¬¸»² -«¾³·¬ ¬¸» º±®³ò

Ì¸» Ø·ª»ßÐ ¿´´±©- ÜÒÍ ¯«»®·»- ¿²¼ ®»°´·»-

¾»¬©»»² ¬¸» ½´·»²¬ ±º ¿² «²¹®»¹·-¬»®»¼ «-»®

¿²¼ ¿ ÜÒÍ -»®ª»®

ÜÒÍ Ï«»®§

ÜÒÍ Î»°´§

ØÌÌÐ Ý´·»²¬ ØÌÌÐ Í»®ª»® É·®»´»--

Ý´·»²¬

Í»®ª»®-

Î»¹·-¬®¿¬·±² ÜØÝÐô ÜÒÍô ¿²¼ ØÌÌÐ Ú±®©¿®¼·²¹ë ê

É·®»´»--

ß½»-- Ð±·²¬

ßº¬»® ¿ ¹«»-¬ ¿¹®»»- ¬± ¬¸» ¿½½»°¬¿¾´» «-»

°±´·½§ô º·´´- ·² ¬¸» º±®³ô ¿²¼ -«¾³·¬- ¬¸»

®»¹·-¬®¿¬·±²ô ¬¸» Ø·ª»ßÐ ³±ª»- ¬¸» ½´·»²¬Ž-

ÓßÝ ¿¼¼®»-- º®±³ ¿ ¯«¿®¿²¬·²»¼ ´·-¬ ¬± ¿

®»¹·-¬»®»¼ ´·-¬ò

Ì¸» Ø·ª»ßÐ ¬¸»² ¿°°´·»- ¬¸» ®»¹·-¬»®»¼ «-»®

°®±º·´» •Ù«»-¬-Œ ¿²¼ º±®©¿®¼- ¿´´ ¬§°»- ±º ¬®¿ºº·½

¬± ¬¸» ®»-¬ ±º ¬¸» ²»¬©±®µô ¿- °»®³·¬¬»¼ ¾§

º·®»©¿´´ °±´·½·»- ¿--·¹²»¼ ¬± ¬¸¿¬ «-»® °®±º·´»ò

Î»¹·-¬®¿¬·±²

Ï«¿®¿²¬·²»

ÓßÝæ ððïêæ½ºè½æëé¾½

Î»¹·-¬»®»¼

ÓßÝæ ððïêæ½ºè½æëé¾½

ÜØÝÐ

ÜÒÍ

ØÌÌÐ

Deployment Guide 107

EXAMPLE 3: PROVIDING GUEST ACCESS

Captive Web Portal with Internal DHCP and DNS Servers

With this approach, when the client of a previously unregistered visitor first associates with the guest SSID, the

HiveAP acts as a DHCP server, DNS server, and web server, limiting the client’s network access to just the HiveAP

with which it associated. No matter what website the visitor tries to reach, the HiveAP directs the browser to a

registration page. After the visitor registers, the HiveAP stores the client’s MAC address as a registered user and

stops keeping the station captive; that is, the HiveAP no longer acts as a DHCP, DNS, and web server for traffic from

that MAC address, but allows the client to access external servers. The entire process is shown in Figure10.

Figure 10 Captive Web Portal Exchanges Using Internal Servers

É·®»´»-- Ý´·»²¬ É·®»´»-- ß½½»-- Ð±·²¬ÜØÝÐ Ý´·»²¬ ÜØÝÐ Í»®ª»®

ß--±½·¿¬·±² Ë-·²¹ ÍÍ×Ü •¹«»-¬Œ ß¼¼®»-- ¿²¼ ÌÝÐñ×Ð ß--·¹²³»²¬-

ß--±½·¿¬·±² Î»¯«»-¬

ß--±½·¿¬·±² Î»-°±²-»

ï î

ÜØÝÐ Î»¯«»-¬

ÜØÝÐ ßÝÕ

ÜØÝÐ Ü·-½±ª»®

ÜØÝÐ Ñºº»®

ÍÍ×Ü •¹«»-¬Œ

Ì¸» ½´·»²¬ º±®³- ¿² ¿--±½·¿¬·±² ©·¬¸ ¬¸» Ø·ª»ßÐ

¾«¬ ¬¸» ª·-·¬±® ¸¿- ²±¬ §»¬ ®»¹·-¬»®»¼ò Ì¸»

Ø·ª»ßÐ ¼·®»½¬- ¿´´ ÜØÝÐô ÜÒÍô ¿²¼ ØÌÌÐ

¬®¿ºº·½ º®±³ «²®»¹·-¬»®»¼ ¹«»-¬- ¬± ·¬-»´º ·²-¬»¿¼

±º ¿´´±©·²¹ ·¬ ¬± ¬¸» ®»-¬ ±º ¬¸» ²»¬©±®µò

×Ð ß¼¼®»--æ ïéîòïêòïòî

Ò»¬³¿-µæ îëëòîëëòîëëòð

Ü»º¿«´¬ Ù¿¬»©¿§æ ïéîòïêòïòïö

ÜØÝÐ Í»®ª»®æ ïéîòïêòïòïö

ÜÒÍæ ïéîòïêòïòïö

Ô»¿-»æ ïð Í»½±²¼-

ö Þ§ ¼»º¿«´¬ô ¿ Ø·ª»ßÐ ¿--·¹²- ×Ð ¿¼¼®»--»- ¬±

-«¾·²¬»®º¿½»- º±® ½¿°¬·ª» ©»¾ °±®¬¿´ «-» ¿- º±´´±©-æ

©·º·ðòï Š ©·º·ðòé ïéîòïêòïòï Š ïéîòïêòéòï

©·º·ïòï Š ©·º·ïòé ïéîòïêòïïòï Š ïéîòïêòïéòï

í ì

ÜÒÍ Ï«»®·»²¬ ÜÒÍ Í»®ª»®ØÌÌÐ Ý´·»²¬ ØÌÌÐ Í»®ª»®

ÜÒÍ ß¼¼®»-- Î»-±´«¬·±²

ØÌÌÐ Ý±²²»½¬·±² ¬± ¬¸» Ý¿°¬·ª» É»¾ Ð±®¬¿´

ÜÒÍ Ï«»®§

ÜÒÍ Î»°´§

ØÌÌÐ ÙÛÌ

Î»°´§

É¸»² ¬¸» ØÌÌÐ ½´·»²¬ -»²¼- ¿ ÙÛÌ

½±³³¿²¼ô ¬¸» ØÌÌÐ -»®ª»® ®»°´·»- ©·¬¸ ¿

¹«»-¬ ¿½½»-- ®»¹·-¬®¿¬·±² °¿¹»ò Ì¸» «-»®

³«-¬ ¿¹®»» ¬± ¿² ¿½½»°¬¿¾´» «-» °±´·½§ô º·´´

·² -±³» º·»´¼-ô ¿²¼ ¬¸»² -«¾³·¬ ¬¸» º±®³ò

É·´¼½¿®¼ ß ®»½±®¼ ·² ¬¸» ®±±¬ ¦±²» •òŒ ±² ¬¸»

Ø·ª»ßÐ ÜÒÍ -»®ª»®æ ö ·² ¿ ïéîòïêòïòï

Ì¸» ÜÒÍ -»®ª»® ®»-±´ª»- ¿´´ ¼±³¿·²

²¿³»ó¬±ó¿¼¼®»-- ¯«»®·»- ¬± ¬¸» -¿³» ×Ð

¿¼¼®»--ô ©¸·½¸ ·² ¬¸·- ½¿-» ·- ïéîòïêòïòïò

Chapter 8 HiveManager Configuration Examples

108 Aerohive

To enable the captive web portal to forward DHCP and DNS traffic from unregistered users to its internal servers,

click Configuration > Authentication > Captive Web Portal > New, and select Use internal DHCP and DNS servers

on the HiveAP. By default, the internal DHCP server issues leases with a ten-second lifetime, and if a client with a

nonexistent lease requests a lease renewal, the HiveAP responds by broadcasting a DHCP NAK. You can change the

HiveAP response so that it sends a unicast NAK or ignores the request completely (Keep Silent).

Customizing the Registration Page

Although Aerohive provides .html and .jpg files for use on the captive web portal server, you might want to

customize them to better suit your organization. There are six files, four of which are shown in Figure11:

Note: With this captive web portal implementation, you can assign unregistered and registered users to the same

VLAN or to different VLANs.

•index.html (the main registration page) •loginscreen_02.jpg (image at the top of web pages)

•success.html (page that appears after registering) •loginscreen_03.jpg (yellow line near top of web pages)

•reg.php (script stored on internal web server) •loginscreen_05.jpg (image at bottom of index.html)

ØÌÌÐ Ý´·»²¬ ØÌÌÐ Í»®ª»® É·®»´»--

Ý´·»²¬

Í»®ª»®-

Î»¹·-¬®¿¬·±² ÜØÝÐô ÜÒÍô ¿²¼ ØÌÌÐ Ú±®©¿®¼·²¹

ë ê

É·®»´»--

ß½»-- Ð±·²¬

ßº¬»® ¿ ¹«»-¬ ¿¹®»»- ¬± ¬¸» ¿½½»°¬¿¾´» «-»

°±´·½§ô º·´´- ·² ¬¸» º±®³ô ¿²¼ -«¾³·¬- ¬¸»

®»¹·-¬®¿¬·±²ô ¬¸» Ø·ª»ßÐ ³±ª»- ¬¸» ½´·»²¬Ž-

ÓßÝ ¿¼¼®»-- º®±³ ¿ ¯«¿®¿²¬·²»¼ ´·-¬ ¬± ¿

®»¹·-¬»®»¼ ´·-¬ò

Ì¸» Ø·ª»ßÐ ¿°°´·»- ¬¸» •Ù«»-¬-Œ «-»® °®±º·´»

¿²¼ º±®©¿®¼- º«®¬¸»® ÜØÝÐô ÜÒÍô ¿²¼ ØÌÌÐ

®»¯«»-¬- ¬± »¨¬»®²¿´ -»®ª»®- ±² ¬¸» ²»¬©±®µò

Þ»½¿«-» ¬¸» ÜØÝÐ ´»¿-» ·- ±²´§ ïð -»½±²¼-ô

¬¸» ¬®¿²-·¬·±² ¬± ¬¸» »¨¬»®²¿´ -»®ª»®- ±½½«®-

ª»®§ -±±² ¿º¬»® ¬¸» ®»¹·-¬®¿¬·±² ½±³°´»¬»-ò

Î»¹·-¬®¿¬·±²

Ï«¿®¿²¬·²»

ÓßÝæ ððïêæ½ºè½æëé¾½

Î»¹·-¬»®»¼

ÓßÝæ ððïêæ½ºè½æëé¾½

ÜØÝÐ

ÜÒÍ

ØÌÌÐ

Deployment Guide 109

EXAMPLE 3: PROVIDING GUEST ACCESS

Figure 11 Captive Web Portal Registration Page

Unregistered users’ browsers are redirected to the registration page (index.html) of the captive web portal for the

SSID to which they associate (the guest SSID in the examples here). You can have a different registration page for

each SSID.

To access the default set of .html and .jpg files on a HiveAP, do the following:

1.Configure a guest SSID as explained in "guest SSID" on page119 and complete the rest of the HiveAP steps

explained in this chapter to bring a HiveAP under HiveManager management.

2.Position your management system near the HiveAP and form an association with it using the guest SSID.

3.Open a web browser. When it tries to open its home page, the HiveAP intercepts the HTTP traffic and redirects

it to the captive portal web server.

4.Save the registration page to your local system. In Microsoft Internet Explorer®, for example, click File >

SaveAs, name it index, and in the Save as type field, choose Webpage, complete (*.htm, *.html).

5.Open the directory where you saved the index.html file.

In addition to the index.html file, there is also an images directory containing the three .jpg files that

index.html references: loginscreen_02.jpg, loginscreen_03.jpg, and loginscreen_05.jpg.

6.Because the directory structure in the HiveAP is different, move the three .jpg files to the same directory as

index.html. Optionally, delete those three images and create your own new images, saving them in the same

directory as the index.html file.

7.Open index.html with a text editor and make the following changes:

Note: An alternative approach is to log in to the console port of an individual HiveAP that you have

connected to the network—see "Step 1 Log in through the console port" on page150—and enter the

following commands:

ssid guest

ssid guest security additional-auth-method captive-web-portal

interface wifi0 ssid guest

save config

´±¹·²-½®»»²Áðîò¶°¹ øíðì ¨ ëê °¨÷

´±¹·²-½®»»²Áðëò¶°¹ øìëð ¨ ëð °¨÷

ä¸¬³´â

ä¸»¿¼â

ä¬·¬´»â´±¹·²-½®»»²äñ¬·¬´»â

ä³»¬¿ ¸¬¬°ó»¯«·ªãþÝ±²¬»²¬óÌ§°»þ

½±²¬»²¬ãþ¬»¨¬ñ¸¬³´å ½¸¿®-»¬ã·-±óèèëçóïþâ

ä-¬§´» ¬§°»ãþ¬»¨¬ñ½--þâ

äÿóó

ò-¬§´»ï ¥

º±²¬óº¿³·´§æ ß®·¿´ô Ø»´ª»¬·½¿ô

-¿²-ó-»®·ºå

º±²¬ó©»·¹¸¬æ ¾±´¼å

º±²¬ó-·¦»æ ïì°¨å

ò ò ò

·²¼»¨ò¸¬³´

´±¹·²-½®»»²Áðíò¶°¹ øìëð ¨ ì °¨÷

Ò±¬»æ Ì¸» ®»-±´«¬·±² º±® ¿´´ ·³¿¹»-

·- çê ¼°·ò Ì¸» ¾·¬ ¼»°¬¸ ·- îìò

Ì± ³±¼·º§ ¬¸» ®»¹·-¬®¿¬·±² °¿¹»ô

¼± ¬¸» º±´´±©·²¹æ

ïò Í»¬ «° ¿ ½¿°¬·ª» ©»¾ °±®¬¿´ ±²

¿² ÍÍ×Üò

îò ß½¬·²¹ ¿- ¿ ½´·»²¬ô ³¿µ» ¿²

¿--±½·¿¬·±² ©·¬¸ ¬¸¿¬ ÍÍ×Üò

íò É¸»² §±« -»» ¬¸» ®»¹·-¬®¿¬·±²

°¿¹» ·² §±«® ¾®±©-»®ô -¿ª» ·¬

¿²¼ ·¬- ¿½½±³°¿²§·²¹ ·³¿¹»-ò

ìò Ë-» ¿ ¹®¿°¸·½- °®±¹®¿³ ¬±

½®»¿¬» ²»© ò¶°¹ ·³¿¹»-ò

ëò Ë-» ¿ ¬»¨¬ »¼·¬±® ¬± ³±¼·º§ ¬¸»

¬»¨¬ ·² ¬¸» ·²¼»¨ò¸¬³´ º·´»ò

êò Ë°´±¿¼ ¬¸» º·´»- ¬± ¬¸» Ø·ª»ßÐò

¸¬¬°æññ©©©ò½©°ó´±¹·²óðóïò½±³ñ·²¼»¨ò¸¬³´

ß«¬¸»²¬·½¿¬»¼ Ò»¬©±®µ ß½½»--

Ë-»® Ò¿³»æ

Ð¿--©±®¼æ

Ñ°»² Ù«»-¬ Ò»¬©±®µ ß½½»--

ß½½»°¬¿¾´» Ë-» Ð±´·½§

Í«¾³·¬

× ¿¹®»»

Ú·®-¬ Ò¿³»æ

Ô¿-¬ Ò¿³»æ

Û³¿·´æ

Ð¸±²»æ

Ê·-·¬·²¹æ

Ý±³³»²¬æ

Ú·»´¼- ³¿®µ»¼ ©·¬¸ ¿² ¿-¬»®·-µ ö ¿®» ®»¯«·®»¼ò

ïòð Ñª»®ª·»©

Ì¸·- ½±³°¿²§Ž- ·²¬»²¬·±²- º±® °«¾´·-¸·²¹ ¿²

ß½½»°¬¿¾´» Ë-» Ð±´·½§ ¿®» ²±¬ ¬± ·³°±-»

®»-¬®·½¬·±²- ¬¸¿¬ ¿®» ½±²¬®¿®§ ¬± ¬¸·-

½±³°¿²§ò Û-¬¿¾´·-¸»¼ ½«´¬«®» ±º ±°»²²»--ô

¬®«-¬ ¿²¼ ·²¬»¹®·¬§ò Ì¸·- ½±³°¿²§ ·-

½±³³·¬¬»¼ ¬± °®±¬»½¬·²¹ ¬¸·- ½±³°¿²§Ž-

Chapter 8 HiveManager Configuration Examples

110 Aerohive

•Remove the string index_files/ from the image source definitions of the three images:

•To change the color in the bar in the upper left corner, find <td width="146" bgcolor="002740">

and enter a different color definition. For example, to make it black, enter "000000".

•If you want to change the acceptable use policy, find the section that begins with the words

"1.0Overview", and then either replace the text with your own policy or edit the existing one.

•To remove the Authenticated Network Access section at the top of the page, delete the HTML code from

"<FORM name=form2 action=reg.php method=post>" to "</DIV></FORM>".

Figure12 on page110 shows the result of editing the text in the acceptable use policy, changing the color in the

top left bar in the index.html file, creating two new images for loginscreen_02.jpg and loginscreen_05.jpg, and

removing the Authenticated Network Access section.

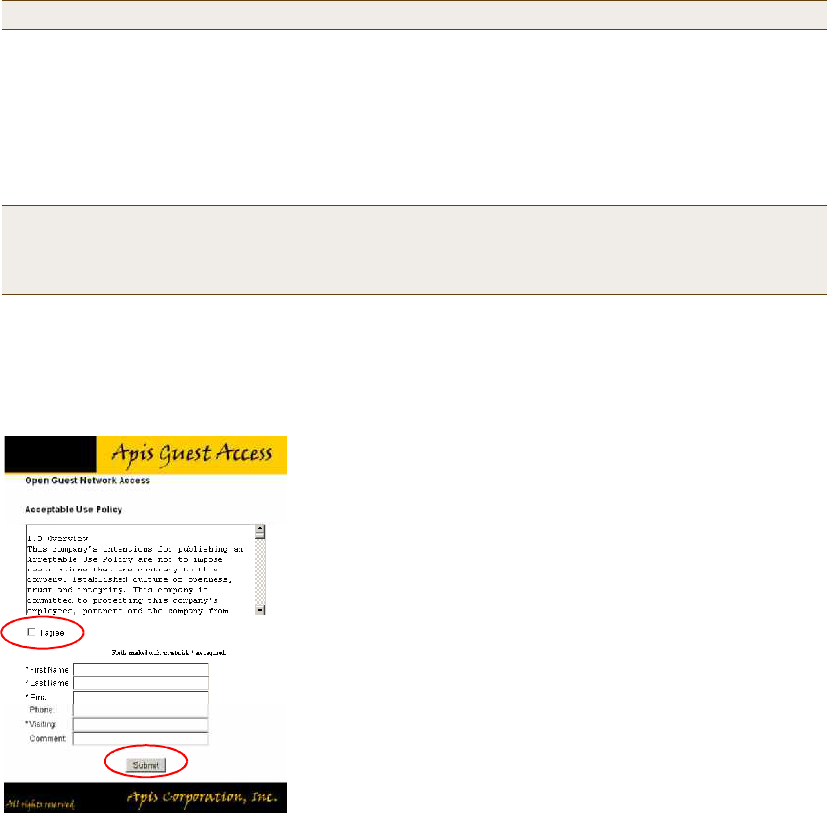

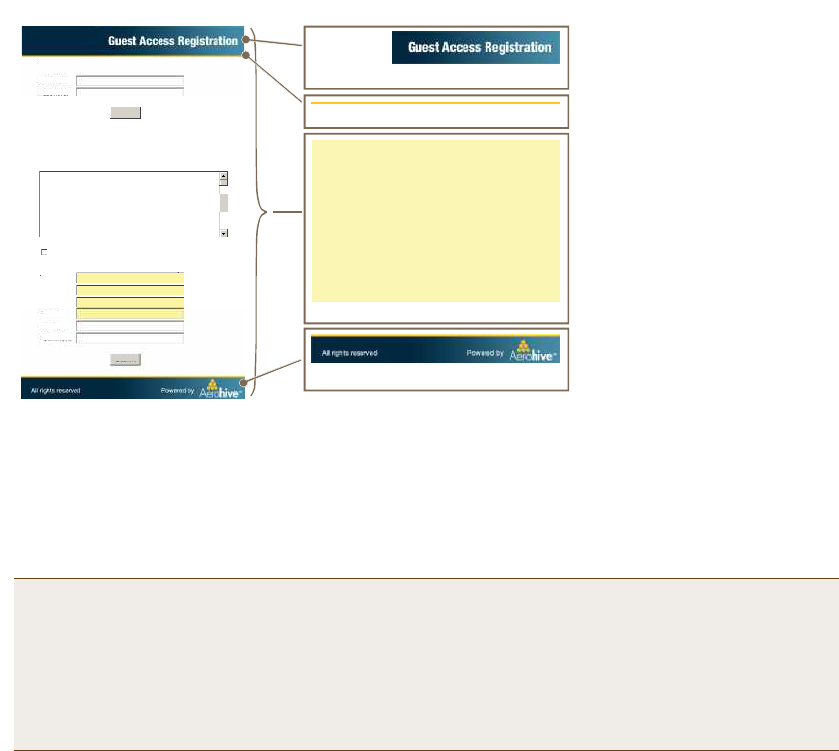

Figure 12 Modified Registration Page

8.To edit the "Successful Registration" page, which follows the registration page, click I agree, fill in the fields,

and then click Submit Query.

The browser opens the "Successful Registration" page.

9.Save the page as a file named success.html to the same directory as the index.html file.

10.Open it with a text editor, make your changes, and then save the modified file.

Note: When working on image files, make sure that they match the above dimensions.

Note: If you want to use the Authenticated Network Access section to authenticate employees through the

captive web portal, store their user accounts on the RADIUS server that you configure in "Example 7:

Defining AAA RADIUS Settings" on page123. The HiveAPs hosting the captive web portal will forward

their user name and password entries to that RADIUS server for the authentication check.

Notes

The default registration page contains two forms: an upper form

for user authentication (through an external RADIUS server)

and a lower form for user registration. In this example, you

remove the upper form so that the page is simply for guest

registration.

The total number of fields in the customized file shown here is

the same as that in the default index.html file. If you want, you

can edit the HTML code to change the number of required and

optional fields. (Fields identified as "INPUT id=field<number>"

are required, and "INPUT id=opt_field<number>" are optional.)

If you change the number of fields in the HTML code, you must

also change them in the captive web portal section of the SSID

configuration.

There are two elements that cannot be removed from this file:

•"I agree" check box (its name must remain as “checkbox” in

the code)

•Submit button

Deployment Guide 111

EXAMPLE 3: PROVIDING GUEST ACCESS

Loading Customized Captive Web Portal Files

To load your edited or new files onto one or more HiveAPs, you first create a directory on HiveManager and then

upload the files from your management system or SCP (Secure Copy) server into that directory. From there, you can

send the files to one or more managed HiveAPs when you push the configuration that references the files.

To create a directory on HiveManager and upload files into it, do the following:

1.In the HiveManager GUI, click Configuration > HiveAP File Management.

2.In the HiveAP File Management window, select Captive Portal Page for file type.

Two display areas (Available Directories and Available CWP Files) and a new field (Directory Name) appear.

3.In the Directory Name field, type a name such as guestCWP, and then click Create.

A directory named "guestCWP" appears in the Available Directories list.

4.Depending on how you upload the files, select guestCWP, enter one of the following, and then click Upload:

To load files from a directory on your local management system:

•Local File: (select); type the directory path and a file name; or click Browse, navigate to one of the files,

and select it.

To load a file from an SCP server:

•SCP Server: (select)

•IP Address: Enter the IP address of the SCP server.

•SCP Port: Enter the port number of the SCP server (the default port number for SCP is 22).

•File Path: Enter the directory path and file name. If the files are in the root directory of the SCP server, you

can simply enter the file name.

•User Name: Type a user name with which HiveManager can access the SCP server.

•Password: Type a password with which HiveManager can use to log in securely to the SCP server.

5.Repeat either the Local or SCP method of uploading each file you need into the guestCWP directory.

Note: After you load a file, it appears in the Available CWP Files display area. If you accidentally load the

wrong file, select the file name and then click Remove.

Chapter 8 HiveManager Configuration Examples

112 Aerohive

Defining a Captive Web Portal

Define the following captive web portal for use when creating an SSID for guest registration (see "guest SSID" on

page119). The definition below references the web directory "guestCWP" and the HTML files that you modified and

uploaded in the previous section—login.html and success.html.

Click Configuration > Authentication > Captive Web Portal > New, enter the following, leave all the other

values at their default settings, and then click Save:

•Name: CWP-guest1

•Description: Captive web portal for guest registration

•Use default file settings: (clear)

•Web Files Directory: guestCWP

•Web Page Name: login.html

•Result Page Name: success.html

•Use external DHCP and DNS servers on network: (select)

Perform the following tasks to finish setting up the captive web portal:

•Configure two user profiles—one for successfully registered users and another for the unsuccessful (see

"Guests QoS and User Profile" on page115 and "Unregistered-Guests QoS and User Profile" on page116)

•Configure an SSID with captive web portal functionality (see "guest SSID" on page119)

•Link the user profiles to the SSID in a WLAN policy (see "Example 9: Creating WLAN Policies" on page126)

•Push the files and configuration to managed HiveAPs on which you want to run the portal (see "Example 10:

Assigning Configurations to HiveAPs" on page135)

Note: You can also use the Aerohive GuestManager to provide network access to wireless visitors. An

administrator, called an operator, sets up visitors’ account on GuestManager. Then GuestManager uses its

built-in RADIUS server to authenticate those users. For more information, see the Aerohive GuestManager

Getting Started Guide.

Deployment Guide 113

EXAMPLE 4: CREATING USER PROFILES

EXAMPLE 4:CREATING USER PROFILES

User profiles contain a grouping of settings that determine the QoS (Quality of Service), VLAN, firewall policies, and

mobility policy that you want HiveAPs to apply to traffic from a specific group of users. In this example, you define

user profiles and their companion QoS forwarding rates and VLANs for VoIP phone users ("VoIP"), IT staff ("IT"),

corporate employees ("Emp"), and corporate visitors ("Guests"2). The user profile settings, maximum traffic

forwarding rates per user, and the VLAN for each profile are shown in Figure13.

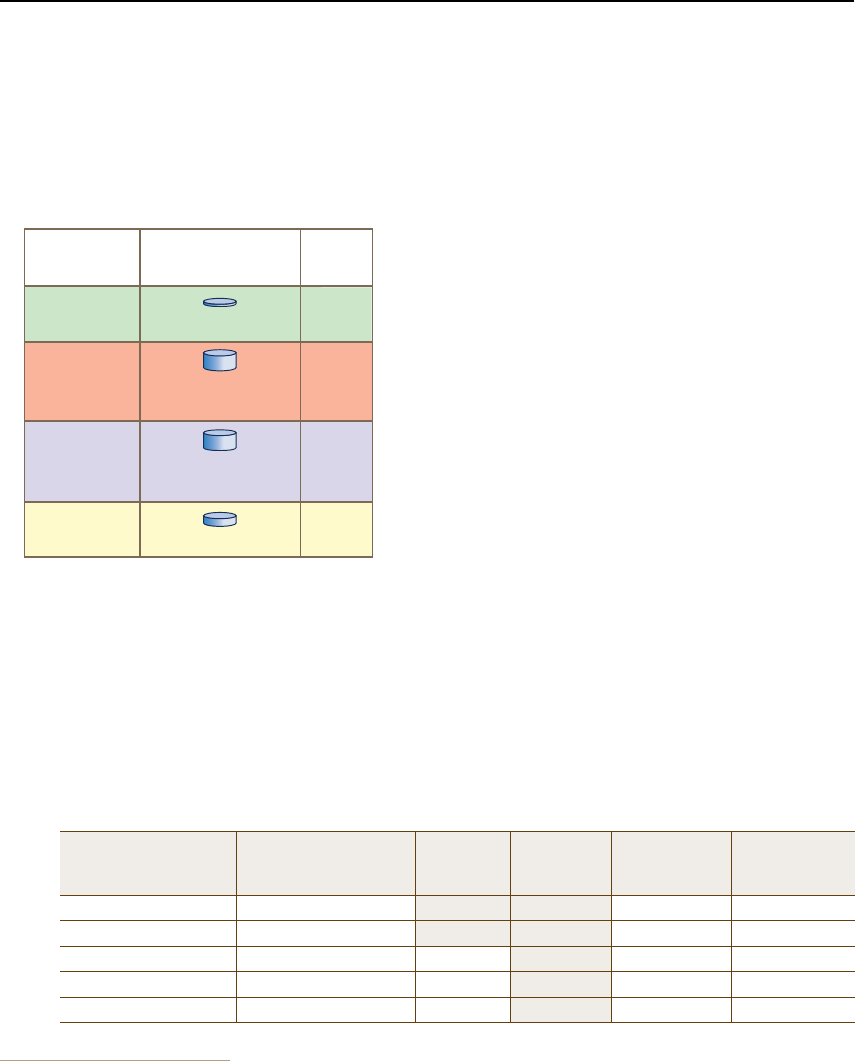

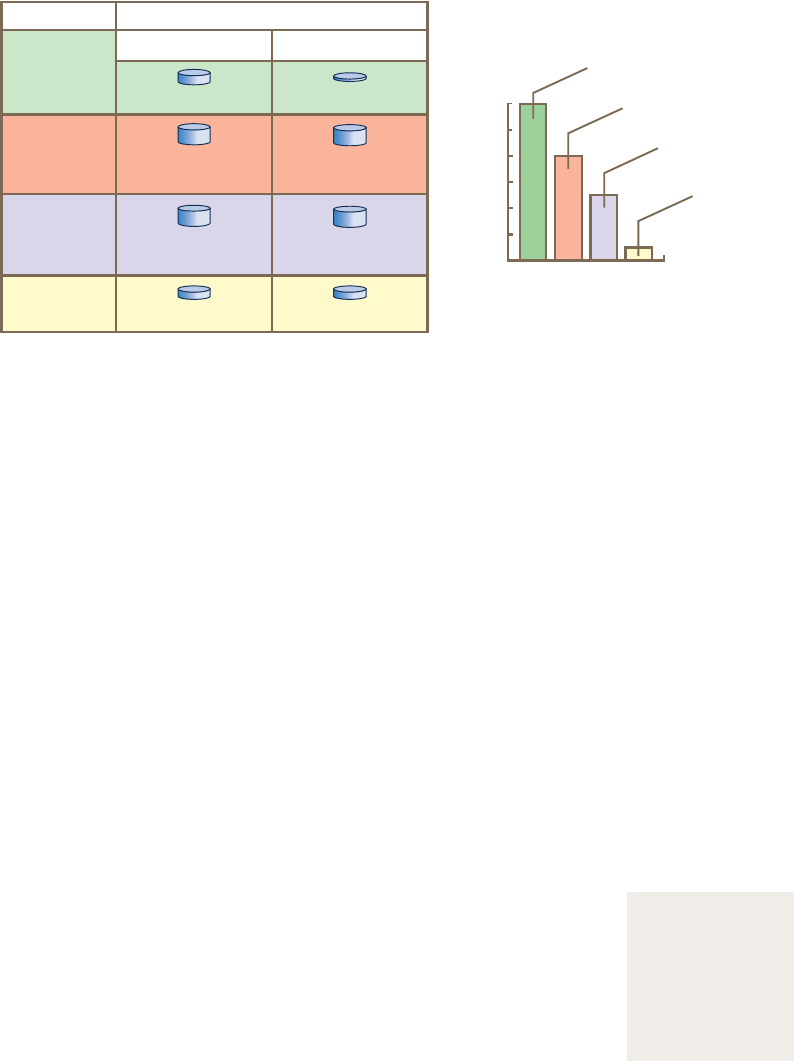

Figure 13 User Profiles, Forwarding Rates per User, and Default VLANs

VoIP QoS and User Profile

1.Click Configuration > QoS Policies > Rate Control & Queuing > New, enter the following, and then click Save:

•Name: QoS-VoIP

•Per User Rate Limit: 512 Kbps (802.11a/b/g); 512 Kbps (802.11n)

This is the maximum amount of bandwidth that a single user belonging to this profile can use. It supports a

single 8 – 64-Kbps VoIP session—depending on the voice codec used—while reserving bandwidth for other

required telephony services such as DNS, DHCP, HTTP, and TFTP.

•Description: Enter a useful comment for future reference, such as "QoS for VoIP traffic per user".

•Per User Queue Management: Enter the following items that appear in bold:

2.For guest access using a captive web portal, there must be two user profiles: one for guests that register successfully ("Guests")

and another for guests have not registered or whose registration attempt failed ("Unregistered-Guests").

Class Number - Name Scheduling Type Scheduling

Weight

Weight %

(Read Only)

Policing Rate

Limit (Kbps)

(802.11a/b/g)

Policing Rate

Limit (Kbps)

(802.11n)

7 - Network ControlStrict 0 0% 512512

6 - VoiceStrict 0 0% 6464

5 - VideoWeighted Round Robin60 28% 512512

4 - Controlled LoadWeighted Round Robin50 23% 512512

3 - Excellent EffortWeighted Round Robin40 19% 512512

Ò±¬»-æ Þ»½¿«-» ·²¼·ª·¼«¿´ Ê±×Ð ½¿´´- «-» ®»´¿¬·ª»´§ ´·¬¬´»

¾¿²¼©·¼¬¸ ø¢ïîè Õ¾°-ô ¼»°»²¼·²¹ ±² ¬¸» ª±·½» ½±³°®»--·±²

½±¼»¨ «-»¼÷ô ¿ -·²¹´» Ê±×Ð «-»® ¼±»- ²±¬ ²»»¼ ¿- ³«½¸

¾¿²¼©·¼¬¸ ¿- ¿ «-»® ¬®¿²-³·¬¬·²¹ ±¬¸»® ¬§°»- ±º ¬®¿ºº·½ò

Ý±®°±®¿¬» »³°´±§»»-‰×Ì ¿²¼ Û³°‰®»½»·ª» ¬¸» ¸·¹¸»-¬

³¿¨·³«³ ¼¿¬¿ º±®©¿®¼·²¹ ®¿¬»-ò

Ù«»-¬- ®»½»·ª» »²±«¹¸ ¾¿²¼©·¼¬¸ ¬± -¿¬·-º§ ¾¿-·½ ²»¬©±®µ

¿½½»-- ¾«¬ ²±¬ »²±«¹¸ ¬± ·²¬»®º»®» ©·¬¸ »³°´±§»» ¬®¿ºº·½ò

Î»¹¿®¼·²¹ ÊÔßÒ ¿--·¹²³»²¬-ô »¿½¸ «-»® °®±º·´» ·- -»½«®»´§

·-±´¿¬»¼ ·² ·¬- ±©² ÊÔßÒ ø×Ì ¿²¼ Û³° ¾»·²¹ ¼·ª·-·±²- ©·¬¸·² ¬¸»

´¿®¹»® ®±´» ±º »³°´±§»»÷ò Ò±¬»æ Ì¸» ´·²µ ½±²²»½¬·²¹ ¬¸» Ø·ª»ßÐ

Û¬¸»®²»¬ ·²¬»®º¿½» ¬± ¬¸» ·²¬»®º¿½» ±² ¬¸» ½±²²»½¬·²¹ -©·¬½¸

³«-¬ ¾» ¿² èðîòïÏ ¬®«²µ °±®¬ ½±²º·¹«®»¼ ¬± ¿´´±© ¬®¿ºº·½ ±²

¬¸»-» ÊÔßÒ- º®±³ ¬¸» Ø·ª»ßÐ-ò

Ë-»® Ð®±º·´»-

Ò¿³»æ Ê±×Ð

ß¬¬®·¾«¬»æ î

Ò¿³»æ ×Ì

ß¬¬®·¾«¬»æ í

Ò¿³»æ Û³°

ß¬¬®·¾«¬»æ ì

Ò¿³»æ Ù«»-¬-

ß¬¬®·¾«¬»æ ë

Ü»º¿«´¬

ÊÔßÒ-

Ó¿¨·³«³ Ü¿¬¿

Ú±®©¿®¼·²¹ Î¿¬»-

°»® Ë-»®

ïï¿ñ¾ñ¹ñ² ëïî Õ¾°-

ïï¿ñ¾ñ¹ ëìððð Õ¾°-

ïï² ïôðððôððð Õ¾°-

ïï¿ñ¾ñ¹ñ² îððð Õ¾°-

ïï¿ñ¾ñ¹ ëìððð Õ¾°-

ïï² ïôðððôððð Õ¾°-

Chapter 8 HiveManager Configuration Examples

114 Aerohive

Because you use strict rate limiting for voice traffic, it is always assured the maximum bandwidth rate of 64

Kbps—even if the VoIP phone is updating its software or is otherwise engaged in activity other than voice traffic.

The other telephony services (DHCP and DNS mapped to Aerohive class 5, and HTTP and TFTP mapped to class

2) can function at the remaining bandwidth rate.

2.Click Configuration >User Profiles >New > General, enter the following, and then click Save:

•Name: VoIP (You cannot include any spaces when defining a user profile name.)

•Attribute: 2

Each user profile in the same WLAN must have a unique attribute number. When using a local authentication

mechanism, this attribute links the profile to an SSID so that the HiveAP applies the QoS settings for the

profile to all traffic using that SSID.

•Attribute Group: Leave this field empty.

An attribute group is a way to assign various RADIUS users with different attribute numbers to the same user

profile. Because VoIP users are not authenticated from a RADIUS server, this option is not applicable here.

•QoS Setting: QoS-VoIP

•Default VLAN: VLAN-2-EmployeeVoice (previously defined; see "Defining VLANs" on page100)

HiveAPs assign users matching the VoIP user profile to VLAN 2. This separates all employee voice traffic

from employee data traffic, which will be on VLAN 1. Guest traffic will be on VLAN 3, separating it from

both employee data and voice traffic.

•Description: Employees using VoIP

IT Staff QoS and User Profile

1.Click Configuration > QoS Policies > Rate Control & Queuing > New, enter the following, and then click Save:

•Name: QoS-ITdata

•Per User Rate Limit: 54000 Kbps (802.11a/b/g); 1000000 Kbps (802.11n) (These are the default values.)

This is the maximum amount of bandwidth that a single user belonging to this profile can use. It is the

maximum so that even if only one IT staff member is on the network, he or she can use all the available

bandwidth if needed.

•Description: QoS per IT staff member

•Per User Queue Management: Keep all the settings at their default values.

2.Click Configuration >User Profiles >New > General, enter the following, and then click Save:

•Name: IT (You cannot include any spaces when defining a user profile name.)

•Attribute: 3

Because the attribute number for the def-user and VoIP user profiles are 1 and 2, enter "3" here. This

number can be any unique number from 3 to 63. Because you will later map this profile to an SSID that uses

2 - Best Effort 1Weighted Round Robin30 14% 512512

1 - Best Effort 2Weighted Round Robin20 9% 512512

0 - BackgroundWeighted Round Robin10 4% 512512

Note: The default 802.11a/b/g rate limit for Aerohive class 6 (voice) is 512 Kbps and for 802.11n it is 20,000

Kbps. These default rate limits are large enough to support conference calls, but for typical

one-to-one communications, 64 Kbps is sufficient.

Class Number - Name Scheduling Type Scheduling

Weight

Weight %

(Read Only)

Policing Rate

Limit (Kbps)

(802.11a/b/g)

Policing Rate

Limit (Kbps)

(802.11n)

Deployment Guide 115

EXAMPLE 4: CREATING USER PROFILES

IEEE 802.1X authentication, you must configure the user profile attribute that you set here as an attribute

on the RADIUS server as explained in "RADIUS Server Attributes" on page124.

•Attribute Group: Leave this field empty.

•QoS Setting: QoS-ITdata

•Default VLAN: VLAN-1-EmployeeData (previously defined; see "Defining VLANs" on page100)

HiveAPs assign users matching the IT user profile to VLAN 1. This separates all employee data traffic from

employee voice traffic, which will be on VLAN 2. Guest traffic will be on VLAN 3, separating it from both

employee data and voice traffic.

•Description: IT staff

Emp (Employees) QoS and User Profile

1.Click Configuration > QoS Policies > Rate Control & Queuing > (check box) QoS-ITdata > Clone, change the

following settings, and then click Save:

•Name: QoS-EmployeeData

•Description: QoS per regular employee

•Per User Queue Management: Keep all the settings at their default values.

2.Click Configuration >User Profiles > (check box) IT > Clone, make the following changes, and then click Save:

•Name: Emp (You cannot include any spaces when defining a user profile name.)

•Attribute: 4

Because the attribute numbers for the def-user, VoIP, and IT profiles are 1, 2, and 3 respectively, enter "4"

here. This number can be any unique number from 4 to 63. Because you will later map this profile to an SSID

that uses IEEE 802.1X authentication, you must configure the user profile attribute set here as an attribute

on the RADIUS server as explained in "RADIUS Server Attributes" on page124.

•QoS Setting: QoS-EmployeeData

•Description: Regular employees

Guests QoS and User Profile

1.Click Configuration > QoS Policies > Rate Control & Queuing > New, enter the following, and then click Save:

•Name: QoS-Guests

•Per User Rate Limit: 2000 Kbps (802.11a/b/g); 2000 Kbps (802.11n)

This is the maximum amount of bandwidth that a single user belonging to this profile can use. It is far less

than that for employees, but should be sufficient for basic Internet and e-mail access.

•Description: QoS per guest

•Per User Queue Management: Enter the following items in bold. Leave all other cloned settings unchanged.

Note: Although the "per user rate limit" and the "per user queue management" settings are the same as those

for QoS-ITdata, you must create this QoS profile so that you can later assign different weights to

QoS-ITdata and QoS-EmployeeData (see "Example 9: Creating WLAN Policies" on page126).

Class Number - Name Scheduling Type Scheduling

Weight

Weight %

(Read Only)

Policing Rate

Limit (Kbps)

(802.11a/b/g)

Policing Rate

Limit (Kbps)

(802.11n)

7 - Network ControlStrict 0 0% 6464

6 - VoiceStrict 0 0% 6464

5 - VideoWeighted Round Robin60 28% 20002000

Chapter 8 HiveManager Configuration Examples

116 Aerohive

2.Click Configuration >User Profiles > (check box) Emp > Clone > General, enter the following, and then click

Save:

•User Profile Name: Guests

•Attribute: 5

Each user profile in the same WLAN must have a unique attribute number. Because the attributes for the

def-user, VoIP, IT, and Emp profiles are 1, 2, 3, and 4 respectively, enter "5" here. This number can be any

unique number from 5 to 63.

•Attribute Group: Leave this field empty.

•QoS Setting: QoS-Guests

•Default VLAN: VLAN-3-Guests (previously defined; see "Defining VLANs" on page100)

HiveAPs assign users matching the VoIP user profile to VLAN 2. This separates all employee voice traffic

from employee data traffic, which will be on VLAN 1. Guest traffic will be on VLAN 3, separating it from

both employee data and voice traffic.

•Description: Visiting guests

Unregistered-Guests QoS and User Profile

Enter the following if you are using the captive web portal approach for providing guest access (see "Guest Access

with Captive Web Portal" on page105). A HiveAP applies this profile to users who have not yet registered, or do not

successfully register, through the captive web portal.

Click Configuration >User Profiles > (check box) Guests > Clone > General, enter the following, and then click

Save:

•User Profile Name: Unregistered-Guests

•Attribute: 6

Because each user profile attribute number must be unique and 1 – 5 have already been assigned, enter "6"

here. This number can be any unique number from 6 to 63.

•Attribute Group: Leave this field empty.

•QoS Setting: QoS-Guests

•Default VLAN: VLAN-3-Guests

•Description: CWP unregistered guests

4 - Controlled LoadWeighted Round Robin50 23% 20002000

3 - Excellent EffortWeighted Round Robin40 19% 20002000

2 - Best Effort 1Weighted Round Robin30 14% 20002000

1 - Best Effort 2Weighted Round Robin20 9% 20002000

0 - BackgroundWeighted Round Robin10 4% 20002000

Note: In this set of examples, you enable the captive web portal method to forward DHCP and DNS traffic to

external servers. So that the clients of registered users can continue to use the network settings that

they received while they were still unregistered, you must configure both the Guests and

Unregistered-Guests profiles with the same VLAN.

Class Number - Name Scheduling Type Scheduling

Weight

Weight %

(Read Only)

Policing Rate

Limit (Kbps)

(802.11a/b/g)

Policing Rate

Limit (Kbps)

(802.11n)

Deployment Guide 117

EXAMPLE 5: SETTING SSIDS

EXAMPLE 5:SETTING SSIDS

An SSID (service set identifier) is an alphanumeric string that identifies a set of authentication and encryption

services that wireless clients and access points use when communicating with each other. In this example, you

define the following three SSIDs, which are also shown in Figure14:

Figure 14 SSIDs Providing Network Access to Different Users

SSID Name Security Protocol Other

voipKey method: WPA2-PSK

Encryption method: TKIP

Preshared key (ASCII): CmFwbo1121

Authentication method: Open

A MAC filter restricts access only to VoIP phones

specified in the filter.

corpKey method: WPA2-EAP (802.1X)

Encryption method: CCMP (AES)

Authentication method: EAP (802.1X)

Employees use the RADIUS server specified in

"Example 7: Defining AAA RADIUS Settings" on

page123 to authenticate themselves using IEEE

802.1X.

guestKey method: Auto-(WPA or WPA2)-PSK

Encryption method: Auto-TKIP or CCMP (AES)

Preshared key (ASCII): guest123

Authentication method: Open

and

for captive web portal: CWP-guest1

For guest access using a preshared key, the

receptionist supplies guests with the SSID name and

configuration details, including the preshared key,

when they arrive.

Note: You can define up to seven SSIDs for a single radio in access mode. If hive members use one radio for

wireless backhaul communications, then they must use the other radio in access mode. In this case, a

HiveAP can have a maximum of seven SSIDs. If hive members send backhaul traffic completely over wired

links, then both radios can be in access mode and a HiveAP can have a maximum of 14 SSIDs.

Ë-»® Ð®±º·´»- ÍÍ×Ü Ü»º·²·¬·±²-

ÍÍ×Üæ ½±®°

Õ»§ ³»¬¸±¼æ ÉÐßîóèðîòïÈ øÉÐßî Û²¬»®°®·-»÷

Û²½®§°¬·±² ³»¬¸±¼æ ÝÝÓÐ øßÛÍ÷

ß«¬¸»²¬·½¿¬·±² ³»¬¸±¼æ ÛßÐ øèðîòïÈ÷

ÍÍ×Üæ ª±·°

Õ»§ ³»¬¸±¼æ ÉÐßîóÐÍÕ øÉÐßî Ð»®-±²¿´÷

Û²½®§°¬·±² ³»¬¸±¼æ ÌÕ×Ð

Ð®»-¸¿®»¼ µ»§ øßÍÝ××÷æ Ý³Ú©¾±ïïîï

ß«¬¸»²¬·½¿¬·±² ³»¬¸±¼æ Ñ°»²

ÍÍ×Üæ ¹«»-¬

Õ»§ ³»¬¸±¼æ ß«¬±óøÉÐß ±® ÉÐßî÷óÐÍÕ

Û²½®§°¬·±² ³»¬¸±¼æ ß«¬±óÌÕ×Ð ±® ÝÝÓÐ øßÛÍ÷

Ð®»-¸¿®»¼ µ»§ øßÍÝ××÷æ ¹«»-¬ïîí

ß«¬¸»²¬·½¿¬·±² ³»¬¸±¼æ Ñ°»²

¿²¼

º±® ½¿°¬·ª» ©»¾ °±®¬¿´æ ÝÉÐó¹«»-¬ï

Ê±×Ð Ð¸±²»-

Ý±®°±®¿¬» Ò»¬©±®µ

Ê·-·¬·²¹ Ù«»-¬

¿¬ Ý±®°±®¿¬» Í·¬»

Ø·ª»ßÐ

ÎßÜ×ËÍ Í»®ª»®- º±®

èðîòïÈ ß«¬¸»²¬·½¿¬·±²

Ê±×Ð

×Ì

Û³°

Ë²®»¹·-¬»®»¼ó

Ù«»-¬-

øº±® ½¿°¬·ª»

©»¾ °±®¬¿´÷

Ù«»-¬-

Chapter 8 HiveManager Configuration Examples

118 Aerohive

Employees that belong to the "IT" and "Emp" profiles can use SSIDs "voip" and "corp". The SSID with which they

associate is based on how they are attempting to access the network. If they use a VoIP phone, then they associate

with the voip SSID because that is the SSID configured on their phones. If they use a wireless client on a computer,

then they associate with the corp SSID because that is the SSID configured on the wireless client on their computers.

In contrast, visitors can only associate with the guest SSID. The receptionist provides configuration details and the

preshared key for the guest SSID when visitors arrive. The guest SSID is the only wireless network choice available to

which visitors’ wireless clients can connect. When the captive web portal option is in use, HiveAPs assign visitors

who register successfully to the "Guests" profile and those who do not to the "Unregistered-Guests" profile.

voip SSID

1.Click Configuration > SSIDs > New >General, enter the following, and leave all other values at their default

settings:

•SSID: voip (You cannot include any spaces when defining the name of an SSID.)

•Description: SSID exclusively for VoIP phones

•Key Management: WPA2-PSK

•Encryption Method: TKIP

•Authentication Method: Open

•Key Type: ASCII Key

•Key Value: CmFwbo1121 (The key length can be from 8 to 63 characters.)

2.Click the Advanced tab.

3.In the Available MAC Filters list, click corpVoIPphones>, to move it to the Selected MAC Filters list, set the

Default Action as Deny, and then click Save.

By applying a MAC filter to the voip SSID, you restrict access to VoIP phones matching the specified OUI. The

corpVoIPphones MAC filter is defined in "Creating a MAC Filter" on page103.

corp SSID

1.Click Configuration > SSIDs > New >General, enter the following, and leave all other values at their default

settings:

•SSID: corp

•Description: SSID for corporate employees

•Key Management: WPA2-EAP (802.1X)

•Encryption Method: CCMP (AES)

•Authentication Method: EAP (802.1X)

Note: You can also use Aerohive GuestManager to provide network access to wireless visitors. For information

about GuestManager, see the Aerohive GuestManager Getting Started Guide.

Deployment Guide 119

EXAMPLE 5: SETTING SSIDS

guest SSID

1.Click Configuration > SSIDs > New >General, enter the following, and leave all other values at their default

settings:

•SSID: guest

•Description: SSID for company guests

•Key Management: Auto-(WPA or WPA2)-PSK

•Encryption Method: Auto-TKIP or CCMP (AES)

•Authentication Method: Open

•Key Type: ASCII Key

•Key Value: guest123

On the Generalpage, enter the following:

•SSID: guest

•Description: SSID for registering company guests

•Captive Web Portal: CWP-guest1

•Key Management: Auto-(WPA or WPA2)-PSK

•Encryption Method: Auto-TKIP or CCMP (AES)

•Authentication Method: Open

•Key Type: ASCII Key

•Key Value: guest123

Chapter 8 HiveManager Configuration Examples

120 Aerohive

EXAMPLE 6:SETTING MANAGEMENT SERVICE PARAMETERS

Management services include the settings for DNS, syslog, SNMP, NTP, and location servers. HiveAPs use these

services for network communications and logging activities. In addition, you can set HiveAP admin access

parameters.

In this example, you configure the management services that you later reference in WLAN policies (see "Example 9:

Creating WLAN Policies" on page126). Two WLAN policies are for HiveAPs at the corporate HQ site and the third is

for HiveAPs at the remote branch office. You define the following management services:

•Three DNS (Domain Name Service) servers—one primary server at HQ, one primary server at the branch site, and

one secondary server at HQ. HiveAPs at the branch site connect to the secondary DNS server through a VPN

tunnel.

Although there are three DNS servers, there are only two IP address objects. The IP address object for the

primary DNS server has two IP address definitions. By using the classifier tags "hq" and "branch1", all HiveAPs

deployed at headquarters and classified as "hq" use the "hq" address definition, while all those deployed at the

branch site and classified as "branch1" use the "branch1" definition. Because all HiveAPs use the secondary DNS

server (at headquarters), its IP address definition is classified as Global; that is, it is the same for all HiveAPs.

•One syslog server and one SNMP (Simple Network Management Protocol) server—both at headquarters. HiveAPs

at the branch office connect to these through a VPN tunnel.

•One NTP (Network Time Protocol) server—located on the public network. HiveAPs synchronize the time on their

system clocks with this server.

The various servers and their relationship to the two sites is shown in Figure15.

Figure 15 Location of Servers in Relation to Each WLAN Policy

Ý±®°±®¿¬» Ø»¿¼¯«¿®¬»®-

Ñ²´§ ¬¸» °®·³¿®§ ÜÒÍ -»®ª»® º±® ¬¸» ¾®¿²½¸

±ºº·½» ·- ¿¬ ¬¸» ¾®¿²½¸ ±ºº·½» -·¬»ò Ì¸» ÒÌÐ -»®ª»®

·- ±² ¬¸» °«¾´·½ ²»¬©±®µò ß´´ ±¬¸»® ³¿²¿¹»³»²¬

-»®ª»®- ¿®» ¿¬ ¸»¿¼¯«¿®¬»®-ò ß ÊÐÒ ¬«²²»´

°®±¬»½¬- ¬®¿ºº·½ ¾»¬©»»² ¬¸» ¬©± -·¬»-ò

Ð®·³¿®§ ÜÒÍ Í»®ª»®

ïðòïòïòîë

Ð®·³¿®§ ÜÒÍ Í»®ª»®

ïðòîòîòîëï

Í»½±²¼¿®§ ÜÒÍ Í»®ª»®

ïðòïòîòîê

ÍÒÓÐ Í»®ª»®

ïðòïòïòîì

Í§-´±¹ Í»®ª»®

ïðòïòïòîí

Þ®¿²½¸ Ñºº·½»

ÊÐÒ Ì«²²»´

Î»³±¬» ÒÌÐ Í»®ª»®

îðéòïîêòçéòëé

Ó¿²¿¹»³»²¬ -»®ª·½»- ¿¬ ¸»¿¼¯«¿®¬»®-

Ó¿²¿¹»³»²¬ -»®ª·½»- ¿¬ ¬¸» ¾®¿²½¸ -·¬»

Deployment Guide 121

EXAMPLE 6: SETTING MANAGEMENT SERVICE PARAMETERS

DNS Assignment

Click Configuration > Management Services >DNS Assignments > New, and after entering all the following,

click Save:

•Name: DNS-Primary-HQ

•Domain Name: apis.com (This is the domain name of the corporation in this example.)

•Description: Primary and secondary DNS servers

To specify a previously defined IP address object for the primary DNS server, enter the following, and then

click Apply:

—IP Address: DNS-Primary

—Description: Primary DNS server tagged "hq" and "branch1"

To specify a previously defined IP address object for the secondary DNS server, click New, enter the

following, and then click Apply:

—IP Address: DNS-Secondary

—Description: Secondary DNS server 10.1.1.26

Syslog Assignment

Click Configuration > Management Services >Syslog Assignments > New, and after entering all the following,

click Save:

•Name: Syslog-Server

•Facility: From the drop-down list, choose a syslog facility with which to tag event log messages from the

HiveAPs. By specifying a particular facility, the syslog server can differentiate all messages from the

same source from messages from other sources.

•Description: Syslog server at HQ

To specify a previously defined IP address object for the syslog server, enter the following, and then click

Apply:

—Type: IP Address

—Syslog Server: Syslog-Server

—Severity: Choose the minimum severity level for messages that you want to send to the syslog

server. HiveAPs send messages of the level you choose plus messages of all severity levels above it.

For example, if you choose critical, the HiveAP sends the syslog server all messages whose severity

level is critical, alert, or emergency. If you choose emergency, the HiveAPs send only

emergency-level messages.

—Description: Type a useful note, such as "Log critical - emergency events".

SNMP Assignment

Click Configuration > Management Services >SNMP Assignments > New, and after entering all the following,

click Save:

•Name: SNMP-Server

•SNMP Contact: Type contact information for the person to contact if you need to reach a HiveAP admin.

(You cannot include any spaces in the SNMP contact definition.)

•Description: SNMP server at HQ

•Enable SNMP Service: (select)

Chapter 8 HiveManager Configuration Examples

122 Aerohive

To specify a previously defined IP address object for the SNMP server, enter the following, and then click

Apply:

—Type: IP Address

—SNMP Server: SNMP-Server

—Version: From the drop-down list, select the version of SNMP that is running on the management

system you intend to use: V1 or V2C.

—Operation: From the drop-down list, choose the type of activity that you want to permit between

the specified SNMP management system and the HiveAPs in the WLAN policy to which you (later)

assign this management services profile:

get – get commands sent from the management system to a HiveAP to retrieve MIBs

(Management Information Bases), which are data objects indicating the settings or operational

status of various HiveOS components

trap – messages sent from HiveAPs to notify the management system of events of interest

get and trap – permit both get commands and traps

none – cancel all activity, disabling SNMP activity for the specified management system

—Community String: Enter a text string that must accompany queries from the management system.

The community string acts similarly to a password. (HiveAPs only accept queries from management

systems that send the correct community string. The default string is "hivecommunity".)

NTP Assignment

Click Configuration > Management Services >NTP Assignments > New, and after entering all the following,

click Save:

•Name: NTP-Server

•Sync Interval: Set an interval for polling the NTP (Network Time Protocol) server so that HiveAPs can

synchronize their internal system clock with the server. The default interval is 1440 minutes (once a

day). The possible range is from 60 minutes (once an hour) to 10,080 minutes (once a week).

•Time Zone: From the drop-down list, choose the time zone for the HiveAPs to which you intend to apply

the management services.

•Description: Enter useful information, such as contact details for the NTP server admin.

•Enable NTP client service: (select)

•Sync Clock with HiveManager: (clear)

Because you want the HiveAPs to use an NTP server, this option must be cleared. Select this only if you

want the HiveAPs to synchronize their times with that set on HiveManager.

To specify a previously defined IP address object for the NTP server, enter the following, and then click

Apply:

—Type: IP Address

—NTP Server: NTP-Server

—Description: Type a useful note, such as the location of the NTP server.

Deployment Guide 123

EXAMPLE 7: DEFINING AAA RADIUS SETTINGS

EXAMPLE 7:DEFINING AAA RADIUS SETTINGS

In this example, you define the connection settings for a RADIUS server so that HiveAPs can send RADIUS

authentication requests to the proper destination.

After corporate employees associate with HiveAPs, they gain network access by authenticating themselves to a

RADIUS server. The authentication process makes use of the IEEE 802.1X standard. Within this context, wireless

clients act as supplicants, HiveAPs as authenticators, and the RADIUS server as the authentication server. The roles

of each participant, packet exchanges, and connection details for the RADIUS server are shown in Figure16.

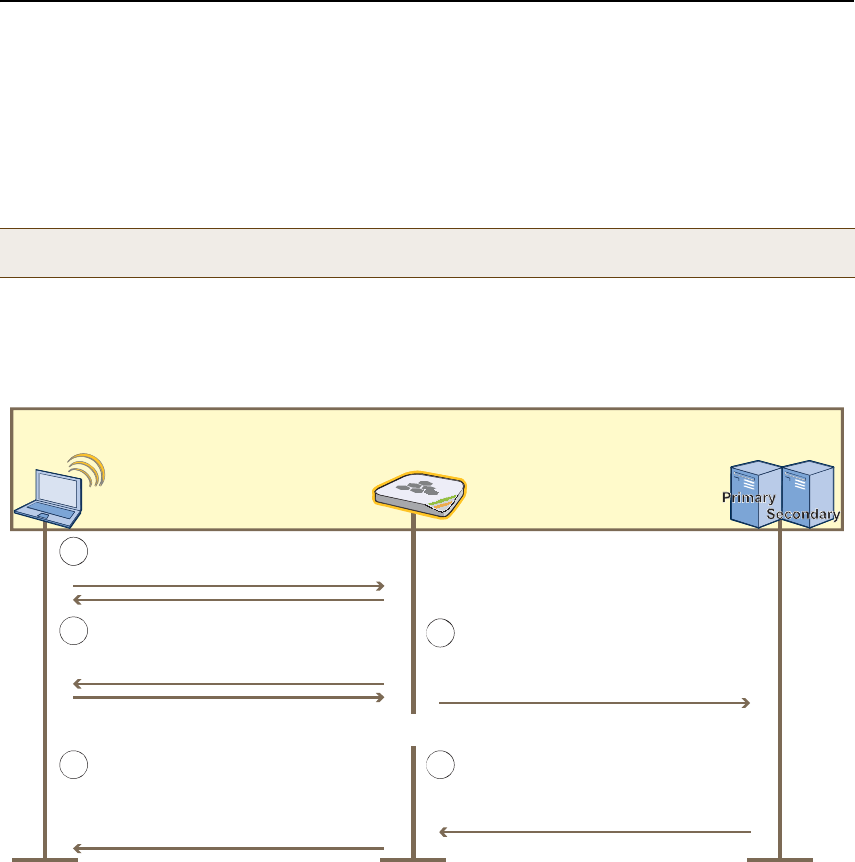

Figure 16 IEEE 802.1X Authentication Process

1.Click Configuration > Authentication > AAA Client Settings > New > General, and then enter the following:

•RADIUS Name: RADIUS-Servers (You cannot use spaces in the RADIUS profile name.)

•Retry Interval: 1800 (Seconds)

Enter the period of time that a HiveAP waits before retrying a previously unresponsive primary RADIUS

server. If a primary RADIUS server does not respond to three consecutive attempts—where each attempt

consists of ten authentication requests sent every three seconds (30 seconds for a complete request)—and a

backup RADIUS server has been configured, the HiveAP sends further authentication requests to the backup

server. The default is 600 seconds (or 10 minutes). The minimum is 60 seconds and the maximum is

Note: You can define a HiveAP as a RADIUS server. A HiveAP RADIUS server only supports 802.1X authentication,

so you cannot use it to authenticate users through a captive web portal.

ß -«°°´·½¿²¬ ø©·®»´»-- ½´·»²¬÷ ³¿µ»- ¿²

¿--±½·¿¬·±² ©·¬¸ ¿² ¿«¬¸»²¬·½¿¬±® øØ·ª»ßÐ÷ò

Ì¸» ¿«¬¸»²¬·½¿¬±® ½¸»½µ- ¬¸» ÎßÜ×ËÍ ½±¼»

·²¼·½¿¬·²¹ ©¸»¬¸»® ¬¸» -«°°´·½¿²¬ ·- ¿½½»°¬»¼

±® ®»¶»½¬»¼ò ø×¬ ¿´-± ½¸»½µ- º±® ¿¬¬®·¾«¬»-

·²¼·½¿¬·²¹ ¬¸» «-»® ¹®±«° º±® ¬¸» -«°°´·½¿²¬÷ò

Ì¸» -«°°´·½¿²¬ ½¸»½µ- ¬¸» ÛßÐ ³»--¿¹»ò

Ì¸» ¿«¬¸»²¬·½¿¬±® ¿²¼ -«°°´·½¿²¬ »¨½¸¿²¹»

ÛßÐóÎ»¯«»-¬ñ×¼»²¬·¬§ ¿²¼ ÛßÐóÎ»-°±²-»ñ

×¼»²¬·¬§ ³»--¿¹»-ò

Í«°°´·½¿²¬

øÉ·®»´»-- Ý´·»²¬÷

ß«¬¸»²¬·½¿¬±®

øØ·ª»ßÐ÷

ß«¬¸»²¬·½¿¬·±² Í»®ª»®-

øÎßÜ×ËÍ Í»®ª»®-÷

Ì¸» ¿«¬¸»²¬·½¿¬·±² -»®ª»® ®»°´·»- ©·¬¸ »·¬¸»®

¿ ÎßÜ×ËÍ ß½½»--óß½½»°¬ ±® ß½½»--óÎ»¶»½¬

³»--¿¹» ½±²¬¿·²·²¹ ¿² ÛßÐóÍ«½½»-- ±®

ÛßÐóÚ¿·´«®» ³»--¿¹»ò

Ì¸» ¿«¬¸»²¬·½¿¬±® -»²¼- ¬¸» ÛßÐóÎ»-°±²-»ñ

×¼»²¬·¬§ ³»--¿¹» ¿- ±²» ±® ³±®» ¿¬¬®·¾«¬»- ·²

¿ ÎßÜ×ËÍ ß½½»--óÎ»¯«»-¬ ³»--¿¹» ¬± ¬¸» ×Ð

¿¼¼®»-- ±º ¬¸» ÎßÜ×ËÍ ¿«¬¸»²¬·½¿¬·±² -»®ª»®ò

ìë

ò ò ò Ü»°»²¼·²¹ ±² ¬¸» ¿«¬¸»²¬·½¿¬·±² ³»¬¸±¼‰ÌÔÍô ÌÌÔÍô ÐÛßÐ‰³±®» »¨½¸¿²¹»- ³·¹¸¬ ¬¿µ» °´¿½» ¸»®» ò ò ò

Primary RADIUS Server

IP address: 10.1.1.15

Shared secret: J7ix2bbbLA

Authentication port: 1812

Server priority: First

Secondary RADIUS Server

IP address: 10.1.2.16

Shared secret: J8Dx2c13Mb

Authentication port: 1812

Server Priority: Second

Chapter 8 HiveManager Configuration Examples

124 Aerohive

100,000,000 seconds. Generally, you want to make the retry interval fairly large so that supplicants (that is,

wireless clients requesting 802.1X authentication) do not have to wait unnecessarily as a HiveAP repeatedly

tries to connect to a primary server that is down for an extended length of time.

•Accounting Interim Update Interval: 20 (default)

This is the interval in seconds for updating the RADIUS accounting server with the cumulative length of a

client’s session. Because this example does not make use of RADIUS accounting, leave the default setting.

•Description: 802.1X authentication for corp employees

2.Click the RADIUS Servers tab, enter the following, and then click Apply:

—Type: IP Address

—Server IP/Name: RADIUS-Server-Primary (previously configured in "RADIUS Servers" on page102)

—Shared Secret: J7ix2bbbLA

—Confirm Secret: J7ix2bbbLA

—Authentication Port: 1812 (default RADIUS authentication port number)

—Enable Accounting: (clear)

—Server Priority: Primary

—Description: Primary RADIUS server

•Click New, enter the following, and then click Apply:

—Type: IP Address

—Server IP/Name: RADIUS-Server-Secondary (previously configured in "RADIUS Servers" on page102)

—Shared Secret: J8Dx2c13Mb

—Confirm Secret: J8Dx2c13Mb

—Authentication Port: 1812 (default RADIUS authentication port number)

—Enable Accounting: (clear)

—Server Priority: Backup1

—Description: Backup (Secondary) RADIUS server

3.To save the configuration and close the dialog box, click Save.

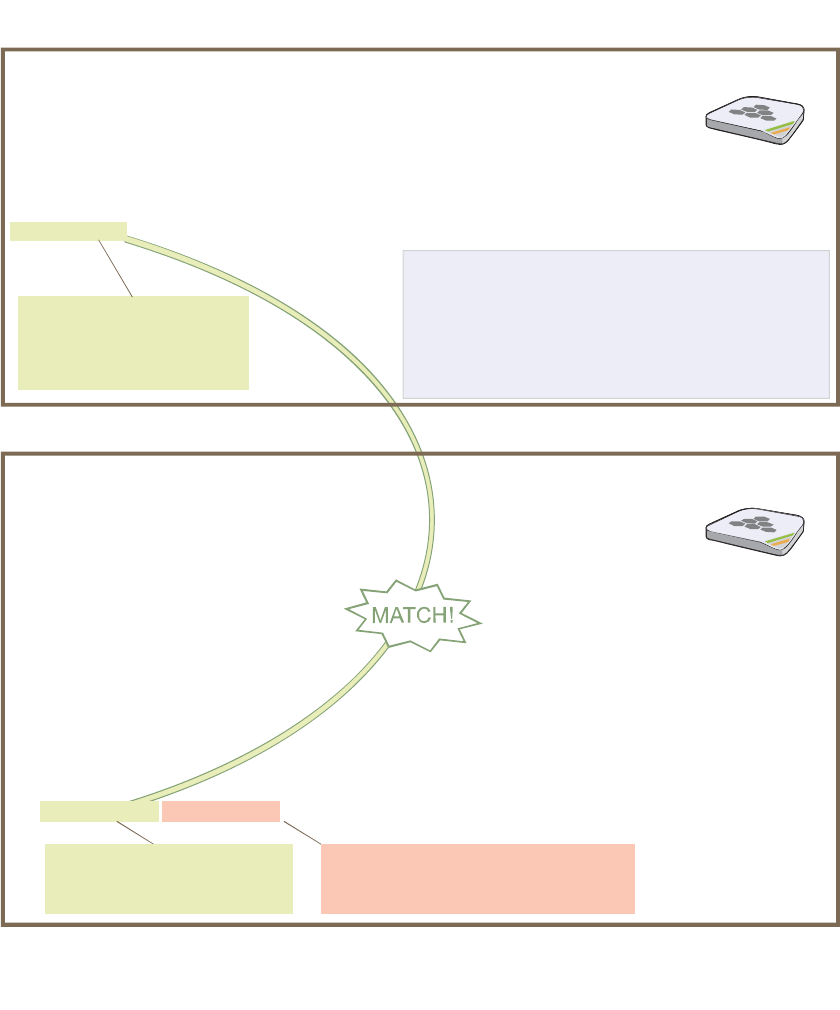

RADIUS Server Attributes

On the two RADIUS servers (also referred to as "RADIUS home servers"), define the HiveAPs as RADIUS clients.3 Also,

configure the following attributes for the realms to which user accounts matching the two user profiles belong:

The RADIUS server returns one of the above sets of attributes based on the realm to which an authenticating user

belongs. HiveAPs then use the combination of returned RADIUS attributes to assign users to profile 3 ("IT"), or 4

("Emp"). Note that these attributes do not create a GRE tunnel, which the tunnel type might seem to indicate.

Note: The shared secret is a case-sensitive alphanumeric string that must be entered on the

RADIUS authentication server exactly as shown above.

3.If you use RADIUS proxy servers, then direct RADIUS traffic from the HiveAPs to them instead of the RADIUS home servers. This

approach offers the advantage that you only need to define the proxy servers as clients on the RADIUS home servers. You can

then add and remove multiple HiveAPs without having to reconfigure the RADIUS home servers after each change.

Realm for IT (User Profile Attribute = 3) Realm for Emp (User Profile Attribute = 4)

Tunnel Type = GRE (value = 10)Tunnel Type = GRE (value = 10)

Tunnel Medium Type = IP (value = 1)Tunnel Medium Type = IP (value = 1)

Tunnel Private Group ID = 3Tunnel Private Group ID = 4

Deployment Guide 125

EXAMPLE 8: CREATING HIVES

EXAMPLE 8:CREATING HIVES

A hive is a set of HiveAPs that exchange information with each other to form a collaborative whole. In this example,

you define three hives: two for the two buildings at headquarters and a third for the branch site. Later, in "Example

9: Creating WLAN Policies" on page126, you assign the hives to WLAN policies, which in turn, you assign to HiveAP

devices in "Example 10: Assigning Configurations to HiveAPs" on page135.

Hive1

Click Configuration > Hives >New >General, enter the following, leave the other options at their default

settings, and then click Save:

•Hive: Hive1 (You cannot use spaces in the name of a hive.)

•Description: Enter a meaningful comment, such as "Hive for HQ, Bldg 1"

•Modify Encryption Protection: (select); g3r4oU7a#x

The password string is what hive members use when authenticating themselves to each other over the

wireless backhaul link using WPA-PSK CCMP (AES). It can be from 8 to 63 characters long and contain special

characters. If you do not enter a password string, HiveManager derives a default password from the hive

name.

Hive2

Click Configuration > Hives > (check box) Hive1 > Clone > General, change the following, leave the other

options at their previously defined settings, and then click Save:

•Hive: Hive2

•Description: Modify the description for Hive2 to something appropriate, such as "Hive for HQ, Bldg 2".

•Modify Encryption Protection: (select); wWaG8U!3#2

Hive3

Click Configuration > Hives > (check box) Hive2 > Clone > General, change the following, leave the other

options at their previously defined settings, and then click Save:

•Hive: Hive3

•Description: Modify the description for Hive3 to something appropriate, such as "Hive for branch site".

•Modify Encryption Protection: (select); C!8vGg5Jo3

Note: A WLAN policy is different from a hive. Whereas the members of a WLAN policy share a set of policy-based

configurations, the members of a hive communicate with each other and coordinate their activities as access

points. WLAN policy members share configurations. Hive members work together collaboratively.

Chapter 8 HiveManager Configuration Examples

126 Aerohive

EXAMPLE 9:CREATING WLAN POLICIES

Through HiveManager, you can configure two broad types of features:

•Policy-based features – In combination, these features form policies that control how users access the network:

SSIDs, user profiles, QoS (Quality of Service) forwarding mechanisms and rates, hives, AAA (authentication,

authorization, accounting) services, management services (DNS, NTP, syslog), mobility policies, IP and MAC

firewall policies, and VLAN assignments.

•Connectivity-based features – These features control how hive members communicate with the network and

how radios operate at different modes, frequencies, and signal strengths.

A WLAN policy is an assembly of policy-based configurations that HiveManager pushes to all HiveAPs that you assign

to the policy. Because these configurations are policy-based, they can apply across multiple physical devices. In

contrast, connectivity-based configurations are more appropriately applied to smaller sets of devices or to

individual devices themselves.

In this example, you create "WLANpolicy-hq1" and "WLANpolicy-hq2" for the two buildings at corporate headquarters

and "WLANpolicy-branch1" for the branch site. You add a hive, management server assignments, SSID profile–radio

mode–user profile mappings, plus the QoS settings for each user group.

WLANpolicy-hq1

This WLAN policy is for all the HiveAPs in Building 1 at the corporate headquarters depicted in Figure1 on page89.

The New WLAN Policy dialog box consists of several pages. The configuration of the items on each page is presented

individually and in detail. The other WLAN policies are clones of this one with only minor changes.

WLANpolicy-hq1 (Page 1)

On the first page of the new WLAN policy dialog box, you define the name and a description of the WLAN policy, and

set network settings, service settings, and management server assignments for the HiveAPs to which you will apply

this WLAN policy. See Figure17.

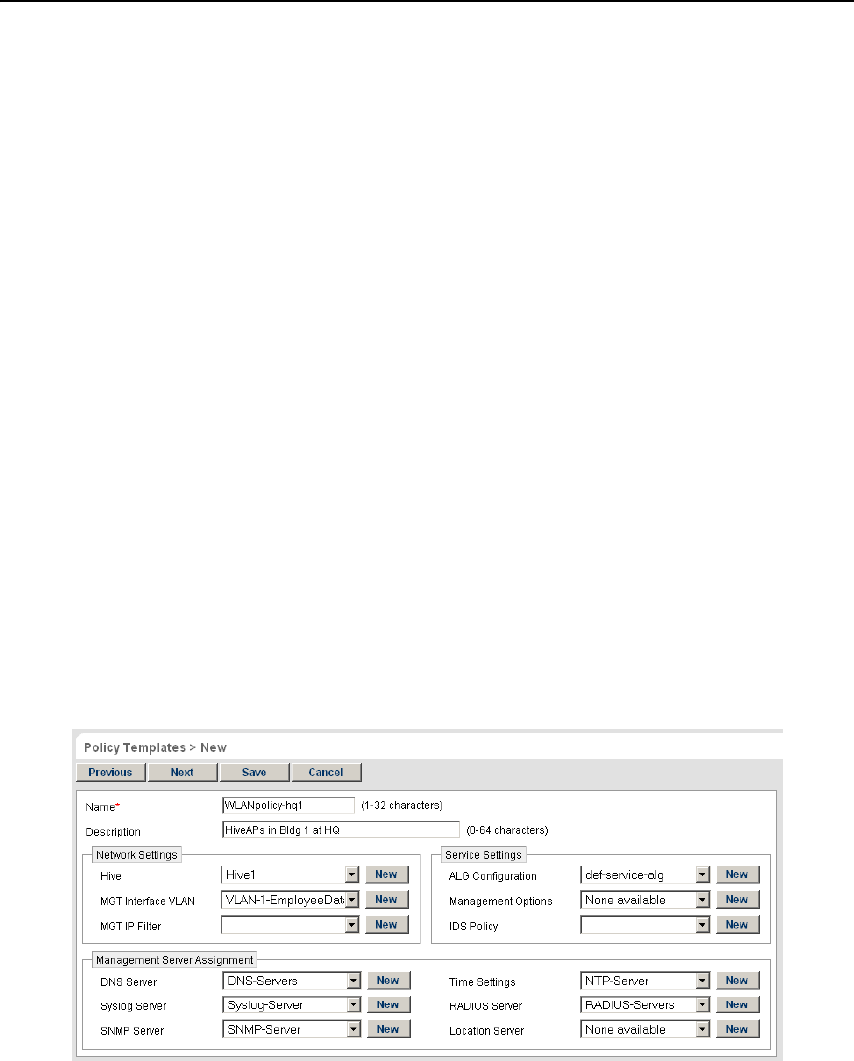

Figure 17 First Page of the WLAN Policy Dialog Box

Deployment Guide 127

EXAMPLE 9: CREATING WLAN POLICIES

1.Click Configuration > WLAN Policies > New, enter the following on the first page of the new WLAN policy

dialog box:

•Name: WLANpolicy-1 (You cannot use spaces in the WLAN policy name.)

•Description: Enter a useful description, such as "HiveAPs in Bldg1 at HQ".

Network Settings

2.Enter the following in the Network Settings section. (Note that the hive and VLAN were previously

configured in "Example 8: Creating Hives" on page125 and "Defining VLANs" on page100.)

•Hive: Hive1

•MGT Interface VLAN: 1(or VLAN-1-EmployeeData)

In this example, the MGT interface is in VLAN 1, the same VLAN as that for employee data traffic. You

can specify either the predefined VLAN "1" or "VLAN-1-EmployeeData", which was previously created.

•MGT IP Filter: leave empty. A management IP address filter defines addresses from which admins are

permitted administrative access to HiveAPs. This filter was not configured in the preceding examples.

Service Settings

3.Leave the Service Settings fields at their default values or empty. None of these options were modified or

configured in the preceding examples.

Management Server Assignment

4.Enter the following in the Management Server Assignment section. (Note that the following settings were

previously configured in "Example 6: Setting Management Service Parameters" on page120 and "Example 7:

Defining AAA RADIUS Settings" on page123.)

•DNS Server: DNS-Servers

•Syslog Server: Syslog-Server

•SNMP Server: SNMP-Server

•Time Settings: NTP-Server

•RADIUS Server: RADIUS-Servers

•Location Server: None available (this option was not configured in the preceding examples)

5.To proceed to the next page, click Next .

Chapter 8 HiveManager Configuration Examples

128 Aerohive

WLANpolicy-hq1 (Page 2)

On the second page of the new WLAN policy dialog box, you can map SSIDs to management service filters, AAA

servers, radio modes, and user profiles. In addition, you can set the Ethernet interface in access mode

(Bridge-Access or Bridge-802.1Q) and assign management service filters to the Ethernet and wireless backhaul

interfaces. (Note that because no management service filters were set in the previous examples, you only configure

WLAN mappings below.) See Figure18.

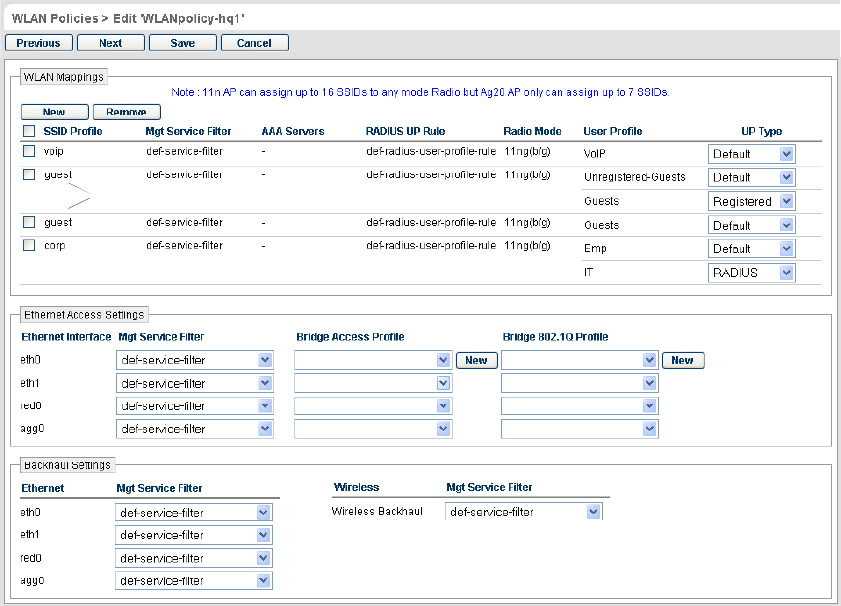

Figure 18 Second Page of the WLAN Policy Dialog Box

WLAN Mappings

Configure the WLAN mappings of SSIDs to radio modes and user profiles. (The SSIDs were previously configured

in "Example 5: Setting SSIDs" on page117, and the user profiles were configured in "Example 4: Creating User

Profiles" on page113.)

SSID: voip

1.Enter the following to define the WLAN mappings for the voip SSID, and then click Apply:

•SSID Profile: voip

•MGT Service Filter: def-service-filter (default)

•AAA Servers: (leave empty; this setting is for overriding the RADIUS server setting on the previous page

of this dialog box, and, in any case, is not applicable to SSIDs using preshared keys)

Deployment Guide 129

EXAMPLE 9: CREATING WLAN POLICIES

•RADIUS UP Rule: def-radius-user-profile-rule (default)

This setting essentially controls which users authenticated by a RADIUS server can access the SSID.

Because the voip SSID does not use RADIUS authentication, the setting is not applicable.

•Radio Mode: 11ng(b/g)

In this example, you want to use IEEE 802.11b/g for network access traffic because a broader range of

wireless clients support IEEE 802.11b than IEEE 802.11a, which came out two years later (despite its

alphabetical precedence), and it provides slightly greater coverage.

The three choices in the Radio Mode drop-down list are as follows:

11na+11ng(a+b/g): This binds the SSID to two subinterfaces, each linked to a different radio

operating in separate frequency bands. Radio 1 supports IEEE 802.11b/g and operates in the 2.4

GHz band, and radio 2 supports IEEE 802.11a and operates in the 5 GHz band.

This is a good approach if the HiveAPs need to interoperate with some wireless clients that only

support 802.11b/g and others that only support 802.11a. In this case, both of the wifi

interfaces—wifi0 and wifi1—must be in access mode. On the other hand, if hive members need to

support wireless backhaul communications, then you cannot take this approach because one

interface (wifi1 by default) will need to be in backhaul mode and its subinterfaces (wifi1.1 –

wifi1.4), therefore, cannot support an SSID.

11ng(b/g): This binds the SSID to a subinterface linked to a radio operating at 2.4 GHz for the IEEE

802.11b or IEEE 802.11g standards.

11na(a): This binds the SSID to a subinterface using an antenna operating at 5 GHz for the IEEE

802.11a standard.

•User Profile: VoIP

2.After you click Apply, a drop-down list appears for the user profile type. Choose Default.

SSID: corp

1.Click New, enter the following to define the WLAN mappings for the corp SSID, and then click Apply:

•SSID Profile: corp

•MGT Service Filter: def-service-filter (default)

•AAA Servers: (leave empty; you want to use the RADIUS servers set on the previous page)

•RADIUS UP Rule: def-radius-user-profile-rule (default)

The default RADIUS user profile rule allows all users authenticated by the same RADIUS server to access

the SSID. In this example, only corporate employee accounts are stored on the RADIUS server, so there

is no need to restrict access to a smaller set of users.

•Radio Mode: 11ng(b/g)

•User Profile: IT and Emp (SHIFT-click or CTRL-click to make multiple selections.)

2.After you click Apply, a drop-down list appears for the user profile type. Choose RADIUS for IT, and choose

Default for Emp.

When authenticating users through 802.1X to a RADIUS server, there can be multiple user profiles, and the

RADIUS server will indicate which one the HiveAP applies to each user. However, if the RADIUS server does

not have a set of attributes configured for some users, then the HiveAP applies the user profile that you

mark as the default. One of the two user profile types must be marked as default and the other as RADIUS.

Chapter 8 HiveManager Configuration Examples

130 Aerohive

SSID: guest

1.Click New.

2.Depending on which guest access method you used (see "Example 3: Providing Guest Access" on page104),

enter either of the following to define the WLAN mappings for the guest SSID, and then click Apply:

For guest access using a preshared key:

•SSID Profile: guest

•MGT Service Filter: def-service-filter (default)

•AAA Servers: (leave empty)

•RADIUS UP Rule: def-radius-user-profile-rule (default)

•Radio Mode: 11ng(b/g)

•User Profile: Guests

After you click Apply, choose Default as the user profile type.

For guest access using a captive web portal:

•SSID Profile: guest

•MGT Service Filter: def-service-filter (default)

•AAA Servers: (leave empty)

•RADIUS UP Rule: def-radius-user-profile-rule (default)

•Radio Mode: 11ng(b/g)

•User Profile: Guests and Unregistered-Guests

After you click Apply, choose Default as the user profile type for Unregistered-Guests. Choose Registered

as the user profile type for Guests.

Deployment Guide 131

EXAMPLE 9: CREATING WLAN POLICIES

WLANpolicy-hq1 (Page 3)

On the third page of the new WLAN policy dialog box, you can assign QoS classifier and marker maps to SSIDs and

specify user profile-based QoS data forwarding rate limits and weights. (Note that no marker maps were configured

previously, so this option is unavailable.)

To view the third page of the WLAN policy dialog box configured with the SSID "guest" with and without a captive

web portal, see Figure19.

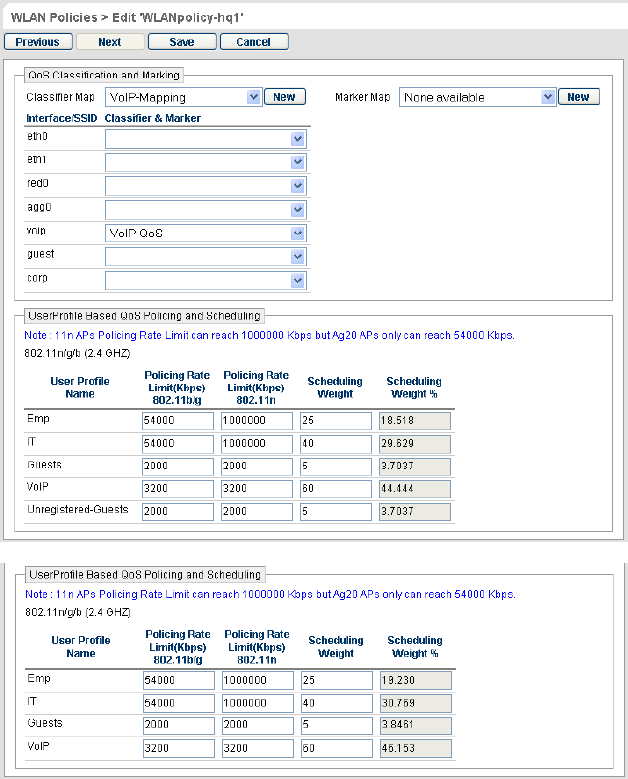

Figure 19 Third Page of the WLAN Policy Dialog Box (SSID "guest" with and without a Captive Web Portal)

The User profile settings, maximum traffic forwarding rates per user profile, and the WRR (weighted round robin)

weights for each profile are shown in Figure20 on page132.

When the SSID "guest" does not

use a captive web portal, there is

only one user profile: "Guests"

When the SSID "guest" uses a

captive web portal, there are two

user profiles:

"Guests" (Registered)

"Unregistered-Guests" (Default)

You must set the same policing

rate limits and scheduling

weights for both of these profiles.

Chapter 8 HiveManager Configuration Examples

132 Aerohive

Figure 20 User Profiles, Forwarding Rates, and Weights

1.Enter the following in the QoS Classification and Marking section:

•Classifier Map: VoIP-Mapping

•voip: VoIP-QoS

The QoS map and policy were previously configured in "Mapping the MAC OUI and Services to Aerohive

Classes" on page98, and as part of user profiles in "Example 4: Creating User Profiles" on page113.

2.Enter the following in the User Profile Based QoS Policing and Scheduling section, and then click Save:

SSID "guests" without a captive web portal (only one user profile)

User Profile NamePolicing Rate

Limit (Kbps)

802.11a/b/g

Policing Rate

Limit (Kbps)

802.11a/b/g

Scheduling Weight Scheduling Weight %

(read-only)

Guests 2000 2000 5 3.8461

VoIP 3200 3200 60 46.153

IT 54000 100000040 30.769

Emp 54000 100000025 19.230

Ë-»® Ð®±º·´» É»·¹¸¬-

øº±® ¬®¿ºº·½ º±®©¿®¼·²¹ «-·²¹ ÉÎÎ÷

Ú±® ×Ìô Û³°ô ¿²¼ Ù«»-¬- «-»®-ô ¬¸» ³¿¨·³«³ ¬®¿ºº·½ º±®©¿®¼·²¹

®¿¬»- ¿®» ¬¸» -¿³» º±® ¬¸» »²¬·®» «-»® °®±º·´» ¿- ¬¸»§ ¿®» º±® ¿²

·²¼·ª·¼«¿´ «-»®ò Þ§ µ»»°·²¹ ¬¸»³ ¬¸» -¿³»ô ¿ -·²¹´» ±²´·²» «-»® ·-

²±¬ ®»-¬®·½¬»¼ ¬± ¿ -³¿´´»® ®¿¬» ¬¸¿² ¬¸¿¬ ±º ¬¸» °®±º·´» ¬± ©¸·½¸ ¸»

±® -¸» ¾»´±²¹-ò øÌ¸» ·²¼·ª·¼«¿´ «-»® ®¿¬» ½¿² ¾» ¬¸» -¿³» ¿- ±®

-³¿´´»® ¬¸¿² ·¬- °®±º·´» ®¿¬»ò÷

Ú±® Ê±×Ð «-»®-ô ¾»½¿«-» ·²¼·ª·¼«¿´ ½¿´´- «-» ®»´¿¬·ª»´§ ´·¬¬´»

¾¿²¼©·¼¬¸ øè¢êì Õ¾°-÷ô ¿ -·²¹´» «-»® ¼±»- ²±¬ ²»»¼ ¿- ³«½¸ ¿-

¬¸¿¬ º±® ¬¸» »²¬·®» Ê±×Ð «-»® °®±º·´»ò ß íîðð Õ¾°-ñ°®±º·´» ³¿¨·³«³

¿´´±©- «° ¬± ëð ½±²½«®®»²¬ ª±·½» -»--·±²- ¿¬ êì Õ¾°- °»® Ø·ª»ßÐ

øíîðð ) êì ã ëð÷ò ×º ¿ -¬®±²¹»® ª±·½» ½±³°®»--·±² ½±¼»¨ ·- «-»¼ô

¬¸» ²«³¾»® ±º ½±²½«®®»²¬ ª±·½» -»--·±²- ½¿² ·²½®»¿-»

°®±°±®¬·±²¿¬»´§ò Ì¸» ³¿¨·³«³ «-»® ®¿¬» ±º ëïî Õ¾°- ¿´´±©- ±¬¸»®

¬§°»- ±º ¬»´»°¸±²§ó®»´¿¬»¼ ¬®¿ºº·½ô -«½¸ ¿- ÜÒÍô ÜØÝÐô ØÌÌÐô

¿²¼ ÌÚÌÐô ·² ¿¼¼·¬·±² ¬± °«®» ª±·½» ¬®¿ºº·½ò

ïð

îð

íð

ìð

ëð

êð

Í»½±²¼-

É»·¹¸¬-

ðï

Ê±×Ð øêð÷

×Ì øìð÷

Ù«»-¬- øë÷

Û³° øîë÷

Ì¸» ¾¿® ½¸¿®¬ ·²¼·½¿¬»- ¬¸» ®¿¬·± ±º ¿´´±¬¬»¼

¾¿²¼©·¼¬¸ ¿³±²¹ ¬¸» º±«® «-»® °®±º·´»- ¾¿-»¼

±² ¬¸»·® ®»-°»½¬·ª» ©»·¹¸¬-ò Ü«®·²¹ ¬¸» ½±«®-»

±º ±²» -»½±²¼ô ¿ Ø·ª»ßÐ ¿´´±¬- ïî ¬·³»- ³±®»

¾¿²¼©·¼¬¸ º±® Ê±×Ð «-»®-ô è ¬·³»- ³±®» º±® ×Ì

«-»®-ô ¿²¼ ë ¬·³»- ³±®» º±® Û³° «-»®- ¬¸¿² ·¬

¿´´±¬- º±® Ù«»-¬-ò

Þ¿²¼©·¼¬¸ ®¿¬·±²·²¹ ±²´§ ±½½«®- ©¸»² «-¿¹» ·-

¿¬ ³¿¨·³«³ ½¿°¿½·¬§ò

Ò±¬»æ É»·¹¸¬- ¼± ²±¬ ¿°°´§ ¬± -¬®·½¬ ¬®¿ºº·½

º±®©¿®¼·²¹ò

Ò±¬»æ Ë²®»¹·-¬»®»¼óÙ«»-¬- ø×Ü ê÷ ·- ²±¬ -¸±©²ò

Ë-»® Ð®±º·´»-Ó¿¨·³«³ Ì®¿ºº·½ Ú±®©¿®¼·²¹ Î¿¬»-

Ò¿³»æ Ê±×Ð

×Üæ î

Ò¿³»æ ×Ì

×Üæ í

Ò¿³»æ Û³°

×Üæ ì

Ò¿³»æ Ù«»-¬-

×Üæ ë

Ð»® Ð®±º·´»

ïï¿ñ¾ñ¹ñ² íîðð Õ¾°-ïï¿ñ¾ñ¹ñ² ëïî Õ¾°-

ïï¿ñ¾ñ¹ ëìôððð Õ¾°-

ïï² ïôðððôððð Õ¾°-

ïï¿ñ¾ñ¹ ëìôððð Õ¾°-

ïï² ïôðððôððð Õ¾°-

ïï¿ñ¾ñ¹ ëìôððð Õ¾°-

ïï² ïôðððôððð Õ¾°-

ïï¿ñ¾ñ¹ ëìôððð Õ¾°-

ïï² ïôðððôððð Õ¾°-

ïï¿ñ¾ñ¹ñ² îððð Õ¾°-ïï¿ñ¾ñ¹ñ² îððð Õ¾°-

Ð»® Ë-»®

Deployment Guide 133

EXAMPLE 9: CREATING WLAN POLICIES

SSID "guests" with a captive web portal (two user profiles)

Some notes about the settings for each user profile:

Guests user profile

•Entire User Profile Rate Limit: 2000 Kbps

This is a limited amount of bandwidth that all users belonging to this profile can use. This setting

provides guests with a basic amount of available traffic.

•Entire User Profile Weight: 5

Because wireless access for guests is mainly a convenience and not a necessity, you assign it the lowest

weight to give it the lowest priority. The weight defines a preference for forwarding traffic. It does not

specify a percentage or an amount. Its value is relative to other weights. However, you can see an

automatically calculated percentage of this weight versus those of other user profiles in the far right

column.

VoIP user profile

•Entire User Profile Rate Limit: 3200 Kbps

This is the maximum amount of bandwidth that all users belonging to this profile can use. The typical

bandwidth consumption for VoIP is about 8 – 64 Kbps ,depending on the speech codec used. This setting

supports up to 50 concurrent VoIP sessions using 64-Kbps compression (3200 Kbps / 64 Kbps = 50

sessions).

•Entire User Profile Weight: 60

Because you want HiveAPs to favor VoIP traffic over all other types, you give this profile the highest

weight.

IT user profile

•Entire User Profile Rate Limit: 54000 Kbps for 802.11a/b/g and 1000000 for 802.11n (default)

This is the maximum amount of bandwidth that all users belonging to this profile can use. This setting

provides IT staff members with the maximum amount of available traffic.

•Entire User Profile Weight: 40

Because you want the HiveAPs to favor IT staff traffic over employee and guest traffic, you give this

profile a higher weight than those, but a lower one than that for VoIP traffic.

Emp user profile

•Entire User Profile Rate Limit: 54000 Kbps for 802.11a/b/g and 1000000 for 802.11n (default)

This is the maximum amount of bandwidth that all users belonging to this profile can use. This setting

provides employees with the maximum amount of available traffic.

•Entire User Profile Weight: 25

Because you want the HiveAPs to prioritize VoIP traffic first, IT staff traffic second, employee traffic

third, and guest traffic last, you give this profile a weight of 25. This weight is less than that for VoIP

traffic (60) and IT staff traffic (40), and more than what you are going to assign to guest traffic (5) next.

User Profile NamePolicing Rate

Limit (Kbps)

802.11a/b/g

Policing Rate

Limit (Kbps)

802.11n

Scheduling Weight Scheduling Weight %

(read-only)

Guests 2000 2000 5 3.7037

Unregistered-Guests2000 2000 5 3.7037

VoIP 3200 3200 60 44.444

IT 54000 100000040 29.629

Emp 54000 100000025 18.518

Chapter 8 HiveManager Configuration Examples

134 Aerohive

These weights skew the rate at which the HiveAPs forward queued traffic using the WRR (weighted

round robin) scheduling discipline. Roughly, for every 5 bytes of guest traffic per second, a HiveAP

forwards 25 bytes of employee traffic, 40 bytes of IT traffic, and 60 bytes of VoIP traffic. These

numbers are not exact because HiveAPs also have internal weights per class that also affect the amount

of traffic that a HiveAP forwards.

Unregistered-Guests profile

Although the Unregistered-Guests user profile is required for the configuration of the "guest" SSID using

a captive web portal, the HiveAP never applies the QoS settings for this user profile because it never

forwards traffic from unregistered guests.

WLANpolicy-hq2

This WLAN policy is for all the HiveAPs in Building 2 at the corporate headquarters depicted in Figure1 on page89.

Because this policy consists of nearly identical elements to those in WLANpolicy-hq1, you clone the first WLAN

policy and simply change the WLAN policy name and description, and the hive in the configuration.

Click Configuration > WLAN Policies > (check box) WLANpolicy-hq1 > Clone, change only the following, and

then click Save:

•Name: WLANpolicy-hq2

•Description: HiveAPs in Bldg 2 at HQ

•Hive: Hive2

WLANpolicy-branch1

This WLAN policy is for all the HiveAPs at the branch site depicted in Figure1 on page89. Because this policy

consists of nearly identical elements to those in WLANpolicy-hq1 and WLANpolicy-hq2, you can clone either policy

and simply change the WLAN policy name and description, and the hive in the configuration.

Click Configuration > WLAN Policies > (check box) WLANpolicy-hq2 > Clone, change only the following, and

then click Save:

•Name: WLANpolicy-branch1

•Description: HiveAPs at the branch site

•Hive: Hive3

Deployment Guide 135

EXAMPLE 10: ASSIGNING CONFIGURATIONSTO HIVEAPS

EXAMPLE 10:ASSIGNING CONFIGURATIONSTO HIVEAPS

After completing the steps in the previous examples, you can now assign the following configurations as appropriate

to each HiveAP:

•WLAN policy (created in "Example 9: Creating WLAN Policies" on page126)

•Radio profiles (default radio profiles)

•Map (uploaded in "Example 1: Mapping Locations and Installing HiveAPs" on page91)

As the above list indicates, this example makes use of the two default radio profiles: radio_g0 for the wifi0

interface in access mode, and radio_a0 for the wifi1 interface in backhaul mode.

The HiveAP configuration assignments are presented conceptually in Figure21.

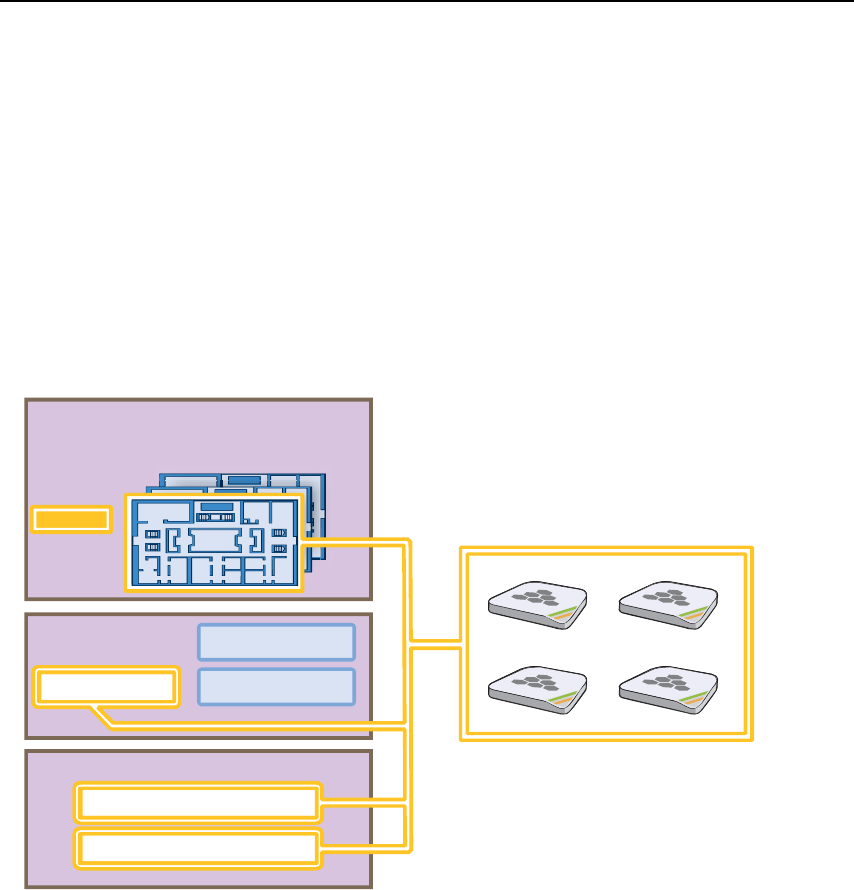

Figure 21 HiveAP Configuration Assignments

In addition to assigning the above configurations to the HiveAPs, you also change their login settings (and country

code if necessary) and apply the classifier tags "hq" and "branch1" so that the HiveAPs at HQ and the branch site use

the correct DNS servers.

Finally, you update the HiveAPs with the new configuration settings—and captive web portal files, if a captive web

portal is a part of the configuration—to complete their deployment.

ØÏóÞïóÚî

ØÏóÞïóÚí

ò ò ò ò òò ò ò ò ò ò ò òò ò ò ò ò ò ò òò ò ò

Ì±°±´±¹§ Ó¿°-

ÉÔßÒ Ð±´·½·»-

ÉÔßÒ°±´·½§ó¸¯î

ÉÔßÒ°±´·½§ó¾®¿²½¸ï

Î¿¼·± Ð®±º·´»-

Ø·ª»ßÐ- ±² ¬¸» Ú·®-¬ Ú´±±® ±º Þ«·´¼·²¹ ï

ÉÔßÒ°±´·½§ó¸¯ï

®¿¼·±Á¹ð Š ß½½»--

®¿¼·±Á¿ð Š Þ¿½µ¸¿«´

ØÏóÞïóÚï

You assign particular combinations of configurations to sets of

HiveAPs.

For example, the four HiveAPs shown below were installed on

the first floor of building 1 at the corporate headquarters. You

know this because—during their installation—you either

configured their SNMP sysLocation MIB object to indicate the

map titled "HQ-B1-F1" or you wrote down the MAC addresses

and locations of all the HiveAPs you installed (see

"Example 1:

Mapping Locations and Installing HiveAPs" on page91).

Because you know where the HiveAPs are located, you assign

them to the HQ-B1-F1 map, WLANpolicy-hq1, classifier tag

"hq", and the two default radio profiles: radio_g0 for network

access and radio_a0 for wireless backhaul communications.

Chapter 8 HiveManager Configuration Examples

136 Aerohive

Assigning Configurations

1.Click Access Points >Automatically Discovered.

2.Select a group of HiveAPs associated with the same map.

If you defined SNMP sysLocation MIB objects as you installed the HiveAPs as explained in "Using SNMP" on

page94, each HiveAP listed in the Automatically Discovered window will now include a map title in the

Topology Map column. By clicking the Topology Map column header, you can sort HiveAPs by topology map. You

can then select all the HiveAPs belonging to the same map (shift-click the check boxes to select multiple

contiguous HiveAPs) and assign the same WLAN policy, radio profiles, and classifier tags to them.

If you tracked HiveAPs by writing their MAC addresses on the maps as explained in "Using MAC Addresses" on

page95, you can sort the HiveAPs in the Automatically Discovered window by MAC address. Click the Node ID

column header to display the HiveAPs numerically by MAC address. By referring to the MAC addresses and the

title of the map on which you wrote them during the installation, you can then select all the HiveAPs belonging

to the same map and assign the same map, WLAN policy, radio profiles, and classifier tags to them.

3.Click Modify > General, and then enter the following:

•WLAN Policy: Choose the WLAN policy that you want to assign to the selected HiveAPs. In these examples,

there are three WLAN policies. Assign WLANpolicy-hq1 to all HiveAPs in Building 1 at corporate

headquarters, WLANpolicy-hq2 to all HiveAPs in Building 2 at corporate headquarters, and

WLANpolicy-branch1 to all HiveAPs at the branch office.

•Topology Map: Choose the map that you want to assign to the selected HiveAPs. (If you used the SNMP

sysLocation MIB definition to associate HiveAPs with maps, HiveManager has automatically chosen the

correct map already.) The maps allow you to organize the HiveAPs by site (HQ or Branch1), then at HQ by

building (HQ-B1 or HQ-B2), and then by floor (HQ-B1-F1, HQ-B1-F2, HQ-B1-F3, and so on).

•Gateway Address: Leave as is.

•Location: If you set the SNMP sysLocation MIB when you installed the HiveAPs, leave this field as is. If not,

enter a description for the location of each HiveAP individually.

•Native VLAN: 1 (for control traffic among hive members on the wired backhaul interface)

•LAN Interface: Leave the settings as they are.

•WLAN Interface: Set the radio profile for wifi0 as radio_g0 and the radio profile for wifi1 as radio_a0.

Leave the values for the other fields as they are.

•HiveAP Classification: For HiveAPs at headquarters, type hq in the Tag1 field. For HiveAPs at the branch

site, type branch1 in the Tag1 field. By classifying the HiveAPs with these tags, they will receive the

similarly tagged IP address for the primary DNS server on the network at their respective locations. (The

two IP addresses are tagged in "DNS Servers" on page101.)

4.Click Credentials, enter the following in the Root Admin Configuration section, and then click Save:

Root Admin Configuration

•New Admin Name: This is the root admin name that HiveManager uses to make SSH connections and

upload a full configuration to managed HiveAPs. The default root admin name and password is admin

and aerohive. To change the login settings on the HiveAPs, enter a new admin name. The admin name

can be any alphanumeric string from 3 to 20 characters long.

•New Password: Although the password is obscured, the default password is aerohive. To change the

default password on the HiveAPs, enter a new password here. The password can be any alphanumeric

string from 5 to 16 characters.

•Confirm New Password: If you entered a password in the above field, enter it again to confirm accuracy.

Deployment Guide 137

EXAMPLE 10: ASSIGNING CONFIGURATIONSTO HIVEAPS

DTLS Passphrase

HiveManager and HiveAPs use the DTLS (Datagram Transport Layer Security) passphrase to derive a

preshared key that they then use to mutually authenticate each other when making a CAPWAP connection.

By default, when a HiveAP first makes a CAPWAP connection to HiveManager, they use a predefined

bootstrap DTLS passphrase combined with several other values to derive a shared key that they then use to

authenticate each other. To change the DTLS passphrase, click Change Passphrase.

5.Repeat this procedure with the HiveAPs associated with all the other maps until they are all configured.

6.To accept all the HiveAPs for management through HiveManager, select the top check box to the left of "Host

Name" in the header in the Automatically Discovered window, and then click Accept.

HiveManager displays accepted HiveAPs in the Access Points > Managed HiveAPs window.

Updating the Country Code

When the preset region code for a managed HiveAP is "World", you must set the appropriate country code to control

the radio channel and power selections that that HiveAP can use. For HiveAPs intended for use in the United States,

the region code is preset as "FCC"—for "Federal Communications Commission"—and the country code is preset as

"United States".

If the region code for any of the managed HiveAPs is "World", set the country code as follows:

1.Click Access Points > Managed HiveAPs > (check box) hiveap > Update > Update Country Code.

2.In the Update Country Code dialog box , enter the following, and then click Upload:

•Select the check box for the HiveAPs whose country code you want to change.4

•Choose the country where they are deployed from the New Country Code list.

•In the Activate After field, set an interval after which the HiveAP reboots to activate the updated country

code settings.

HiveManager updates the country code on the selected HiveAPs. To put the radio settings for the updated

country code in effect, they reboot after the activation interval that you set elapses. After the HiveAPs reboot,

they then apply the appropriate radio settings for the newly updated country code.

Note: When you click Change Passphrase, HiveManager immediately generates a new, random passphrase.

You can override this by typing your own passphrase, which can be from 16 to 32 characters long.

4.When updating the country code on HiveAPs in a mesh environment, you do not want the rebooting of portals to interrupt the

data path between the HiveManager and mesh points before they can complete their update process. Therefore, try to update

and reboot mesh points first. Then, update and reboot the portals. See "Updating HiveAPs in a Mesh Environment" on page88.

Note: Be sure to choose the correct country. An incorrect choice might result in illegal radio operation and

cause harmful interference to other systems.

Chapter 8 HiveManager Configuration Examples

138 Aerohive

Uploading HiveAP Configurations

At this point, you have assigned configurations to the HiveAPs, accepted them for management, changed their login

settings, and possibly the country code as well. Now, you can push their configurations from HiveManager to the

HiveAPs.

1.Click Access Points >Managed HiveAPs > Update >Upload and Activate Configuration (Wizard).

The Upload and Activate Configuration (Wizard) dialog box appears.

2.If you have an SSID using captive web portal files, the first step in the upload process is to upload these pages

and a server key, if the captive web portal uses HTTPS to secure guest registrations. To upload these files, select

the HiveAPs to which you want to send the files, and then click Upload.

The HiveAP Update Results page appears so that you can monitor the progress of the upload procedure.

3.After the files are successfully uploaded, click the Back button in your browser to return to the Upload and

Activate Configuration dialog box.

4.To continue to the next step, click Next.

5.There are two options for uploading configurations to HiveAPs:

•Complete Upload, which uploads the complete configuration to the managed HiveAPs and which requires

them to reboot to activate the new configuration

•Delta Upload, which uploads only the parts of the configuration that were not pushed to the managed

HiveAP in a previous configuration update

Uploading a delta configuration does not require activation by rebooting the HiveAP and is, therefore, less

disruptive. However, before HiveManager can upload a delta configuration to a managed HiveAP, it must first

upload the full configuration and activate it by rebooting the HiveAP. After that, you can upload delta

configurations. When initially sending the configuration to HiveAPs, you must choose Complete Upload.

Note: If a managed HiveAP already has the maximum number of captive web portal directories (8), you must

delete at least one of them before you can add a new one. To see how many directories are already on a

HiveAP and delete a directory if necessary, do the following:

1. Make an SSH connection to the managed HiveAP by finding an icon of the HiveAP on a map,

right-clicking the icon, and choosing SSH to HiveAP

2. Enter the following command to see the number of existing directories and their names:

show web-directory

3. Delete a directory by entering the following command, in which <string> is the name of the

directory that you want to delete: no web-directory <string>

Note: If there is any failure when performing a delta upload, the next upload must be a full upload.

Deployment Guide 139

EXAMPLE 10: ASSIGNING CONFIGURATIONSTO HIVEAPS

6.Select the HiveAPs whose configurations you want to update, select one of the following options for controlling

when the uploaded configurations are activated (by rebooting the HiveAPs), and then click OK:

•Activate at: Select this option and set the time when you want the updated HiveAPs to activate their

new configuration. This is a good choice if you want to stagger the activation, or if you want to load the

configuration now but activate it when the network is less busy. To use this option accurately, both

HiveManager and the managed HiveAPs need to have NTP enabled.

•Activate after: Select this option to load the configuration on the selected HiveAPs and activate it after

a specified interval. The range is 0 – 3600 seconds; that is, immediately to one hour. The default is 60

seconds.

•Activate at next reboot: Select this option to load the configuration and not activate it. The loaded

configuration is activated the next time the HiveAP reboots.

HiveManager pushes the configuration to all the selected HiveAPs. After they reboot to activate their new

configurations, they reconnect with HiveManager. To check the status of their CAPWAP connections, see the

Status and CAPWAP columns on the Access Points > Managed HiveAPs page. From this point, you can upload

delta configurations, which do not require the HiveAPs to reboot to activate a configuration update.

7.To check that the HiveAP is using the new files for its captive web portal, make an association with the HiveAP

using the guest SSID and then open a browser as described in step2 to step3 on page 109.

Note: When choosing which option to use, consider how HiveManager connects to the HiveAPs it is updating.

See "Updating HiveAPs in a Mesh Environment" on page88.

Note: If you still see the default .html and .jpg files, try clearing your browser cache and then closing and

reopening the browser.

If you customize captive web portal pages and then later want to return to the default set of files,

enter this command: reset web-directory <string>

where <string> is the name of the directory whose contents you want to return to the default files.

Chapter 8 HiveManager Configuration Examples

140 Aerohive

Deployment Guide 141

Chapter 9HiveOS

You can deploy a single HiveAP and it will provide wireless access as an autonomous AP (access point). However, if

you deploy two or more HiveAPs in a hive, you can provide superior wireless access with many benefits. A hive is a

set of HiveAPs that exchange information with each other to form a collaborative whole (see Figure1). Through

coordinated actions based on shared information, hive members can provide the following services that autonomous

APs cannot:

•Consistent QoS (quality of service) policy enforcement across all hive members

•Coordinated and predictive wireless access control that provides fast roaming to clients moving from one hive

member to another

•Best-path routing for optimized data forwarding

•Automatic radio frequency and power selection

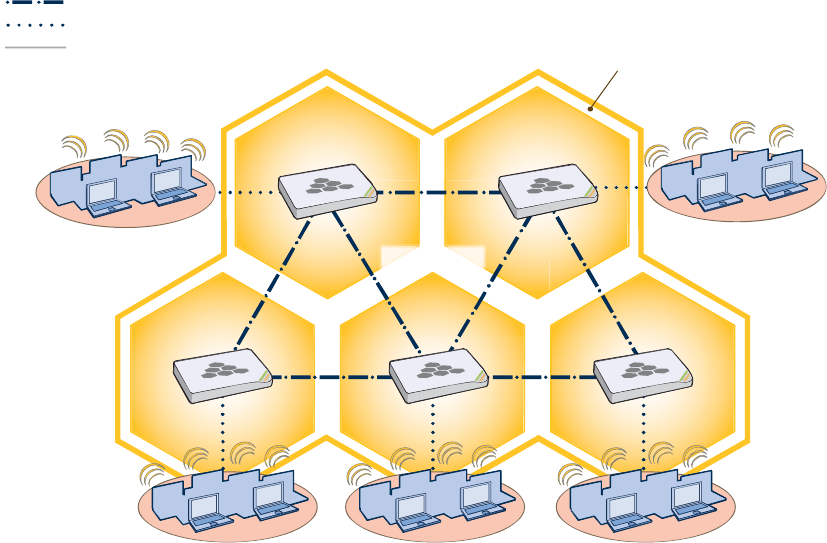

Figure 1 HiveAPs in a Hive

Ø·ª» Ó»³¾»®-

Wired or Wireless Hive Communications (Backhaul)

Wireless Network Access Connections

Wired Ethernet Network Connections

Not shown: Switches for wired backhaul

connections and the portal link to the wired network.

Wireless Clients Wireless Clients

Wireless Clients

Hive

Chapter 9 HiveOS

142 Aerohive

COMMON DEFAULT SETTINGSAND COMMANDS

Many major components of HiveOS are automated and typically require no further configuration. For example, radio

power and frequency selection occurs automatically, as does route learning. Also, after defining a hive and its

security protocol suite, all HiveAPs belonging to that hive automatically initiate and maintain communications with

each other.

Additionally, there are many default settings that simplify the setup of a HiveAP because these are the typical

settings for many of the most common deployments. The following are some important default settings and the

commands necessary to change them if you need to do so:

Default Settings Commands

mgt0 interfaceDHCP client = enabled To disable the DHCP client:

no interface mgt0 dhcp client

To set an IP address:

interface mgt0 ip ip_addr netmask

VLAN ID = 1 To set a different VLAN ID:

interface mgt0 vlan number

wifi0 and wifi1

interfaces

wifi0 mode = access

wifi1 mode = backhaul

To change the mode of the wifi0 or wifi1 interface:

interface { wifi0 | wifi1 } mode { access

|backhaul }

wifi0 radio profile = radio_g0

wifi1 radio profile = radio_a0

To change the radio profile of the wifi0 or wifi1

interface to a different, previously defined profile:

interface { wifi0 | wifi1 } radio profile

string

antenna = internal To have the wifi0 interface use an external antenna:

interface { wifi0 | wifi1 } radioantenna

external

channel = automatic selectionTo set a specific radio channel:

interface { wifi0 | wifi1 } radiochannel

number

power = automatic selectionTo set a specific transmission power level (in dBms):

interface { wifi0 | wifi1 } radiopower

number

Default QoS policydef-user-qos policy:

user profile rate = 54,000 Kbps

user profile weight = 10

user rate limit = 54,000 Kbps

mode = weighted round robin for

Aerohive classes 0 - 5; strict

forwarding for classes 6 - 7

classes 0 - 4 rate limit = 54,000 Kbps

class 5 rate limit = 10,000 Kbps

classes 6 - 7 rate limit = 512 Kbps

To change the default QoS policy:

qospolicydef-user-qos qos ah_class

{strict rate_limit 0 | wrr

rate_limitweight }

qos policy def-user-policy user-profile

rate_limit weight

qos policy def-user-policy user

rate_limit

User profiledefault-profile:

group ID = 0

policy name = def-user-qos

VLAN ID = 1

You cannot change the group ID or QoS policy name

for the default user profile. To change its VLAN ID:

user-profile default-profile vlan-id

number

Deployment Guide 143

CONFIGURATION OVERVIEW

The amount of configuration depends on the complexity of your deployment. As you can see in "Deployment

Examples (CLI)" on page149, you can enter a minimum of three commands to deploy a single HiveAP, and just a few

more to deploy a hive.

However, for cases when you need to fine tune access control for more complex environments, HiveOS offers a rich

set of CLI commands. The configuration of HiveAPs falls into two main areas: "Device-Level Configurations" and

"Policy-Level Configurations" on page144. Consider your deployment plans and then refer to the following sections

for guidance on the commands you need to configure them.

Device-Level Configurations

Device-level configurations refer to the management of a HiveAP and its connectivity to wireless clients, the wired

network, and other hive members. The following list contains some key areas of device-level configurations and

relevant commands.

•Management

•Administrators, admin authentication method, login parameters, and admin privileges

admin { auth | manager-ip | min-password-length | read-only | read-write |

root-admin } …

•Logging settings

log { buffered | console | debug | facility | flash | server | trap } …

•Connectivity settings

•Interfaces

interface { eth0 | wifi0 | wifi1 } …

•Layer 2 and layer 3 forwarding routes

route mac_addr …

ip route { default |host | net } ip_addr …

•VLAN assignments

For users:

user-profile string qos-policy string vlan-id number attribute number

For hive communications:

hive string native-vlan number

For the mgt0 interface:

interface mgt0 vlan number

•Radio settings

radio profile string …

Note: To find all commands using a particular character or string of characters, you can do a search using the

following command: show cmds | { include | exclude }string

Chapter 9 HiveOS

144 Aerohive

Policy-Level Configurations

Policies control how wireless clients access the network. The following list contains some key areas of policy-level

configurations and relevant commands.

•QoS settings

qos { classifier-map | classifier-profile | marker-map | marker-profile |

policy } …

•User profiles

user-profile string …

•SSIDs

ssid string …

•AAA (authentication, authorization, and accounting) settings for IEEE 802.1X authentication

aaa radius-server …

While the configuration of most HiveOS features involves one or more related commands, to define and apply a QoS

policy to a group of users, you must configure several different but related features: a QoS policy, a user profile,

and—if you do not authenticate users with a RADIUS server—an SSID that references the user profile, and a

subinterface to which you assign the SSID. The configuration steps are shown in Figure2.

Figure 2 Steps for Configuring and Applying QoS

«-»®ó°®±º·´» -¬®·²¹ ¯±-ó°±´·½§ -¬®·²¹

ª´¿²ó·¼ ²«³¾»® ¿¬¬®·¾«¬» ²«³¾»®

ìì

Ë-»® ¿½½±«²¬- ¿®» -¬±®»¼

±² ¬¸» ÎßÜ×ËÍ Í»®ª»®ò

Î»¬«®²»¼ ß¬¬®·¾«¬»-

Ÿ Ì«²²»´ Ì§°» ã ÙÎÛ øª¿´«» ã ïð÷

Ÿ Ì«²²»´ Ó»¼·«³ Ì§°» ã ×Ðªì øª¿´«» ã ï÷

Ÿ Ì«²²»´ Ð®·ª¿¬» Ù®±«° ×Ü ã «-»®Á°®±º·´»Á²«³¾»®

Ú·®-¬ô ½±²º·¹«®» ¿ Ï±Í °±´·½§ ¬¸¿¬ §±« ©¿²¬ ¬± ¿°°´§

¬± ©·®»´»-- ¬®¿ºº·½ º®±³ ¿ ¹®±«° ±º «-»®-ò

Ì¸» Ø·ª»ßÐ ¿°°´·»- ¬¸» Ï±Í °±´·½§ ¬± ¿´´

©·®»´»-- ½´·»²¬- ¬¸¿¬ ¿--±½·¿¬» ©·¬¸ ¬¸» ÍÍ×Üò

--·¼ -¬®·²¹

--·¼ -¬®·²¹ ¼»º¿«´¬ó

«-»®ó°®±º·´»ó¿¬¬® ²«³¾»®

Ì¸» ¿¬¬®·¾«¬»- ·²¼·½¿¬» ©¸·½¸ «-»® °®±º·´» ¬± ¿°°´§ ¬± ¬¸» «-»®ô

¿²¼ ¬¸» °®±º·´» ·² ¬«®² ·²¼·½¿¬»- ©¸·½¸ Ï±Í °±´·½§ ¬± ¿°°´§ò

×º §±« «-» ¿ ÎßÜ×ËÍ -»®ª»®ô ½±²º·¹«®»

·¬ ¬± ®»¬«®² ¿¬¬®·¾«¬»- º±® ¬¸» ®»¿´³ ¬±

©¸·½¸ ¬¸» ©·®»´»-- «-»®- ¾»´±²¹ò ßº¬»®

¿«¬¸»²¬·½¿¬·²¹ ¿ «-»®ô ¬¸» -»®ª»®

®»¬«®²- ¬¸»-» ¿¬¬®·¾«¬»- ©·¬¸ ¬¸»

ß½½»--óß½½»°¬ ³»--¿¹»ò Ì¸»

¿¬¬®·¾«¬»- ·²¼·½¿¬» ©¸·½¸

«-»® °®±º·´» ¬± ¿°°´§ ¬± ¬¸»

«-»®ô ¿²¼ ¬¸» °®±º·´» ·² ¬«®²

·²¼·½¿¬»- ¬¸» Ï±Í °±´·½§ ¬±

¿°°´§ò

¯±- °±´·½§ -¬®·²¹ òòò

·²¬»®º¿½» ·²¬»®º¿½» --·¼

-¬®·²¹

Í»½±²¼ô ½±²º·¹«®» ¿ «-»® °®±º·´» ¬¸¿¬ ®»º»®»²½»- ¬¸»

Ï±Í °±´·½§ §±« ¶«-¬ ½±²º·¹«®»¼ò

ß--·¹² ¬¸» ÍÍ×Ü ¬± ¿² ·²¬»®º¿½»ò

ÎßÜ×ËÍ

Í»®ª»®á

Ò±Ç»-

Ì¸» ²»¨¬ -¬»° ¼»°»²¼- ±² ©¸»¬¸»® §±« «-»

¿ ÎßÜ×ËÍ -»®ª»® ¬± ¿«¬¸»²¬·½¿¬» «-»®-ò

×º §±« ¼± ²±¬ «-» ¿ ÎßÜ×ËÍ -»®ª»®ô ½®»¿¬»

¿² ÍÍ×Ü ¬¸¿¬ -°»½·º·»- ¬¸» «-»® °®±º·´»

¿¬¬®·¾«¬» ¿- ·¬- ¼»º¿«´¬ «-»® °®±º·´»ò

Deployment Guide 145

HIVEOS CONFIGURATION FILE TYPES

HiveOS supports several types of configuration files: running, current, backup, bootstrap, default, and failed.

The running configuration (config) is the configuration that is actively running in DRAM. During the bootup process,

a HiveAP loads the running config from one of up to four config files stored in flash memory:

•current: a flash file containing a combination of default and admin-defined settings. During the bootup process,

this is the first config that the HiveAP attempts to load as the running config. This is also the file to which you

typically save commands from the running config (you can also save them to the bootstrap config). See Figure3.

•backup: a flash file that the HiveAP attempts to load during the reboot process if there is a newly uploaded

current config file or if it cannot load the current config file. See Figure4 on page146 and Figure5 on

page146.

•bootstrap: a flash file containing a second config composed of a combination of default and admin-defined

settings. The HiveAP fails over to this config when you enter the reset config command or if both the

current and backup config files fail to load. See Figure6 on page148.

•default: a flash file containing only default settings. If there is no bootstrap config, the HiveAP reverts to this

config when you enter the reset config command or if both the current and backup config files fail to load.

See Figure6 on page148.

When using the CLI, the two most frequently accessed config types are the running config and current config. When

you enter a command in the running config, the HiveAP performs it immediately. However, because the running

config is stored in volatile memory (DRAM), the commands are not yet permanent and will be lost when the HiveAP

next reboots. For your configuration settings to persist after rebooting, enter the save config command. This

command saves the running config to the current config, which is a file stored in nonvolatile (flash) memory. See

Figure3.

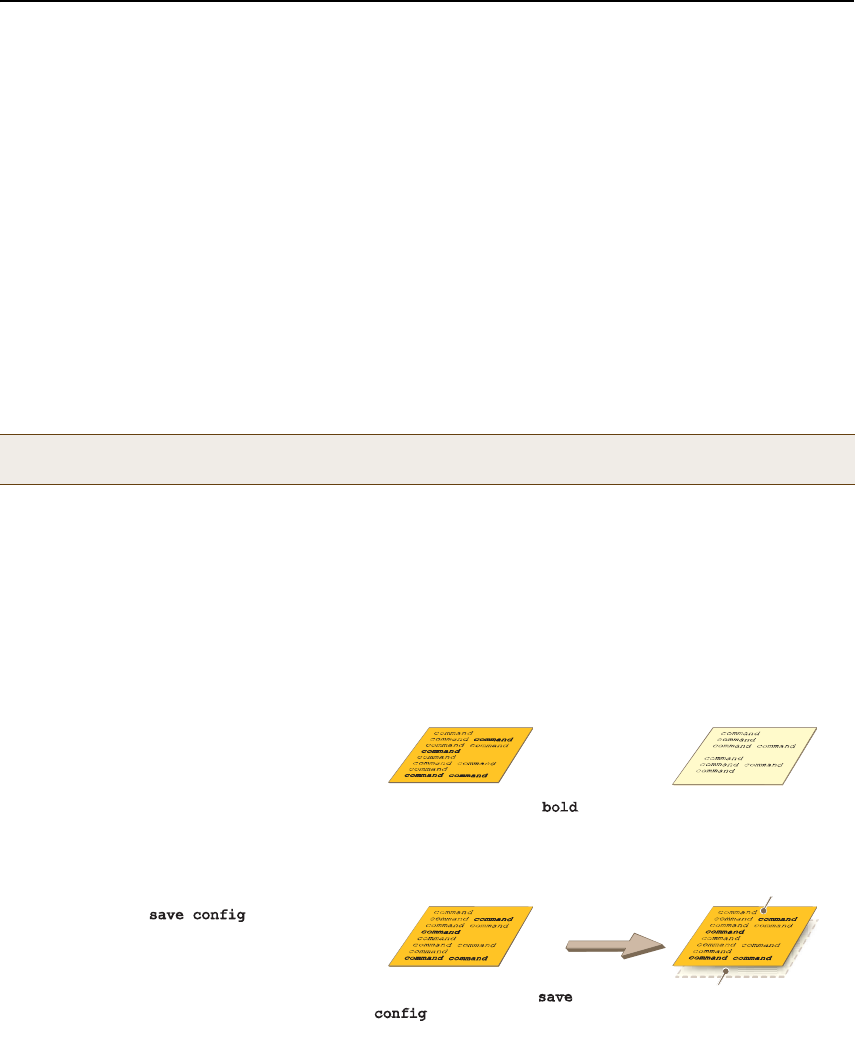

Figure 3 Relationship between Running and Current Config Files

Note: There is also a failed config file, which holds any backup config that fails to load. See Figure5 on

page146.

øÒ±¬»æ Ì¸» ½±³³¿²¼- ·² ¾±´¼ ¸¿ª» ²±¬ §»¬ ¾»»² -¿ª»¼ô

©¸·½¸ ·- ©¸§ ¬¸»§ ¼± ²±¬ ¿°°»¿® ·² ¬¸» ½«®®»²¬ ½±²º·¹ò÷

Ý«®®»²¬ Ý±²º·¹

ø·² º´¿-¸ ³»³±®§÷

Î«²²·²¹ Ý±²º·¹

ø·² ÜÎßÓ÷

Ì¸» ®«²²·²¹ ½±²º·¹ ½±³°®·-»- ¬¸» ½«®®»²¬ ½±²º·¹

°´«- ¿²§ ½±³³¿²¼- ¬¸¿¬ ¸¿ª» ²±¬ §»¬ ¾»»²

-¿ª»¼òÌ¸» ®«²²·²¹ ½±²º·¹ ®«²- ·² ÜÎßÓò

Ì¸» ½«®®»²¬ ½±²º·¹ ½±³°®·-»- -¿ª»¼

½±³³¿²¼- °´«- ¼»º¿«´¬ -»¬¬·²¹-ò Ì¸»

½«®®»²¬ ½±²º·¹ ·- -¬±®»¼ ·² º´¿-¸ ³»³±®§ò

Î«²²·²¹ Ý±²º·¹

Ò»© Ý«®®»²¬ Ý±²º·¹

Ð®»ª·±«- Ý«®®»²¬ Ý±²º·¹

ø±ª»®©®·¬¬»²÷

É¸»² §±« »²¬»® ¬¸» -¿ª» ½±²º·¹ ½±³³¿²¼ô

¬¸» Ø·ª»ßÐ -¿ª»- ¬¸» ®«²²·²¹ ½±²º·¹ º®±³

ÜÎßÓ ¬± º´¿-¸ ³»³±®§ô ©¸»®» ·¬ ¾»½±³»-

¬¸» ²»© ½«®®»²¬ ½±²º·¹ô ®»°´¿½·²¹ ¬¸» ±²»

°®»ª·±«-´§ ¬¸»®»ò

-¿ª» ½±²º·¹

øÒ±¬»æ ßº¬»® »²¬»®·²¹ ¬¸» -¿ª»

½±²º·¹ ½±³³¿²¼ô ¬¸» ½«®®»²¬ ¿²¼

®«²²·²¹ ½±²º·¹- ¾»½±³» ·¼»²¬·½¿´ò÷

Chapter 9 HiveOS

146 Aerohive

When you upload a configuration file from HiveManager or from a TFTP or SCP server, the HiveAP stores the

uploaded file in the backup config partition in flash memory, where it remains until the HiveAP reboots. If there is a

backup config file already stored in flash, the newly uploaded file overwrites it. See Figure4.

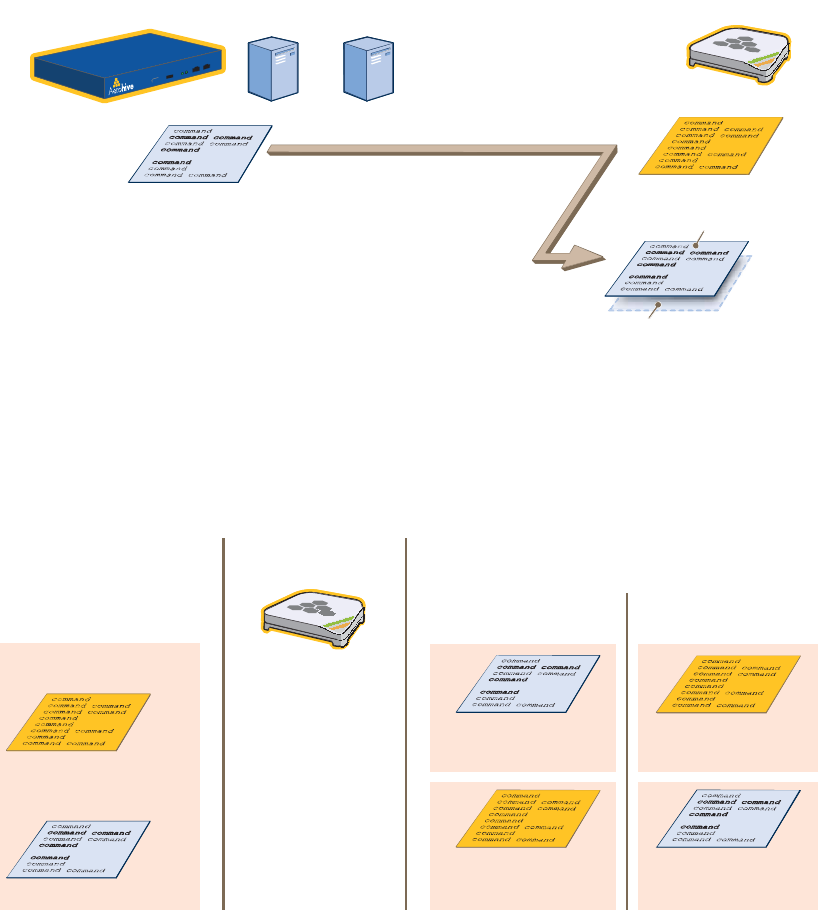

Figure 4 Relationship between Current and Backup Config Files during a File Upload

When the HiveAP reboots, it attempts to load the the newly uploaded config file. If the file loads successfully, the

HiveAP makes that file the new current config and makes the previous current config the new backup config. If the

file does not load successfully, the HiveAP reboots again and loads the previous current config file. The HiveAP saves

the file it was unable to load as a failed config for diagnostics. See Figure5.

Figure 5 Relationship between Current and Backup Config Files while Rebooting a HiveAP

Ý±²º·¹ Ú·´» Ý«®®»²¬ Ý±²º·¹

É¸»² §±« «°´±¿¼ ¿ ½±²º·¹ º·´» º®±³ Ø·ª»Ó¿²¿¹»® ±® ¿ ÌÚÌÐ ±®

ÍÝÐ -»®ª»®ô ¬¸» Ø·ª»ßÐ -¿ª»- ¬¸» «°´±¿¼»¼ º·´» ¿- ¿ ¾¿½µ«°

½±²º·¹ò Ì¸·- º·´» ®»°´¿½»- ¿²§ °®»ª·±«- ¾¿½µ«° ½±²º·¹ º·´» ¬¸¿¬

³·¹¸¬ ¸¿ª» ¾»»² ¬¸»®»ò

ÌÚÌÐ

Í»®ª»®

ÍÝÐ

Í»®ª»®

Ø·ª»Ó¿²¿¹»®±® ±® Ø·ª»ßÐ

Ð®»ª·±«- Þ¿½µ«° Ý±²º·¹

ø±ª»®©®·¬¬»²÷

Ò»© Þ¿½µ«° Ý±²º·¹

ø·² º´¿-¸ ³»³±®§÷

Ý«®®»²¬ Ý±²º·¹

ø»¨·-¬·²¹ ½±²º·¹÷

Þ¿½µ«° Ý±²º·¹

ø²»©´§ «°´±¿¼»¼ ½±²º·¹ º·´»÷

ßº¬»® «°´±¿¼·²¹ ¿ ²»© ½±²º·¹

º·´»ô ¬¸» º±´´±©·²¹ ¬©± ½±²º·¹

º·´»- ¿®» -¬±®»¼ ·² º´¿-¸

³»³±®§ ±² ¬¸» Ø·ª»ßÐæ

É¸»² §±« ®»¾±±¬ ¬¸» Ø·ª»ßÐô ·¬ ¬®·»- ¬± ´±¿¼ ¬¸» ¾¿½µ«°

½±²º·¹ò Û·¬¸»® ±º ¬¸» º±´´±©·²¹ ¬©± ®»-«´¬- ½¿² ±½½«®æ

×º ¬¸» ²»©´§ ´±¿¼»¼ ½±²º·¹

º·´» ´±¿¼- -«½½»--º«´´§ô ò ò ò

ò ò ò ·¬ ¾»½±³»- ¬¸» ²»©

½«®®»²¬ ½±²º·¹ô ¿²¼ ò ò ò

ò ò ò ¬¸» °®»ª·±«- ½«®®»²¬

½±²º·¹ ¾»½±³»- ¬¸» ²»©

¾¿½µ«° ½±²º·¹ò

ò ò ò ¬¸» ¾¿½µ«° ½±²º·¹ ·-

-¿ª»¼ ¿- ¿ º¿·´»¼ ½±²º·¹

øº±® ¼·¿¹²±-¬·½ ¿²¿´§-·-÷ò

ò ò ò ¬¸» Ø·ª»ßÐ ®»¾±±¬-

¿¹¿·²ô ´±¿¼- ¬¸» °®»ª·±«-

½«®®»²¬ ½±²º·¹ô ¿²¼ ò ò ò

×º ¬¸» ²»©´§ ´±¿¼»¼ ½±²º·¹

º·´» º¿·´- ¬± ´±¿¼ô ò ò ò

Î»¾±±¬ ¬¸» Ø·ª»ßÐ

Deployment Guide 147

HIVEOS CONFIGURATION FILE TYPES

When a HiveAP ships from the factory, it is loaded with a default config file, which acts initially as the running and

current configs. If you enter and save any commands, the HiveAP then stores a separate config file as the current

config, combining the default settings with the commands you entered and saved. If you want to return to the

default settings, you can press the reset button (see "Reset Button" on page25) or enter the resetconfig

command. A HiveAP might also return to the default config if both the current and backup configs fail to load,

which might happen if you update the HiveOS firmware to an image that cannot work with either config.

Reverting to the default config can be very useful, especially in the early stages when you are still learning about

HiveOS and are likely to be experimenting with different settings. However, retaining the ability of a HiveAP to

revert to its default settings after its deployment can present a problem if it is a mesh point in a hive. If the HiveAP

reverts to the default config, it will not be able to rejoin its hive. Consequently, it will not be able to get an IP

address through DHCP nor be able to communicate with HiveManager (assuming that you are managing it through

HiveManager). In this case, you would have to make a serial connection to the console port on the HiveAP and

reconfigure its hive settings through the CLI.

To avoid the above situation, you can use a bootstrap config. A bootstrap config is typically a small config file that

comes last in the boot order (current – backup – bootstrap) and that replaces the default config as the one a HiveAP

loads when you reset the configuration. See Figure6 on page148.

Note: To upload and activate a config file from HiveManager , see "Uploading HiveAP Configurations" on

page138. To upload and activate a config file from a TFTP or SCP server using the CLI, use the following

commands:

save config tftp://ip_addr:filename current { hh:mm:ss | now | offset hh:mm:ss }

save config scp://username@ip_addr:filename current { hh:mm:ss | now | offset

hh:mm:ss }

Note: You can disable the ability of the reset button to reset the configuration by entering this command: no

reset-button reset-config-enable

Note: Be careful to remember the login name and password defined in the bootstrap config file. If they become

lost or forgotten, you must obtain a one-time login key from Aerohive technical support. To get the key,

you must already have had a support contract in place. The first one-time login key is free. After that,

there is a small handling fee for each additional key.

Chapter 9 HiveOS

148 Aerohive

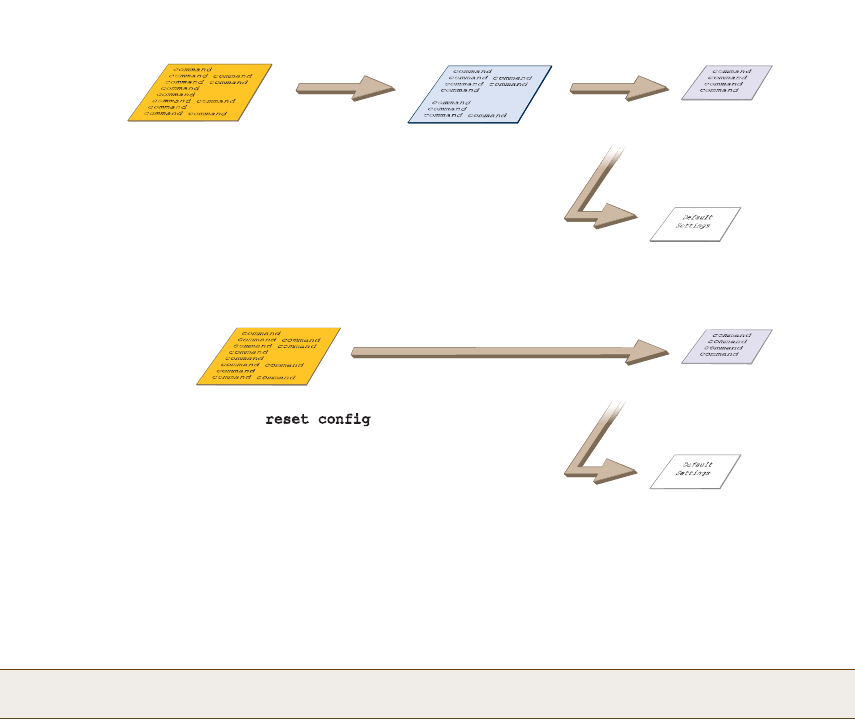

Figure 6 Relationship of Current, Backup, Bootstrap, and Default Config Files

To create and load a bootstrap config, make a text file containing a set of commands that you want the HiveAP to

load as its bootstrap configuration (for an example, see "Loading a Bootstrap Configuration" on page167). Save the

file locally and then load it with one of the following commands:

save config tftp://ip_addr:filename bootstrap

save config scp://username@ip_addr:filename bootstrap

After it is loaded, you can enter the following command to view the bootstrap file: show config bootstrap

If you want to run the bootstrap config, enter the following commands:

load config bootstrap

reboot

When the bootstrap config loads, enter the login parameters you defined for that configuration. To return to your

previous current config file, enter the following commands:

load config backup

reboot

Note: Similar to the way that a current config consists of the commands you added on top of the default config,

a bootstrap config consists of default definitions and settings plus whatever other settings you configure.

É¸»² §±« »²¬»® ¬¸» ®»-»¬ ½±²º·¹ ½±³³¿²¼ ±® °®»-- ¬¸»

®»-»¬ ¾«¬¬±² ±² ¬¸» º®±²¬ °¿²»´ ±º ¬¸» Ø·ª»ßÐ ¼»ª·½»ô ¬¸»

Ø·ª»ßÐ ¼»´»¬»- ¬¸» °®»ª·±«- ½«®®»²¬ ½±²º·¹ô ®»¾±±¬-ô ¿²¼

´±¿¼- ¬¸» ¾±±¬-¬®¿° ½±²º·¹‰ ·º °®»-»²¬‰±® ¬¸» ¼»º¿«´¬ ½±²º·¹ò

®»-»¬ ½±²º·¹

Ý«®®»²¬ Ý±²º·¹

Þ±±¬-¬®¿° Ý±²º·¹

Ü»º¿«´¬ Ý±²º·¹

ò ò ò ±® ·º ¬¸»®» ·- ²± ¾±±¬-¬®¿° ½±²º·¹ ò ò ò

Î»-»¬¬·²¹ ¬¸» Ý±²º·¹«®¿¬·±²

Ý«®®»²¬ Ý±²º·¹ Þ¿½µ«° Ý±²º·¹

Þ±±¬-¬®¿° Ý±²º·¹

Ü»º¿«´¬ Ý±²º·¹

ò ò ò ±® ·º ¬¸»®» ·- ²± ¾±±¬-¬®¿° ½±²º·¹ ò ò ò

×º ¬¸» Ø·ª»ßÐ ½¿²²±¬ ´±¿¼ »·¬¸»® ¬¸» ½«®®»²¬ ±® ¾¿½µ«°

½±²º·¹ º·´»-ô ·¬ ¼»´»¬»- ¬¸»³ô ®»¾±±¬-ô ¿²¼ ´±¿¼- ¬¸»

¾±±¬-¬®¿° ½±²º·¹‰ ·º °®»-»²¬‰±® ¬¸» ¼»º¿«´¬ ½±²º·¹ò

Ý±²º·¹«®¿¬·±² Ú¿·´±ª»® Þ»¸¿ª·±®

Ú¿·´±ª»® Ú¿·´±ª»®

Deployment Guide 149

Chapter 10Deployment Examples (CLI)

This chapter presents several deployment examples to introduce the primary tasks involved in configuring HiveAPs

through the HiveOS CLI.

In "Deploying a Single HiveAP" on page150, you deploy one HiveAP as an autonomous access point. This is the

simplest configuration: you only need to enter and save three commands.

In "Deploying a Hive" on page153, you add two more HiveAPs to the one deployed in the first example to form a hive

with three members. The user authentication method in this and the previous example is very simple: a preshared

key is defined and stored locally on each HiveAP and on each wireless client.

In "Using IEEE 802.1X Authentication" on page158, you change the user authentication method. Taking advantage of

existing Microsoft AD (Active Directory) user accounts, the HiveAPs use IEEE 802.1X EAP (Extensible Authentication

Protocol) to forward authentication requests toa RADIUS server whose database is linked to that of the AD server.

In "Applying QoS" on page161, you apply QoS (Quality of Service) filters to user traffic so that delay-sensitive voice

traffic receives higher priority than other more delay-resistant traffic.

In "Loading a Bootstrap Configuration" on page167, you load a bootstrap config file on the HiveAPs. When a

bootstrap config is present, it loads instead of the default config whenever HiveOS is reset or if the current and

backup configs do not load. This example shows how using a bootstrap config can help minimize theft and increase

convenience.

Because each example builds on the previous one, it is recommended to read them sequentially. Doing so will help

build an understanding of the fundamentals involved in configuring HiveAPs.

If you want to view just the CLI commands used in the examples, see "CLI Commands for Examples" on page170.

Having the commands in blocks by themselves makes it easy to copy-and-paste them at the command prompt.

The following are the equipment and network requirements for these examples:

•Equipment

•Management system (computer) capable of creating a serial connection to the HiveAP

•VT100 emulator on the management system

•Serial cable (also called a "null modem cable") that ships as an option with the HiveAP product. You use this

to connect your management system to the HiveAP.

•Network

•Layer 2 switch through which you connect the HiveAP to the wired network

•Ethernet cable—either straight-through or cross-over

•Network access to a DHCP server

•For the third and fourth examples, network access to an AD (Active Directory) server and RADIUS server

Note: To focus attention on the key concepts of an SSID (first example), hive (second example), and IEEE 802.1X

authentication (third example), QoS was intentionally omitted from these examples. However, the QoS

settings you define in the last example can apply equally well to the configurations in the others.

Note: You can also access the CLI by using Telnet or SSH (Secure Shell). After connecting a HiveAP to the

network, make either a Telnet or SSH connection to the IP address that the DHCP server assigns the

mgt0 interface.

Chapter 10 Deployment Examples (CLI)

150 Aerohive

EXAMPLE 1:DEPLOYINGA SINGLE HIVEAP

In this example, you deploy one HiveAP (HiveAP-1) to provide network access to a small office with 15 – 20 wireless

clients. You only need to define the following SSID (service set identifier) parameters on the HiveAP and clients:

•SSID name: employee

•Security protocol suite: WPA-auto-psk

•WPA – Uses Wi-Fi Protected Access, which provides dynamic key encryption and mutual authentication of

the client and HiveAP

•Auto – Automatically negotiates WPA or WPA2 and the encryption protocol: AES (Advanced Encryption

Standard) or TKIP (Temporal Key Integrity Protocol)

•PSK – Derives encryption keys from a preshared key that the client and HiveAP both already have

•Preshared key: N38bu7Adr0n3

After defining SSID "employee" on HiveAP-1, you then bind it to the wifi0 interface, which is in access mode by

default. The wifi0 interface operates at 2.4 GHz (in accordance with the IEEE 802.11b, g, and n standards). This

example assumes that the clients also support 802.11b, g, or n.

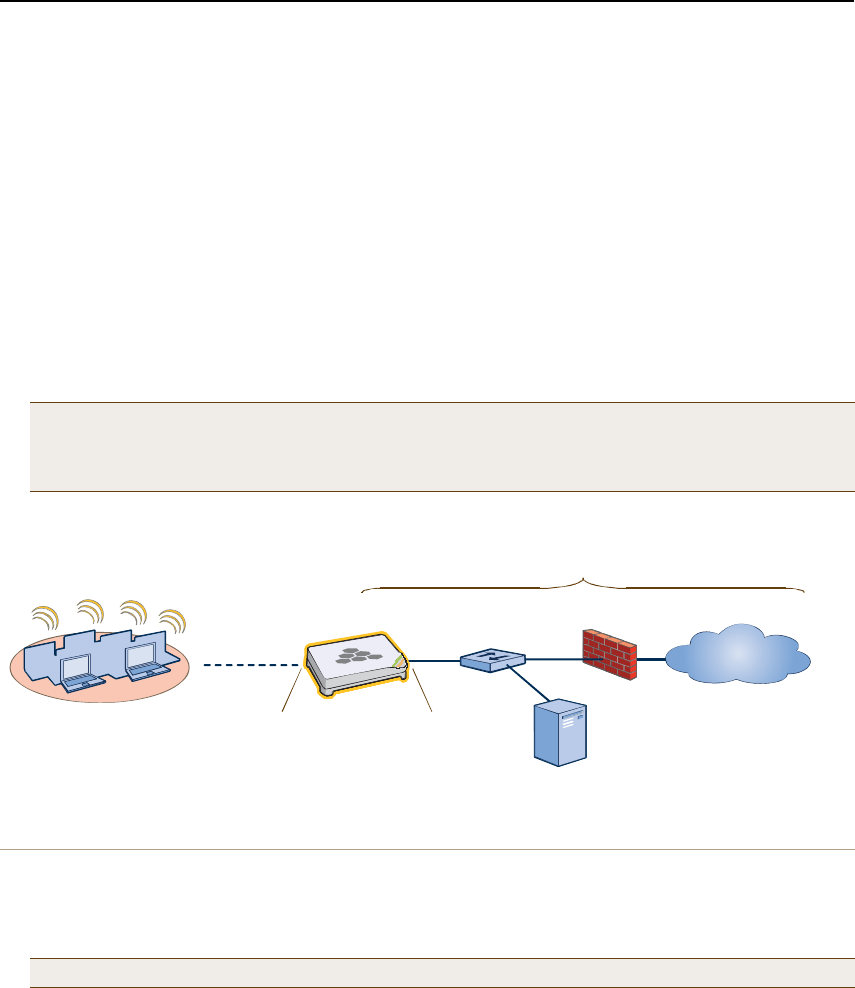

Figure 1 Single HiveAP for a Small Wireless Network

Step 1Log in through the console port

1.Connect the power cable from the DC power connector on the HiveAP to the AC/DC power adaptor that ships

with the device as an option, and connect that to a 100 – 240-volt power source.

The Power LED glows steady amber during the bootup process. After the bootup process completes, it then

glows steady green to indicate that the firmware is loaded and running.

2.Connect one end of an RS-232 serial (or "null modem") cable to the serial port (or Com port) on your

management system.

Note: By default, the wifi1 interface is in backhaul mode and operates at 5 GHz to support IEEE 802.11a. To

put wifi1 in access mode so that both interfaces provide access—the wifi0 interface at 2.4 GHz and the

wifi1 interface at 5 GHz—enter this command: interface wifi1 mode access. Then, in addition

to binding SSID "employee" to wifi0 (as explained in step2), also bind it to wifi1.

Note: If the switch supports PoE (Power over Ethernet), the HiveAP can receive its power that way instead.

Wireless Network-1

HiveAP-1 SwitchFirewall

Internet

DHCP Server

Wireless clients associate

with HiveAP-1 using SSID

"employee" with the security

suite WPA-auto-psk

(PSK = N38bu7Adr0n3).

The wireless clients and the mgt0

interface on HiveAP-1 receive their

IP addresses and associated TCP/IP

settings from the DHCP server.

Wired Network

wifi0 interface

SSID "employee"

Access mode

IEEE 802.11b/g/n

Physical interface: eth0

Logical interface: mgt0

Backhaul mode

Network portal

Deployment Guide 151

EXAMPLE 1: DEPLOYINGA SINGLE HIVEAP

3.Connect the other end of the cable to the male DB-9 or RJ-45 console port on the HiveAP.

4.On your management system, run a VT100 terminal emulation program, such as Tera Term Pro© (a free terminal

emulator) or Hilgraeve Hyperterminal® (provided with Windows® operating systems). Use the following settings:

•Bits per second (baud rate): 9600

•Data bits: 8

•Parity: none

•Stop bits: 1

•Flow control: none

For HiveAPs set with "FCC" as the region code, the Initial CLI Configuration Wizard appears. For HiveAPs set with

"world" as the region code, a prompt appears to set the country code for the location where you intend to

deploy the HiveAP. To set the country code, enter the boot-param country-code number command, in

which number is the appropriate country code number. For a list of country codes, see "Appendix A Country

Codes" on page177.

5.Because you do not need to configure all the settings presented in the wizard, press N to cancel it.

The login prompt appears.

6.Log in using the default user name admin and password aerohive.

Step 2Configure the HiveAP

1.Create an SSID and assign it to an interface.

ssid employee

ssid employee security protocol-suite wpa-auto-psk ascii-key N38bu7Adr0n3

You first create an SSID named "employee" and then define its protocol suite and preshared key

(N38bu7Adr0n3) in standard ASCII (American Standard Code for Information Interchange) text.

interface wifi0 ssid employee

You assign the SSID to the wifi0 interface, which is in access mode by default. When you make this

assignment, the HiveAP automatically creates subinterface wifi0.1 and uses that for the SSID. (A HiveAP

can create up to seven subinterfaces per interface—14 total.) A HiveAP uses one or two interfaces in

access mode to communicate with wireless clients accessing the network, and an interface in backhaul

mode to communicate wirelessly with other HiveAPs when in a hive (see subsequent examples).

2.(Optional) Change the name and password of the root admin.

admin root-admin mwebster password 3fF8ha

As a safety precaution, you change the default root admin name and password to mwebster and 3fF8ha.

The next time you log in, use these instead of the default definitions.

3.(Optional) Change the host name of the HiveAP.

hostname HiveAP-1

4.Save your changes to the currently running configuration, and then log out of the serial session.

save config

exit

The HiveAP configuration is complete.

Note: By default, the minimum password length is 5 characters. You can change the minimum length by

entering the following command: admin min-password-length <number> (The minimum

password length can be between 5 and 16 characters.)

Chapter 10 Deployment Examples (CLI)

152 Aerohive

Step 3Configure the wireless clients

Define the "employee" SSID on all the wireless clients. Specify WPA-PSK for network authentication, AES or TKIP

for data encryption, and the preshared key N38bu7Adr0n3.

Step 4Position and power on the HiveAP

1.Place the HiveAP within range of the wireless clients and, optionally, mount it as explained in the mounting

section in the chapter about the HiveAP model that you are using.

2.Connect an Ethernet cable from the PoE In port to the network switch.

3.If you have powered off the HiveAP, power it back on by reconnecting it to a power source.

When you power on the HiveAP, the mgt0 interface, which connects to the wired network through the eth0 port,

automatically receives its IP address through DHCP (Dynamic Host Configuration Protocol).

Step 5Check that clients can form associations and access the network

1.To check that a client can associate with the HiveAP and access the network, open a wireless client application

and connect to the "employee" SSID. Then contact a network resource, such as a web server.

2.Log in to the HiveAP CLI, and check that you can see the MAC address of the associated client and an indication

that the correct SSID is in use by entering the following command:

The setup of a single HiveAP is complete. Wireless clients can now associate with the HiveAP using SSID "employee"

and access the network.

Note: You can also enter the following commands to check the association status of a wireless client:

show auth, show roaming cache, and show roaming cache mac <mac_addr>.

Ý¸»½µ ¬¸¿¬ ¬¸» ÓßÝ ¿¼¼®»--

·² ¬¸» ¬¿¾´» ³¿¬½¸»- ¬¸¿¬ ±º

Ý¸»½µ ¬¸¿¬ ¬¸» ¿«¬¸»²¬·½¿¬·±² ¿²¼

»²½®§°¬·±² ³±¼»- ³¿¬½¸ ¬¸±-» ·²

¬¸» ÍÍ×Ü -»½«®·¬§ °®±¬±½±´ -«·¬»ò

ßóÓ±¼»ãß«¬¸»²¬·½¿¬·±² ³±¼»å Ý·°¸»®ãÛ²½®§°¬·±² ³±¼»å

ßóÌ·³»ãß--±½·¿¬»¼ ¬·³»å ß«¬¸ãß«¬¸»²¬·½¿¬»¼å

ËÐ×ÜãË-»® °®±º·´» ×¼»²¬·º·»®å Ð¸§³±¼»ãÐ¸§-·½¿´ ³±¼»å

óóóóóóóóóóóóóó óóóóóóóóó óóóó óóóó óóóó óóóóóóóó óóóóóóó óóóóóóóó óóóó óóóó óóóó óóóóóóó

Deployment Guide 153

EXAMPLE 2: DEPLOYINGA HIVE

EXAMPLE 2:DEPLOYINGA HIVE

Building on "Deploying a Single HiveAP" on page150, the office network has expanded and requires more HiveAPs to

provide greater coverage. In addition to the basic configuration covered in the previous example, you configure all

three HiveAPs to form a hive within the same layer 2 switched network. The following are the configuration details

for the hive:

•Hive name: hive1

•Preshared key for hive1 communications: s1r70ckH07m3s

HiveAP-1 and -2 are cabled to a switch and use the native ("untagged") VLAN for wired backhaul communications.

They communicate with each other over both wired and wireless backhaul links, the wired link taking precedence.

However, HiveAP-3 only communicates with HiveAP-1 and -2 over a wireless link (see Figure2). Because HiveAP-1

and -2 connect to the wired network, they act as portals. In contrast, HiveAP-3 is a mesh point.

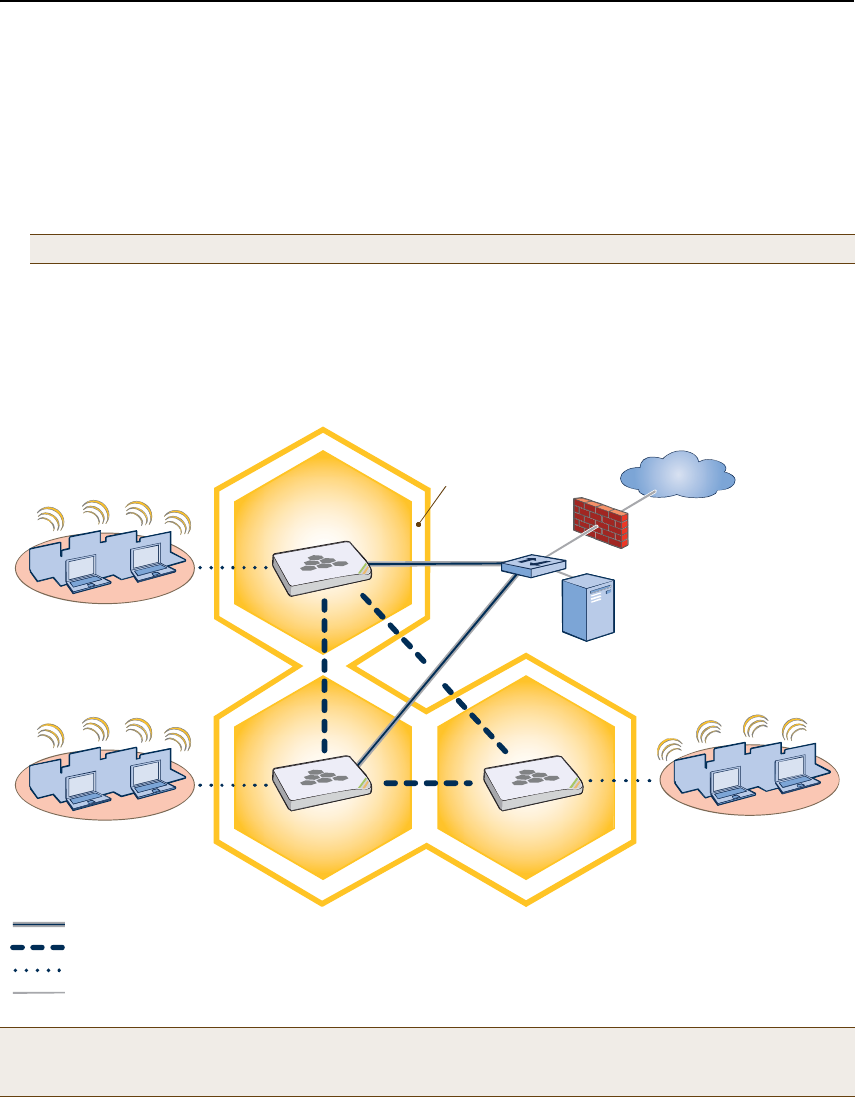

Figure 2 Three HiveAPs in a Hive

Note: The security protocol suite for hive communications is WPA-AES-psk.

Note: If all hive members can communicate over wired backhaul links, you can then use both radios for access.

The wifi0 interface is already in access mode by default. To put wifi1 in access mode, enter this command:

interface wifi1 mode access. In this example, however, a wireless backhaul link is required.

Wireless Network-1

Switch

Firewall

Internet

DHCP

Server

Wireless Network-2 Wireless Network-3

Wired Hive Backhaul Communications

HiveAP-1

(Portal)

HiveAP-2

(Portal)

HiveAP-3

(Mesh Point)

Wireless Hive Backhaul Communications

Wireless Network Access Connections

HiveAP-1 and HiveAP-2 are portals and use both wired and

wireless backhaul methods to communicate with each other.

HiveAP-3 is a mesh point, using only a wireless connection for

backhaul communications with the other two hive members.

Wired Ethernet Network Connections

Hive1

Chapter 10 Deployment Examples (CLI)

154 Aerohive

Step 1Configure HiveAP-1

1.Using the connection settings described in the first example, log in to HiveAP-1.

2.Configure HiveAP-1 as a member of "hive1" and set the security protocol suite.

hive hive1

You create a hive, which is a set of HiveAPs that collectively distribute data and coordinate activities

among themselves, such as client association data for fast roaming, route data for making optimal

data-path forwarding decisions, and policy enforcement for QoS (Quality of Service) and security.

hive hive1 password s1r70ckH07m3s

You define the password that hive members use to derive the preshared key for securing backhaul

communications with each other. The password must be the same on all hive members.

interface mgt0 hive hive1

By setting "hive1" on the mgt0 interface, you join HiveAP-1 to the hive.

save config

3.Before closing the console session, check the radio channel that HiveAP-1 uses on its backhaul interface, which

by default is wifi1:

HiveAP-1 is set to use wireless interface wifi1 and its subinterface wifi1.1 for backhaul communications.

Write down the radio channel for future reference (in this example, it is 149). When configuring

HiveAP-2 and -3, make sure that they also use this channel for backhaul communications.

exit

®¿¼·±Á²¿ðò øÜ»°»²¼·²¹ ±² ¬¸» Ø·ª»ßÐ ³±¼»´ô ¬¸» ¼»º¿«´¬ °®±º·´» ³·¹¸¬ ¾»

º®»¯«»²½§ ®¿²¹» ¿- -°»½·º·»¼ ·² ¬¸» ×ÛÛÛ èðîòïï¿ ¿²¼ ² -¬¿²¼¿®¼-ò

-¸±© ·²¬»®º¿½»

Í¬¿¬»ãÑ°»®¿¬·±²¿´ -¬¿¬»å Ý¸¿²ãÝ¸¿²²»´å

Ò¿³» ÓßÝ ¿¼¼® Ó±¼» Í¬¿¬» Ý¸¿² ÊÔßÒ Î¿¼·± Ø·ª» ÍÍ×Ü

óóóóóóó óóóóóóóóóóóóóó óóóóóóóó óóóóó óóóó óóóó óóóóóóóó óóóóó óóóóóóóó

Ó¹¬ð ððïçæééððæððîð ó Ë ó ï ó ¸·ª»ï ó

Û¬¸ð ððïçæééððæððîð ¾¿½µ¸¿«´ Ë ó ï ó ¸·ª»ï ó

É·º·ð ððïçæééððæððîì ¿½½»-- Ë ïï ó ®¿¼·±Á²¹ð ó ó

É·º·ðòï ððïçæééððæððîì ¿½½»-- Ë ïï ó ®¿¼·±Á²¹ð ¸·ª»ï »³°´±§»»

É·º·ï ððïçæééððæððîè ¾¿½µ¸¿«´ Ë ïìç ó ®¿¼·±Á²¿ð ó ó

É·º·ïòï ððïçæééððæððîè ¾¿½µ¸¿«´ Ë ïìç ï ®¿¼·±Á²¿ð ¸·ª»ï ó

Deployment Guide 155

EXAMPLE 2: DEPLOYINGA HIVE

Step 2Configure HiveAP-2 and HiveAP-3

1.Power on HiveAP-2 and log in through its console port.

2.Configure HiveAP-2 with the same commands that you used for HiveAP-1:

ssid employee

ssid employee security protocol-suite wpa-auto-psk ascii-key N38bu7Adr0n3

interface wifi0 ssid employee

hive hive1

hive hive1 password s1r70ckH07m3s

interface mgt0 hive hive1

3.(Optional) Change the name and password of the superuser.

admin superuser mwebster password 3fF8ha

4.Check that the channel ID for wifi1 and wifi1.1 is now 149.

show interface

If the channel ID for wifi1 and wifi1.1 is not 149, set it to 149 so that HiveAP-2 uses the same channel as

HiveAP-1 for backhaul communications.

interface wifi1 radio channel 149

Setting the channel for the parent interface (wifi1) sets it for all its subinterfaces. An interface in

backhaul mode only needs one subinterface, which by default is wifi1.1.

save config

exit

5.Repeat the above steps for HiveAP-3.

Step 3Connect HiveAP-2 and HiveAP-3 to the network

1.Place HiveAP-2 within range of its clients and within range of HiveAP-1. This allows HiveAP-1 and -2 to send

backhaul communications to each other wirelessly as a backup path in case either member loses its wired

connection to the network.

2.Connect an Ethernet cable from the PoE In port on HiveAP-2 to the network switch.

3.Power on HiveAP-2 by connecting it to a power source.

After HiveAP-2 finishes booting up (indicated when the Power LED changes from steady amber to steady green),

it automatically discovers another member of hive1 (HiveAP-1). The two members use a preshared key based on

their shared secret (s1r70ckH07m3s) to authenticate each other and AES to encrypt wired backhaul

communications and AES-CCMP to encrypt wireless backhaul communications between themselves. You can tell

when they have formed a hive because the Mesh LED changes its blinking pattern from a fast to slow.

4.Place HiveAP-3 within range of its wireless clients and one or both of the other hive members.

5.Power on HiveAP-3 by connecting it to a power source.

Chapter 10 Deployment Examples (CLI)

156 Aerohive

After HiveAP-3 boots up, it discovers the two other members of hive1 over a wireless backhaul link. The

members authenticate themselves and establish a security association for encrypting backhaul communications

among themselves. HiveAP-3 then learns its default route to the wired network from the other hive members. If

the other members send routes with equal costs—which is what happens in this example—HiveAP-3 uses the first

route it receives. When it learns this route, it can communicate with the DHCP server to get an IP address for its

mgt0 interface.

6.Check that HiveAP-3 has associated with the other members at the wireless level.

Ø·ª»ßÐóî

ððïçæééððæðìíè

Ø·ª»ßÐóï

ððïçæééððæððîè

ßóÓ±¼»ãß«¬¸»²¬·½¿¬·±² ³±¼»å Ý·°¸»®ãÛ²½®§°¬·±² ³±¼»å

Ý±²²óÌ·³»ãÝ±²²»½¬»¼ ¬·³»å Ø-¬¿¬»ãØ·ª» Í¬¿¬»å

óóóóóóóóóóóóóó óóóó óóóóóóó óóóóóóó óóó óóóóóó óóóóóóó óóóóóóóóó óóóóóó óóóóóóó óóóó

ððïçæééððæððîè ïìç ëìÓ ëìÓ óïê °-µ ¿»- ½½³ ððæðìæïë ß«¬¸ ïï¿ ¸·ª»ï

ððïçæééððæðìíè ïìç ëìÓ ëìÓ óïê °-µ ¿»- ½½³ ððæðìæïê ß«¬¸ ïï¿ ¸·ª»ï

Ô±¹ ·² ¬± Ø·ª»ßÐóí ¿²¼ »²¬»® ¬¸·- ½±³³¿²¼ ¬± -»» ·¬- ²»·¹¸¾±®- ·² ¸·ª»ïæ

Ø·ª»ßÐóí

½±³³¿²¼ô §±« ½¿² -»» ¸·ª»ó´»ª»´ ¿²¼ ³»³¾»®ó´»ª»´

·²º±®³¿¬·±²ò øÑ² Ø·ª»ßÐ- -«°°±®¬·²¹ èðîòïï²ô ¬¸»

É¸»² §±« -»» ¬¸» ÓßÝ ¿¼¼®»--»- ±º ¬¸» ±¬¸»® ¸·ª»

Ò»·¹¸¾±®-

Ü·-ª øÜ·-½±ª»®÷ ó ß²±¬¸»® Ø·ª»ßÐ ¸¿- ¾»»² ¼·-½±ª»®»¼ô ¾«¬ ¬¸»®» ·- ¿

×Ü ³¿¬½¸»-ô ¾«¬ ·¬ ¸¿- ²±¬ §»¬ ¾»»² ¿«¬¸»²¬·½¿¬»¼ò

Ý¿²¼Ð® øÝ¿²¼·¼¿¬» Ð»»®÷ ó Ì¸» ¸·ª» ×Ü ±² ¿ ¼·-½±ª»®»¼ Ø·ª»ßÐ

³¿¬½¸»-ô ¿²¼ ·¬ ½¿² ¿½½»°¬ ³±®» ²»·¹¸¾±®-ò

ß--±½Ð¼ øß--±½·¿¬·±² Ð»²¼·²¹÷ ó ß Ø·ª»ßÐ ·- ±² ¬¸» -¿³» ¾¿½µ¸¿«´

½¸¿²²»´ô ¿²¼ ¿² ¿--±½¿¬·±² °®±½»-- ·² °®±¹®»--ò

ß«¬¸ øß«¬¸»²¬·½¿¬»¼÷ ó Ì¸» Ø·ª»ßÐ ¸¿- ¾»»² ¿«¬¸»²¬·½¿¬»¼ ¿²¼ ½¿²

Deployment Guide 157

EXAMPLE 2: DEPLOYINGA HIVE

7.To check that the hive members have full data connectivity with each other, associate a client in wireless

network-1 with HiveAP-1 (the SSID "employee" is already defined on clients in wireless network-1; see

"Deploying a Single HiveAP"). Then check if HiveAP-1 forwards the client’s MAC address to the others to store in

their roaming caches.

Ì¸·- ÓßÝ ¿¼¼®»-- ·- º±® ¬¸»

ø±® •-«°°´·½¿²¬Œ÷ ¿--±½·¿¬»¼

-«¾·²¬»®º¿½» ±º Ø·ª»ßÐóïô ¬¸» Ø·ª»ßÐ

Ì¸·- ·- ¬¸» -¿³» ÓßÝ ¿¼¼®»--

º±® ¬¸» ½´·»²¬ ø-¬¿¬·±²÷ ¬¸¿¬ §±«

Ø·ª»ßÐóï ¿²¼ »²¬»® ¬¸·- ½±³³¿²¼æ

Ì¸»² ´±¹ ·² ¬± Ø·ª»ßÐóî ¿²¼ »²¬»® ¬¸·- ½±³³¿²¼æ

Ø·ª»ßÐóï

Ø·ª»ßÐóî

Î±¿³·²¹ Ý¿½¸» Ì¿¾´»æ

ÌÔÝãÐÓÕ Ì·³» Ô»º¬ ·² Ý¿½¸»å Ô·º»ãÐÓÕ Ô·º»å ßã¿«¬¸»²¬·½¿¬»¼å Ôã ÝÉÐ Ô±¹¹»¼ ×²

Î±¿³·²¹ º±® ¬¸·- Ø·ª»ßÐæ »²¿¾´»¼

Ó¿¨·³«³ Ý¿½¸·²¹ Ì·³»æ íêðð -»½±²¼-

Ý¿½¸·²¹ «°¼¿¬» ·²¬»®ª¿´æ êð -»½±²¼-

Ý¿½¸·²¹ «°¼¿¬» ¬·³»-æ êð

Î±¿³·²¹ ¸±°-æ ï

ÍÍ×Ü »³°´±§»»æ

Ó¿¨·³«³ Ý¿½¸·²¹ Ì·³»æ íêðð -»½±²¼-

Ý¿½¸·²¹ «°¼¿¬» ·²¬»®ª¿´æ êð -»½±²¼-

Ý¿½¸·²¹ «°¼¿¬» ¬·³»-æ êð

Ò±ò Í«°°´·½¿²¬ ß«¬¸»²¬·½¿¬±® Ë×Ü ÐÓÕ ÐÓÕ×Ü Ô·º» ß¹» ÌÔÝ Ø±° ßÔ

óóó óóóóóóóóóóóóóó óóóóóóóóóóóóóó óóó óóóóó óóóóó óóóó óóóóó óóó óóó óó

ð ððïêæ½ºè½æëé¾½ ððïçæééððæððîì ð ïíìçö ïêïëö óï ìê ïçë ï ÇÒ

-¸±© --

·¼ »³°´±§»» -¬¿¬·±²

ßóÓ±¼»ãß«¬¸»²¬·½¿¬·±² ³±¼»å Ý·°¸»®ãÛ²½®§°¬·±² ³±¼»å

ßóÌ·³»ãß--±½·¿¬»¼ ¬·³»å ß«¬¸ãß«¬¸»²¬·½¿¬»¼å

ËÐ×ÜãË-»® °®±º·´» ×¼»²¬·º·»®å Ð¸§³±¼»ãÐ¸§-·½¿´ ³±¼»å

óóóóóóóóóóóóóó óóóóóóóóóó óóóó óóóóóóó óóóóóóó óóó óóóóóóóó óóóóóóó óóóóóóóó óóóó óóóó óóóó óóóóóóó

Ì±¬¿´ -¬¿¬·±²

½±«²¬æ ï

Ò±¬»æ Ñ² Ø·ª»ßÐ- -«°°±®¬·²¹ ×ÛÛÛ èðîòïï²ô ¬¸»®» ¿®»

ÍÓóÐÍ -¬¿¬»- ½¿² ¾» •-¬¿¬·½Œ ø«-» ±²» ¼¿¬¿ -¬®»¿³ º±®

ïï¿ñ¾ñ¹ ½´·»²¬-÷ô •¼§²¿³·½Œ ø«-» ³«´¬·°´» -°¿¬·¿´ -¬®»¿³-

Chapter 10 Deployment Examples (CLI)

158 Aerohive

Step 4Configure wireless clients

Define the "employee" SSID on all the wireless clients in wireless network-2 and -3. Specify WPA-PSK for network

authentication, AES or TKIP for data encryption, and the preshared key N38bu7Adr0n3.

The setup of hive1 is complete. Wireless clients can now associate with the HiveAPs using SSID "employee" and

access the network. The HiveAPs communicate with each other to share client associations (to support fast roaming)

and routing data (to select optimal data paths).

EXAMPLE 3:USING IEEE 802.1X AUTHENTICATION

In this example, you use a Microsoft AD (Active Directory) server and a RADIUS server to authenticate wireless

network users. To accomplish this, you make the following modifications to the hive set up in "Deploying a Hive":

•Configure settings for the RADIUS server on the HiveAPs

•Change the SSID parameters on the HiveAPs and wireless clients to use IEEE 802.1X

The basic network design is shown in Figure3.

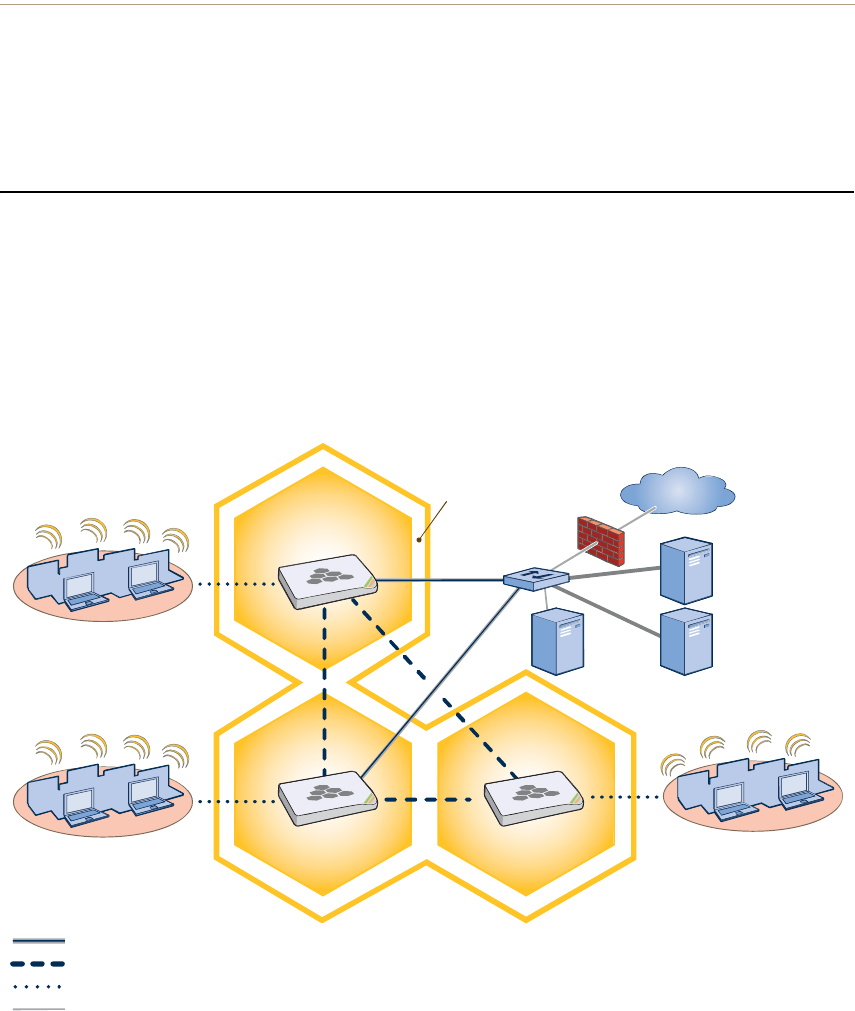

Figure 3 Hive and 802.1X Authentication

Wireless Network-1

Switch

Firewall

Internet

DHCP

Server

Wireless Network-2 Wireless Network-3

Wired Hive Backhaul Communications

HiveAP-1

HiveAP-2 HiveAP-3

Wireless Hive Backhaul Communications

Wireless Network Access Connections

The HiveAPs receive PEAP (Protect

ed EAP) authentication requests

from clients and forward them in

side RADIUS authentication packets

to the RADIUS server at 10.1.1.10. The RADIUS server is in turn

linked to the database of the Active Directory server on which all the

user accounts have previously been created and stored.

RADIUS Server

10.1.1.10

Active Directory

Server

Wired Ethernet Network Connections

Hive1

Deployment Guide 159

EXAMPLE 3: USING IEEE 802.1X AUTHENTICATION

Step 1Define the RADIUS server on the HiveAP-1

Configure the settings for the RADIUS server (IP address and shared secret) on HiveAP-1.

aaa radius-server first 10.1.1.10 shared-secret s3cr3741n4bl0X

The IP address of the RADIUS server is 10.1.1.10, and the shared secret that HiveAP-1 and the RADIUS

server use to authenticate each other is "s3cr3741n4b10X". You must also enter the same shared secret

on the RADIUS server when you define the HiveAPs as access devices (see step5).

Step 2Change the SSID on HiveAP-1

1.Change the authentication method in the SSID.

ssid employee security protocol-suite wpa-auto-8021x

save config

The protocol suite requires WPA (Wi-Fi Protected Access) or WPA2 security protocol for authentication

and key management, AES or TKIP encryption, and user authentication through IEEE 802.1X.

2.Enter the show interface mgt0 command and note the dynamically assigned IP address of the mgt0

interface. You need to know this address to define HiveAP-1 as an access device on the RADIUS server in step5.

exit

Step 3Configure HiveAP-2 and HiveAP-3

1.Log in to HiveAP-2 through its console port.

2.Configure HiveAP-2 with the same commands that you used for HiveAP-1:

aaa radius-server first 10.1.1.10 shared-secret s3cr3741n4bl0X

ssid employee security protocol-suite wpa-auto-8021x

save config

3.Enter the show interface mgt0 command to learn its IP address. You need this address for step5.

exit

4.Log in to HiveAP-3 and enter the same commands.

Step 4Modify the SSID on the wireless clients

Modify the "employee" SSID on all the wireless clients in wireless network-2 and -3. Specify WPA or WPA2 for network

authentication, AES or TKIP for data encryption, and PEAP (Protected EAP) for user authentication.

Note: This example assumes that the RADIUS and AD servers were previously configured and populated with user

accounts that have been in use on a wired network (not shown). The only additional configuration on these

servers is to enable the RADIUS server to accept authentication requests from the HiveAPs.

Note: Although all HiveAPs in this example use the same shared secret, they can also use different secrets.

Chapter 10 Deployment Examples (CLI)

160 Aerohive

Step 5Configure the RADIUS Server to accept authentication requests from the HiveAPs

fully-qualified domain names) and shared secret.

Step 6Check that clients can form associations and access the network

1.To check that a client can associate with a HiveAP and access the network, open a wireless client application

and connect to the "employee" SSID. Then contact a network resource, such as a web server.

2.Log in to the HiveAP CLI, and check that you can see the MAC address or the associated client and an indication

that the correct SSID is in use by entering the following command:

The setup for using IEEE 802.1X is complete. Wireless clients can now associate with the HiveAP using SSID

"employee", authenticate themselves through IEEE 802.1X to a RADIUS server, and access the network.

Note: You can also enter the following commands to check the association status of a wireless client:

show auth, show roaming cache, and show roaming cache mac <mac_addr>.

Ý¸»½µ ¬¸¿¬ ¬¸» ÓßÝ ¿²¼ ×Ð

¿¼¼®»--»- ·² ¬¸» ¬¿¾´» ³¿¬½¸

Ý¸»½µ ¬¸¿¬ ¬¸» ¿«¬¸»²¬·½¿¬·±² ¿²¼

»²½®§°¬·±² ³±¼»- ³¿¬½¸ ¬¸±-» ·²

¬¸» ÍÍ×Ü -»½«®·¬§ °®±¬±½±´ -«·¬»ò

-¸±© --

·¼ »³°´±§»» -¬¿¬·±²

ßóÓ±¼»ãß«¬¸»²¬·½¿¬·±² ³±¼»å Ý·°¸»®ãÛ²½®§°¬·±² ³±¼»å

ßóÌ·³»ãß--±½·¿¬»¼ ¬·³»å ß«¬¸ãß«¬¸»²¬·½¿¬»¼å

ËÐ×ÜãË-»® °®±º·´» ×¼»²¬·º·»®å Ð¸§³±¼»ãÐ¸§-·½¿´ ³±¼»å

óóóóóóóóóóóóóó óóóóóóóóóó óóóó óóóóóóó óóóóóóó óóó óóóóóóóó óóóóóóó óóóóóóóó óóóó óóóó óóóó óóóóóóó

ððïêæ½ºè½æëé¾½ ïðòïòïòéí ï ëìÓ ëìÓ óìð èðîï¨ ¿»- ½½³ ððæðîæíì ï Ç»- ð ïï¾ñ¹

Ì±¬¿´ -¬¿¬·±²

½±«²¬æ ï

Deployment Guide 161

EXAMPLE 4: APPLYING QOS

EXAMPLE 4:APPLYING QOS

In this example, you want the hive members to prioritize voice, streaming media, and e-mail traffic. First, you map

distinguishing elements of these traffic types to three Aerohive QoS (Quality of Service) classes:

Class 6: voice traffic from VoIP phones with MAC OUI 00:12:3b (the OUI for all phones in the network)

Voice traffic is very sensitive to delay and cannot tolerate packet loss without loss of voice quality. When

other traffic is competing with voice traffic for bandwidth, it becomes essential to prevent that traffic from

interfering with voice traffic. Because voice traffic for a single call requires very little bandwidth—typically

from 8 to 64 Kbps depending on the voice codec used—a good approach for setting its rate is to calculate

the bandwidth necessary for a voice call plus related telephony traffic from a single user’s computer,

softphone, or handset and then multiply that by the potential number of concurrent VoIP users.

Class 5: streaming media using the MMS (Microsoft Media Server) protocol on TCP port 1755

Although streaming media is also time sensitive, streaming media software for both clients and servers

offers limited buffering to prevent choppy sounds and pixelated video when network congestion occurs.

Because congestion for more than a few seconds can adversely effect streaming media, it is important to

assign this type of traffic a higher priority than other types, but its priority should be lower than that for

voice, which is even more sensitive to delay.

Class 3: data traffic for e-mail using the following protocols:

SMTP (Simple Mail Transfer Protocol) on TCP port 25

POP3 (Post Office Protocol version 3) on TCP port 110

Then you create classifier profiles that reference these traffic-to-class mappings. You bind the profiles to the

wifi0.1 and eth0 interfaces so that hive members map the traffic matching these profiles that arrives at these

interfaces to the proper Aerohive classes.

You next define a QoS policy that defines how the hive members prioritize and process the traffic mapped to

Aerohive classes 6, 5, and 3. The QoS policy (named "voice") is shown in Figure4 on page162 and has these settings:

Class 6 (voice)

Forwarding: strict (Hive members forward traffic mapped to this class immediately without queuing it.)

Maximum rate for all class 6 traffic: 512 Kbps, which supports an 8- to 64-Kbps VoIP call (depending on the

compression that the codec provides) plus other telephony traffic such as DHCP, DNS, HTTP, and TFTP.

Class 5 (streaming media)

Forwarding: WRR (weighted round robin) with a weight of 90

By assigning class 5 a higher weight (90) than class 3 and 2 weights (class 3 = 60, class 2 = 30), you give

streaming media roughly a 3:2 priority over class 3 traffic and a 3:1 priority over class 2 traffic.

Maximum traffic rate for all class 5 traffic: 20,000 Kbps

You change the bandwidth available for streaming media when there is no competition for it (the

default rate for class 5 is 10,000 Kbps on HiveAPs that do not support the IEEE 802.11n standard and

50,000 Kbps on HiveAPs that do. However, you do not set the maximum rate (54,000 or 1,000,000 Kbps,

depending on the HiveAP model that you are configuring) to ensure that streaming media does not

consume all available bandwidth even if it is available.

Class 3 (e-mail)

Forwarding: WRR with a weight of 60

To help ensure that e-mail traffic remains flowing even when other types of data traffic compete with it

for available bandwidth, you elevate its priority by mapping SMTP and POP3 traffic to class 3 and giving

that class a higher weight (60) than the weight for class 2 traffic (30).

Maximum traffic rate for all class 3 traffic: 54,000 or 1,000,000 Kbps (the default, depending on the HiveAP)

Chapter 10 Deployment Examples (CLI)

162 Aerohive

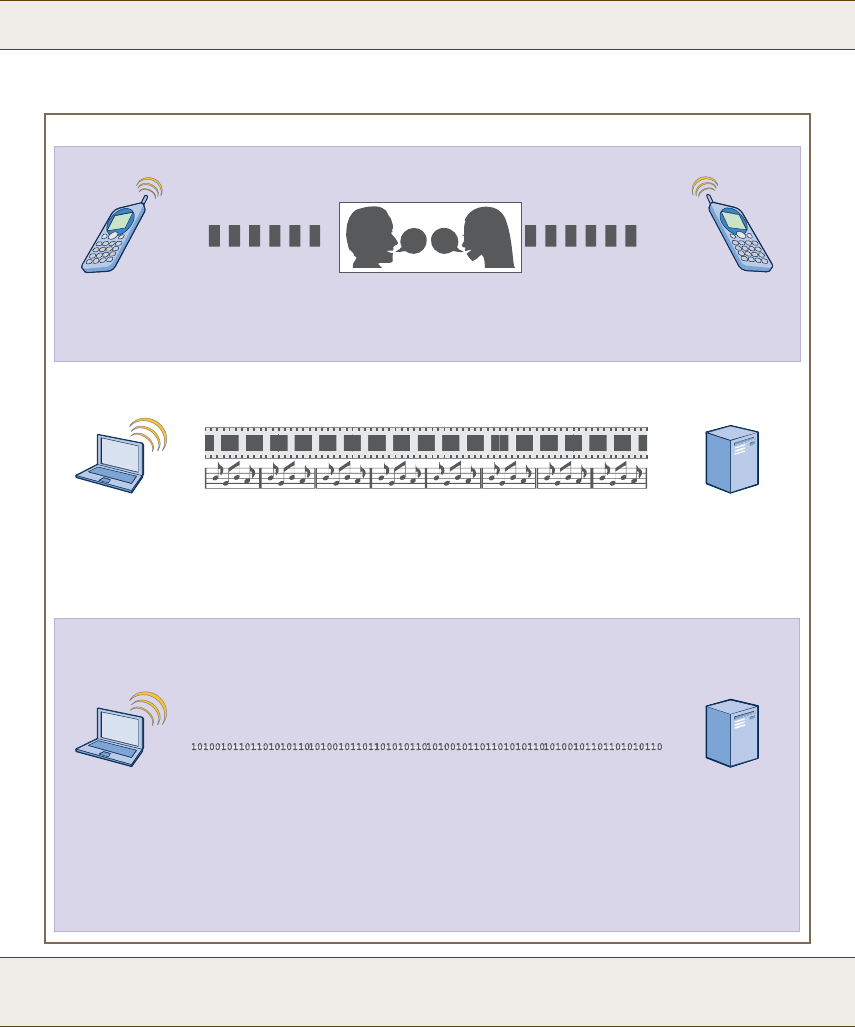

Figure 4 QoS Policy "voice" for Voice, Streaming Media, and Data

Finally, you create a user profile "employee-net" and apply the QoS policy "voice" to the user profile on each hive

member. You also configure the RADIUS server to return attributes in its authentication responses to indicate the

user group to which the hive members then assign users.

Note: The HiveAP assigns all traffic that you do not specifically map to an Aerohive class to class 2, which by

default uses WRR with a weight of 30 and a rate of 54,000 or 1,000,000 Kbps, depending on the HiveAP.

Note: This example assumes that the RADIUS and AD servers were previously configured and populated with user

accounts and have been serving a wired network (not shown). The only additional configuration is to

enable the RADIUS server to accept authentication requests from the HiveAPs.

¯±- °±´·½§ ª±·½» ¯±- ê -¬®·½¬ ëïî ð

Ì¸» °±´·½§ ¿--·¹²- ¬¸» ¸·¹¸»-¬ °®·±®·¬§ ¬± ª±·½» ¬®¿ºº·½ ø½´¿-- ê÷ò Ú±® »¿½¸ ª±·½» -»--·±² «° ¬±

Ê±·½»

Í¬®»¿³·²¹

Ó»¼·¿

¬¸¿¬ §±« ¿®» ½±²º·¹«®·²¹ò ×¬ ¹·ª»- ½´¿-- í øº±® »ó³¿·´ °®±¬±½±´- ÍÓÌÐ ¿²¼ ÐÑÐí÷ ¿ ¸·¹¸»® ÉÎÎ

Ý´¿-- î ·- º±® ¿´´ ¬§°»- ±º ¬®¿ºº·½ ²±¬ ³¿°°»¼ ¬± ¿² ß»®±¸·ª» ½´¿--‰-«½¸ ¿- ØÌÌÐ º±® »¨¿³°´»ò

Ü¿¬¿

Ï±Í Ð±´·½§æ •ª±·½»Œ

ö Ç±« ¼± ²±¬ ²»»¼ ¬± »²¬»® ¬¸·- ½±³³¿²¼ ¾»½¿«-» ·¬ ¶«-¬ -»¬- ¬¸» ¼»º¿«´¬

Deployment Guide 163

EXAMPLE 4: APPLYING QOS

Step 1Map traffic types to Aerohive QoS classes on HiveAP-1

1.Map the MAC OUI (organizational unit identifier) of network users’ VoIP phones to Aerohive class 6.

qos classifier-map oui 00:12:3b qos 6

In this example, all network users use VoIP phones from the same vendor whose OUI (that is, the MAC

address prefix ) is 00:12:3b. When HiveAP-1 receives traffic from a client whose source MAC address

contains this OUI, it assigns it to Aerohive class 6.

2.Define the custom services that you need.

service mms tcp 1755

service smtp tcp 25

service pop3 tcp 110

The MMS (Microsoft Media Server) protocol can use several transports (UDP, TCP, and HTTP). However,

for a HiveAP to be able to map a service to an Aerohive QoS class, it must be able to identify that

service by a unique characteristic such as a static destination port number or a nonstandard protocol

number. Unlike MMS/UDP and MMS/HTTP, both of which use a range of destination ports, MMS/TCP uses

the static destination port 1755, which a HiveAP can use to map the service to an Aerohive class.

Therefore, you define a custom service for MMS using TCP port 1755. You also define custom services for

SMTP and POP3 so that you can map them to Aerohive class 3. By doing so, you can prioritize e-mail

traffic above other types of traffic that the HiveAP assigns to class 2 by default.

3.Map services to Aerohive classes.

qos classifier-map service mms qos 5

qos classifier-map service smtp qos 3

qos classifier-map service pop3 qos 3

Unless you map a specific service to an Aerohive QoS class, a HiveAP maps all traffic to class 2. In this

example, you prioritize voice, media, and e-mail traffic by assigning them to higher QoS classes than

class 2, and then by defining the forwarding and weighting mechanisms for each class (see step3).

Step 2Create profiles to check traffic arriving at interfaces on HiveAP-1

1.Define two classifier profiles for the traffic types "mac" and "service".

qos classifier-profile employee-voice mac

qos classifier-profile employee-voice service

qos classifier-profile eth0-voice mac

qos classifier-profile eth0-voice service

Classifier profiles define which components of incoming traffic HiveAP-1 checks. Because you specify

"mac" and "service", it checks the MAC address in the Ethernet frame header and the service type (by

protocol number in the IP packet header and port number in the transport packet header). If it detects

traffic matching a classifier-map, it maps it to the appropriate Aerohive class. However, before this can

happen, you must first associate the profiles with the interfaces that will be receiving the traffic that

you want checked. This you do with the next two commands.

Chapter 10 Deployment Examples (CLI)

164 Aerohive

2.Associate the classifier profiles with the employee SSID and the eth0 interface so that HiveAP-1 can classify

incoming traffic arriving at these two interfaces.

ssid employee qos-classifier employee-voice

interface eth0 qos-classifier eth0-voice

By creating two QoS classifiers and associating them with the employee SSID and eth0 interface,

HiveAP-1 can classify traffic flowing in both directions for subsequent QoS processing; that is, it can

classify traffic flowing from the wireless LAN to the wired LAN, and from the wired LAN to the wireless

LAN.

Step 3Apply QoS on HiveAP-1

1.Create a QoS policy.

For HiveAPs supporting IEEE 802.11a/b/g:

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 54000 60

For HiveAPs supporting IEEE 802.11a/b/g/n:

qos policy voice qos 6 strict 512 0

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 1000000 60

By default, a newly created QoS policy attempts to forward traffic mapped to classes 6 and 7

immediately upon receipt. This immediate forwarding of received traffic is called "strict" forwarding. To

assign strict forwarding to VoIP traffic from phones whose MAC OUI is mapped to class 6, you simply

retain the default settings for class 6 traffic on HiveAPs supporting 802.11a/b/g data rates. For HiveAPs

supporting 802.11n data rates, the default user profile rate is 20,000 Kbps for class 6 traffic, so you

change it to 512 Kbps.

For classes 5 and 3, you limit the rate of traffic and set WRR (weighted round robin) weights so that the

HiveAP can control how to put the rate-limited traffic into forwarding queues. You use the default

settings for class 2 traffic.

When you enter any one of the above commands, the HiveAP automatically sets the maximum

bandwidth for all members of the user group to which you later apply this policy and the bandwidth for

any individual group member. You leave the maximum traffic rate at the default 54,000 Kbps or

1,000,000 Kbps—depending on the HiveAP model that you are configuring—for the user group. You also

leave the maximum bandwidth for a single user at 54,000 or 1,000,000 Kbps, so that if a single user

needs all the bandwidth and there is no competition for it, that user can use it all.

Also by default, the traffic rate for this policy has a weight of 10. At this point, because this is the only

QoS policy, the weight is inconsequential. If there were other QoS policies, then their weights would

help determine how the HiveAP would allocate the available bandwidth.

Note: If the surrounding network employs the IEEE 802.11p QoS classification system (for wired network

traffic) or 802.11e (for wireless network traffic), you can ensure that HiveAP-1 checks for them by

entering these commands:

qos classifier-profile eth0-voice 8021p

qos classifier-profile employee-voice 80211e

Deployment Guide 165

EXAMPLE 4: APPLYING QOS

The QoS policy that you define is shown in Figure5. Although you did not configure settings for Aerohive QoS

classes 0, 1, 2, 4, and 7, the policy applies default settings to them. The HiveAP assigns all traffic that you do

not specifically map to an Aerohive class to class 2, which uses WRR with a weight of 30 and a default rate of

54,000 or 1,000,000 Kbps. Because nothing is mapped to classes 0, 1, 4, and 7, their settings are irrelevant.

Figure 5 QoS Policy "voice"

2.Create a user profile and apply the QoS policy to it.

user-profile employee-net qos-policy voice attribute 2

You apply the QoS policy "voice" to all users belonging to the user-profile "employee-net" with attribute

2. On the RADIUS server, you must configure attribute 2 as one of the RADIUS attributes that the RADIUS

server returns when authenticating users (see step5 on page 167).

save config

exit

Note: When HiveAP-1 does not use RADIUS for user authentication, you must assign the user profile to an

SSID. To do that, use the following command: ssid employee default-user-profile-attr 2

-·²¹´» «-»®ò Ì¸» «-»® ®¿¬» ½¿² ¾» »¯«¿´ ¬± ¾«¬ ²±¬ ¹®»¿¬»® ¬¸¿² ¬¸» «-»® °®±º·´»

¼¿¬¿ ®¿¬»-ò Ú±® ±¬¸»® Ø·ª»ßÐ-ô ¬¸» ³¿¨·³«³ ®¿¬»- ¿®» ëìôððð Õ¾°-ò÷

Ð±´·½§ ²¿³»ãª±·½»å «-»® ®¿¬» ´·³·¬ãïððððððµ¾°-å

¾»´±²¹·²¹ ¬± ¬¸·- ½´¿-- ·³³»¼·¿¬»´§

¬®¿ºº·½ ¾»´±²¹·²¹ ¬± ¬¸»-» ½´¿--»- ¾§ °«¬¬·²¹ ¬¸»³ ·²¬±

-»½±²¼ ¹± ·²¬± »¿½¸ ¯«»«»ò Ú±® »ª»®§ íð ¾·¬- ¬¸¿¬ ¬¸» Ø·ª»ßÐ

¯«»«»- º±® ½´¿-- îô ·¬ ¯«»«»- ¿°°®±¨·³¿¬»´§ êð ¾·¬- º±® ½´¿-- íô

¿²¼ çð ¾·¬- º±® ½´¿-- ëò Ì¸»-» ¿³±«²¬- ¿®» ¿°°®±¨·³¿¬·±²-

¾»´±²¹·²¹ ¬± ¸·¹¸»® ½´¿--»-ò

Chapter 10 Deployment Examples (CLI)

166 Aerohive

Step 4Configure HiveAP-2 and HiveAP-3

1.Log in to HiveAP-2 through its console port.

2.Configure HiveAP-2 with the same commands that you used for HiveAP-1:

qos classifier-map oui 00:12:3b qos 6

service mms tcp 1755

service smtp tcp 25

service pop3 tcp 110

qos classifier-map service mms qos 5

qos classifier-map service smtp qos 3

qos classifier-map service pop3 qos 3

qos classifier-profile employee-voice mac

qos classifier-profile employee-voice service

qos classifier-profile eth0-voice mac

qos classifier-profile eth0-voice service

ssid employee qos-classifier employee-voice

interface eth0 qos-classifier eth0-voice

For HiveAPs supporting IEEE 802.11a/b/g:

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 54000 60

For HiveAPs supporting IEEE 802.11a/b/g/n:

qos policy voice qos 6 strict 512 0

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 1000000 60

user-profile employee-net qos-policy voice attribute 2

save config

exit

3.Log in to HiveAP-3 and enter the same commands.

Deployment Guide 167

EXAMPLE 5: LOADINGA BOOTSTRAP CONFIGURATION

Step 5Configure RADIUS server attributes

1.Log in to the RADIUS server and define the three HiveAPs as RADIUS clients.

2.Configure the following attributes for the realm to which the wireless user accounts in network-1, -2, and -3

belong:

•Tunnel Type = GRE (value = 10)

•Tunnel Medium Type = IP (value = 1)

•Tunnel Private Group ID = 2

The RADIUS server returns the above attributes for all wireless users it authenticates from network-1, -2, and -3.

The HiveAP uses the combination of returned RADIUS attributes to assign users to the user group 2 ("employee-net").

It does not use them to create a GRE tunnel, which the tunnel type attribute might lead you to think.

When there is more traffic than available bandwidth, the HiveAP applies the "voice" policy. It performs strict

forwarding for voice and uses a WRR (weighted round robin) scheduling discipline for directing streaming media and

data traffic to queues to await forwarding. The QoS configuration is complete.

EXAMPLE 5:LOADINGA BOOTSTRAP CONFIGURATION

As explained in "HiveOS Configuration File Types" on page145, a bootstrap config file is typically a small set of

commands to which a HiveAP can revert when the configuration is reset or if the HiveAP cannot load its current and

backup configs. If you do not define and load a bootstrap config, the HiveAP reverts to the default config in these

situations, which can lead to two potential problems:

•If both the current and backup configs fail to load on a HiveAP acting as a mesh point in a hard-to-reach

location—such as a ceiling crawlspace—the HiveAP would revert to the default config. Because a mesh point

needs to join a hive before it can access the network and the default config does not contain the hive settings

that the mesh point needs to join the hive, an administrator would need to crawl to the device to make a

console connection to reconfigure the HiveAP.

•If the location of a HiveAP is publicly accessible, someone could press the reset button on the front panel of the

device to return the configuration to its default settings, log in using the default login name and password

(admin,aerohive), and thereby gain complete admin access. (Note that you can disable the ability of the reset

button to reset the configuration by entering this command: no reset-button reset-config-enable)

A bootstrap configuration can help in both of these situations. For the first case, a bootstrap config with the

necessary hive membership settings can allow the HiveAP to connect to the network and thereby become accessible

over the network for further configuring. For the second case, a bootstrap config with a number of obstacles such as

a hard-to-guess login name and password and a disabled access subinterface can make the firmware inaccessible

and the device unusable.

HiveAP-1 and -2 are in locations that are not completely secure. HiveAP-3 is a mesh point in a fairly inaccessible

location. To counter theft of the first two HiveAPs and to avoid the nuisance of physically accessing the third HiveAP,

you define a bootstrap config file that addresses both concerns and load it on the HiveAPs.

Chapter 10 Deployment Examples (CLI)

168 Aerohive

Step 1Define the bootstrap config on HiveAP-1

1.Make a serial connection to the console port on HiveAP-1, log in, and load the default config.

load config default

reboot

You do not want the bootstrap config to contain any of your previously defined settings from the current

config. Therefore, you load the default config, which has only default settings. When you begin with

the default config and enter the commands that define the bootstrap config, the bootstrap config will

have just those commands and the default config settings.

2.Confirm the reboot command, and then, when you are asked if you want to use the Aerohive Initial

Configuration Wizard, enter no.

3.Log in using the default user name admin and password aerohive.

4.Define admin login parameters for the bootstrap config that are difficult to guess.

admin root-admin Cwb12o11siNIm8vhD2hs password 8wDamKC1Lo53Ku71

You use the maximum number of alphanumeric characters for the login name (20 characters) and

password (16 characters). By mixing uppercase and lowercase letters with numbers in strings that do

not spell words or phrases, you make the login much harder to guess.

5.Leave the various interfaces in their default up or down states.

By default, the wifi0 and wifi0.1 interfaces are down, but the mgt0, eth0, wifi1, and wifi1.1

subinterfaces are up. The hive members need to use wifi1.1, which is in backhaul mode, so that

HiveAP-3 can rejoin hive1 and, through hive1, access DHCP and DNS servers to regain network

connectivity. (By default, mgt0 is a DHCP client.) You leave the eth0 interface up so that Hive-1 and

Hive-2 can retain an open path to the wired network. However, with the two interfaces in access

mode—wifi0 and wifi0.1— in the down state, none of the HiveAPs will be able provide network access to

any wireless clients. Wireless clients cannot form associations through wifi1.1 nor can a computer

attach through the eth0 interface—because it is also in backhaul mode—and obtain network access

through the mesh.

6.Define the hive settings so that any of the three HiveAPs using the bootstrap config can rejoin the grid.

hive hive1

hive hive1 password s1r70ckH07m3s

interface mgt0 hive hive1

When a HiveAP boots up using the bootstrap config, it can rejoin hive1 because the configuration

includes the hive name and password and binds the mgt0 interface to the hive. This is particularly

useful for HiveAP-3 because it is a mesh point and can only access the wired network after it has joined

the hive. It can then reach the wired network through either of the portals, HiveAP-1 or HiveAP-2.

7.Save the configuration as a bootstrap config.

save config running bootstrap

If anyone resets the current configuration, the HiveAP will load this bootstrap config and thwart any

thief from accessing the configuration and any wireless client from accessing the network.

Note: Be careful to remember the login name and password defined in a bootstrap config file. If they become

lost or forgotten, you must obtain a one-time login key from Aerohive technical support. To get the

key, you must already have had a support contract in place. The first one-time login key is free. After

that, there is a small handling fee for each additional key.

Deployment Guide 169

EXAMPLE 5: LOADINGA BOOTSTRAP CONFIGURATION

Step 2Save the bootstrap config to a TFTP server

1.Check the configurations to make sure the settings are accurate.

show config bootstrap

Check that the settings are those you entered in the previous step for the bootstrap config.

show config backup

Note that the backup config is the previous current config. This is the configuration that has all your

previously defined settings.

2.Return to the previous current config.

load config backup

reboot

3.When HiveAP-1 finishes rebooting, log back in using the login parameters you set in "Example 1: Deploying a

Single HiveAP" on page150 (mwebster,3fF8ha).

4.Check that the current config is the same as your previous current config.

show config current

5.Save the file as bootstrap-hive1.txt to the root directory of your TFTP server running on your management

system at 10.1.1.31, an address received by the same DHCP server and in the same subnet as the HiveAP

addresses.

save config bootstrap tftp://10.1.1.31:bootstrap-hive1.txt

Step 3Load the bootstrap config file on HiveAP-2 and HiveAP-3

1.Make a serial connection to the console port on HiveAP-2 and log in.

2.Upload the bootstrap-hive1.txt config file from the TFTP server to HiveAP-2 as a bootstrap config.

save config tftp://10.1.1.31:bootstrap-hive1.txt bootstrap

3.Check that the uploaded config file is now the bootstrap config.

show config bootstrap

4.Repeat the procedure to load the bootstrap config on HiveAP-3.

The bootstrap configs are now in place on all three HiveAPs.

Chapter 10 Deployment Examples (CLI)

170 Aerohive

CLI COMMANDSFOR EXAMPLES

This section includes all the CLI commands for configuring the HiveAPs in the previous examples. The CLI

configurations are presented in their entirety (without explanations) as a convenient reference, and—if you are

reading this guide as a PDF—as an easy way to copy and paste the commands. Simply copy the blocks of text for

configuring the HiveAPs in each example and paste them at the command prompt.

Commands for Example 1

Enter the following commands to configure the SSID "employee" on the single HiveAP in "Deploying a Single HiveAP"

on page150:

ssid employee

ssid employee security protocol-suite wpa-auto-psk ascii-key N38bu7Adr0n3

interface wifi0.1 ssid employee

save config

Commands for Example 2

Enter the following commands to configure three HiveAPs as members of "hive1" in "Deploying a Hive" on page153:

HiveAP-1

hive hive1

hive hive1 password s1r70ckH07m3s

interface mgt0 hive hive1

save config

HiveAP-2

ssid employee

ssid employee security protocol-suite wpa-auto-psk ascii-key N38bu7Adr0n3

interface wifi0.1 ssid employee

hive hive1

hive hive1 password s1r70ckH07m3s

interface mgt0 hive hive1

save config

Note: The following sections omit optional commands, such as changing the login name and password, and

commands used to check a configuration.

Deployment Guide 171

EXAMPLE 5: CLI COMMANDSFOR EXAMPLES

HiveAP-3

ssid employee

ssid employee security protocol-suite wpa-auto-psk ascii-key N38bu7Adr0n3

interface wifi0.1 ssid employee

hive hive1

hive hive1 password s1r70ckH07m3s

interface mgt0 hive hive1

save config

Commands for Example 3

Enter the following commands to configure the hive members to support IEEE 802.1X authentication in "Using IEEE

802.1X Authentication" on page158:

HiveAP-1

aaa radius-server first 10.1.1.10 shared-secret s3cr3741n4bl0X

ssid employee security protocol-suite wpa-auto-8021x

save config

HiveAP-2

aaa radius-server first 10.1.1.10 shared-secret s3cr3741n4bl0X

ssid employee security protocol-suite wpa-auto-8021x

save config

HiveAP-3

aaa radius-server 10.1.1.10 shared-secret s3cr3741n4bl0X

ssid employee security protocol-suite wpa-auto-8021x

save config

Chapter 10 Deployment Examples (CLI)

172 Aerohive

Commands for Example 4

Enter the following commands to configure the hive members to apply QoS (Quality of Service) to voice, streaming

media, and data traffic in "Applying QoS" on page161:

HiveAP-1

qos classifier-map oui 00:12:3b qos 6

service mms tcp 1755

service smtp tcp 25

service pop3 tcp 110

qos classifier-map service mms qos 5

qos classifier-map service smtp qos 3

qos classifier-map service pop3 qos 3

qos classifier-profile employee-voice mac

qos classifier-profile employee-voice service

qos classifier-profile eth0-voice mac

qos classifier-profile eth0-voice service

ssid employee qos-classifier employee-voice

interface eth0 qos-classifier eth0-voice

For HiveAPs supporting IEEE 802.11a/b/g

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 54000 60

For HiveAPs supporting IEEE 802.11a/b/g/n

qos policy voice qos 6 strict 512 0

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 1000000 60

user-profile employee-net qos-policy voice attribute 2

save config

HiveAP-2

qos classifier-map oui 00:12:3b qos 6

service mms tcp 1755

service smtp tcp 25

service pop3 tcp 110

qos classifier-map service mms qos 5

qos classifier-map service smtp qos 3

qos classifier-map service pop3 qos 3

qos classifier-profile employee-voice mac

Deployment Guide 173

EXAMPLE 5: CLI COMMANDSFOR EXAMPLES

qos classifier-profile employee-voice service

qos classifier-profile eth0-voice mac

qos classifier-profile eth0-voice service

ssid employee qos-classifier employee-voice

interface eth0 qos-classifier eth0-voice

For HiveAPs supporting IEEE 802.11a/b/g

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 54000 60

For HiveAPs supporting IEEE 802.11a/b/g/n

qos policy voice qos 6 strict 512 0

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 1000000 60

user-profile employee-net qos-policy voice attribute 2

save config

HiveAP-3

qos classifier-map oui 00:12:3b qos 6

service mms tcp 1755

service smtp tcp 25

service pop3 tcp 110

qos classifier-map service mms qos 5

qos classifier-map service smtp qos 3

qos classifier-map service pop3 qos 3

qos classifier-profile employee-voice mac

qos classifier-profile employee-voice service

qos classifier-profile eth0-voice mac

qos classifier-profile eth0-voice service

ssid employee qos-classifier employee-voice

interface eth0 qos-classifier eth0-voice

For HiveAPs supporting IEEE 802.11a/b/g

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 54000 60

For HiveAPs supporting IEEE 802.11a/b/g/n

qos policy voice qos 6 strict 512 0

qos policy voice qos 5 wrr 20000 90

qos policy voice qos 3 wrr 1000000 60

user-profile employee-net qos-policy voice attribute 2

save config

Chapter 10 Deployment Examples (CLI)

174 Aerohive

Commands for Example 5

Enter the following commands to create bootstrap config files and load them on the hive members in "Loading a

Bootstrap Configuration" on page167:

bootstrap-security.txt

admin root-admin Cwb12o11siNIm8vhD2hs password 8wDamKC1Lo53Ku71

hive hive1

hive hive1 password s1r70ckH07m3s

interface mgt0 hive hive1

HiveAP-1

save config tftp://10.1.1.31:bootstrap-security.txt bootstrap

show config bootstrap

HiveAP-2

save config tftp://10.1.1.31:bootstrap-security.txt bootstrap

show config bootstrap

HiveAP-3

save config tftp://10.1.1.31:bootstrap-meshpoint.txt bootstrap

show config bootstrap

Deployment Guide 175

Chapter 11Traffic Types

This is a list of all the types of traffic that might be involved with a HiveAP and HiveManager deployment. If a

firewall lies between any of the sources and destinations listed below, make sure that it allows these traffic types.

Traffic Supporting Network Access for Wireless Clients

Traffic Supporting Management of HiveAPs

Service Source Destination Protocol

SRC

Port

DST

Port Notes

DHCP unregistered

wireless client

HiveAP wifi

subinterface in

access mode

17 UDP6867Required for captive web portal

functionality

DNS unregistered

wireless client

HiveAP wifi

subinterface in

access mode

17 UDP53, or

1024 -

65535

53Required for captive web portal

functionality

GRE HiveAP mgt0

interface

HiveAP mgt0

interface

47 GREN.A.N.A.Required to support DNX* and layer

3 roaming between members of

different hives

*DNX = dynamic network extensions

HTTP unregistered

wireless client

HiveAP wifi

subinterface in

access mode

6 TCP1024 -

65535

80Required for captive web portal

functionality

HTTPS unregistered

wireless client

HiveAP wifi

subinterface in

access mode

6 TCP1024 -

65535

443Required for captive web portal

functionality using a server key

RADIUS

accounting

HiveAP mgt0

interface

RADIUS server17 UDP1024 -

65535

1813†Required to support RADIUS

accounting

RADIUS

authentication

HiveAP mgt0

interface

RADIUS server17 UDP1024 -

65535

1812†

†This is the default destination port number. You can change it to a different port number from 1 to 65535.

Required for 802.1X authentication

of users

Service Source Destination Protocol

SRC

Port

DST

Port Notes

CAPWAP*

*Control and Provisioning of Wireless Access Points

HiveAP mgt0

interface

HiveManager

MGT or LAN

port

17 UDP1222212222Required for HiveAPs to discover

the HiveManager and send it

alarms, events, and reports

NTPHiveAP mgt0

interface

HiveManager

MGT or LAN

port

17 UDP1024 -

65535

123Required for HiveAP time

synchronization with the

HiveManager

Chapter 11 Traffic Types

176 Aerohive

Traffic Supporting Device Operations

Service Source Destination Protocol

SRC

Port

DST

Port Notes

SNMPHiveAP mgt0

interface

SNMP manager17 UDP1024 -

65535

161Required for reporting alarms and

events to an SNMP manager and to

HiveManager if not using CAPWAP

SNMP trapsHiveAP mgt0

interface

SNMP manager17 UDP1024 -

65535

162Required for sending SNMP traps to

an SNMP manager and to

HiveManager if not using CAPWAP

SSHv2HiveManager

MGT port

HiveAP mgt0

interface

6 TCP1024 -

65535

22Required for the HiveManager to

manage and upload files to HiveAPs

Service Source Destination Protocol

SRC

Port

DST

Port Notes

Aerohive

Cooperative

Control Messages

HiveAP mgt0

interface

HiveAP mgt0

interface

17 UDP3000*

*This is the default destination port number. You can change it to a different port number from 1024 to 65535.

3000*Required for hive communications

and operates at layer 3

Aerohive

Cooperative

Control Messages

HiveAP wifi1.1

or eth0

interface

HiveAP wifi1.1

or eth0

interface

N.A.N.A.N.A.Required for hive communications

and operates at the LLC (Logical

Link Control) sublayer of layer 2

AeroScout

Reports

AeroScout

engine

HiveAP mgt0

interface

17 UDP1024 -

65535

1144Required to report tracked devices

to an AeroScout engine

DHCP HiveAP mgt0

interface

DHCP server17 UDP6867By default, a HiveAP gets its IP

address through DHCP.

HTTPS management

system

HiveManager

MGT port

6 TCP1024 -

65535

443Required for administration

through the HiveManager GUI

NTP HiveAP mgt0

interface, or

HiveManager

MGT port

NTP server6 TCP1024 -

65535

123Required for time synchronization

with an NTP server

SMTP HiveManager

MGT port

SMTP server6 TCP1024 -

65535

25Required for the HiveManager to

send e-mail alerts to admins

SSHv2 management

system

HiveAP mgt0

interface or

HiveManager

MGT port

6 TCP1024 -

65535

22Used for secure network access to

the HiveAP or HiveManager CLI, and

(SCP) for uploading files to and

downloading files from HiveAPs and

for uploading images to HiveAPs

and HiveManager

syslog HiveAP mgt0

interface

syslog server17 UDP1024 -

65535

514Required for remote logging to a

syslog server

Telnet management

system

HiveAP mgt0

interface

6 TCP,

17UDP

1024 -

65535

23Used for unsecured network access

to the HiveAP CLI

TFTP TFTP server or

mgt0

HiveAP mgt0

or TFTP server

17 UDP1024 -

65535

69Used for uploading files to and

downloading files from HiveAPs

Deployment Guide 177

Appendix ACountry Codes

When the region code on a HiveAP is preset as "world", you must set a country code for the location where you

intend to deploy the HiveAP. This code determines the radio channels and power settings that the HiveAP can use

when deployed in that country. For HiveAPs intended for use in the United States, the region code is preset as

"FCC"—for "Federal Communications Commission"—and the country code is preset for the United States. You can see

the region code in the output of the show boot-param command.

To set a country code when the region is "world", enter the following command, in which number is the

appropriate country code number: boot-param country-code number

To apply radio settings for the updated country code, reboot the HiveAP by entering the reboot command.

The following list of country codes is provided for your convenience.

Countries and Country Codes

Albania 8

Algeria 12

Argentina 32

Armenia 51

Australia 36

Austria 40

Azerbaijan 31

Bahrain 48

Belarus 112

Belgium 56

Belize 84

Bolivia 68

Bosnia and Herzegovina 70

Brazil 76

Brunei Darussalam 96

Bulgaria 100

Canada 124

Chile 152

China (People’s Republic of China) 156

Colombia 170

Costa Rica 188

Croatia 191

Cyprus 196

Czech Republic 203

Denmark 208

Dominican Republic 214

Ecuador 218

Egypt 818

El Salvador 222

Estonia 233

Faeroe Islands 234

Finland 246

France 250

France2 255

Georgia 268

Germany 276

Note: Be sure to enter the correct country code. An incorrect entry might result in illegal radio operation and

cause harmful interference to other systems.

Appenidix A Country Codes

178 Aerohive

Greece 300

Guatemala 320

Honduras 340

Hong Kong (S.A.R., P.R.C) 344

Hungary 348

Iceland 352

India 356

Indonesia 360

Iran 364

Iraq 368

Ireland 372

Israel 376

Italy 380

Jamaica 388

Japan 392

Japan1 (JP1) 393

Japan2 (JP0) 394

Japan3 (JP1-1) 395

Japan4 (JE1) 396

Japan5 (JE2) 397

Japan6 (JP6) 399

Japan7 (J7) 4007

Japan8 (J8) 4008

Japan9 (J9) 4009

IJapan10 (J10) 4010

Japan11 (J11) 4011

Japan12 (J12) 4012

Japan13 (J13) 4013

Japan14 (J14) 4014

Japan15 (J15) 4015

Japan16 (J16) 4016

Japan17 (J17) 4017

Japan18 (J18) 4018

Japan19 (J19) 4019

Japan20 (J20) 4020

Japan21 (J21) 4021

Japan22 (J22) 4022

Japan23 (J23) 4023

Japan24 (J24) 4024

Jordan 400

Kazakhstan 398

Kenya 404

Korea (North Korea) 408

Korea (South Korea, ROC) 410

Korea (South Korea, ROC2) 411

Korea (South Korea, ROC3) 412

Kuwait 414

Latvia 428

Lebanon 422

Libya 434

Liechtenstein 438

Lithuania 440

Luxembourg 442

Macau 446

Macedonia (The Former Yugoslav Republic of

Macedonia) 807

Malaysia 458

Malta 470

Mexico 484

Monaco (Principality of Monaco) 492

Morocco 504

Netherlands 528

New Zealand 554

Nicaragua 558

Norway 578

Oman 512

Pakistan (Islamic Republic of Pakistan) 586

Panama 591

Paraguay 600

Peru 604

Philippines (Republic of the Philippines) 608

Poland 616

Deployment Guide 179

Appenidix A Country Codes

Portugal 620

Puerto Rico 630

Qatar 634

Romania 642

Russia 643

Saudi Arabia 682

Singapore 702

Slovakia (Slovak Republic) 703

Slovenia 705

South Africa 710

Spain 724

Sri Lanka 144

Sweden 752

Switzerland 756

Syria 760

Taiwan 158

Thailand 764

Trinidad y Tobago 780

Tunisia 788

Turkey 792

U.A.E. 784

Ukraine 804

United Kingdom 826

United States 840

United States (Public Safety; FCC49) 842

Uruguay 858

Uzbekistan 860

Venezuela 862

Vietnam 704

Yemen 887

Zimbabwe 716

Appenidix A Country Codes

180 Aerohive

Accton Technology HIVEAP20AG HiveAP 20ag User Manual UserMan HEDHIVEAP20AG revised3

Accton Technology Corp HiveAP 20ag UserMan HEDHIVEAP20AG revised3

Contents

User Manual 2

Navigation menu

Namespaces

Views

Navigation
