BarricadeTM N
150 Mbps 4-Port Wireless Broadband Router
SMCWBR14S-N4
USER GUIDE
![](/img.php?id=1160306&img=bg2.png)
20 Mason
Irvine, CA 92618
Phone: (949) 679-8000
BarricadeTM SMCWBR14S-N4
User Guide
August 2009
Pub. # 149100000034W
E082009-DT-R01
Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.
However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or
other rights of third parties which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications
at any time without notice.
Copyright © 2009 by
SMC Networks, Inc.
20 Mason
Irvine, CA 92618
All rights reserved
Trademarks:
SMC is a registered trademark; and Barricade, EZ Switch, TigerStack, TigerSwitch, and TigerAccess
are trademarks of SMC Networks, Inc. Other product and company names are trademarks or
registered trademarks of their respective holders.
– 4 –
WARRANTY AND PRODUCT REGISTRATION
To register SMC products and to review the detailed warranty statement,
please refer to the Support Section of the SMC Website at http://
www.smc.com.
![](/img.php?id=1160306&img=bg5.png)
– 5 –
COMPLIANCES
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
◆Reorient or relocate the receiving antenna
◆Increase the separation between the equipment and receiver
◆Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
◆Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is
firmware-limited to channels 1 through 11.
IMPORTANT NOTE:
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your
body.
![](/img.php?id=1160306&img=bg6.png)
C
OMPLIANCES
– 6 –
IC STATEMENT
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du
Canada.
The device could automatically discontinue transmission in case of absence
of information to transmit, or operational failure. Note that this is not
intended to prohibit transmission of control or signaling information or the
use of repetitive codes where required by the technology.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set
forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20 cm between the radiator & your
body.
TAIWAN NCC
根據交通部低功率管理辦法規定:
第十二條 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更
頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應
立即停用,並改善至無干擾時方得繼續使用。前項合法通信,指依電信法規定作業之無線電通
信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
EC CONFORMANCE DECLARATION
Marking by the above symbol indicates compliance with the Essential
Requirements of the R&TTE Directive of the European Union (1999/5/EC).
This equipment meets the following conformance standards:
◆EN 60950-1 (IEC 60950-1) - Product Safety
![](/img.php?id=1160306&img=bg7.png)
C
OMPLIANCES
– 7 –
This device is intended for use in the following European Community and
EFTA countries:
N
OTE
:
The user must use the configuration utility provided with this
product to ensure the channels of operation are in conformance with the
spectrum usage rules for European Community countries as described
below.
◆This device will automatically limit the allowable channels determined
by the current country of operation. Incorrectly entering the country of
operation may result in illegal operation and may cause harmful
interference to other systems. The user is obligated to ensure the
device is operating according to the channel limitations, indoor/outdoor
restrictions and license requirements for each European Community
country as described in this document.
DECLARATION OF CONFORMITY IN LANGUAGES OF THE EUROPEAN
COMMUNITY
◆Austria ◆Belgium ◆Cyprus ◆Czech Republic ◆Denmark
◆Estonia ◆Finland ◆France ◆Germany ◆Greece
◆Hungary ◆Iceland ◆Ireland ◆Italy ◆Latvia
◆Liechtenstein ◆Lithuania ◆Luxembourg ◆Malta ◆Netherlands
◆Norway ◆Poland ◆Portugal ◆Slovakia ◆Slovenia
◆Spain ◆Sweden ◆Switzerland ◆United Kingdom
Czech
Česky
Manufacturer tímto prohlašuje, že tento Radio LAN device je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Estonian
Eesti
Käesolevaga kinnitab Manufacturer seadme Radio LAN device vastavust direktiivi 1999/
5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, Manufacturer, declares that this Radio LAN device is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Finnish
Suomi
Valmistaja Manufacturer vakuuttaa täten että Radio LAN device tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Dutch
Nederlands
Hierbij verklaart Manufacturer dat het toestel Radio LAN device in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG
Bij deze Manufacturer dat deze Radio LAN device voldoet aan de essentiële eisen en aan
de overige relevante bepalingen van Richtlijn 1999/5/EC.
French
Français
Par la présente Manufacturer déclare que l'appareil Radio LAN device est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE
Swedish
Svenska
Härmed intygar Manufacturer att denna Radio LAN device står I överensstämmelse med
de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Danish
Dansk
Undertegnede Manufacturer erklærer herved, at følgende udstyr Radio LAN device
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF
![](/img.php?id=1160306&img=bg8.png)
C
OMPLIANCES
– 8 –
German
Deutsch
Hiermit erklärt Manufacturer, dass sich dieser/diese/dieses Radio LAN device in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)
Hiermit erklärt Manufacturer die Übereinstimmung des Gerätes Radio LAN device mit den
grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie
1999/5/EG. (Wien)
Greek
Ελληνική
με την παρουσα Manufacturer δηλωνει οτι radio LAN device συμμορφωνεται προσ τισ
ουσιωδεισ απαιτησεισ και τισ λοιπεσ σχετικεσ διαταξεισ τησ οδηγιασ 1999/5/εκ.
Hungarian
Magyar
Alulírott, Manufacturer nyilatkozom, hogy a Radio LAN device megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Italian
Italiano
Con la presente Manufacturer dichiara che questo Radio LAN device è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latvian
Latviski
Ar šo Manufacturer deklarē, ka Radio LAN device atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lithuanian
Lietuvių
Šiuo Manufacturer deklaruoja, kad šis Radio LAN device atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Maltese
Malti
Hawnhekk, Manufacturer, jiddikjara li dan Radio LAN device jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Spanish
Español
Por medio de la presente Manufacturer declara que el Radio LAN device cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE
Polish
Polski
Niniejszym Manufacturer oświadcza, że Radio LAN device jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Portuguese
Português
Manufacturer declara que este Radio LAN device está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovak
Slovensky
Manufacturer týmto vyhlasuje, že Radio LAN device spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Slovenian
Slovensko
Manufacturer izjavlja, da je ta radio LAN device v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
![](/img.php?id=1160306&img=bg9.png)
C
OMPLIANCES
– 9 –
![](/img.php?id=1160306&img=bga.png)
– 10 –
ABOUT THIS GUIDE
PURPOSE This guide gives specific information on how to install the Wireless
Broadband Router and its physical and performance related characteristics.
It also gives information on how to operate and use the management
functions of the Wireless Broadband Router.
AUDIENCE This guide is for users with a basic working knowledge of computers. You
should be familiar with Windows operating system concepts.
CONVENTIONS The following conventions are used throughout this guide to show
information:
N
OTE
:
Emphasizes important information or calls your attention to related
features or instructions.
C
AUTION
:
Alerts you to a potential hazard that could cause loss of data, or
damage the system or equipment.
W
ARNING
:
Alerts you to a potential hazard that could cause personal injury.
RELATED PUBLICATIONS As part of the Wireless Broadband Router’s software, there is an online
web-based help that describes all management related features.
REVISION HISTORY This section summarizes the changes in each revision of this guide.
AUGUST 2009 REVISION
This is the first revision of this guide. It is valid for software release
v.0.0.3.0.
![](/img.php?id=1160306&img=bgb.png)
– 11 –
CONTENTS
WARRANTY AND PRODUCT REGISTRATION 4
COMPLIANCES 5
ABOUT THIS GUIDE 10
CONTENTS 11
FIGURES 16
TABLES 19
SECTION I GETTING STARTED 20
1INTRODUCTION 21
Key Hardware Features 21
Description of Capabilities 21
Applications 22
Package Contents 23

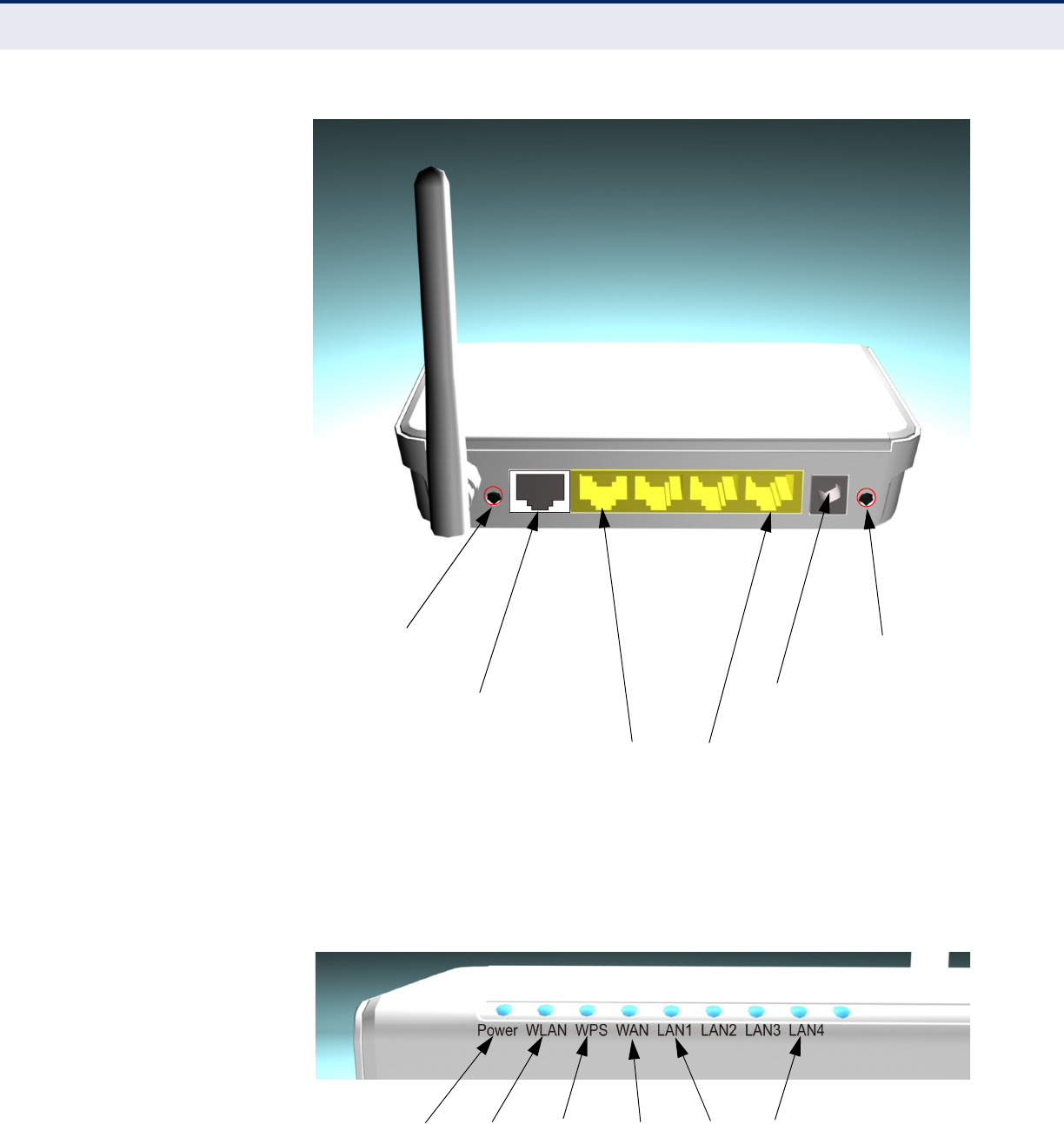

Hardware Description 23
LED Indicators 25
Ethernet WAN Port 26
Ethernet LAN Ports 26
Power Connector 26
Reset Button 27
WPS Button 27
2NETWORK PLANNING 29
Internet Gateway Router 29
LAN Access Point 30
Wireless Bridge 31
3INSTALLING THE GATEWAY ROUTER 33
System Requirements 33
![](/img.php?id=1160306&img=bgc.png)
C
ONTENTS
– 12 –
Location Selection 33
Mounting on a Wall 34
Mounting on a Horizontal Surface 35
Gateway Mode Connections 35
Bridge Mode Connections 36
4INITIAL CONFIGURATION 38
ISP Settings 38
Connecting to the Login Page 38
Home Page and Main Menu 39
Common Web Page Buttons 40
Setup Wizard 40
Step 1 - Language Selection 40
Step 2 - SNTP Settings 41
Step 3 - WAN Settings - DHCP 42
Step 3 - WAN Settings - Static IP 43
Step 3 - WAN Settings - PPPoE 44
Step 3 - WAN Settings - PPTP 45
Step 4 - Wireless Security 46
Completion 46
SECTION II WEB CONFIGURATION 47
5OPERATION MODE 49
Logging In 50
Operation Mode 52
6INTERNET SETTINGS 53
WAN Setting 53
DHCP 53
Static IP 55
PPPoE 56
PPTP 57
LAN Setting 59
Advanced Routing 61
Advanced Routing Settings 61
Routing Table 62
![](/img.php?id=1160306&img=bgd.png)
C
ONTENTS
– 13 –
Dynamic Route 63
7WIRELESS CONFIGURATION 65
Wireless Settings 65
Basic Settings 66
HT Physical Mode Settings 68

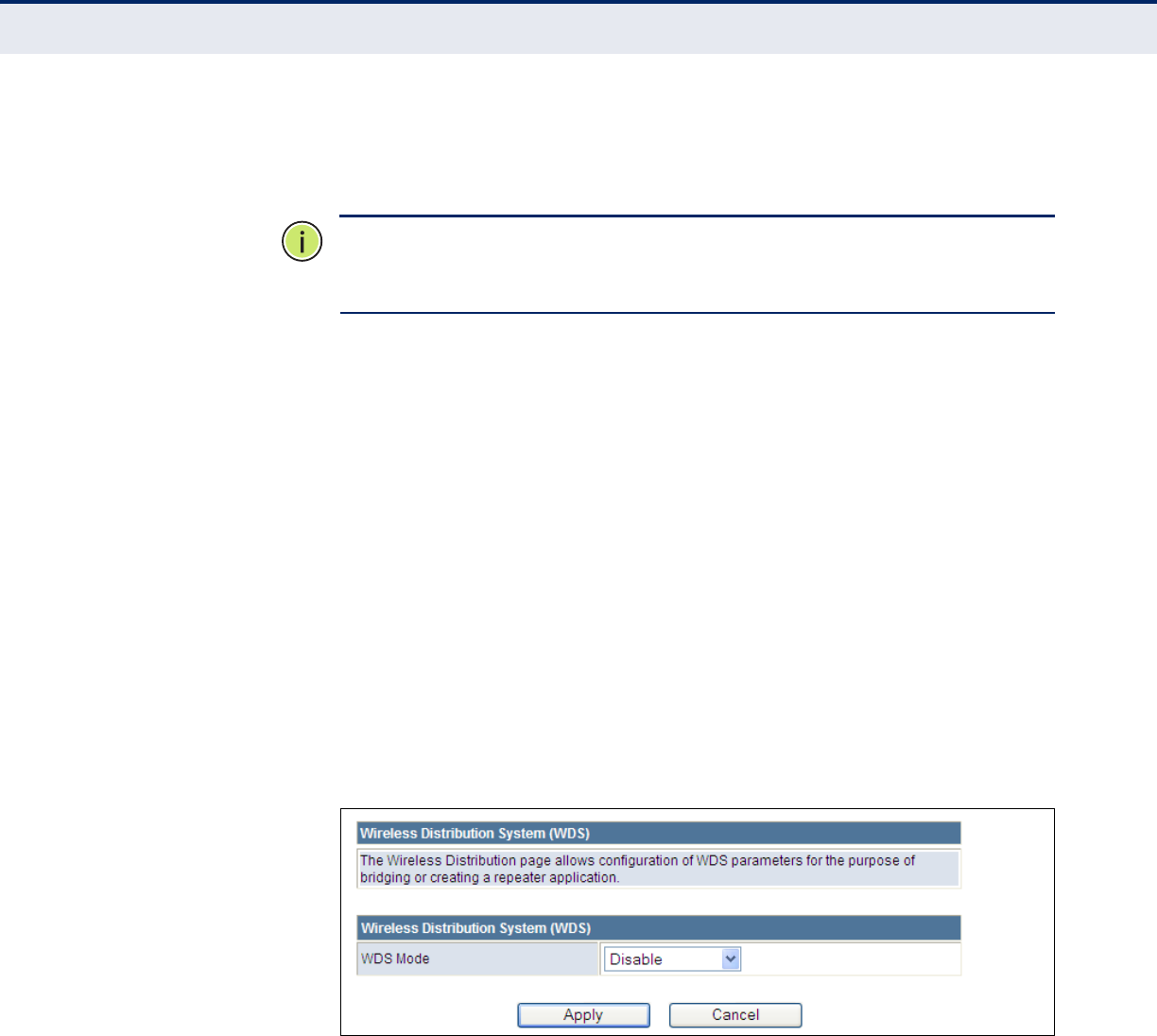

Wireless Distribution System (WDS) 69
Wi-Fi Protected Setup (WPS) 71
Station List 74
8FIREWALL CONFIGURATION 75
MAC/IP/Port Filtering 75
Current Filter Rules 77
Virtual Server Settings (Port Forwarding) 78
Current Virtual Servers in system 79
DMZ 79
System Security 80
Content Filtering 81
9ADMINISTRATION SETTINGS 83
System Management 84
Language Settings 84
Web Interface Settings 84
SNTP Settings 85
DDNS Settings 86
Upgrade Firmware 87
Configuration Settings 88
System Status 89
Statistics 91
System Log 92
SECTION III APPENDICES 94
ATROUBLESHOOTING 95
Diagnosing LED Indicators 95
If You Cannot Connect to the Internet 95
Before Contacting Technical Support 95
![](/img.php?id=1160306&img=bgf.png)
C
ONTENTS
– 15 –
![](/img.php?id=1160306&img=bg10.png)
– 16 –
FIGURES
Figure 1: Top Panel 24
Figure 2: Rear Panel 25
Figure 3: LEDs 25

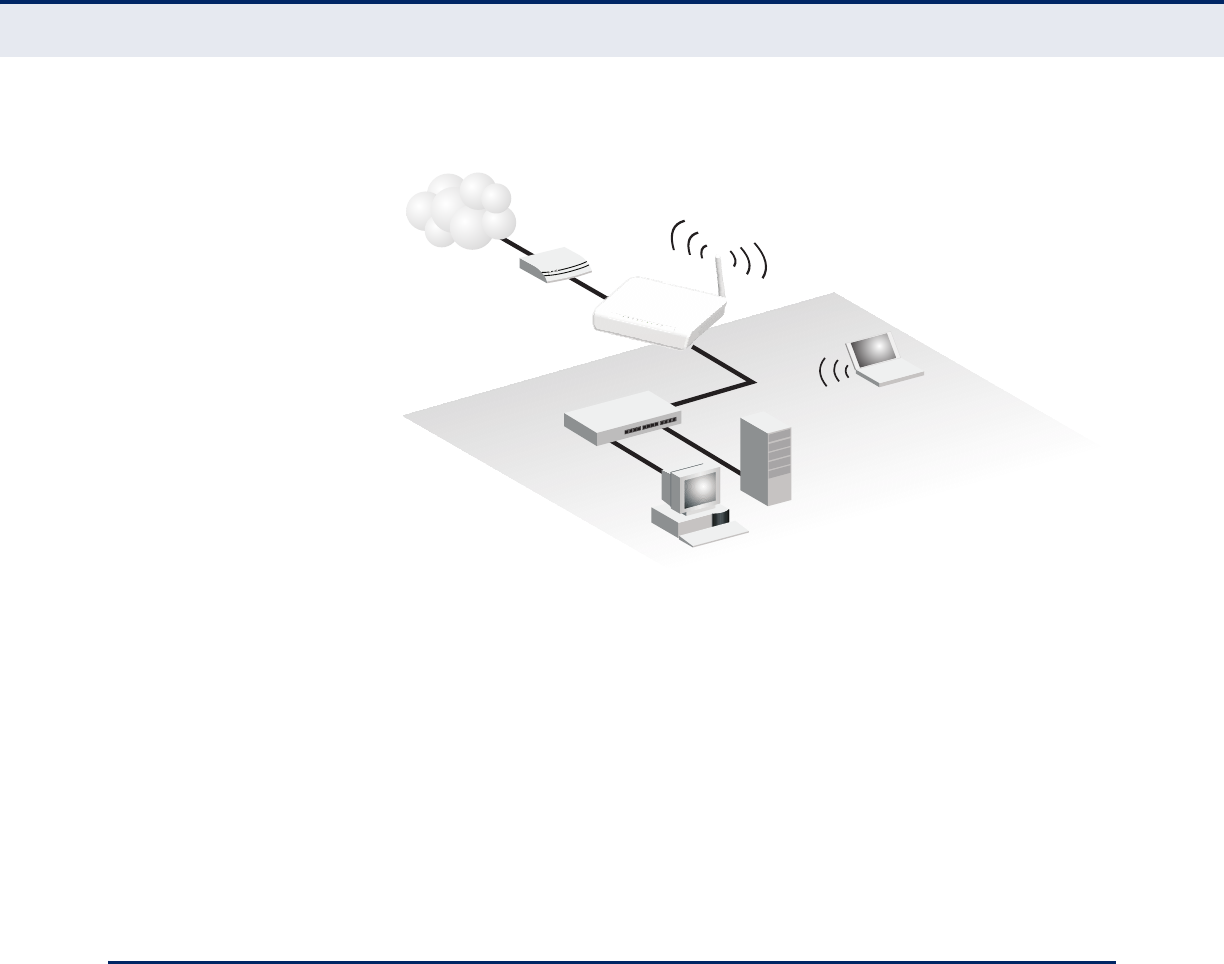

Figure 4: Operating as an Internet Gateway Router 30

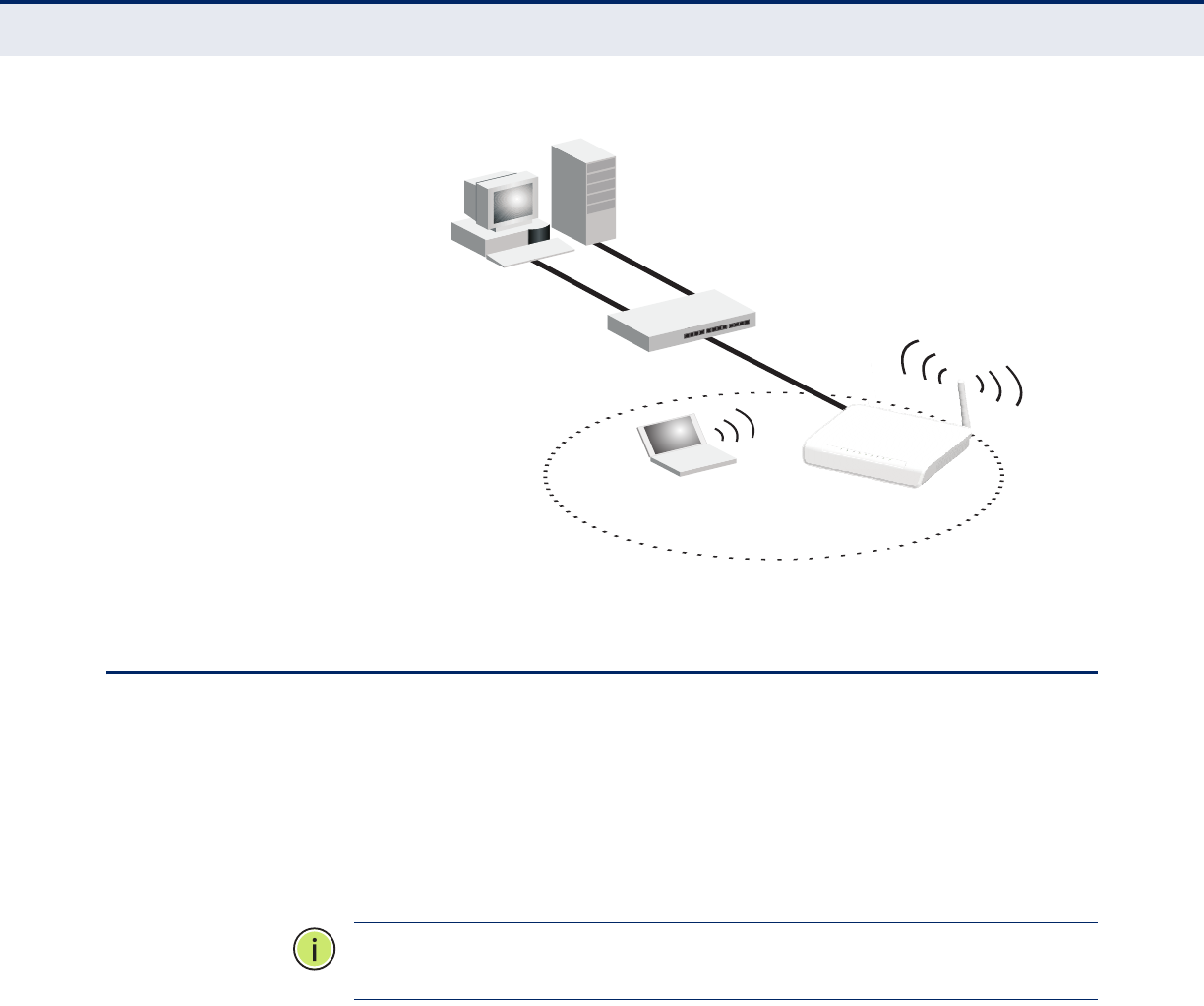

Figure 5: Operating as an Access Point 31

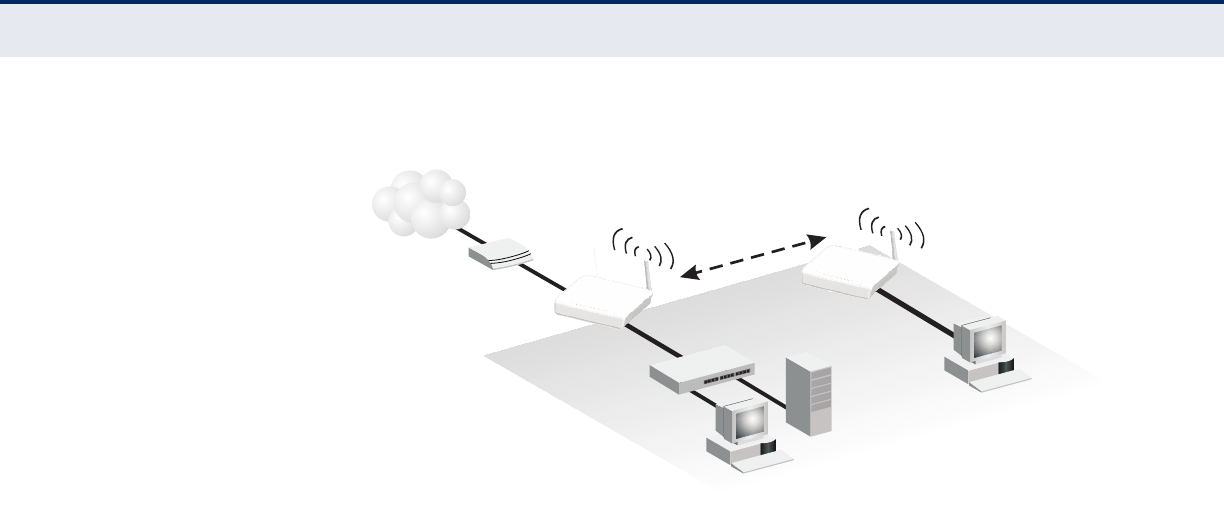

Figure 6: Operating as a Wireless Bridge 32

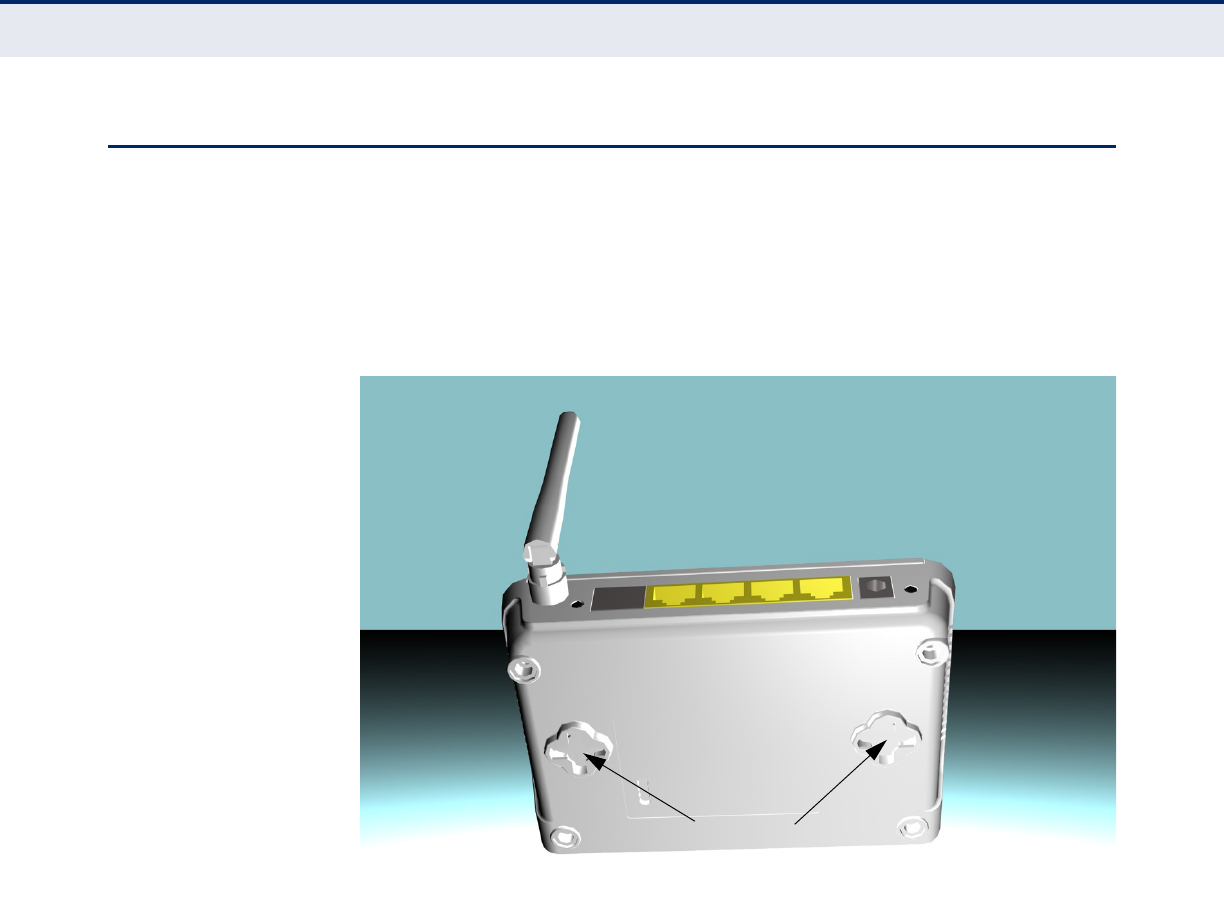

Figure 7: Wall Mounting 34

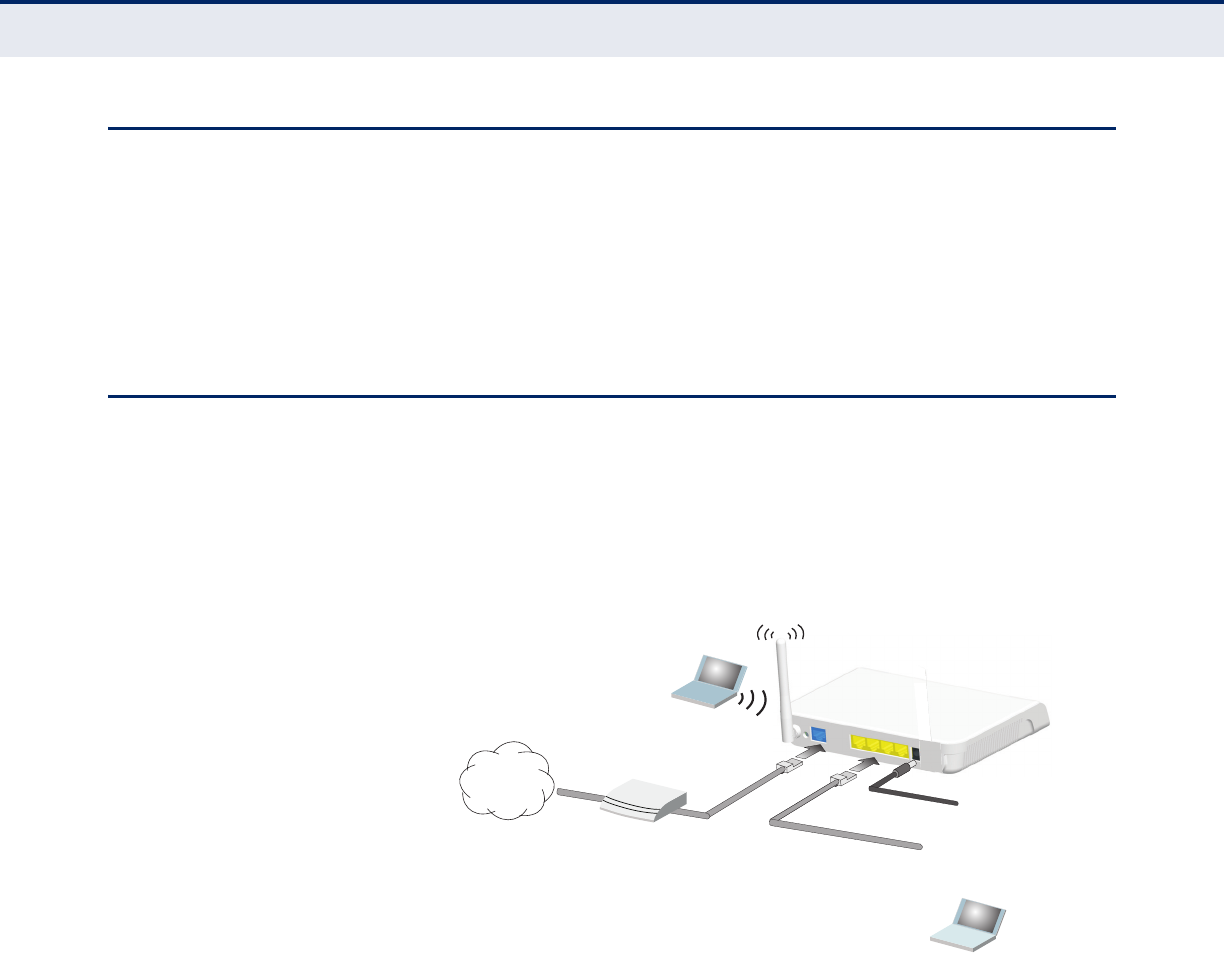

Figure 8: Gateway Mode Connection 35
Figure 9: Bridge Mode Connection 36

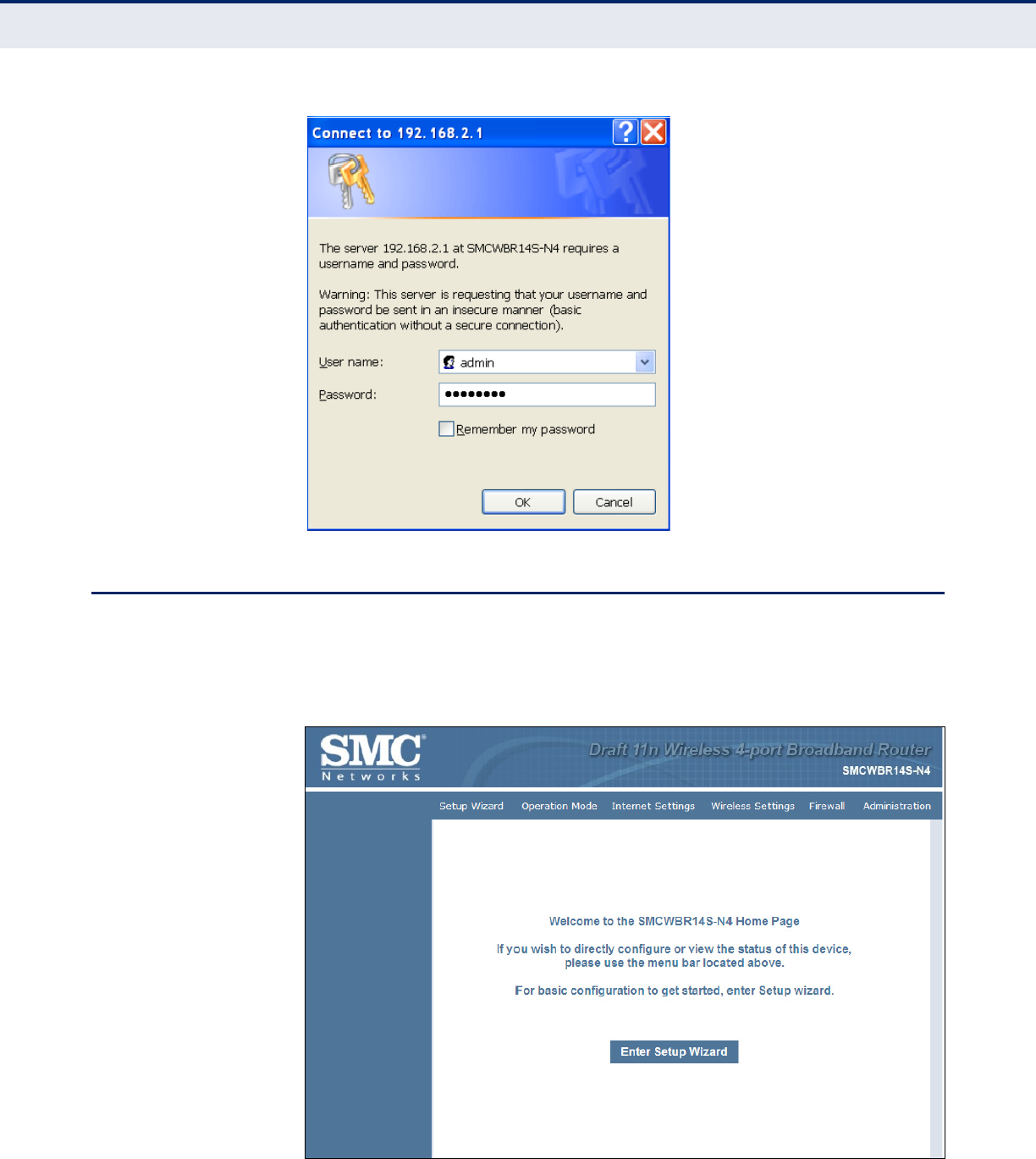

Figure 10: Login Page 39

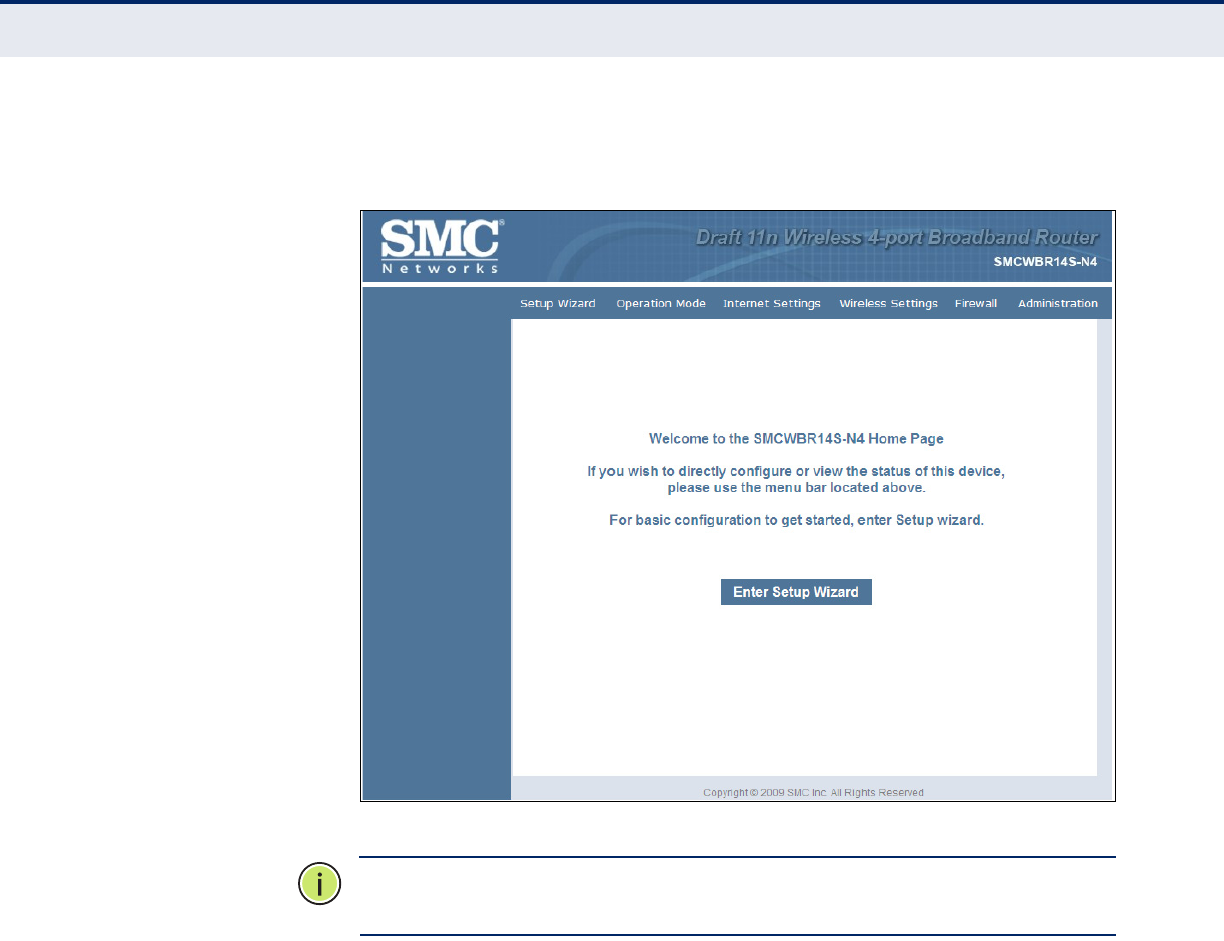

Figure 11: Home Page 39

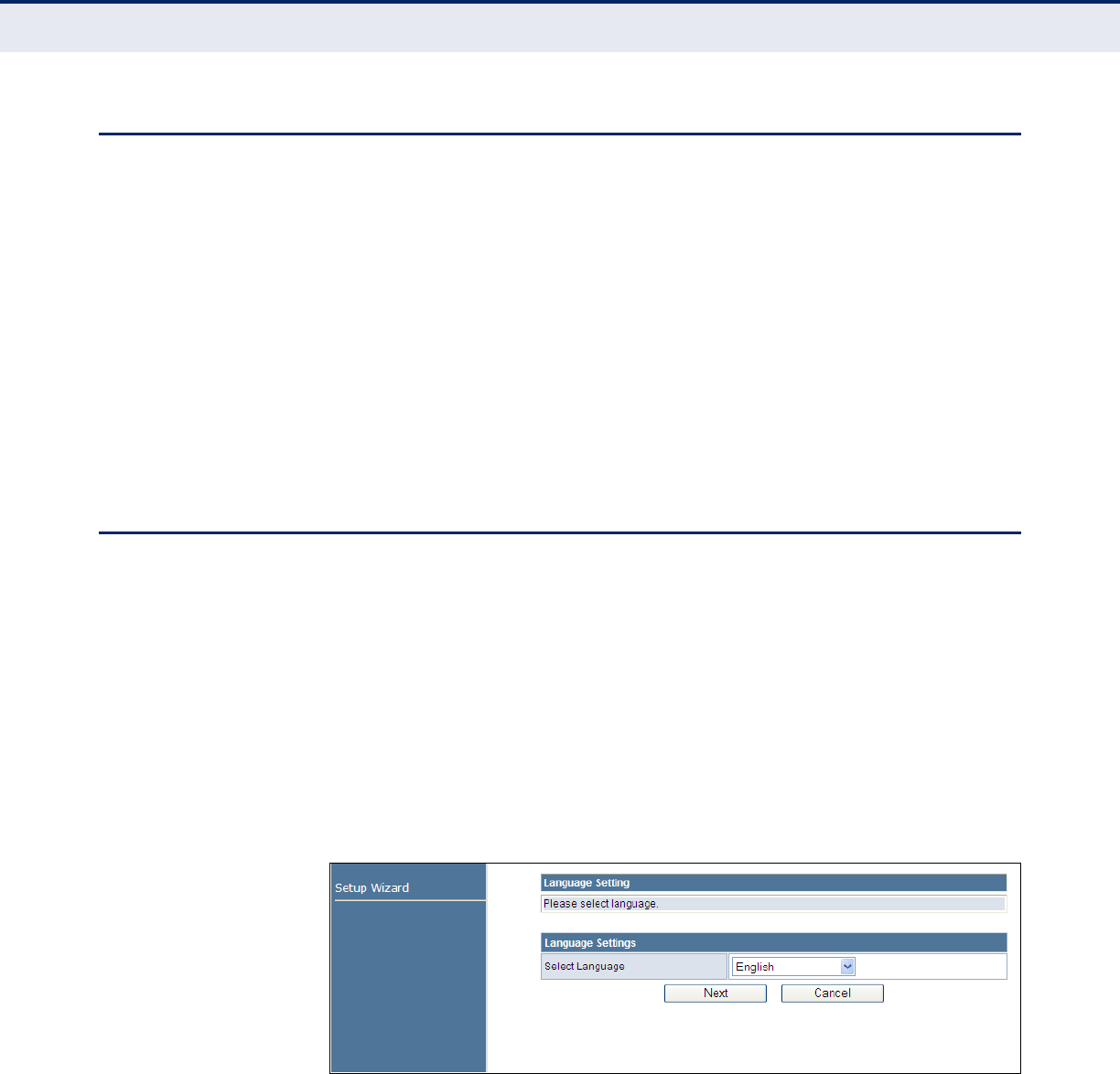

Figure 12: Wizard Step 1 - Language Selection 40

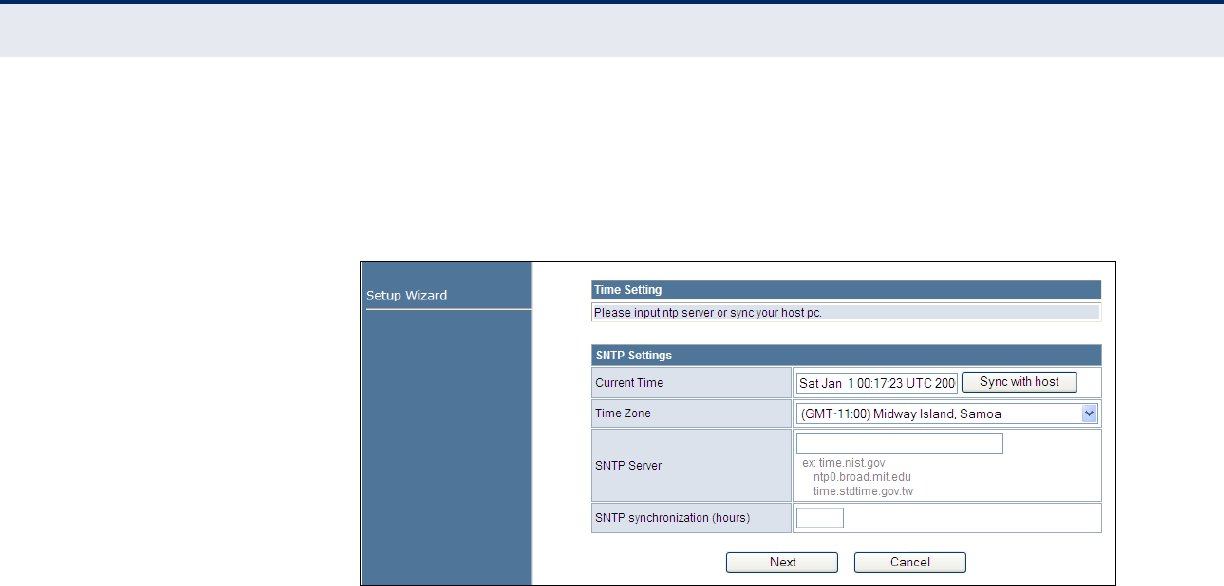

Figure 13: Wizard Step 2 - Time and SNTP Settings 41
Figure 14: Wizard Step 3 - WAN Settings - DHCP 42
Figure 15: Wizard Step 3 - WAN Settings - Static IP 43
Figure 16: Wizard Step 3 - WAN Settings - PPPoE 44
Figure 17: Wizard Step 3 - WAN Settings - PPTP 45

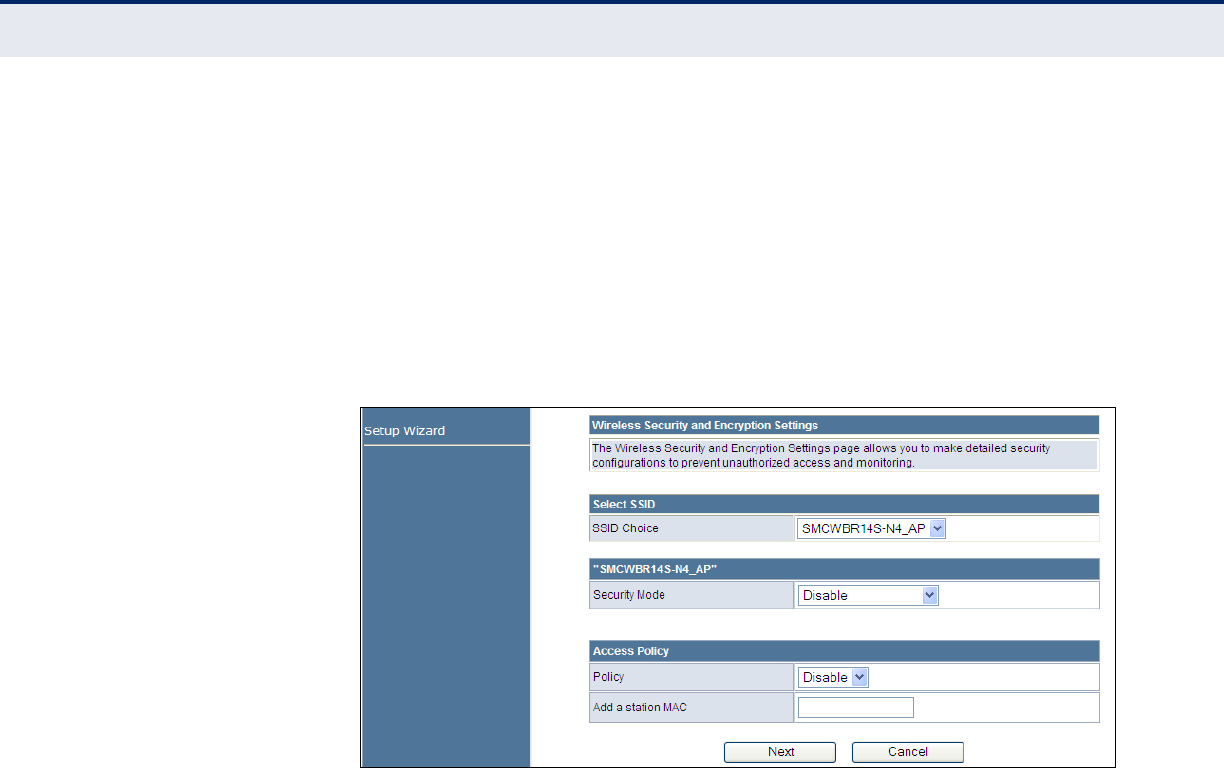

Figure 18: Wizard Step 4 - Wireless Security 46

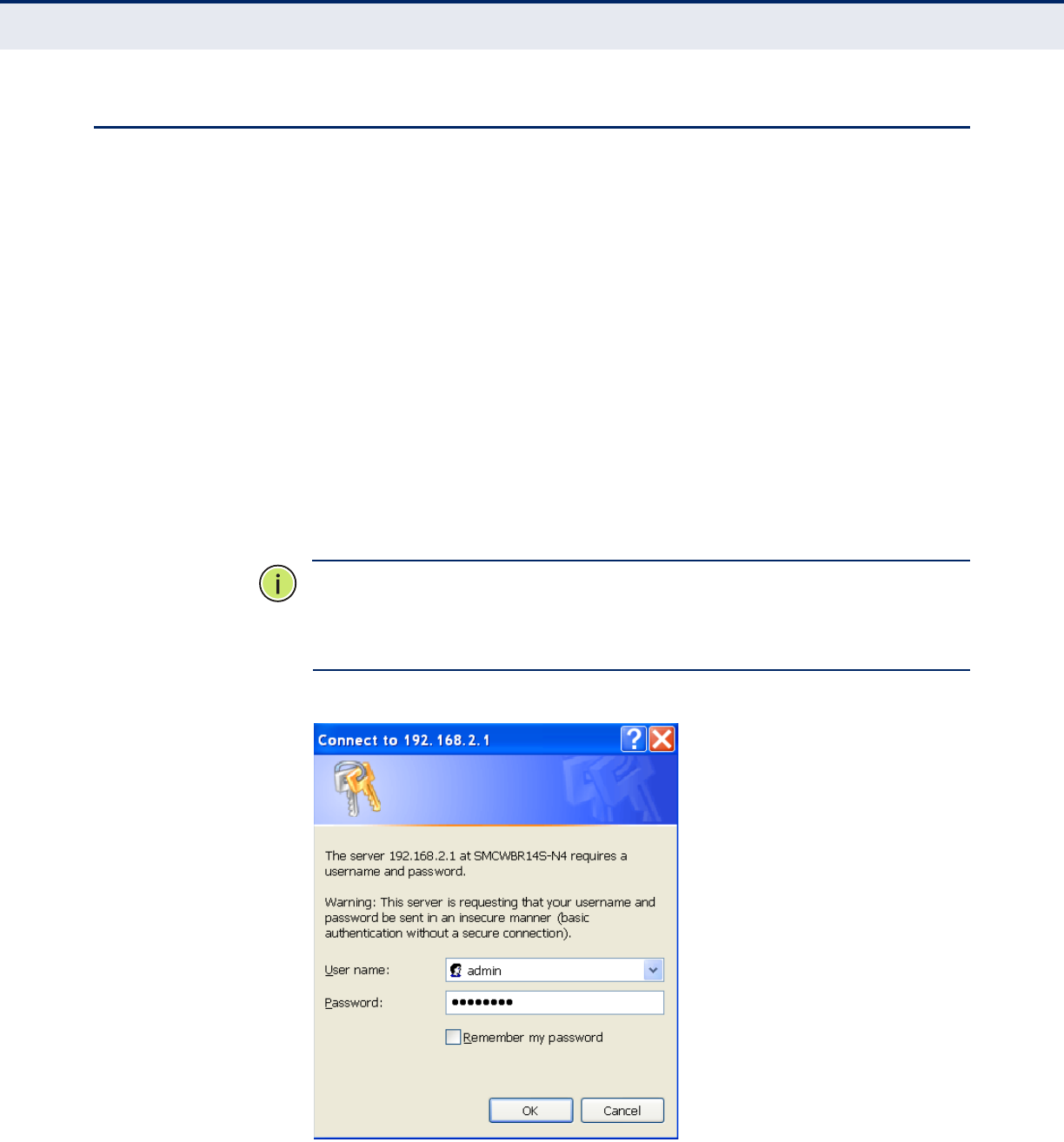

Figure 19: Logging On 50
Figure 20: Home Page 51

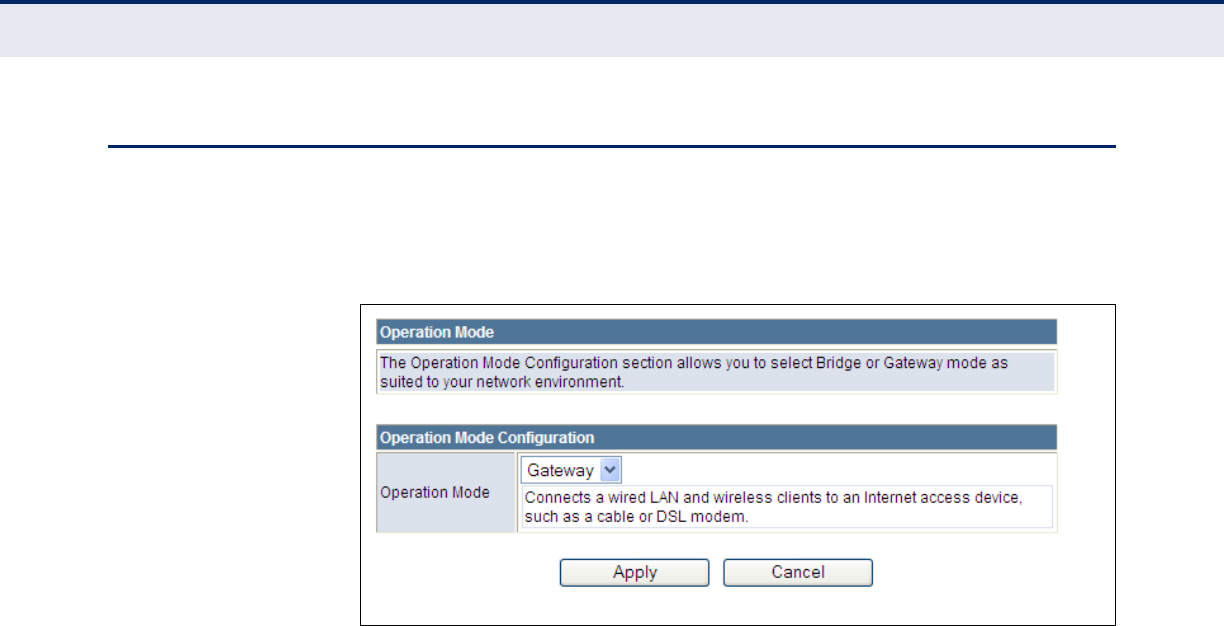

Figure 21: Operation Mode (Gateway) 52

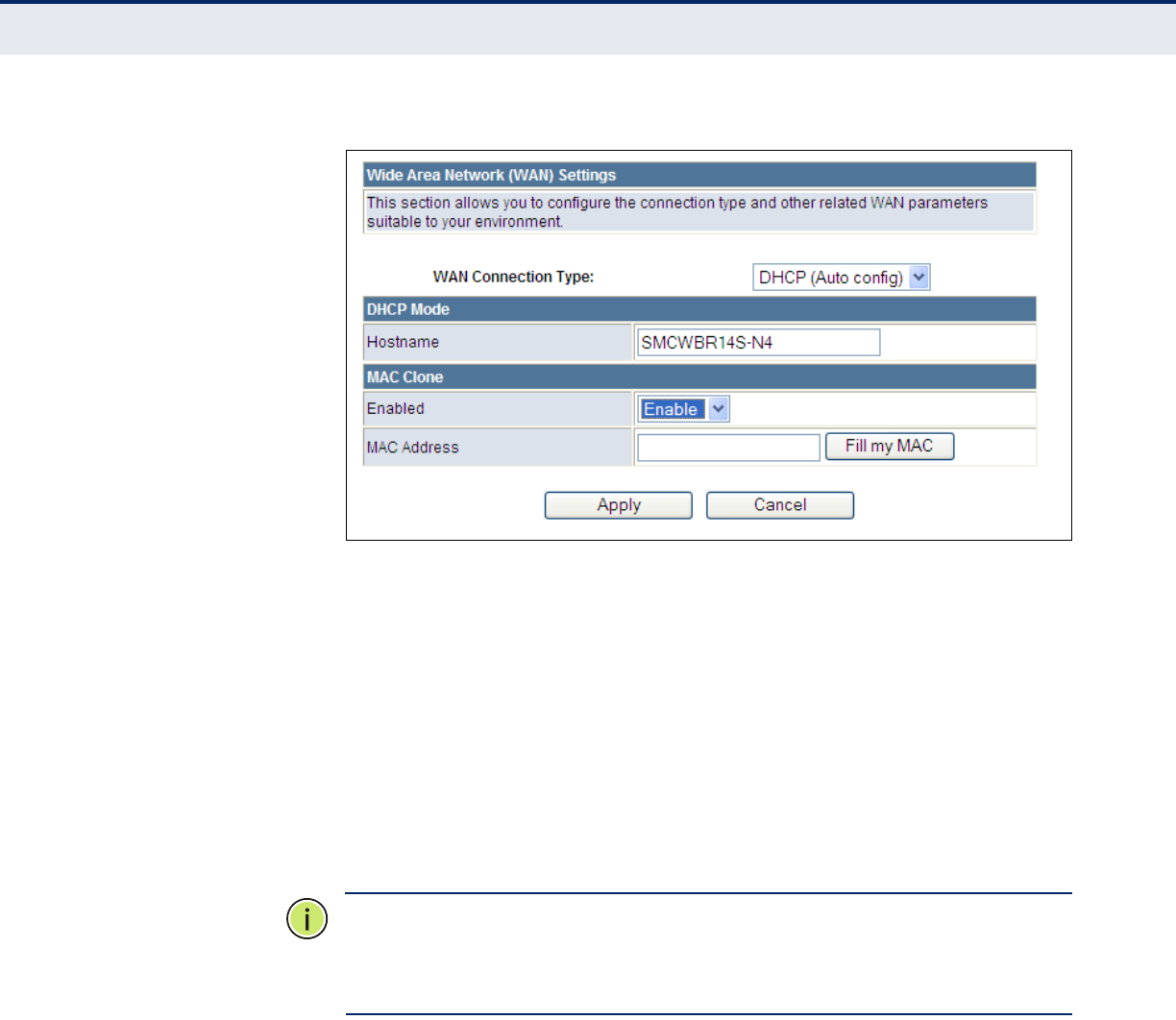

Figure 22: DHCP Configuration 54

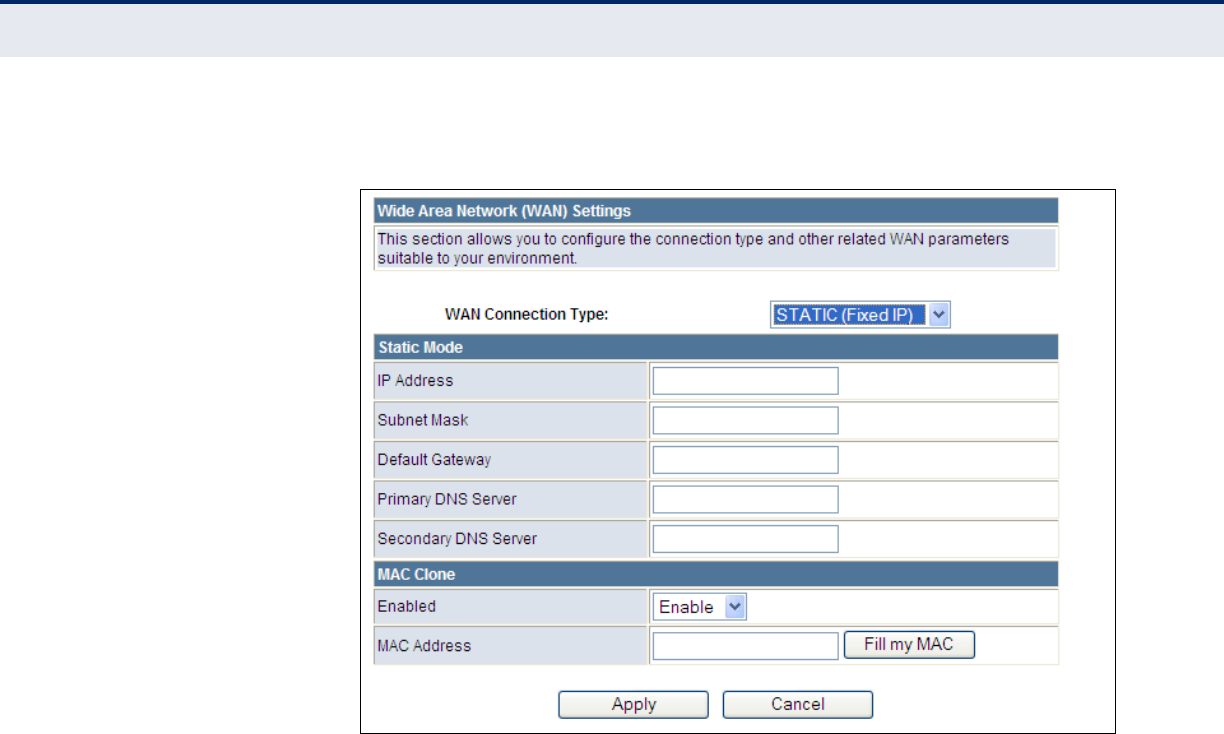

Figure 23: Static IP Configuration 55

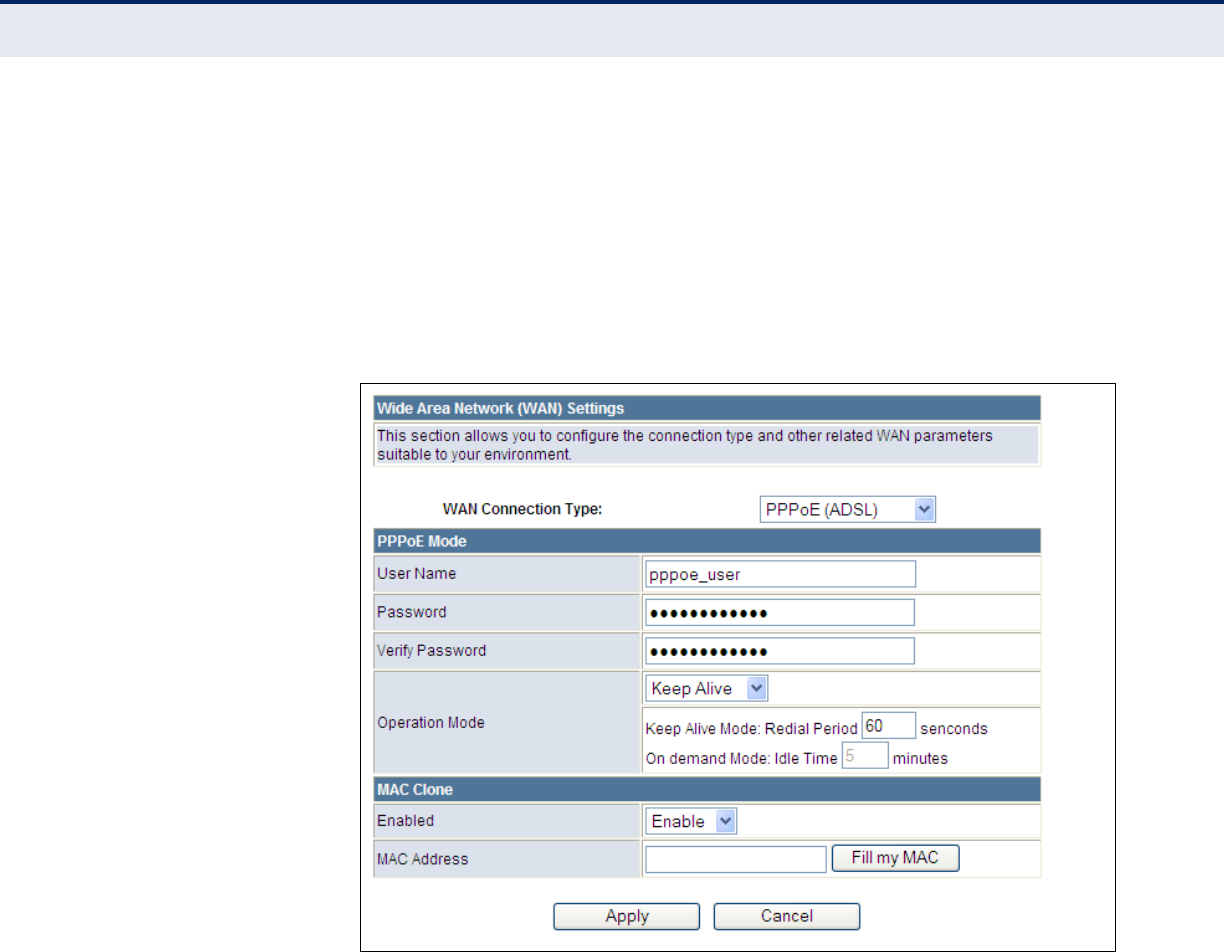

Figure 24: PPPoE Configuration 56
Figure 25: PPTP Configuration 57

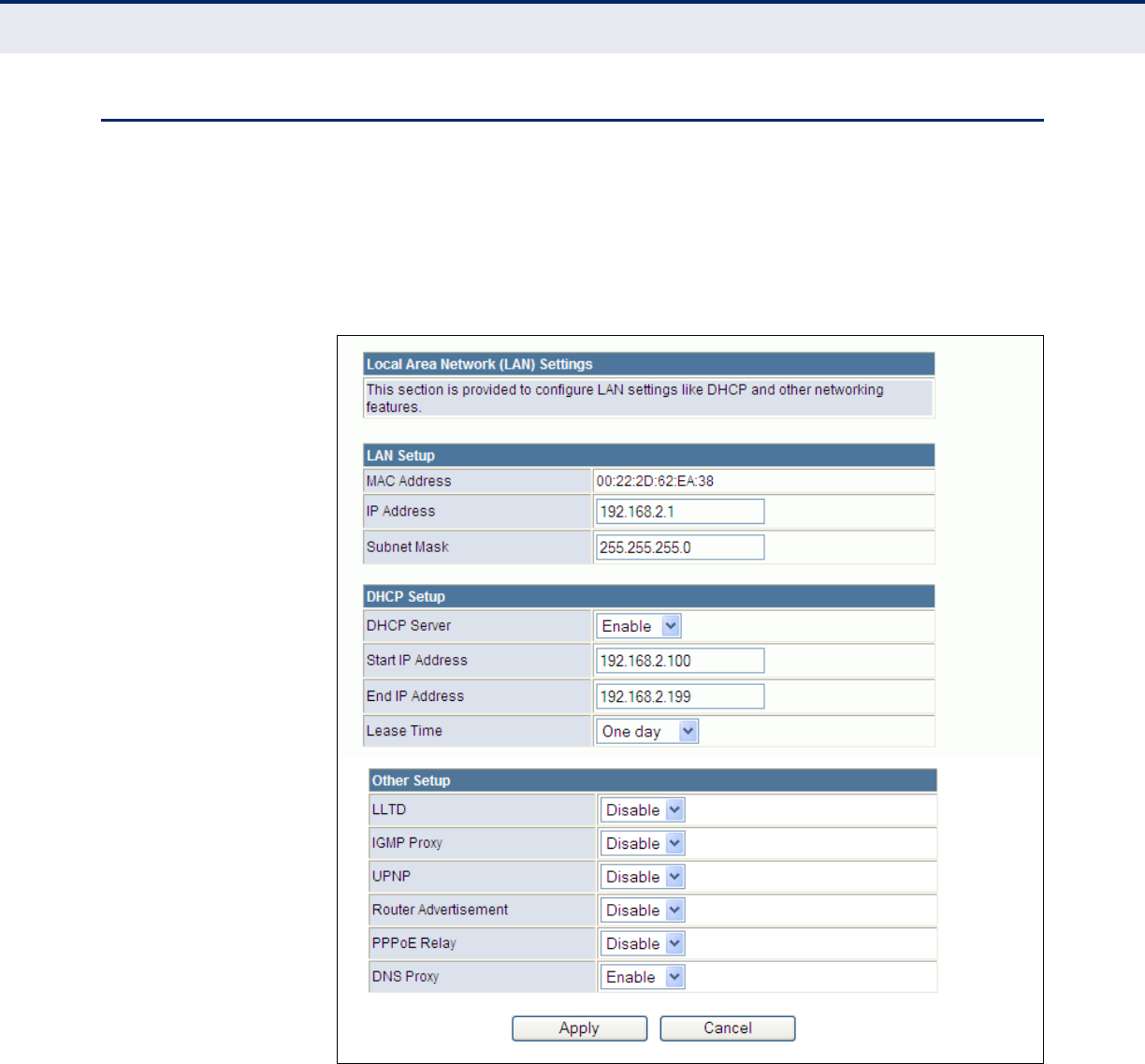

Figure 26: LAN Configuration 59

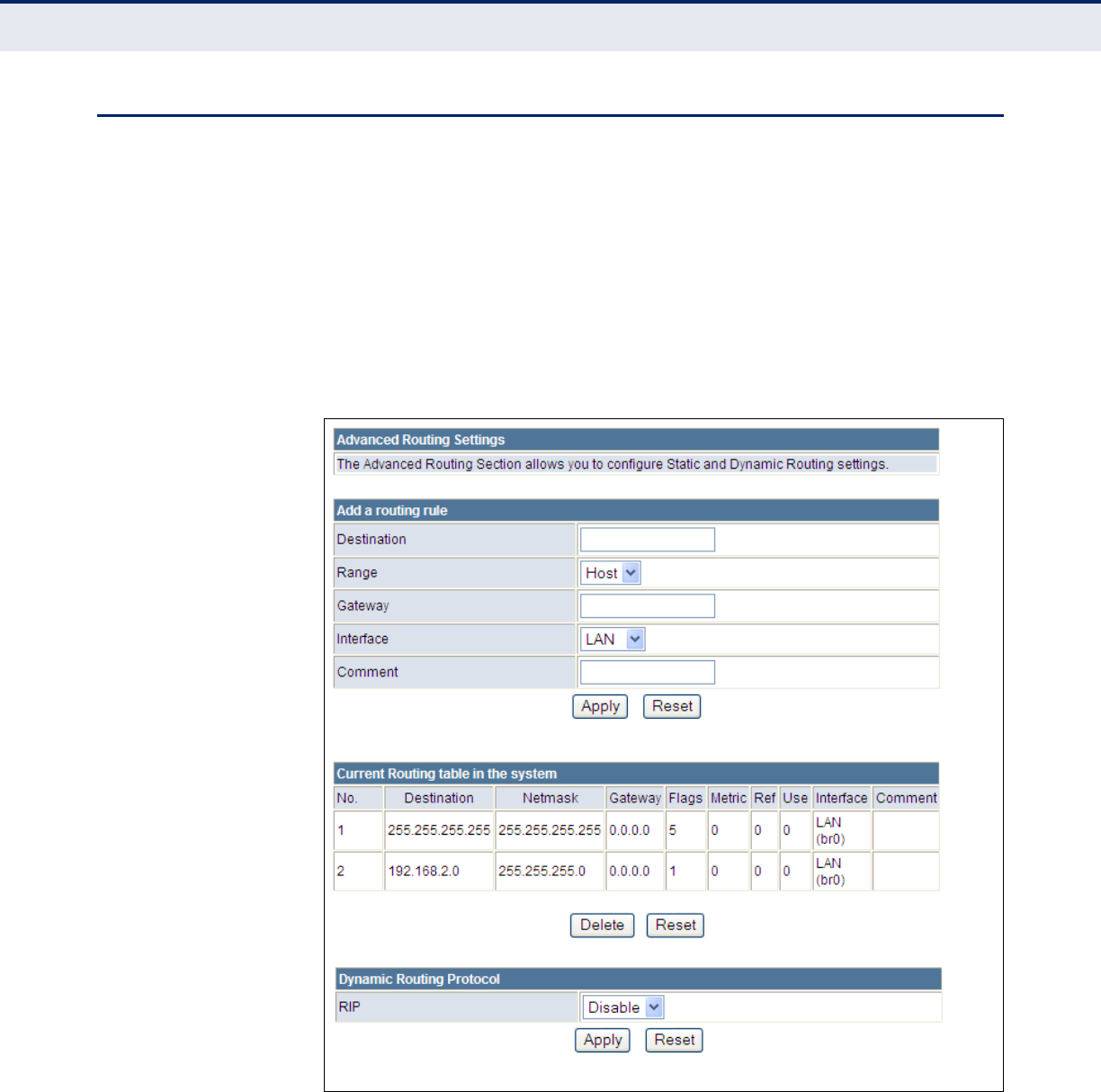

Figure 27: Advanced Routing (Gateway Mode) 61

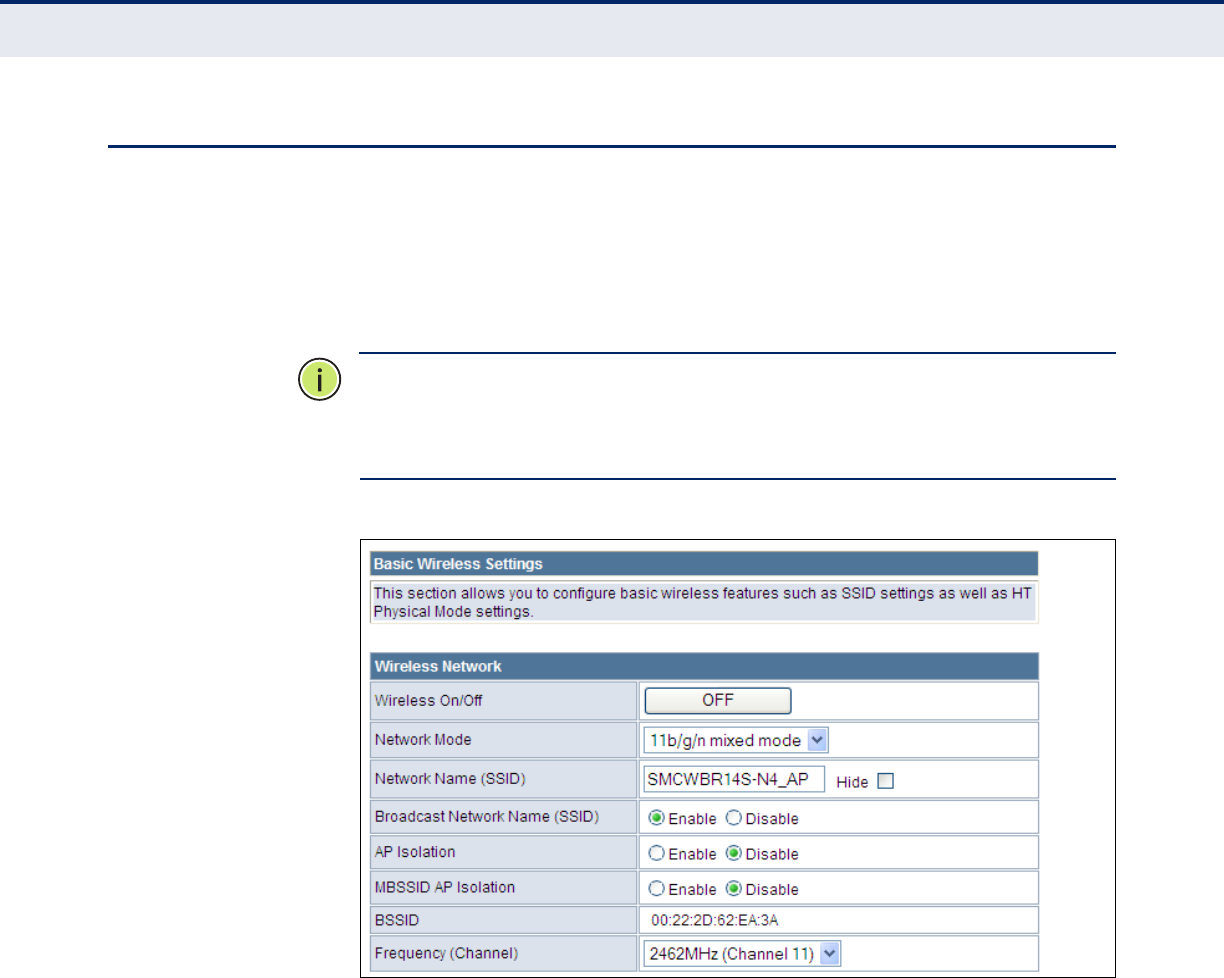

Figure 28: Basic Settings 66

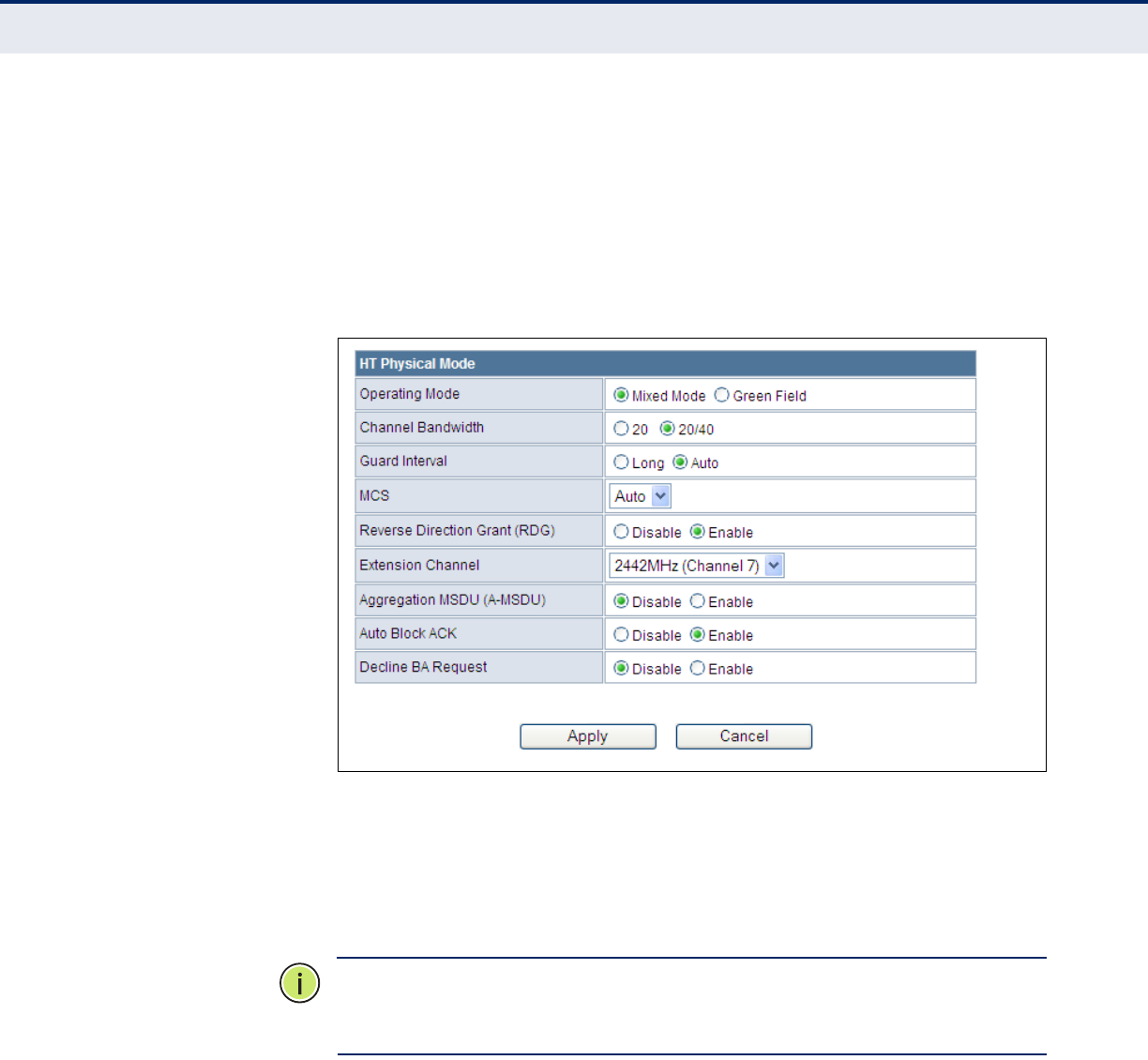

Figure 29: HT Physical Mode Settings 68

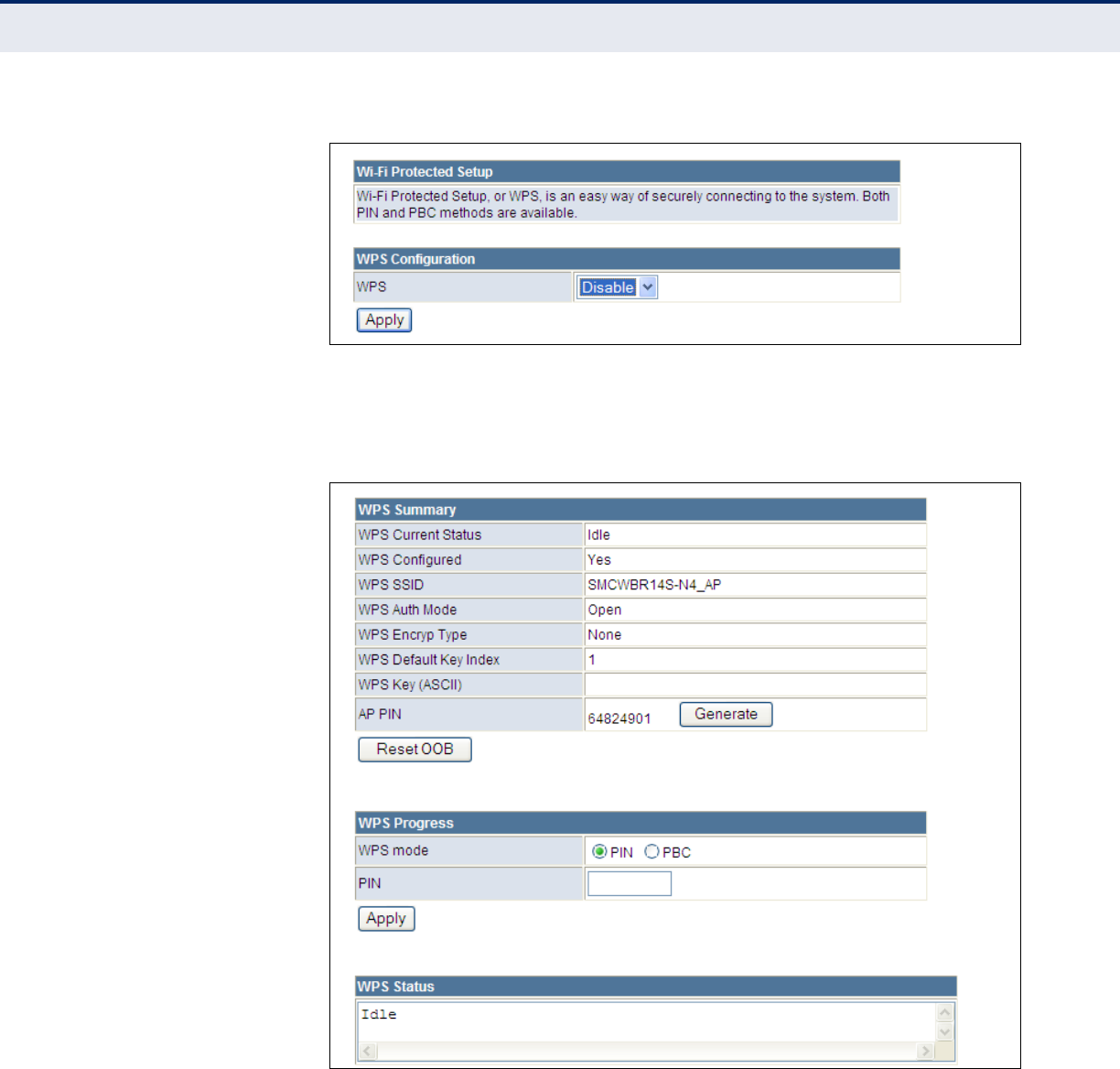

Figure 30: Enabling WPS 72
Figure 31: WPS Configuration 72
![](/img.php?id=1160306&img=bg11.png)
F
IGURES
– 17 –

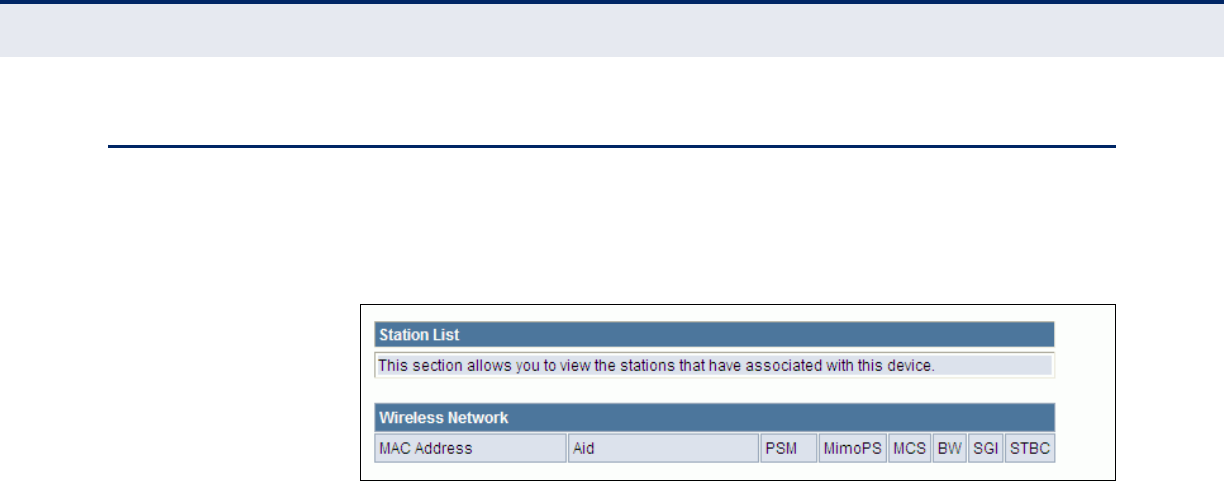

Figure 32: Station List 74

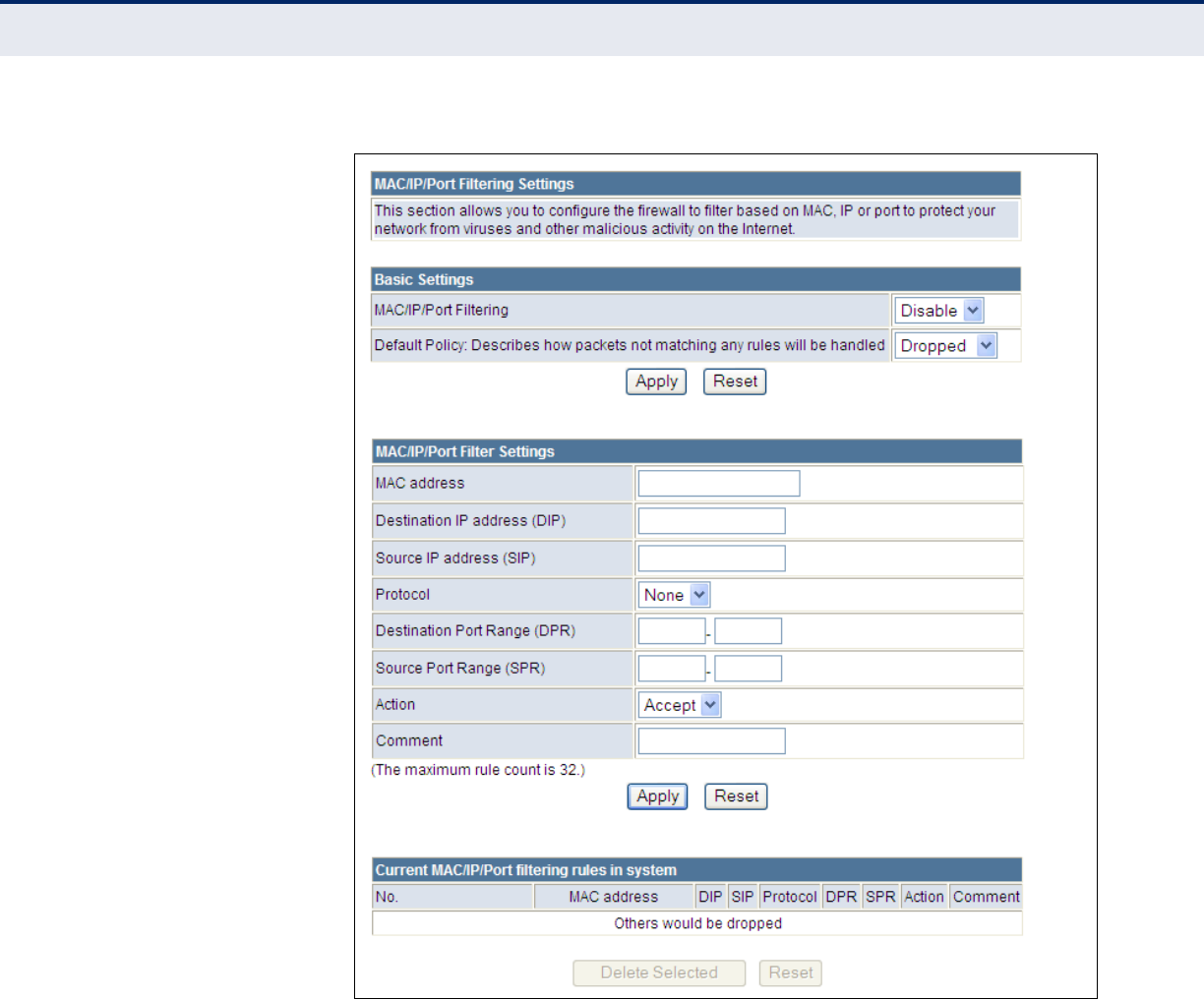

Figure 33: MAC/IP/Port Filtering 76
Figure 34: Virtual Server 78

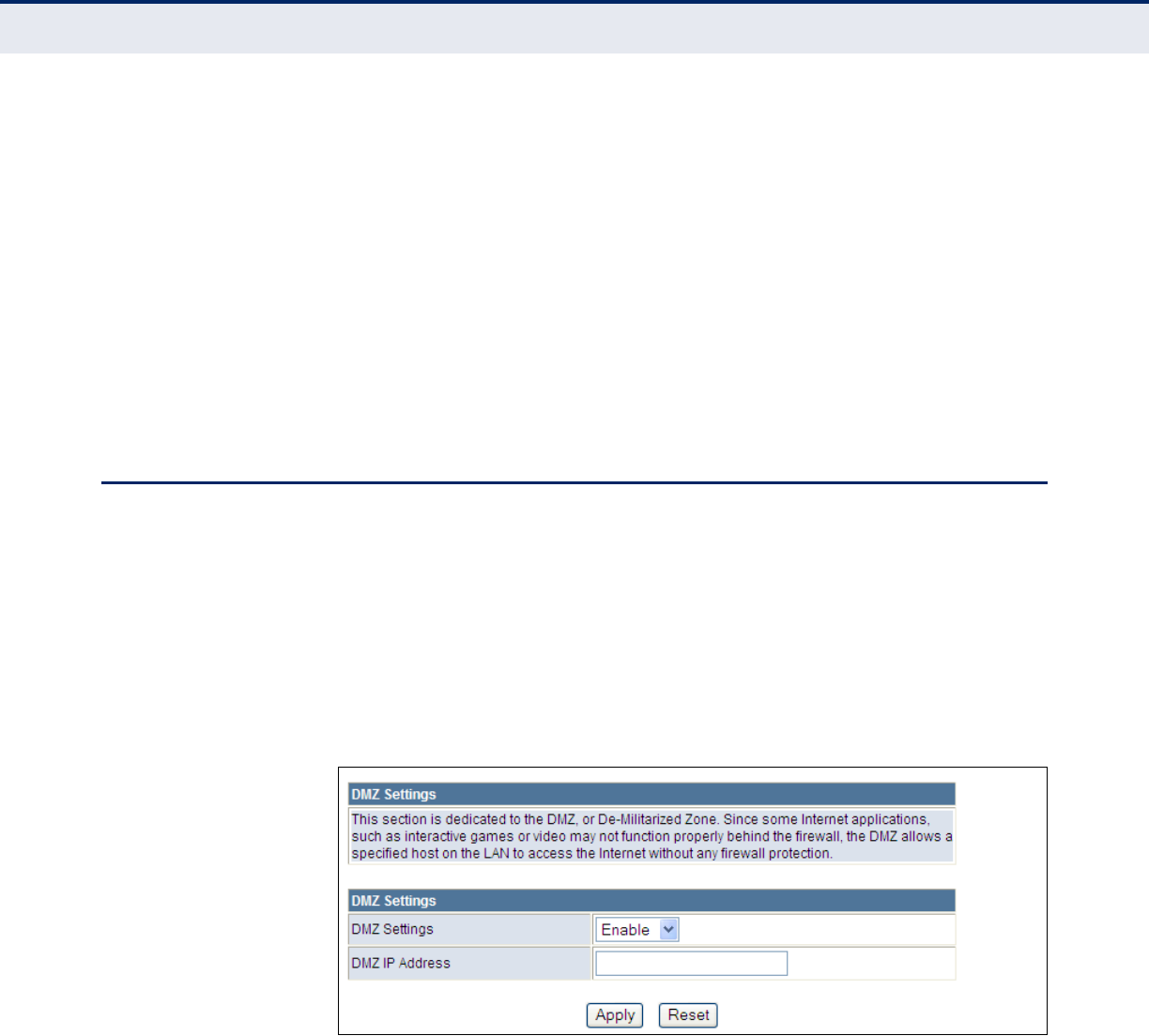

Figure 35: DMZ 79

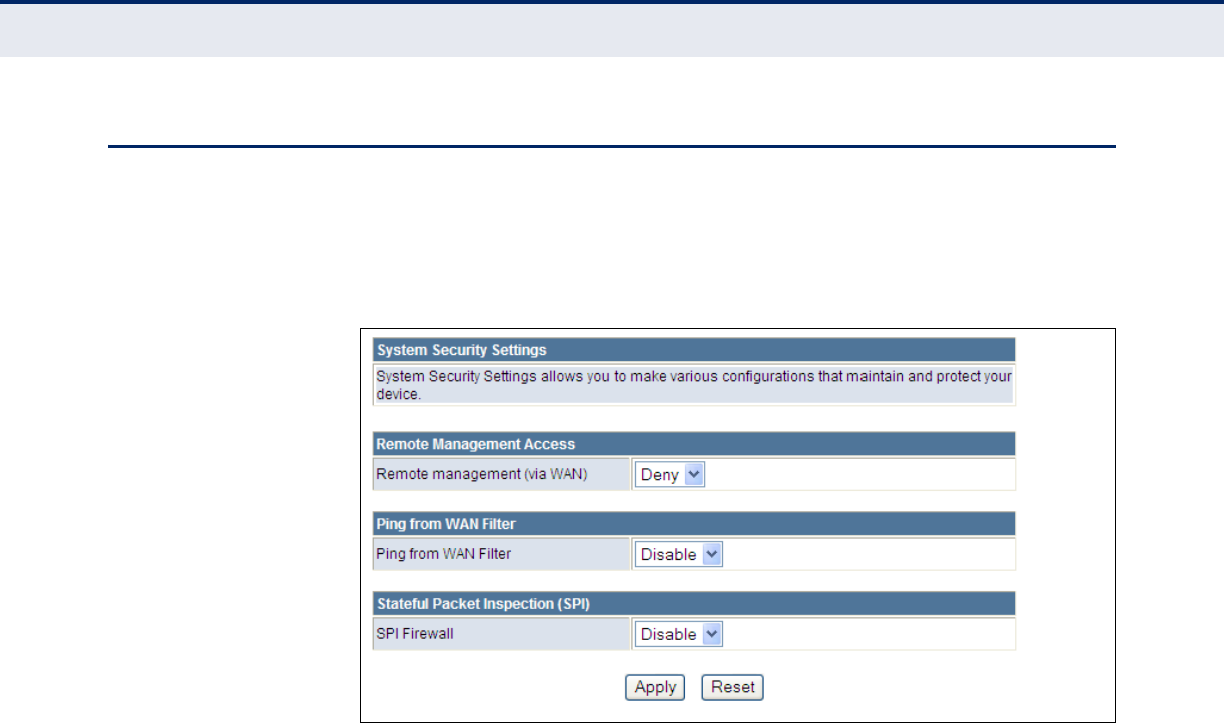

Figure 36: System Security 80

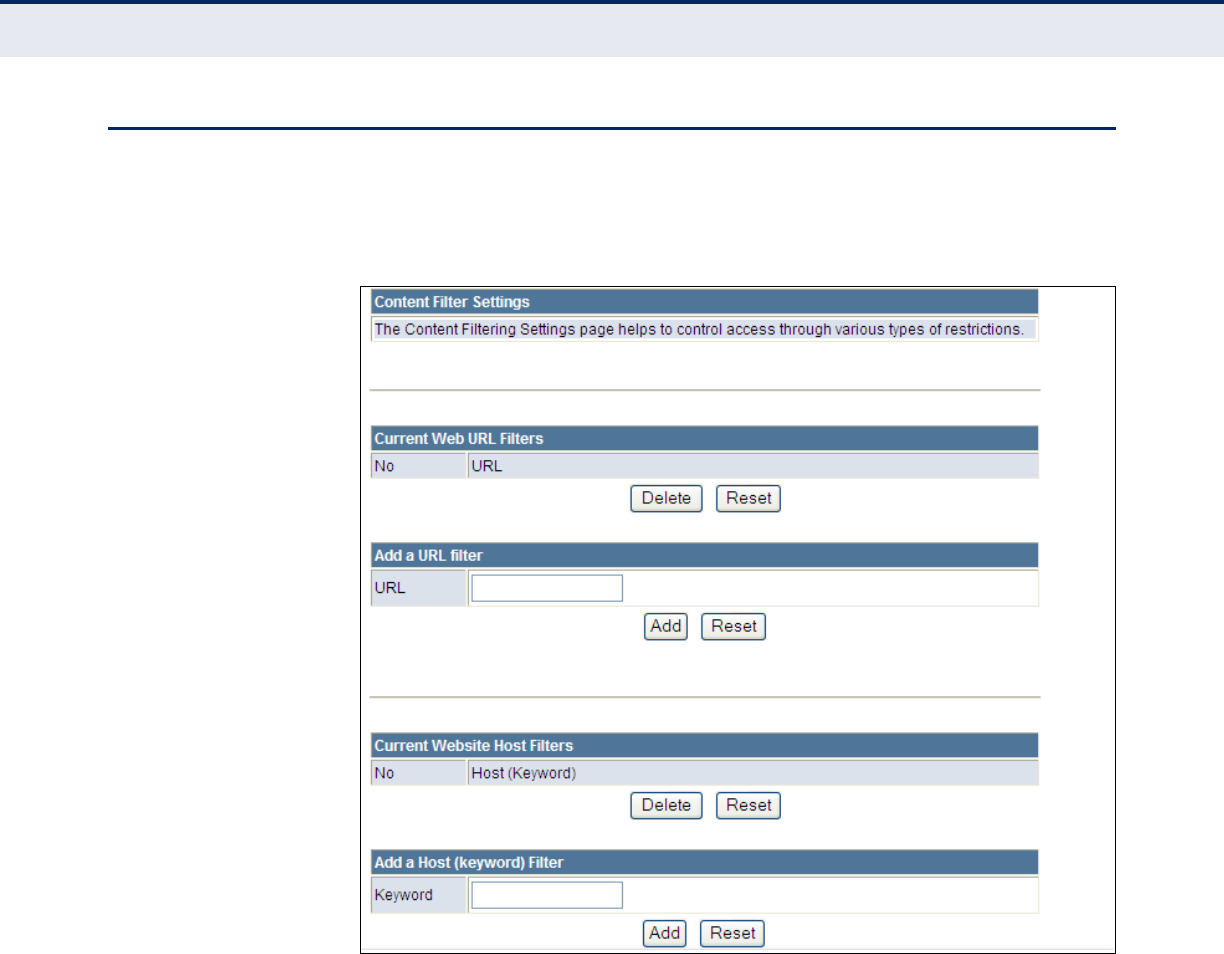

Figure 37: Content Filtering 81

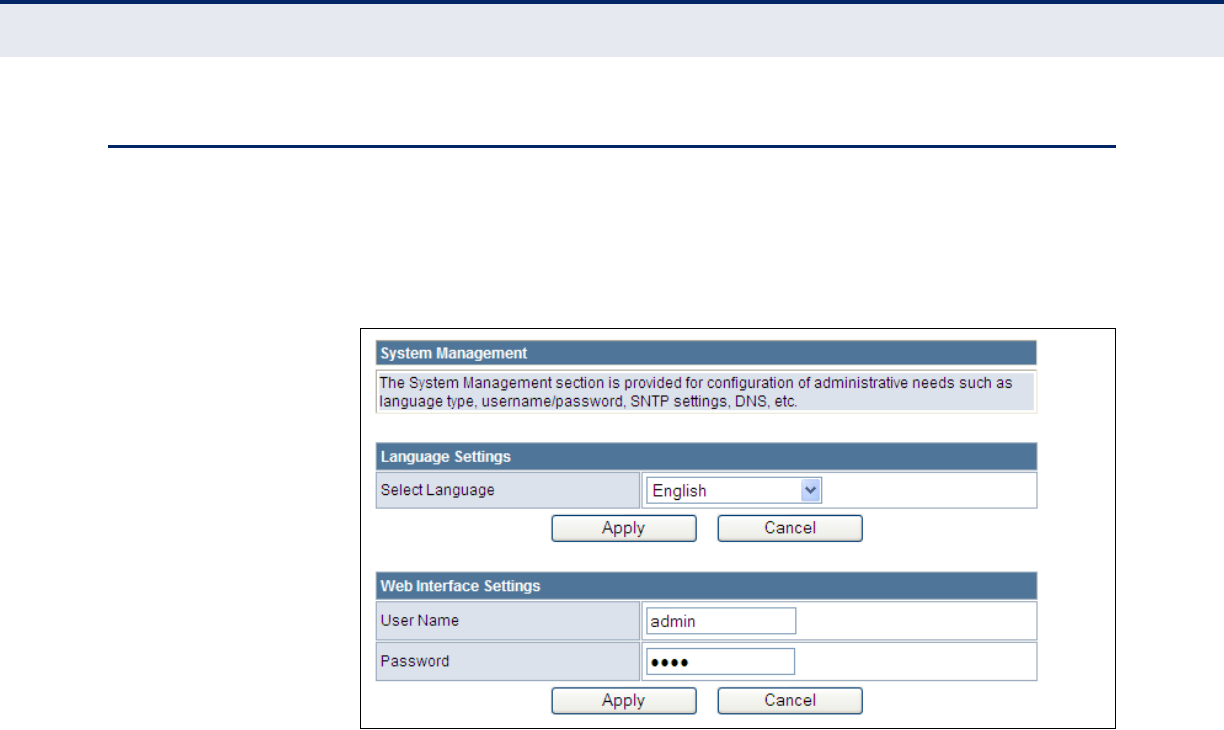

Figure 38: System Management 84

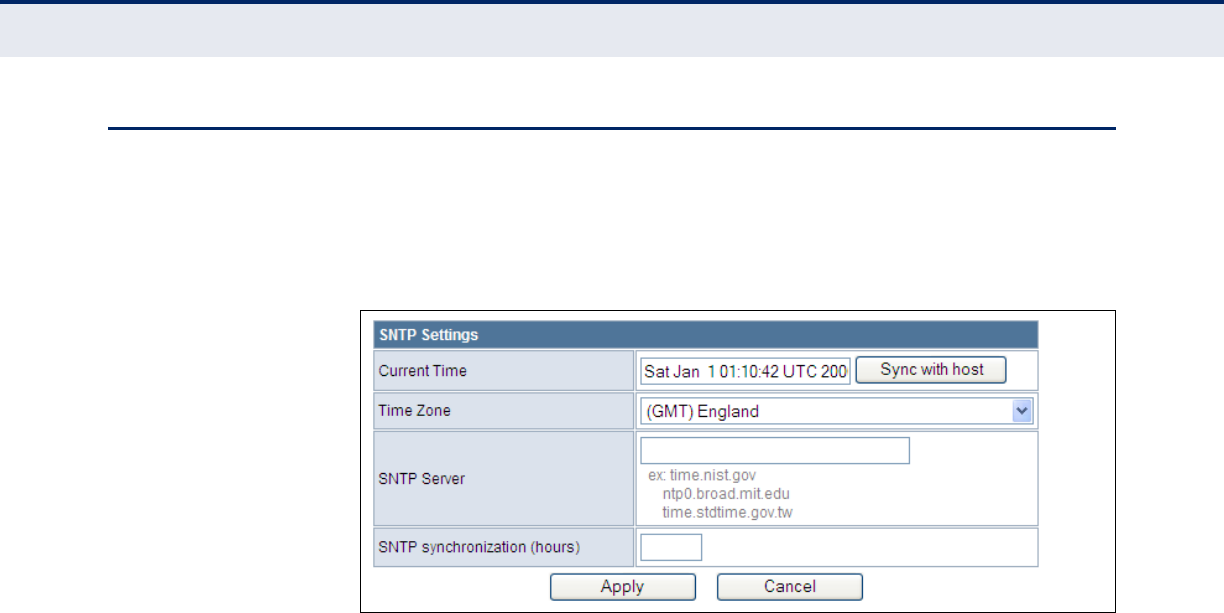

Figure 39: SNTP Settings 85

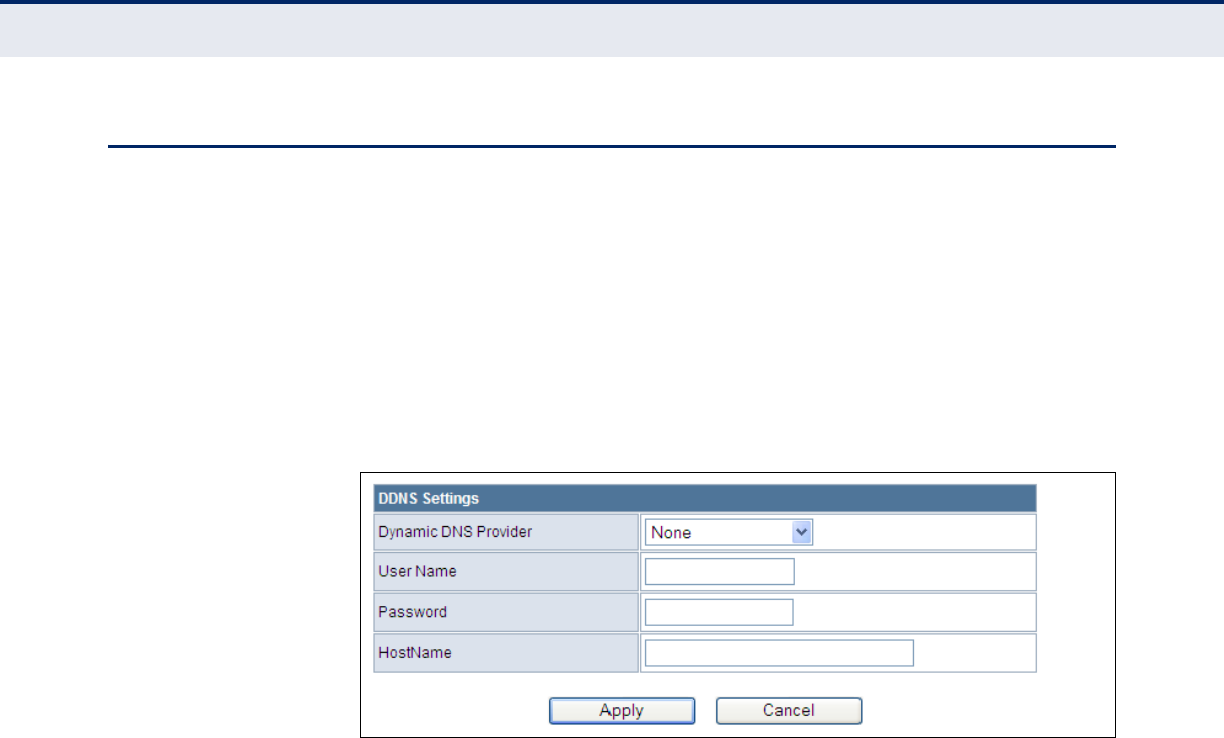

Figure 40: DDNS Settings (Gateway Mode) 86
Figure 41: Upgrade Firmware 87

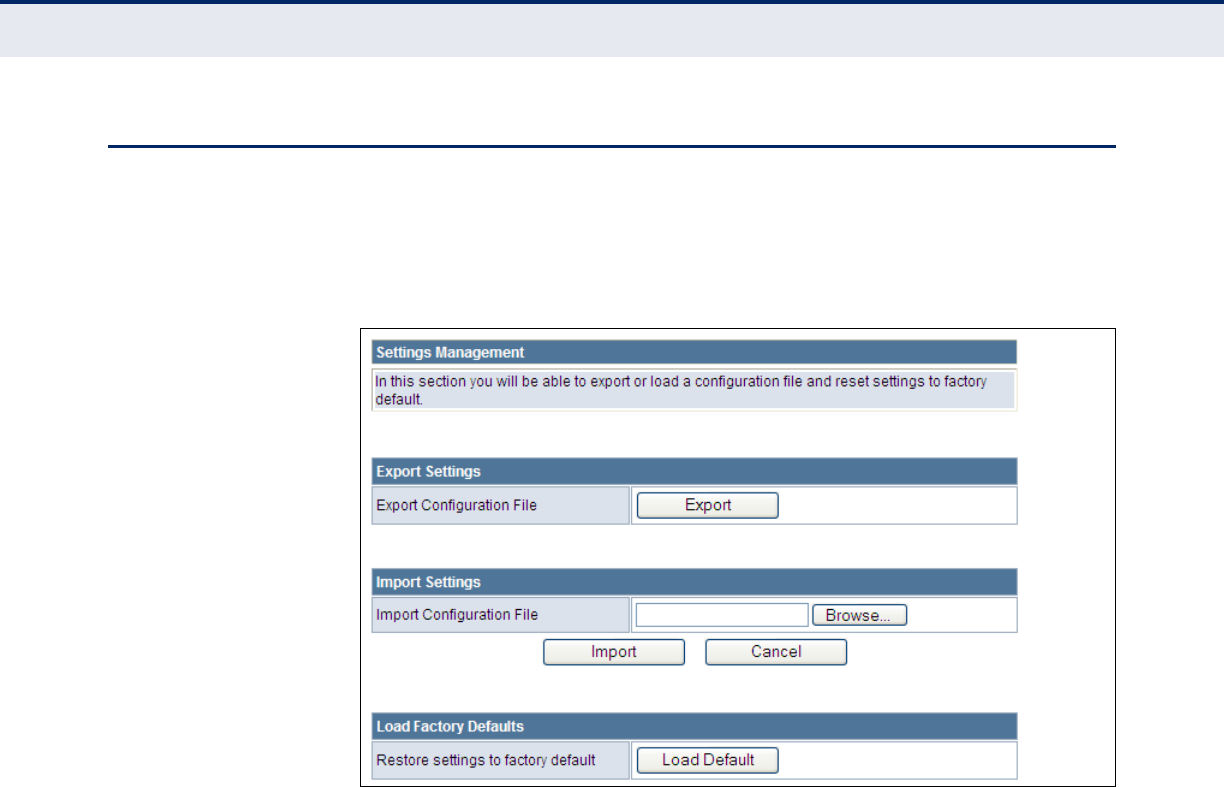

Figure 42: Configuration Settings 88
Figure 43: System Status (Gateway Mode) 89

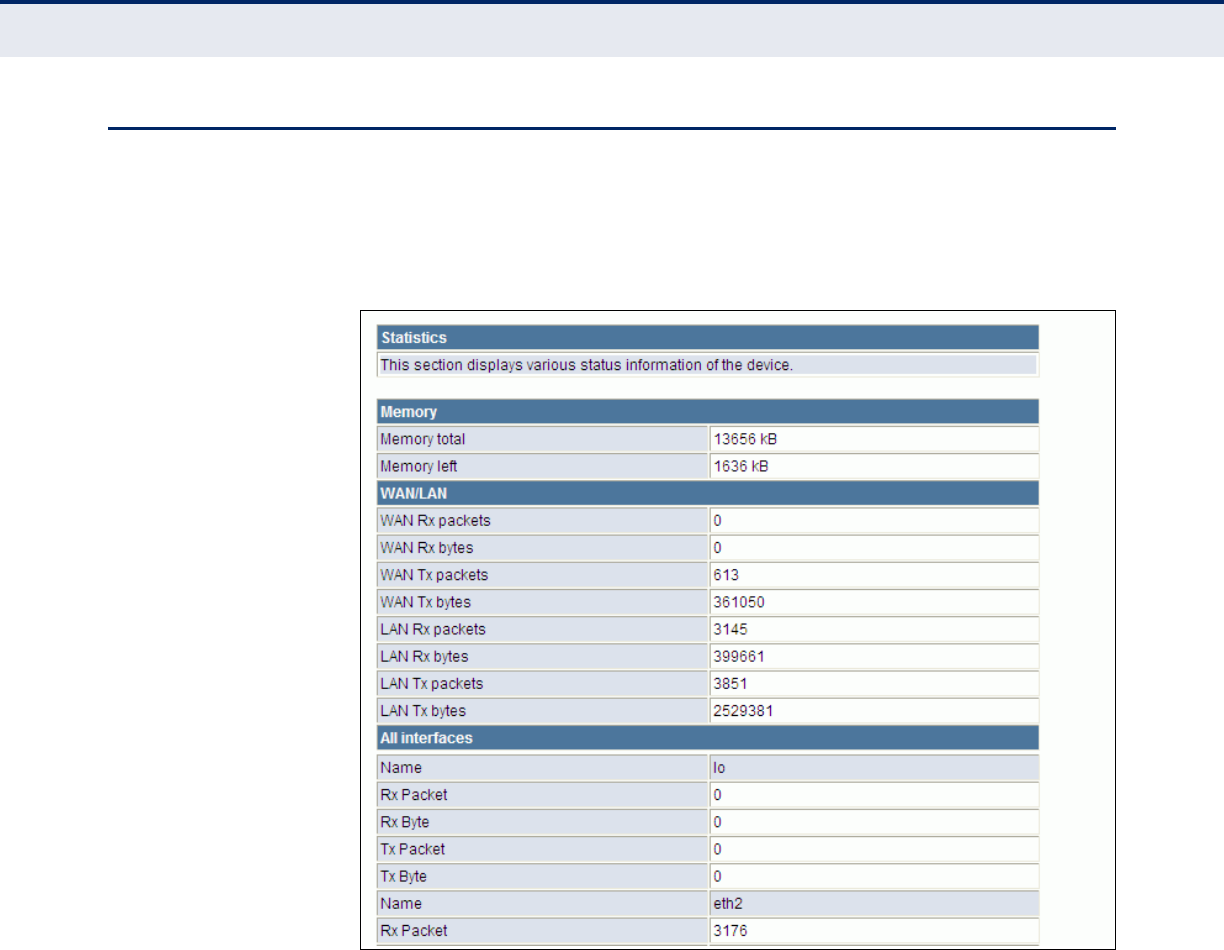

Figure 44: Statistics 91

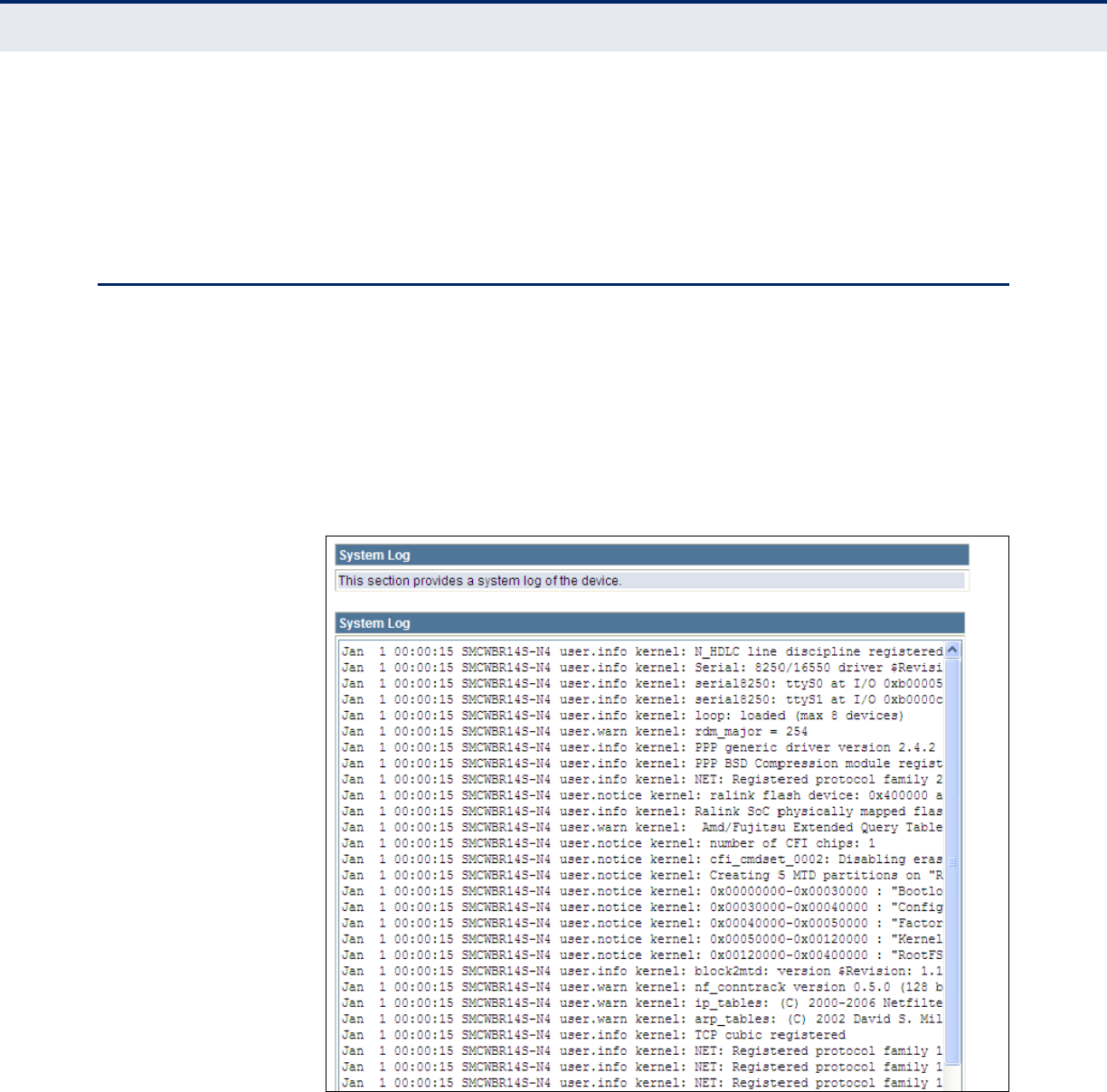

Figure 45: System Log 92

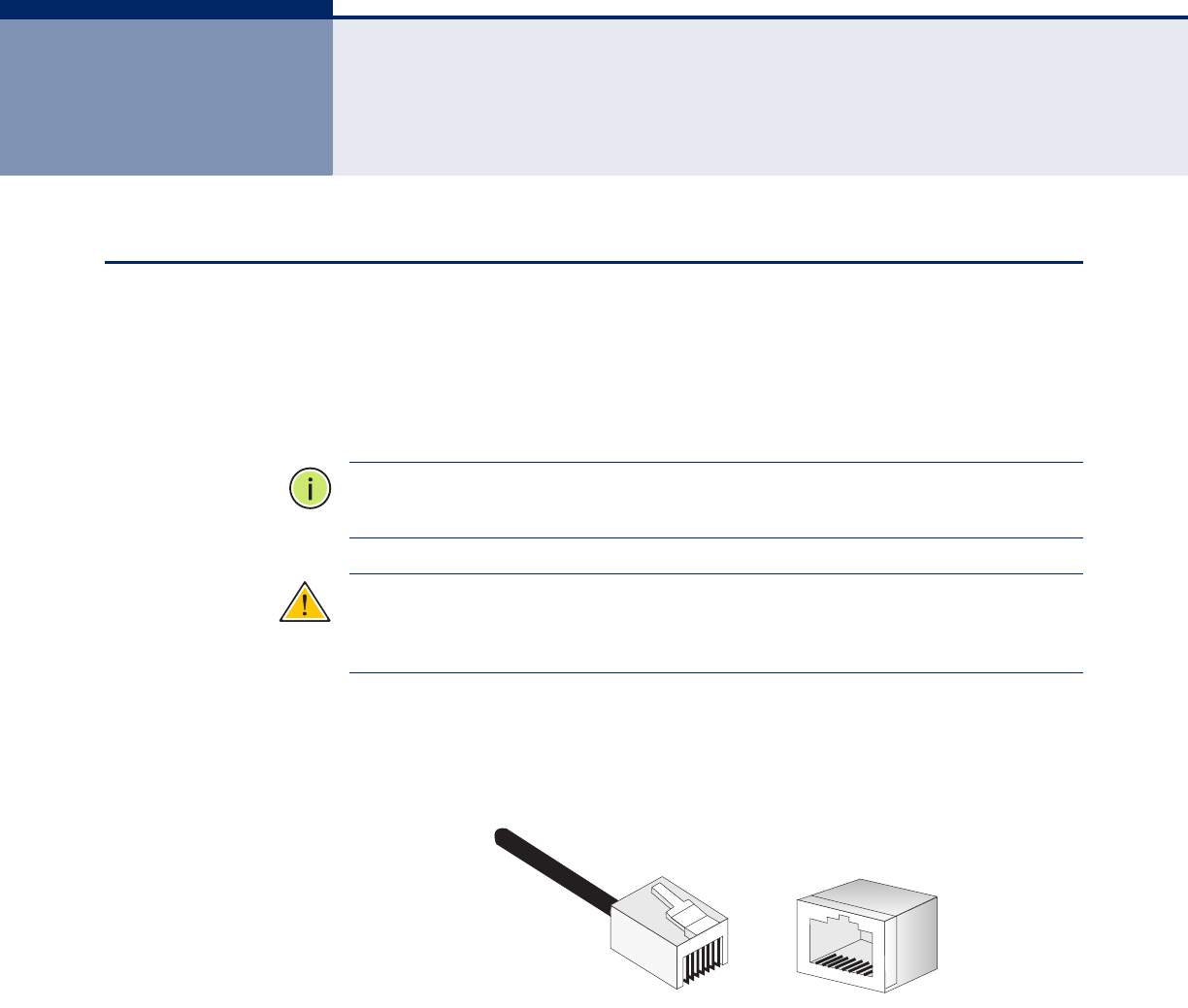

Figure 46: RJ-45 Connector 100

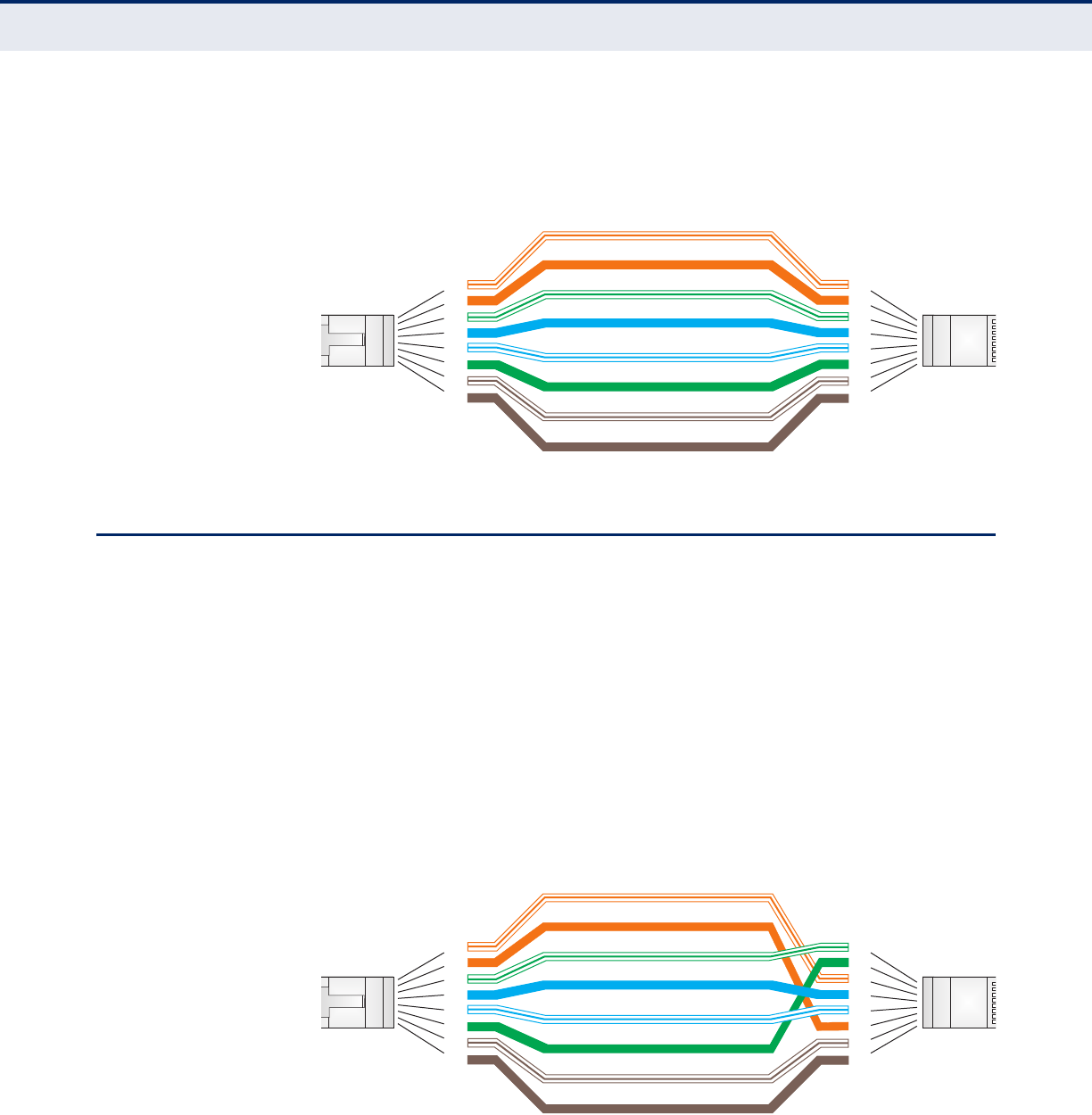

Figure 47: Straight-through Wiring 102
Figure 48: Crossover Wiring 102
![](/img.php?id=1160306&img=bg12.png)
F
IGURES
– 18 –
![](/img.php?id=1160306&img=bg14.png)
– 20 –
S
ECTION
I
GETTING STARTED
This section provides an overview of the Wireless Broadband Router, and
describes how to install and mount the unit. It also describes the basic
settings required to access the management interface and run the setup
Wizard.
This section includes these chapters:
◆“Introduction” on page 21
◆“Network Planning” on page 29
◆“Initial Configuration” on page 38
◆“Installing the Gateway Router” on page 33
![](/img.php?id=1160306&img=bg15.png)
– 21 –
1INTRODUCTION
The Barricade Wireless Broadband Router (SMCWBR14S-N4) supports
routing from an Internet Service Provider (ISP) connection (DSL or cable
modem) to a local network. It is simple to configure and can be up and
running in minutes.
KEY HARDWARE FEATURES
The following table describes the main hardware features of the Gateway
Router.
DESCRIPTION OF CAPABILITIES
◆Internet connection through an RJ-45 WAN port.
◆Local network connection through four 10/100 Mbps Ethernet ports.
◆DHCP for dynamic IP configuration.
◆Firewall with Stateful Packet Inspection, client privileges, intrusion
detection, and NAT.
◆NAT also enables multi-user Internet access via a single user account,
and virtual server functionality (providing protected access to Internet
services such as Web, FTP, e-mail, and Telnet).
◆VPN pass-through (PPTP).
◆User-definable application sensing tunnel supports applications
requiring multiple connections.
Table 1: Key Hardware Features
Feature Description
WAN Port One 100BASE-TX RJ-45 port for connecting to the Internet.
4 LAN Ports Four 100BASE-TX RJ-45 ports for local network connections.
WPS Button To set up a secure connection to a wireless device.
Reset Button For resetting the unit and restoring factory defaults.
LEDs Provides LED indicators for Power, WAN port, and LAN ports status.
Mounting Options Can be mounted on any horizontal surface such as a desktop or
shelf, or on a wall using two screws.
![](/img.php?id=1160306&img=bg16.png)
C
HAPTER
1
| Introduction
Description of Capabilities
– 22 –
◆Easy setup through a Web browser on any operating system that
supports TCP/IP.
◆Compatible with all popular Internet applications.
In addition, the Gateway Router offers full network management
capabilities through an easy-to-configure web interface.
APPLICATIONS Many advanced networking features are provided by the Barricade:
◆Wired LAN — The Barricade provides connectivity to wired
10/100 Mbps devices, making it easy to create a network in small
offices or homes.
◆Internet Access — This device supports Internet access through a
WAN connection. Since many DSL providers use PPPoE to establish
communications with end users, the Barricade includes built-in clients
for these protocols, eliminating the need to install these services on
your computer.
◆Shared IP Address — The Barricade provides Internet access for up
to 253 users via a single shared IP address. Using only one ISP
account, multiple users on your network can browse the Web at the
same time.
◆Virtual Server — If you have a fixed IP address, you can set the
Barricade to act as a virtual host for network address translation.
Remote users access various services at your site using a constant IP
address. Then, depending on the requested service (or port number),
the Barricade can route the request to the appropriate server (at
another internal IP address). This secures your network from direct
attack by hackers, and provides more flexible management by allowing
you to change internal IP addresses without affecting outside access to
your network.
◆DMZ Host Support — Allows a networked computer to be fully
exposed to the Internet. This function is used when NAT and firewall
security prevent an Internet application from functioning correctly.
◆Security — The Barricade supports security features that deny
Internet access to specified users, or filter all requests for specific
services the administrator does not want to serve. WPA (Wi-Fi
Protected Access) and MAC filtering provide security over the wireless
network.
◆Virtual Private Network (VPN) — The Barricade supports one of the
most commonly used VPN protocols – PPTP. This protocol allows remote
users to establish a secure connection to their corporate network. If
your service provider supports VPNs, then these protocols can be used
to create an authenticated and encrypted tunnel for passing secure
data over the Internet (i.e., a traditionally shared data network). The
VPN protocols supported by the Barricade are briefly described below.
![](/img.php?id=1160306&img=bg17.png)
C
HAPTER
1
| Introduction
Package Contents
– 23 –
◆Point-to-Point Tunneling Protocol — Provides a secure tunnel for
remote client access to a PPTP security gateway. PPTP includes
provisions for call origination and flow control required by ISPs.
PACKAGE CONTENTS
The Barricade Wireless Broadband Router package includes:
◆Barricade Wireless Broadband Router
◆RJ-45 Category 5 network cable
◆AC power adapter
◆Quick Installation Guide
◆EZ Installation & Documentation CD
Inform your dealer if there are any incorrect, missing or damaged parts. If
possible, retain the carton, including the original packing materials. Use
them again to repack the product in case there is a need to return it.
HARDWARE DESCRIPTION
The Barricade Wireless Broadband Router, from herein refered to as
Gateway Router, connects to the Internet using its RJ-45 WAN port. It
connects directly to your PC or to a local area network using its RJ-45 Fast
Ethernet LAN ports.
The Gateway Router includes an LED display on the front panel for system
power and port indications that simplifies installation and network
troubleshooting.
![](/img.php?id=1160306&img=bg18.png)
C
HAPTER
1
| Introduction
Hardware Description
– 24 –
Figure 1: Top Panel
LED Indicators
![](/img.php?id=1160306&img=bg19.png)
C
HAPTER
1
| Introduction
Hardware Description
– 25 –
Figure 2: Rear Panel
LED INDICATORS The Wireless Broadband Router includes seven status LED indicators, as
described in the following figure and table.
Figure 3: LEDs
RJ-45 WAN Port
RJ-45 LAN Ports
Reset Button
DC Power
Socket
WPS Button
LAN 1~4
WLAN
Power WAN
WPS
![](/img.php?id=1160306&img=bg1a.png)
C
HAPTER
1
| Introduction
Hardware Description
– 26 –
ETHERNET WAN PORT A 100BASE-TX RJ-45 port that can be attached to an Internet access
device, such as a DSL or Cable modem.
ETHERNET LAN
PORTS
The Wireless Broadband Router has four 100BASE-TX RJ-45 ports that can
be attached directly to 10BASE-T/100BASE-TX LAN segments.
These port support automatic MDI/MDI-X operation, so you can use
straight-through cables for all network connections to PCs, switches, or
hubs.
POWER CONNECTOR The Wireless Broadband Router must be powered with its supplied power
adapter. Failure to do so results in voiding of any warrantly supplied with
the product. The power adapter automatically adjusts to any voltage
between 100~240 volts at 50 or 60 Hz, and supplies 5 volts DC power to
the unit. No voltage range settings are required.
Table 2: LED Behavior
LED Status Description
Power On Blue The unit is receiving power and is operating
normally.
Off There is no power currently being supplied to
the unit.
WLAN On/Blinking Blue The 802.11n radio is enabled and
transmitting or receiving data through wireless
links.
Off The 802.11n radio is disabled.
WPS Blinking WPS authentication is in progress.
Off WPS authentication is not in progress.
WAN On Blue The Ethernet WAN port is aquiring an IP
address.
Blinking The Ethernet WAN port is connected and is
transmitting/receiving data.
Off The Ethernet WAN port is disconnected or has
malfunctioned.
LAN1~LAN4 On Blue The Ethernet LAN port is connected to a PC or
server.
Blinking The Ethernet port is connected and is
transmitting/receiving data.
Off The Ethernet port is disconnected or has
malfunctioned.
![](/img.php?id=1160306&img=bg1b.png)
C
HAPTER
1
| Introduction
Hardware Description
– 27 –
RESET BUTTON This button is used to restore the factory default configuration. If you hold
down the button for 5 seconds or more, any configuration changes you
may have made are removed, and the factory default configuration is
restored to the Gateway Router.
WPS BUTTON Press to automatically configure the Wireless Broadband Router with other
WPS devices in the WLAN.
![](/img.php?id=1160306&img=bg1c.png)
C
HAPTER
1
| Introduction
Hardware Description
– 28 –
![](/img.php?id=1160306&img=bg1d.png)
– 29 –
2NETWORK PLANNING
The Wireless Broadband Router is designed to be very flexible in its
deployment options. It can be used as an Internet gateway for a small
network, or as an access point to extend an existing wired network to
support wireless users. It also supports use as a wireless bridge to connect
up to four wired LANs.
This chapter explains some of the basic features of the Wireless Broadband
Router and shows some network topology examples in which the device is
implemented.
INTERNET GATEWAY ROUTER
The Wireless Broadband Router can connect directly to a cable or DSL
modem to provide an Internet connection for multiple users through a
single service provider account. Users connect to the Wireless Broadband
Router either through a wired connection to a LAN port, or though the
device’s own wireless network. The Wireless Broadband Router functions as
an Internet gateway when set to Gateway Mode.
An Internet gateway employs several functions that essentially create two
separate Internet Protocol (IP) subnetworks; a private internal network
with wired and wireless users, and a public external network that connects
to the Internet. Network traffic is forwarded, or routed, between the two
subnetworks.
![](/img.php?id=1160306&img=bg1e.png)
C
HAPTER
2
| Network Planning
LAN Access Point
– 30 –
Figure 4: Operating as an Internet Gateway Router
The private local network, connected to the LAN port or wireless interface,
provides a Dynamic Host Configuration Protocol (DHCP) server for
allocating IP addresses to local PCs and wireless clients, and Network
Address Translation (NAT) for mapping the multiple "internal" IP addresses
to one "external" IP address.
The public external network, connected to the WAN port, supports DHCP
client, Point-to-Point Protocol over Ethernet (PPPoE) and static IP for
connection to an Internet service provider (ISP) through a cable or DSL
modem.
LAN ACCESS POINT
The Wireless Broadband Router can provide an access point service for an
existing wired LAN, creating a wireless extension to the local network. The
Wireless Broadband Router functions as purely an access point when set to
Bridge Mode. When used in this mode, there are no gateway functions
between the WAN port and the LAN and wireless interface.
A Wi-Fi wireless network is defined by its Service Set Identifier (SSID) or
network name. Wireless clients that want to connect to a network must set
their SSID to the same SSID of the network service.
Wireless AP/Router
Server
(IP: 192.168.2.x)
Desktop PC
(IP: 192.168.2.x)
Cable/DSL
Modem
Internet
Service
Provider
Notebook PC
(IP: 192.168.2.x)
WAN (IP assigned from ISP)
LAN (IP: 192.168.2.x)
LAN Switch
![](/img.php?id=1160306&img=bg1f.png)
C
HAPTER
2
| Network Planning
Wireless Bridge
– 31 –
Figure 5: Operating as an Access Point
WIRELESS BRIDGE
The IEEE 802.11 standard defines a Wireless Distribution System (WDS)
for bridge connections between access points. The Wireless Broadband
Router can use WDS to forward traffic on links between units.
Up to four WDS links can be specified for the Wireless Broadband Router.
One end of a link must be configured as the “WDS Parent” and the other as
the “WDS Child.”
N
OTE
:
The network domain of WDS child has to be the same as WDS
parent.
Server
(IP: 192.168.2.x)
Desktop PC
(IP: 192.168.2.x)
LAN Switch
Notebook PC
(IP: 192.168.2.x) Wireless AP/Router
![](/img.php?id=1160306&img=bg20.png)
C
HAPTER
2
| Network Planning
Wireless Bridge
– 32 –
Figure 6: Operating as a Wireless Bridge
Wireless AP/Router
(Gateway Mode)
Server
(IP: 192.168.2.x)
Desktop PC
(IP: 192.168.2.x)
Cable/DSL
Modem
Internet
Service
Provider
WAN
(IP from ISP)
LAN
(IP: 192.168.2.x)
LAN Switch
Desktop PC
(IP: 192.168.2.x)
WDS Child
WDS Parent
WDS Link
Wireless AP/Router
(Bridge Mode)
![](/img.php?id=1160306&img=bg21.png)
– 33 –
3INSTALLING THE GATEWAY ROUTER
The Wireless Broadband Router has two basic operating modes that can be
set through the web-based management interface. For information on
setting the mode suitable for your network environment. See “Operation
Mode” on page 52.
◆Gateway Mode — A gateway mode that connects a wired LAN and
wireless clients to an Internet access device, such as a cable or DSL
modem. This is the factory set default mode.
◆Bridge Mode — An access point mode that extends a wired LAN to
wirelessclients.
In addition to these basic operating modes, the wireless interface supports
a Wireless Distribution System (WDS) link to another Wireless Broadband
Router. These advanced configurations are not described in this section.
See “Network Planning” on page 29 for more information.
In a basic configuration, how the Wireless Broadband Router is connected
depends on the operating mode. The sections in this chapter describe
connections for basic Gateway Mode and Bridge Mode operation.
SYSTEM REQUIREMENTS
You must meet the following minimum requirements:
◆An Internet access device (DSL or Cable modem) with an Ethernet port
connection.
◆An up-to-date web browser: Internet Explorer 6.0 or above or Mozilla
Firefox 2.0 or above.
LOCATION SELECTION
The Wireless Broadband Router can be mounted on any horizontal surface,
or on a wall. The following sections describe the mounting options.
![](/img.php?id=1160306&img=bg22.png)
C
HAPTER
3
| Installing the Gateway Router
Mounting on a Wall
– 34 –
MOUNTING ON A WALL
The Wireless Broadband Router should be mounted only to a wall or wood
surface that is at least 1/2-inch plywood or its equivalent. To mount the
unit on a wall, always use its wall-mounting bracket. The unit must be
mounted with the RJ-45 cable connector oriented upwards to ensure
proper operation.
Figure 7: Wall Mounting
To mount on a wall, follow the instructions below.
1. Mark the position of the two screw holes on the wall. For concrete or
brick walls, you will need to drill holes and insert wall plugs for the
screws.
2. Insert the included screws into the holes, leaving about 0.08~0.12
inches (2-3 mm) clearance from the wall.
3. Line up the two mounting points on the unit with the screws in the wall,
then slide the unit down onto the screws until it is in a secured position.
Mounting Slots
![](/img.php?id=1160306&img=bg23.png)
C
HAPTER
3
| Installing the Gateway Router
Mounting on a Horizontal Surface
– 35 –
MOUNTING ON A HORIZONTAL SURFACE
To keep the Wireless Broadband Router from sliding on the surface, the
Wireless Broadband Router has four rubber feet on the bottom of the unit.
It is recommended to select an uncluttered area on a sturdy surface, such
as a desktop or table. The unit can also be protected by securing all
attached cables to a table leg or other nearby fixed structure.
GATEWAY MODE CONNECTIONS
In its default Gateway Mode, the Wireless Broadband Router forwards
traffic between an Internet connected cable or ADSL modem, and wired or
wireless PCs or notebooks. The basic connections are illustrated in the
figure below.
Figure 8: Gateway Mode Connection
To connect the Wireless Broadband Router in Gateway Mode for use as an
Internet gateway, follow these steps:
1. Connect an Ethernet cable from the Wireless Broadband Router’s WAN
port to your Internet connected cable or ADSL modem.
2. Connect an Ethernet cable from the Wireless Broadband Router’s LAN
ports to your PCs. Alternatively, you can connect to a workgroup switch
to support more wired users. The Wireless Broadband Router can
support up to 253 wired and wireless users.
3. Power on the Wireless Broadband Router by connecting the AC power
adapter and plugging it into a power source.
4.Set up wireless
devices
Notebook PC
3.Connect AC power
adapter to
power source
2.Connect LAN port
to PC
Cable/DSL Modem
1.Connect WAN port to
cable/DSL modem
Internet
![](/img.php?id=1160306&img=bg24.png)
C
HAPTER
3
| Installing the Gateway Router
Bridge Mode Connections
– 36 –
C
AUTION
:
Use ONLY the power adapter supplied with the Wireless
Broadband Router. Otherwise, the product may be damaged.
When you power on the Wireless Broadband Router, verify that the
Power LED turns on and that the other LED indicators start functioning
as described under see “LED Indicators” on page 25.
4. Set up wireless devices by pressing the WPS button on the Wireless
Broadband Router or by using the web interface. See “Initial
Configuration” on page 38 for more information on accessing the web
interface.
BRIDGE MODE CONNECTIONS
In Bridge Mode, the Wireless Broadband Router operates as a wireless
access point, extending a local wired network to associated wireless clients
(PCs or notebooks with wireless capability). From any nearby location, you
can then make a wireless connection to the Wireless Broadband Router and
access the wired network resources, including local servers and the
Internet.
In Bridge Mode, the Wireless Broadband Router does not support gateway
functions on its WAN port. Both the LAN port and the WAN ports can be
connected to a local Ethernet LAN.
N
OTE
:
Bridge Mode is not the factory default mode and must be manually
set using the web management interface.

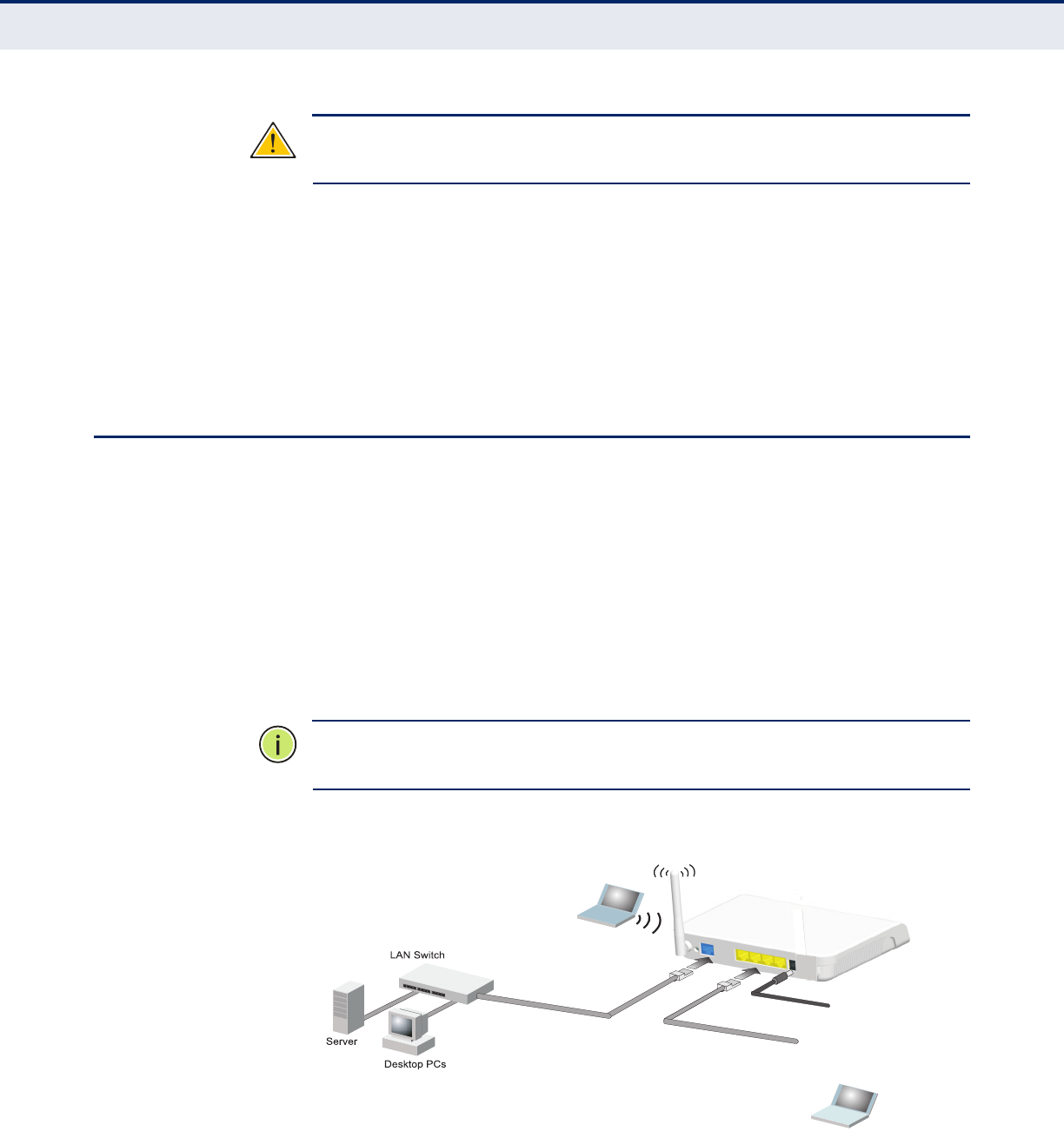

Figure 9: Bridge Mode Connection
To connect the Wireless Broadband Router for use as an access point,
follow these steps:
4.
Set up wireless
devices
Notebook PC
2.
Connect AC power
adapter to
power source
3.
Connect LAN port
to PC
1.
Connect LAN and WAN
ports to an Ethernet LAN
switch or PCs
![](/img.php?id=1160306&img=bg25.png)
C
HAPTER
3
| Installing the Gateway Router
Bridge Mode Connections
– 37 –
1. Using Ethernet cable connect the Wireless Broadband Router’s LAN and
WAN ports to PCs or a LAN switch.
2. Power on the Wireless Broadband Router by connecting the AC power
adapter and plugging it into a power source.
C
AUTION
:
Use ONLY the power adapter supplied with the Wireless
Broadband Router. Otherwise, the product may be damaged.
When you power on the Wireless Broadband Router, verify that the Power
LED turns on and that the other LED indicators start functioning as
described under “LED Indicators” on page 25.
3. Connect an Ethernet cable from the Wireless Broadband Router’s LAN
ports to your PCs. Alternatively, you can connect to a workgroup switch
to support more wired users. The Wireless Broadband Router can
support up to 253 wired and wireless users
4. Set up wireless devices by pressing the WPS button on the Wireless
Broadband Router or by using the web interface. See “Initial
Configuration” on page 38 for more information on accessing the web
interface.
![](/img.php?id=1160306&img=bg26.png)
– 38 –
4INITIAL CONFIGURATION
The Wireless Broadband Router offers a user-friendly web-based
management interface for the configuration of all the unit’s features. Any
PC directly attached to the unit can access the management interface using
a web browser, such as Internet Explorer (version 6.0 or above).
ISP SETTINGS
If you are not sure of your connection method, please contact your
Internet Service Provider. There are several connection types to choose
from: Static IP, DHCP (cable connection), PPPoE (DSL connection), and
PPTP.
N
OTE
:
If using the PPPoE option, you will need to remove or disable any
PPPoE client software on your computers.
CONNECTING TO THE LOGIN PAGE
It is recommended to make initial configuration changes by connecting a
PC directly to one of the Wireless Broadband Router’s LAN ports. The
Wireless Broadband Router has a default IP address of 192.168.2.1 and a
subnet mask of 255.255.255.0. You must set your PC IP address to be on
the same subnet as the Gateway Router (that is, the PC and Gateway
Router addresses must both start 192.168.2.x).
To access the Wireless Broadband Router’s management interface, follow
these steps:
1. Use your web browser to connect to the management interface using
the default IP address of 192.168.2.1.
2. Log into the interface by entering the default username “admin” and
password “smcadmin,” then click Login.
N
OTE
:
It is strongly recommended to change the default user name and
password the first time you access the web interface. For information on
changing user names and passwords, See “System Management” on
page 84.
![](/img.php?id=1160306&img=bg27.png)
C
HAPTER
4
| Initial Configuration
Home Page and Main Menu
– 39 –
Figure 10: Login Page
HOME PAGE AND MAIN MENU
After logging in to the web interface, the Home page displays. The Home
page shows the main menu and the method to access the Setup Wizard.
Figure 11: Home Page
![](/img.php?id=1160306&img=bg28.png)
C
HAPTER
4
| Initial Configuration
Common Web Page Buttons
– 40 –
COMMON WEB PAGE BUTTONS
The list below describes the common buttons found on most web
management pages:
◆Apply – Applies the new parameters and saves them to memory. Also
displays a screen to inform you when it has taken affect. Clicking
‘Apply’ returns to the home page.
◆Cancel – Cancels the newly entered settings and restores the previous
settings.
◆Next – Proceeds to the next step.
◆Back – Returns to the previous screen.
SETUP WIZARD
The Wizard is designed to help you configure the basic settings required to
get the the Wireless Broadband Router up and running. There are only a
few basic steps you need to set up the the Wireless Broadband Router and
provide a connection.
Follow these steps:
STEP 1 - LANGUAGE
SELECTION
Select between English or Traditional Chinese. Click Next to proceed to the
next step of the wizard.
Figure 12: Wizard Step 1 - Language Selection
The following items are displayed on the first page of the Setup Wizard:
◆Select Language — Toggles between English or Traditional Chinese as
the interface language.
◆Next — Proceeds to the next step.
![](/img.php?id=1160306&img=bg29.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 41 –
STEP 2 - SNTP
SETTINGS
The Step 2 page of the Wizard configures time zone and SNTP settings.
Select a time zone according to where the device is operated. Click Next
after completing the setup.
Figure 13: Wizard Step 2 - Time and SNTP Settings
The following items are displayed on this page:
◆Current Time — Receives a time and date stamp from an SNTP server.
◆Time Zone — Select the time zone that is applicable to your region.
◆SNTP Server — Enter the address of an SNTP server to receive time
updates.
◆SNTP synchronization (hours) — Specify the interval between SNTP
server updates.
![](/img.php?id=1160306&img=bg2a.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 42 –
STEP 3 - WAN
SETTINGS - DHCP
The Step 3 page of the Wizard specifies the Internet connection
parameters for the Wireless Broadband Router’s WAN port. Click Next after
completing the setup.
By default, the access point WAN port is configured with DHCP enabled.
The options are Static IP, DHCP, PPPoE (ADSL), and PPTP. Each option
changes the parameters that are displayed on the page. (Default: DHCP)
Figure 14: Wizard Step 3 - WAN Settings - DHCP
The following items are displayed on this page:
◆WAN Connection Type — Select the connection type for the WAN port
from the drop down list. (Default: DHCP)
◆DHCP Mode — Specifies the hostname of the DHCP client.
(Default: SMCWBR14S-N4)
◆MAC Clone — Some ISPs limit Internet connections to a specified MAC
address of one PC, which is registered with the ISP. This setting allows
you to manually change the MAC address of the Wireless Broadband
Router's WAN interface to match the PC's MAC address provided to your
ISP for registration. You can enter the registered MAC address manually
by typing it in the boxes provided. Otherwise, connect only the PC with
the registered MAC address to the Wireless Broadband Router, then
click the “Clone your PC’s MAC Address”. (Default: Disabled)
N
OTE
:
If you are unsure of the PC MAC address originally registered by
your ISP, call your ISP and request to register a new MAC address for your
account. Register the default MAC address of the Wireless Broadband
Router.
![](/img.php?id=1160306&img=bg2b.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 43 –
STEP 3 - WAN
SETTINGS - STATIC IP
Configures a static IP for the WAN port.
Figure 15: Wizard Step 3 - WAN Settings - Static IP
The following items are displayed on this page:
◆WAN Connection Type — Select the connection type for the WAN port
from the drop down list. (Default: DHCP)
◆IP Address — The IP address of the Wireless Broadband Router. Valid
IP addresses consist of four decimal numbers, 0 to 255, separated by
periods.
◆Subnet Mask — The mask that identifies the host address bits used for
routing to specific subnets.
◆Default Gateway — The IP address of the gateway router for the
Wireless Broadband Router, which is used if the requested destination
address is not on the local subnet.
◆Primary DNS Server — The IP address of the Primary Domain Name
Server. A DNS maps numerical IP addresses to domain names and can
be used to identify network hosts by familiar names instead of the IP
addresses. To specify a DNS server, type the IP addresses in the text
field provided. Otherwise, leave the text field blank.
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
◆MAC Clone — Some ISPs limit Internet connections to a specified MAC
address. This setting allows you to manually change the MAC address
of the Wireless Broadband Router's WAN interface to match the PC's
MAC address provided to your ISP for registration. You can enter the
registered MAC address manually by typing it in the boxes provided.
Otherwise, connect only the PC with the registered MAC address to the
Wireless Broadband Router, then click the “Clone your PC’s MAC
Address” (Default: Disable)
![](/img.php?id=1160306&img=bg2c.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 44 –
STEP 3 - WAN
SETTINGS - PPPOE
Enable the Wireless Broadband Router IP address to be assigned
automatically from an Internet service provider (ISP) through an ADSL
modem using Point-to-Point Protocol over Ethernet (PPPoE).
Figure 16: Wizard Step 3 - WAN Settings - PPPoE
The following items are displayed on this page:
◆User Name — Sets the PPPoE user name for the WAN port.
(Default: pppoe_user; Range: 1~32 characters)
◆Password — Sets a PPPoE password for the WAN port.
(Default: pppoe_password; Range: 1~32 characters)
◆Verify Password — Prompts you to re-enter your chosen password.
◆Operation Mode — Enables and configures the keep alive time and
configures the on-demand idle time.
◆MAC Clone — Some ISPs limit Internet connections to a specified MAC
address of one PC. This setting allows you to manually change the MAC
address of the Wireless Broadband Router's WAN interface to match the
PC's MAC address provided to your ISP for registration. You can enter
the registered MAC address manually by typing it in the boxes
provided. Otherwise, connect only the PC with the registered MAC
address to the Wireless Broadband Router, then click the “Clone your
PC’s MAC Address” (Default: Disable)
![](/img.php?id=1160306&img=bg2d.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 45 –
STEP 3 - WAN
SETTINGS - PPTP
Enables the Point-to-Point Tunneling Protocol (PPTP) for implementing
virtual private networks. The service is provided in many European
countries.
Figure 17: Wizard Step 3 - WAN Settings - PPTP
The following items are displayed on this page:
◆Server IP — Sets the PPTP server IP Address. (Default: pptp_server)
◆User Name — Sets the PPTP user name for the WAN port.
(Default: pptp_user; Range: 1~32 characters)
◆Password — Sets a PPTP password for the WAN port. (Default:
pptp_password; Range: 1~32 characters)
◆Verify Password — Prompts you to re-enter your chosen password.
◆Address Mode — Sets a PPTP network mode. (Default: Static)
◆IP Address — Sets the static IP address. (Default: 0.0.0.0, available
when PPTP Network Mode is set to static IP.)
◆Subnet Mask — Sets the static IP subnet mask. (Default:
255.255.255.0, available when PPTP Network Mode is set to static IP.)
◆Default Gateway — The IP address of a router that is used when the
requested destination IP address is not on the local subnet.
◆Operation Mode — Enables and configures the keep alive time.
◆MAC Clone — Some ISPs limit Internet connections to a specified MAC
address of one PC. This setting allows you to manually change the MAC
![](/img.php?id=1160306&img=bg2e.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 46 –
address of the Wireless Broadband Router's WAN interface to match the
PC's MAC address provided to your ISP for registration. You can enter
the registered MAC address manually by typing it in the boxes
provided. Otherwise, connect only the PC with the registered MAC
address to the Wireless Broadband Router, then click the “Clone your
PC’s MAC Address” (Default: Disable)
STEP 4 - WIRELESS
SECURITY
The Step 4 page of the Wizard configures the wireless security.
Figure 18: Wizard Step 4 - Wireless Security
The following items are displayed on this page:
◆SSID Choice — Selects the SSID (network name) interface to
configure. The Gateway Router supports three SSID interfaces.
◆Security Mode — Specifies the security mode for the SSID.
◆Policy — Enables an allow or deny rule for a specified MAC address.
◆Add a station MAC — Specify a MAC address to be filtered in the
format: xx:xx:xx:xx:xx:xx.
COMPLETION After completion of the Wizard, the screen returns to the Home Page.
![](/img.php?id=1160306&img=bg2f.png)
– 47 –
S
ECTION
II
WEB CONFIGURATION
This section provides details on configuring the Wireless Broadband Router
using the web browser interface.
This section includes these chapters:
◆“Operation Mode” on page 49
◆“Internet Settings” on page 53
◆“Wireless Configuration” on page 65
◆“Firewall Configuration” on page 75
◆“Administration Settings” on page 83
![](/img.php?id=1160306&img=bg30.png)
S
ECTION
| Web Configuration
– 48 –
![](/img.php?id=1160306&img=bg31.png)
– 49 –
5OPERATION MODE
The Wireless Broadband Router offers a user-friendly web-based
management interface for the configuration of all the unit’s features. Any
PC directly attached to the unit can access the management interface using
a web browser, such as Internet Explorer (version 6.0 or above).
The following sections are contained in this chapter:
◆“Logging In” on page 50
◆“Operation Mode” on page 52
![](/img.php?id=1160306&img=bg32.png)
C
HAPTER
5
| Operation Mode
Logging In
– 50 –
LOGGING IN
It is recommended to make initial configuration changes by connecting a
PC directly to one of the Wireless Broadband Router's LAN ports. The
Wireless Broadband Router has a default IP address of 192.168.2.1 and a
subnet mask of 255.255.255.0. If your PC is set to “Obtain an IP address
automatically” (that is, set as a DHCP client), you can connect immediately
to the web interface. Otherwise, you must set your PC IP address to be on
the same subnet as the Wireless Broadband Router (that is, the PC and
Wireless Broadband Router addresses must both start 192.168.2.x).
To access the configuration menu, follow these steps:
1. Use your web browser to connect to the management interface using
the default IP address of 192.168.2.1.
2. Log into the Wireless Broadband Router management interface by
entering the default user name “admin” and password “smcadmin,”
then click Login.
N
OTE
:
It is strongly recommended to change the default user name and
password the first time you access the web interface. For information on
changing user names and passwords, see “Administration Settings” on
page 83.
Figure 19: Logging On
![](/img.php?id=1160306&img=bg33.png)
C
HAPTER
5
| Operation Mode
Logging In
– 51 –
The home page displays the main menu items at the top of the screen and
the Setup Wizard. See “Setup Wizard” on page 40.
Figure 20: Home Page
N
OTE
:
The displayed pages and settings may differ depending on whether
the unit is in Gateway or Bridge Mode. See “Operation Mode” on page 52.
![](/img.php?id=1160306&img=bg34.png)
C
HAPTER
5
| Operation Mode
Operation Mode
– 52 –
OPERATION MODE
The Operation Mode Configuration page allows you to set up the mode
suitable for your network environment.
Figure 21: Operation Mode (Gateway)
◆Bridge Mode — An access point mode that extends a wired LAN to
wireless clients.
◆Gateway Mode — Normal gateway mode that connects a wired LAN
and wireless clients to an Internet access device, such as a cable or
DSL modem. This is the factory set default mode.
![](/img.php?id=1160306&img=bg35.png)
– 53 –
6INTERNET SETTINGS
The Internet Settings pages allow you to manage basic system
configuration settings. It includes the following sections:
◆“WAN Setting” on page 53
■“DHCP” on page 53
■“Static IP” on page 55
■“PPPoE” on page 56
■“PPTP” on page 57
◆“LAN Setting” on page 59
◆“Advanced Routing” on page 61
N
OTE
:
In Bridge mode, the Wireless Broadband Router’s Internet Settings
options are significantly reduced, with only LAN Settings and the Client List
being available to the user.
WAN SETTING
The WAN Setting page specifies the Internet connection parameters. Click
on “Internet Settings” followed by “WAN”.
◆WAN Connection Type — By default, the access point WAN port is
configured with DHCP enabled. After you have network access to the
access point, you can use the web browser interface to modify the
initial IP configuration, if needed. The options are Static IP, DHCP,
PPPoE (ADSL), and PPTP. Each option changes the parameters
displayed below it. (Default: DHCP).
DHCP Enables Dynamic Host Configuration Protocol (DHCP) for the WAN port.
This setting allows the Wireless Broadband Router to automatically obtain
an IP address from a DHCP server normally operated by the Internet
Service Provider (ISP).
![](/img.php?id=1160306&img=bg36.png)
C
HAPTER
6
| Internet Settings
WAN Setting
– 54 –
Figure 22: DHCP Configuration
The following items are displayed on this page:
◆Hostname (Optional) — The hostname of the DHCP client.
◆MAC Clone — Some ISPs limit Internet connections to a specified MAC
address of one PC. This setting allows you to manually change the MAC
address of the Wireless Broadband Router's WAN interface to match the
PC's MAC address provided to your ISP for registration. You can enter
the registered MAC address manually by typing it in the boxes
provided. Otherwise, connect only the PC with the registered MAC
address to the Wireless Broadband Router, then click the “Clone your
PC’s MAC Address” (Default: Disable)
N
OTE
:
If you are unsure of the PC MAC address originally registered by
your ISP, call your ISP and request to register a new MAC address for your
account. Register the default MAC address of the Wireless Broadband
Router.
![](/img.php?id=1160306&img=bg37.png)
C
HAPTER
6
| Internet Settings
WAN Setting
– 55 –
STATIC IP Configures a static IP for the WAN port.
Figure 23: Static IP Configuration
◆IP Address — The IP address of the Wireless Broadband Router. Valid
IP addresses consist of four decimal numbers, 0 to 255, separated by
periods.
◆Subnet Mask — The mask that identifies the host address bits used for
routing to specific subnets.
◆Default Gateway — The IP address of the gateway router for the
Wireless Broadband Router, which is used if the requested destination
address is not on the local subnet.
◆Primary DNS Server — The IP address of the Primary Domain Name
Server on the network. A DNS maps numerical IP addresses to domain
names and can be used to identify network hosts by familiar names
instead of the IP addresses. If you have one or more DNS servers
located on the local network, type the IP addresses in the text fields
provided. Otherwise, leave the addresses as all zeros (0.0.0.0).
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server on the network.
◆MAC Clone — Some ISPs limit Internet connections to a specified MAC
address of one PC. This setting allows you to manually change the MAC
address of the Wireless Broadband Router's WAN interface to match the
PC's MAC address provided to your ISP for registration. You can enter
the registered MAC address manually by typing it in the boxes
![](/img.php?id=1160306&img=bg38.png)
C
HAPTER
6
| Internet Settings
WAN Setting
– 56 –
provided. Otherwise, connect only the PC with the registered MAC
address to the Wireless Broadband Router, then click the “Clone your
PC’s MAC Address” (Default: Disable)
PPPOEEnables the Wireless Broadband Router IP address to be assigned
automatically from an Internet service provider (ISP) through an ADSL
modem using Point-to-Point Protocol over Ethernet (PPPoE).
Figure 24: PPPoE Configuration
◆PPPoE User Name — Sets the PPPoE user name for the WAN port.
(Default: pppoe_user; Range: 1~32 characters)
◆PPPoE Password — Sets a PPPoE password for the WAN port.
(Default: pppoe_password; Range: 1~32 characters)
◆Verify Password — Prompts you to re-enter your chosen password.
◆Operation Mode — Selects the operation mode as Keep Alive, On
Demand or Manual. (Default: Keep Alive)
■Keep Alive Mode: The Wireless Broadband Router will periodically
check your Internet connection and automatically re-establish your
connection when disconnected. (Default: 60 seconds)
![](/img.php?id=1160306&img=bg39.png)
C
HAPTER
6
| Internet Settings
WAN Setting
– 57 –
■On Demand Mode: The maximum length of inactive time the unit
will stay connected to the DSL service provider before
disconnecting. (Default: 5 minutes)
◆MAC Clone — Some ISPs limit Internet connections to a specified MAC
address of one PC. This setting allows you to manually change the MAC
address of the Wireless Broadband Router's WAN interface to match the
PC's MAC address provided to your ISP for registration. You can enter
the registered MAC address manually by typing it in the boxes
provided. Otherwise, connect only the PC with the registered MAC
address to the Wireless Broadband Router, then click the “Clone your
PC’s MAC Address” (Default: Disable)
PPTP Enables the Point-to-Point Tunneling Protocol (PPTP) for implementing
virtual private networks. The service is provided in many European
countries.
Figure 25: PPTP Configuration
◆Server IP — Sets a PPTP server IP Address. (Default: pptp_server)
◆User Name — Sets the PPTP user name for the WAN port. (Default:
pptp_user; Range: 1~32 characters)
![](/img.php?id=1160306&img=bg3a.png)
C
HAPTER
6
| Internet Settings
WAN Setting
– 58 –
◆Password — Sets a PPTP password for the WAN port. (Default:
pptp_password; Range: 1~32 characters)
◆Verify Password — Prompts you to re-enter your chosen password.
◆Address Mode — Sets a PPTP network mode. (Default: Static)
◆IP Address — Sets the static IP address. (Default: 0.0.0.0, available
when PPTP Network Mode is set to static IP.)
◆Subnet Mask — Sets the static IP subnet mask. (Default:
255.255.255.0, available when PPTP Network Mode is set to static IP.)
◆Default Gateway — The IP address of the gateway router for the
Wireless Broadband Router, which is used if the requested destination
address is not on the local subnet.
◆Operation Mode — Selects the operation mode as Keep Alive, or
Manual. (Default: Keep Alive)
■Keep Alive Mode: The Wireless Broadband Router will periodically
check your Internet connection and automatically re-establish your
connection when disconnected. (Default: 60 seconds)
■Manual Mode: The unit will remain connected to the Internet
without disconnecting.
◆MAC Clone — Some ISPs limit Internet connections to a specified MAC
address of one PC. This setting allows you to manually change the MAC
address of the Wireless Broadband Router's WAN interface to match the
PC's MAC address provided to your ISP for registration. You can enter
the registered MAC address manually by typing it in the boxes
provided. Otherwise, connect only the PC with the registered MAC
address to the Wireless Broadband Router, then click the “Clone your
PC’s MAC Address” (Default: Disable)
![](/img.php?id=1160306&img=bg3b.png)
C
HAPTER
6
| Internet Settings
LAN Setting
– 59 –
LAN SETTING
The Wireless Broadband Router must have a valid IP address for
management using a web browser and to support other features. The unit
has a default IP address of 192.168.2.1. You can use this IP address or
assign another address that is compatible with your existing local network.
Click on “Internet Settings” followed by “LAN.”
Figure 26: LAN Configuration
◆LAN IP Address — Valid IP addresses consist of four decimal
numbers, 0 to 255, separated by periods. The default setting is
192.168.2.1.
◆Subnet Mask — Indicate the local subnet mask. (Default:
255.255.255.0.)
◆MAC Address — The shared physical layer address for the Wireless
Broadband Router’s LAN ports.
![](/img.php?id=1160306&img=bg3c.png)
C
HAPTER
6
| Internet Settings
LAN Setting
– 60 –
◆DHCP Server — Enable this feature to assign IP settings to wired and
wireless clients connected to the Gateway Router. The IP address,
subnet mask, default gateway, and Domain Name Server (DNS)
address are dynamically assigned to clients. (Options: Enable, Disable;
Default: Enable)
◆Start/End IP Address — Specify the start and end IP addresses of a
range that the DHCP server can allocate to DHCP clients. Note that the
address pool range is always in the same subnet as the unit’s IP
setting. The maximum clients that the unit can support is 253.
◆Primary DNS Server — The IP address of Domain Name Servers on
the network. A DNS maps numerical IP addresses to domain names
and can be used to identify network hosts by familiar names instead of
the IP addresses.
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server on the network.
◆Default Gateway — The default gateway is the IP address of the
router for the Wireless Broadband Router, which is used if the
requested destination address is not on the local subnet.
◆Lease Time — Select a time limit for the use of an IP address from the
IP pool. When the time limit expires, the client has to request a new IP
address. The lease time is expressed in seconds. (Options: One day,
Half day, Two hours, One hour, Half hour; Default: One day)
◆Statically Assigned — Up to three devices with specific MAC
addresses can be assigned static IP addresses. That is, the DHCP server
always assigns these devices the same IP addresses.
◆LLTD — Link Layer Topology Discovery (LLTD) is a Microsoft proprietary
discovery protocol which can be used for both wired and wireless
networks. (Options: Disable/Enable, Default: Disable)
◆IGMP Proxy — Enables IGMP proxy on the Wireless Broadband Router.
(Options: Disable/Enable, Default: Disable)
◆UPNP — Allows the device to advertise its UPnP capabilities. (Default:
Disable)
◆Router Advertisement — Enables the sending and receiving of
routing advertisements to discover the existence of neighboring
routers. (Options: Disable/Enable, Default: Disable)
◆PPPoE Relay — When enabled, the Wireless Broadband Router will
forward PPPoE messages to clients. Clients are then able to connect to
the PPPoE service through the WAN port. (Options: Disable/Enable,
Default: Disable)
◆DNS Proxy — Enables DNS proxy on the LAN port. DNS Proxy receives
DNS queries from the local network and forwards them to an Internet
DNS server. (Default: Enable)
![](/img.php?id=1160306&img=bg3d.png)
C
HAPTER
6
| Internet Settings
Advanced Routing
– 61 –
ADVANCED ROUTING
Routing setup allows a manual method to set up routing between
networks. The network administrator configures static routes by entering
routes directly into the routing table. Static routing has the advantage of
being predictable and easy to configure.
ADVANCED ROUTING
SETTINGS
This screen is used to manually configure static routes to other IP
networks, subnetworks, or hosts. Click “Internet Settings” followed by
“Advanced Routing”. (Maximum 32 entries are allowed.)
Figure 27: Advanced Routing (Gateway Mode)
◆Destination — A destination network or specific host to which packets
can be routed.
◆Type — Defines the type of destination. (Options: Host/Net, Default:
Host)
![](/img.php?id=1160306&img=bg3e.png)
C
HAPTER
6
| Internet Settings
Advanced Routing
– 62 –
◆Gateway — The IP address of the router at the next hop to which
matching frames are forwarded.
◆Interface — The selected interface to which a static routing subnet is
to be applied.
◆Comment — Enters a useful comment to help identify this route.
ROUTING TABLE This page displays the information necessary to forward a packet along the
best path toward its destination. Each packet contains information about
its origin and destination. When a packet is received, a network device
examines the packet and matches it to the routing table entry providing
the best match for its destination. The table then provides the device with
instructions for sending the packet to the next hop on its route across the
network.
N
OTE
:
The Routing Table is only available when the Wireless Broadband
Router is set to Gateway Mode.
◆Destination — Displays all destination networks or specific hosts to
which packets can be routed.
◆Netmask — Displays the subnetwork associated with the destination.
◆Gateway — Displays the IP address of the router at the next hop to
which matching frames are forwarded.
◆Flags — Flags – Possible flags identify as below
■- 0: reject route
■- 1: route is up
■- 3: route is up, use gateway
■- 5: route is up, target is a host
■- 7: route is up, use gateway, target is a host
■(Definition: U: route is up, H: target is a host, G: use gateway and
!: Reject route.)
◆Metric — A number used to indicate the cost of the route so that the
best route, among potentially multiple routes to the same destination,
can be selected.
◆Ref — Number of references to this route.
◆Use — Count of lookups for the route.
![](/img.php?id=1160306&img=bg3f.png)
C
HAPTER
6
| Internet Settings
Advanced Routing
– 63 –
◆Interface — Interface to which packets for this route will be sent.
◆Comment — Displays a useful comment to identify the routing rules.
DYNAMIC ROUTE ◆The Wireless Broadband Router supports RIP 1 and RIP 2 dynamic
routing protocol. Routing Information Protocol (RIP) is the most widely
used method for dynamically maintaining routing tables. RIP uses a
distance vector-based approach to routing. Routes are chosen to
minimize the distance vector, or hop count, which serves as a rough
estimate of transmission cost. Each router broadcasts its advertisement
every 30 seconds, together with any updates to its routing table. This
allows all routers on the network to build consistent tables of next hop
links which lead to relevant subnets.
◆RIP — Enables or disable the RIP protocol for the WAN or LAN
interface. (Options: Disable/v1/v2, Default: Disable)
![](/img.php?id=1160306&img=bg40.png)
C
HAPTER
6
| Internet Settings
Advanced Routing
– 64 –
![](/img.php?id=1160306&img=bg41.png)
– 65 –
7WIRELESS CONFIGURATION
The wireless settings section displays configuration settings for the access
point functionality of the Wireless Broadband Router. It includes the
following sections:
◆“Wireless Settings” on page 65
◆“Basic Settings” on page 66
◆“Wireless Distribution System (WDS)” on page 69
◆“Wi-Fi Protected Setup (WPS)” on page 71
◆“Station List” on page 74
WIRELESS SETTINGS
The IEEE 802.11n interfaces include configuration options for radio signal
characteristics and wireless security features.
The Wireless Broadband Router can operate in four modes, mixed
802.11b/g/n, mixed 802.11b/g, 802.11b only, or 802.11g only. Also note
that 802.11g is backward compatible with 802.11b, and 802.11n is
backward compatible with both 802.11b/g at slower data transmit rates.
N
OTE
:
The radio channel settings for the access point are limited by local
regulations, which determine the number of channels that are available.
![](/img.php?id=1160306&img=bg42.png)
C
HAPTER
7
| Wireless Configuration
Basic Settings
– 66 –
BASIC SETTINGS
The Basic Setting page allows you to enable the wireless interface, select
which radio mode to use, choose the transmit frequency and configure the
SSID.
Click on “Wireless Settings,” followed by “Basic”.
N
OTE
:
There are several variables to consider when selecting a radio mode
that make it fully functional. Simply selecting the mode you want is not
enough to ensure full compatibility for that mode. Information on these
variables may be found in the HT Physcial Mode Setting section.
Figure 28: Basic Settings
The following items are displayed on this page:
◆Wireless On/Off — Enables or Disable the radio. (Default: Enable)
◆Network Mode — Defines the radio mode for the VAP interface.
(Default: 802.11b/g/n Mixed)
![](/img.php?id=1160306&img=bg43.png)
C
HAPTER
7
| Wireless Configuration
Basic Settings
– 67 –
N
OTE
:
Enabling the Wireless Broadband Router to communicate with
802.11b/g clients in 802.11b/g/n Mixed mode also requires that HT
Operation in the HT Physical Mode Setting menu be set to Mixed. Setting
HT Operation to Green Field is exclusive for 802.11n client communication
only and prevents 802.11 b/g communication.
■802.11b/g Mixed: Both 802.11b and 802.11g clients can
communicate with the Wireless Broadband Router (up to 108
Mbps), but data transmission rates may be slowed to compensate
for 802.11b clients. Any 802.11n clients will also be able to
communicate with the Wireless Broadband Router, but they will be
limited to 802.11g protocols and data transmission rates.
■802.11b only: All 802.11b, 802.11g, and 802.11n clients will be
able to communicate with the Wireless Broadband Router, but the
802.11g and 802.11n clients will be limited to 802.11b protocols
and data transmission rates (up to 11 Mbps).
■802.11g only: Both 802.11g and 802.11n clients will be able to
communicate with the Wireless Broadband Router, but the 802.11n
clients will be limited to 802.11g protocols and data transmission
rates (up to 54 Mbps). Any 802.11b clients will not be able to
communicate with the Wireless Broadband Router.
■802.11b/g/n Mixed: All 802.11b/g/n clients can communicate
with the Wireless Broadband Router (up to 150 Mbps), but data
transmission rates may be slowed to compensate for 802.11b/g
clients.
◆Network Name (SSID) — The name of the wireless network service
provided by the Wireless Broadband Router. Clients that want to
connect to the network must set their SSID to the same as that of the
Wireless Broadband Router. (Default: “SMCWBR14S-N4_AP”; Range: 1-
32 characters)
◆Broadcast Network Name (SSID) — The Wireless Broadband Router
will broadcast the SSID name in its beacon signal. When set to disable,
the Network Name SSID is automatically set to "Hide."
◆AP Isolation — The Wireless Broadband Router will isolate
communincation between all clients in order to protect them. Normally
for users who are at hotspots.
◆MBSSID AP Isolation — The Wireless Broadband Router will isolate
wireless clients from different SSID.
◆BSSID — The identifier (MAC address) of a Wireless Broadband Router
in a Basic Service Set (BSS) network.
◆WLAN Frequency — The radio channel that the Wireless Broadband
Router uses to communicate with wireless clients. When multiple
access points are deployed in the same area, set the channel on
neighboring access points at least five channels apart to avoid
![](/img.php?id=1160306&img=bg44.png)
C
HAPTER
7
| Wireless Configuration
Basic Settings
– 68 –
interference with each other. For example, you can deploy up to three
access points in the same area using channels 1, 6, 11. Note that
wireless clients automatically set the channel to the same as that used
by the Wireless Broadband Router to which it is linked. Selecting Auto
Select enables the Wireless Broadband Router to automatically select
an unoccupied radio channel.
HT PHYSICAL MODE
SETTINGS
Figure 29: HT Physical Mode Settings
◆HT Operation Mode — Packets from 802.11n clients are referred to as
High Throughput (HT) Greenfield packets, in other words packets that
can be transmitted at rates of up to 150 Mbps assuming that HT
Channel Bandwidth is set to 20/40Mhz, see HT Channel Bandwidth next
page.
N
OTE
:
Some 802.11n wireless clients may be capable of transmission rates
of up to 600 Mbps, however the Wireless Broadband Router will only be
able to connect to them at a maximum transmission rate of 150 Mbps.
802.11b/g packets are referred to as non-HT packets, being
transmitted at lower throughput rates. HT mixed format frames contain
a preamble compatible with the non-HT receivers. HT Greenfield frames
do not contain a non-HT compatible part. Support for HT Greenfield
format is optional. An HT station that does not support the reception of
an HT Greenfield format frame must be able to detect that an HT
Greenfield format frame is an HT transmission (as opposed to a non-HT
transmission). In this case the receiver must decode the high
throughput signal (HT-SIG) in the packet header and determine if the
HT-SIG cyclic redundancy check (CRC) passes. (Default: Mixed)
![](/img.php?id=1160306&img=bg45.png)
C
HAPTER
7
| Wireless Configuration
Wireless Distribution System (WDS)
– 69 –
◆HT Channel Bandwidth — The Wireless Broadband Router provides a
channel bandwidth of 40 MHz by default giving an 802.11g connection
speed of 108 Mbps (sometimes referred to as Turbo Mode) and a
802.11n connection speed of up to 150 Mbps. Setting the HT Channel
Bandwidth to 20 MHz slows connection speed for 802.11g and 802.11n
to 54 Mbps and 74 Mbps respectively and ensures backward compliance
for slower 802.11b devices. (Default: 20/40MHz)
◆Guard Interval — The guard interval between symbols helps receivers
overcome the effects of multipath delays. When you add a guard time,
the back portion of useful signal time is copied and appended to the
front. (Default: Auto)
◆MCS — The Modulation and Coding Scheme (MCS) is a value that
determines the modulation, coding and number of spatial channels.
(Options: value [range] = 0~7 (1 Tx Stream), 8~15 (2 TxStream), 32
and auto (33). Default: auto)
◆Reverse Direction Grant (RDG) — When enables Reverse Direction
Grant, the Wireless Broadband Router can reduce the transmitted data
packet collision by using the reverse direction protocol. During TXOP
(Transmission Opportunity) period, the receiver could use remaining
transmission time to transmit data to a sender. The RDG improves
transmission performance and scalability in a wireless environment.
◆Extension Channel — When 20/40MHz channel bandwidth has been
set, the extension channel option will be enabled. The extension
channel will allow you to get extra bandwidth. (Options: 2417MHz/
Channel 2, 2457MHz/Channel 10. Default: 2457MHz/Channel 10.)
◆Aggregate MSDU (A-MSDU) — This option enables Mac Service Data
Unit (MSDU) aggregation. (Default: Disable)
◆Auto Block ACK — Select to block ACK (Acknowledge Number) or not
during data transferring.
◆Decline BA Request — Select to reject peer BA-Request or not.
WIRELESS DISTRIBUTION SYSTEM (WDS)
The radio interface can be configured to operate in a mode that allows it to
forward traffic directly to other Wireless Gateway Router units. To set up
links between units, you must configure the Wireless Distribution System
(WDS) forwarding table by specifying the wireless MAC address of all units
to which you want to forward traffic.
Traffic forwarded to WDS links is automatically converted to 802.11 four-
address format frame. This uses the MAC addresses of the station and that
of the AP connected to it on the transmitting LAN, and the MAC addresses
of the AP functioning as a wireless repeater/bridge and that of the station
connected to it on a neighboring LAN in the 802.11 frame header. Ethernet
traffic follows a three-address format that is reconstructed for WDS
![](/img.php?id=1160306&img=bg46.png)
C
HAPTER
7
| Wireless Configuration
Wireless Distribution System (WDS)
– 70 –
transmission. The Wireless Broadband Router will reconstruct the frame
format upon receival and transmission using the criteria of the receiving
and forwarding port location and whether it is Ethernet or wireless in type.
N
OTE
:
The Wireless Broadband Router does not support the spanning tree
algorithm. WDS links should be configured appropriately to avoid causing
loops on the network.
Up to four WDS links can be specified for each unit in the WDS network.
The WDS link can be configured in the following combinations:
1. Both two units are configured as Gateway Mode
2. One unit is Gateway Mode and one unit is Bridge Mode
3. Both two units are configured as Bridge Mode
When both units are set to Gateway Mode, be sure to check these settings:
◆Be sure each unit is configured with a different LAN IP address.
◆Be sure that only one unit has Internet access on its WAN port.
◆Be sure the DHCP server is enabled only on one unit. If one unit is
providing Internet access, enable the DHCP server on that unit.WDS
Configuration
The WDS settings configures WDS related parameters. Up to four MAC
addresses can be specified for each unit in the WDS network. WDS links
may either be manually configured (Bridge and Repeater modes) or auto-
discovered (Lazy mode).
![](/img.php?id=1160306&img=bg47.png)
C
HAPTER
7
| Wireless Configuration
Wi-Fi Protected Setup (WPS)
– 71 –
◆WDS Mode — Selects the WDS mode of the SSID. (Options: Disable/
Lazy/Bridge/Repeater. Default: Disable)
■Disable: WDS is disabled.
■Lazy: Operates in an automatic mode that detects and learns WDS
peer addresses from received WDS four-address format frame
packets, without the need to configure a WDS MAC list entry. This
feature allows the Wireless Broadband Router to associate with
other Wireless Broadband Routers in the network and use their
WDS MAC list. In Lazy mode the Wireless Broadband Router sends a
beacon.
■Bridge: Operates as a standard bridge that forwards traffic
between WDS links (links that connect to other AP/wireless bridges,
or units in Repeater or Lazy mode) and an Ethernet port. Only data
destined for stations which are known to be on the peer Ethernet
link, multicast data or data with unknown destinations, need to be
forwarded through the WDS link. The Bridge mode does not
transmit a beacon, unlike the other three modes. In this mode the
Wireless Broadband Router may also function as a repeater.
■Repeater: Operates as a wireless repeater, extending the range for
remote wireless clients and connecting them to an AP connected to
the wired network. WDS peers must be registered with the Wireless
Broadband Router. Repeater mode also supports the dual capability
of the VAP functioning as an AP. In this mode, traffic is not
forwarded to the Ethernet port from the radio interface. In Repeater
mode the Wireless Broadband Router transmits a beacon.
WI-FI PROTECTED SETUP (WPS)
Wi-Fi Protected Setup (WPS) is designed to ease installation and activation
of security features in wireless networks. WPS has two basic modes of
operation, Push-button Configuration (PBC) and Personal Identification
Number (PIN). The WPS PIN setup is optional to the PBC setup and
provides more security. The WPS button on the Wireless Broadband Router
can be pressed at any time to allow a single device to easily join the
network.
The WPS Settings page includes configuration options for setting WPS
device PIN codes and activating the virtual WPS button.
Click on “Wireless Settings,” followed by “WPS”.
![](/img.php?id=1160306&img=bg48.png)
C
HAPTER
7
| Wireless Configuration
Wi-Fi Protected Setup (WPS)
– 72 –
Figure 30: Enabling WPS
◆WPS — Enables WPS, locks security settings, and refreshes WPS
configuration information. (Default: Enabled)
Figure 31: WPS Configuration
WPS Summary — Provides detailed WPS statistical information.
◆WPS Current Status — Displays if there is currently any WPS traffic
connecting to the Wireless Broadband Router. (Options: Start WSC
Process; Idle)
◆WPS Configured — States if WPS for wireless clients has been
configured for this device.
![](/img.php?id=1160306&img=bg49.png)
C
HAPTER
7
| Wireless Configuration
Wi-Fi Protected Setup (WPS)
– 73 –
◆WPS SSID — The service set identifier for the unit.
◆WPS Auth Mode — The method of authentication used.
◆WPS Encryp Type — The encryption type used for the unit.
◆WPS Default Key Index — Displays the WEP default key (1~4).
◆WPS Key (ASCII) — Displays the WPS security key (ASCII) which can
be used to ensure the security of the wireless network.
◆AP PIN — Displays the PIN Code for the Wireless Broadband Router.
The default is exclusive for each unit. (Default: 64824901)
WPS Config — Configures WPS settings for the Wireless Broadband
Router.
◆WPS Mode — Selects between methods of broadcasting the WPS
beacon to network clients wanting to join the network:
■PIN: The Wireless Broadband Router, along with other WPS
devices, such as notebook PCs, cameras, or phones, all come with
their own eight-digit PIN code. When one device, the WPS enrollee,
sends a PIN code to the Wireless Broadband Router, it becomes the
WPS registrar. After configuring PIN-Code information you must
press “Apply” to send the beacon, after which you have up to two
minutes to activate WPS on devices that need to join the network.
■PBC: This has the same effect as pressing the physical WPS button
that is located on the front of the Wireless Broadband Router. After
checking this option and clicking “Apply” you have up to two
minutes to activate WPS on devices that need to join the network.
![](/img.php?id=1160306&img=bg4a.png)
C
HAPTER
7
| Wireless Configuration
Station List
– 74 –
STATION LIST
Displays the station information which associated to this Wireless
Broadband Router.
Figure 32: Station List
![](/img.php?id=1160306&img=bg4b.png)
– 75 –
8FIREWALL CONFIGURATION
The Wireless Broadband Router provides extensive firewall protection by
restricting connection parameters to limit the risk of intrusion and
defending against a wide array of common hacker attacks.
Firewall Configuration contains the following sections:
◆“MAC/IP/Port Filtering” on page 75
◆“Virtual Server Settings (Port Forwarding)” on page 78
◆“DMZ” on page 79
◆“System Security” on page 80
◆“Content Filtering” on page 81
MAC/IP/PORT FILTERING
MAC/IP/Port filtering restricts connection parameters to limit the risk of
intrusion and defends against a wide array of common hacker attacks.
MAC/IP/Port filtering allows the unit to permit, deny or proxy traffic
through its MAC addresses, IP addresses and ports.
The Wireless Broadband Router allows you define a sequential list of permit
or deny filtering rules (up to 32). This device tests ingress packets against
the filter rules one by one. A packet will be accepted as soon as it matches
a permit rule, or dropped as soon as it matches a deny rule. If no rules
match, the packet is either accepted or dropped depending on the default
policy setting.
![](/img.php?id=1160306&img=bg4c.png)
C
HAPTER
8
| Firewall Configuration
MAC/IP/Port Filtering
– 76 –
Figure 33: MAC/IP/Port Filtering
◆MAC/IP/Port Filtering — Enables or disables MAC/IP/Port Filtering.
(Default: Disable)
◆Default Policy — When MAC/IP/Port Filtering is enabled, the default
policy will be enabled. If you set the default policy to “Dropped”, all
incoming packets that don’t match the rules will be dropped. If the
policy is set to "Accepted," all incoming packets that don't match the
rules are accepted. (Default: Dropped)
◆MAC Address — Specifies the MAC address to block or allow traffic
from.
◆Destination IP Address — Specifies the destination IP address to
block or allow traffic from.
![](/img.php?id=1160306&img=bg4d.png)
C
HAPTER
8
| Firewall Configuration
MAC/IP/Port Filtering
– 77 –
◆Source IP Address — Specifies the source IP address to block or allow
traffic from.
◆Protocol — Specifies the destination port type, TCP, UDP or ICMP.
(Default: None).
◆Destination Port Range — Specifies the range of destination port to
block traffic from the specified LAN IP address from reaching.
◆Source Port Range — Specifies the range of source port to block
traffic from the specified LAN IP address from reaching.
◆Action — Specifies if traffic should be accepted or dropped. (Default:
Accept)
◆Comment — Enter a useful comment to help identify the filtering rules.
CURRENT FILTER
RULES
The Current Filter Table displays the configured IP addresses and ports that
are permitted or denied access to and from the ADSL/Router.
◆Select — Selects a table entry.
◆MAC Address — Displays a MAC address to filter.
◆Destination IP Address — Displays the destination IP address.
◆Source IP Address — Displays the source IP address.
◆Protocol — Displays the destination port type.
◆Destination Port Range — Displays the destination port range.
◆Source Port Range — Displays the source port range.
◆Action — Displays if the specified traffic is accepted or dropped.
◆Comment — Displays a useful comment to identify the routing rules.
![](/img.php?id=1160306&img=bg4e.png)
C
HAPTER
8
| Firewall Configuration
Virtual Server Settings (Port Forwarding)
– 78 –
VIRTUAL SERVER SETTINGS (PORT FORWARDING)
Virtual Server (sometimes referred to as Port Forwarding) is the act of
forwarding a network port from one network node to another. This
technique can allow an external user to reach a port on a private IP
address (inside a LAN) from the outside through a NAT-enabled router.
(Maximum 32 entries are allowed.)
Figure 34: Virtual Server
◆Virtual Server Settings — Selects between enabling or disabling port
forwarding the virtual server. (Default: Disable)
◆IP Address — Specifies the IP address on the local network to allow
external access.
◆Port Range — Specifies the port range through which traffic is
forwarded.
◆Protocol — Specifies a protocol to use for port forwarding, either TCP,
UDP or TCP&UDP.
◆Comment — Enter a useful comment to help identify the forwarded
port service on the network.
![](/img.php?id=1160306&img=bg4f.png)
C
HAPTER
8
| Firewall Configuration
DMZ
– 79 –
CURRENT VIRTUAL
SERVERS IN SYSTEM
The Current Port Forwarding Table displays the entries that are allowed to
forward packets through the Wireless Broadband Router’s firewall.
◆No. — The table entry number.
◆IP Address — Displays an IP address on the local network to allow
external access to.
◆Port Mapping — Displays the port the server is mapped.
◆Protocol — Displays the protocol used for forwarding of this port.
◆Comment — Displays a useful comment to identify the nature of the
port to be forwarded.
DMZ
Enables a specified host PC on the local network to access the Internet
without any firewall protection. Some Internet applications, such as
interactive games or video conferencing, may not function properly behind
the Wireless Broadband Router's firewall. By specifying a Demilitarized
Zone (DMZ) host, the PC's TCP ports are completely exposed to the
Internet, allowing open two-way communication. The host PC should be
assigned a static IP address (which is mapped to its MAC address) and this
must be configured as the DMZ IP address.
Figure 35: DMZ
◆DMZ Settings — Sets the DMZ status. (Default: Disable)
◆DMZ IP Address — Specifies an IP address on the local network
allowed unblocked access to the WAN.
![](/img.php?id=1160306&img=bg50.png)
C
HAPTER
8
| Firewall Configuration
System Security
– 80 –
SYSTEM SECURITY
The Wireless Broadband Router includes the facility to manage it from a
remote location. The unit can also be sent a ping message from a remote
location.
Figure 36: System Security
◆Remote Management — Denies or allows management access to the
Gateway Router through the WAN interface. (Default: Deny)
◆Ping from WAN Filter — When enabled, the Gateway Router does not
respond to ping packets received on the WAN port. (Default: Disable)
◆Stateful Packet Inspection (SPI) — The Stateful Packet Inspection
(SPI) firewall protects your network and computers against attacks and
intrusions. A stateful packet firewall looks at packet contents to check if
the traffic may involve some type of security risk. (Default: Disable)
![](/img.php?id=1160306&img=bg51.png)
C
HAPTER
8
| Firewall Configuration
Content Filtering
– 81 –
CONTENT FILTERING
The Wireless Broadband Router provides a variety of options for blocking
Internet access based on content, URL and host name.
Figure 37: Content Filtering
Web URL Filter Settings — By filtering inbound Uniform Resource
Locators (URLs) the risk of compromising the network can be reduced.
URLs are commonly used to point to websites. By specifying a URL or a
keyword contained in a URL traffic from that site may be blocked.
◆Current URL Filters — Displays current URL filter.
◆Add a URL Filter — Adds a URL filter to the settings. For example,
myhost.example.com.
Web Host Filter Settings — The Wireless Broadband Router allows
Internet content access to be restricted based on web address keywords
and web domains. A domain name is the name of a particular web site. For
example, for the address www.FUNGAMES.com, the domain name is
FUNGAMES.com. Enter the Keyword then click “Add”.
◆Current Host Filters — Displays current Host filter.
![](/img.php?id=1160306&img=bg52.png)
C
HAPTER
8
| Firewall Configuration
Content Filtering
– 82 –
◆Add a Host Filter — Enters the keyword for a host filtering.
![](/img.php?id=1160306&img=bg53.png)
– 83 –
9ADMINISTRATION SETTINGS
The Wireless Broadband Router’s Administration Settings menu provides
the same configuration options in both Gateway and Bridge Mode. These
settings allow you to configure a management access password, set the
system time, upgrade the system software, display the system status and
statistics.
Administration Settings contains the following sections:
◆“System Management” on page 84
◆“SNTP Settings” on page 85
◆“DDNS Settings” on page 86
◆“Upgrade Firmware” on page 87
◆“Configuration Settings” on page 88
◆“System Status” on page 89
◆“Statistics” on page 91
◆“System Log” on page 92
![](/img.php?id=1160306&img=bg54.png)
C
HAPTER
9
| Administration Settings
System Management
– 84 –
SYSTEM MANAGEMENT
The System Management commands allow you to change the language
settings displayed in the interface, and change the user name and
password.
Figure 38: System Management
LANGUAGE SETTINGS You can change the language displayed in web interface. Chooses the
appropriate language of your choice from the drop-down list, then click
“Apply”. (Options: English, Traditional Chinese. Default: English)
WEB INTERFACE
SETTINGS
To protect access to the management interface, you need to configure a
new Administrator’s user name and password as soon as possible. If a new
user name and password are not configured, then anyone having access to
the Wireless Broadband Router may be able to compromise the unit's
security by entering the default values.
◆User Name — The name of the user. The default name for access to
the unit is “admin”. (Length: 3-16 characters, case sensitive)
◆Password — The password for management access. The default
password preset for access to the unit is “smcadmin” (Length: 3-16
characters, case sensitive)
◆Confirm Password — Prompts you to enter the password again for
verification.
![](/img.php?id=1160306&img=bg55.png)
C
HAPTER
9
| Administration Settings
SNTP Settings
– 85 –
SNTP SETTINGS
The System Management page allows you to manually configure time
settings or enable the use of a Simple Network Time Protocol (SNTP) or
NTP server.
Figure 39: SNTP Settings
◆Current Time — Displays the current system time on the unit.
◆Sync with host — Updates the unit's time from the web management
PC's system time.
◆Time Zone — Specifies the time zone in relation to Greenwich Mean
Time (GMT).
◆SNTP Server — The IP address or URL of the NTP server to be used.
◆SNTP synchronization — Sets the SNTP sycnronization in hours.
![](/img.php?id=1160306&img=bg56.png)
C
HAPTER
9
| Administration Settings
DDNS Settings
– 86 –
DDNS SETTINGS
Dynamic DNS (DDNS) provides users on the Internet with a method to tie
a specific domain name to the unit’s dynamically assigned IP address.
DDNS allows your domain name to follow your IP address automatically by
changing your DNS records when your IP address changes.
The Wireless Broadband Router provides access to three DDNS service
providers, DynDns.org, Non-IP.com and ZoneEdit.com. To set up an DDNS
account, visit the websites of these service providers at www.dyndns.org,
www.non-ip.com, or www.zoneedit.com.
Figure 40: DDNS Settings (Gateway Mode)
◆Dynamic DNS Provider — Specifies the DDNS service provider,
DynDns.org, Freedns.afraid.org, ZoneEdit.com or Non-IP.com.
(Default: none)
◆User Name — Specifies your user name for the DDNS service.
◆Password — Specifies your password for the DDNS service.
◆HostName — Specifies the URL of the DDNS service.
![](/img.php?id=1160306&img=bg57.png)
C
HAPTER
9
| Administration Settings
Upgrade Firmware
– 87 –
UPGRADE FIRMWARE
You can update the Wireless Broadband Router firmware by using the
Firmware Update facility.
Figure 41: Upgrade Firmware
Firmware Upgrade — Allows you to upload new firmware manually by
specifying a file path. Make sure the firmware you want to use is on the
local computer by clicking Browse to search for the firmware to be used for
the update.
◆Browse — Opens a directory on the local hard drive for specifying the
path of the file to upload.
◆Apply — Starts the upload procedure.
![](/img.php?id=1160306&img=bg58.png)
C
HAPTER
9
| Administration Settings
Configuration Settings
– 88 –
CONFIGURATION SETTINGS
The Configuration Setting page allows you to save the Wireless Broadband
Router’s current configuration or restore a previously saved configuration
back to the device.
Figure 42: Configuration Settings
◆Export Settings — Saves the current configuration to a file locally.
◆Import Settings — Allows the user to load previously saved
configuration files from a local source.
◆Load Factory Defaults — Restores the factory defaults.
![](/img.php?id=1160306&img=bg59.png)
C
HAPTER
9
| Administration Settings
System Status
– 89 –
SYSTEM STATUS
The System Information page displays basic system information and the
displayed settings are for status information only and are not configurable
on this page. This information is split into the three sections that follow.
Figure 43: System Status (Gateway Mode)
System Info — Displays the basic system information in both Bridge and
Gateway Modes:
◆Firmware Version — The version number of the current Wireless
Broadband Router software.
◆System Time — Length of time the management agent has been up,
specified in hours and minutes.
◆Operation Mode — Displays the mode setting of the unit.
Internet Configurations — Displays the basic WAN information:
◆Connected Type — Displays the WAN connected mode. (Default:
DHCP)
◆WAN IP Address — IP address of the WAN port for this device.
◆Subnet Mask — The mask that identifies the host address bits used for
routing to the WAN port.
![](/img.php?id=1160306&img=bg5a.png)
C
HAPTER
9
| Administration Settings
System Status
– 90 –
◆Default Gateway — The default gateway is the IP address of the
router for the Wireless Broadband Router, which is used if the
requested destination address is not on the local subnet.
◆Primary DNS Server / Secondary DNS Server — The IP address of
Domain Name Servers. A DNS maps numerical IP addresses to domain
names and can be used to identify network hosts by familiar names
instead of the IP addresses.
◆MAC Address — The shared physical layer address for the Wireless
Broadband Router’s LAN ports.
Local Network — Displays the basic LAN information:
◆LAN IP Address — The IP address configured on the Wireless
Broadband Router.
◆LAN Netmask — The mask that identifies the host address bits used
for routing to the LAN port.
◆MAC Address — The shared physical layer address for the Wireless
Broadband Router’s LAN ports.
![](/img.php?id=1160306&img=bg5b.png)
C
HAPTER
9
| Administration Settings
Statistics
– 91 –
STATISTICS
The Wireless Broadband Router Traffic Statistics - Interfaces window
displays received and transmitted packet statistics for all interfaces on the
Wireless Broadband Router.
Figure 44: Statistics
The following items are displayed on this page:
◆Memory total — The total memory of this Wireless Broadband Router.
◆Memory left — The available memory of this Wireless Broadband
Router.
◆WAN/LAN/All Interfaces — Displays the interface on which traffic is
being monitored.
◆Rx packets — Displays the total number of packets received by the
specified interface.
◆Rx bytes — Displays the total number of bytes transmitted by the
specified interface.
![](/img.php?id=1160306&img=bg5c.png)
C
HAPTER
9
| Administration Settings
System Log
– 92 –
◆Tx packets — Displays the total number of packets transmitted by the
specified interfaces.
◆Tx bytes — Displays the total number of bytes transmitted by the
specified interface.
SYSTEM LOG
The Wireless Broadband Router supports a logging process that controls
error messages saved to memory or sent to a Syslog server. The logged
messages serve as a valuable tool for isolating Wireless Broadband Router
and network problems. The System Log page displays the latest messages
logged in chronological order, from the newest to the oldest. Log messages
saved in the Wireless Broadband Router’s memory are erased when the
device is rebooted.
Figure 45: System Log
◆Refresh — Sends a request to add the latest entries to the System Log
Tab le .
◆Clear — Removes the current system log messages from the System
Log Table.
![](/img.php?id=1160306&img=bg5d.png)
C
HAPTER
9
| Administration Settings
System Log
– 93 –
![](/img.php?id=1160306&img=bg5f.png)
– 95 –
ATROUBLESHOOTING
DIAGNOSING LED INDICATORS
IF YOU CANNOT CONNECT TO THE INTERNET
◆Check that your computer is properly configured for TCP/IP.
◆Make sure the correct network adapter driver is installed for your PC
operating system. If necessary, try reinstalling the driver.
◆Check that the network adapter’s speed or duplex mode has not been
configured manually. We recommend setting the adapter to auto-
negotiation when installing the network driver.
BEFORE CONTACTING TECHNICAL SUPPORT
Check the following items before you contact local Technical Support.
1. If the Gateway Router cannot be configured using a web browser:
■Be sure to have configured the Gateway Router with a valid IP
address, subnet mask and default gateway.
Table 3: LED Indicators
Symptom Action
Power/LAN LEDs are off ◆The AC power adapter may be disconnected. Check
connections between the Gateway Router, the power adapter,
and the wall outlet.
WLAN LED is off ◆The access point radio has been disabled through it’s web
management interface. Access the management interface
using a web browser to enable the radio.
LAN LEDs are off
(when port connected) ◆Verify that the Gateway Router is powered on.
◆Be sure cables are plugged into both the Gateway Router and
corresponding PC.
◆Verify that the proper cable type is used and its length does
not exceed specified limits.
◆Check the cable connections for possible defects. Replace the
defective cable if necessary.
WAN LED is off ◆There is no detected signal from WAN port. Check
connections and the management interface.
![](/img.php?id=1160306&img=bg60.png)
A
PPENDIX
A
| Troubleshooting
Before Contacting Technical Support
– 96 –
■Check that you have a valid network connection to the Gateway
Router and that the Ethernet port or the wireless interface that you
are using has not been disabled.
■If you are connecting to the Gateway Router through the wired
Ethernet interface, check the network cabling between the
management station and the Gateway Router. If you are connecting
to Gateway Router from a wireless client, ensure that you have a
valid connection to the Gateway Router.
2. If you forgot or lost the password:
■Set the Gateway Router to its default configuration by pressing the
reset button on the back panel for 5 seconds or more. Then use the
default user name “admin” and password “smcadmin” to access the
management interface.
3. If all other recovery measure fail, and the Gateway Router is still not
functioning properly, take any of these steps:
■Reset the Gateway Router’s hardware using the web interface, or
through a power reset.
![](/img.php?id=1160306&img=bg61.png)
A
PPENDIX
A
| Troubleshooting
Before Contacting Technical Support
– 97 –
![](/img.php?id=1160306&img=bg62.png)
– 98 –
BHARDWARE SPECIFICATIONS
PORT INTERFACES WAN: 1 10/100BASE-TX port, RJ-45 connector, auto MDI/X
(100-ohm, UTP cable; Category 5 or better)
LAN 1~4: 1 10/100BASE-TX port, RJ-45 connector, auto MDI/X
(100-ohm, UTP cable; Category 5 or better)
AC POWER ADAPTER Input: 100~240 VAC, 50/60 Hz
Output: 5 V/ 1 A
LED INDICATORS Power, WLAN (Wireless Local Area Network), WPS
(Wi-Fi Protected Setup), WAN (Wide Area Network), LAN 1~4 (Local Area
Network).
NETWORK MANAGEMENT Web-browser
TEMPERATURE Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 70 °C (32 to 158 °F)
HUMIDITY 20% to 85% (non-condensing)
RADIO EN300 328, FCC Part 15c, LP0002
EMC EN55022/24, EN301 489-1-17, FCC Part15b
SAFETY EN60950-1
STANDARDS UL60950-1/CSA22.2 No. 60950-1; EN60950-1/IEC60950-1
ETSI EN300 019-2-1 Class 1.2 (Storage)
ETSI EN300 019-2-2 Class 2.3 (Packaged)
ETSI EN300 019-2-3 Class 3.2 (Operating)
PHYSICAL SIZE 136 X 90.8 X 28.5 mm
![](/img.php?id=1160306&img=bg63.png)
A
PPENDIX
B
| Hardware Specifications
– 99 –
WEIGHT 157 g (5.54 oz)
![](/img.php?id=1160306&img=bg64.png)
– 100 –
CCABLES AND PINOUTS
TWISTED-PAIR CABLE ASSIGNMENTS
For 10/100BASE-TX connections, a twisted-pair cable must have two pairs
of wires. For 1000BASE-T connections the twisted-pair cable must have
four pairs of wires. Each wire pair is identified by two different colors. For
example, one wire might be green and the other, green with white stripes.
Also, an RJ-45 connector must be attached to both ends of the cable.
N
OTE
:
Each wire pair must be attached to the RJ-45 connectors in a specific
orientation.
C
AUTION
:
DO NOT plug a phone jack connector into the RJ-45 port. Use
only twisted-pair cables with RJ-45 connectors that conform with FCC
standards.
The following figure illustrates how the pins on the RJ-45 connector are
numbered. Be sure to hold the connectors in the same orientation when
attaching the wires to the pins.
Figure 46: RJ-45 Connector
81
1
8
![](/img.php?id=1160306&img=bg65.png)
A
PPENDIX
C
| Cables and Pinouts
10/100BASE-TX Pin Assignments
– 101 –
10/100BASE-TX PIN ASSIGNMENTS
Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for
RJ-45 connections: 100-ohm Category 3 or better cable for 10 Mbps
connections. Also be sure that the length of any twisted-pair connection
does not exceed 100 meters (328 feet).
The RJ-45 port on the access point supports automatic MDI/MDI-X
operation, so you can use straight-through or crossover cables for all
network connections to PCs, switches, or hubs. In straight-through cable,
pins 1, 2, 3, and 6, at one end of the cable, are connected straight through
to pins 1, 2, 3, and 6 at the other end of the cable.
STRAIGHT-THROUGH WIRING
If the twisted-pair cable is to join two ports and only one of the ports has
an internal crossover (MDI-X), the two pairs of wires must be straight-
through. (When auto-negotiation is enabled for any RJ-45 port on this
switch, you can use either straight-through or crossover cable to connect
to any device type.)
You must connect all four wire pairs as shown in the following diagram to
support Gigabit Ethernet connections.
Table 4: 10/100BASE-TX MDI and MDI-X Port Pinouts
PIN MDI Signal Namea
a. The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
MDI-X Signal Name
1 Transmit Data plus (TD+) Receive Data plus (RD+)
2 Transmit Data minus (TD-) Receive Data minus (RD-)
3 Receive Data plus (RD+) Transmit Data plus (TD+)
6 Receive Data minus (RD-) Transmit Data minus (TD-)
4, 5, 7, 8 Not used Not used
![](/img.php?id=1160306&img=bg66.png)
A
PPENDIX
C
| Cables and Pinouts
Crossover Wiring
– 102 –
Figure 47: Straight-through Wiring
CROSSOVER WIRING
If the twisted-pair cable is to join two ports and either both ports are
labeled with an “X” (MDI-X) or neither port is labeled with an “X” (MDI), a
crossover must be implemented in the wiring. (When auto-negotiation is
enabled for any RJ-45 port on this switch, you can use either straight-
through or crossover cable to connect to any device type.)
You must connect all four wire pairs as shown in the following diagram to
support Gigabit Ethernet connections.
Figure 48: Crossover Wiring
White/Orange Stripe
Orange
White/Green Stripe
Green
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Straight-through Cable
End A End B
Blue
White/Blue Stripe
Brown
White/Brown Stripe
White/Orange Stripe
Orange
White/Green Stripe
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Crossover Cable
End A End B
Green
Blue
White/Blue Stripe
Brown
White/Brown Stripe
![](/img.php?id=1160306&img=bg67.png)
– 103 –
DLICENSE INFORMATION
This product includes copyrighted third-party software subject to the terms of the GNU General Public
License (GPL), GNU Lesser General Public License (LGPL), or other related free software licenses.
The GPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the
copyrights of one or more authors. For details, refer to the section "The GNU General Public License"
below, or refer to the applicable license as included in the source-code archive.
THE GNU GENERAL PUBLIC LICENSE
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it
is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By
contrast, the GNU General Public License is intended to guarantee your freedom to share and
change free software--to make sure the software is free for all its users. This General Public License
applies to most of the Free Software Foundation's software and to any other program whose authors
commit to using it. (Some other Free Software Foundation software is covered by the GNU Library
General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses
are designed to make sure that you have the freedom to distribute copies of free software (and
charge for this service if you wish), that you receive source code or can get it if you want it, that you
can change the software or use pieces of it in new free programs; and that you know you can do
these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to
ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you
distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the
recipients all the rights that you have. You must make sure that they, too, receive or can get the
source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which
gives you legal permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that
there is no warranty for this free software. If the software is modified by someone else and passed on,
we want its recipients to know that what they have is not the original, so that any problems introduced
by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger
that redistributors of a free program will individually obtain patent licenses, in effect making the
program proprietary. To prevent this, we have made it clear that any patent must be licensed for
everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
![](/img.php?id=1160306&img=bg68.png)
A
PPENDIX
D
| License Information
The GNU General Public License
– 104 –
GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION
AND MODIFICATION
1. This License applies to any program or other work which contains a notice placed by the
copyright holder saying it may be distributed under the terms of this General Public License. The
"Program", below, refers to any such program or work, and a "work based on the Program"
means either the Program or any derivative work under copyright law: that is to say, a work
containing the Program or a portion of it, either verbatim or with modifications and/or translated
into another language. (Hereinafter, translation is included without limitation in the term
"modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they
are outside its scope. The act of running the Program is not restricted, and the output from the
Program is covered only if its contents constitute a work based on the Program (independent of
having been made by running the Program). Whether that is true depends on what the Program
does.
2. You may copy and distribute verbatim copies of the Program's source code as you receive it, in
any medium, provided that you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to
this License and to the absence of any warranty; and give any other recipients of the Program a
copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
3. You may modify your copy or copies of the Program or any portion of it, thus forming a work
based on the Program, and copy and distribute such modifications or work under the terms of
Section 1 above, provided that you also meet all of these conditions:
a). You must cause the modified files to carry prominent notices stating that you changed the
files and the date of any change.
b). You must cause any work that you distribute or publish, that in whole or in part contains or is
derived from the Program or any part thereof, to be licensed as a whole at no charge to all
third parties under the terms of this License.
c). If the modified program normally reads commands interactively when run, you must cause
it, when started running for such interactive use in the most ordinary way, to print or display
an announcement including an appropriate copyright notice and a notice that there is no
warranty (or else, saying that you provide a warranty) and that users may redistribute the
program under these conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally print such an
announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work
are not derived from the Program, and can be reasonably considered independent and separate
works in themselves, then this License, and its terms, do not apply to those sections when you
distribute them as separate works. But when you distribute the same sections as part of a whole
which is a work based on the Program, the distribution of the whole must be on the terms of this
License, whose permissions for other licensees extend to the entire whole, and thus to each and
every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written
entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or
collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or
with a work based on the Program) on a volume of a storage or distribution medium does not
bring the other work under the scope of this License.
4. You may copy and distribute the Program (or a work based on it, under Section 2) in object code
or executable form under the terms of Sections 1 and 2 above provided that you also do one of
the following:
![](/img.php?id=1160306&img=bg69.png)
A
PPENDIX
D
| License Information
The GNU General Public License
– 105 –
a). Accompany it with the complete corresponding machine-readable source code, which must
be distributed under the terms of Sections 1 and 2 above on a medium customarily used for
software interchange; or,
b). Accompany it with a written offer, valid for at least three years, to give any third party, for a
charge no more than your cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to be distributed under the terms
of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c). Accompany it with the information you received as to the offer to distribute corresponding
source code. (This alternative is allowed only for noncommercial distribution and only if you
received the program in object code or executable form with such an offer, in accord with
Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it.
For an executable work, complete source code means all the source code for all modules it
contains, plus any associated interface definition files, plus the scripts used to control
compilation and installation of the executable. However, as a special exception, the source code
distributed need not include anything that is normally distributed (in either source or binary form)
with the major components (compiler, kernel, and so on) of the operating system on which the
executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated
place, then offering equivalent access to copy the source code from the same place counts as
distribution of the source code, even though third parties are not compelled to copy the source
along with the object code.
5. You may not copy, modify, sublicense, or distribute the Program except as expressly provided
under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program
is void, and will automatically terminate your rights under this License. However, parties who
have received copies, or rights, from you under this License will not have their licenses
terminated so long as such parties remain in full compliance.
6. You are not required to accept this License, since you have not signed it. However, nothing else
grants you permission to modify or distribute the Program or its derivative works. These actions
are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the
Program (or any work based on the Program), you indicate your acceptance of this License to do
so, and all its terms and conditions for copying, distributing or modifying the Program or works
based on it.
7. Each time you redistribute the Program (or any work based on the Program), the recipient
automatically receives a license from the original licensor to copy, distribute or modify the
Program subject to these terms and conditions. You may not impose any further restrictions on
the recipients' exercise of the rights granted herein. You are not responsible for enforcing
compliance by third parties to this License.
8. If, as a consequence of a court judgment or allegation of patent infringement or for any other
reason (not limited to patent issues), conditions are imposed on you (whether by court order,
agreement or otherwise) that contradict the conditions of this License, they do not excuse you
from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent license would not permit royalty-
free redistribution of the Program by all those who receive copies directly or indirectly through
you, then the only way you could satisfy both it and this License would be to refrain entirely from
distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance,
the balance of the section is intended to apply and the section as a whole is intended to apply in
other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right
claims or to contest validity of any such claims; this section has the sole purpose of protecting
the integrity of the free software distribution system, which is implemented by public license
practices. Many people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute software through any other system and
a licensee cannot impose that choice.
![](/img.php?id=1160306&img=bg6a.png)
A
PPENDIX
D
| License Information
The GNU General Public License
– 106 –
This section is intended to make thoroughly clear what is believed to be a consequence of the
rest of this License.
9. If the distribution and/or use of the Program is restricted in certain countries either by patents or
by copyrighted interfaces, the original copyright holder who places the Program under this
License may add an explicit geographical distribution limitation excluding those countries, so
that distribution is permitted only in or among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the body of this License.
10. The Free Software Foundation may publish revised and/or new versions of the General Public
License from time to time. Such new versions will be similar in spirit to the present version, but
may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version
number of this License which applies to it and "any later version", you have the option of
following the terms and conditions either of that version or of any later version published by the
Free Software Foundation. If the Program does not specify a version number of this License,
you may choose any version ever published by the Free Software Foundation.
11. If you wish to incorporate parts of the Program into other free programs whose distribution
conditions are different, write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will be guided by the two goals of preserving
the free status of all derivatives of our free software and of promoting the sharing and reuse of
software generally.
NO WARRANTY
1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY
FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES
PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH
YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL
NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING
WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING
BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO
OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
![](/img.php?id=1160306&img=bg6b.png)
– 107 –
GLOSSARY
10BASE-T IEEE 802.3-2005 specification for 10 Mbps Ethernet over two pairs of
Category 3 or better UTP cable.
100BASE-TX IEEE 802.3-2005 specification for 100 Mbps Fast Ethernet over two pairs of
Category 5 or better UTP cable.
1000BASE-T IEEE 802.3ab specification for 1000 Mbps Gigabit Ethernet over four pairs
of Category 5 or better UTP cable.
ACCESS POINT An internetworking device that seamlessly connects wired and wireless
networks. Access points attached to a wired network, support the creation
of multiple radio cells that enable roaming throughout a facility.
AES Advanced Encryption Standard: An encryption algorithm that implements
symmetric key cryptography. AES provides very strong encryption using a
completely different ciphering algorithm to TKIP and WEP.
AUTHENTICATION The process to verify the identity of a client requesting network access.
IEEE 802.11 specifies two forms of authentication: open system and
shared key.
BACKBONE The core infrastructure of a network. The portion of the network that
transports information from one central location to another central location
where it is unloaded onto a local system.
BEACON A signal periodically transmitted from the access point that is used to
identify the service set, and to maintain contact with wireless clients.
BROADCAST KEY Broadcast keys are sent to stations using dynamic keying. Dynamic
broadcast key rotation is often used to allow the access point to generate a
random group key and periodically update all key-management capable
wireless clients.
DHCP Dynamic Host Configuration Protocol: Provides a framework for passing
configuration information to hosts on a TCP/IP network. DHCP is based on
![](/img.php?id=1160306&img=bg6c.png)
G
LOSSARY
– 108 –
the Bootstrap Protocol (BOOTP), adding the capability of automatic
allocation of reusable network addresses and additional configuration
options.
ENCRYPTION Data passing between the access point and clients can use encryption to
protect from interception and evesdropping.
ETHERNET A popular local area data communications network, which accepts
transmission from computers and terminals.
FTP File Transfer Protocol: A TCP/IP protocol used for file transfer.
HTTP Hypertext Transfer Protocol: HTTP is a standard used to transmit and
receive all data over the World Wide Web.
IEEE 802.11BA wireless standard that supports wireless communications in the 2.4 GHz
band using Direct Sequence Spread Spectrum (DSSS). The standard
provides for data rates of 1, 2, 5.5, and 11 Mbps.
IEEE 802.11GA wireless standard that supports wireless communications in the 2.4 GHz
band using Orthogonal Frequency Division Multiplexing (OFDM). The
standard provides for data rates of 6, 9, 12, 18, 24, 36, 48, 54 Mbps. IEEE
802.11g is also backward compatible with IEEE 802.11b.
INFRASTRUCTURE An integrated wireless and wired LAN is called an infrastructure
configuration.
LAN Local Area Network: A group of interconnected computers and support
devices.
MAC ADDRESS The physical layer address used to uniquely identify network nodes.
NTP Network Time Protocol: NTP provides the mechanisms to synchronize time
across the network. The time servers operate in a hierarchical-master-
slave configuration in order to synchronize local clocks within the subnet
and to national time standards via wire or radio.
OPEN SYSTEM A security option which broadcasts a beacon signal including the access
point’s configured SSID. Wireless clients can read the SSID from the
![](/img.php?id=1160306&img=bg6d.png)
G
LOSSARY
– 109 –
beacon, and automatically reset their SSID to allow immediate connection
to the nearest access point.
ODFM Orthogonal Frequency Division Multiplexing: OFDM allows multiple users to
transmit in an allocated band by dividing the bandwidth into many narrow
bandwidth carriers.
SSID Service Set Identifier: An identifier that is attached to packets sent over
the wireless LAN and functions as a password for joining a particular radio
cell; i.e., Basic Service Set (BSS).
SESSION KEY Session keys are unique to each client, and are used to authenticate a
client connection, and correlate traffic passing between a specific client and
the access point.
SHARED KEY A shared key can be used to authenticate each client attached to a wireless
network. Shared Key authentication must be used along with the 802.11
Wireless Equivalent Privacy algorithm.
SNTP Simple Network Time Protocol: SNTP allows a device to set its internal
clock based on periodic updates from a Network Time Protocol (NTP)
server. Updates can be requested from a specific NTP server, or can be
received via broadcasts sent by NTP servers.
TKIP Temporal Key Integrity Protocol: A data encryption method designed as a
replacement for WEP. TKIP avoids the problems of WEP static keys by
dynamically changing data encryption keys.
TFTP Trivial File Transfer Protocol: A TCP/IP protocol commonly used for software
downloads.
VAP Virtual Access Point: Virtual AP technology multiplies the number of Access
Points present within the RF footprint of a single physical access device.
With Virtual AP technology, WLAN users within the device.s footprint can
associate with what appears to be different access points and their
associated network services. All the services are delivered using a single
radio channel, enabling Virtual AP technology to optimize the use of limited
WLAN radio spectrum.
WI-FI PROTECTED
ACCESS
WPA employs 802.1X as its basic framework for user authentication and
dynamic key management to provide an enhanced security solution for
802.11 wireless networks.
![](/img.php?id=1160306&img=bg6e.png)
G
LOSSARY
– 110 –
WEP Wired Equivalent Privacy: WEP is based on the use of security keys and the
popular RC4 encryption algorithm. Wireless devices without a valid WEP
key will be excluded from network traffic.
WPA-PSK WPA Pre-shared Key: WPA-PSK can be used for small office networks with
a limited number of users that may not need a high level of security. WPA-
PSK provides a simple security implementation that uses just a pre-shared
password for network access.
![](/img.php?id=1160306&img=bg6f.png)
– 111 –
INDEX
A
Applications 22
E
Ethernet port 26
H
hardware capabilities 21
hardware description 23
I
initial configuration 38
installing the access point 33
introduction 21, 29
ISP settings 38
K
key features 21
L
LED indicators 25
location selection 33
login page 38
M
mounting on a wall 34
P
package contents 23
power connector 26
R
reset button 27
S
system requirements 33
T
troubleshooting 103
![](/img.php?id=1160306&img=bg70.png)
