First things first
We would like to thank you for making an Acer notebook your choice for meeting
your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
First off, the setup poster helps you get started with setting up your computer.
The Aspire One Generic User Guide contains useful information applying to all
models in the Aspire product series. It covers basic topics such as using the
keyboard and audio, etc. Please understand that due to its nature, the Generic
User Guide will occasionally refer to functions or features which are only contained
in certain models of the series, but not necessarily in the model you purchased.
Such instances are marked in the text with language such as "only for certain
models".
The Quick Guide introduces you to the basic features and functions of your new
computer. For more on how your computer can help you to be more productive,
please refer to the Aspire One Generic User Guide. This guide contains detailed
information on such subjects as system utilities, data recovery, expansion options
and troubleshooting. In addition it contains warranty information and the general
regulations and safety notices for your notebook. It is available in Portable
Document Format (PDF) and comes preloaded on your notebook. Follow these
steps to access it:
1Click on Start > All Programs > AcerSystem.
2Click on AcerSystem User Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed
on your computer, clicking on AcerSystem User Guide will run the Adobe
Reader setup program first. Follow the instructions on the screen to complete
the installation. For instructions on how to use Adobe Reader, access the Help
and Support menu.
4
English
Your Acer notebook tour
After setting up your computer as illustrated in the setup poster, let us show you
around your new Acer notebook.

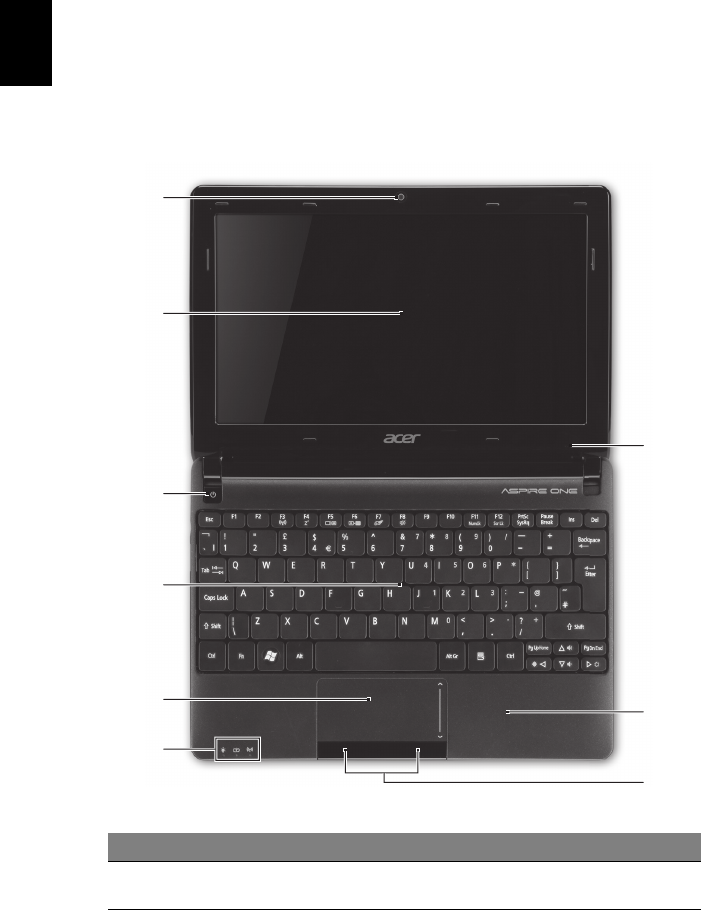

Top view
#Icon Item Description
1Integrated webcam Web camera for video communication
(configuration may vary by model).
1
3
2
4
5
6
7
8
9
5
English
1. The front panel indicators are visible even when the computer cover is closed.
Hotkeys
The computer employs hotkeys or key combinations to access most of the
computer's controls like screen brightness and volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other key in
the hotkey combination.
2Display screen
Also called Liquid-Crystal Display (LCD),
displays computer output (configuration may
vary by model).
3Power button Turns the computer on and off.
4Keyboard For entering data into your computer.
5 Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
6Status indicators1
Light-Emitting Diodes (LED) that light up to
show the status of the computer's functions
and components.
7Click buttons (left
and right)
The left and right buttons function like the left
and right mouse buttons.
8Palmrest Comfortable support area for your hands when
you use the computer.
9Microphone Internal microphone for sound recording.

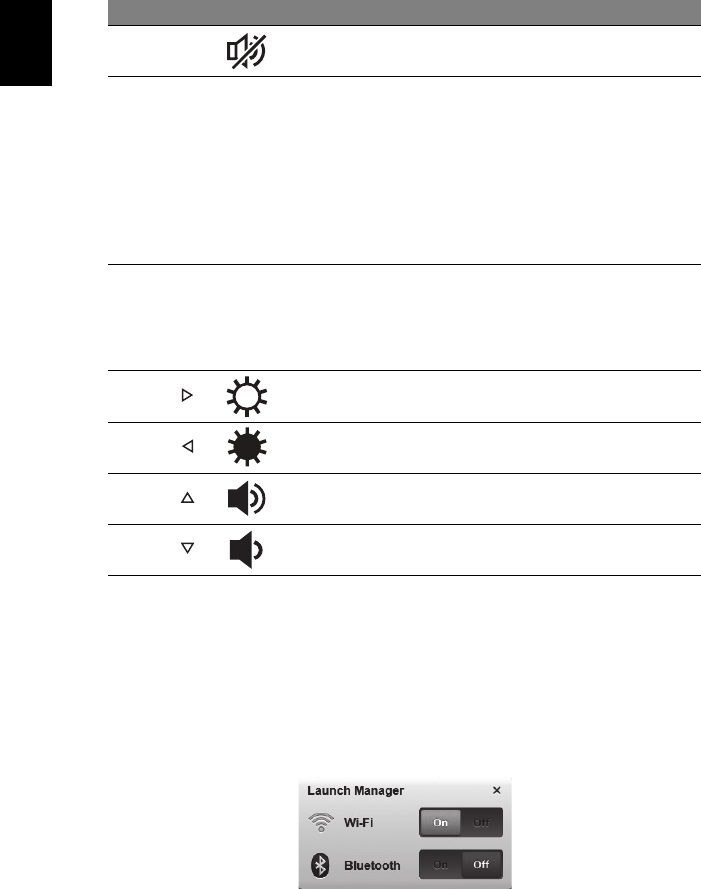

Hotkey Icon Function Description
<Fn> + <F3>Communication
Enables/disables the computer’s
communication devices.
(Communication devices may vary by
configuration.)
<Fn> + <F4>Sleep Puts the computer in Sleep mode.
<Fn> + <F5>Display toggle
Switches display output between the
display screen, external monitor
(if connected) and both.
<Fn> + <F6>Screen blank Turns the display screen backlight off to
save power. Press any key to return.
<Fn> + <F7>Touchpad
toggle Turns the internal touchpad on and off.
#Icon Item Description
6
English
Using the communication key*
Here you can enable and disable the various wireless connectivity devices on your
computer.
Press <Fn> + <F3> to bring up the Launch Manager window panel.
A red toggle indicates the device is off. Click On to enable Wi-Fi/Bluetooth
connection. Click Off to disable connection.
* Communication devices may vary by model.
<Fn> + <F8>Speaker toggle Turns the speakers on and off.
<Fn> +
<F11>Num Lock
When Num Lock is on, the embedded
keypad is in numeric mode. The keys
function as a calculator (complete with
the arithmetic operators +, -, *, and /).
Use this mode when you need to do a
lot of numeric data entry. A better
solution would be to connect an
external keypad.
<Fn> + <F11> only for certain models.
<Fn> +
<F12>Scroll Lock
When Scroll Lock is on, the screen
moves one line up or down when you
press the up or down arrow keys
respectively. Scroll Lock does not work
with some applications.
<Fn> + < >Brightness up Increases the screen brightness.
<Fn> + < >Brightness
down Decreases the screen brightness.
<Fn> + < >Volume up Increases the sound volume (only for
certain models).
<Fn> + < >Volume down Decreases the sound volume (only for
certain models).
Hotkey Icon Function Description
7
English

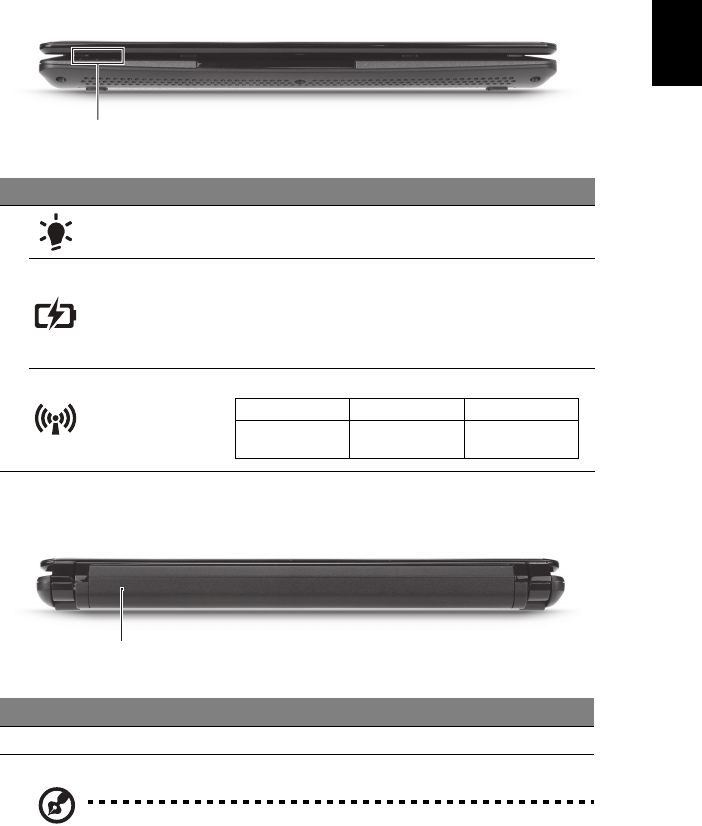

Closed front view
1
#Icon Item Description
1
Power indicator Indicates the computer's power status.
Battery indicator
Indicates the computer's battery status.
1. Charging: The light shows amber when the
battery is charging.
2. Fully charged: The light shows blue when in
AC mode.
Communication
indicator
Indicates the status of 3G / Wi-Fi communication
Blue light on Orange light on Not lit
3G on / Wi-Fi on
3G on / Wi-Fi off 3G off / Wi-Fi on 3G off / Wi-Fi off
Rear view
1
#Item Description
1Battery bay Houses the computer’s battery pack.
Note: Your computer may be equipped with a different battery to the
one in the picture.
8
English
Left view
21 3 54
#Icon Item Description
1DC-in jack Connects to an AC adapter.
2Ethernet (RJ-45) port Connects to an Ethernet 10/100 based
network.
3External display (VGA)
port
Connects to a display device (e.g., external
monitor, LCD projector).
4HDMI port Supports high-definition digital video
connections.
5USB port Connects to USB devices (e.g., USB
mouse, USB camera).
Right view
2143
#Icon Item Description
1Multi-in-1 card reader
Accepts Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick
(MS), Memory Stick PRO (MS PRO), xD-
Picture Card (xD).
Note: Push to remove/install the card. Only
one card can operate at any given time.
2
Headphone/speaker/
line-out jack
Connects to audio line-out devices
(e.g., speakers, headphones).
Microphone-in jack Accepts inputs from external microphones.
9
English

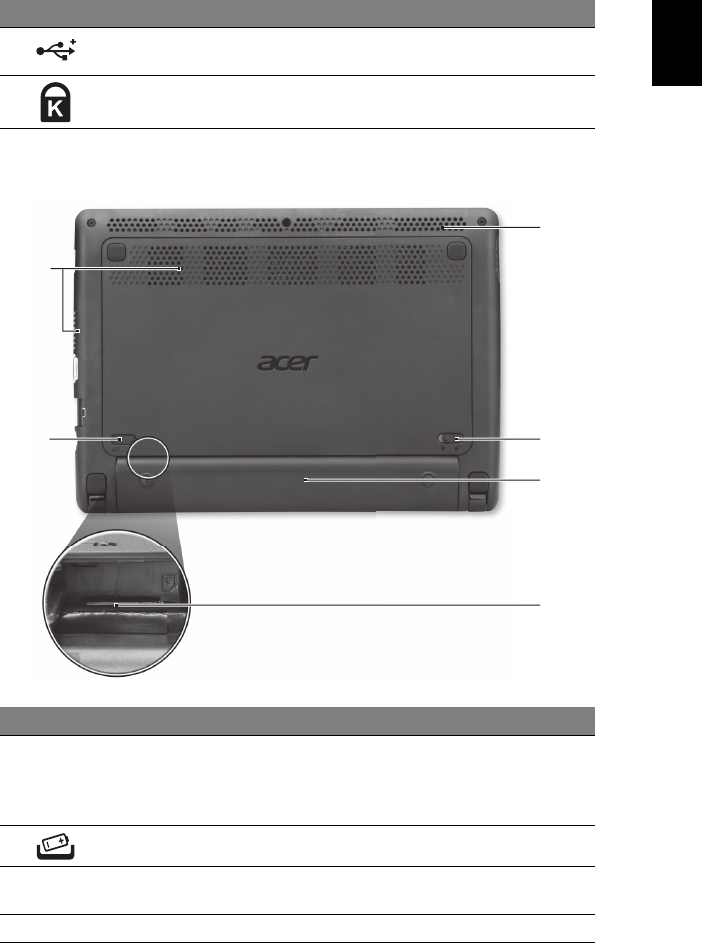

Base view
1
2
3
4
5
6
3USB ports Connect to USB devices
(e.g., USB mouse, USB camera).
4Kensington lock slot Connects to a Kensington-compatible
computer security lock.
#Icon Item Description
1Ventilation slots and
cooling fan
Enable the computer to stay cool, even
after prolonged use.
Note: Do not cover or obstruct the opening
of the fan.
2Battery release latch Releases the battery for removal.
33G SIM card slot Accepts a 3G SIM card for 3G connectivity
(only for certain models).
4Battery bay Houses the computer's battery pack.
#Icon Item Description
10
English
Environment
•Temperature:
•Operating: 5 °C to 35 °C
•Non-operating: -20 °C to 65 °C
•Humidity (non-condensing):
•Operating: 20% to 80%
•Non-operating: 20% to 80%
5Battery lock Locks the battery in position.
6Speaker Emits audio from your computer.
#Icon Item Description
