TravelMate Series Generic User Guide
This revision: 05/2012
iii
English
Information for your safety and
comfort
Safety instructions
Read these instructions carefully. Keep this document for future reference. Follow
all warnings and instructions marked on the product.
Turning the product off before cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
Warnings
Accessing the power cord
Be sure that the power outlet you plug the power cord into is easily accessible and
located as close to the equipment operator as possible. When you need to
disconnect power to the equipment, be sure to unplug the power cord from the
electrical outlet.
Disconnecting the power source
Observe the following guidelines when connecting and disconnecting power to the
power supply unit:
Install the power supply unit before connecting the power cord to the AC power
outlet.
Unplug the power cord before removing the power supply unit from the computer.
If the system has multiple sources of power, disconnect power from the system by
unplugging all power cords from the power supplies.
Using electrical power
•This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult your
dealer or local power company.
•Do not allow anything to rest on the power cord. Do not locate this product
where people will walk on the cord.
•If an extension cord is used with this product, make sure that the total ampere
rating of the equipment plugged into the extension cord does not exceed the
extension cord ampere rating. Also, make sure that the total rating of all
products plugged into the wall outlet does not exceed the fuse rating.
iv
English
•Do not overload a power outlet, strip or receptacle by plugging in too many
devices. The overall system load must not exceed 80% of the branch circuit
rating. If power strips are used, the load should not exceed 80% of the power
strip's input rating.
•This product's AC adapter is equipped with a three-wire grounded plug. The
plug only fits in a grounded power outlet. Make sure the power outlet is
properly grounded before inserting the AC adapter plug. Do not insert the plug
into a non-grounded power outlet. Contact your electrician for details.
Warning! The grounding pin is a safety feature. Using a power
outlet that is not properly grounded may result in electric shock
and/or injury.
Note: The grounding pin also provides good protection from
unexpected noise produced by other nearby electrical devices that
may interfere with the performance of this product.
•The system can be powered using a wide range of voltages; 100 to 120 or 220
to 240 V AC. The power cord included with the system meets the requirements
for use in the country/region where the system was purchased. Power cords
for use in other countries/regions must meet the requirements for that country/
region. For more information on power cord requirements, contact an
authorized reseller or service provider.
Protecting your hearing
Warning: Permanent hearing loss may occur if
earphones or headphones are used at high volume for
prolonged periods of time.
To protect your hearing, follow these instructions.
•Increase the volume gradually until you can hear clearly and comfortably.
•Do not increase the volume level after your ears have adjusted.
•Do not listen to music at high volumes for extended periods.
•Do not increase the volume to block out noisy surroundings.
•Decrease the volume if you can't hear people speaking near you.
v
English
Bundled dummy cards
Note: Information in this section may not apply to your computer.
Your computer shipped with plastic dummies installed in the card slots. Dummies
protect unused slots from dust, metal objects or other particles.
Save the dummies for use when no cards are in the slots.
General
•Do not use this product near water.
•Do not place this product on an unstable cart, stand or table. If the product
falls, it could be seriously damaged.
•Slots and openings are provided for ventilation to ensure reliable operation of
the product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug or other similar surface. This product should never
be placed near or over a radiator or heat register, or in a built-in installation
unless proper ventilation is provided.
•Never push objects of any kind into this product through cabinet slots as they
may touch dangerous voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind onto or into the product.
•To avoid damage of internal components and to prevent battery leakage, do
not place the product on a vibrating surface.
•Never use it under sporting, exercising, or any vibrating environment which will
probably cause unexpected short current or damage rotor devices, HDD,
Optical drive, and even exposure risk from lithium battery pack.
•The bottom surface, areas around ventilation openings and AC adapter may
get hot. To avoid injury, ensure they do not come in contact with your skin or
body.
•Your device and its enhancements may contain small parts. Keep them out of
the reach of small children.
Warnings: The bottom surface, areas around ventilation openins
and AC adapter may get hot. To avoid injury, ensure they do not
come in contact with your skin or body.
Warnings: The notebook is not designed for the permanent use
as a display workstation with attached keyboard pad. External
keyboard should apply for long-term display work.
vi
English
Product servicing
Do not attempt to service this product yourself, as opening or removing covers may
expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:
•The power cord or plug is damaged, cut or frayed.
•Liquid was spilled into the product.
•The product was exposed to rain or water.
•The product has been dropped or the case has been damaged.
•The product exhibits a distinct change in performance, indicating a need for
service.
•The product does not operate normally after following the operating
instructions.
Note: Adjust only those controls that are covered by the operating
instructions, since improper adjustment of other controls may result
in damage and will often require extensive work by a qualified
technician to restore the product to normal condition.
Guidelines for safe battery usage
This notebook uses a Lithium-ion battery. Do not use it in a humid, wet or corrosive
environment. Do not put, store or leave your product in or near a heat source, in a
high temperature location, in strong direct sunlight, in a microwave oven or in a
pressurized container, and do not expose it to temperatures over 60° C (140° F).
Failure to follow these guidelines may cause the battery to leak acid, become hot,
explode or ignite and cause injury and/or damage. Do not pierce, open or
disassemble the battery. If the battery leaks and you come into contact with the
leaked fluids, rinse thoroughly with water and seek medical attention immediately.
For safety reasons, and to prolong the lifetime of the battery, charging will not occur
at temperatures below 0° C (32° F) or above 40° C (104° F).
The full performance of a new battery is achieved only after two or three complete
charge and discharge cycles. The battery can be charged and discharged hundreds
of times, but it will eventually wear out. When the operation time becomes
noticeably shorter than normal, buy a new battery.
Use only the approved batteries, and recharge your battery only with the approved
chargers designated for this device.
Use the battery only for its intended purpose. Never use any charger or battery that
is damaged. Do not short-circuit the battery. Accidental short-circuiting can occur
when a metallic object such as a coin, clip or pen causes direct connection of the
positive (+) and negative (-) terminals of the battery. (These look like metal strips on
the battery.) This might happen, for example, when you carry a spare battery in your
vii
English
pocket or purse. Short-circuiting the terminals may damage the battery or the
connecting object.
The capacity and lifetime of the battery will be reduced if the battery is left in hot or
cold places, such as in a closed car in summer or winter. Always try to keep the
battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery
may not work temporarily, even when the battery is fully charged. Battery
performance is especially limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations. Please
recycle when possible. Do not dispose as household waste.
Wireless devices may be susceptible to interference from the battery, which could
affect performance.
Note: Please refer to www.acer.com for battery shipping
documents.
Replacing the battery pack
The notebook uses lithium batteries. Replace the battery with the same type as that
which came bundled with your product. Use of another battery may present a risk
of fire or explosion.
Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from
children. Follow local regulations when disposing of used
batteries.
Caution for Optical Drive Device
Note: Information in this section may not apply to your computer.
CAUTION: This appliance contains a laser system and is classified as a "CLASS 1
LASER PRODUCT." In case of any trouble with this device, please contact your
nearest AUTHORIZED service station. To prevent direct exposure to the laser beam,
do not try to open the enclosure.
CLASS 1 LASER PRODUCT
CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE
TO BEAM.
APPAREIL A LASER DE CLASSE 1 PRODUIT
LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS
D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.
viii
English
LUOKAN 1 LASERLAITE LASER KLASSE 1
VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG
GEÖFFNET NICHT DEM STRAHLL AUSSETZEN
PRODUCTO LÁSER DE LA CLASE I
ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE
EXPONERSE A LOS RAYOS.
ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.
VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.
VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA
SÅTEESEENSTIRRA EJ IN I STRÅLEN
VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I
STRÅLEN
ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN
Telephone line safety
•Disconnect all telephone lines from the equipment when not in use and/or
before servicing.
•To avoid the remote risk of electric shock from lightning, do not connect the
telephone line to this equipment during lightning or thunderstorms.
Warning! For safety reasons, do not use non-compliant parts
when adding or changing components. Consult your reseller for
purchase options.

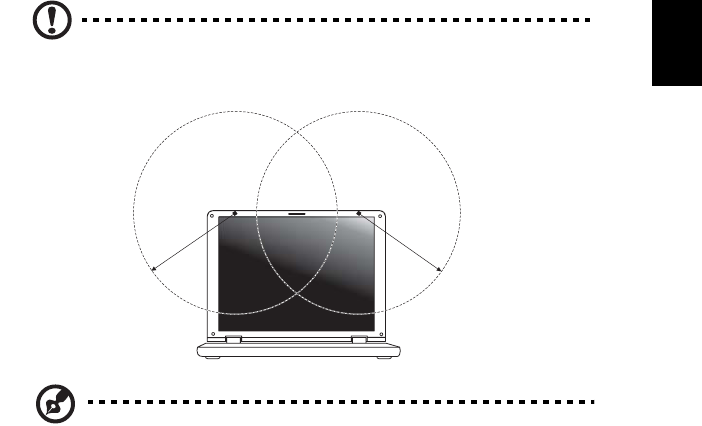

Radio frequency interference
Warning! For safety reasons, turn off all wireless or radio
transmitting devices when using your laptop under the following
conditions. These devices may include, but are not limited to:
wireless LAN (WLAN), Bluetooth and/or 3G.
Remember to follow any special regulations in force in any area, and always switch
off your device when its use is prohibited or when it may cause interference or
danger. Use the device only in its normal operating positions. This device meets RF
exposure guidelines when used normally, and it and its antenna are positioned at
least 1.5 centimeters (5/8 inches) away from your body. It should not contain metal
and you should position the device the above-stated distance from your body. To
successfully transmit data files or messages, this device requires a good quality
connection to the network. In some cases, transmission of data files or messages
may be delayed until such a connection is available. Ensure that the above
separation distance instructions are followed until the transmission is completed.
ix
English
Parts of the device are magnetic. Metallic materials may be attracted to the device,
and persons with hearing aids should not hold the device to the ear with the hearing
aid. Do not place credit cards or other magnetic storage media near the device,
because information stored on them may be erased.
Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices. Consult a
physician or the manufacturer of the medical device to determine if they are
adequately shielded from external RF energy or if you have any questions. Switch
off your device in health care facilities when any regulations posted in these areas
instruct you to do so. Hospitals or health care facilities may be using equipment that
could be sensitive to external RF transmissions.
Pacemakers. Pacemaker manufacturers recommend that a minimum separation of
15.3 centimeters (6 inches) be maintained between wireless devices and a
pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research. Persons with pacemakers
should do the following:
•Always keep the device more than 15.3 centimeters (6 inches) from the
pacemaker
•Not carry the device near your pacemaker when the device is switched on.
If you suspect interference, switch off your device, and move it.
Hearing aids. Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic anti-
skid (anti-lock) braking systems, electronic speed control systems, and air bag
systems. For more information, check with the manufacturer, or its representative,
of your vehicle or any equipment that has been added. Only qualified personnel
should service the device, or install the device in a vehicle. Faulty installation or
service may be dangerous and may invalidate any warranty that may apply to the
device. Check regularly that all wireless equipment in your vehicle is mounted and
operating properly. Do not store or carry flammable liquids, gases, or explosive
materials in the same compartment as the device, its parts, or enhancements. For
vehicles equipped with an air bag, remember that air bags inflate with great force.
Do not place objects, including installed or portable wireless equipment in the area
over the air bag or in the air bag deployment area. If in-vehicle wireless equipment
is improperly installed, and the air bag inflates, serious injury could result. Using
your device while flying in aircraft is prohibited. Switch off your device before
boarding an aircraft. The use of wireless teledevices in an aircraft may be
x
English
dangerous to the operation of the aircraft, disrupt the wireless telephone network,
and may be illegal.
Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Potentially explosive atmospheres include
areas where you would normally be advised to turn off your vehicle engine. Sparks
in such areas could cause an explosion or fire resulting in bodily injury or even
death. Switch off the device at refueling points such as near gas pumps at service
stations. Observe restrictions on the use of radio equipment in fuel depots, storage,
and distribution areas; chemical plants; or where blasting operations are in
progress. Areas with a potentially explosive atmosphere are often, but not always,
clearly marked. They include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as propane or butane), and
areas where the air contains chemicals or particles such as grain, dust or metal
powders. Do not switch the notebook on when wireless phone use is prohibited or
when it may cause interference or danger.
Emergency calls
Warning: You cannot make emergency calls through this device. To make an
emergency call you shall dial out through your mobile phone or other telephone call
system.
Disposal instructions
Do not throw this electronic device into the trash when discarding.
To minimize pollution and ensure utmost protection of the global
environment, please recycle. For more information on the Waste from
Electrical and Electronics Equipment (WEEE) regulations, visit
www.acer-group.com/public/Sustainability/sustainability01.htm
Mercury advisory
For bulb-inside projectors or electronic products containing a non-LED-
backlit-LCD/CRT monitor or display: Lamp(s) inside this product contain
mercury and must be recycled or disposed of according to local, state
or federal laws. For more information, contact the Electronic Industries Alliance at
www.eiae.org. For lamp-specific disposal information, check
www.lamprecycle.org.
xi
English
ENERGY STAR
Note: Information in this section may not apply to your computer.
Acer's ENERGY STAR qualified products save your money by
reducing energy cost and protecting the environment without
sacrificing features or performance. Acer is proud to offer our
customers products with the ENERGY STAR mark.
What is ENERGY STAR?
Products that are ENERGY STAR qualified use less energy and
prevent greenhouse gas emissions by meeting strict energy efficiency guidelines
set by the U.S. Environmental Protection Agency. Acer is committed to offering
products and services worldwide that help customers save money, conserve energy
and improve the quality of our environment. The more energy we can save through
higher energy efficiency, the more we reduce greenhouse gases and the risks of
climate change. More information refers to
www.energystar.gov or www.energystar.gov/powermanagement.
Acer ENERGY STAR qualified products:
• Produce less heat and reduce cooling loads, and warmer climates.
• Automatically go into "display sleep" and "computer sleep" mode after
10 and 30 minutes of inactivity respectively.
• Wake the computer from sleep mode by pushing keyboard or moving
mouse.
• Computers will save more than 80% energy at "sleep" mode.
ENERGY STAR and the ENERGY STAR mark are registered U.S. marks
Tips and information for comfortable use
Computer users may complain of eyestrain and headaches after prolonged use.
Users are also at risk of physical injury after long hours of working in front of a
computer. Long work periods, bad posture, poor work habits, stress, inadequate
working conditions, personal health and other factors greatly increase the risk of
physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis,
tenosynovitis or other musculoskeletal disorders. The following symptoms may
appear in the hands, wrists, arms, shoulders, neck or back:
•Numbness, or a burning or tingling sensation.
•Aching, soreness or tenderness.
•Pain, swelling or throbbing.
•Stiffness or tightness.
xii
English
•Coldness or weakness.
If you have these symptoms, or any other recurring or persistent discomfort and/or
pain related to computer use, consult a physician immediately and inform your
company's health and safety department.
The following section provides tips for more comfortable computer use.
Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a
footrest, or raising your sitting height to achieve maximum comfort. Observe the
following tips:
•Refrain from staying too long in one fixed posture.
•Avoid slouching forward and/or leaning backward.
•Stand up and walk around regularly to remove the strain on your leg muscles.
•Take short rests to relax your neck and shoulders.
•Avoid tensing your muscles or shrugging your shoulders.
•Install the external display, keyboard and mouse properly and within
comfortable reach.
•If you view your monitor more than your documents, place the display at the
center of your desk to minimize neck strain.
Taking care of your vision
Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive
room lighting, poorly focused screens, very small typefaces and low-contrast
displays could stress your eyes. The following sections provide suggestions on how
to reduce eyestrain.
Eyes
•Rest your eyes frequently.
•Give your eyes regular breaks by looking away from the monitor and focusing
on a distant point.
•Blink frequently to keep your eyes from drying out.
Display
•Keep your display clean.
•Keep your head at a higher level than the top edge of the display so your eyes
point downward when looking at the middle of the display.
•Adjust the display brightness and/or contrast to a comfortable level for
enhanced text readability and graphics clarity.
•Eliminate glare and reflections by:
• placing your display in such a way that the side faces the window or any
light source
xiii
English
• minimizing room light by using drapes, shades or blinds
• using a task light
• changing the display's viewing angle
• using a glare-reduction filter
• using a display visor, such as a piece of cardboard extended from the
display's top front edge
•Avoid adjusting your display to an awkward viewing angle.
•Avoid looking at bright light sources for extended periods of time.
Developing good work habits
The following work habits make computer use more relaxing and productive:
•Take short breaks regularly and often.
•Perform some stretching exercises.
•Breathe fresh air as often as possible.
•Exercise regularly and maintain a healthy body.
Warning! We do not recommend using the computer on a couch
or bed. If this is unavoidable, work for only short periods, take
breaks regularly, and do some stretching exercises.
Note: For more information, please refer to "Regulations and safety
notices" on page 58.
xiv
English
First things first
We would like to thank you for making an Acer notebook your choice for meeting
your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
First off, the setup poster helps you get started with setting up your computer.
The TravelMate Generic User Guide contains useful information applying to all
models in the TravelMate product series. It covers basic topics such as using the
keyboard and audio, etc. Please understand that due to its nature, the Generic
User Guide will occasionally refer to functions or features which are only contained
in certain models of the series, but not necessarily in the model you purchased.
Such instances are marked in the text with language such as "only for certain
models."
The Quick Guide introduces you to the basic features and functions of your new
computer. For more on how your computer can help you to be more productive,
please refer to the TravelMate Generic User Guide. This guide contains detailed
information on such subjects as system utilities, data recovery, expansion options
and troubleshooting. In addition it contains warranty information and the general
regulations and safety notices for your notebook. It is available in Portable
Document Format (PDF) and comes preloaded on your notebook. Follow these
steps to access it:
1Click Start > All Programs > AcerSystem.
2Click TravelMate Generic User Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not
installed on your computer, clicking on TravelMate Generic User
Guide will run the Adobe Reader setup program first. Follow the
instructions on the screen to complete the installation. For
instructions on how to use Adobe Reader, access the Help and
Support menu.
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press and release the power button. Please refer to
the setup poster for the location of the power button.
xv
English
To turn the power off, do any of the following:
•Use the Windows shutdown command: click Start then Click Shut Down.
•Use the power button.
You can also put the computer in sleep mode by pressing the sleep hotkey
<Fn> + <F4>.
Note: If you cannot power off the computer normally, press and hold
the power button for more than four seconds to shut down the
computer. If you turn off the computer and want to turn it on again,
wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it near sources of
heat, such as a radiator.
•Do not expose the computer to temperatures below 0º C (32º F) or above 50º
C (122º F).
•Do not subject the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock or vibration.
•Do not expose the computer to dust or dirt.
•Never place objects on top of the computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on top of it. Carefully
route the power cord and any cables away from foot traffic.
•When unplugging the power cord, do not pull on the cord itself but pull on the
plug.
•The total ampere ratings of the equipment plugged in should not exceed the
ampere rating of the cord if you are using an extension cord. Also, the total
current rating of all equipment plugged into a single wall outlet should not
exceed the fuse rating.
xvi
English
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the power off before
removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations. Recycle if possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1 Turn off the computer and remove the battery pack.
2 Disconnect the AC adapter.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.
If either of the following occurs:
•The computer has been dropped or the body has been damaged;
•The computer does not operate normally
Please refer to "Frequently asked questions" on page 53 .
Information for your safety and comfort iii
Safety instructions iii
Warnings iii
Caution for Optical Drive Device vii
Radio frequency interference viii
Medical devices ix
Vehicles ix
Potentially explosive environments x
Emergency calls x
Disposal instructions x
Mercury advisory x
ENERGY STAR xi
Tips and information for comfortable use xi
First things first xiv
Your guides xiv
Basic care and tips for using your computer xiv
Turning your computer on and off xiv
Taking care of your computer xv
Taking care of your AC adapter xv
Taking care of your battery pack xvi
Cleaning and servicing xvi
Touchpad 1
Touchpad basics (for models with separate buttons) 1
Touchpad basics (for models with integrated buttons) 2
Using the keyboard 4
Lock keys and embedded numeric keypad* 4

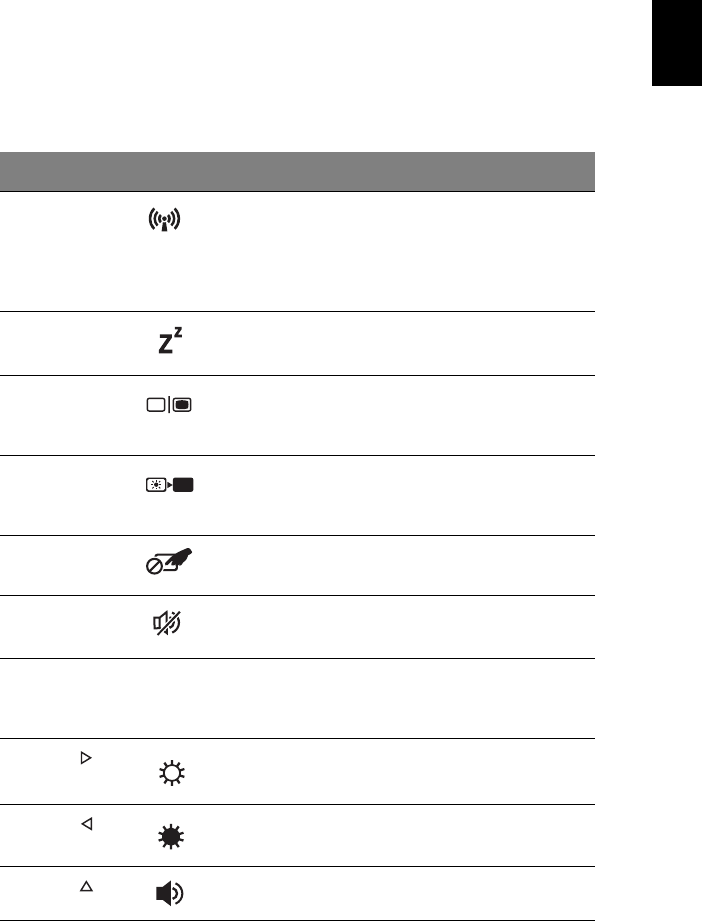

Hotkeys 5

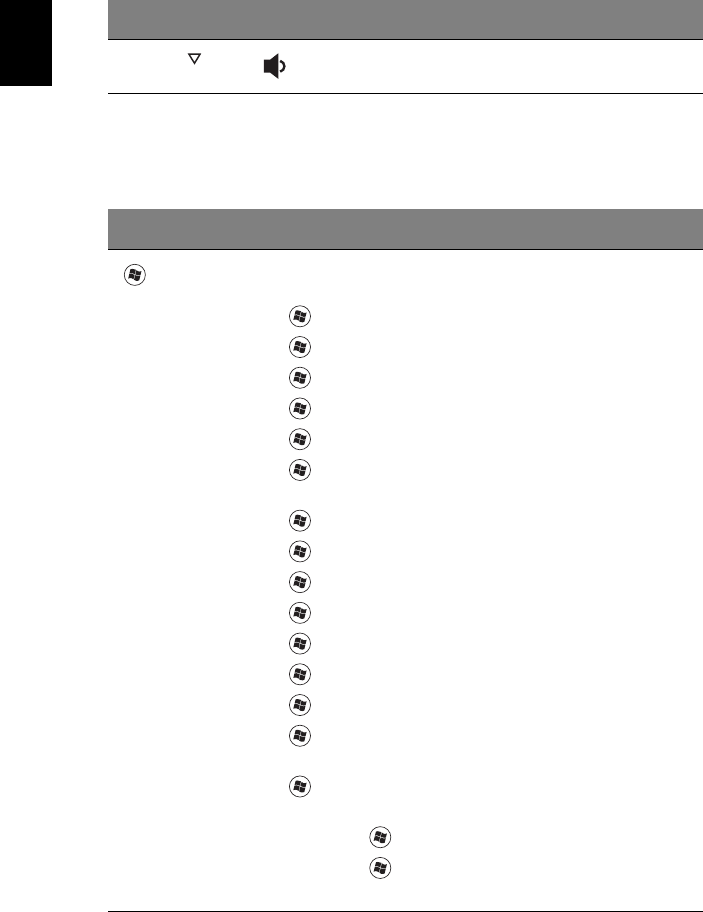

Windows keys 6

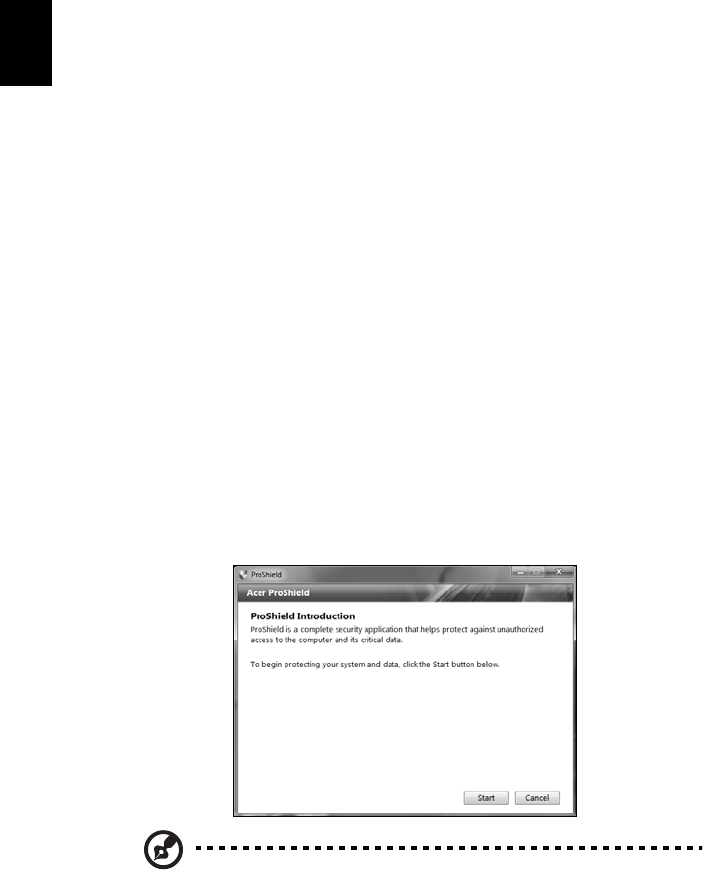

Acer ProShield 8
Overview 8

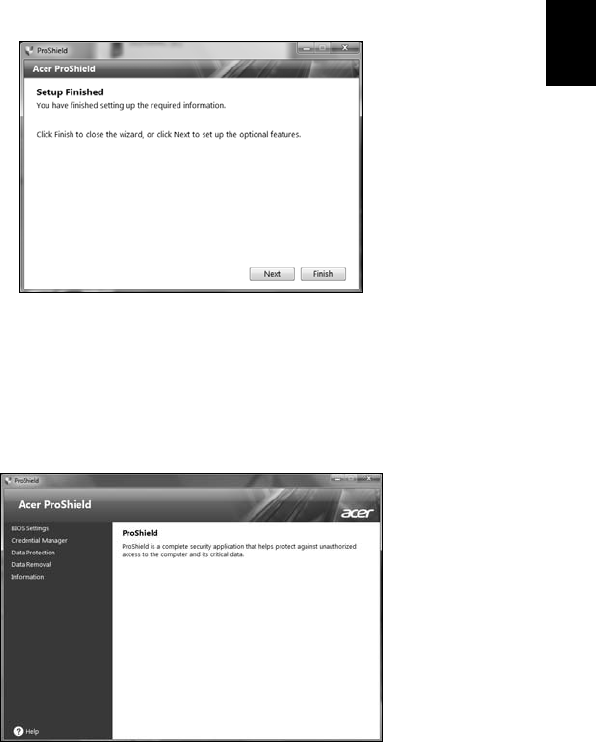

Setting up ProShield 8
Personal Secure Disk 9

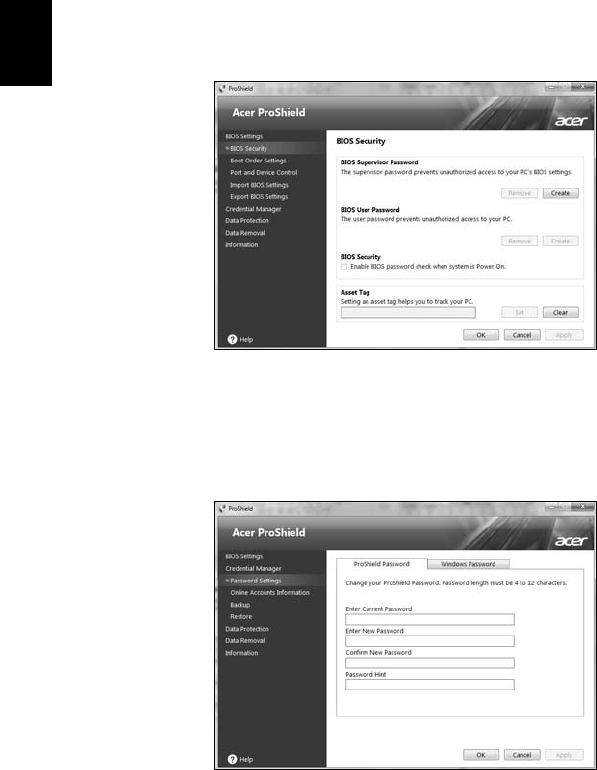

BIOS Settings 10
Credential Manager 10

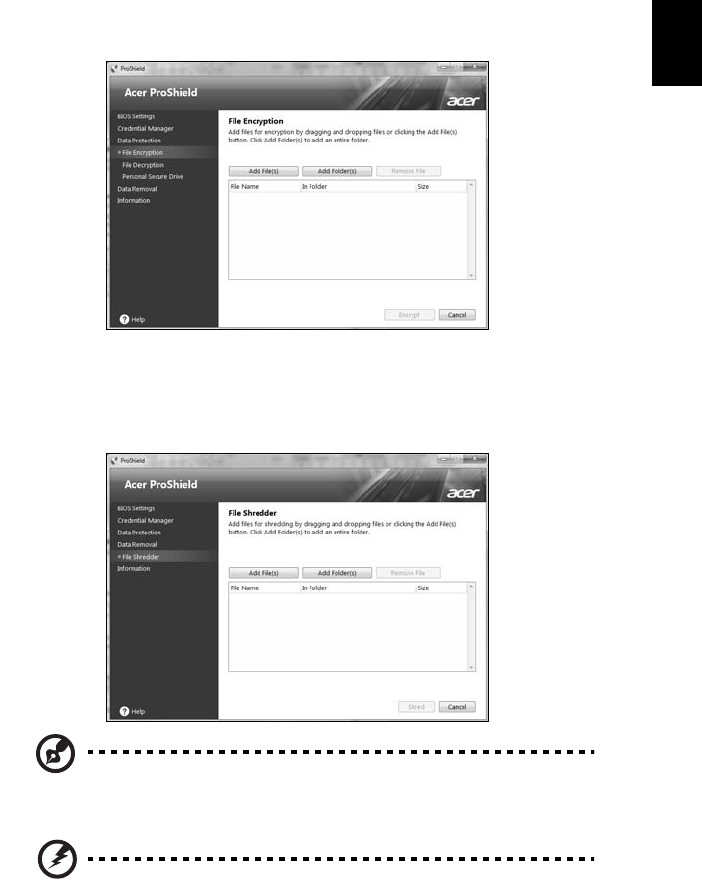

Data Protection 11
Data Removal 11
Remote Manageability 12
Acer Office Manager 13
Acer Office Manager Console 13

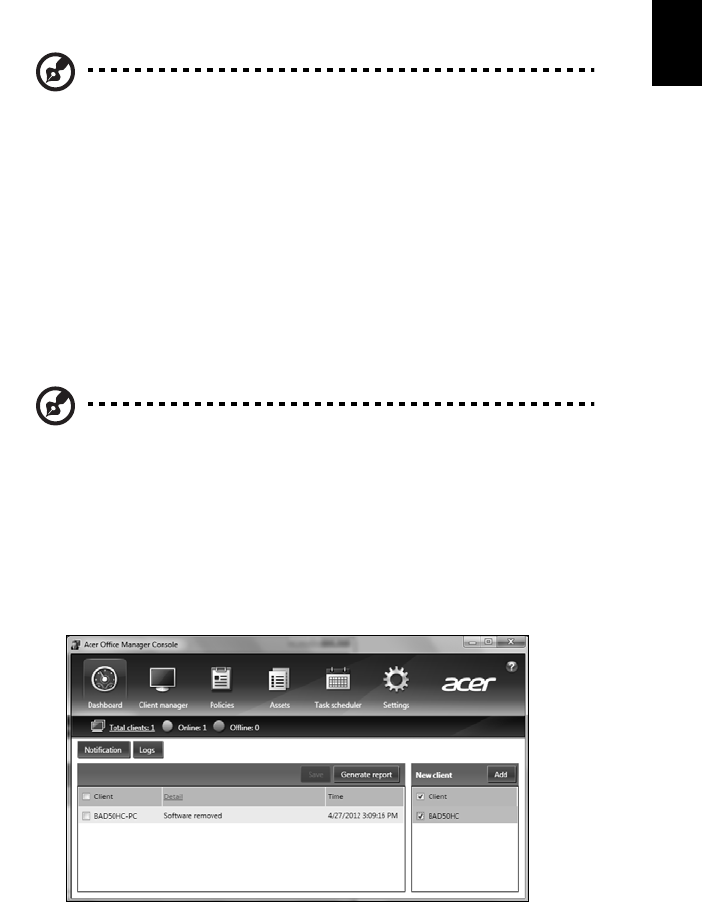

Dashboard 13

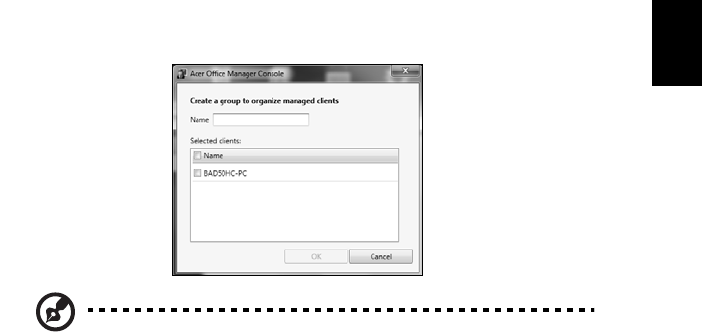

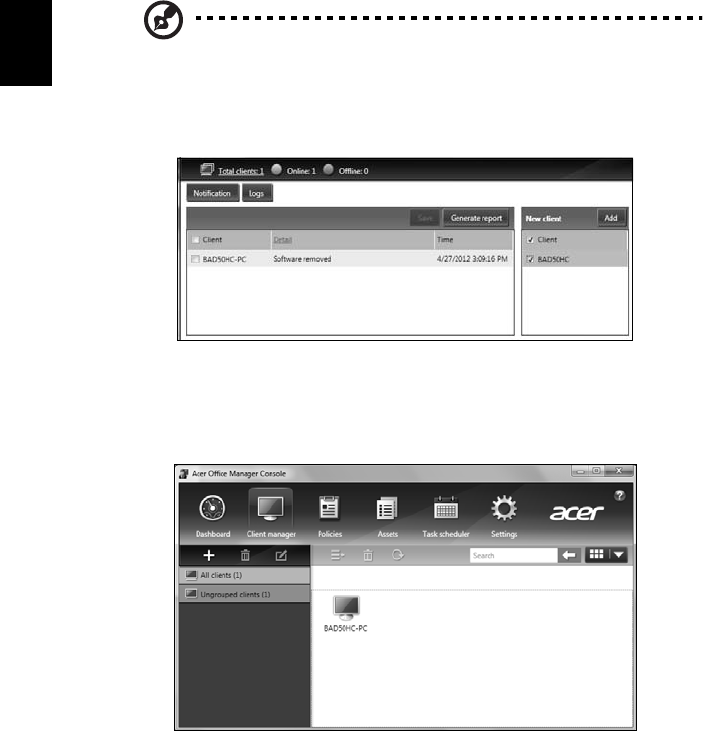

Client manager 14

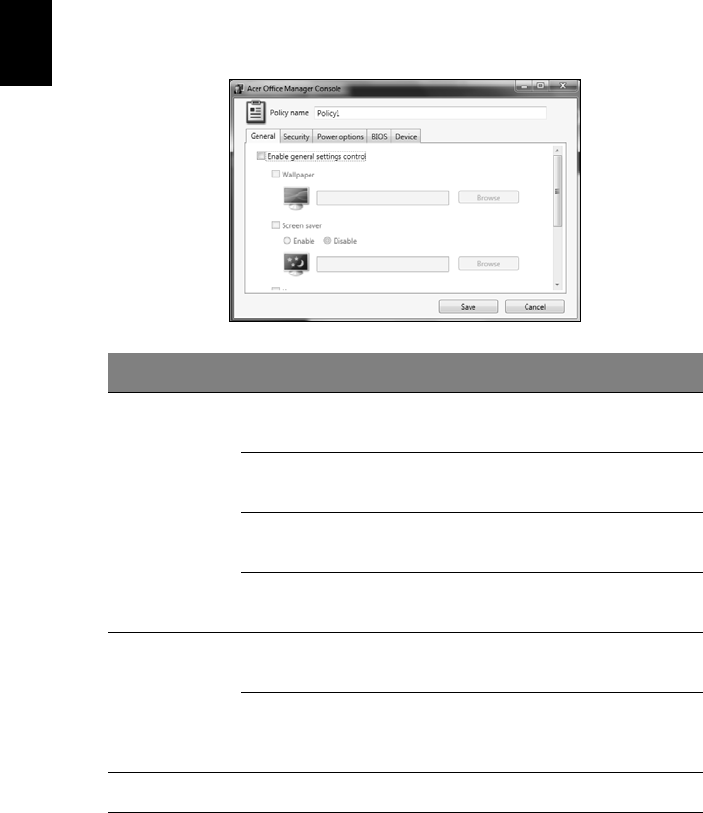

Policies 16

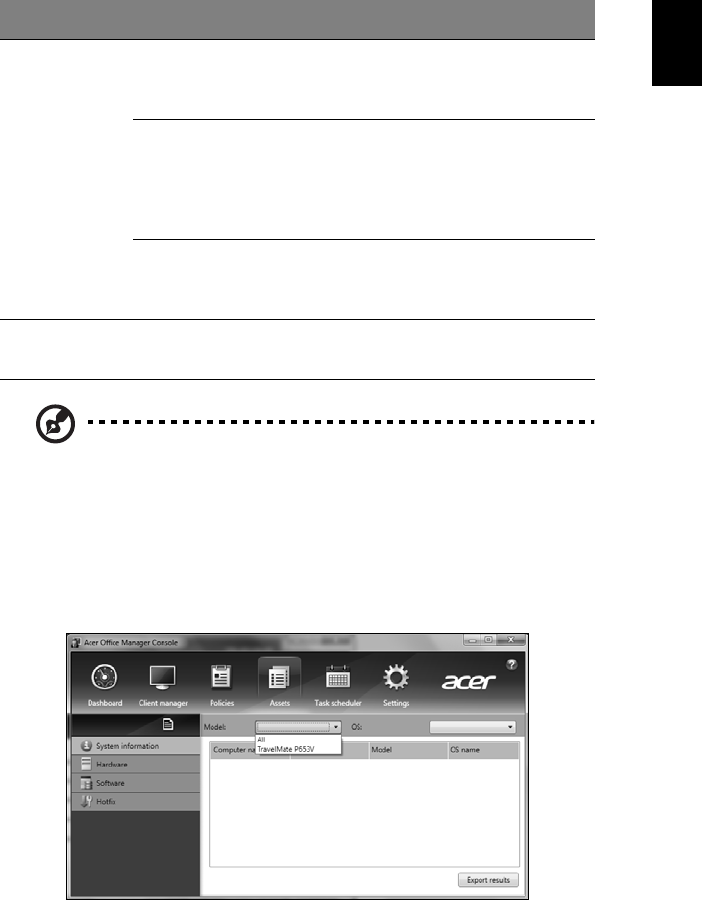

Assets 17

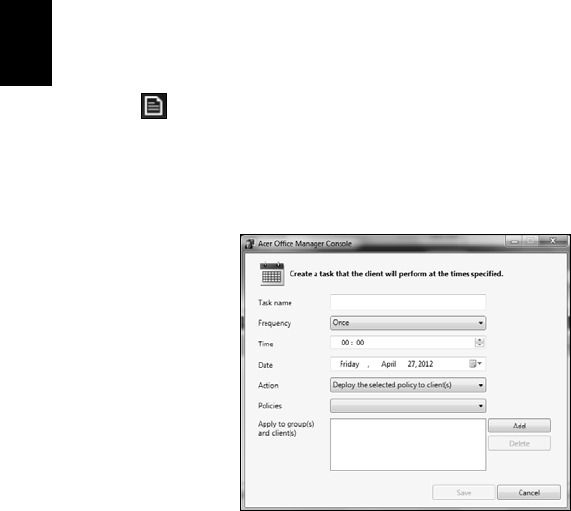

Task scheduler 18

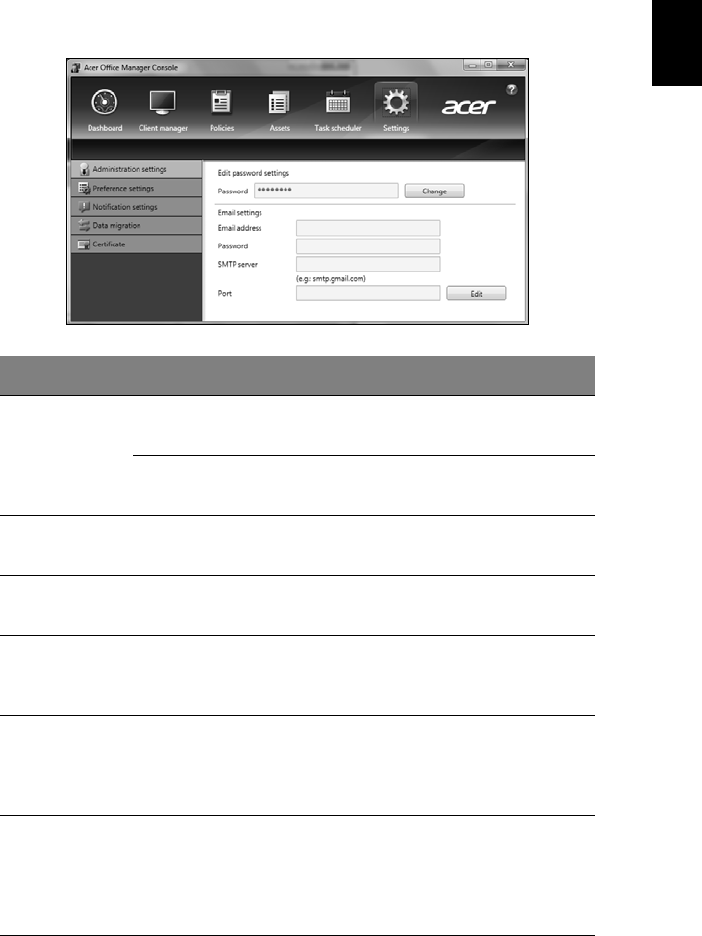

Settings 19
Contents

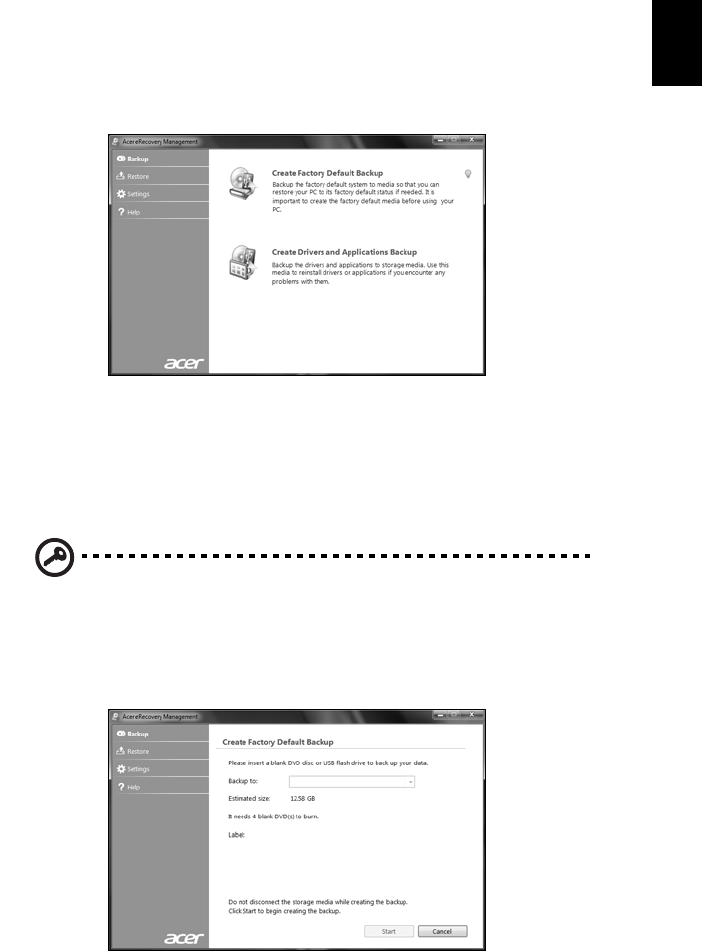

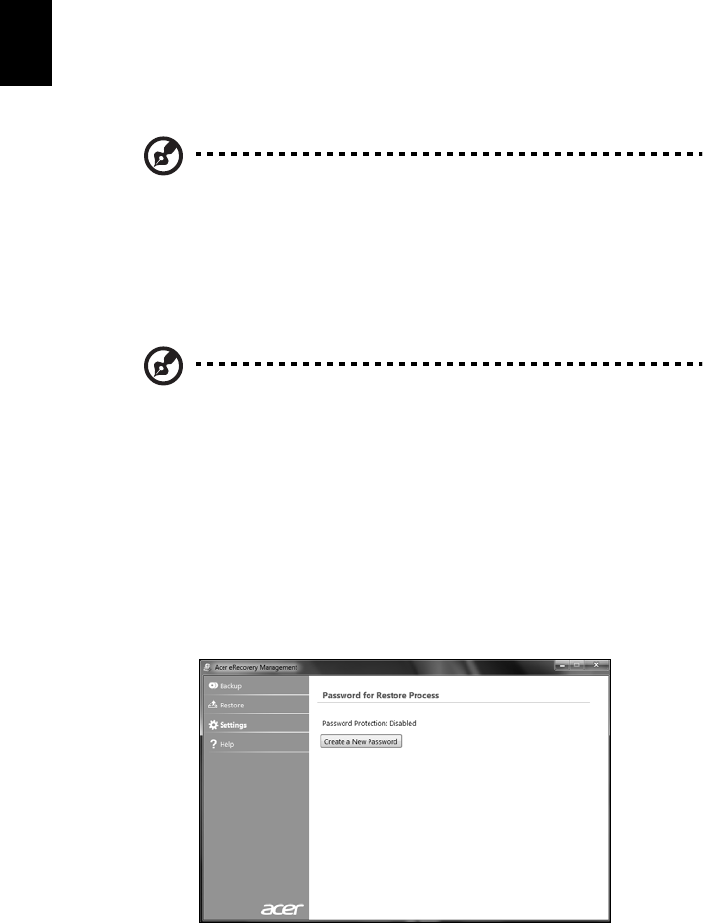

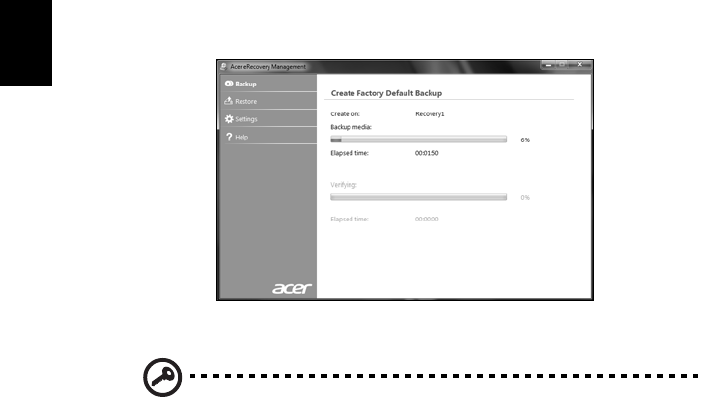

Acer eRecovery Management 20

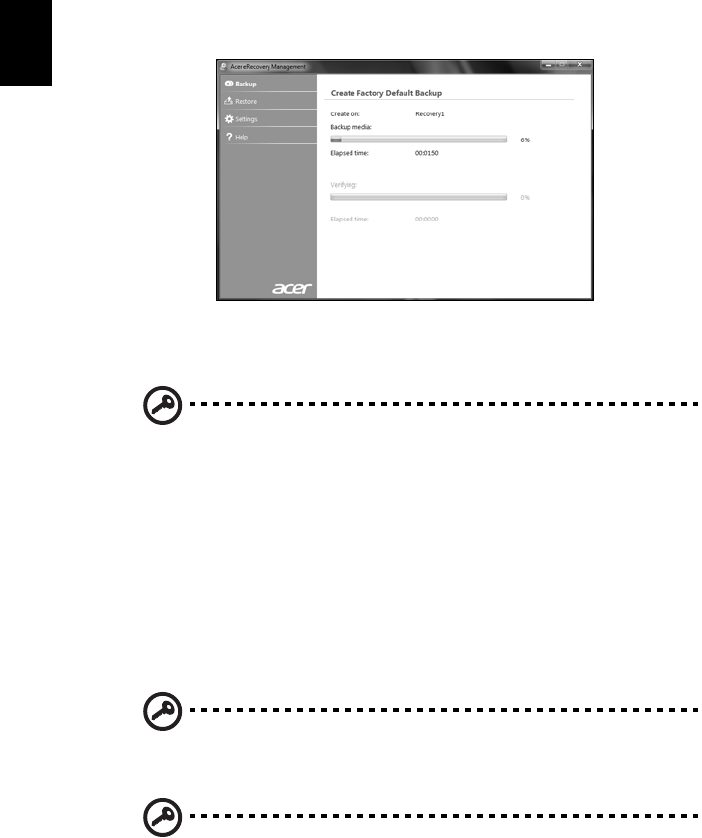

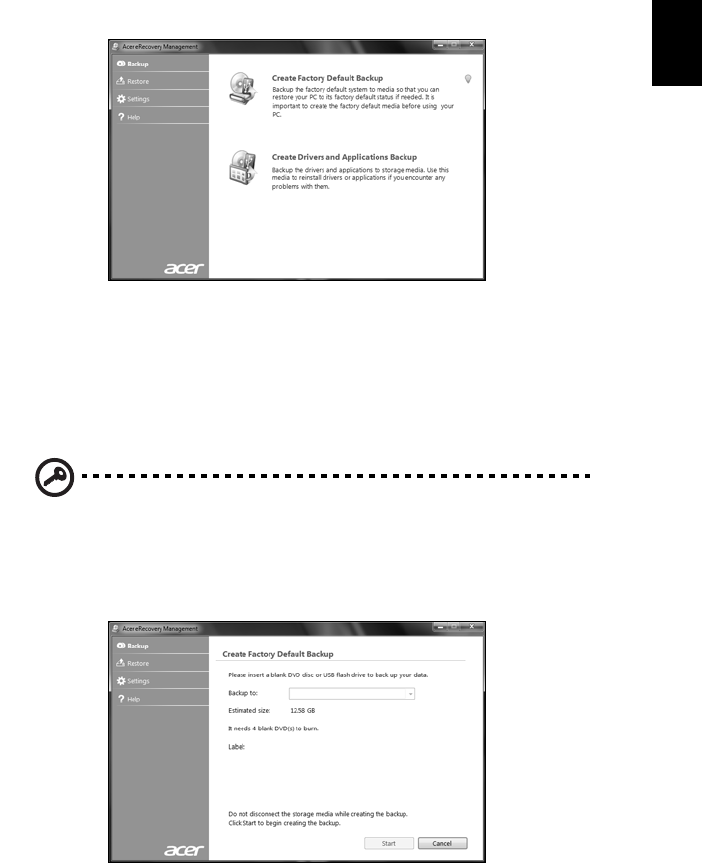

Creating a recovery backup (Optical drive) 21
Creating a recovery backup (USB flash drive) 22

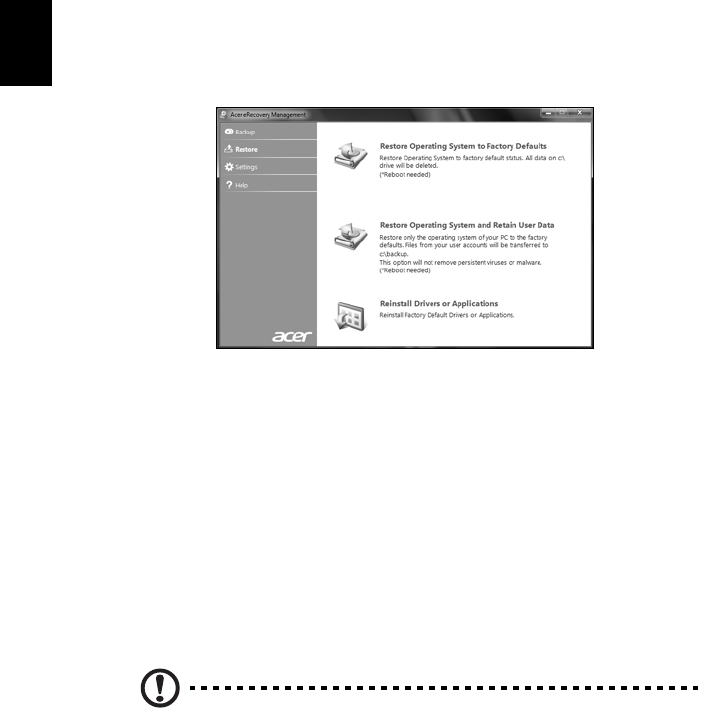

Recovering your system (Optical drive) 25
To recover your system 25
Types of recovery 25
Recovering pre-installed software and drivers 25
Returning to a previous system condition 26
Returning your system to its factory condition 27

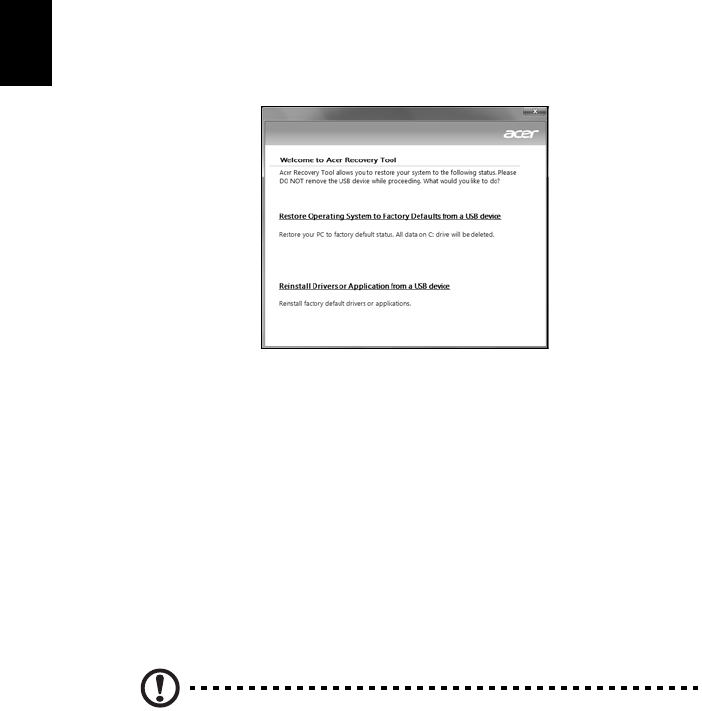

Recovering your system (USB flash drive) 29
To recover your system 29
Types of recovery 29
Recovering pre-installed software and drivers 29
Returning to a previous system condition 30
Returning your system to its factory condition 31

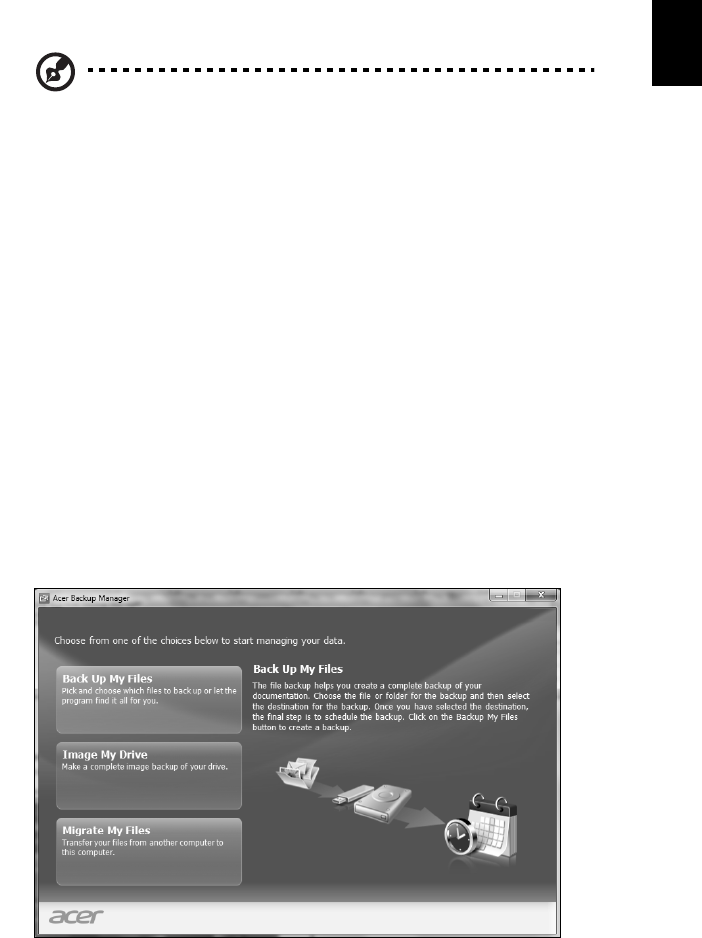

Acer Backup Manager 33
Power management 34
Battery pack 35
Battery pack characteristics 35
Maximizing the battery’s life 35
Installing and removing the battery pack 36
Charging the battery 37
Checking the battery level 37
Optimizing battery life 37
Battery-low warning 37
Taking your notebook PC with you 39
Disconnecting from the desktop 39
Moving around 39
Preparing the computer 39
What to bring to meetings 40
Taking the computer home 40
Preparing the computer 40
What to take with you 40
Special considerations 41
Setting up a home office 41
Traveling with the computer 41
Preparing the computer 41
What to take with you 41
Special considerations 42
Traveling internationally with the computer 42
Preparing the computer 42
What to bring with you 42
Special considerations 42
Securing your computer 43
Using a computer security lock 43
Using passwords 43
Entering passwords 44
Setting passwords 44
Expanding through options 45
Connectivity options 45
Fax/data modem 45

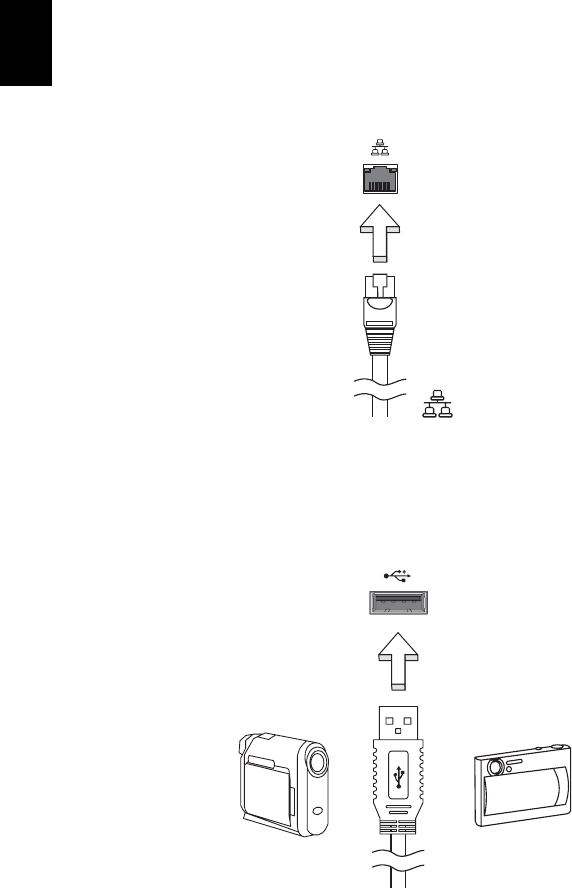

Built-in network feature 46
Universal Serial Bus (USB) 46
IEEE 1394 port 47

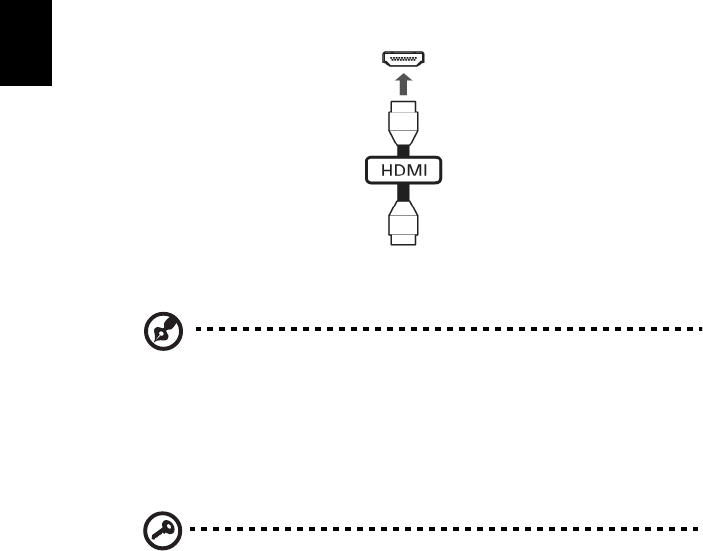

High-Definition Multimedia Interface 47

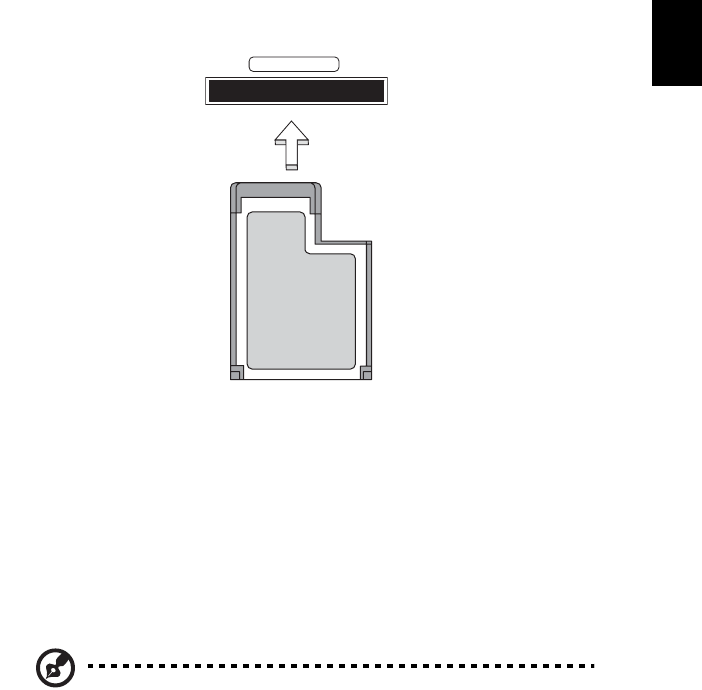

ExpressCard 48

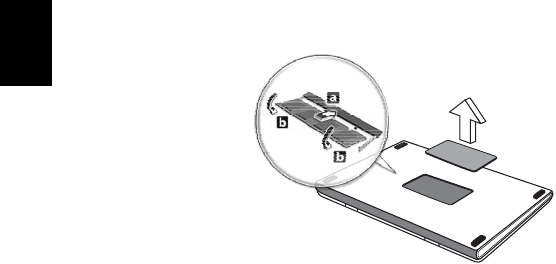

Installing memory 49
BIOS utility 51
Boot sequence 51
Enable disk-to-disk recovery 51
Password 51
Using software 52
Playing DVD content 52
Frequently asked questions 53
Requesting service 55
International Travelers Warranty (ITW) 55
Before you call 55
Troubleshooting 56
Troubleshooting tips 56
Error messages 56
Regulations and safety notices 58
FCC statement 58
Modem notices 59
LCD pixel statement 60
Radio device regulatory notice 60
General 61
Wireless operation channels for different domains 61
France: Restricted wireless frequency bands 61
List of National Codes 62
The FCC RF safety requirement 62
Canada — Low-power license-exempt radio
communication devices (RSS-210) 63
Exposure of humans to RF fields (RSS-102) 63
LCD panel ergonomic specifications 64
1
English
Touchpad
The built-in touchpad is a pointing device that senses movement on its surface.
This means the cursor responds as you move your finger across the surface of the
touchpad. The central location on the palmrest provides optimum comfort and
support.
Touchpad basics (for models with separate
buttons)
The following items show you how to use the touchpad with two buttons.
•Move your finger across the touchpad to move the cursor.
•Press the left and right buttons located beneath the touchpad to perform
selection and execution functions. These two buttons are similar to the left and
right buttons on a mouse. Tapping on the touchpad is the same as clicking the
left button.
Note: Illustrations for reference only. The exact configuration of your
PC depends on the model purchased.
Function Left button Right
button
Main touchpad
Execute Quickly click
twice.
Tap twice (at the same
speed as double-clicking
a mouse button).
Select Click once. Tap once.
Drag Click and hold,
then use finger on
the touchpad to
drag the cursor.
Tap twice (at the same
speed as double-clicking
a mouse button); rest your
finger on the touchpad on
the second tap and drag
the cursor.
Access context
menu
Click
once.
2
English
Note: When using the touchpad, keep it — and your fingers — dry
and clean. The touchpad is sensitive to finger movement; hence, the
lighter the touch, the better the response. Tapping harder will not
increase the touchpad's responsiveness.
Note: By default, vertical and horizontal scrolling is enabled on your
touchpad. It can be disabled under Mouse settings in Windows
Control Panel.

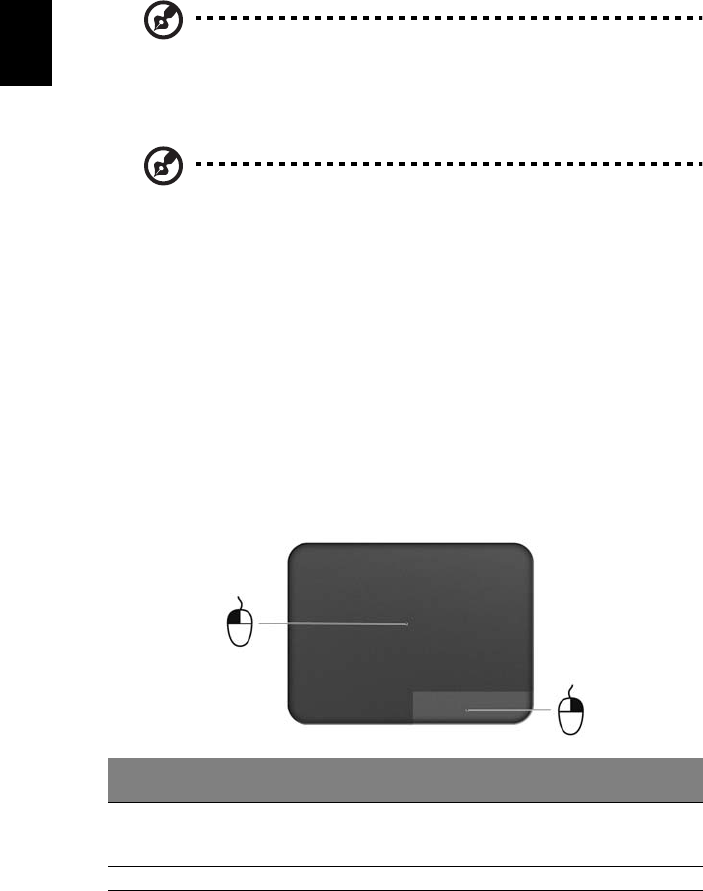

Touchpad basics (for models with integrated
buttons)
The following items show you how to use the touchpad.
•Move your finger across the touchpad to move the cursor.
•Press the touchpad down, or tap, to perform a click, which will select or start
an item.
•Place your finger in the bottom right corner of the touchpad and press to
perform a right click.
The bottom left and bottom right corners of the touchpad are similar to the left
and right buttons on a mouse.
Function Bottom left
corner
Bottom right
corner
Main touchpad
Open Quickly press
twice
Press or tap twice (at the
same speed as double-
clicking a mouse button)
Select Press once Press or tap once
3
English
Note: When using the touchpad, keep it — and your fingers — dry
and clean. The touchpad is sensitive to finger movement; hence, the
lighter the touch, the better the response. Tapping harder will not
increase the touchpad's responsiveness.
Drag Press and hold,
then use finger on
the touchpad to
drag the cursor
Press or tap twice (at the
same speed as double-
clicking a mouse button);
rest your finger on the
touchpad on the second tap
and drag the cursor
Access context
menu
Press once
Function Bottom left
corner
Bottom right
corner
Main touchpad
4
English
Using the keyboard
The keyboard has full-sized keys and an embedded numeric keypad*, separate
cursor, lock, Windows, function and special keys.
Lock keys and embedded numeric keypad*
The keyboard has three lock keys which you can toggle on and off.
The embedded numeric keypad functions like a desktop numeric keypad. It is
indicated by small characters located on the upper right corner of the keycaps. To
simplify the keyboard legend, cursor-control key symbols are not printed on the
keys.
* only for certain models
Lock key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are
in uppercase.
Num Lock
<Fn> + <F11>*
When Num Lock is on, the embedded keypad is in numeric
mode. The keys function as a calculator (complete with the
arithmetic operators +, -, *, and /). Use this mode when you
need to do a lot of numeric data entry. A better solution would
be to connect an external keypad.
Scroll Lock
<Fn> + <F12>
When Scroll Lock is on, the screen moves one line up or
down when you press the up or down arrow keys
respectively. Scroll Lock does not work with some
applications.
Desired access Num Lock on Num Lock off
Number keys on
embedded keypad
Type numbers in a normal
manner.
Cursor-control keys
on embedded
keypad
Hold <Shift> while using
cursor-control keys.
Hold <Fn> while using
cursor-control keys.
Main keyboard keys Hold <Fn> while typing
letters on embedded
keypad.
Type the letters in a
normal manner.
5
English
Hotkeys
The computer employs hotkeys or key combinations to access most of the
computer's controls like screen brightness and volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other key in
the hotkey combination.
Hotkey Icon Function Description
<Fn> + <F3> Communication
key
Enables / disables the
computer's communication
devices. (Communication
devices may vary by
configuration.)
<Fn> + <F4> Sleep Puts the computer in Sleep
mode.
<Fn> + <F5> Display toggle Switches display output between
the display screen, external
monitor (if connected) and both.
<Fn> + <F6> Display off Turns the display screen
backlight off to save power.
Press any key to return.
<Fn> + <F7> Touchpad
toggle
Turns the built-in touchpad on
and off.
<Fn> + <F8> Speaker toggle Turns the speakers on and off.
<Fn> + <F11> NumLk Turns the embedded numeric
keypad on or off (only for certain
models).
<Fn> + < > Brightness up Increases the screen brightness.
<Fn> + < > Brightness
down
Decreases the screen brightness.
<Fn> + < > Volume up Increases the sound volume.
6
English
Windows keys
The keyboard has two keys that perform Windows-specific functions.
<Fn> + < > Volume down Decreases the sound volume.
Key Description
Windows
key
Pressed alone it launches the Start menu.
It can also be used with other keys for other functions:
< >: Open or close the Start menu
<> + <D>: Display the desktop
<> + <E>: Open Windows Explorer
<> + <F>: Search for a file or folder
<> + <G>: Cycle through Sidebar gadgets
<> + <L>: Lock your computer (if connected to a
domain), or switch users (if not connected to a domain)
<> + <M>: Minimize all windows
<> + <R>: Open the Run dialog box
<> + <T>: Cycle through programs on the taskbar
<> + <U>: Open Ease of Access Center
<> + <X>: Open Windows Mobility Center
<> + <Break>: Display System Properties
<> + <Shift+M>: Restore minimized windows
<> + <Tab>: Cycle through programs on the taskbar
by using Windows Flip 3-D
<> + <Space>: Bring all gadgets to the front and
select Windows Sidebar
<CTRL> + < > + <F>: Search for network computers
<CTRL> + < > + <Ta b >: Use the arrow keys to cycle
through open programs using Windows Flip 3-D
Hotkey Icon Function Description
7
English
Note: Depending on your edition of Windows, some shortcuts may
not function as described.
Application
key
This key has the same effect as clicking the right mouse
button; it opens the application's context menu.
Key Description
8
English
Acer ProShield
Overview
An all-in-one security solution, Acer ProShield provides an embedded security
solution to address the following points of vulnerability:
•Securing the device against unauthorized access
•Protecting local storage
•Securing the network
Acer ProShield includes five modules that will secure your device from unauthorized
access and intrusion.
•Credential Manager - Password, Bio-Protection, TPM configuration
•BIOS Migration - Boot sequence and device security
•Data Encryption - Personal secure drive, file and folder encryption
•Data Removal - File shredder
•Remote Manageability - ProShield remote UI
Setting up ProShield
The first time you run ProShield, you will be led through a setup wizard that allows
you to set up the parameters for ProShield. Click Start to begin. You will be required
to set a password.
Note: Select a password that you will remember, but is difficult to
guess. Do not use words that can be found in a dictionary. It is
advisable to use a combination of letters and numbers.
9
English
Once you’ve set the password, you can click Next to proceed to setting up a
Personal Secure Disk or click Finish to exit the wizard.
Personal Secure Disk
The Personal Secure Disk (PSD) is a secure section of your hard disk where you can
save files. You can only get access to the PSD via password or fingerprint
authentication.
Once setup is finished, you can go to the ProShield Console to manage your
computer or make changes to the settings.
Use the menu in the left-hand pane to make changes.
10
English
BIOS Settings
Here you can set the BIOS Supervisor and User passwords, enable or disable
password checking at bootup, and add an Asset Tag for the device.
You can also set the boot device order, enable or disable ports and built-in devices,
and import or export BIOS settings.
Credential Manager
Here you can set and manage your credentials, including Pre-boot authentication.
You can change your ProShield and Windows passwords, manage online account
information, and back up or restore credential information.
11
English
Data Protection
Here you can select files for encryption or decryption, and manage your PSD.
Data Removal
Here you can select files to be completely removed from the hard disk. The File
Shredder overwrites the data to make recovering the data impossible.
Note: You can also double-click the File Shredder icon on the
desktop to open this function.
Warning: Make sure you select only the information you want to
shred. Once you have shredded a file or folder, it is impossible to
recover the data.
12
English
Remote Manageability
This module allows Acer Client Manager to control the functions of Acer ProShield
from a remote station. The flexibility of remote management allows efficient use of
IT resources and timely implementation of security updates.
13
English
Acer Office Manager
Note: Only for selected models.
Acer Office Manager is a monitoring and assent management tool that allows MIS
staff to remotely manage and update computers. There are two components to this
software package: Acer Office Manager Console and Acer Office Manager Client.
Acer Office Manager Console
The Console application allows you to manage connected clients from a single
computer. To start the Console click Start > All Programs > Acer > Acer Office
Manager Console > Acer Office Manager Console.
The first time you run the Console, you will be asked to set up a password, and an
email address for notifications.
Note: The password should be from 8 to 31 characters long and
must include at least one digit, one capital letter and one lower-case
letter.
Dashboard
Once you have completed the setup steps, you will be shown the Dashboard,
where you can view the total number of connected clients, the online clients and
offline clients. You can also add a client by selecting a client under New client and
clicking the Add button.
14
English
Tip: Select Client under New client to select all the found clients.
In the Notification area you can see any notifications received for the managed
clients, including information such as hardware or software being removed, if
the.client has been in use, or if it has been off-line, for longer than the defined time.
Client manager
On the Client manager page you can view all the clients being managed from the
Console. Double-click an icon to view the system information for that client.
15
English
You can also group clients together for easier management. For example, you can
create a group for admin staff and another for sales staff. To create a group and add
clients to the group, click the + symbol above the list of clients.
Note: Each client can only be assigned to one group.
16
English
Policies
You can set policies to apply to selected clients or groups of clients. Click the +
symbol to add a new policy.
Tab Item Function
General Wallpaper Set a wallpaper that will be applied to all
clients.
Screen saver Set a screen saver that will be applied to
all clients.
Homepage Set which home page Internet Explorer
will open when launched.
Enable AutoPlay Enable or disable AutoPlay for external
devices or CD- / DVD-ROMs
Security Enable IE
security settings
Define Internet Explorer security
settings.
Enable user
account policy
Set policies for user passwords, such as
minimum password strength, password
validity, and lockout parameters.
Power options Define power settings.
17
English
Note: The items in the Device tab are not supported for desktop
computers. If you set a policy that includes items in this tab, and
deploy the policy to a desktop computer, the settings will be ignored.
Assets
The Assets page gives you a quick overview of the managed clients and the
hardware and software for each system. You can also see which Hotfixes have been
applied to each system.
BIOS BIOS Supervisor
password
Set a BIOS Supervisor password. If a
password already exists, you will need
to enter it before you can change it.
BIOS User
password
Set a BIOS User password. If a
password already exists, you will need
to enter it or the Supervisor password
before you can change the User
password.
Change boot
sequence
settings
Change the order of devices used to
boot the system.
Device Enable or disable devices on notebook
computers.
Tab Item Function
18
English
Select the system model from the Model drop-down menu. You can then further
refine the search by operating system via the OS drop-down menu. The discovered
clients will be listed.
If you wish to export the results as an Excel spreadsheet, click Export results or
the icon. You will be asked where to save the file and for a file name.
Task scheduler
On the Task scheduler page, you can set a schedule to deploy selected policies on
a regular basis. Click the + symbol to add a new task.
You will need to enter a Task name, select the Frequency, Time, Date, Action, the
Policies to be deployed (if appropriate) and the group(s) or client(s).
Once you have entered the necessary information, click Save.
19
English
Settings
On the Settings page, you can change your settings as desired.
Tab Item Function
Administration
settings
Edit password
settings
Change your Acer Office Manager
Console password
Email settings Set up an email account to receive email
notifications.
Preference
settings
Set up your program launch and lock
preferences.
Notification
settings
Set up what time-related notifications
should show on the Dashboard.
Data migration Export your Acer Office Manager
Console settings for use on another
machine.
Certificate Create new
certificate
Create a certificate that you can import
to another machine. Certificates ensure
that the client can only be managed
from a single console.
Import certificate Import a certificate from another
machine. This will allow the console to
manage a remote client that has a
trusted relationship with another
console.
20
English
Acer eRecovery Management
If your computer experiences problems that are not recoverable by other methods,
you may need to reinstall the Windows operating system and factory-loaded
software and drivers. To ensure you can recover your computer when needed, you
should create a recovery backup as soon as possible.
Note: All of the following content is for general reference only. Actual
product specifications may vary.
Acer eRecovery Management consists of the following functions:
1Backup:
• Create Factory Default Backup
• Backup Drivers and Applications
Note: Models that do not have an ODD will allow you to make
backup copies to a USB drive.
2Restore:
• Restore Operating System to Factory Defaults
• Restore Operating System and Retain User Data
• Reinstall Drivers or Applications
This chapter will guide you through each process.
To use the password protection feature of Acer eRecovery Management, you must
first set the password. The password is set by launching Acer eRecovery
Management and clicking Settings.
21
English
Creating a recovery backup (Optical drive)
To reinstall using a backup on optical discs, you must create the recovery disc
beforehand. Throughout the process, you will be guided by onscreen instructions.
Please read them carefully!
1Click Start > All Programs > Acer, then click Acer eRecovery Management.
2 To create recovery discs for the hard drive’s entire original contents, including
Windows and all factory-loaded software and drivers, click Create Factory
Default Disc.
- OR -
To create a recovery disc for only the factory-loaded software and drivers, click
Create Drivers and Applications Backup Disc.
Important: We recommend that you create each type of recovery
backup as soon as possible.
The Create Factory Default Backup dialog box tells you the number of blank,
recordable discs you will need to complete the recovery discs. Make sure that you
have the required number of identical, blank discs ready before continuing.
22
English
3 Insert a blank disc into the drive indicated in the Backup to list, then click
Next. You will be shown the backup progress on the screen.
The drive ejects each disc as it completes burning it.
4 Remove the disc from the drive and mark it with a permanent marker.
Important: Write a unique, descriptive label on each disc, such as
‘Windows Recovery Disc 1 of 2’ or ‘Apps/Drivers Recovery disc’.
Make sure you keep the discs in a safe place that you will remember.
5 If multiple discs are required, insert a new disc when prompted, then click OK.
Continue recording discs until the process is complete.
Creating a recovery backup (USB flash drive)
To reinstall using a backup on a USB flash drive, you must create the recovery
backup beforehand. Throughout the process, you will be guided by onscreen
instructions. Please read them carefully!
Important: If you are using a USB flash drive, ensure it is at least 12
GB and does not contain any previous data.
Important: This section only applies to computers without an optical
drive.
23
English
1Click Start > All Programs > Acer, then click Acer eRecovery Management.
2 To create recovery backup for the hard drive’s entire original contents,
including Windows and all factory-loaded software and drivers, click Create
Factory Default Backup.
- OR -
To create a recovery backup for only the factory-loaded software and drivers, click
Create Driver and Applications Backup.
Important: We recommend that you create each type of recovery
backup as soon as possible.
The Create Factory Default Backup dialog box opens. This dialog box tells you the
estimated size of the backup file on your USB flash drive.
24
English
3 Plug in the USB disk, then click Next. You will be shown the backup progress
on the screen.
4 Unplug the USB flash drive and mark it with a permanent marker.
Important: Write a unique, descriptive label on each backup, such as
‘Windows Recovery Backup’ or ‘Apps/Drivers Recovery Backup’.
Make sure you keep the USB flash drive in a safe place that you will
remember.
25
English
Recovering your system (Optical
drive)
If calling Acer support did not help fix your problem, you can use the Acer
eRecovery Management program. This will restore your computer to the same state
as when you purchased it, while giving you an option to retain all settings and
personal data for later retrieval.
To recover your system
1 Perform minor fixes.
If only one or two items of software or hardware have stopped working correctly,
the problem may be solved by reinstalling the software or the device drivers. To
recover software and drivers that were pre-installed at the factory, see "Recovering
pre-installed software and drivers" on page 25. For instructions on reinstalling
software and drivers that were not pre-installed, see that product’s documentation
or technical support Web site.
2 Revert to a previous system condition.
If reinstalling software or drivers does not help, then the problem may be solved by
returning your system to a previous state when everything was working correctly.
For instructions, see "Returning to a previous system condition" on page 26.
3 Reset your system to its factory condition.
If nothing else has solved the problem and you want to reset your system to factory
condition, see "Returning your system to its factory condition" on page 27.
Types of recovery
Recovering pre-installed software and drivers
As a troubleshooting step, you may need to reinstall the software and device drivers
that came pre-installed on your computer from the factory. You can recover using
either your hard drive or the recovery discs you have created.
•New software: If you need to recover software that did not come pre-installed
on your computer, you need to follow that software’s installation instructions.
•New device drivers: If you need to recover device drivers that did not come
pre-installed on your computer, follow the instructions provided with the
device.
To recover your pre-installed software and drivers:
1Click Start > All Programs > Acer, then click Acer eRecovery Management.
- OR -
26
English
If you are recovering from your driver and application recovery disc, insert it into the
disc drive, then go to Step 3 after the Acer Application Recovery main menu opens.
2Click the Restore tab, then click Reinstall Drivers or Applications to display
the Acer Application Recovery main menu.
3Click Contents to show a list of software and device drivers.
4 Click the install icon for the item you want to install, then follow the onscreen
prompts to complete the installation. Repeat this step for each item you want
to reinstall.
Returning to a previous system condition
Microsoft System Restore periodically takes ’snapshots’ of your system settings
and saves them as restore points. In most cases of hard-to-resolve software
problems, you can return to one of these restore points to get your system running
again.
Windows automatically creates an additional restore point each day, and also each
time you install software or device drivers.
Tip: For more information about using Microsoft System Restore,
click Start, then click Help and Support. Type windows system
restore in the Search Help box, then press Enter.
To return to a restore point:
1Click Start > Control Panel > System and Security > Action Center, then
click Recovery.
2Click Open System Restore, then Next.
3 Select the restore point you want, click Next, then Finish. A confirmation
message box will appear.
27
English
4Click Yes. Your system is restored using the restore point you specified. This
process may take several minutes, and may restart your computer.
Returning your system to its factory condition
If your computer experiences problems that are not recoverable by other methods,
you may need to reinstall everything to return your system to its factory condition.
You can reinstall using either your hard drive or the recovery discs you have
created.
Warning: This complete recovery deletes everything on your hard
drive, then reinstalls Windows and all software and drivers that
were pre-installed on your system. If you can access important
files on your hard drive, back them up now.
If you can still run Windows, see "Recovering from within Windows" on page 27.
If you cannot run Windows and your original hard drive is still working, see
"Recovering from the hard drive during startup" on page 28.
If you cannot run Windows and your original hard drive has been completely re-
formatted or you have installed a replacement hard drive, see "Recovering from
your recovery discs" on page 28.
Recovering from within Windows
To reinstall Windows and all pre-installed software and drivers:
Click Start > All Programs > Acer, then click Acer eRecovery Management.
Click the Restore tab, then Restore Operating System to Factory Defaults.
Click Yes , then Start. A dialog box will display information about the hard drive that
the operating system will be recovered to.
Warning: Continuing the process will erase all files on your hard
drive.
Click OK. The recovery process begins by restarting your computer, then continues
by copying files to your hard drive. This process may take a while, the Acer
eRecovery Management screen displays the progress.
When the recovery has finished, a dialog box will prompt you to restart your
computer.
Click OK to restart your computer.
Follow the onscreen prompts for first-time system setup.
28
English
Recovering from the hard drive during startup
To reinstall Windows and all pre-installed software and drivers:
1 Turn on your computer, then press <Alt> + <F10> during startup to open Acer
eRecovery Management.
2Click Restore Operating System to Factory Defaults.
Warning: Continuing the process will erase all files on your hard
drive.
3Click Next. Your hard drive’s original, factory-loaded contents will be
recovered. This process will take several minutes.
Recovering from your recovery discs
To reinstall Windows and all pre-installed software and drivers:
1 Turn on your computer, insert the first system recovery disc into your optical
disc drive, then restart your computer.
Warning: Continuing the process will erase all files on your hard
drive.
If it is not already enabled, you must enable the F12 Boot Menu:
Press <F2> when starting your computer.
Use the left or right arrow keys to select the Main menu.
Press the down key until F12 Boot Menu is selected, press <F5> to change this
setting to Enabled.
Use the left or right arrow keys to select the Exit menu.
Select Save Changes and Exit and press Enter. Select OK to confirm.
Your computer will restart.
2 During startup, press <F12> to open the boot menu. The boot menu allows
you to select which device to start from, such as the hard drive or an optical
disc.
3 Use your arrow keys to select the line CDROM/DVD (this line may start with
’IDE 1...’), then press <Enter>. Windows will install from the recovery disc you
inserted.
4 Insert the second recovery disc when prompted, then follow the onscreen
prompts to complete the recovery.
29
English
Recovering your system (USB flash
drive)
If calling Acer support did not help fix your problem, you can use the Acer
eRecovery Management program. This will restore your computer to the same state
as when you purchased it, while giving you an option to retain all settings and
personal data for later retrieval.
To recover your system
1 Perform minor fixes.
If only one or two items of software or hardware have stopped working correctly,
the problem may be solved by reinstalling the software or the device drivers. To
recover software and drivers that were pre-installed at the factory, see "Recovering
pre-installed software and drivers" on page 29. For instructions on reinstalling
software and drivers that were not pre-installed, see that product’s documentation
or technical support Web site.
2 Revert to a previous system condition.
If reinstalling software or drivers does not help, then the problem may be solved by
returning your system to a previous state when everything was working correctly.
For instructions, see "Returning to a previous system condition" on page 30.
3 Reset your system to its factory condition.
If nothing else has solved the problem and you want to reset your system to factory
condition, see "Returning your system to its factory condition" on page 31.
Types of recovery
Recovering pre-installed software and drivers
As a troubleshooting step, you may need to reinstall the software and device drivers
that came pre-installed on your computer from the factory. You can recover using
either your hard drive or the backup you have created.
•New software: If you need to recover software that did not come pre-installed
on your computer, you need to follow that software’s installation instructions.
•New device drivers: If you need to recover device drivers that did not come
pre-installed on your computer, follow the instructions provided with the
device.
To recover your pre-installed software and drivers:
1Click Start > All Programs > Acer, then click Acer eRecovery Management.
- OR -
30
English
If you are recovering from your driver and application recovery backup, insert the
USB flash drive into a USB port. Open the USB flash drive in Windows Explorer and
double-click Recovery.
2 Click Reinstall Drivers or Application from a USB device.
3Click Contents to show a list of software and device drivers.
4 Click the install icon for the item you want to install, then follow the onscreen
prompts to complete the installation. Repeat this step for each item you want
to reinstall.
Returning to a previous system condition
Microsoft System Restore periodically takes ’snapshots’ of your system settings
and saves them as restore points. In most cases of hard-to-resolve software
problems, you can return to one of these restore points to get your system running
again.
Windows automatically creates an additional restore point each day, and also each
time you install software or device drivers.
Tip: For more information about using Microsoft System Restore,
click Start, then click Help and Support. Type windows system
restore in the Search Help box, then press Enter.
To return to a restore point:
1Click Start > Control Panel > System and Security > Action Center, then
click Recovery.
2Click Open System Restore, then Next.
3 Select the restore point you want, click Next, then Finish. A confirmation
message box will appear.
31
English
4Click Yes. Your system is restored using the restore point you specified. This
process may take several minutes, and may restart your computer.
Returning your system to its factory condition
If your computer experiences problems that are not recoverable by other methods,
you may need to reinstall everything to return your system to its factory condition.
You can reinstall using either your hard drive or the recovery backup you have
created.
Warning: This complete recovery deletes everything on your hard
drive, then reinstalls Windows and all software and drivers that
were pre-installed on your system. If you can access important
files on your hard drive, back them up now.
If you can still run Windows, see "Recovering from within Windows" on page 31.
If you cannot run Windows and your original hard drive is still working, see
"Recovering from the hard drive during startup" on page 32.
If you cannot run Windows and your original hard drive has been completely re-
formatted or you have installed a replacement hard drive, see "Recovering from
your recovery backup" on page 32.
Recovering from within Windows
To reinstall Windows and all pre-installed software and drivers:
Click Start > All Programs > Acer, then click Acer eRecovery Management.
Click the Restore tab, then Restore Operating System to Factory Defaults to
open the Confirm Restoration dialog box.
Click Yes , then Start. A dialog box will display information about the hard drive that
the operating system will be recovered to.
Warning: Continuing the process will erase all files on your hard
drive.
Click OK. The recovery process begins by restarting your computer, then continues
by copying files to your hard drive. This process may take a while, the Acer
eRecovery Management screen displays the progress.
When the recovery has finished, a dialog box prompts you to restart your computer.
Click OK to restart your computer.
Follow the onscreen prompts for first-time system setup.
32
English
Recovering from the hard drive during startup
To reinstall Windows and all pre-installed software and drivers:
1 Turn on your computer, then press <Alt> + <F10> during startup to open Acer
eRecovery Management.
2Click Restore Operating System to Factory Defaults.
Warning: Continuing the process will erase all files on your hard
drive.
3Click Next. Your hard drive’s original, factory-loaded contents will be
recovered. This process will take several minutes.
Recovering from your recovery backup
To reinstall Windows and all pre-installed software and drivers:
1 Plug in the USB flash drive and turn on your computer.
Warning: Continuing the process will erase all files on your hard
drive.
If it is not already enabled, you must enable the F12 Boot Menu:
Press <F2> when starting your computer.
Use the left or right arrow keys to select the Main menu.
Press the down key until F12 Boot Menu is selected, press <F5> to change this
setting to Enabled.
Use the left or right arrow keys to select the Exit menu.
Select Save Changes and Exit and press Enter. Select OK to confirm.
Your computer will restart.
2 During startup, press <F12> to open the boot menu. The boot menu allows
you to select which device to start from, such as a flash drive.
3 Use your arrow keys to select the line USB HDD, then press <Enter>.
Windows will install from the recovery backup on the USB flash drive.
4 Follow the onscreen prompts to complete the recovery.
33
English
Acer Backup Manager
Note: This feature is only available on certain models.
Acer Backup Manager is a simple three-step process that allows you to create
backup copies of your entire system or selected files and folders according to a
schedule or as you need to.
To start Acer Backup Manager, press the Acer Backup Manager key above the
keyboard. Alternatively, you can go to Start > All Programs > Acer Backup
Manager > Acer Backup Manager. This will open the Welcome screen; from this
screen you will be taken through the three steps to setup scheduled back ups. Click
Continue to proceed to the following screen. Click the + button and follow the
onscreen instructions:
1 Select the content you want to back up. The less content you select, the
quicker the process will be, but it will increase your risks of losing data.
2 Select where you want the backup copies to be stored. You will need to select
an external drive or your D: drive; Acer Backup Manager cannot store a
backup on the source drive.
3 Select how often you want Acer Backup Manager to create back ups.
Once you have finished these three steps, backups will be created according to the
schedule. You can also create backups manually by pressing the Acer Backup
Manager key.
If you wish to change your settings at any time, run Acer Backup Manager from the
Start menu and go through the steps outlined above.
34
English
Power management
This computer has a built-in power management unit that monitors system activity.
System activity refers to any activity involving one or more of the following devices:
keyboard, mouse, hard disk, peripherals connected to the computer, and video
memory. If no activity is detected for a period of time (called an inactivity timeout),
the computer stops some or all of these devices in order to conserve energy.
This computer employs a power management scheme that supports the advanced
configuration and power interface (ACPI), which allows for maximum power
conservation and maximum performance at the same time. Windows handles all
power-saving chores for your computer.
35
English
Battery pack
The computer uses a battery pack that gives you long use between charges.
Battery pack characteristics
The battery pack has the following characteristics:
•Employs current battery technology standards.
•Delivers a battery-low warning.
The battery is recharged whenever you connect the computer to the AC adapter.
Your computer supports charge-in-use, enabling you to recharge the battery while
you continue to operate the computer. However, recharging with the computer
turned off results in a significantly faster charge time.
The battery will come in handy when you travel or during a power failure. It is
advisable to have an extra fully charged battery pack available as backup. Contact
your dealer for details on ordering a spare battery pack.
Maximizing the battery’s life
Like all other batteries, your computer's battery will degrade over time. This means
that the battery's performance will diminish with time and use. To maximize your
battery's life, you are advised to adhere to the recommendations set out below.
Conditioning a new battery pack
Before you use a battery pack for the first time, there is a conditioning process that
you should follow:
1 Insert the new battery without turning the computer on.
2 Connect the AC adapter and fully charge the battery.
3 Disconnect the AC adapter.
4 Turn on the computer and operate using battery power.
5 Fully deplete the battery until the battery-low warning appears.
6 Reconnect the AC adapter and fully charge the battery again.
Follow these steps again until the battery has been charged and discharged three
times.
Use this conditioning process for all new batteries, or if a battery hasn't been used
for a long time. If the computer is to be stored for more than two weeks, you are
advised to remove the battery pack from the unit.
36
English
Warning: Do not expose battery packs to temperatures below
0°C (32°F) or above 45°C (113°F). Extreme temperatures may
adversely affect the battery pack.
By following the battery conditioning process you condition your battery to accept
the maximum possible charge. Failure to follow this procedure will prevent you from
obtaining the maximum battery charge, and will also shorten the effective lifespan
of the battery.
In addition, the useful lifespan of the battery is adversely affected by the following
usage patterns:
•Using the computer on constant AC power with the battery inserted. If you
want to use constant AC power, you are advised to remove the battery pack
after it is fully charged.
•Not discharging and recharging the battery to its extremes, as described
above.
•Frequent use; the more you use the battery, the faster it will reach the end of its
effective life. A standard computer battery has a life span of about 300
charges.
Installing and removing the battery pack
Important! Before removing the battery from the unit, connect the AC
adapter if you want to continue using your computer. Otherwise, turn
off the computer first.
To install a battery pack:
1 Align the battery with the open battery bay; make sure that the end with the
contacts will enter first, and that the top surface of the battery is facing up.
2 Slide the battery into the battery bay and gently push until the battery locks in
place.
To remove a battery pack:
1 Slide the battery release latch to release the battery.
2 Pull the battery from the battery bay.
37
English
Charging the battery
To charge the battery, first make sure that it is correctly installed in the battery bay.
Plug the AC adapter into the computer, and connect to a mains power outlet. You
can continue to operate your computer on AC power while your battery is charging.
However, charging the battery with the computer turned off results in a significantly
faster charge time.
Note: You are advised to charge the battery before retiring for the
day. Charging the battery overnight before traveling enables you to
start the next day with a fully charged battery.
Checking the battery level
The Windows power meter indicates the current battery level. Rest the cursor over
the battery/power icon on the taskbar to see the battery's present charge level.
Optimizing battery life
Optimizing battery life helps you get the most out of battery operation, prolonging
the charge/recharge cycle and improving recharging efficiency. You are advised to
follow the suggestions set out below:
•Purchase an extra battery pack.
•Use AC power whenever possible, reserving battery for on-the-go use.
•Eject a PC Card if it is not being used, as it will continue to draw power (for
selected models).
•Store the battery pack in a cool, dry place. The recommended temperature is
10° C (50° F) to 30° C (86° F). Higher temperatures cause the battery to self-
discharge faster.
•Excessive recharging decreases the battery life.
•Look after your AC adapter and battery.
Battery-low warning
When using battery power pay attention to the Windows power meter.
Warning: Connect the AC adapter as soon as possible after the
battery-low warning appears. Data will be lost if the battery to
become fully depleted and the computer shuts down.
38
English
When the battery-low warning appears, the recommended course of action
depends on your situation:
Situation Recommended Action
The AC adapter
and a power outlet
are available.
1. Plug the AC adapter into the computer, and then
connect to the mains power supply.
2. Save all necessary files.
3. Resume work.
Turn off the computer if you want to recharge the
battery rapidly.
An extra fully
charged battery
pack is available.
1. Save all necessary files.
2. Close all applications.
3. Turn off the computer.
4. Replace the battery pack.
5. Turn on the computer and resume work.
The AC adapter or
a power outlet is
unavailable. You
have no spare
battery pack.
1. Save all necessary files.
2. Close all applications.
3. Turn off the computer.
39
English
Taking your notebook PC with you
This section gives you tips and hints to consider when moving around or traveling
with your computer.
Disconnecting from the desktop
Follow these steps to disconnect your computer from external accessories:
1 Save any open files.
2 Remove any media, floppy disks or compact disks from the drive(s).
3 Shut down the computer.
4 Close the display cover.
5 Disconnect the cord from the AC adapter.
6 Disconnect the keyboard, pointing device, printer, external monitor and other
external devices.
7 Disconnect the Kensington lock if you are using one to secure the computer.
Moving around
When you are just moving within short distances, for example, from your office desk
to a meeting room.
Preparing the computer
Before moving the computer, close and latch the display cover to place it in Sleep
mode. You can now safely take the computer anywhere you go within the building.
To bring the computer out of Sleep mode, open the display; then press and release
the power button.
If you are taking the computer to a client's office or a different building, you may
choose to shut down the computer:
Click Start then click Shut Down.
Or:
You can put the computer in Sleep mode by pressing <Fn> + <F4>. Then close and
latch the display.
When you are ready to use the computer again, unlatch and open the display; then
press and release the power button.
40
English
Note: If the Sleep indicator is off, the computer has entered
Hibernation mode and is turned off. If the power indicator is off but
the Sleep indicator is on, the computer has entered Sleep mode. In
both cases, press and release the power button to turn the computer
back on. Note that the computer may enter Hibernation mode after
being in Sleep mode for a period of time.
What to bring to meetings
If your meeting is relatively short, you probably do not need to bring anything with
you other than your computer. If your meeting will be longer, or if your battery is not
fully charged, you may want to bring the AC adapter with you to plug in your
computer in the meeting room.
If the meeting room does not have an electrical outlet, reduce the drain on the
battery by putting the computer in Sleep mode. Press <Fn> + <F4> or close the
display cover whenever you are not actively using the computer. To resume, open
the display (if closed), then press and release the power button.
Taking the computer home
When you are moving from your office to your home or vice versa.
Preparing the computer
After disconnecting the computer from your desktop, follow these steps to prepare
the computer for the trip home:
•Check that you have removed all media and compact discs from the drive(s).
Failure to remove the media can damage the drive head.
•Pack the computer in a protective case that can prevent the computer from
sliding around and cushion it if it should fall.
Caution: Avoid packing items next to the top cover of the computer.
Pressure against the top cover can damage the screen.
What to take with you
Unless you have some items at home, take the following items with you:
•AC adapter and power cord.
•The printed setup poster.
41
English
Special considerations
Follow these guidelines to protect your computer while traveling to and
from work:
•Minimize the effects of temperature changes by keeping the computer with
you.
•If you need to stop for an extended period of time and cannot carry the
computer with you, leave the computer in the trunk of the car to avoid
exposing the computer to excessive heat.
•Changes in temperature and humidity can cause condensation. Allow the
computer to return to room temperature, and inspect the screen for
condensation before turning on the computer. If the temperature change is
greater than 10° C (18° F), allow the computer to come to room temperature
slowly. If possible, leave the computer for 30 minutes in an environment with a
temperature between outside and room temperature.
Setting up a home office
If you frequently work on your computer at home, you may want to purchase a
second AC adapter for use at home. With a second AC adapter, you can avoid
carrying the extra weight to and from home.
If you use your computer at home for significant periods of time, you might also
want to add an external keyboard, monitor or mouse.
Traveling with the computer
When you are moving within a larger distance, for instance, from your office building
to a client's office building or traveling locally.
Preparing the computer
Prepare the computer as if you were taking it home. Make sure that the battery in
the computer is charged. Airport security may require you to turn on your computer
when carrying it into the gate area.
What to take with you
Take the following items with you:
•AC adapter
•Spare, fully-charged battery pack(s)
•Additional printer driver files if you plan to use another printer
42
English
Special considerations
In addition to the guidelines for taking the computer home, follow these guidelines
to protect your computer while traveling:
•Always take the computer as carry-on luggage.
•If possible, have the computer inspected by hand. Airport security X-ray
machines are safe, but do not put the computer through a metal detector.
•Avoid exposing floppy disks to hand-held metal detectors.
Traveling internationally with the computer
When you are moving from country to country.
Preparing the computer
Prepare the computer as you would normally prepare it for traveling.
What to bring with you
Bring the following items with you:
•AC adapter
•Power cords that are appropriate for the country to which you
are traveling
•Spare, fully-charged battery packs
•Additional printer driver files if you plan to use another printer
•Proof of purchase, in case you need to show it to customs officials
•International Travelers Warranty passport
Special considerations
Follow the same special considerations as when traveling with the computer.
In addition, these tips are useful when traveling internationally:
•When traveling in another country, check that the local AC voltage and the AC
adapter power cord specifications are compatible. If not, purchase a power
cord that is compatible with the local AC voltage. Do not use converter kits
sold for appliances to power the computer.
•If you are using the modem, check if the modem and connector are
compatible with the telecommunications system of the country you are
traveling in.
43
English
Securing your computer
Your computer is a valuable investment that you need to take care of. Learn how to
protect and take care of your computer.
Security features include hardware and software locks — a security notch
and passwords.
Using a computer security lock
The notebook comes with a Kensington-compatible security slot for a
security lock.
Wrap a computer security lock cable around an immovable object such as a table
or handle of a locked drawer. Insert the lock into the notch and turn the key to
secure the lock. Some keyless models are also available.
Using passwords
Passwords protect your computer from unauthorized access. Setting these
passwords creates several different levels of protection for your computer
and data:
•Supervisor Password prevents unauthorized entry into the BIOS utility. Once
set, you must enter this password to gain access to the BIOS utility. See
"BIOS utility" on page 51.
•User Password secures your computer against unauthorized use. Combine the
use of this password with password checkpoints on boot-up and resume from
Hibernation for maximum security.
•Password on Boot secures your computer against unauthorized use. Combine
the use of this password with password checkpoints on boot-up and resume
from Hibernation for maximum security.
Important! Do not forget your Supervisor Password! If you forget
your password, please get in touch with your dealer or an authorized
service center.
44
English
Entering passwords
When a password is set, a password prompt appears in the center of the
display screen.
•When the Supervisor Password is set, a prompt appears when you press <F2>
to enter the BIOS utility at boot-up.
•Type the Supervisor Password and press <Enter> to access the BIOS utility. If
you enter the password incorrectly, a warning message appears. Try again and
press <Enter>.
•When the User Password is set and the password on boot parameter is
enabled, a prompt appears at boot-up.
•Type the User Password and press <Enter> to use the computer. If you enter
the password incorrectly, a warning message appears. Try again and press
<Enter>.
Important! You have three chances to enter a password. If you fail to
enter the password correctly after three tries, the system halts. Press
and hold the power button for four seconds to shut down the
computer. Then turn on the computer again, and try again.
Setting passwords
You can set passwords using the BIOS utility.
45
English
Expanding through options
Your notebook PC offers you a complete mobile computing experience.
Connectivity options
Ports allow you to connect peripheral devices to your computer as you would with a
desktop PC. For instructions on how to connect different external devices to the
computer, read the following section.
Fax/data modem
Note: Information in this section may not apply to your computer.
Your computer has a built-in V.92 56 Kbps fax/data modem
Warning! This modem port is not compatible with digital phone
lines. Plugging this modem into a digital phone line will damage
the modem.
To use the fax/data modem port, connect a phone cable from the modem port to a
telephone jack.
Warning! Please make sure that the cable you use is appropriate
for the country in which you are working.
46
English
Built-in network feature
The built-in network feature allows you to connect your computer to an Ethernet-
based network.
To use the network feature, connect an Ethernet cable from the Ethernet
(RJ-45) port on the chassis of the computer to a network jack or hub on
your network.
Universal Serial Bus (USB)
The USB 2.0 port is a high-speed serial bus which allows you to connect USB
peripherals without taking up precious system resources.
47
English

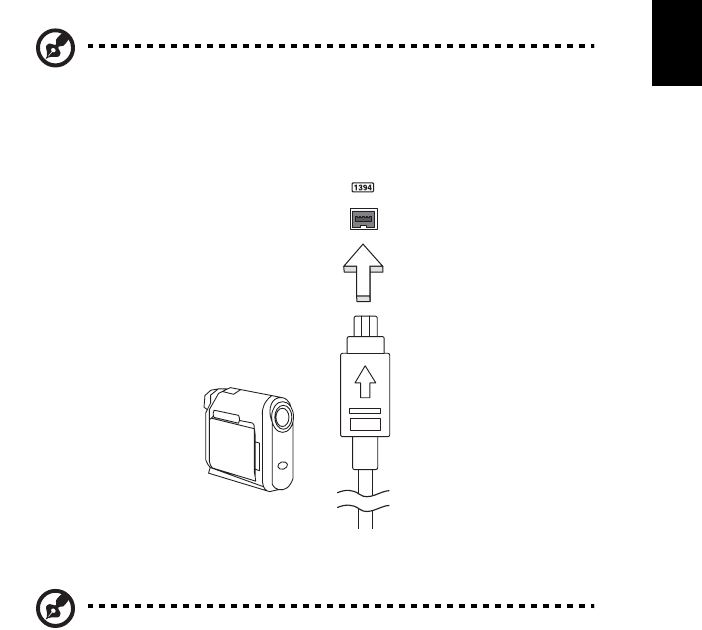

IEEE 1394 port
Note: Information in this section may not apply to your computer.
The computer's IEEE 1394 port allows you to connect to an IEEE 1394-compatible
device like a video camera or digital camera. See your video or digital camera's
documentation for details.
High-Definition Multimedia Interface
Note: Information in this section may not apply to your computer.
HDMI (High-Definition Multimedia Interface) is an industry-supported,
uncompressed, all-digital audio/video interface. HDMI provides an interface
between any compatible digital audio/video source, such as a set-top box, DVD
player, and A/V receiver and a compatible digital audio and/or video monitor, such
as a digital television (DTV), over a single cable.
48
English
Use the HDMI port on your computer to connect with high-end audio and video
equipment. Single cable implementation allows tidy setup and fast connection.
ExpressCard
Note: Information in this section may not apply to your computer.
The ExpressCard is the newest version of the PC Card. It is a smaller and faster
interface that further enhances the usability and expandability of your computer.
ExpressCards support a vast number of expansion options, including flash memory
card adapters, TV-tuners, Bluetooth connectivity and IEEE 1394b adapters.
ExpressCards support USB 2.0 and PCI Express applications.
Important! There are two types, ExpressCard/54 and ExpressCard/
34 (54 mm and 34 mm), each with different functions. Not all
ExpressCard slots will support both types. Please refer to your card’s
manual for details on how to install and use the card, and its
functions.
49
English
Inserting an ExpressCard
Insert the card into the slot and push gently until it clicks into position.
Ejecting an ExpressCard
Before ejecting an ExpressCard:
1 Exit the application using the card.
2 Left-click the remove hardware icon on the taskbar and stop the card
operation.
3 Push the card gently into the slot and release to pop out the card. Then pull
the card free from the slot.
Installing memory
Note: Information in this section may not apply to your computer.
Follow these steps to install memory:
1 Turn off the computer, unplug the AC adapter (if connected) and remove the
battery pack. Then turn the computer over to access its base.
2 Remove the screws from the memory cover; then lift and remove the memory
cover.
EXPRESS CARD
50
English
3(a) Insert the memory module diagonally into the slot, then (b) gently press it
down until it clicks into place.
4 Replace the memory cover and secure it with the screw.
5 Reinstall the battery pack, and reconnect the AC adapter.
6 Turn on the computer.
The computer automatically detects and reconfigures the total memory size. Please
consult a qualified technician or contact your local Acer dealer.
51
English
BIOS utility
The BIOS utility is a hardware configuration program built into your
computer's BIOS.
Your computer is already properly configured and optimized, and you do not need
to run this utility. However, if you encounter configuration problems, you may need
to run it.
To activate the BIOS utility, press <F2> during the POST while the notebook PC
logo is being displayed.
Boot sequence
To set the boot sequence in the BIOS utility, activate the BIOS utility, then select
Boot from the categories listed at the top of the screen.
Enable disk-to-disk recovery
To enable disk-to-disk recovery (hard disk recovery), activate the BIOS utility, then
select Main from the categories listed at the top of the screen. Find D2D Recovery
at the bottom of the screen and use the <F5> and <F6> keys to set this value to
Enabled.
Password
To set a password on boot, activate the BIOS utility, then select Security from the
categories listed at the top of the screen. Find Password on boot: and use the
<F5> and <F6> keys to enable this feature.
52
English
Using software
Playing DVD content
Note: This feature is only available on certain models.
When the DVD drive module is installed in the optical drive bay, you can play DVD
content on your computer.
1 Eject the DVD.
Important! When you launch the DVD player for the first time, the
program asks you to enter the region code. DVD disks are divided
into 6 regions. Once your DVD drive is set to a region code, it will play
DVD disks of that region only. You can set the region code a
maximum of five times (including the first time), after which the last
region code set will remain permanent. Recovering your hard disk
does not reset the number of times the region code has been set.
Refer to the table below for DVD movie region code information.
2 The DVD movie will automatically play after a few seconds.
Note: To change the region code, insert a DVD movie of a different
region into the DVD drive. Please refer to the online help for more
information.
Region code Country or region
1USA, Canada
2 Europe, Middle East, South Africa, Japan
3 Southeast Asia, Taiwan, South Korea
4 Latin America, Australia, New Zealand
5 Former USSR, parts of Africa, India
6 People’s Republic of China
53
English
Frequently asked questions
The following is a list of possible situations that may arise during the use of your
computer. Easy solutions are provided for each one.
I turned on the power, but the computer does not start or
boot up.
Look at the power indicator:
•If it is not lit, no power is being supplied to the computer. Check the following:
• If you are using on the battery, it may be low and unable to power the
computer. Connect the AC adapter to recharge the battery pack.
• Make sure that the AC adapter is properly plugged into the computer and
to the power outlet.
•If it is lit, check the following:
• Is a non-bootable (non-system) disk in the external USB floppy drive?
Remove or replace it with a system disk and press <Ctrl> + <Alt> +
<Del> to restart the system.
Nothing appears on the screen.
The computer’s power management system automatically blanks the screen to
save power. Press any key to turn the display back on.
If pressing a key does not turn the display back on, three things might be
the cause:
•The brightness level might be too low. Press <Fn> + < > (increase) to adjust
the brightness level.
•The display device might be set to an external monitor. Press the display
toggle hotkey <Fn> + <F5> to toggle the display back to the computer.
•If the Sleep indicator is lit, the computer is in Sleep mode. Press and release
the power button to resume.
No audio is heard from the computer.
Check the following:
•The volume may be muted. In Windows, look at the volume control (speaker)
icon on the taskbar. If it is crossed-out, click the icon and deselect the Mute
all option.
•The volume level may be too low. In Windows, look at the volume control icon
on the taskbar. You can also use the volume control buttons to adjust the
volume.
•If headphones, earphones or external speakers are connected to the line-out
port on the computer, the internal speakers automatically turn off.
54
English
I want to eject the optical drive tray without turning on the power.
There is a mechanical eject hole on the optical drive. Simply insert the tip of a pen
or paperclip into the hole and push to eject the tray.
The keyboard does not respond.
Try attaching an external keyboard to a USB port on the computer. If it works,
contact your dealer or an authorized service center as the internal keyboard cable
may be loose.
The printer does not work.
Check the following:
•Make sure that the printer is connected to a power outlet and that it is turned
on.
•Make sure that the printer cable is connected securely to a USB port and the
corresponding port on the printer.
I want to restore my computer to its original settings without
recovery CDs.
Note: If your system is the multilingual version, the operating system
and language you choose when you first turn on the system will be
the only option for future recovery operations.
This recovery process helps you restore the C: drive with the original software
content that is installed when you purchased your notebook. Follow the steps
below to rebuild your C: drive. (Your C: drive will be reformatted and all data will be
erased.) It is important to back up all data files before using this option.
Before performing a restore operation, please check the BIOS settings.
1Check to see if Acer disk-to-disk recovery is enabled or not.
2 Make sure the D2D Recovery setting in Main is Enabled.
3 Exit the BIOS utility and save changes. The system will reboot.
Note: To activate the BIOS utility, press <F2> during POST.
To start the recovery process:
1 Restart the system.
2 While the Acer logo is showing, press <Alt> + <F10> at the same time to enter
the recovery process.
3 Refer to the onscreen instructions to perform system recovery.
55
English
Important! This feature occupies 15 GB in a hidden partition on your
hard disk.
Requesting service
International Travelers Warranty (ITW)
Your computer is backed by an International Travelers Warranty (ITW) that gives you
security and peace of mind when traveling. Our worldwide network of service
centers are there to give you a helping hand.
An ITW passport comes with your computer. This passport contains all you need to
know about the ITW program. A list of available, authorized service centers is in this
handy booklet. Read this passport thoroughly.
Always have your ITW passport on hand, especially when you travel, to receive the
benefits from our support centers. Place your proof-of-purchase in the flap located
inside the front cover of the ITW passport.
If the country you are traveling in does not have an Acer-authorized ITW service
site, you can still get in contact with our offices worldwide. Please visit
www.acer.com.
Before you call
Please have the following information available when you call Acer for online
service, and please be at your computer when you call. With your support, we can
reduce the amount of time a call takes and help solve your problems efficiently. If
there are error messages or beeps reported by your computer, write them down as
they appear on the screen (or the number and sequence in the case of beeps).
You are required to provide the following information:
Name:
Address:
Telephone number:
Machine and model type:
Serial number:
Date of purchase:
56
English
Troubleshooting
This chapter shows you how to deal with common system problems.
Read it before calling a technician if a problem occurs. Solutions to more
serious problems require opening up the computer. Do not attempt to open
the computer yourself; contact your dealer or authorized service center
for assistance.
Troubleshooting tips
This notebook PC incorporates an advanced design that delivers onscreen error
message reports to help you solve problems.
If the system reports an error message or an error symptom occurs, see "Error
messages" below. If the problem cannot be resolved, contact your dealer. See
"Requesting service" on page 55.
Error messages
If you receive an error message, note the message and take the corrective action.
The following table lists the error messages in alphabetical order together with the
recommended course of action.
Error messages Corrective action
CMOS battery bad Contact your dealer or an authorized service center.
CMOS checksum
error
Contact your dealer or an authorized service center.
Disk boot failure Insert a system (bootable) disk, then press <Enter> to
reboot.
Equipment
configuration error
Press <F2> (during POST) to enter the BIOS utility,
then press Exit in the BIOS utility to reboot.
Hard disk 0 error Contact your dealer or an authorized service center.
Hard disk 0 extended
type error
Contact your dealer or an authorized service center.
I/O parity error Contact your dealer or an authorized service center.
Keyboard error or no
keyboard connected
Contact your dealer or an authorized service center.
57
English
If you still encounter problems after going through the corrective measures, please
contact your dealer or an authorized service center for assistance.
Keyboard interface
error
Contact your dealer or an authorized service center.
Memory size
mismatch
Press <F2> (during POST) to enter the BIOS utility,
then press Exit in the BIOS utility to reboot.
Error messages Corrective action
58
English
Regulations and safety notices
FCC statement
This device has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This device generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
device does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the device and receiver.
•Connect the device into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain
compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the
Class B limits may be attached to this equipment. Operation with non-certified peripherals is
likely to result in interference to radio and TV reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user's
authority, which is granted by the Federal Communications Commission, to operate this
computer.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.
59
English
Compliant with Russian regulatory certification
Modem notices
Note: Information in this section may not apply to your computer.
Notice for USA
This equipment complies with Part 68 of the FCC rules. Located on the modem is a label that
contains, among other information, the FCC Registration Number and Ringer Equivalence
Number (REN) for this equipment. Upon request, you must provide this information to your
telephone company.
If your telephone equipment causes harm to the telephone network, the telephone company
may discontinue your service temporarily. If possible, they will notify you in advance. But, if
advance notice is not practical, you will be notified as soon as possible. You will also be
informed of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations, or
procedures that could affect the proper functioning of your equipment. If they do, you will be
notified in advance to give you an opportunity to maintain uninterrupted telephone service.
If this equipment should fail to operate properly, disconnect the equipment from the phone line
to determine if it is causing the problem. If the problem is with the equipment, discontinue use
and contact your dealer or vendor.
Caution: To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or
CSA Certified Telecommunication Line Cord.
TBR 21
This equipment has been approved [Council Decision 98/482/EC - "TBR 21"] for single terminal
connection to the Public Switched Telephone Network (PSTN). However, due to differences
between the individual PSTNs provided in different countries, the approval does not, of itself,
give an unconditional assurance of successful operation on every PSTN termination point. In
the event of problems, you should contact your equipment supplier in the first instance. For
more information about applicable countries, please refer to "Regulations and safety notices"
on page 58.
Notice for Australia
For safety reasons, only connect headsets with a telecommunications compliance label. This
includes customer equipment previously labeled permitted or certified.
60
English
Notice for New Zealand
1 The grant of a Telepermit for any item of terminal equipment indicates only that Telecom
has accepted that the item complies with minimum conditions for connection to its
network. It indicates no endorsement of the product by Telecom, nor does it provide any
sort of warranty. Above all, it provides no assurance that any item will work correctly in all
respects with another item of Telepermitted equipment of a different make or model, nor
does it imply that any product is compatible with all of Telecom's network services.
2 This equipment is not capable, under all operating conditions, of correct operation at the
higher speeds for which it is designed. Telecom will accept no responsibility should
difficulties arise in such circumstances.
3 Some parameters required for compliance with Telecom's Telepermit requirements are
dependent on the equipment (PC) associated with this device. The associated equipment
shall be set to operate within the following limits for compliance with Telecom's
Specifications:
a There shall be no more than 10 call attempts to the same number within any 30-
minute period for any single manual call initiation, and
b The equipment shall go on-hook for a period of not less than 30 seconds between
the end of one attempt and the beginning of the next call attempt.
4 Some parameters required for compliance with Telecom's Telepermit requirements are
dependent on the equipment (PC) associated with this device. In order to operate within
the limits for compliance with Telecom's specifications, the associated equipment shall be
set to ensure that automatic calls to different numbers are spaced such that there is not
less than 5 seconds between the end of one call attempt and the beginning of another.
5 This equipment shall not be set up to make automatic calls to Telecom's 111 Emergency
Service.
6 This device is equipped with pulse dialing while the Telecom standard is DTMF tone
dialing. There is no guarantee that Telecom lines will always continue to support pulse
dialing.
7 Use of pulse dialing, when this equipment is connected to the same line as other
equipment, may give rise to bell tinkle or noise and may also cause a false answer
condition. Should such problems occur, the user should NOT contact the telecom Fault
Service.
8 This equipment may not provide for the effective hand-over of a call to another device
connected to the same line.
9 Under power failure conditions this appliance may not operate. Please ensure that a
separate telephone, not dependent on local power, is available for emergency use.
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some
pixels may occasionally misfire or appear as black or red dots. This has no effect on the
recorded image and does not constitute a malfunction.
Radio device regulatory notice
Note: Below regulatory information is for models with wireless LAN and / or
Bluetooth only.
61
English
General
To prevent radio interference to the licensed service, this device is intended to be operated
indoors.
This product complies with the radio frequency and safety standards of any country or region in
which it has been approved for wireless use. Depending on configurations, this product may or
may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).
Below information is for products with such devices.
Declaration of Conformity for EU countries
Hereby, Acer, declares that this computer is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Wireless operation channels for different domains
France: Restricted wireless frequency bands
Some areas of France have a restricted frequency band. The worst case maximum
authorized power indoors is:
•10 mW for the entire 2.4 GHz band (2400 MHz - 2483.5 MHz)
•100 mW for frequencies between 2446.5 MHz and 2483.5 MHz
Note: Channels 10 through 13 inclusive operate in the band 2446.6
MHz to 2483.5 MHz.
There are few possibilities for outdoor use: On private property or on the private
property of public persons, use is subject to a preliminary authorization procedure
by the Ministry of Defense, with maximum authorized power of 100 mW in the
2446.5 - 2483.5 MHz band. Use outdoors on public property is not permitted.
In the departments listed below, for the entire 2.4 GHz band:
•Maximum authorized power indoors is 100 mW
•Maximum authorized power outdoors is 10 mW
N. America 2.412-2.462 GHz Ch01 through Ch11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
62
English
Departments in which the use of the 2400 - 2483.5 MHz band is permitted with an
EIRP of less than 100 mW indoors and less than 10 mW outdoors:
This requirement is likely to change over time, allowing you to use your wireless
LAN card in more areas within France.
Please check with ART for the latest information (www.art-telecom.fr).
Note: Your WLAN Card transmits less than 100 mW, but more than
10 mW.
List of National Codes
This equipment may be operated in the following countries:
The FCC RF safety requirement
The radiated output power of the wireless LAN Mini PCI Card and Bluetooth card is far below
the FCC radio frequency exposure limits. Nevertheless, the notebook PC series shall be used in
such a manner that the potential for human contact during normal operation is minimized as
follows:
1 Users are requested to follow the RF safety instructions on wireless option devices that
are included in the user's manual of each RF option device.
01 Ain Orientales
02 Aisne
03 Allier
05 Hautes Alpes
08 Ardennes
09 Ariege
11 Aude
12 Aveyron
16 Charente
24 Dordogne
25 Doubs
26 Drome
32 Gers
36 Indre
37 Indre et Loire
41 Loir et Cher
45 Loret
50 Manche
55 Meuse
58 Nievre
59 Nord
60 Oise
61 Orne
63 Puy Du Dome
64 Pyrenees Atlantique
66 Pyrenees
67 Bas Rhin
68 Haut Rhin
70 Haute Saone
71 Saone et Loire
75 Paris
82 Tarn et Garonne
84 Vaucluse
88 Vosges
89 Yonne
90 Territoire de Belfort
94 Val de Marne
Country
Austria
Belgium
Cyprus
Czech Republic
Denmark
Estonia
Finland
France
Germany
Greece
Hungary
Ireland
Italy
Latvia
Lithuania
Luxembourg
ISO 3166
2 letter code
AT
BE
CY
CZ
DK
EE
FI
FR
DE
GR
HU
IE
IT
LV
LT
LU
Country
Malta
Netherlands
Poland
Portugal
Slovakia
Slovenia
Spain
Sweden
United Kingdom
Iceland
Liechtenstein
Norway
Switzerland
Bulgaria
Romania
Turkey
ISO 3166
2 letter code
MT
NT
PL
PT
SK
SL
ES
SE
GB
IS
LI
NO
CH
BG
RO
TR
63
English
Caution: To comply with FCC RF exposure compliance requirements, a
separation distance of at least 20 cm (8 inches) must be maintained between
the antenna for the integrated wireless LAN Mini PCI Card built in to the screen
section and all persons.
Note: The wireless Mini PCI adapter implements a transmission diversity
function. The function does not emit radio frequencies simultaneously from
both antennas. One of the antennas is selected automatically or manually (by
users) to ensure good quality radiocommunication.
2 This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz
frequency range. FCC requires this product to be used indoors for the frequency range
5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile
Satellite systems.
3 High power radar is allocated as the primary user of the 5.25 to 5.35 GHz and 5.65 to 5.85
GHz bands. These radar stations can cause interference with and/or damage this device.
4 An improper installation or unauthorized use may cause harmful interference to radio
communications. Also any tampering of the internal antenna will void the FCC certification
and your warranty.
Canada — Low-power license-exempt radio
communication devices (RSS-210)
Exposure of humans to RF fields (RSS-102)
The notebook PC series employs low gain integral antennas that do not emit RF field in excess
of Health Canada limits for the general population; consult Safety Code 6, obtainable from
Health Canada's website at www.hc-sc.gc.ca/rpb.
This device complies with RSS210 of Industry Canada.
This Class B digital apparatus complies with Canadian ICES-003, Issue 4, and RSS-210, No 4
(Dec 2000) and No 5 (Nov 2001).
20cm
20cm
Main
Auxiliary
64
English
Cet appareil numérique de la classe B est conforme à la norme NMB-003, No. 4, et CNR-210,
No 4 (Dec 2000) et No 5 (Nov 2001).
"To prevent radio interference to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing."
« Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il
doit être utilisé a l'intérieur et devrait être placé loin des fenêtres afin de fournir un écran de
blindage maximal. Si le matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire
l'objet d'une licence.
Caution: When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to
its operation in the 5.15- to 5.25-GHz frequency range. Industry Canada requires this product to
be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for
harmful interference to co-channel mobile satellite systems. High power radar is allocated as
the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations
can cause interference with and/or damage to this device.
The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the
E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point
operation.
LCD panel ergonomic specifications
Design viewing distance 500 mm
Design inclination angle 0.0°
Design azimuth angle 90.0°
Viewing direction range class Class IV
Screen tilt angle 85.0°
Design screen illuminance •Illuminance level:
[250 + (250cosα)] lx where α = 85°
•Color: Source D65
Reflection class of LCD panel
(positive and negative polarity) •Ordinary LCD: Class I
•Protective LCD: Class III
Image polarity Both
Reference white:
Pre-setting of luminance and color
temperature @ 6500K (tested under
BM7)
•Yn
•u'n
•v'n
Pixel fault class Class II
Ver.: 01.02.02
