i
Aspire AS5333/AS5733/AS5733Z
SERVICE GUIDE
ii
Revision History
Refer to the following table for the updates made to this service guide.
Service guide files and updates are available on the ACER/CSD Website. For more
information, go to http://csd.acer.com.tw.The information in this guide is subject to change
without notice.
Copyright
Copyright © 2011 by Acer Incorporated. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer
Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
There are no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any
particular purpose. The software described in this manual is sold or licensed "as is". Should
the programs prove defective following their purchase, the buyer (not the manufacturer,
distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software.
Date Chapter Updates
iii
Conventions
The following conventions are used in this manual:
WARNING:
!
Indicates a potential for personal injury.
CAUTION:
!
Indicates a potential loss of data or damage to equipment.
IMPORTANT:
+
Indicates information that is important to know for the proper completion of a
procedure, choice of an option, or completing a task.
IMPORTANT:
+
Follow local regulations for battery and circuit board disposal. Batteries and
Circuit Boards >10 cm² have been highlighted with a yellow rectangle.
The following typographical conventions are used in this document:
-Book titles, directory names, file names, path names, and program/process names are
shown in italics.
Example:
the DRS5 User's Guide
/usr/local/bin/fd
the /TPH15spool_M program
-Computer output (text that represents information displayed on a computer screen,
such as menus, prompts, responses to input, and error messages) are shown in
constant width.
Example:
[01] The server has been stopped
-User input (text that represents information entered by a computer user, such as
command names, option letters, and words) are shown in constant width bold.
Variables contained within user input are shown in angle brackets (< >).
Example:
At the prompt, type run <file name> -m
-Keyboard keys are shown in bold italics.
Example:
After entering data, press Enter.
iv
General Information 0
This service guide provides all technical information relating to the basic configuration for Acer
global product offering. To better fit local market requirements and enhance product
competitiveness, your regional office may have decided to extend the functionality of a
machine (such as add-on cards, modems, or extra memory capabilities). These localized
features are not covered in this generic service guide. In such cases, contact your regional
offices or the responsible personnel/channel to provide further technical details.
When ordering FRU parts:
Check the most up-to-date information available on your regional Web or channel. If, for
whatever reason, a part number change is made, it may not be noted in this printed service
guide.
Acer-authorized Service Providers:
Your Acer office may have a different part number code than those given in the FRU list in this
service guide. The list provided by your regional Acer office must be used to order FRU parts
for repair and service of customer machines.
1
CHAPTER 1
Hardware Specifications
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Operating System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
CPU and Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
System Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Optical Media Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Webcam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Wireless and Networking. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Privacy Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Dimensions and Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Power Adapter and Battery. . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Input and Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Input and Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Options and Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Notebook Tour. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Top View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Closed Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Left View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14

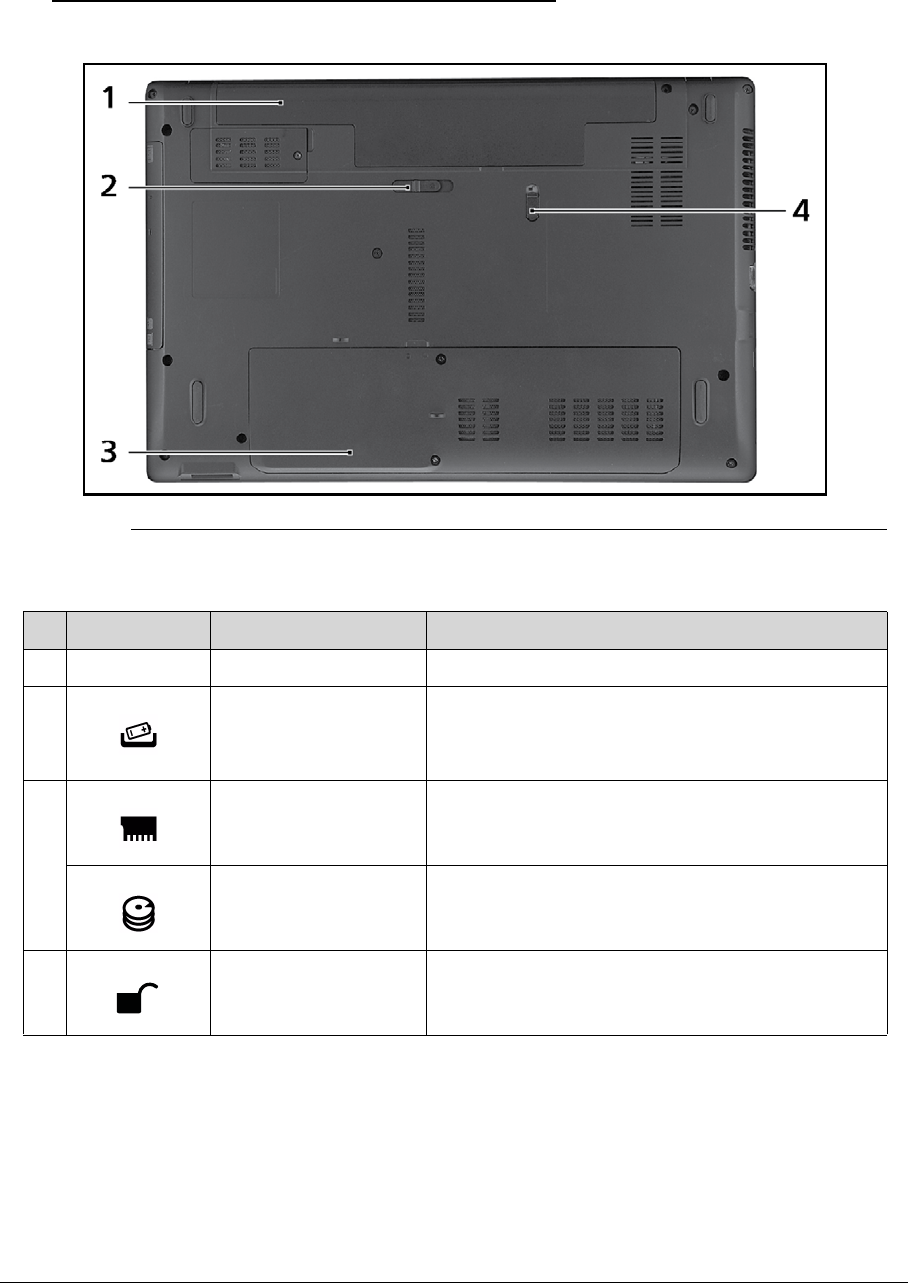

Base View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Touchpad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
Windows Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
HotKeys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
Specification Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
Computer specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
System Board Major Chips . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Processor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
CPU Fan True Value Table (Tj=105). . . . . . . . . . . . . . . . . . . . 1-24
CPU Fan True Value Table (Tj=90). . . . . . . . . . . . . . . . . . . . . 1-25
System Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25
Memory Combinations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
Video Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27
2
LAN Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28
Hard Disk Drive (AVL components). . . . . . . . . . . . . . . . . . . . . 1-28
Super-Multi Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29
BD Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-30
LED 15.6”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31
Display Supported Resolution (LCD). . . . . . . . . . . . . . . . . . . . 1-32
Graphics Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-32
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-33
Mini Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-33
Audio Codec and Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
Audio Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
Wireless Module 802.11b/g/n . . . . . . . . . . . . . . . . . . . . . . . . . 1-35
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-35
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-36
AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-36
System Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
System LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-38
System DMA Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-38
System Interrupt Specification. . . . . . . . . . . . . . . . . . . . . . . . . 1-39
System IO Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-40
System I/O Address Specifications . . . . . . . . . . . . . . . . . . . . . 1-41
CHAPTER 2
System Utilities
BIOS Setup Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Boot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Exit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
BIOS Flash Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Remove HDD/BIOS Password Utilities . . . . . . . . . . . . . . . . . . . . . 2-16
Clearing HDD Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

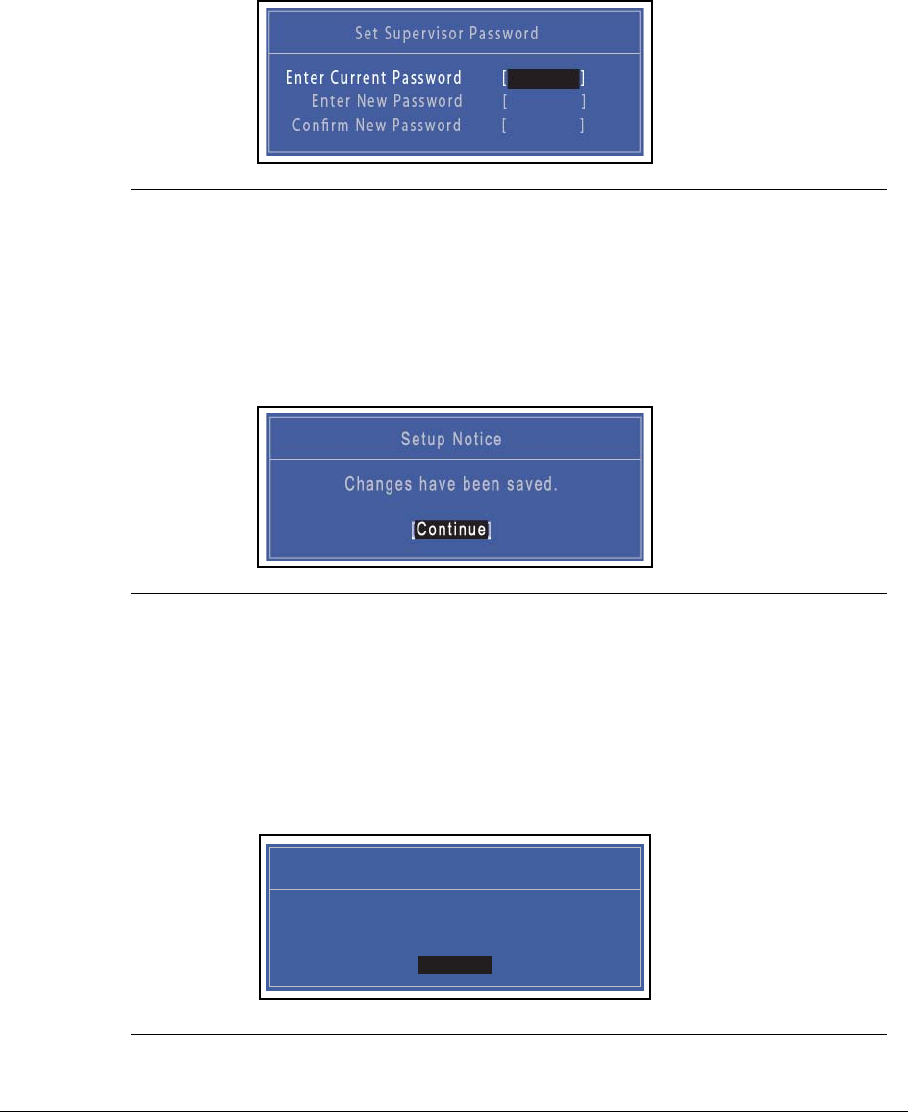

Removing BIOS Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
Miscellaneous Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

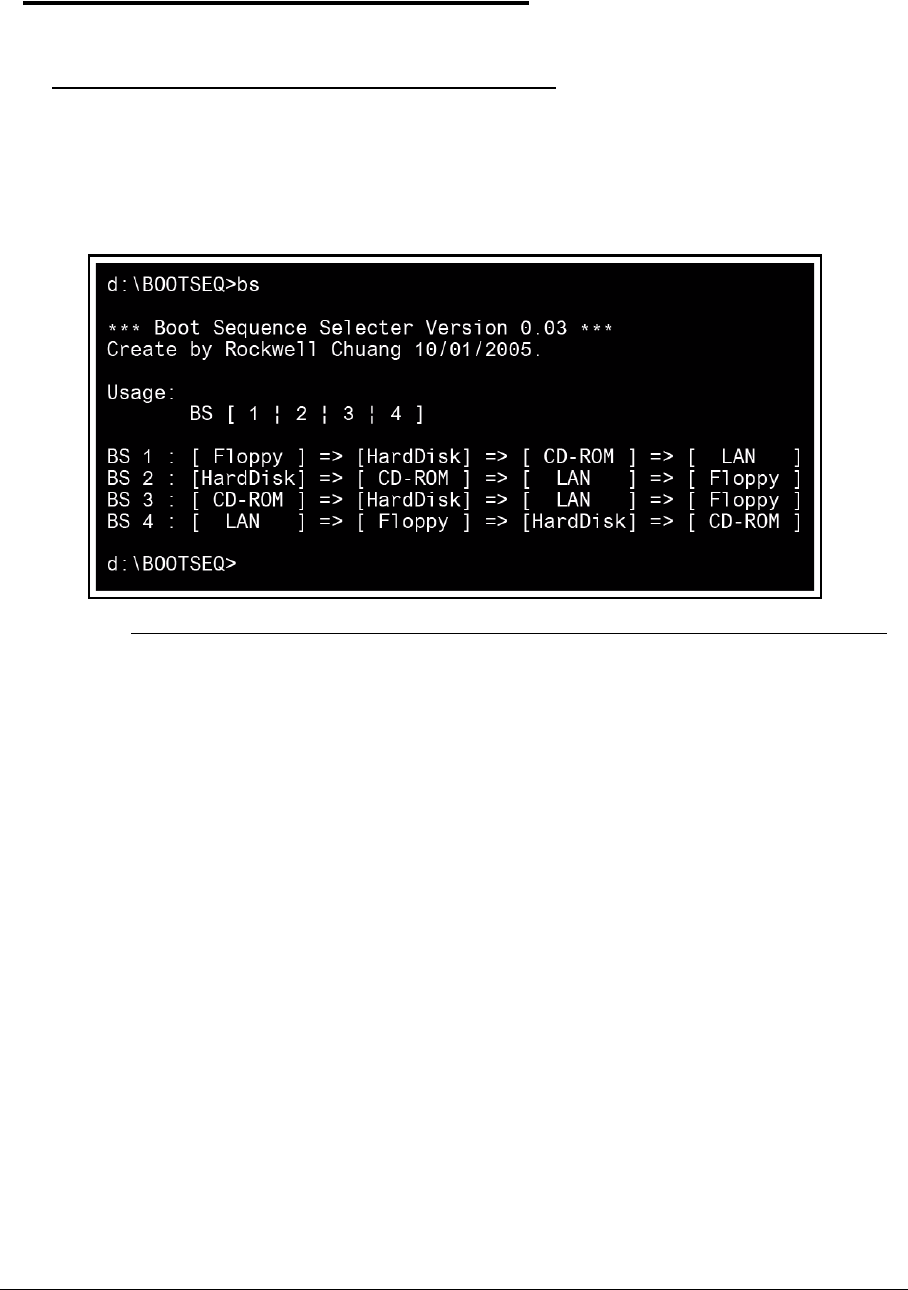

Using Boot Sequence Selector. . . . . . . . . . . . . . . . . . . . . . . . 2-19
Using Boot Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Using DMITools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Using LAN EEPROM Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
3
CHAPTER 3
Machine Maintenance Procedures
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Recommended Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

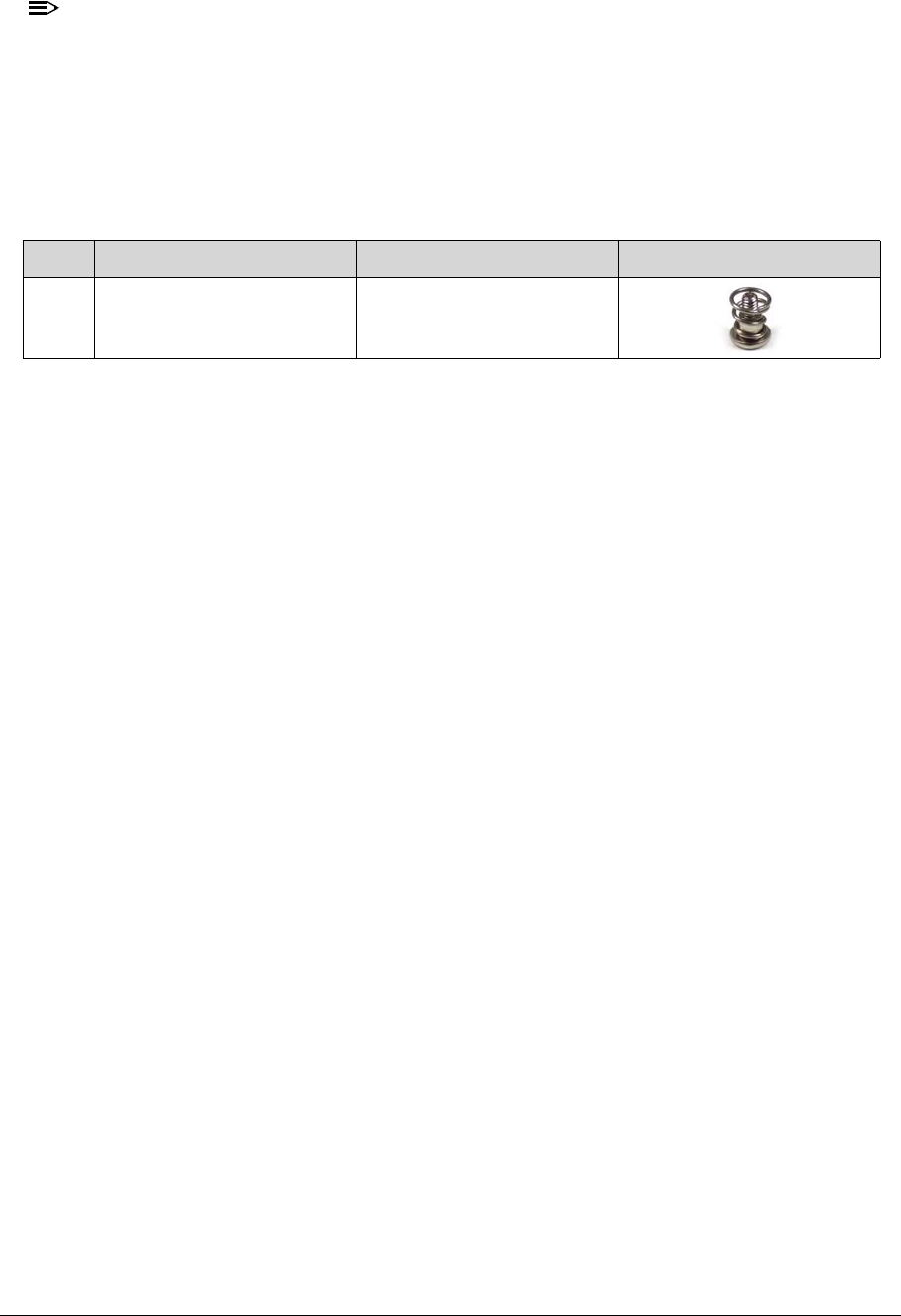

Screw Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

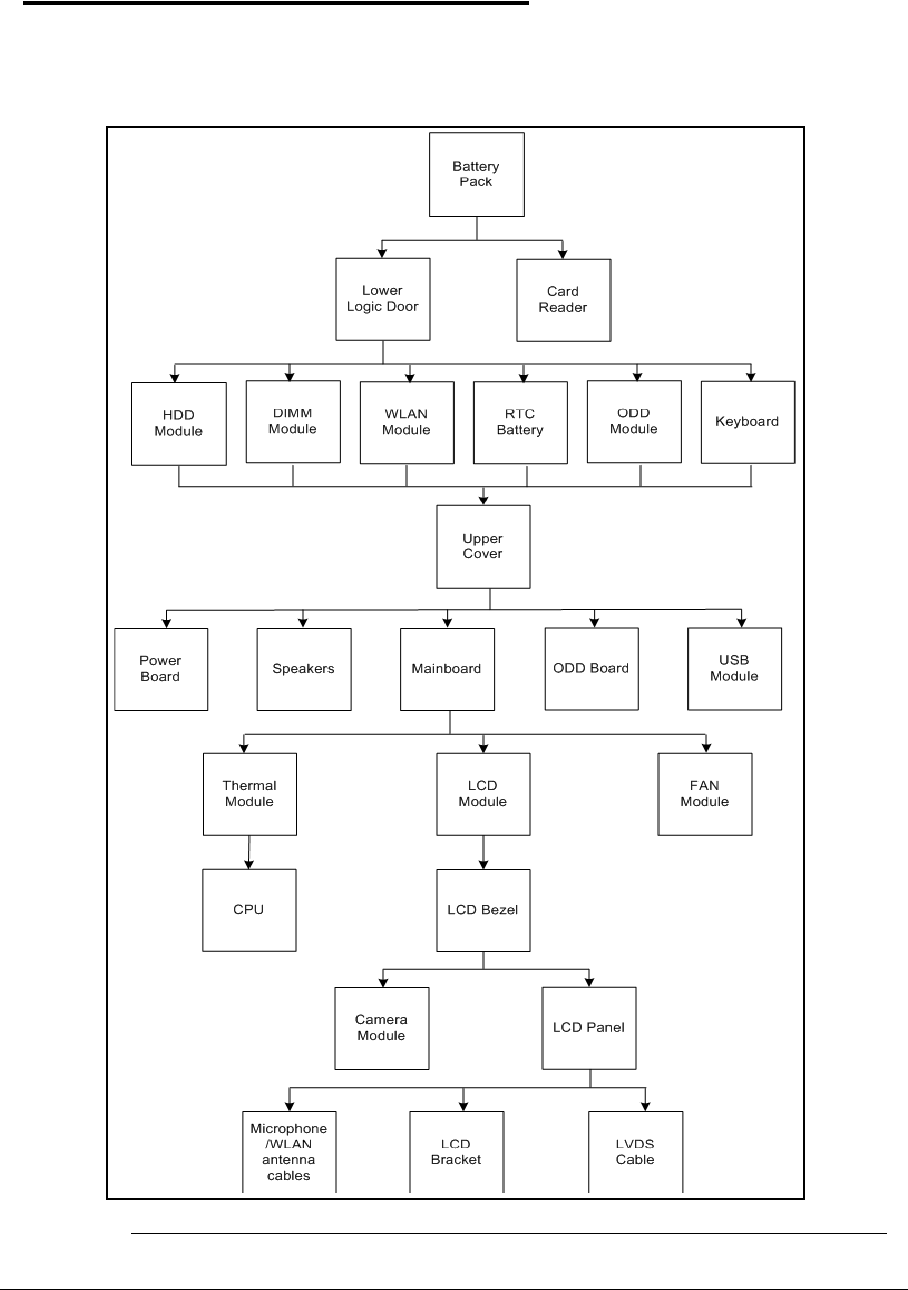

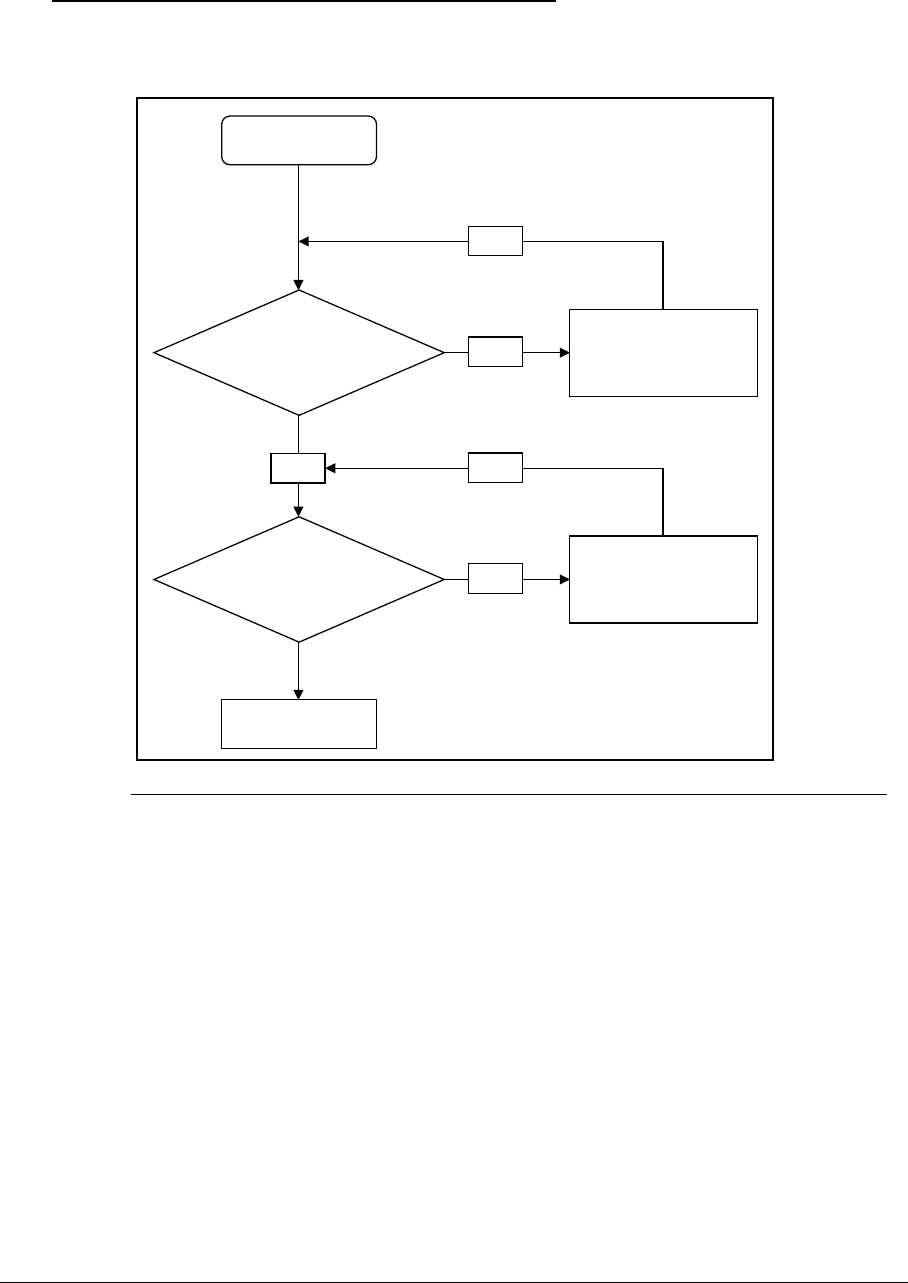

Maintenance Flowchart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

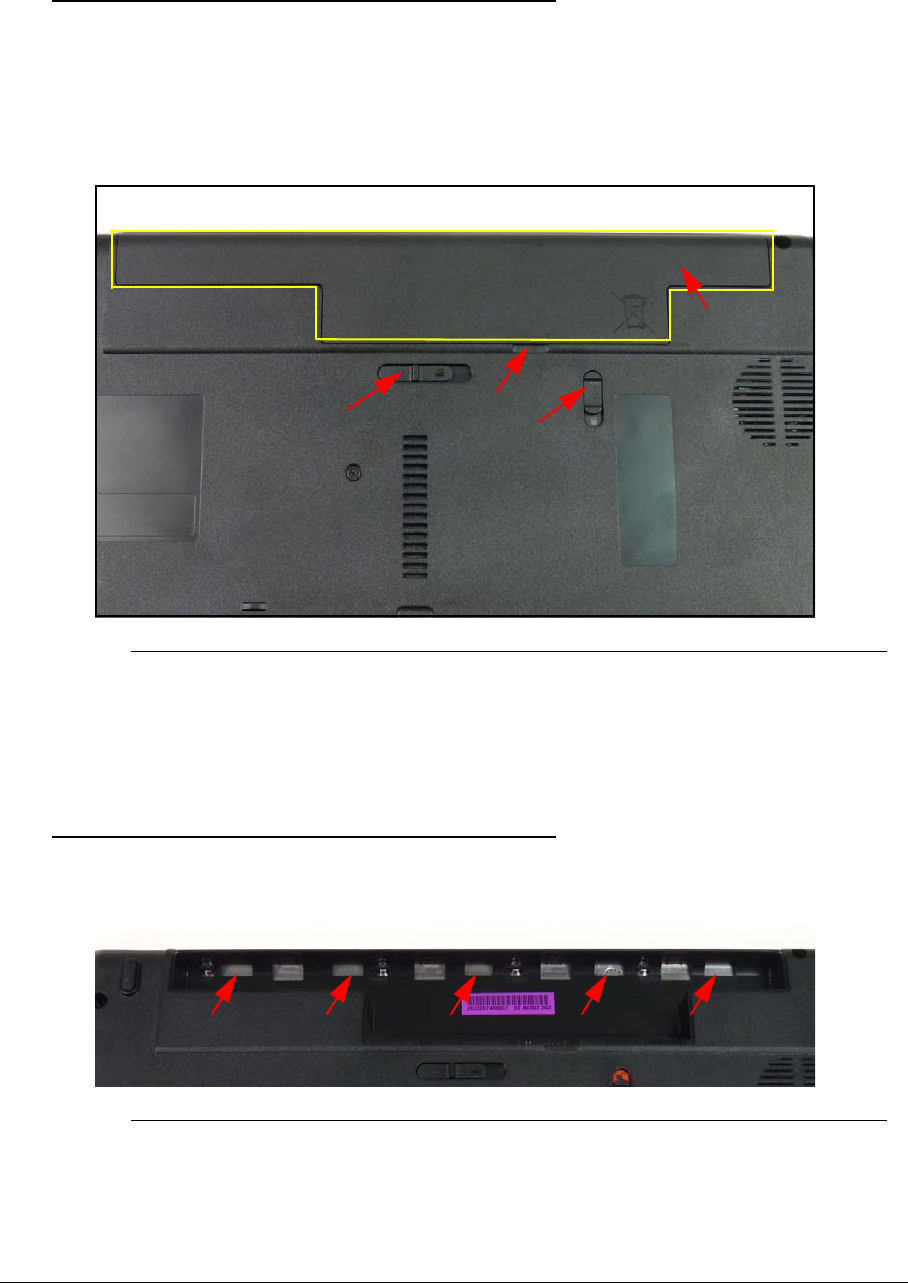

Battery Pack Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Battery Pack Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Dummy Card Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Dummy Card Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Lower Logic Door Removal . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Lower Logic Door Installation . . . . . . . . . . . . . . . . . . . . . . . . 3-11

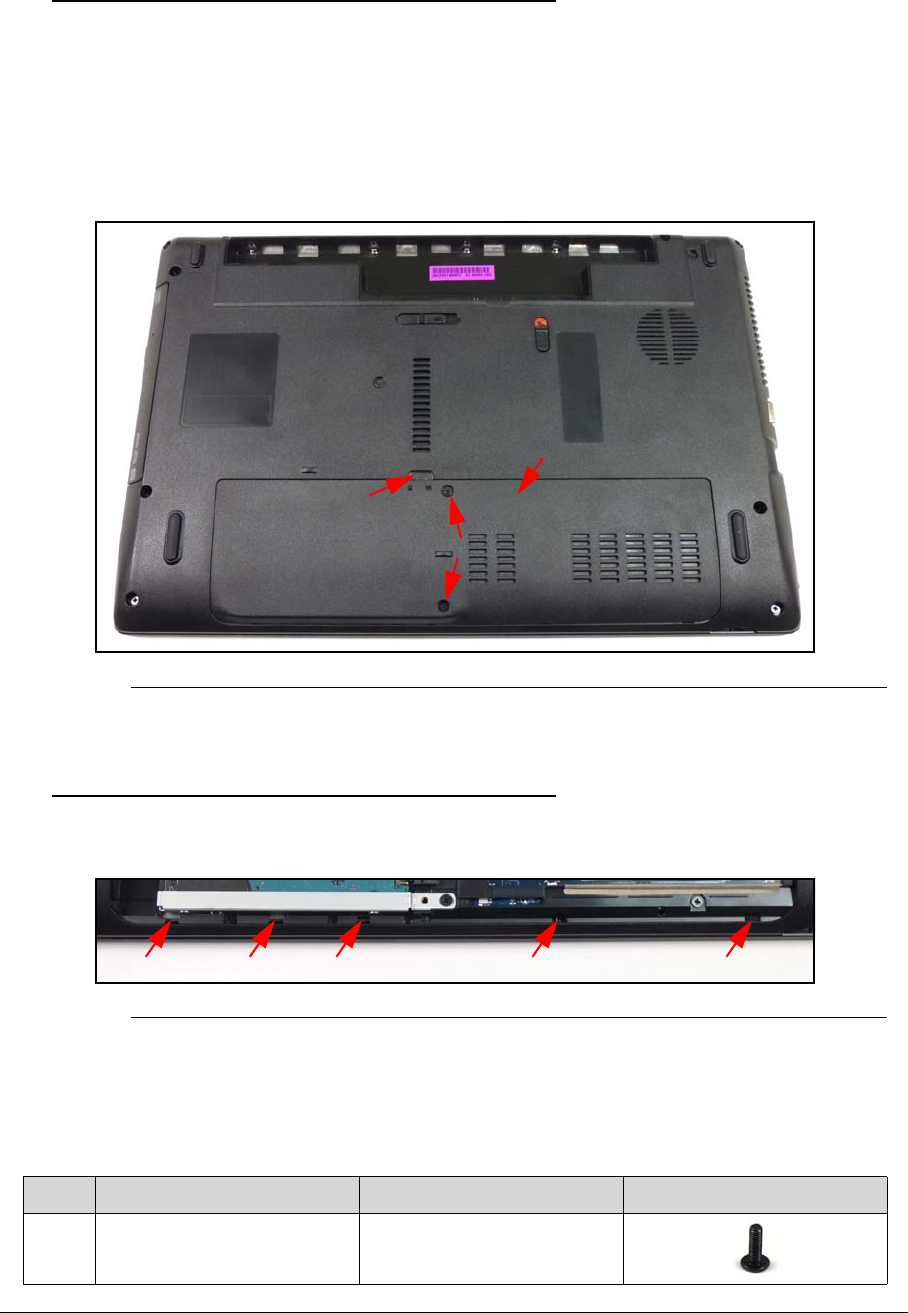

HDD Module Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
HDD Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

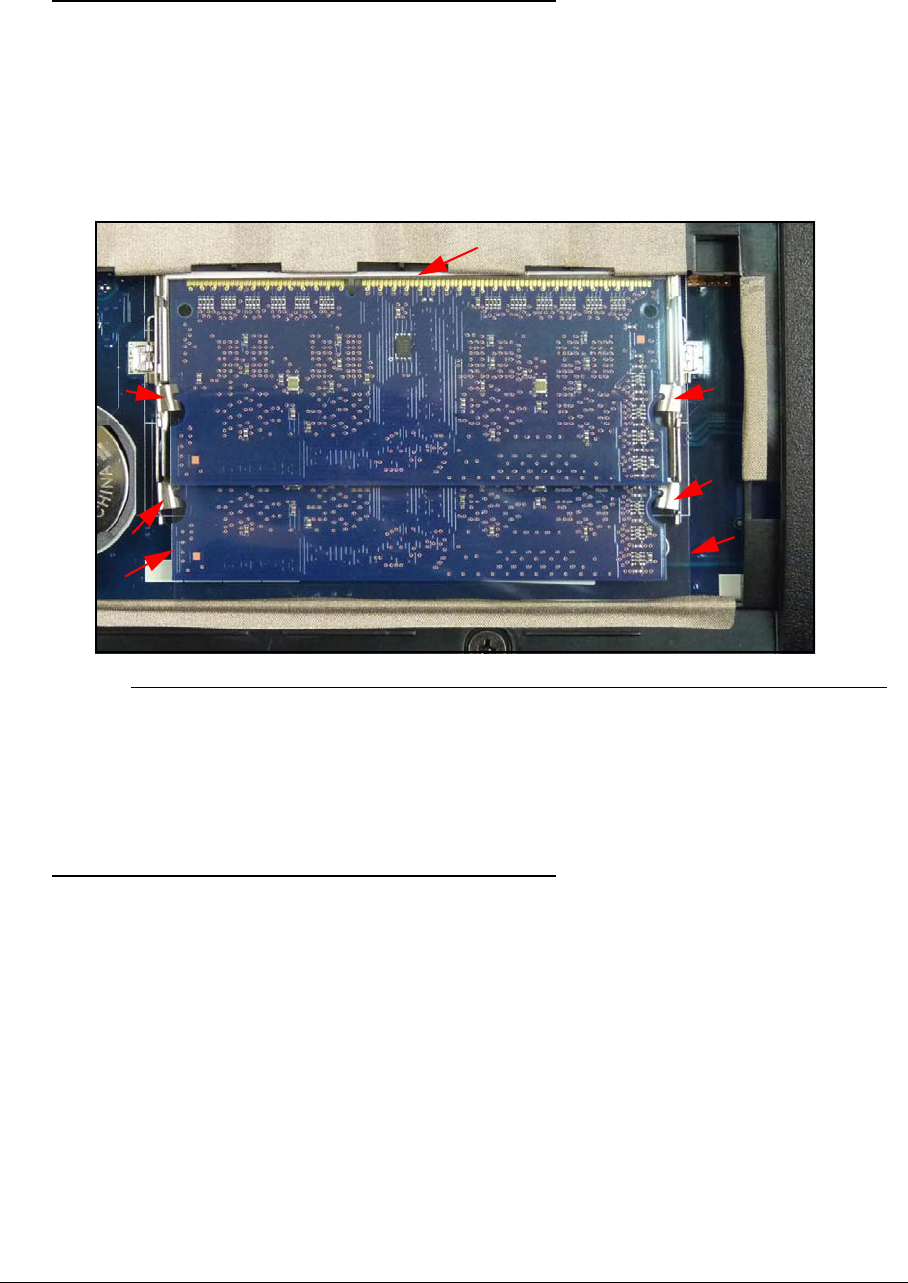

DIMM Module Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
DIMM Module Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
WLAN Module Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
WLAN Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
RTC Battery Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
RTC Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

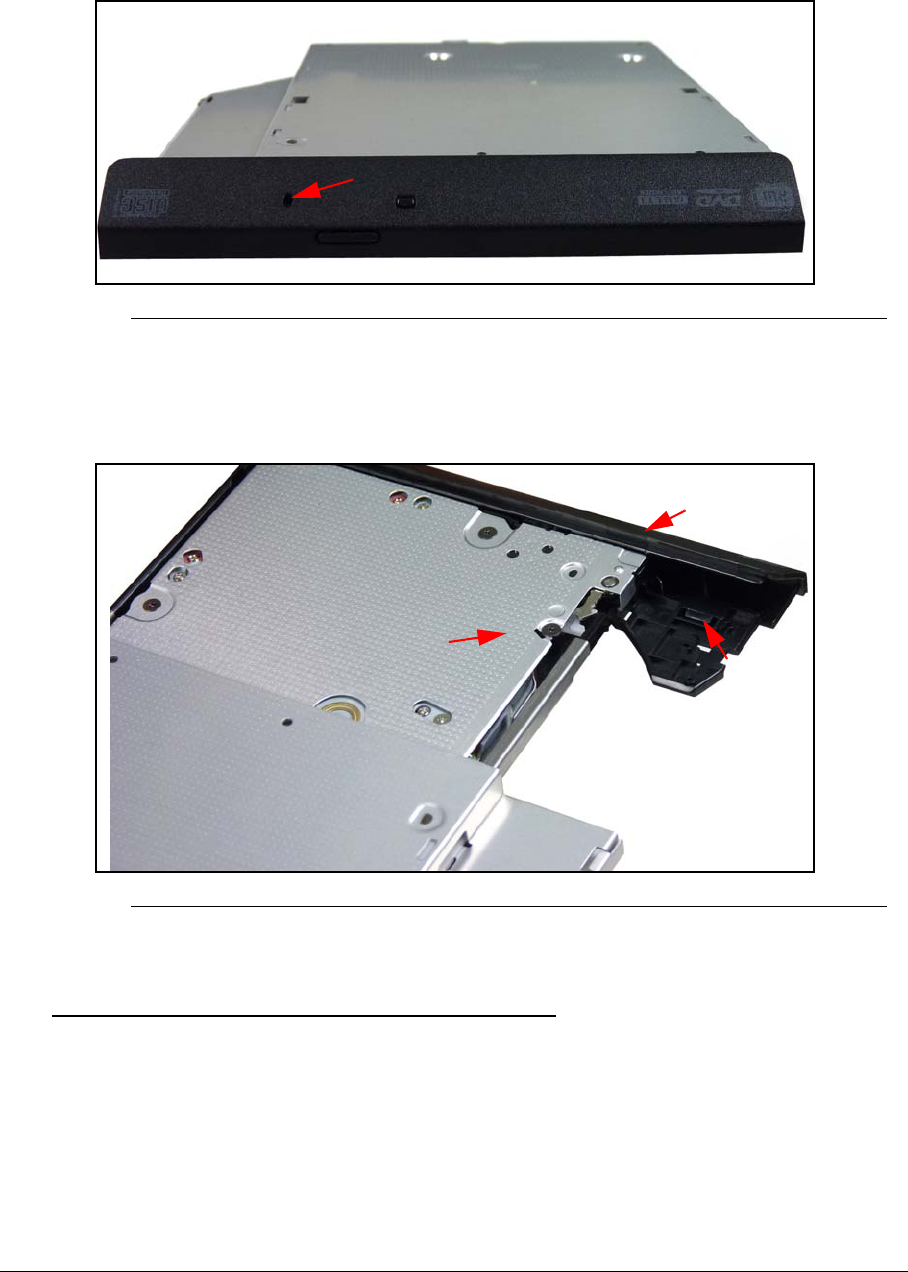

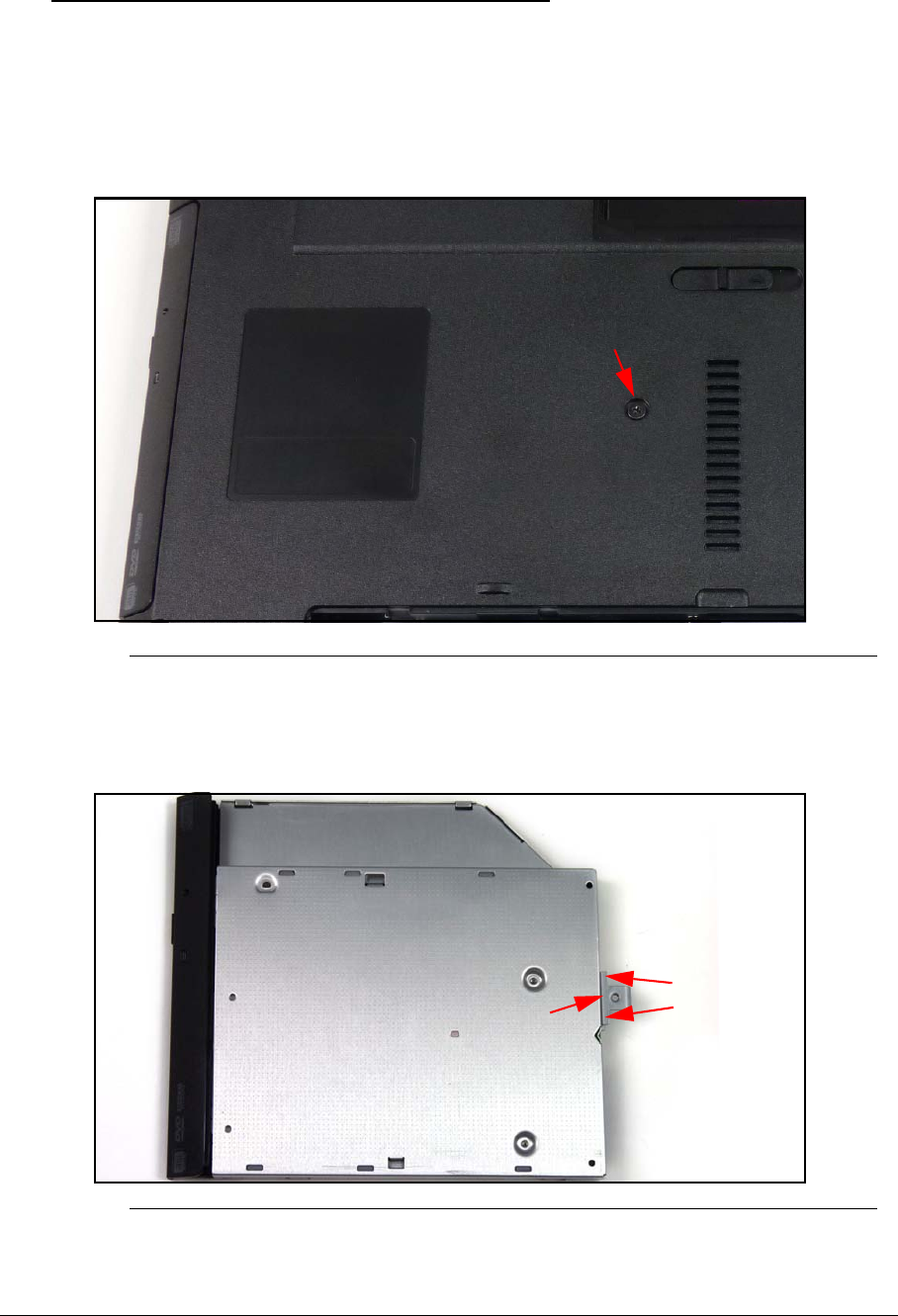

Optical Disk Drive (ODD) Module Removal . . . . . . . . . . . . . 3-17
ODD Module Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

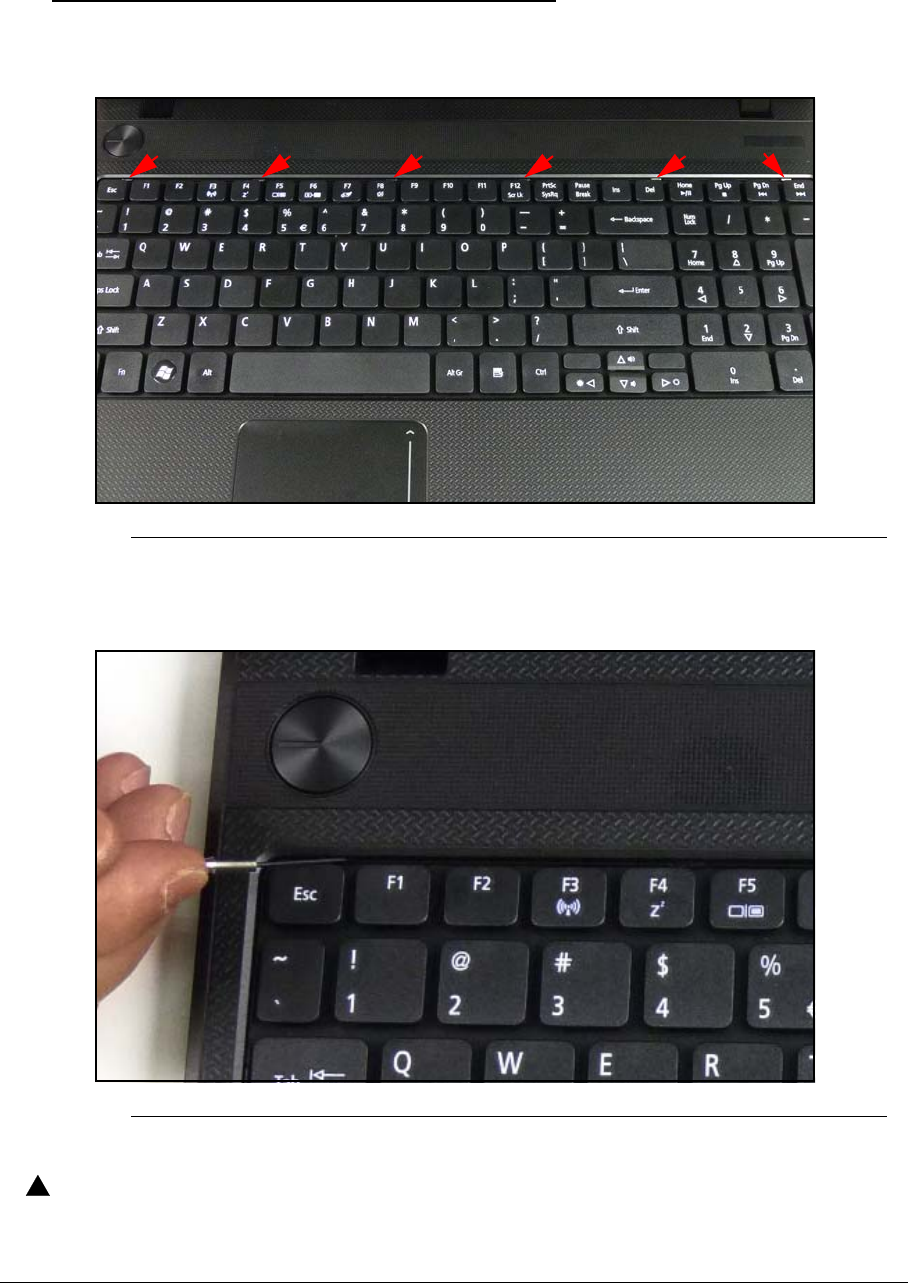

Keyboard Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Keyboard Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

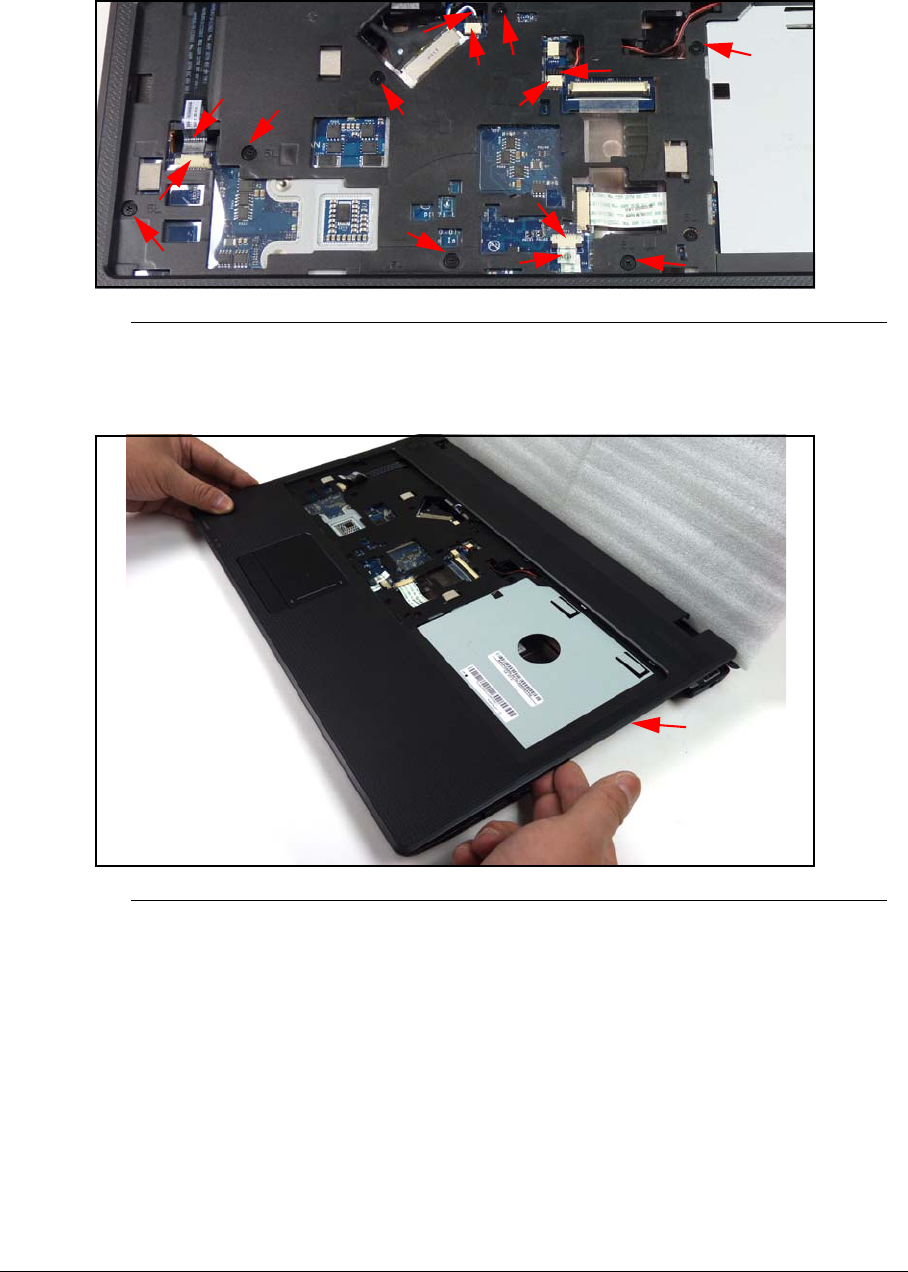

Upper Cover Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
Upper Cover Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24

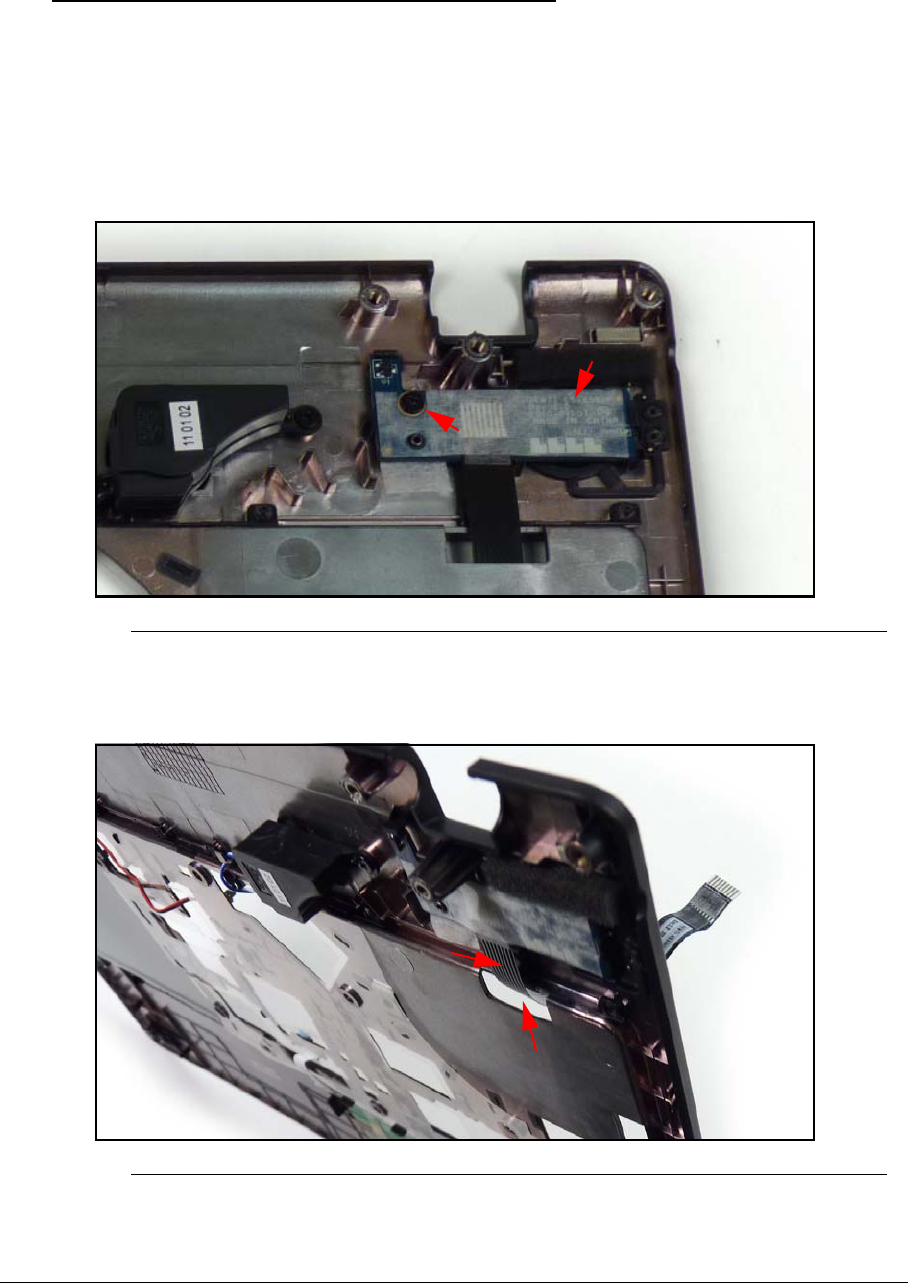

Power Board Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Power Board Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26

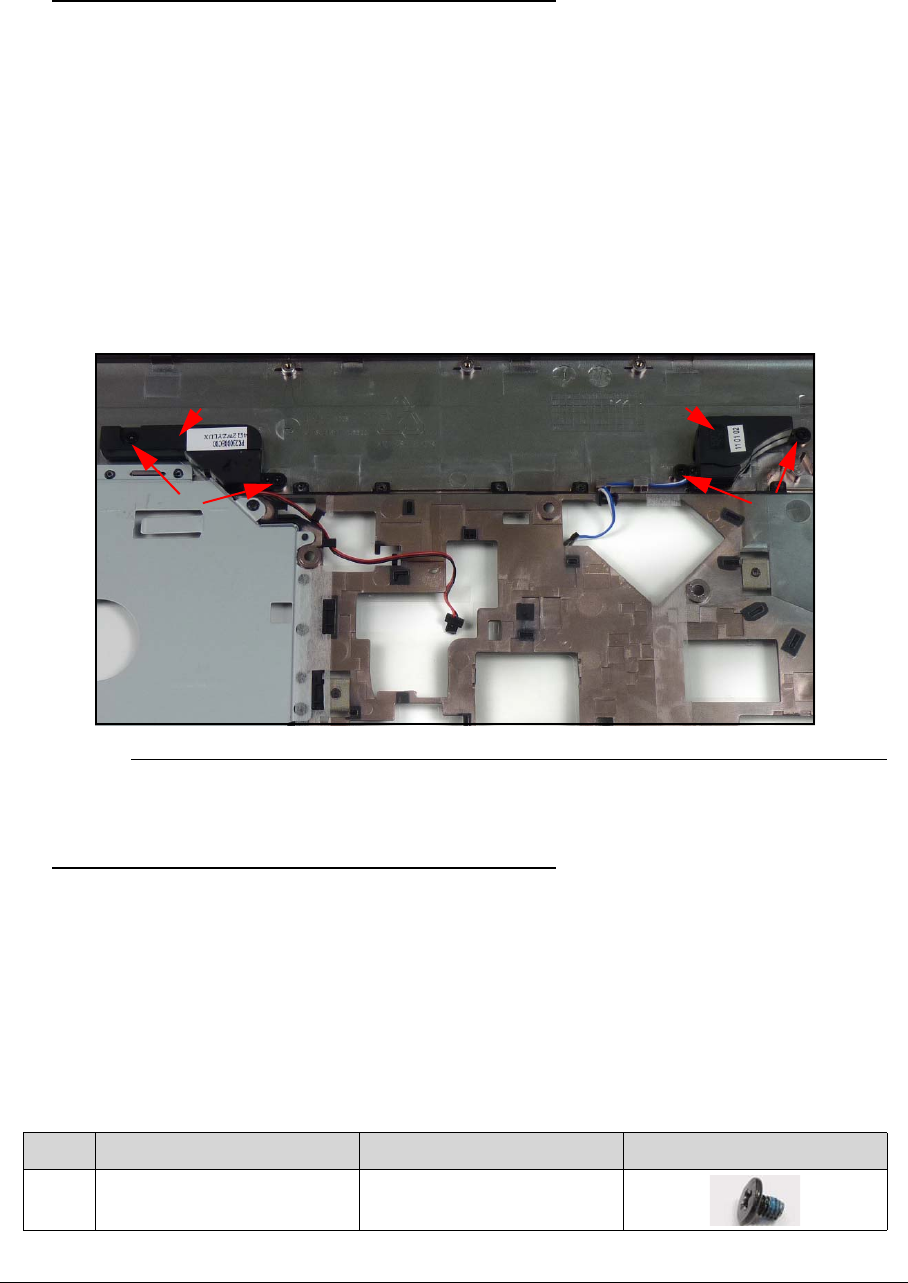

Speakers Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Speakers Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27

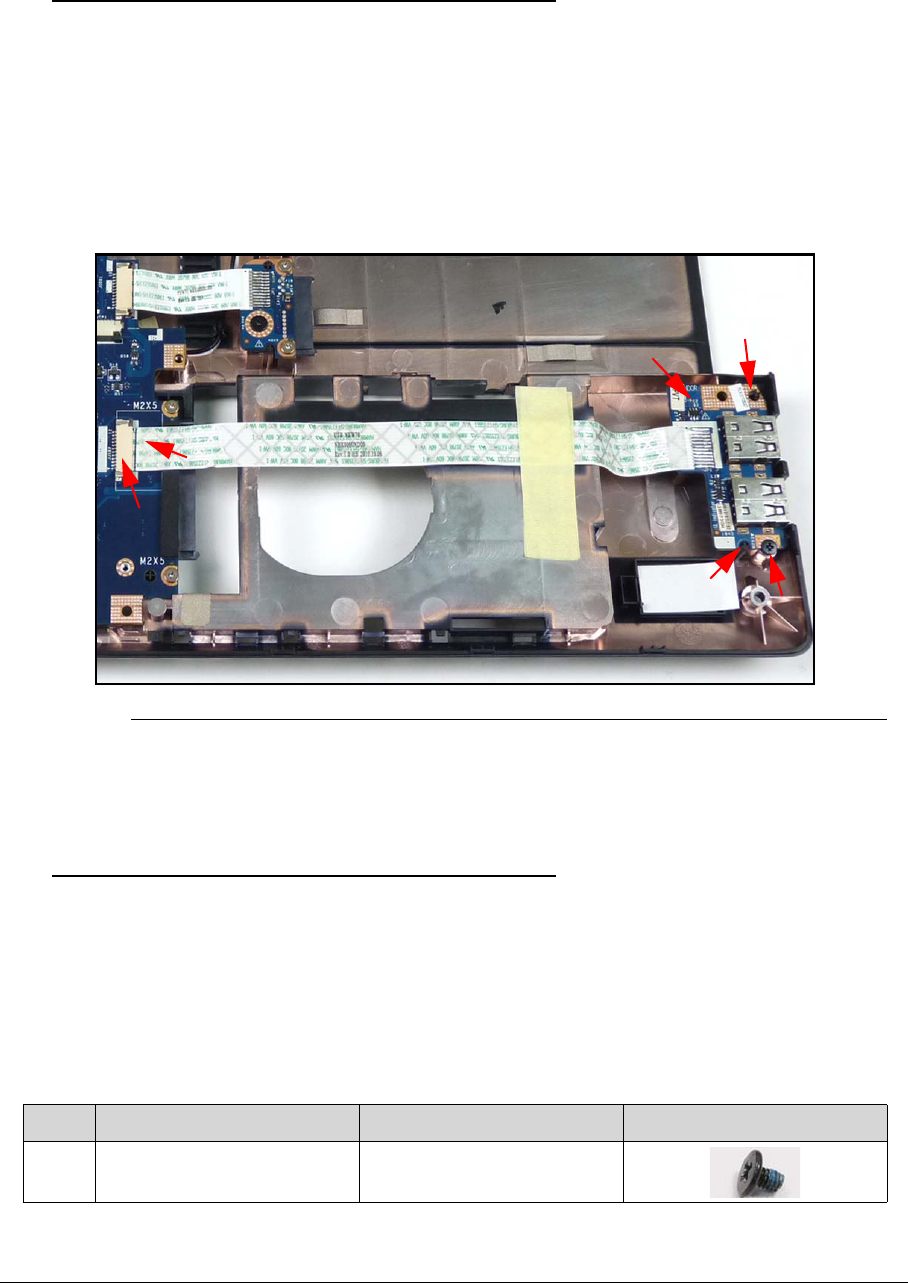

USB Module Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
USB Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
ODD Board Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
ODD Board Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29

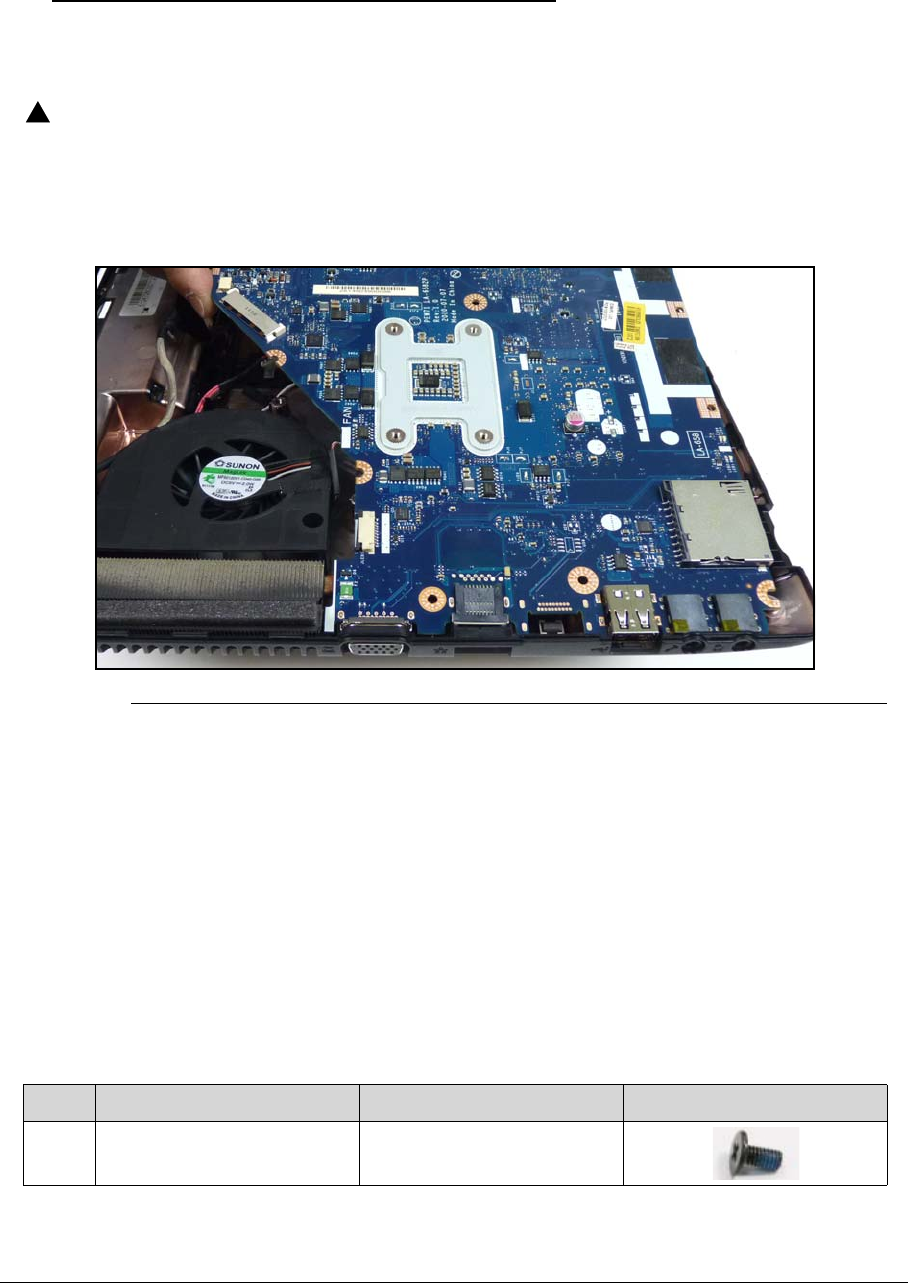

Mainboard Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Mainboard Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32
FAN Module Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
FAN Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Thermal Module Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
Thermal Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
CPU Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
CPU Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
4
LCD (Liquid Crystal Display) Module Removal . . . . . . . . . . . 3-37
LCD Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39
LCD Bezel Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-40
LCD Bezel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41
Camera Module Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
Camera Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . 3-42

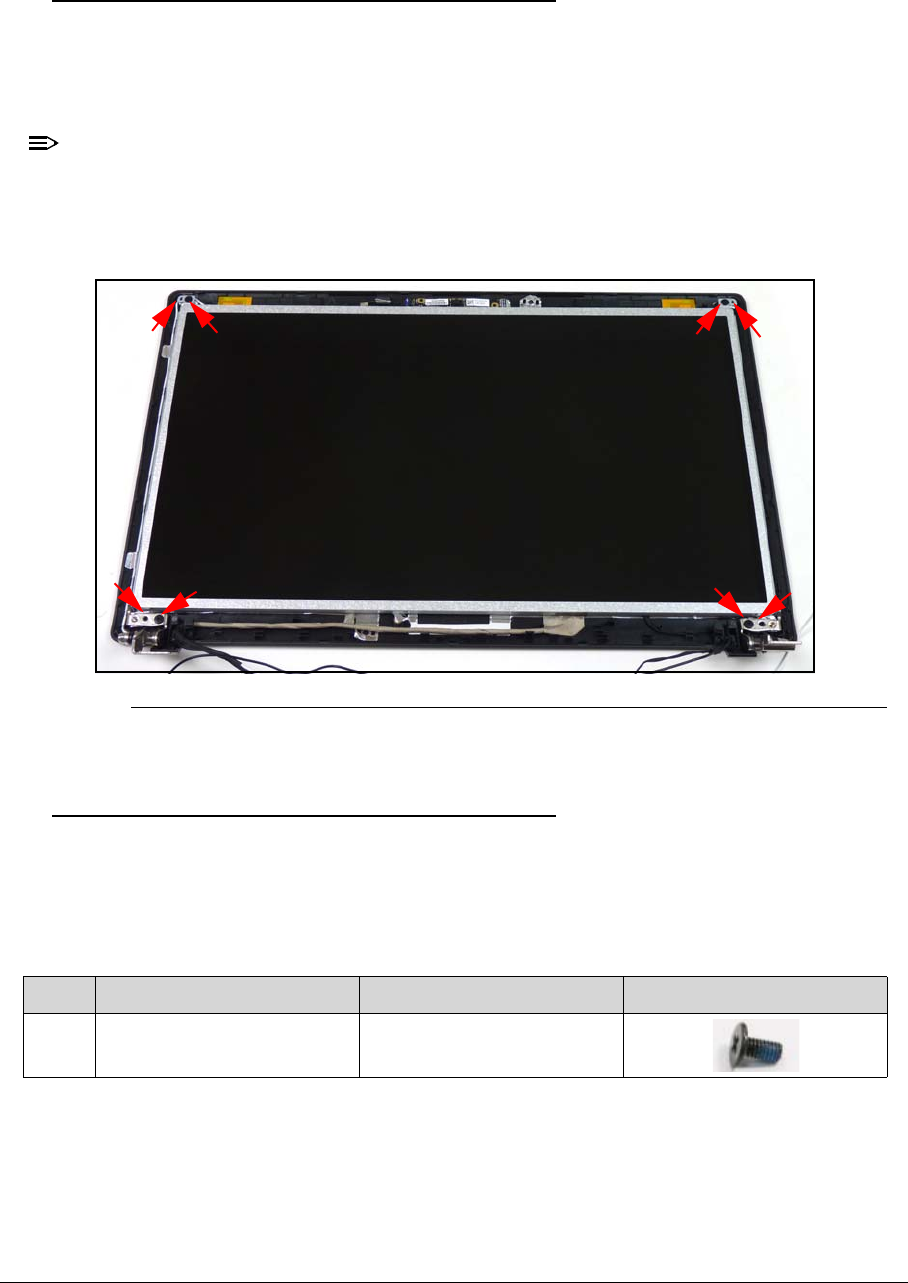

LCD Panel Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
LCD Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43

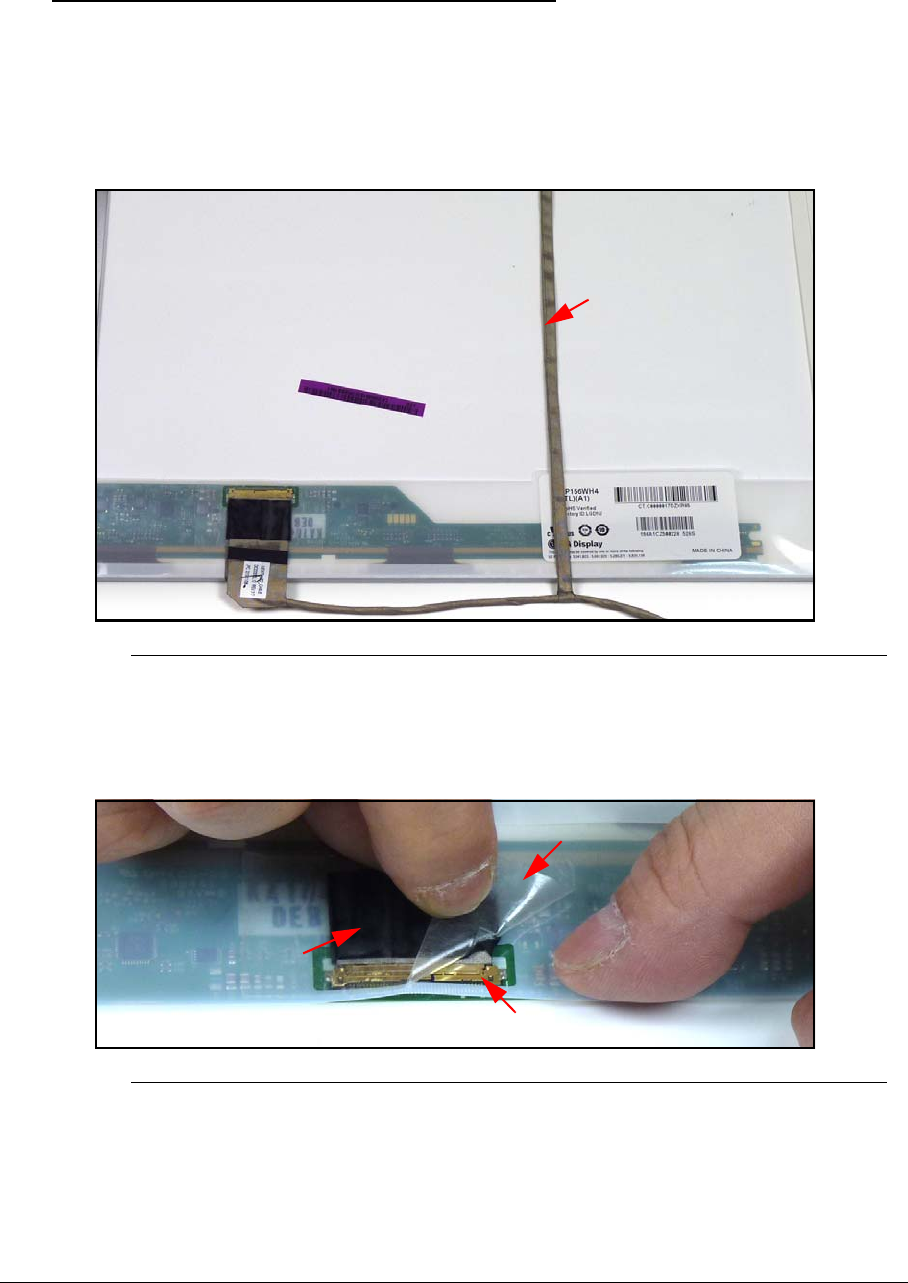

LVDS Cable Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
LVDS Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45

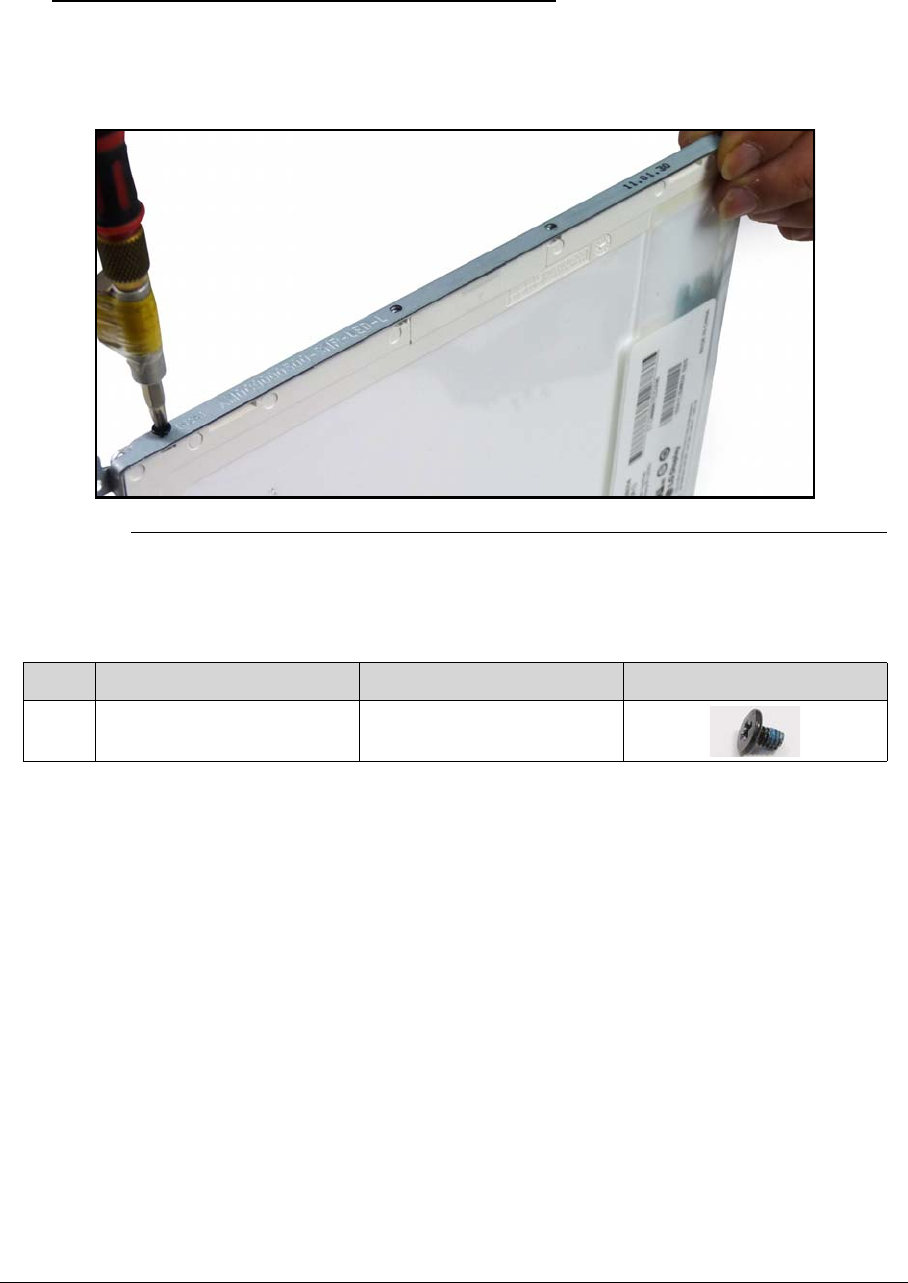

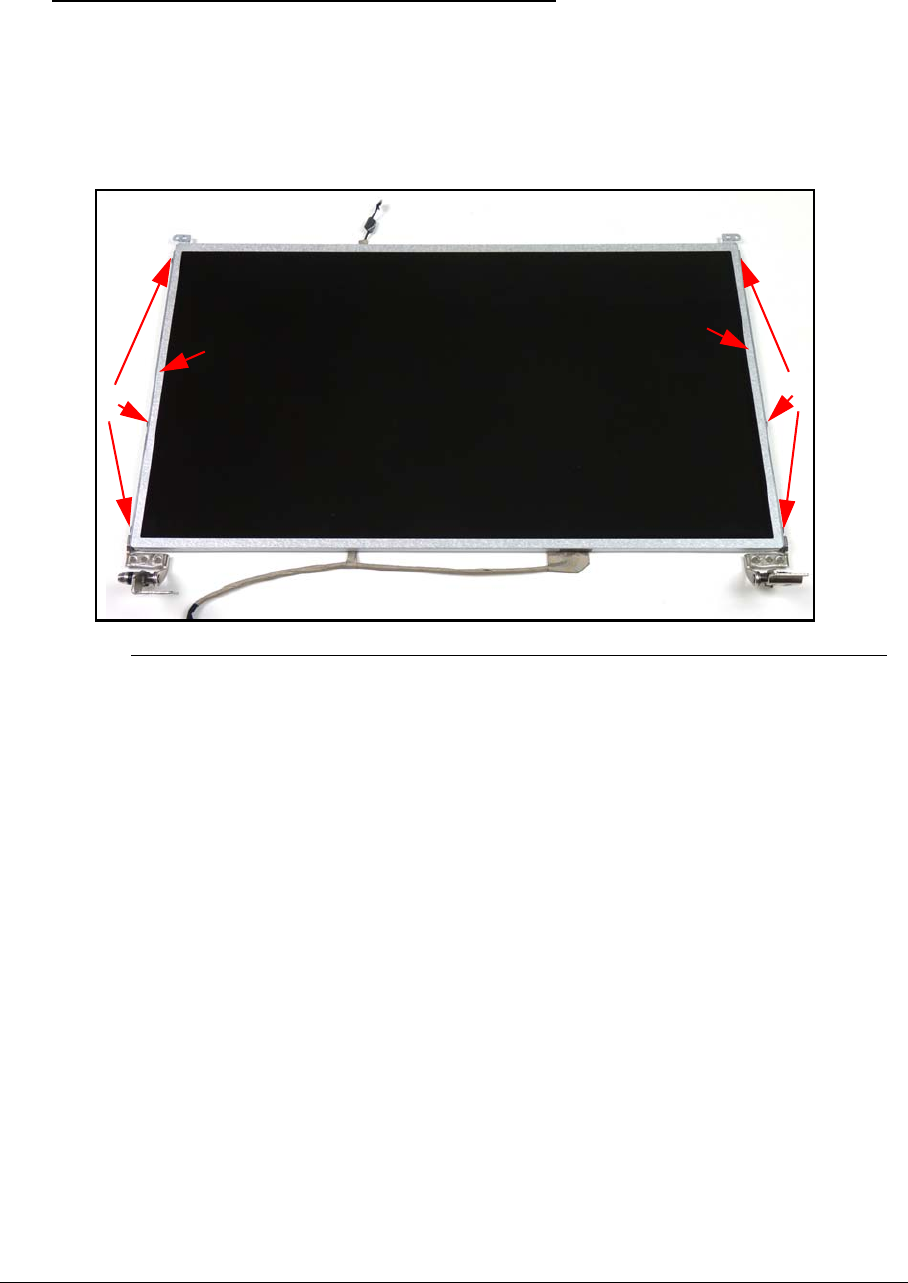

LCD Brackets Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
LCD Brackets Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47

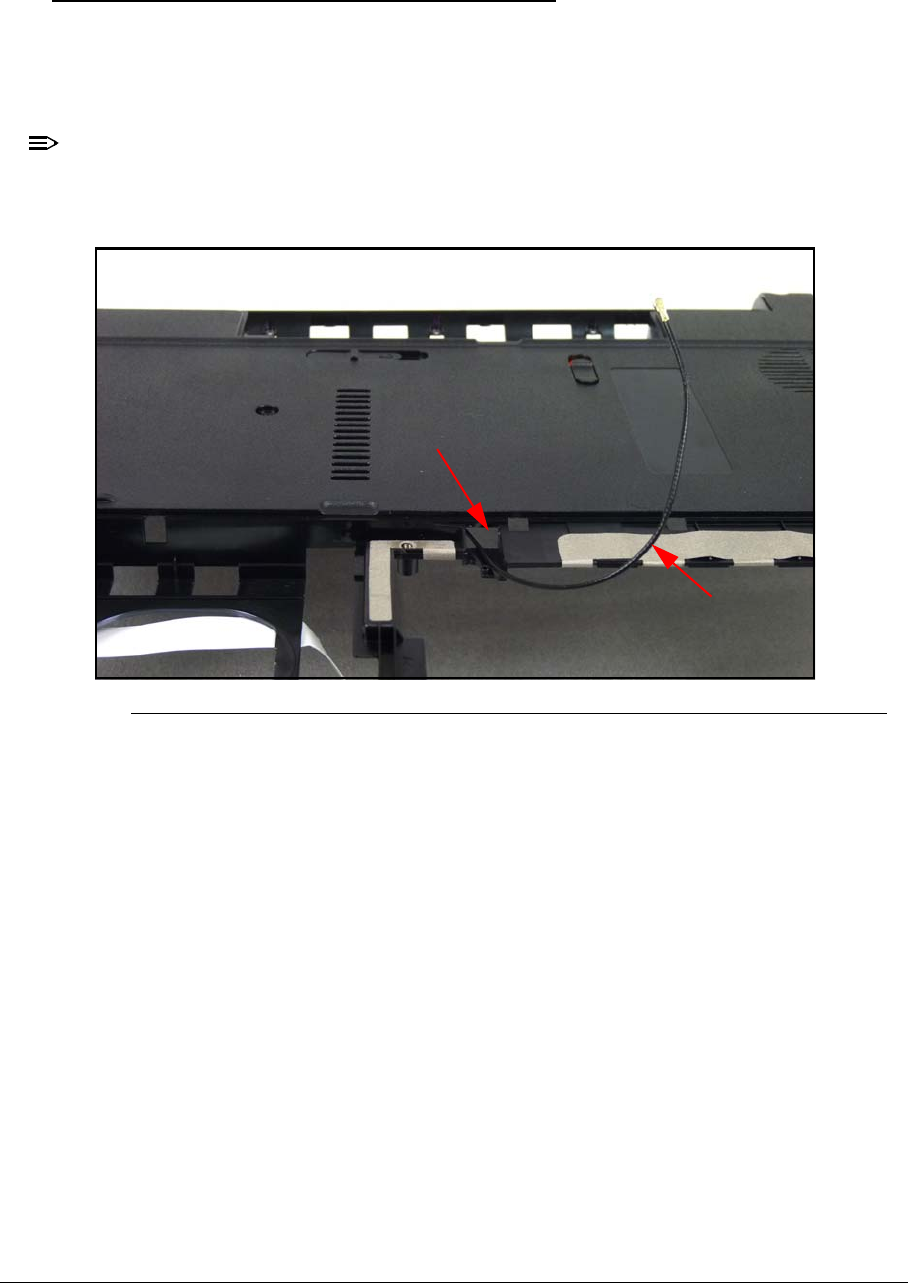

WLAN Antenna Cables and Microphone Set Removal . . . . 3-48
WLAN Antenna Cables and Microphone Set Installation . . 3-48
CHAPTER 4
Troubleshooting
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Power On Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
No Display Issues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
LCD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Keyboard Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Touchpad Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Internal Speaker Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Microphone Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
ODD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
USB Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Wireless Function Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
2 in 1 Card Fucntion Failure. . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Thermal Unit Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Other Functions Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Cosmetic Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24
Post Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
POST Code Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
5
CHAPTER 5
Jumper and Connector Locations
Jumper and Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . 5-3

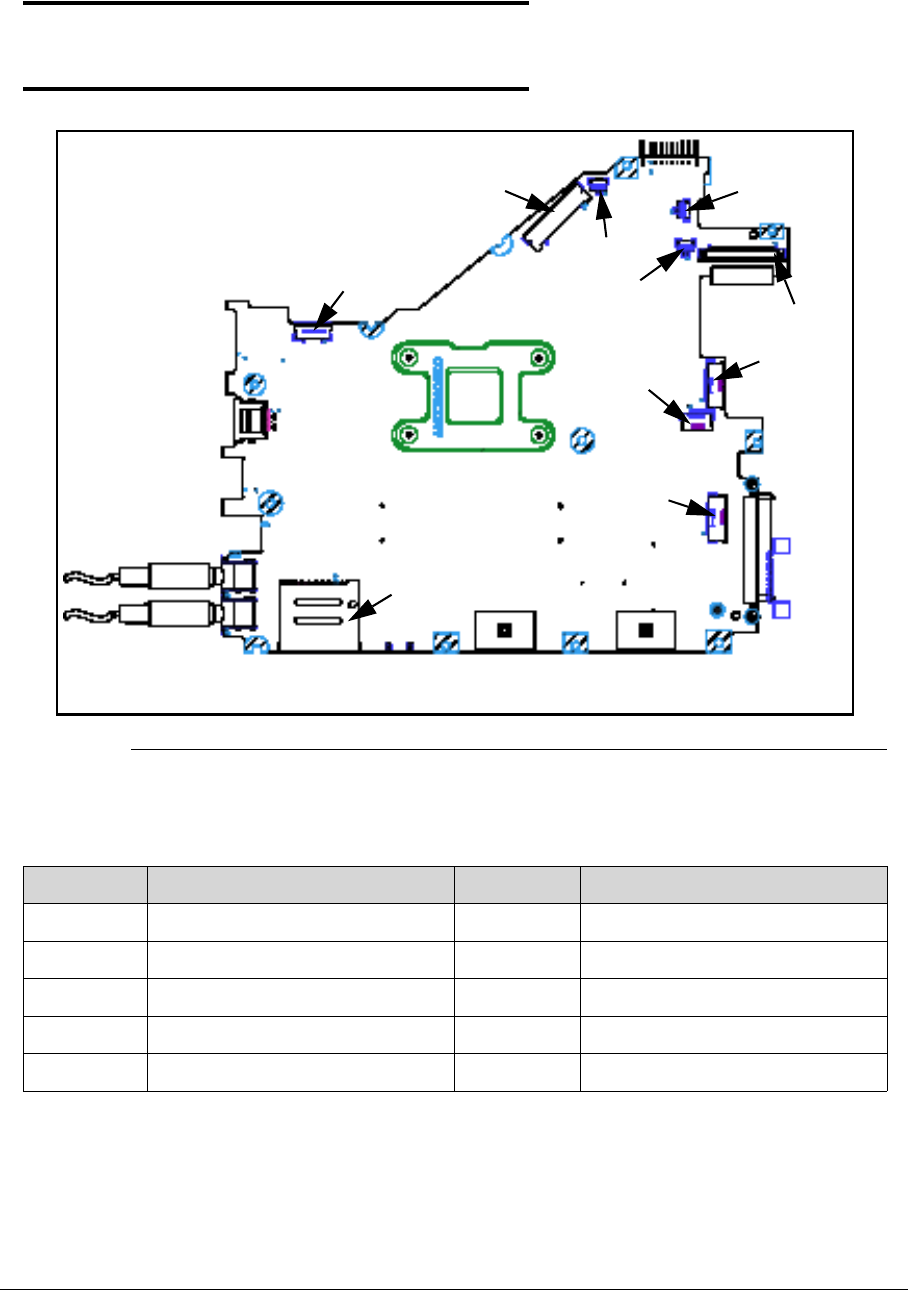

Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Clearing Password Check and BIOS Recovery. . . . . . . . . . . . . . . 5-5
Clearing Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
BIOS Recovery by Crisis Disk. . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
CHAPTER 6
FRU (Field Replaceable Unit) List
Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Upper Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
LCD Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

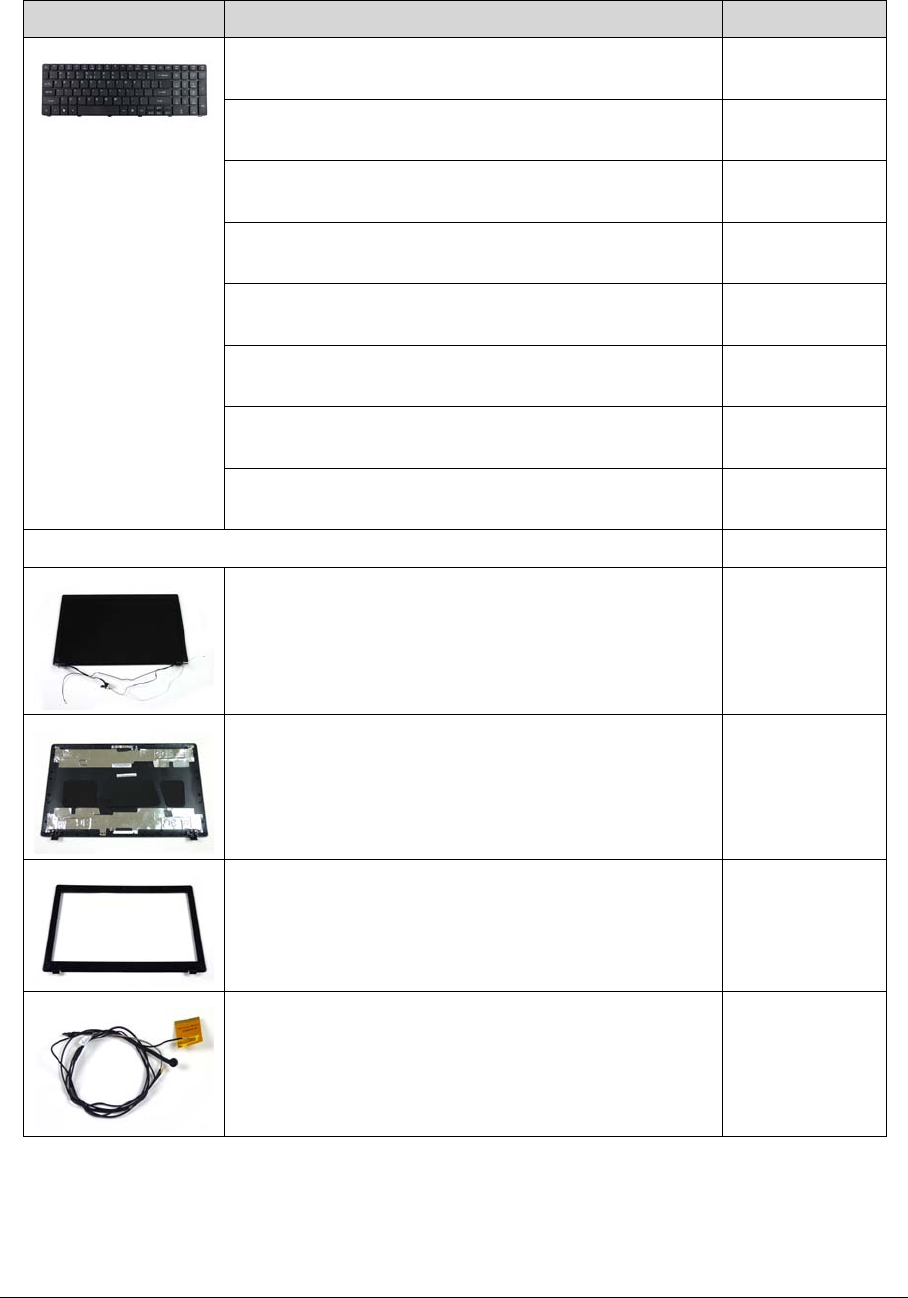

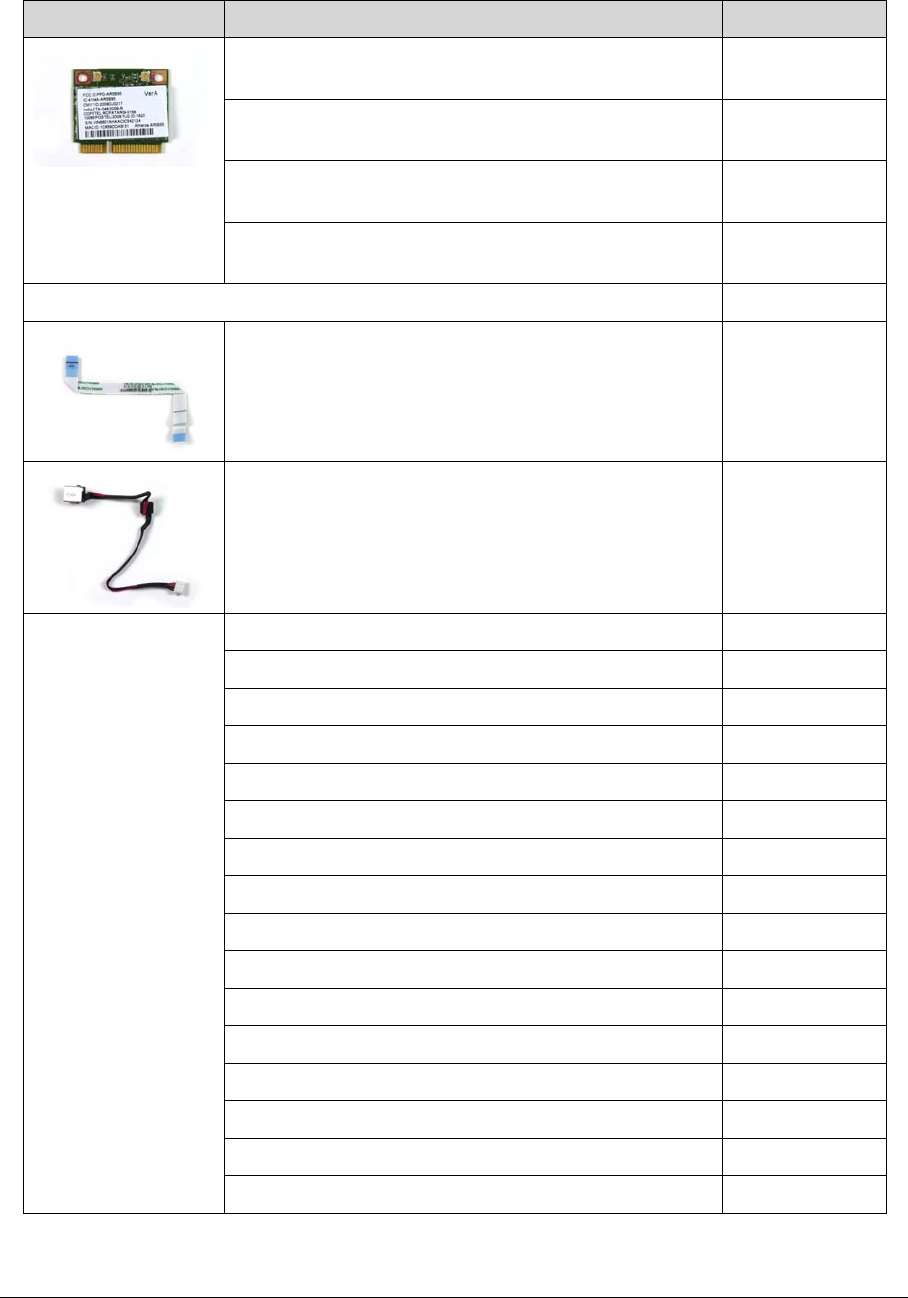

FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Screw List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
CHAPTER 7
Model Definition and Configuration
Aspire AS5333 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Aspire AS5733 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Aspire AS5733Z . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
CHAPTER 8
Test Compatible Components
Microsoft® Windows® 7 Environment Test. . . . . . . . . . . . . . . . 8-4
CHAPTER 9
Online Support Information
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
6
CHAPTER 1
Hardware Specifications
1-2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Operating System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
CPU and Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
System Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Optical Media Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Webcam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Wireless and Networking. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Privacy Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Dimensions and Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Power Adapter and Battery. . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Input and Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Input and Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Options and Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Notebook Tour. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Top View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Closed Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Left View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Base View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Touchpad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
Windows Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
HotKeys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
Specification Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
Computer specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
System Board Major Chips . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Processor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
CPU Fan True Value Table (Tj=105). . . . . . . . . . . . . . . . . . . . 1-24
CPU Fan True Value Table (Tj=90). . . . . . . . . . . . . . . . . . . . . 1-25
System Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25
Memory Combinations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
Video Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27
LAN Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28
Hard Disk Drive (AVL components). . . . . . . . . . . . . . . . . . . . . 1-28
Super-Multi Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29
BD Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-30
LED 15.6”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31
1-3
Display Supported Resolution (LCD Supported Resolution) . . 1-32
Graphics Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-32
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-33
Mini Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-33
Audio Codec and Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
Audio Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
Wireless Module 802.11b/g/n . . . . . . . . . . . . . . . . . . . . . . . . . 1-35
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-35
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-36
AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-36
System Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
System LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-38
System DMA Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-38
System Interrupt Specification. . . . . . . . . . . . . . . . . . . . . . . . . 1-39
System IO Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-40
System I/O Address Specifications . . . . . . . . . . . . . . . . . . . . . 1-41
1-4
Hardware Specifications and Configurations 1-5
Hardware Specifications and Configurations
Features 0
The following is a brief summary of the computer’s many features:
Operating System 0
-Genuine Windows® 7 Home Premium 64-bit
-Genuine Windows® 7 Home Basic 64-bit
CPU and Chipset 0
-Mobile Intel® HM55 Express Chipset
Aspire 5333 0
-Intel® Celeron® processor P4600 (2 MB L3 cache, 2 GHz, DDR3 1066 MHz, 35 W), supporting
Intel® 64 architecture, Intel® Smart Cache
Aspire 5733 0
-i3-370M/i3-380M/i3-390M processor (3 MB L3 cache, 2.40/2.53/2.66, DDR3 1066 MHz, 35 W),
supporting Intel® 64 architecture, Intel® Smart Cache
Aspire 5733Z 0
-Intel® Pentium® processor P6200/P6300 (3 MB L3 cache, 2.13/2.27 GHz, DDR3 1066 MHz, 35
W), supporting Intel® 64 architecture, Intel® Smart Cache
System Memory 0
Dual-channel DDR3 SDRAM support:
-Up to 4 GB of DDR3 system memory, upgradable to 8 GB using two soDIMM modules
Display 0
-15.6" HD 1366 x 768 pixel resolution, high-brightness (200-nit) Acer CineCrystal™ TFT LCD
-16:9 aspect ratio
Audio 0
-High-definition audio support
-Two built-in stereo speakers
-MS-Sound compatible
-Built-in microphone
1-6 Hardware Specifications and Configurations
Graphics 0
-Intel® HD Graphics with 128 MB of dedicated system memory, supporting Microsoft®
DirectX® 10
-Dual independent display support
-16.7 million colors
-External resolution / refresh rates:
VGA port up to 2560 x 1600: 60 Hz
-MPEG-2/DVD decoding
-WMV9 (VC-1) and H.264 (AVC) decoding
Storage 0
Hard disk drive:
-250/320/500/640/750 GB or larger
2-in-1 card reader, supporting:
-Secure Digital™ (SD) Card, MultiMediaCard™ (MMC)
Optical Media Drive 0
8X DVD-Super Multi double-layer drive:
-Read: 24X CD-ROM, 24X CD-R, 24X CD-RW, 8X DVD-ROM, 8X DVD-R, 8X DVD+R, 6X
DVD-ROM DL, 6X DVD-R DL, 6X DVD+R DL, 6X DVD-RW, 6X DVD+RW, 5X DVD-RAM
-Write: 24X CD-R, 16X CD-RW, 8X DVD-R, 8X DVD+R, 4X DVD-R DL, 4X DVD+R DL, 6X
DVD-RW, 8X DVD+RW, 5X DVD-RAM
Webcam 0
Acer Video Conference, featuring:
-Acer Crystal Eye webcam
Wireless and Networking 0
WLAN:
-Acer InviLink™ Nplify™ 802.11b/g/n Wi-Fi CERTIFIED™
-Supporting Acer SignalUp™ wireless technology
LAN:
-Fast Ethernet, Wake-on-LAN ready
Privacy Control 0
-BIOS user, supervisor, HDD passwords
-Kensington lock slot
Hardware Specifications and Configurations 1-7
Dimensions and Weight 0
Dimensions
-381 (W) x 253 (D) x 25/34 (H) mm (15 x 9.96 x 0.98/1.33 inches)
Weight
-2.6 kg (5.74 lbs.)10 with 6-cell battery pack
Power Adapter and Battery 0
-ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving
modes
Power adapter
-2-pin 40 W Acer MiniGO AC adapter:
93.2 (W) x 48 (D) x 32.2 (H) mm (3.66 x 1.88 x 1.26 inches)
180 g (0.39 lbs.) with 250 cm DC cable
205 g (0.39 lbs.) with 250 cm DC cable and one AC power plug
Battery
-48.8 W 4400 mAh 6-cell Li-ion standard battery pack
-Battery life: 3.0 hours
-ENERGY STAR®
Input and Control 0
Keyboard
-103-/104-/107-key Acer FineTip keyboard with independent standard numeric keypad,
international language support
Touchpad
-Multi-gesture touchpad, supporting two-finger scroll, pinch, rotate, flip
Media keys
-Media control keys (printed on keyboard): play/pause, stop, previous, next, volume up, volume
down
Input and Output 0
-2-in-1 card reader (SD™, MMC)
-Three USB 2.0 ports
-External display (VGA) port
-Headphone/speaker/line-out jack
-Microphone-in jack
-Ethernet (RJ-45) port
-DC-in jack for AC adapter
1-8 Hardware Specifications and Configurations
Environment 0
Temperature
-Operating: 5°C to 35°C
-Non-operating: -20°C to 65°C
Humidity (non-condensing)
-Operating: 20% to 80%
-Non-operating: 20% to 80%
Options and Accessories 0
-1/2/4 GB DDR3 soDIMM module
-6-cell Li-ion battery pack
-2-pin 40 W AC adapter
Warranty 0
-One-year International Travelers Warranty (ITW)
Software 0
Productivity
-Acer Backup Manager
-Acer ePower Management
-Acer eRecovery Management
-Adobe® Flash® Player 10
-Adobe® Reader® 9.1
-Bing™ Bar
-eSobi™
-Kobo™ (Canada only)
-Microsoft® Office 2010 preloaded (purchase a product key to activate)
-Microsoft® Office Starter 2010
-New York Times Reader (US only)
-NOOK for PC (US only)
-Norton™ Online Backup
Security
-McAfee® Internet Security Suite Trial
-MyWinLocker® (except China, Hong Kong)
Multimedia
-Acer Clear.fi
-NTI Media Maker™
Hardware Specifications and Configurations 1-9
Gaming
-Oberon GameZone (except US, Canada, Hong Kong, Korea)
-WildTangent® (US, Canada only)
Communication and ISP
-Acer Crystal Eye
-Microsoft® Silverlight™
-Skype™
-Windows Live™ Essentials 2011
Web links and utilities
-Acer Accessory Store (Belgium, France, Germany, Italy, Netherlands, Spain, Sweden, UK only)
-Acer Identity Card
-Acer Registration
-Acer Updater
-eBay® shortcut 2009 (Canada, France, Germany, Italy, Mexico, Spain, UK, US only)
-Netflix shortcut (US only)
1-10 Hardware Specifications and Configurations
Notebook Tour 0
Top View 0
Figure 1-1. Top View
Table 1-1. Top View
No Icon Item Description
1 Integrated webcam Web camera for video communication (only for
certain models).
2 Display screen Also called Liquid-Crystal Display (LCD), displays
computer output (Configuration may vary by
models).
3 Power button /
indicator Turns the computer on and off. Indicates the
computer's power status.
Hardware Specifications and Configurations 1-11
4 Keyboard For entering data into your computer.
5 Power indicator Indicates the computer's power status.
Battery indicator Indicates the computer's battery status.
-Charging: The light shows amber when the
battery is charging.
-Fully charged: The light shows blue when in AC
mode.
6 Click buttons (left and
right) The left and right buttons function like the left and
right mouse buttons.
7 Touchpad Touch-sensitive pointing device which functions
like a computer mouse.
8 Speakers Deliver stereo audio output.
9 Microphone Internal microphone for sound recording.
Table 1-1. Top View
No Icon Item Description
1-12 Hardware Specifications and Configurations
Closed Front View 0
Figure 1-2. Closed Front View
Table 1-2. Closed Front View
No Icon Item Description
1 2-in-1 card reader Accepts Secure Digital (SD), MultiMediaCard
(MMC).
NOTE:
Push to remove/install the card. Only one card
can operate at any given time.
Hardware Specifications and Configurations 1-13
Left View 0
Figure 1-3. Left View
Table 1-3. Left View
No Icon Item Description
1 DC-in jack Connects to an AC adapter.
2 External display
(VGA) port Connects to a display device (e.g., external
monitor, LCD projector).
3 Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-based
network.
4 USB 2.0 port Connects to USB 2.0 devices (e.g., USB mouse,
USB camera).
5 Microphone jack Accepts inputs from external microphones.
Headphones/speaker
jack Connects to audio devices (e.g., speakers,
headphones).
NOTE:
Supports compatible 3.5 mm headsets with
built-in microphone (e.g. Acer smart handheld
headsets).
1-14 Hardware Specifications and Configurations
Right View 0
Figure 1-4. Right View
Table 1-4. Right View
No Icon Item Description
1 USB 2.0 ports Connect to USB 2.0 devices (e.g., USB mouse,
USB camera).
2 Optical drive Internal optical drive; accepts CDs or DVDs.
3 Optical drive access
indicator Lights up when the optical drive is active.
4 Optical drive eject
button Ejects the optical disc from the drive.
5 Emergency eject hole Ejects the optical drive tray when the computer is
turned off.
NOTE:
Insert a paper clip to the emergency eject hole
to eject the optical drive tray when the
computer is off.
6 Kensington lock slot Connects to a Kensington-compatible computer
security lock.
NOTE:
Wrap the computer security lock cable around
an immovable object such as a table or handle
of a locked drawer. Insert the lock into the
notch and turn the key to secure the lock.
Some keyless models are also available.
Hardware Specifications and Configurations 1-15
Base View 0
Figure 1-5. Base View
Table 1-5. Base View
No Icon Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery release latch/
lock Releases the battery for removal.
Insert a suitable tool into the latch and
slide to release.
3 Memory compartment Houses the computer's main memory.
Hard disk bay Houses the computer's hard disk (secured with
screws).
4 Battery lock Locks the battery in position.
1-16 Hardware Specifications and Configurations
Touchpad Basics 0
Figure 1-6. Touchpad
-Move finger across the Touchpad (1) to move the cursor.
-Press the right (2) and left (3) buttons located beneath the Touchpad to perform selection and
execution functions. These two buttons are the equivalent of the left and right buttons on a
mouse. Tapping on the Touchpad is the same as clicking the left button.
Table 1-6. Touchpad
Function Main TouchPad (1) Right Button
(2) Left Button (3)
Execute Tap twice (at the same speed as
double-clicking a mouse button). Quickly click twice.
Select Tap once. Click once.
Drag Tap twice (at the same speed as
double-clicking a mouse button);
rest your finger on the TouchPad
on the second tap and drag the
cursor.
Click and hold, then use
finger on the Touchpad
to drag the cursor.
Access context
menu Click once.
NOTE:
When using the TouchPad, keep it - and fingers - dry and clean. The TouchPad is sensitive
to finger movement; hence, the lighter the touch, the better the response. Tapping too hard
will not increase the TouchPad’s responsiveness.
1
23
Hardware Specifications and Configurations 1-17
Using the Keyboard 0
Figure 1-7. Keyboard Lock Keys
The keyboard has three lock keys which can be toggled on and off. (Table 1-7)
The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by
small characters located on the upper right corner of the key caps. To simplify the keyboard
legend, cursor-control key symbols are not printed on the keys. (Table 1-8)
Table 1-7. Keyboard Lock Keys
Lock key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are in uppercase.
Num Lock When Num Lock is on, the embedded keypad is in numeric mode. The keys
function as a calculator (complete with the arithmetic operators +, -, *, and /).
Use this mode when doing a lot of numeric data entry. A better solution would
be to connect an external keypad.
Scroll Lock
<Fn> + <F12> When Scroll Lock is on, the screen moves one line up or down when the up or
down arrow keys are pressed respectively. Scroll Lock does not work with
some applications.
Table 1-8. Embedded Numeric Keypad
Desired access Num Lock on Num Lock off
Number keys on embedded
keypad Type numbers in a normal
manner.
Cursor-control keys on
embedded keypad Hold <Shift> while using
cursor-control keys. Hold <Fn> while using
cursor-control keys.
Main keyboard keys Hold <Fn> while typing letters
on embedded keypad. Type the letters in a normal
manner.
1-18 Hardware Specifications and Configurations
Windows Keys 0
The keyboard has two keys that perform Windows-specific functions.
- Windows Logo key
- Application key
Table 1-9. Windows Keys
Key Description
Windows Logo
key Pressed alone, this key has the same effect as clicking on the Windows Start
button; it launches the Start menu. It can also be used with other keys to
provide a variety of functions.
Functions supported by Windows XP, Windows Vista, and Windows 7:
< >: Open or close the Start menu
< > + <R>: Open the Run dialog box
< > + <M>: Minimizes all windows
<SHIFT> + < > + M: Undo minimize all windows
< > + <F1>: Show the help window
< > + <E>: Open Windows Explorer
< > + <F>: Search for a file or folder
< > + <D>: Show the desktop
<CTRL> + < > + <F>: Search for computers (if you are on a network)
< > + <L>: Lock your computer (if you are connected to a network
domain), or switch users (if you're not connected to a network domain)
<CTRL> + < > + <TAB>: Moves focus from Start menu, to the Quick
Launch toolbar, to the system tray (use RIGHT ARROW or LEFT ARROW to
move focus to items on the Quick Launch toolbar and the system tray)
< > + <TAB>: Cycle through programs on the taskbar
< > + <BREAK>: Display the System Properties dialog box
Functions supported by Windows XP:
< > + <BREAK>: Show the System Properties dialog box
< > + <U>: Open Ease of Access Center
Application key This key has the same effect as clicking the right mouse button; it opens the
application's context menu.
Hardware Specifications and Configurations 1-19
HotKeys 0
Hotkeys or key combinations can be used to access most of the computer's controls like
screen brightness and volume output.
Figure 1-8. Keyboard HotKeys
To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey
combination.
Table 1-10. Keyboard HotKeys
Hotkey Icon Function Description
<Fn> + <F3> Communication switch Enables/disables the computer’s
communication devices.
(Communication devices may
vary by configuration.)
<Fn> + <F4> Sleep Puts the computer in Sleep
mode.
<Fn> + <F5> Display toggle Switches display output between
the display screen, external
monitor (if connected) and both.
<Fn> + <F6> Screen blank Turns the display screen
backlight off to save power. Press
any key to return.
<Fn> + <F7> Touchpad toggle Turns the touchpad on and off.
<Fn> + <F8> Speaker toggle Turns the speakers on and off.
1-20 Hardware Specifications and Configurations
<Fn> + <>Brightness up Increases the screen brightness.
<Fn> + < > Brightness down Decreases the screen brightness.
<Fn> + <>Volume up Increases audio volume.
<Fn> + <>Volume down Decreases audio volume.
<Fn> + <Home> Play/Pause Plays or pauses media files
<Fn> + <Pg Up> Stop Stops media file
<Fn> + <Pg Dn> Previous Plays the previous media file in
the play sequence
<Fn> + <End> Next Plays the next media file in the
play sequence
Table 1-10. Keyboard HotKeys (Continued)
Hotkey Icon Function Description
Hardware Specifications and Configurations 1-21
System Block Diagram 0
Figure 1-9. System Block Diagram
USB port 8
6.4G/8.5G/10.6G
100M/133M/166M(CFD)
100MHz
33MHz
100MHz
100MHz
1GB/s x4
DMI x4
FDI x8
port 2,4 port 1
LVDS Conn.
CRT Conn.
SPI
3.3V 24MHz
10/100M LAN
BCM57780
MINI Card x1
WLAN
CMOS
Camera
Dual Channel
2.7GT/s
Touch Pad
LPC BUS
Processor
Int.KBD
BANK 0, 1, 2, 3
USB conn x3
(UMA)
Arrandale (UMA)
3.3V 48MHz
204pin DDRIII-SO-DIMM X2
Intel
BIOS ROM
1.5V DDRIII 800/1066/1333
HDA Codec
ALC272X
Memory BUS(DDRIII)
PCH
HD Audio
Ibex Peak-M
ENE KB926
Audio AMP
TPA6017
USB port 0 (Right Low)
USB Port 1 (Left)
USB port 2 (Right High)
rPGA988A
Intel
port 1
SATA ODD
Conn.
SPI ROM
CRT(UMA)
LVDS(UMA)
USBx14
port 0
Int. Speaker
100MHz
SATA x 6 (GEN1 1.5GT/S ,GEN2 3GT/S)
SATA HDD
Conn.
USB port 9
Card
Reader
USB port 12
Mini card
RJ45 Conn.
1-22 Hardware Specifications and Configurations
Specification Tables 0
Computer specifications
Item Metric Imperial
Dimensions
Length 25.30 cm 9.96 in
Width 38.16 cm 15.02 in
Height
(front to rear)
2.74 to 3.40 cm 1.08 to 1.34 in
Weight (equipped with optical
drive, flash drive, and battery) 2.5 kg 5.51 lbs
Input power
Operating voltage 19.0 V dc @ 4.74 A - 90 W
Operating current 4.74 A
Temperature
Operating (not writing to
optical disc) 0°C to 35°C 32°F to 95°F
Operating (writing to optical
disc) 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity
Operating 10% to 90%
Nonoperating 5% to 95%
Maximum altitude (unpressurized)
Operating -15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft
Shock
Operating 125 g, 2 ms, half-sine
Nonoperating 200 g, 2 ms, half-sine
Random vibration
Operating 0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate
Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate
NOTE:
Applicable product safety standards specify thermal limits for plastic surfaces. The computer
operates well within this range of temperatures.
Hardware Specifications and Configurations 1-23
System Board Major Chips
Processor
Item Specification
Core logic Intel® HM55
VGA Intel® Arrandale (MCP Processor)
LAN Broadcom BCM57780A1KMLG for 10/100M LAN Controller
USB 2.0 Intel® HM55
Super I/O controller Intel® HM55
Bluetooth N/A
Wireless Atheros HB93/HB95/HB97, Broadcom 943225/43225/4313/4312,
RTL8192
PCMCIA N/A
Audio codec Realtek ALC272-X
Card reader Realtek RTS-5137-GR
Item Specification
CPU type Intel® Core (i3, i5) Processor/Intel® Pentium
CPU package rPGA988A
Core Logic Two execution cores
-A 32-KB instruction and 32-KB data first-level cache (L1) for each
core
-A 256-KB shared instruction/data second-level cache (L2) for each
core
-Up to 4-MB shared instruction/data third-level cache (L3), shared
among all cores
Chipset Mobile Intel® HM55 Express Chipset
1-24 Hardware Specifications and Configurations
Processor Specifications
CPU Fan True Value Table (Tj=105)
Item CPU Speed
(GHz)
Cores/
Threads Bus Speed
(FSB/
DMI/QBI)
Mfg
Tech
(nm)
Cache
Size
(MB)
Package Voltage
P6100 2 2 FSB:NA
QPI:NA
DMI: 2.5 GT/s
32 3 rPGA988A 0.8-1.4V
P6200 2.13 2 FSB:NA
QPI:NA
DMI: 2.5 GT/s
32 3 rPGA988A 0.8-1.4V
I3-350M 2.26 2/4 FSB:NA
QPI:NA
DMI: 2.5 GT/s
32 3 rPGA988A 0.8-1.4V
I3-370M 2.4 2/4 FSB:NA
QPI:NA
DMI: 2.5 GT/s
32 3 rPGA988A 0.8-1.4V
I3-380M 2.53 2/4 FSB:NA
QPI:NA
DMI: 2.5 GT/s
32 3 rPGA988A 0.8-1.4V
I5-460M 2.53 2/4 FSB:NA
QPI:NA
DMI: 2.5 GT/s
32 3 rPGA988A 0.8-1.4V
I5-560M 2.66 2/4 FSB:NA
QPI:NA
DMI: 2.5 GT/s
32 3 rPGA988A 0.8-1.4V
CPU Temperature Fan Speed (RPM) SPL Spec (dBA)
60 2500 28
70 2900 31
80 3200 34
90 3600 37
100 4000 40
-Throttling 50%: On= 95 °C; OFF=80 °C
-OS shut down at 100 °C; H/W shut down at 90 °C
Hardware Specifications and Configurations 1-25
CPU Fan True Value Table (Tj=90)
System Memory
CPU Temp Fan Speed (RPM) SPL Spec (dBA)
57 2500 28
64 2900 31
70 3200 34
78 3600 37
85 4000 40
-Throttling 50%: On= 85 °C; OFF=72 °C
-OS shut down at 104 °C; H/W shut down at 92°C
Item Specification
Memory controller Built in at CPU
Memory size 512MB, 1GB, 2GB, 4GB DDR3 RAM
DIMM socket number 2
Supports memory size per socket 4 GB
Supports maximum memory size 8 GB
Supports DIMM type Support DDR III 800/1066/1333Mhz
Supports DIMM Speed 800/1066Mhz SDRAM
Support DIMM voltage +1.5V
Supports DIMM package 204pin DDRIII-SO-DIMM
1-26 Hardware Specifications and Configurations
Memory Combinations
Video Interface
Slot 1 (MB) Slot 2 (MB) Total Memory (MB)
0 512 512
0 1024 1024
0 2048 2048
0 4096 4096
512 0 512
512 512 1024
512 1024 1536
512 2048 2560
512 4096 4608
1024 0 1024
1024 512 1536
1024 1024 2048
1024 2048 3072
1024 4096 5120
2048 0 2048
2048 512 2560
2048 1024 3072
2048 2048 4096
2048 4096 6144
4096 0 4096
4096 512 4608
4096 1024 5120
4096 2048 6144
4096 4096 8192
Item Specification
Chipset Intel® Arrandale (MCP Processor)
Package rPGA package (Rpga 988A)
Interface Intel® Flexible Display Interface (FDI)
Compatibility 8 bpp
Sampling rate Each channel transports at a rate of 2.7Gbps
Hardware Specifications and Configurations 1-27
BIOS
LAN Interface
Item Specification
BIOS vendor Insyde
BIOS Version 1.00
BIOS ROM type MX25L3205D, MX25L3206E, W25Q32BV, EN25F32
BIOS ROM size 4MB
Features -Insyde code base
-Flash ROM 4 MB
-Support ISIPP
-Support Acer UI
-Support multi-boot
-Suspend to RAM (S3)/Disk (S4)
-Various hot-keys for system control
-Support SMBIOS 2.3, PCI2.2.
-DMI utility for BIOS serial number configurable/asset tag
-Support PXE
-Support WinFlash
-Wake on LAN from S3
-Wake on LAN from S5 in AC mode
-System information
-HDD password
-Refer to Acer BIOS specification.
Item Specification
LAN Chipset BCM57780
LAN connector type RJ45
LAN connector location JRJ45 at the left side
Features Supports 10/100
1-28 Hardware Specifications and Configurations
Keyboard
Hard Disk Drive (AVL components)
Item Specification
Type New Acer TM7T flat keyboard
Total number of keypads 105-US/106-UK keys
Windows logo key Yes
Internal & external keyboard
work simultaneously Plug USB keyboard to the USB port directly: Yes
Features -Phantom key auto detect
-Overlay numeric keypad
-Support independent pgdn/pgup/home/end keys
-Support reverse T cursor keys
-Factory configurable different languages by OEM customer
Item Specification
Vendor & Model
Name Western Digital
WD3200BEVT-
22A23T0
HITACHI
HTS545032B9A
300
SEAGATE
ST9320315AS TOSHIBA
MK3265GSX
Capacity (GB) 320 320 320 320
Bytes per sector 512 512 512 512
Data heads 2332
Drive Format
Disks 1221
Spindle speed
(RPM) 5400
Performance Specifications
Buffer size 8MB
Interface SATA
Fast data transfer
rate (Gbits/sec,
max)
3.03.03.03.0
Media data transfer
rate
(Mbytes/sec max)
106 875 1175 1273.3
DC Power Requirements
Voltage tolerance 5V
Hardware Specifications and Configurations 1-29
Super-Multi Drive
Item Specification
Vendor & Model name HLDS Super-Multi Drive DL 8X GT32N LF/SONY Super-Multi
Drive DL 8X AD-7585H LF/Panasonic Super-Multi Drive DL 8X
UJ890/PLDS Super-Multi Drive DL 8X DS-8A4SH/HLDS
Super-Multi Drive DL 8X GT30N LF/HLDS Super-Multi Drive
DL 8X GT31N LF
Performance Specification With CD Diskette With DVD Diskette
Transfer rate (Mbytes/sec) Sustained: Max 3.6 Sustained: Max 10.08
Buffer Memory 2MB
Interface SATA
Applicable disc format Applicable disc format CD: CD-DA, CD-ROM, CD-ROM XA,
Photo CD (multi-session), Video CD, Cd-Extra (CD+), CD-text
DVD: DVD-VIDEO, DVD-ROM, DVD-R (3.9GB, 4.7GB)
DVD-R DL, DVD-RW, DVD-RAM, DVD+R, DVD+RDL,
DVD+RW CD: CD-DA (Red Book) - Standard Audio CD &
CD-TEXT CD-ROM (Yellow Book Mode1 & 2) - Standard Data
CD-ROM XA (Mode2 Form1 & 2) - Photo CD, Multi-Session
CD-I (Green Book, Mode2 Form1 & 2, Ready, Bridge)
CD-Extra/ CD-Plus (Blue Book) - Audio & Text/Video Video-CD
(White Book) - MPEG1 Video CD-R (Orange Book Part)
CD-RW & HSRW (Orange Book Part Volume1 & Volume 2
Super Audio CD (SACD) Hybrid type US & US+ RW DVD:
DVD-ROM (Book 1.02), DVD-Dual DVD-Video (Book 1.1)
DVD-R (Book 1.0, 3.9G) DVD-R (Book 2.0, 4.7G) - General &
Authoring DVD+R (Version 1.0) DVD+RW DVD-RW (Non
CPRM & CPRM) DVD°"R Dual
Loading mechanism Load: Manual Release: (a) Electrical Release (Release Button)
(b) Release by ATAPI command (c) Emergency Release
Power Requirement
Input Voltage 5 V +/- 5% (Operating)
1-30 Hardware Specifications and Configurations
BD Drive
Items Specifications
Vendor & Model
name PLDS BD COMBO DRIVE TRAY DL DS-4E1S LF/HLDS BD COMBO
12.7mm Tray DL CT21N/SONY BD COMBO DRIVE TRAY DL
BC-5500H-AR
Performance
Specification With CD Disc With DVD Disc With Blu-ray Disc
Transfer rate
(Mbytes/sec) Sustained: Max 3.6 Sustained: Max 10.08 Sustained: Max 11
Buffer Memory 2MB 4.5MB
Interface SATA
Applicable disc
format Applicable disc format CD: CD-DA, CD-ROM, CD-ROM XA, Photo CD
(multi-session), Video CD, Cd-Extra (CD+), CD-text DVD:
DVD-VIDEO, DVD-ROM, DVD-R (3.9GB, 4.7GB) DVD-R DL,
DVD-RW, DVD-RAM, DVD+R, DVD+R DL, DVD+RW CD: CD-DA
(Red Book) - Standard Audio CD & CD-TEXT CD-ROM (Yellow Book
Mode1 & 2) - Standard Data CD-ROM XA (Mode2 Form1 & 2) - Photo
CD, Multi-Session CD-I (Green Book, Mode2 Form1 & 2, Ready,
Bridge) CD-Extra/ CD-Plus (Blue Book) - Audio & Text/Video Video-CD
(White Book) - MPEG1 Video CD-R (Orange Book Part) CD-RW &
HSRW (Orange Book Part Volume1 & Volume 2 Super Audio CD
(SACD) Hybrid type US & US+ RW DVD: DVD-ROM (Book 1.02),
DVD-Dual DVD-Video (Book 1.1) DVD-R (Book 1.0, 3.9G) DVD-R
(Book 2.0, 4.7G) - General & Authoring DVD+R (Version 1.0) DVD+RW
DVD-RW (Non CPRM & CPRM) DVD+/-R Dual Blu-Ray: BD-R, BD-R
DL, BD-RE, BD-RE DL
Loading mechanism Load: Manual Release: (a) Electrical Release (Release Button) (b)
Release by ATAPI command (c) Emergency Release
Power Requirement
Input Voltage 5 V +/- 5% (Operating)
Hardware Specifications and Configurations 1-31
LED 15.6”
Item Specification
Vendor/Model name -AUO/B156XW02 V3
-Samsung/LTN156AT02-101
-LG/LP156WH2-TLF1
-LG/LP156WH2-TLFA
-AUO/B156XW02 V2 (HW:4A)
-Samsung/LTN156AT02-A02
-LG/LP156WH2-TLE1
-LG/LP156WH2-TLEA
-CMO/N156B6-L0B
-INNOLUX/BT156GW01 V2
Screen Diagonal (mm) 394.91 mm
Active Area (mm) 344.23 mm x 193.54 mm
Display resolution (pixels) 1366 x 3(RGB) x 768
Pixel Pitch (mm) 0.252mm × 0.252 mm
Typical White Luminance
(cd/m2) also called Brightness 220 cd/m2
Contrast Ratio 400 min / 500 type
Response Time (Optical Rise
Time/Fall Time) msec 8 ms / 16 ms
Typical Power Consumption
(watt) 5.15 W
Weight (without inverter) 460 max
Physical Size (mm) 360 mm x 210mm x 5.5 max
Electrical Interface 1 channel LVDS
Viewing Angle (degree)
Horizontal (Right) CR = 10
(Left)
Vertical (Upper) CR = 10
(Lower)
40 (Right) / 40 (Left) / 10 (Upper) / 30 (Lower) min.
1-32 Hardware Specifications and Configurations
LCD Inverter (not available in this model)
Display Supported Resolution (LCD)
Graphics Controller
Display Supported Resolution (GPU)
Item Specification
Vendor & Model name
Brightness conditions
Input voltage (v)
Input current (mA)
Output voltage (V, RMS)
Output current (mA, RMS)
Output voltage frequency
(KHz)
Resolution 16 bits 32 bits 36 bits 48 bits other
800x600p/60Hz 16:9 V V V V V
1024x768p/60Hz 16:9 V V V V V
1280x600/60Hz 16:9 V V V X X
1280x720/60Hz 16:9 V V V V V
1280x768/60Hz 16:9 V V V V V
1360x768/60Hz 16:9 V V V V V
1366x768/60Hz 16:9 V V V V V
Item Specification
VGA Chip Intel Arrandale (MCP Processor)
Supports -Intel® Hyper-Threading technology
-Intel® 64 architecture
Resolution 16 bits 32 bits 36 bits 48 bits other
800x600p/60Hz 16:9 V V X X X
1024x768p/60Hz 16:9 V V X X X
1280x600/60Hz 16:9 V V X X X
1280x720/60Hz 16:9 V V X X X
1280x768/60Hz 16:9 V V X X X
1360x768/60Hz 16:9 V V X X X
1366x768/60Hz 16:9 V V X X X
Hardware Specifications and Configurations 1-33
Bluetooth Interface (not available in this model)
Bluetooth Module (not available in this model)
Camera
Mini Card
3G Card (not available in this model)
Item Specifications
Chipset
Data throughput
Protocol
Interface
Connector type
Supported protocol
Item Specifications
Controller
Features
Item Specification
Vendor and Model Lite-on 10P2SF005, Suyin HF0319-M08C-OV01, Suyin
CN1014-S36D-OV05
Type 0.3M
Item Specification
Number supported 1
Features 1 mini card slot (for WLAN or WLAN/WiMax)
Item Specification
Features
1-34 Hardware Specifications and Configurations
Audio Codec and Amplifier
Audio Interface
Item Specification
Audio Controller Audio codec: Realtek ALC272X-GR
Features -Two stereo DAC support 16/20/24-bit PCM for two
independent playback (multiple streaming)
-Two stereo ADC supports 16/20/24-bit PCM format for two
independent recording
-All DACs support independent 44.1k/48k/96k/192kHz sample
rate
-All ADCs support independent 44.1k/48k/96k/192kHz sample
rate
-Two independent SPDIF outputs support 16/20/24-bit format
and 44.1k/48k/88.2k/96k/192kHz rate
-Supports line level mono output
-Supports analog PCBEEP input, and features an integrated
digital BEEP generator
-Support two stereo digital microphone input for microphone
array AEC/BF application
-Supports legacy analog mixer architecture
-Supports two GPIO (General Purpose Input/Output) pins (pin
sharing with digital microphone interface)
-Supports EAPD (External Amplifier Power Down) control for
external amplifier
-Supports anti-pop mode when analog power AVDD is on and
digital power is off
-Supports 1.5V~3.3V scalable I/O for HD Audio link
-48-pin LQFP 'Green' package
Amplifier TI TPA6017A2PWPR,
Features -4 step gain control
-2-W/Ch Output Power Into 3-? Load From 5-V Supply
-Fully Differential Input
-Low Supply Current and Shutdown selection
-Embedded de-pop circuit
Item Specification
Audio Controller Realtek ALC272X-GR
Audio onboard or optional On board
Mono or Stereo Stereo
Resolution Support 16/24bit PCM
Compatibility HD audio Interface;
Sampling rate Sample rate up to 192Khz resolution VSR (Variable Sampling
Rate)
Hardware Specifications and Configurations 1-35
Wireless Module 802.11b/g/n
Battery
Audio Interface (continued)
Internal microphone Yes
Internal speaker/quantity Yes/(1W speakers x2)
Item Specification
Chipset Atheros HB93/HB95/HB97, BCM943225/ BCM4312, Intel
6200/1000
Data throughput 11~54 Mbps, up to 270 Mbps for Draft-N
Protocol 802.11 b+g, Drat-N
Interface PCI bus (mini PCI socket for wireless module)
Item Specification
Vendor & Model name SANYO AS10D31 SIMPLO AS10D71/75
Battery Type Li-ion Li-ion
Pack capacity 2200 mAh 2200 mAh
Number of battery cell 6 6
Package configuration 3S2P 3S2P
Item Specification
Vendor & Model name SONY AS10D41 SAMSUNG AS10D61
Battery Type Li-ion Li-ion
Pack capacity 2200 mAh 2200 mAh
Number of battery cell 6 6
Package configuration 3S2P 3S2P
Item Specification
Vendor & Model name PANASONIC AS10D51 PANASONIC AS10D56
Battery Type Li-ion Li-ion
Pack capacity 2200 mAh 2900 mAh
Number of battery cell 6 4
Package configuration 3S2P 4S1P
Item Specification
1-36 Hardware Specifications and Configurations
VRAM (not available in this model)
USB Port
HDMI Port (not available in this model)
AC Adapter
Item Specification
Chipset N/A
Memory size N/A
Interface N/A
Item Specification
USB compliance level USB 2.0
EHCI EHCI
Number of USB port(s) 3
Location one at the left side, and two at the right side
Output Current -1.5A
-2.0A
-2.5A
Item Specification
Compliance level
Data thoroughput
Number of HDMI port(s)
Location
Item Specification
Input rating 65W*
Maximum input AC current 1.7A at 100V
Inrush current 12t at 264V no damage
Efficiency Refer to EPA 2.0
NOTE:
*The information is from the Approved Vendor List (AVL).
Hardware Specifications and Configurations 1-37
System Power Management
Card Reader
Item Specification
Mech. Off (G3) All devices in the system are turned off completely.
Soft Off (G2/S5) OS initiated shutdown. All devices in the system are turned off
completely.
Working (G0/S0) Individual devices such as the CPU and hard disc may be
power managed in this state.
Suspend to RAM (S3) -CPU set power down
-VGA Suspend
-PCMCIA Suspend
-Audio Power Down
-Hard Disk Power Down
-CD-ROM Power Down
-Super I/O Low Power mode
Save to Disk (S4) Also called Hibernation Mode. System saves all system states
and data onto the disc prior to power off the whole system.
Item Specification
Chipset Realtek RTS5137-GR
Package LQFP 24P
Maximum supported size -SD: 16G
-MMC: 16G
-miniSD: 16G
Features 2 in 1 card reader, supporting:
-Secure Digital™ (SD) Card, MultiMediaCard™ (MMC)
-Storage cards with adapter: miniSD™
1-38 Hardware Specifications and Configurations
System LED Indicator
System DMA Specification
Item Specification
Lock N/A
System state Blue color solid on: System on
Blue color off: System off
HDD access state N/A
Wireless state N/A
Power button backlight N/A
Battery state Charging
-Amber solid on - Battery charging with AC
-Blue color solid on - Battery full
-Amber blinking - Battery abnormal stop charge or batter in
low power state
Discharging
-Amber and blinking - Battery in critical low state
-Amber color off - Discharging state
Legacy Mode Power Management
DMA0 Not applicable
DMA1 Not applicable
DMA2 Not applicable
DMA3 Not applicable
DMA4 Direct memory access controller
DMA5 Available for ExpressCard
DMA6 Not Assigned
DMA7 Not Assigned
*ExpressCard controller can use DMA 1, 2, or 5.
Hardware Specifications and Configurations 1-39
System Interrupt Specification
Hardware IRQ System Function
IRQ0 System timer
IRQ1 Standard 101-/102-Key or Microsoft® Natural Keyboard
IRQ2 Cascaded
IRQ3 Intel® 82801DB/DBM USB2 Enhanced Host Controller-24CD
IRQ4 COM1
IRQ5* -Conexant AC-Link Audio Intel 82801DB/DBM SMBus
Controller-24C3 Data Fax
-Modem with SmartCP
IRQ6 Diskette drive
IRQ7* Parallel port
IRQ8 System CMOS/real-time clock
IRQ9* Microsoft ACPI-compliant system
IRQ10* -Intel® USB UHCI controller-24C2
-Intel® 82852/82855 GM/GME Graphic Controller
-Realtek RTL8139 Family PCI Fast Ethernet Controller
IRQ11 -Intel® USB EHCI controller-24CD
-Intel® USB UHCI controller-24C4
-Intel® USB UHCI controller-24C7
-Intel® Pro/Wireless 2200BG
-TI OHCI 1394 host controller
-TI PCI1410 CardBus controller
IRQ12 Synaptics PS/2 TouchPad
IRQ13 Numeric data processor
IRQ14 Primary IDE channel
IRQ15 Secondary IDE channel
* Default configuration; audio possible configurations are IRQ5, IRQ7, IRQ9, IRQ10, or none.
NOTE:
ExpressCards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or IRQ15. Either
the infrared or the serial port may assert IRQ3 or IRQ4.
1-40 Hardware Specifications and Configurations
System IO Address Map
I/O address (hex) System function (shipping configuration)
000 - 00F DMA controller no. 1
010 - 01F Unused
020 - 021 Interrupt controller no. 1
022 - 024 Opti chipset configuration registers
025 - 03F Unused
02E - 02F 87334 "Super I/O" configuration for CPU
040 - 05F Counter/timer registers
044 - 05F Unused
060 Keyboard controller
061 Port B
062 - 063 Unused
064 Keyboard controller
065 - 06F Unused
070 - 071 NMI enable/RTC
072 - 07F Unused
080 - 08F DMA page registers
090 - 091 Unused
092 Port A
093 - 09F Unused
0A0 - 0A1 Interrupt controller no. 2
0A2 - 0BF Unused
0C0 - 0DF DMA controller no. 2
0E0 - 0EF Unused
0F0 - 0F1 Coprocessor busy clear/reset
0F2 - 0FF Unused
100 - 16F Unused
170 - 177 Secondary fixed disk controller
178 - 1EF Unused
1F0 - 1F7 Primary fixed disk controller
1F8 - 200 Unused
201 JoyStick (decoded in ESS1688)
202 - 21F Unused
Hardware Specifications and Configurations 1-41
System I/O Address Specifications
I/O address (hex) System Function (shipping configuration)
220 - 22F Entertainment audio
230 - 26D Unused
26E - 26 Unused
278 - 27F Unused
280 - 2AB Unused
2A0 - 2A7 Unused
2A8 - 2E7 Unused
2E8 - 2EF Reserved serial port
2F0 - 2F7 Unused
2F8 - 2FF Infrared port
300 - 31F Unused
320 - 36F Unused
370 - 377 Secondary diskette drive controller
378 - 37F Parallel port (LPT1/default)
380 - 387 Unused
388 - 38B FM synthesizer-OPL3
38C - 3AF Unused
3B0 - 3BB VGA
3BC - 3BF Reserved (parallel port/no EPP support)
3C0 - 3DF VGA
3E0 - 3E1 ExpressCard controller in CPU
3E2 - 3E3 Unused
3E8 - 3EF Internal modem
3F0 - 3F7 "A" diskette controller
3F8 - 3FF Serial port (COM1/default)
CF8 - CFB PCI configuration index register (PCIDIVO-1)
CFC - CFF PCI configuration data register (PCIDIVO-1)
1-42 Hardware Specifications and Configurations
CHAPTER 2
System Utilities
2-2
BIOS Setup Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Boot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Exit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
BIOS Flash Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Remove HDD/BIOS Password Utilities . . . . . . . . . . . . . . . . . . . . . 2-16
Clearing HDD Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Removing BIOS Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
Miscellaneous Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Using Boot Sequence Selector. . . . . . . . . . . . . . . . . . . . . . . . 2-19
Using Boot Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Using DMITools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Using LAN EEPROM Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
System Utilities 2-3
System Utilities
BIOS Setup Utility 0
This utility is a hardware configuration program built into a computer’s BIOS (Basic
Input/Output System).
The utility is pre-configured and optimized so most users do not need to run it. If configuration
problems occur, the setup utility may need to be run. Refer to Troubleshooting when a problem
arises.
To activate the utility, press F2 during POST (power-on self-test) when prompted at the bottom
of screen.
The default parameter of F12 Boot Menu is set to Disabled. To change the boot device
without entering BIOS Setup Utility, set the parameter to Enabled.
To change the boot device without entering the BIOS SETUP, press F12 during POST to enter
the multi-boot menu.
Navigating the BIOS Utility 0
Six menu options are:
-Information
-Main
-Security
-Boot
-Exit
To navigate through the following:
-Menu - use the left and right arrow keys
-Item - use the up and down arrow keys
-Change parameter value - press F5 or F6.
-Exit - Press Esc
-Load default settings - press F9. Press F10 to save changes and exit BIOS Setup
Utility
NOTE:
NOTE:
Parameter values can be changed if enclosed in square brackets [ ]. Navigation keys
appear at the bottom of the screen. Read parameter help carefully when making
changes to parameter values. Parameter help is found in the Item Specific Help area of
the screen.
NOTE:
NOTE:
System information is subject to specific models.
2-4 System Utilities
BIOS 0
The following is a description of the tabs found on the InsydeH20 BIOS Setup Utility screen:
NOTE:
NOTE:
Screens provided are for reference only. Actual values may differ by model.
Information 0
The Information tab shows a summary of computer hardware information.
Figure 2-1. BIOS Information
Table 2-1 describes the parameters shown in Figure 2-1.
Table 2-1. BIOS Information
Parameter Description
CPU Type CPU (central processing unit) type and speed of system
CPU Speed Speed of the CPU
HDD Model Name Model name of HDD0 (hard disk drive) installed on primary IDE
master
HDD Serial Number Serial number of HDD0 installed on primary IDE master
ATAPI Model Name Model name of Optical device installed in system
System Utilities 2-5
System BIOS Version System BIOS version
VGA BIOS Version VGA (video graphics array) firmware version of system
Serial Number Serial number of unit
Asset Tag Number Asset tag number of system
Product Name Product name of the system
UUID Universally Unique Identifier
Table 2-1. BIOS Information (Continued)
Parameter Description
2-6 System Utilities
Main 0
The Main tab allows the user to set system time and date, enable or disable boot option and
enable or disable recovery.
Figure 2-2. BIOS Main
Table 2-2 describes the parameters shown in Figure 2-2.
.
Table 2-2. BIOS Main
Parameter Description Format/Option
System Time BIOS system time in 24-hour format Format: HH:MM:SS
(hour:minute:second)
System Date BIOS system date Format MM/DD/YYYY
(month/day/year)
Total
Memory Total memory available N/A
Video
Memory Available memory for video N/A
Quiet Boot Shows OEM (original equipment manufacturer)
screen during system boot instead of traditional
POST screen
Option: Enabled or
Disabled
Network
Boot Option to boot system from LAN (local area network) Option: Enabled or
Disabled
F12 Boot
Menu Option to use boot menu during POST Option: Enabled or
Disabled
Item Specific Help
This is the help for the
hour field. Valid range
is from 0 to 23.
REDUCE
/INCREASE
: F5/F6
F1
ESC Help
Exit Select Item
Select Menu Change Values
Select SubMenu
Enter F9
F10 Setup Default
Save and Exit
[00:52:01]
[05/27/2010]
[xxxx MB]
[x MB]
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[AHCI Mode]
[00:52:01]
[05/27/2010]
[xxxx MB]
[x MB]
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[AHCI Mode]
System Time:
System Date:
Total Memory:
Video Memory:
Quiet Boot
Network Boot
F12 Boot Menu
D2D Recovery
SATA Mode
System Time:
System Date:
Total Memory:
Video Memory:
Quiet Boot
Network Boot
F12 Boot Menu
D2D Recovery
SATA Mode
F5/F6
InsydeH20 Setup Utility Rev. 3.5
Boot Exit
Security
Information Main
System Utilities 2-7
D2D
Recovery Option to use D2D Recovery function Option: Enabled or
Disabled
SATA Mode Option to set SATA controller mode Option: AHCI or IDE
Table 2-2. BIOS Main (Continued)
Parameter Description Format/Option
2-8 System Utilities
Security 0
The Security tab shows parameters that safeguard and protect the computer from
unauthorized use.
Figure 2-3. BIOS Security
Table 2-3 describes the parameters shown in Figure 2-3.
Table 2-3. BIOS Security
Parameter Description Option
Supervisor Password Is Supervisor password setting Clear or Set
User Password Is User password setting Clear or Set
Set Supervisor Password Option to set supervisor password.N/A
Set User Password Option to set user password.N/A
Set HDD Password Enter HDD Password. N/A
Password on Boot
CAUTION:
!
If Power-on Password authentication is
enabled, the BIOS password can only be
cleared by initiating the Crisis Disk Recovery
procedure. Refer to BIOS Recovery by Crisis
Disk.
Shows if password is required during system boot
Disabled or
Enabled
Item Specific Help
Install or Change the
password and the length
of password must be less
than one words.
F1
ESC Help
Exit Select Item
Select Menu Change Values
Select SubMenu
Enter F9
F10 Setup Default
Save and Exit
Clear
Clear
Clear
[Disabled]
Clear
Clear
Clear
[Disabled]
Supervisor Password Is:
User Password Is:
HDD Password Is:
Set Supervisor Password
Set User Password
Set HDD Password
Password on Boot
Supervisor Password Is:
User Password Is:
HDD Password Is:
Set Supervisor Password
Set User Password
Set HDD Password
Password on Boot
F5/F6
InsydeH20 Setup Utility Rev. 3.5
Information Main Boot Exit
Security
System Utilities 2-9
NOTE:
NOTE:
When prompted to enter password, three attempts are allowed before system halts.
Resetting BIOS password may require computer be returned to dealer.
Setting a Password 0
Perform the following to set a new user or supervisor passwords:
1. Use the and keys to highlight the Set Supervisor Password parameter and press
Enter. The Set Supervisor Password dialog box appears (Figure 2-4).
NOTE:
NOTE:
To change an existing password, refer to Changing a Password.
Figure 2-4. Setting a Password: Set Supervisor Password
2. Type a new password in the Enter New Password field and press Enter.
NOTE:
NOTE:
The following characters may be used in a password (Table 2-4):
IMPORTANT:
+
Use care when typing a password. Characters do not appear on the screen.
3. Retype password in the Confirm New Password field and press Enter.
4. If new password and confirm new password strings match, the Setup Notice dialog
screen is shown (Figure 2-5). If it is not, go to step 5.
Table 2-4. Allowed Characters
A-Z Alphabets A through Z (Not Case Sensitive)
0-9 Numerical Characters.
-Dash
= Equal Sign
[ Left Bracket
] Right Bracket
.Period
, Comma
; Semi-colon
/Slash
\ Back-slash
2-10 System Utilities
Figure 2-5. Setting a Password Confirmation Notice
a. Press Enter to return to the BIOS Setup Utility Security menu.
b. The Supervisor Password parameter is shown as Set.
c. Press F10 to save changes and exit BIOS Setup Utility.
5. If new password and confirm new password strings do not match, the Setup Warning
dialog is shown. (Figure 2-6)
Figure 2-6. Setting a Password: Passwords Do Not Match
a. Press Enter to return to the BIOS Setup Utility Security menu.
b. The Supervisor Password parameter is shown as Clear.
c. To try to set a new password again, repeat steps 1 through 3.
Removing a Password 0
Perform the following:
1. Use the and keys to highlight Set Supervisor Password and press Enter. The
Set Supervisor Password dialog box appears (Figure 2-7):
Figure 2-7. Removing a Password: Set Supervisor Password
2. Type current password in Enter Current Password field and press Enter.
Setup Notice
Changes have been saved.
[Continue]Continue
Setup Warning
Passwords do not match.
Re-enter password.
[Continue]Continue
System Utilities 2-11
3. Press Enter twice without typing anything in Enter New Password and Confirm New
Password fields. Computer will set Supervisor Password parameter to Clear.
4. Press F10 to save changes and exit the BIOS Setup Utility.
Changing a Password 0
1. Use the and keys to highlight Set Supervisor Password and press Enter. The
Set Supervisor Password dialog box appears (Figure 2-8).
Figure 2-8. Set Supervisor Password
2. Type current password in Enter Current Password field and press Enter.
3. Type new password in Enter New Password field and press Enter.
4. Retype new password in Confirm New Password field and press Enter.
5. If new password and confirm new password strings match, The Setup Notice dialog is
shown (Figure 2-9). If it is not shown, go to step 6.
Figure 2-9. Setup Notice
a. Press Enter to return to the BIOS Setup Utility Security menu.
b. The Supervisor Password parameter is shown as Set.
c. Press F10 to save changes and exit BIOS Setup Utility.
6. If current password and new password strings do not match, the Setup Warning dialog
is shown (Figure 2-10). If it is not shown, go to step 7.
Figure 2-10. Changing a Password: Invalid Password
Setup Warning
Passwords do not match.
Re-enter password.
[Continue]Continue
2-12 System Utilities
a. Press Enter to return to the BIOS Setup Utility Security menu.
b. The Supervisor Password parameter is shown as Clear.
c. To try to change the password again, repeat steps 1 through 4.
If new password and confirm new password strings do not match, the Setup Warning dialog
is shown (Figure 2-11).
Figure 2-11. Changing a Password: Passwords Do Not Match
a. Press Enter to return to the BIOS Setup Utility Security menu.
b. The Supervisor Password parameter is shown as Clear.
c. To try to change the password again, repeat steps 1 through 4.
System Utilities 2-13
Boot 0
This tab allows changes to the order of boot devices used to load the operating system.
Bootable devices include the:
-USB diskette drives
-Onboard hard disk drive
-DVD drive in the module bay
Use and keys to select a device and press F5 or F6 to change the value.
Figure 2-12. BIOS Boot
Item Specific Help
Use < > or < > to select
a device, then press
<F5> to move it down the
list, or <F6> to move
it up the list. Press
<Esc> to escape the menu
F1
ESC Help
Exit Select Item
Select Menu Change Values
Select SubMenu
Enter F9
F10 Setup Default
Save and Exit
Boot priority order:
1. IDE 0: ST960821A
2. IDE 1: MATSHITADVD
3: USB FDD:
4. Network Boot: Realtek Boot Agent
5. USB HDD:
6. USB CDROM:
Boot priority order:
1. IDE 0: ST960821A
2. IDE 1: MATSHITADVD
3: USB FDD:
4. Network Boot: Realtek Boot Agent
5. USB HDD:
6. USB CDROM:
F5/F6
InsydeH20 Setup Utility Rev. 3.5
Information Main Boot Exit
Security
2-14 System Utilities
Exit 0
The Exit tab allows users to save or discard changes and quit the BIOS Setup Utility.
Figure 2-13. BIOS Exit
Table 2-5 describes the parameters in Figure 2-13.
Table 2-5. Exit Parameters
Parameter Description
Exit Saving Changes Exit BIOS utility and save setup item changes to system.
Exit Discarding Changes Exit BIOS utility without saving setup item changes to system.
Load Setup Defaults Load default values for all setup items.
Discard Changes Load previous values of all setup items.
Save Changes Save setup item changes to system.
Item Specific Help
Exit System Setup and
save your changes to
CMOS.
F1
ESC Help
Exit Select Item
Select Menu Change Values
Select SubMenu
Enter F9
F10 Setup Default
Save and Exit
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
F5/F6
InsydeH20 Setup Utility Rev. 3.5
Information Main Boot Exit
Security
System Utilities 2-15
BIOS Flash Utilities 0
BIOS Flash memory updates are required for the following conditions:
-New versions of system programs
-New features or options
-Restore a BIOS when it becomes corrupted.
Use the Flash utility to update the system BIOS Flash ROM.
NOTE:
NOTE:
If a Crisis Recovery Disc is not available, create one before BIOS Flash utility is used.
Refer to BIOS Recovery by Crisis Disk.
NOTE:
NOTE:
Do not install memory related drivers (XMS, EMS, DPMI) when BIOS Flash is used.
NOTE:
NOTE:
Use AC adaptor power supply when running BIOS Flash utility. If battery pack does not
contain power to finish loading BIOS Flash, do not boot system.
Perform the following to run BIOS Flash.
1. Prepare a bootable USB HDD.
2. Copy Flash utilities to bootable USB HDD.
3. Boot system from bootable USB HDD.
NOTE:
NOTE:
BIOS Flash utility has auto execution function.
2-16 System Utilities
Remove HDD/BIOS Password Utilities 0
CAUTION:
!
If Power-on Password authentication is enabled, the BIOS password can only be
cleared by initiating the Crisis Disk Recovery procedure. See BIOS Recovery by
Crisis Disk.
Clearing HDD Passwords 0
This section provides details about removing an HDD password from the BIOS. If the HDD
password is incorrectly entered three times, an error is generated. (Figure 2-14).
Figure 2-14. Password Error Status Dialog
To reset the HDD password, perform the followings:
1. Press Enter to continue. The Select Item dialog is shown. (Figure 2-15)
Figure 2-15. Select Item Dialog
2. Use the and keys to highlight Enter Unlock Password and press Enter. The
Enter Unlock Password dialog is shown. (Figure 2-16)
.
Figure 2-16. Enter Unlock Password Dialog
NOTE:
NOTE:
A key code is generated for use with unlocking utility. Make note of this code.
3. On a separate, compatible device, boot to DOS.
Harddisk Security
Primary Master TOSHLBA MK3252GSX Lock
Select Item
Enter Unlock Password
System continue
Enter Unlock Password (Key:54591747)?
System Utilities 2-17
4. Execute UnlockHD.exe (Figure 2-16) to create a password unlock code. Use the format
<UnlockHD [key code]> with the code noted in the Figure 2-17.
Example: UnlockHD 54591747
The command generates a password which can be used for unlocking the HDD.
Password: 41499389
Figure 2-17. Unlock Password
5. On original device, enter password in Enter Unlock Password dialog (Figure 2-16).
2-18 System Utilities
Removing BIOS Passwords 0
To clear User or Supervisor passwords, open the DIMM door and use a metal instrument to
short the RTCRST# point.
Figure 2-18. CMOS Jumper Overview
Software Method 0
1. At a DOS prompt, enter clnpwd.exe.
2. Press 1 or 2 to clean the desired password. (Figure 2-19)
Figure 2-19. Clean BIOS Password
3. The on screen message shows function success or failure.
D:\Clnpwd>clnpwd
Acer Clean Password Utility V1.00
Press 1 or 2 to clean any password shown as below
1. User Password
2. Supervisor Password
Clean User Password Successful!
System Utilities 2-19
Miscellaneous Tools 0
Using Boot Sequence Selector 0
The Boot Sequence Selector allows the boot order to be changed without accessing the BIOS
Setup Utility. To use the Boot Sequence Selector, perform the following:
1. At a DOS prompt, enter bs <#> and a boot sequence ID number. A boot sequence ID is a
digit from 1 to 4.
Figure 2-20. Boot Sequence Selector
Example: bs <2>, selects the boot sequence of HDD | CD ROM | LAN | Floppy.
2-20 System Utilities
Using Boot Manager 0
The Boot Manager allows the boot order to be changed without accessing the BIOS Setup
Utility. To use the Boot Manager, perform the following:
NOTE:
NOTE:
The F12 Boot Menu option must be set to Enabled in the BIOS Setup Utility’s Main
screen. (refer to Main)
To use the Boot Manager, perform the following steps:
1. Start the computer.
2. Press F12 when prompted during POST procedure. The Boot Manager dialog is shown.
(Figure 2-21)
Figure 2-21. Boot Manager Dialog
3. Use the and keys to highlight a boot device.
4. Press Enter to select an option and continue the boot procedure.
Using DMITools 0
The DMI (Desktop Management Interface) Tool copies BIOS information to EEPROM
(Electrically Erasable Programmable Read-Only Memory). Used in the DMI pool for hardware
management.
When the BIOS shows Verifying DMI pool data, it is checking that the table correlates
with installed hardware components before sending information to the operating system
(Windows, etc.).
To update the DMI Pool, perform the following:
1. Boot to DOS.
2. At the prompt, enter dmitools with one of the following arguments:
-/r ==> Read dmi information from memory
-/wm ==> Write Manufacturer Name to EEPROM (max. 16 characters)
-/wp ==> Write Product Name to EEPROM (max. 20 characters)
-/ws ==> Write Serial Number to EEPROM (max. 22 characters)
-/wu ==> Write UUID to EEPROM (ignore string)
-/wa ==> Write Asset Tag to EEPROM (max. 32 characters)
System Utilities 2-21
The following examples show the commands and the corresponding output information:
Read DMI Information from Memory
Input: 0
dmitools /r
Output: 0
Manufacturer (Type1, Offset04h): xxxx
Product Name (Type1, Offset05h): xxxxx xxxxx
Serial Number (Type1, Offset07h): 01234567890123456789
UUID String (Type1, Offset08h): xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Asset Tag (Type3, Offset04h): Acet Asstag
Write Product Name to EEPROM
Input: 0
dmitools /wp xxxx
Write Serial Number to EEPROM
Input: 0
dmitools /ws 01234567890123456789
Write UUID to EEPROM (Create UUID from Intel WFM20.pdf)
Input: 0
dmitools /wu
Write Asset Tag to EEPROM
Input: 0
dmitools /wa Acet Asstag
NOTE:
NOTE:
For examples two (2) through five (5), restart the system to write any changes in the data
to the EEPROM.
2-22 System Utilities
Using LAN EEPROM Utility 0
Use EEPROM.BAT to write data to LAN EEPROM under DOS mode.
1. In DOS mode, navigate to 57780_HMA51CP folder (Figure 2-23).
Figure 2-22. Updating EEPROM
2. Run EEPROM.BAT to automatically modify data in LAN EEPROM. (Figure 2-23)
Figure 2-23. Updating EEPROM
3. Reboot computer when process has completed.
C:\>57780_HMA51CP>eeprom.bat
Start to program image into UTP ...
52 bytes was done.
File Name : Q5WP2N.bin
File Size : 96
Offset : 0x0000
Bytes Read : 96
Checking selfboot file Content........: passed
Checking selfbootII OTP Content.......: passed
Comparing OTP to Q5WP2N.bin...........: passed
Checking Bond Id......................: passed
Firmware Version......................: sb2 2.05
Mac Address...........................: 00201805221F
Group A. Register Tests
A1. Indirect Register Test
CHAPTER 3
Machine Maintenance Procedures
3-2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Recommended Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Screw Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Maintenance Flowchart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Battery Pack Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Battery Pack Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Dummy Card Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Dummy Card Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Lower Logic Door Removal . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Lower Logic Door Installation . . . . . . . . . . . . . . . . . . . . . . . . 3-11
HDD Module Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
HDD Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
DIMM Module Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
DIMM Module Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
WLAN Module Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
WLAN Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
RTC Battery Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
RTC Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Optical Disk Drive (ODD) Module Removal . . . . . . . . . . . . . 3-17
ODD Module Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Keyboard Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Keyboard Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Upper Cover Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
Upper Cover Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Power Board Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Power Board Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Speakers Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Speakers Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
USB Module Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
USB Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
ODD Board Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
ODD Board Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Mainboard Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Mainboard Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32
FAN Module Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
FAN Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Thermal Module Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
Thermal Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
CPU Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
CPU Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
LCD (Liquid Crystal Display) Module Removal . . . . . . . . . . . 3-37
LCD Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39
LCD Bezel Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-40
LCD Bezel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41
3-3
Camera Module Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
Camera Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
LCD Panel Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
LCD Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
LVDS Cable Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
LVDS Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45
LCD Brackets Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
LCD Brackets Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47
WLAN Antenna Cables and Microphone Set Removal . . . . 3-48
WLAN Antenna Cables and Microphone Set Installation . . 3-48
3-4
Machine Maintenance Procedures 3-5
Machine Maintenance Procedures
Introduction 0
This chapter contains general information about the notebook, a list of tools needed to perform
the required maintenance and step by step procedures on how to remove and install
components from the notebook computer.
General Information 0
The product previews seen in the following procedures may not represent the final product
color or configuration. Cable paths and positioning may also differ from the actual model.
During the removal and installation of components, make sure all available cable channels
and clips are used and that the cables are installed in the same position.
All prerequisites must be performed prior to performing maintenance.
Recommended Equipment 0
The following tools are suggested to perform maintenance on the notebook:
-Wrist grounding strap and conductive mat
-Flat screwdriver
-Philips screwdriver
3-6 Machine Maintenance Procedures
Screw Table 0
Table 3-1 contains a complete list of the required screws and fasteners required when
performing any maintenance on the notebook computer.
Table 3-1. Main Screw List
Screw Quantity Acer Part Number
M2.5x5 22 86.R4F02.001
M2.45x8 14 86.R4F02.002
M2.5x6 Ni 2 86.R4F02.003
M2x3 15 86.R4F02.004
M3x3 Ni 4 86.R4F02.005
M2.5x3.2 4 86.R4F02.006
M2x3+3.5 4 86.R4F02.007
Machine Maintenance Procedures 3-7
Maintenance Flowchart 0
The flowchart in Figure 3-1 provides a graphic representation of the module removal and
installation sequences. It provides information on what components need to be removed and
installed during servicing.
Figure 3-1. Maintenance Flow
3-8 Machine Maintenance Procedures
Getting Started 0
The flowchart in Figure 3-1 identifies sections illustrating the entire removal and install
sequence. Observe the order of the sequence to avoid damage to any of the hardware
components.
Perform the following prior to performing any maintenance procedures:
1. Remove power from system and peripherals.
2. Remove all cables from system.
Figure 3-2. AC Adapter Outlet
3. Place system on a stable work surface.
Machine Maintenance Procedures 3-9
Battery Pack Removal 0
1. Place computer battery side up.
2. Slide battery lock (A) into open position.
3. Slide and hold battery release latch (B) to release position. Using tab (C) open and
remove battery pack (D) from lower cover.
Figure 3-3. Battery Pack
IMPORTANT:
+
Follow local regulations for battery disposal (Figure 3-3).
Battery Pack Installation 0
1. Align battery cover to slots (E) on lower cover and press to secure.
Figure 3-4. Lower Cover Slots
2. Slide battery lock (A) into lock position (Figure 3-3).
BC
D
A
EE E EE
3-10 Machine Maintenance Procedures
Dummy Card Removal 0
1. Push in dummy card (A) to release.
2. Remove dummy card (A).
Figure 3-5. Dummy Card
Dummy Card Installation 0
1. Insert dummy card (A).
2. Push in to lock.
A
Machine Maintenance Procedures 3-11
Lower Logic Door Removal 0
Prerequisite:
Battery Pack Removal
1. Remove two (2) screws (C).
2. Using tab (B), remove door (A) from lower cover.
Figure 3-6. Lower Logic Door
Lower Logic Door Installation 0
1. Insert door flanges into five (5) slots (D) on lower cover (Figure 3-7).
Figure 3-7. Slots On Lower Cover
2. Install and secure two (2) screws (C) on base door (Figure 3-6).
3. Install battery pack.
ID Size Quantity Screw Type
C M2.45x8 2
A
B
C
DDDDD
3-12 Machine Maintenance Procedures
HDD Module Removal 0
Prerequisite:
Lower Logic Door Removal
1. Remove screws (D) from module (A).
Figure 3-8. HDD Module
2. Use mylar tab (C) to lift and remove module (A) from mainboard connector dock (F).
Figure 3-9. HDD Module
3. Remove four (4) screws (E) securing module to brackets (F) (Figure 3-10).
D
A
C
F
A
Machine Maintenance Procedures 3-13
4. Remove module (A) from mylar (C) and brackets.
Figure 3-10. HDD Brackets
HDD Module Installation 0
1. Install module (A) into brackets (F) and mylar (C) (Figure 3-10).
2. Install and secure module to brackets with four (4) screws (E) (Figure 3-10).
3. Use tab on mylar (C) to insert module into bay (Figure 3-9).
4. Connect module (A) to mainboard connector (Figure 3-9).
5. Install and secure screws (D) into module (A) (Figure 3-8).
6. Install lower logic door.
ID Size Quantity Screw Type
D M2.45x8 1
E M2x3 Ni 4
E
E
F
A
C
3-14 Machine Maintenance Procedures
DIMM Module Removal 0
Prerequisite:
Lower Logic Door Removal
1. Lift mylar (D) to provide access to module (A).
2. Push module (A) clips (B) to unlock module.
Figure 3-11. DIMM Module
3. Slide module (A) from mainboard connector (C).
4. Repeat steps 1 and 2 for remaining DIMM modules.
DIMM Module Installation 0
1. Slide module (A) into mainboard connector (C).
2. Press down on DIMM module (A) until clips (B) lock in place.
3. Install lower logic door.
A
B
B
B
B
D
C
Machine Maintenance Procedures 3-15
WLAN Module Removal 0
Prerequisite:
Lower Logic Door Removal
1. Locate module (A) on lower cover.
2. Lift mylar (F) to provide access to module (A).
3. Disconnect antenna cable (B) from WLAN module.
4. Remove screw (D) from module.
5. Remove WLAN module (A) from mainboard connector (E).
Figure 3-12. WLAN Module
WLAN Module Installation 0
1. Insert module (A) into mainboard connector (E).
2. Install and secure screw (D) to module.
3. Connect antenna cable (B) to WLAN module.
4. Install lower logic door.
ID Size Quantity Screw Type
DM2x3 1
A
E
B
D
F
3-16 Machine Maintenance Procedures
RTC Battery Removal 0
Prerequisite:
Lower Logic Door Removal
1. Through opening (B) in mainboard connector, push battery (A) to release.
2. Lift battery to remove.
Figure 3-13. RTC Battery
NOTE:
NOTE:
Follow local regulations for battery disposal.
RTC Battery Installation 0
1. Install battery (A) into mainboard connector.
2. Press down to secure.
3. Install lower logic door.
A
B
Machine Maintenance Procedures 3-17
Optical Disk Drive (ODD) Module Removal 0
Prerequisite:
Lower Logic Door Removal
1. Remove screw (B) from lower cover.
2. Remove module from bay.
Figure 3-14. ODD Module
3. Remove two (2) screws (D) from bracket.
4. Remove bracket (E).
Figure 3-15. ODD Module
B
D
E
3-18 Machine Maintenance Procedures
5. Insert narrow tool into hole (G) on bezel, to eject module from tray (Figure 3-17).
Figure 3-16. ODD Module
6. Press down on latch (H) to unlock bezel (F) from module (A) (Figure 3-17).
7. Remove bezel (F) from module.
Figure 3-17. ODD Module
ODD Module Installation 0
1. Install bezel (F) to module (Figure 3-17).
2. Install and secure bracket (E) to module with two (2) screws (D) (Figure 3-15).
3. Insert module (A) into module bay (Figure 3-14).
4. Install and secure screw (B) to lower cover (Figure 3-14).
5. Install lower logic door.
G
AH
F
Machine Maintenance Procedures 3-19
ID Size Quantity Screw Type
B M2.45x8 1
DM2x3 2
3-20 Machine Maintenance Procedures
Keyboard Removal 0
1. Locate (6) keyboard locks (B).
Figure 3-18. Keyboard Locks
2. Unlock keyboard locks (Figure 3-19).
Figure 3-19. Keyboard Locks
CAUTION:
!
Use caution when removing keyboard. Keyboard is attached to mainboard by
Flexible Printed Circuits (FPC) cable.
BBBB
B
BB
Machine Maintenance Procedures 3-21
3. Place keyboard facedown onto palmrest.
4. Disconnect FPC cable (A) from mainboard connector (B).
Figure 3-20. Keyboard
5. Remove keyboard.
Keyboard Installation 0
1. Place keyboard facedown onto palmrest (Figure 3-20).
2. Connect FPC cable (A) to mainboard connector (B).
3. Place keyboard faceup.
4. Align bottom edge of keyboard with palmrest.
5. Install keyboard flanges into slots on upper cover (Figure 3-21).
Figure 3-21. Keyboard
6. Press firmly to lock.
7. Install lower logic door.
A
B
3-22 Machine Maintenance Procedures
Upper Cover Removal 0
Prerequisite:
HDD Module Removal
Keyboard Removal
DIMM Module Removal
WLAN Module Removal
Optical Disk Drive (ODD) Module Removal
NOTE:
NOTE:
WLAN cables shown in the following images may not reflect the final product.
1. Remove the following screws:
-ten (10) screws (A) from lower cover
-four (4) screws (B) from battery bay.
Figure 3-22. Lower Cover
2. Place computer on surface, face up.
3. Disconnect the following cables:
-power board FFC cable (C) from mainboard connector (D)
-touchpad FFC cable (E) from mainboard connector (F)
-speaker cable (G) from mainboard connector (H).
AB
A
A
A
Machine Maintenance Procedures 3-23
4. Remove seven (7) screws (J) from upper cover (Figure 3-23).
Figure 3-23. Upper Cover
5. Starting at ODD module slot (K), separate upper and lower covers.
Figure 3-24. Upper Cover
6. Work along edges until upper and lower cover are separated.
C
D
E
F
G
HJJ
J
J
JJ
J
L
M
K
3-24 Machine Maintenance Procedures
7. Lift upper cover to remove (Figure 3-25).
Figure 3-25. Upper Cover
Upper Cover Installation 0
1. Align upper cover to lower cover.
2. Press along edges to secure all latches.
3. Install and secure seven (7) screws (J) to upper cover (Figure 3-23).
4. Connect the following cables (Figure 3-23):
-power board FFC cable (C) to mainboard connector (D)
-touchpad FFC cable (E) to mainboard connector (F)
-left speaker cable (G) to mainboard connector (H) and right speaker cable (L) to
mainboard connector (M).
5. Place computer on surface, face down.
6. Install and secure the following screws: (Figure 3-22)
-ten (10) screws (A) to lower cover
-four (4) screws (B) to battery bay.
7. Install keyboard, HDD module, DIMM module, WLAN module and ODD module.
ID Size Quantity Screw Type
A M2.45x8 10
B M2x3+3.5 4
J M2.5x5 7
Machine Maintenance Procedures 3-25
Power Board Removal 0
Prerequisite:
Upper Cover Removal
1. Locate power board (A) on upper cover.
2. Remove screw (C) securing board to upper cover.
Figure 3-26. Power Board
3. Guide FFC cable (D) through upper cover opening (E).
Figure 3-27. Power Board FFC cable
4. Lift board from upper cover.
A
C
D
E
3-26 Machine Maintenance Procedures
Power Board Installation 0
1. Put board (A) and module (B) onto upper cover.
2. Install and secure screw (C) to board (A).
3. Install upper cover.
ID Size Quantity Screw Type
CM2x3 1
Machine Maintenance Procedures 3-27
Speakers Removal 0
Prerequisite:
Upper Cover Removal
1. Locate left speaker (A) and right speaker (B) on upper cover.
2. Remove the following screws:
-two (2) screws (C) from left speaker (A)
-two (2) screws (C) from right speaker (B).
3. Release cables from cable clasps.
4. Remove speakers from lower cover.
Figure 3-28. Speakers
Speakers Installation 0
1. Install speakers into upper cover.
2. Install and secure following screws:
-two (2) screws (C) to left speaker (A)
-two (2) screws (C) to right speaker (B)
3. Install cables into cable clasps.
4. Install upper cover.
ID Size Quantity Screw Type
CM2x3 4
AB
CC
3-28 Machine Maintenance Procedures
USB Module Removal 0
Prerequisite:
Upper Cover Removal
1. Locate module (A) on lower cover.
2. Disconnect FFC cable (B) from mainboard connector (D)
3. Remove screw (C) from module (A).
Figure 3-29. USB Module
4. Remove module (A) from lower cover.
USB Module Installation 0
1. Align module (A) to pins (E) on lower cover.
2. Install module (A).
3. Connect FFC cable (B) to mainboard connector (D).
4. Install and secure screw (C) to module (A).
5. Install upper cover.
ID Size Quantity Screw Type
CM2x3 1
E
E
A
B
C
D
Machine Maintenance Procedures 3-29
ODD Board Removal 0
Prerequisite:
Upper Cover Removal
1. Locate board (A) on lower cover.
2. Disconnect FFC cable (F) from mainboard connector (C).
3. Remove screw (D) from board.
Figure 3-30. ODD Board
ODD Board Installation 0
1. Align module (A) to pins (E) on lower cover.
2. Install module (A).
3. Connect FFC cable (F) to mainboard connector (C).
4. Install and secure screw (D) to module (A).
5. Install upper cover.
ID Size Quantity Screw Type
D M2.5x5 1
A
F
C
D
E
E
3-30 Machine Maintenance Procedures
Mainboard Removal 0
Prerequisite:
Upper Cover Removal
NOTE:
NOTE:
WLAN cables shown in the following images may not reflect the final product.
1. Disconnect following cables:
-microphone cable (A) from mainboard connector (E)
-LVDS cable (G) from mainboard connector (H)
-USB module cable (B) from mainboard connector (D)
-ODD board cable (F) from mainboard connector (C)
2. Remove following screws:
-screw (J) from mainboard
-three (3) screws (K) from fan module
Figure 3-31. Mainboard
A
E
GH
B
D
F
C
J
K
P
Machine Maintenance Procedures 3-31
3. Lift mainboard at slight angle.
Figure 3-32. Mainboard
CAUTION:
!
DC-IN cable is connected to mainboard. Use caution when removing mainboard.
4. Disconnect DC-IN cable (M) from mainboard connector (N) (Figure 3-33).
Figure 3-33. DC-IN cable
5. Remove mainboard.
MN
3-32 Machine Maintenance Procedures
Mainboard Installation 0
1. Align mainboard to lower cover.
2. Connect DC-IN cable (M) to mainboard connector (N) (Figure 3-33).
CAUTION:
!
Use caution when installing mainboard. Forced installation may damage left side
connectors.
3. Install board by sliding connectors at left side of board at a slight angle into slots on left
side of lower cover (Figure 3-34).
Figure 3-34. Mainboard
4. Install and secure following screws (Figure 3-31):
-screw (J) to mainboard
-three (3) screws (K) to fan module
5. Connect following cables (Figure 3-31):
-microphone cable (A) to mainboard connector (E)
-LVDS cable (G) to mainboard connector (H) white marker (P) side up
-USB module cable (B) to mainboard connector (D)
-ODD board cable (F) to mainboard connector (C)
6. Install upper cover.
ID Size Quantity Screw Type
J,K M2.5x5 4
Machine Maintenance Procedures 3-33
FAN Module Removal 0
Prerequisite:
Mainboard Removal
1. Locate module (A).
2. Disconnect cable (B) from mainboard connector (C).
3. Lift module, releasing adhesive strip (D).
Figure 3-35. FAN Module
FAN Module Installation 0
1. Install module (A) on mainboard.
2. Secure module with adhesive strip(D).
3. Connect cable (B) to mainboard connector (C).
4. Install mainboard.
A
D
B
C
3-34 Machine Maintenance Procedures
Thermal Module Removal 0
Prerequisite:
Mainboard Removal
CAUTION:
!
Thermal module may be hot.
1. Remove four (4) screws (B) from module (A).
Figure 3-36. Thermal Module
2. Remove module.
Thermal Module Installation 0
IMPORTANT:
+
Apply approved thermal grease and make sure all heat pads are in place
before replacing module.
The following thermal grease types are approved for use:
-N302 I-Connosseur
-Honeywell
The following thermal pads are approved for use:
-Eapus XR-PE
1. Remove all traces of thermal grease from CPU using a lint-free cloth or cotton swab and
Isopropyl Alcohol, Acetone, or other approved cleaning agent.
2. Apply small amount of thermal grease to center of CPU (B) (Figure 3-37).
A
B
B
31
24
Machine Maintenance Procedures 3-35
NOTE:
NOTE:
Force used during installation of thermal module is sufficient to spread grease over
CPU top.
3. Align module (A) to mainboard screw holes.
4. Install and secure four (4) screws (B) in numerical order from 1 to 4 to mainboard.
(Figure 3-36).
5. Install mainboard.
ID Size Quantity Screw Type
B M2.5x3.2 Ni 4
3-36 Machine Maintenance Procedures
CPU Removal 0
Prerequisite:
Thermal Module Removal
1. Unlock CPU from mainboard socket by rotating captive screw (D) left 180º.
2. Lift CPU (A) from socket.
Figure 3-37. CPU in Socket
CPU Installation 0
1. Align CPU marker (B) with socket marker (C) and install CPU in socket.
2. Lock CPU from socket by rotating screw (D) right 180º.
3. Install thermal module.
A
BD
C
Machine Maintenance Procedures 3-37
LCD (Liquid Crystal Display) Module Removal 0
Prerequisite:
Mainboard Removal
NOTE:
NOTE:
WLAN cables shown in the following images may not reflect the final product.
1. Guide WLAN antenna cable (A) through opening (C) on lower cover.
Figure 3-38. WLAN Module Cable
A
C
3-38 Machine Maintenance Procedures
2. Place computer on surface, face side up.
3. Remove following cable from guides on lower cover (Figure 3-39):
-microphone cable (D)
-WLAN cable (A)
4. Remove four (4) screws (E) from lower cover.
Figure 3-39. Cables and Screws on Lower Cover
5. Remove LCD module from lower cover.
Figure 3-40. LCD Module
AD
E
E
Machine Maintenance Procedures 3-39
LCD Module Installation 0
1. Align and install LCD module on lower cover (Figure 3-40).
2. Install and secure four (4) screws (E) to lower cover (Figure 3-39).
3. Install following cables to guides on lower cover (Figure 3-39):
-WLAN cable (A)
-microphone cable (D)
4. Place computer on surface, face side down.
5. Guide WLAN antenna cable (A) through opening (C) on lower cover (Figure 3-38).
6. Install mainboard.
ID Size Quantity Screw Type
E M2.5x5 4
3-40 Machine Maintenance Procedures
LCD Bezel Removal 0
Prerequisite:
LCD (Liquid Crystal Display) Module Removal
1. Remove screw caps (A) from LCD bezel.
Figure 3-41. LCD Bezel
2. Remove screws (A) from LCD bezel.
3. Starting form bottom edge of bezel, pull bezel up and away from LCD cover.
Figure 3-42. LCD Bezel
AA
Machine Maintenance Procedures 3-41
4. Move along side edges until bezel is separated from LCD cover.
5. Remove bezel.
LCD Bezel Installation 0
1. Align hinges side of bezel to LCD cover and press down until there is no gap between
bezel and LCD module.
CAUTION:
!
Make sure cables do not get caught underneath bezel, it may cause damage to
cables.
2. Install and secure screws (A) to LCD cover (Figure 3-42).
3. Install screw caps (A).
4. Install LCD module.
ID Size Quantity Screw Type
E M2.5x6 Ni 2
3-42 Machine Maintenance Procedures
Camera Module Removal 0
Prerequisite:
LCD Bezel Removal
1. Locate camera module (A) on LCD cover.
2. Remove cable (B) from connector (C).
3. Remove camera module from adhesive strip and guide pins (D) on LCD cover.

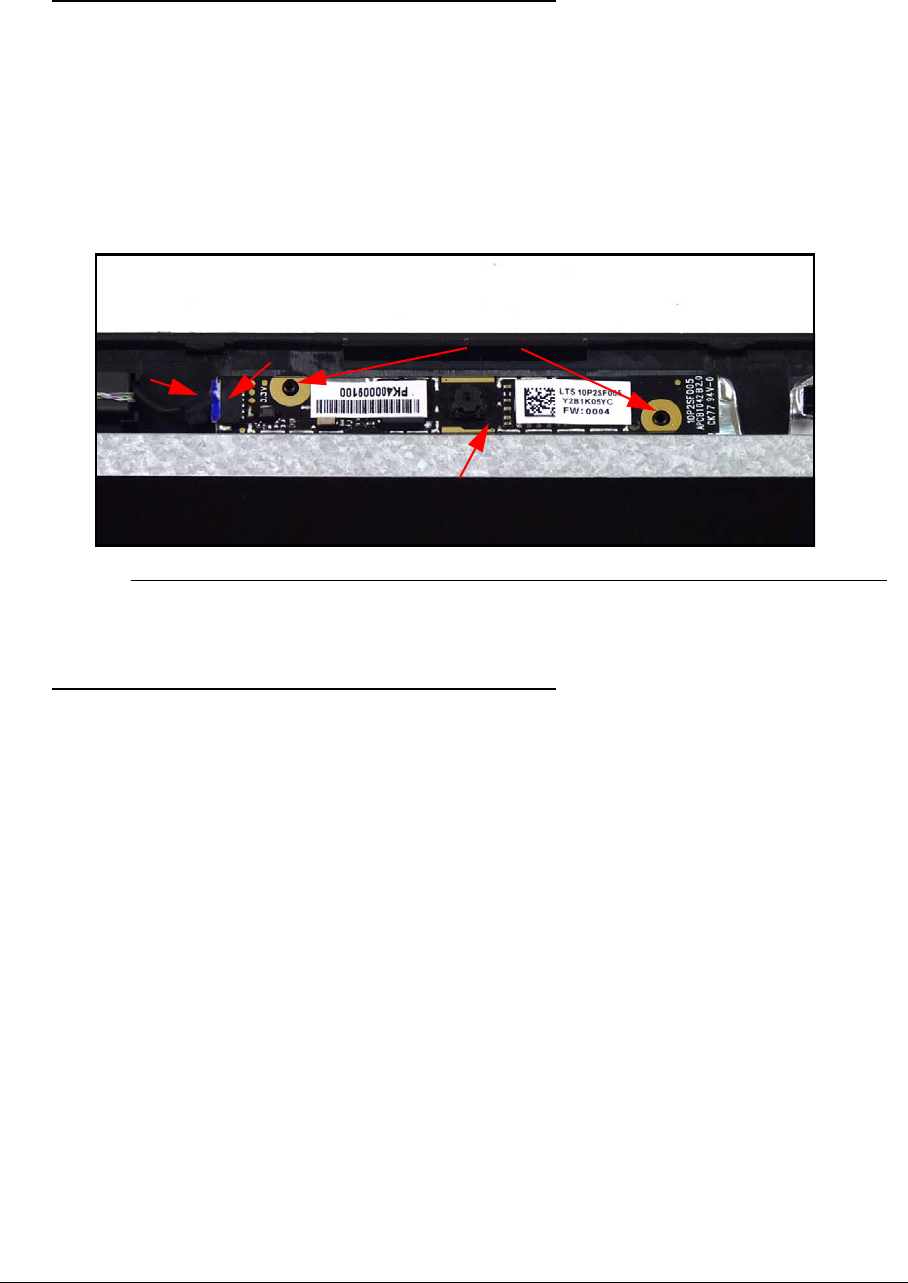

Figure 3-43. Camera Module
Camera Module Installation 0
1. Align and install camera module (A) with guide pins (D) on LCD cover.
2. Install cable (B) to connector (C).
3. Install LCD Bezel.
BC
A
D
Machine Maintenance Procedures 3-43
LCD Panel Removal 0
Prerequisite:
LCD Bezel Removal
NOTE:
NOTE:
WLAN cables shown in the following images may not reflect the final product.
1. Remove four (4) screws (A) from LCD cover.
2. Remove LCD panel (C) from guide pins (B) on LCD cover.
Figure 3-44. LCD Panel
LCD Panel Installation 0
1. Align and install LCD panel (C) to guide pins (B) on LCD cover.
2. Install and secure four (4) screws (A) to LCD cover.
3. Install LCD bezel.
ID Size Quantity Screw Type
A M2.5x5 4
AA
AA
B
B
B
B
3-44 Machine Maintenance Procedures
LVDS Cable Removal 0
Prerequisite:
LCD Panel Removal
1. Remove camera cable (A) from LCD panel.
Figure 3-45. LVDS cable
2. Peel back adhesive (B) from LVDS cable (C) (Figure 3-46).
3. Disconnect LCDS cable (C) from panel connector (D).
Figure 3-46. LVDS Cable
A
C
B
D
Machine Maintenance Procedures 3-45
LVDS Cable Installation 0
1. Connect LVDS cable (C) to panel connector (D) (Figure 3-46).
2. Secure connector with adhesive (B) (Figure 3-46).
3. Install and secure LVDS cable (D) to LCD panel (Figure 3-45).
4. Install LCD Panel.
3-46 Machine Maintenance Procedures
LCD Brackets Removal 0
Prerequisite:
LCD Panel Removal
1. Remove six (6) screws (A) from brackets (B).
Figure 3-47. LCD Brackets
2. Remove brackets from panel.
A
A
BB
Machine Maintenance Procedures 3-47
LCD Brackets Installation 0
1. Align and install bracket (B) to LCD panel.
2. Install and secure six (6) screws (A) to LCD panel (Figure 3-48).
Figure 3-48. LCD Brackets
3. Install LCD panel.
ID Size Quantity Screw Type
AM2x3 6
3-48 Machine Maintenance Procedures
WLAN Antenna Cables and Microphone Set Removal 0
Prerequisite:
LCD Panel Removal
1. Peel back foil tabs (A) as required.
2. Remove from cable guides and from LCD cover following cables:
-WLAN antenna cable (B)
-microphone set (C)
NOTE:
NOTE:
WLAN antenna cable (B) and microphone cable (C) are attached.
Figure 3-49. LCD Cover
WLAN Antenna Cables and Microphone Set Installation 0
1. Install into cable guides and on LCD cover following cables:
-WLAN antenna cable (B)
-microphone set (C)
NOTE:
NOTE:
WLAN antenna cable (B) and microphone cable (C) are attached.
2. Secure with foil tabs (A) as required.
3. Install LCD Panel.
AA
C
B
CHAPTER 4
Troubleshooting
4-2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Power On Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
No Display Issues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
LCD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Keyboard Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Touchpad Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Internal Speaker Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Microphone Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
ODD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
USB Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Wireless Function Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
2 in 1 Card Fucntion Failure. . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Thermal Unit Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Other Functions Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Cosmetic Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24
Post Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
POST Code Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Troubleshooting 4-3
Troubleshooting
Introduction 0
This chapter contains information about troubleshooting common problems associated with
the notebook.
General Information 0
The following procedures are a guide for troubleshooting computer problems. The step by
step procedures are designed to be performed as described.
NOTE:
NOTE:
The diagnostic tests are intended for Acer products only. Non-Acer products, prototype
cards, or modified options can give false errors and invalid system responses.
1. Obtain as much detailed information as possible about the problem.
2. If possible, verify the symptoms by re-creating the failure through diagnostic tests or
repeating the operation that led to the problem.
3. Use Table 4-1 with the verified symptom to determine the solution.
4. If the Issue is still not resolved, Refer to Online Support Information.
Table 4-1. Troubleshooting
Symptoms (Verified)
Power On Issues
No Display Issues
LCD Failure
Keyboard Failure
Touchpad Failure
Internal Speaker Failure
Microphone Failure
ODD Failure
USB Failure
Wireless Function Failure
2 in 1 Card Fucntion Failure
Thermal Unit Failure
Other Functions Failure
Intermittent Problems
Undetermined Problems
4-4 Troubleshooting
Power On Issues 0
If the system fails to power on, perform the following:

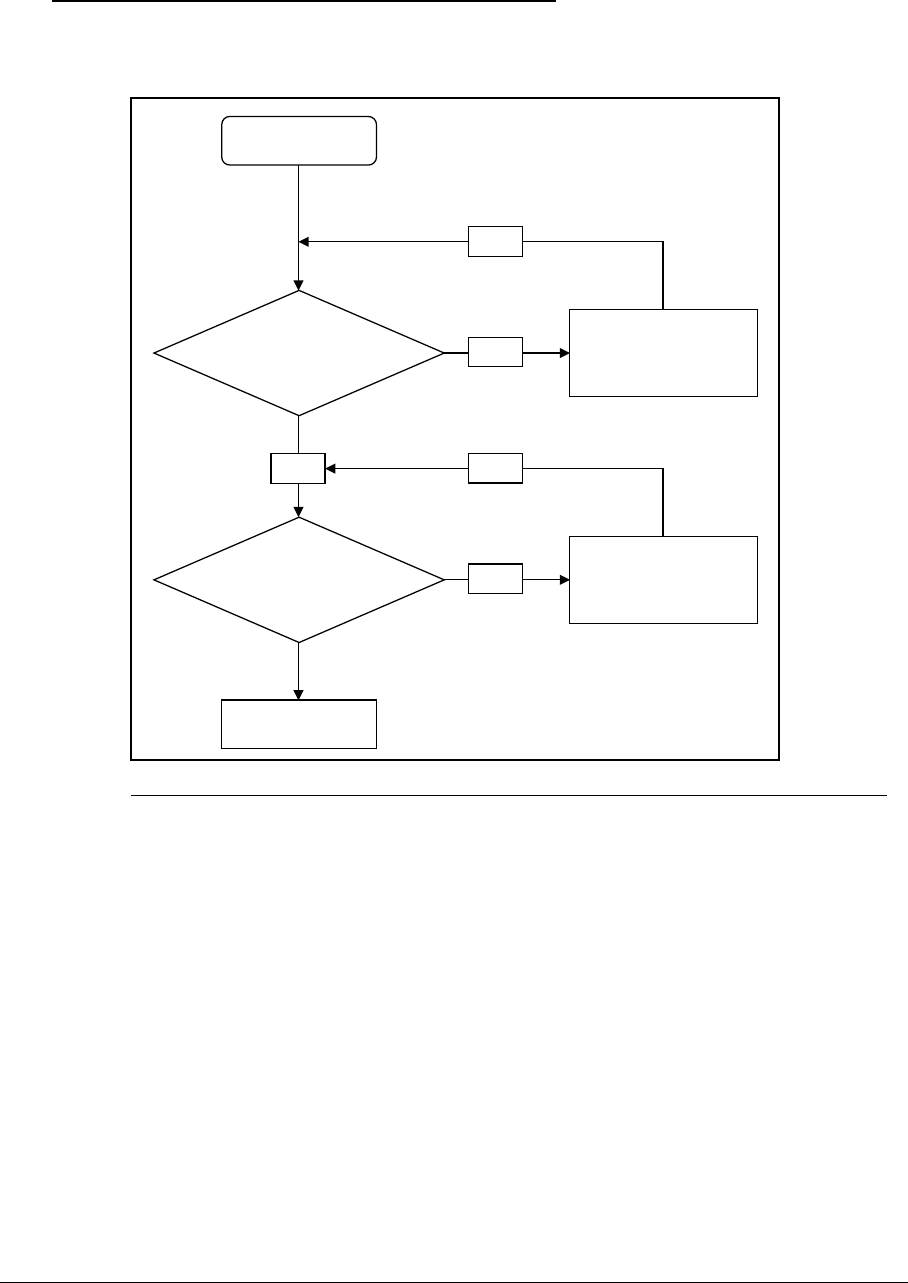

Figure 4-1. Power On Issue
Computer Shuts Down Intermittently 0
If the system powers off at intervals, perform the following.
1. Makes sure the power cable is properly connected to the computer and the electrical
outlet.
2. Remove all extension cables between the computer and the outlet.
3. Remove all surge protectors between the computer and the electrical outlet. Plug the
computer directly into a known serviceable electrical outlet.
4. Disconnect the power and open the casing to check the Thermal Unit (Refer to Thermal
Unit Failure) and fan airways are free of obstructions.
5. Remove all external and non-essential hardware connected to the computer that are not
necessary to boot the computer to the failure point.
6. Remove any recently installed software.
7. If the Issue is still not resolved, refer to Online Support Information.
OK
NG
OK
NG
Start
Swap M/B
Check
AC/Batt
only power
on
Check
Power/B
Whether
OK
Swap AC/Battery
Swap Power SW/B
OK
Troubleshooting 4-5
No Display Issues 0
If the Display fails, perform the following:
Figure 4-2. No Display Issue
No POST or Video 0
If the POST or video does not appear, perform the following, one at a time.
1. Make sure that internal display is selected. Switching between internal and external by
pressing Fn+F5. Reference Product pages for specific model procedures.
2. Make sure the computer has power by checking for one of the following:
-Fans start up
-Status LEDs illuminate
If no power, Refer to Power On Issues.
3. Drain stored power by removing the power cable and battery. Hold the power button for 10
seconds.
4. Connect the power and reboot the computer.
5. Connect an external monitor to the computer and switch between the internal display and
the external display is by pressing Fn+F5.
6. If the POST or video appears on the external display only, refer to LCD Failure.
No
No
No
No
No
START
Replace
M/B
Power On?
Replace LCD
panel/cable LCD panel/cable ok?
Ext. DDRRAM
module well
connected?
Ext. DDRRAM
module OK?
LCD cable well
connected?
go to no power
trouble shooting
step
Connect
it well
Replace
Ext. DDR RAM
module
Connect it well
4-6 Troubleshooting
7. Disconnect power and all external devices including port replicators or docking stations.
Remove any memory cards and CD/DVD discs.
8. Start the computer. If the computer boots correctly, add the devices one by one until the
failure point is discovered.
9. Reseat the memory modules.
10. Remove the drives (Refer to Maintenance Flowchart).
11. If the Issue is still not resolved, refer to Online Support Information.
Abnormal Video 0
If the video appears abnormal, perform the following, one at a time.
1. Boot the computer.
-If permanent vertical/horizontal lines or dark spots appear in the same location, the
LCD is faulty and should be replaced. (Refer to Maintenance Flowchart)
-If extensive pixel damage is present (different colored spots in the same locations on
the screen), the LCD is faulty and should be replaced. (Refer to Maintenance
Flowchart)
NOTE:
NOTE:
Make sure that the computer is not running on battery alone as this may reduce display
brightness.
2. Adjust the brightness to its highest level. Refer to the User Manual for instructions on
adjusting the settings. If the display is too dim at the highest brightness setting, the LCD is
faulty and should be replaced. (Refer to Maintenance Flowchart)
3. Check the display resolution is correctly configured:
-Minimize or close all Windows.
-If display size is only abnormal in an application, check the view settings and
control/mouse wheel zoom feature in the application.
-If desktop display resolution is not normal, right-click on the desktop and select
Personalize Display Settings.
-Click and drag the Resolution slider to the desired resolution.
-Click Apply and check the display. Readjust if necessary.
4. Roll back the video driver to the previous version if updated.
5. Remove and reinstall the video driver.
6. Check the Device Manager to determine that:
-The device is properly installed. There are no red Xs or yellow exclamation marks
-There are no device conflicts
-No hardware is listed under Other Devices
7. If the Issue is still not resolved, refer to Online Support Information.
8. Run the Windows Memory Diagnostic from the operating system DVD and follow the
on-screen prompts.
9. If the Issue is still not resolved, refer to Online Support Information.
Troubleshooting 4-7
LCD Failure 0
If the LCD fails, perform the following:
Figure 4-3. LCD Failure
OK
NG
Start
Swap M/B
Check LCD
module?
Swap
LCD cable /LCD panel
4-8 Troubleshooting
Keyboard Failure 0
If the Keyboard fails, perform the following:
Figure 4-4. Keyboard Failure
No
No
START
Keyboard FPC
well connected?
Keyboard OK?
Connect
it well
Replace
keyboard
Replace M/B
Troubleshooting 4-9
Touchpad Failure 0
If the Touchpad fails, perform the following:
Figure 4-5. Touchpad Failure
OK
NG
OK
NG
Start
Swap M/B
OK
Check M/B
T/P FFC
Check
Logic
Upper
Re-assemble
the T/P FFC to
M/B
Swap/Re-
assemble the
T/P board or
T/P FFC
4-10 Troubleshooting
Internal Speaker Failure 0
If internal Speakers fail, perform the following:
Figure 4-6. Internal Speaker Failure
Sound Problems 0
Perform the following, one at a time.
1. Boot the computer.
2. Navigate to Start
Control Panel
System and Maintenance
System
Device
Manager. Check the Device Manager to determine that:
-The device is properly installed
-There are no red Xs or yellow exclamation marks
-There are no device conflicts
-No hardware is listed under Other Devices
3. If updated recently, roll back the audio driver to the previous version.
4. Remove and reinstall the audio driver.
5. Make sure that all volume controls are set mid range:
OK
NG
OK
NG
Start
Swap M/B
OK
Check M/B
SPK cable
Check
Logic upper
Re-assemble
the SPK cable
to M/B
Swap Logic
upper
Troubleshooting 4-11
-Click the volume icon on the taskbar
-Drag the slider to 50. Confirm that the volume is not muted.
-Click Mixer to verify that other audio applications are set to 50 and not muted.
6. Navigate to Start
Control Panel
Hardware and Sound
Sound. Confirm that
Speakers are selected as the default audio device (green check mark).
NOTE:
NOTE:
If Speakers does not show, right-click on the Playback tab and select Show
Disabled Devices (clear by default).
7. Select Speakers and click Configure to start Speaker Setup. Follow the on-screen
prompts to configure the speakers.
8. Remove any recently installed hardware or software.
9. Restore system and file settings from a known good date using System Restore.
10. If the issue is remains, repeat step 9, selecting an earlier time and date.
11. Reinstall the Operating System.
12. If the Issue is still not resolved, refer to Online Support Information.
4-12 Troubleshooting
Microphone Failure 0
If internal or external Microphones fail, perform the following:
Figure 4-7. Microphone Failure
1. Check that the microphone is enabled. Navigate to Start
Control Panel
Hardware
and Sound
Sound and select the Recording tab.
2. Right click on the Recording tab and select Show Disabled Devices (clear by
default). The microphone appears on the Recording tab.
3. Right click on the microphone and select Enable.
4. Select the microphone then click Properties. Select the Levels tab.
5. Increase the volume to the maximum setting and click OK.
6. Test the microphone hardware:
-Select the microphone and click Configure.
-Select Set up microphone.
-Select the microphone type from the list and click Next.
-Follow the on-screen prompts to complete the test.
7. If the Issue is still not resolved, refer to Online Support Information.
OK
NG
OK
NG
Start
Swap M/B
OK
Check M/B
Mic cable
Check MIC
wire of LCD
module
Re-assemble
the MIC cable
to M/B
Swap MIC wire
of LCD module
Troubleshooting 4-13
ODD Failure 0
Figure 4-8. ODD Failure
ODD Not Operating Correctly 0
If the ODD exhibits any of the following symptoms it may be faulty:
-Audio CDs do not play when loaded
-DVDs do not play when loaded
-Blank discs do not burn correctly
-DVD or CD play breaks up or jumps
-Optical drive not found or not active:
Not shown in My Computer or the BIOS setup
LED does not flash when the computer starts up
The tray does not eject
Replace ODD/B
Re-assemble ODD/B FPC
START
Check ODD module
OK or NG
Check ODD/B FPC
Assemble OK or NG
Check ODD/B OK or NG
Replace M/B
NG
NG
NG
OK
OK
OK
replace ODD module
4-14 Troubleshooting
-Access failure screen is shown
-The ODD is noisy
Perform the following, one at a time:
1. Boot the computer and retry the operation.
2. Use an different disc.
3. Navigate to Start
Computer. Check that the ODD device is shown in the Devices
with Removable Storage panel.
4. Navigate to Start
Control Panel
System and Maintenance
System
Device
Manager.
5. Double click lDE ATA/ATAPI controllers. If a device shows a down arrow, right click on
the device and click Enable.
6. Double-click DVD/CD-ROM drives. If the device shows a down arrow, right click on the
device and click Enable.
7. Make sure that there are no yellow exclamation marks against the items in lDE
ATA/ATAPI controllers. If a device has an exclamation mark, uninstall and reinstall
the driver.
8. Check that there are no yellow exclamation marks against the items in DVD/CD-ROM
drives. If a device has an exclamation mark, uninstall and reinstall the driver.
9. If the exclamation marker is not removed from the item in the lists, remove any recently
installed software and retrying the operation.
Discs Do Not Play 0
If discs do not play when inserted into the drive, perform the following:
1. Check that the disc is correctly seated in the drive tray and that the label on the disc is
visible.
2. Check that the media is clean and scratch free.
3. Try an alternate disc in the drive.
4. Confirm that AutoPlay is enabled:
-Navigate to Start
Control Panel
Hardware and Sound
AutoPlay.
-Select Use AutoPlay for all media and devices.
-In the Audio CD and DVD Movie fields, select the desired player from the drop down
menu.
5. Check that the Regional Code is correct for the selected media:
IMPORTANT:
+
Region can only be changed a limited number of times. After Changes
remaining reaches zero, the region cannot be changed even when Windows
is reinstalled or the drive is moved to another computer.
-Navigate to Start
Control Panel
System and Maintenance
System
Device
Manager.
-Double click DVD/CD-ROM drives.
-Right click DVD drive and click Properties, then click the DVD Region tab.
-Select the region suitable for the media inserted in the drive.
Troubleshooting 4-15
Discs Do Not Burn Properly 0
If discs can not be burned, perform the following:
6. Confirm that the default drive is record enabled:
-Navigate to Start
Computer and right-click the writable ODD icon. Click Properties.
-Select the Recording tab. In the Desktop disc recording panel, select the
writable ODD from the drop down list.
-Click OK.
7. Confirm that the software used for burning discs is the factory default. If using different
software, refer to the software's user manual.
Playback is Choppy 0
If playback is choppy or jumps, perform the following:
1. Check that system resources are not running low:
-Close some applications.
-Reboot and try the operation again.
2. Check that the ODD controller transfer mode is set to DMA.
3. Navigate to Start
Control Panel
System and Maintenance
System
Device
Manager.
4. Double click IDE ATA/ATAPI controllers, then right click ATA Device 0.
5. Click Properties and select the Advanced Settings tab. Make sure the Enable DMA box
is checked and click OK.
6. Repeat for each ATA Device shown if applicable.
Drive Not Detected 0
If Windowscannot detect the drive, perform the following:
1. Start the computer and press F2 to enter the BIOS Utility.
2. Verify that the drive is detected in the ATAPI Model Name field on the Information page.
NOTE:
NOTE:
Verify that the entry is identical to one of the ODDs specified in Specification Tables.
-Remove power and remove the cover to inspect the connections to the ODD. (Refer to
Maintenance Flowchart)
-Check for broken connectors on the drive, motherboard, and cables.
-Check for bent or broken pins on the drive, motherboard, and cable connections.
-Try an alternate cable, if available. If the drive works with the new cable, the original
cable should be replaced.
3. Reseat the drive, making sure and all cables are connected correctly.
4. Replace the ODD. (Refer to Maintenance Flowchart)
4-16 Troubleshooting
Drive Read Failure 0
If discs cannot be read when inserted in the drive, perform the following.
1. Remove and clean the failed disc.
2. Retry reading the CD or DVD.
-Test the drive using other discs.
-Play a DVD movie
-Listen to a music CD
If the ODD works properly with alternate discs, the original disc is probably defective and
should be replaced.
3. Remove the power and remove the cover to inspect the connections to the ODD. Refer to
Online Support Information.
-Check for broken connectors on the drive, motherboard, and cables.
-Check for bent or broken pins on the drive, motherboard, and cable connections.
-Try a different cable. If the drive works with the new cable, the original cable should be
replaced.
4. Replace the ODD. (Refer to Maintenance Flowchart)
Troubleshooting 4-17
USB Failure 0
If the USB fails, perform the following:
Figure 4-9. USB Failure
OK
NG
OK
NG
Start
Swap M/B
OK
Check IO/B
to M/B
CONN
Check
USB/B
Re-assemble
the IO/B
CONNto M/B
Swap USB/B
4-18 Troubleshooting
Wireless Function Failure 0
If the WLAN fails, perform the following:
Figure 4-10. Wireless Function Failure
OK
NG
Start
Swap M/B
OK
NG
OK
OK
NG
OK
OK
NG
OK
Check antenna to
WL card
Check antenna
Check WL card
Check
function /B
Re-assemble the
antenna to WL
card
Swap the antenna
Swap WL card
Swap function/B
Troubleshooting 4-19
2 in 1 Card Fucntion Failure 0
If the 2 in 1 card function fails, perform the following:
Figure 4-11. 2 in 1 Card Function Failure
No
No
START
Replace M/B
Check the card reader /B FFC
Assemble well or not
Check the card reader/B
Connect it well
SWAP the IO/B
4-20 Troubleshooting
Thermal Unit Failure 0
If the Thermal Unit fails, perform the following:
Figure 4-12. Thermal Failure
No
START
No
No
Replace M/B
Fan power
cable well
connected?
Fan OK?
CPU
Heatsink well
seated?
Connect it well
Replace f an
Seat it well
Troubleshooting 4-21
Other Functions Failure 0
HDD Not Operating Correctly 0
If the HDD fails to operate correctly, perform the following, one at a time.
1. Disconnect all external devices.
2. Run a complete virus scan using up-to-date software to confirm the computer is virus free.
3. Run the Windows Vista Startup Repair Utility:
a. Insert the Windows 7 Operating System DVD in the ODD and restart the
computer.
b. When the Install Windows screen appears, click Next.
c. Select Repair your computer.
d. When the System Recovery Options screen appears, click Next.
e. Select the appropriate operating system, and click Next.
NOTE:
NOTE:
Click Load Drivers if controller drives are required.
f. Select Startup Repair.
NOTE:
NOTE:
Startup Repair attempts to locate and resolve issues with the computer.
g. When complete, click Finish.
If an issue is discovered, follow the on-screen information to resolve the problem.
1. Run the Windows Memory Diagnostic Tool. For more information see Windows Help and
Support.
2. Restart the computer and press F2 to enter the BIOS Utility. Check the BIOS settings are
correct and that CD/DVD drive is set as the first boot device on the Boot menu.
3. Confirm all cables and jumpers on the HDD and ODD are set correctly.
4. Remove any recently added hardware and associated software.
5. Run the Windows Disk Defragmenter. For more information see Windows Help and
Support.
6. Run Windows Check Disk by entering chkdsk /r from a command prompt. For more
information see Windows Help and Support.
7. Restore system and file settings from a known good date using System Restore.
8. If the issue is not fixed, repeat the preceding steps and select an earlier time and date.
9. Replace the HDD. (Refer to Maintenance Flowchart)
4-22 Troubleshooting
Cosmetic Failure 0
If the Cosmetic fails, perform the following:
Figure 4-13. Cosmetic Failure
Random Loss of BIOS Settings 0
If the computer is experiencing intermittent loss of BIOS information, perform the following:
1. If the computer is more than one year old, replace the CMOS battery.
OK
NG
Start
Swap M/B
OK
NG
OK
OK
NG
OK
OK
OK
OK
LCD cover?
LCD bezel?
Upper?
Lower?
Swap LCD cover
Swap LCD bezel
Swap Upper
Swap Lower
Troubleshooting 4-23
2. Run a complete virus scan using up to date software to confirm the computer is virus free.
3. If the computer is experiencing HDD or ODD BIOS information loss, disconnect and
reconnect the power and data cables between devices.
4. If the BIOS settings are still lost, replace the cables.
5. If HDD information is missing from the BIOS, the drive may be defective and should be
replaced.
6. Replace the Motherboard.
7. If the Issue is still not resolved, refer to Online Support Information.
External Mouse Failure 0
If an external Mouse fails, perform the following:
1. Use a different mouse.
2. If the mouse uses a wireless connection, insert new batteries and confirm there is a good
connection. Refer to the mouse user manual.
3. If the mouse uses a USB connection, use a different USB port.
4. Use a different program to verify mouse operation. Reinstall the program experiencing
mouse failure.
5. Restart the computer.
6. Remove recently added hardware and associated software.
7. Remove recently added software and reboot the computer.
8. Restore system and file settings from a known good date using System Restore.
9. If the issue is resolved, repeat Step 8 and select an earlier time and date.
10. Run the Event Viewer to check the events log for errors. For more information refer to
Windows Help and Support.
11. Roll back the mouse driver to the previous version if updated recently.
12. Remove and reinstall the mouse driver.
13. Check the Device Manager to determine that:
-The device is properly installed. There are no red Xs or yellow exclamation marks
-There are no device conflicts
-No hardware is listed under Other Devices
14. If the Issue is still not resolved, refer to Online Support Information.
4-24 Troubleshooting
Intermittent Problems 0
Intermittent system hang problems can be caused by a variety of reasons that have nothing to
do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software
errors. FRU replacement should be considered only when a recurring problem exists.
When analyzing an intermittent problem, perform the following:
1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRU.
3. If an error is detected, replace the FRU. Rerun the test to verify that there are no more
errors.
Undetermined Problems 0
The diagnostic problems does not identify which adapter or device failed, which installed
devices are incorrect, whether a short circuit is suspected, or whether the system is
inoperative.
Perform the following procedures to isolate the failing FRU (do not isolate non-defective FRU).
NOTE:
NOTE:
Verify that all attached devices are supported by the computer.
NOTE:
NOTE:
Verify that the power supply being used at the time of the failure is operating correctly.
(Refer to Power On Issues).
1. Remove power from the computer.
2. Visually check them for damage. If any problems are found, replace the FRU.
3. Remove or disconnect all of the following devices:
-Non-Acer devices
-Printer, mouse, and other external devices
-Battery pack
-Hard disk drive
-DIMM
-CD-ROM/Diskette drive Module
-PC Cards
4. Apply power to the computer.
5. Determine if the problem has changed.
6. If the problem does not recur, connect the removed devices one at a time until failing FRU
is found.
7. If the problem remains, replace the following FRUs one at a time. Do not replace a
non-defective FRU:
-System board
-LCD assembly
Troubleshooting 4-25
Post Codes 0
The following are the InsydeH2O™ Functionality POST code tables. The components of the
POST code table includes: SEC phase, PEI phase, DXE phase, BDS phase, CSM functions,
S3 functions and ACPI functions.
POST Code Range 0
Table 4-2. POST Code Range
Phase POST Code Range
SEC 0x01 - 0x0F
PEI 0x70 - 0x9F
DXE 0x40 - 0x6F
BDS 0x10 - 0x3F
SMM 0xA0 - 0xBF
S3 0xC0 - 0xCF
ASL 0x51 – 0x55
0xE1 – 0xE4
PostBDS 0xF9 – 0xFE
InsydeH2ODDT™ Reserve 0xD0 – 0xD7
OEM Reserve 0xE8 – 0xEB
Reserved 0xD8 – 0xE0
0xE5 – 0xE7
0xEC – 0xF8
Table 4-3. SEC Phase POST Code Table
Functionality Name
(Include\PostCode.h) Phase Post
Code Description
SEC_SYSTEM_POWER_ON SEC 01 CPU power on and switch to
Protected mode
SEC_BEFORE_MICROCODE_PATCH SEC 02 Patching CPU microcode
SEC_AFTER_MICROCODE_PATCH SEC 03 Setup Cache as RAM
SEC_ACCESS_CSR* SEC 04 PCIE MMIO Base Address
initial
SEC_GENERIC_MSRINIT* SEC 05 CPU Generic MSR
initialization
SEC_CPU_SPEEDCFG* SEC 06 Setup CPU speed
4-26 Troubleshooting
SEC_SETUP_CAR_OK SEC 07 Cache as RAM test
SEC_FORCE_MAX_RATIO* SEC 08 Tune CPU frequency ratio to
maximum level
SEC_GO_TO_SECSTARTUP SEC 09 Setup BIOS ROM cache
SEC_GO_TO_PEICORE SEC 0A Enter Boot Firmware Volume
* 3rd party relate functions – Platform dependence.
Table 4-4. PEI Phase POST Code Table
Functionality Name
(Include\PostCode.h) Phase Post
Code Description
PEI_SIO_INIT PEI 70 Super I/O Initialization
PEI_CPU_REG_INIT PEI 71 CPU Early Initialization
PEI_CPU_AP_INIT* PEI 72 Multi-processor Early Initial
PEI_CPU_HT_RESET* PEI 73 HyperTransport Initialization
PEI_PCIE_MMIO_INIT PEI 74 PCIE MMIO BAR Initialization
PEI_NB_REG_INIT PEI 75 North Bridge Early Initialization
PEI_SB_REG_INIT PEI 76 South Bridge Early
Initialization
PEI_PCIE_TRAINING* PEI 77 PCIE Training
PEI_TPM_INIT PEI 78 TPM Initialization
PEI_SMBUS_INIT PEI 79 SMBUS Early Initialization
PEI_PROGRAM_CLOCK_GEN PEI 7A Clock Generator Initialization
PEI_IGD_EARLY_INITIAL * PEI 7B Internal Graphic device early
Initialization
PEI_HECI_INIT* PEI 7C HECI Initialization
PEI_WATCHDOG_INIT* PEI 7D Watchdog timer Initialization
PEI_MEMORY_INIT PEI 7E Memory Initial for Normal boot.
PEI_MEMORY_INIT_FOR_CRISIS PEI 7F Memory Initial for Crisis
Recovery
PEI_MEMORY_INSTALL PEI 80 Simple Memory test
PEI_TXTPEI* PEI 81 TXT function early Initialization
PEI_SWITCH_STACK PEI 82 Start to use Memory
PEI_MEMORY_CALLBACK PEI 83 Set cache for physical memory
Table 4-3. SEC Phase POST Code Table (Continued)
Functionality Name
(Include\PostCode.h) Phase Post
Code Description
Troubleshooting 4-27
PEI_ENTER_RECOVERY_MODE PEI 84 Recovery device Initialization
PEI_RECOVERY_MEDIA_FOUND PEI 85 Found Recovery image
PEI_RECOVERY_MEDIA_NOT_FOUND PEI 86 Recovery image not found
PEI_RECOVERY_LOAD_FILE_DONE PEI 87 Load Recovery Image
completed
PEI_RECOVERY_START_FLASH PEI 88 Start Flash BIOS with
Recovery image
PEI_ENTER_DXEIPL PEI 89 Loading BIOS image to RAM
PEI_FINDING_DXE_CORE PEI 8A Loading DXE core
PEI_GO_TO_DXE_CORE PEI 8B Enter DXE core
* 3rd party relate functions – Platform dependence.
Table 4-5. DXE Phase POST Code Table
Functionality Name Include\PostCode.h) Phase Post
Code Description
DXE_TCGDXE* DXE 40 TPM initial in DXE
DXE_SB_SPI_INIT* DXE 41 South bridge SPI initialization
DXE_CF9_RESET* DXE 42 Setup Reset service
DXE_SB_SERIAL_GPIO_INIT* DXE 43 South bridge Serial GPIO
initialization
DXE_SMMACCESS* DXE 44 Setup SMM ACCE SS service
DXE_NB_INIT* DXE 45 North bridge Middle
initialization
DXE_SIO_INIT* DXE 46 Super I/O DXE initialization
DXE_LEGACY_REGION* DXE 47 Setup Legacy Region service
DXE_SB_INIT* DXE 48 South Bridge Middle
initialization
DXE_IDENTIFY_FLASH_DEVICE DXE 49 Identify Flash device
DXE_FTW_INIT DXE 4A Fault Tolerant Write
verification
DXE_VARIABLE_INIT DXE 4B Variable Service initialization
DXE_VARIABLE_INIT_FAIL DXE 4C Fail to initial Variable Service
DXE_MTC_INIT DXE 4D MTC Initial
DXE_CPU_INIT DXE 4E CPU Middle Initialization
Table 4-4. PEI Phase POST Code Table (Continued)
Functionality Name
(Include\PostCode.h) Phase Post
Code Description
4-28 Troubleshooting
DXE_MP_CPU_INIT DXE 4F Multi-processor Middle
Initialization
DXE_SMBUS_INIT DXE 50 SMBUS Driver Initialization
DXE_SMART_TIMER_INIT DXE 51 8259 Initialization
DXE_PCRTC_INIT DXE 52 RTC Initialization
DXE_SATA_INIT* DXE 53 SATA Controller early
Initialization
DXE_SMM_CONTROLER_INIT* DXE 54 Setup SMM Control service
DXE_LEGACY_INTERRUPT* DXE 55 Setup Legacy Interrupt
service
DXE_RELOCATE_SMBASE DXE 56 Relocate SMM BASE
DXE_FIRST_SMI DXE 57 SMI test
DXE_VTD_INIT* DXE 58 VTD Initial
DXE_BEFORE_CSM16_INIT DXE 59 Legacy BIOS Initialization
DXE_AFTER_CSM16_INIT DXE 5A Legacy interrupt function
Initialization
DXE_LOAD_ACPI_TABLE DXE 5B ACPI Table Initialization
DXE_SB_DISPATCH* DXE 5C Setup SB SMM Dispatcher
service
DXE_SB_IOTRAP_INIT* DXE 5D Setup SB IOTRAP Service
DXE_SUBCLASS_DRIVER* DXE 5E Build AMT Table
DXE_PPM_INIT* DXE 5F PPM Initialization
DXE_HECIDRV_INIT* DXE 60 HECIDRV Initialization
* 3rd party relate functions – Platform dependence.
Table 4-6. BDS Phase POST Code Table
Functionality Name (Include\PostCode.h) Phase Post
Code Description
BDS_ENTER_BDS BDS 10 Enter BDS entry
BDS_INSTALL_HOTKEY BDS 11 Install Hotkey service
BDS_ASF_INIT* BDS 12 ASF Initialization
BDS_PCI_ENUMERATION_START BDS 13 PCI enumeration
BDS_BEFORE_PCIIO_INSTALL BDS 14 PCI resource assign
complete
Table 4-5. DXE Phase POST Code Table (Continued)
Functionality Name Include\PostCode.h) Phase Post
Code Description
Troubleshooting 4-29
BDS_PCI_ENUMERATION_END BDS 15 PCI enumeration
complete
BDS_CONNECT_CONSOLE_IN BDS 16 Keyboard Controller,
keyboard and mouse
initialization
BDS_CONNECT_CONSOLE_OUT BDS 17 Video device initialization
BDS_CONNECT_STD_ERR BDS 18 Error report device
initialization
BDS_CONNECT_USB_HC BDS 19 USB host controller
initialization
BDS_CONNECT_USB_BUS BDS 1A USB BUS driver
initialization
BDS_CONNECT_USB_DEVICE BDS 1B USB device driver
initialization
BDS_NO_CONSOLE_ACTION BDS 1C Console device initial fail
BDS_DISPLAY_LOGO_SYSTEM_INFO BDS 1D Display logo or system
information
BDS_START_IDE_CONTROLLER BDS 1E IDE controller
initialization
BDS_START_SATA_CONTROLLER BDS 1F SATA controller
initialization
BDS_START_ISA_ACPI_CONTROLLER BDS 20 SIO controller
initialization
BDS_START_ISA_BUS BDS 21 ISA BUS driver
initialization
BDS_START_ISA_FDD BDS 22 Floppy device
initialization
BDS_START_ISA_SEIRAL BDS 23 Serial device initialization
BDS_START_IDE_BUS BDS 24 IDE device initialization
BDS_START_AHCI_BUS BDS 25 AHCI device initialization
BDS_CONNECT_LEGACY_ROM BDS 26 Dispatch option ROMs
BDS_ENUMERATE_ALL_BOOT_OPTION BDS 27 Get boot device
information
BDS_END_OF_BOOT_SELECTION BDS 28 End of boot selection
BDS_ENTER_SETUP BDS 29 Enter Setup Menu
BDS_ENTER_BOOT_MANAGER BDS 2A Enter Boot manager
BDS_BOOT_DEVICE_SELECT BDS 2B Try to boot system to OS
Table 4-6. BDS Phase POST Code Table (Continued)
Functionality Name (Include\PostCode.h) Phase Post
Code Description
4-30 Troubleshooting
BDS_EFI64_SHADOW_ALL_LEGACY_ROM BDS 2C Shadow Misc Option
ROM
BDS_ACPI_S3SAVE BDS 2D Save S3 resume
required data in RAM
BDS_READY_TO_BOOT_EVENT BDS 2E Last Chipset initial before
boot to OS
BDS_GO_LEGACY_BOOT BDS 2F Start to boot Legacy OS
BDS_GO_UEFI_BOOT BDS 30 Start to boot UEFI OS
BDS_LEGACY16_PREPARE_TO_BOOT BDS 31 Prepare to Boot to
Legacy OS
BDS_EXIT_BOOT_SERVICES* BDS 32 Send END of POST
Message to ME via HECI
BDS_LEGACY_BOOT_EVENT BDS 33 Last Chipset initial before
boot to Legacy OS.
BDS_ENTER_LEGACY_16_BOOT BDS 34 Ready to Boot Legacy
OS.
BDS_RECOVERY_START_FLASH BDS 35 Fast Recovery Start
Flash.
* 3rd party relate functions – Platform dependence.
Table 4-7. PostBDS POST Code Table
Functionality Name (Include\PostCode.h) Phase Post
Code Description
POST_BDS_NO_BOOT_DEVICE POST_BDS F9 No Boot Device
POST_BDS_START_IMAGE POST_BDS FB UEFI Boot Start Image
POST_BDS_ENTER_INTI9 POST_BDS FD Legacy 16 boot entry
POST_BDS_BOOT_SECTOR POST_BDS FE Try to Boot with INT 19
Table 4-6. BDS Phase POST Code Table (Continued)
Functionality Name (Include\PostCode.h) Phase Post
Code Description
Troubleshooting 4-31
Table 4-8. S3 Functions POST Code Table
Functionality Name (Include\PostCode.h) Phase Post
Code Description
S3_RESTORE_MEMORY_CONTROLLER PEI C0 Memory initial for S3
resume
S3_INSTALL_S3_MEMORY PEI C1 Get S3 resume required
data from memory
S3_SWITCH_STACK PEI C2 Start to use memory during
S3 resume
S3_MEMORY_CALLBACK PEI C3 Set cache for physical
memory during S3 resume
S3_ENTER_S3_RESUME_PEIM PEI C4 Start to restore system
configuration
S3_BEFORE_ACPI_BOOT_SCRIPT PEI C5 Restore system
configuration stage1
S3_BEFORE_RUNTIME_BOOT_SCRIPT PEI C6 Restore system
configuration stage2
S3_BEFORE_RELOCATE_SMM_BASE PEI C7 Relocate SMM BASE
during S3 resume
S3_BEFORE_MP_INIT PEI C8 Multi-processor initial
during S3 resume
S3_BEFORE_RESTORE_ACPI_CALLBACK PEI C9 Start to restore system
configuration in SMM
S3_AFTER_RESTORE_ACPI_CALLBACK PEI CA Restore system
configuration in SMM
complete
S3_GO_TO_FACS_WAKING_VECTOR PEI CB Back to OS
Table 4-9. ACPI Functions POST Code Table
Functionality Name (Include\PostCode.h) Phase Post
Code Description
ASL_ENTER_S1 ASL 51 Prepare to enter S1
ASL_ENTER_S3 ASL 53 Prepare to enter S3
ASL_ENTER_S4 ASL 54 Prepare to enter S4
ASL_ENTER_S5 ASL 55 Prepare to enter S5
ASL_WAKEUP_S1 ASL E1 System wakeup from S1
ASL_WAKEUP_S3 ASL E3 System wakeup from S3
ASL_WAKEUP_S4 ASL E4 System wakeup from S4
4-32 Troubleshooting
Table 4-10. SMM Functions POST Code Table
Functionality Name
(Include\PostCode.h) Phase Post
Code Description
SMM_IDENTIFY_FLASH_DEVICE SMM 0xA0 Identify Flash device in SMM
SMM_SMM_PLATFORM_INIT SMM 0xA2 SMM service initial
SMM_ACPI_ENABLE_START SMM 0xA6 OS call ACPI enable function
SMM_ACPI_ENABLE_END SMM 0xA7 ACPI enable function complete
SMM_S1_SLEEP_CALLBACK SMM 0xA1 Enter S1
SMM_S3_SLEEP_CALLBACK SMM 0xA3 Enter S3
SMM_S4_SLEEP_CALLBACK SMM 0xA4 Enter S4
SMM_S5_SLEEP_CALLBACK SMM 0xA5 Enter S5
SMM_ACPI_DISABLE_START SMM 0xA8 OS call ACPI disable function
SMM_ACPI_DISABLE_END SMM 0xA9 ACPI disable function complete
Table 4-11. InsydeH2ODDT Debugger POST Code Table
Functionality Name (Include\PostCode.h) Post Code Description
Used by Insyde debugger 0x0D Waiting for device connect
Used by Insyde debugger 0xD0 Waiting for device connect
Used by Insyde debugger 0xD1 InsydeH2ODDT Ready
Used by Insyde debugger 0xD2 EHCI not found
Used by Insyde debugger 0xD3 Debug port connect low
speed device
Used by Insyde debugger 0xD4 DDT Cable become low
speed device
Used by Insyde debugger 0xD5 DDT Cable Transmission
Error (Get descriptor fail)
Used by Insyde debugger 0xD6 DDT Cable Transmission
Error (Set Debug mode fail)
Used by Insyde debugger 0xD7 DDT Cable Transmission
Error (Set address fail)
CHAPTER 5
Jumper and Connector Locations
5-2
Jumper and Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Clearing Password Check and BIOS Recovery. . . . . . . . . . . . . . . 5-5
Clearing Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
BIOS Recovery by Crisis Disk. . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
5-3
Jumper and Connector Locations 0
Mainboard 0
Figure 5-1. Mainboard Top
Table 5-1. Mainboard Top
Item Description Item Description
JLVDS1 LVDS Connector JMIC2 MIC Connector
JKB1 Keyboard Connector JSPK2 Speaker Connector
JLED1 Power Board Connector JODD1 ODD Board Connector
JTP1 Touch Pad Connector JUSB2 USB Board Connector
JSPK1 Speaker Connector JCR1 Card Reader Connector
JLED1
JLVDS1
JSPK1
JSPK2
JMIC2
JKB1
JODD1
JTP1
JUSB2
JCR1
5-4
Figure 5-2. Mainboard Bottom
Table 5-2. Mainboard Bottom
Item Description Item Description
PJP1 DC-IN Connector JFAN 1 FAN Connector
JCPU1 CPU Socket JMIC1 Audio Jack (MIC)
JUSB1 USB Connector JHP1 Audio Jack (Earphone)
JCRT1 D-SUB Connector JRJ45 RJ45
PJP2 Battery Connector JHDD1 SATA HDD Connector
JDIMM2 DDR3 Socket H4.0 mm JMINI1 Mini PCI
JDIMM1 DDR3 Socket H8.0 mm H18 MINI PCI STANDOFF
PJP2
PJP1
JCPU1
JFAN1
JCRT1
JRJ45
JDIMM1
JDIMM2 JMIC1
JHP1
JMINI1
H18
JHDD1 JUSB1
5-5
Clearing Password Check and BIOS Recovery 0
This section provides users with the standard operating procedures of clearing password and
BIOS recovery for the Aspire AS5333/AS5733/AS5733Z. The machine provides one
Hardware Open Gap on main board for clearing password check, and one Hotkey for enabling
BIOS Recovery.
Clearing Password 0
NOTE:
NOTE:
The following procedure is only for clearing BIOS Password (Supervisor Password and
User Password).
Clearing BIOS Password 0
If a BIOS password (Supervisor Password and/or User Password) is set, the BIOS will prompt
for the password at system POST or upon entering the BIOS setup menu. Clear the password
check with the following procedure:
1. Remove AC adapter.
2. Locate the RTC_RST point (A) (Figure 5-3).
Figure 5-3. CMOS Jumper Overview
3. Short two points of jumpers (A). (Figure 5-4)
A
AA
5-6
Figure 5-4. CMOS Jumper
4. Plug in AC adapter.
5. Press Power button until BIOS POST is finished.
6. Remove conductivity tool from RCT_RST point.
7. Restart the system and press F2 to enter BIOS Utility Setup menu.
8. If no password prompt is shown, BIOS password is cleared.
9. If password prompt is shown, repeat steps 1 through 7.
Item Description
R127/R130 Clear CMOS Jumper
5-7
BIOS Recovery by Crisis Disk 0
BIOS Recovery Boot Block 0
BIOS Recovery Boot Block is a special block of BIOS. It is used to boot up the system with
minimum BIOS initialization. Users can enable this feature to restore the BIOS firmware if a
previous BIOS flashing process has failed.
BIOS Recovery Hotkey 0
To enable the BIOS Recovery process, use the function hotkey, Fn + Esc, during BIOS
POST. The AC adapter and battery are required to be installed during this process.
Steps for BIOS Recovery using USB HDD 0
NOTE:
NOTE:
Prior to performing the recovery, prepare a Crisis USB key. The Crisis USB key is
created by executing the Crisis Disk program in another system with Windows® 7 OS.
To Create a Crisis USB key, perform the following:
1. Format USB HDD using the Quick Format option (Figure 5-5).
Figure 5-5. Format HDD
5-8
2. Copy ROM (read-only memory) file, Q5WP2X64.fd, to root directory of USB HDD. Make
sure that there is no other BIOS file is saved in the same directory.
3. Insert USB HDD into USB port.
4. Press Fn + ESC button and hold while plugging in AC power adapter.
5. The Power button flashes once.
6. Press Power button to initiate system CRISIS mode.
7. When CRISIS is complete, the system auto restarts with a workable BIOS.
8. Update the latest BIOS version for this machine by the regular BIOS flashing process.
CHAPTER 6
FRU (Field Replaceable Unit) List
6-2
Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Upper Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
LCD Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Screw List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
FRU (Field Replaceable Unit) List 6-3
FRU (Field Replaceable Unit) List
This chapter provides users with a FRU (Field Replaceable Unit) listing in global
configurations for the Aspire AS5333/AS5733/AS5733Z. Refer to this chapter whenever
ordering for parts to repair or for RMA (Return Merchandise Authorization).
NOTE:
NOTE:
When ordering FRU parts, check the most up-to-date information available on the
regional web or channel. Part number changes will not be noted on the printed Service
Guide. For Acer Authorized Service Providers, the Acer office may have a different part
number code from those given in the FRU list of this printed Service Guide. Users
MUST use the local FRU list provided by the regional Acer office to order FRU parts for
repair and service of customer machines.
NOTE:
NOTE:
To scrap or to return the defective parts, users should follow the local government
ordinance or regulations on how to dispose it properly, or follow the rules set by the
regional Acer office on how to return it.
6-4 FRU (Field Replaceable Unit) List
Exploded Diagrams 0
Main Assembly 0
Figure 6-1. Main Assembly Exploded Diagram
Table 6-1. Main Assembly Exploded Diagram
No. Description P/N No. Description P/N
1 Upper Cover 60.RJW02.001 2 FAN Module 23.R4F02.001
3 Thermal Module
(UMA) 60.R4F02.006 4 Mainboard MB.RJW02.001
5 USB Board 55.R4F02.002 6 ODD Board 55.R4F02.003
7 Lover Cover 60.RJW02.002 8 Lower Logic Door 42.R4F02.001
1
2
3
4
5
6
7
8
7
inner outer
FRU (Field Replaceable Unit) List 6-5
Upper Cover Assembly 0
Figure 6-2. Upper Cover Assembly
Table 6-2. Upper Cover Assembly
No. Description P/N No. Description P/N
1 Touchpad 2 Touchpad FFC 50.R4F02.003
3 Right Speaker 23.RJW02.001 4 Left Speaker 23.R4F02.003
5 Power Board 55.RJW02.001 6 Lower Cover 60.RJW02.002
1
2
3
4
5
6
6-6 FRU (Field Replaceable Unit) List
LCD Assembly 0
Figure 6-3. LCD Assembly Exploded Diagram
Table 6-3. LCD Assembly
No. Description P/N No. Description P/N
1 LCD Bezel 60.RJW02.004 2 LCD Panel LK.15605.019
3 LVDS Cable 50.R4F02.009 4 Left Bracket 33.R4F02.004
5 Right Bracket 33.R4F02.004 6 Camera 57.RJW02.001
7 LCD Cover 60.RJW02.003
1
2
3
45
6
7
FRU (Field Replaceable Unit) List 6-7
FRU List 0
Table 6-4. FRU List
Category Description P/N
ADAPTER
Adapter DELTA 65W 19V 1.7x5.5x11 Yellow
ADP-65JH DB A, LV5 LED LF AP.06501.026
Adapter LITE-ON 65W 19V 1.7x5.5x11 Yellow
PA-1650-22AC LV5 LED LF AP.06503.024
Adapter HIPRO 65W 19V 1.7x5.5x11 Yellow
HP-A0652R3B 1LF, LV5 LED LF AP.0650A.012
BATTERY
Battery SANYO AS10D Li-Ion 3S2P SANYO 6 cell
4400mAh Main COMMON new IC BQ8055 BT.00603.124
Battery SONY AS10D Li-Ion 3S2P SONY 6 cell
4400mAh Main COMMON ID:AS10D41 BT.00604.049
Battery PANASONIC AS10D Li-Ion 3S2P
PANASONIC 6 cell 4400mAh Main COMMON
ID:AS10D51
BT.00605.062
Battery SAMSUNG AS10D Li-Ion 3S2P SAMSUNG 6
cell 4400mAh Main COMMON ID:AS10D61 BT.00606.008
Battery SIMPLO AS10D Li-Ion 3S2P PANASONIC 6
cell 4400mAh Main COMMON ID:AS10D71 BT.00607.125
Battery SIMPLO AS10D Li-Ion 3S2P LGC 6 cell
4400mAh Main COMMON ID:AS10D73 BT.00607.126
Battery SIMPLO AS10D Li-Ion 3S2P SAMSUNG 6
cell 4400mAh Main COMMON ID:AS10D BT.00607.127
BOARD
POWER BOARD-UMA FOR
AS5333,AS5733,AS5733Z 55.RJW02.001
USB BOARD-UMA 55.R4F02.002
ODD BOARD-UMA 55.R4F02.003
6-8 FRU (Field Replaceable Unit) List
FOXCONN WIRELESS LAN BROADCOMM 43225
2X2 BGN (HM) T77H103.00 NI.23600.066
FOXCONN WIRELSS LAN ATHEROS HB95 1X1
BGN (HM) T77H121.01 NI.23600.068
LITEON WIRELESS LAN ATHEROS HB95 1X1 BGN
(HM) WN6601AH NI.23600.070
FOXCONN WIRELSS LAN BROADCOM 4313 1X1
BGN (HM) T77H194.00 NI.23600.076
CABLE
TP FFC 50.R4F02.003
DC-IN CABLE-65W 50.R4F02.004
POWER CORD US 3 PIN 27.TAVV5.001
POWER CORD EU 3 PIN 27.TAVV5.002
POWER CORD AUS 3 PIN 27.TAVV5.003
POWER CORD UK 3 PIN 27.TAVV5.004
POWER CORD CHINA 3 PIN 27.TAVV5.005
POWER CORD SWISS 3 PIN 27.TAVV5.006
POWER CORD ITALIAN 3 PIN 27.TAVV5.007
POWER CORD DENMARK 3 PIN 27.TAVV5.008
POWER CORD JP 3 PIN 27.TAVV5.009
POWER CORD SOUTH AFRICA 3 PIN 27.TAVV5.010
POWER CORD KOREA 3 PIN 27.TAVV5.011
POWER CORD ISRAEL 3 PIN 27.TAVV5.012
POWER CORD INDIA 3 PIN 27.TAVV5.013
POWER CORD TWN 3 PIN 27.TAVV5.014
POWER CORD ARGENTINA 3 PIN 27.APV02.001
POWER CORD 3 PIN BRAZIL 27.SAD02.001
Table 6-4. FRU List (Continued)
Category Description P/N
FRU (Field Replaceable Unit) List 6-9
CASE/COVER/BRACKET ASSEMBLY
UPPER CASE ASSY INCL TP & NAMEPLATE -
ASPIRE 60.RJW02.001
LOWER CASE-UMA FOR AS5333,AS5733,AS5733Z 60.RJW02.002
UNILOAD DOOR-UMA 42.R4F02.001
HDD CARRIER-UMA 33.R4F02.001
CPU/PROCESSOR
CPU Intel Pentium Dual-Core P6100 PGA 2.0G 35W
K0 Max DDR3-1066 KC.61001.DPP
CPU Intel Pentium Dual-Core P6200 PGA 2.13G 35W
K0 Max DDR3-1066 KC.62001.DPP
CPU Intel Pentium Dual-Core P6300 PGA 2.26G 35W
K0 Max DDR3-1066 KC.63001.DPP
CPU Intel Core i3 370M PGA 2.4G 35W K-0 TJ90, VT KC.37K01.DMP
CPU Intel Core i3 380M PGA 2.53G 35W K-0 TJ90,
VT KC.38K01.DMP
ODD MODULE
ODD SUPER-MULTI DRIVE MODULE 6M.RJW02.001
ODD BEZEL-SM 42.R4F02.002
ODD BRACKET 33.R4F02.002
Table 6-4. FRU List (Continued)
Category Description P/N
6-10 FRU (Field Replaceable Unit) List
ODD PANASONIC Super-Multi DRIVE 12.7mm Tray
DL 8X UJ8A0 LF W/O bezel SATA (HF + Windows 7)
Foxconn Yentai Facotry
KU.00807.075
ODD PANASONIC Super-Multi DRIVE 12.7mm Tray
DL 8X UJ8B0 LF W/O bezel SATA (HF + ZP) Foxconn
Yentai Facotry
KU.00807.078
ODD PIONEER Super-Multi DRIVE 12.7mm Tray DL
8X DVR-TD10RS LF W/O bezel 1.00 SATA KU.00805.049
ODD TOSHIBA Super-Multi DRIVE 12.7mm Tray DL
8X TS-L633F LF W/O bezel AC01 SATA Fix
PowerDVD 10 Issue (HF + Windows 7)
KU.00801.041
ODD PLDS Super-Multi DRIVE 12.7mm Tray DL 8X
DS-8A5SH LF+HF W/O bezel SATA With TI + Rohm
Solution (HF + Windows 7)
KU.0080F.014
ODD HLDS Super-Multi DRIVE 12.7mm Tray DL 8X
GT34N LF W/O bezel SATA Zero Power Supported,
PCC LD (HF + Windows 7)
KU.0080D.057
ODD HLDS Super-Multi DRIVE 12.7mm Tray DL 8X
GT32N (R5-2) LF W/O bezel SATA with Renesas
solution + PCC LD (HF + Windows 7)
KU.0080D.055
HDD/HARD DISK DRIVE
HDD SEAGATE 2.5" 5400rpm 250GB ST9250315AS,
9HH132-189, Wyatt with new pcb SATA 8MB LF
F/W:0001SDM1
KH.25001.019
HDD HGST 2.5" 5400rpm 250GB
HTS545025B9A300 Panther B SATA LF F/W:C60F
Disk imbalance criteria = 0.014g-cm
KH.25007.016
HDD TOSHIBA 2.5" 5400rpm 250GB
MK2559GSXP,Capricorn 3BS, 4K drive, 375G/P
SATA 8MB LF+HF F/W:GN003J 4K drive
KH.25004.006
HDD WD 2.5" 5400rpm 250GB
WD2500BPVT-22ZEST0,ML320S-AF, 4K drive SATA
8MB LF F/W:01.01A01 4K drive
KH.25008.029
HDD SEAGATE 2.5" 5400rpm 320GB
ST9320310AS,9RN132-188, Cameron 320G/P SATA
8MB LF F/W:0001SDM1
KH.32001.019
HDD HGST 2.5" 5400rpm 320GB
HTS545032B9A300 Panther B SATA LF F/W:C60F
Disk imbalance criteria = 0.014g-cm
KH.32007.008
HDD TOSHIBA 2.5" 5400rpm 320GB MK3259GSXP,
Capricorn 3BS, 375G/P, 4K drive SATA 8MB LF+HF
F/W:GN003J 4K
KH.32004.005
Table 6-4. FRU List (Continued)
Category Description P/N
FRU (Field Replaceable Unit) List 6-11
HDD SEAGATE 2.5" 5400rpm 320GB ST320LT020
/9YG142-188, Sapta 15,320G/P SATA 8MB LF+HF
F/W:0001SDM1
KH.32001.021
HDD HGST 2.5" 5400rpm 500GB
HTS545050B9A300 Panther B SATA LF F/W:C60F
Disk imbalance criteria = 0.014g-cm
KH.50007.010
HDD TOSHIBA 2.5" 5400rpm 500GB MK5059GSXP,
Capricron 3BS, 375G/P SATA 8MB LF+HF
F/W:GN003J 4K
KH.50004.003
HDD WD 2.5" 5400rpm 500GB
WD5000BPVT-22HXZT1,ML375_AF, 4K drive SATA
8MB LF+HF F/W:01.01A01
KH.50008.021
HDD SEAGATE 2.5" 5400rpm 640GB
ST9640320AS,9RN134-189, Cameron, 320G/P SATA
8MB LF F/W:0001SDM1
KH.64001.004
HDD TOSHIBA 2.5" 5400rpm 640GB MK6459GSXP,
Capricron 3BS, 375G/P SATA 8MB LF+HF
F/W:GN003J 4K
KH.64004.003
HDD HGST 2.5" 5400rpm 640GB
HTS547564A9E384,Jet B, 375G/P SATA 8MB LF+HF
F/W:DA3872
KH.64007.003
HDD WD 2.5" 5400rpm 640GB
WD6400BPVT-22HXZT1, ML375M SATA 8MB LF
F/W: 01.01A01
KH.64008.005
HDD TOSHIBA 2.5" 5400rpm 750GB MK7559GSXP,
375G/P, Capricorn BS, 4K drive SATA 8MB LF+HF
F/W:GN003J
KH.75004.001
HDD WD 2.5" 5400rpm 750GB
WD7500BPVT-22HXZT1, ML375M, 4K drive SATA
8MB LF F/W:01.01A01
KH.75008.009
HDD HGST 2.5" 5400rpm 750GB
HTS547575A9E384, Jet B, 375G/P SATA 8MB LF
F/W:DA3872
KH.75007.004
HDD SEAGATE 2.5" 5400rpm 750GB
ST9750423AS,9ZW14G-188, Desaru5, 375G/P.
SATA 8MB LF+HF F/W:0001SDM1
KH.75001.011
KEYBOARD
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 103KS Black US International Texture KB.I170A.172
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 103KS Black Greek Texture KB.I170A.156
Table 6-4. FRU List (Continued)
Category Description P/N
6-12 FRU (Field Replaceable Unit) List
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 103KS Black Arabic Texture KB.I170A.147
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 103KS Black Chinese Texture KB.I170A.151
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 103KS Black Russian Texture KB.I170A.164
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 103KS Black US International w/ Hebrew
Texture
KB.I170A.173
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 103KS Black Thailand Texture KB.I170A.169
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black UK Texture KB.I170A.171
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black German Texture KB.I170A.155
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Swiss/G Texture KB.I170A.168
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Belgium Texture KB.I170A.148
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Danish Texture KB.I170A.152
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Italian Texture KB.I170A.158
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black French Texture KB.I170A.154
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Hungarian Texture KB.I170A.157
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Norwegian Texture KB.I170A.162
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Portuguese Texture KB.I170A.163
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Spanish Texture KB.I170A.166
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black US w/ Canadian French
Texture
KB.I170A.174
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Turkish Texture KB.I170A.170
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Sweden Texture KB.I170A.167
Table 6-4. FRU List (Continued)
Category Description P/N
FRU (Field Replaceable Unit) List 6-13
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black FR/Arabic Texture KB.I170A.153
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Nordic Texture KB.I170A.161
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black SLO/CRO Texture KB.I170A.165
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black CZ/SK Texture KB.I170A.150
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Brazilian Portuguese Texture KB.I170A.149
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 107KS Black Japanese Texture KB.I170A.159
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 103KS Black Korean Texture KB.I170A.160
Keyboard ACER AC7T_A10B AC7T Internal 17
Standard 104KS Black Bulgaria Texture KB.I170A.288
LCD
ASSY LED LCD MODULE 15.6''W WXGA GLARE
W/ANTENNA*2, CCD 0.3M, ASPIRE 6M.RJW02.002
LED COVER BLACK FOR ASPIRE 60.RJW02.003
LCD BEZEL FOR W/CMOS - AS5733 & AS5333 &
AS5250 60.RJW02.004
ANTENNA WLAN-MAIN 50.R4F02.005
Table 6-4. FRU List (Continued)
Category Description P/N
6-14 FRU (Field Replaceable Unit) List
LED CABLE FOR W/CMOS 50.R4F02.009
LED BRACKET R&L 33.R4F02.004
CAMERA 0.3M - AS5333,AS5733,AS5733Z 57.RJW02.001
LED LCD AUO 15.6"W WXGA Glare B156XW02 V6
LF 200nit 8ms 400:1 LK.15605.019
LED LCD CMO 15.6"W WXGA Glare N156B6-L0B LF
220nit 8ms 650:1 LK.1560D.010
LCD
ANTENNA WLAN-MAIN 50.R4F02.005
LED CABLE FOR W/CMOS 50.R4F02.009
LED BRACKET R&L 33.R4F02.004
CAMERA 0.3M - AS5333,AS5733,AS5733Z 57.RJW02.001
LED LCD AUO 15.6"W WXGA Glare B156XW02 V6
LF 200nit 8ms 400:1 LK.15605.019
LED LCD CMO 15.6"W WXGA Glare N156B6-L0B LF
220nit 8ms 650:1 LK.1560D.010
Table 6-4. FRU List (Continued)
Category Description P/N
FRU (Field Replaceable Unit) List 6-15
MAINBOARD
Mainboard AS5733Z Intel HM55 LF HMA51_CP (NO
HDMI) MB.RJW02.001
MEMORY
Memory UNIFOSA SO-DIMM DDRIII 1333 1GB
GU672203EP0200 LF 128*8 0.065um KN.1GB0H.017
Memory KINGSTON SO-DIMM DDRIII 1333 1GB
ACR128X64D3S1333C9 LF 128*8 0.065um KN.1GB07.004
Memory NANYA SO-DIMM DDRIII 1333 1GB
NT1GC64BH4B0PS-CG LF 128*16 0.055um KN.1GB03.034
Memory KINGSTON SO-DIMM DDRIII 1333 2GB
ACR256X64D3S1333C9 LF 128*8 0.065um KN.2GB07.004
Memory ELPIDA SO-DIMM DDRIII 1333 2GB
EBJ20UF8BCS0-DJ-F LF 256*8 46nm KN.2GB09.010
Memory NANYA SO-DIMM DDRIII 1333 2GB
NT2GC64B88B0NS-CG LF 256*8 0.055um KN.2GB03.021
Memory ELPIDA SO-DIMM DDRIII 1333 4GB
EBJ41UF8BCS0-DJ-F LF 256*8 46nm KN.4GB09.002
Memory NANYA SO-DIMM DDRIII 1333 4GB
NT4GC64B8HB0NS-CG LF 256*8 0.055um KN.4GB03.005
HEATSINK
THERMAL MODULE-UMA W/O FAN 60.R4F02.006
FAN-UMA 23.R4F02.001
SPEAKER
MIC SET-UMA 23.R4F02.002
Table 6-4. FRU List (Continued)
Category Description P/N
6-16 FRU (Field Replaceable Unit) List
SPEAKER L 23.R4F02.003
SPEAKER R - AS5733Z 23.RJW02.001
MISCELLANEOUS
LCD SCREW PAD 47.R4F02.001
Table 6-4. FRU List (Continued)
Category Description P/N
FRU (Field Replaceable Unit) List 6-17
Screw List 0
Table 6-5. Screw List
Category Description P/N
SCREW
SCREW 2.5D 5L K 5.5D ZK NL + CR3 86.R4F02.001
SCREW 2.45D 8.0L K 5.5D 0.8T ZK NL 86.R4F02.002
SCREW 2.5D 6L K 5.5D NI NL 86.R4F02.003
SCREW 1.98D 3.0L K 4.6D 0.8T ZK NL 86.R4F02.004
SCREW 3.0D 3.0L K 4.9D NI 86.R4F02.005
SCREW 2.5D 3.2L K 6D NI 86.R4F02.006
SCREW 2.0D 3L K 3.5D ZK NL 86.R4F02.007
SCREW ASSY CPU THERMAL 86.R4F02.008
6-18 FRU (Field Replaceable Unit) List
CHAPTER 7
Model Definition and Configuration
7-2
Aspire AS5333 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Aspire AS5733 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Aspire AS5733Z . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
Model Definition and Configuration 7-3
Model Definition and Configuration
Aspire AS5333 0
Table 7-1. RO & Description
Model Country P/N RO Description
AS5333-P462G32Mikk WW S2.RNC02.001 WW AS5333-P462G32Mikk
W7HP64ASWW1 MC UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_0.3C
_AN_ES62
AS5333-P463G32Mikk CA LX.RNC02.001 PA AS5333-P463G32Mikk
W7HP64ASCA2 MC UMACkk_3
2G+1G/320/6L2.2/2R/CB_GN_0.3
C_AN_FR85SP1
AS5333-P463G32Mikk CA LX.RNC02.002 PA AS5333-P463G32Mikk
W7HP64ASCA2 MC UMACkk_3
2G+1G/320/6L2.2/2R/CB_GN_0.3
C_AN_FR86SP1
Table 7-2. CPU, VGA Chip & Memory 1
Model Country P/N CPU VGA Chip Memory 1
AS5333-P462G32Mikk WW S2.RNC02.001 CMP4600 UMA SO2GBIII10
AS5333-P463G32Mikk CA LX.RNC02.001 CMP4600 UMA SO2GBIII10
AS5333-P463G32Mikk CA LX.RNC02.002 CMP4600 UMA SO2GBIII10
Table 7-3. Memory 2 & HDD 1
Model Country P/N Memory 2 HDD 1(GB)
AS5333-P462G32Mikk WW S2.RNC02.001 N N320GB5.4KS_4K
AS5333-P463G32Mikk CA LX.RNC02.001 SO1GBIII10 N320GB5.4KS_4K
AS5333-P463G32Mikk CA LX.RNC02.002 SO1GBIII10 N320GB5.4KS_4K
Table 7-4. ODD & Wireless LAN1
Model Country P/N ODD Wireless LAN1
AS5333-P462G32Mikk WW S2.RNC02.001 NSM8XS 3rd WiFi 1x1 BGN
AS5333-P463G32Mikk CA LX.RNC02.001 NSM8XS 3rd WiFi 1x1 BGN
AS5333-P463G32Mikk CA LX.RNC02.002 NSM8XS 3rd WiFi 1x1 BGN
7-4 Model Definition and Configuration
Aspire AS5733 0
Table 7-5. NB Chipset, Battery & Adapter
Model Country P/N NB Chipset Battery Adapter
AS5333-P462G32Mikk WW S2.RNC02.001 HM55 6CELL2.2 65W
AS5333-P463G32Mikk CA LX.RNC02.001 HM55 6CELL2.2 65W
AS5333-P463G32Mikk CA LX.RNC02.002 HM55 6CELL2.2 65W
Table 7-6. RO & Description
Model Country P/N RO Description
AS5733-372G32Mikk AU/NZ LX.RN502.007 AAP AS5733-372G32Mikk
W7HP64ASAU1 MC UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62
AS5733-372G32Mikk MOYO LX.RN501.001 EMEA AS5733-372G32Mikk EM
W7HB64EMASME1 MC
UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_0.3
C_AN_ARA1SP1
AS5733-372G32Mikk WW S2.RN502.001 WW AS5733-372G32Mikk
W7HP64ASWW1 MC UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_0.3
C_AN_ES62
AS5733-372G50Mikk AU/NZ LX.RN502.008 AAP AS5733-372G50Mikk
W7HP64ASAU1 MC UMACkk_3
1*2G/500/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62SP1
AS5733-373G32Mikk UK LX.RN502.018 EMEA AS5733-373G32Mikk
W7HP64ASGB1 MC UMACkk_3
2G+1G/320/6L2.2/2R/CB_GN_0.
3C_AN_EN11SP1
AS5733-373G50Mikk UK LX.RN502.013 EMEA AS5733-373G50Mikk
W7HP64ASGB1 MC UMACkk_3
2G+1G/500_L/6L2.2/2R/CB_GN
_0.3C_AN_EN11SP1
AS5733-374G32Mikk AU/NZ LX.RN502.010 AAP AS5733-374G32Mikk
W7HP64ASAU1 MC UMACkk_3
1*4G/320/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62SP1
Model Definition and Configuration 7-5
AS5733-374G32Mikk UK LX.RN502.016 EMEA AS5733-374G32Mikk
W7HP64ASGB1 MC UMACkk_3
1*4G/320/6L2.2/2R/CB_GN_0.3
C_AN_EN11SP1
AS5733-374G50Mikk AU/NZ LX.RN502.009 AAP AS5733-374G50Mikk
W7HP64ASAU1 MC UMACkk_3
1*4G/500/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62SP1
AS5733-374G50Mikk DE LX.RN502.017 EMEA AS5733-374G50Mikk
W7HP64ASDE1 MC UMACkk_3
2*2G/500_L/6L2.2/2R/CB_GN_0.
3C_AN_DE11SP1
AS5733-374G50Mikk UK LX.RN502.019 EMEA AS5733-374G50Mikk
W7HP64ASGB1 MC UMACkk_3
1*4G/500_L/6L2.2/2R/CB_GN_0.
3C_AN_EN11SP1
AS5733-374G64Mikk AU/NZ LX.RN502.011 AAP AS5733-374G64Mikk
W7HP64ASAU1 MC UMACkk_3
1*4G/640/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62SP1
AS5733-374G64Mikk UK LX.RN502.014 EMEA AS5733-374G64Mikk
W7HP64ASGB1 MC UMACkk_3
1*4G/640/6L2.2/2R/CB_GN_0.3
C_AN_EN11SP1
AS5733-375G50Mikk UK LX.RN502.020 EMEA AS5733-375G50Mikk
W7HP64ASGB1 MC UMACkk_3
4G+1G/500_L/6L2.2/2R/CB_GN
_0.3C_AN_EN11SP1
AS5733-376G32Mikk UK LX.RN502.015 EMEA AS5733-376G32Mikk
W7HP64ASGB1 MC UMACkk_3
4G+2G/320/6L2.2/2R/CB_GN_0.
3C_AN_EN11SP1
AS5733-382G32Mikk AU/NZ LX.RN502.005 AAP AS5733-382G32Mikk
W7HP64ASAU1 MC UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62
AS5733-382G50Mikk AU/NZ LX.RN502.003 AAP AS5733-382G50Mikk
W7HP64ASAU1 MC UMACkk_3
1*2G/500/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62
AS5733-384G32Mikk AU/NZ LX.RN502.004 AAP AS5733-384G32Mikk
W7HP64ASAU1 MC UMACkk_3
1*4G/320/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62
Table 7-6. RO & Description (Continued)
Model Country P/N RO Description
7-6 Model Definition and Configuration
AS5733-384G32Mikk DE LX.RN502.001 EMEA AS5733-384G32Mikk
W7HP64ASDE1 MC UMACkk_3
1*4G/320/6L2.2/2R/CB_GN_0.3
C_AN_DE11
AS5733-384G50Mikk AU/NZ LX.RN502.006 AAP AS5733-384G50Mikk
W7HP64ASAU1 MC UMACkk_3
1*4G/500/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62
AS5733-384G64Mikk AU/NZ LX.RN502.012 AAP AS5733-384G64Mikk
W7HP64ASAU1 MC UMACkk_3
1*4G/640/6L2.2/2R/CB_GN_0.3
C_outer_AN_ES62SP1
AS5733-384G64Mikk RO LX.RN50C.001 EMEA AS5733-384G64Mikk
LinpusMGARO2 UMACkk_3
2*2G/640/6L2.2/2R/CB_GN_0.3
C_AN_RO21
Table 7-7. CPU, VGA Chip & Memory 1
Model Country P/N CPU VGA Chip Memory 1
AS5733-372G32Mikk AU/NZ LX.RN502.007 Ci3370M UMA SO2GBIII10
AS5733-372G32Mikk MOYO LX.RN501.001 Ci3370M UMA SO2GBIII10
AS5733-372G32Mikk WW S2.RN502.001 Ci3370M UMA SO2GBIII10
AS5733-372G50Mikk AU/NZ LX.RN502.008 Ci3370M UMA SO2GBIII10
AS5733-373G32Mikk UK LX.RN502.018 Ci3370M UMA SO2GBIII10
AS5733-373G50Mikk UK LX.RN502.013 Ci3370M UMA SO2GBIII10
AS5733-374G32Mikk AU/NZ LX.RN502.010 Ci3370M UMA SO4GBIII10
AS5733-374G32Mikk UK LX.RN502.016 Ci3370M UMA SO4GBIII10
AS5733-374G50Mikk AU/NZ LX.RN502.009 Ci3370M UMA SO4GBIII10
AS5733-374G50Mikk DE LX.RN502.017 Ci3370M UMA SO2GBIII10
AS5733-374G50Mikk UK LX.RN502.019 Ci3370M UMA SO4GBIII10
AS5733-374G64Mikk AU/NZ LX.RN502.011 Ci3370M UMA SO4GBIII10
AS5733-374G64Mikk UK LX.RN502.014 Ci3370M UMA SO4GBIII10
AS5733-375G50Mikk UK LX.RN502.020 Ci3370M UMA SO4GBIII10
AS5733-376G32Mikk UK LX.RN502.015 Ci3370M UMA SO4GBIII10
AS5733-382G32Mikk AU/NZ LX.RN502.005 Ci3380M UMA SO2GBIII10
AS5733-382G50Mikk AU/NZ LX.RN502.003 Ci3380M UMA SO2GBIII10
AS5733-384G32Mikk AU/NZ LX.RN502.004 Ci3380M UMA SO4GBIII10
Table 7-6. RO & Description (Continued)
Model Country P/N RO Description
Model Definition and Configuration 7-7
AS5733-384G32Mikk DE LX.RN502.001 Ci3380M UMA SO4GBIII10
AS5733-384G50Mikk AU/NZ LX.RN502.006 Ci3380M UMA SO4GBIII10
AS5733-384G64Mikk AU/NZ LX.RN502.012 Ci3380M UMA SO4GBIII10
AS5733-384G64Mikk RO LX.RN50C.001 Ci3380M UMA SO2GBIII10
Table 7-8. Memory 2 & HDD 1
Model Country P/N Memory 2 HDD 1(GB)
AS5733-372G32Mikk AU/NZ LX.RN502.007 N N320GB5.4KS_4K
AS5733-372G32Mikk MOYO LX.RN501.001 N N320GB5.4KS_4K
AS5733-372G32Mikk WW S2.RN502.001 N N320GB5.4KS_4K
AS5733-372G50Mikk AU/NZ LX.RN502.008 N N500GB5.4KS_4K
AS5733-373G32Mikk UK LX.RN502.018 SO1GBIII10 N320GB5.4KS_4K
AS5733-373G50Mikk UK LX.RN502.013 SO1GBIII10 N500GB5.4KS_4K
AS5733-374G32Mikk AU/NZ LX.RN502.010 N N320GB5.4KS_4K
AS5733-374G32Mikk UK LX.RN502.016 N N320GB5.4KS_4K
AS5733-374G50Mikk AU/NZ LX.RN502.009 N N500GB5.4KS_4K
AS5733-374G50Mikk DE LX.RN502.017 SO2GBIII10 N500GB5.4KS_4K
AS5733-374G50Mikk UK LX.RN502.019 N N500GB5.4KS_4K
AS5733-374G64Mikk AU/NZ LX.RN502.011 N N640GB5.4KS_4K
AS5733-374G64Mikk UK LX.RN502.014 N N640GB5.4KS_4K
AS5733-375G50Mikk UK LX.RN502.020 SO1GBIII10 N500GB5.4KS_4K
AS5733-376G32Mikk UK LX.RN502.015 SO2GBIII10 N320GB5.4KS_4K
AS5733-382G32Mikk AU/NZ LX.RN502.005 N N320GB5.4KS_4K
AS5733-382G50Mikk AU/NZ LX.RN502.003 N N500GB5.4KS_4K
AS5733-384G32Mikk AU/NZ LX.RN502.004 N N320GB5.4KS_4K
AS5733-384G32Mikk DE LX.RN502.001 N N320GB5.4KS_4K
AS5733-384G50Mikk AU/NZ LX.RN502.006 N N500GB5.4KS_4K
AS5733-384G64Mikk AU/NZ LX.RN502.012 N N640GB5.4KS_4K
AS5733-384G64Mikk RO LX.RN50C.001 SO2GBIII10 N640GB5.4KS
Table 7-7. CPU, VGA Chip & Memory 1 (Continued)
Model Country P/N CPU VGA Chip Memory 1
7-8 Model Definition and Configuration
Table 7-9. ODD & Wireless LAN1
Model Country P/N ODD Wireless LAN1
AS5733-372G32Mikk AU/NZ LX.RN502.007 NSM8XS 3rd WiFi 1x1 BGN
AS5733-372G32Mikk MOYO LX.RN501.001 NSM8XS 3rd WiFi 1x1 BGN
AS5733-372G32Mikk WW S2.RN502.001 NSM8XS 3rd WiFi 1x1 BGN
AS5733-372G50Mikk AU/NZ LX.RN502.008 NSM8XS 3rd WiFi 1x1 BGN
AS5733-373G32Mikk UK LX.RN502.018 NSM8XS 3rd WiFi 1x1 BGN
AS5733-373G50Mikk UK LX.RN502.013 NSM8XS 3rd WiFi 1x1 BGN
AS5733-374G32Mikk AU/NZ LX.RN502.010 NSM8XS 3rd WiFi 1x1 BGN
AS5733-374G32Mikk UK LX.RN502.016 NSM8XS 3rd WiFi 1x1 BGN
AS5733-374G50Mikk AU/NZ LX.RN502.009 NSM8XS 3rd WiFi 1x1 BGN
AS5733-374G50Mikk DE LX.RN502.017 NSM8XS 3rd WiFi 1x1 BGN
AS5733-374G50Mikk UK LX.RN502.019 NSM8XS 3rd WiFi 1x1 BGN
AS5733-374G64Mikk AU/NZ LX.RN502.011 NSM8XS 3rd WiFi 1x1 BGN
AS5733-374G64Mikk UK LX.RN502.014 NSM8XS 3rd WiFi 1x1 BGN
AS5733-375G50Mikk UK LX.RN502.020 NSM8XS 3rd WiFi 1x1 BGN
AS5733-376G32Mikk UK LX.RN502.015 NSM8XS 3rd WiFi 1x1 BGN
AS5733-382G32Mikk AU/NZ LX.RN502.005 NSM8XS 3rd WiFi 1x1 BGN
AS5733-382G50Mikk AU/NZ LX.RN502.003 NSM8XS 3rd WiFi 1x1 BGN
AS5733-384G32Mikk AU/NZ LX.RN502.004 NSM8XS 3rd WiFi 1x1 BGN
AS5733-384G32Mikk DE LX.RN502.001 NSM8XS 3rd WiFi 1x1 BGN
AS5733-384G50Mikk AU/NZ LX.RN502.006 NSM8XS 3rd WiFi 1x1 BGN
AS5733-384G64Mikk AU/NZ LX.RN502.012 NSM8XS 3rd WiFi 1x1 BGN
AS5733-384G64Mikk RO LX.RN50C.001 NSM8XS 3rd WiFi 1x1 BGN
Table 7-10. NB Chipset, Battery & Adapter
Model Country P/N NB Chipset Battery Adapter
AS5733-372G32Mikk AU/NZ LX.RN502.007 HM55 6CELL2.2 65W
AS5733-372G32Mikk MOYO LX.RN501.001 HM55 6CELL2.2 65W
AS5733-372G32Mikk WW S2.RN502.001 HM55 6CELL2.2 65W
AS5733-372G50Mikk AU/NZ LX.RN502.008 HM55 6CELL2.2 65W
AS5733-373G32Mikk UK LX.RN502.018 HM55 6CELL2.2 65W
AS5733-373G50Mikk UK LX.RN502.013 HM55 6CELL2.2 65W
AS5733-374G32Mikk AU/NZ LX.RN502.010 HM55 6CELL2.2 65W
Model Definition and Configuration 7-9
Aspire AS5733Z 0
AS5733-374G32Mikk UK LX.RN502.016 HM55 6CELL2.2 65W
AS5733-374G50Mikk AU/NZ LX.RN502.009 HM55 6CELL2.2 65W
AS5733-374G50Mikk DE LX.RN502.017 HM55 6CELL2.2 65W
AS5733-374G50Mikk UK LX.RN502.019 HM55 6CELL2.2 65W
AS5733-374G64Mikk AU/NZ LX.RN502.011 HM55 6CELL2.2 65W
AS5733-374G64Mikk UK LX.RN502.014 HM55 6CELL2.2 65W
AS5733-375G50Mikk UK LX.RN502.020 HM55 6CELL2.2 65W
AS5733-376G32Mikk UK LX.RN502.015 HM55 6CELL2.2 65W
AS5733-382G32Mikk AU/NZ LX.RN502.005 HM55 6CELL2.2 65W
AS5733-382G50Mikk AU/NZ LX.RN502.003 HM55 6CELL2.2 65W
AS5733-384G32Mikk AU/NZ LX.RN502.004 HM55 6CELL2.2 65W
AS5733-384G32Mikk DE LX.RN502.001 HM55 6CELL2.2 65W
AS5733-384G50Mikk AU/NZ LX.RN502.006 HM55 6CELL2.2 65W
AS5733-384G64Mikk AU/NZ LX.RN502.012 HM55 6CELL2.2 65W
AS5733-384G64Mikk RO LX.RN50C.001 HM55 6CELL2.2 65W
Table 7-11. RO & Description
Model Country P/N RO Description
AS5733Z-P612G32Mikk MOYO LX.RJW01.002 EMEA AS5733Z-P612G32Mikk EM
W7HB64EMASME1 MC
UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_
0.3C_AN_ARA1SP1
AS5733Z-P613G25Mikk US LX.RJW02.006 PA AS5733Z-P613G25Mikk
W7HP64ASUS1 MC
UMACkk_3
2G+1G/250/6L2.2/2R/CB_GN
_0.3C_AN_FRB9
AS5733Z-P613G50Mikk UK LX.RJW02.019 EMEA AS5733Z-P613G50Mikk
W7HP64ASGB1 MC
UMACkk_3
2G+1G/500_L/6L2.2/2R/CB_
GN_0.3C_AN_EN11SP1
Table 7-10. NB Chipset, Battery & Adapter (Continued)
Model Country P/N NB Chipset Battery Adapter
7-10 Model Definition and Configuration
AS5733Z-P614G50Mikk BE LX.RJW02.016 EMEA AS5733Z-P614G50Mikk
W7HP64ASBE1 MC
UMACkk_3
1*4G/500_L/6L2.2/2R/CB_G
N_0.3C_AN_NL11SP1
AS5733Z-P614G50Mikk CA LX.RJW02.010 PA AS5733Z-P614G50Mikk
W7HP64ASCA2 MC
UMACkk_3
2*2G/500_L/6L2.2/2R/CB_G
N_0.3C_AN_FR86SP1
AS5733Z-P614G50Mikk DE LX.RJW02.008 EMEA AS5733Z-P614G50Mikk
W7HP64ASDE1 MC
UMACkk_3
1*4G/500_L/6L2.2/2R/CB_G
N_0.3C_AN_DE11
AS5733Z-P614G50Mikk FR LX.RJW02.015 EMEA AS5733Z-P614G50Mikk
W7HP64ASFR1 MC
UMACkk_3
2*2G/500_L/6L2.2/2R/CB_G
N_0.3C_AN_FR21SP1
AS5733Z-P614G50Mikk IT LX.RJW02.009 EMEA AS5733Z-P614G50Mikk
W7HP64ASIT1 MC
UMACkk_3
1*4G/500_L/6L2.2/2R/CB_G
N_0.3C_AN_IT11
AS5733Z-P614G50Mikk LU LX.RJW02.018 EMEA AS5733Z-P614G50Mikk
W7HP64ASLU3 MC
UMACkk_3
1*4G/500/6L2.2/2R/CB_GN_
0.3C_AN_IT41SP1
AS5733Z-P614G50Mikk NL LX.RJW02.017 EMEA AS5733Z-P614G50Mikk
W7HP64ASNL1 MC
UMACkk_3
1*4G/500/6L2.2/2R/CB_GN_
0.3C_AN_NL11SP1
AS5733Z-P614G50Mikk US LX.RJW02.007 PA AS5733Z-P614G50Mikk
W7HP64ASUS1 MC
UMACkk_3
2*2G/500_L/6L2.2/2R/CB_G
N_0.3C_AN_FRB9
AS5733Z-P622G25Mikk TR LX.RJW08.002 EMEA AS5733Z-P622G25Mikk EM
W7ST32EMASTR1 MC
UMACkk_3
1*2G/250/6L2.2/2R/CB_GN_
0.3C_AN_TR31
Table 7-11. RO & Description (Continued)
Model Country P/N RO Description
Model Definition and Configuration 7-11
AS5733Z-P622G32Mikk AU/NZ LX.RJW02.012 AAP AS5733Z-P622G32Mikk
W7HP64ASAU1 MC
UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_
0.3C_outer_AN_ES62
AS5733Z-P622G32Mikk RO LX.RJW0C.002 EMEA AS5733Z-P622G32Mikk
LinpusMGARO2 UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_
0.3C_AN_RO21
AS5733Z-P622G32Mikk RU LX.RJW08.001 EMEA AS5733Z-P622G32Mikk
W7ST32RUASRU1 MC
UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_
0.3C_AN_RU11
AS5733Z-P622G32Mikk WW S2.RJW02.001 WW AS5733Z-P622G32Mikk
W7HP64ASWW1 MC
UMACkk_3
1*2G/320/6L2.2/2R/CB_GN_
0.3C_AN_ES62
AS5733Z-P622G32Mikk WW S2.RJW02.003 WW AS5733Z-P622G32Mikk
W7HP64ASWW1 MC
UMACkk_3
2*1G/320/6L2.2/2R/CB_GN_
0.3C_AN_ES62SP1
AS5733Z-P622G50Mikk AU/NZ LX.RJW02.013 AAP AS5733Z-P622G50Mikk
W7HP64ASAU1 MC
UMACkk_3
1*2G/500/6L2.2/2R/CB_GN_
0.3C_outer_AN_ES62
AS5733Z-P622G50Mikk GCTWN LX.RJW02.001 TWN AS5733Z-P622G50Mikk
W7HP64ASTW1 MC
UMACkk_3
1*2G/500/6L2.2/2R/CB_GN_
0.3C_AN_TC41
AS5733Z-P622G50Mikk SG LX.RJW02.002 AAP AS5733Z-P622G50Mikk
W7HP64ASSG1 MC
UMACkk_3
1*2G/500/6L2.2/2R/CB_GN_
0.3C_outer_AN_ES61
AS5733Z-P622G50Mikk SG LX.RJW02.003 AAP AS5733Z-P622G50Mikk
W7HP64ASSG1 MC
UMACkk_3
1*2G/500/6L2.2/2R/CB_GN_
0.3C_outer_AN_ZH31
Table 7-11. RO & Description (Continued)
Model Country P/N RO Description
7-12 Model Definition and Configuration
AS5733Z-P623G50Mikk RU LX.RJW01.001 EMEA AS5733Z-P623G50Mikk
W7HB64RUASRU1 MC
UMACkk_3
2G+1G/500_L/6L2.2/2R/CB_
GN_0.3C_AN_RU11
AS5733Z-P624G32Mikk AU/NZ LX.RJW02.011 AAP AS5733Z-P624G32Mikk
W7HP64ASAU1 MC
UMACkk_3
1*4G/320/6L2.2/2R/CB_GN_
0.3C_outer_AN_ES62
AS5733Z-P624G32Mikk CH LX.RJW02.004 EMEA AS5733Z-P624G32Mikk
W7HP64ASCH1 MC
UMACkk_3
2*2G/320/6L2.2/2R/CB_GN_
0.3C_AN_IT41
AS5733Z-P624G50Mikk AU/NZ LX.RJW02.014 AAP AS5733Z-P624G50Mikk
W7HP64ASAU1 MC
UMACkk_3
1*4G/500/6L2.2/2R/CB_GN_
0.3C_outer_AN_ES62
AS5733Z-P624G50Mikk CH LX.RJW02.005 EMEA AS5733Z-P624G50Mikk
W7HP64ASCH1 MC
UMACkk_3
2*2G/500_L/6L2.2/2R/CB_G
N_0.3C_AN_IT41
AS5733Z-P624G64Mikk BG LX.RJW0C.001 EMEA AS5733Z-P624G64Mikk
LinpusMGABG1 UMACkk_3
1*4G/640/6L2.2/2R/CB_GN_
0.3C_AN_RO21
AS5733Z-P626G64Mikk WW S2.RJW02.002 WW AS5733Z-P626G64Mikk
W7HP64ASWW1 MC
UMACkk_3
2G+4G/640/6L2.2/2R/CB_GN
_0.3C_AN_ES62
Table 7-12. CPU, VGA Chip & Memory 1
Model Country P/N CPU VGA Chip Memory 1
AS5733Z-P612G32Mikk MOYO LX.RJW01.002 PMDP6100 UMA SO2GBIII10
AS5733Z-P613G25Mikk US LX.RJW02.006 PMDP6100 UMA SO2GBIII10
AS5733Z-P613G50Mikk UK LX.RJW02.019 PMDP6100 UMA SO2GBIII10
AS5733Z-P614G50Mikk BE LX.RJW02.016 PMDP6100 UMA SO4GBIII10
AS5733Z-P614G50Mikk CA LX.RJW02.010 PMDP6100 UMA SO2GBIII10
Table 7-11. RO & Description (Continued)
Model Country P/N RO Description
Model Definition and Configuration 7-13
AS5733Z-P614G50Mikk DE LX.RJW02.008 PMDP6100 UMA SO4GBIII10
AS5733Z-P614G50Mikk FR LX.RJW02.015 PMDP6100 UMA SO2GBIII10
AS5733Z-P614G50Mikk IT LX.RJW02.009 PMDP6100 UMA SO4GBIII10
AS5733Z-P614G50Mikk LU LX.RJW02.018 PMDP6100 UMA SO4GBIII10
AS5733Z-P614G50Mikk NL LX.RJW02.017 PMDP6100 UMA SO4GBIII10
AS5733Z-P614G50Mikk US LX.RJW02.007 PMDP6100 UMA SO2GBIII10
AS5733Z-P622G25Mikk TR LX.RJW08.002 PMDP6200 UMA SO2GBIII10
AS5733Z-P622G32Mikk AU/NZ LX.RJW02.012 PMDP6200 UMA SO2GBIII10
AS5733Z-P622G32Mikk RO LX.RJW0C.002 PMDP6200 UMA SO2GBIII10
AS5733Z-P622G32Mikk RU LX.RJW08.001 PMDP6200 UMA SO2GBIII10
AS5733Z-P622G32Mikk WW S2.RJW02.001 PMDP6200 UMA SO2GBIII10
AS5733Z-P622G32Mikk WW S2.RJW02.003 PMDP6200 UMA SO1GBIII10
AS5733Z-P622G50Mikk AU/NZ LX.RJW02.013 PMDP6200 UMA SO2GBIII10
AS5733Z-P622G50Mikk GCTWN LX.RJW02.001 PMDP6200 UMA SO2GBIII10
AS5733Z-P622G50Mikk SG LX.RJW02.002 PMDP6200 UMA SO2GBIII10
AS5733Z-P622G50Mikk SG LX.RJW02.003 PMDP6200 UMA SO2GBIII10
AS5733Z-P623G50Mikk RU LX.RJW01.001 PMDP6200 UMA SO2GBIII10
AS5733Z-P624G32Mikk AU/NZ LX.RJW02.011 PMDP6200 UMA SO4GBIII10
AS5733Z-P624G32Mikk CH LX.RJW02.004 PMDP6200 UMA SO2GBIII10
AS5733Z-P624G50Mikk AU/NZ LX.RJW02.014 PMDP6200 UMA SO4GBIII10
AS5733Z-P624G50Mikk CH LX.RJW02.005 PMDP6200 UMA SO2GBIII10
AS5733Z-P624G64Mikk BG LX.RJW0C.001 PMDP6200 UMA SO4GBIII10
AS5733Z-P626G64Mikk WW S2.RJW02.002 PMDP6200 UMA SO2GBIII10
Table 7-13. Memory 2 & HDD 1
Model Country P/N Memory 2 HDD 1(GB)
AS5733Z-P612G32Mikk MOYO LX.RJW01.002 N N320GB5.4KS_4K
AS5733Z-P613G25Mikk US LX.RJW02.006 SO1GBIII10 N250GB5.4KS_4K
AS5733Z-P613G50Mikk UK LX.RJW02.019 SO1GBIII10 N500GB5.4KS_4K
AS5733Z-P614G50Mikk BE LX.RJW02.016 N N500GB5.4KS_4K
AS5733Z-P614G50Mikk CA LX.RJW02.010 SO2GBIII10 N500GB5.4KS_4K
AS5733Z-P614G50Mikk DE LX.RJW02.008 N N500GB5.4KS_4K
Table 7-12. CPU, VGA Chip & Memory 1 (Continued)
Model Country P/N CPU VGA Chip Memory 1
7-14 Model Definition and Configuration
AS5733Z-P614G50Mikk FR LX.RJW02.015 SO2GBIII10 N500GB5.4KS_4K
AS5733Z-P614G50Mikk IT LX.RJW02.009 N N500GB5.4KS_4K
AS5733Z-P614G50Mikk LU LX.RJW02.018 N N500GB5.4KS_4K
AS5733Z-P614G50Mikk NL LX.RJW02.017 N N500GB5.4KS_4K
AS5733Z-P614G50Mikk US LX.RJW02.007 SO2GBIII10 N500GB5.4KS_4K
AS5733Z-P622G25Mikk TR LX.RJW08.002 N N250GB5.4KS_4K
AS5733Z-P622G32Mikk AU/NZ LX.RJW02.012 N N320GB5.4KS_4K
AS5733Z-P622G32Mikk RO LX.RJW0C.002 N N320GB5.4KS
AS5733Z-P622G32Mikk RU LX.RJW08.001 N N320GB5.4KS_4K
AS5733Z-P622G32Mikk WW S2.RJW02.001 N N320GB5.4KS_4K
AS5733Z-P622G32Mikk WW S2.RJW02.003 SO1GBIII10 N320GB5.4KS_4K
AS5733Z-P622G50Mikk AU/NZ LX.RJW02.013 N N500GB5.4KS_4K
AS5733Z-P622G50Mikk GCTWN LX.RJW02.001 N N500GB5.4KS_4K
AS5733Z-P622G50Mikk SG LX.RJW02.002 N N500GB5.4KS_4K
AS5733Z-P622G50Mikk SG LX.RJW02.003 N N500GB5.4KS_4K
AS5733Z-P623G50Mikk RU LX.RJW01.001 SO1GBIII10 N500GB5.4KS_4K
AS5733Z-P624G32Mikk AU/NZ LX.RJW02.011 N N320GB5.4KS_4K
AS5733Z-P624G32Mikk CH LX.RJW02.004 SO2GBIII10 N320GB5.4KS_4K
AS5733Z-P624G50Mikk AU/NZ LX.RJW02.014 N N500GB5.4KS_4K
AS5733Z-P624G50Mikk CH LX.RJW02.005 SO2GBIII10 N500GB5.4KS_4K
AS5733Z-P624G64Mikk BG LX.RJW0C.001 N N640GB5.4KS
AS5733Z-P626G64Mikk WW S2.RJW02.002 SO4GBIII10 N640GB5.4KS_4K
Table 7-14. ODD & Wireless LAN1
Model Country P/N ODD Wireless LAN1
AS5733Z-P612G32Mikk MOYO LX.RJW01.002 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P613G25Mikk US LX.RJW02.006 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P613G50Mikk UK LX.RJW02.019 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P614G50Mikk BE LX.RJW02.016 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P614G50Mikk CA LX.RJW02.010 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P614G50Mikk DE LX.RJW02.008 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P614G50Mikk FR LX.RJW02.015 NSM8XS 3rd WiFi 1x1 BGN
Table 7-13. Memory 2 & HDD 1 (Continued)
Model Country P/N Memory 2 HDD 1(GB)
Model Definition and Configuration 7-15
AS5733Z-P614G50Mikk IT LX.RJW02.009 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P614G50Mikk LU LX.RJW02.018 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P614G50Mikk NL LX.RJW02.017 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P614G50Mikk US LX.RJW02.007 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G25Mikk TR LX.RJW08.002 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G32Mikk AU/NZ LX.RJW02.012 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G32Mikk RO LX.RJW0C.002 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G32Mikk RU LX.RJW08.001 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G32Mikk WW S2.RJW02.001 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G32Mikk WW S2.RJW02.003 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G50Mikk AU/NZ LX.RJW02.013 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G50Mikk GCTWN LX.RJW02.001 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G50Mikk SG LX.RJW02.002 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P622G50Mikk SG LX.RJW02.003 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P623G50Mikk RU LX.RJW01.001 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P624G32Mikk AU/NZ LX.RJW02.011 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P624G32Mikk CH LX.RJW02.004 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P624G50Mikk AU/NZ LX.RJW02.014 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P624G50Mikk CH LX.RJW02.005 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P624G64Mikk BG LX.RJW0C.001 NSM8XS 3rd WiFi 1x1 BGN
AS5733Z-P626G64Mikk WW S2.RJW02.002 NSM8XS 3rd WiFi 1x1 BGN
Table 7-15. NB Chipset, Battery & Adapter
Model Country P/N NB Chipset Battery Adapter
AS5733Z-P612G32Mikk MOYO LX.RJW01.002 HM55 6CELL2.2 65W
AS5733Z-P613G25Mikk US LX.RJW02.006 HM55 6CELL2.2 65W
AS5733Z-P613G50Mikk UK LX.RJW02.019 HM55 6CELL2.2 65W
AS5733Z-P614G50Mikk BE LX.RJW02.016 HM55 6CELL2.2 65W
AS5733Z-P614G50Mikk CA LX.RJW02.010 HM55 6CELL2.2 65W
AS5733Z-P614G50Mikk DE LX.RJW02.008 HM55 6CELL2.2 65W
AS5733Z-P614G50Mikk FR LX.RJW02.015 HM55 6CELL2.2 65W
AS5733Z-P614G50Mikk IT LX.RJW02.009 HM55 6CELL2.2 65W
Table 7-14. ODD & Wireless LAN1 (Continued)
Model Country P/N ODD Wireless LAN1
7-16 Model Definition and Configuration
AS5733Z-P614G50Mikk LU LX.RJW02.018 HM55 6CELL2.2 65W
AS5733Z-P614G50Mikk NL LX.RJW02.017 HM55 6CELL2.2 65W
AS5733Z-P614G50Mikk US LX.RJW02.007 HM55 6CELL2.2 65W
AS5733Z-P622G25Mikk TR LX.RJW08.002 HM55 6CELL2.2 65W
AS5733Z-P622G32Mikk AU/NZ LX.RJW02.012 HM55 6CELL2.2 65W
AS5733Z-P622G32Mikk RO LX.RJW0C.002 HM55 6CELL2.2 65W
AS5733Z-P622G32Mikk RU LX.RJW08.001 HM55 6CELL2.2 65W
AS5733Z-P622G32Mikk WW S2.RJW02.001 HM55 6CELL2.2 65W
AS5733Z-P622G32Mikk WW S2.RJW02.003 HM55 6CELL2.2 65W
AS5733Z-P622G50Mikk AU/NZ LX.RJW02.013 HM55 6CELL2.2 65W
AS5733Z-P622G50Mikk GCTWN LX.RJW02.001 HM55 6CELL2.2 65W
AS5733Z-P622G50Mikk SG LX.RJW02.002 HM55 6CELL2.2 65W
AS5733Z-P622G50Mikk SG LX.RJW02.003 HM55 6CELL2.2 65W
AS5733Z-P623G50Mikk RU LX.RJW01.001 HM55 6CELL2.2 65W
AS5733Z-P624G32Mikk AU/NZ LX.RJW02.011 HM55 6CELL2.2 65W
AS5733Z-P624G32Mikk CH LX.RJW02.004 HM55 6CELL2.2 65W
AS5733Z-P624G50Mikk AU/NZ LX.RJW02.014 HM55 6CELL2.2 65W
AS5733Z-P624G50Mikk CH LX.RJW02.005 HM55 6CELL2.2 65W
AS5733Z-P624G64Mikk BG LX.RJW0C.001 HM55 6CELL2.2 65W
AS5733Z-P626G64Mikk WW S2.RJW02.002 HM55 6CELL2.2 40W
Table 7-15. NB Chipset, Battery & Adapter (Continued)
Model Country P/N NB Chipset Battery Adapter
CHAPTER 8
Test Compatible Components
8-2
Microsoft® Windows® 7 Environment Test. . . . . . . . . . . . . . . . 8-4
Test Compatible Components 8-3
Test Compatible Components
This computer’s compatibility is tested and verified by Acer’s internal testing department. All of
its system functions are tested under Windows® 7 environment.
Refer to the following lists for components, adapter cards, and peripherals which have passed
these tests. Regarding configuration, combination and test procedures, please refer to the
Aspire AS5333/AS5733/AS5733Z . Compatibility Test Report released by the Acer Mobile
System Testing Department.
8-4 Test Compatible Components
Microsoft® Windows® 7 Environment Test 0
Table 8-1. Aspire AS5333/AS5733/AS5733Z
Vendor Type Description P/N
Adapter
10001023
LITE-ON 65W Adapter LITE-ON 65W 19V 1.7x5.5x11
Yellow PA-1650-22AC LV5 LED LF AP.06503.024
10001081
DELTA 40W Adapter DELTA 40W 19V 1.7x5.5x11 Black
ADP-40 TH AA, LV5 wall-mounted, OBL LF AP.04001.002
10001081
DELTA 65W Adapter DELTA 65W 19V 1.7x5.5x11
Yellow ADP-65JH DB A, LV5 LED LF AP.06501.026
60002015
HIPRO 65W Adapter HIPRO 65W 19V 1.7x5.5x11
Yellow HP-A0652R3B 1LF, LV5 LED LF AP.0650A.012
60026861
LEADER 40W Adapter LEADER 40W 19V 1.7x5.5x11
Black IU40-11190-011S, wall-mounted,
LV5+OBL LF
AP.04007.002
Audio Codec
10004786
REALTEK ALC272X Realtek Audio Codec ALC272X LZ.21000.045
Battery
10001063
SONY 6CELL2.2 Battery SONY AS10D Li-Ion 3S2P SONY 6
cell 4400mAh Main COMMON
ID:AS10D41
BT.00604.049
60001535
PANASONIC 6CELL2.2 Battery PANASONIC AS10D Li-Ion 3S2P
PANASONIC 6 cell 4400mAh Main
COMMON ID:AS10D51
BT.00605.062
60001921
SANYO 6CELL2.2 Battery SANYO AS10D Li-Ion 3S2P
SANYO 6 cell 4400mAh Main COMMON
new IC BQ8055
BT.00603.124
60002162
SIMPLO 6CELL2.2 Battery SIMPLO AS10D Li-Ion 3S2P
PANASONIC 6 cell 4400mAh Main
COMMON ID:AS10D71
BT.00607.125
60002162
SIMPLO 6CELL2.2 Battery SIMPLO AS10D Li-Ion 3S2P LGC
6 cell 4400mAh Main COMMON
ID:AS10D73
BT.00607.126
60002162
SIMPLO 6CELL2.2 Battery SIMPLO AS10D Li-Ion 3S2P
SAMSUNG 6 cell 4400mAh Main
COMMON ID:AS10D
BT.00607.127
60013145
SAMSUNG
SDI
6CELL2.2 Battery SAMSUNG AS10D Li-Ion 3S2P
SAMSUNG 6 cell 4400mAh Main
COMMON ID:AS10D61
BT.00606.008
Camera
Test Compatible Components 8-5
10001023
LITE-ON 0.3M Liteon 0.3M LT7675AL AM.21400.078
PLM00012
Suyin 0.3M Suyin 0.3M SY_7675_AL AM.21400.109
Card Reader
10000981
MISC 2-in-1 card
reader 2-in-1 card reader CR.21500.030
CPU
10001067
INTEL PMDP6100 CPU Intel Pentium Dual-Core P6100 PGA
2.0G 35W K0 Max DDR3-1066 KC.61001.DPP
10001067
INTEL PMDP6200 CPU Intel Pentium Dual-Core P6200 PGA
2.13G 35W K0 Max DDR3-1066 KC.62001.DPP
10001067
INTEL PMDP6300 CPU Intel Pentium Dual-Core P6300 PGA
2.26G 35W K0 Max DDR3-1066 KC.63001.DPP
HDD
60001922
TOSHIBA
DIGI
N750GB5.4KS
_4K HDD TOSHIBA 2.5" 5400rpm 750GB
MK7559GSXP, 375G/P, Capricorn BS, 4K
drive SATA 8MB LF+HF F/W:GN003J
KH.75004.001
60001953
TOSHIBA
ELEC
N250GB5.4KS
_4K HDD TOSHIBA 2.5" 5400rpm 250GB
MK2559GSXP,Capricorn 3BS, 4K drive,
375G/P SATA 8MB LF+HF F/W:GN003J
4K drive
KH.25004.006
60001953
TOSHIBA
ELEC
N320GB5.4KS
_4K HDD TOSHIBA 2.5" 5400rpm 320GB
MK3259GSXP, Capricorn 3BS, 375G/P, 4K
drive SATA 8MB LF+HF F/W:GN003J 4K
KH.32004.005
60001953
TOSHIBA
ELEC
N500GB5.4KS
_4K HDD TOSHIBA 2.5" 5400rpm 500GB
MK5059GSXP, Capricron 3BS, 375G/P
SATA 8MB LF+HF F/W:GN003J 4K
KH.50004.003
60001953
TOSHIBA
ELEC
N640GB5.4KS
_4K HDD TOSHIBA 2.5" 5400rpm 640GB
MK6459GSXP, Capricron 3BS, 375G/P
SATA 8MB LF+HF F/W:GN003J 4K
KH.64004.003
60001994
WD N250GB5.4KS
_4K HDD WD 2.5" 5400rpm 250GB
WD2500BPVT-22ZEST0,ML320S-AF, 4K
drive SATA 8MB LF F/W:01.01A01 4K
drive
KH.25008.029
60001994
WD N320GB5.4KS
_4K HDD WD 2.5" 5400rpm 320GB
WD3200BPVT-22ZEST0, ML320S, 4K
drive SATA 8MB LF F/W: 01.01A01
KH.32008.022
60001994
WD N500GB5.4KS
_4K HDD WD 2.5" 5400rpm 500GB
WD5000BPVT-22HXZT1,ML375_AF, 4K
drive SATA 8MB LF+HF F/W:01.01A01
KH.50008.021
Table 8-1. Aspire AS5333/AS5733/AS5733Z (Continued)
Vendor Type Description P/N
8-6 Test Compatible Components
60001994
WD N640GB5.4KS
_4K HDD WD 2.5" 5400rpm 640GB
WD6400BPVT-22HXZT1, ML375M SATA
8MB LF F/W: 01.01A01
KH.64008.005
60001994
WD N750GB5.4KS
_4K HDD WD 2.5" 5400rpm 750GB
WD7500BPVT-22HXZT1, ML375M, 4K
drive SATA 8MB LF F/W:01.01A01
KH.75008.009
60002005
HGST SG N250GB5.4KS HDD HGST 2.5" 5400rpm 250GB
HTS545025B9A300 Panther B SATA LF
F/W:C60F Disk imbalance criteria =
0.014g-cm
KH.25007.016
60002005
HGST SG N320GB5.4KS HDD HGST 2.5" 5400rpm 320GB
HTS545032B9A300 Panther B SATA LF
F/W:C60F Disk imbalance criteria =
0.014g-cm
KH.32007.008
60002005
HGST SG N500GB5.4KS HDD HGST 2.5" 5400rpm 500GB
HTS545050B9A300 Panther B SATA LF
F/W:C60F Disk imbalance criteria =
0.014g-cm
KH.50007.010
60002005
HGST SG N640GB5.4KS
_4K HDD HGST 2.5" 5400rpm 640GB
HTS547564A9E384,Jet B, 375G/P SATA
8MB LF+HF F/W:DA3872
KH.64007.003
60002005
HGST SG N750GB5.4KS HDD HGST 2.5" 5400rpm 750GB Dummy
P.N SATA 8MB LF+HF F/W: 0000 KH.75007.005
60002005
HGST SG N750GB5.4KS
_4K HDD HGST 2.5" 5400rpm 750GB
HTS547575A9E384, Jet B, 375G/P SATA
8MB LF F/W:DA3872
KH.75007.004
60002036
SEAGATE N250GB5.4KS HDD SEAGATE 2.5" 5400rpm 250GB
ST9250315AS, 9HH132-189, Wyatt with
new pcb SATA 8MB LF F/W:0001SDM1
KH.25001.019
60002036
SEAGATE N320GB5.4KS HDD SEAGATE 2.5" 5400rpm 320GB
ST9320310AS,9RN132-188, Cameron
320G/P SATA 8MB LF F/W:0001SDM1
KH.32001.019
60002036
SEAGATE N320GB5.4KS
_4K HDD SEAGATE 2.5" 5400rpm 320GB
ST320LT020 /9YG142-188, Sapta
15,320G/P SATA 8MB LF+HF
F/W:0001SDM1
KH.32001.021
60002036
SEAGATE N500GB5.4KS HDD SEAGATE 2.5" 5400rpm 500GB
ST9500325AS,9HH134-189, Wyatt with
new pcb SATA 8MB LF F/W:0001SDM1
KH.50001.017
60002036
SEAGATE N640GB5.4KS HDD SEAGATE 2.5" 5400rpm 640GB
ST9640320AS,9RN134-189, Cameron,
320G/P SATA 8MB LF F/W:0001SDM1
KH.64001.004
Table 8-1. Aspire AS5333/AS5733/AS5733Z (Continued)
Vendor Type Description P/N
Test Compatible Components 8-7
60002036
SEAGATE N750GB5.4KS
_4K HDD SEAGATE 2.5" 5400rpm 750GB
ST9750423AS,9ZW14G-188, Desaru5,
375G/P. SATA 8MB LF+HF
F/W:0001SDM1
KH.75001.011
Keyboard
60004864
DARFON AC7T_A10B Keyboard ACER AC7T_A10B AC7T
Internal 17 Standard Black NONE Y2010
Acer Texture
KB.I170A.143
LAN
610112
BROADCOM BCM57780 Broadcom BCM57780 NI.22400.047
LCD
10001038
CMO NLED15.6WX
GAG LED LCD CMO 15.6"W WXGA Glare
N156B6-L0B LF 220nit 8ms 650:1 LK.1560D.010
60002215
SAMSUNG NLED15.6WX
GAG LED LCD SAMSUNG 15.6"W WXGA Glare
LTN156AT02-A11 LF 220nit 8ms 500:1 LK.15606.012
60003089 LG NLED15.6WX
GAG LED LCD LPL 15.6''W WXGA Glare
LP156WH4-TLA1 LF 220nit 16ms 500:1 LK.15608.015
60003316
AUO NLED15.6WX
GAG LED LCD AUO 15.6"W WXGA Glare
B156XW02 V6 LF 200nit 8ms 400:1 LK.15605.019
MEM
60001993
NANYA SO1GBIII13 Memory NANYA SO-DIMM DDRIII 1333
1GB NT1GC64BH4B0PS-CG LF 128*16
0.055um
KN.1GB03.034
60001993
NANYA SO2GBIII13 Memory NANYA SO-DIMM DDRIII 1333
2GB NT2GC64B88B0NS-CG LF 256*8
0.055um
KN.2GB03.021
60001993
NANYA SO4GBIII13 Memory NANYA SO-DIMM DDRIII 1333
4GB NT4GC64B8HB0NS-CG LF 256*8
0.055um
KN.4GB03.005
60002000
UNIFOSA SO1GBIII13 Memory UNIFOSA SO-DIMM DDRIII 1333
1GB GU672203EP0200 LF 128*8 0.065um KN.1GB0H.017
60002041
QIMONDA SO1GBIII10 Memory NONE REG-ECC DDRIII 1066
1GB phantom p/n LF KN.1GB00.003
60002215
SAMSUNG SO2GBIII10 Memory NONE SO-DIMM DDRIII 1066
2GB dummy 1066 LF KN.2GB00.001
60004668
ELPIDA SO2GBIII13 Memory ELPIDA SO-DIMM DDRIII 1333
2GB EBJ20UF8BCS0-DJ-F LF 256*8
46nm
KN.2GB09.010
Table 8-1. Aspire AS5333/AS5733/AS5733Z (Continued)
Vendor Type Description P/N
8-8 Test Compatible Components
60004668
ELPIDA SO4GBIII10 Memory NONE SO-DIMM DDRIII 1066
4GB dummy P/N LF KN.4GB00.001
60004668
ELPIDA SO4GBIII13 Memory ELPIDA SO-DIMM DDRIII 1333
4GB EBJ41UF8BCS0-DJ-F LF 256*8
46nm
KN.4GB09.002
60024207
KINGSTON-
FAR EAST
SO1GBIII13 Memory KINGSTON SO-DIMM DDRIII
1333 1GB ACR128X64D3S1333C9 LF
128*8 0.065um
KN.1GB07.004
60024207
KINGSTON-
FAR EAST
SO2GBIII13 Memory KINGSTON SO-DIMM DDRIII
1333 2GB ACR256X64D3S1333C9 LF
128*8 0.065um
KN.2GB07.004
NB Chipset
10001067
INTEL HM55 NB Chipset Intel CS BD82HM55 KI.G5501.002
ODD
10001070
PHILIPS NSM8XS ODD PLDS Super-Multi DRIVE 12.7mm
Tray DL 8X DS-8A5SH LF+HF W/O bezel
SATA With TI + Rohm Solution (HF +
Windows 7)
KU.0080F.014
60001535
PANASONIC NSM8XS ODD PANASONIC Super-Multi DRIVE
12.7mm Tray DL 8X UJ8A0 LF W/O bezel
SATA (HF + Windows 7) Foxconn Yentai
Facotry
KU.00807.075
60001535
PANASONIC NSM8XS ODD PANASONIC Super-Multi DRIVE
12.7mm Tray DL 8X UJ8B0 LF W/O bezel
SATA (HF + ZP) Foxconn Yentai Facotry
KU.00807.078
60001922
TOSHIBA
DIGI
NSM8XS ODD TOSHIBA Super-Multi DRIVE
12.7mm Tray DL 8X TS-L633F LF W/O
bezel AC01 SATA Fix PowerDVD 10 Issue
(HF + Windows 7)
KU.00801.041
60001939
PIONEER NSM8XS ODD PIONEER Super-Multi DRIVE
12.7mm Tray DL 8X DVR-TD10RS LF W/O
bezel 1.00 SATA
KU.00805.049
60003901
HITACHI
EAST
NSM8XS ODD HLDS Super-Multi DRIVE 12.7mm
Tray DL 8X GT34N LF W/O bezel SATA
Zero Power Supported, PCC LD (HF +
Windows 7)
KU.0080D.057
610105
HLDS NSM8XS ODD HLDS Super-Multi DRIVE 12.7mm
Tray DL 8X GT32N (R5-2) LF W/O bezel
SATA with Renesas solution + PCC LD (HF
+ Windows 7)
KU.0080D.055
SB Chipset
Table 8-1. Aspire AS5333/AS5733/AS5733Z (Continued)
Vendor Type Description P/N
Test Compatible Components 8-9
9999995
ONE TIME
VENDER
N N KI.22800.011
VGA Chip
10001067
INTEL UMA UMA (Intel) KI.23200.038
WiFi Antenna
10000105
WNC PIFA PIFA LZ.23500.006
Wireless LAN
10001018
HON HAI 3rd WiFi 1x1
BGN Foxconn Wirelss LAN Atheros HB125 1x1
BGN NI.23600.085
10001018
HON HAI 3rd WiFi 1x1
BGN Foxconn Wirelss LAN Broadcom 4313 IPA
1x1 BGN NI.23600.090
10001023
LITE-ON 3rd WiFi 1x1
BGN Liteon Wireless LAN Atheros HB95 1x1
BGN (HM) WN6601AH NI.23600.070
10001023
LITE-ON 3rd WiFi 1x1
BGN Liteon Wireless LAN Atheros HB125 1x1
BGN NI.23600.086
10001023
LITE-ON 3rd WiFi 1x1
BGN Liteon Wireless LAN Reltek RTL8188CE
1x1 BGN NI.23600.088
10001067
INTEL INT100H Lan Intel WLAN 100BN.HMWG Crane
Peak 1x1 BGN KI.CNH01.002
23707801
FOXCONN
TW
3rd WiFi 1x1
BGN Foxconn Wirelss LAN Atheros HB95 1x1
BGN (HM) T77H121.01 NI.23600.068
23707801
FOXCONN
TW
3rd WiFi 1x1
BGN Foxconn Wirelss LAN Broadcom 4313 1x1
BGN (HM) T77H194.00 NI.23600.076
Table 8-1. Aspire AS5333/AS5733/AS5733Z (Continued)
Vendor Type Description P/N
8-10 Test Compatible Components
CHAPTER 9
Online Support Information
9-2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Online Support Information 9-3
Online Support Information
Introduction 0
This section describes online technical support services available to help users repair their
Acer Systems.
For distributors, dealers, ASP or TPM, please refer the technical queries to a local Acer
branch office. Acer Branch Offices and Regional Business Units may access our website.
However some information sources will require a user i.d. and password. These can be
obtained directly from Acer CSD Taiwan.
Acer's Website offers convenient and valuable support resources.
In the Technical Information section users can download information on all of Acer's Notebook,
Desktop and Server models including:
-Service guides for all models
-BIOS updates
-Software utilities
-Spare parts lists
-TABs (Technical Announcement Bulletin)
For these purposes, we have included an Acrobat File to facilitate the problem-free
downloading of our technical material.
Also contained on this website are:
-Detailed information on Acer's International Traveller’s Warranty (ITW)
-Returned material authorization procedures
-An overview of all the support services we offer, accompanied by a list of telephone, fax
and email contacts for all technical queries.
We are always looking for ways to optimize and improve our services, so do not hesitate to
direct any suggestions or comments to us.
9-4 Online Support Information
