Acuity Lighting DTL01 Bluetooth enabled remote User Manual

Acuity Brands Lighting, Inc. Bluetooth enabled remote

User Manual

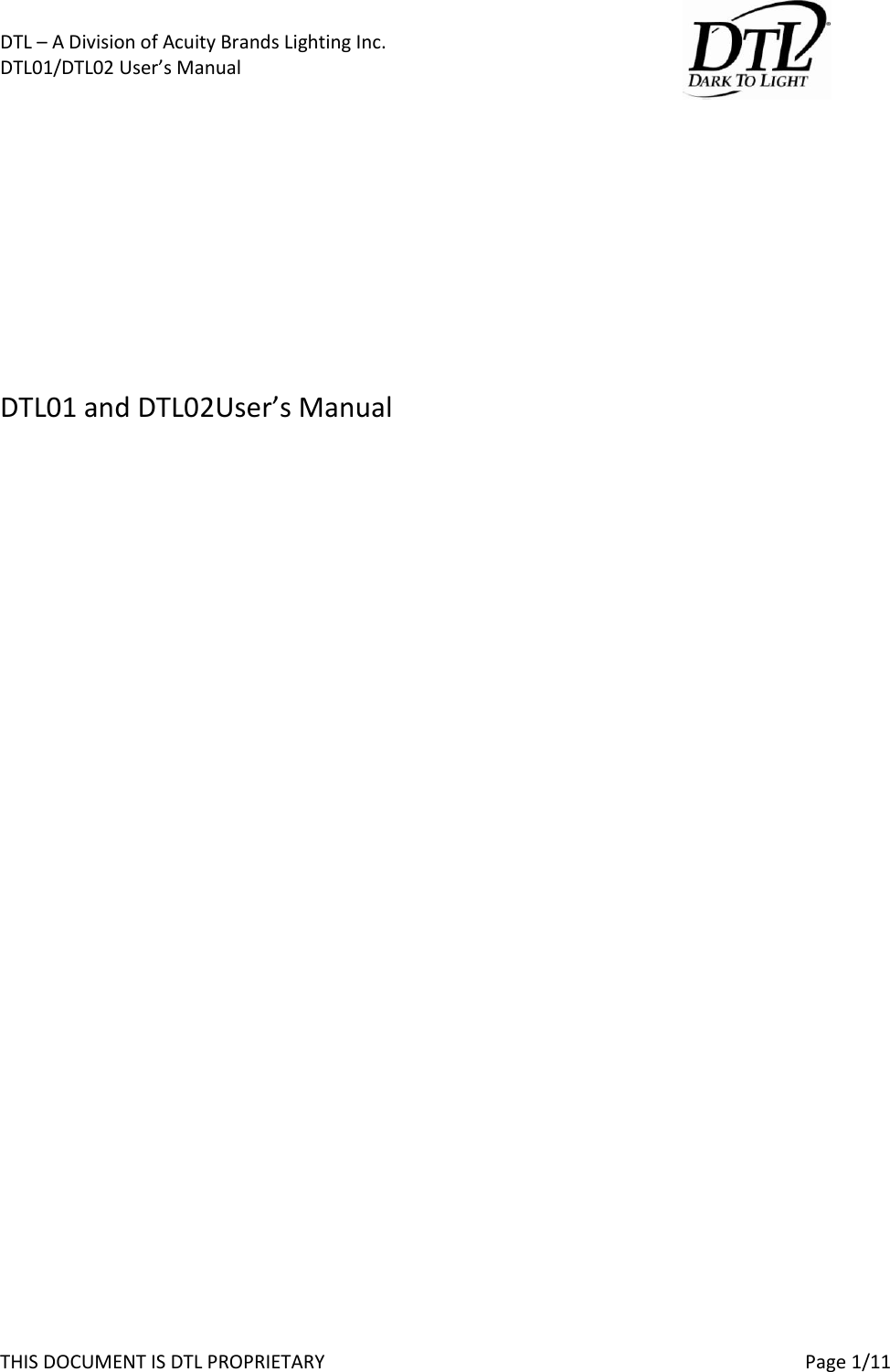

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 1/11 DTL01 and DTL02User’s Manual

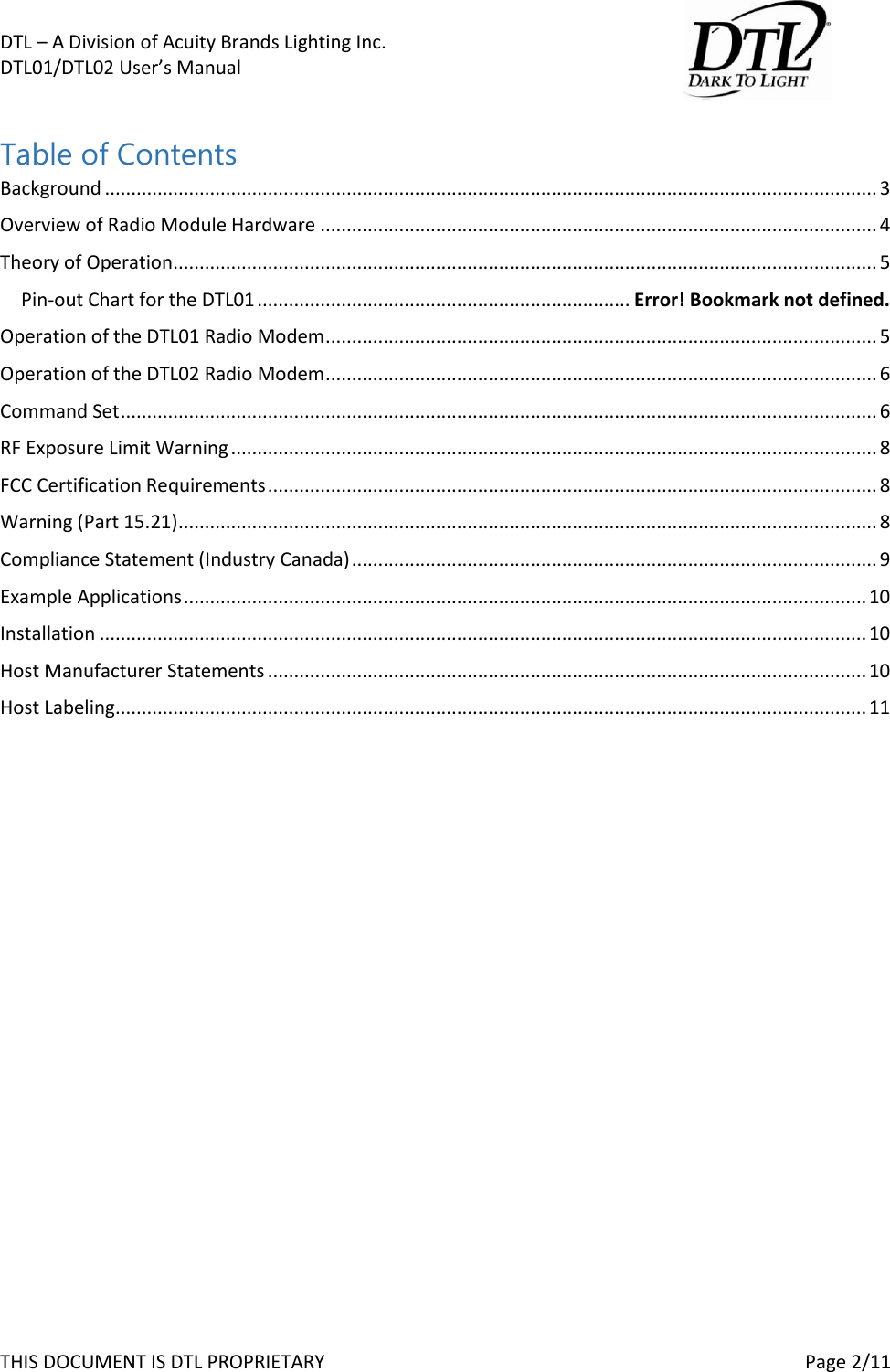

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 2/11 Table of Contents Background ................................................................................................................................................... 3 Overview of Radio Module Hardware .......................................................................................................... 4 Theory of Operation...................................................................................................................................... 5 Pin-out Chart for the DTL01 ....................................................................... Error! Bookmark not defined. Operation of the DTL01 Radio Modem ......................................................................................................... 5 Operation of the DTL02 Radio Modem ......................................................................................................... 6 Command Set ................................................................................................................................................ 6 RF Exposure Limit Warning ........................................................................................................................... 8 FCC Certification Requirements .................................................................................................................... 8 Warning (Part 15.21) ..................................................................................................................................... 8 Compliance Statement (Industry Canada) .................................................................................................... 9 Example Applications .................................................................................................................................. 10 Installation .................................................................................................................................................. 10 Host Manufacturer Statements .................................................................................................................. 10 Host Labeling ............................................................................................................................................... 11

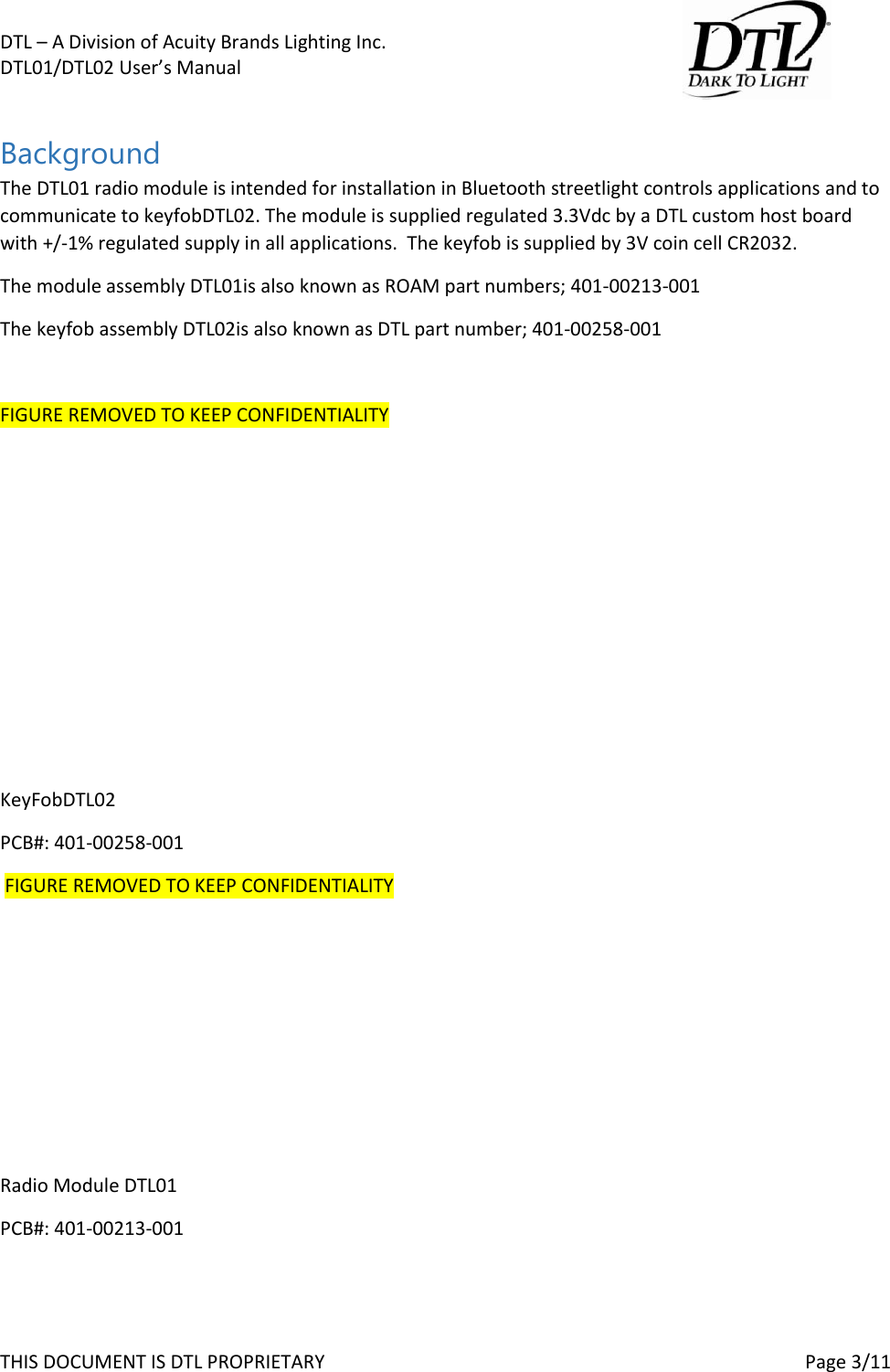

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 3/11 Background The DTL01 radio module is intended for installation in Bluetooth streetlight controls applications and to communicate to keyfobDTL02. The module is supplied regulated 3.3Vdc by a DTL custom host board with +/-1% regulated supply in all applications. The keyfob is supplied by 3V coin cell CR2032. The module assembly DTL01is also known as ROAM part numbers; 401-00213-001 The keyfob assembly DTL02is also known as DTL part number; 401-00258-001 FIGURE REMOVED TO KEEP CONFIDENTIALITY KeyFobDTL02 PCB#: 401-00258-001 FIGURE REMOVED TO KEEP CONFIDENTIALITY Radio Module DTL01 PCB#: 401-00213-001

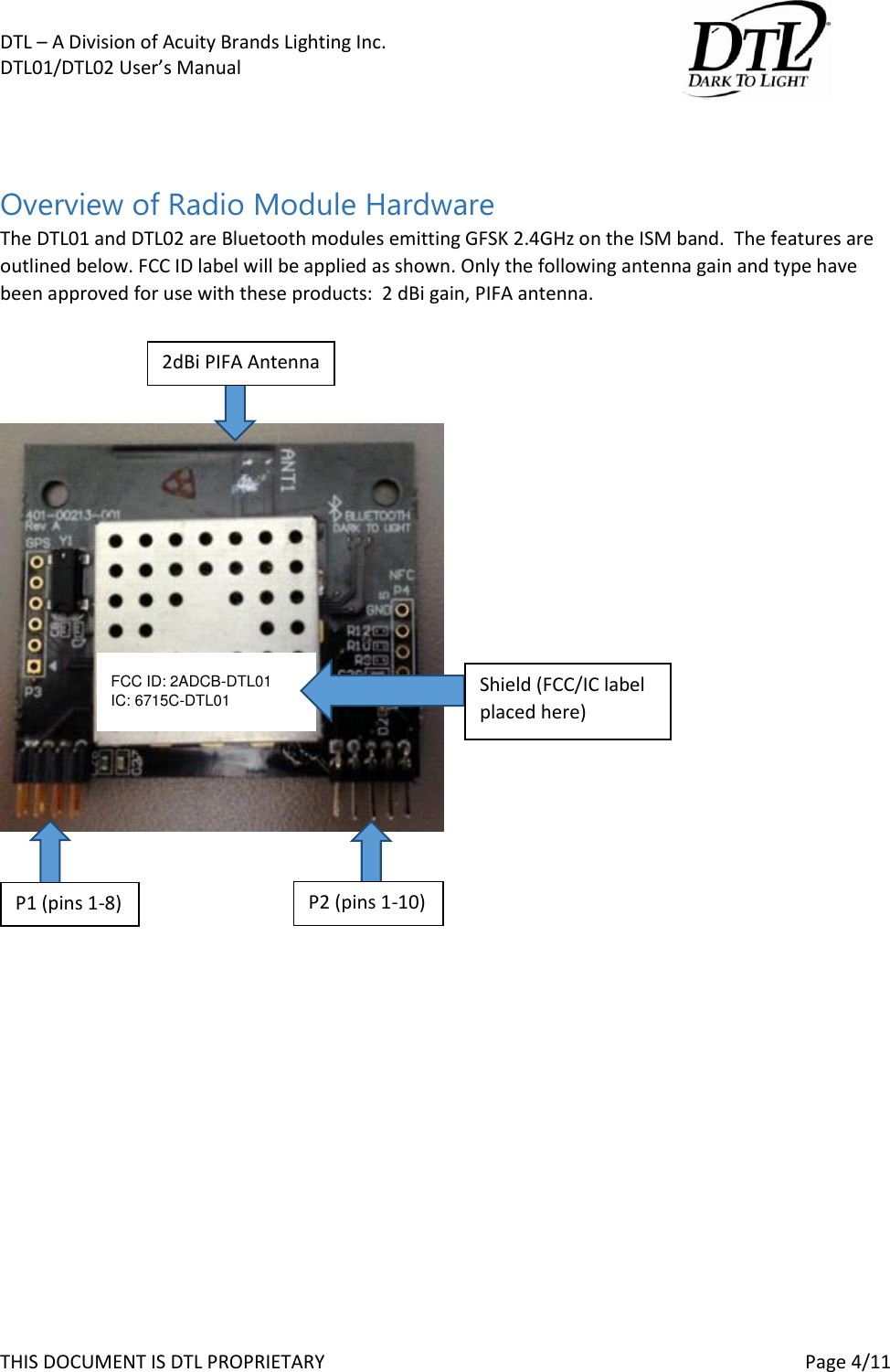

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 4/11 Overview of Radio Module Hardware The DTL01 and DTL02 are Bluetooth modules emitting GFSK 2.4GHz on the ISM band. The features are outlined below. FCC ID label will be applied as shown. Only the following antenna gain and type have been approved for use with these products: 2 dBi gain, PIFA antenna. FCC ID: 2ADCB-DTL01 IC: 6715C-DTL01 2dBi PIFA Antenna Shield (FCC/IC label placed here) P1 (pins 1-8) P2 (pins 1-10)

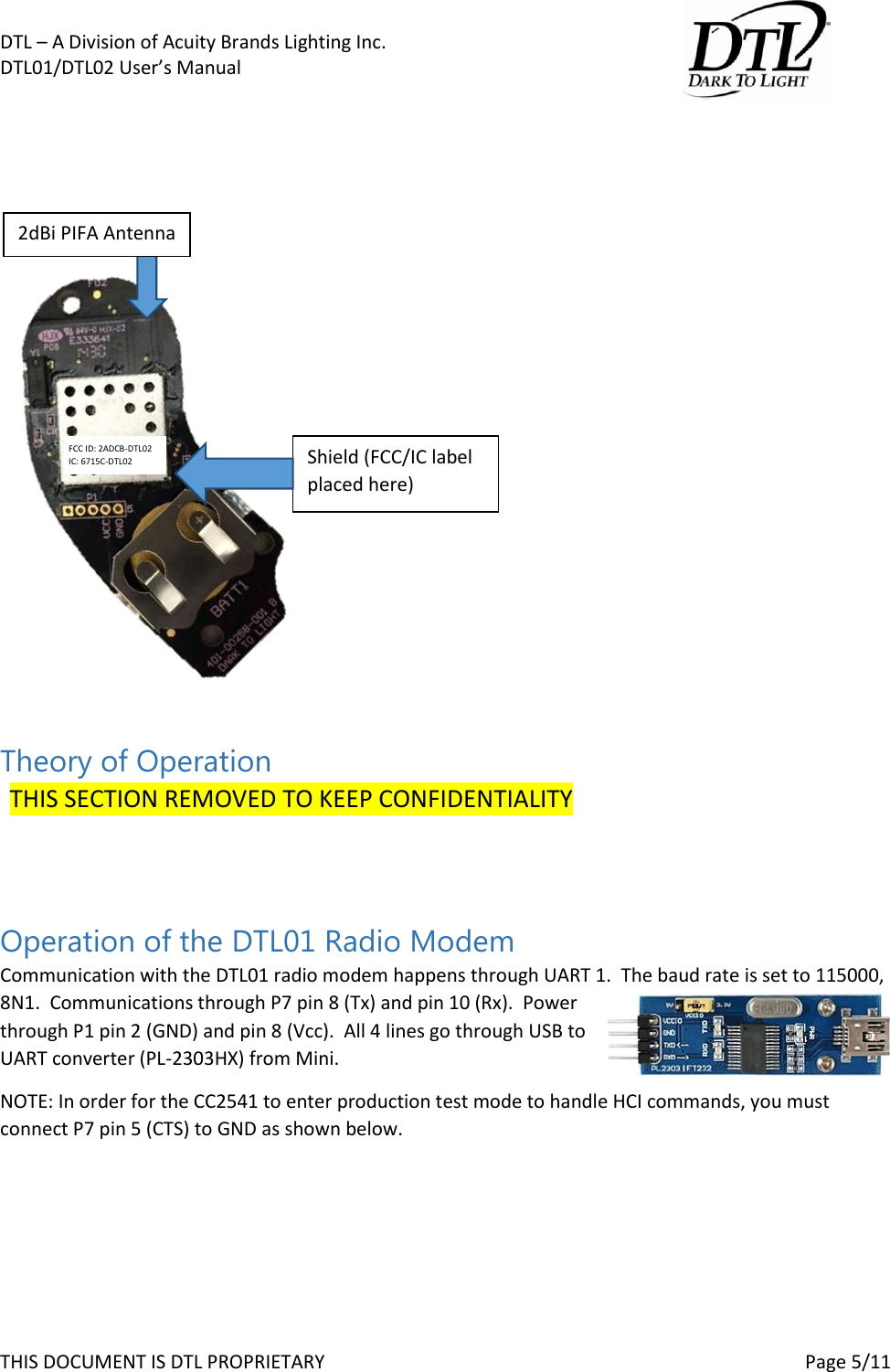

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 5/11 Theory of Operation THIS SECTION REMOVED TO KEEP CONFIDENTIALITY Operation of the DTL01 Radio Modem Communication with the DTL01 radio modem happens through UART 1. The baud rate is set to 115000, 8N1. Communications through P7 pin 8 (Tx) and pin 10 (Rx). Power through P1 pin 2 (GND) and pin 8 (Vcc). All 4 lines go through USB to UART converter (PL-2303HX) from Mini. NOTE: In order for the CC2541 to enter production test mode to handle HCI commands, you must connect P7 pin 5 (CTS) to GND as shown below. FCC ID: 2ADCB-DTL02 IC: 6715C-DTL02 2dBi PIFA Antenna Shield (FCC/IC label placed here)

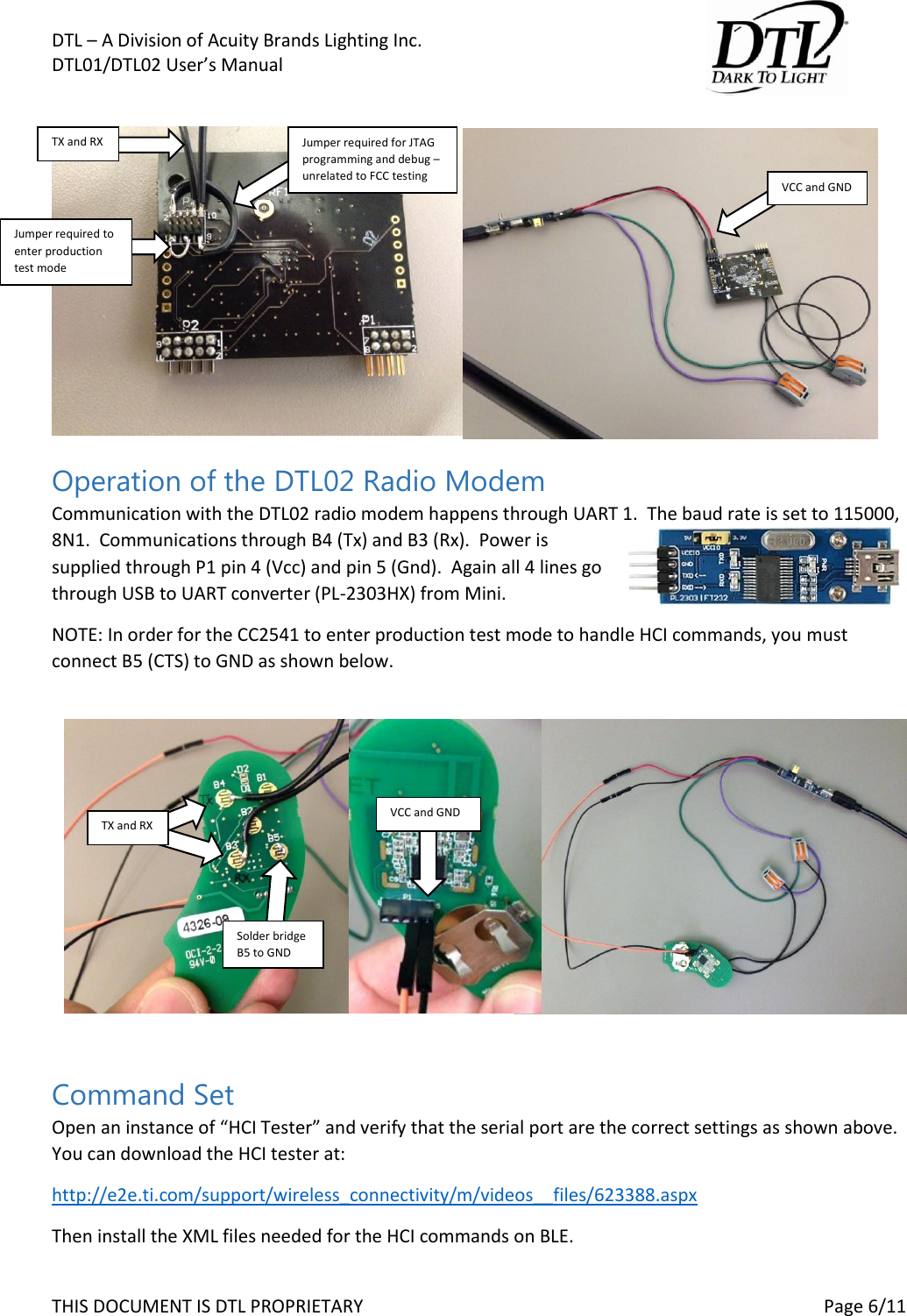

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 6/11 Operation of the DTL02 Radio Modem Communication with the DTL02 radio modem happens through UART 1. The baud rate is set to 115000, 8N1. Communications through B4 (Tx) and B3 (Rx). Power is supplied through P1 pin 4 (Vcc) and pin 5 (Gnd). Again all 4 lines go through USB to UART converter (PL-2303HX) from Mini. NOTE: In order for the CC2541 to enter production test mode to handle HCI commands, you must connect B5 (CTS) to GND as shown below. Command Set Open an instance of “HCI Tester” and verify that the serial port are the correct settings as shown above. You can download the HCI tester at: http://e2e.ti.com/support/wireless_connectivity/m/videos__files/623388.aspx Then install the XML files needed for the HCI commands on BLE. Jumper required to enter production test mode TX and RX Jumper required for JTAG programming and debug – unrelated to FCC testing VCC and GND TX and RX Solder bridge B5 to GND VCC and GND

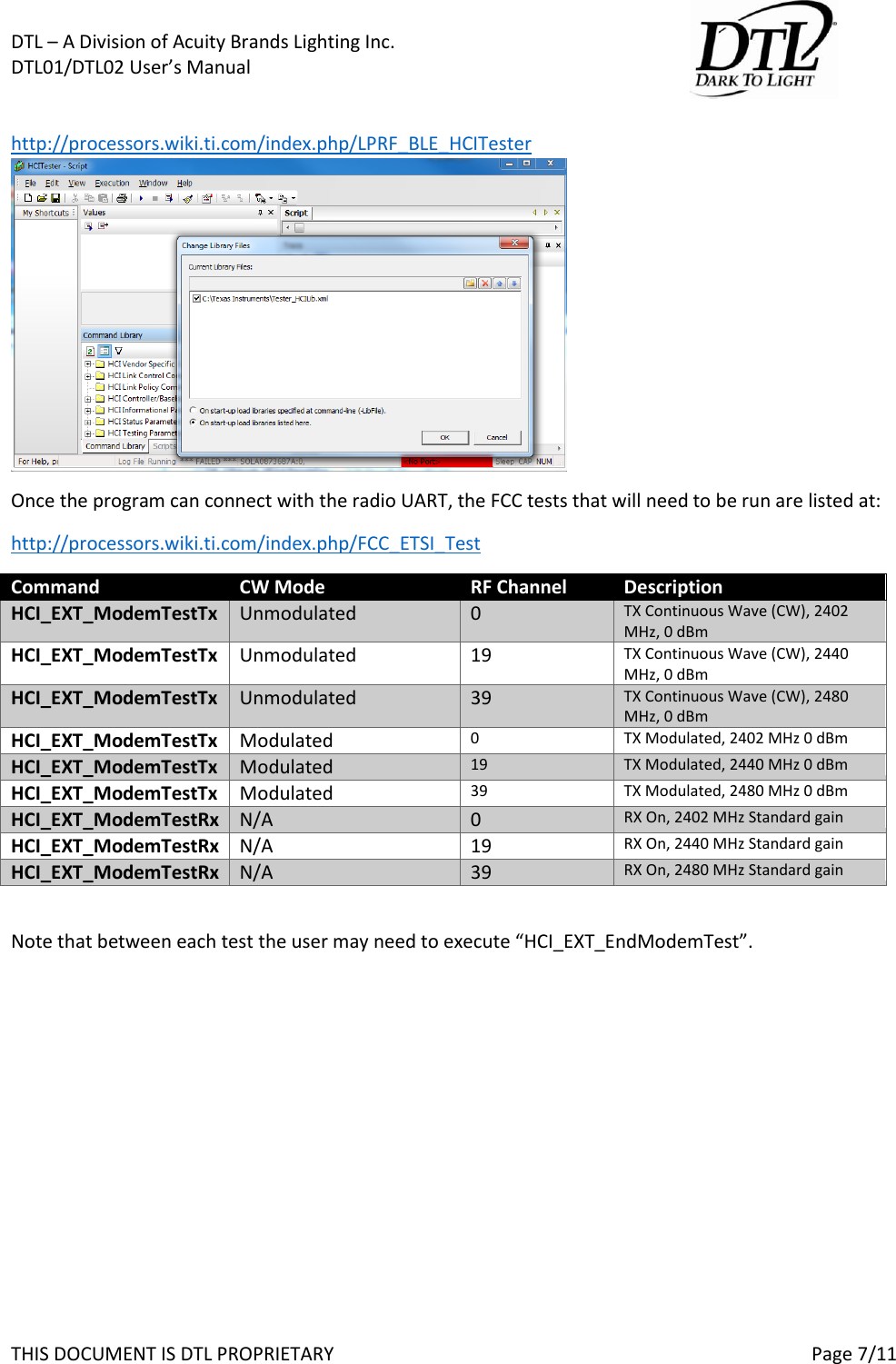

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 7/11 http://processors.wiki.ti.com/index.php/LPRF_BLE_HCITester Once the program can connect with the radio UART, the FCC tests that will need to be run are listed at: http://processors.wiki.ti.com/index.php/FCC_ETSI_Test Command CW Mode RF Channel Description HCI_EXT_ModemTestTx Unmodulated 0 TX Continuous Wave (CW), 2402 MHz, 0 dBm HCI_EXT_ModemTestTx Unmodulated 19 TX Continuous Wave (CW), 2440 MHz, 0 dBm HCI_EXT_ModemTestTx Unmodulated 39 TX Continuous Wave (CW), 2480 MHz, 0 dBm HCI_EXT_ModemTestTx Modulated 0 TX Modulated, 2402 MHz 0 dBm HCI_EXT_ModemTestTx Modulated 19 TX Modulated, 2440 MHz 0 dBm HCI_EXT_ModemTestTx Modulated 39 TX Modulated, 2480 MHz 0 dBm HCI_EXT_ModemTestRx N/A 0 RX On, 2402 MHz Standard gain HCI_EXT_ModemTestRx N/A 19 RX On, 2440 MHz Standard gain HCI_EXT_ModemTestRx N/A 39 RX On, 2480 MHz Standard gain Note that between each test the user may need to execute “HCI_EXT_EndModemTest”.

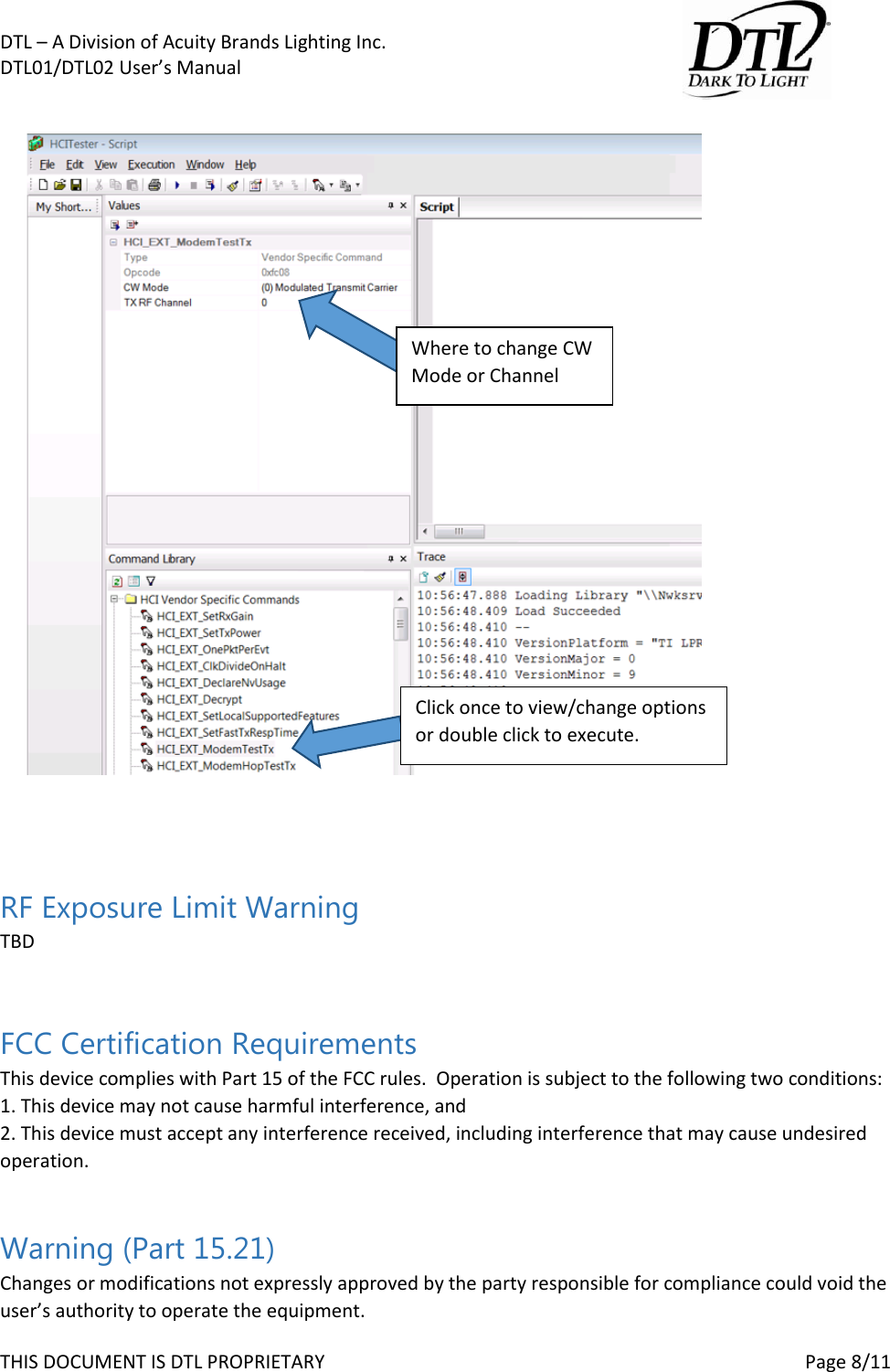

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 8/11 RF Exposure Limit Warning TBD FCC Certification Requirements This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Where to change CW Mode or Channel Click once to view/change options or double click to execute.

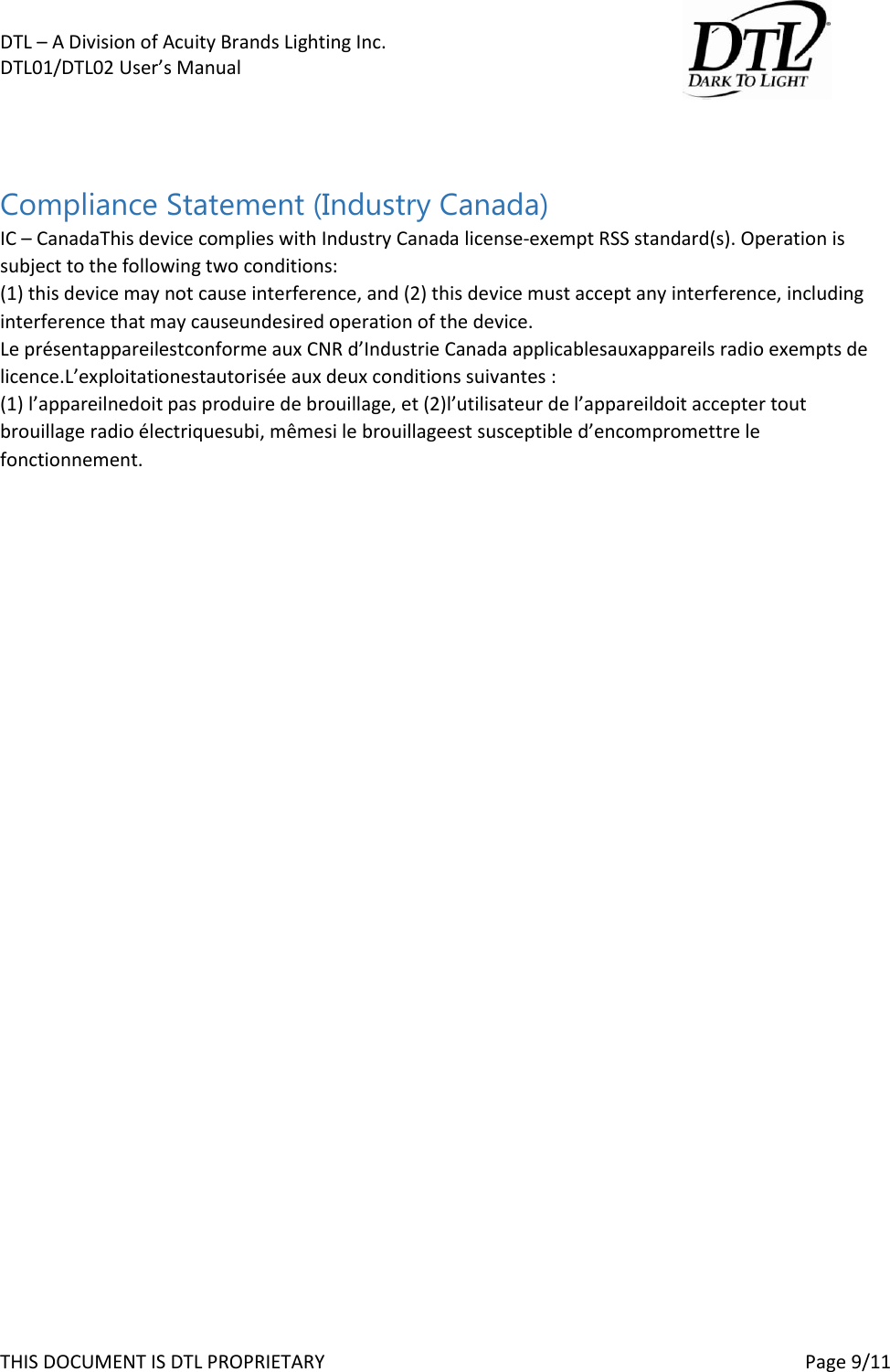

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 9/11 Compliance Statement (Industry Canada) IC – CanadaThis device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may causeundesired operation of the device. Le présentappareilestconforme aux CNR d’Industrie Canada applicablesauxappareils radio exempts de licence.L’exploitationestautorisée aux deux conditions suivantes : (1) l’appareilnedoit pas produire de brouillage, et (2)l’utilisateur de l’appareildoit accepter tout brouillage radio électriquesubi, mêmesi le brouillageest susceptible d’encompromettre le fonctionnement.

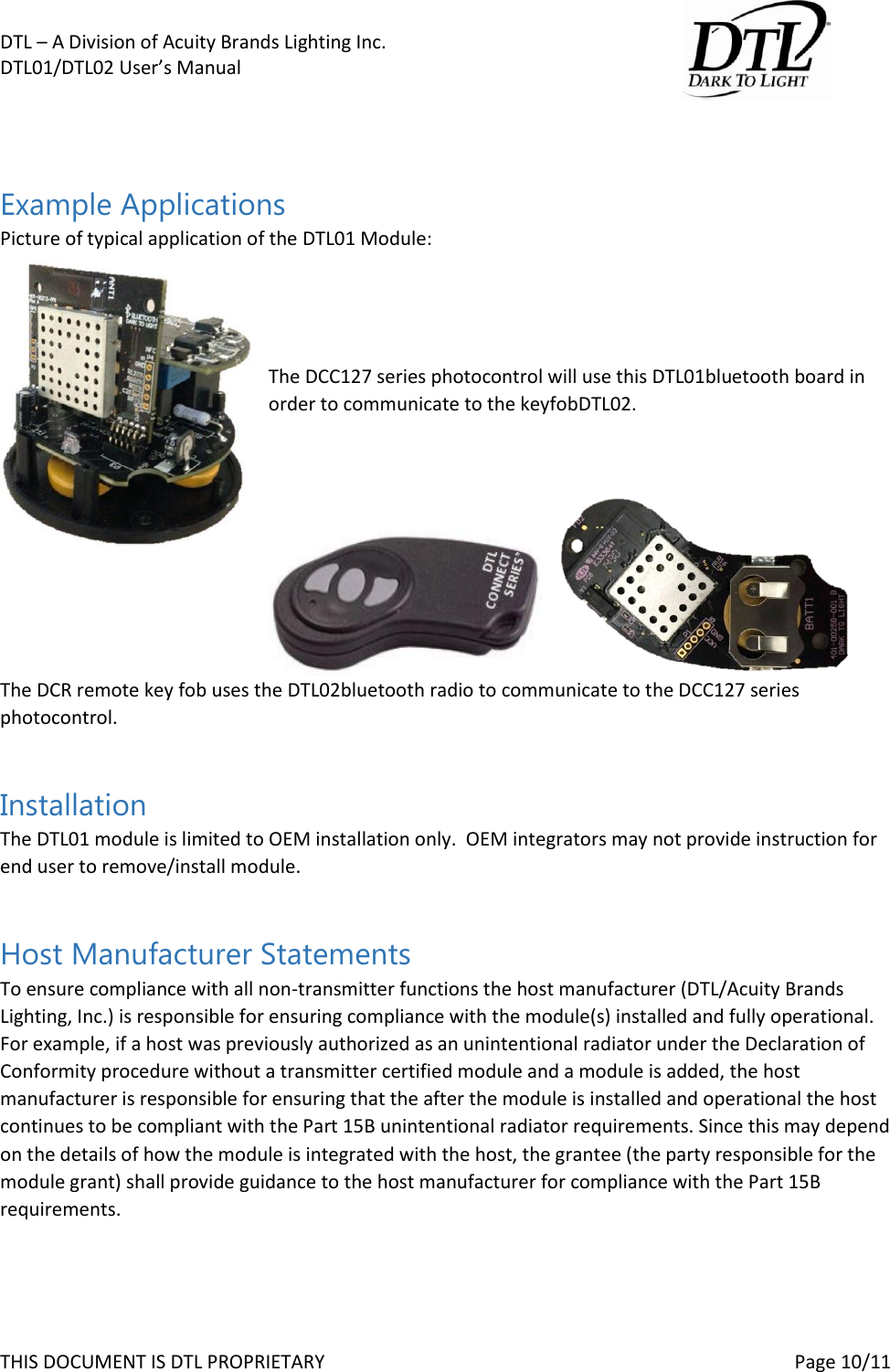

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 10/11 Example Applications Picture of typical application of the DTL01 Module: The DCC127 series photocontrol will use this DTL01bluetooth board in order to communicate to the keyfobDTL02. The DCR remote key fob uses the DTL02bluetooth radio to communicate to the DCC127 series photocontrol. Installation The DTL01 module is limited to OEM installation only. OEM integrators may not provide instruction for end user to remove/install module. Host Manufacturer Statements To ensure compliance with all non-transmitter functions the host manufacturer (DTL/Acuity Brands Lighting, Inc.) is responsible for ensuring compliance with the module(s) installed and fully operational. For example, if a host was previously authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter certified module and a module is added, the host manufacturer is responsible for ensuring that the after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements. Since this may depend on the details of how the module is integrated with the host, the grantee (the party responsible for the module grant) shall provide guidance to the host manufacturer for compliance with the Part 15B requirements.

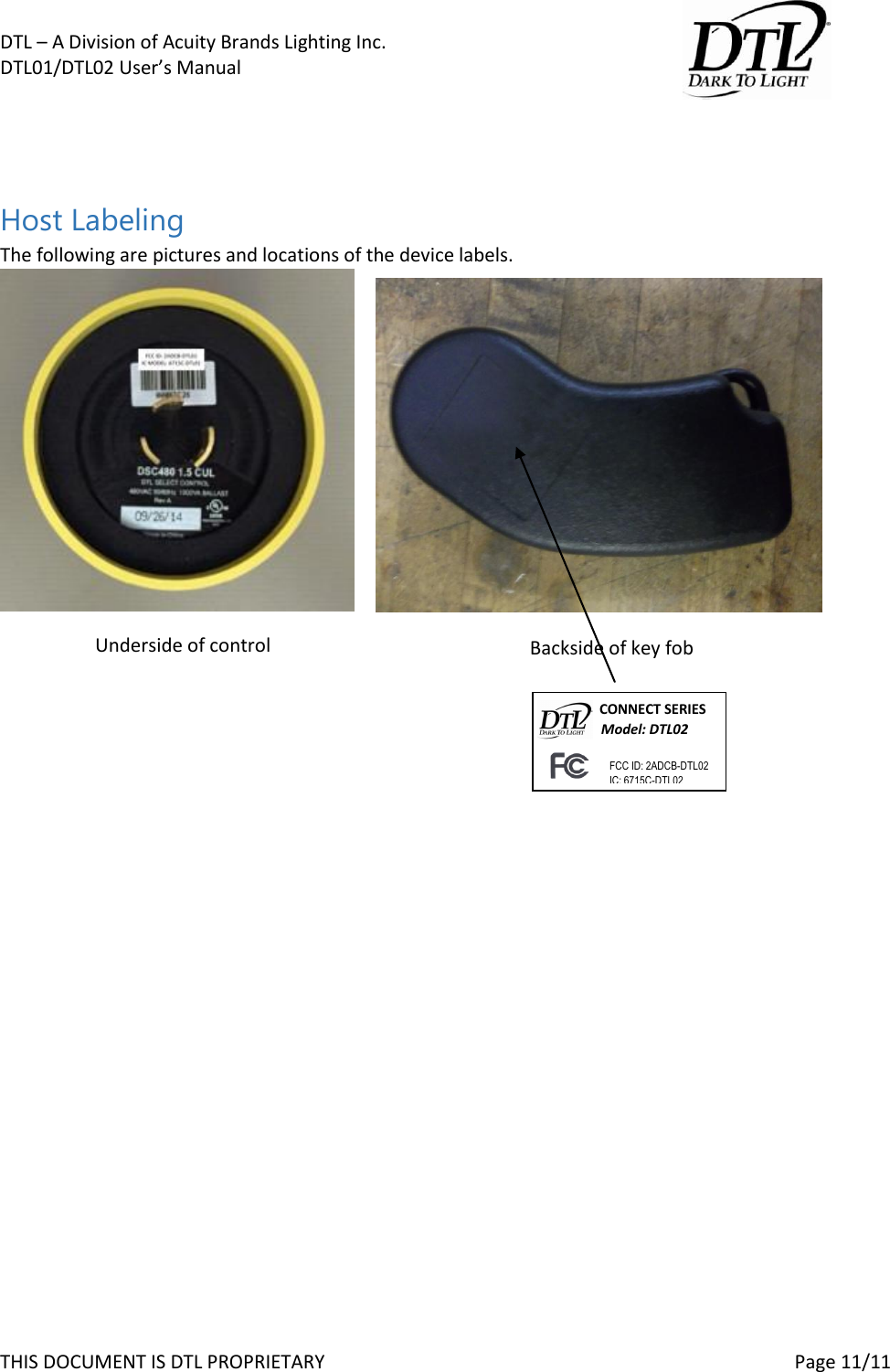

DTL – A Division of Acuity Brands Lighting Inc. DTL01/DTL02 User’s Manual THIS DOCUMENT IS DTL PROPRIETARY Page 11/11 Host Labeling The following are pictures and locations of the device labels. Underside of control Backside of key fob CONNECT SERIES Model: DTL02 FCC ID: 2ADCB-DTL02 IC: 6715C-DTL02
