Adams Rite Parts Manual AR 2019 2020
User Manual: Adams Rite Adams Rite Parts Manual Parts Manual
Open the PDF directly: View PDF
.
Page Count: 78
Parts
Manual
Prices Eective December 1, 2019
2GENERAL INFO
Adams Rite
LIMITED WARRANTY
Eective as of October 1, 2019.
Adams Rite Limited Warranty
Adams Rite warrants that its products sold under the Adams Rite brand in the United
States of America are warranted free from defects in workmanship and materials
under normal use and service. This warranty does not cover defects or damage
arising from improper installation, lack of or improper maintenance, improper
storage, shipping and handling, corrosion, erosion, ordinary wear and tear, misuse,
abuse, accident, unauthorized service, or use with unauthorized non-Adams Rite
products or parts. This warranty is void if any modification is made to the product,
regardless of whether the modification causes or contributes to the alleged defect.
All modifications are made at the risk of the party making the modification.
Should any defect of manufacture (in material or workmanship) occur in its
products, Adams Rite, upon prompt notification and proof to its satisfaction that
the product was defective in manufacture for the use intended by Adams Rite,
will at its option, exchange the product, repair the product, or refund the price
charged by Adams Rite, FOB factory within the stated time frame listed below. .
• 10 years on all mechanical products from the date of manufacture
• 5 years on the following electromechanical product categories from the date of
manufacture, deadlocks, dead latches, exit devices*, electric strikes, trims, power
supply & accessories
* NOTE: The SE option (motorized electric latch retraction) is supported
by a 1-year electro mechanical warranty. When powered by an Adams
Rite PS-SE power supply the 1-year warranty is upgraded to 5 years
• 3 years on the following access control products from the date of
manufacture, RT1050, 3090-150, 3090P/C & A100 (Integrated Wiegand).
General RMA Procedure
Product repair or replacement, or associated charges, will not be accepted under
this warranty unless prior authorization from Adams Rite has been given. Upon
receipt of products returned for repair or replacement, Adams Rite will determine
whether products qualify for repair or replacement under this warranty. Adams
Rite has no liability to pay any costs of repair performed by anyone other than
qualified personnel authorized by Adams Rite prior to the work being done.
Written notice of a product or component part believed to be defective as covered by this
warranty should be sent to Adams Rite, 10027 S. 51st Street, Suite 102, Phoenix, Arizona
85044 or customer.care@assaabloy.com and should include your name and address, an
identification of the product or component part and a brief description of the defect.
Notice of a product or component part believed to be defective as covered by this
warranty may also be accepted over the telephone by Adams Rite, 800.872.3267
CUSTOMER CARE FORM CCF
Upon receipt of such notice, if the customer has an account with Adams Rite or a valid
credit card, an advance replacement product may be ordered whereby Adams Rite will
ship a replacement product to the customer free of charge. If Adams Rite does not receive
the original defective product from the customer within 60 days, Adams Rite will charge
the customer’s account or credit card for the price of the advanced replacement product
plus freight costs. Upon inspection of the returned product by Adams Rite, a decision will
be made whether or not to charge the customer for the advanced replacement Adams
Rite product. This decision will be made solely by Adams Rite in accordance with the
provisions of these Terms. Obsolete products will not be accepted for return. Return Material
Authorizations (RMAs) will be closed if the goods are not received within 60 days of issuance.
If Adams Rite receives original defective product from the customer within 60 days of
RMA issuance, and if the customer is requesting credit for the defective material, the
customer must reference the valid Adams Rite Purchase Order number upon which the
product was originally ordered. If the original Purchase Order number is not available, at
Adams Rite’s option a credit may be issued at the customer’s current cost. This decision
will be made solely by Adams Rite in accordance with the provisions of these Terms.
Transportation charges and insurance on all returned materials must be prepaid
by the purchaser when merchandise is ordered in error. On goods returned for
customer convenience, when the purchaser returns materials in compliance
with these Terms which are accepted by Adams Rite, the purchaser may be
issued a credit for 65% of the purchase price, with 35% charged by Adams Rite
for handling and reprocessing. All refunds will be in the form of a credit.
Cancellation
As an industry leader, Adams Rite is committed to maintaining the highest standard of
quality and ensuring strict compliance to industry codes. Adams Rite’s proud history of
customer service and manufacturing agility allow quick response times to customer’s
changing needs, which may include special orders or product modifications. Please be
advised that all product modifications require special authorization to ensure the order
fully meets customer’s expectations. Customers are asked to allow for an extended
lead time on all special orders. Please note that at Adams Rite’s option, product
modifications and other special orders cannot be changed, canceled, or returned
once a ship date has been provided on an order acknowledgment by Adams Rite.
Adams Rite prides itself on introducing new, industry-relevant, feature-rich products.
Since new solutions will surpass the capabilities of older product lines, historical
products may be subsequently discontinued. Every eort will be made to announce
new product introductions as well as product discontinuations in a manner that allows
customers advanced notice of these events. Once a product line is discontinued
orders will be fulfilled in order of receipt, although Adams Rite cannot guarantee all
orders can be filled. Repair services and spare parts for discontinued product lines
will be available for some reasonable time period. Adams Rite reserves the right to
replace discontinued product with an equivalent product as deemed by Adams Rite.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. TO THE
EXTENT PERMITTED BY LAW, ALL IMPLIED WARRANTIES ARE LIMITED TO THE
DURATION OF THIS WARRANTY. ADAMS RITE IS A DIVISION OF HANCHETT
ENTRY SYSTEMS, INC. HANCHETT ENTRY SYSTEMS, INC. SHALL NOT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS
OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Canada
Customers purchasing from Door Security Solutions Canada can find
Canadian Terms and Conditions at www.assaabloy.ca/terms.
General Info
Adams Rite Limited Warranty 2
Table of Contents 3
Deadlocks
MS1850S Series MS® Deadlock 4
MS1850 Series MS® Accessories 6
2190 Dual Force® Interconnected
Deadbolt/Deadlatch 8
2331 Heavy Duty Deadbolt 10
4189/4190 Flush Locksets 12
4430/4431 Flush Locksets 14
Deadlatches
4300 Steel Hawk® Electrified Deadlatch 16
4781 Two-Point Deadlatch with Paddle 18
4900 Heavy Duty Deadlatch 20
Exit Devices
3100 Series Surface Vertical Rod Exit Device 22
3300 Series Mortise Exit Device 24
3600 Series Concealed Vertical Rod 26
3700 Series Rim Exit Device 28
3900/8900 Series Surface Concealed Vertical Rod 30
3889 Mullion 32
3890 Mullion 34
8099/8099M Dummy Pushbar 36
8100 Series Surface Vertical Rod 38
8200 Series Surface Vertical Rod 40
8300 Series Mortise Exit Device 42
8400 Series Mortise Exit Device 44
8475 Mortise Mid-Panel Exit Device 46
8500 Series Concealed Vertical Rod 48
8600 Series Concealed Vertical Rod 50
8675 Concealed Vertical Rod Mid-Panel 52
8700 Series Rim Exit Device 54
8800 Series Rim Exit Device 56
Accessories for Exit Devices 58
Electric Strikes
7100 Electric Strike 60
Trim
3080 Series Entry Trim 62
3090 eForce® Keyless Entry 64
4550 MS® Deadlock Lever 66
4590 Deadlatch Paddle 68
4591 Deadlatch Paddle 70
4600 Heavy Duty Deadlatch Handles 72
Cylinders
4024/4025/4026 Cylinder Pulls 74
Accessories & Cylinders
Accessories & Cylinders 76
Table of Contents
4DEADLOCKS
MS1850S
SERIES MS® DEADLOCK
SPRING
P/N 28-0064-03-MP
SPRING
P/N 28-0064-02-MP
FACEPLATE KIT
MS1850S 1X 6-7/8"
P/N 24-0384-XXX-XXX
#10-32 X 1-3/4" FLAT HEAD SCREW
P/N S262-10R28-603-MP
OR
#10-32 X 1-7/8" FLAT HEAD SCREW
P/N S262-10R30-603-MP
OR
#12-24 X 3/4" FLAT HEAD COMBO SCREW FOR ANSI MS
P/N 91-0967-P
2 REQ’D
SLOTTED HEAD SET SCREW
P/N S232B8-9/32N-631-MP
OR
P/N S232C08-05-631-MP
OR
P/N S232C8-15/32-631-MP
2 REQ'D
5
4
3
2
1
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
MS1850S
SERIES MS® DEADLOCK
MS1850S Series MS® Deadlock
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
128-0064-03-MP Spring Pkg. of 10 $7.00
228-0064-02-MP Spring Pkg. of 10 $7.00
3
S262-10R28-603-MP #10-32 × 1-3/4" flat head screw for 7/8", 31/32" backset Pkg. of 10 $8.00
S262-10R30-603-MP #10-32 × 1-7/8" flat head screw for 1-1/8" backset Pkg. of 10 $10.00
91-0967-P #12-24 × 3/4" flathead combo screw (ANSI hollow metal/wood doors) Each List
4
24-0384-010-XXX MS1850S flat faceplate kit for standard bolt, select 313, 335 or 628 finish Each List
24-0384-110-XXX MS1850S radius faceplate kit for standard
bolt, select 313, 335 or 628 finish Each List
24-0384-210-XXX MS1850S LH bevel faceplate kit for standard
bolt, select 313, 335 or 628 finish Each List
24-0384-310-XXX MS1850S RH bevel faceplate kit for standard
bolt, select 313, 335 or 628 finish Each List
24-0384-410-XXX MS1850S radius with weatherstrip faceplate kit for
standard bolt,select 313, 335 or 628 finish Each List
24-0384-020-XXX MS1850S flat faceplate kit for hookbolt and short
bolt, select 313, 335 or 628 finish Each List
24-0384-120-XXX MS1850S radius faceplate kit for hookbolt and
short bolt, select 313, 335 or 628 finish Each List
24-0384-220-XXX MS1850S LH bevel faceplate kit for hookbolt and
short bolt, select 313, 335 or 628 finish Each List
24-0384-320-XXX MS1850S RH bevel faceplate kit for hookbolt and
short bolt, select 313, 335 or 628 finish Each List
24-0384-420-XXX MS1850S radius with weatherstrip faceplate kit for
hookbolt and short bolt, select 313, 335 or 628 finish Each List
5
S232B8-9/32N-631-MP #8-32 × 9/32" slotted set screw for 7/8" backset Pkg. of 10 $21.00
S232C08-05-631-MP #8-32 × 5/16" slotted head screw for 31/32" backset Pkg. of 10 $11.00
S232C8-15/32-631-MP #8-32 × 15/32" slotted set screw for 1-1/8", 1-1/2" backset Pkg. of 10 $11.00
NS 80-0180-5 Installation Sheet, MS1850S/MS1850A Each Email Only
NS 80-0180-4 Installation Sheet, MS1850SN Each Email Only
List = Refer to current pricelist
NS = Not shown
6
MS1850
SERIES MS® ACCESSORIES
#10-32 X 1/2"
FLAT HEAD
SCREW
P/N S26210R08-603-MP
4 REQ’D
DOOR HEADER SIGN (AS SHOWN)
P/N 20-0255-IP
OR
DOOR HEADER SIGN
(....BUIDLING IS OCCUPIED)
P/N 20-0256-IP
ADAPTOR ARM
P/N 22-0282
STRIKE
P/N 4005
SNAP BUSHING
P/N 25-0036-MP
BOLT GUIDE ASS’Y
P/N 41-0827-02-IP
ROD & BOLT ASS’Y
P/N 31-0278-18
4089 EXIT INDICATOR
4015 THRESHOLD BOLT
4016
HEADER
BOLT
#8-32 X 3/8"
FLAT HEAD SCREW
P/N S227-08R06-603-MP
2 REQ’D
PIN FOR STANDARD
MS LOCK
P/N 26-0138-01
FOR 2-POINT
MS LOCK
P/N 26-0137-02
ROLL PIN
P/N P170-05-14-MP
#10-32 X 5/16"
FLAT HEAD SCREW
P/N S266-10R05N-603-MP
2 REQ’D
ARMORED STRIKE
P/N MS4002
GUIDE
BRACKET
P/N 22-0157
ADJUSTABLE STUD
P/N 25-0318
SPIDER
P/N 25-0062-01-MP
#6-32 X 5/8"
CAP SCREW
P/N S242A06-10-MP
#10-32 X 5/16"
FLAT HEAD SCREW
P/N S266-10R05-XXX-MP
4 REQ’D
HEADER STRIKE
P/N 25-0071
BOX STRIKE
P/N 4001
UPPER ARM
P/N 22-0757
OR
P/N 22-0758
OR
P/N 22-0759
UPPER
ARM PIN
P/N 31-0363N
THIS DOOR TO REMAIN UNLOCKED DURING BUSINESS HOURS
1
2
3
4
5
6
7
8
9
10
12
13
11
12
13
14
15
15
17
16
22
23
18
19
20
21
#6 X 3/8" FLAT HEAD
SELF-TAPPING SCREW
P/N S230-06R06-603-MP
4085
HEADER BOLT
4000
SERIES
STRIKES
16
DEADLOCKS
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
MS1850
SERIES MS® ACCESSORIES

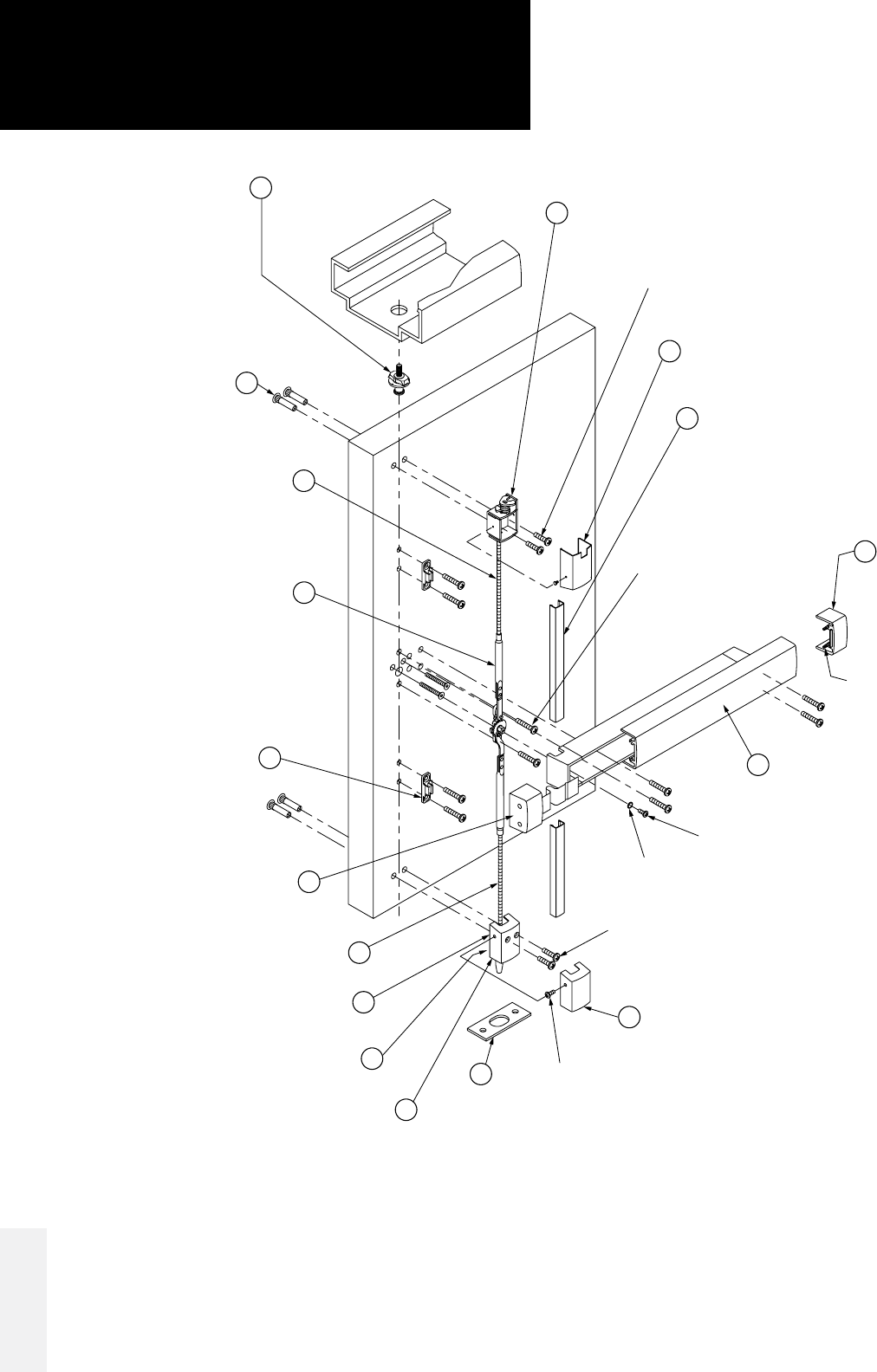

MS1850 Series MS® Accessories
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
4085 Header Bolt
125-0071 Header strike Each $5.00
2S266-10R05N-119-MP #10-32 × 5/16" flat head screw, 119 finish Pkg. of 10 $13.00
S266-10R05N-603-MP #10-32 × 5/16" flat head screw, 603 finish Pkg. of 10 $11.00
3S242A06-10-MP #6-32 × 5/8" cap screw Pkg. of 10 $6.00
422-0157 Guide bracket Each $6.00
525-0318 Adjustable stud Each $6.00
625-0062-01-MP Spider Pkg. of 10 $22.00
7S230-06R06-603-MP #6-32 × 3/8" flat head self-tapping screw Pkg. of 10 $6.00
4000 Series Strikes
8S262-10R08-603-MP #10-32 × 1/2" flat head screw Pkg. of 10 $7.00
9MS4002 Armored strike, select 313, 335 or 628 finish Each List
10 4001 Box strike, select 313, 335 or 628 finish Each List
4015 Threshold Bolt
11 P170-05-14-MP Roll pin Pkg. of 10 $8.00
12 31-0278-18 Rod and bolt assembly, 4016 (cylinder height 53" max) Each $26.00
13 S266-10R05N-603-MP #10-32 × 5/16" flat head screw, 603 finish Pkg. of 10 $11.00
14 4005 Strike for 4015 Threshold Bolt Each List
15 41-0827-02-IP Bolt guide assembly kit Each $9.00
16 25-0036-MP Snap bushing for 4016 Header Bolt Pkg. of 10 $19.00
17 22-0282 Adaptor arm, 4015, 1870, 1870HM, MS1837, 1877 Each $31.00
4089 Exit Indicator
18 26-0138-01 Pin for standard MS deadlock Each $5.00
19 26-0137-02 Pin for MS two-point (MS deadlock × 4015 configuration) Each $6.00
20 S227-08R06-603-MP #8-32 × 3/8" flat head screw Pk. of 10 $3.00
21 20-0255-IP Header sign (…DURING BUSINESS HOURS) Each List
20-0256-IP Header sign (…BUILDING IS OCCUPIED) Each List
4016 Header Bolt
22
22-0757 Upper arm 1-1/8" backset Each $30.00
22-0758 Upper arm 1-1/2" backset Each $30.00
22-0759 Upper arm 31/32" backset Each $30.00
23 31-0363N Upper arm pin assembly Each $6.00
List = Refer to current pricelist
8

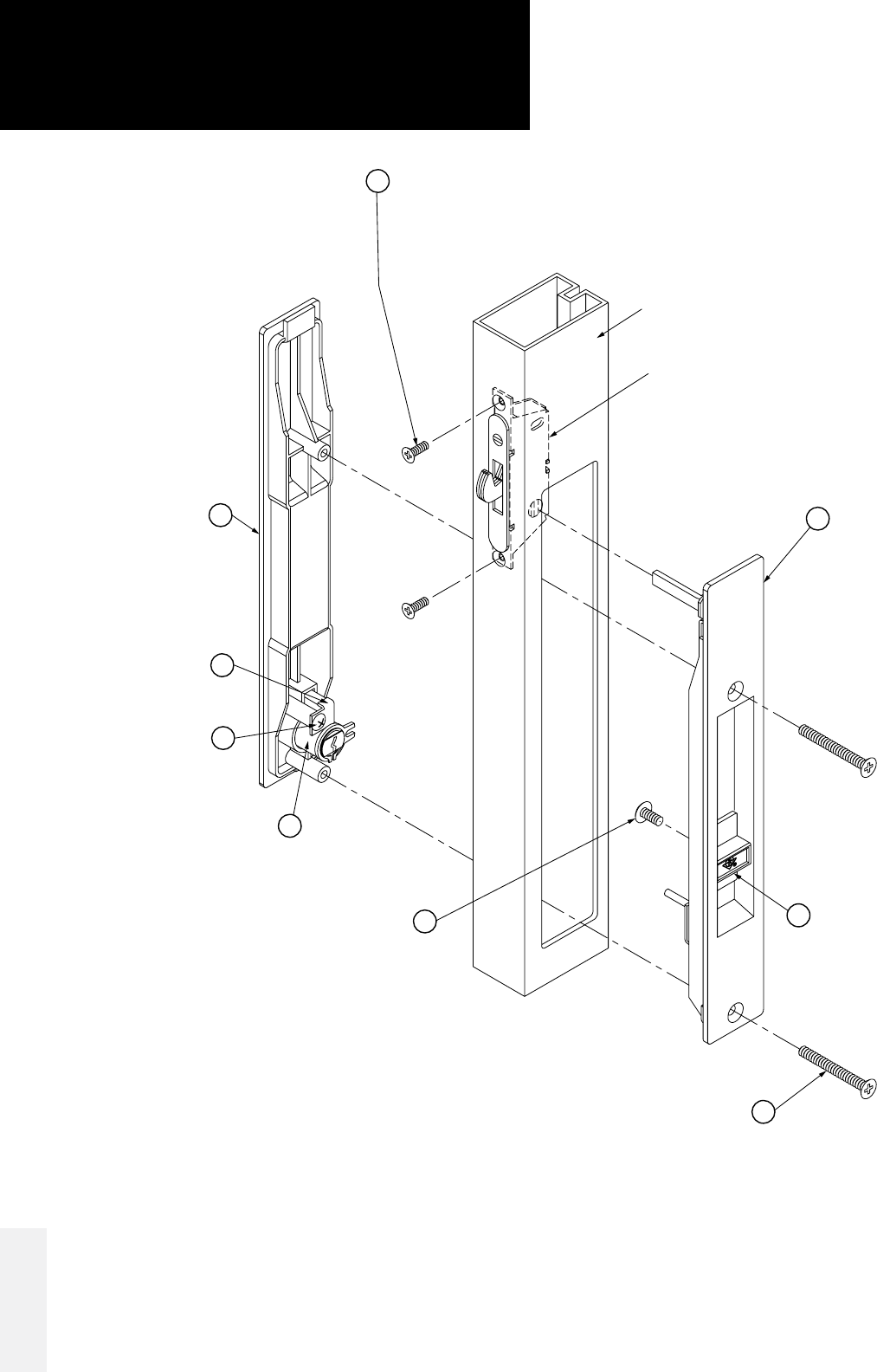

FACEPLATE KIT 2290
P/N 91-0266-04-XXX-IP
FACEPLATE KIT 2190
P/N 91-0266-01-XXX-IP
CURVED
ROUND
SQUARE
OUTSIDE TRIM
COVER KIT
P/N 91-0200-XXX-IP
STANDARD
FLAT STRIKE
P/N 2206-01-XXX
STANDARD FLAT STRIKE
P/N 2101-01-XXX
OR
STANDARD RADIUS STRIKE
P/N 2101-02-XXX
OUTSIDE TRIM
HARDWARE KIT
P/N 91-0202-02-IP
INSIDE TRIM
HARDWARE KIT
P/N 91-0202-01-IP
2
4
5
6
7
8
9
INSIDE TRIM
COVER KIT
P/N 91-0201-XXX-IP
1
3
LEVER KITS
STANDARD
P/N 91-0917-0X0-XXX-IP
OR
DESIGNER
P/N 91-0917-MXX-XXX-IP
2190 Dual Force®
INTERCONNECTED
DEADBOLT/DEADLATCH
DEADLOCKS
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
2190 Dual Force®
INTERCONNECTED
DEADBOLT/DEADLATCH

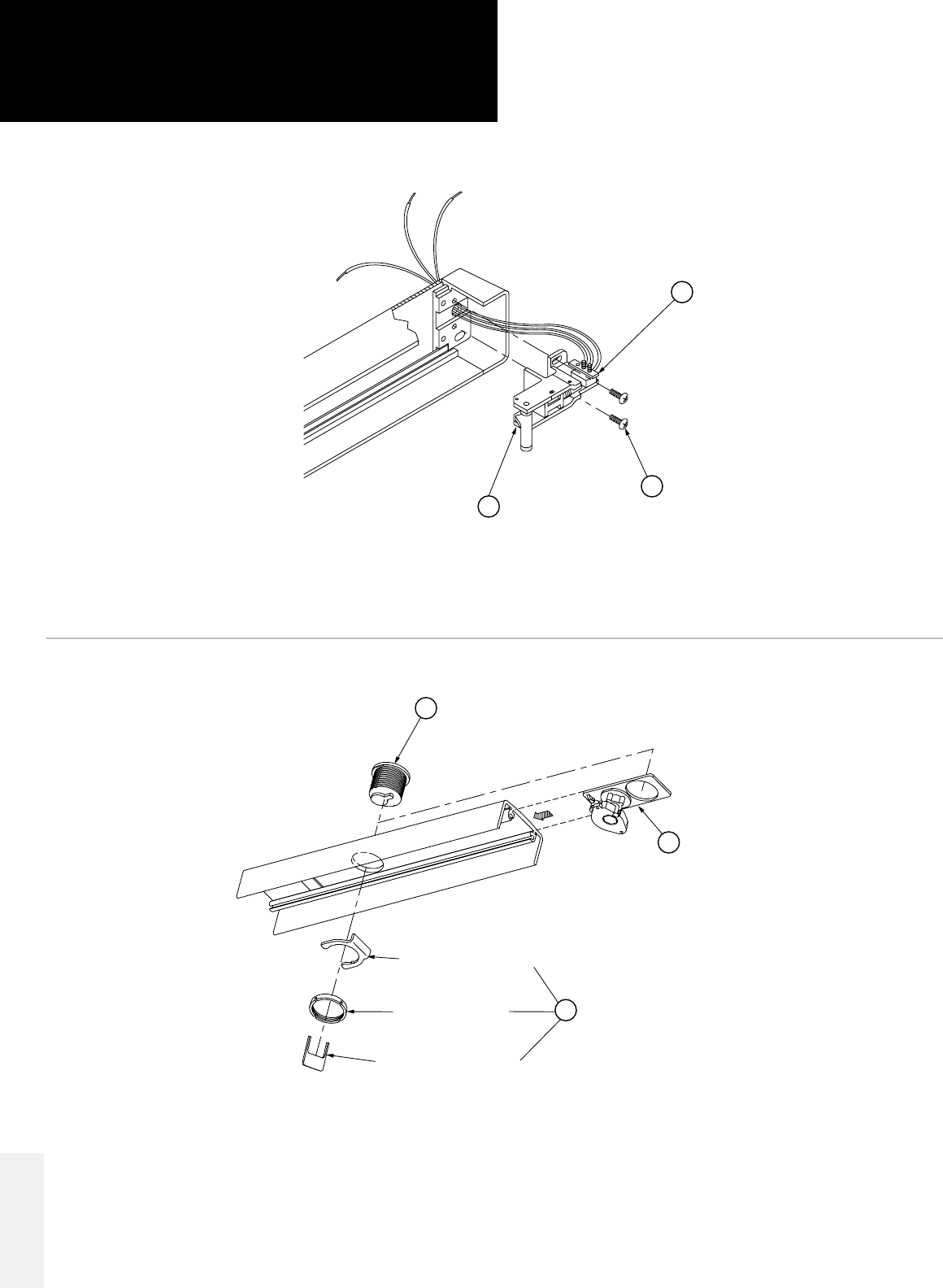

2190 Dual Force® Interconnected Deadbolt/Deadlatch
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
191-0201-US32D Inside trim cover kit, US32D finish Each $58.00
291-0266-04-313-IP Faceplate kit for 2290, 313 finish Each List
91-0266-04-628-IP Faceplate kit for 2290, 628 finish Each List
391-0266-01-313-IP Faceplate kit for 2190, 313 finish Each List
91-0266-01-628-IP Faceplate kit for 2190, 628 finish Each List
4
91-0197-010-10B-IP Curved lever kit, 10B (613) finish Each $82.00
91-0197-010-US32D-IP Curved lever kit, US32D (630) finish Each $92.00
91-0197-020-10B-IP Round lever kit, 10B (613) finish Each $92.00
91-0197-020-US32D-IP Round lever kit, US32D (630) finish Each $82.00
91-0197-030-10B-IP Square lever kit, 10B (613) finish Each $92.00
91-0197-030-US32D-IP Square lever kit, US32D (630) finish Each $92.00
91-0197-MD0-10B-IP Designer lever kit, Centro Series MD, 10B (613) finish Each $129.00
91-0197-MD0-US32D-IP Designer lever kit, Centro Series MD, US32D (630) finish Each $144.00
91-0197-ME0-10B-IP Designer lever kit, Aventura Series ME, 10B (613) finish Each $144.00
91-0197-ME0-US32D-IP Designer lever kit, Aventura Series ME, US32D (630) finish Each $144.00
91-0197-MG0-10B-IP Designer lever kit, Aventura Series MG, 10B (613) finish Each $144.00
91-0197-MG0-US32D-IP Designer lever kit, Aventura Series MG, US32D (630) finish Each $144.00
91-0197-MI0-10B-IP Designer lever kit, Aventura Series MI, 10B (613) finish Each $144.00
91-0197-MI0-US32D-IP Designer lever kit, Aventura Series MI, US32D (630) finish Each $144.00
91-0197-MJ0-10B-IP Designer lever kit, Centro Series MJ, 10B (613) finish Each $144.00
91-0197-MJ0-US32D-IP Designer lever kit, Centro Series MJ, US32D (630) finish Each $144.00
91-0197-MN7-10B-IP Designer lever kit, Odeon Series MN, left hand, 10B (613) finish Each $144.00
91-0197-MN7-US32D-IP Designer lever kit, Odeon Series MN, left hand, US32D (630) finish Each $144.00
91-0197-MN8-10B-IP Designer lever kit, Odeon Series MN, right hand, 10B (613) finish Each $144.00
91-0197-MN8-US32D-IP Designer lever kit, Odeon Series MN, right hand, US32D (630) finish Each $144.00
91-0197-MV7-10B-IP Designer lever kit, Odeon Series MV, left hand, 10B (613) finish Each $144.00
91-0197-MV7-US32D-IP Designer lever kit, Odeon Series MV, left hand, US32D (630) finish Each $144.00
91-0197-MV8-10B-IP Designer lever kit, Odeon Series MV, right hand, 10B (613) finish Each $144.00
91-0197-MV8-US32D-IP Designer lever kit, Odeon Series MV, right hand, US32D (630) finish Each $144.00
91-0197-MW0-10B-IP Designer lever kit, Aventura Series MW, 10B (613) finish Each $144.00
91-0197-MW0-US32D-IP Designer lever kit, Aventura Series MW, US32D (630) finish Each $144.00
591-0200-10B Outside trim cover kit, 10B (613) finish Each $64.00
91-0200-US32D Outside trim cover kit, US32D finish Each $64.00
62206-01-121 Standard flat strike with dust box, 2290, 121 finish Each List
2206-01-630 Standard flat strike with dust box, 2290, US32D (630) finish Each List
7
2101-01-121 Standard flat strike with dust box, 2190, 121 finish Each List
2101-01-630 Standard flat strike with dust box, 2190, US32D (630) finish Each List
2101-02-121 Standard radius strike with dust box, 2190, 121 finish Each List
2101-02-630 Standard radius strike with dust box, 2190, US32D (630) finish Each List
891-0202-02-IP Outside trim hardware kit, 2190 Each $12.00
991-0202-01-IP Inside trim hardware kit, 2190 Each $10.00
NS 80-0180-410 Installation instructions Each Email Only
NS 80-0180-411-01 Template — inside trim Each Email Only
NS 80-0180-411-02 Template — outside trim Each Email Only
List = Refer to current pricelist NS = Not shown
10
2331
HEAVY DUTY DEADLOCK
STRIKE
P/N 22-0032-XXX
#8-32 X 5/8"
SET SCREW
P/N S232C8-15/32-631-MP
2 REQ’D
#6-32 X 3/16" FLAT HEAD
UNDERCUT SCREW
P/N S235B06R03-605-MP
2 REQ’D
FACEPLATE
P/N 22-0170-XXX
1
2
3
4
DEADLOCKS
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
2331
HEAVY DUTY DEADLOCK
2331 Heavy Duty Deadlock
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
1
22-0032-121 Strike, 121 finish Each List
22-0032-605 Strike, US3 (605) finish Each List
22-0032-625 Strike, US26 (625) finish Each List
22-0032-626 Strike, US26D (626) finish Each List
2S232C8-15/32-631-MP #8-32 × 15/32" slotted set screw Pkg. of 10 $11.00
3
22-0170-121 Faceplate kit with screws, 121 finish Each List
22-0170-605 Faceplate kit with screws, US3 (605) finish Each List
22-0170-626 Faceplate kit with screws, US26D (626) finish Each List
4S235B06R03-605-MP #6-32 × 3/16" flat head undercut screw Pkg. of 10 $7.00
NS
4066-03-130 Mortise thumbturn, 130 finish Each List
4066-03-313 Mortise thumbturn, 313 finish Each List
4066-03-335 Mortise thumbturn, 335 finish Each List
List = Refer to current pricelist NS = Not shown
12
4189/4190
FLUSH LOCKSETS
INSERT CYLINDER
P/N 29-0442-02
MS 1848-09
INTERIOR
INTERIOR ESCUTCHEON
OPERATOR
P/N 41-0942-XX-XXX-IB
#8-32 FLAT HEAD SCREW
P/N S227-08RXX-603-MP
2 REQ’D
FLUSH LOCKSET KNOB
P/N 25-0094
EXTERIOR ESCUTCHEON ASS’Y
4189 P/N 23-0065-01-XXX-IB
OR
4190 P/N 41-0943-1-XXX-01-IB
#6-32 X 3/8" TRUSS
HEAD SCREW
P/N S234-06R06N-603-MP
#6-32 X 1/4" FLAT HEAD SCREW
MS 1848
P/N S235-06R04N-603-MP
OR
MS 1847
P/N S235C06R04-630-MP
2 REQ’D
BARBED STUD
P/N P191-10-06-MP
3
4
5
1
2
7
8
6
DEADLOCKS
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4189/4190
FLUSH LOCKSETS
4189/4190 Flush Locksets
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
1S235-06R04N-603-MP #6-32 × 1/4" flat head screw Pkg. of 10 $6.00
S235C06R04-630-MP #6-32 × 1/4" flat head screw Pkg. of 10 $12.00
2
41-0942-01-119-IB Interior escutcheon operator, 4189, 1" — 1-5/8" door, 119 finish Each $44.00
41-0942-01-121-IB Interior escutcheon operator, 4189, 1" — 1-5/8" door, 121 finish Each $44.00
41-0942-01-130-IB Interior escutcheon operator, 4189, 1" — 1-5/8" door, 130 finish Each $44.00
41-0942-02-119-IB Interior escutcheon operator, 4189, 1-11/16" — 2" door Each $50.00
41-0942-09-119-IB Interior escutcheon operator, 4190, 1" — 1-3/8" door, 119 finish Each $63.00
41-0942-09-130-IB Interior escutcheon operator, 4190, 1" — 1-3/8" door, 130 finish Each $63.00
41-0942-10-119-IB Interior escutcheon operator, 4190, 1-7/16" — 1-5/8" door Each $68.00
41-0942-11-119-IB Interior escutcheon operator, 4190, 1-11/16" — 2" door, 119 finish Each $75.00
41-0942-11-130-IB Interior escutcheon operator, 4190, 1-11/16" — 2" door, 130 finish Each $75.00
325-0094 Knob Each $5.00
4
S227-08R12-603-MP #8 × 3/4" flat head self-tapping screw Pkg. of 10 $5.00
S227-08R16-603-MP #8 × 1" flat head self-tapping screw Pkg. of 10 $6.00
S227-08R22-603-MP #8 × 1-3/8" flat head self-tapping screw Pkg. of 10 $6.00
5P191-10-06-MP Barbed stud Pkg. of 10 $13.00
6
23-0065-01-119IB Exterior escutcheon, 4189, 4195, 119 finish Each $33.00
23-0065-01-121IB Exterior escutcheon, 4189,4195, 121 finish Each $33.00
23-0065-01-130IB Exterior escutcheon, 4189, 4195, 130 finish Each $33.00
41-0943-1-119-01-IB Exterior escutcheon, 4190 Schlage “C”, 119 finish Each $63.00
41-0943-1-130-01-IB Exterior escutcheon, 4190 Schlage “C”, 130 finish Each $63.00
729-0442-02 Insert cylinder with 2 keys, Schlage “C” keyway Each $32.00
8S234-06R06N-603-MP #6-32 × 3/8" truss head screw Pkg. of 10 $9.00
NS
23-0066-02-119IB Interior Escutcheon, 4195, 119 finish Each $32.00
23-0066-02-121IB Interior Escutcheon, 4195, 121 finish Each $32.00
23-0066-02-130IB Interior Escutcheon, 4195, 130 finish Each $32.00
14
4430/4431
FLUSH LOCKSETS
FLUSH LOCKSET KNOB
P/N 25-0077
INTERIOR ESCUTCHEON
OPERATOR
P/N 41-0397-XX-IB
#6 X 3/8" PAN HEAD SCREW
SELF-TAPPING
P/N S280C06R06-MP
INSERT CYLINDER
P/N 29-0461-03-01
#8 X 3/8" SELF-TAPPING
SCREW
P/N S256C08R06-MP
CYLINDER RETAINER
P/N 22-0212
EXTERIOR ESCUTCHEON
4430 P/N 25-0087-IB
OR
4431 P/N 41-0405-00-01-IB
#6-32 X 1/4" FLAT HEAD SCREW
MS 1848
P/N S235-06R04N-603-MP
OR
MS 1847
P/N S235C06R04-630-MP
2 REQ'D
#8 FLAT HEAD SCREW
SELF-TAPPING
P/N S254C08R16-MP
OR
P/N S254-08R22-603-MP
2 REQ’D
MS 1848-09
INTERIOR
1
2
3
4
5
6
7
8
9
DEADLOCKS
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4430/4431
FLUSH LOCKSETS
4430/4431 Flush Locksets
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
1S235-06R04N-603-MP #6-32 × 1/4" flat head screw Pkg. of 10 $6.00
S235C06R04-630-MP #6-32 × 1/4" flat head screw Pkg. of 10 $12.00
2
41-0397-01-IB Interior escutcheon operator, 1" — 1-5/16" door Each $49.00
41-0397-02-IB Interior escutcheon operator, 1-3/8" — 1-5/8" door Each $49.00
41-0397-06-IB Interior escutcheon operator, 1-3/4" — 2" door Each $49.00
325-0077 Knob Each $5.00
4S254C08R16-MP #8 × 1" flat head self-tapping screw Pkg. of 10 $12.00
S254-08R22-603-MP #8 × 1-3/8" flat head self tapping screw Pkg. of 10 $9.00
5S280C06R06-MP #6 × 3/8" pan head self-tapping screw Pkg. of 10 $6.00
629-0461-01-01 Insert cylinder with 2 keys, Schlage “C” keyway Each $32.00
7S256C08R06-MP #8 × 3/8" self-tapping screw Pkg. of 10 $9.00
822-0212 Cylinder retainer Each $5.00
925-0087-IB Exterior escutcheon for 4430 Each $15.00
41-0405-00-01-IB Exterior escutcheon, 4431 Schlage “C” keyway Each $49.00
NS 25-0088-IB Interior Escutcheon, 4432 Each $15.00
NS 25-0087-Ib Exterior Escutcheon, 4432 Each $15.00
16 DEADLATCHES

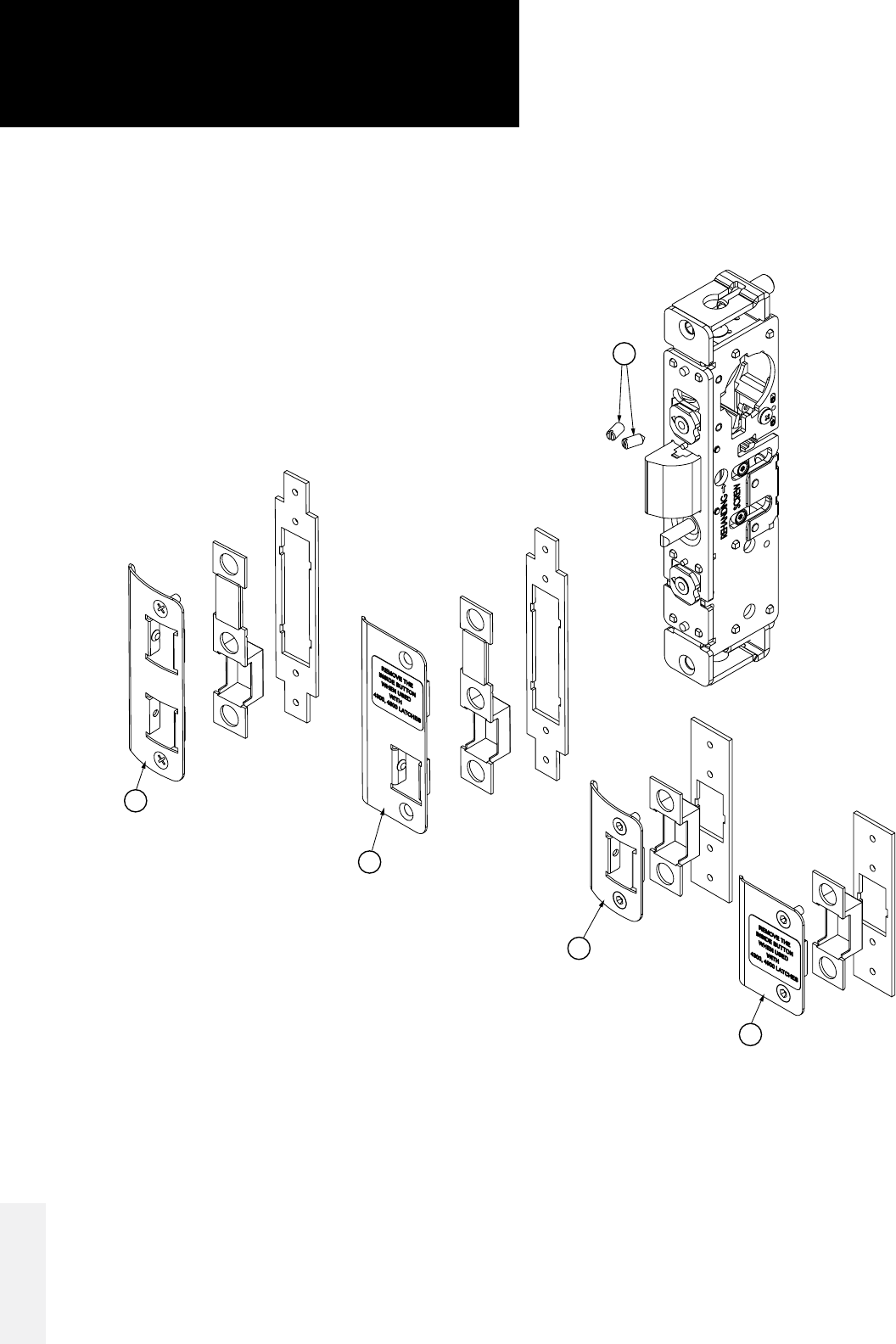

4300 Steel Hawk®
ELECTRIFIED DEADLATCH
6
CAM PLUG
P/N 4581-01-IP
FACEPLATE KIT
P/N 91-4300-01-XXX-IP
SHORT BOX STRIKE
FLAT
P/N 4902-01-XXX
SHORT BOX STRIKE
RADIUS
P/N 4902-02-XXX
1
5
2
3
FLUSH MOUNT
FLAT STRIKE
P/N 4901-01-XXX
FLUSH MOUNT
RADIUS STRIKE
P/N 4901-02-XXX
4
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4300 Steel Hawk®
ELECTRIFIED DEADLATCH
4300 Steel Hawk® Electrified Deadlatch
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
1
91-4300-01-313-IP Faceplate kit, 313 finish Each $21.00
91-4300-01-335-IP Faceplate kit, 335 finish Each $21.00
91-4300-01-628-IP Faceplate kit, 628 finish Each $21.00
2
4902-01-119 Short box strike, flat with dust box, mounting plate, 119 finish Each List
4902-01-121 Short box strike, flat with dust box, mounting plate, 121 finish Each List
4902-01-630 Short box strike, flat with dust box, mounting plate, US32D (630) finish Each List
3
4902-02-119 Short box strike, radius with dust box, mounting plate, 119 finish Each List
4902-02-121 Short box strike, radius with dust box, mounting plate, 121 finish Each List
4902-02-630 Short box strike, radius with dust box, mounting plate, US32D (630) finish Each List
4
4901-01-119 Flush mount flat strike mortised with dust box, 119 finish Each List
4901-01-121 Flush mount flat strike mortised with dust box, 121 finish Each List
4901-01-630 Flush mount flat strike mortised with dust box, US32D (630) finish Each List
5
4901-02-119 Flush mount radius strike mortised with dust box, 119 finish Each List
4901-02-121 Flush mount radius strike mortised with dust box, 121 finish Each List
4901-02-630 Flush mount radius strike mortised with dust box, US32D (630) finish Each List
64581-01 Cam plug 1-3/4" Each List
NS 4304-121 Surface mount strike, 121 finish Each List
4304-630 Surface mount strike, US32D (630) finish Each List
NS 80-0180-421 Installation instructions Each Email Only
List = Refer to current pricelist NS = Not shown
18
4781
TWOPOINT
DEADLATCH WITH PADDLE
LOWER BOLT GUIDE ASS’Y
P/N 31-0964-IP
BOLT GUIDE BUSHING
P/N 25-0506-MP
SPIDER
P/N 25-0062-01-MP
CVR FINAL ASS’Y
P/N 41-0935
#10-32 X 5/16" FLAT HEAD SCREW
P/N S266-10R05N-XXX-MP
5 REQ’D
#6-32 X 1/2"
CAP SCREW
P/N S242A06-08-MP
2 REQ'D
STRIKE PLATE ASS’Y
P/N 31-0945-MP*
ACTUATOR ASS’Y
P/N 31-0944-IP
RIVNUT TOOL KIT ASS’Y
P/N 41-0975-02-IP
DOGGING KEY
P/N 29-0481-MP
ESCUTCHEON ASS’Y
P/N 41-0123-XX-IP
PAN HEAD SCREW
#10-24 X 1-1/2"
*P/N S277-10R24-603-MP
2 REQ’D
* INCLUDED IN ESCUTCHEON ASS’Y
P/N 41-0123-XX-IP OR AVAILABLE SEPERATLY
SPRING CLIP
*P/N 28-0070-MP
2 REQ’D
SHAFT
*P/N 26-0055
3/8"-24 SET SCREW
*P/N 26-0398N-MP RETURN
SPRING KIT
*P/N 91-0060
PADDLE ASS’Y
P/N 41-0119-XXX
DRIVER SCREW
*P/N 26-0383N-MP LABEL
P/N 20-0099
DOGGING SCREW
*P/N 31-0079-MP
DRIVE SHAFT
*P/N 26-0413
1
2
19
20
21
3
4
5
6
7
8
9
10
11
12
13
14
16
15
17
18
DEADLATCHES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4781
TWOPOINT
DEADLATCH WITH PADDLE
4781 Two-Point Deadlatch with Paddle
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
1S266-10R05N-119-MP #10-32 × 5/16" flat head screw, 119 finish Pkg. of 10 $13.00
S266-10R05N-603-MP #10-32 × 5/16" flat head screw, 603 finish Pkg. of 10 $11.00
241-0975-02 Rivnut tool kit assembly Each $13.00
3
41-0123-02-IP Escutcheon assembly, “PUSH” to left, comes complete
with items 13-16, 19-21, 23 below Each $124.00
41-0123-04-IP Escutcheon assembly, “PUSH” to right, comes
complete with items 13-16, 19-21, 23 below Each $124.00
429-0481-MP Dogging key Pkg. of 10 $33.00
531-0079-MP Dogging screw Pkg. of 10 $29.00
626-0413 Drive shaft Each $13.00
7S277-10R24-603-MP #10-24 × 1-1/2" pan head screw Pkg. of 10 $10.00
820-0099 “PUSH" & "PULL” indicator label Each $5.00
9
41-0119-313 Paddle assembly, 313 finish Each $63.00
41-0119-335 Paddle assembly, 335 finish Each $63.00
41-0119-628 Paddle assembly, 628 finish Each $63.00
10 28-0070-MP Spring clip Pkg. of 10 $6.00
11 91-0060 Return spring kit, includes all four springs Pkg. of 4 $9.00
12 26-0383N-MP Driver screw Pkg. of 10 $75.00
13 26-0055 Shaft Each $5.00
14 26-0398N-MP 3/8"-24 set screw Pkg. of 10 $28.00
15 31-0964 Lower bolt guide assembly Each $9.00
16 25-0506-MP Bolt guide bushing Pkg. of 10 $9.00
17 41-0935 CVR final assembly, complete with bolts Each $173.00
18 25-0062-01-MP Spider Pkg. of 10 $22.00
19 S242A06-08-MP #6-32 × 1/2" cap screw, rod piercing Pkg. of 10 $12.00
20 31-0944 Actuator, top assembly Each $34.00
21 31-0945 Strike plate assembly Each $22.00
31-0945-MP Strike plate assembly multipack Pkg. of 10 $207.00
NS 80-0180-128 Instruction sheet, 4781 Each Email Only
NS 80-0180-133 Dogging instruction sheet, 4781 Each Email Only
NS = Not shown
20
4900
HEAVY DUTY DEADLATCH
#8-32 × 5/16"
SCREWS
S232C08-05-631-MP
SHORT BOX STRIKE
FLAT
4902-01-XXX
SHORT BOX STRIKE
RADIUS
4902-02-XXX
FLUSH MOUNT
FLAT STRIKE
4901-01-XXX
FLUSH MOUNT
RADIUS STRIKE
4901-02-XXX
1
2
3
5
4
DEADLATCHES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4900
HEAVY DUTY DEADLATCH
4900 Heavy Duty Deadlatch
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
1S232C08-05-631-MP #8-32 × 5/16" slotted head screw for 31/32" backset Pkg. of 10 $11.00
2
4902-01-119 Short box strike, flat with dust box, mounting plate, 119 finish Each List
4902-01-121 Short box strike, flat with dust box, mounting plate, 121 finish Each List
4902-01-630 Short box strike, flat with dust box, mounting plate, US32D (630) finish Each List
3
4902-02-119 Short box strike, radius with dust box, mounting plate, 119 finish Each List
4902-02-121 Short box strike, radius with dust box, mounting plate, 121 finish Each List
4902-02-630 Short box strike, radius with dust box, mounting plate, US32D (630) finish Each List
4
4901-01-119 Flush mount flat strike mortised with dust box, 119 finish Each List
4901-01-121 Flush mount flat strike mortised with dust box, 121 finish Each List
4901-01-630 Flush mount flat strike mortised with dust box, US32D (630) finish Each List
5
4901-02-119 Flush mount radius strike mortised with dust box, 119 finish Each List
4901-02-121 Flush mount radius strike mortised with dust box, 121 finish Each List
4901-02-630 Flush mount radius strike mortised with dust box, US32D (630) finish Each List
NS 4506-02-630 Strike for use with 4920AN Each List
NS 91-4900-01-628 Loose parts kit, 4900 Each $26.00
91-4920-02-628 Loose parts kit, 4920AN Each $26.00
List = Refer to current pricelist NS = Not shown
22

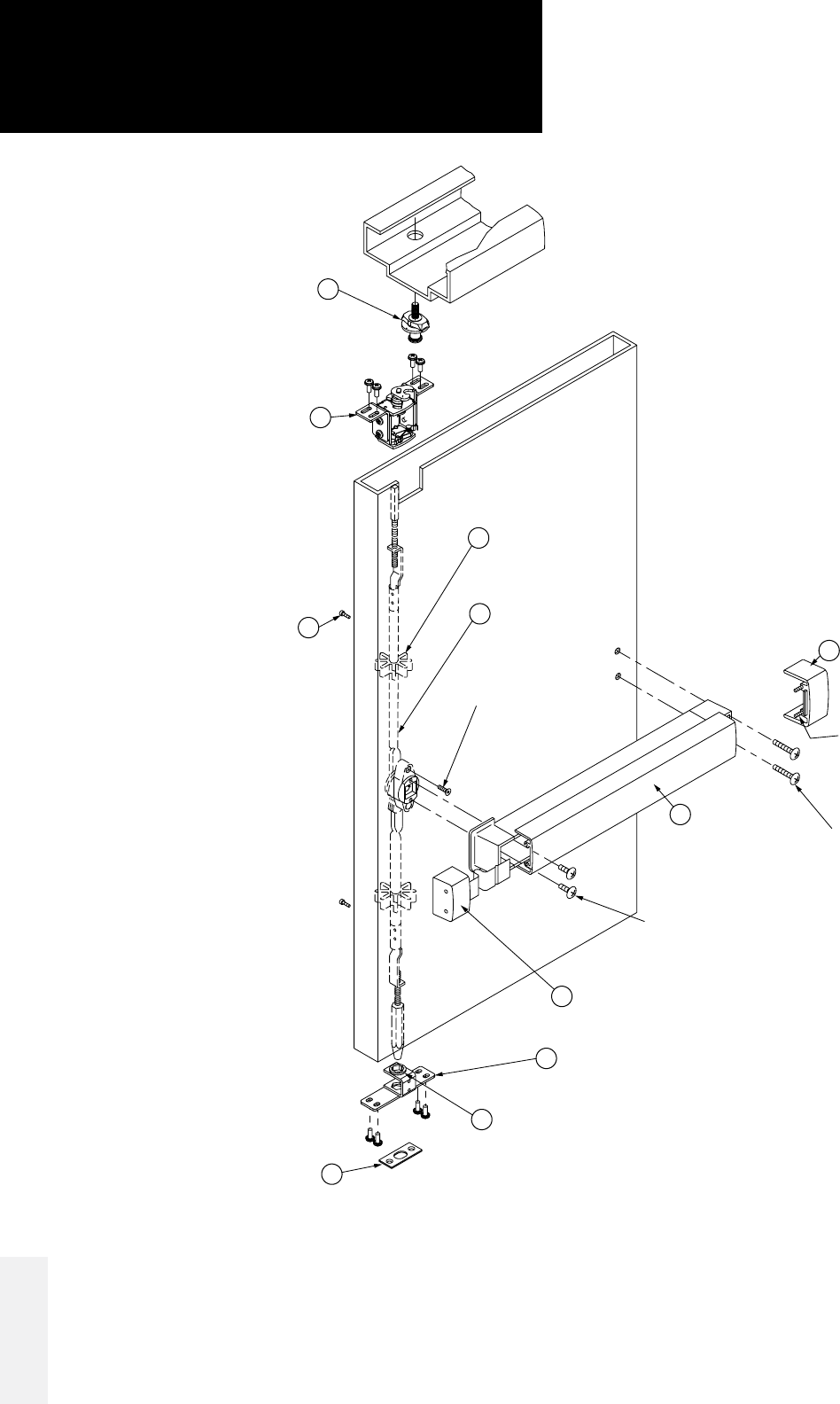

STRIKE PLATE ASS’Y
P/N 31-0202
#6-32 X 1/4" PAN HEAD SCREW
2 REQ’D
LOCK WASHER SPRING
BINDER POST
P/N 26-0584-652-MP
4 REQ’D
#10-24 X 1" PAN HEAD
MACHINE SCREW
4 REQ'D
MOLDING CLIP
P/N 25-0008
2 REQ'D
LOWER HOUSING
P/N 23-0059
LOWER ROD ASS’Y
P/N 31-0192-02-P
LOWER BOLT GUIDE ASS’Y
P/N 31-0175-P
BOLT GUIDE BUSHING
P/N 25-0284-MP
ACTUATOR ASS’Y
P/N 31-0331
UPPER COVER
P/N 22-0332-0X-XXX
ROD GUIDE COVER
P/N 24-0003-01-XXX-IP
OR
P/N 24-0031-XXX
OR
P/N 24-0033-XXX
2 REQ'D
METAL END CAP
P/N 41-0903-IP
#10-32 X 5/8" SCREW
SELF-TAPPING
4 REQ'D
LOWER COVER
P/N 22-0333-0X-XXX
#6-32 X 1/4" PAN HEAD SCREW
PUSH BAR ASS’Y
SVR FINAL ASS’Y
P/N 41-0235-01
OR
P/N 41-0333-01 (3100T)
UPPER ROD ASS’Y
P/N 31-0333-01
#10 X 1-1/4" PAN HEAD SCREW
SELF-TAPPING
13 REQ'D
STRIKE
P/N 22-0125-IP
METAL END CAP ASS’Y
P/N 41-0902-04-IP
#10-24 X 1" PAN HEAD MACHINE SCREW
17
1
14
11
10
12
9
3
4
2
7
15
16
6
8
13
5
INCLUDED IN HARDWARE PACK
P/N 91-0831-01-XXX
*
*
*
*
*
*
*
*
3100 Series
SURFACE VERTICAL ROD
EXIT DEVICE
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
3100 Series
SURFACE VERTICAL ROD
EXIT DEVICE
3100 Series Surface Vertical Rod Exit Device (Including 3100T)
ITEM PART NUMBER DESCRIPTION UNITS
PKGD 2019 PRICE
131-0202 Strike plate assembly Each $33.00
231-0331 Actuator assembly Each $50.00
3
22-0332-01-313 Upper cover, 313 finish Each $32.00
22-0332-01-335 Upper cover, 335 finish Each $32.00
22-0332-01-628 Upper cover, 628 finish Each $32.00
22-0332-02-605 Upper cover, US3 (605) finish Each $68.00
22-0332-02-606 Upper cover, US4 (606) finish Each $76.00
22-0332-04-629 Upper cover, US32 (629) finish Each $63.00
22-0332-04-630 Upper cover, US32D (630) finish Each $57.00
4
24-0003-01-313 Rod guide cover, 313 finish Each $68.00
24-0003-01-335 Rod guide cover, 335 finish Each $68.00
24-0003-01-628 Rod guide cover, 628 finish Each $68.00
24-0031-605 Rod guide cover, US3 (605) finish Each $207.00
24-0031-606 Rod guide cover, US4 (606) finish Each $207.00
24-0033-629 Rod guide cover, US32 (629) finish Each $112.00
24-0033-630 Rod guide cover, US32D (630) finish Each $112.00
541-0903 End cap assembly, hinge end — metal Each $23.00
6
3100 Push Bar — 313, 335, 628 finish Push bar assembly: order by exit device Series (3100),
door opening width and 313, 335, or 628 finish Each $143.00
3100 Push Bar — 630 finish Push bar assembly: order by exit device Series (3100),
door opening width and US32D (630) finish Each $382.00
3100 Push Bar — 605, 606, 629 finish Push bar assembly: order by exit device Series (3100), door
opening width, and US3 (605), US4 (606), US32 (629) finishes Each $432.00
7
22-0333-01-313 Lower cover, 313 finish Each $32.00
22-0333-01-628 Lower cover, 628 finish Each $32.00
22-0333-02-605 Lower cover, US3 (605) finish Each $64.00
22-0333-02-606 Lower cover, US4 (606) finish Each $64.00
22-0333-04-629 Lower cover, US32 (629) finish Each $64.00
22-0333-04-630 Lower cover, US32D (630) finish Each $64.00
822-0125 Strike (ANSI) Each $22.00
923-0059 Lower housing Each $201.00
10 25-0284-MP Bolt guide bushing Pkg. of 10 $9.00
11 31-0175-P Lower bolt guide assembly Each $18.00
12 31-0192-02-P Lower rod assembly Each $38.00
13 41-0902-04-IP End cap assembly, nose end — metal Each $28.00
14 25-0008 Molding clip Each $9.00
15 41-0235-01 SVR final assembly, complete with rods Each $247.00
41-0333-01 SVR final assembly, complete with rod for top rod devices Each $190.00
16 31-0333-01 Upper rod assembly Each $63.00
17 26-0584-652-MP Binder post with screws 2-Pack $26.00
*
91-0831-01-335 Hardware pack for 313, 335 finishes Each $12.00
91-0831-01-605 Hardware pack for US3 (605), US4 (606) finishes Each $19.00
91-0831-01-630 Hardware pack for 628, US32 (629), US32D (630) finishes Each $10.00
NS 80-0180-86-01 Template, 3100 Each Email Only
NS 80-0180-81 Installation sheet, 3100 Each Email Only
NS 80-0180-481 Top rod, metal door installation sheet, 3100T Each Email Only
NS 80-0180-483 Top rod, wood door installation sheet, 3100W Each Email Only
NS = Not shown Note: Consult factory for doors over 54" above push bar centerline.
24

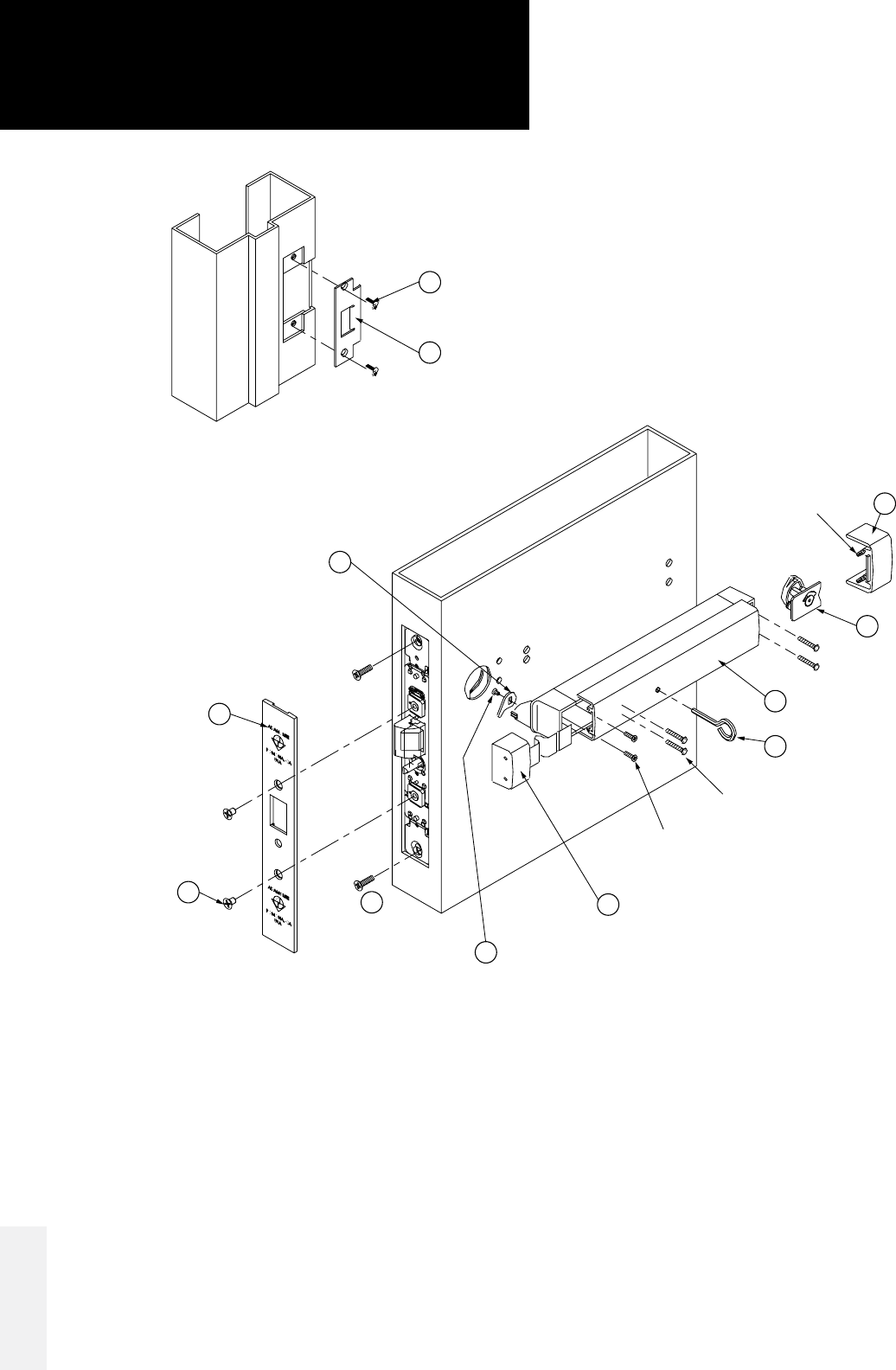

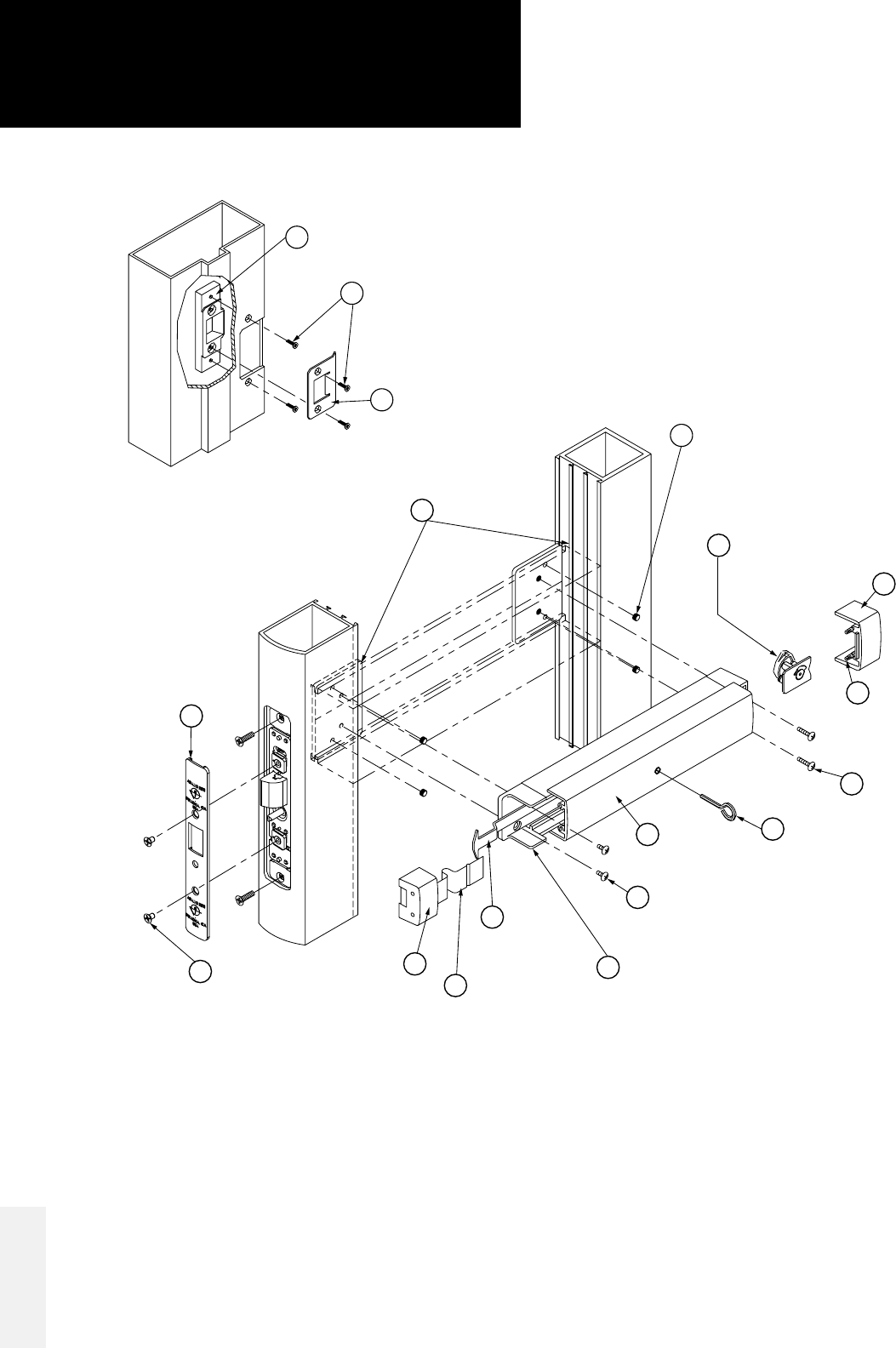

3300 Series
MORTISE EXIT DEVICE
EXIT DEVICES
FACEPLATE KIT
P/N 24-0015-020-XXX
#12-24 X 3/4" FLAT HEAD COMBO SCREW
P/N 91-0833-02
#10 X 1/2" FLAT HEAD SCREW
SELF-TAPPING
2 REQ’D
#10-32 X 5/8" SCREW
SELF-TAPPING
4 REQ'D
#10 X 1-1/4" PAN HEAD SCREW
SELF-TAPPING
4 REQ’D
METAL END CAP
P/N 41-0903-IP
METAL END CAP ASS’Y
P/N 41-0902-05-IP
STRIKE
P/N 22-0398-01-630
CAM
P/N 22-0669
LATCH ASS’Y
P/N 41-0296-XX-P
PUSH BAR ASS’Y
#6 HEX HD CAM SCREW
P/N 26-0217N-MP
OR
CAM RETAINER RING
P/N R603-31-MP
*
*
*
15
6
4
8
7
1
3
9
2
*INCLUDED IN HARDWARE PACK
P/N 91-0833-01
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
3300 Series
MORTISE EXIT DEVICE
3300 Series Mortise Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
191-0833-02 #12-24 × 3/4" flat head combo screw Each $6.00
222-0398-01-630 Strike plate Each $28.00
341-0903 End cap assembly, hinge end — metal Each $23.00
4
3300 Push Bar — 313, 335, 628 finish Push bar assembly: order by exit device Series (3300),
door opening width and 313, 335, or 628 finish Each $143.00
3300 Push Bar — 630 finish Push bar assembly: order by exit device Series (3300),
door opening width and US32D (630) finish Each $382.00
3300 Push Bar — 605, 606, 629 finish Push bar assembly: order by exit device Series (3300), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
541-0902-05 End cap assembly, nose end — metal Each $28.00
626-0217N-MP #6 hex head cam screw Pkg. of 10 $15.00
R603-31-MP Cam retainer ring (past production) Pkg. of 10 $15.00
724-0015-020-335 Faceplate kit with screws, 335 finish Each List
24-0015-020-628 Faceplate kit with screws, 628 finish Each List
841-0296-01-P Latch assembly (LHR) Each $456.00
41-0296-02-P Latch assembly (RHR) Each $456.00
922-0672 Cam (latchbolt retract), screw attachment Each $5.00
*91-0833-01 Hardware pack Each $10.00
NS 80-0180-122-01 Device template, 3300 Each Email Only
NS 80-0180-122-02 Strike template, 3300 Each Email Only
NS 80-0180-83 Installation sheet, 3300 Each Email Only
List = Refer to current pricelist NS = Not shown
26

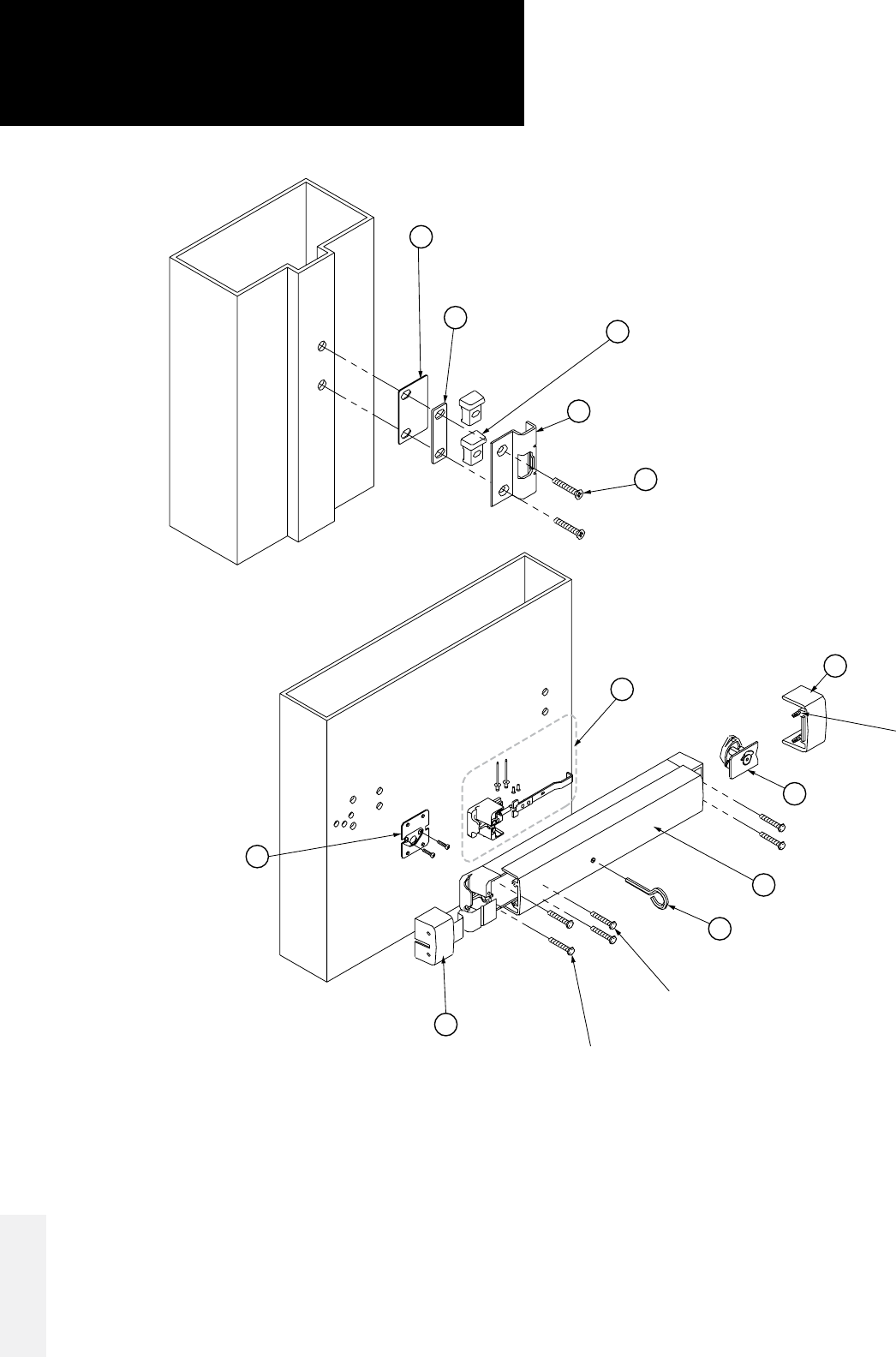

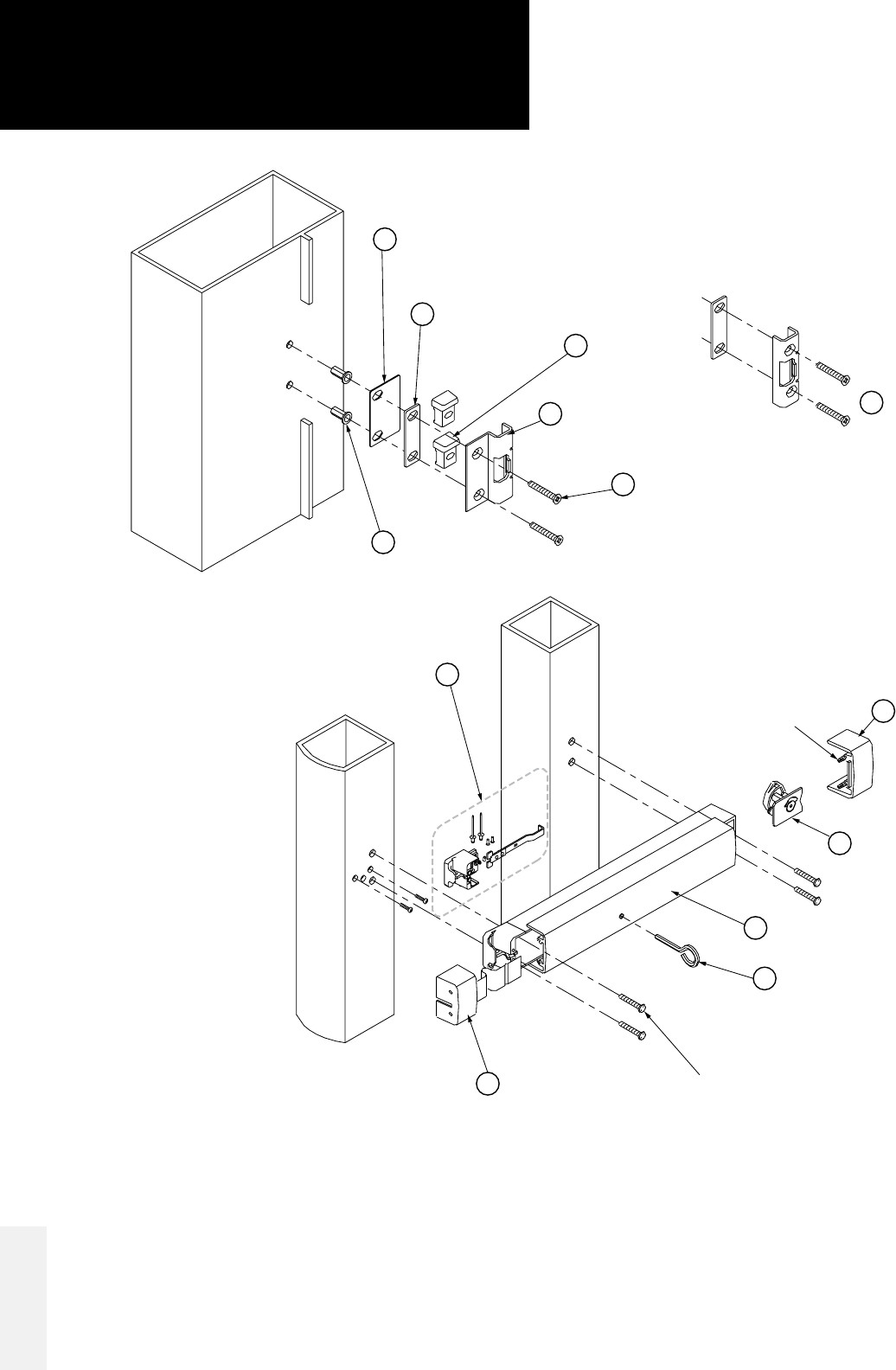

3600 Series
CONCEALED VERTICAL ROD
CVR FINAL ASS’Y
P/N 41-0224-P
OR
P/N 41-0339
#10-32 X 5/16"
FLAT HEAD
UNDERCUT
5 REQ'D
#6-32 X 1/2" CAP SCREW
P/N S242A06-08-MP
2 REQ’D
#10-32 X 1/2" PAN HEAD
MACHINE SCREW
2 REQ’D
#10 X 1-1/4" PAN HEAD SCREW
SELF-TAPPING
2 REQ'D
METAL END CAP
P/N 41-0903-IP
METAL END CAP ASS’Y
P/N 41-0902-05-IP
#10-32 X 5/8" SCREW
SELF TAPPING
4 REQ'D
PUSH BAR ASS’Y
ACTUATOR ASS’Y
P/N 31-0579-02-IP
LOWER BOLT GUIDE ASS’Y
P/N 31-0034
BOLT GUIDE BUSHING
P/N 25-0506-MP
SPIDER
P/N 25-0062-01-MP
*
*
*
*
9
10
8
7
5
4
1
3
6
2
*INCLUDED IN HARDWARE PACK
P/N 91-0833-01-603
STRIKE PLATE ASS’Y
P/N 31-0202 11
STRIKE
P/N 22-0125-IP
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
3600 Series
CONCEALED VERTICAL ROD
3600 Series Metal Door Concealed Vertical Rod (Including 3600T)
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
125-0062-01-MP Spider Pkg. of 10 $22.00
241-0224-P CVR final assembly, complete with bolts Each $161.00
41-0339 CVR final assembly, complete with bolt for top rod devices Each $179.00
341-0903 End cap assembly, hinge end — metal Each $23.00
4
3600 Push Bar — 313, 335, 628 finish Push bar assembly: order by exit device Series (3600),
door opening width and 313, 335, or 628 finish Each $143.00
3600 Push Bar — 630 finish Push bar assembly: order by exit device Series (3600),
door opening width and US32D (630) finish Each $382.00
3600 Push Bar — 605, 606, 629 finish Push bar assembly: order by exit device Series (3600), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
541-0902-05 End cap assembly, nose end — metal Each $28.00
631-0034 Lower bolt guide assembly Each $11.00
725-0506-MP Bolt guide bushing Pkg. of 10 $9.00
822-0125 Strike (ANSI) Each $22.00
9S242A06-08-MP #6-32 × 1/2" cap screw, rod piercing Pkg. of 10 $12.00
10 31-0579-02 Top actuator assembly Each $112.00
11 31-0202 Strike plate assembly Each $33.00
*91-0836-01-603 Hardware pack Each $14.00
NS 80-0180-87-01 Exit device template, 3600 Each Email Only
NS 80-0180-87-02 Strike template, 3600 Each Email Only
NS 80-0180-487-01 Exit device template, 3600T Each Email Only
NS 80-0180-487-02 Strike template, 3600T Each Email Only
NS 80-0180-84 Installation sheet, 3600 Each Email Only
NS 80-0180-486 Installation sheet, 3600T Each Email Only
NS = Not shown
28

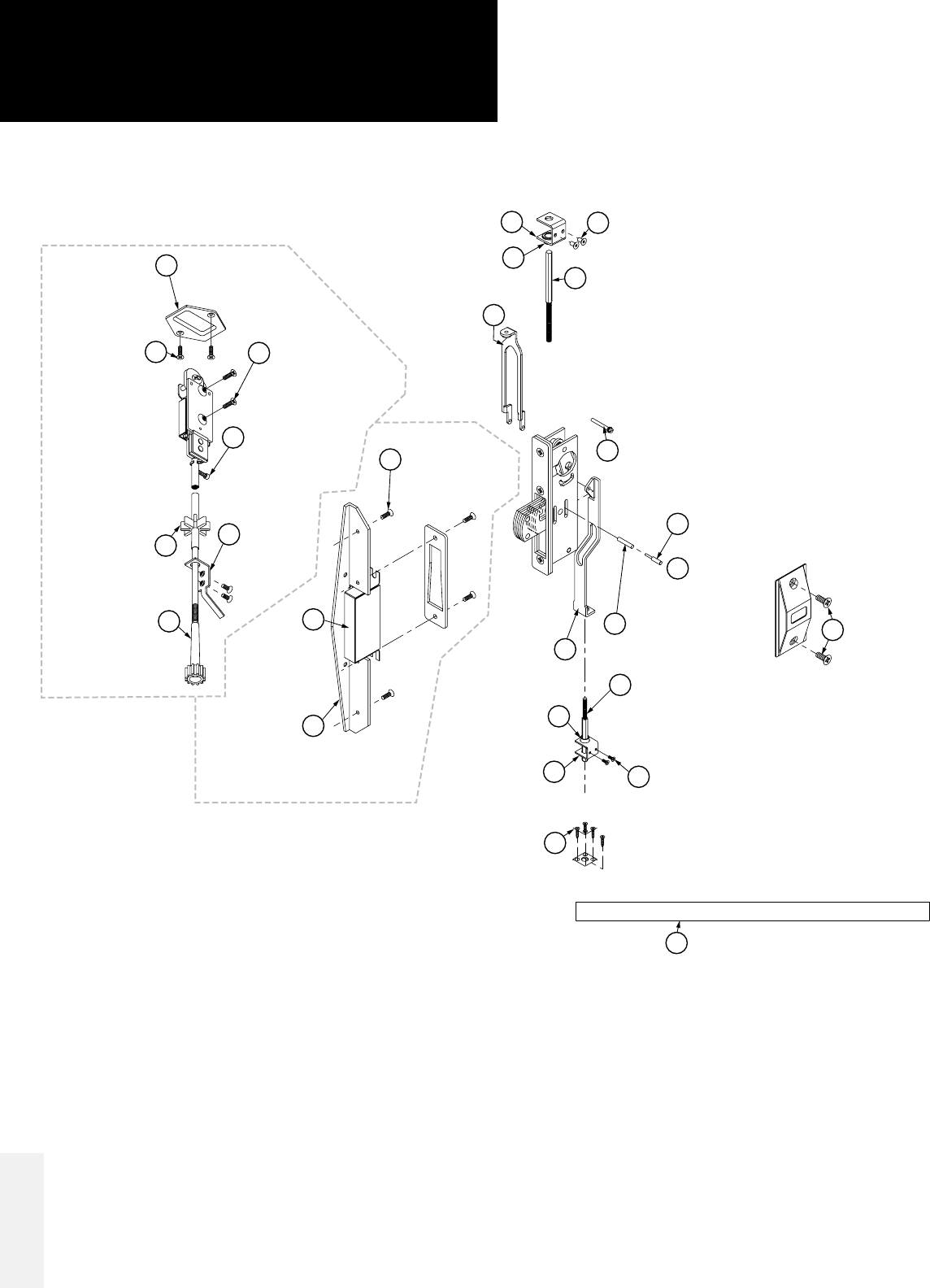

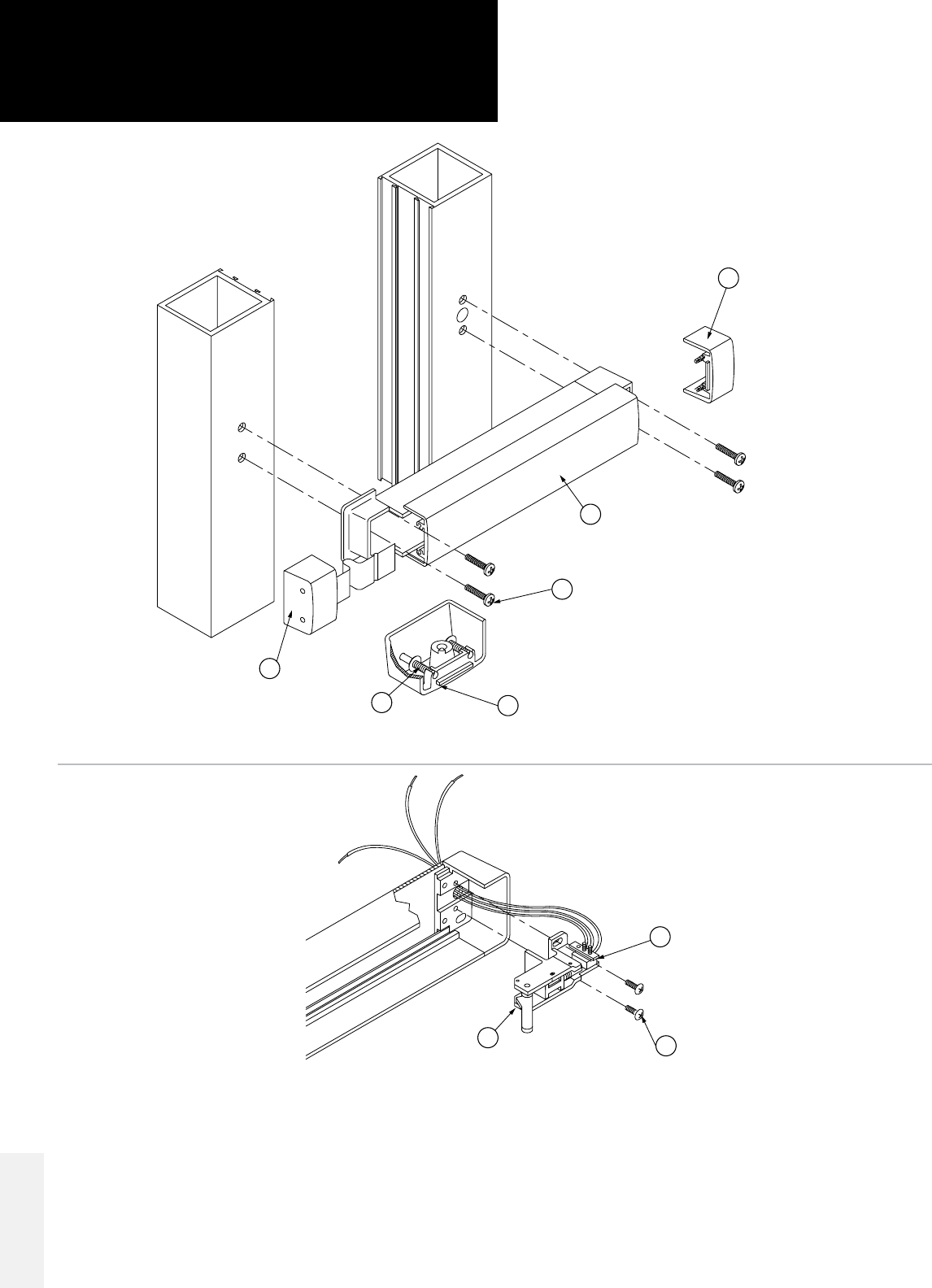

3700 Series
RIM EXIT DEVICE
STRIKE SPACER
P/N 22-0481-04-MP
4 REQ'D
STRIKE SPACER
P/N 22-0481-03-MP
1 REQ’D
STRIKE
P/N 22-0430-IP
STRIKE PLUG
P/N 25-0625-MP
2 REQ’D
#10-32 X 3/4"
FLATHEAD SCREWS
P/N 91-0837-02
#10-32 X 5/8" SCREW
SELF TAPPING
4 REQ'D
METAL END CAP
P/N 41-0903-IP
1
2
4
3
5
6
*
#10 X 1/2" ROUND HEAD SCREW
SELF-TAPPING
2 REQ'D.
*
#10 X 1-1/4" PAN HEAD SCREW
SELF-TAPPING
4 REQ’D
METAL END CAP ASS’Y
P/N 41-0902-03-IP
*
INCLUDED IN HARDWARE PACK
P/N 91-0837-01
*
PUSH BAR ASS’Y
7
8
CYLINDER PLATE
P/N 22-0480
REQ’D FOR
WOOD DOOR ONLY
9
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
3700 Series
RIM EXIT DEVICE
3700 Series Rim Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
122-0481-04-MP Strike spacer Pkg. of 10 $23.00
222-0481-03-MP Strike spacer Pkg. of 10 $23.00
325-0625-MP Strike plug Pkg. Of 2 $12.00
422-0430 Strike Each $11.00
591-0837-02 #10-32 × 3/4" flat head screws Pkg. of 2 $6.00
641-0903 End cap assembly, hinge end — metal Each $23.00
7
3700 Push Bar — 313, 335, 628 finish Push bar assembly: order by exit device Series (3700),
door opening width and 313, 335, or 628 finish Each $143.00
3700 Push Bar — 630 finish Push bar assembly: order by exit device Series (3700),
door opening width and US32D (630) finish Each $382.00
3700 Push Bar — 605, 606, 629 finish Push bar assembly: order by exit device Series (3700), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
841-0902-03 End cap assembly, latch end — metal Each $28.00
922-0480 Cylinder plate for wood door applications Each $12.00
*91-0837-01 Hardware pack Each $6.00
NS 80-0180-124-01 Device template, 3700 Each Email Only
NS 80-0180-124-02 Strike template, 3700 Each Email Only
NS 80-0180-85 Installation sheet, 3700 Each Email Only
NS = Not shown
30
3900/8900 Series
SURFACE CONCEALED
VERTICAL ROD
PUSH BAR ASS’Y
TAILPIECE
ADAPTOR
P/N 23-0335
CENTER BLOCK
P/N 23-0571
COVER PLATE
P/N 22-0847
METAL END CAP ASS’Y
P/N 41-0902-05-IP
FIRE BOLT PLATE
P/N 22-0814-119
CROSS PIN BOLT ASS’Y
P/N 29-0206
2 REQ’D
#10-32 X 1/2"
PAN HEAD SCREW
2 REQ’D
#6-32 X 1/4"
PAN HEAD SCREW
ROD ASS’Y
P/N 41-0337-IP
UPPER COVER
P/N 22-0332-1X-XXX
*INCLUDED IN HARDWARE PACK
P/N 91-0839-01-630
SUPPORT PLATE
P/N 29-0630-XXX
STRIKE PLATE ASS’Y
P/N 31-0202
TOP ACTUATOR ASS’Y
P/N 31-0579-06-IP (3900)
OR
31-0579-05-IP (8900)
MOUNTING CAP
SPACER
P/N 22-0585
METAL END CAP
P/N 41-0903-IP
#10-24 X 1"
PAN HEAD SCREW
2 REQ’D
#10-32 X 5/8" SCREW
SELF TAPPING
4 REQ’D
#10 X 1-1/4" PAN HEAD SCREW
SELF-TAPPING
2 REQ’D
#3-48 X 1/4"
FLAT HEAD SCREW
DRIVE SHAFT
P/N 26-0355 (NO TRIM)
OR
26-0359 (TRIM)
1
2
3
4
5
6
*
7
8
9
10
11
12
13
15
14 *
*
*
*
*
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
3900/8900 Series
SURFACE CONCEALED
VERTICAL ROD
3900/8900 Series Wood Door Surface Concealed Vertical Rod
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
129-0630-121 Support plate, 121 finish Each $81.00
29-0630-626 Support plate, US26D (626) finish Each $92.00
231-0202 Strike plate assembly Each $33.00
331-0579-06 Top actuator assembly, 3900 Each $143.00
31-0579-05 Top actuator assembly, 8900 Each $130.00
422-0585 Mounting cap spacer Each $6.00
541-0903 End cap assembly, hinge end — metal Each $23.00
6
3900 Push Bar — 313,
335, 628 finish
Push bar assembly: order by exit device Series (3900/8900),
door opening width and 313, 335, or 628 finish Each $143.00
3900 Push Bar — 630 finish Push bar assembly: order by exit device Series (3900/8900),
door opening width and US32D (630) finish Each $382.00
3900 Push Bar — 605,
606, 629 finish
Push bar assembly: order by exit device Series (3900/8900), door
opening width and and US3 (605), US4 (606), US32 (629) finishes Each $432.00
726-0355 Drive shaft (no trim) Each $45.00
26-0359 Drive shaft (trim) Each $45.00
823-0335 Tailpiece adapter Each $7.00
923-0571 Center block Each $26.00
10 22-0847 Cover plate Each $6.00
11 41-0902-05 End cap assembly, nose end — metal Each $28.00
12 22-0814-119 Fire bolt plate Each $50.00
13 29-0206 Cross pin bolt assembly Each $76.00
14
22-0332-11-313 Upper cover, 313 finish Each $52.00
22-0332-11-335 Upper cover, 335 finish Each $52.00
22-0332-11-628 Upper cover, 628 finish Each $52.00
22-0332-14-629 Upper cover, US32 (629) finish Each $81.00
22-0332-14-630 Upper cover, US32D (630) finish Each $81.00
15 41-0337-IP Rod assembly Each $96.00
*91-0839-01-630 Hardware pack Each $19.00
NS 80-0180-392 Door template, 3900/8900 Each Email Only
NS 80-0180-390 Installation sheet, 3900/8900 Each Email Only
NS 80-0180-86-02 Frame template, 3900/8900 Each Email Only
NS = Not shown Note: Consult factory for doors over 54" above push bar centerline.
32

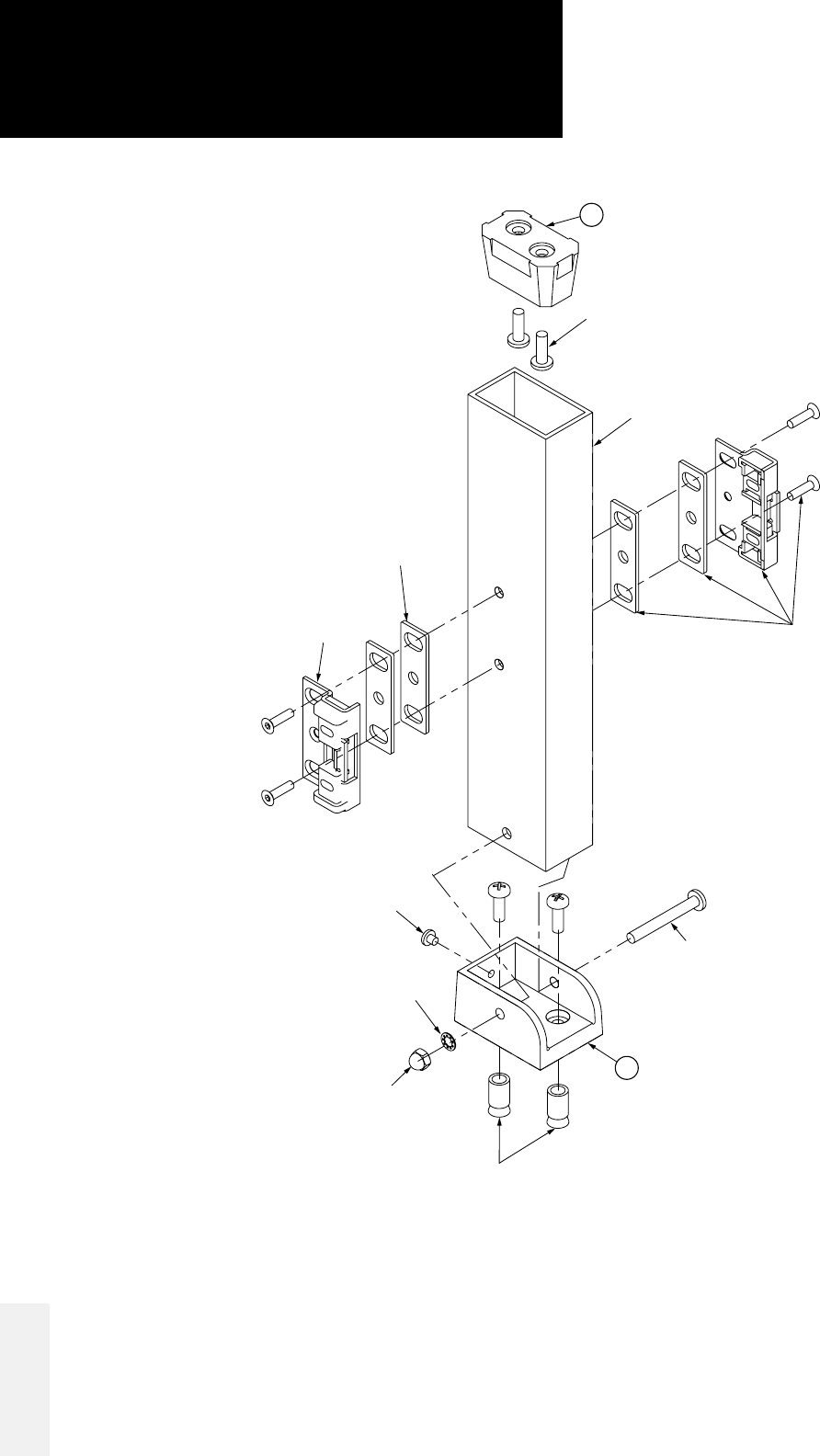

3889
MULLION
MULLION
STRIKE ASS’Y
SPACER
(ONLY IF NEEDED)
WASHER 1/4"
10-32 X 3/16"
PAN HD. SCREW
*
*
*
*
*
INCLUDED IN HARDWARE PACK
P/N 91-0961
BOTTOM FITTING
P/N 23-0512
TOP FITTING
23-0511
1/4"-20 ANCHOR
2 REQ’D
1/4"-20 X 3/8"
ACORN NUT
1/4-20 X 3/4"
PAN HEAD SCREW
4 REQ’D
1
*
1/4"-20 X 2-1/4"
PAN HD SCREW
*
SUPPLIED WITH EXIT DEVICE
(SEE 8700 OR 3700 RIM DEVICE)
2
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
3889
MULLION
3889 Removable Mullion for Hollow Metal or Wood Doors
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
123-0511 Top fitting Each $92.00
223-0512 Bottom fitting Each $96.00
NS 91-0961 Hardware pack Each $14.00
34
3890
MULLION
MOUNTING PLATE
P/N 22-0690
1
4
10-32 RIVNUT
(SUPPLIED W/ RIVNUT INSTALLATION KIT)
P/N 41-0975-04
3 REQ’D
2
10-32 X 3/4"
FLAT HEAD SCREWS
P/N 272-10-12-119-MP
3 REQ’D
3
5
6
TOP/BOTTOM FITTING
P/N 23-0512
4
*
*INCLUDED IN HARDWARE PACK
P/N 91-0961
MULLION
1/4-20 X 2-1/4"
PAN HEAD SCREW
2 PLCS
*
1/4"-20 ANCHOR
2 REQ’D
*
*
*
10-32 X 1/2"
FLAT HEAD SCREW
4 REQ’D
STRIKE
P/N 22-0329
2 REQ’D
KNURLED SPACER
P/N 29-0063
2 REQ’D
1/4-20 X 3/4"
PAN HEAD SCREW
4 REQ’D
1/4-20 X 3/8"
ACORN NUT
2 REQ’D
*
WASHER 1/4"
2 REQ’D
*
TOP/BOTTOM FITTING
P/N 23-0512
10-32 X 3/16"
PAN HEAD SCREW
2 REQ’D
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
3890
MULLION
3890 Removable Mullion for Aluminum Doors
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
122-0690 Mounting plate Each $68.00
241-0975-04 Rivnut tool kit assembly Each $14.00
3S272-10-12-119-MP #10-32 × 3/4" flat head screw Pkg. of 10 $9.00
423-0512 Bottom fitting Each $96.00
522-0329 Strike Each $17.00
629-0063 Knurled spacer Each $26.00
NS 91-0961 Hardware pack Each $14.00
36
8099/8099M
DUMMY PUSHBAR
PUSH BAR ASS’Y
#10 X 1-1/4" PAN HEAD
SELF-TAPPING SCREW
P/N S253-10R20-603-MP
4 REQ'D
METAL END CAP ASS’Y
P/N 41-0912-IP
(8099, WITHOUT SWITCH)
#10-32 X 5/8"
SELF-TAPPING SCREW
P/N S292-10R10-603-MP
4 REQ'D
METAL END CAP ASS’Y
P/N 41-0902-05-IP
METAL END CAP
P/N 41-0903-IP
1
2
3
4
MICRO SWITCH ASS’Y
P/N 31-0186-01
#6-32 X 3/8" ROUND HEAD SCREW
SELF-TAPPING
P/N S282-06R06-603-MP
MONITOR SWITCH KIT
P/N 91-0897-01 (SINGLE SWITCH)
OR
P/N 91-0897-02 (DUAL SWITCH)
7
8
9
5
6
MONITORING OPTION
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8099/8099M
DUMMY PUSHBAR
8099/8099M Dummy Pushbar
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
141-0903 End cap assembly, hinge end — metal Each $23.00
2
8099 Push Bar — 313, 335, 628 finish Push bar assembly: order by exit device Series (8099M only),
door opening width and 313, 335, or 628 finish Each $143.00
8099 Push Bar — 630 finish Push bar assembly: order by exit device Series (8099M
only), door opening width and US32D (630) finish Each $382.00
8099 Push Bar — 605, 606, 629 finish Push bar assembly: order by exit device Series (8099M only), door
opening widthand US3 (605), US4 (606), US32 (629) finishes Each $432.00
3S253-10R20-603-MP #10 × 1-1/4" pan head self-tapping screw Pkg. of 10 $9.00
441-0912 End cap assembly, nose end, for 8099 Dummy Pushbar without switch Each $23.00
5S292-10R10-603-MP #10-32 × 5/8" self-tapping screw Pkg. of 10 $10.00
641-0902-05 End cap assembly, nose end — metal Each $28.00
731-0186-01 Microswitch assembly with wires Each $73.00
8S282-06R06-603-MP #6-32 × 3/8" round head self-tapping screw Pkg. of 10 $9.00
9
91-0897-01 Single switch monitor kit (includes: monitor switch assembly,
screws, wire nuts and installation instructions) Each List
91-0897-02 Dual switches monitor kit (includes: monitor switch assembly,
screws, wire nuts and installation instructions) Each List
NS 80-0180-050 Installation sheet 8099 Each Email Only
NS 80-0180-250 Installation sheet 8099M Each Email Only
NS 80-0180-148 Wiring instruction sheet, 8099M Each Email Only
List = Refer to current pricelist NS = Not shown
38
8100 Series
SURFACE VERTICAL ROD
*
PUSH BAR ASS’Y
#6-32 X 1/4"
PAN HEAD
SCREW
LOCK WASHER SPRING
*INCLUDED IN HARDWARE PACK
P/N 91-0831-01-XXX
#10-24 X 1" PAN HEAD
MACHINE SCREW
4 REQ'D
UPPER COVER
P/N 22-0332-0X-XXX
GUIDE ROD COVER
P/N 24-0003-01-XXX-IP
OR
24-0031-XXX
OR
24-0033-XXX
2 REQ'D
METAL END CAP
P/N 41-0903-IP
#10-32 X 5/8" SCREW
SELF-TAPPING
4 REQ'D
DOGGING ASS’Y
P/N 31-0265-IP
DOGGING KEY
P/N 29-0481-MP
#10 X 1-1/4" PAN HEAD
SELF-TAPPING SCREW
13 REQ'D
LOWER COVER
P/N 22-0275-0X-XXX
#6-32 X 1/4"
PAN HEAD SCREW
2 REQ'D
LOWER
HOUSING
P/N 23-0024
STRIKE
THRESHOLD
P/N 4005
BOLT GUIDE BUSHING
P/N 25-0284-MP
LOWER BOLT GUIDE
P/N 31-0175-P
LOWER ROD ASS’Y
P/N 31-0192-02-P
METAL END CAP ASS’Y
P/N 41-0902-04-IP
MOLDING CLIP
P/N 25-0008
2 REQ’D
SVR FINAL ASS’Y
P/N 41-0282-01-P
OR
41-0333-11-P (8100T)
BINDER POST
P/N 26-0584-652-MP
4 REQ’D
UPPER ROD ASS’Y
P/N 31-0235-01-IP
STRIKE ASS’Y
P/N 31-0202
#8 X 3/4" WOOD SCREW
P/N 91-0831-02-630
6 REQ'D
HEADER STRIKE
P/N 22-0214
ACTUATOR ASS’Y
P/N 31-0201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
17
*
*
*
*
*
14
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8100 Series
SURFACE VERTICAL ROD
8100 Series Surface Vertical Rod Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
131-0201 Actuator assembly Each $42.00
2
22-0332-01-313 Upper cover, 313 finish Each $32.00
22-0332-01-335 Upper cover, 335 finish Each $32.00
22-0332-01-628 Upper cover, 628 finish Each $32.00
22-0332-02-605 Upper cover, US3 (605) finish Each $68.00
22-0332-02-606 Upper cover, US4 (606) finish Each $76.00
22-0332-04-629 Upper cover, US32 (629) finish Each $63.00
22-0332-04-630 Upper cover, US32D (630) finish Each $57.00
3
24-0003-01-313 Rod guide cover, 313 finish Each $68.00
24-0003-01-335 Rod guide cover, 335 finish Each $68.00
24-0003-01-628 Rod guide cover, 628 finish Each $68.00
24-0031-605 Rod guide cover, US3 (605) finish Each $207.00
24-0031-606 Rod guide cover, US4 (606) finish Each $207.00
24-0033-629 Rod guide cover, US32 (629) finish Each $112.00
24-0033-630 Rod guide cover, US32D (630) finish Each $112.00
441-0903 End cap assembly, hinge end — metal Each $23.00
531-0265 Dogging assembly, complete Each $21.00
629-0481-MP Dogging key Pkg. of 10 $33.00
7
8100 Push Bar — 313, 335, 628 finish Push bar assembly: order by exit device Series (8100),
door opening width and 313, 335, or 628 finish Each $143.00
8100 Push Bar — 630 finish Push bar assembly: order by exit device Series (8100),
door opening width and US32D (630) finish Each $382.00
8100 Push Bar — 605, 606, 629 finish Push bar assembly: order by exit device Series (8100), door opening
width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
8
22-0275-01-313 Lower cover, 313 finish Each $32.00
22-0275-01-335 Lower cover, 335 finish Each $32.00
22-0275-01-628 Lower cover, 628 finish Each $32.00
22-0275-02-605 Lower cover, US3 (605) finish Each $68.00
22-0275-02-606 Lower cover, US4 (606) finish Each $68.00
22-0275-04-629 Lower cover, US32 (629) finish Each $58.00
22-0275-04-630 Lower cover, US32D (630) finish Each $57.00
923-0024 Lower housing Each $32.00
10 4005 Strike for 4015 Threshold Bolt Each List
11 25-0284-MP Bolt guide bushing Pkg. of 10 $9.00
12 31-0175-P Lower bolt guide assembly Each $18.00
13 31-0192-02-P Lower rod assembly Each $38.00
14 41-0902-04 End cap assembly, nose end — metal Each $28.00
15 25-0008 Molding clip Each $9.00
16 41-0282-01-P SVR final assembly, complete with rods Each $228.00
41-0333-11-P SVR final assembly, top rod Each $156.00
17 31-0235-01 Upper rod assembly Each $46.00
18 26-0584-652-MP Binder post with screws 2-Pack $26.00
19 31-0202 Strike plate assembly Each $33.00
20 91-0831-02-630 Strike screw pack for wood frame Pkg. of 6 $9.00
21 22-0214 Header strike for wood frame Each $26.00
*
91-0831-01-335 Hardware pack for 313, 335 finishes Each $12.00
91-0831-01-605 Hardware pack for US3 (605), US4 (606) finishes Each $19.00
91-0831-01-630 Hardware pack for 628, US32 (629), US32D (630) finishes Each $10.00
NS 80-0180-198-01 Exit device template, 8100 Each Email Only
NS 80-0180-198-02 Strike template, 8100 Each Email Only
NS 80-0180-194 Metal frame installation sheet, 8100 Each Email Only
NS 80-0180-195 Wood frame installation sheet, 8100 Each Email Only
List = Refer to current pricelist NS = Not shown
40
8200 Series
SURFACE VERTICAL ROD
PUSH BAR ASS'Y
*
*
*INCLUDED IN HARDWARE PACK
P/N 91-0831-01-XXX
ACTUATOR
ASS'Y
P/N 31-0201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
*
*
*
*
*
#10 X 1-1/4" PAN HEAD
SELF-TAPPING SCREW
13 REQ'D
UPPER COVER
P/N 22-0332-0X-XXX
METAL END CAP
P/N 41-0903-IP
#10-32 X 5/8" SCREW
SELF-TAPPING
4 REQ'D
DOGGING ASS’Y
P/N 31-0265-IP
DOGGING KEY
P/N 29-0481-MP
#10 X 1/2" ROUND HEAD
SELF-TAPPING SCREW
#10 X 1-1/4" PAN HEAD
SELF-TAPPING SCREW
LOCK
WASHER
SPRING #6-32 X 1/4"
PAN HEAD SCREW
GUIDE ROD COVER
P/N 24-0003-01-XXX
OR
P/N 24-0031-XXX
OR
P/N 24-0033-XXX
2 REQ'D
LOWER COVER
P/N 22-0275-0X-XXX
#6-32 X 1/4"
PAN HEAD SCREW
2 REQ'D
LOWER
HOUSING
P/N 23-0024
BOLT GUIDE BUSHING
P/N 25-0284-MP
LOWER BOLT
GUIDE ASS’Y
P/N 31-0175-P
LOWER ROD ASS’Y
P/N 31-0192-02-P
METAL END CAP ASS’Y
P/N41-0902-04-IP
MOLDING CLIP
P/N 25-0008
2 REQ'D
SVR FINAL ASS’Y
P/N 41-0282-01-P
OR
(8100T) 41-0333-11-P
UPPER ROD ASS’Y
P/N 31-0235-01-IP
STRIKE ASS'Y
P/N 31-0202
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8200 Series
SURFACE VERTICAL ROD
8200 Series Narrow Stile Surface Vertical Rod
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
131-0201 Actuator assembly Each $42.00
2
22-0332-01-313 Upper cover, 313 finish Each $32.00
22-0332-01-335 Upper cover, 335 finish Each $32.00
22-0332-01-628 Upper cover, 628 finish Each $32.00
22-0332-02-605 Upper cover, US3 (605) finish Each $68.00
22-0332-02-606 Upper cover, US4 (606) finish Each $76.00
22-0332-04-629 Upper cover, US32 (629) finish Each $63.00
22-0332-04-630 Upper cover, US32D (630) finish Each $57.00
341-0903 End cap assembly, hinge end — metal Each $23.00
431-0265 Dogging assembly, complete Each $21.00
5
8200 Push Bar — 313,
335, 628 finish
Push bar assembly: order by exit device Series (8200),
door opening width and 313, 335, or 628 finish Each $143.00
8200 Push Bar — 630 finish Push bar assembly: order by exit device Series (8200),
door opening width and US32D (630) finish Each $382.00
8200 Push Bar — 605,
606, 629 finish
Push bar assembly: order by exit device Series (8200), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
629-0481-MP Dogging key Pkg. of 10 $33.00
7
24-0003-01-313 Rod guide cover, 313 finish Each $68.00
24-0003-01-335 Rod guide cover, 335 finish Each $68.00
24-0003-01-628 Rod guide cover, 628 finish Each $68.00
24-0031-605 Rod guide cover, US3 (605) finish Each $207.00
24-0031-606 Rod guide cover, US4 (606) finish Each $207.00
24-0033-629 Rod guide cover, US32 (629) finish Each $112.00
24-0033-630 Rod guide cover, US32D (630) finish Each $112.00
8
22-0275-01-313 Lower cover, 313 finish Each $32.00
22-0275-01-335 Lower cover, 335 finish Each $32.00
22-0275-01-628 Lower cover, 628 finish Each $32.00
22-0275-02-605 Lower cover, US3 (605) finish Each $68.00
22-0275-02-606 Lower cover, US4 (606) finish Each $68.00
22-0275-04-629 Lower cover, US32 (629) finish Each $58.00
22-0275-04-630 Lower cover, US32D (630) finish Each $57.00
923-0024 Lower housing Each $32.00
10 31-0175-P Lower bolt guide assembly Each $18.00
11 25-0284-MP Bolt guide bushing Pkg. of 10 $9.00
12 31-0192-02-P Lower rod assembly Each $38.00
13 41-0902-04 End cap assembly, nose end — metal Each $28.00
14 25-0008 Molding clip Each $9.00
15 41-0282-01-P SVR final assembly, complete with rods Each $228.00
41-0333-11-P SVR final assembly, top rod Each $156.00
16 31-0235-01 Upper rod assembly Each $46.00
17 31-0202 Strike plate assembly Each $33.00
NS
91-0831-01-335 Hardware pack for 313, 335 finishes Each $12.00
91-0831-01-605 Hardware pack for US3 (605), US4 (606) finishes Each $19.00
91-0831-01-630 Hardware pack for 628, US32 (629), US32D (630) finishes Each $10.00
NS 80-0180-199-01 Exit device template, 8200 Each Email Only
NS 80-0180-199-02 Strike template, 8200 Each Email Only
NS 80-0180-196 Installation sheet, 8200 Each Email Only
NS = Not shown Note: Consult factory for doors over 54" above push bar.
42
8300 Series
MORTISE EXIT DEVICE
*
*INCLUDED IN HARDWARE PACK
P/N 91-0833-01
1
2
3
4
*
#12 X 24 3/4"
FLAT HEAD COMBO SCREW
P/N 91-0833-02 FRAME KIT
STRIKE
P/N 22-0398-01-630
METAL END CAP
P/N 41-0903-IP
#10-32 X 5/8"
SELF-TAPPING
SCREW
4 REQ'D
DOGGING ASS’Y
P/N 31-0265-IP
PUSH BAR ASS’Y
5
6DOGGING KEY
P/N 29-0481-MP
*#10 X 1-1/4" PAN HEAD
SELF-TAPPING SCREW
#10 X 1/2" FLAT HEAD
SELF-TAPPING
2 REQ'D
7
8
9
10
1
11
METAL END CAP ASS’Y
P/N 41-0902-05-IP
#6 HEX HEAD CAM SCREW
P/N 26-0217N-MP
OR
CAM RETAINER RING
P/N R603-31-MP
CAM
P/N 22-0066
OR
P/N 22-0662
#8-32 X 1/4"
FLAT HEAD SCREW
P/N 91-0244-XXX
FACEPLATE
P/N 24-0138-01-XXX
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8300 Series
MORTISE EXIT DEVICE
8300 Series Mortise Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
191-0833-02 #12-24 × 3/4" flat head combo screw Each $6.00
222-0398-01-630 Strike plate Each $28.00
341-0903-IP End cap assembly, hinge end — metal Each $23.00
431-0265-IP Dogging assembly, complete Each $21.00
5
8300 Push Bar — 313,
335, 628 finish
Push bar assembly: order by exit device Series (8300),
door opening width and 313, 335, or 628 finish Each $143.00
8300 Push Bar — 630 finish Push bar assembly: order by exit device Series (8300),
door opening width and US32D (630) finish Each $382.00
8300 Push Bar — 605,
606, 629 finish
Push bar assembly: order by exit device Series (8300), door
opening widthand US3 (605), US4 (606), US32 (629) finishes Each $432.00
629-0481-MP Dogging key Pkg. of 10 $33.00
741-0902-05 End cap assembly, nose end — metal Each $28.00
826-0217N-MP #6 hex head cam screw Pkg. of 10 $15.00
R603-31-MP Cam retainer ring (past production) Pkg. of 10 $15.00
991-0244-335-P #8-32 × 1/4" flat head screws, 335 finish Pkg. of 2 $5.00
91-0244-628 #8-32 × 1/4" flat head screws, 628 finish Pkg. of 2 $5.00
10
24-0138-01-313 Faceplate kit with screws, 313 finish Each List
24-0138-01-335 Faceplate kit with screws, 335 finish Each List
24-0138-01-628 Faceplate kit with screws, 628 finish Each List
11 22-0066 Latchbolt retraction cam with screw attachment Each $11.00
22-0662 Latchbolt retraction cam with retainer clip attachment Each $10.00
*91-0833-01 Hardware pack Each $10.00
NS 80-0180-122-01 Device template, 3300 Each Email Only
NS 80-0180-122-02 Strike template, 3300 Each Email Only
NS 80-0180-36 Installation sheet, 8300 Each Email Only
List = Refer to current pricelist NS = Not shown
44
8400 Series
MORTISE EXIT DEVICE
4
2
1
3
*
*
*INCLUDED IN HARDWARE PACK
P/N 91-0833-03
METAL END CAP
P/N 41-0903-IP
#10 X 1-1/4" PAN HEAD
SELF-TAPPING SCREW
2 REQ'D
DOGGING ASS’Y
P/N 31-0265-IP
*
#10-32 X 5/8"
SCREW
SELF-TAPPING
4 REQ'D
#10 X 5/8" FLAT HEAD SCREW
SELF-TAPPING
2 REQ'D
METAL END
CAP ASS’Y
P/N 41-0902-05-IP
#6 HEX HEAD CAM SCREW
P/N 26-0217N-MP
OR
CAM RETAINER RING
P/N R603-31-MP
*
*
#10-32 X 1-3/4" FLAT HEAD SCREW
FOR 31/32" BACKSETS
OR
#10-32 X 1-7/8" FLAT HEAD SCREW
FOR 1-1/8", 1-1/2" BACKSETS
2 REQ'D
#8-32 X 1/4" FLAT HEAD
SCREW-2 PACK
P/N 91-0244-XXX
FACEPLATE
P/N 24-0137-XX-XXX
CAM
P/N 22-0066
OR
P/N 22-0662
14
12
13
THICK DOOR KIT
P/N 91-0995-XX-IP
THERMAL CLAD KIT
P/N 91-0325-XX
STRIKE
P/N 31-0561-01-IP
#10-32 X 5/8" FLAT HEAD SCREW PACK
P/N 91-0833-04
4 REQ'D
BACK-UP PLATE
P/N 23-0110
PUSH BAR
ASS'Y
7
6
5
8
9
10
11
DOGGING KEY
P/N 29-0481-MP
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8400 Series
MORTISE EXIT DEVICE
8400 Series Narrow Stile Mortise Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
123-0110 Back-up plate Each $13.00
291-0833-04 #10-32 × 5/8" flat head screw Pkg. of 10 $7.00
331-0561-01-IP Strike assembly Each $17.00
441-0903 End cap assembly, hinge end — metal Each $23.00
531-0265 Dogging assembly, complete Each $21.00
6
8400 Push Bar — 313, 335, 628 finish Push bar assembly: order by exit device Series (8400),
door opening width and 313, 335, or 628 finish Each $143.00
8400 Push Bar — 630 finish Push bar assembly: order by exit device Series (8400),
door opening width and US32D (630) finish Each $382.00
8400 Push Bar — 605, 606, 629 finish Push bar assembly: order by exit device Series (8400), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
729-0481-MP Dogging key Pkg. of 10 $33.00
841-0902-05-IP End cap assembly, nose end — metal Each $28.00
926-0217N-MP #6 hex head cam screw Pkg. of 10 $15.00
R603-31-MP Cam retainer ring (past production) Pkg. of 10 $15.00
10 91-0244-335 #8-32 × 1/4" flat head screws, 335 finish Pkg. of 2 $5.00
91-0244-628 #8-32 × 1/4" flat head screws, 628 finish Pkg. of 2 $5.00
11
24-0137-01-313 Faceplate kit with screws, flat or bevel, 313 finish Each List
24-0137-01-335 Faceplate kit with screws, flat or bevel, 335 finish Each List
24-0137-01-628 Faceplate kit with screws, flat or bevel, 628 finish Each List
24-0137-01-672 Faceplate kit with screws, flat or bevel, US26 (672) finish Each List
24-0137-01-702 Faceplate kit with screws, flat or bevel, US26D (702) finish Each List
24-0137-02-313 Faceplate kit with screws, radius, 313 finish Each List
24-0137-02-335 Faceplate kit with screws, radius, 335 finish Each List
24-0137-02-628 Faceplate kit with screws, radius, 628 finish Each List
24-0137-02-672 Faceplate kit with screws, radius, US26 (672) finish Each List
24-0137-02-702 Faceplate kit with screws, radius, US26D (702) finish Each List
24-0137-03-313 Faceplate kit with screws, radius with weatherstrip, 313 finish Each List
24-0137-03-335 Faceplate kit with screws, radius with weatherstrip, 335 finish Each List
24-0137-03-628 Faceplate kit with screws, radius with weatherstrip, 628 finish Each List
12 22-0066 Latchbolt retraction cam with screw attachment Each $11.00
22-0662 Latchbolt retraction cam with retainer clip attachment Each $10.00
13**
91-0995-02-IP Thick door kit for 2" door Each List
91-0995-03-IP Thick door kit for 2-1/4" door Each List
91-0995-04-IP Thick door kit for 2-1/2" door Each List
91-0995-05-IP Thick door kit for 2-3/4" door Each List
14 91-0325-01 Thermal clad kit for 1-3/4" door with 1/4" cladding Each List
91-0325-02 Thermal clad kit for 1-3/4" door with 1/2" cladding Each List
*91-0833-03 Hareware pack Each $7.00
NS 80-0180-123-01 Device template, 8400 Each Email Only
NS 80-0180-123-02 Strike template, 8400 Each Email Only
NS 80-0180-38 Installation sheet, 8400 Each Email Only
List = Refer to current pricelist NS = Not shown Note: **Item #13 (above) Thick Door Kit for mortise exit devices available separately.
46
8475
MORTISE MIDPANEL
EXIT DEVICE
PUSH BAR
ASS’Y
LEAD STILE
HINGE STILE
1
2
BACK-UP PLATE
P/N 23-0110
#10-32 X 5/8" FLAT HEAD SCREW
P/N S262-10R10N-603-MP
4 REQ'D
3
4
STRIKE ASS’Y
P/N 31-0561-01-IP
#8-32 X 1/8" CUP POINT SET SCREW
P/N S232C08H02N-MP
4 REQ'D
END CAP
P/N 25-0471-IP
#10-32 X 5/8"
SELF-TAPPING SCREW
P/N S292-10R10-603-MP
4 REQ'D
#10-32 X 1/2" PAN HEAD
SEMS SCREW
P/N S277-10R08-603-MP
2 REQ'D
DOGGING
KEY
P/N 29-0481-MP
#10-32 X 1/4"
PAN HEAD SCREW
P/N S261-10R04N603-MP
2 REQ'D
UPPER LINK
P/N 22-0551
OR
P/N 22-0551-01
END CAP ASS’Y
P/N 31-0572-IP
#8-32 X 1/4"
FLAT HEAD 2-PACK
P/N 91-0244-XXX
FACEPLATE KIT
P/N 24-0137-XX-XXX
MOUNTING PLATES
P/N 22-0552
2 REQ'D DOGGING ASS’Y
P/N 31-0265-IP
5
6
7
8
9
10
11
12
13
14
15
16
17
18
#10-32 X 1/4" PAN HEAD
SEMS SCREW
P/N S277-10R04-603-MP
2 REQ'D
DOOR COVER
P/N 25-0473
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8475
MORTISE MIDPANEL
EXIT DEVICE
8475 Mortise Mid-Panel Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
123-0110 Back-up plate Each $13.00
2S262-10R10N-603-MP #10-32 × 5/8" flat head screw Pkg. of 10 $7.00
331-0561-01-IP Strike assembly Each $17.00
4S232C08H02N-MP #8-32 × 1/8" cup point set screw Pkg. of 10 $20.00
531-0265 Dogging assembly, complete Each $21.00
625-0471 End cap (hinge end) Each $11.00
7S292-10R10-603-MP #10-32 × 5/8" self-tapping screw Pkg. of 10 $10.00
8S277-10R08-603-MP #10-32 × 1/2" pan head SEMS screw Pkg. of 10 $9.00
929-0481-MP Dogging key Pkg. of 10 $33.00
10*
8475 Push Bar — 313,
335, 628 finish
Push bar assembly: order by exit device series (8475),
door opening width and 313, 335, or 628 finish Each $143.00
8475 Push Bar — 630 finish Push bar assembly: order by exit device series (8475),
door opening width and US32D (630) finish Each $382.00
8475 Push Bar — 605,
606, 629 finish
Push bar assembly: order by exit device series (8475), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
11 S261-10R04N603-MP #10-32 × 1/4" pan head screw Pkg. of 10 $9.00
12 S277-10R04-603-MP #10-32 × 1/4" pan head SEMS screw (link) Pkg. of 10 $11.00
13 22-0551 Upper link for narrow stile Each $17.00
22-0551-01 Upper link for medium/wide stile Each $14.00
14 25-0473 Door cover Each $9.00
15 31-0572-IP End cap assembly, nose end — complete Each $20.00
16 91-0244-335 #8-32 × 1/4" flat head screws, 335 finish Pkg. of 2 $5.00
91-0244-628 #8-32 × 1/4" flat head screws, 628 finish Pkg. of 2 $5.00
17
24-0137-01-313 Faceplate kit with screws, flat or bevel, 313 finish Each List
24-0137-01-335 Faceplate kit with screws, flat or bevel, 335 finish Each List
24-0137-01-628 Faceplate kit with screws, flat or bevel, 628 finish Each List
24-0137-01-672 Faceplate kit with screws, flat or bevel, US26 (672) finish Each List
24-0137-01-702 Faceplate kit with screws, flat or bevel, US26D (702) finish Each List
24-0137-02-313 Faceplate kit with screws, radius, 313 finish Each List
24-0137-02-335 Faceplate kit with screws, radius, 335 finish Each List
24-0137-02-628 Faceplate kit with screws, radius, 628 finish Each List
24-0137-02-672 Faceplate kit with screws, radius, US26 (672) finish Each List
24-0137-02-702 Faceplate kit with screws, radius, US26D (702) finish Each List
24-0137-03-313 Faceplate kit with screws, radius with weatherstrip, 313 finish Each List
24-0137-03-335 Faceplate kit with screws, radius with weatherstrip, 335 finish Each List
24-0137-03-628 Faceplate kit with screws, radius with weatherstrip, 628 finish Each List
18 22-0552 Mounting plate Each $7.00
List = Refer to current pricelist Note: Please contact factory for information on the 8475 Midpoint Mortise Exit Device.
Note: *Item No. 10 (above) requires dimensions between two facing stile sections (Dimension "A"). Please contact factory for more information.
48
8500 Series
CONCEALED VERTICAL ROD
UPPER BOLT
P/N 26-0094
SPIDER
P/N 25-0062-01-MP
CVR FINAL ASS’Y
P/N 41-0935
METAL END CAP
P/N 41-0903-IP
STRIKE
P/N 22-0125-IP
#10-32 X 5/8" SCREW
SELF-TAPPING
4 REQ'D
#10 X 1 1/4" PAN HEAD
SELF-TAPPING SCREW
2 REQ'D
#10-32 X 1/2"
PAN HEAD SCREW
2 REQ'D
BOLT GUIDE BUSHING
P/N 25-0506-MP
LOWER BOLT GUIDE ASS’Y
P/N 31-0034
METAL END CAP ASS’Y
P/N 41-0902-05-IP
STRIKE PLATE ASS’Y
P/N 31-0202
ACTUATOR ASS’Y
P/N 31-0579-01-IP
#6-32 X 1/2"
CAP SCREW
2 REQ'D
P/N S242A06-08-MP
1
2
3
4
*
*
*
5
6
7
8
9
10
11
12
14
13
PUSH BAR
ASS’Y
DOGGING KEY
P/N 29-0481-MP
DOGGING ASS’Y
P/N 31-0265-IP
*INCLUDED IN HARDWARE PACK
P/N 91-0833-03
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8500 Series
CONCEALED VERTICAL ROD
8500 Series Metal Door Concealed Vertical Rod
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
126-0094 Upper bolt Each $10.00
225-0062-01-MP Spider Pkg. of 10 $22.00
341-0935 CVR final assembly, complete with bolts Each $173.00
441-0903-IP Metal end cap assembly, hinge end Each $23.00
531-0265-IP Dogging assembly, complete Each $21.00
6
8500 Push Bar (-PB) —
313, 335, 628 finish
Push bar assembly: order by exit device series (8500),
door opening width and 313, 335, or 628 finish Each $143.00
8500 Push Bar (-PB) —
630 finish
Push bar assembly: order by exit device series (8500),
door opening width and US32D (630) finish Each $382.00
8500 Push Bar (-PB) —
605, 606, 629 finish
Push bar assembly: order by exit device series (8500), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
729-0481-MP Dogging key Pkg. of 10 $33.00
841-0902-05-IP Metal end cap assembly, nose end Each $28.00
931-0034 Lower bolt guide assembly Each $11.00
10 25-0506-MP Bolt guide bushing Pkg. of 10 $9.00
11 22-0125-ip Strike (ANSI) Each $22.00
12 S242A06-08-MP #6-32 × 1/2" cap screw, rod piercing Pkg. of 10 $12.00
13 31-0579-01-IP Top actuator assembly Each $98.00
14 31-0202 Strike plate assembly Each Email Only
*91-0836-01-603 Hardware pack Each Email Only
NS 80-0180-39-01 Device template, 8500 Each Email Only
NS 80-0180-39-02 Strike template, 8500 Each Email Only
NS 80-0180-51 Installation sheet, 8600 Each Email only
NS = Not shown Note: Consult factory for doors over 66" above pushbar.
50
8600 Series
CONCEALED VERTICAL ROD
UPPER BOLT
P/N 26-0094
SPIDER
P/N 25-0062-01-MP
CVR FINAL ASS’Y
P/N 41-0935
1
2
3
#10-32 X 5/16"
FLAT HEAD SCREW
5 REQ’D
*
METAL END CAP
P/N 41-0903-IP
#10-32 X 5/8" SCREW
SELF-TAPPING
4 REQ’D
4
*
#10 X 1-1/4" PAN HEAD
SELF-TAPPING SCREW
2 REQD
*
5DOGGING ASS’Y
P/N 31-0265-IP
6PUSH BAR
ASS’Y
7DOGGING KEY
P/N 29-0481-MP
#10-32 X 1/2"
PAN HEAD SCREW
2 REQ’D
*
METAL END CAP ASS'Y
P/N 41-0902-05-IP
8
BOLT GUIDE BUSHING
P/N 25-0506-MP
LOWER BOLT GUIDE ASS’Y
P/N 31-0964-IP
9
10
STRIKE PLATE ASS’Y
P/N 31-0945-MP
ACTUATOR ASS’Y
P/N 31-0944-IP
#6-32 X 1/2"
CAP SCREW
P/N S242A06-08-MP
2 REQ’D
11
12
13
*
INCLUDED IN HARDWARE PACK
P/N 91-0835-01-630
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8600 Series
CONCEALED VERTICAL ROD
8600 Series Narrow Stile Concealed Vertical Rod
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
126-0094 Upper bolt Each $10.00
225-0062-01-MP Spider Pkg. of 10 $22.00
341-0935 CVR final assembly, complete with bolts Each $173.00
441-0903-IP Metal end cap assembly, hinge end Each $23.00
531-0265-IP Dogging assembly, complete Each $21.00
6
8600 Push Bar (-PB) —
313, 335, 628 finish
Push bar assembly: order by exit device series (8600),
door opening width and 313, 335, or 628 finish Each $143.00
8600 Push Bar (-PB) —
630 finish
Push bar assembly: order by exit device series (8600),
door opening width and US32D (630) finish Each $382.00
8600 Push Bar (-PB) —
605, 606, 629 finish
Push bar assembly: order by exit device series (8600), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
729-0481-MP Dogging key Pkg. of 10 $33.00
841-0902-05-IP Metal end cap assembly, nose end Each $28.00
931-0964-IP Lower bolt guide assembly Each $9.00
10 25-0506-MP Bolt guide bushing Pkg. of 10 $9.00
11 S242A06-08-MP #6-32 × 1/2" cap screw, rod piercing Pkg. of 10 $12.00
12 31-0944-IP Actuator, top assembly Each $34.00
13 31-0945 Strike plate assembly Each $22.00
31-0945-MP Strike plate assembly multipack Pkg. of 10 $207.00
*91-0835-01-630 Hardware Pack Each $6.00
NS 80-0180-39-01 Device template, 8500 Each Email Only
NS 80-0180-39-02 Strike template, 8500 Each Email Only
NS 80-0180-51 Installation sheet, 8600 Each Email Only
NS = Not shown
52 EXIT DEVICES
PUSH BAR
ASS'Y
DEPRESS BAR
AND TURN KEY
1/4 TURN
CLOCKWISE
TURN KEY
1/4 TURN
COUNTER-
CLOCKWISE
TO DOG BAR:
TO RELEASE:
R
UPPER BOLT
P/N 26-0094
1
SPIDER
P/N 25-0062-01-MP
CVR FINAL ASS’Y
P/N 41-0675-P
2
3
#10-32 X 5/16" FLAT HEAD SCREW
UNDERCUT
P/N S266-10R05N-XXX-MP
6 REQ'D
MOUNTING PLATE
P/N 22-0552
2 REQ'D
#8-32 X 1/8" CUP POINT
SET SCREW
P/N S232C08H02N-MP
4 REQ'D
#10-32 X 5/8"
SELF-TAPPING
P/N S292-10R10-603-MP
4 REQ'D
5
67
8
9
10
11
12
13
14
15
16
4
END CAP
P/N 25-0471-IP
DOGGING ASS’Y
P/N 31-0265-IP
#10-32 X 1/2"
PAN HEAD SCREW
P/N S277-10R08-603-MP
2 REQ'D
DOGGING KEY
P/N 29-0481-MP
#10-32 X 1/4"
PAN HEAD SCREW
P/N S261-10R04N-603-MP
2 REQ'D
END CAP ASS’Y
P/N 31-0572-IP
#10-32 X 1/4"
PAN HEAD SEMS SCREW
P/N S277-10R04-603-MP
LOWER BOLT GUIDE ASS’Y
P/N 31-0964-IP DECAL
P/N 20-0035
17
18
19
LINK-CRANK ASS’Y
P/N 31-0675
#10-32 X 2"
FLAT HEAD SCREW
P/N S262-10R32-603-MP
#6-32 X 1/2" CAP SCREW
P/N S242A06-08-MP
2 REQ'D
STRIKE ASS’Y
P/N 31-0945-MP
ACTUATOR ASS’Y
P/N 31-0944-IP
20
21
22
23
BOLT GUIDE BUSHING
P/N 25-0506-MP
8675
CONCEALED VERTICAL ROD
MIDPANEL EXIT DEVICE
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8675 Concealed Vertical Rod Mid-Panel Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
126-0094 Upper bolt Each $10.00
2S266-10R05N-119-MP #10-32 × 5/16" flat head screw, 119 finish Pkg. of 10 $13.00
S266-10R05N-603-MP #10-32 × 5/16" flat head screw, 603 finish Pkg. of 10 $11.00
325-0062-01-MP Spider Pkg. of 10 $22.00
441-0675-IP CVR final assembly, complete with bolts Each $158.00
522-0552 Mounting plate Each $7.00
6S232C08H02N-MP #8-32 × 1/8" cup point set screw Pkg. of 10 $20.00
725-0471-IP End cap (hinge end) Each $11.00
8S292-10R10-603-MP #10-32 × 5/8" self-tapping screw Pkg. of 10 $10.00
931-0265-IP Dogging assembly, complete Each $21.00
10 S277-10R08-603-MP #10-32 × 1/2" pan head SEMS screw Pkg. of 10 $9.00
11
8675 Push Bar (-PB) —
313, 335, 628 finish
Push bar assembly: order by exit device Series (8675),
door opening width and 313, 335, or 628 finish Each $143.00
8675 Push Bar (-PB) —
630 finish
Push bar assembly: order by exit device Series (8675),
door opening width and US32D (630) finish Each $382.00
8675 Push Bar (-PB) —
605, 606, 629 finish
Push bar assembly: order by exit device Series (8675), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
12 29-0481-MP Dogging key Pkg. of 10 $33.00
13 S261-10R04N603-MP #10-32 × 1/4" pan head screw Pkg. of 10 $9.00
14 S277-10R04-603-MP #10-32 × 1/4" pan head SEMS screw (link) Pkg. of 10 $11.00
15 31-0572-IP End cap assembly, nose end — complete Each $20.00
16 31-0964-IP Lower bolt guide assembly Each $9.00
17 25-0506-MP Bolt guide bushing Pkg. of 10 $9.00
18 31-0675 Link-crank assembly Each $10.00
19 S262-10R32-603-MP #10-32 × 2" flat head screw Pkg. of 10 $7.00
20 S242A06-08-MP #6-32 × 1/2" cap screw, rod piercing Pkg. of 10 $12.00
21 31-0944-IP Actuator, top assembly Each $34.00
22 31-0945 Strike plate assembly Each $22.00
31-0945-MP Strike plate assembly multipack Pkg. of 10 $207.00
23 20-0035 Decal (dogging instructions) Each $18.00
NS 80-0180-137 Device installation sheet, 8675 Each Email Only
NS 80-0180-134 Strike installation sheet, 8675 Each Email Only
NS = Not shown Note: Consult factory for doors over 66" above pushbar. Note: Please contact factory for information on the 8675 CVR Midpanel Exit Device.
8675
CONCEALED VERTICAL ROD
MIDPANEL EXIT DEVICE
54
8700 Series
RIM EXIT DEVICE
PUSH BAR ASS’Y
* INCLUDED IN SCREW PACK P/N 91-0837-01
** INCLUDED IN FRAME KIT P/N 91-0991-02
METAL END CAP
P/N 41-0903-IP
1
23
4
5
7
8
9
10
11
12
STRIKE SPACER
P/N 22-0481-04-MP
4 REQ'D
**
**
**
**
*
**
STRIKE SPACER
P/N 22-0481-03-MP
1 REQ'D
STRIKE
P/N 22-0430-IP
#10-32 X 3/4" FLAT HEAD SCREW
P/N 91-0837-02
2 REQ'D
STRIKE PLUG
P/N 25-0625-MP
2 REQ'D
#10-32 X 5/8" SCREW
SELF-TAPPING
4 REQ'D
DOGGING KEY
P/N 29-0481-MP
DOGGING ASS’Y
P/N 31-0265-IP
#10 X 1-1/4" PAN HEAD SCREW
SELF-TAPPING
6 REQ'D
#10 X 1-1/2" ROUND HEAD SCREW
SELF-TAPPING
2 REQ'D
METAL END CAP ASS’Y
P/N 41-0902-03-IP
CYLINDER PLATE
P/N 22-0480
REQ'D FOR WOOD
DOOR ONLY
*
*
6MOUNTING BASE KIT
P/N 91-8800
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8700 Series
RIM EXIT DEVICE
8700 Series Rim Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
122-0481-04-MP Strike spacer Pkg. of 10 $23.00
222-0481-03-MP Strike spacer Pkg. of 10 $23.00
325-0625-MP Strike plug Pkg. Of 2 $12.00
422-0430-IP Strike Each $11.00
591-0837-02 #10-32 × 3/4" flat head screws Pkg. of 2 $6.00
691-8800 Mounting base kit, includes starwheel Each $143.00
741-0903-IP Metal end cap assembly, hinge end Each $23.00
831-0265-IP Dogging assembly, complete Each $21.00
9
8700 Push Bar (-PB) —
313, 335, 628 finish
Push bar assembly: order by exit device Series (8700),
door opening width and 313, 335, or 628 finish Each $143.00
8700 Push Bar (-PB) — 630 finish Push bar assembly: order by exit device Series (8700),
door opening width and US32D (630) finish Each $382.00
8700 Push Bar (-PB) —
605, 606, 629 finish
Push bar assembly: order by exit device Series (8700), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
10 29-0481-MP Dogging key Pkg. of 10 $33.00
11 41-0902-03-IP Metal end cap assembly, latch end Each $28.00
12 22-0480 Cylinder plate for wood door applications Each $12.00
*91-0837-01 Hardware pack Each $6.00
** 91-0991-02-IP Frame kit for wood and hollow metal Each $44.00
NS 80-0180-124-01 Device template, 3700 Each Email Only
NS 80-0180-124-02 Strike template, 3700 Each Email Only
NS 80-0180-40 Installation sheet, 8700 Each Email Only
NS = Not shown
56
8800 Series
RIM EXIT DEVICE
INCLUDED IN FRAME KIT P/N 91-0992-02-P
INCLUDED IN SCREW PACK P/N 91-0837-01
*
**
1STRIKE SPACER
P/N 22-0481-04-MP
4 REQ'D
**
2
3
4
5
**
**
**
**
**
STRIKE SPACER
P/N 22-0481-03-MP
1 REQ'D
STRIKE
P/N 22-0430-IP
#10-32 X 3/4" FLAT HEAD SCREW
P/N 91-0837-02
2 REQ'D
STRIKE PLUG
P/N 25-0625-MP
2 REQ'D
RIVNUT/TOOLS KIT
P/N 41-0975-02-IP
STRIKE KIT
FOR CENTER HUNG
DOORS WITH 4" JAM
P/N 91-0993-P
METAL END CAP
P/N 41-0903-IP
6
7
8
9
10
11
12
13
MOUNTING BASE KIT
P/N 91-8800
PUSH BAR ASS’Y
*
#10-32 X 5/8" SCREW
SELF-TAPPING
4 REQ'D
DOGGING KEY
P/N 29-0481-MP
DOGGING ASS’Y
P/N 31-0265-IP
#10 X 1-1/2" ROUND HEAD SCREW
SELF-TAPPING
4 REQ'D
METAL END CAP ASS’Y
P/N 41-0902-03-IP
*
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
8800 Series
RIM EXIT DEVICE
8800 Series Narrow Stile Rim Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
122-0481-04-MP Strike spacer Pkg. of 10 $23.00
222-0481-03-MP Strike spacer Pkg. of 10 $23.00
325-0625-MP Strike plug Pkg. Of 2 $12.00
422-0430-IP Strike Each $11.00
591-0837-02 #10-32 × 3/4" flat head screws Pkg. of 2 $6.00
691-0993-P Strike kit for center hung door with 4" jamb Each $26.00
741-0975-02-IP Rivnut tool kit assembly Each $13.00
841-0903-IP Metal end cap assembly, hinge end Each $23.00
931-0265-IP Dogging assembly, complete Each $21.00
10
8800 Push Bar (-PB) —
313, 335, 628 finish
Push bar assembly: order by exit device Series (8800),
door opening width and 313, 335, or 628 finish Each $143.00
8800 Push Bar (-PB) —
630 finish
Push bar assembly: order by exit device Series (8800),
door opening width and US32D (630) finish Each $382.00
8800 Push Bar (-PB) —
605, 606, 629 finish
Push bar assembly: order by exit device Series (8800), door
opening width and US3 (605), US4 (606), US32 (629) finishes Each $432.00
11 29-0481-MP Dogging key Pkg. of 10 $33.00
12 41-0902-03-IP End cap assembly, latch end — metal Each $28.00
13 91-8800 Mounting base kit, includes starwheel Each $143.00
NS 80-0180-125-01 Device template, 8800 Each Email Only
NS 80-0180-125-02 Strike template, 8800 Each Email Only
NS 80-0180-41 Installation sheet, 8800 Each Email Only
*91-0837-01 Hardware pack Each $6.00
** 91-0992-02-IP Frame kit for aluminum Each $73.00
NS = Not shown
58
Accessories
FOR EXIT DEVICES
LOCKING NUT TOOL
LOCKING NUT
ANTI-ROTATION RING
MONITORING KITS “M”
CYLINDER DOGGING “C”
MICRO SWITCH
P/N 31-0186-01
#6-32 X 3/8" ROUND HEAD SCREW
SELF-TAPING
P/N S282-06R06-603-MP
MONITOR SWITCH KIT
SINGLE SWITCH
P/N 91-0897-01
OR
DUAL SWITCH
P/N 91-0897-02
1
2
3
4
5
6
CYLINDER
P/N 4036-01-01-XXX
DOGGING ASS’Y
P/N 31-0265-01-IP
CYLINDER KIT
P/N 91-0099-IP
EXIT DEVICES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
Accessories
FOR EXIT DEVICES
Accessories for Exit Devices
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
Monitoring Kits "M"
131-0186-01 Micro switch assembly with wires Each $73.00
2S282-06R06-603-MP #6-32 × 3/8" round head self-tapping screw Pkg. of 10 $9.00
3
91-0897-01 Single switch monitor kit (includes: monitor switch assembly,
screws, wire nuts and installation instructions) Each List
91-0897-02 Dual switches monitor kit (includes: monitor switch assembly,
screws, wire nuts and installation instructions) Each List
Cylinder Dogging "C"
4
4036-01-01-313 Mortise cylinder, 313 finish Each List
4036-01-01-335 Mortise cylinder, 335 finish Each List
4036-01-01-628 Mortise cylinder, 628 finish Each List
531-0265-01-IP Dogging Assembly Each $21.00
691-0099-IP Cylinder kit Each $17.00
List = Refer to current pricelist
60
7100
ELECTRIC STRIKE
ELECTRIC STRIKES
NUT PLATE
P/N 22-0698-MP
MICRO SWITCH
P/N 31-0092
BOLT SWITCH
ACTUATOR
P/N 23-0349
#2 X 5/8" HEX HD. PHILLIPS
P/N 29-0341-MP
2 REQ'D.
SHOULDER SCREW
P/N 26-0214-MP
SOLENOID
RETAINER PLATE
P/N 22-0657
BLOCKING ARM
RETURN SPRING
P/N 28-0151-MP
SUBCOVER EXTENSION KIT
P/N 91-0171-XX-P
OR
P/N 91-0172-XX
SHUTTLE
P/N 23-0356
#2 X 3/8" PHILLIPS
HEX HEAD
P/N 29-0342-MP
SWITCH PLATE
P/N 22-0713
LATCH
P/N 27-0085
BLOCKING ARM
P/N 27-0086
SHUTTLE RETURN SPRING
P/N 28-0150-MP
SOLENOID
P/N 29-0250-12XXX-IP
PLUNGER
P/N 26-0170
SUB COVER
P/N 23-044X
COVER
P/N 23-0350
OR
P/N 23-0351
12
3
45
7
8
9
10
11
12
13
14
15
16
17
18
19 #6-32 X 1/4" PHILLIPS
FLAT HEAD
P/N S235-06R04N-603-MP
2 REQ'D
6
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
7100
ELECTRIC STRIKE
7100 Electric Strike
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
123-0350 Back cover 1/2" (7100, 7101, 7110, 7111, 7130, 7131, 7140) Each $12.00
23-0351 Back cover 3/4" (7160, 7170) Each $12.00
226-0170 Plunger Each $6.00
3
29-0250-12ACI-IP Solenoid; 12 VAC intermittent Each $48.00
29-0250-12DCC-IP Solenoid; 12 VDC continuous / 24 VAC intermittent Each $48.00
29-0250-16ACI-IP Solenoid; 16 VAC intermittent Each $48.00
29-0250-16DCC-IP Solenoid; 16 VDC continuous Each $48.00
29-0250-24DCC-IP Solenoid; 24 VDC continuous Each $48.00
428-0150-MP Shuttle return spring Pkg. of 10 $11.00
527-0086 Blocking arm Each $11.00
627-0085 Latch Each $7.00
722-0713 Switch plate Each $5.00
829-0342-MP #2 × 3/8" Phillips hex head Pkg. of 10 $6.00
922-0698-MP Nut plate Pkg. of 10 $12.00
10 31-0092 Microswitch Each $92.00
11 23-0349 Bolt switch actuator Each $10.00
12 29-0341-MP #2 × 5/8" Phillips hex head Pkg. of 10 $10.00
13 26-0214-MP Shoulder screw Pkg. of 10 $46.00
14 22-0657 Solenoid retainer plate Each $11.00
15 28-0151-MP Blocking arm return spring Pkg. of 10 $11.00
16 23-0356 Shuttle Each $7.00
17
23-0443 Subcover, 1/2" flat (7100, 7110, 7111, 7130, 7140) Each $18.00
23-0444 Subcover, 1/2" radius (7101, 7131) Each $18.00
23-0445 Subcover, 3/4" (7160, 7170) Each $21.00
18* 91-0171-XX-P Subcover lip extension kit (7100, 7110, 7111, 7130, 7140) Each List
91-0172-XX-P Subcover lip extension kit (7160, 7170) Each List
19 S235-06R04N-603-MP #6-32 × 1/4" flat head screw Pkg. of 10 $6.00
NS
91-0077-01-335 Mounting kit (2-mounting tabs, 2-mounting screws,
2-press nuts, adhesive shims, 2-wire nuts), 335 finish Each $15.00
91-0077-01-603 Mounting kit (2-mounting tabs, 2-mounting screws,
2-press nuts, adhesive shims, 2-wire nuts), 603 finish Each $15.00
List = Refer to current pricelist NS = Not shown
Note: *Item #18 (above) Specify lip extension requirements, refer to catalog for "A" dimension. Extensions provided in 1/8" increments beginning with -01 for a 3/8" extension.
62

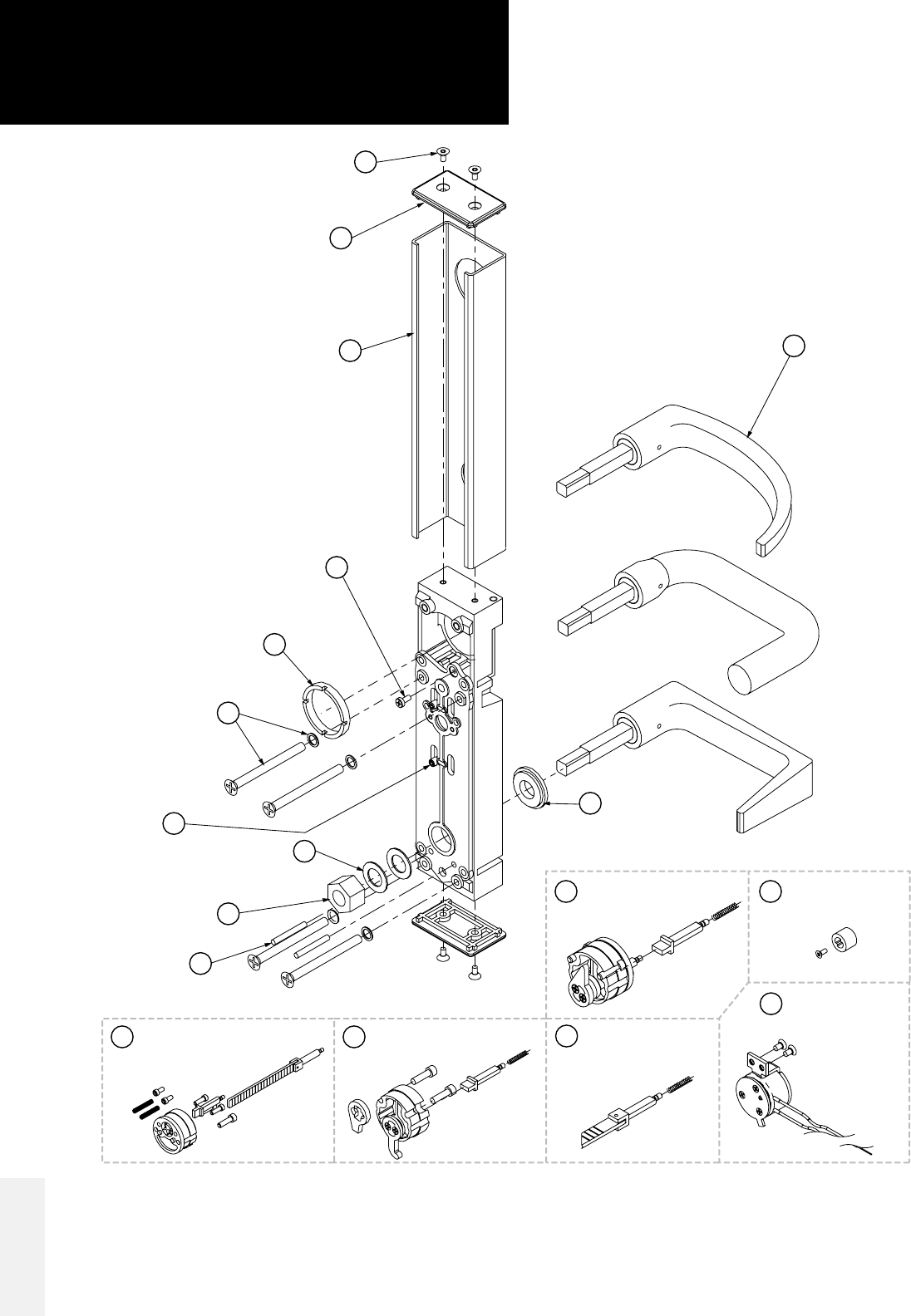

3080 Series
ENTRY TRIM
TRIM
SQUARE
ROUND
CURVED
HANDLE BUSHING
P/N 26-0381-01-XXX
G86 TRIM ADAPTER KIT
P/N 91-0686
CVR ADAPTER KIT
P/N 91-0160-P
SOLENOID ASS’Y.
P/N 31-0993-X-IP
SVR / RIM / INSET
SPINDLE KIT
P/N 91-0301-03-IP
MORTISE SPINDLE KIT
P/N 91-0301-02-IP
CVR SPINDLE KIT
(FOR CVR DEVICES MFG PRIOR 2/1997)
P/N 91-0301-01-IP
DOWEL PIN
P/N 26-0435-MP
2 REQ’D
HEX NUT
P/N N315-07-603-MP
WASHER
P/N W414B23-MP
2 REQ’D
HANDING SCREW
P/N 26-0249-N-MP
2 REQ’D
MOUNTING SCREW KIT
P/N 91-0302-XXX-(I)P
RETAINING RING
P/N 23-0736
#4-40 X 1/4"
PAN HEAD SCREW
SELF-TAPPING
P/N S256-04R04-603-MP
TRIM HOUSING
W/ CYLINDER HOLE
P/N 22-0763-01-XXX
OR
W/OUT CYLINDER HOLE
P/N 22-0763-02-XXX
TRIM COVER
P/N 23-0202-01
2 REQ'D
#6-32 X 3/8"
FLAT HEAD SCREW
P/N S227-06R06N-119-MP
1
2
3
4
5
6
7
8
9
10
11
12
13 14
17
18
15 16
LEVER KITS
STANDARD
P/N 31-0991-XX-XXX-IP
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
3080 Series Entry Trim
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
1
31-0991-02-10B-IP Round handle kit, US10B (613) finish Each $92.00
31-0991-02-630-IP Round handle kit, US32D (630) finish Each $92.00
31-0991-03-10B-IP Square handle kit, US10B (613) finish Each $92.00
31-0991-03-630-IP Square handle kit, US32D (630) finish Each $92.00
31-0991-01-10B-IP Curved handle kit, US10B (613) finish Each $92.00
31-0991-01-630-IP Curved handle kit, US32D (630) finish Each $92.00
226-0381-01-121 Handle bushing, 121 finish Each $10.00
26-0381-01-626 Handle bushing, US26D (626) finish Each $10.00
326-0435-MP Dowel pin Pkg. of 10 $15.00
4N315-07-603-MP Hex nut with nylon insert Pkg. of 10 $9.00
5W414B23-MP Washer Pkg. of 10 $12.00
626-0249N-MP Handing screw Pkg. of 10 $53.00
791-0302-121-IP Mounting screw kit for US3 (605), US4 (606), and US26 (625) finishes Each $38.00
91-0302-603-IP Mounting screw kit for US10B (613) and US26D (626) finishes Each $28.00
823-0736 Retaining ring Each $6.00
9S256-04R04-603-MP #4-40 × 1/4 pan head self-tapping screw Pkg. of 10 $7.00
10
22-0763-01-121PC Trim housing with cylinder hole, matches US10B (613) finish Each $38.00
22-0763-01-630 Trim housing with cylinder hole, US32D (630) finish Each $38.00
22-0763-02-121PC Trim housing without cylinder hole, matches US10B (613) finish Each $38.00
22-0763-02-630 Trim housing without cylinder hole, US32D (630) finish Each $38.00
11 23-0202-01 Trim cover Each $13.00
12 S227-06R06N-119-MP #6-32 × 3/8" flat head screw Pkg. of 10 $9.00
15 91-0301-01 CVR spindle kit for devices manufactured prior to 1997 Each $35.00
16 91-0301-02 Mortise spindle kit Each $26.00
17 91-0301-03 SVR / rim / inset spindle kit Each $11.00
18
31-0993-1 Solenoid assembly 24VDC fail-safe Each $493.00
31-0993-2 Solenoid assembly 12VDC fail-safe Each $493.00
31-0993-3 Solenoid assembly 24VDC fail-secure Each $493.00
31-0993-4 Solenoid assembly 12VDC fail-secure Each $493.00
13 91-0686 Trim kit adapter for G86 exit device Each $32.00
14 91-0160-IP CVR tailpiece adapter kit Each $10.00
NS
91-0118 Tactile strip kit for standard Series levers 01, 03 Each List
80-0180-301-01 Stick-on template, SVR Each Email Only
80-0180-301-02 Stick-on template, mortise / mortise inset Each Email Only
80-0180-301-03 Stick-on template, CVR Each Email Only
80-0180-301-04 Stick-on template, rim Each Email Only
80-0180-301-05 Stick-on template, inset CVR Each Email Only
80-0180-301-08 Stick-on template, wood door CVR Each Email Only
80-0180-3080 Installation instructions Each Email Only
List = Refer to current pricelist NS = Not shown Note: Solenoid assemblies can only be used in electrified 3080E Entry Trim.
3080 Series
ENTRY TRIM
64

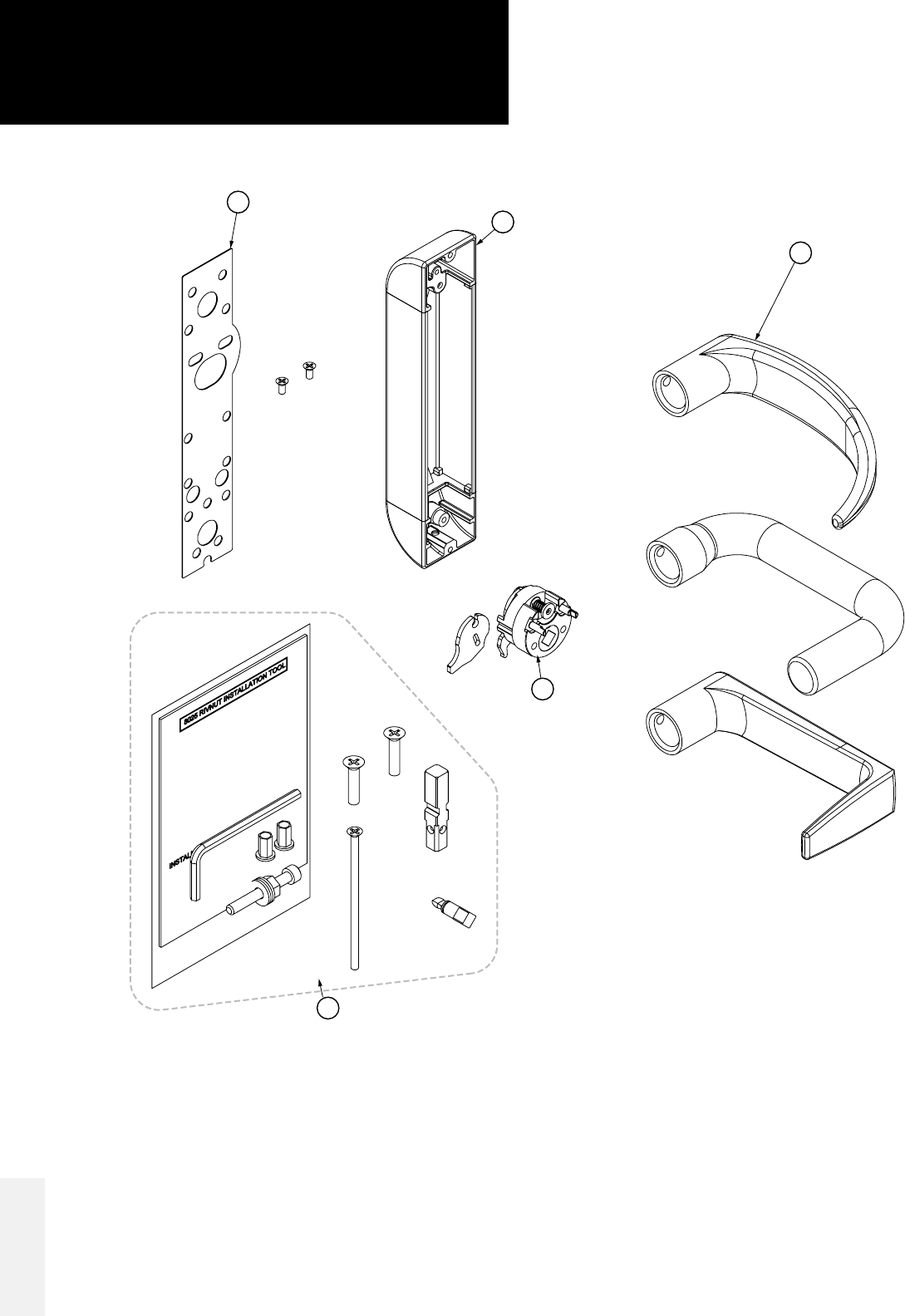

eForce®-150 3090
KEYLESS ENTRY
1
2
3
4
5
6
7
8
9
10
MOUNTING KIT
P/N 91-0079-IP
MORTISE KIT DEADLOCK
P/N 91-0459-01-IP
CVR KIT
P/N 91-0160-P
MORTISE KIT DEADLATCH
P/N 91-0459-02-IP
RIVNUT TOOL ASS’Y
P/N 41-0975-04
BATTERY
COVER SHIELD
P/N 25-0179
BATTERY LID ASS’Y
P/N 31-0329-XXX-IP
BATTERY PACK ASS’Y
P/N 31-0355-IP
CURVED HANDLE
P/N 23-0743-XXX
TORX SET SCREW
1/4"-28 X 1/4"
P/N 26-0658
TRIM
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
eForce®-150 3090
KEYLESS ENTRY
eForce®-150 3090 Keyless Entry
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
191-0079 Mounting kit Each $15.00
291-0459-01 Mortise kit, deadlock Each $27.00
391-0160-P CVR tailpiece adapter kit Each $10.00
491-0459-02 Mortise kit, deadlatch Each $27.00
541-0975-04 Rivnut tool kit assembly Each $14.00
625-0179 Battery cover, plastic shield Each $6.00
731-0329-626 Battery lid assembly, US26D (626) finish Each $30.00
31-0329-121PC-IP Battery lid assembly, 121 dark bronze finish Each $30.00
831-0355 Battery pack assembly Each $23.00
923-0743-626 Curved handle US26D (626) finish Each $46.00
23-0743-121PC Curved handle 121 finish Each $46.00
10 26-0658 Torx set screw 1/4"-28 x 1/4" Each $6.00
66
4550
MS® DEADLOCK LEVER
6
7
8
1RETURN SPRING BUSHING
P/N 26-0157-MP
2#10-32 X 3/8" FLAT HEAD SCREW
P/N S262C10R06N630-MP
3HANDLE RETURN SPRING
P/N 28-0019-MP
4#6-32 X 5/16" PAN HEAD SCREW
P/N S222-06R05N603-MP
4 REQ'D
5
STOP PLATE
P/N 22-0656
CAM PLUG ASS’Y
P/N 91-0752
#6-32 X 1/2"
SOCKET HEAD CAP SCREW
P/N S242BA06-08
2 REQ’D
#10-32 X 3/4"
PAN HEAD SEMS SCREW
P/N S277-10R12-603-MP
4 REQ'D
EXIT INDICATOR SPRING
P/N 28-0008-01-MP
EXIT
INDICATOR SPRING
P/N 28-0008-MP
EXIT
INDICATOR PIN
P/N 26-0455-MP
9
10
11
TRIM
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4550
MS® DEADLOCK LEVER
4550 Deadlock Lever
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
126-0157-MP Return spring bushing Pkg. of 10 $35.00
2S262C10R06N630-MP #10-32 × 3/8" flat head screw Pkg.of 10 $9.00
328-0019-MP Handle return spring Pkg. of 10 $38.00
4S222-06R05N603-MP #6-32 × 5/16" pan head screw Pkg.of 10 $6.00
522-0656 Stop plate Each $6.00
691-0752 Cam plug assembly kit, clutched MS lever Each $84.00
7S242BA06-08 #6-32 × 1/2 socket head cap screw Each $6.00
8S277-10R12-603-MP #10-32 × 3/4" pan head SEMS screw Pkg. of 10 $7.00
928-0008-MP Exit indicator spring Pkg. of 10 $15.00
10 28-0008-01-MP Exit indicator spring for 2 or 3 point locks Pkg. of 10 $15.00
11 26-0455-MP Exit indicator pin for 2 or 3 point locks Pkg. of 10 $84.00
NS 80-0180-455 Stick-on template Each Email Only
NS 80-0180-460 Installation instructions Each Email Only
NS = Not shown
68
4590
DEADLATCH PADDLE
H
S
U
P
1
2
3
4
5
6
7
8
9
“PULL” INDICATOR
P/N 20-0399-01
OR
“PUSH” INDICATOR
P/N 20-0399-02
BINDER POST
P/N 26-0188-09-MP
#8-32 X 1/2"
TRUSS HEAD SCREW
P/N S236-08R08-603-MP
RETURN
SPRING KIT
P/N 91-0060
SPRING CLIP
P/N 28-0070-MP
DRIVER SCREW
P/N 26-0383N-MP
3/8"-24 SET SCREW
P/N 26-0398N-MP
SHAFT
P/N 26-0055
1/4"-28 LOCKNUT
P/N 29-0546-MP
TRIM
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4590
DEADLATCH PADDLE
4590 Deadlatch Paddle
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
120-0399-01 PULL indicator Each $6.00
20-0399-02 PUSH indicator Each $6.00
2S236-08R08-603-MP #8-32 × 1/2 truss head screw with lockwasher Pkg. of 10 $6.00
328-0070-MP Spring clip Pkg. of 10 $6.00
491-0060 Return spring kit, includes all four springs Each $9.00
526-0383N-MP Driver screw Pkg. of 10 $75.00
626-0398N-MP 3/8"-24 set screw Pkg. of 10 $28.00
726-0055 Shaft Each $5.00
829-0546-MP 1/4-28 Locknut Pkg. of 10 $15.00
926-0188-09-MP Binder post Pkg. of 10 $20.00
NS 80-0180-200 Instruction sheet, 4590 Each Email Only
NS 80-0180-201 Instruction sheet, 4590M Each Email Only
NS 80-0180-202 Instruction sheet, 4590MA Each Email Only
NS = Not shown
70
4591
DEADLATCH PADDLE
PADDLE ASS’Y
P/N 41-0119-XXX
LABEL
P/N 20-0099
RETURN
SPRING KIT
P/N 91-0060
DOGGING SCREW
P/N 31-0079-MP
DRIVE SHAFT
P/N 26-0366-XX
BUSHING
P/N 27-0065
DRIVER SCREW
P/N 26-0383N-MP
DOGGING KEY
P/N 29-0481-MP
3/8"-24 SET SCREW
P/N 26-0398N-MP
SHAFT
P/N 26-0055
MONITORING KIT
P/N 91-0914
BINDER POST
P/N 26-0488-MP
2 REQ'D
1
2
3
4
5#10-24 X 1"
PAN HEAD SCREW
P/N S277-10R16-603-MP
2 REQ'D
6
7
8
9
10
SPRING CLIP
P/N 28-0070-MP
2 REQ'D
11
12
13
14
15
5/16"-24 JAM NUT
P/N N307-516-MP
2 REQ'D
TRIM
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4591
DEADLATCH PADDLE
4591 Deadlatch Paddle
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
1290481MP Dogging key Pkg. of 10 $33.00
2310079MP Dogging screw Pkg. of 10 $29.00
3270065 Bushing Each $10.00
426036601 Drive shaft for 1-3/4" doors Each $13.00
260366XX Drive shaft for doors over 1-3/4", specify door thickness Each $26.00
5S27710R16603MP #10-24 × 1" truss head screw with lockwasher Pkg. of 10 $9.00
6200099 “PUSH" & "PULL” indicator label Each $5.00
7410119313 Paddle assembly, 313 finish Each $63.00
410119335 Paddle assembly, 335 finish Each $63.00
410119628 Paddle assembly, 628 finish Each $63.00
8280070MP Spring clip Pkg. of 10 $6.00
9910060 Return spring kit, includes all four springs Each $9.00
10 260383NMP Driver screw Pkg. of 10 $75.00
11 260398NMP 3/8"-24 set screw Pkg. of 10 $28.00
12 260055 Shaft Each $5.00
13 910914 Monitoring kit Each List
14 N307516MP 5/16-24 jam nut Pkg. of 10 $6.00
15 260488MP Binder post Pkg. of 10 $30.00
NS 8001804591 Instruction sheet, 4591 Each Email Only
NS 8001804591M Instruction sheet, 4591M Each Email Only
NS 8001804591MA Instruction sheet, 4591MA Each Email Only
List = Refer to current pricelist NS = Not shown
72
CAM PLUG 1-3/4"
P/N 4581-01-IP
MOUNTING KIT – 1-3/4"
P/N 91-0482-1X-IP
TRIM COVER KIT
P/N 91-0481-US32D
LOCK COVER PLATE
P/N 22-9153-01R
OR
P/N 22-9153-01-121
1
2
LEVER KITS
STANDARD
P/N 31-0991-XX-XXX-IP
OR
DESIGNER
P/N 31-1010-XXX-XXXX-IP
3
4
5
SQUARE
ROUND
CURVED
TRIM
4600
HEAVY DUTY
DEADLATCH HANDLES
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4600 Series Heavy Duty Designer Deadlatch Handles
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
122-9153-01R Lock cover plate, shim, US32D (630) finish Each $10.00
22-9153-01-121 Lock cover plate, shim, 121 finish Each $12.00
291-0481-US32D Trim cover kit, US32D (630) finish Each $63.00
3
31-0991-02-10B -IP Round lever kit, US10B (613) finish Each $92.00
31-0991-02-630-IP Round lever kit, US32D (630) finish Each $92.00
31-0991-03-10B-IP Square lever kit, US10B (613) finish Each $92.00
31-0991-03-630-IP Square lever kit, US32D (630) finish Each $92.00
31-0991-01-10B-IP Curved lever kit, US10B (613) finish Each $92.00
31-0991-01-630-IP Curved lever kit, US32D (630) finish Each $92.00
31-1010-MD0-10B-IP Designer lever kit, Centro Series MD, 10B (613) finish Each $144.00
31-1010-MD0-US32D-IP Designer lever kit, Centro Series MD, US32D (630) finish Each $144.00
31-1010-ME0-10B-IP Designer lever kit, Aventura Series ME, 10B (613) finish Each $144.00
31-1010-ME0-US32D-IP Designer lever kit, Aventura Series ME, US32D (630) finish Each $144.00
31-1010-MG0-10B-IP Designer lever kit, Aventura Series MG, 10B (613) finish Each $144.00
31-1010-MG0-US32D-IP Designer lever kit, Aventura Series MG, US32D (630) finish Each $144.00
31-1010-MI0-10B-IP Designer lever kit, Aventura Series MI, 10B (613) finish Each $144.00
31-1010-MI0-US32D-IP Designer lever kit, Aventura Series MI, US32D (630) finish Each $144.00
31-1010-MJ0-10B-IP Designer lever kit, Centro Series MJ, 10B (613) finish Each $144.00
31-1010-MJ0-US32D-IP Designer lever kit, Centro Series MJ, US32D (630) finish Each $144.00
31-1010-MN7-10B-IP Designer lever kit, Odeon Series MN, left hand, 10B (613) finish Each $144.00
31-1010-MN7-US32D-IP Designer lever kit, Odeon Series MN, left hand, US32D (630) finish Each $144.00
31-1010-MN8-10B-IP-IP Designer lever kit, Odeon Series MN, right hand, 10B (613) finish Each $144.00
31-1010-MN8-US32D-IP Designer lever kit, Odeon Series MN, right hand, US32D (630) finish Each $144.00
31-1010-MV7-10B-IP P Designer lever kit, Odeon Series MV, left hand, 10B (613) finish Each $144.00
31-1010-MV7-US32D-IP Designer lever kit, Odeon Series MV, left hand, US32D (630) finish Each $144.00
31-1010-MV8-10B-IP Designer lever kit, Odeon Series MV, right hand, 10B (613) finish Each $144.00
31-1010-MV8-US32D-IP Designer lever kit, Odeon Series MV, right hand, US32D (630) finish Each $144.00
31-1010-MW0-10B-IP Designer lever kit, Aventura Series MW, 10B (613) finish Each $144.00
31-1010-MW0-US32D-IP Designer lever kit, Aventura Series MW, US32D (630) finish Each $144.00
44581-01 Cam plug 1-3/4" Each List
5
91-0482-11-IP Mounting kit, 1-3/4" door thickness Each $57.00
91-0482-12-IP Mounting kit, 2" door thickness Each $57.00
91-0482-13-IP Mounting kit, 2-1/4" door thickness Each $57.00
91-0482-14-IP Mounting kit, 2-1/2" door thickness Each $57.00
NS 80-0180-417 Installation instructions Each Email Only
NS 80-0180-416 Template Each Email Only
List = Refer to current pricelist NS = Not shown
4600
HEAVY DUTY
DEADLATCH HANDLES
74
4024/4025/4026
CYLINDER PULLS
CYLINDERS
RETAINER CLIP
P/N 22-0062
INSERT CYLINDER
P/N 29-0400-00-01
1
2
3
4#10-32 X 1-3/4"
FLAT HEAD SCREW
P/N S262-10R28-603-MP
2 REQ'D
#10-32 X 1/2"
ROUND HEAD SCREW
P/N S263-10R08-603-MP
OR
P/N S235-06R06-603-MP
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
4024/4025/4026
CYLINDER PULLS
4024/4025/4026 Cylinder Pulls
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
122-0062 Retainer clip Each $5.00
229-0400-00-01 Insert cylinder Each $32.00
3S263-10R08-603-MP #10-32 × 1/2" round head screw Pkg. of 10 $6.00
S235-06R06-603-MP #6-32 × 3/8" flat head undercut screw (4024) Pkg. of 10 $6.00
4S262-10R28-603-MP #10-32 × 1-3/4" flat head screw, 4025/4026 Pkg. of 10 $7.00
NS 26-0252-50-130 Mounting screws — 4025 cylinder × cylinder, 2 required Each $9.00
NS = Not shown
76
Accessories
& Cylinders
ACCESSORIES & CYLINDERS
MORTISE CYLINDER
P/N 4036-01-01-XXX
TRIM RING
P/N 24-0007-XX-XXX
MORTISE
THUMBTURN
P/N 4066-01-XXX
CAM PLUG
P/N 4581-01-IP
TUBE SPACER
P/N 26-0009-XX
RIM CYLINDER
P/N 8736-01-01-XXX
CYLINDER
ESCUTCHEON KIT
P/N 8650-XXX
1
2
3
4
5
6
7
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com
CANADA assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
Patent pending and/or patent www.assaabloydss.com/patents. Copyright © 2020, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.
Accessories
& Cylinders
Accessories
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2019 PRICE
1
26-0009-44 Tube spacer 1-3/8" Each $15.00
26-0009-46 Tube spacer 1-7/16" Each $15.00
26-0009-50 Tube spacer 1-9/16" Each $15.00
26-0009-52 Tube spacer 1-5/8" Each $15.00
26-0009-57 Tube spacer 1-25/32" Each $15.00
26-0009-62 Tube spacer 1-15/16" Each $15.00
26-0009-64 Tube spacer 2" Each $15.00
26-0009-164 Tube spacer 1-41/64" Each $15.00
2
24-0007-02-628 Trim ring, 1/8", 628 finish Each $13.00
24-0007-03-628 Trim ring, 3/16", 628 finish Each $13.00
24-0007-04-313 Trim ring, 1/4", 313 finish Each $13.00
24-0007-04-628 Trim ring, 1/4", 628 finish Each $13.00
24-0007-09-313 Trim ring, 3/8", 313 finish Each $13.00
24-0007-09-628 Trim ring, 3/8", 628 finish Each $13.00
3
4066-01-130 Mortise thumbturn, 130 finish Each List
4066-01-313 Mortise thumbturn, 313 finish Each List
4066-01-335 Mortise thumbturn, 335 finish Each List
4
8736-01-01-313 Rim cylinder, 313 finish Each List
8736-01-01-335 Rim cylinder, 335 finish Each List
8736-01-01-628 Rim cylinder, 628 finish Each List
5
4036-01-01-313 Mortise cylinder, 313 finish Each List
4036-01-01-335 Mortise cylinder, 335 finish Each List
4036-01-01-628 Mortise cylinder, 628 finish Each List
6
8650-119 Cylinder escutcheon kit, 119 finish Each List
8650-121 Cylinder escutcheon kit, 121 finish Each List
8650-130 Cylinder escutcheon kit, 130 finish Each List
8650-313 Cylinder escutcheon kit, 313 finish Each List
8650-335 Cylinder escutcheon kit, 335 finish Each List
8650-628 Cylinder escutcheon kit, 628 finish Each List
8650-US3 Cylinder escutcheon kit, US3 (605) finish Each List
8650-US4 Cylinder escutcheon kit, US4 (606) finish Each List
8650-US32 Cylinder escutcheon kit, US32 (629) finish Each List
8650-US32D Cylinder escutcheon kit, US32D (630) finish Each List
74581-01 Cam plug 1-3/4" Each List
List = Refer to current pricelist
Patent pending and/or patent www.assaabloydss.com/patents.
Copyright © 2019, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
permission of Hanchett Entry Systems, Inc. is prohibited. AR-052-1019
USA
800 872 3267 | f: 800 232 7329 | adamsrite.com
customerservice.adamsrite@assaabloy.com
techsupport.adamsrite@assaabloy.com
orders.adamsrite@assaabloy.com
Canada
800 461 3007 | f. 800 461 8989 | assaabloydss.ca
sales.dss.ca@assaabloy.com
orders.dss.ca@assaabloy.com
