DEMCO 5800RL
Wireless Relay Module

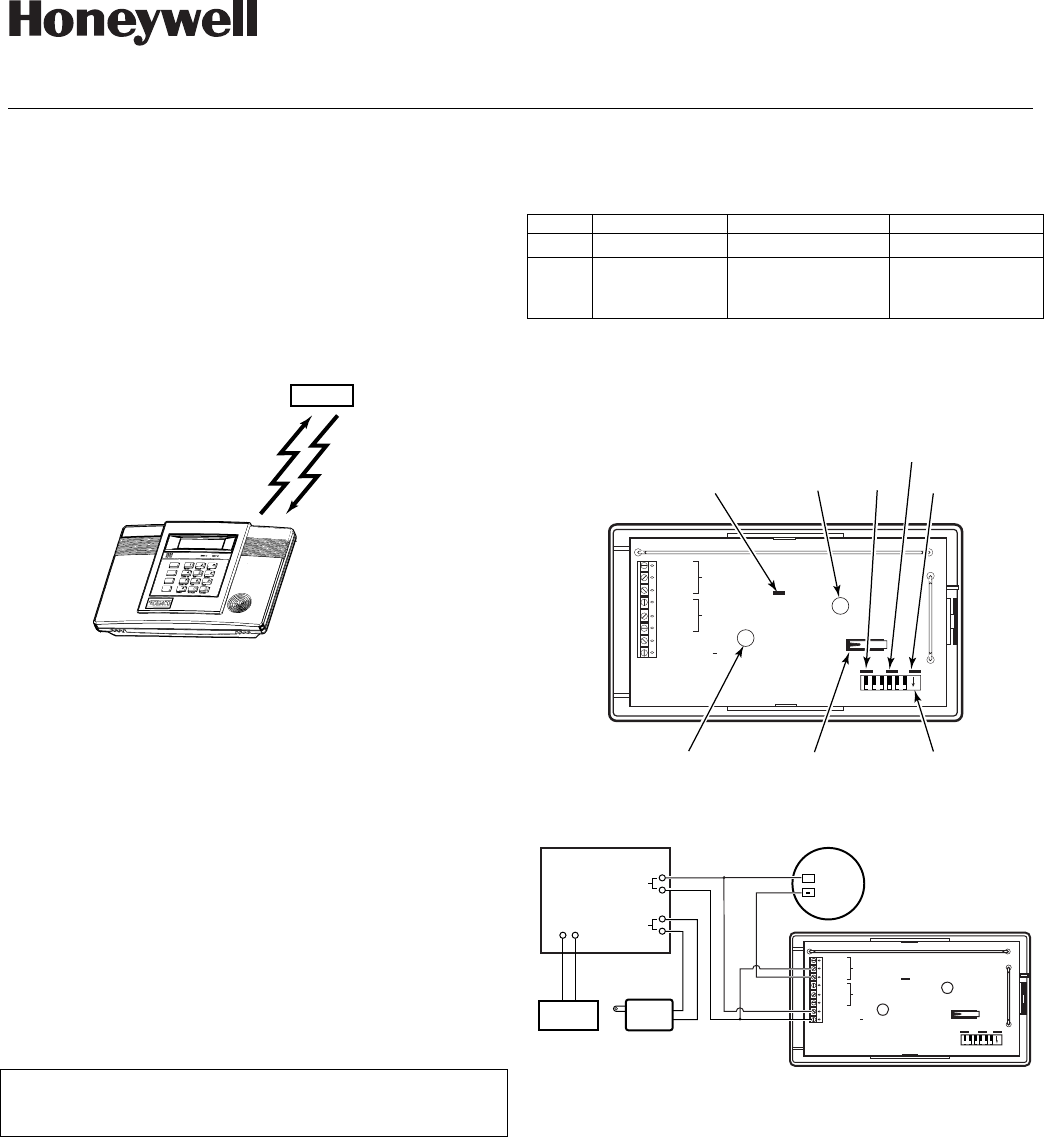

INSTALLATION AND SETUP GUIDE
INTRODUCTION
The ADEMCO 5800RL is a Wireless Relay Module that
enables use of remote sounders and/or remote arm/disarm
indicators using two relays activated by wireless signals from
the LYNX control (see Figure 1). The 5800RL can also send
tamper and supervision signals to the LYNX if so
programmed. The 5800RL is compatible with LYNX controls
having software versions 9.0 or higher. Refer to the LYNX
control installation and setup guide for software compatibility
and zone programming information.
5800RL
RELAY
MODULE
TAMPER AND
SUPERVISION
SIGNALS SENT
TO CONTROL
MODULE'S 2
RELAYS ARE
ACTIVATED BY
SYSTEM
CONDITIONS
AWAY
OFF
STAY
AUX
5800RF-004-V0
Figure 1. Lynx Interface Diagram
MOUNTING LOCATION GUIDELINES
Use the following guidelines when selecting a mounting
location for the 5800RL Relay Module (see Figure 2):
• Mount the 5800RL in a high location for best wireless
reception.
• Do not mount the 5800RL on or near metal objects. This
decreases range and/or blocks wireless transmissions.
• Locate the 5800RL at least 10 feet from any remote
keypad to avoid interference from the microprocessors in
those units.
• To avoid voltage loss that occurs on long power lines,
mount the external power supply unit in close proximity to
the 5800RL.
Mounting, Wiring, and Setup
IMPORTANT: Before permanently mounting the 5800RL,
perform the setup procedure described in the
Setting Up
the 5800RL
section.
1. Remove the 5800RL's cover from the base (using a small
flat head screwdriver, insert screwdriver’s tip in slot at top
of the cover and twist).
2. Using the 5800RL base as a template, position in the
desired location and mark the two mounting holes. See
Figure 2 for mounting hole locations.
3. Attach the 5800RL base using the fasteners supplied.
Screws and plastic anchors are suitable for a typical
installation, but you may use any two fasteners that
secure the base firmly to the mounting surface.
4. Connect relay and power wiring to the 5800kRL’s
terminals. Refer to Figure 3 for a typical relay application.
The 5800RL can be powered from either an AC transformer
or DC power supply external power source connected to
terminals 7 and 8 (see Figure 3).
Power source ratings and connections are as follows:
Type Rating Connected to… Source Example
AC 9VAC, 15VA terminals 7 and 8 Ademco 1332
DC 9VDC, 100mA N7703
terminals 7 and 8
or plugged into
power connector.
NOTE: Use of power sources with higher or lower voltages
may result in damage or failure to operate properly. Non-
ADEMCO power supplies may have connectors installed.
Remove these connectors prior to attempting to connect
power supply to 5800RL.
TAMPER
SWITCH
2 - NO
3 - COM
4 - NC
5 - NO
6 - COM
7 - AC OR DC (+) IN
1 - NC
8 - AC OR DC ( ) IN
RELAY A
RELAY B
5800RL-001-V1
LED
(RED)
LED
(YELLOW)
LED
(GREEN)
RF INTERFERENCE
LED (RED)
ANTENNA 2
ANTENNA 1
DIP
SWITCH
MOUNTING
HOLE
MOUNTING
HOLE
123456
ON
OFF
Figure 2. 5800RL Diagram
2 - NO
3 - COM
4 - NC
5 - NO
6 - COM
7 - AC OR DC (+) IN
1 - NC
8 - AC OR DC ( ) IN
RELAY A
RELAY B
5800RL-005-V0
ANTENNA 2
SOUNDER
ANTENNA 1
123456
ON
OFF
ADEMCO AD12612
AUX PWR SUPPLY
(12 VDC)
AC
IN
+
_
DC
OUT
1361
+_
RED
BLACK
POWER SUPPLY
BACKUP
BATTERY 12VDC
+
PWR SUPPLY
XFMR
16.5VAC
Figure 3. Typical Sounder Wiring Installation
Setting Up the 5800RL
Refer to RELAY and LED Operation section and DIP Switch
(Figure 4) in order to set up the 5800RL as follows:
5. Set DIP switches 3-6 (Figure 4) to the appropriate House
ID (1-31). Make sure the House ID set by the DIP
switches matches that entered in the LYNX control.
6. If module supervision and/or tamper protection is desired,
program the 5800RL’s tamper/supervisory loop (1) as a
zone and enroll its serial number.
Note the following when enrolling:
Zone Type = 5 (trouble by day/alarm by night)
Input Type = 3 (RF)
Loop Number = 1
PLEASE GO TO THE BOTTOM RIGHT OF PAGE 2
7. Position the wiring in the exit slot and reinstall the
5800RL’s cover on the base.
Test the 5800RL module with the rest of the system.
DIP SWITCH POSITIONS DIP SWITCH POSITIONS
HOUSE
ID 2 3 4 5 6
HOUSE
ID 2 3 4 5 6
0 - - - - - 16 - - - - -
1 - - - - ON
17 ON - - - ON
2 - - - ON - 18 ON - - ON -
3 - - - ON ON
19 ON - - ON ON
4 - - ON - - 20 ON - ON - -
5 - - ON - ON
21 ON - ON - ON
6 - - ON ON - 22 ON - ON ON -
7 - - ON ON ON
23 ON - ON ON ON
8 - ON - - - 24 ON ON - - -
9 - ON - - ON
25 ON ON - - ON
10 - ON - ON - 26 ON ON - ON -
11 - ON - ON ON
27 ON ON - ON ON
12 - ON ON - - 28 ON ON ON - -
13 - ON ON - ON
29 ON ON ON - ON
14 - ON ON ON - 30 ON ON ON ON -
15 - ON ON ON ON
31 ON ON ON ON ON
“ – “ indicates “OFF”
234561
2-6 SETS HOUSE ID
SW-1
NOT USED
5800RL DIP Switch
5800RF-003-V0
OFF POSITION
INDICATOR
SV6
7L
Figure 4. DIP Switch Settings
RELAY and LED Operation
The 5800RL contains two relays (Figure 2) (SPDT, rated 2A.
28VAC/VDC) that may be used to activate remote sounders
and/or remote arm/disarm indicators. There are three LEDs
(green, yellow, red) located above the DIP switch and one
LED (red) located approximately in the center of the pc board.
The LEDs located above the DIP switch, indicate power and
relay activity. Refer to Figure 5. The RF Interference LED
monitors local radio frequency interference. If this LED is
continuously lit, the 5800RL should be relocated.
Relay LED Activates Upon…
A Yellow Alarm conditions as follows:
Steady ON = burglary alarm (NO contact
connects to COM)
Temporal ON = fire alarm (NO contact connects
temporal to COM)
OFF = no alarms present (NC contact connects
to COM)
Relay LED Activates Upon…
B Red System armed/disarmed as follows:
ON = system armed Away, Stay, or Instant (NO
contact connect to COM)
OFF = system disarmed (NC contact connects to
COM)
N/A Green
Normally on (lighted) when power is applied.
Flickering indicates RF is being processed.
N/A RF
Inter-
ference
Lights when RF activity is present.
Figure 5. Relay and LED Operation
SPECIFICATIONS
Dimensions: 2-3/4”W x 4-15/16”H x 1-1/16”D
(70mm x 125mm x 27mm)
Voltage: 12VDC 100mA or
9VAC, 15VA (use ADEMCO 1332 or equivalent)
Current: 60mA
Relay: Two relays, each with choice of normally open (NO)
or normally closed (NC) operation.
Operating Temperature: 0 - 50°C / 32 - 122°F
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
This equipment has been tested to FCC requirements and has been found
acceptable for use. The FCC requires the following statement for your
information:
This equipment generates and uses radio frequency energy and if not
installed and used properly, that is, in strict accordance with the
manufacturer's instructions, may cause interference to radio and television
reception. It has been type tested and found to comply with the limits for a
Class B computing device in accordance with the specifications in Part 15 of
FCC Rules, which are designed to provide reasonable protection against
such interference in a residential installation. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment
does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control.
• Move the antenna leads away from any wire runs to the receiver/control.
• Plug the receiver/control into a different outlet so that it and the radio or
television receiver are on different branch circuits.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user or installer
may find the following booklet prepared by the Federal Communications
Commission helpful: "Interference Handbook"
This booklet is available under Stock No. 004-000-00450-7 from the U.S.
Government Printing Office, Washington, DC 20402.
The user shall not make any changes or modifications to the equipment
unless authorized by the Installation Instructions or User's Manual.
Unauthorized changes or modifications could void the user's authority to
operate the equipment.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference (2) This device must accept any interference received, including
interference that may cause undesired operation.
