Ademco 8DL5802AP Security Alarm Transmitter User Manual N7131 3V1
Honeywell International Inc. Security Alarm Transmitter N7131 3V1
Ademco >
User manual
N7131-3V1 2/08 Rev. A
ADEMCO 5802AP
SUPERVISED
MINIATURE TRANSMITTER
INSTALLATION AND SETUP GUIDE
The ADEMCO 5802AP is a wireless button transmitter
that may be worn on a belt or around the neck (both
belt and necklace are included). Pressing the button on
the transmitter sends a signal to the control receiver.
The 5802AP is designed for use in wireless systems
that support 5800AP series devices.
The transmitter is “supervised,” i.e., every 70-90
minutes, it automatically sends a check-in message to
the control that includes battery status information.
BATTERY REPLACEMENT
The 5802AP is powered by a long-life lithium battery
that should be replaced when a low battery is indicated
by the control unit.
NOTE: Although the 5802AP is water-resistant,
please do not submerge.
PROGRAMMING
The 5802AP has a unique serial number permanently
assigned during manufacture, which must be enrolled
in the system during installation. The 5802AP can be
programmed as “supervised” or “unsupervised,” but
should be programmed as “unsupervised” if it will be
removed from the premises.
See the control unit’s installation instructions for
further details regarding programming.
SPECIFICATIONS
Transmission Frequency: 315MHz
Unit Dimensions: 61mm x 38mm x 12.7mm
LED: Lights when unit
transmits.
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲

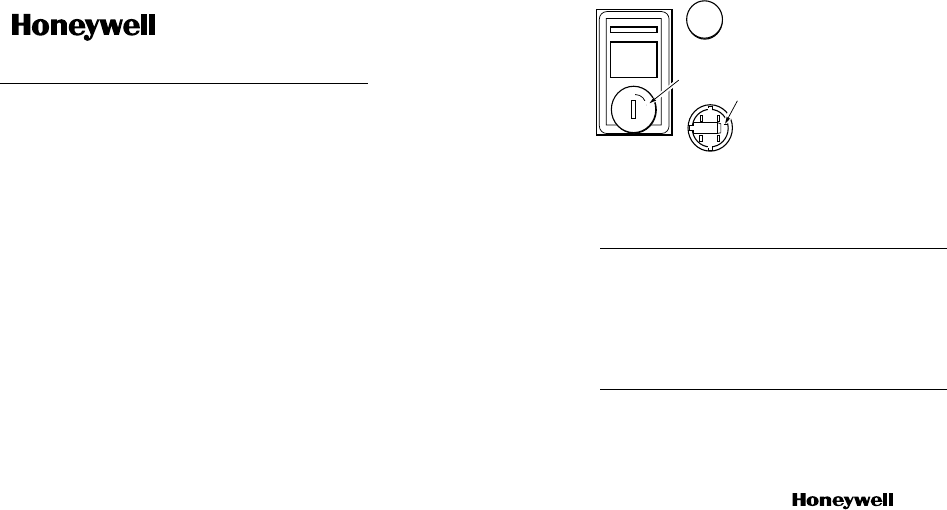

Back of 5802AP
Remove
battery
cover Slide
battery
under
pin
Battery
3V
LITHIUM
RENATA
CR2032
5802AP-001-V0
Battery: Duracell
DL2032, Panasonic
CR2032, Renata
CR2032, Varta CR2032
or Maxell CR2032.
Battery access is via a
quarter-turn of slot in
case back.
Note battery polarity:
+V
UP!
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE
RECEIVER/CONTROL WITH WITCH THIS DEVICE IS USED
FOR WARRANTY INFORMATION, AND FOR DETAILS
REGARDING THE LIMITATIONS OF THE ENTIRE ALARM
SYSTEM.
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules,
and RSS210 of IC.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
The user shall not make any changes or modifications to
the equipment unless authorized by the installation
Instructions or User's Manual.
Unauthorized changes or modifications could void the
user's authority to operate the equipment.
ÊN7131-3V1gŠ
2 Corporate Center Drive, Suite 100
P.O. Box 9040
Melville, NY 11747
N7131-3V1 2/08 Rev. A
