5816XT1 ( TO BE SOLD AS OUR "5816" ) PAGE 1
We are moving from a “Paper Users Manual” to a “Web-Based Users Manual”. In order to do this there will be a
‘quick-start users manual’ printed on the 5816 carton, here is the outside carton art, please note that the outside
art also carries the FCC / IC Regulatory Statements:
5816XT1 ( TO BE SOLD AS OUR "5816" ) PAGE 2

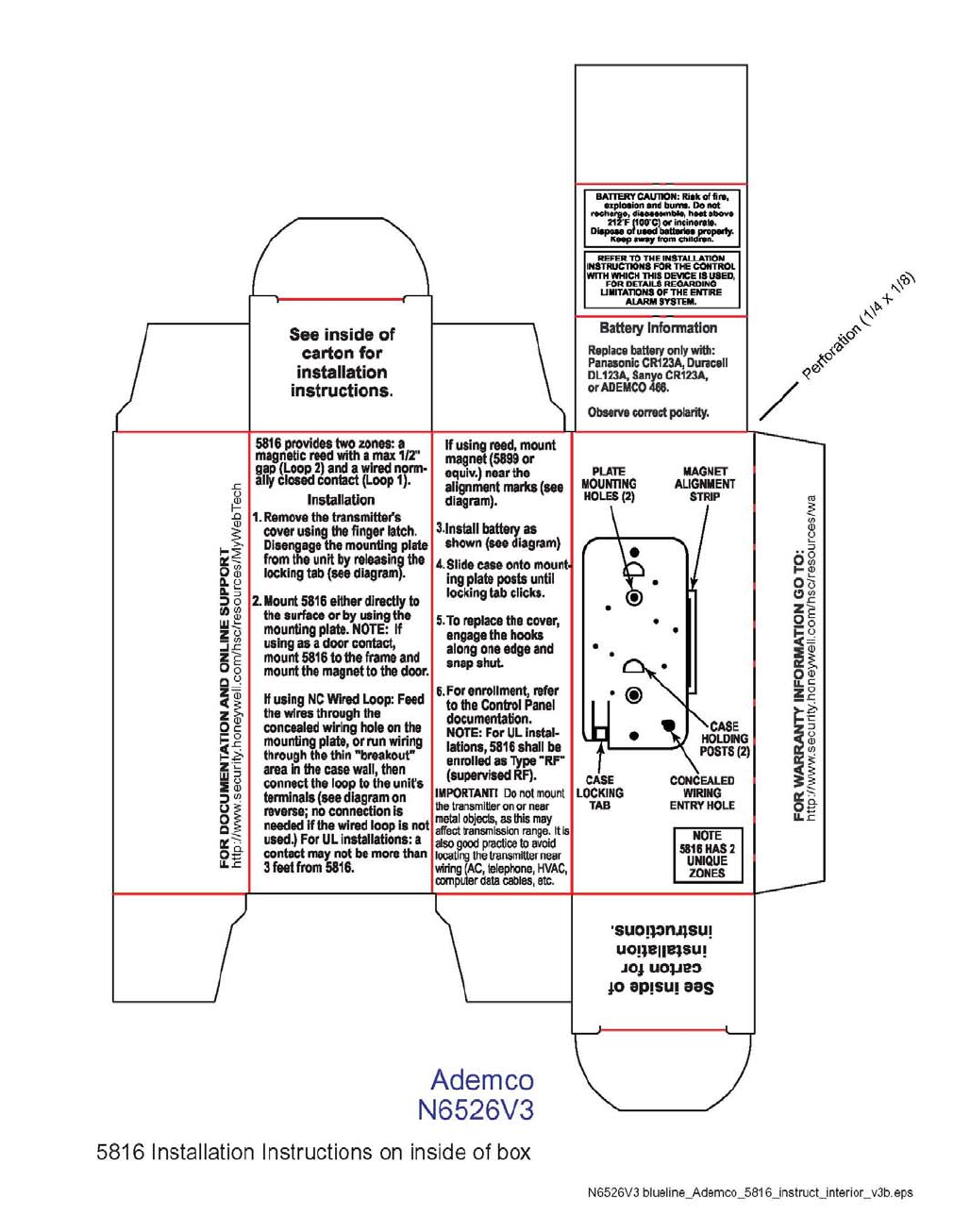

When you unfold the 5816 carton you see the interior text and art. If you look at the left most panel you will see the link to
the “Web-Based Users Manual” printed on the 5816 carton artwork:
5816XT1 ( TO BE SOLD AS OUR "5816" ) PAGE 3
The link that is printed on the 5816 carton artwork is:
(For the purpose of this Permissive change please cut & paste this link into Your browser:)
http://www.security.honeywell.com/hsc/resources/MyWebTech
Go to this site, then...
1. Click on "Go To MyWebTech"
2. Enter the login credentials:
Your Login is: agency
Your password is: agency
NOTE: Users who do not have login credentials are assigned login credentials at the ‘MyWebTech’ Site.
3. Enter "5816" in the Search By/My Product field (upper left corner of screen), then click "Go"
4. Click the "Install Instructions" link beneath the product picture that appears.
(your browser needs to be configured to allow popup windows, OR right-click
on the link and select "Open Link in New Window.")
5. You will then see a pfd of the full Users Manual. The Next two (2) pages contain the Full Users Manual
for Your comparison.
N6482V2 4/98 Rev. C
ADEMCO 5816
Door/Window Transmitter
INSTALLATION AND SETUP GUIDE
CASE
HOLDING
POSTS (2)
PLATE
MOUNTING
HOLES (2)
CONCEALED
WIRING
ENTRY HOLE
CASE
LOCKING
TA B
MAGNET ALIGNMENT STRIP
5816-002-V0

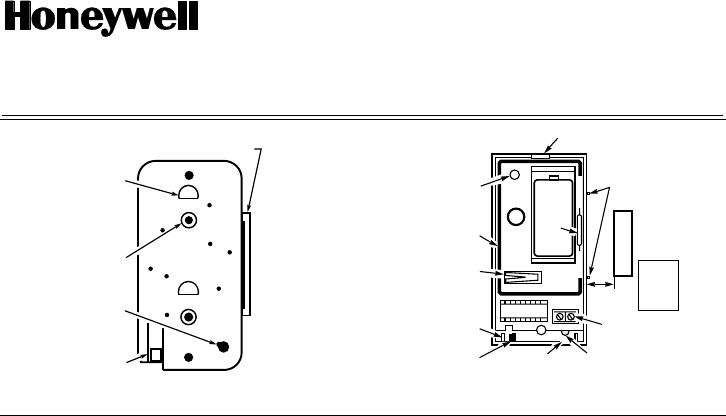

Diagram 1. Mounting Plate
+
–
COVER PRY-OFF POINT
ANTENNA
HOLES "A" (2)
(SEE TEXT)
LOCKING TAB
RELEASE
WINDOW
BATTERY
REED
SWITCH
(INPUT 2)
COVER
TAMPER
SWITCH
COVER
HOLDING
HOOKS (2)
A
BREAKOUT FOR
SURFACE WIRING
SLOT FOR CONCEALED
WIRING ACCESS
ALIGN MAGNET
WITH MARKS ON
CASE AND GUIDE
ON MTG. PLATE
MAGNET
(OBTAIN
SEPARATELY)
LOOP
TERMINALS
(INPUT 1)
A
NOTE
5816
HAS 2
UNIQUE
ZONES
1/2” MAX.
5816-001-V0
Diagram 2. Transmitter, Cover Removed
GENERAL INFORMATION
The 5816 Door/Window Transmitter has its own
unique serial number permanently assigned
during manufacture. You must “enroll” the
transmitter serial number in the control prior to its
usage in the system. Refer to the control unit’s
installation instructions for further details. Note:
During programming of the control unit, 5816
transmitters shall be treated as “RF” (i.e.,
supervised RF) Type (mandatory for UL
installations).
The 5816 has two unique zones; the first is for a
wired closed circuit contact loop and the second
for its built-in reed switch (used in conjunction with
a magnet as described below). Either or both
zones may be used. For UL installations, a
contact may not be more than 3 feet from the
transmitter.
A built-in cover tamper switch is activated when
the cover is removed.
INSTALLATION
Mounting
For proper orientation of the unit in relation to the
mounting plate, loop wiring, and/or magnet, read
all of this section before installing the unit.
The description that follows assumes that the unit
will be mounted as shown in the diagrams, with
the magnet (if used) located to the unit’s right. The
unit may, however, be installed in any direction,
as long as the relationship of the unit to its
mounting plate and (if used) magnet is
maintained.
Although two holes are provided in the unit that
would permit mounting directly to a surface (holes
‘A’ in Diagram 2) it is recommended that the
mounting plate be used, for ease in removing the
unit for servicing should it become necessary.
Before mounting the transmitter permanently,
conduct Go/No Go tests (see control’s
instructions) to verify adequate signal strength
and reorient or relocate the transmitter if
necessary.
1. Remove the transmitter’s cover by inserting
the flat blade of a small screwdriver into the
pry-off slot at the end of the unit farthest from
the cover’s decorative ribs, and twisting the
blade.
2. Disengage the supplied mounting plate
from the unit by inserting the blade of a small
screwdriver into the locking tab release
window (see Diagram 2) and pressing it
against the locking tab (see Diagram 1) while
sliding the plate downward along the case
back.
3. If a wired contact loop is to be used with
concealed wiring, feed the wires through the
concealed wiring entry hole at one corner of
the mounting plate.
For surface wiring entry, a thin “breakout”
area is provided in the case wall. Wiring can
be run through this “breakout” in the case
when attaching the case in step 5.
4. Install the mounting plate, with its case
holding posts pointing up (in this example), in
the location selected as described in the
control unit’s installation instructions. Use the
flat head screws supplied.
5. Attach the case back to the mounting plate
by sliding the keyhole slots in the case back
down onto the mounting plate’s case holding
posts. The locking tab will click as the case
back locks in place.
6. If the unit’s reed switch is to be used,
mount a No. 5799 Magnet (or equivalent;
obtain separately) adjacent to the alignment
marks on the case and the mounting plate’s
alignment strip (see Diagram 2).
Wiring Connections
With the battery still not inserted, connect the
contact loop (if used) to the unit’s loop terminals
(see diagram). The contact loop must use closed
circuit devices. The loop response time is a
nominal 100mSec.
Note: If the contact loop is not to be used, no
connection is needed across its terminals.
BATTERY INSTALLATION/REPLACEMENT
1. Remove the transmitter’s cover (if it is not
already off) as described in Mounting Step 1.
2. Observe correct polarity and insert the
battery provided into the battery holder (see
Diagram 2). Take care not to bend the
antenna.
Note: Replace battery only with:
Panasonic CR123A, Duracell DL123A,
Sanyo CR123A, or ADEMCO 466.
3. To replace the cover, engage the hooks
along one edge and snap shut.
SPECIFICATIONS
Dimensions: 1-9/16”W x 3-1/16”H x 1-3/16”D
(40mm x 78mm x30mm)
Battery: 3V Lithium (see Note in step 2 of
BATTERY INSTALLATION/REPLACEMENT)
BATTERY CAUTION: Risk of fire, explosion
and burns. Do not recharge, disassemble, heat
above 212 F (100 C) or incinerate. Dispose of
used batteries promptly. Keep away from
children.
FEDERAL COMMUNICATIONS COMMISSION STATEMENTS: The user shall not make any changes or
modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized
changes or modifications could void the user's authority to operate the equipment.
FCC/IC NOTICE: This device complies with Part 15 of the FCC Rules, and RSS 210 of IC. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any
interference received, including interference that may cause undesired operation.
TO THE INSTALLER: Regular maintenance and inspection (at least annually) by the installer and frequent testing
by the user are vital to continuous satisfactory operation of any alarm system. The installer should assume the
responsibility of developing and offering a regular maintenance program to the user, as well as acquainting the user
with the proper operation and limitations of the alarm system and its component parts. Recommendations must be
included for a specific program of frequent testing (at least weekly) to insure the system’s operation at all times.
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL WITH WHICH THIS DEVICE IS
USED, FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
For Warranty Information on this product, please see:
http://www.security.honeywell.com/hsc/resources/wa
