INSTALLATION AND SETUP GUIDE
GENERAL INFORMATION
The 5834-4/5834-4EN key transmitters are portable wireless transmitters for use only with wireless alarm systems that support 5800 Series receivers (ex. VISTA series,
LYNX PLUS, LYNX Touch). The 5834-4EN is identical to the 5834-4 except the 5834-4EN has a plated bezel and key ring. References to the 5834-4 throughout this
document refer to both models.
•Buttons are typically used for arming and disarming, but can be programmed for any
appropriate zone response.
•A button must be pressed and held until the LED begins to flash to activate a button
function. This press and hold feature minimizes the possibility of accidental
transmissions. (Refer to the Loop Number diagram at right).
•The factory-installed replaceable lithium battery provides power for up to five (5) years.
PROGRAMMING
•The 5834-4 transmitter provides up to eight (8) functions and has an
Optional high security (encrypted) mode that sends rolling-code
encrypted messaging to the RF receiver.
High Security Mode Note: This product is set to high security
(encrypted) mode by the factory, and must be used with a receiver or
control that supports high security mode. i.e., 5881EN, 5883, 6150RF,
or 6160RF receiver or LYNXR Series control panel (Rev 13.1 or higher).
For complete details on how to program the transmitter at the control panel, see the control unit's Installation Instructions
. When programming, note the following:
•Each 5834-4 transmitter has two unique serial numbers assigned during manufacture.
•Each button on the unit also has a distinct "loop" number (refer to the Loop Number diagram
at right) that you must program into the control panel during installation.
•Assign each button to an individual zone and designate the Input Type as "BR" (Button Type).
•When prompted for the serial number, press and release the appropriate button(s) twice, or,
manually enter the serial number at the keypad.
NOTE: Serial #2 is one (1) digit higher than serial #1, and is printed on the rear of the transmitter.
CHANGING HIGH SECURITY / STANDARD MODE IN COMPATIBLE RECEIVERS
AND LOCALLY IN AN RF KEYPAD (eg., 6150RF)
If used with LYNXR Series controls earlier than Rev
ision 13.1,
Standard Mode must be selected.
The key fob is defaulted to high security mode. To change the mode do the following:
1. Select desired mode:
Mode
Simultaneously hold
down
for 5 secs
…
High
-
Security
A
-
C
-
D
(LED flashes Red when transmit
ting)
Standard
B
-
C
-
D
(LED flashes Green when transmitting)
Press any button to check the LED color.
2. When High Security mode is selected:
•High Security mode MUST be activated in the control panel, see table below.
•If the key fob is enrolled into the panel, put the security system into Go/No Go Mode
then press the appropriate buttons as follows:
Serial Number
Simultaneously hold down until beeps sound…
1
A
-
B
-
C
buttons (system beeps twice to confirm)
2
A
-
B
-
D
buttons (system beeps twice
to confirm)
Note: Repeat for second serial number, if used.
•If the key fob is enrolled locally into a 6150RF, go to Step 3 of 6150RF “Programming
WITH Local Wireless Keys”.

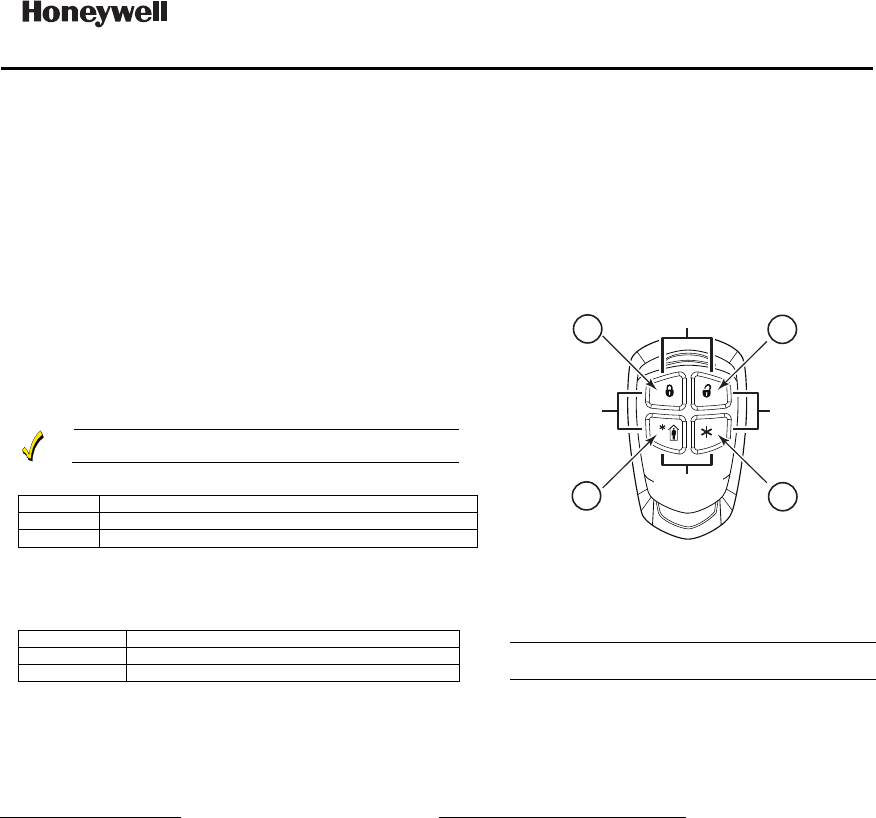

Loop Numbers for the 5834
-
4 Buttons
5834-008-V2
SERIAL #1
LOOP 4 SERIAL #1
LOOP 1
SERIAL #2
LOOP 1
SERIAL #2
LOOP 3
BUTTON 4BUTTON 3
BUTTON 2BUTTON 1
SERIAL #1
LOOP 3
SERIAL #2
LOOP 4
SERIAL #1
LOOP 2
SERIAL #1 FUNCTIONS ACTIVATE WHEN THE RESPECTIVE
BUTTON IS HELD DOWN UNTIL THE LED FLASHES.
SERIAL #2 FUNCTIONS ACTIVATE WHEN THE TWO RESPECTIVE
SERIAL #2 BUTTONS ARE PRESSED AT THE SAME TIME AND
HELD DOWN UNTIL THE LED FLASHES.
NOTE
1.
2.
SERIAL #2
LOOP 2
A
C
B
D
Using a Button: To activate a programmed function, press and hold
the appropriate key(s) until the LED begins to flash (about ½ second).
SIA INSTALLATIONS: Use only serial #2/loop 2 (C & D keys) for the
panic function. Do not use serial #1/loop 1 (D) key.
ASSIGNING A WIRELE
SS KEY TO A USER
•On most control panels, if the wireless key is assigned to arm and disarm the system, you must assign it to a user in order for it to operate. This is accomplished
through User Code programming at the control panel. See control panel’s Installation and Setup Guide for specific instructions; table below summarizes the procedures.
•If programming arming and disarming functions on both serial numbers, each serial number must be assigned to a separate user.
On Vista 32/40/50/50P/100 and up
You must assign a user to the button in order for it to operate.
To assign a user number to the Arm/Disarm button:
1. Enter [4-digit User Code] + [8] + [User No.] + [new User Code].
2. Answer Yes or No to the “Open/Close Report ?” question.
3. Answer Yes to the “RF Button ?” question.
4. Enter the zone number assigned to the button.
5. Keypad display shows summary of user information.
6. Test all functions for proper operation.
On Vista
-
20P/15P/10P
/Vista
-
21iP
and variants
You must assign a user to the button in order for it to operate, and must enter a
sequence of keystrokes as described below.
NOTE: There is a two-second timeout for keystroke commands on Vista P series
panels, therefore you must enter the keystrokes as quickly as possible.
1. Enter [4-digit Master Code] + [8] + [User Number] +
[# 4] + [two digit zone number] assigned to the fob.
2. Test all functions for proper operation.
EXHIBIT 7-1AINSTALLATION INSTRUCTIONS
REPLACING THE BATTER
Y
The LED will not flash during transmission if the battery is low. Replace the battery as
follows.
1. Remove the screw from the case back, then remove the case back.
2. Insert the blade of a small screwdriver under the battery as shown.
3. Twist the screwdriver to release the battery.
IMPORTANT: After removing the old battery, wait 1 minute before installing a new battery.
4. With the Positive (+) end of a new battery facing UP, insert the battery as shown, sliding it
under the gold tab, then pressing down to snap into place.
IMPORTANT: Positive (+) end must face up.
Use Panasonic CR2032, Duracell DL2032, or SENER CR2032 lithium battery only.
5. Replace the case back and replace the screw to secure the case.
•Improper installation will result in damage to the battery.
•Do not remove the printed circuit board.
Failure of Replaceable Batteries
This wireless key has been designed to provide several years of battery life under normal
conditions. The expected battery life is a function of the device environment, usage and type.
Ambient conditions such as high humidity, high or low temperatures, or large temperature
fluctuations may reduce the expected battery life.
If the batteries need to be replaced, this device reports a low battery condition to the control
panel as a trouble condition when a button is pressed. In addition the LED will not flash when
a button is pressed. However, if the device is unused for a long period of time, it may fail to
operate as expected. Regular testing and maintenance will keep the system in good
operating condition for the lifetime of the product.
IMPORTANT! This wireless key is intended as a convenience to the user and should not
be considered as a life safety device. If life safety is important, please select a supervised
wireless key (e.g. type 5802MN).
SPECIFICATIONS
Unit Dimensions: 2.25" x 1.25" x 0.5"
(57mm x 31.75mm x 12.7mm)
Battery: 3V, 210mAh, Panasonic CR2032, Duracell DL2032, or SENER CR2032
WARRANTY INFORMATION
For the latest warranty information, please go to:
http://www.security.honeywell.com/hsc/resources/wa
DOCUMENTATION AND ONLINE SUPPORT
For the latest documentation and online support information, please go to:
https://mywebtech.honeywell.com/
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL
WITH WHICH THIS DEVICE IS USED FOR LIMITATIONS OF THE ENTIRE
ALARM SYSTEM.
IMPORTANT SECURITY NOTICE
Please inform the User about the security importance of their key fob, and what
to do if it is lost.
Explain that the key fob is similar to their keys or access card. If lost or stolen,
another person can compromise their security system. They should immediately
notify the Dealer/Installer of a lost or stolen key fob. The Dealer/Installer will then
remove the key fob programming from the security system.

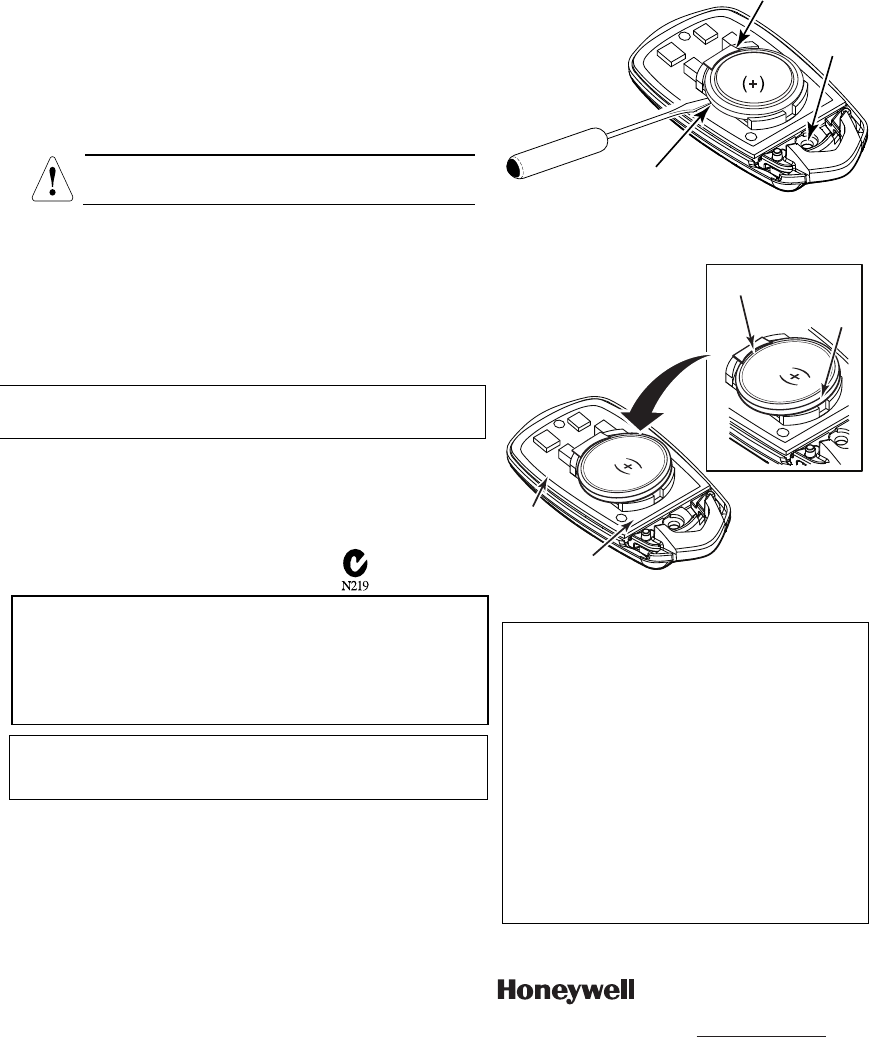

Removing the Battery
5834-004-V0
REMOVE
SCREW
TO OPEN
CASE
BATTERY
GOLD
TAB
TO REMOVE BATTERY,
GENTLY SLIDE SCREWDRIVER
BLADE UNDER BATTERY HERE
Installing the Battery
5834-4-002-V0
INSTALL WITH POSITIVE (+)
SIDE UP. SLIP BATTERY
UNDER GOLD TAB THEN
PRESS DOWN
IMPORTANT
POSITIVE (+)
SIDE MUST
FACE UP
BATTERY
IC: #
BATTERY
THEN PRESS
DOWN
INSTALL UNDER
GOLD TAB
FCC ID: #
FCC ID: xxxxxxxxxx
IC: xxxx-xxxx
The IC Model # can be found on the inside cover of the battery
compartment.
