Ademco 8DL582 Wireless Key Transmitter User Manual 800 13960V2 A TSSC Keyfob ii

Honeywell International Inc. Wireless Key Transmitter 800 13960V2 A TSSC Keyfob ii

Users Manual

TSSC-FOB - Installation and Setup Guide
WIRELESS KEY TRANSMITTER FOR USE WITH TSSC
GENERAL INFORMATION
The Wireless Key is a portable wireless transmitter for use
only with TSSC-BASE.
Buttons are typically used for arming and disarming, but can
be programmed for any appropriate zone response.
• To activate a programmed function press and hold the
appropriate key(s) until the LED begins to flash (about ½
second).
• The factory-installed replaceable lithium battery provides
power for up to 5 years.
The Wireless Key transmitter supports all eight (8) functions
and has a high security (encrypted) mode that sends rolling-
code encrypted messaging to the RF receiver.
ENROLLING THE TSSC-FOB
For complete details on how to enroll the Wireless Key
transmitter, access the TSSC Installer App
(https://portal.adtpulse.com/activation).
When enrolling, note the following:
• Each Wireless Key transmitter has two unique serial
numbers assigned during manufacture.
• Each button on the Wireless Key also has a distinct "loop"
number (refer to the Loop Number diagram above) that you
must program into the control during installation.
NOTE: Programming the Loop Number(s) can only be done
through the TSSC Installer App.
NOTE: Serial #2 is one (1) digit higher than serial #1, which is
printed on the rear of the transmitter.
USING HIGH SECURITY MODE IN TSSC-FOB
Activate High Security mode in the TSSC Installer App.
Activation syncs the Wireless Key with the security system.
ASSIGNING A WIRELESS KEY TO A USER
If the Wireless Key is assigned to arm and disarm the system,
the TSSC Installer App forces user assignment.
After enrollment, follow the instructions in the TSSC Installer
App.

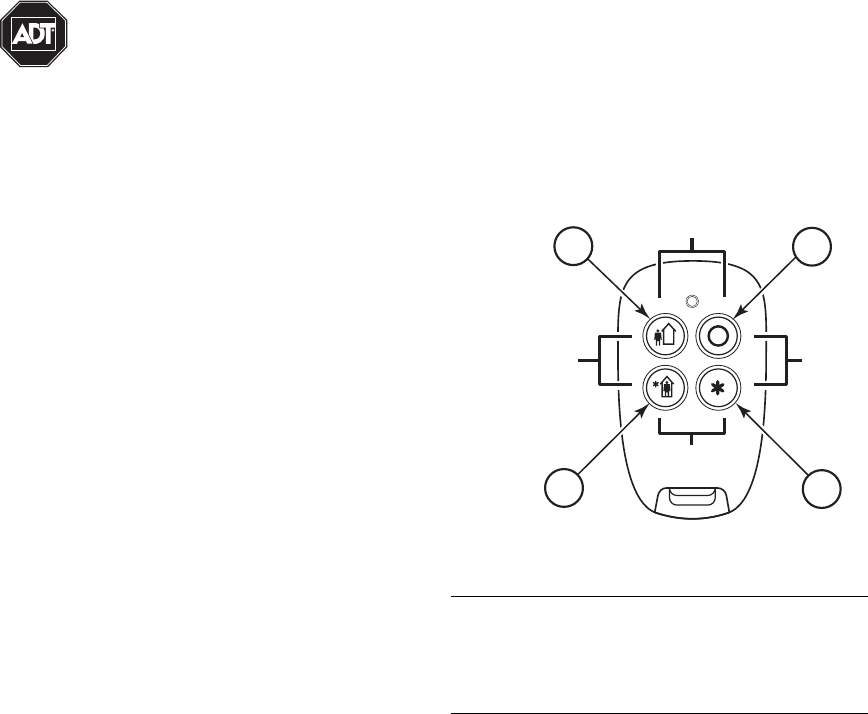

Loop Numbers for the TSS
C
-
FOB
Buttons
tssc-001-V1
SERIAL #1
LOOP 4
SERIAL #1
LOOP 1
SERIAL #2
LOOP 1
SERIAL #2
LOOP 3
SERIAL #1
LOOP 3
SERIAL #2
LOOP 4
SERIAL #1
LOOP 2
SERIAL #2
LOOP 2
A
C
B
D
BUTTON 4
BUTTON 3
BUTTON 2
BUTTON 1
Using a Button: To activate a programmed function, press and hold the
appropriate buttons for at least one second or more. The LED will flash.
Note: The LED will continue flashing and transmissions will continue to be sent
ONLY while the button is being pressed.
For Serial #2 functions: If 2 appropriate buttons are pressed together for about
one second until the LED flashes and immediately released, the LED flashing
will continue. This confirms the 2 button function was accepted.
EXHIBIT 7
CLASS 2 PC: CFS8DL582 / 573F-582
INSTALLATION INSTRUCTIONS
REPLACING THE BATTER
Y
The LED will not flash during transmission if the battery is low. Replace the
battery as follows.
1. Remove the screw from the case back and remove the case back.
2. Insert the blade of a small screwdriver under the battery as shown.
3. Twist the screwdriver to release the battery.
4. With the Positive (+) end of a new battery facing UP, insert the battery as
shown, sliding it under the gold tab, then pressing down to snap into
place.
IMPORTANT: Positive (+) end must face up.
Use Panasonic CR2032, Duracell DL2032, or SENER CR2032 lithium
battery only.
5. Replace the case back and replace the screw to secure the case.
•
Improper installation will result in damage to the battery.
• Do not remove the printed circuit board.
Failure of Replaceable Batteries
This Wireless Key is designed to provide several years of battery life under
normal conditions. The expected battery life is a function of the device
environment, usage and type. Ambient conditions such as high humidity,
high or low temperatures, or large temperature fluctuations may reduce the
expected battery life.
If the batteries need to be replaced, this device reports a low battery
condition to the Base unit as a trouble condition when a button is pressed. In
addition the LED will not flash when a button is pressed. However, if the
device is unused for a long period of time, it may fail to operate as expected.
Regular testing and maintenance will keep the system in good operating
condition for the lifetime of the product.
IMPORTANT! This Wireless Key is intended as a convenience to the user
and should not be considered as a life safety device.
tssc-002-V0
BATTERY
GOLD
TAB
TO REMOVE
BATTERY,
GENTLY SLIDE
SCREWDRIVER
BLADE UNDER
BATTERY HERE

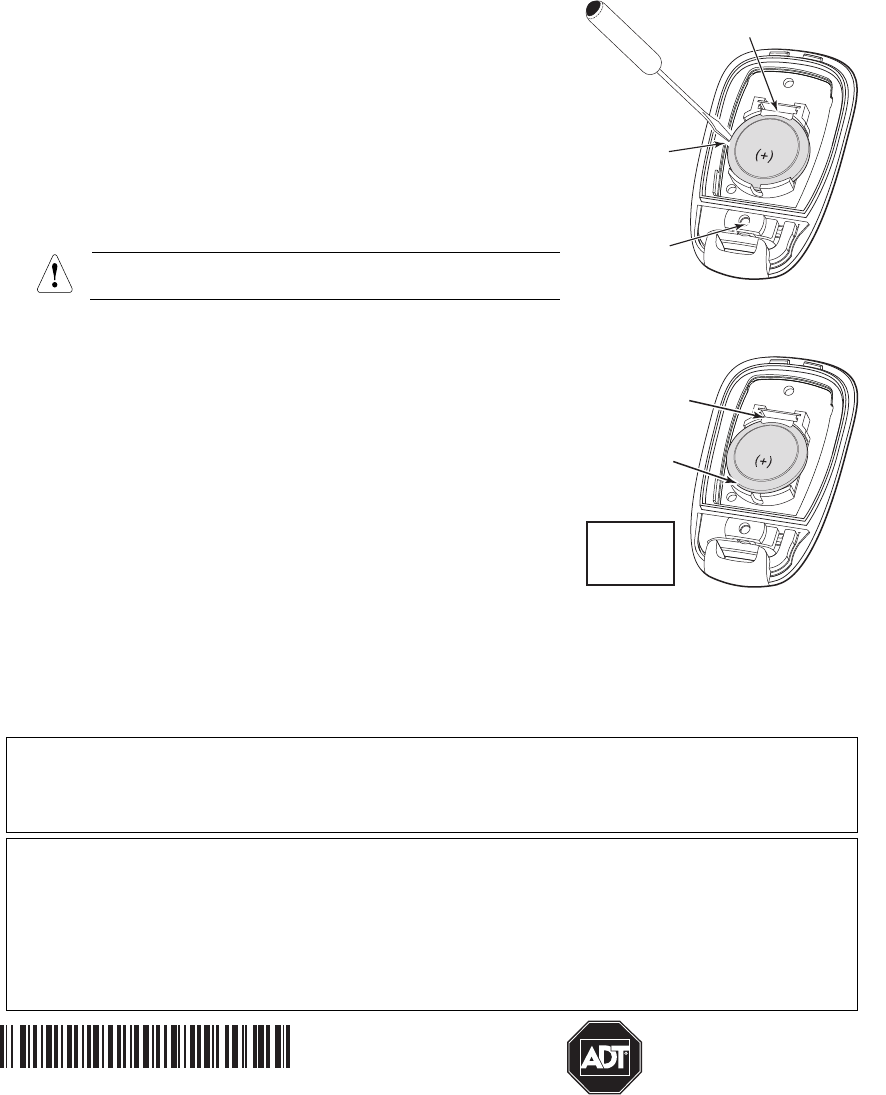

Removing the Battery
REMOVE
SCREW
TO OPEN
CASE
BATTERY
INSTALL WITH POSITIVE (+) SIDE UP.
SLIP BATTERY UNDER GOLD
TAB THEN PRESS DOWN.
IMPORTANT
POSITIVE (+)
SIDE MUST
FACE UP
INSTALL UNDER
GOLD TAB
THEN PRESS
DOWN
Installing the Battery
tssc-003-V0
SPECIFICATIONS
Unit Dimensions: 2.33" x 1.33" x 0.54" (59.2mm x 33.8mm x 14mm)
Battery: 3V, 210mAh, Panasonic CR2032, Duracell DL2032, or
SENER CR2032
WARRANTY INFORMATION
For the latest warranty information, please go to: http://www.security.honeywell.com/hsc/resources/wa
Refer to the Installation Instructions for the TSSC-BASE with which this device is used for limitations of the entire Alarm System.
IMPORTANT SECURITY NOTICE
Please inform the User about the security importance of their wireless key, and what to do if it is lost.
Explain that the wireless key is similar to their keys or access card. If lost or stolen, another person can compromise
their security system. They should immediately notify the Dealer/Installer of a lost or stolen wireless key. The
Dealer/Installer will then remove the wireless key programming from the security system.
FEDERAL COMMUNICATIONS COMMISSION STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the installation Instructions or User's
Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment.
FCC/IC STATEMENT
This device complies with Part 15 of FCC Rules, and RSS-210 of IC. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device must accept any interference received, including interference that
may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des industries Canada. Son fonctionnement est soumis
aux conditions suivantes: (1) Cet appareil ne doit pas causer d'interférences nuisibles. (2) Cet appareil doit accepter toute
interférence reçue y compris les interférences causant une réception indésirable.
800-13960V2 3/16 Rev. A
ADT Security Services
1501 Yamato Rd
Boca Raton, FL 33431
Copyright © 2013
The FCC ID and IC Certification Number
can be found in the battery compartment.
