ADEMCO 5828/5828V
Wireless Bidirectional Fixed-Word Keypads
INSTALLATION AND SETUP GUIDE
GENERAL INFORMATION
The ADEMCO 5828 and 5828V are wireless, bidirectional,
fixed-word, keypads that may be used in conjunction with
LYNX and VISTA series residential control panels. VISTA
systems require use of either a 5883 Transceiver (micro P/N
WAK5119-X, where X = 3 or higher), 6150RF Keypad/
Transceiver (PC board P/N SA6150RFAS-T3 or higher), or
6160RF Keypad/Transceiver. The 5828/5828V keypads are
not compatible with commercial control panels that have
three-digit zone numbers (e.g., VISTA128BP).
Both keypads provide:
• Four programmable special function keys
• Wall-mount plate for easy removal of the keypad and
battery replacement
• Optional Desktop mount /AC adapter kit, ADEMCO
P/N 5828DM)
• Battery-powered with 3-AA batteries
The 5828V keypad additionally provides:
• Memo/Message center
• Voice Response – system status, zone information, and
alarms with zone information
• Stored Message LED indication
• Built-in microphone and speaker
NOTES:
• The 5828/5828V cannot be used as the primary system
keypad, and may not be used to program or test any
security system. All systems require a hardwired
keypad (or Compass Downloader) to do so. Once
programmed, the 5828/5828V can be used to initiate all
common functions of a fixed English keypad.
1
OFF
4
MAX
7
INSTANT
READY
2
AWAY
5
TEST
8
CODE
0
3
STAY
6
BYPASS
9
CHIME
#
ARMED
READY
5828-00-001-V0
A
B
C
D

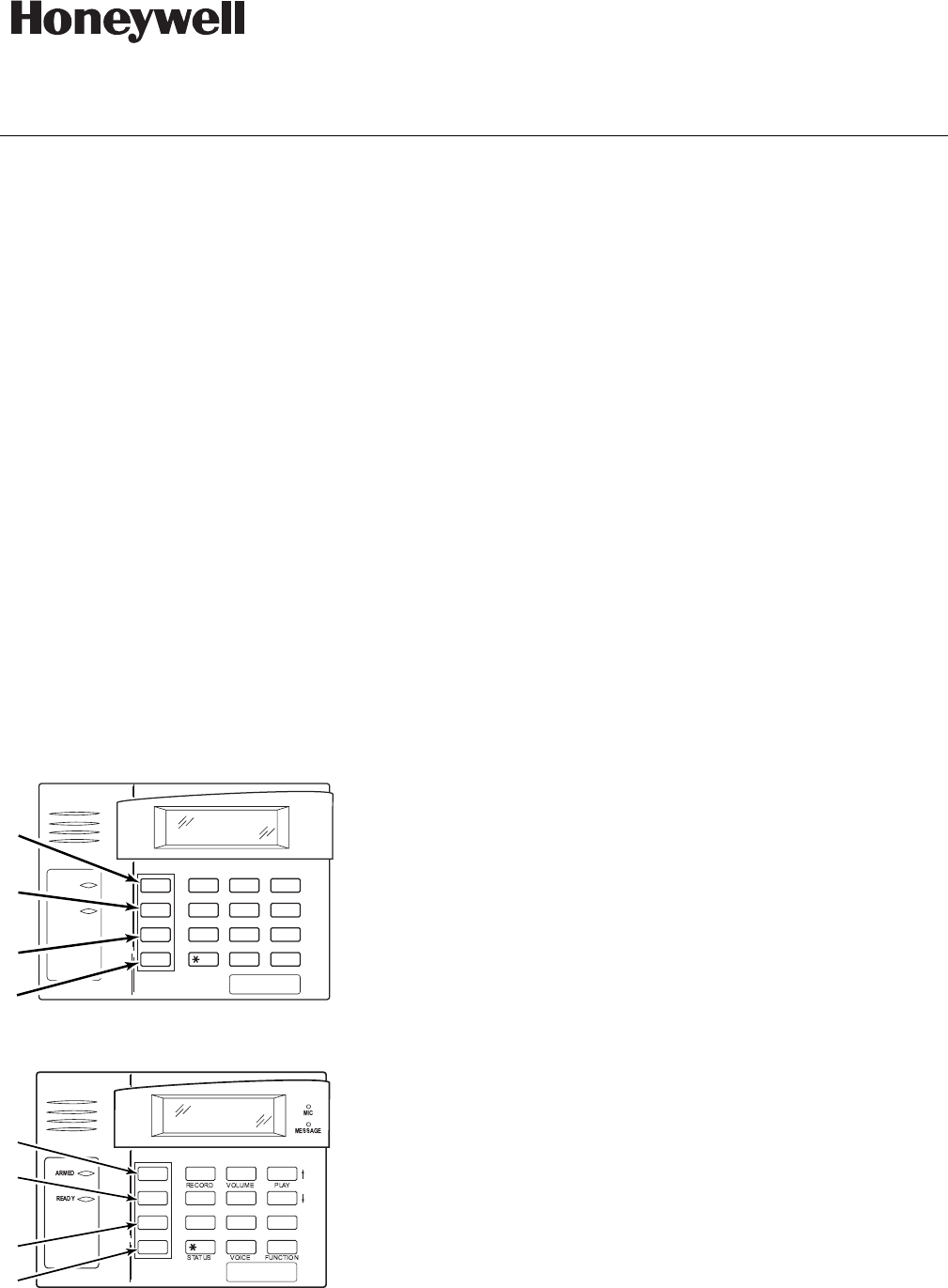

5828 Keypad with Front Cover Removed
5828V-00-002-V0
1OFF
4MAX
7
INSTANT
READY
2AWAY
5TEST
8CODE
0
3STAY
6
BYPASS
9CHIME
#
D
C
B
A
5828V Keypad with Front Cover Removed
Operation (See NOTE below)
1. Battery-Powered Operation: When powered by
battery, the keypad activates when any key is pressed.
When the [✱] key is pressed, the keypad sends a system
status request, and displays and/or annunciates the present
status transmitted by the system.
2. AC-Powered Operation: When powered by AC, the
keypad remains active at all times. Any change in system
status will cause the display to automatically turn on (if
blank) and display/annunciate the new status.
If AC power is lost, the keypad will revert to battery-powered
operation until AC power is restored and a new status
request is made ([✱] key).
NOTE: Whether the unit is powered by battery or AC, the
5828/5828V may take up to 5 seconds to display and/or
annunciate the new status after pressing the [✱] key.
WALL MOUNTING
Before mounting the 5828 & 5828V permanently,
determine a good RF location as follows:
• If interfacing to a LYNX panel, try communicating
with the panel from different locations.
• If interfacing to a VISTA panel, perform a Go/No
Go test from the panel. Refer to the Go/No Go test
mode in the Installation and Setup Guide for the
panel.
Avoid mounting locations on or near large metal objects,
since these can decrease the transmission range or block
transmissions.
• Secure the mounting plate to the wall, using proper sized
hardware through the six mounting holes.
• Plug the cord from the optional power pack into the
keypad’s DC input connector, and route the wires
through the wire guides on the back of the keypad.
• Position the keypad over the mounting plate and slide
down, engaging the four retaining clips on the plate with
the receptacles on the keypad.
DESKTOP MOUNTING
For full portability, the keypad may be placed in any conven-
ient, RF-suitable location and operated in its battery-
powered mode, or near an AC outlet to be powered by the
optional Power Pack/Desktop Mounting Kit, ADEMCO P/N
5828DM.
BATTERY INSTALLATION OR REPLACEMENT
CAUTION: Remove the AC/DC power connector from the
keypad (if applicable), before attempting to install or replace
the batteries.
1. Separate the keypad from its mounting plate by
sliding the keypad up and away from the
mounting plate.
2. Open the battery compartment door to expose the
batteries.
FCC & IC AGENCY STATEMENTS ARE ON PAGE 4
- 2 -
3. Install or replace the 3-1.5 Volt AA batteries in the
battery compartment. Always replace all three
batteries at once to ensure normal operation of the
keypad over the anticipated battery lifetime. Make
sure that battery positive (+) and negative (–)
terminals are properly oriented with the battery

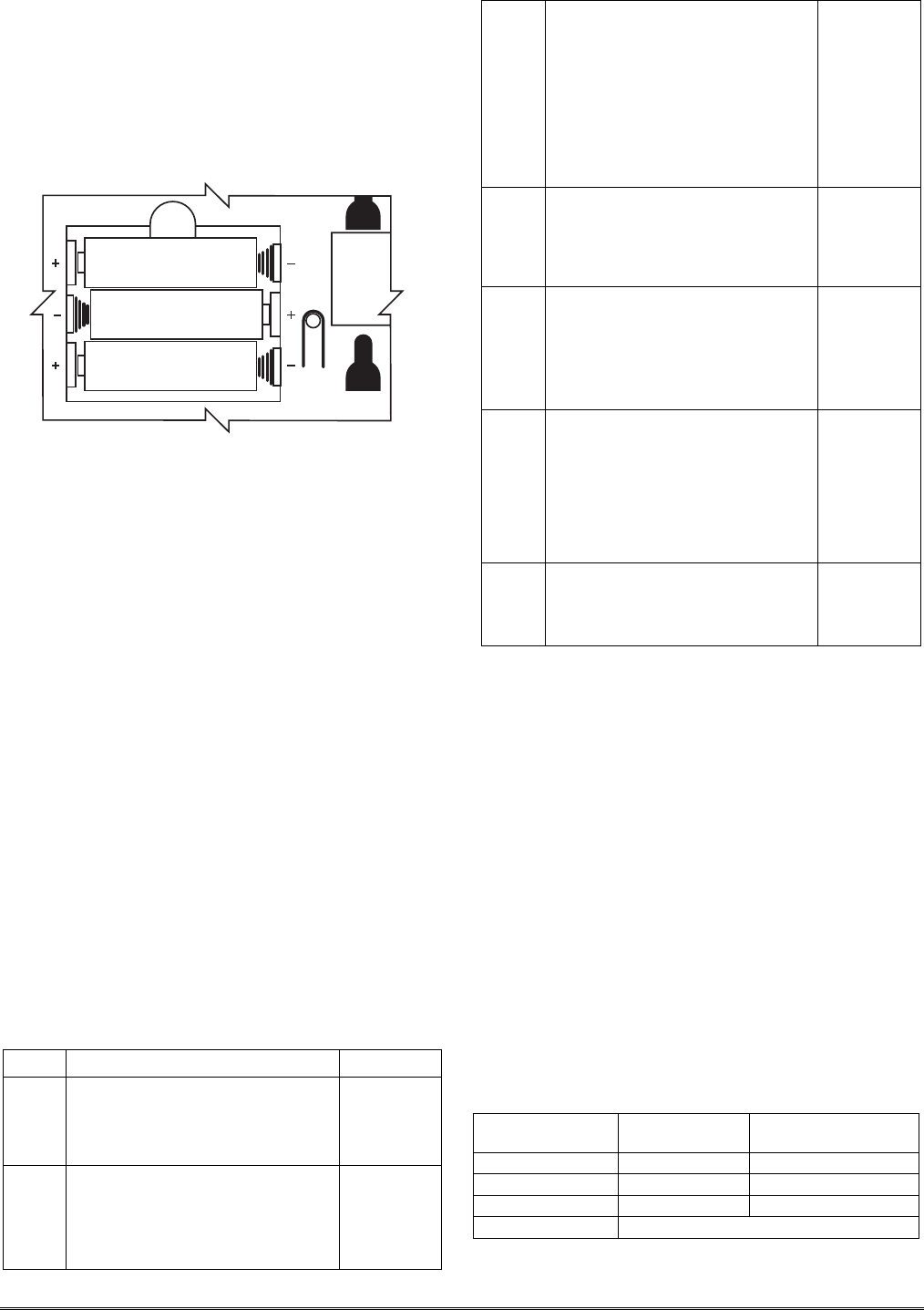

spring clip connections. Refer to battery placement
graphic below.
batt_case-001-V0
AA BATTERY
AA BATTERY
AA BATTERY
Battery Compartment
4. Reattach the keypad to its mounting plate by
aligning the four mounting holes in the keypad
case back with the four mounting clips on the
mounting plate. Lower the keypad onto the clips.
PROGRAMMING
The following two items must be programmed in the keypad
by the installer.
• House ID Code (Step 1 in Installer Programming mode)*
• System Type (Step 2 in Installer Programming mode)
*The same House ID Code must also be programmed in the
control panel. Programming a different House ID will
disable communication.
Installer Programming
Enter the program mode by pressing the [1] and [3] keys
simultaneously for five (5) seconds. The display alternately
flashes “00” and two dashes (--).
NOTES:
• Entering a value other than one specified in the
following steps may cause unpredictable results.
• This keypad exits programming mode 15 seconds
after the last key is pressed. Pressing any key will
extend the 15-second active time. If the unit times
out before you have pressed the star (✱) key to save
a programmed value, you will need to re-enter the
Programming mode and reprogram the option.
STEP ACTION DISPLAY
1. Press [1] (House ID Code)
(10 = default)
Enter the two-digit house code (01-31)
Press [✱] to continue.
Alternately
flashes “t1”
and the 2-
digit house
code.
2. Press [2] (System Type).
Press (1) for VISTA
Press (2) for LYNX
(2 = default)
Press [✱] to continue.
Alternately
flashes “t2”
and (1 or 2)
3. Press [3] (Exit Delay)
Press 0-9 in 15 second increments.
Example: If you press 3, exit delay
would be 3 times 15 seconds for a total
of 45 seconds.
NOTE: The Exit Delay programmed
here should match the Exit Delay
programmed in the control panel.
(0 = default)
Press [✱] to continue.
Alternately
flashes “t3”
and value
selected.
4.
(5828V
only)
Press [4] (Voice enable/disable).
Press (0) to disable.
Press (1) to enable.
(1 = default)
Press [✱] to continue.
Alternately
flashes “t4”
and (0 or 1)
5. Press [5] (Wireless Protocol).
Press [1] for original LYNX controls
Press [2] for LYNXR, LYNXR-EN, or
VISTA controls
(2 = default)
Press [✱] to continue.
Alternately
flashes “t5”
and (1 or 2)
6. Press [6] (Function Key Select).
Press [0] for Panic Key
Press [1] for Single-button arming
NOTE: The programming here must
match the programming of the control
panel to simplify end user operation.
(1 = default.)
Press [✱] to continue.
Alternately
flashes “t6”
and (0 or 1)
7. Press [7] (Restore Defaults).
Press [1] to restore factory settings.
Press [✱].
Exit programming mode.
Displays
“EE”
Exiting Programming Mode
You can exit programming mode by pressing the [✱] key
whenever the small 00 and (- -) are alternately displayed.
Programming or Changing a User Code (Required if
using Quick Arm function on LYNX or VISTA)
Enter user program mode by pressing the [7] and [9] keys at
the same time until the display flashes double dashes (- -).
Enter the desired 4-digit user code that matches a user code
programmed in the control panel. There will be no display
of the user code entered.
Press the [✱] key to place the 4-digit code in memory and
exit the user program mode.
SPECIAL FUNCTION KEYS
As shown in the figures on page 1, each keypad contains four
Special Function keys (A, B, C, D) that may be programmed
to execute the commands shown below.
NOTE: The Function Key Select setting in Step 6 of the
INSTALLER PROGRAMMING procedure above determines
the operation of the Special Function keys A, B, C, and D as
follows:
If you select “0”
Function Key Function
Message Sent
to Control
A [1] + [✱] (Alarm zone 95)
B [✱] + [#] (Alarm zone 99)
C [3] + [#] (Alarm zone 96)
D (Not used for panic alarms)
NOTE: Do NOT use the 5828V for silent panic operation
because the keypad itself is not silent.
- 3 -
If you select “1” (normally used on LYNX controls)
Function Key Function
A “Off”
B Arms “AWAY”
C Arms “STAY”
D (For future use)
MEMO/MESSAGE CENTER
The MESSAGE CENTER table that follows explains what
can be done using the message center of the 5828V, and the
keys to press to enable each function.
NOTE: Allow any status annunciation to complete before
starting to record a message.
MESSAGE CENTER (LYNX)
TO: PRESS:
Record a message: # + 1
Stop recording before end of 20 seconds: 1
Playback a message: # + 3
Adjust message playback volume: # + 2 + 3↑ or 6↓
Mute keypad status announcements: # + 2 + 1
Restore keypad status announcements: # + 2 + 3↑ or 6↓
MESSAGE CENTER (VISTA)
TO: PRESS:
Record a message: # + 0 + 1
Stop recording before end of 20 seconds: 1
Playback a message: # + 0 + 3
Adjust message playback volume: # + 0 + 2 + 3↑ or 6↓
Mute keypad status announcements: # + 0 + 2 + 1
Restore keypad status announcements: # + 0 + 2 + 3↑ or 6↓
New message indication: When the keypad is activated in
battery-powered mode and a new message is waiting, the red
message LED will blink until the keypad turns off or the
message is played back.
When powered by AC, if a new message is waiting, the red
message LED will blink continuously until the stored
message has been played back.
NOTE: If using a LYNX control, and the word “MESSAGE”
is announced at the 5828V keypad, it means that there is a
message waiting at the control panel, which can only be
retrieved using the LYNX keypad.
To delete a message: Recording a new message will
overwrite the old one.
Muting system status announcements has NO affect on
the message recording or playback capability.
If volume is adjusted (3↑ or 6↓) when a message is played
back, and the user still wants system status announcements
to be muted, the user must again mute system status
announcements (# + 2 + 1 for LYNX or # + 0 + 2 + 1 for
VISTA).
POWER CONNECTIONS
In a typical configuration, the 5828 and 5828V keypads are
powered by 3-AA batteries.
The 5828 and 5828V keypads can also be powered from an
optional Power Pack/Desktop Mounting Kit. See detailed
specifications for the Kit on the next page.
It is recommended that three AA batteries be installed as a
backup power source when using the Power Pack/Desktop
Mounting Kit.
SUPERVISION
A 5828/5828V keypad low battery condition will be
displayed as “BAT” on Zone “00” until the battery drops
below a minimum level and the display goes blank.
The 5828/5828V does not display three-digit conditions, such
as a keypad or receiver supervision failure. It will only
display the last two digits of the supervision zone number.
Therefore, it is recommended for VISTA-10P/15P/20P and
variants that you set program field *199 (ECP Fail
Display) as a “1” (two-digit display). This will cause the
keypad to display Zone 91 as a supervision failure of any
device on the keypad (ECP) bus.
NOTE: When programming zone descriptors in the panel, you must select from words supported by both the 5828V
(shown in Table 1 below) and words supported by the control panel. If you use any other words, the 5828V will not
annunciate them. Refer to the control panel’s Installation and Setup Guide for specific instructions on programming
zone descriptors.
TABLE 1. ZONE DESCRIPTORS
ALARM DOOR GUN MOTION SEVEN THREE
ATTIC EIGHT INSIDE NINE SHED TWO
BABY EMERGENCY INSTANT OFFICE SHOP UPSTAIRS
BACK EXIT KITCHEN ONE SIDE UTILITY
BASEMENT FIRE LAUNDRY OPEN* SIX WINDOW
BATHROOM FIRST LIBRARY PANIC* SLIDING YARD
BEDROOM FIVE LIVING PATIO SMOKE ZERO
CHECK FLOOR MAIN POOL STORAGE ZONE
DEN FOUR MASTER MOTION SEVEN
DETECTOR FRONT MEDICAL ROOM SYSTEM
DINING GARAGE MESSAGE** SECOND THIRD
* These Descriptors are available with VISTA series control panels ONLY.
** This Descriptor is available with Lynx series control panels ONLY.
1. If installing a Lynx series system, please note that compound zone descriptors supported by the Lynx such as “living
room” are not supported on the 5828V, and should be programmed as two single words, “living” and “room.” Also
note that the Lynx Voice Prompt Programming mode uses these compound words when applicable. These words
should be reprogrammed as two single words in order to be announced by the 5828V.
2. When using a VISTA-40 or VISTA-50P control panel, you must program zone descriptors in order for the panel to
announce the zone status correctly.
SPECIFICATIONS:
Physical:
6-1/4” W x 4-3/4” H x 1-3/8” D (159mm x 121mm x 35mm)
Frequency of Operation: 345 MHz
Batteries: 3 AA, 1.5 Volt Alkaline, ADEMCO part no. 468
Anticipated battery life is 1.5 years.
Power Pack/
Desktop Mounting Kit
(optional):
110VAC input, 5.0 Volt Regulated DC output, 220mA,
ADEMCO P/N 5828DM
Display: Fixed-Word Liquid Crystal
Sounder: Speaker
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's
Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment.
CLASS B DIGITAL DEVICE STATEMENT
This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following
statement for your information:
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the
manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with
the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control.
• Move the antenna leads away from any wire runs to the receiver/control.
• Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
INDUSTRY CANADA (IC) STATEMENTS
This device complies with RSS210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any interference received, including interference that may cause
undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FOR WARRANTY INFORMATION AND LIMITATIONS OF THE ENTIRE ALARM SYSTEM, REFER TO THE
INSTALLATION AND SETUP GUIDE FOR THE CONTROL PANEL WITH WHICH THIS DEVICE IS USED.
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
Copyright 2008 Honeywell International Inc.
www.honeywell.com/security
ÊK0020V3,Š
K0020V3 5/10 Rev. A
