5869
Holdup Switch/Transmitter
INSTALLATION AND SETUP GUIDE
GENERAL INFORMATION
The 5869 Holdup Switch/Transmitter is a finger-operated
RF transmitting device used for activating a holdup signal
at the security system control, and/or any other security
application. The 5869 is typically mounted under a counter
or money draw for inconspicuous operation. When the
transmitter is activated, it sends an RF signal to the control
panel, which then sends a burglary alarm to the central
station.
Once the 5869 trigger (Figure 1) is activated, the supplied
reset key K4563 must be used to reset the device. The 5869
also contain tamper switches that are activated either when
the cover is removed, or when the unit is forcibly removed
from its installation location.
The 5869 has a permanent serial number assigned during
manufacture used for enrolling the 5869 with the security
system control panel. To enroll the 5869, refer to the
respective Security System Control Panel Installation and
Setup Guide.
5869-002-V1
MOUNTING
HOLE
(TYP.)
RESET
KEY
COVER
TAMPER
SWITCH
BREAKAWAY
TAMPER
SCREW
No. 6X3/4
COVER
3V
LITHIUM
BATTERY
COVER
AT TA C H
HOLE
COVER
AT TA C H
HOLE
MOUNTING
SCREW (2)
No. 6X2
TRIGGER
+
+
ANTENNA
COVER
SCREW (2)
No. 6X1/2
COVER
SCREW (2)
No. 6X1/2

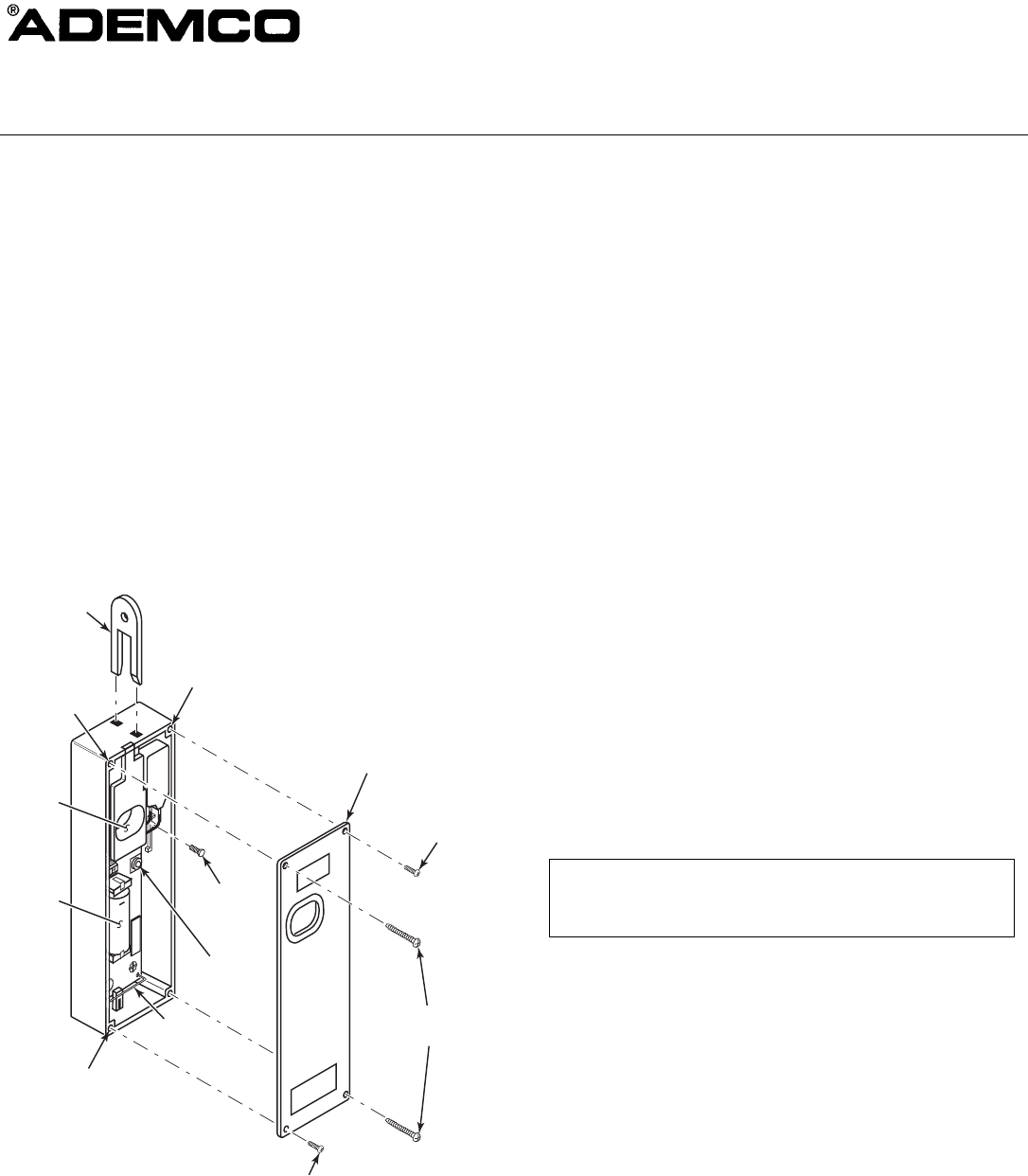

Figure 1. 5869 Holdup Switch/Transmitter Details
MOUNTING
Mount the 5869 under a counter or money drawer for easy
access by the cashier. Refer to the figure and steps that
follow for typical mounting installation.
Before mounting the 5869 permanently, perform Go/No Go
tests to verify adequate transmitter signal strength at desired
mounting location (refer to the Security System Control
Panel Installation and Setup Guide).
1. Install the battery into the battery holder observing
correct polarity as shown in Figure 1.
2. Position the case to the desired location and install one
No. 6 x ¾ screw (supplied) at the breakaway tamper
release hole as shown in Figure 2 .
3. Secure the cover to the case with the two screws (No 6 x
1/2) as shown in Figure 2.
IMPORTANT: To prevent damage to the case, do not
over tighten the cover screws.
4. Secure the case with the cover to its mounting location
using the two screws (No. 6 x 2) supplied as shown in
Figure 2.
PROGRAMMING
The 5869 Holdup Switch/Transmitter should be
programmed as a 24-hour silent zone type. Refer to the
Security System Control Panel Installation and Setup
Guide for programming instructions.
NOTES:
• During programming of the control panel, the 5869
Holdup Switch/Transmitter should be treated as "RF"
(i.e., supervised RF) Type.
• The 5869 is one closed input loop zone (loop 1).
BATTERY INSTALLATION/REPLACEMENT
BATTERY CAUTION:
Risk of fire, explosion, and burns. Do not recharge, disas-
semble, heat above 100°C, or incinerate. Dispose of used
batteries promptly and properly. Keep away from children.
IMPORTANT: The case will be held in place by the
tamper release tab once the cover and mounting screws
are removed. Exercise caution not to jar the case while
replacing the battery, possibly breaking the Tamper
breakaway tab.
1. Remove the screws securing the 5869 cover and case to
its mounting location.
NOTE: Use care not to bend the antenna while
attempting to remove or install the battery.
2. Remove faulty battery and dispose of properly.
3. Observing correct polarity, insert the battery into the
battery holder as shown in Figure 2.
4. Re-install screws to secure cover and case as shown in
Figure 2.
2
MOUNTING
HOLE
MOUNTING
HOLE
IMPORTANT:
THIS DEVICE MUST BE PERMANENTLY
MOUNTED WITH THE SCREWS SUPPLIED.
HOLDUP SWITCH SHOWN MOUNTED
IN TYPICAL UNDER COUNTER APPLICATION. 5869-004-V0
BREAKAWAY
TAMPER
SCREW
No. 6X3/4
MOUNTING
SCREW (2)
No. 6X2
MOUNTING
SCREW (2)
No. 6X2
+
COVER
SCREW (2)
No. 6x1/2
COVER
SCREW (2)
No. 6x1/2
+

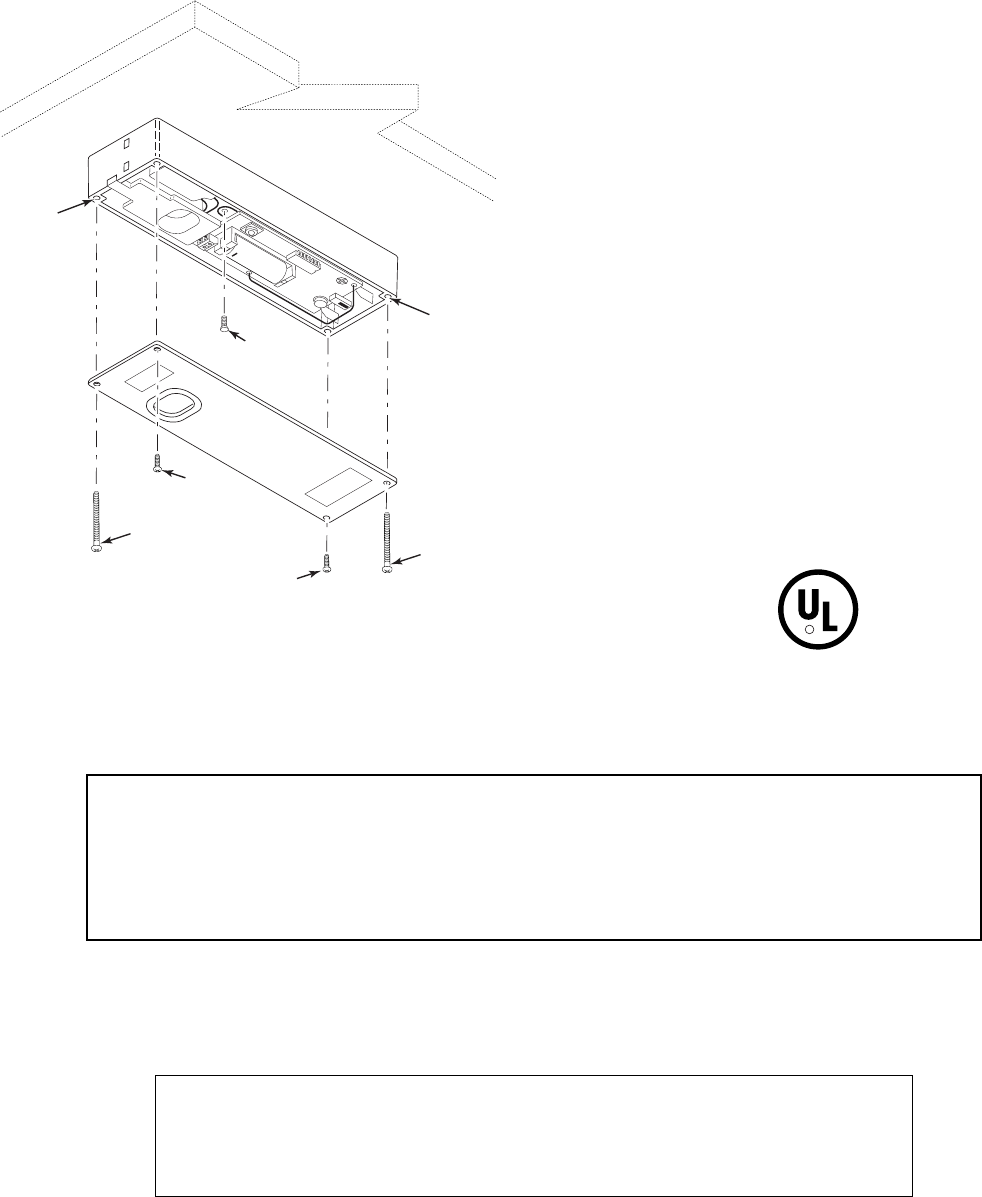

Figure 2. Typical Holdup Switch Installation
SPECIFICATIONS
Physical 1-15/16"W x 5-15/16"H x 1-3/16"D
(50mm x 150mm x 30mm)
Battery 3-volt Lithium. ADEMCO 466, Duracell
DL123A, Panasonic CR123A, Sanyo CR123A,
Varta CR123A, or equivalent.
Frequency 345MHz
Reset Key: Supplied, Part Number K4563 to order
separately
Agency: UL 636 – Holdup alarm units and systems
CUS
LISTED
R
TO THE INSTALLER
Regular maintenance and inspection (at least annually) by the installer and frequent testing by the user are
vital to continuous satisfactory operation of any alarm system.
The installer should assume the responsibility of developing and offering a regular maintenance program to
the user, as well as acquainting the user with the proper operation and limitations of the alarm system and its
component parts. Recommendations must be included for a specific program of frequent testing (at least
weekly) to insure the system's operation at all times.
FCC ID: CFS8DL5869-1
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
CANADA: 573F-58691
3
