ADEMCO 5883H RF Transceiver – Installation and Setup Guide
INTRODUCTION
The 5883H RF Transceiver Module:
• contains a High RF Receiver and a built-in Transmitter Module,
• is intended for use with 5800 series RF transmitters, including bi-directional
wireless units,
• receives alarm, status, and control messages from 5800 transmitters, and passes
these messages to the control panel via wired connections, which then responds
accordingly (arm/disarm the system, initiate an alarm, etc.),
• transmits system status and other conditions to bi-directional devices,
• features a Spatial Diversity system that virtually eliminates the possibility of "Nulls"
and "Dead Spots" within the coverage area,
• incorporates high-security encryption technology.
KEYPAD
TERMINALS
ON CONTROL
BOARD
CONTROL
PANEL*
DATA OUT
TO 5883
DATA IN TO
CONTROL
*CONTROL MUST BE CAPABLE OF
SUPPORTING A 5800 RF SYSTEM
5883H
TRANSCEIVER
5800 SERIES
WIRELESS
TRANSMITTERS
2-WAY
WIRELESS
KEYPAD
5883-003-V0
2-WAY
TRANSMISSION

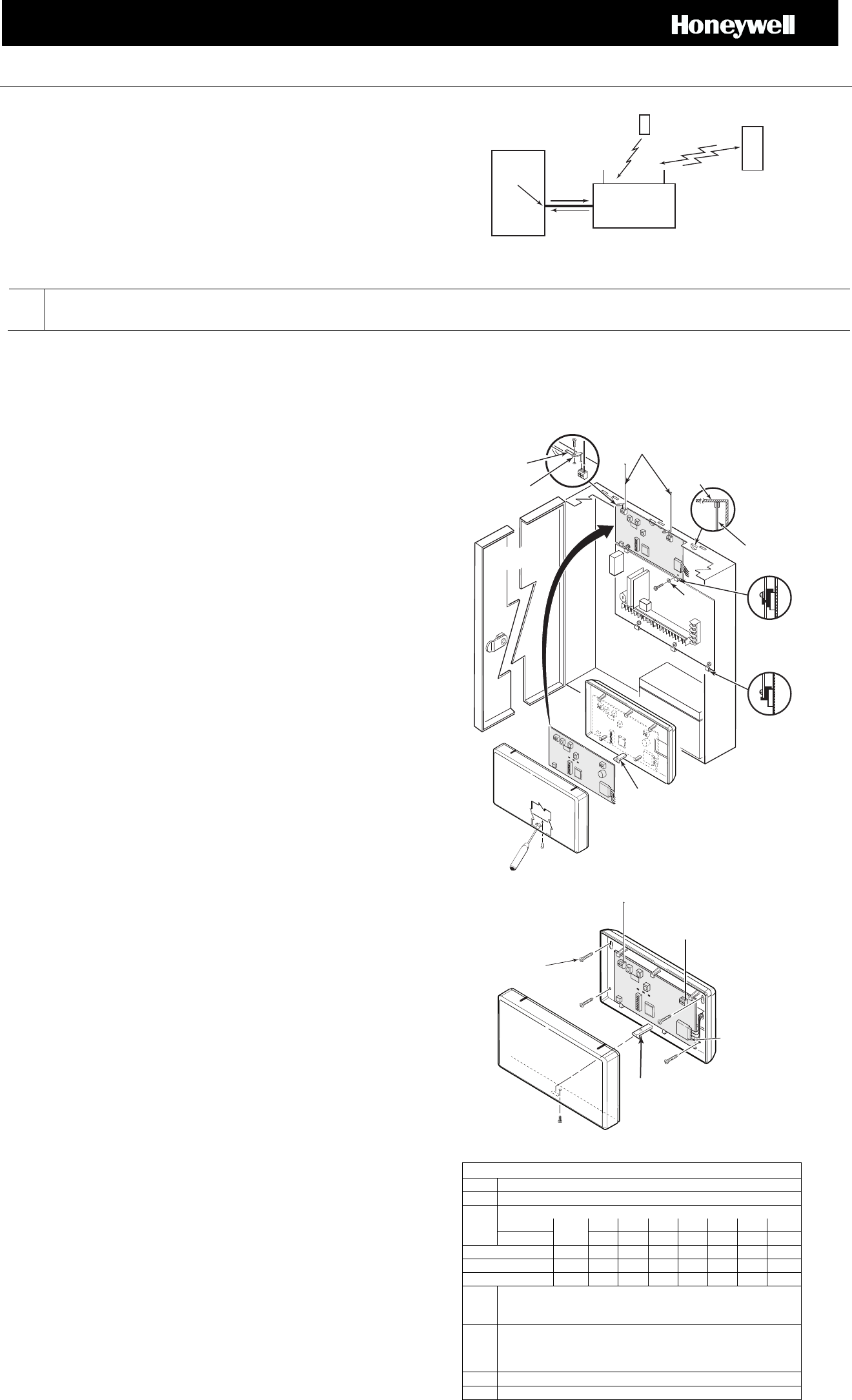

Figure 1: Block Diagram
UL
• All power-limited wiring must be separated from non-power limited and high-voltage wiring by 1/4" (6.4 mm).
• All circuits are supervised.
RF Zones Supported
This is a High Receiver that will support any amount of RF zones the control panel supports. See the control panel’s instructions for specific details.
INSTALLATION
The 5883H can be mounted remotely, or, with some controls, can be mounted inside the control's cabinet. When mounting, make sure the antennas do not touch metal surfaces.
Do not mount near large metal objects, electrical panels, or other transmitting devices, such as WiFi routers and LED and florescent lighting.
First, Check for RF Interference:
Before mounting permanently, use the red RF Interference LED to check for strong local radio frequency interference at the intended mounting
location. If this LED is continuously lit, the 5883H module should be relocated.
Mounting
1. Remove cover by inserting a screwdriver blade in center slot to release locking tab.
2. If the 5883H is to be mounted within the control's cabinet (refer to Figure 2):
a. Remove the 5883H’s circuit board by bending back the two plastic tabs. Discard
the plastic cover and base.
b. In the control's cabinet, move the control circuit board downward (if already
installed).
c. Hang two short (black) mounting clips (provided) on the raised cabinet tabs, as
shown in Detail B of Figure 2.
d. Insert the 5883H’s board into the slots at the top of the cabinet (Detail A). Swing
the board down into the bottom two short (black) mounting clips, and secure to
the cabinet using the screws and plastic washers. Do not over-tighten!
e. Insert the top of the control’s board into the slot in the black clips holding the
lower edge of the 5883H board (see Detail B); position two long (red) clips at the
lower edge of the board (see Detail C).
f. Swing the lower edge of the control board into place, and secure with two
additional screws.
g. Insert the grounding lugs (provided) through the top of the cabinet and into the
left-hand terminals of the antenna blocks. Secure it to the cabinet two screws
provided, see Detail D.
h. Insert the 5883H’s two antennas through the openings in cabinet, one into each
block’s right-hand terminal, and tighten the screws.
i. Affix the 5883H's Summary of Connections label inside of control's cabinet door.
3. If the 5883H is to be located remotely from the control in its own plastic
enclosure, discard the supplied PCB mounting clips, grounding lugs, and screws.
Do not mount near large metal objects, electrical panels, or other transmitting
devices, such as WiFi routers and LED and florescent lighting.
a. All wiring between the 5883H and the control panel must be located in a conduit.
b. For concealed wiring, route wires through the rectangular opening at the rear of
the base before mounting. For surface wiring entry, a thin breakaway area is
provided along the base's right edge.
c. Mount the module in the selected location. For greatest security, use all four
mounting holes (two key slot holes and two round holes) in the plastic base.
(Refer to Figure 2 above.)
d. Install each antenna in the respective right-hand terminal of the two terminal
blocks at the upper edge of the 5883H’s circuit board, and tighten the screws to
secure them.
e. Affix the 5883H's Summary of Connections label inside of the housing cover.
Replace the cover when installation is complete and secure with a screw through
bottom locking tab.
4. Setting the Dip Switches
Use the DIP switches to set the 5883H’s device address, to enable the built-in
transmitter, and to check or delete encrypted keys.
Addresses:
The 5883H Transceiver has two device addresses:
One for the receiver (addresses 1-7) and one for the transmitter (addresses 27-3; see
third and fourth bullet below).
- Select a pair of addresses from the table at right, making sure that neither address is
currently being used in the alarm system,
- Then use DIP switches 2-4 to set the address pair.
- The addresses should then be programmed in the control.
Do not program the transmitter modules address in the control if the 5883H is not
being used with bi-directional devices.
NOTES:
• DIP switches 2–4 select both an RF receiver and an RF transmitter device address.
• When used with bi-directional devices, set the transmitter address as a “keypad” in
the control and set DIP switch 6 to “ON.”
• If 5883H is not being used with bi-directional devices, set DIP switch 6 to OFF.
• If programming the control to supervise 5883H, program only the receiver address
for supervision. Do not program the transmitter module address for supervision.
Notes for Commercial Fire Applications:
• Set DIP switch 5 to ON.
• All other system components, including the control, must be approved for use in
Commercial Fire applications.
• When the 5883H is not used in a Commercial Fire application, set switch 5 to
OFF.
Special Notes When Used With Certain Controls
VISTA-40: When using bi-directional devices, use device address setting 1/28 or
5/28 for devices used in partition 1; use device address setting 2/29 or 6/29 for
devices used in partition 2 (this is necessary because the VISTA-40 automatically
assigns address 28 or 29 depending on the programming in field 1*48, wireless
keypad partition assignment).
VISTA 32FB, VISTA-50P and higher: When using bi-directional devices, the
Wireless Keypad Partition Assignment field (typically 1*48) must be set to the
partition in which the devices are used (cannot be used on Fire Partitions).
VISTA-10P/15P/20P/21iP Series:
Use device address setting of “non-addressable,” which is address 0 (sets the
receiver address; the transmitter address (for bi-directional devices) is
automatically set for 28).
Pry Open
RECEIVER
CIRCUIT
BOARD
Board Supporting
Slots.
See Detail A
DETAIL B
Side View
Of Mounting
Clip
DETAIL C
Side View
Of Mounting
Clip
DETAIL A
Side View
Of Board
Supporting
Slots
Circuit
Board
Cabinet
CONTROL CIRCUIT
BOARD
5883H
Add
Washer
Locking
Tab
5883H-004-V0
Holes for Antennas
Cabinet
Door
Grounding Lugs
Figure 2: Installing the 5883H Board in the Control’s Cabinet
Screw
5883H
Locking
Tab
5883H-005-V0
Mounting
Screws
4 (Typ)
ECP
Connection
Figure 3: Installing the 5883H Board Remotely
*
also address “0.” See VISTA-10P/15P/20P/21iP note at left.
† DIP switch 5 reduces sensitivity during supervision message reception. For Commercial Fire applications
(see Notes for Commercial Fire Applications), you must set DIP switch 5 to ON.
DIP Switch Functions
Sw. Function
1 Check/deactivate high-security keys (see High-Security Keys paragraph)
Device Address Settings
Transmitter:
Non-
Addr.
*
28 29 30 27 28 29 30
Receiver: 1 2 3 4 5 6 7
2 OFF OFF OFF OFF ON ON ON ON
3 OFF OFF ON ON OFF OFF ON ON
4 OFF ON OFF ON OFF ON OFF ON
5 Commercial/Non-commercial Fire Installation†:
ON = commercial fire system (see Notes for Commercial Fire Apps.)
OFF = non-commercial fire system
6 ON = enable transmitter module (if using bi-directional devices)
NOTE: If using more than one 5883H in a system, enable the
transmitter in only one 5883H.
OFF = disable transmitter module
7 Not used; leave in OFF position
8 Leave OFF
CONNECT THE WIRING FROM THE CONTROL
1. Insert the wiring plug (with 4 flying leads) into the mating socket on the 5883H (see
Figure 4 for socket location).
2. Connect the 4 wires to the control's corresponding remote keypad connection
points as follows:
RED: 12VDC input (+) Aux Power
GREEN: Data to Control (control’s data IN)
YELLOW: Data from Control (control’s data OUT)
BLACK: Ground (–)
LED FUNCTIONS
(refer to Figure 4)
Red RF Interference LED: Lit Indicates local RF interference.
Green LED: Flickering indicates reception of messages (decoded and/or non-
decoded).
Yellow LED: Stays OFF under normal operation.
Red LED: Blinks indicate available space for high security keys;
Steady ON indicates ready to deactivate high security keys. See High Security Keys
section.
5883H CIRCUIT BOARD
MOUNTING
HOLES
(4)
ANTENNAS
(INSERT IN
RIGHT-HAND
TERMINALS)
YEL
RED
BLK
GRN
WIRING
OPENING
KNOCKOUT AREA
FOR SURFACE
WIRING
TO
CONTROL'S
REMOTE
KEYPAD
CONNECTION
POINTS
TO RELEASE
CIRCUIT BOARD,
BEND BACK TABS SOCKET
PLUG
5883H-002-V2
2 3 4 5 6 7 81
ON OFF
RF INTERFERENCE
RED INDICATOR
RED
YEL
GRN
DIP SWITCH
Use max. of 220 ft. (67m) of #22 (0.64mm)
wire or 550 ft. (168m) of #18 (1mm) wire for
each run. Use 20 ft. max. in commercial fire
installations. (See receiver's instructions).

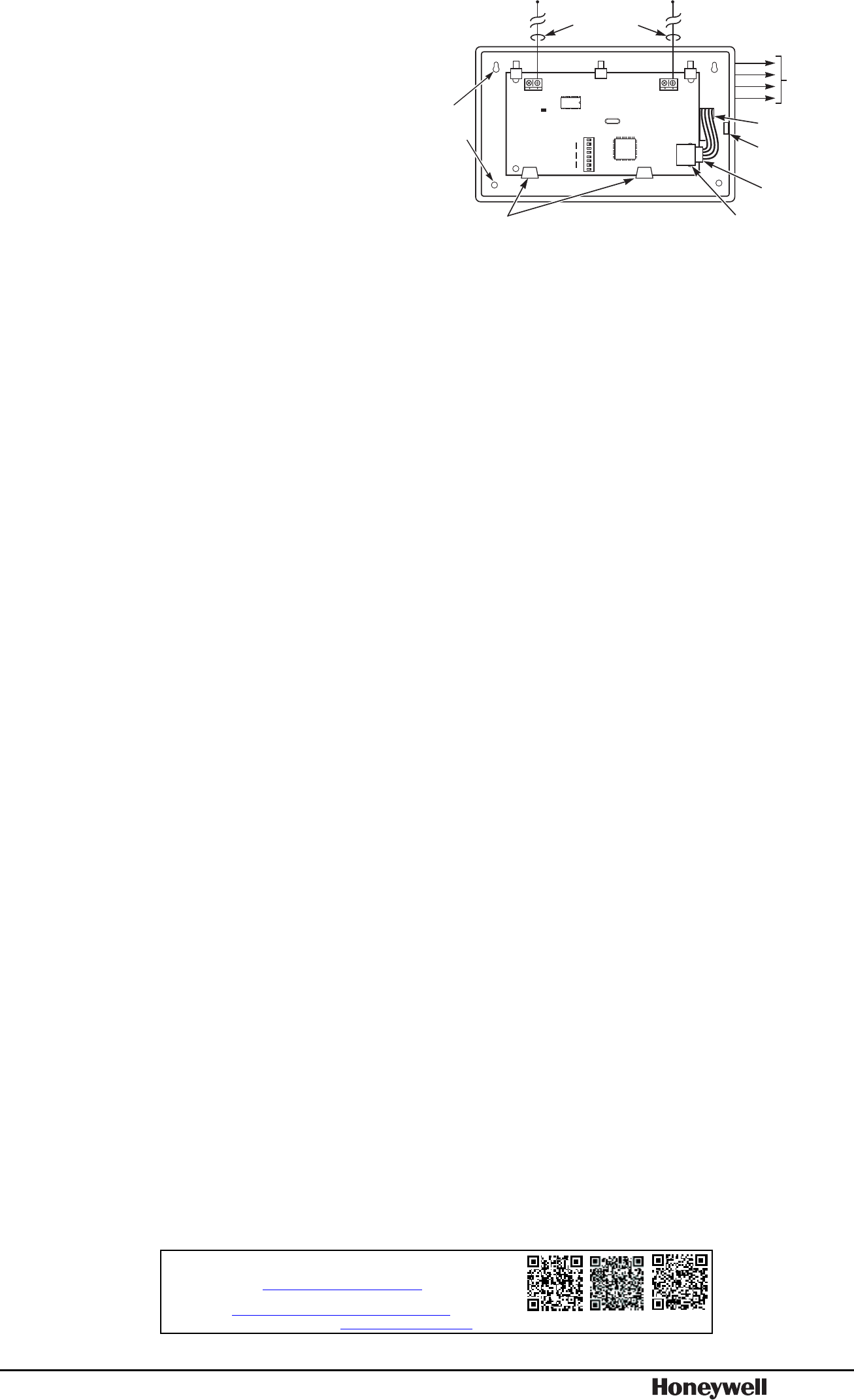

Figure 4. 5883H RF Transceiver
IMPORTANT: Take precautions against static discharge when handling the 5883H PCB. A static discharge
can damage the module’s EEPROM and/or cause unpredictable changes in its factory programming.
PROGRAM CONTROL FOR RF OPERATION
Proceed with any control panel programming that may be necessary for RF operation and the instructions of the system's wireless transmitters, as described in the control's installation
instructions. In addition, note the following:
• Enable the appropriate control data field for RF usage.
• If using wireless keypads, program a House ID in the control.
• Wireless key buttons must first be enrolled in the control panel via zone programming, and, where applicable, assigned to a user number. Enroll each wireless key in 5883H by
pressing the appropriate buttons according to the instructions provided with the key.
• Upon the successful enrollment of an encrypted key, the red LED blinks the number of available spaces remaining for additional encrypted key enrollment (see Checking Available
Space For High Security Keys paragraph).
• If more than one receiver is being used and you are using encrypted wireless keys, we recommend that you:
a. Enter the GO/NO GO mode.
b. Disconnect one receiver.
c. Enroll all encrypted keys into the connected receiver.
d. Reconnect the disconnected receiver.
e. Exit the GO/NO GO mode.
f. Repeat steps a-e for the receiver that was disconnected.
HIGH SECURITY KEYS
Depending on the control panel used, the 5883H can support up to 16 high-
security (encrypted) wireless keys. The following paragraphs describe how to:
• Check available space for high-security keys
• How to deactivate all keys
See the Control’s instructions and the appropriate device instructions for
procedures on enrolling high security keys.
Deactivating High-Security keys
This procedure deactivates all enrolled high-security keys and is required only if
previously enrolled high-security keys are being replaced and there is not enough
available space left for them in the receiver. Once this procedure is performed, all
desired high-security keys must be re-enrolled to activate high-security operation.
1. Perform steps 1 and 2 in Checking Available Space procedure above.
2. Wait until the RED LED lights steady ON then:
a. Record the positions of DIP switches 1 through 8.
b. Set DIP switches 1 through 8 to the opposite positions of their current
settings. Immediately set DIP switches 1 through 8 back to their original
positions as recorded in step a.
c. All enrolled high-security keys will be deactivated. If the RED LED turned
off after step b (16 toggles), it indicates a successful erase.
If the RED LED turned off before the completion of all the toggles, it
indicates a fail. The deactivation process needs to start again.
A recheck for available key space after the erase is recommended.
3. Set DIP switch 1 back to OFF to return to normal receiver operation (leave DIP
8 in OFF position).
Checking Available Space for High Security Keys
The RED LED (above the DIP switch) shows (by blinking) how many high-security keys may
be enrolled into the transceiver.
1. Remove power from the transceiver and set DIP switches: DIP 1 = ON; DIP 8 = OFF
2. Apply power and observe one of the following RED LED indications:
a. Blinks, indicating the number of available spaces for additional high-security key
enrollment, and then lights steady ON.
b. Immediate Steady ON (no blinks), indicating that high-security key enrollment is full.
c. Off, indicating that no encrypted keys are enrolled.
3. Set DIP switch 1 back to OFF to return to normal receiver operation (leave DIP 8 in OFF
position).
SPECIFICATIONS
Dimensions:
5883H: 7-3/8" W x 4-3/8" (10-7/8” w/antenna) H x 1-7/16" D
188mm W x 112mm H (277mm w/antenna) x 37mm D
Input Voltage: 12VDC (from control’s remote keypad terminals)
Current: 82mA typical
Range: 200ft (60m) nominal indoors from wireless devices (actual range is determined with
the control in TEST mode)
Receiver Sensitivity & Noise Rejection:
Receiver sensitivity and noise rejection are dynamically adjusted to match ambient conditions.
Minimum Signal Strength -76.62 dBm and maximum ambient noise level -86.35 dBm as
certified by UL. Refer to control panel for additional info about unacceptable high noise levels
and low signal levels. For test procedure, refer to the Installation & Setup Guide for the control
panel with which this device is used.
FEDERAL COMMUNICATIONS COMMISSION & INDUSTRY CANADA STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could
void the user's authority to operate the equipment.
CLASS B DIGITAL DEVICE STATEMENT
This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information:
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause
interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15
of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control.
• Move the antenna leads away from any wire runs to the receiver/control.
• Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
Federal Communications Commission (FCC) Part 15
This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas
causer d’interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y compris les interférences causant une réception indésirable.
INDUSTRY CANADA CLASS B STATEMENT
This Class B digital apparatus complies with Canadian ICES-003.
Cet Appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
For Limitations of the entire alarm system, refer to the control panel’s installation guide with which this device is used.
SUPPORT & WARRANTY
For the latest documentation and online support information, please go to:
https://mywebtech.honeywell.com/
For the latest warranty information, please go to:
www.honeywell.com/security/hsc/resources/wa.
For patent information, see www.honeywell.com/patents
MyWebTech
Warranty
Patents
ÊK3791V5vŠ
K3791V5 12/15 Rev. B
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
© 2004 Honeywell International Inc.
www.honeywell.com/security
