ADEMCO 5890
PASSIVE INFRARED MOTION
DETECTOR/TRANSMITTER
INSTALLATION AND SETUP GUIDE
GENERAL INFORMATION
The 5890 Passive Infrared Motion Detector/
Transmitter is a battery-operated wireless device
intended for use as part of a 5800 Series wireless
alarm system.
Designed for use in commercial and residential
installations, the 5890 is a wall-mounted unit with a
standard lens that provides wide-angle protection
up to a range of 40 feet (12m). For best coverage,
mount the detector so that the likely direction of
intruder motion is across the pattern.
Two optional interchangeable lenses are available
for this detector – the 199PA Pet Alley lens, and
the 199LR Long Range lens (see
PROTECTION
PATTERNS FOR
OPTIONAL LENSES
on last
page).
This document provides installation instructions for
the 5890, but the installer must be familiar with the
Installation Instructions for the 5800 Wireless
Alarm System with which the 5890 is intended to
be used.
FEATURES
• Wireless operation for fast installation.
• Dual-element pyro-electric sensor provides
positive protection while minimizing false
alarms.
• Alternate-polarity pulse count option offers
greater stability in adverse environments.
• Provision to turn LED on while Walk Testing
(LED is turned off after testing).
• Tampered cover – unit transmits message if
cover is removed.
• Wall or corner mounting options.
• Optional Pet Alley and Long Range lenses
available.
SYSTEM DESCRIPTION
Optical System: Uses efficiently designed Fresnel
lenses.
Radio Transmitter: The built-in transmitter serves
only as the communication link to the alarm
system's Receiver/Control, and can send alarm,
tamper, supervisory, and battery status messages
to the system's receiver/control. The transmitter is
not used for detection purposes. Each detector has
a unique ID code permanently assigned at the
factory. This ID needs to be "enrolled" by the
control system at the time of installation. This
allows each detector used in the system to be
uniquely identified. The control must be
programmed to "enroll" the 5890 as an "RF" type
unit (i.e., supervised RF).
To conserve battery life during normal operation,
no more than one transmission sequence will
occur within a 3-minute period. There is no such
time restriction in "test" mode.
Alternate Polarity Pulse Count: Two jumper-
selectable detection response modes are provided:
Instant response
(Pulse Count OFF) and
Alternate
Polarity Pulse Count
(Pulse Count ON). With Pulse
Count OFF, any detected change in infrared
energy will trigger an immediate alarm signal. This
mode is recommended when the detector is used
to monitor a narrow hallway where coverage is
provided by only a single zone.
Use the Pulse Count ON mode when the detector
is installed in areas where periodic changes in
infrared energy levels are normal (for example,
where forced air heating ducts are present).
In this mode, it requires at least two detected
changes in infrared energy within a short period
before an alarm will be triggered.
Important Note:
If the detector is to be used in the
Pulse Count mode, be sure to Walk Test the unit in
this mode.
SPECIFICATIONS
Coverage:
Standard Lens:
40 ft x 56 ft (12m x 17m).
18 zones (9 long, 5 intermediate,
4 short range).
199LR Lens:
60 ft x 6 ft (18m x 1.8m).
5 zones (1 long, 2 intermediate,
2 short range).
199PA Lens:
40 ft x 60 ft (12m x 18m).
12 zones.
Pulse Count: Installer-selectable On/Off link.
Detectable
Walk Rate: 0.5 – 5ft/Sec (0.15 – 1.5m/Sec).
Mtg. Height: 7 ft nominal (2.1m) but may be
mounted at other heights (see
Table 1).
Walk Test
Indicator: Red LED with Test/Normal
(disable) link.
Batteries: Two 3-volt Lithium batteries. Use
only ADEMCO No. 466, Duracell
DL123A, Panasonic CR123A,
Sanyo CR123A, or Varta CR123A.
0perating
Temperature: 32°F – 122°F (0°C – 50°C).
Operating
Humidity: Up to 95% RH (max.), non-
condensing.
Dimensions: 2-11/16"W x 5"H x 1-7/8"D
(68mm x 127mm x 48mm).

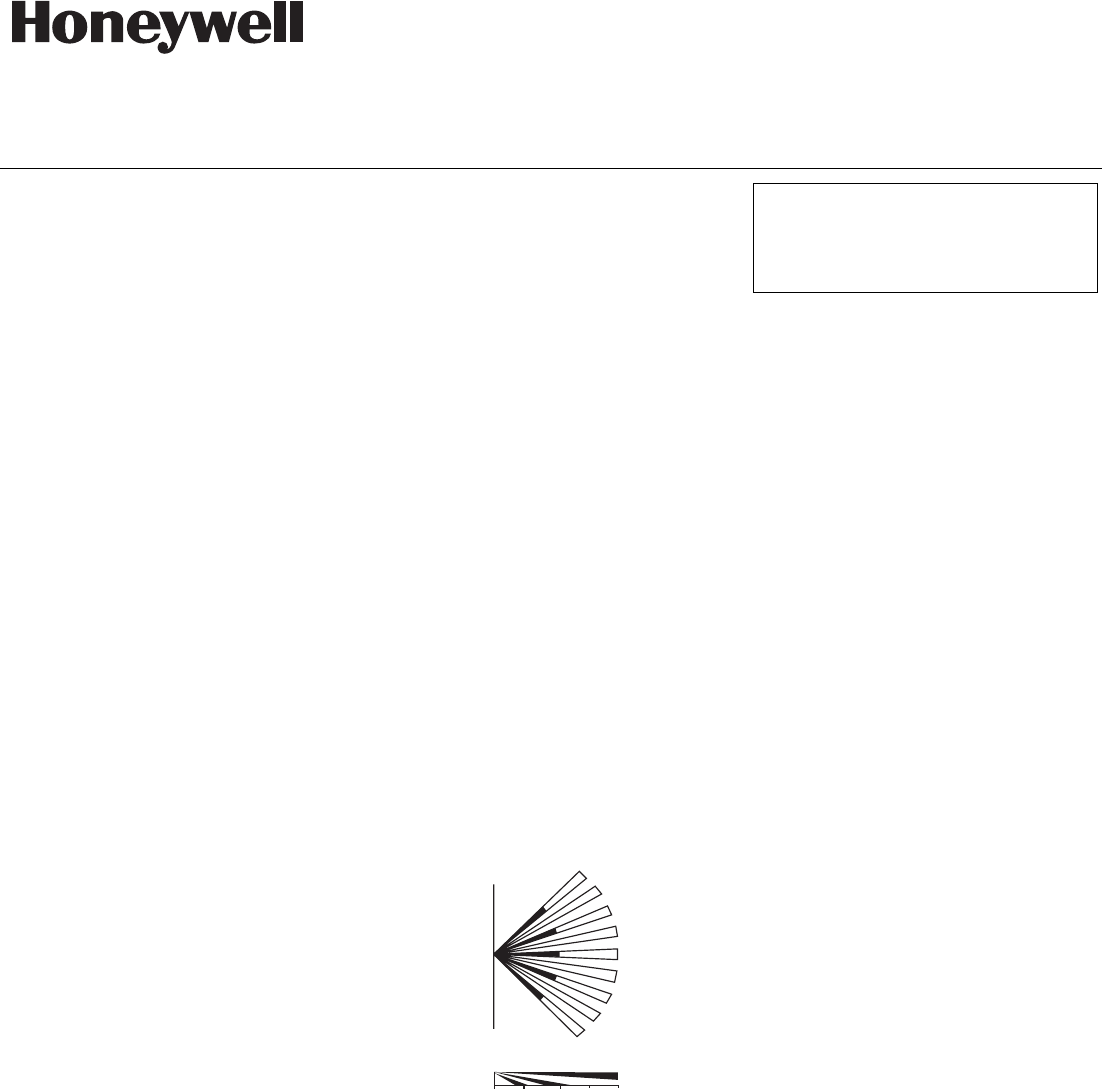

TOP VIEW
SIDE VIEW
90˚
90˚
0 10 ft 20 ft 30 ft 40 ft
(3m) (6m) (9m) (12m)
7 ft
(2m)
Figure 1.
Standard Wide-Angle Protection Pattern
BATTERY INSTALLATION
1. Remove front cover by inserting a large
screwdriver blade (or small coin) in groove
between cover and base at the location shown
in Figure 2; rotate blade to override snap fit,
then lift cover off.
2. Observing correct polarity, install the two
Lithium batteries (supplied) into the battery
holders, as shown in Figure. 5. Make sure the
batteries are firmly seated.
3. Replace the cover (snap fit).
Battery Caution:
Risk of fire, explosion, and burns. Do not recharge,
disassemble, heat above 100°C, or incinerate.
Dispose of used batteries promptly. Keep away
from children.
Programming Note: If the detector’s ID has not
been programmed into the system (i.e., this is an
initial detector installation), refer to the
PROGRAMMING
section below and perform the
ID “enrolling” procedure before mounting or
testing the detector.
PROGRAMMING
You must “enroll” the detector’s ID during
installation of the system. Program the 5890 as
an “RF” type unit (i.e., supervised RF).
To program the detector, place the LED jumper in
the TEST position (see Figure 5), the Pulse Count
jumper in the OFF position, batteries installed, and
cover on. Temporarily cover the lens (a cloth will
do) to prevent any activation by the detector.
When prompted for the device’s serial number, you
may either manually enter it or transmit from the
unit (remove the cloth cover and motion your hand
over the lens to activate the detector, press the
tamper switch, etc.).
Refer to the control panel
installation instructions for programming details.
Return LED jumper to the NORMAL position
after it is enrolled in the control.
INSTALLATION
Installation Hints
•
Do not install where the detector is exposed to
direct sunlight or directly above strong sources
of heat.
•
Make sure the detection area does not have
obstructions (curtains, screens, large pieces of
furniture, plants, etc.) that may block the pattern
of coverage.
•
Avoid locating a unit in areas that contain
objects likely to produce a rapid change in
temperature, such as central heating, radiators,
or ducts (or heaters of any kind), air
conditioners, open flame, etc.
•
Do not mount on an unstable surface.
Radio Transmission Path Check
Verify that a strong transmission path between the
5890 and the system's Receiver/Control exists
before permanently mounting the detector.
Do
this by performing the
Walk Test
(described later)
with the detector temporarily mounted in its
proposed location. The 5890 will transmit when
sensing motion (when you wave an arm or walk
into area). Sometimes, moving the detector only a
few inches means the difference between a strong
and weak transmission path. Experiment until you
are satisfied that the location provides the
strongest transmission path, while still being
practical for the protection pattern desired.
This test also verifies that the detector has been
correctly programmed into the system.
Normal Mounting
Mount the unit to a firm vertical surface (flat on wall
or in corner).
1. Remove front cover.
2. Temporarily loosen (do not remove) the screw
holding the PC board in the detector base (see
Figure 5 for location of this screw).
The board can then be moved up or down for
access to the knockout mounting holes in the
base.
PROTECTION PATTERNS FOR OPTIONAL LENSES
No. 199PA, Pet Alley Lens
TOP VIEW 100˚
100˚
SIDE VIEW
0 10 ft 20 ft 30 ft 40 ft
(3m) (6m) (9m) (12m)
3 ft
(1m)
No. 199LR, Long Range Lens
SIDE VIEW
0 10 ft 20 ft 30 ft 40 ft 50 ft 60 ft
(3m) (6m) (9m) (12m) (15m) (18m)
7 ft
(2.1m)
TOP VIEW
6 ft
(1.8m)
LIMITATIONS OF THE PIR MOTION DETECTOR
While the Intrusion Detector is a highly reliable intrusion detection device, it
does not offer guaranteed protection against burglary. Any Intrusion
Detection device is subject to compromise or failure to warn for a variety of
reasons:
• Passive Infrared Motion Detectors can only detect intrusion within the
designed ranges as diagrammed in this installation manual.
• Passive Infrared Motion Detectors do not provide volumetric area
protection. They do create multiple beams of protection, and intrusion can
only be detected in unobstructed areas covered by those beams.
• Passive Infrared Detectors cannot detect motion or intrusion that takes
place behind walls, ceilings, floors, closed doors, glass partitions, glass
doors, or windows.
• Mechanical tampering, masking, painting, or spraying of any material on
the lenses, windows, or any part of the optical system can reduce the
detection ability of the Passive Infrared Motion Detector.
• Passive Infrared Detectors sense changes in temperature; however, as
the ambient temperature of the protected area approaches the
temperature range of 90° to 105°F (32° to 40°C), the detection
performance can decrease.
• This Passive Infrared Detector will not operate without the appropriate
battery installed, or if the battery is weak or improperly connected (i.e.,
reversed polarity).
• Passive Infrared Detectors, like other electrical devices, are subject to
component failure. Even though this equipment is designed to last as long
as 10 years, the electronic components in it could fail at any time.
We have cited some of the most common reasons that a Passive Infrared
Motion Detector can fail to catch intrusion. However, this does not imply that
these are the only reasons, and therefore it is recommended that weekly
testing of this type of unit, in conjunction with weekly testing of the entire
alarm system, be performed to ensure that the detectors are working
properly.
Installing an alarm system may make the owner eligible for a lower insurance
rate, but an alarm system is not a substitute for insurance. Homeowners,
property owners, and renters should continue to act prudently in protecting
themselves and continue to insure their lives and property.
We continue to develop new and improved protection devices. Users of alarm
systems owe it to themselves and their loved ones to learn about these
developments.
LIMITED WARRANTY
Honeywell International Inc., acting through its Security & Custom
Electronics business ("Seller") 165 Eileen Way, Syosset, New York
11791, warrants its product(s) to be in conformance with its own plans
and specifications and to be free from defects in materials and
workmanship under normal use and service for 24 months from the
date stamp control on the product(s) or, for product(s) not having a
manufacturer’s date stamp, for 12 months from date of original
purchase unless the installation instructions or catalog sets forth a
shorter period, in which case the shorter period shall apply. Seller's
obligation shall be limited to repairing or replacing, at its option, free
of charge for materials or labor, any product(s) which is proved not in
compliance with Seller's specifications or proves defective in materials
or workmanship under normal use and service. Seller shall have no
obligation under this Limited Warranty or otherwise if the product(s)
is altered or improperly repaired or serviced by anyone other than
Honeywell factory service. For warranty service, return product(s)
transportation prepaid, to Honeywell Factory Service, 165 Eileen
Way, Syosset, New York 11791.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, OF
MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE OR OTHERWISE, WHICH EXTEND BEYOND THE
DESCRIPTION ON THE FACE HEREOF. IN NO CASE SHALL
SELLER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY
OTHER WARRANTY, EXPRESS OR IMPLIED, OR UPON ANY
OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE
LOSS OR DAMAGE IS CAUSED BY THE SELLER'S OWN
NEGLIGENCE OR FAULT.
Seller does not represent that the product(s) it sells may not be
compromised or circumvented; that the product(s) will prevent any
personal injury or property loss by burglary, robbery, fire or
otherwise; or that the product(s) will in all cases provide adequate
warning or protection. Customer understands that a properly
installed and maintained alarm system may only reduce the risk of a
burglary, robbery, fire, or other events occurring without providing an
alarm, but it is not insurance or a guarantee that such will not occur
or that there will be no personal injury or property loss as a result.
CONSEQUENTLY, SELLER SHALL HAVE NO LIABILITY FOR
ANY PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS
BASED ON A CLAIM THAT THE PRODUCT(S) FAILED TO GIVE
WARNING. HOWEVER, IF SELLER IS HELD LIABLE, WHETHER
DIRECTLY OR INDIRECTLY, FOR ANY LOSS OR DAMAGE
ARISING UNDER THIS LIMITED WARRANTY OR OTHERWISE,
REGARDLESS OF CAUSE OR ORIGIN, SELLER'S MAXIMUM
LIABILITY SHALL NOT IN ANY CASE EXCEED THE PURCHASE
PRICE OF THE PRODUCT(S), WHICH SHALL BE THE
COMPLETE AND EXCLUSIVE REMEDY AGAINST SELLER.
This warranty replaces any previous warranties and is the only
warranty made by Seller on this product(s). No increase or alteration,
written or verbal, of the obligations of this Limited Warranty is
authorized.
FCC STATEMENT
FCC ID: CFS8DL5890-1
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference. (2) This device must accept any nterf-
ierence received, including nterference that may cause undesired
operation IC: 573F-58901
165 Eileen Way, Syosset, New York 11791
Copyright © 2004 Honeywell International Inc.
www.honeywell.com/security
ÊN5987V3(Š
N5987V3 5/04 Rev. A
