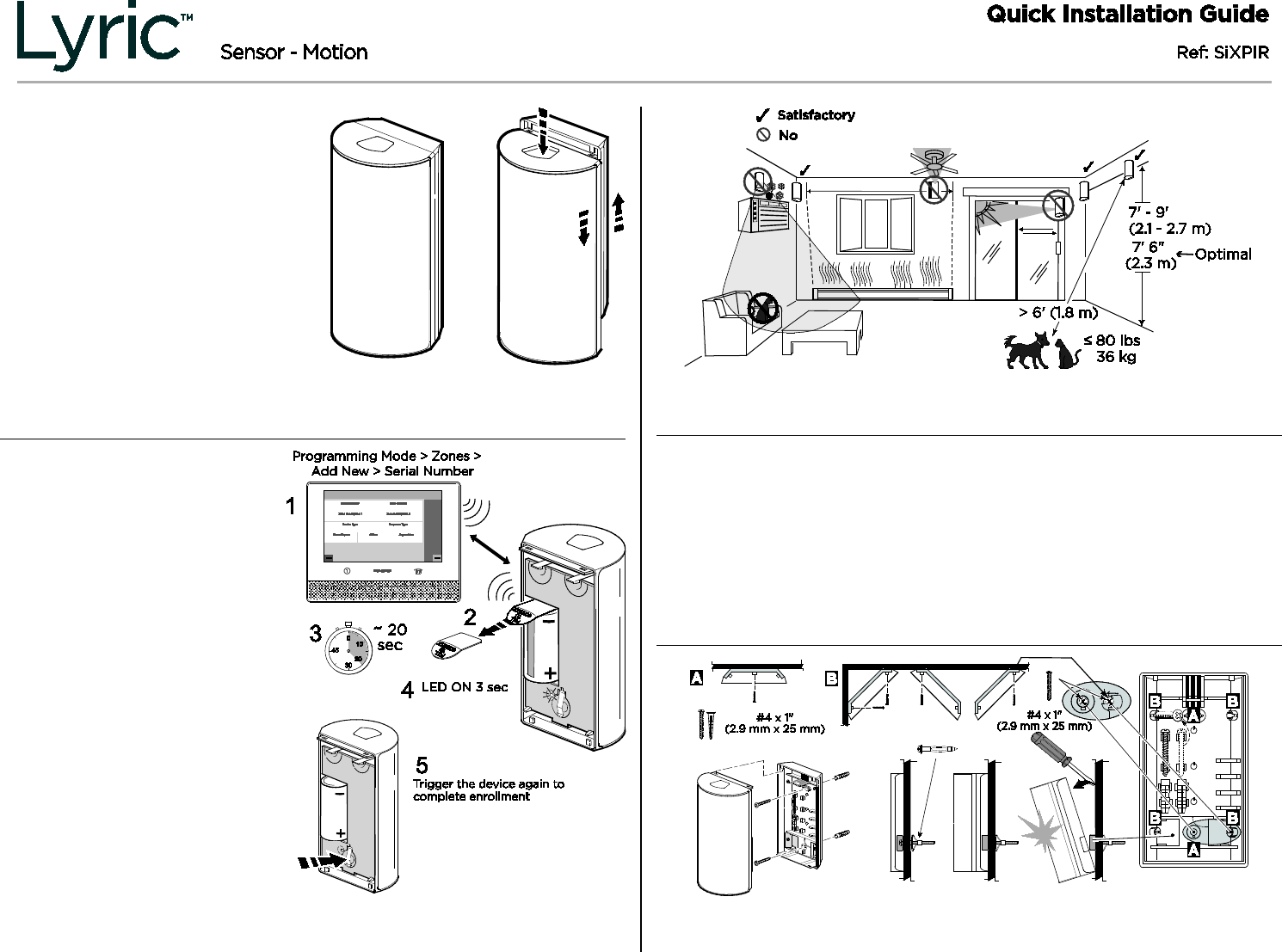

Quick Install Manual
![](/img.php?id=2728371&img=bg1.png)
This wireless passive infrared motion
sensor is intended for use with
Honeywell controls that support SiX™
series devices.
FC: This wireless passive infrared
motion sensor is intended for use
with Honeywell controls that support
SiX™ series devices.
SP: This wireless passive infrared
motion sensor is intended for use
with Honeywell controls that support
SiX™ series devices.
PA: This wireless passive infrared
motion sensor is intended for use
with Honeywell controls that support
SiX™ series devices.
Motion Sensor Open /
Open / Open
NOTE
: Once enrolled, the sensor
cannot be used with another system
until it is removed from the current
controller. See the controller’s
instructions.
FC: NOTE
: Once enrolled, the sensor
cannot be used with another system
until it is removed from the current
controller. See the controller’s
instructions.
SP: NOTE
: Once enrolled, the sensor
cannot be used with another system
until it is removed from the current
controller. See the controller’s
instructions.
PA:
Once enrolled, the sensor cannot
be used with another system until it
is removed from the current
controller. See the controller’s
instructions.
Enroll / Enroll / Enroll / Enroll
Mounting Locations / Mounting Locations /
Mounting Locations / Mounting Locations
NOTE
: After enrolling and before mounting permanently, conduct Go/No Go tests (see controller’s
instructions) to verify adequate signal strength. Adjust the device location and orientation as
necessary.
FC: Note
: After enrolling and before mounting permanently, conduct Go/No Go tests (see
controller’s instructions) to verify adequate signal strength. Adjust the device location and
orientation as necessary.
SP: Note
: After enrolling and before mounting permanently, conduct Go/No Go tests (see
controller’s instructions) to verify adequate signal strength. Adjust the device location and
orientation as necessary.
PA: Note
: After enrolling and before mounting permanently, conduct Go/No Go tests (see
controller’s instructions) to verify adequate signal strength. Adjust the device location and
orientation as necessary.
Mounting Options / Mounting Options /
Mounting Options / Mounting Options
PLEASE SEE BOTTOM OF PAGE FOR FCC/IC AGENCY STATEMENTS
![](/img.php?id=2728371&img=bg2.png)
2014 Honeywell International Inc. Honeywell and is a registered trademark of Honeywell International Inc.
All other trademarks are the properties of their respective owners. All rights reserved
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
www.honeywell.com/security
Ê800-15963bŠ
800-15963 11/15 Rev B BETA2
Walk Test / Walk Test / Walk Test / Wal
NOTE: Before using Test Mode, the device must first be enrolled in the controller.
NOTE: To enter Test Mode, the device must first be enrolled in the controller.
NOTE: To enter Test Mode, the device must first be enrolled in the controller.
NOTE: To enter Test Mode, the device must first be enrolled in the controller.
Detection Patterns / Detection Patterns /
Detection Patterns / Detection Patterns
Approval Listings:
FCC / IC
SIA-PIR-01
ETL Listed to UL639
cETL Listed to ULC S306-03
RoHS
Specifications:
Range:
40’ x 56’ / 12 m x 17 m
Wall Mounting Height:
7’ – 9’ (2.1 m – 2.7 m); Optimal 7’6” (2.3 m)
Battery
: 1 x 3V, Lithium; Panasonic CR123A, Duracell DL 123A,
Duracell DL 123, Honeywell 466
RF Frequency
: 2.4GHz
Tamper
: Cover and Wall – reported separately to panel.
Operating Temperature
: 32° – 122° F / 0° – 50° C (Agency
Compliance 32° – 120° F / 0° – 49° C)
Relative Humidity
: 95% max. (Agency Compliance - 93% max.),
non-condensing
Dimensions
: 4.13” H x 2.38” W x 1.61” D / 105 mm H x 60.4 mm W
x 41 mm D
Product must be tested at least once each year / Le fonctionnement du produit doit être
vérifié au moins une fois par année / El producto debe ser probado al menos una vez al
año / O produto deve ser testado pelo menos uma vez por ano
Replace Battery / Replace Battery /
Replace Battery / Replace Battery
NOTE:
To conserve battery life, the sensor is active only when the system is armed.
NOTE:
To conserve battery life, the sensor is only active when the system is armed.
NOTE:
To conserve battery life, the sensor is only active when the system is armed.
NOTE:
To conserve battery life, the sensor is only active when the system is armed.
BATTERY CAUTION: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 212° F
(100° C) or incinerate. Dispose of used batteries properly. Keep away from children.
FC:BATTERY CAUTION: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 212° F
(100° C) or incinerate. Dispose of used batteries promptly. Keep away from children.
SP: BATTERY CAUTION: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 212° F
(100° C) or incinerate. Dispose of used batteries promptly. Keep away from children.
PA: BATTERY CAUTION: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 212° F
(100° C) or incinerate. Dispose of used batteries promptly. Keep away from children.
FEDERAL COMMUNICATIONS COMMISSION & INDUSTRY CANADA STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation
Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the
equipment.
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des Industries Canada. Son fonctionnement
est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d’interférences nuisibles. (2) Cet appareil doit
accepter toute interférence reçue y compris les interférences causant une reception indésirable.
RF Exposure Warning
– The antenna(s) used for this device must be installed to provide a separation distance of at
least 7.8 inches (20 cm) from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
Mise en Garde Exposition aux Frequences Radio:
L'antenne (s) utilisée pour cet émetteur doit être installée à une
distance de séparation d'au moins 7,8 pouces (20 cm) de toutes les personnes.
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL WITH WHICH THIS DEVICE IS
USED, FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
