Installation Manual

This wireless siren/strobe is intended
for use with Honeywell controls that
support SiX™ series devices.
SiXSIREN
OPEN
Enroll
This device can be enrolled and programmed
either before or after installation.

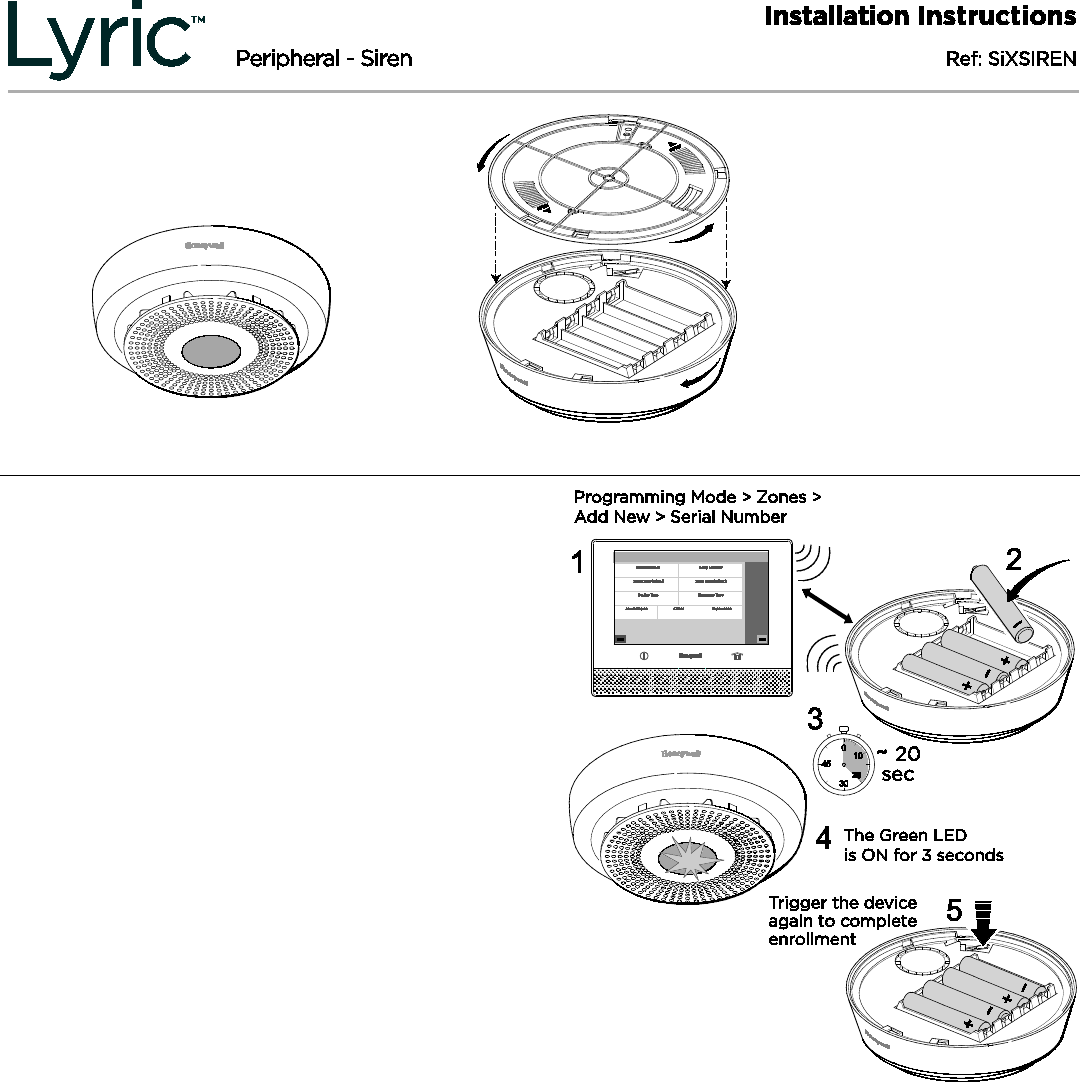

1. Set the Lyric Smart Controller in Programming
Mode and go to Zone Programming. Select Add
New, then Serial Number. Follow the controller’s
instructions to begin enrollment.
2. Insert four 1.5V AA Lithium batteries (included) to
activate the device and begin the enrollment
process.
3. The SIXSIREN Green LED flashes rapidly during
enrollment (up to 20 seconds*)
*NOTE
: Depending on the signal strength between the
device and the controller, the enrollment period may
take longer than 20 seconds.
• The device sends its unique MAC ID address
(Serial Number) and Services information to
the controller.
• The controller registers the device and displays
the transmitter data on screen.
4. Enrollment is confirmed when the Green LED is
ON for 3 seconds and the controller chirps once.
5. Trigger the device tamper switch again to
complete enrollment.
6. The device did not enroll in the system if:
• The White LED flashes, the system chirps and
the device powers down.
• The Green LED flashes rapidly when the device
is removed from the mounting bracket (the
tamper switch is triggered).
To restart the enrollment process, ensure the
system is in programming mode and activate the
tamper switch.
NOTE
: Once enrolled in a system, the Siren cannot be
used with another controller until it is removed from
the current controller. See the Controller’s instructions
for details.
7. The device can also be manually enrolled. See
the Controller’s Programming Guide for
details.
BETA DRAFT II’s – 08/14/15
Gently twist the top of the
detector counterclockwise
and the mounting bracket
clockwise to separate them.
PLEASE GO TO THE BOTTOM OF THE LAST
PAGE FOR FCC/IC AGENCY STATEMENTS
Program the SIXSIREN
Consult the Controller’s instructions for programming the device in the system.
Fault the device features to “Learn” the device “Services” in the control:
- Siren Chime Mode - Set sound level at the control:
• Low = 35Db1
• High = 55dB
• Life Safety2 – select 85dB
- Cover tamper: The 10 minute tamper timer is reset every time tamper switch
closed and opened or the siren cover is opened.
- Temperature sensing – range is 0° – 120° F (-18° – 49° C); accuracy ±3° F (1.67° C)
35dB 1
55dB
85dB 2
1Factory default
Program

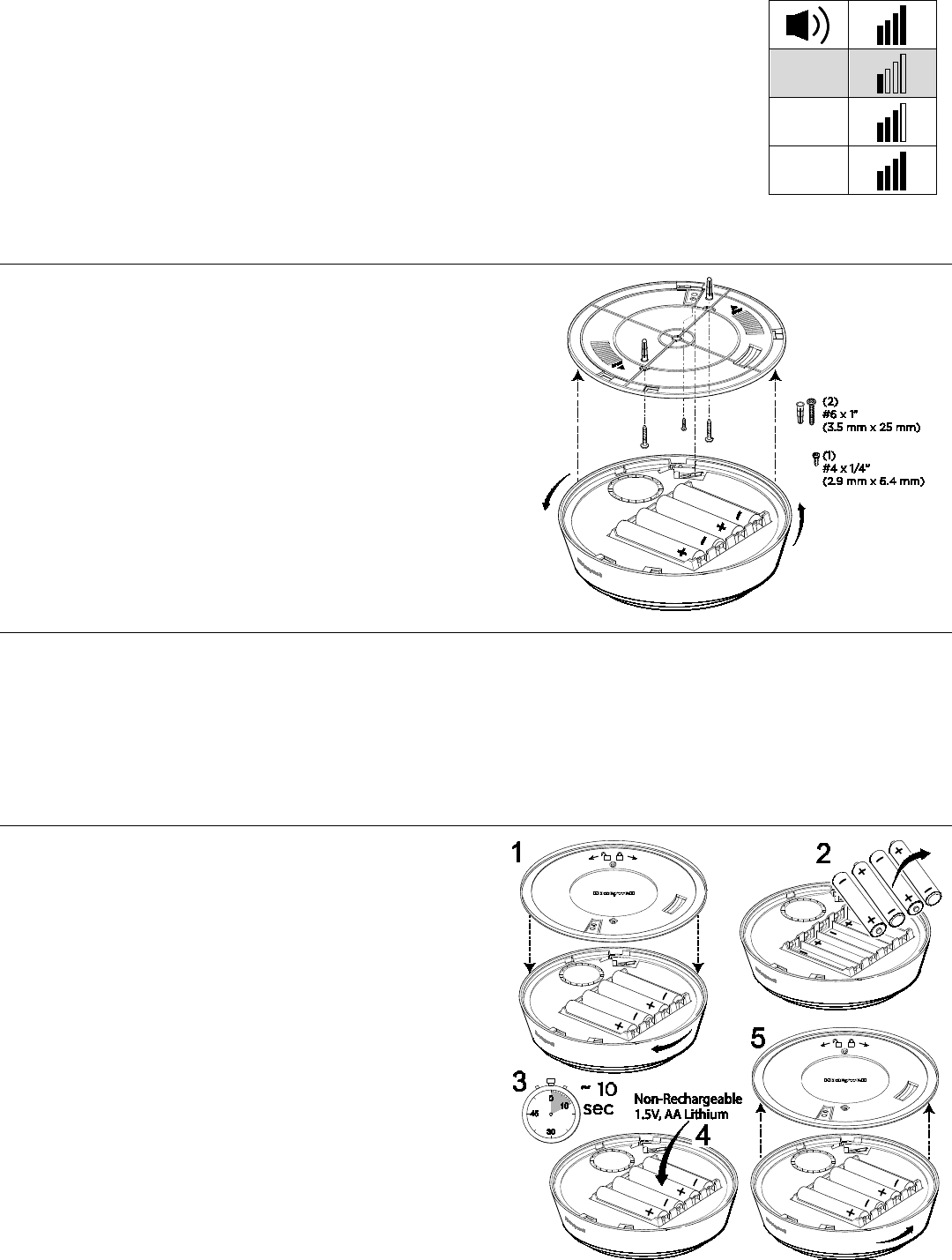

Mounting
NOTE
: Before mounting the device permanently,
conduct Go/No Go tests (see controller’s instructions)
to verify adequate signal strength and adjust the device
location and orientation as necessary.
The SIXSIREN can be mounted on the wall or on the
ceiling.
The rear tamper breakout MUST be mounted to a stud,
solid wood, or with a robust wall anchor.
Test the SIXSIREN
The SIXSIREN should be tested immediately after installation and at least once a year. Activate Test
Mode remotely from the Controller (see Controller’s manual for details).
Test Mode tests the sounder and LED:
- Sounder – the Burglary warble tone will sound for 3 seconds.
- LED – the White LED strobe will flash for 15 seconds.
Battery Replacement
• Twist the front cover counterclockwise and
separate it from the mounting bracket.
• Remove the batteries, wait 10 seconds and
insert
four new batteries
of the same type and brand
.
Recommended replacement batteries:
- 1.5V AA Lithium Batteries [Non-Rechargeable]
- AA Alkaline batteries can be used, but battery
life will be significantly reduced.
NOTE
:
Do not mix old and new batteries,
battery types or manufacturers.
• Reattach the front cover and twist clockwise to
secure it in place.
BATTERY CAUTION
: Risk of fire, explosion and burns.
Do not recharge, disassemble, heat above 212 F (100 C) or
incinerate. Dispose of used batteries properly. Keep away
from children.

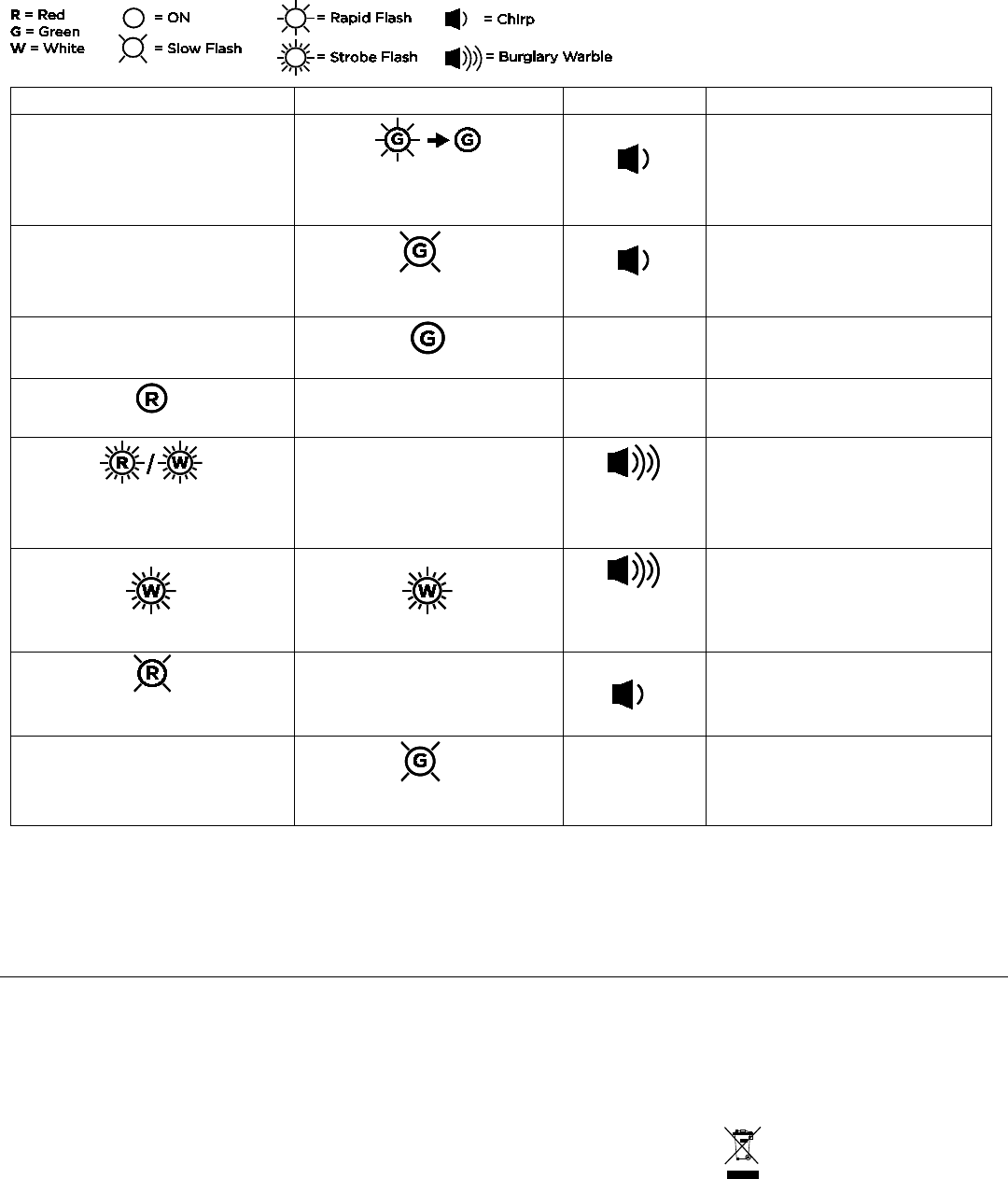

SIXSIREN LEDs and Sounder
Refer to the table below for operation of the four bi-colored LEDs and an 85dB sounder.
R / W
G / W
Sounder
Status
Green Rapid Flashes for
about 20 seconds, then ON
for 3 seconds
Chirps once
Power Up – Enrollment
Green Slow Flashing for 3
seconds
Chirps once Power Up – Device enrolled
Green ON for 20 seconds
System is Disarmed
Red ON for 20 seconds
System is Armed
Alternating Red and White
Flashing Strobe1 (continues
until the Alarm is cleared)
Burglary
Warble ON for
3 seconds
Smoke or CO Alarm
White Strobe Flashing
White Strobe Flashing
Burglary
Warble ON for
3 seconds
Burglary Alarm
Red flashes once
every 45 seconds
2
Low Battery
Green Flashes slowly
for 10 minutes
Tamper Activated
1 Strobe flash = two flashes per second, then OFF for 1 second.
2 It is best to replace the battery BEFORE the chirping begins. Once started, the sounder continues to chirp until batteries are
replaced or die. See the Battery Replacement section.
Specifications:
Battery
: Four AA Lithium, Non-Rechargeable; Honeywell 462
Tamper
: Cover tamper
RF Frequency
: 2.4GHz
Operating Temperature
: 0° to 50° C / 32° to 122° F
Relative Humidity
: 95% max. (Agency compliance – 93% max), non-condensing
Dimensions
: 14.14 cm Diameter x 4.62 cm Thick /
5.5 in. Diameter x 1.8 in. Thick
Weight
: xx oz (xx g)
Approval Listings:
FCC / IC
ETL Listed to UL985 / UL1023
cETL Listed to ULC-S545 &
ULC/ORD-C1023
RoHS
FEDERAL COMMUNICATIONS COMMISSION & INDUSTRY CANADA STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized
changes or modifications could void the user's authority to operate the equipment.
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes:
(1) Cet appareil ne doit pas causer d’interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y compris les interférences causant une
reception indésirable.
RF Exposure
Warning – The antenna(s) used for this device must be installed to provide a separation distance of at least 7.8 inches (20 cm) from all persons and must
not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
Mise en Garde
Exposition aux Frequences Radio: L'antenne (s) utilisée pour cet émetteur doit être installée à une distance de séparation d'au moins 7,8 pouces (20 cm)
de toutes les personnes.
SUPPORT & WARRANTY
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL WITH WHICH THIS DEVICE IS USED, FOR DETAILS REGARDING
LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
For the latest documentation and online support information, please go to:
https://mywebtech.honeywell.com/
For the latest warranty information, please go to:
www.honeywell.com/security/hsc/resources/wa.
MyWebTech
Warranty
2014 Honeywell International Inc. Honeywell and is a registered trademark of Honeywell International Inc.
All other trademarks are the properties of their respective owners. All rights reserved.
Ê800-15964kŠ
P/N 800-19202-5 11/15 Rev A BETA
