Ademco 8DLLSD500 Lyric Smart Sensor - Heat and Smoke Detector User Manual

Honeywell International Inc. Lyric Smart Sensor - Heat and Smoke Detector Users Manual

Users Manual

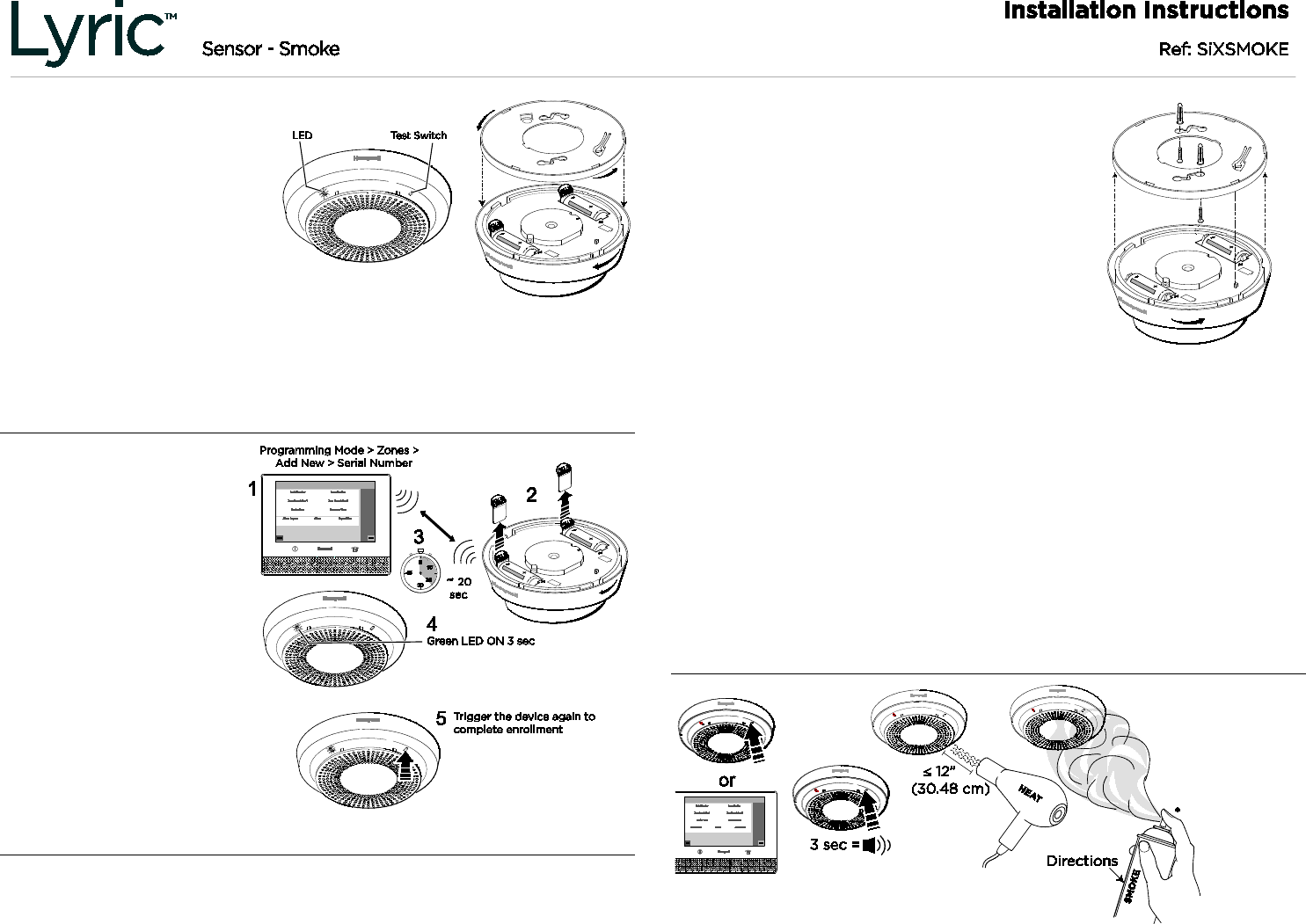

This wireless heat / smoke
detector is intended for use with
Honeywell controls that support
SiX™ series devices.
FC: This wireless heat / smoke
detector is intended for use with
Honeywell controls that support
SiX™ series devices.
SP: This wireless heat / smoke
detector is intended for use with
Honeywell controls that support
SiX™ series devices.
PA: This wireless heat / smoke
detector is intended for use with
Honeywell controls that support
SiX™ series devices.
Smoke Detector
Open
/ OPEN
OPEN / OPEN
NOTE
: Once enrolled, the device
cannot be used with another
system until it is removed from
the current controller. See the
controller’s instructions,
FC: NOTE
: Once enrolled, the
device cannot be used with
another system until it is
removed from the current
controller. See the controller’s
instructions,
SP: NOTE
: Once enrolled, the
device cannot be used with
another system until it is
removed from the current
controller. See the controller’s
instructions,
PA: NOTE
: Once enrolled, the
device cannot be used with
another system until it is
removed from the current
controller. See the controller’s
instructions.
Enroll / Enroll / Enroll / Enroll
To silence the detector:
Press the test switch or disarm the system at the
controller. If the alarm condition continues, the detector
is only quiet for 5 minutes. When programmed in one-go
-
all-go mode, the test switch will not silence the detector.
NOTE: After enrolling and before mounting permanently,
conduct Go/No Go tests (see controller’s instructions) to
verify adequate signal strength. Adjust the device location
and orientation as necessary.
FC: NOTE
: After enrolling and before mounting
permanently, conduct Go/No Go tests (see controller’s
instructions) to verify adequate signal strength. Adjust the
device location and orientation as necessary.
SP: NOTE
: After enrolling and before mounting
permanently, conduct Go/No Go tests (see controller’s
instructions) to verify adequate signal strength. Adjust the
device location and orientation as necessary.
PA: NOTE
: After enrolling and before mounting
permanently, conduct Go/No Go tests (see controller’s
instructions) to verify adequate signal strength. Adjust the
device location and orientation as necessary.
Mount / Mount /
Mount / Mount
For programming Smoke or Heat alarms and Tamper, see the Controller’s instructions.
NOTE
: All smoke detectors programmed in the panel to operate in one-go-all-go mode will
sound on alarm.
FC: For programming Smoke or Heat alarms and Tamper, see the Controller’s
instructions.
NOTE
: If programmed in the panel to operate in one-go-all-
go mode, all smoke detectors in the
system will sound on alarm
SP For programming Smoke or Heat alarms and Tamper, see the Controller’s instructions.
NOTE
: If programmed in the panel to operate in one-go-all-
go mode, all smoke detectors in the
system will sound on alarm
PA: For programming Smoke or Heat alarms and Tamper, see the Controller’s
instructions.
NOTE
: If programmed in the panel to operate in one-go-all-go mode,
all smoke detectors in the
system will sound on alarm
*Use UL/ANSI Approved canned smoke. / Use UL/ANSI Approved canned smoke. /
Use UL/ANSI Approved canned smoke. / Use UL/ANSI Approved canned smoke.
AGENCY STATEMENTS ARE AT THE BOTTOM
OF PAGE 2
2014 Honeywell International Inc. Honeywell and is a registered trademark of Honeywell International Inc.
All other trademarks are the properties of their respective owners. All rights reserved
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
www.honeywell.com/security
Ê800-15961PŠ
800-15961 11/15 Rev C BETA2
LEDS and 85dB SOUNDER / LEDS and 85dB SOUNDER / LEDS and 85dB SOUNDER
/ LEDS and 85dB SOUNDER
R
G
Sounder
Status
Power Up – Enrollment /
Power Up – Enrollment /
Power Up – Enrollment /
Power Up – Enrollment
Power Up – Device enrolled /
Power Up – Device enrolled /
Power Up – Device enrolled/
Power Up – Device enrolled
Normal mode or Communicating
with the panel/
Normal mode or Communicating
with the panel /
Normal mode or Communicating
with the panel /
Normal mode or Communicating
with the panel
Maintenance1 / Maintenance1 /
Maintenance1 / Maintenance1
Test Alarm2 / Test Alarm2 /
Test Alarm2 / Test Alarm2
Heat Alarm3 / Heat Alarm3 /
Heat Alarm3 / Heat Alarm3
Smoke Alarm /
Smoke Alarm /
Smoke Alarm /
Smoke Alarm
4
Low Battery / Low Battery /
Low Battery / Low Battery
Tamper Activated /
Tamper Activated /
Tamper Activated /
Tamper Activated
1 See Maintenance Section/ See Maintenance Section / See Maintenance Section /See Maintenance Section
2 Test activated by the test switch or from the panel / Test activated by the test switch or from the panel / Test
activated by the test switch or from the panel / Test activated by the test switch or from the panel
3 ≥ 135° F / 57° C or Temperature rise of ≥15° F ( 8.33° C) within 1 minute / ≥ 135° F (57° C) or Temperature rise of ≥15°
F (8.33° C) within 1 minute / ≥ 135° F(57° C) or Temperature rise of ≥15° F (8.33° C) within 1 minute /
4 Starts chirping after 7 days, continues until the batteries are replaced or die / Starts chirping after 7 days, continues
until the batteries are replaced or die / Starts chirping after 7 days, continues until the batteries are replaced or die /
Starts chirping after 7 days, continues until the batteries are replaced or die
BATTERY CAUTION: Risk of fire,
explosion and burns. Do not
recharge, disassemble, heat above
212° F (100° C) or incinerate. Dispose
of used batteries properly. Keep
away from children.
FC:
BATTERY CAUTION
: Risk of fire,
explosion and burns. Do not
recharge, disassemble, heat above
212° F (100° C) or incinerate. Dispose
of used batteries promptly. Keep
away from children.
Replace Battery /
Replace Battery / Replace Battery
SP: BATTERY CAUTION: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above
212° F (100° C) or incinerate. Dispose of used batteries promptly. Keep away from children.
PA:
BATTERY CAUTION
: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above
212° F (100° C) or incinerate. Dispose of used batteries promptly. Keep away from children.
Approval Listings:
FCC / IC
ETL Listed to UL639
cETL Listed to ULC S306-03
RoHS
Specifications:
Range:
0’- 25’/ 0 – 7.6m; Selectable
RF Frequency
: 2.4GHz
Battery
: 2 x 3V, Lithium; Panasonic CR123A, Duracell DL 123,
Duracell DL 123A, Honeywell 466
Tamper
: Wall
Operating Temperature
: 32° – 95° F / 0° – 35° C
Relative Humidity
: 95% max. (Agency Compliance – 93% max.),
non-condensing
Dimensions
: 3.78” Diameter x 1.14” Th
ick / 96 mm Diameter x 29mm
Thick
Product must be tested at least once each year / Le fonctionnement du produit doit
être vérifié au moins une fois par année / El producto debe ser probado al menos
una vez al año / O produto deve ser testado pelo menos uma vez por ano
Support / Support / Support / Support
https://mywebtech.honeywell.com/
U.S. warranty / U.S. warranty / U.S. garantie / U.S. garantia
www.honeywell.com/security/hsc/resources/wa
FEDERAL COMMUNICATIONS COMMISSION & INDUSTRY CANADA STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation
Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the
equipment.
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS-210 of Industry Canada. Operation
is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des Industries Canada. Son fonctionnement
est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d’interférences nuisibles. (2) Cet appareil doit
accepter toute interférence reçue y compris les interférences causant une reception indésirable.
RF Exposure Warning
– The antenna(s) used for this device must be installed to provide a separation distance of at
least 7.8 inches (20 cm) from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
Mise en Garde Exposition aux Frequences Radio:
L'antenne (s) utilisée pour cet émetteur doit être installée à une
distance de séparation d'au moins 7,8 pouces (20 cm) de toutes les personnes.
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL WITH WHICH THIS DEVICE IS
USED, FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
MyWebTech
Warranty

Navigation menu
