Contents
- 1. II with FCC PART 15
- 2. owners manual
owners manual
$'(0&2/<1;5(1
6HFXULW\6\VWHP
8VHU*XLGH
AWAY
OFF
STAY
AUX
456
789
0#
123
K5964V3 5/04 Rev. A
– 2 –
7$%/(2)&217(176
SYSTEM OVERVIEW................................................................................................................................3
Features .................................................................................................................................................3
General Operation.................................................................................................................................5
Quick View of System Functions ..........................................................................................................7
About the Master Keypad .....................................................................................................................9
Master Keypad Definitions.................................................................................................................10
About the Display and Indicators.......................................................................................................12
SECURING THE PREMISES ................................................................................................................13
Checking System Status .....................................................................................................................13
Arming the System..............................................................................................................................14
Entry/Exit Delays................................................................................................................................16
Disarming the System.........................................................................................................................17
Bypassing Protection Zones................................................................................................................18
Panic Keys / Chime Mode ...................................................................................................................19
USER FUNCTIONS .................................................................................................................................20
Paging Feature ....................................................................................................................................20
“Follow Me” Announcement Feature..................................................................................................21
Using Powerline Carrier Device Commands (Lights On/Lights Off keys) .......................................23
Message Recording/Playback/Volume Control...................................................................................24
Aux Function .......................................................................................................................................26
Clock/Calendar ....................................................................................................................................27
Scheduling User Interface ..................................................................................................................29
Remote Phone Control Feature ..........................................................................................................34
Speaker Phone Feature.......................................................................................................................36
FIRE ALARM SYSTEM...........................................................................................................................38
General Information............................................................................................................................36
National Fire Protection Association’s Smoke Detector Recommendations ....................................39
Emergency Evacuation........................................................................................................................40
SYSTEM FUNCTIONS ............................................................................................................................41
Security Codes .....................................................................................................................................41
Testing the System..............................................................................................................................42
Trouble Messages ................................................................................................................................43
Maintaining Your System...................................................................................................................44
SUMMARY OF AUDIBLE NOTIFICATION........................................................................................45
FCC STATEMENTS.................................................................................................................................46
OWNER’S INSURANCE PREMIUM CREDIT REQUEST ................................................................49
INDEX ........................................................................................................................................................51
LIMITATIONS OF THIS ALARM SYSTEM ........................................................................................53
ONE YEAR WARRANTY ........................................................................................................................54
Congratulations on your ownership of a Honeywell Security System. You have made a wise
decision in choosing it, for it represents the latest in security protection technology today.
Honeywell is the world's largest manufacturer of security systems, and millions of premises
are protected by Honeywell products.
6<67(029(59,(:
)HDWXUHV
*HQHUDO,QIRUPDWLRQ
This system offers you three forms of protection: burglary, fire, and emergency, depending on the
configuration of your system. The system consists of a master keypad for controlling system operation,
various wireless sensors that provide perimeter and interior burglary protection, and optional smoke or
combustion detectors to provide early fire warning. In addition, optional wireless keypads may have
been installed to allow you to control the system away from the master keypad. The system may also
be controlled from a remote telephone and can be used as a speaker phone.
The system uses microcomputer technology to monitor all protection zones and system status, display
appropriate information on the keypad display, and initiate appropriate alarms. Your system may also
have been programmed to automatically send alarm or status messages over the phone lines to a
central alarm monitoring station, and may also be capable of two-way voice communication with the
central station.
The user features of this security system are listed below. Ask your installer which features
have been programmed for your system.
• STAY and AWAY arming modes: By using these modes you can protect either the perimeter only,
or the entire premises.
• 3 panic key functions: Designated keys allow you to manually activate fire, personal emergency, or
silent alarms. Refer to the PANIC KEYS section for detailed information.
• Paging feature: If programmed by your installer this feature alerts you to certain system
conditions by displaying code numbers that indicate the type of condition that has occurred. In
addition, pressing the AUX key can send a predefined message to your pager, if programmed to do so
(see AUX key function below). Refer to the PAGING FEATURE section for detailed information.
• Follow me system announcements: Allows the LYNXR-EN to dial a number, programmed by
your installer, and deliver system announcements.
• Follow me reminder announcements: Allows the LYNXR-EN to dial a number, that you have
specified, at a programmed time and day and deliver a message programmed by your installer.
• Real-time clock: Keypad displays current time. Refer to the CLOCK/CALENDAR section for
procedures for setting the time.
• Voice announcement of system status: The master keypad’s built-in speaker announces system
status at the press of a key. Refer to the CHECKING SYSTEM STATUS section for detailed
information.
• Message center: The system allows recording and play back of brief messages. Refer to the
RECORDING/PLAYBACK MESSAGES section for procedures.
• Device activation: Designated keys allow you to turn lights and/or other devices on and off. In
addition, some devices (e.g., a light) may be programmed to activate automatically as a result of a
system event such as an alarm or trouble condition. Refer to the USING POWERLINE CARRIER
DEVICE COMMANDS section for detailed information.
6<67(029(59,(:
)HDWXUHV

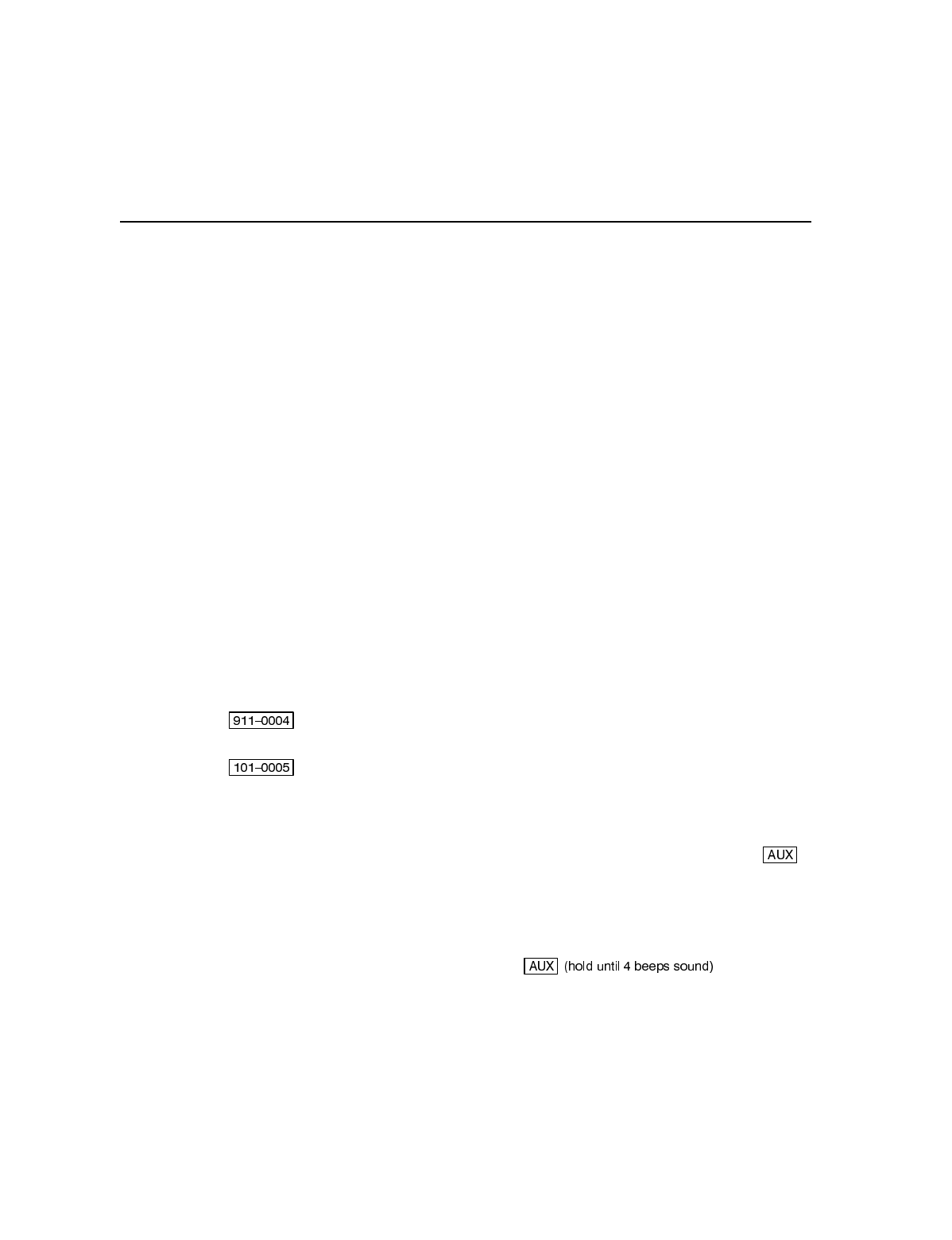

• AUX key function: Designated key lets you activate a predefined series of keystrokes with a single
press of the key plus user code, or manually send a pager message. It will also allow you to
manually send a voice message to phone number that has been programmed by your installer. Ask
your installer which of these features has been assigned to the key in your LYNXR-EN. Refer
to the AUX FUNCTION section for detailed information.
• Scheduling feature: Allows you to schedule the automatic activation or deactivation of X-10
devices or program events (e.g. alarm clock, reminder, and latch key).
• Two-way voice: Allows the central station to listen, talk to or conduct two-way conversations with
individuals on the premises Refer to the TWO-WAY VOICE section for detailed information.
• Phone Control: Provides a remote interactive phone capability that permits access to the security
system from any off-site touch-tone telephone.
• Speaker Phone Operation: The system is capable of operating as a speaker phone allowing hands
free telephone conversation.
• Security Codes: The system is capable of supporting an Installer code, Master user code and six
additional User codes. Refer to the SECURITY CODES section for detailed information.
6<67(029(59,(:
*HQHUDO2SHUDWLRQ
=RQHV

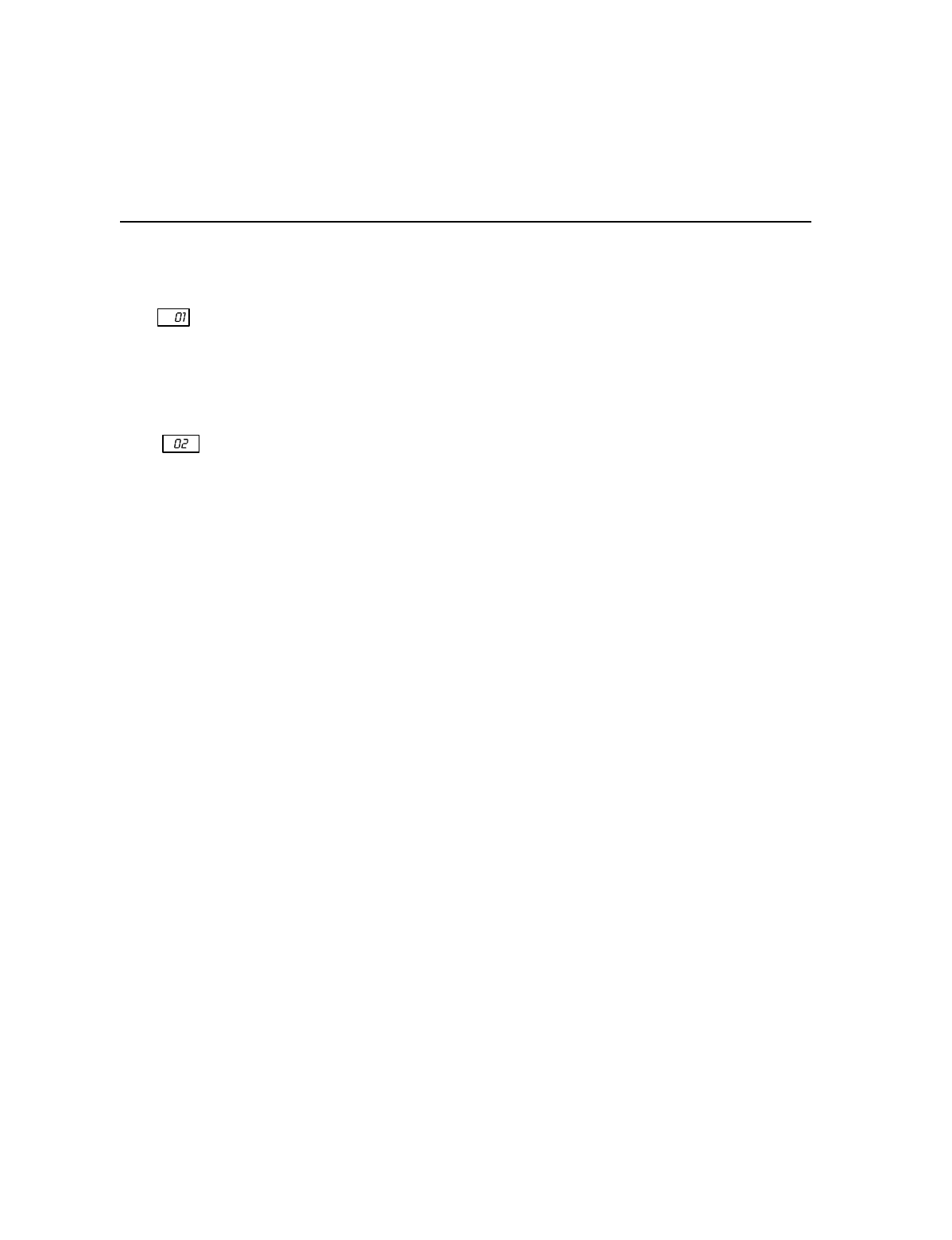

Your system's sensing devices have been assigned to various "zones." For example, the sensing device
on your entry/exit door may have been assigned to zone 01, sensing devices on windows in the master
bedroom to zone 02, and so on. These numbers appear on the display when an alarm or trouble
condition occurs.
8/
)LUH3URWHFWLRQ
The fire protection portion of your security system (if used) is always active and will sound an alarm if
a fire condition is detected. Refer to the FIRE ALARM SYSTEM section for important information
concerning fire protection, smoke detectors and planning emergency exit routes from the premises.
%XUJODU\3URWHFWLRQ
Your system provides two modes of burglary protection: STAY and AWAY. STAY mode protects the
perimeter only, allowing you to freely move within inside the premises. AWAY mode protects the entire
system. Both modes provide an entry delay time that allows you to reenter the premises without
setting off an alarm. For additional security, you can turn the entry delay off when arming the system
by using the key in combination with the desired arming key. The system also allows you
to bypass selected zones before arming the system, if desired. Refer to the BYPASSING PROTECTION
ZONES section. The system also provides a CHIME mode, for alerting users to the opening of
protected doors and windows while the system is disarmed.
You must turn on ("arm") the burglary protection portion of your system before it will sense burglary
alarms. To arm the system, enter your user code then press the desired arming key (AWAY or STAY).
Refer to the ARMING THE SYSTEM section for detailed procedures and information.
6HFXULW\&RGHV
At the time of installation, you were assigned a personal 4-digit security or “master user” code. You
must enter the user code when arming and disarming the system, and when performing other system
functions. As an additional security feature, other users who do not need to know your code can be
assigned up to 6 different security codes. Refer to the SECURITY CODES section for procedures on
adding security codes to the system.
$ODUPV
When an alarm occurs, the keypad and external sounders will sound for about 15-seconds, and the
keypad will display the zone(s) causing the alarm. After 15-seconds, the siren stops temporarily and
voice announcements of the zones in alarm begins. When these zones have been announced, the siren
sounds again and the cycle repeats itself, until the system is disarmed (code + OFF) or
6<67(029(59,(:
*HQHUDO2SHUDWLRQ
until alarm bell timeout occurs. If your system is connected to a central monitoring station, an alarm
message will be sent. To stop the alarm sounding, simply disarm the system. The zone(s) causing the
alarm remain displayed indicating memory of alarm. Refer to the DISARMING THE SYSTEM section
for information about clearing the memory of alarm display
7ZR:D\9RLFH)HDWXUH
The LYNXR-EN supports voice dialog between an operator at the central station and an individual at
the premises. This feature allows the central station to listen, talk to or conduct a two-way
conversation with an individual(s) at the premises and allows the operator to gather information about
the nature and location of the alarm that may be helpful in responding to fire, police or rescue
departments. If the Two-way Voice Feature has been programmed and an alarm condition is detected
the system sends an alarm message to the central station. After acknowledgement is received, a “listen
in to follow” message is sent to the central station. By responding to this message the central station
operator can enter commands that allow him to initiate a 5-minute voice session. The options allow the
operator to enter the following modes:
• Talk: Allows the operator to speak to individuals at the premises through the system speaker.
• VOX (2-way voice): Allows the operator to hold a two-way (speak and listen) conversation with
individuals at the premises.
• Listen: Allows the operator to listen to any activity at the premises through the system microphone.
If a subsequent zone is violated during a voice session, the system will terminate the session and
process the alarm. During the voice session, the ARMED (red) and READY (green) LEDs will
alternately blink in the Talk and VOX Modes but not during Listen Mode.
48,&.9,(:2)6<67(0)81&7,216

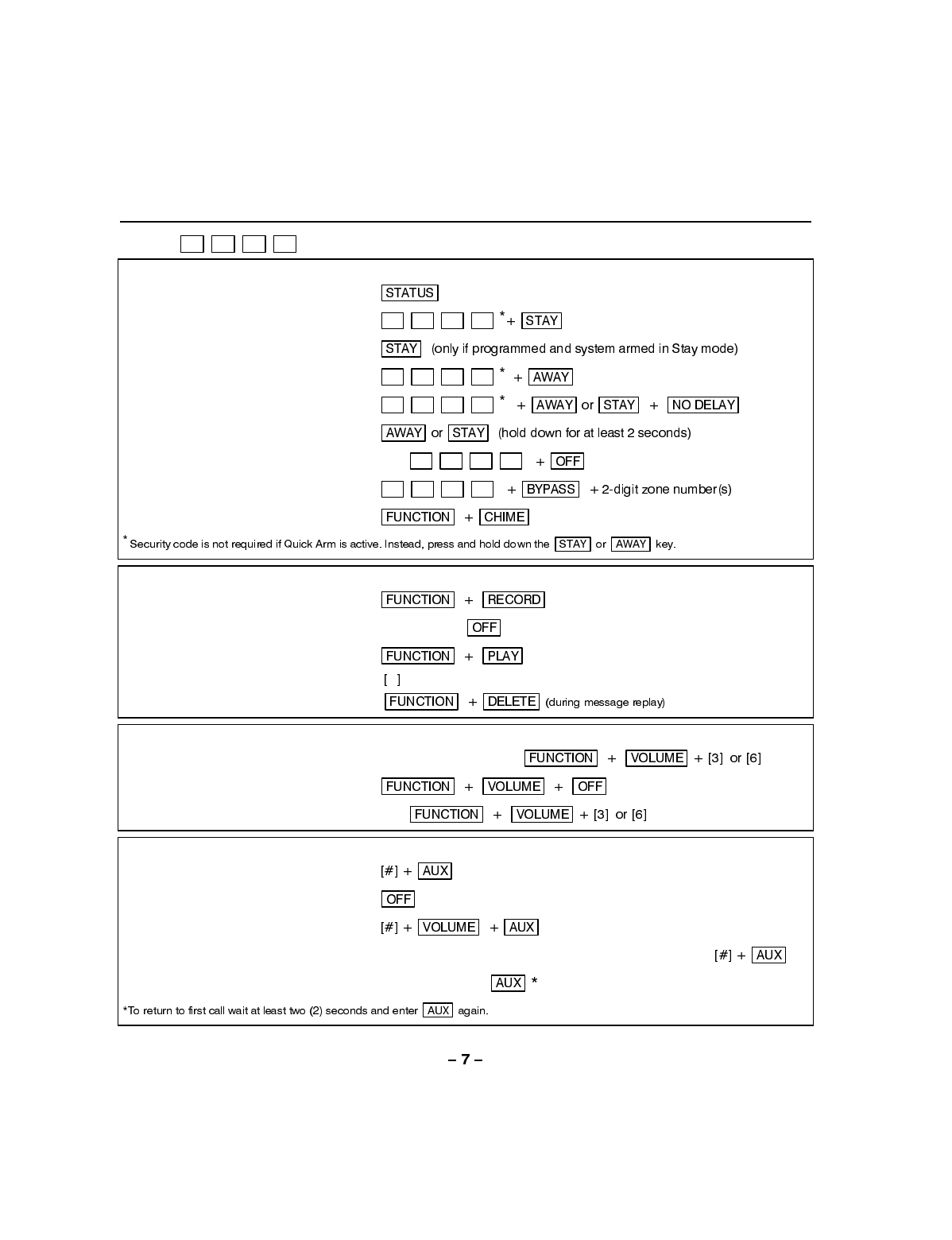

NOTE: = Boxes represent the entering of your 4-digit user code.
SECURITY FUNCTIONS
Checking system status: --------------

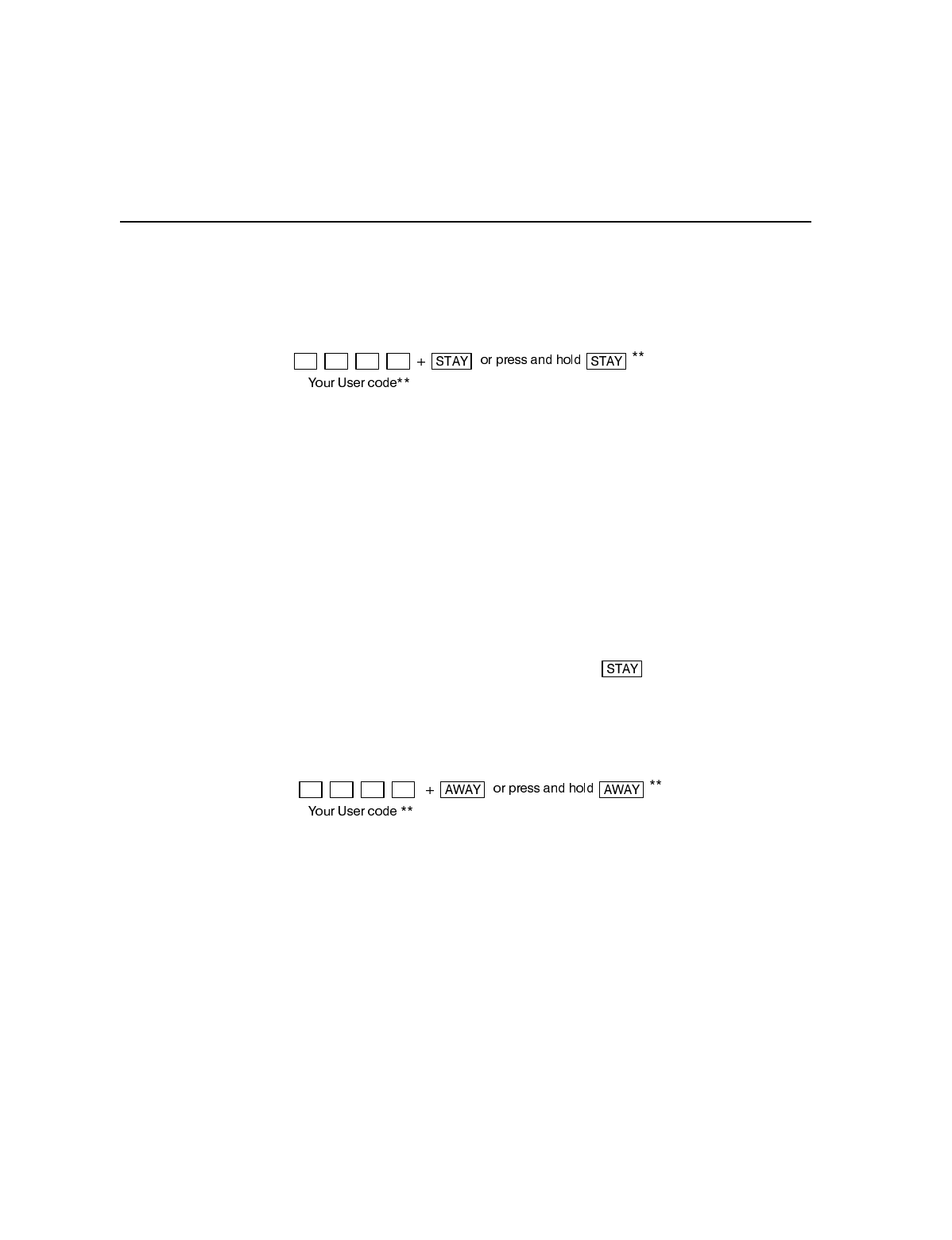

To arm in STAY mode: ----------------
To restart exit delay: -------------------

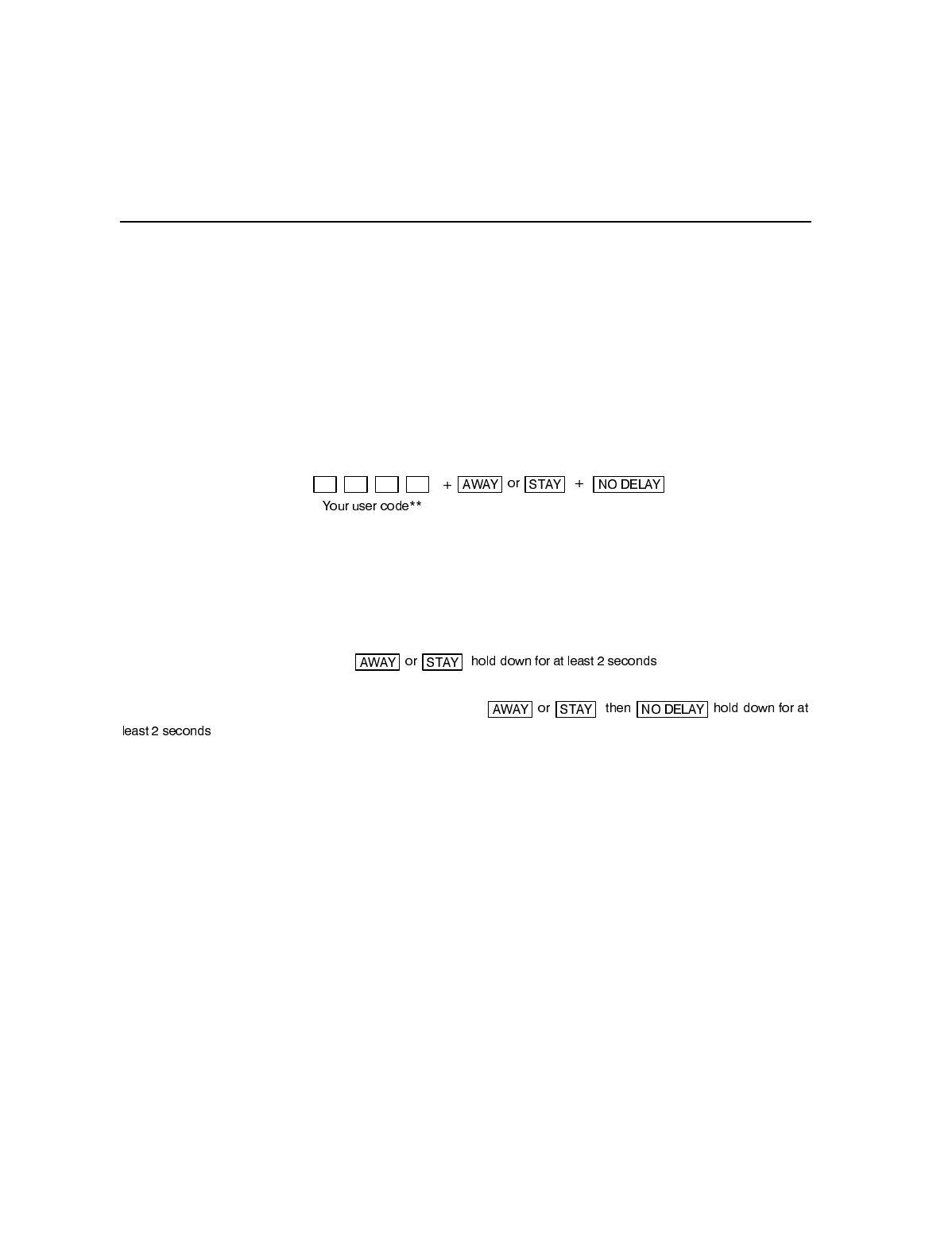

To arm in AWAY mode: ---------------
To arm with NO DELAY: -------------
To arm if Quick Arm is active: -----

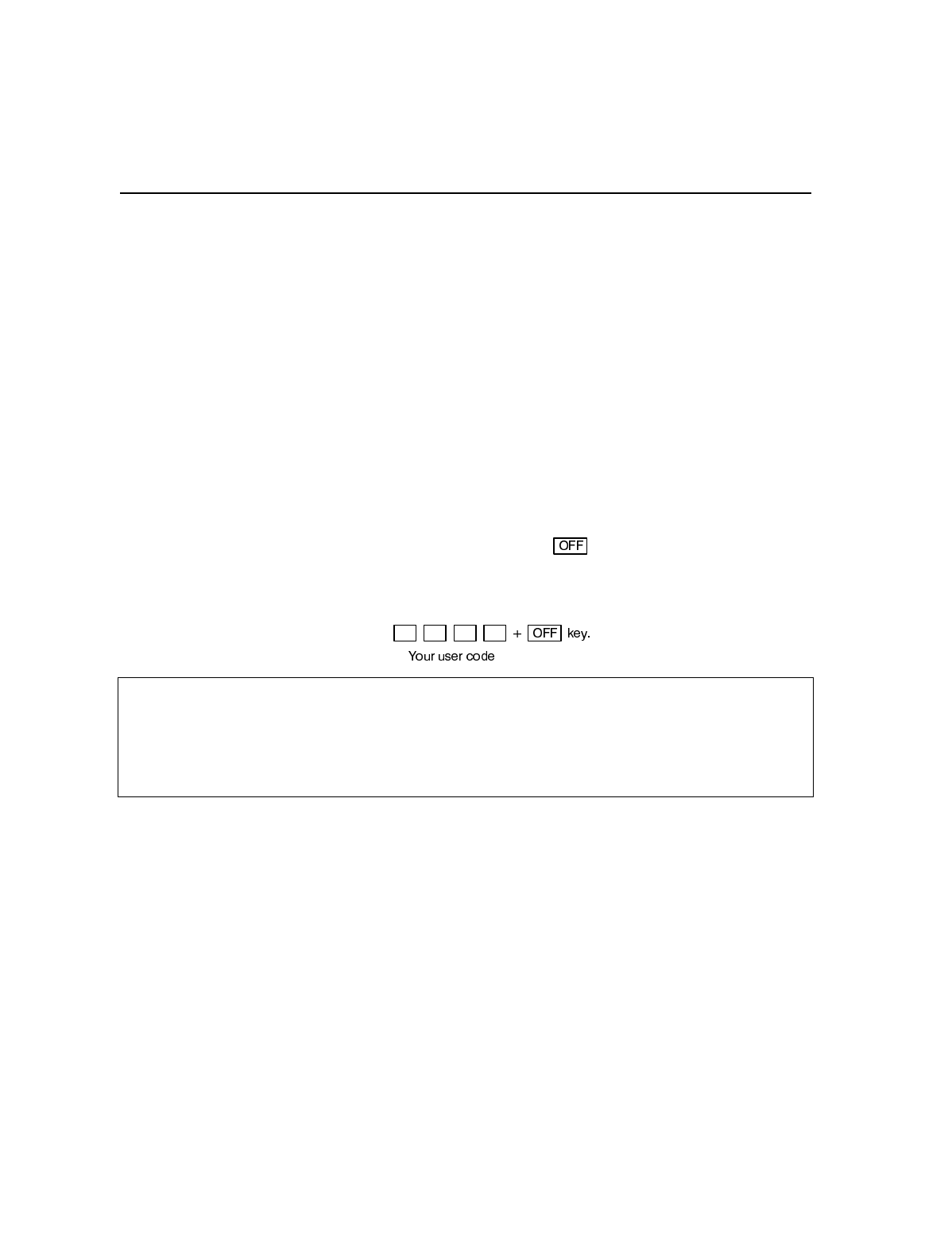

To disarm system and silence alarms:
To bypass a zone(s): ---------------------
To turn Chime mode on or off: -----
MESSAGE CENTER
To record a message: -------------------
To stop recording before end of 85 secs:
To play back a message: ---------------
To skip a message: --------------------------- ✻
To delete all messages: --------------------
VOLUME ADJUSTMENT
To adjust message playback/announcement volume:
To mute system announcements: -
To restore/unmute announcements:
SPEAKER PHONE OPERATION
To enter speaker phone mode: -----
To exit speaker phone mode: -------
To enable/disable (toggle) ringer:
To return keypad to telephone mode (after clearing an alarm or trouble or disarming the system):
To flash (switch between two calls using call waiting):
48,&.9,(:2)6<67(0)81&7,216

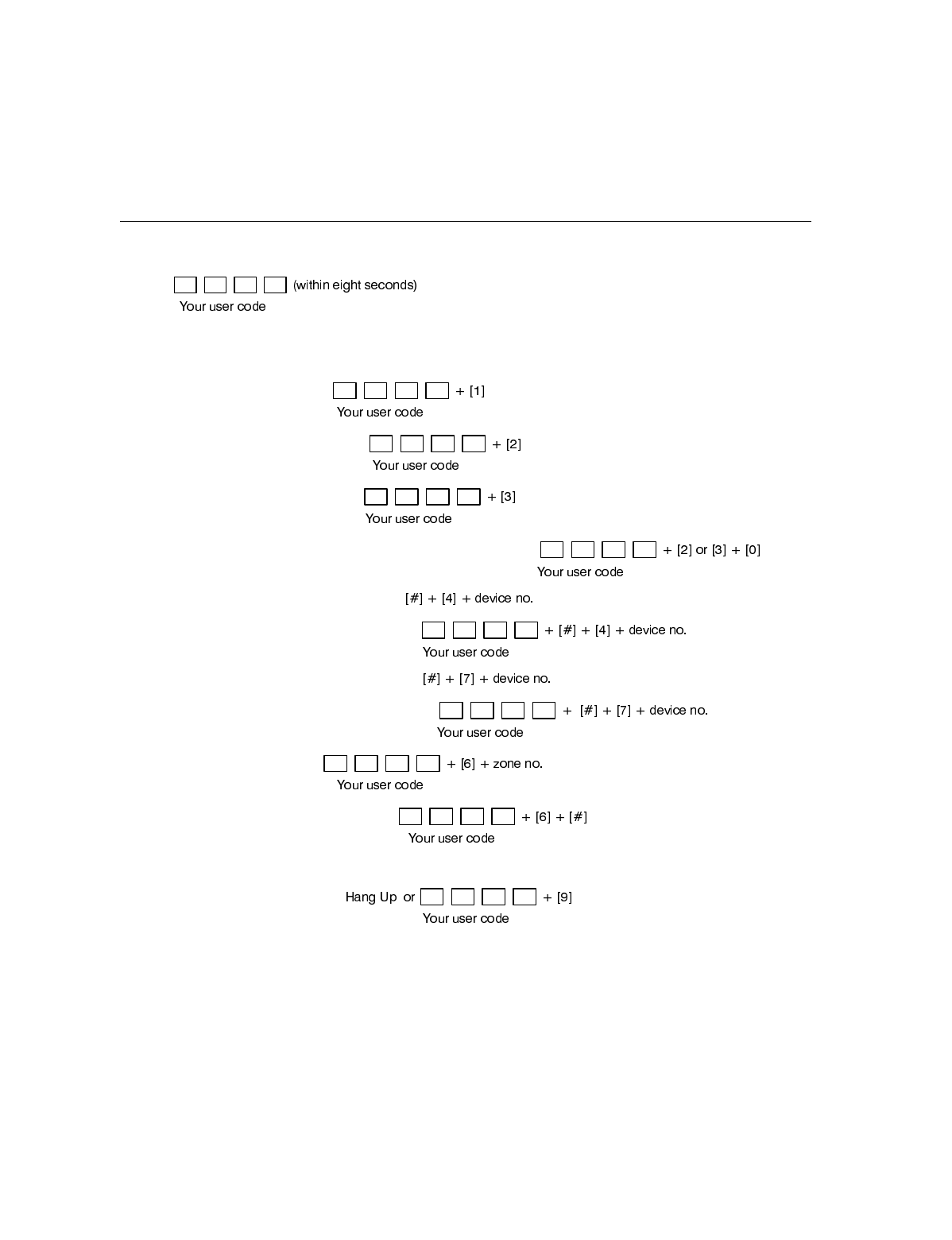

REMOTE PHONE CONTROL OPERATION
To remotely disarm: ---------------------
To remotely arm in AWAY mode: -
To remotely arm in STAY mode: --
To remotely arm in AWAY or STAY mode with NO DELAY:
To remotely activate X-10 devices 1-6: ---------
To remotely activate X-10 devices 7 & 8: -----
To remotely deactivate X-10 devices 1-6: -----
To remotely deactivate X-10 devices 7 & 8:
To remotely bypass a zone: ----------
To remotely activate forced bypass: ------------
To remotely check system status:
To hang up: ----------------------------------
OTHER FUNCTIONS
To set the time and date: -------------
To set scheduling: ------------------------

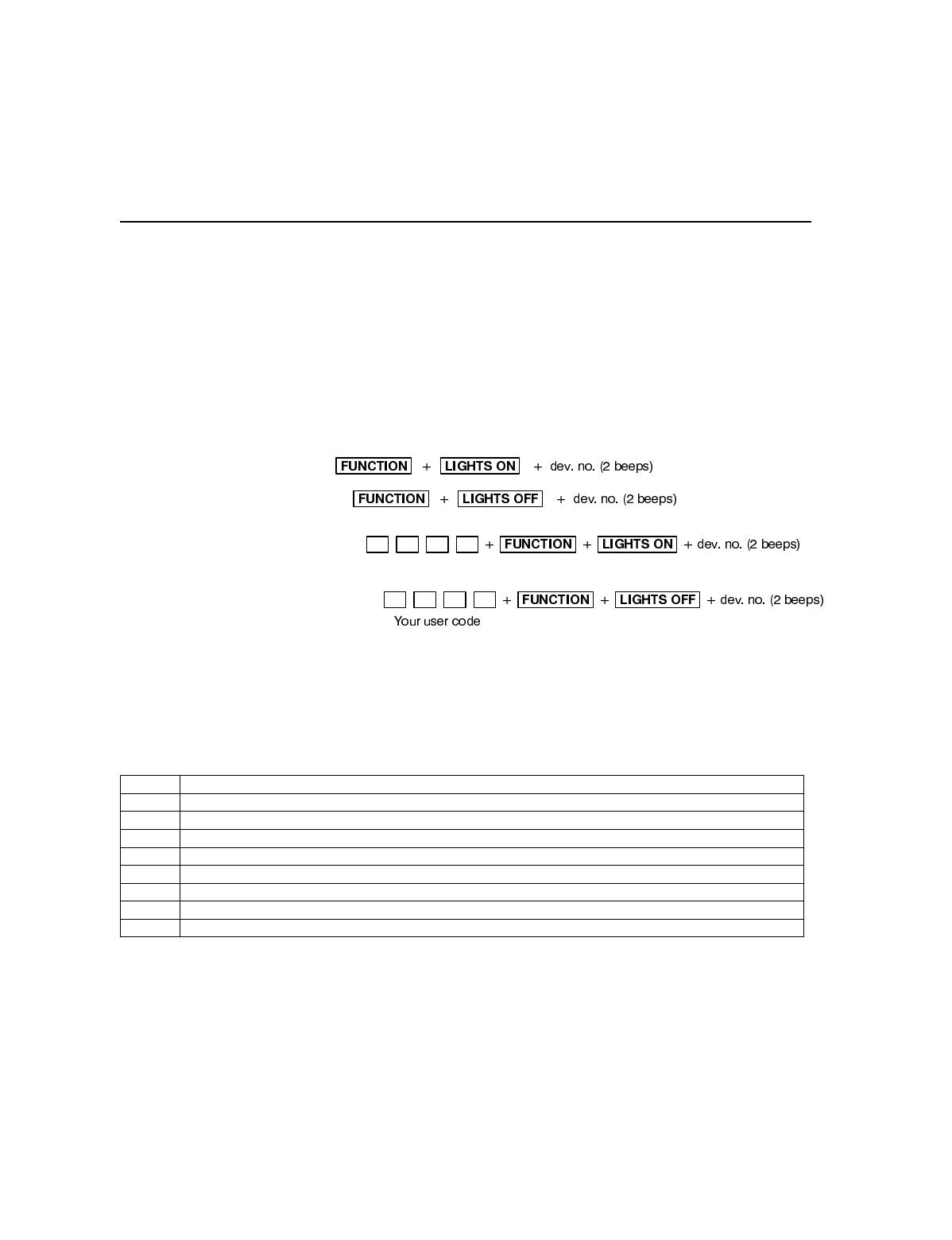

To activate X-10 devices 1-6: --------
To activate X-10 devices 7 & 8: -----
To deactivate X-10 devices 1-6: ----
To deactivate X-10 dev. 7 & 8: -------
To add a user code: ---------------------
To delete a user code (except Master Code):
To turn Test mode on: ------------------
To turn Test mode off: -----------------
To use the defined AUX function: -
To send message to pager: ------------
To program “Follow Me” reminder phone #:
To delete “Follow Me” reminder phone #:
6<67(029(59,(:
$ERXWWKH0DVWHU.H\SDG
*HQHUDO
IMPORTANT: If the keypad beeps rapidly upon entering the premises, an alarm has occurred during
your absence and an intruder may still be on the premises. LEAVE IMMEDIATELY and CONTACT
THE POLICE from a nearby safe location.

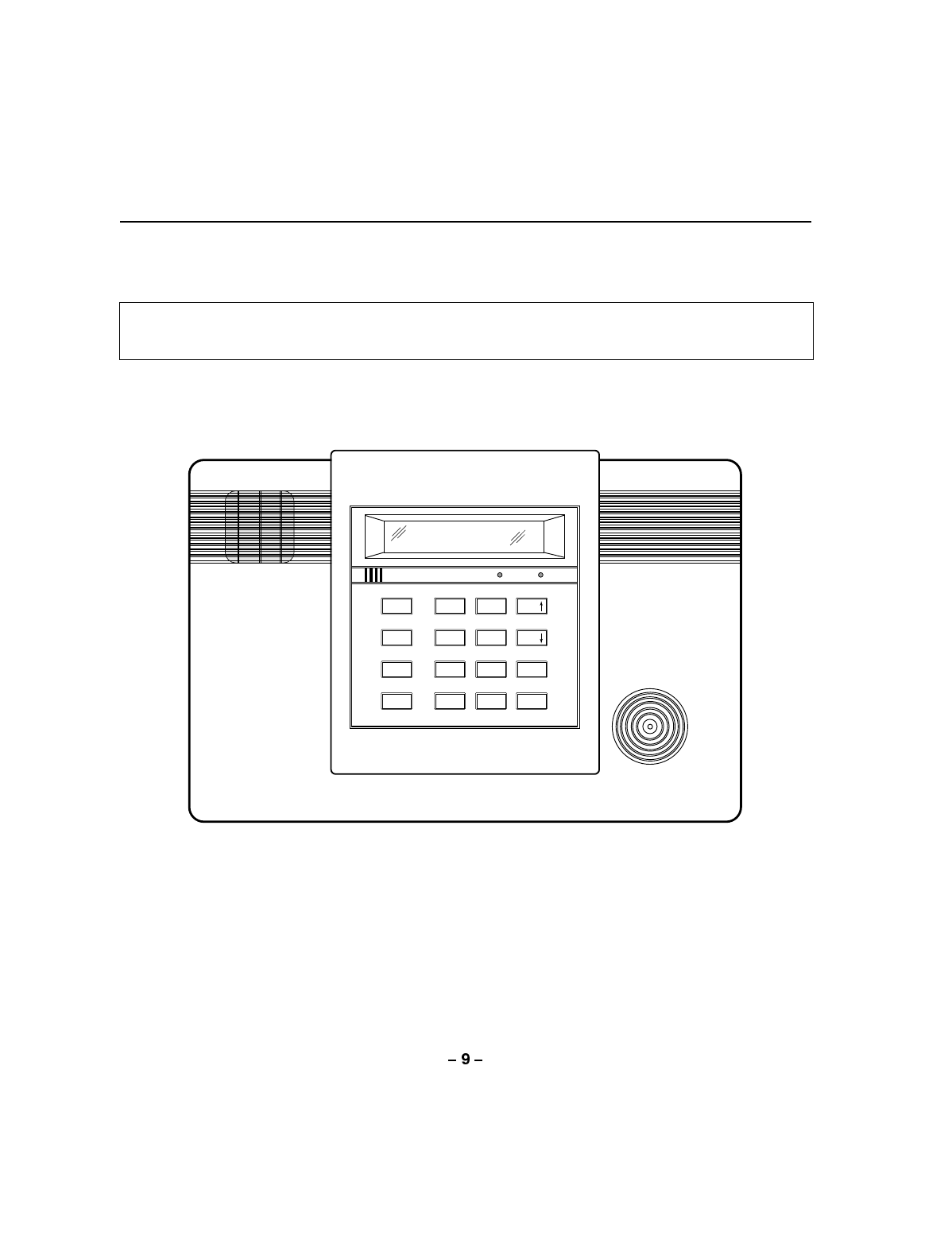

The keypad allows you to control all system functions. In the speaker phone mode the keypad becomes
a full-function telephone keypad The keypad features telephone-style keys and a Liquid Crystal
Display (LCD), which shows the nature and location of all occurrences.
123
456
789
0#
*
RECORD VOLUME PLAY
LIGHTS ON TEST BYPASS
LIGHTS OFF CODE CHIME
STATUS NO DELAY FUNCTION
ARMED READY
OFF
AWAY
STAY
AUX
01009-023-V1
ESCAPE
DELETE
ADD
SELECT
The keypad also features a built-in sounder, which will sound during alarms and troubles. The keypad
also "beeps" during certain system functions, such as during entry/exit delay times, in Chime mode,
and when depressing any of the keys (to acknowledge the key press). In addition, a built-in speaker
announces system status.
The voice announcement volume is adjustable, however the “beeps” that sound in response to alarms
always sound at the maximum volume level. All other “beeps” (trouble, chime, exit/entry, etc) can be
set to either low or high volume.
– 10 –
6<67(029(59,(:

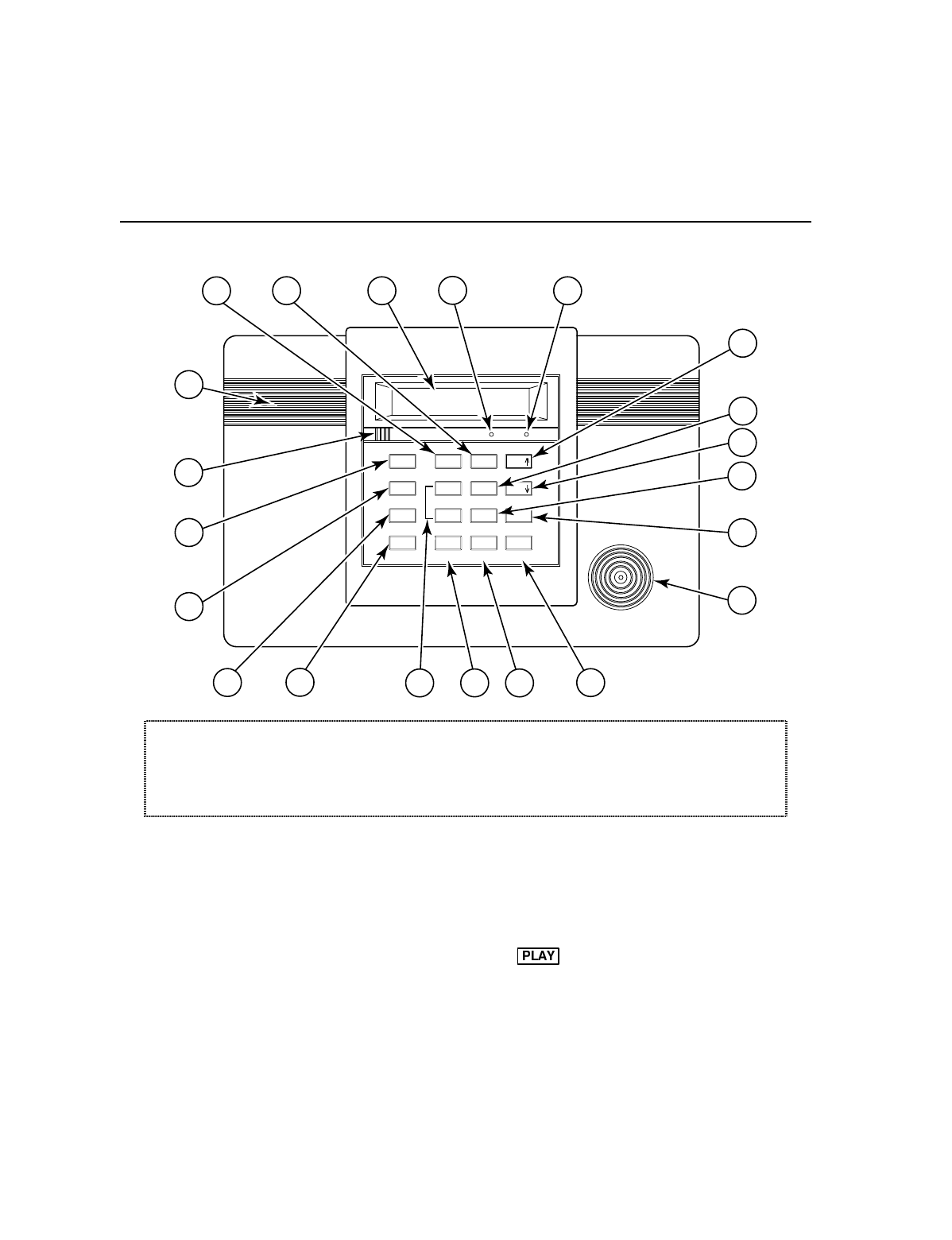

0DVWHU.H\SDG'HILQLWLRQV
12
456
789
0#
*
RECORD VOLUME PLAY
ARMED READY
ESCAPE
DELETE
ADD
SELECT
OFF
AWAY
STAY
AUX
LIGHTS ON TEST BYPASS
LIGHTS OFF CODE CHIME
13
2
3
4
5
6
7
8
9
FUNCTION
10
11
12
NO DELAYSTATUS
15
16
17
19
18
21
20
01009-022-V1
13
14
IMPORTANT!
When you use the keypad to enter codes and commands, press the keys within 2 seconds of one another.
If 2 seconds elapse without a key depression, the entry is aborted and must be repeated from its
beginning.
NOTE: Different timeouts may occur when defining auxiliary functions and setting the real-time clock.
Note: The system functions described below are for reference only and require additional key entries to activate.
1. DISPLAY WINDOW: Liquid Crystal Display
(LCD). Displays protection point identification
and system status, messages, and user
instructions.
2. ARMED INDICATOR: (RED) Lit when the
system has been armed (STAY, AWAY, NO
DELAY). Blinks when armed and fault exists, or
once per second when AVM (VOX or Talk) or
speaker phone mode is active.
3. READY INDICATOR: When lit, indicates
system is ready to be armed; blinking indicates
system is not ready (a zone is open). Blinks once
per second when AVM (VOX or Talk) or speaker
phone mode is active.
4. KEY: Announces a user’s message if one
was previously recorded. See RECORD function.
Used to adjust volume of voice messages.
– 11 –
6<67(029(59,(:
0DVWHU.H\SDG'HILQLWLRQV

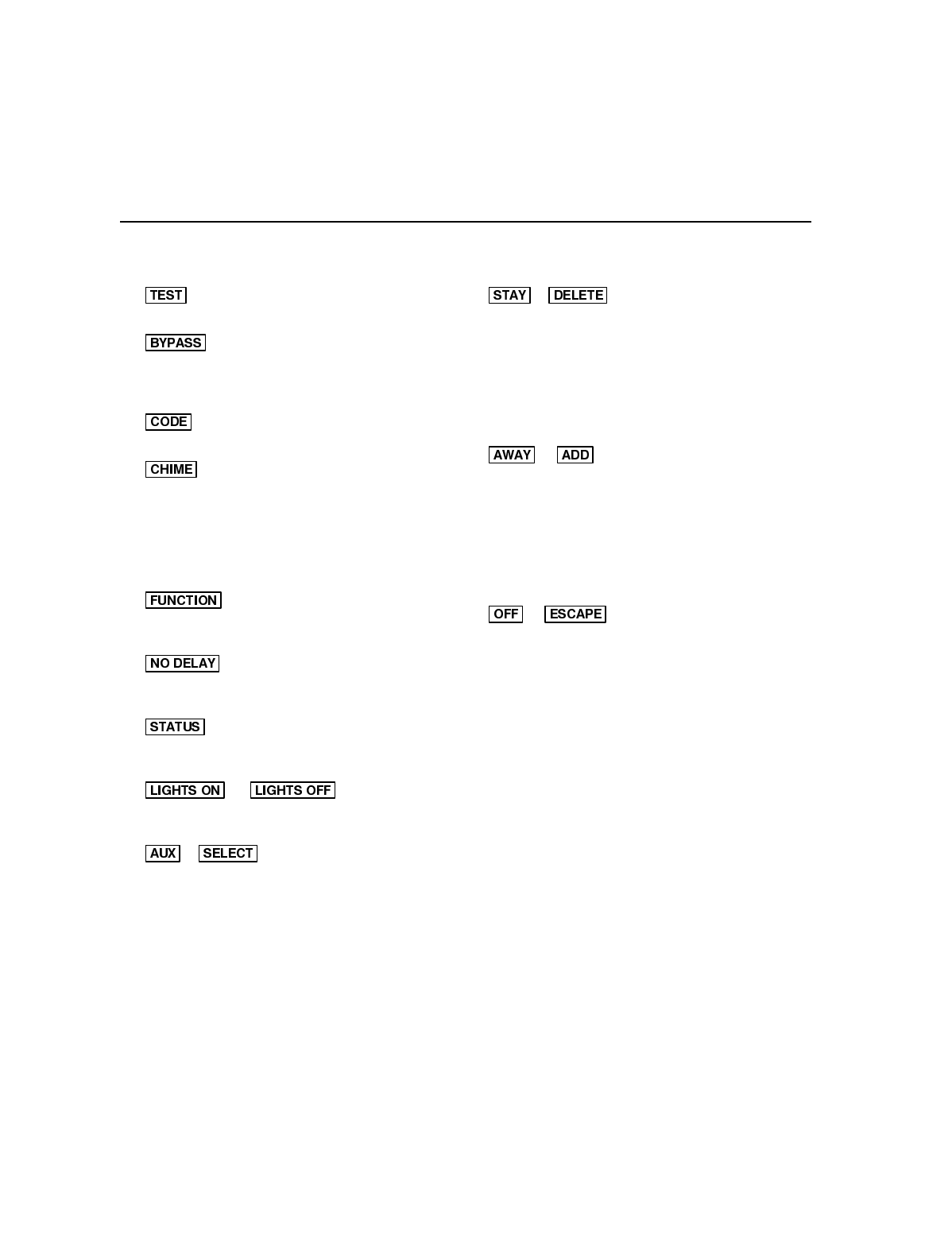

5. KEY: Tests the system and alarm
sounder.
6. KEY: Removes individual protection
zones from being monitored by the system.
Displays currently bypassed zones.
Used to adjust volume of voice messages.
7. KEY: Allows entry of additional user
codes that can be given to other system users.
8. KEY: Turns the Chime mode on and
off. When on, any entry through a protected
delay or perimeter zone while the system is
disarmed will cause a tone and voice descriptor
to sound at the keypad.
9. INTERNAL SOUNDER: Source of alarm sounds
(see "Summary of Audible Notifications" section).
10. KEY: Allows alternate key
functions. It is used as a “repeat” key during
Clock/Calendar setting.
11. KEY: Used with STAY or AWAY
function to eliminate the entry delay. Alarm
sounds immediately if entry is opened.
12. KEY: When pressed prior to arming,
the keypad will display all open zones, and will
announce system status.
13. / KEYS: Turns
lights or other devices on or off, if programmed by
the installer.
14. / KEY: Can be programmed
to either perform a predefined function or to send
a preset message to a pager or a “Follow Me”
system phone number.
15. / KEY: Arms the perimeter
burglary protection, guarding protected doors,
windows and other perimeter protection points, and
sounds an alarm if one is opened. Interior protection
is not armed, which allows movement within your
house without causing an alarm. Entrance can be
made through an entry delay zone without causing an
alarm if the system is disarmed before the entry delay
time expires. Used to delete messages.
16. / KEY: Completely arms both
perimeter and interior burglary protection for backup
protection by sensing an intruder's movements
through protected interior areas as well as guarding
protected doors, windows, etc. Entrance can be made
through an entry delay zone without causing an
alarm if the system is disarmed before the entry delay
time expires. Used to accept “Follow Me” phone
number and Clock/ Calendar mode entries.
17. / KEY: Disarms the burglary
portion of the system, silences alarms and audible
trouble indicators, and clears alarm trouble display
after the problem has been corrected. Used to
exit/abort “Follow Me” phone number and
Clock/Calendar mode.
18. MICROPHONE: Used to record personal messages
up to 85 seconds long, and for 2 way voice and
speaker phone.
19. SPEAKER: Source of audible internal warning and
confirmation sounds, status announcements, as well
as alarms (see "Summary of Audible Notifications").
20. RECORD: Activates the recording function to record
personal messages.
21. VOLUME: Sets the volume of system announcements
and status beeps.
–– KEYS 0-9: Used to enter your individual security
access code(s).
– 12 –
6<67(029(59,(:
$ERXWWKH'LVSOD\DQG,QGLFDWRUV
'LVSOD\'HILQLWLRQV
ALARM
AWAY
INSTANT
STAY
FIRE
REC MESSAGE
BYPASS
FAULT
CHIME TEST
LOW BAT AC
ALARM: Appears when the system is armed and an intrusion has been detected (also appears during a
fire alarm or audible emergency alarm). Accompanied by the protection zone that is in alarm.
AWAY: All burglary zones, interior and perimeter, are armed.
INSTANT: Entry delay is turned off.
STAY: Perimeter burglary zones, such as protected windows and doors, are armed.
FIRE: Appears when a fire alarm or fire fault is present. Accompanied by a display of the zone that is
in alarm.
LOW BAT: Low battery condition in a wireless sensor (if zone number is displayed) or low system battery (if
no zone number is displayed). If 00 is displayed, a wireless keypad (5827) has a low battery
condition.
AC: Appears when AC power is present. If not displayed, the system is operating on backup battery
power.
CHIME: Appears when the Chime feature is activated.
TEST: Appears when the system is in Test mode.
REC: Appears when the system is in Recording mode.
MESSAGE: Appears when a message has been recorded and has not yet been played back.
BYPASS: Appears when one or more burglary protection zones have been bypassed.
FAULT: Appears at any time a malfunction is discovered in the system; or any time an open is detected
in a fire zone; or when a fault in a day/night burglary zone is discovered during a disarmed
period. Accompanied by a display of the zone number in trouble.
PH: Appears in place of the clock when the speaker phone mode is active.
PC: Appears during a remote phone control session.
/('0HDQLQJV
ARMED LED: ON = System armed
(Red) OFF = System disarmed
Blinking = System armed, but a fault exists
Blinking alternately with READY LED = AVM (VOX or Talk) or speaker phone mode is active
READY LED: ON = System disarmed, ready to arm
(Green) OFF = System armed
Blinking = System disarmed, not ready to arm (a fault exists)
Blinking alternately with ARMED LED = AVM (VOX or Talk) or speaker phone mode is active.
– 13 –
6(&85,1*7+(35(0,6(6
&KHFNLQJ6\VWHP6WDWXV
*HQHUDO,QIRUPDWLRQ
Before arming your system, all protected doors, windows, and other protection zones must be closed or
bypassed (see the BYPASSING PROTECTION section). Pressing the key will announce all
zones that are faulted, as well as any other abnormal system condition, making it easier for you to
secure any open zones.
READY LIGHT: The green READY indicator on the keypad will be lit if the system is ready to be
armed. If blinking, the system is not ready.
3UHVVWKH 67$786 .H\
Press the key once to announce the general status of the system. Depending on the current state of the
system the following phrases may be heard:
NOTE: The phrases shown in brackets are variable, and are announced only if appropriate in the current state of
the system.
Press the key a second time† to announce specific system status. Depending on the current
state of the system the following phrases may be heard:
VOLUME LEVEL: The volume level of system announcements can be increased or decreased. Refer
to the MESSAGE RECORDING/PLAYBACK section for the procedure.
6\VWHP&DQ%H$UPHG
The READY LED will be lit once all protection zones have been closed or bypassed. You may now arm
the system as usual.
– 14 –
6(&85,1*7+(35(0,6(6
$UPLQJWKH6\VWHP
$UPLQJLQ6WD\0RGH
Use this mode when you are staying home, but expect someone to use the entrance door later. Close
all protected perimeter windows and doors before arming. The green READY indicator on the keypad
should be lit if the system is ready to be armed.
To arm in STAY mode:
** See Quick Arming paragraph.
The keypad beeps three times and displays the armed STAY message. The red ARMED indicator lights
and the system announces “armed STAY–exit now.”
When armed in STAY mode, the system will sound an alarm if a protected door or window is opened,
but you may otherwise move freely throughout the premises. Late arrivals can enter through the
entrance door without causing an alarm, but they must disarm the system within the entry delay
period or an alarm will occur.
Restarting Exit Delay While System Armed
Ask your installer if this feature is active for your system. If active, you can restart the exit delay at
any time after arming in STAY mode. This is useful if you wish to open the entry/exit door to let
someone in after arming the system, and avoids having to disarm the system and then re-arm it again.
To restart exit delay while system is armed in STAY mode: Press key
$UPLQJ,Q$ZD\0RGH
Use this mode when no one will be staying on the premises. Close all protected perimeter windows and
doors before arming. The green READY indicator on the keypad should be lit if the system is ready to
be armed.
To arm in AWAY mode:
** See Quick Arming paragraph.
The keypad beeps twice, or beeps continuously if exit warning has been programmed for your system,
and displays the armed AWAY message. The red ARMED indicator lights and the system announces
“armed AWAY–exit now.”
When armed in AWAY mode, the system will sound an alarm if a protected door or window is opened,
or if any movement is detected inside the premises. You may leave through the entrance door during
the exit delay period without causing an alarm. You may also re-enter through the entrance door, but
you must disarm the system within the entry delay period or an alarm will occur.
– 15 –
6(&85,1*7+(35(0,6(6
$UPLQJWKH6\VWHP
$UPLQJWKH6\VWHP:LWK1R'HOD\
Use NO DELAY with STAY mode when you are staying home and do not expect anyone to use the
entrance door.
Use NO DELAY with AWAY mode when the premises will be vacant for extended periods of time such
as vacations, etc.
When armed with NO DELAY, the system will sound an alarm if a protected door or window is opened,
including the entrance door. You may leave through the entrance door during the exit delay period
without causing an alarm, but an alarm will sound as soon as someone reenters.
To arm with NO DELAY:
** See Quick Arming paragraph.
4XLFN$UPLQJ
If Quick Arm was programmed by the installer, you do not need to enter the security code to arm the
system. Instead, simply press and hold down the desired arming key for at least 2 seconds. The
security code must always be used to disarm the system, however.
To arm if Quick Arm is active:
To arm with NO DELAY if Quick Arm is active:
IMPORTANT: The Babysitter Code and Installer Code cannot disarm the system unless it was used
to arm the system. In addition, if the system is armed by pressing and holding the Quick-Arm buttons,
neither the Babysitter Code nor Installer Code can disarm the system.
– 16 –
6(&85,1*7+(35(0,6(6
(QWU\([LW'HOD\V
([LW'HOD\
Exit delay begins immediately after arming the system, and gives you time to leave through the
designated exit door without setting off an alarm. A slow beeping will sound throughout the exit delay
period, if programmed.
Exit Alarms Exit Alarm Active
To minimize false alarms sent to the alarm monitoring company, your system may have been
programmed for this feature. Ask your installer if Exit Alarm is active for your system.
Whenever you arm the system, the exit delay begins. If an entry/exit door or interior zone is faulted
when the exit delay ends (e.g., exit door left open), the system sounds an alarm and starts the entry
delay timer. If you disarm the system before the entry delay ends, the alarm sound stops and the
message "CA" is displayed on the keypad, along with a zone number indicating the faulted zone. No
message is sent to the alarm monitoring company. To clear the exit alarm condition, the open zone
must be made re-secured; to clear the display, enter your code plus OFF.
If you do not disarm the system before the entry delay ends, and an entry/exit door or interior zone is
still open, the alarm sound continues and an "exit alarm" message is sent to the alarm monitoring
company. The message "EA" is displayed on the keypad, along with a zone number indicating the
faulted zone. To stop the alarm, the system must be disarmed (your code plus OFF); to clear the
display, enter your code plus OFF a second time. An exit alarm also results if an entry/exit door or
interior zone is faulted within two minutes after the end of the exit delay.
(QWU\'HOD\
Entry Delays give you time to disarm the system when you re-enter through the designated entrance
door. You must disarm the system before the entry delay period ends, or an alarm will occur. The
keypad beeps during the entry delay period, reminding you to disarm the system. There are two entry
delays (if programmed). The first is for your primary entrance and the second can be used for a
secondary entrance, where a longer delay is required to walk to the keypad to disarm the system.
You can also arm the system with no entry delay at all by using the key when arming. This
can provide greater security while on the premises or while away for extended periods of time. See
ARMING THE SYSTEM section for procedure.
See your installer for delay times programmed for your system.
Exit Delay:
Entry Delay 1:
– 17 –
6(&85,1*7+(35(0,6(6
'LVDUPLQJWKH6\VWHP
Use the key to disarm the system and to silence alarm and trouble sounds. See the SUMMARY
OF AUDIBLE NOTIFICATION section for information, which will help you to distinguish between fire
and burglary alarm sounds.
IMPORTANT: If you return and the main burglary sounder is on, DO NOT enter the premises, but
call the police from a nearby safe location. If you return after an alarm has occurred and the main
sounder has shut itself off, the keypad will beep rapidly upon entering. This indicates that an alarm
has occurred during your absence and an intruder may still be on the premises. LEAVE
IMMEDIATELY and CONTACT THE POLICE from a nearby safe location.
To disarm the system and silence burglary alarms:
The READY indicator will light (if no alarms have occurred while armed) and the keypad will beep
once to confirm that the system is disarmed.
0HPRU\RI$ODUP
If an alarm occurs, the keypad displays the zone number (s) that caused the alarm and the type of
alarm (e.g., “FIRE ALARM”). These messages remain displayed until cleared by a user.
To clear the display, note the zone number displayed and enter an OFF sequence (enter your security
code and press the key).
If the READY indicator is blinking, go to the displayed zone and correct the fault (close windows, etc.).
If the fault cannot be corrected, notify your alarm company.
– 18 –
6(&85,1*7+(35(0,6(6
%\SDVVLQJ3URWHFWLRQ=RQHV
%\SDVVLQJ,QGLYLGXDO=RQHV
Use the BYPASS key when you want to arm your system with one or more zones intentionally
unprotected. Bypassed zones are unprotected and will not cause an alarm when violated while your
system is armed. All bypasses are removed when an OFF sequence (security code plus OFF) is
performed. Bypasses are also removed if the arming procedure that follows the bypass command is
not successful.
The system will not allow fire zones to be bypassed.
The system must be disarmed first.

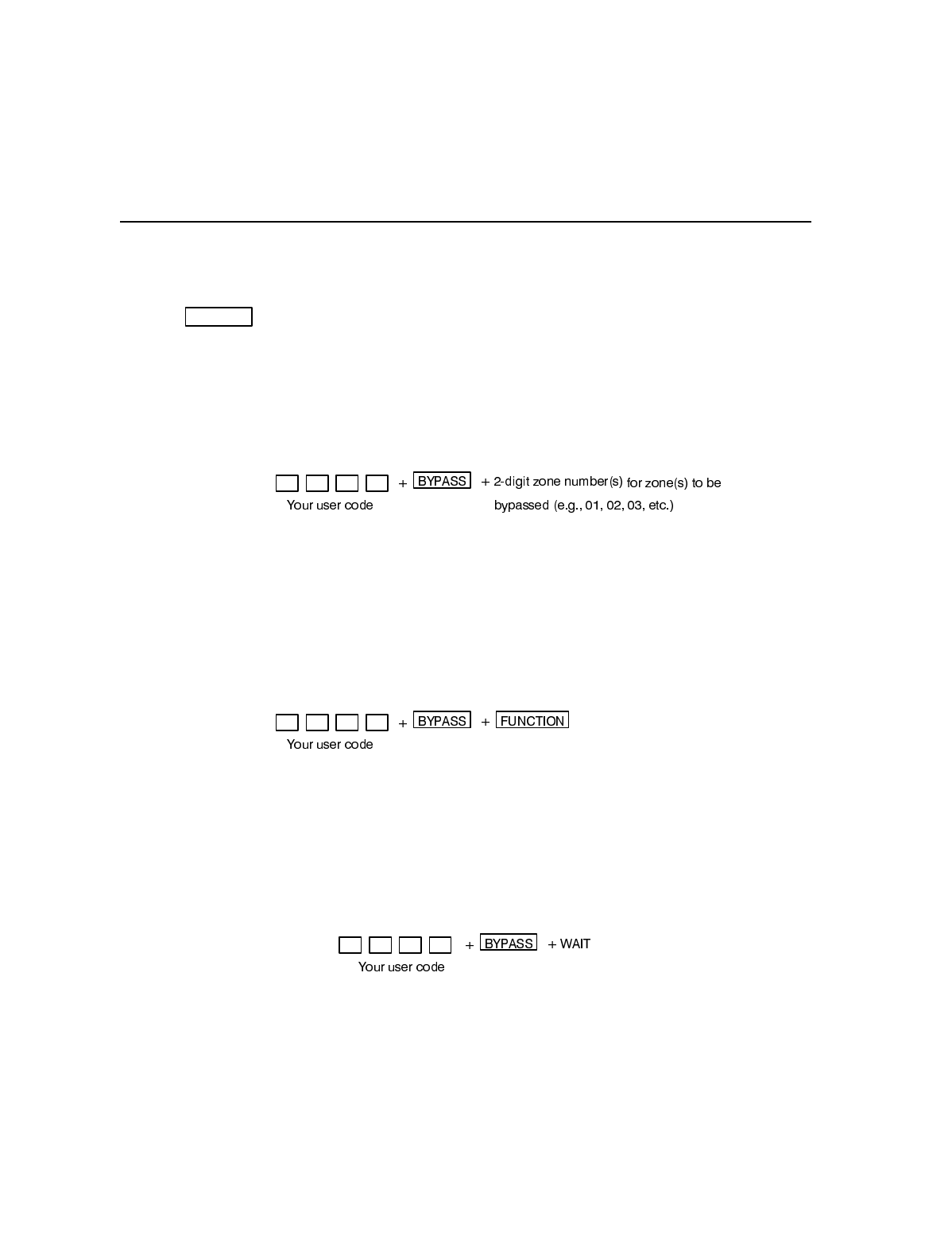

To bypass a zone(s):
Important! All single-digit numbers must be preceded by a zero (for example, enter 01 for zone 1).
The keypad will provide a confirmation beep and display the word “BYPASS” along with each bypassed
zone number. Wait for these zones to be displayed, to be sure that intended zones are bypassed.
Arm the system as usual when the keypad displays the READY LED on steady.
)RUFHG%\SDVV
Your system may allow you to easily bypass all open (faulted) zones without having to enter zone
numbers individually. Ask your installer if this feature is active.
To bypass a zone(s):
In a few moments, all open zones will be displayed along with the word “BYPASS.” Wait for these
zones to be displayed before arming. Arming the system before zones are displayed eliminates all
bypasses.
Arm the system as usual when the keypad displays the READY LED on steady.
Displaying Bypassed Zones
The system allows you to determine what zones have been previously bypassed. Bypassed zones can be
displayed only when the system is disarmed, and when the “BYPASS” message described above is
displayed.
To display bypassed zone(s):
In a few moments, all open zones will be sequentially displayed along with the word “BYPASS.”
– 19 –
6(&85,1*7+(35(0,6(6
3DQLF.H\V&KLPH0RGH
3DQLF.H\V
Your system may have been programmed to use special keys to manually activate panic functions. The
functions that might be programmed are listed below. See your installer for the function(s) that may
have been programmed for your system.
Your installer should
note the functions that
are active in your
system.
Active Panic Functions
Keys Zone Function
1 and ✻ 95
3 and # 96
✻ and # 99
To use a paired key panic function, simply press both keys of the assigned pair at the same time. If
your keypad has lettered keys for panic functions, press the designated key and hold down for at least
2 seconds to activate the panic function. Panic keys can also be activated by wireless devices such as
the Ademco 5827. Ask your installer about this feature.
Types of Panic Alarms
A silent emergency/silent alarm sends an alarm signal to the alarm monitoring company,† but
there will be no audible alarms or visual displays.
An audible emergency/audible alarm sends an emergency message to the alarm monitoring
company† and sounds a loud, steady alarm at your keypad and at any external sounders that may be
connected (“ALARM” plus a zone number are also displayed).
A personal emergency/aux alarm sends an emergency message to the alarm monitoring company†
and sounds at keypads, but not at external sounders. (“ALARM” plus a zone number are also
displayed).
A supervised fire alarm sends a fire alarm message to the alarm monitoring company† and uniquely
activates keypad and any external sounders (“FIRE ALARM” plus a zone number are also displayed).
† If your system is connected to an alarm monitoring company
&KLPH0RGH
Your system can be set to alert you to the opening of a door or window, while it is disarmed, by using
CHIME mode. When activated, three beeps will sound at the keypad whenever a protected perimeter
door is opened and the zone voice descriptor will be announced. Pressing the key will display
the open protection points.
Note that the Chime mode can be turned on only when the system is disarmed.
To turn Chime mode on or off:
The “CHIME” message displays while Chime mode is on, and disappears from the display when Chime
mode is off.
– 20 –
86(5)81&7,216
3DJLQJ)HDWXUH
$XWRPDWLF3DJLQJ
If the Paging feature has been programmed for your system, your pager will respond to certain
conditions as they occur in your system by displaying a message that indicates the type of condition
that has occurred. The message appears in a 7-digit format explained below. The system can also be
programmed to send up to 16 additional digits that will appear in front of the 7-digit message. These
16 digits may consist of a PIN number or special digits needed by the pager, account number, pauses,
or any other special characters you may choose (for example, you may want to use a special character
code to distinguish between security system messages and usual pager messages). See your installer if
these additional characters are desired.
&RGH)RUPDW
The Pager Code takes the following form: (AAAAAAAAAAAAAAAA) EEE-00NN
AAA… = Optional 16 digits, programmed by your installer.
EEE = 3-digit number describing the event that has occurred, as follows:
911 = Alarm (00NN following indicates the zone that caused the alarm)
101 = Open, system disarmed (00NN following indicates user number)
102 = Close, system armed (00NN following indicates user number)
811 = Trouble (00NN following indicates the zone that caused the trouble)
00NN = First two digits are always 00, followed by 2-digit user or zone number, depending
on the type of event that occurred. If NN = 00, it can mean an AC loss has occurred,
the system battery is low, or a 5827 wireless keypad battery is low. The Master
Keypad will indicate the specific condition.
Examples:
Pager displays:
This indicates your system is reporting an alarm (911) due to a fault on zone 4 (0004).
Pager displays:
This indicates that your system is reporting an open/disarm (101) by user 5 (0005).
0DQXDO3DJLQJ

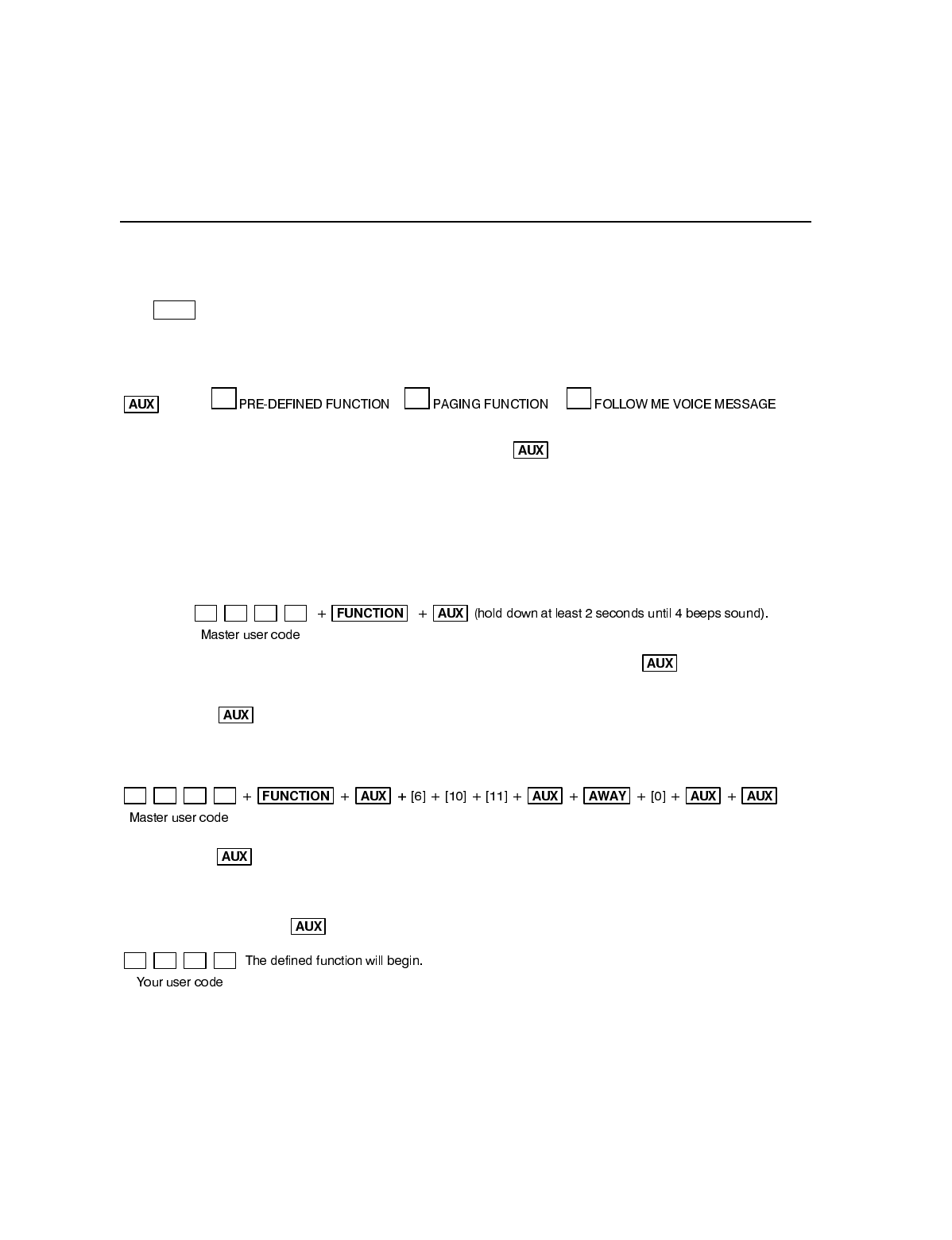

In addition, your system may have been programmed to send a unique pager message when the
key is pressed (see AUX FUNCTION section for alternate function of this key). The actual message
sent is 999-9999 (the hyphen may not appear, depending on your pager service). This code can be used
to alert the person with the pager to whatever meaning you pre-arrange (e.g., “call home”). Ask your
installer if this has been done for your system.
To manually send the pager message, if programmed:
– 21 –
86(5)81&7,216
´)ROORZ0Hµ$QQRXQFHPHQW)HDWXUH
´)ROORZ0Hµ5HPLQGHUDQG6\VWHP$QQRXQFHPHQWV
If the “Follow Me” Announcement feature has been programmed your system will automatically dial a
telephone number and deliver a voice message. The two different types of “Follow Me” messages
include system and reminder announcements.
System Announcements
LYNX can be programmed to trigger “Follow Me” system announcements by one or a combination of
the following events:
• Alarm
• Trouble
• Arming/Disarming (by a keyfob or users 5-8*)
*see Security Codes section for user code descriptions.
Ask your installer about the events that trigger “Follow Me” system announcements.
“Follow me” system announcements are delivered to a phone number that has been programmed by
your installer. The voice message is a repeatable system status message (i.e. “Disarm Ready to Arm”
when system was disarmed; “Armed Away” when system was armed; “Alarm Front Door” when an
alarm occurred, etc). In addition, a special repeatable voice message (“System, System…”) can be
triggered manually by pressing the AUX key on the keypad and holding it down for 4 seconds.
NOTE: This is similar to the manual paging feature (see Paging Feature for details).
Reminder Announcements
The “Follow me” reminder announcement is triggered by the scheduler if Reminder Announcements
has been chosen as Event Identifier (see Scheduling User interface for details).
NOTE: The “Follow me” reminder can only be used if the “Follow me” or Pager feature has been
programmed by your installer.
The “Follow me” reminder voice message is the same reminder that is played through a local speaker.
The reminder should be recorded by your installer. The “Follow me” reminder message will be
delivered to a phone number that your installer has programmed or that you can program by yourself.
If the “Follow me” reminder phone number has not been programmed, or has been deleted, the
reminder is announced through a local speaker only.
After the “Follow me” system or reminder announcement is delivered you can terminate it by pressing
any key on the telephone keypad. If the message is not acknowleged/terminated LYNXR-EN will
attempt to deliver the message and will redial the “Follow Me” telephone number a maximum of eight
times.
– 22 –
86(5)81&7,216
´)ROORZ0Hµ$QQRXQFHPHQW)HDWXUH
NOTES: (1) The “Follow Me” announcement will be terminated if any new report needs to be sent or if any key is
pressed on the LYNXR-EN keypad or a wireless (RF) keypad. The [✻] key on a wireless keypad is
ignored by the system when the “Follow me” feature is active and cannot be used to terminate the
announcement or request status.
(2) If your LYNXR-EN has been programmed to send “Follow Me” system messages upon
arming/disarming do not make any key strokes after you have disarmed the system (unless it is
necessary). Entering additional keystrokes will terminate the “Follow Me” message.

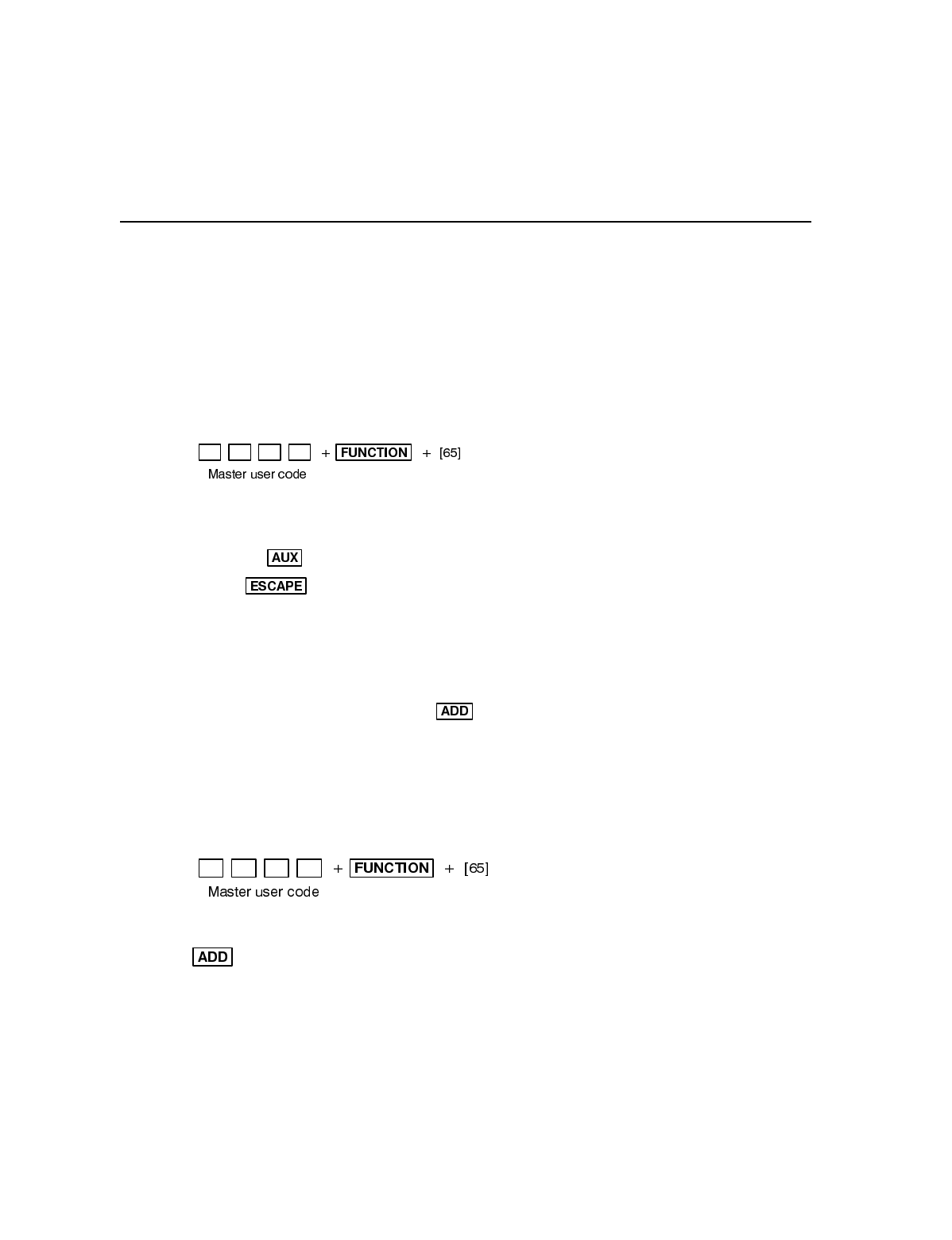

To program “Follow Me” reminder telephone number:
1. Enter:
2. The system will announce: “Enter follow me reminder phone number, press ADD to accept, press
ESCAPE to quit”.
NOTES: (1) The system will accept all digits including the star [✻], pound [#]. To insert a two (2) second pause
press the key.
(2) If the key is pressed to cancel entry, the telephone number must be entered again.
(3) Pressing any key on a wireless (RF) keypad will terminate this mode and the “Follow Me” telephone
number must be reentered.
3. Enter up to 24 digits. After each digit is entered the system will announce the digit and it will be
displayed on the LCD screen. The system will not announce star, pound or pause, however “Str,
Pnd, or PAU will be displayed on the LCD screen.
4. After you have entered the last digit press to save the number. If 24 digits have been
entered the system will automatically save the number and exit the “Follow Me” announcement
feature.
NOTE: The “Follow me” reminder telephone number can be changed as often as necessary by repeating steps 1
through 4.
To delete “Follow Me” reminder telephone number
1. Enter:
2. The system will announce: “Enter follow me reminder phone number, press ADD to accept, press
ESCAPE to quit”.
3. Press without entering any digits.
– 23 –
86(5)81&7,216
8VLQJ3RZHUOLQH&DUULHU'HYLFH&RPPDQGV
/LJKWV2Q/LJKWV2II.H\V
*HQHUDO,QIRUPDWLRQ
Powerline Carrier devices (e.g. X-10 brand devices) are programmable switches that can be used to
perform many different functions. Your system may be set up so that certain lights or other devices can
be turned on or off by using the device command from the keypad. Ask your installer if this has been
done in your system. If programmed for your system, some devices may activate automatically upon
certain system conditions. In this case, the following commands can be used to override the device
activation. See your installer for a full explanation of this feature.
To activate X-10 devices 1-6:
To deactivate X-10 devices 1-6:
To activate X-10 devices 7 & 8**:
Your user code
To deactivate X-10 devices 7 & 8**:
** Devices 7 and 8 may be assigned to system devices, such as alarm bells, which should not be
activated using this command because they are activated automatically under certain system
conditions. See your installer and the table below.
'HYLFH'HVFULSWLRQV
See your installer for device numbers assigned for your system.
Device Description
1
2
3
4
5
6
7
8
– 24 –
86(5)81&7,216
0HVVDJH5HFRUGLQJ3OD\EDFN9ROXPH&RQWURO
The LYNXR-EN Message Center allows you to record, play and delete messages. The maximum
message duration is 85 seconds.
NOTES: (1) The Record/playback functions can only be performed from the master keypad. It cannot be
performed from any other wireless keypad (ex. 5827).
(2) If the system loses electrical power, all messages will be erased.
(3) Message Play/Record will not be available if a report must be sent.
(4) Individual messages cannot be played back or deleted.

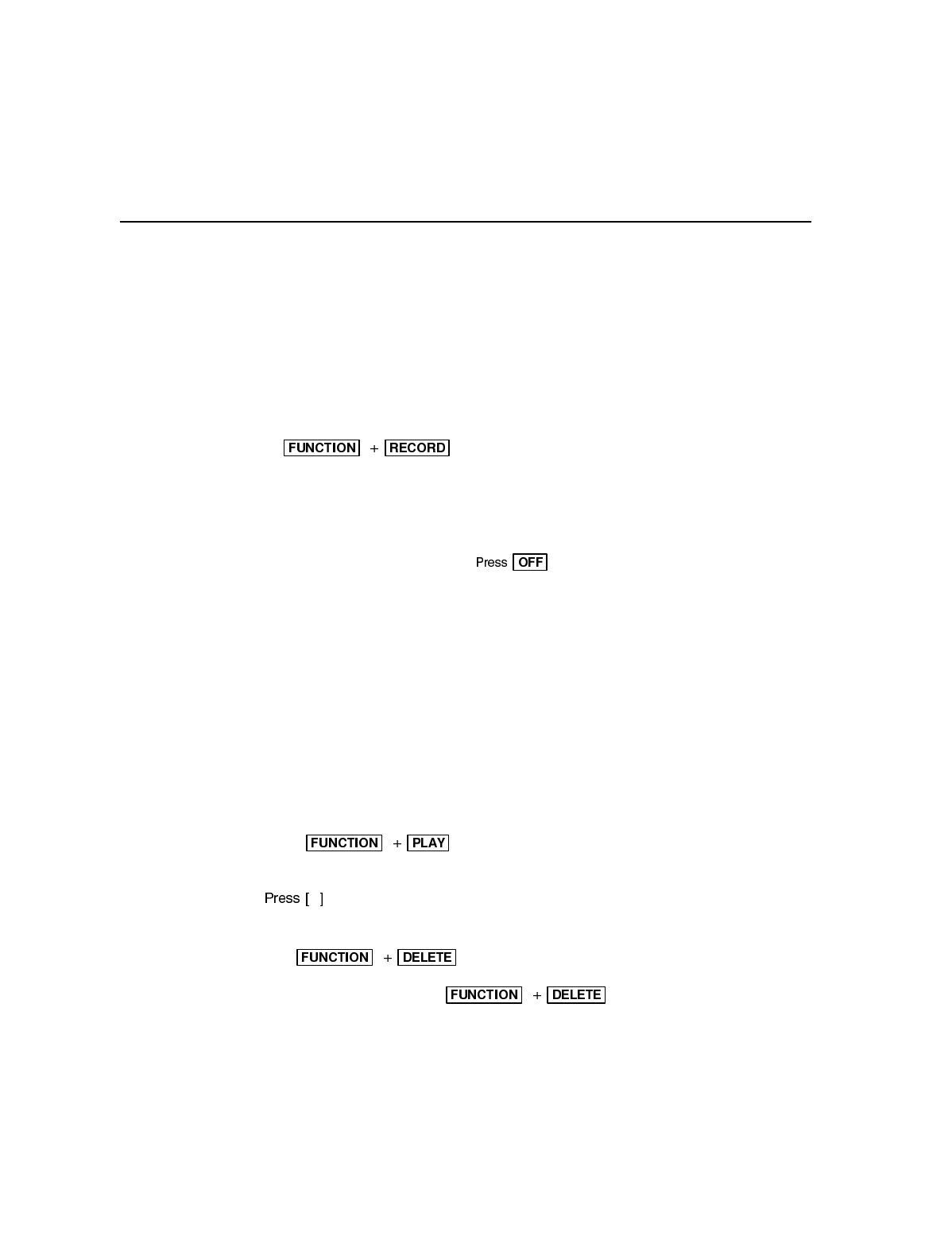

5HFRUGLQJD0HVVDJH
To record a message:
The keypad displays “REC MESSAGE.” Begin speaking into the microphone.
The recording will automatically stop after 85 seconds, if a message has been recorded. The keypad will
beep twice and “REC” will no longer be displayed. “MESSAGE” will still be displayed.
To stop recording before the end of 85 seconds:
The keypad beeps twice, the REC display turns off, but the MESSAGE display remains on.
Additional messages can be recorded, as long as there is recording time remaining, by repeating the
above steps.
NOTE: If you are trying to record a new message and the message center is already full, the system
will announce “END MESSAGE” and “REC MESSAGE” will not be displayed. If the message
center is full all old messages must be deleted before new messages can be recorded. See
Deleting Messages section.
0HVVDJH3OD\EDFN
The lighted word MESSAGE indicates that a new message is in memory. After playing the message, the
MESSAGE display turns off. See NOTE below if using a wireless keypad.
To play back a message:
All recorded messages will be announced sequentially. A short beep will sound between messages.
To skip a message: ✻
Deleting Messages
To delete all messages:
While the messages are being announced: Press
A double beep will sound confirming that the messages have been deleted.
– 25 –
86(5)81&7,216
0HVVDJH5HFRUGLQJ3OD\EDFN9ROXPH&RQWURO
$GMXVWLQJWKH9ROXPH

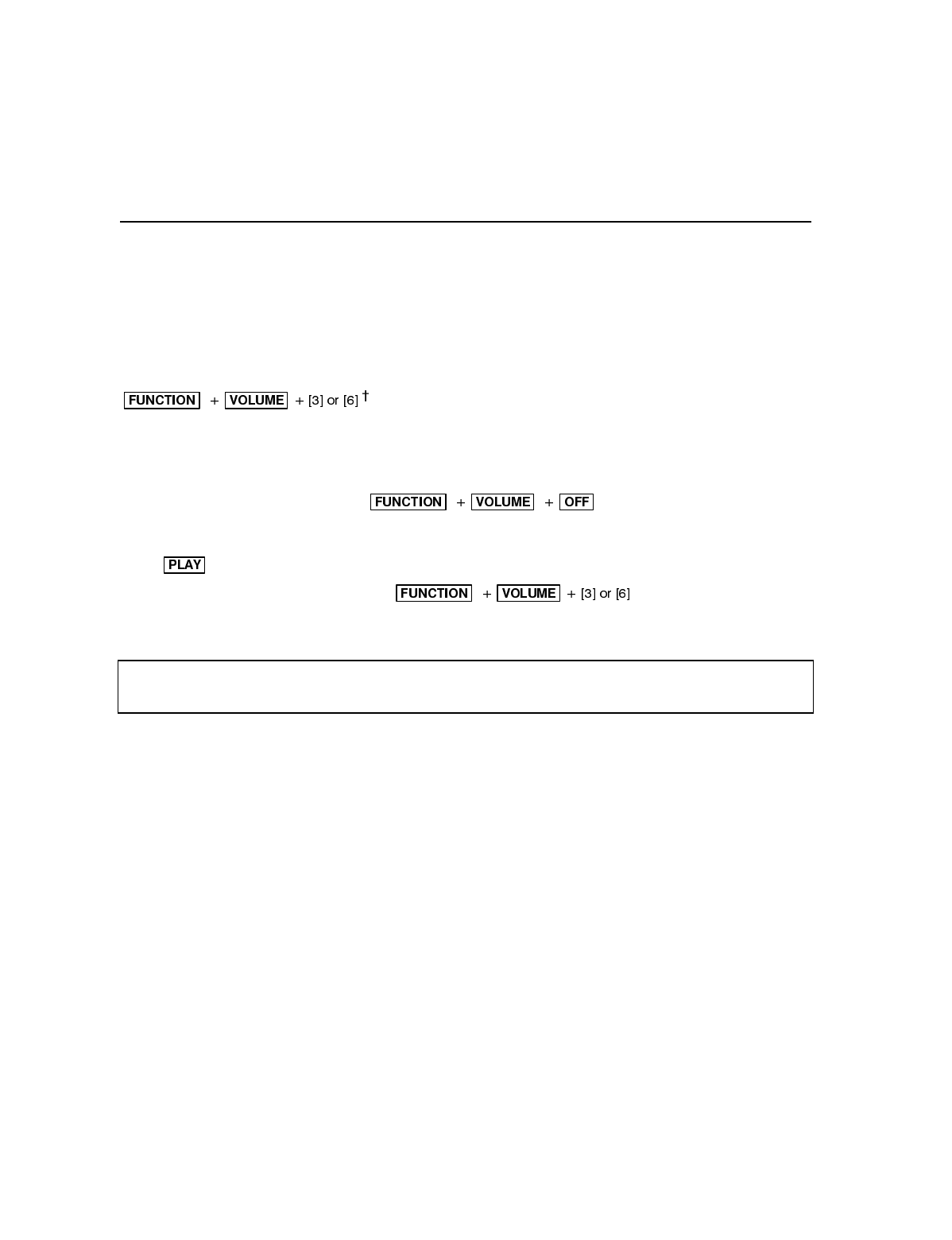

The volume level of message playback, system announcements, and status beeps can be changed. You
can also mute system announcements if desired. See NOTE below if using a wireless keypad.
To adjust message playback/system announcement volume:
† [3] = increases volume one level, [6] = decreases volume one level.
Repeat the key sequence until the desired volume level is achieved.
To mute system announcements:
When muted, no system announcements will be made. Recorded messages will be announced, though,
when is pressed.
To restore announcement sounding:
Volume level will be restored to the level that was selected prior to muting the sound.
NOTE: If a wireless keypad (5827) has been installed and is programmed for quick arming, it cannot be used to
activate message playback or adjust the volume. In this case, you must use the master keypad to perform
these functions.
– 26 –
86(5)81&7,216
$8;)XQFWLRQ
*HQHUDO,QIRUPDWLRQ
The AUX key may have been programmed to either perform a predefined function or to send a preset
message to a pager/”Follow Me” system phone number (see Pager Feature section for pager operation
or the Follow Me Announcement Feature section for “Follow Me” operation). Ask your installer which
function has been assigned for your system.
Key:

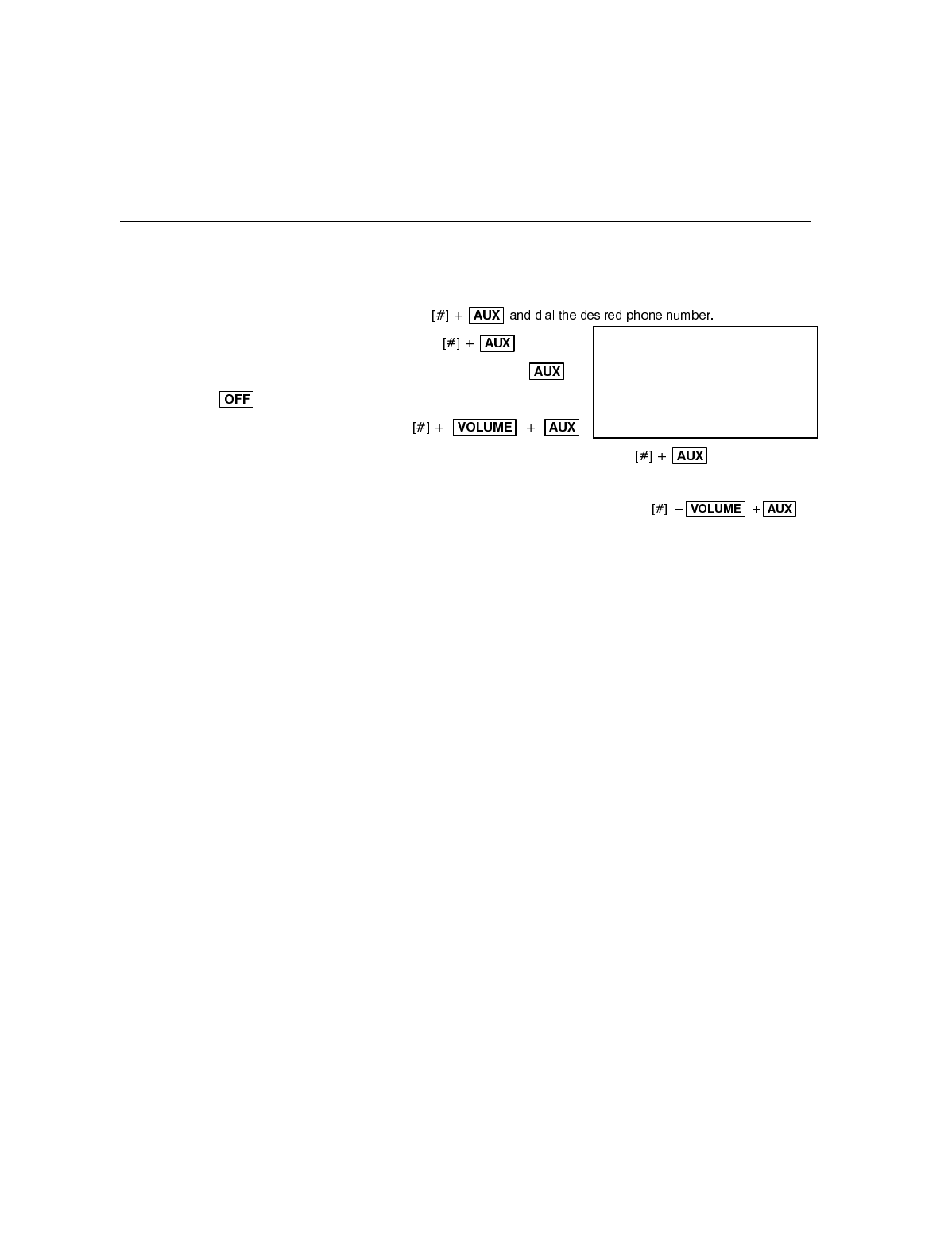

If programmed for the AUX function, you can use the key to activate a string of up to 20
keystrokes that have been stored in the system’s memory. Typical functions include:
• Seldom used but repeatable sequences
• Arming sequences that involve bypassing zones before arming
• Device activation sequences
Defining the AUX Function
The system must be disarmed before defining a function.
1. Enter
2. Press the desired command sequence, up to 20 keystrokes. Press the key between each
command in the sequence.
3. Press the key twice to end the definition.
For example, to bypass Zones 10 and 11 and arm AWAY with NO DELAY, enter the following string:
Note that the key is included in the 20 keystroke maximum.
3HUIRUPLQJWKH$8;IXQFWLRQ
Press and hold down the key (hold down at least 2 seconds until 4 beeps sound), then enter
– 27 –
86(5)81&7,216
&ORFN&DOHQGDU
Your system can display the current time (see your installer). The date is not displayed, but has an
internal function. The system must be disarmed.
To set the time and date:
The system will enter the Voice Prompt Calendar Setting mode. The [#] key can be pressed at
any time to repeat a voice prompt.
NOTES: 1. The keypad beeps twice for invalid data entries (e.g., an hour greater than 12), and the entry will not
be accepted. The keypad beeps once for valid entries.
2. Clock-Setting mode automatically ends if no keys are pressed for one minute.
3. It is not possible to enter the real time clock programming mode from a wireless keypad
4. Pressing any key on a wireless (RF) keypad terminates Clock/Calendar setup.
5. It is not possible to enter the real time clock programming mode when either FC or CA is displayed
on the display.
1. The system will announce, “Enter two-digit hour then press ADD to accept, ESCAPE to quit”.
Hour (The current hour will be displayed with the AM/PM indication.)
Enter the 2-digit hour (i.e., 01-12).
Press [ADD] to accept the entry and continue to the AM/PM selection.
Press [ESCAPE] to exit Clock/Calendar mode (keypad beeps 4 times).
2. The system will announce, “Enter one for PM, zero for AM, press ADD to accept, ESCAPE to quit”.
AM/PM (The current AM/PM setting will display A or P.)
Enter 1 for PM or 0 for AM.
Press [ADD] to accept the entry and continue to the minute selection.
Press [ESCAPE] to back up to hour selection.
3. The system will announce, “Enter two-digit minute press ADD to accept, ESCAPE to quit”.
Minute (The current minute will display.)
Enter the 2-digit minute (i.e., 00-59).
Press [ADD] to accept the entry and continue to the month selection.
Press [ESCAPE] to back up to AM/PM selection.
4. The system will announce, “Enter two-digit month press ADD to accept, ESCAPE to quit”.
Month (The current month will display.)
Enter the 2-digit month designation (i.e., 01-12).
Press [ADD] to accept the entry and continue to the day selection.
Press [ESCAPE] to back up to Minute selection.
– 28 –
86(5)81&7,216
&ORFN&DOHQGDU
5. The system will announce, “Enter two-digit day press ADD to accept, ESCAPE to quit”.
Day (The current day of the month will display.)
Enter the 2-digit day of the month (i.e., 01-31).
Press [ADD] to accept the entry and continue to the year setting.
Press [ESCAPE] to back up to Month selection.
6. The system will announce, “Enter two-digit year press ADD to accept, ESCAPE to quit”.
Year (The current year will be displayed.)
Enter the last two digits of the year (i.e., 00-99).
Press [ADD] to accept the entry and exit Clock-Setting mode (keypad beeps 4 times).
Press [ESCAPE] to back up to Day selection.
– 29 –
86(5)81&7,216

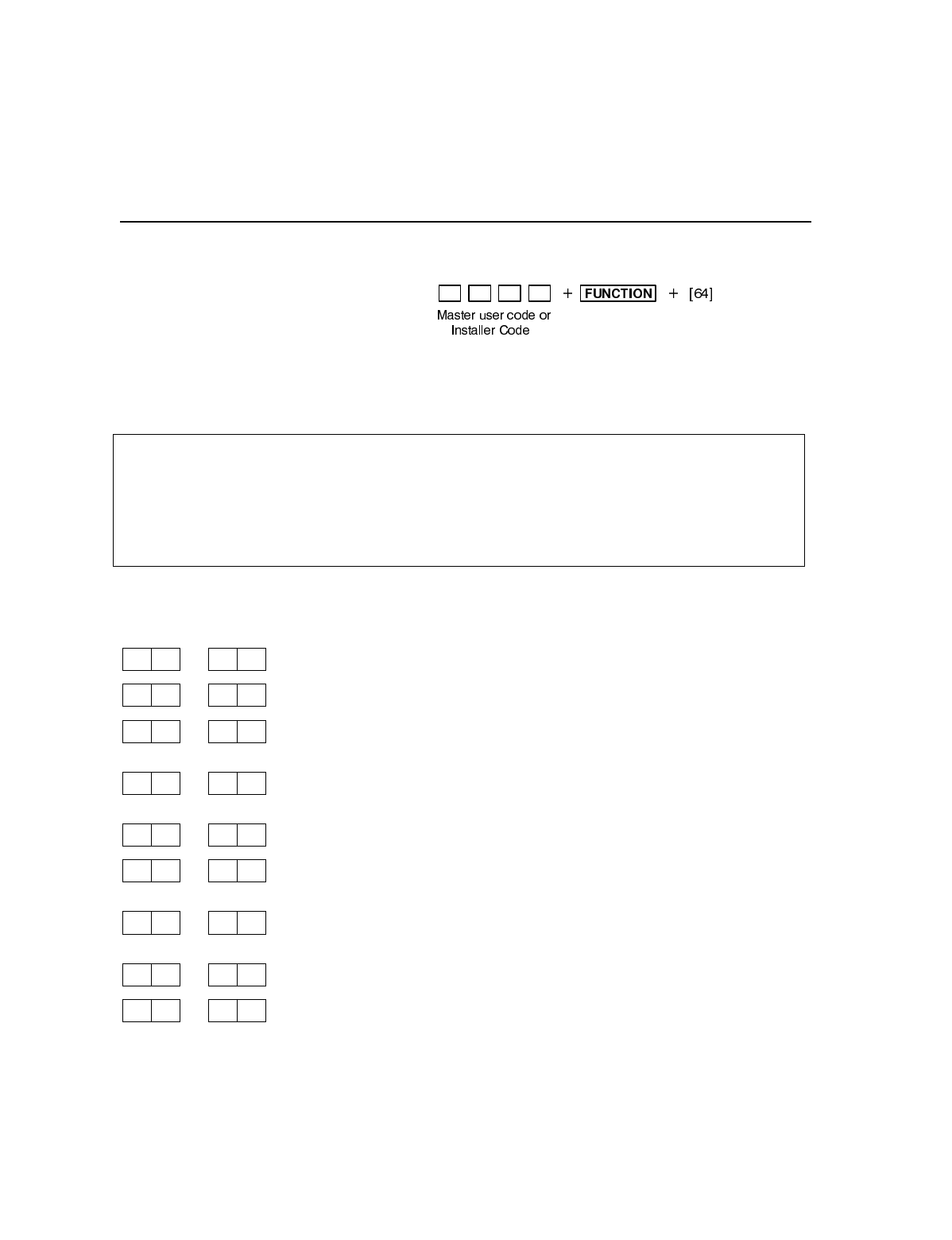

6FKHGXOLQJ8VHU,QWHUIDFH
To access the Scheduling User Interface enter:
The following entries will be sequentially prompted to the user. Note that all inputs are checked for
validity upon entry and all invalid entries are rejected. Hitting a [*] will allow the entries to be
accepted and advance to the next field. Hitting a [#] will reject the entry and back up one field. Hitting
the [#] in the “Schedule Number” screen will exit the schedule programming.
NOTES: 1. During the schedule programming, if three minutes passes and no key was entered, the
programming will be terminated and no values will be saved. Furthermore, if a zone is troubled
while in schedule programming, the system will abort the programming mode and show the
troubled zone, and any uncompleted program event will not be saved.
2. It is not possible to enter the schedule programming mode from a wireless keypad.
3. Pressing any key on a wireless (RF) keypad terminates Scheduling setup.
4. It is not possible to enter the schedule programming mode when either FC or CA is displayed on the
display.
Because the keypad display does not show prompt titles, you must refer to these instructions while
programming the system. The prompts are indicated by a number/letter combination.
The prompts for option #64 are as follows:
n Schedule number------------- for selecting a schedule number (1-8)
i d
Event identifier--------------- for selecting a schedule action (0-5)
: A b Begin time (hrs, am/pm)---- for selecting a schedule begin time (hour, am/pm)
entry (00-12)
b : Begin time (min)------------- for selecting a schedule begin time (minute)
entry (00-59)
b d

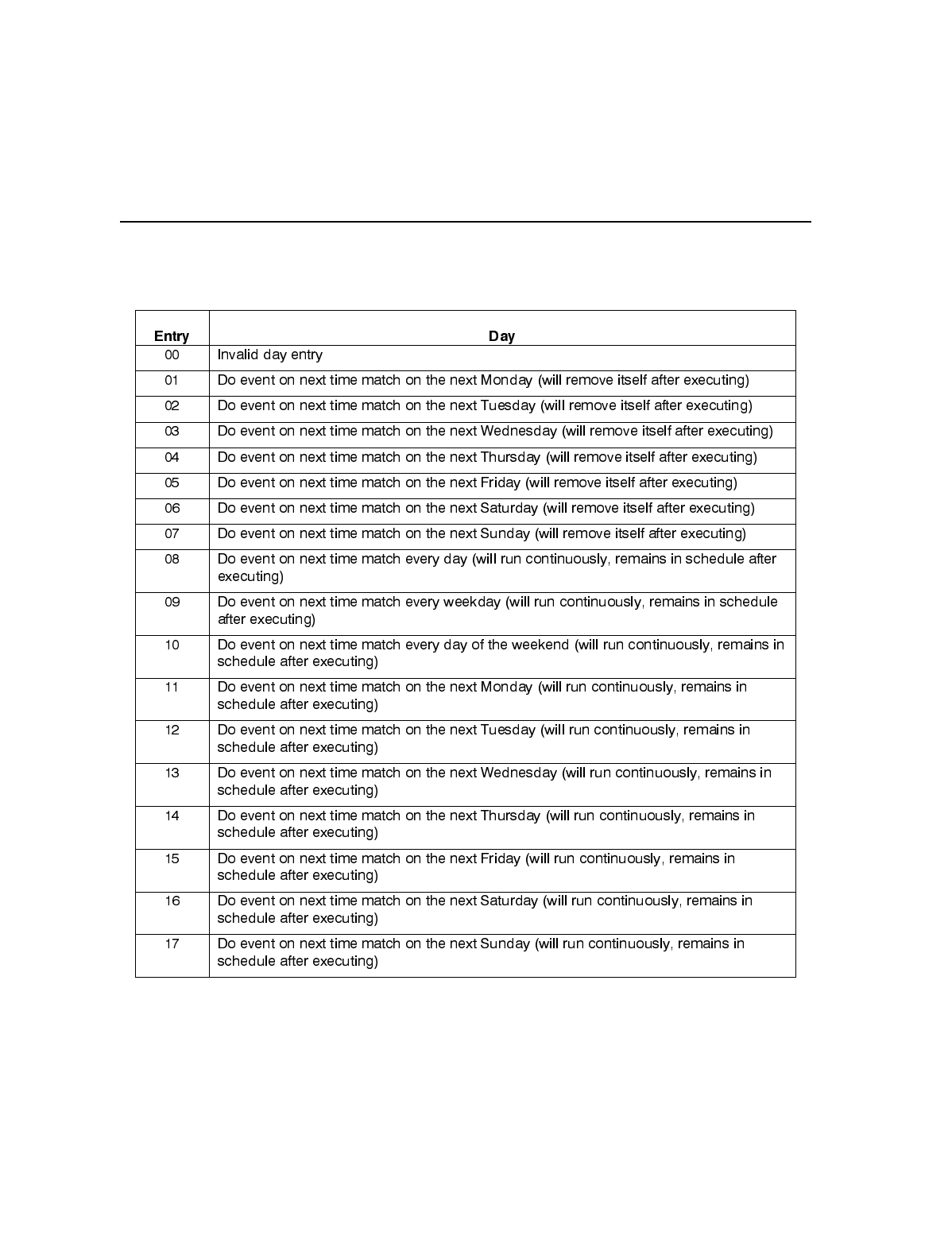

Begin day--------------------- for selecting a schedule begin day (01-17)
: A E
End time (hrs, am/pm)------ for selecting a schedule end time (hour, am/pm)
entry (00-12)
E : End time (min)--------------- for selecting a schedule end time (minute)
entry (00-59)
E d End day------------------------ for selecting a schedule end day (01-17)
d n
Device number--------------- for selecting a X-10 device number (1-8)
– 30 –
86(5)81&7,216
6FKHGXOLQJ8VHU,QWHUIDFH
NOTE: The keypad beeps twice for invalid data entries (e.g.: an hour greater than 12), and the entry will not be
accepted. The keypad beeps once for valid entries and four times when a schedule event is programmed
successfully.
[x] = the value that was last stored in the memory.
[Q
Enter the 1-digit schedule number to be programmed, then
press [*] to accept and advance to the next programming field:
Event Identifier.
• Press the [#] key in this entry will exit the schedule
programming mode. The keypad will beep four times and
exit.
• Schedule number 7 and 8 are always random events that
are meant to work only with X-10 devices.
NOTE: This feature should be implemented when the user is
trying to give the impression that a premises is “lived in”.
The events will occur at random times (0-59 minutes)
within the defined hour.

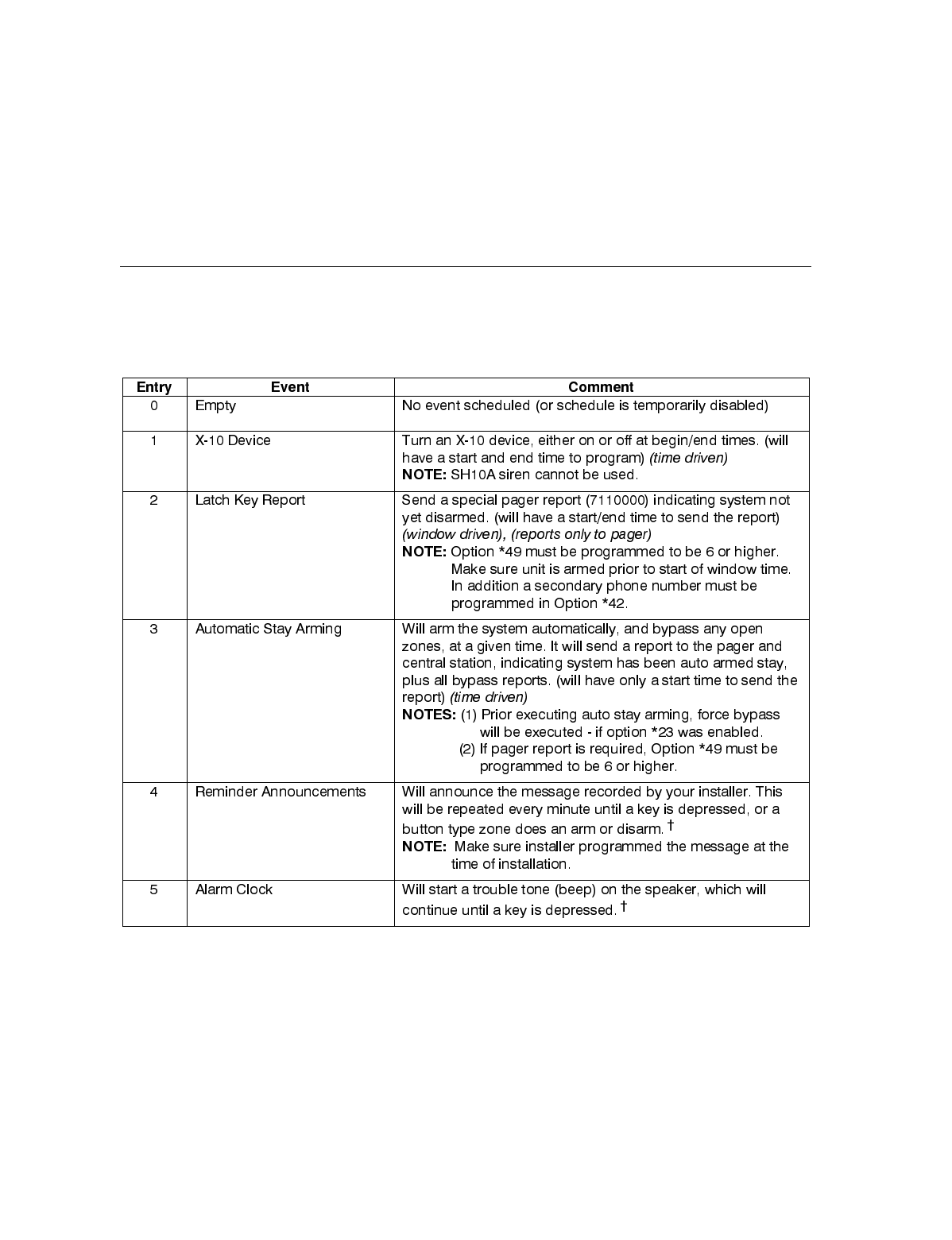

[LG
0 = Empty - no event scheduled (or schedule temporarily
disabled. Keypad will beep four times and return to
Schedule Number with the schedule number advanced.
1 = X-10 Device - the user is required to enter data up to and
include the Device Number screen. Selection #1 is a time
driven event that requires a begin and end time.
2 = Latch Key Report - the user is required to enter data up
to and include the End Day screen. Selection #2 is a window
driven event that requires a begin/end time.
3 = Automatic Stay Arming - the user is required to enter
data up to and include the Begin Day screen. Selection #3 is
a time driven event that requires a begin time to send a
report.
4 = Reminder Announcements - the user is required to enter
data up to and include the Begin Day screen. This is a
reminder announcement.
5 = Alarm Clock - the user is required to enter the field
values up to and include the Begin Day screen. This is a an
alarm clock.
NOTES: (1) See figure 1 for an explanation of each entry of the
event identifier.
(2) If “Follow me” reminder telephone number is
programmed, the reminder announcement is also
delivered to that number.
[[$E
• The begin hour is a two-digit entry. To enter the hour 3,
press “0” followed by “3”.
• The begin hour “00” indicates this schedule does not have
a begin time.
• Press “0” to select AM or “1” to select PM.
NOTE: When programming schedule number 7 and 8, do not
program turn on/off to occur within the same 1-hour
period. This will prevent this random feature from
causing a reversal of the on/off times.
– 31 –
86(5)81&7,216
6FKHGXOLQJ8VHU,QWHUIDFH
E[[
[[EG
• If the value programmed in the Event Identifier is “3”,
“4”, or “5”, and the current entry is completed, the
system will save all field data up to this field. The
system will beep four times and go back to the first field
(Schedule Number) with the schedule number
advanced.
• If the value programmed in the Event Identifier is “1”
or “2”, and the current entry is completed, the system
will advanced to the next programming field - End Time
(hour).
NOTE: See figure 2 for the definition of begin day entries.
[[$(
End Time (hour)
[xx] = end hour 00 to 12
[*] = continue
[#] = return to previous prompt
End Time (am/pm)
[0] = end time, am (A)
[1] = end time, pm (P)
[*] = continue
[#] = return to previous prompt
• The end hour is a two-digit entry. To enter the hour 3,
press “0” followed by “3”.
• The end hour “00” indicates this schedule does not have
a end time.
• Press “0” to select AM or “1” to select PM.
( [[
End Time (minute)
[xx] = end minute 0 to 59
[*] = continue
[#] = return to previous prompt
[[(G
End Day
[xx] = end day 01 to 17
[*] = continue
[#] = return to previous prompt
NOTE: See figure 2 for the definition of end day entries.
• If the event identifier is set to “2” upon completion of
this field, the current schedule data will be saved and
the system will go back to the next schedule number.
[GQ
Device Number
[xx] = device number 1 to 8
[*] = continue
[#] = return to previous prompt
[*] will accept and save the entire schedule event. The
system will beep four times and go back to the beginning
of the programming field (Schedule Number) with the
schedule number advanced. If the current schedule
number is 8, the system will wrap around and set the
schedule number to 1.
NOTE: For X-10 devices.
– 32 –
86(5)81&7,216
6FKHGXOLQJ8VHU,QWHUIDFH
(YHQW,GHQWLILHU(QWULHV
)LJXUH
– 33 –
86(5)81&7,216
6FKHGXOLQJ8VHU,QWHUIDFH
'D\RI:HHN(QWULHV
)LJXUH
– 34 –
86(5)81&7,216
5HPRWH3KRQH&RQWURO)HDWXUH
The LYNXR-Series is equipped with a remote interactive phone capability that permits access to the
security system from any off-site touch-tone telephone using all user codes. If this feature has been
programmed, the system will provide the appropriate voice messages and any system beeping sounds
indicating the status of the security system over the phone line. (Refer to Summary of Audible
Notification for further information.) The following functions can be performed from any remote touch-
tone telephone:
• Disarm the system.
• Arm the system in STAY or AWAY mode.
• Activate or deactivate X-10 devices.
• Bypass zones.
• Check system status.
The remote access session will be aborted if:
• A report must be sent.
• Any local or wireless key entry (e.g. 5827), except [*], is made.
• User Code is not entered within eight (8) seconds of call pickup (during the “system…..system
announcement).
• No keys are depressed for a period of 15 seconds and while no announcement has been made by
the system. Any remote key entry will, however extend this timeout back to 15 seconds.
It will not be possible to begin a remote access session if:
• A report must be sent
• The system is in any Test mode.
• During real time clock setting.
• During scheduling setup.
• Panel is in shutdown mode (programmed by your installer).
• Panel is in Macro learning mode.
• Remote phone control feature has not been enabled by your installer.
NOTE: If a remote phone session is not granted by the system, for any of the reasons identified above, a modem
tone will be generated before the end of the session.
8VLQJ5HPRWH3KRQH&RQWURO)HDWXUH
Dial the controls’s phone number. If no answering machine is present, the control will pick up between
1 and 14 rings, depending on the number programmed by your installer and will periodically announce
“SYSTEM”. During a remote phone control session “PC” will be displayed on the control.
Enter:
The system status will be announced. Enter phone control commands as described on the next page:
If an answering machine is on the premises, you need to dial the premises and hang up on the first
ring. Wait at least five (5) seconds (but no more than 22 seconds) and dial the premises phone number
again. The control will pick up and periodically announce “SYSTEM”.
NOTE
(1) All voice announcements on the phone line will
also be announced on the local speaker, unless
the system has been placed in the mute mode.
(2) Entry/Exit beeps will be terminated if you
enter the remote phone access mode.
– 35 –
86(5)81&7,216
5HPRWH3KRQH&RQWURO)HDWXUH
Enter:
Upon entering remote phone control mode the Lynx will announce “System, enter code”.
Remote Phone Control Commands
To remotely disarm system:
To remotely arm in AWAY mode:
To remotely arm in STAY mode:
To remotely arm in AWAY or STAY mode with no delay:
To remotely activate X-10 devices 1-6:
To remotely activate X-10 devices 7 & 8:
To remotely deactivate X-10 devices 1-6:
To remotely deactivate X-10 devices 7 & 8:
To remotely Bypass zones:
To remotely activate Forced Bypass:
To remotely check system status: [*]
To end remote phone session:
NOTES: (1) Check with your installer to see if the Forced Bypass mode has been enabled.
(2) When bypassing zones, make sure a confirmation beep sounds for each zone that has been bypassed.
– 36 –
86(5)81&7,216
6SHDNHU3KRQH)HDWXUH
If this feature has been programmed the LYNXR-EN is capable of operating as a speaker phone.
During speaker phone operation the system will provide the following functions:
• All function/event processing will continue to operate, but there will be no announcements.
• The ARMED (red) and READY (green) LEDs will alternately blink.
• “PH” will be displayed.
NOTE: The system will enter the Speaker phone mode even if an alarm or trouble is stored in the system memory.
Although “PH” may not appear, the LEDs will alternately blink indicating you are currently in the
Speaker Phone mode.
!
The system will not enter speaker phone mode and LYNXR-EN will not ring if:
• The feature has not been programmed.
• A report is being sent.
• An audible alarm is present.
• An announcement is being made or a recorded message is being played back.
• A message is being recorded.
• If the system is in test or sniffer mode.
• AC power is not present
The speaker phone will be aborted if:
• A report must be sent.
• An audible alarm or trouble has ocurred.
• AC power is lost.
8VLQJWKH6SHDNHU3KRQH)HDWXUH
When the LYNXR-EN is operating in the speaker phone mode the system keypad functions as a
telephone keypad and the only security keypad functions that will remain enabled are the panic keys
and the speaker volume control. (refer to Volume Adjustment section) You may adjust the volume
before entering speaker phone mode or after dialing the desired number. In the speaker phone mode, if
a zone is violated and has triggered an entry/exit delay, the system will automatically change the
keypad from telephone to security mode. This allows the user to disarm the system or take other
appropriate actions in the security mode without interrupting the telephone session. To regain
telephone keypad control (i.e.: to enter an account number or menu selection) you will need to
reactivate the telephone keypad.
– 37 –
86(5)81&7,216
6SHDNHU3KRQH)HDWXUH
LYNXR-EN Speaker Phone Functions
To place a call using the Speaker Phone:
To answer a call using the Speaker Phone:
To flash (switch between two calls using call waiting):
To hang up:
To activate/deactivate (toggle) ringer:
To return the keypad to telephone mode after disarming the system:
NOTES: (1) The speaker phone ringer can only be enabled/disabled when the speaker phone mode is not active.
The system will ring once to confirm the ringer is enabled. Entering a
second time will disable the ringer. No ring will confirm that the ringer is disabled.
(2) The speaker phone ringer will not ring when an alarm, trouble or entry/exit delay are sounding.
(3) The LYNXR-EN speaker phone does not provide a “hold” feature.
NOTE
If you are using pulse (rotary)
dialing, make sure that LYNXR-
EN has finished dialing the last
digit you dialed, (listen to pulses)
before dialing the next digit.
– 38 –

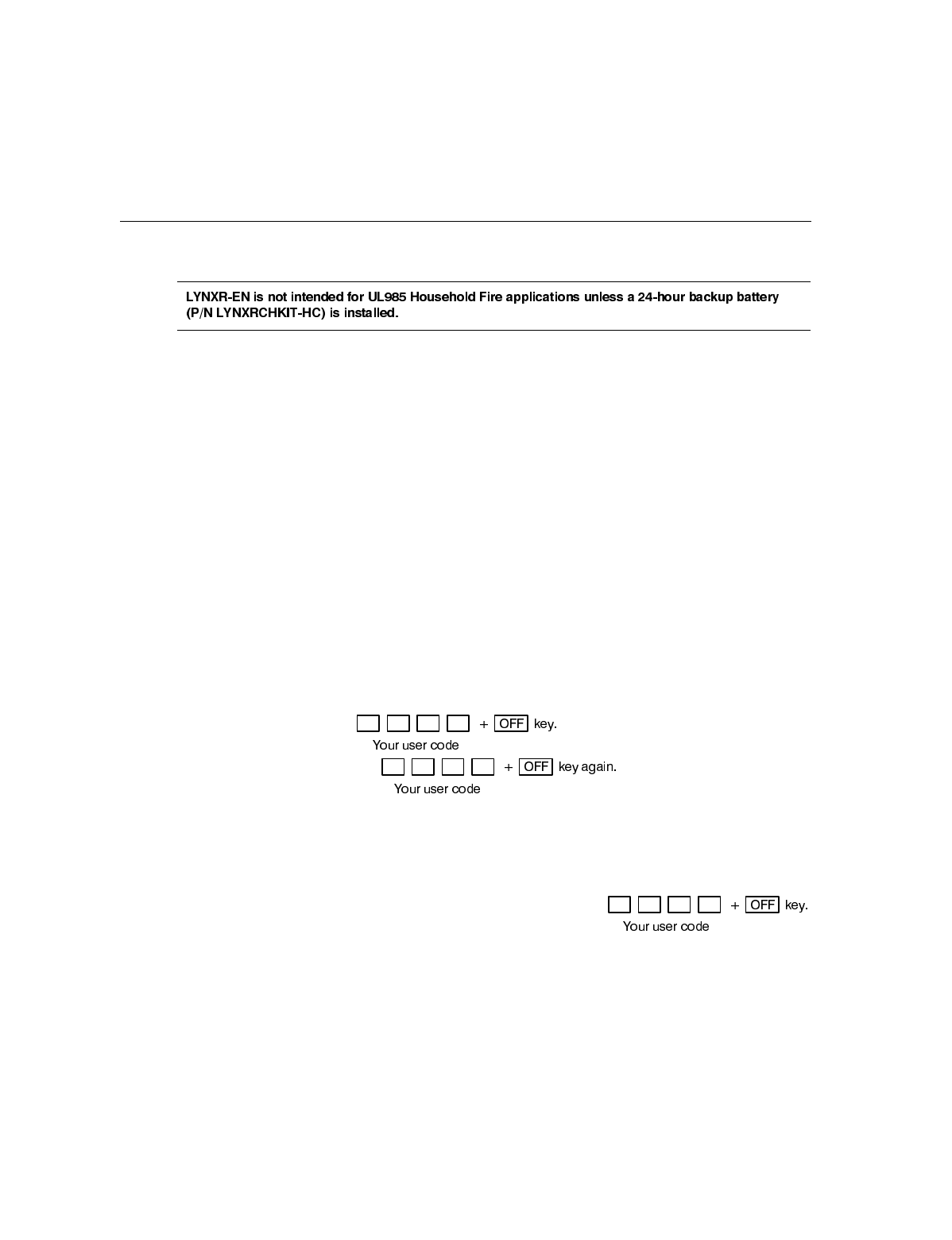

),5($/$506<67(0,I,QVWDOOHG
*HQHUDO,QIRUPDWLRQ
8/
*HQHUDO
Your fire alarm system (if installed) is active 24 hours a day, providing continuous protection. In the
event of an emergency, the installed smoke and heat detectors will automatically activate your security
system, triggering a loud, intermittent sound from the keypad. An intermittent sound will also be
produced by optional exterior sounders, and interlaced with the voice descriptor, sounding every 15
seconds. A “FIRE” message will appear at your keypad and remain on until you silence and clear the
alarm display.
,Q&DVHRI)LUH
1. Should you become aware of a fire emergency before your detectors sense the problem, go to your
nearest keypad and press the single panic key (or panic key pair) assigned as FIRE emergency (if
programmed by the installer) and hold down for at least 2 seconds. The alarm will sound.
2. Evacuate all occupants from the premises.
3. If flames and/or smoke are present, leave the premises and notify your local Fire Department
immediately.
4. If no flames or smoke are apparent, investigate the cause of the alarm. The zone number of the
zone(s) in an alarm condition will appear at the keypad.
6LOHQFLQJD)LUH$ODUP
1. Silence the alarm by entering:
To clear the alarm display, enter:
2. If the keypad indicates a trouble condition after the second OFF sequence, check that smoke
detectors are not responding to smoke- or heat-producing objects in their vicinity. Should this be
the case, eliminate the source of heat or smoke.
3. If this does not remedy the problem, there may still be smoke in the detector. Clear it by fanning
the detector for about 30 seconds.
4. When the problem has been corrected, clear the display by entering:
– 39 –
),5($/$506<67(0

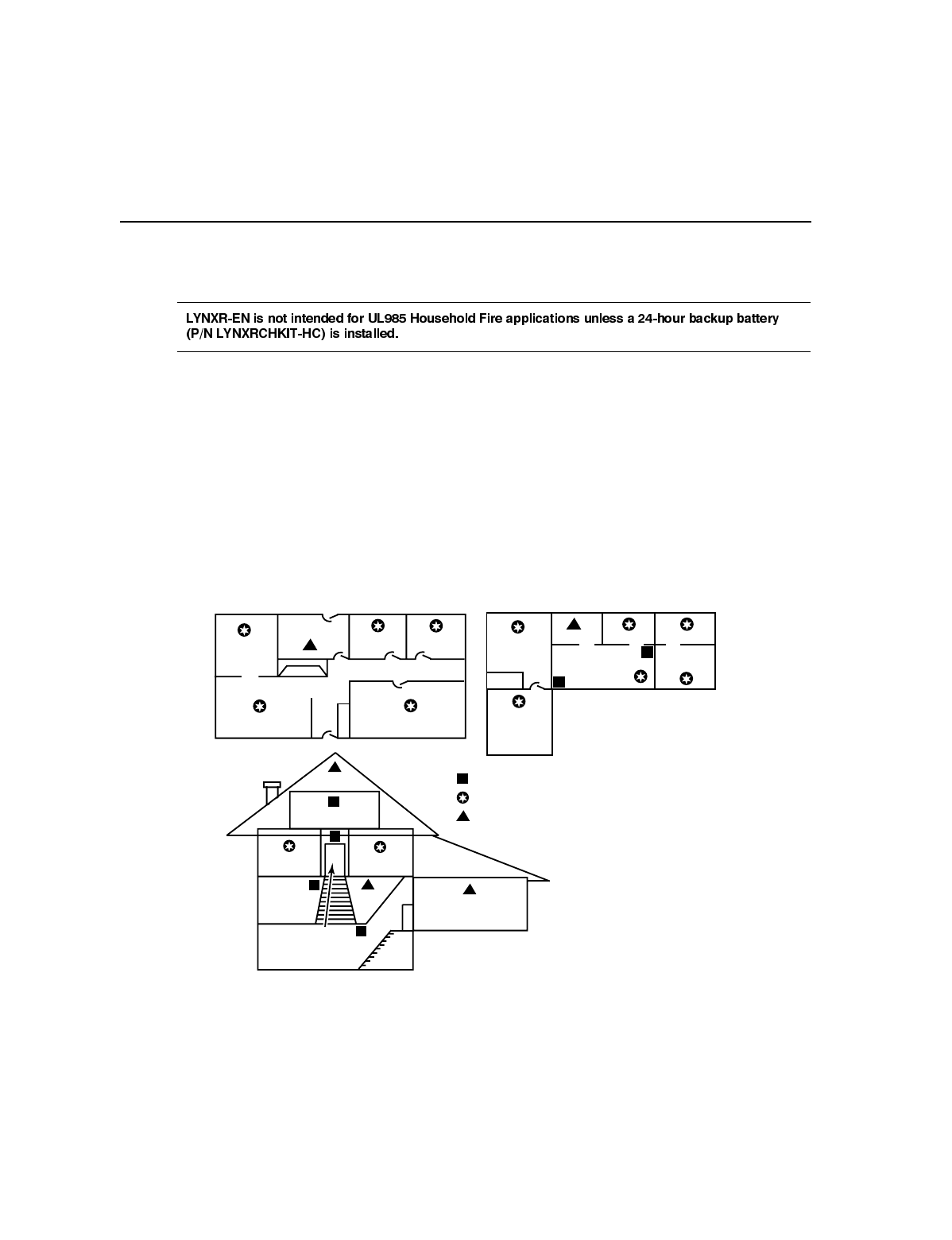

1DWLRQDO)LUH3URWHFWLRQ$VVRFLDWLRQ·V
6PRNH'HWHFWRU5HFRPPHQGDWLRQV
8/
With regard to the number and placement of smoke and heat detectors, we subscribe to the
recommendations contained in the National Fire Protection Association's (NFPA) Standard #74 noted
below.
Early warning fire detection is best achieved by the installation of fire detection equipment in all
rooms and areas of the household. The equipment should be installed as follows: A smoke detector
installed outside of each separate sleeping area, in the immediate vicinity of the bedrooms and on each
additional story of the family living unit, including basements and excluding crawl spaces and
unfinished attics.
In addition, the NFPA recommends that you install heat or smoke detectors in the living room, dining
room, bedroom(s), kitchen, hallway(s), attic, furnace room, utility and storage rooms, basements and
attached garages.
DINING
KITCHEN
BEDROOM
BEDROOM
.
Smoke Detectors for Minimum Protection
Smoke Detectors for Additional Protection
Heat-Activated Detectors
BEDROOMBEDROOM
BEDROOM
BEDROOM
LIVING
ROOM
TV ROOM
DINING
LIVING ROOM
LIVING ROOM
BASEMENT
BEDROOMBEDROOM
BEDROOM
CLOSED
DOOR
GARAGE
KTCHN
KITCHEN
TO
BEDROOM
01000-002-V0
– 40 –
),5($/$506<67(0
(PHUJHQF\(YDFXDWLRQ
8/
Establish and regularly practice a plan of escape in the event of fire. The following steps are
recommended by the National Fire Protection Association:
1. Position your detector or your interior and/or exterior sounders
so that they can be heard by all occupants.
2. Determine two means of escape from each room. One path of
escape should lead to the door that permits normal exit from
the building. The other should be an alternative escape, such
as a window, should your path to that door be unpassable.
Station an escape ladder at such windows if there is a long
drop to the ground.
3. Sketch a floor plan of the building. Show windows, doors,
stairs and rooftops that can be used to escape. Indicate escape
routes for each room. Keep these routes free from obstruction
and post copies of the escape routes in every room.
4. Assure that all bedroom doors are shut while you are asleep.
This will prevent deadly smoke from entering while you
escape.
5. Try the door. If the door is hot, check your alternate escape
route. If the door is cool, open it cautiously. Be prepared to
slam the door if smoke or heat rushes in.
6. When smoke is present, crawl on the ground. Do not walk
upright, since smoke rises and may overcome you. Clearer air
is near the floor.
7. Escape quickly; don't panic.
8. Establish a place outdoors, away from your house, where
everyone can meet and then take steps to contact the
authorities and account for those missing. Choose someone to
assure that nobody returns to the house — many die going
back.
2nd FLOOR
BACK
FRONT
01000-023-V0
BATH
CLOSET
BEDROOM
BEDROOM
BEDROOM
1st FLOOR
BATH
KITCHEN
BEDROOM
BEDROOM
PORCH
BACK DOOR
– 41 –
6<67(0)81&7,216
6HFXULW\&RGHV
*HQHUDO,QIRUPDWLRQ
For additional security you (the Master User Code) can assign secondary user codes to individual users
enabling them to perform specific system functions. These secondary users are identified by "user
numbers" when their codes are assigned. You can assign up to 6 user codes (2-digit user numbers 03-
08). Note that the master user is the only one who can assign codes to secondary users, and is
designated user no. 02; user no. 01 is the Installer’s code.
All codes can be used interchangeably when performing system functions (a system armed with one
user's code can be disarmed by another user's code), with the exception of the Babysitter Code
described below.
Babysitter Code (User 07): This code can be used to arm the system, but cannot disarm the system
unless the system was armed with this code. This code is typically assigned to someone (such as a
babysitter) who needs to arm/disarm the system only at certain times. The Babysitter Code is assigned
to User 07.
Duress Code (User 08): This feature is intended for use when you are forced to disarm or arm the
system under threat. When used, the system will act normally, but can silently notify the alarm
monitoring company of your situation, if that service has been provided. Duress Code is assigned to
User 08.
The Duress Code is useful only when the system is connected to an alarm monitoring
company.
7R$GG'HOHWHD8VHURU&KDQJHD8VHUV&RGH
Changing the Master User Code
Follow the procedure for changing a user's code, but enter User No. 02 and enter the new code twice.
IMPORTANT: Temporary users of the system (e.g., babysitters, cleaning staff) should not be shown
how to use any system function they do not need to know, such as bypassing protection zones for
example.
Sequential key depressions for all steps in a procedure must be made within 2 seconds of one another,
or else the entire entry is aborted and must be repeated from its beginning.
Add a user code:
Delete a user code:
Wait (about 3 seconds) until the keypad beeps once before pressing any other key. The code is
automatically deleted.
– 42 –
6<67(0)81&7,216
7HVWLQJWKH6\VWHPWREHFRQGXFWHGZHHNO\
(QWHULQJ7HVW0RGH
The key puts your system into the Test mode, which allows each protection point to be checked
for proper operation. The keypad sounds a single beep every 45 seconds as a reminder that the system
is in the Test mode.
NOTE: An alarm message will not be sent to your alarm monitoring company during the following tests.
Disarm the system and close all protected windows, doors, etc. The “READY” indicator should be lit.
Enter:
WATCH. All LCD segments will light for 3 seconds.
LISTEN. The external sounder should sound for 2 seconds and then turn off. If the sounder does not
sound, notify your service company.
FAULT ZONES. Open each protected door and window in turn and listen for three beeps from the
keypad, followed by the zone’s Voice Descriptor, if it is programmed. Identification of each faulted
protection point should appear on the display. The display will clear when the door or window is closed.
Walk in front of any interior motion detectors (if used) and listen for three beeps and/or voice
descriptors, if programmed. The identification of the detector should appear on the display when it is
activated, and its voice descriptor will be announced (if programmed). The display will clear when no
motion is detected. Note that if wireless motion detectors are used, there is a 3-minute delay between
activations. This is to conserve battery life.
To test all smoke detectors, follow the manufacturer's instructions. The identification of each detector
should appear on the display when each is activated.
If a problem is experienced with any protection point (no confirming sounds, no display), notify your
service company.
When all protection points have been checked and are intact (closed), there should be no zone
identification numbers displayed on the keypad.
([LW7HVW0RGH
When testing is completed, exit the TEST mode by entering:
NOTES: (1) If the Test mode is inadvertently left active, it automatically turns off after 4 hours.
(2) Macros cannot be run from the Test mode.
– 43 –
6<67(0)81&7,216
7URXEOH0HVVDJHV
7\SLFDO7URXEOH&RQGLWLRQ'LVSOD\V
To silence the beeping sound for fault conditions, press any key.
FAULT Indicates that a problem exists with the zone(s) displayed, accompanied by rapid
beeping. First, determine if the zone(s) displayed are intact and make them so if they are
not. If the zone uses a wireless detector, check that changes in the room (moving
furniture, televisions, etc.) are not blocking wireless signals from the detector. If the
problem has been corrected, the zone descriptor(s) and FAULT should disappear from
the display. If not, key an OFF sequence (security code plus OFF) to clear the display. A
fault condition can also indicate a wiring problem. If the “FAULT” display persists, notify
your service company. Note that the system will not allow arming if a fault condition
exists. To arm the system with a fault condition present, you must first bypass the
zone(s) having the fault condition.
FC Indicates that a failure has occurred in the telephone communication portion of your
system or a problem with the phone line existed when dialing was attempted.†
CC Indicates that the control is on-line with the central station's remote computer. The
control will not operate while on-line. Wait a few minutes. The display should
disappear.
dI If this remains displayed for more than 1 minute, the system is disabled.†
CA Indicates a cancelled alarm. See Entry/Exit Delay section
EA Indicates an exit alarm. See Entry/Exit Delay section.
90 Indicates that the system has detected an RF jam condition or excessive interference. If
the condition persists, notify your service company.
LOW BAT Accompanied by a once-per 45 seconds beeping at the keypad, indicates a low system
(no zone no.) battery condition exists. Refer to the Changing the LYNXR-EN System Battery section.†
LOW BAT Accompanied by a once-per-45 seconds beeping at the keypad, indicates a low battery
(with zone no.) condition exists in the wireless transmitter displayed.†
LOW BAT Accompanied by a once-per-45 seconds beeping at the keypad, indicates a low battery
(with zone 00) condition exists in a wireless keypad.†
† Notify your service company.
5RXWLQH&DUH
• Treat the components of your security system as you would any other electrical equipment. Do not
slam sensor-protected doors or windows.
• Keep dust from accumulating on the keypad and all protective sensors, particularly on motion
sensors and smoke detectors.
• The keypad and sensors should be cleaned carefully with a dry soft cloth. Do not spray water or
any other fluid on the units.
– 44 –
6<67(0)81&7,216
0DLQWDLQLQJ\RXUV\VWHP
The components of your security system are designed to be as maintenance-free as possible. To make
sure that your system is in working condition, do the following:
1. Test your system weekly.
2. Test your system after any alarm occurs (see the TESTING THE SYSTEM section).
/RZ%DWWHU\&RQGLWLRQVLQ:LUHOHVV6HQVRUV
Each wireless sensor in your system has a 9-volt or 3-volt battery. The system detects low battery
conditions in wireless sensors, including smoke detectors, personal emergency transmitter, and the
portable wireless keypad, and displays a “LOW BAT” message on the master keypad, which also beeps.
A low battery in a wireless keypad is detected as soon as one of its keys is pressed, and the master
keypad (e.g. Ademco 5827) will display “00”. In addition, a wireless smoke detector with a low battery
also emits a "chirp" sound approximately once every 20–30 seconds, identifying itself as the smoke
detector with the weak battery.
NOTE: A low battery message means that battery replacement in the indicated sensor(s) is due within 30 days.
In the meantime, a sensor with a low battery is still operational.
To silence Low Battery Warning Tones at the Keypad: Press the key.
The low battery message display will remain on as a reminder. When you replace the weak battery
with a fresh one, the sensor will send a "good battery" signal to the control when the sensor is activated
(opening/closing of door, window, etc.).
To clear the “LOW BAT” message enter:
When replacing batteries, use only those recommended by your installer.
Alkaline batteries provide a minimum of 1 year of operation, and in most units and applications, provide 2–4 years of
service. 3-volt lithium batteries may provide from 4-7 years of operation. Actual battery life will depend on the
environment in which the sensor is used, the number of signals that the transmitter in the sensor has had to send, and
the specific type of sensor. Factors such as humidity, high or low temperatures, and large swings in temperature may all
lead to the reduction of actual battery life in an installation.
&KDQJLQJWKH/<1;5(16\VWHP%DWWHU\
In the event of an AC power loss, the LYNXR-EN is powered by a rechargeable, nickel-metal hydride
battery pack. The battery pack should be replaced when a “LOW BAT” message with no zone number
is displayed.
NOTE: The battery pack (P/N LYNXRCHKIT-SC or LYNXRCHKIT-HC) should be changed every four
years and must be replaced by a qualified service technician.
Following battery pack replacement, rechargeable batteries may take up to 48 hours to charge. The
“LOW BAT” message may be displayed after one minute, however it should clear within 4 hours or by
entering Test Mode.
– 45 –

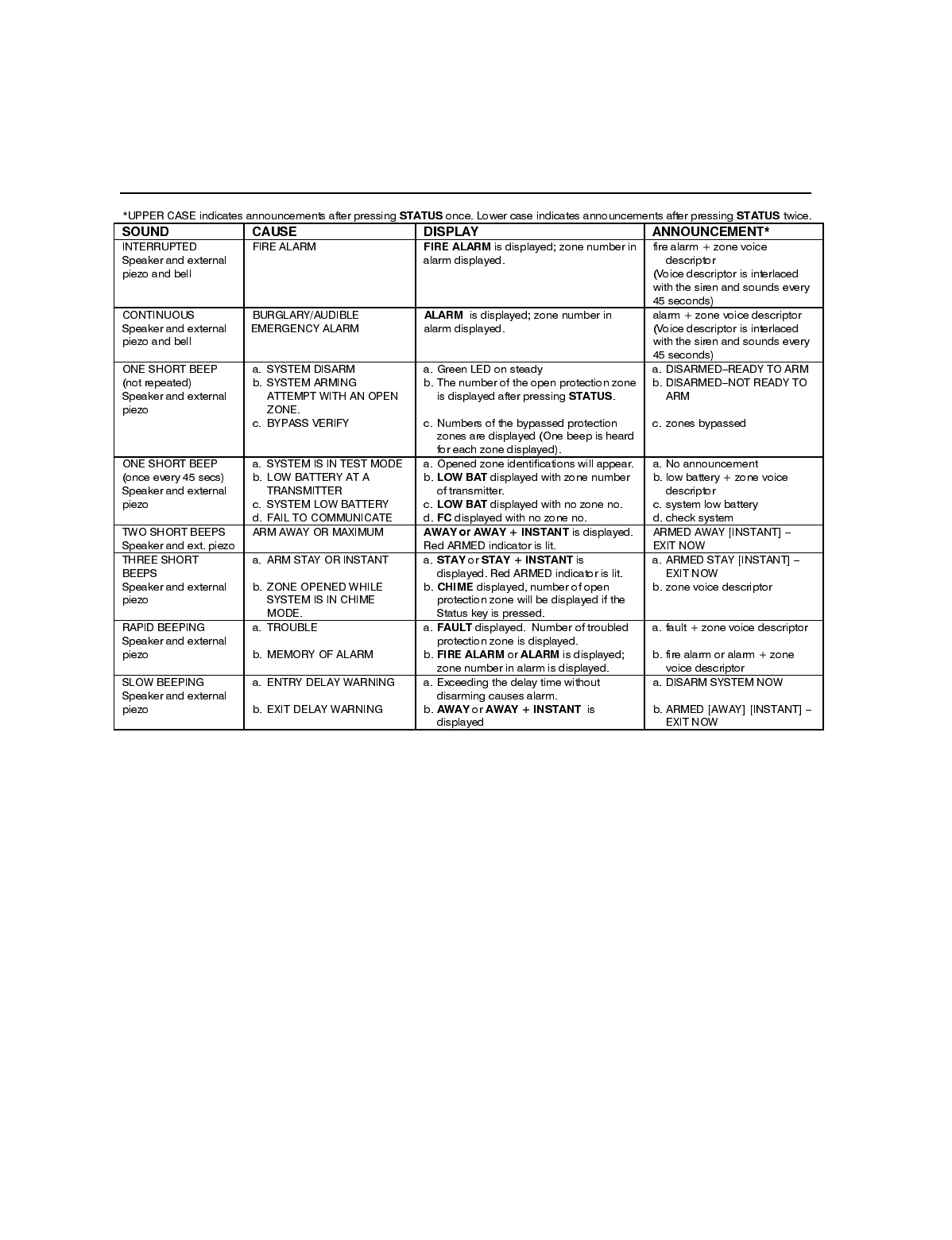

6XPPDU\2I$XGLEOH1RWLILFDWLRQ
Additional Announcements:
Pressing STATUS key once will announce the following primary messages, depending on the system’s status at the
time:
Disarmed–Ready to Arm [check system]
Disarmed [not ready to arm]
Armed [away] [stay] [instant] [check system] [exit now]
Pressing the STATUS key twice will announce the following secondary messages, depending on the system’s status at
the time:
Fire Alarm + zone voice descriptor Fault + zone voice descriptor Zones Bypassed
Alarm + zone voice descriptor Low Battery + zone voice descriptor System Low Battery
Fire Fault + zone voice descriptor Chime AC Loss
NOTE: If there are no secondary messages, the primary status messages will be announced.
LED Meanings
ARMED LED: ON = System armed
(Red) OFF = System disarmed
Blinking = System armed, but a fault exists or
once per second when AVM (VOX or Talk) or
speaker phone mode is active.
READY LED: ON = System disarmed, ready to arm
(Green) Blinking = System disarmed, not ready to arm
(a fault exists) or once per second when AVM
(VOX or Talk) or speaker phone mode is active.
NOTE: When the system is armed, the READY LED turns off.
– 46 –
8/127,&(7KLVLVD*UDGH$UHVLGHQWLDOV\VWHP
– 47 –
,17+((9(172)7(/(3+21(23(5$7,21$/352%/(06
In the event of telephone operational problems, disconnect the control by removing the plug from the
RJ31X (CA38A in Canada) telephone wall jack. We recommend that your certified installer
demonstrate disconnecting the phones on installation of the system. Do not disconnect the phone
connection inside the control/communicator. Doing so will result in the loss of your phone lines. If the
regular phone works correctly after the control/communicator has been disconnected from the phone
lines, the control/communicator has a problem and should be returned for repair. If upon disconnection
of the control/communicator, there is still a problem on the line, notify the telephone company that
they have a problem and request prompt repair service. The user may not under any circumstances (in
or out of warranty) attempt any service or repairs to the system. It must be returned to the factory or
an authorized service agency for all repairs.
– 48 –
SERVICING INFORMATION
Your local ADEMCO dealer is the person best qualified to service your alarm
system. Arranging some kind of regular service program with him is
advisable.
Your local ADEMCO dealer is:
Name:
Address:
Phone:
– 49 –
OWNER'S INSURANCE PREMIUM CREDIT REQUEST
This form should be completed and forwarded to your homeowner's insurance carrier for possible premium credit.
A. GENERAL INFORMATION:
Insured's Name and Address:
Insurance Company: Policy No.:
ADEMCO LYNXR-EN ______________________________________ Other
Type of Alarm: Burglary Fire Both
Installed by: Serviced by:
Name Name
Address Address
B. NOTIFIES (Insert B = Burglary, F = Fire)
Local Sounding Device Police Dept. Fire Dept.
Central Station Name:_______________________________________________________________________________
Address:
Phone:
C. POWERED BY: A.C. With Rechargeable Power Supply
D. TESTING: Quarterly Monthly Weekly Other
(continued on other side)
– 50 –
OWNER'S INSURANCE PREMIUM CREDIT REQUEST (cont.)
E. SMOKE DETECTOR LOCATIONS
Furnace Room Kitchen Bedrooms Attic
Basement Living Room Dining Room Hall
F. BURGLARY DETECTING DEVICE LOCATIONS:
Front Door Basement Door Rear Door All Exterior Doors
1st Floor Windows All Windows Interior Locations
All Accessible Openings, Including Skylights, Air Conditioners and Vents
G. ADDITIONAL PERTINENT INFORMATION:
Signature: Date:
– 51 –
,1'(;
A
AC...................................................................12
Adjusting the volume ....................................25
Alarm .........................................................5, 12
Alarm monitoring company ..........................19
Armed indicator.............................................10
Audible emergency/audible alarm ................19
Aux function...............................................8, 26
Aux key function..............................................4
Away...............................................................12
Away mode.......................................5, 7, 14, 15
B
Babysitter code ..............................................41
Battery ...........................................................44
Battery conditions .........................................44
Battery pack...................................................44
Begin day .......................................................31
Begin time................................................30, 31
Burglary protection .........................................5
Bypass ............................................................12
Bypass a zone.............................................7, 18
CA message display.......................................16
CC message display.......................................43
Central monitoring station .............................6
Chime .............................................................12
Chime mode .......................................5, 7, 9, 19
Clock/calendar .........................................27, 28
D
Day of week entries .......................................33
Device activation .............................................3
Device descriptions........................................23
Device number ...............................................31
Di message display ........................................43
Disarm..............................................................7
Disarming the system ...................................17
Display definitions.........................................12
Displaying bypassed zones............................18
Duress code ....................................................41
E
EA message display...................................... 16
Emergency evacuation.................................. 40
End day ......................................................... 31
End time........................................................ 31
Entry delay................................................ 5, 16
Event entries................................................. 32
Event identifier............................................. 30
Exit alarms.................................................... 16
Exit delay ...................................................... 16
F
Fault ........................................................ 12, 43
FC message display ...................................... 43
Features ...................................................... 3, 4
Fire ................................................................ 12
Fire alarm system......................................... 38
Fire protection ................................................ 5
Forced bypass................................................ 18
"Follow Me" announcement feature............. 22
H
Hardwire ....................................................... 30
I
Instant........................................................... 12
Internal sounder ........................................... 11
L
Low bat.............................................. 12, 43, 44
M
Manual paging .............................................. 20
Master code ................................................... 41
Master keypad ...................................... 3, 9, 10
Master user ............................................... 5, 41
Master user code........................................... 41
Memory of alarm........................................... 17
Message......................................................... 12
Message center............................................ 3, 7
Message playback ......................................... 24
Microphone.................................................... 11
No delay .................................................... 7, 15
– 52 –
P
Pager ..........................................................8, 26
Pager Code .....................................................20
Paging feature .................................3, 20, 2, 26
Panic key....................................................3, 19
Personal emergency/aux. alarm....................19
Phone access feature ...............................34, 36
Phone control ...................................................4
Play back a message........................................7
Powerline carrier device commands .............23
Q
Quick arm ............................................7, 14, 15
R
Ready indicator........................................10, 17
Ready LED.....................................................18
Ready light.....................................................13
Real-time clock.................................................3
REC ................................................................12
Rechargeable, nickel-metal hydride battery
pack ...........................................................44
Record.............................................................11
Record a message.......................................7, 24
Remote interactive phone capability ............34
Restart exit delay ......................................7, 14
RF jam condition ...........................................43
S
Schedule number...........................................30
Scheduling......................................................29
Security codes ........................................4, 5, 41
Security functions............................................7
Servicing information....................................53
Silence alarm .................................................17
Silencing a fire alarm ....................................38
Silencing low battery warning tones ............44
Silent emergency/silent alarm ......................19
Smoke detectors...............................................5
Speaker ..........................................................11
Speaker phone feature ............................36, 37
Status .......................................................13, 45
Stay ................................................................12
Stay mode.........................................5, 7, 14, 15
Stop recording..................................................7
Supervised fire alarm....................................19
System battery...............................................44
T
Test................................................................ 12
Test mode .................................................. 8, 42
Time and date ................................................. 8
Trouble messages ......................................... 43
Two-way voice ............................................. 4, 6
U
User code................................................... 5, 41
Using powerline carrier device commands.... 3
V
Voice announcement....................................... 3
Voice dialog ..................................................... 6
Volume .......................................................... 11
Volume adjustment ........................................ 7
Volume level.................................................. 13
W
Wireless keypads ............................................ 3
Wireless sensors ........................................... 44
Z
Zone number ................................................. 30
Zones ............................................................... 5
– 53 –
WARNING!
THE LIMITATIONS OF THIS ALARM SYSTEM
While this system is an advanced design security system, it does not offer guaranteed protection against burglary or fire or other
emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of
reasons. For example:
• Intruders may gain access through unprotected openings or have the technical sophistication to bypass an alarm sensor or
disconnect an alarm warning device.
• Intrusion detectors (e.g. passive infrared detectors), smoke detectors, and many other sensing devices will not work without
power. Battery operated devices will not work without batteries, with dead batteries, or if the batteries are not put in properly.
Devices powered solely by AC will not work if their AC power supply is cut off for any reason, however briefly.
• Signals sent by wireless transmitters may be blocked or reflected by metal before they reach the alarm receiver. Even if the
signal path has been recently checked during a weekly test, blockage can occur if a metal object is moved into the path.
• A user may not be able to reach a panic or emergency button quickly enough.
• While smoke detectors have played a key role in reducing residential fire deaths in the United States, they may not activate or
provide early warning for a variety of reasons in as many as 35% of all fires, according to data published by the Federal
Emergency Management Agency. Some of the reasons smoke detectors used in conjunction with this System may not work are
as follows. Smoke detectors may have been improperly installed and positioned. Smoke detectors may not sense fires that start
where smoke cannot reach the detectors, such as in chimneys, in walls, or roofs, or on the other side of closed doors. Smoke
detectors also may not sense a fire on another level of a residence or building. A second floor detector, for example, may not
sense a first floor or basement fire. Moreover, smoke detectors have sensing limitations. No smoke detector can sense every kind
of fire every time. In general, detectors may not always warn about fires caused by carelessness and safety hazards like smoking
in bed, violent explosions, escaping gas, improper storage of flammable materials, overloaded electrical circuits, children playing
with matches, or arson. Depending upon the nature of the fire and/or the locations of the smoke detectors, the detector, even if it
operates as anticipated, may not provide sufficient warning to allow all occupants to escape in time to prevent injury or death.
• Passive Infrared Motion Detectors can only detect intrusion within the designed ranges as diagrammed in their installation
manual. Passive Infrared Detectors do not provide volumetric area protection. They do create multiple beams of protection, and
intrusion can only be detected in unobstructed areas covered by those beams. They cannot detect motion or intrusion that takes
place behind walls, ceilings, floors, closed doors, glass partitions, glass doors, or windows. Mechanical tampering, masking,
painting or spraying of any material on the mirrors, windows or any part of the optical system can reduce their detection ability.
Passive Infrared Detectors sense changes in temperature; however, as the ambient temperature of protected area approaches
the temperature range of 90° to 105°F, the detection performance can decrease.
• Alarm warning devices such as sirens, bells or horns may not alert people or wake up sleepers if they are located on the other
side of closed or partly open doors. If warning devices sound on a different level of the residence from the bedrooms, then they
are less likely to waken or alert people inside the bedrooms. Even persons who are awake may not hear the warning if the alarm
is muffled from a stereo, radio, air conditioner or other appliance, or by passing traffic. Finally, alarm warning devices, however
loud, may not warn hearing-impaired people or waken deep sleepers.
• Telephone lines needed to transmit alarm signals from a premises to a central monitoring station may be out of service or
temporarily out of service. Telephone lines are also subject to compromise by sophisticated intruders.
• Even if the system responds to the emergency as intended, however, occupants may have insufficient time to protect themselves
from the emergency situation. In the case of a monitored alarm system, authorities may not respond appropriately.
• This equipment, like other electrical devices, is subject to component failure. Even though this equipment is designed to last as
long as 10 years, the electronic components could fail at any time.
The most common cause of an alarm system not functioning when an intrusion or fire occurs is inadequate maintenance. This
alarm system should be tested weekly to make sure all sensors and transmitters are working properly.
Installing an alarm system may make one eligible for lower insurance rates, but an alarm system is not a substitute for insurance.
Homeowners, property owners and renters should continue to act prudently in protecting themselves and continue to insure their
lives and property.
We continue to develop new and improved protection devices. Users of alarm systems owe it to themselves and their loved ones to
learn about these developments.
– 54 –
ONE YEAR LIMITED WARRANTY
Honeywell International Inc., acting through its Security & Custom Electronics business ("Seller"), 165
Eileen Way, Syosset, New York 11791, warrants its security equipment (the "product") to be free from
defects in materials and workmanship for one year from date of original purchase, under normal use
and service. Seller's obligation is limited to repairing or replacing, at its option, free of charge for parts,
labor, or transportation, any product proven to be defective in materials or workmanship under normal
use and service. Seller shall have no obligation under this warranty or otherwise if the product is
altered or improperly repaired or serviced by anyone other than the Seller. In case of defect, contact
the security professional who installed and maintains your security equipment or the Seller for product
repair.
This one year Limited Warranty is in lieu of all other express warranties, obligations or liabilities.
THERE ARE NO EXPRESS WARRANTIES, WHICH EXTEND BEYOND THE FACE HEREOF. ANY
IMPLIED WARRANTIES, OBLIGATIONS OR LIABILITIES MADE BY SELLER IN CONNECTION
WITH THIS PRODUCT, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR
FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, ARE LIMITED IN DURATION TO A
PERIOD OF ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. ANY ACTION FOR
BREACH OF ANY WARRANTY, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY
OF MERCHANTABILITY, MUST BE BROUGHT WITHIN 12 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL SELLER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR
IMPLIED, OR UPON ANY OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE LOSS OR
DAMAGE IS CAUSED BY THE SELLER'S OWN NEGLIGENCE OR FAULT. Some states do not allow
limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
Seller does not represent that the product may not be compromised or circumvented; that the product
will prevent any personal injury or property loss by burglary, robbery, fire or otherwise; or that the
product will in all cases provide adequate warning or protection. Buyer understands that a properly
installed and maintained alarm may only reduce the risk of a burglary, robbery, fire or other events
occurring without providing an alarm, but it is not insurance or a guarantee that such will not occur or
that there will be no personal injury or property loss as a result. CONSEQUENTLY, SELLER SHALL
HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS
BASED ON A CLAIM THE PRODUCT FAILED TO GIVE WARNING. HOWEVER, IF SELLER IS
HELD LIABLE, WHETHER DIRECTLY OR INDIRECTLY, FOR ANY LOSS OR DAMAGE ARISING
UNDER THIS LIMITED WARRANTY OR OTHERWISE, REGARDLESS OF CAUSE OR ORIGIN,
SELLER'S MAXIMUM LIABILITY SHALL NOT IN ANY CASE EXCEED THE PURCHASE PRICE
OF THE PRODUCT, WHICH SHALL BE THE COMPLETE AND EXCLUSIVE REMEDY AGAINST
SELLER. This warranty gives you specific legal rights, and you may also have other rights, which vary
from state to state. No increase or alteration, written or verbal, to this warranty is authorized.
– 55 –
127(6
i.9Rl
K5964V3 5/04 Rev. A
165 Eileen Way, Syosset, New York 11791
Copyright © 2004 Honeywell International Inc.
www.honeywell.com/security
