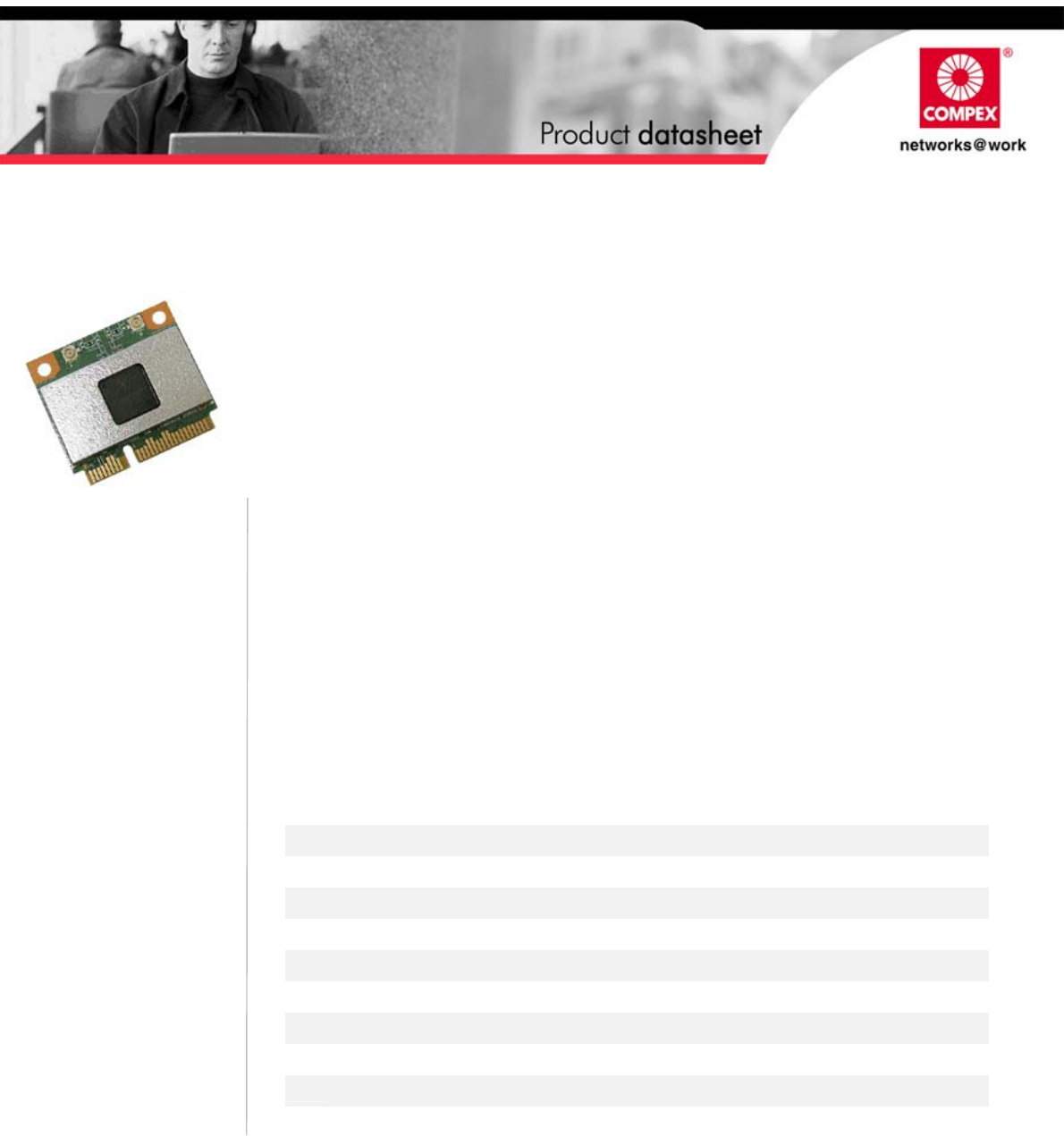

WLE200N2 is an 802.11n Single-Band wireless mini pci express Half
Mini Card based on Atheros AR9287 chipset. It supports 2T2R (2-
stream) function, which provides maximum data rate up to
300Mbps and improves the overall Wi-Fi coverage area.
Secure Wireless Connection
This Mini PCIe wireless card, WLE200N2, incorporated advanced
security encryption, such as WPA, and WPA2, to help prevent users’
devices from malicious attacks.
Half PCIe MINI CARD
WLE200N2
WIRELESS-BGN 2 x 2 NETWORK MINIPCIE ADAPTER
Features
• Atheros HB97 reference design
• IEEE 802.11n compliant and backward compatible with 802.11b/g
• 2.4GHz Single-band 2 x 2 MIMO spatial multiplexing technique
• Output Power up to 16dBm
• Supports up to 300Mbps physical data rates
• Multi-Country Roaming Supported
• 2 x U.FL Antenna Connector
• Complaint with PCI-Express Mini Card 1.1 Standard
• Enhanced wireless security: WEP, WPA, WPA2
• Support Windows XP/ Vista, Win 7, Android by request
Ordering Informaion①
Model Code Chipset Form Factor CARD INFORMATIONS
WLE200N2 6A0000 AR9287 Half Size 802.11 b/g/n PCIe mini card
c Configurations are subject to change without notice
Please contact Compex sales representatives for other available configurations
Technical Specifications
Chipset AR9287
Host Interface PCI–Express 1.1 Standard
Operating
Voltage DC 3.3 V±9%
Power
Consumption Continue TX 570mA
Continue Rx 530mA
Antenna
Connector 2 x U.FL Antenna Connector
Output Power
(2T)
802.11b: 16dBm ± 1.5dBm@11Mbps
802.11g: 11dBm ± 1.5dBm@54Mbps
802.11gn HT20: 12dBm ± 1.5dBm@MCS7
802.11gn HT40: 11dBm ± 1.5dBm@MCS7
Receive Sensitivity
(2R)
802.11b: -88dBm ± 2dBm@11Mbps
802.11g: -70dBm ± 2dBm@54Mbps
802.11gn HT20: -67dBm ± 2dBm@MCS7
802.11gn HT40: -65dBm ± 2dBm@MCS7
IEEE 802.11b : 11Mbps 5.5Mbps 2Mbps 1Mbps
54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps automatically
IEEE 802.11g : Fallback to 5.5Mbps, 2Mbps, 1Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
20MHZ 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Standards
IEEE 802.11n : 40MHz 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
Frequency
Range IEEE 802.11b/g/n: 2.412GHz ~ 2.484GHz (Japan)
Modulation
Techniques OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Environment
Specifications Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity 5% to 95% (non-condensing)
Weight ≤9g
Dimension 30mm x 26.8mm x 3.45mm

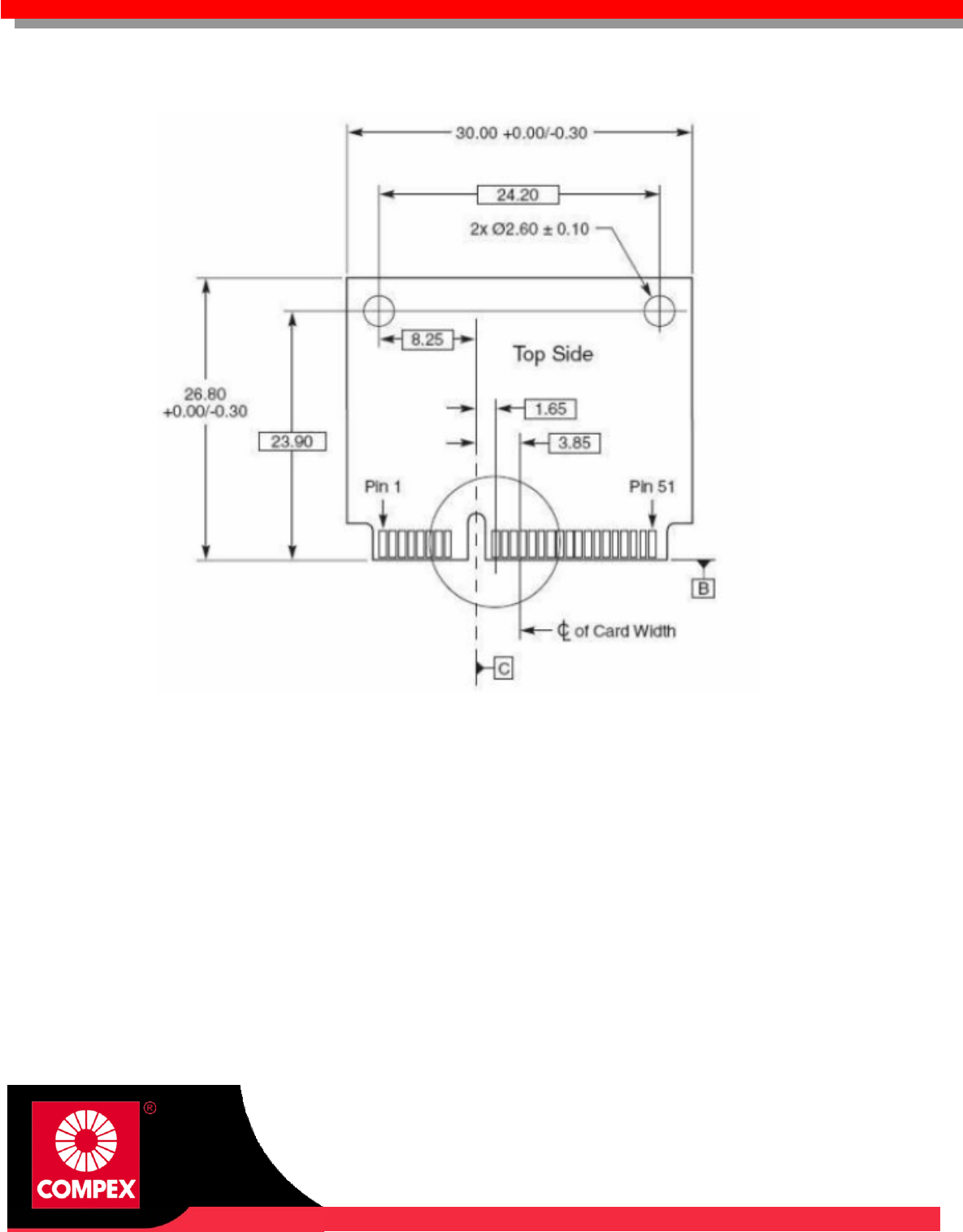

DIMENSIONS DRAWING
Compex Systems Pte Ltd Compex (Suzhou) Co. Ltd
135 Joo Seng Road, PM Industrial Building #08-01,
Singapore 368363
Tel: (65) 6286 2086
Fax: (65) 6280-9947
Email: sales@compex.com.sg
No. 12, ChuangTou Industrial Square, LouFeng North, Suzhou
Industrial Park, Suzhou, Jiangsu Province, China 21122
Tel: (86)-512-62950031
Fax: (86)-512-62950032
Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc.
Atheros and other trademarks are properties of their respective owners.
While every effort is made to ensure the information accurate, Compex does not accept liability for any errors or mistakes that may
arise. All specification is subject to change without notice. DS: V1.0.1 Alex 120823
For more information, visit www.compex.com.sg
IC Radiation Exposure Statement for Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent is otropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain
de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
User manuals for transmitters equipped with detachable antennas shall also contain the
following notice in a conspicuous location:
This radio transmitter (identify the device by certification number, or model number if
Category II) has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each antenna
type indicated. Antenna types not included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son
numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste,ou dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.

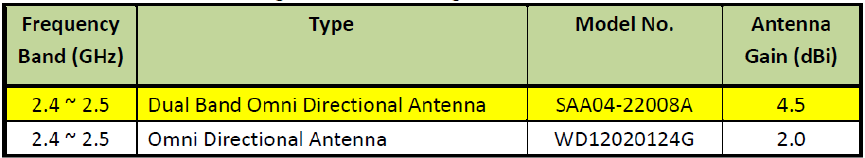

Frequency Band
(GHz)
Type
Model No.
Antenna
Gain (dBi)
2.4 ~ 2.5
Dual Band Omni Directional Antenna
SAA04-22008A
4.5
2.4 ~ 2.5
Omni Directional Antenna
WD12020124G
2.0
The antenna(s) used for this transmitter must be installed to provide a separation distance of
at least 20cm from all persons.
If the module installed in the host device. The antenna(s) used for this host device must be
installed to provide a separation distance of at least 20cm from all persons.
The host device shall be properly labelled to identify the modules within the host device.
The Industry Canada certification label of a module shall be clearly visible at all times when
installed in the host device, otherwise the host device must be labelled to display the Industry
Canada certification number of the module, preceded by the words “Contains transmitter
module”, or the word “Contains”, or similar wording expressing the same meaning, as follows:
Contains transmitter module IC: 7849A-WLE200N2
