User Manual
1
Home

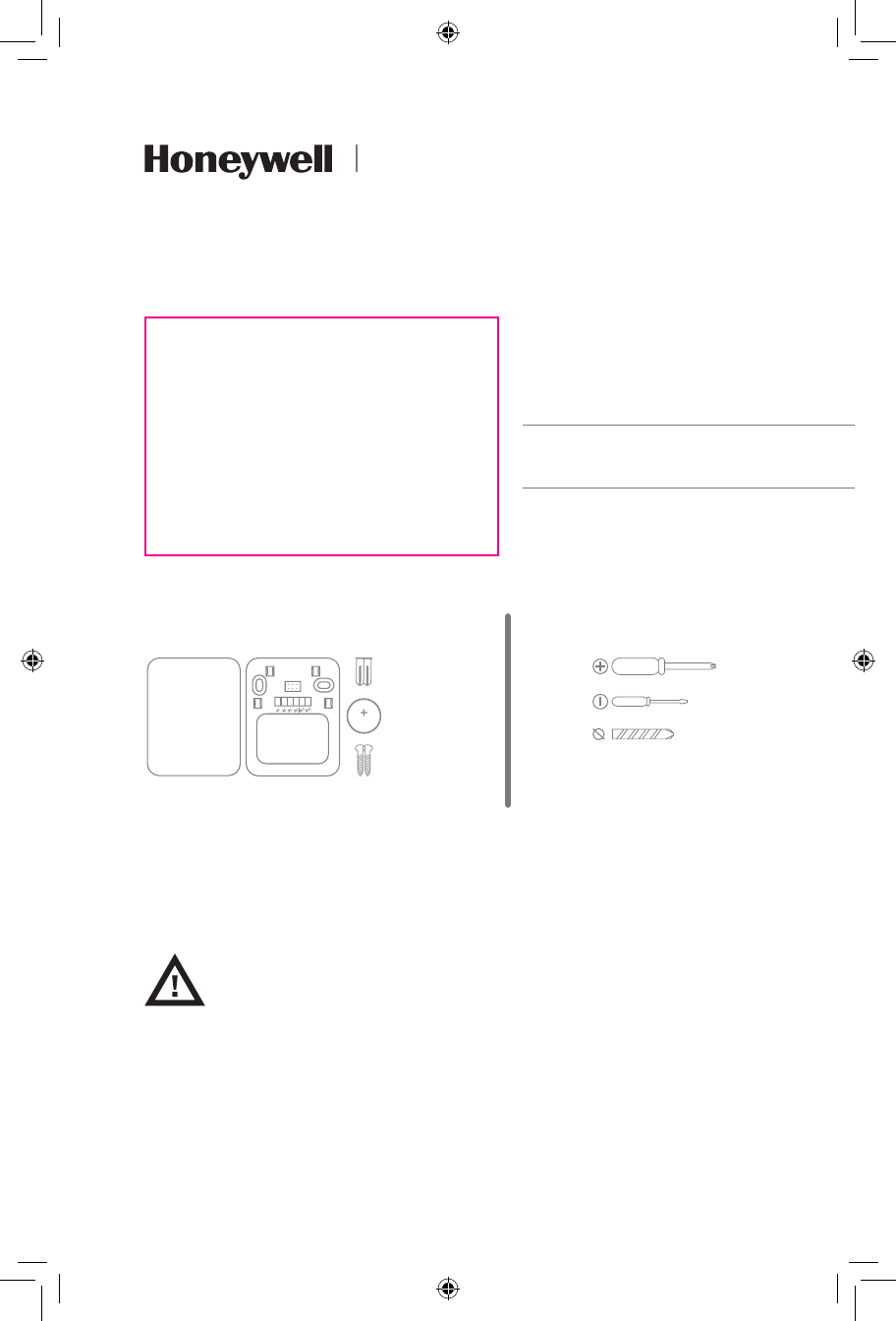

Installation Instructions
Wireless Doorbell Adapter
RPWL4045A2000
FPO
Preparation
Adapter
Wall
Anchors
Round Head
Screws Phillips Screwdriver
Standard Screwdriver
Drill and 1/4 in. (6 mm) drill bit
To install you will needIn the box you will find
CR2032
Battery
Wall Plate
Safety
Turn Power OFF
To protect yourself and your equipment, turn off the power at the breaker
box or switch that controls your heating/cooling system.
Before proceeding with the installation, please note the following
safety warnings:
• Always follow the manufacturer’s advice when using
power tools and wear suitable protective equipment (e.g. safety goggles)
when drilling holes, etc.
• Before drilling holes in walls, check for hidden electricity cables and
water pipes. The use of a cable/pipe locator is advisable if in doubt.
33-00195EFS_A.HALF-SHEET.indd 1 4/20/2016 4:40:41 PM
2

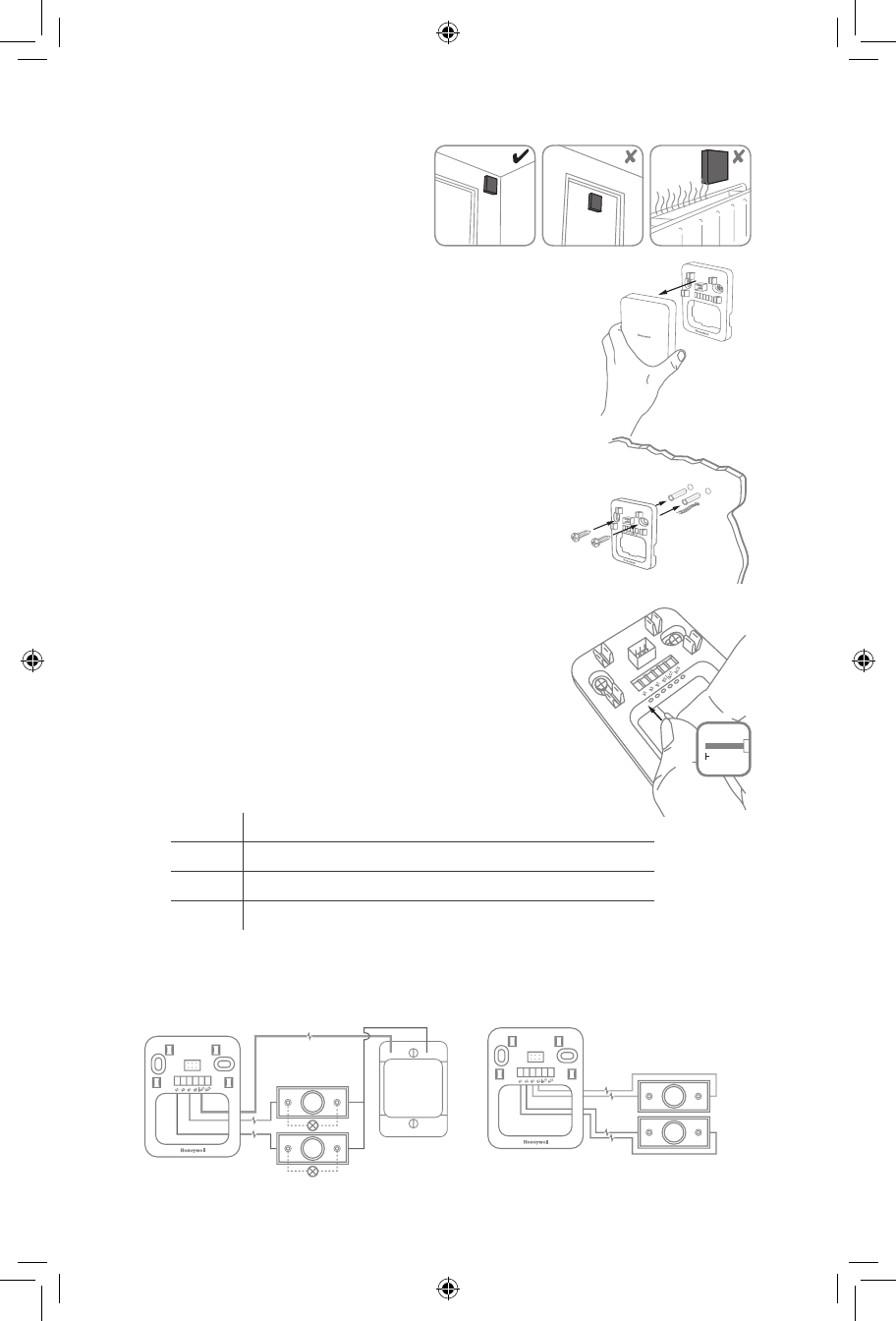

Wiring
1. Make sure at least 1/3-inch of each wire
is exposed for easy insertion into the wire
terminals.
Insert the wires into the appropriate terminals.
Refer to the wiring diagrams below.
3. Connect the wires to the adapter terminals.
You can connect one or two doorbell pushes
and transformers.
Connect to one push button
Connect to a second push button (if used)
AC1 Connect to one line voltage transformer (if used)
Not used
When the wiring is complete, turn the power back on.
1/3 in.
A
B
A
B
Wiring 1 (A only) or 2 (A and B) Pushes Wiring 1 (A o/nly) or 2 (A and B)
Pushes with 1 Transformer
Install Adapter
1. Separate the adapter from the wall plate.
Open the battery cover in the wireless adapter
3. Remove the existing doorbell chime from the
wall.
Screw the wall plate to the wall using the
included screws and anchors (if necessary).
Choose a Location
Choose a location that is not near
a heat source or on somthing that
moves (like a door).
33-00195EFS_A.HALF-SHEET.indd 2 4/20/2016 4:40:42 PM
3

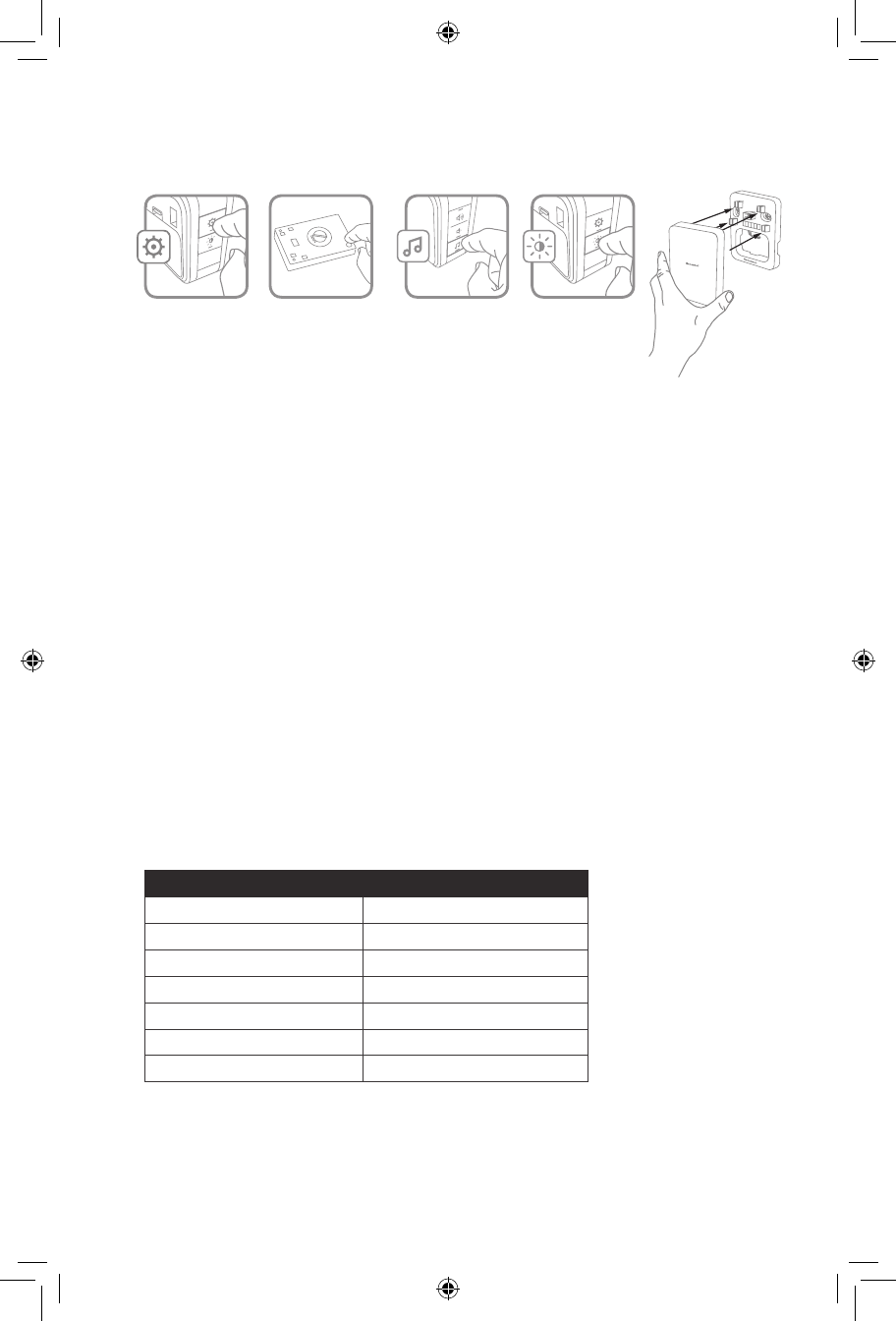

Pairing the Adapter and the Doorbell
1. Press and hold the Setting button on the doorbell for
three seconds.
Press the button on the back of the adapter.
3.
Music button to select the ring for the doorbell.
the Sunlight button to select a halo light color (if available ) for that
doorbell.
When the wiring is complete, snap the wireless adapter onto the wall
plate.
Maintenance
Your adapter requires no maintenance except to periodically change the
battery. If using the correct battery, its life should be approximately:
•
Low Battery Notification
When the adapter battery is low an LED on the front of the adapter gives 3
Specications
Doorbell Push
Operating Temperature 14°F to 104°F (-10ºC to 40ºC)
RF Frequency US/Canada 916.8 MHz
Range (open eld) 350 ft. (106 m)
Sound Level (typical) -
RF Power <1mW
Battery Type CR2032
Battery Life (5 activations/day) Up to 2 years
33-00195EFS_A.HALF-SHEET.indd 3 4/20/2016 4:40:42 PM
4
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
yourhome.honeywell.com
® U.S. Registered Trademark.
© 2016 Honeywell International Inc.
33-00195EFS—01 M.S. 02-16
Printed in U.S.A.
33-00195EFS-01
FCC Regulations
undesired operation.
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IC Regulations
CAN ICES-3(B)/ NMB-3(B)
undesired operation of the device.
exposure, users can obtain Canadian information on RF exposure and compliance.
Warranty
1-year limited warranty
Honeywell warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and
the product is determined to be defective due to workmanship or materials, Honeywell shall repair or replace it (at Honeywell’s
option).
If the product is defective,
returned to the following address:
can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect
was caused by damage which occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL
NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER
FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY
IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS
HEREBY LIMITED TO THE ONEYEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
