Tema1.0_L12_IM_1.1_EN Pagina 1 di 1
TKL12 (RTUL12)
Installation Manual
CONTENTS
FCC NOTICE .............................................................................................. 3
Canadian Compliance Statement ........................................................ 3

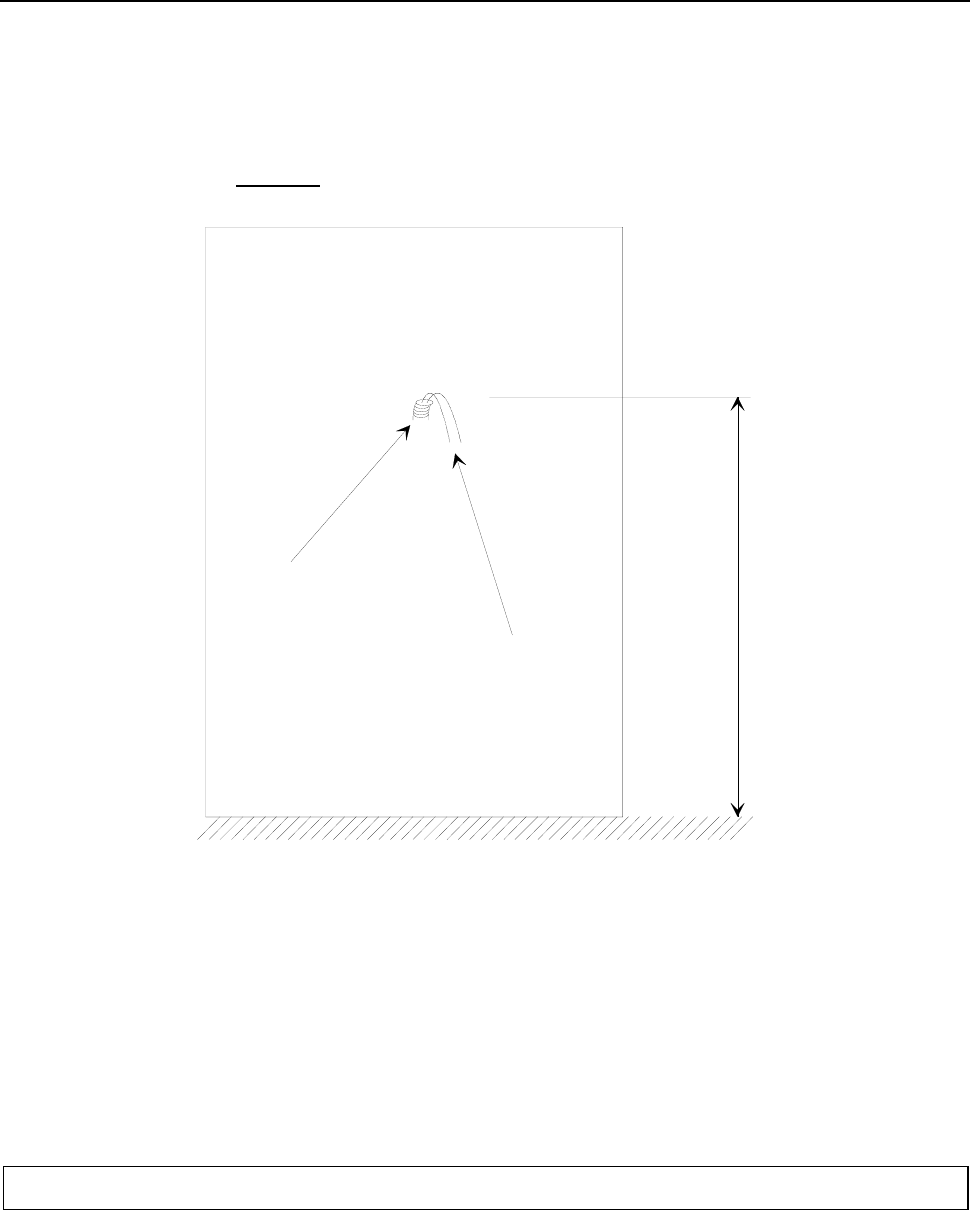

1.1 Wall Set Up for the Cable Trays ......................................................... 4
1.2 Electrical Connections ........................................................................ 5
1.3 LONWORKS Data Cables ................................................................ 7
1.4 Mounting the Wall Bracket.................................................................. 8
1.5 LON, power and door wiring ............................................................. 10
1.5.1 LON Cable............................................................................ 10
1.5.2 Power Supply Cable +12VDC .............................................. 11
1.5.3 Input Cable 1 – Door Contact............................................... 12
1.5.4 Input Cable 2 – Push Button ................................................ 13
1.5.5 Output 1 – Door lock ............................................................ 14
1.5.6 Output 2 – Door status light.................................................. 15
1.6 Mounting the Device on the Wall Bracket......................................... 16
1.7 Identification Using the Service Pin .................................................. 17
1.8 Identification Using the Neuron ID .................................................... 18

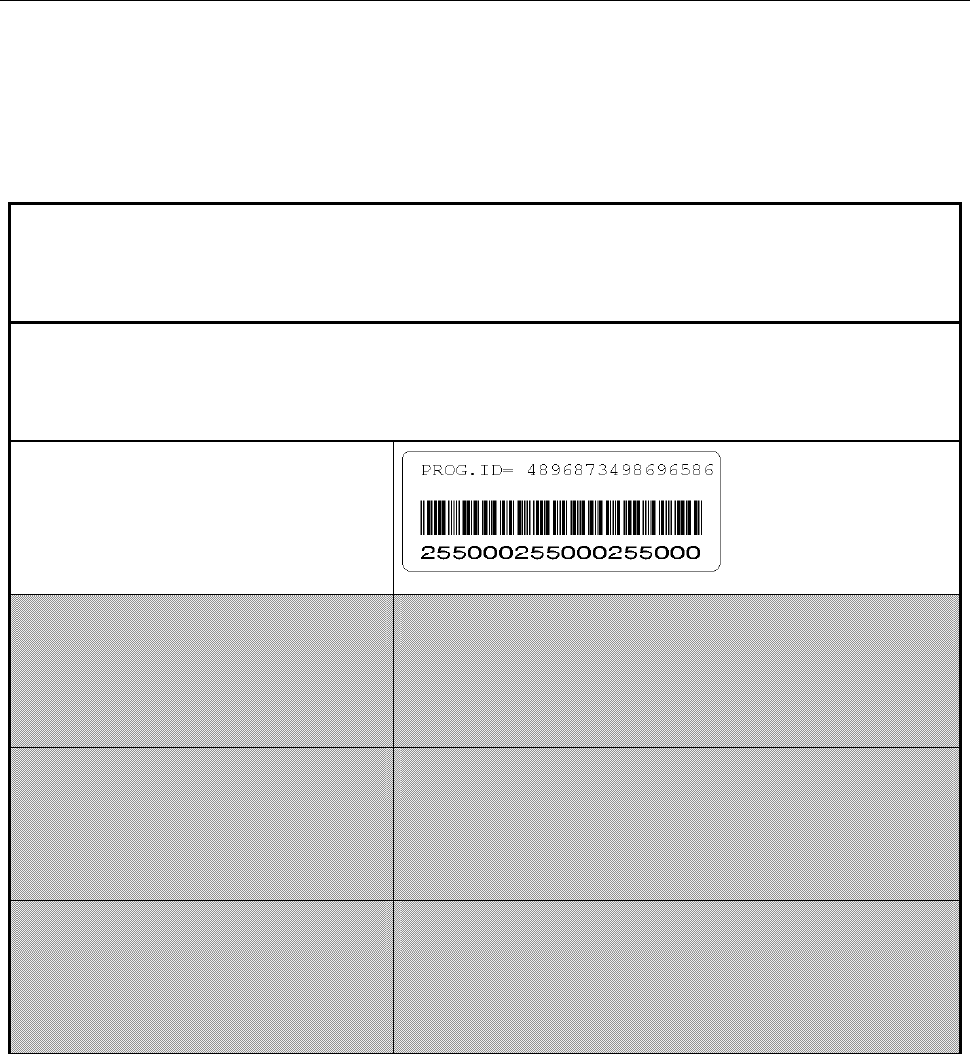

2.1 TemaKey TKL12 (RTU-L12 code 1500159XX).................................. 19
2.1.1 Supplied Parts ...................................................................... 20
2.1.2 Optional Parts....................................................................... 20
2.2 Recycling .......................................................................................... 21
Page 2
F
FC
CC
C
N
NO
OT
TI
IC
CE
E
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, these is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by tuning the equipment off and on, the
user is encouraged to try to correct the interference by one or more the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Caution: any modification or change not expressely approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Canadian Compliance Statement
This Class B Digital apparatus meets all the requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe B respecte les exigences du Reglement
sur le material broilleur du Canada.
Page 3
1
1.
.2
2
E
El
le
ec
ct
tr
ri
ic
ca
al
l
C
Co
on
nn
ne
ec
ct
ti
io
on
ns
s
The RTU is powered at low voltage (12VDC 160mA), preferably using a
power supply module with battery backup (RTU-Qxx), or using an ordinary
power supply having the same characteristics. The power cables must be
dimensioned as indicated in the table below. The maximum allowable voltage
drop on the power cable is 1V.
• Cable length(m) = 1V / (I[A] load x 2 x (res [Ohm/km] /1000))
Cabl e Type Ext ensi on [ m] based on l oad
AWG mm2 ohm/ Km 160 [ mA] 320 [ mA]
12 3. 3 5. 7 548 274
14 2 8. 8 355 178
16 1. 3 14 223 112
18 0. 9 21 149 74
200.6349246
22 0. 35 52 60 30
240.2853718
The device is equipped with 2 non-removable cables of 3m length:
• Two-pole, twisted, unpolarized cable dedicated to the LON line
connection
- LON a 0,325 mm2 white
- LON b 0,325 mm2 orange
• Six-pole cable, providing the following signals:
- +12VDC 0,2 mm2 red
- GND 0,2 mm
2 black
- INPUT 1 + 0,2 mm2 brown
- INPUT 2 + 0,2 mm2 orange
- OUT OC1 0,2 mm2 yellow
- OUT OC2 0,2 mm2 green
The signals must be connected using a shunt box with IP protection level
in conformance with the type of environment in which it is to be used:
- IP55 for moist environments
- Recessed box or IP31 at least for inside installations
The shunt box must be positioned within the perimeter controlled by the
access control system.
The repeater relays must be inserted inside the box for electrical locking
commands and the signal light.
Page 5
m
,60 c
15
7,20 cm
6,10 cm
3 metri
8,00 cm
6 pole
cable
5,3mm
diamete
r
2-pole LON
cable
4 mm diamete
r

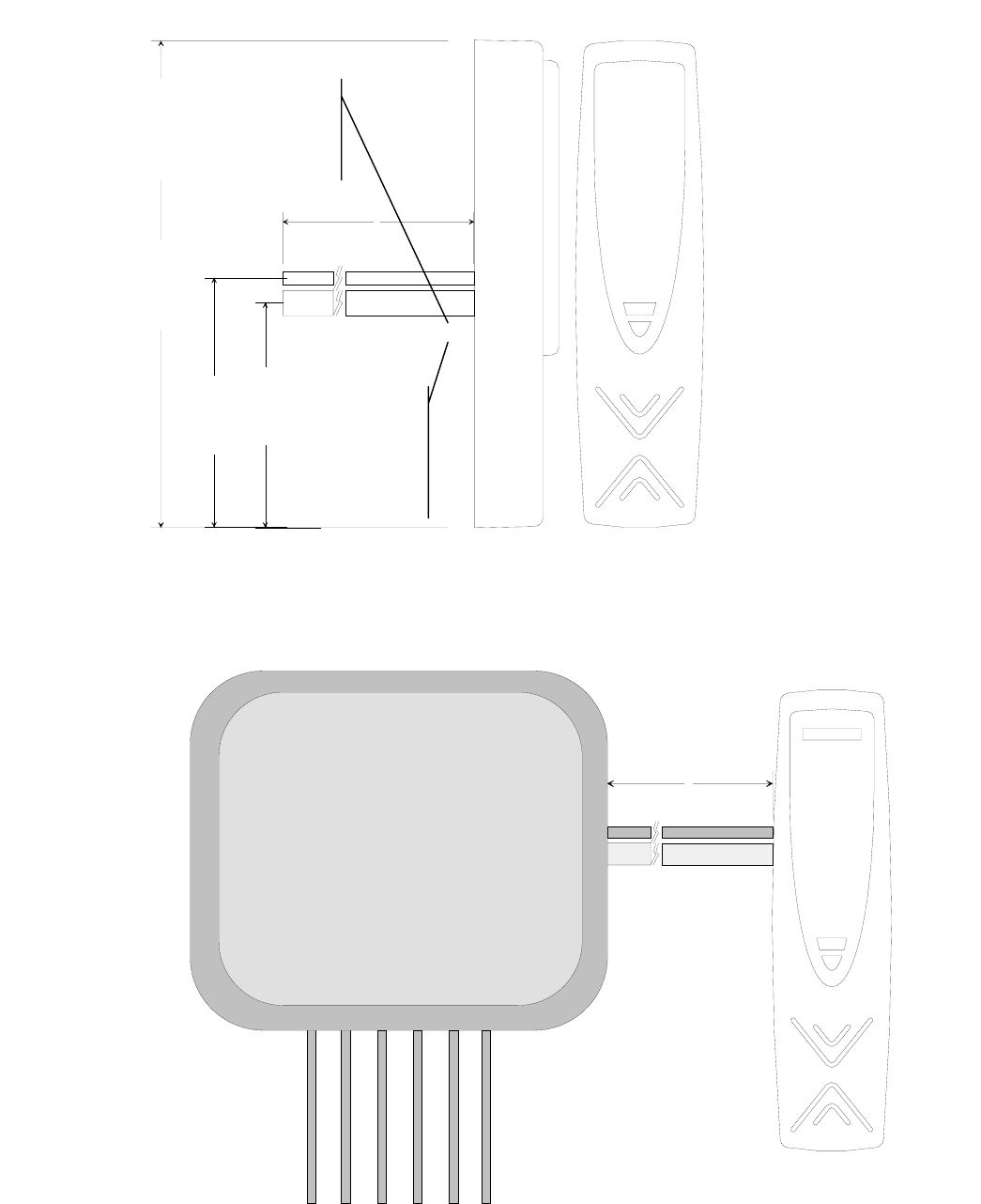

Figure 2: Position and dimensions of the non-removable cables
4,20 cm
3 meters
Shunt Box
Cable +12VDC
Cable LON
Cable IN 1
Cable IN 2
Cable OUT 1
Cable OUT 2
RTUL12
Figure 3: Shunt Box
Page 6
1
1.
.3
3
L
LO
ON
NW
WO
OR
RK
KS
S
D
Da
at
ta
a
C
Ca
ab
bl
le
es
s
• The LONWORKS1 data cables must be double twisted-pair cables
• In a free topology configuration, the overall length of the sections must not
exceed 500m
• In a bus configuration, the overall length of the sections must not exceed
2700m
• In the free topology configuration, the 50ohm terminator must be enabled
by inserting the appropriate jumper into the FTT10A plug-in on the CTU-
PLG06 board inside the TemaServer
• In a bus configuration, two terminators must be inserted at the two ends of
the bus (resistance of 100ohm 1% ½W)
• The LONWORKS1 data cables must be dimensioned according to the
indications in Table 1
Cable Type Extension [m] based on cable capacitance
AWG mm2 Ohm/Km 50nF/Km 100nF/K
m
200nF/K
m
500nF/K
m
1uF/Km
12 3.3 5.7 2676 1892 1338 846 598
14 2 8.8 2153 1523 1077 681 482
16 1.3 14 1707 1207 854 540 382
18 0.9 21 1394 986 697 441 312
20 0.6 34 1096 775 548 346 245
22 0.35 52 886 626 443 280 198
24 0.2 85 693 490 346 219 155
Table 1: Length/Capacitance of LONWORKS
1 Cables
• The FTT10A Echelon v1.2 User’s Guide suggests using the cables as
indicated in Table 2.
Make and Model AW
G
Bus
Connection
Max Length
total [m]
Free Topology
Connection Node-
to-Node Max
Length [m]
Free Topology -
Connection
Max Length total
[m]
Belden 85102 16 2700 500 500
Belden 8471 16 2700 400 500
Level IV (twisted pair,
solid, unshielded)
22 1400 400 500
JY (St) 2x2x0,8 (4
solid wires, spiral-
twisted, shielded)
20 900 320 500
TIA Cat5 / 900 250 450
Table 2: Suggested LONWORKS
Cables
1 LONWORKS® is a trademark of the Echelon Corporation
Page 7
1
1.
.4
4
M
Mo
ou
un
nt
ti
in
ng
g
t
th
he
e
W
Wa
al
ll
l
B
Br
ra
ac
ck
ke
et
t
Mount the bracket onto the wall as follows:
1. Placing the bracket against the wall and mark the proper positions of the
three holes, make the holes for the three bolts that will go into the wall to
hold the bracket and the bolt for the tamper switch (the bolts are included
in the installation kit)
2. Make sure that the cable tray matches with the hole for the passage of the
cables
3. Fix the plate and adjust the tamper screw.

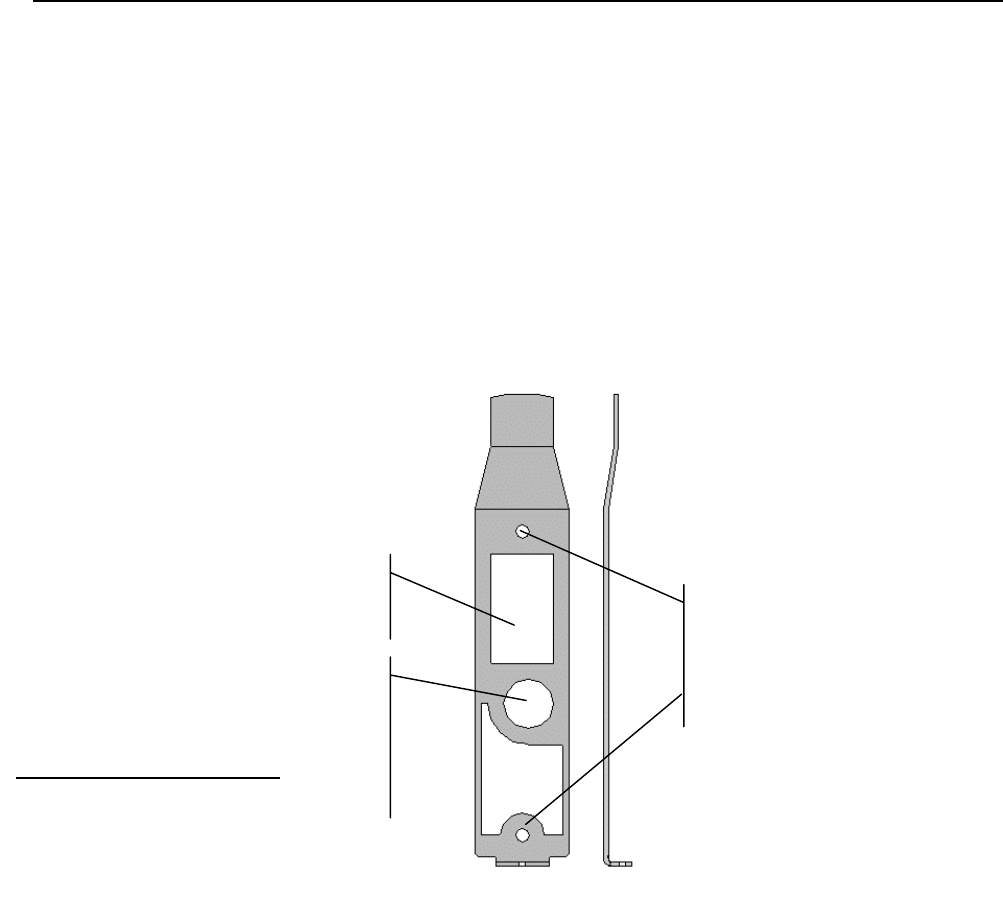

Hole for Cables
Holes for wall
mounting
Reference for tamper
adjusting screw
Mark in the center (hole
diameter 4mm
)
Figure 4: Wall Bracket: Front and Side View
Page 8

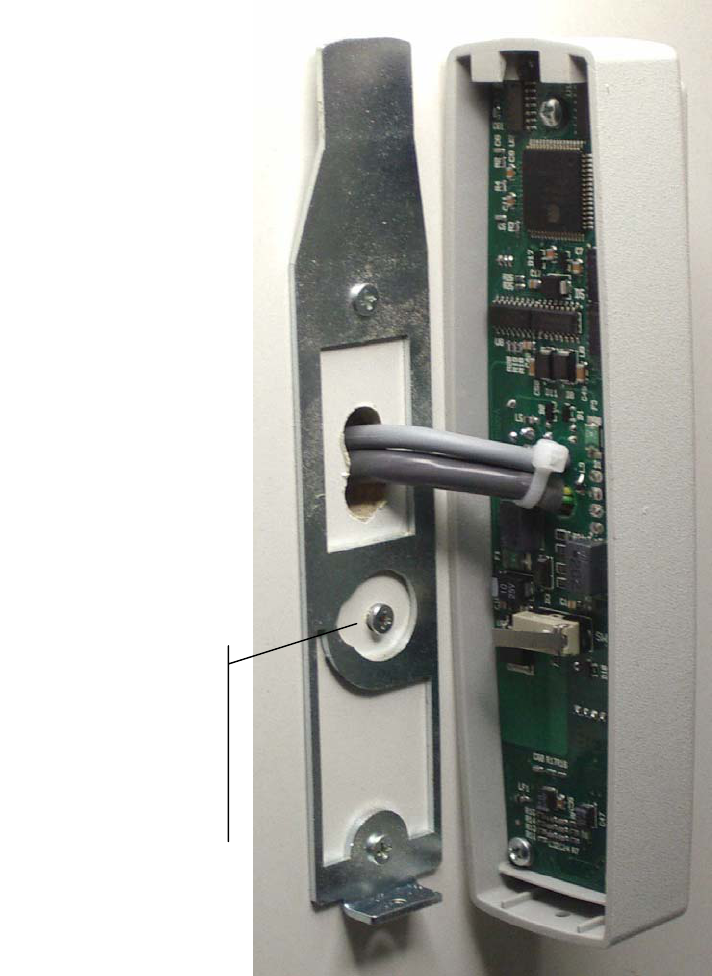

Adjust the
screw so that
is in line with
the bracket
surface
Figura 5: Tamper adjusting screw
Page 9
1
1.
.5
5
L
LO
ON
N,
,
p
po
ow
we
er
r
a
an
nd
d
d
do
oo
or
r
w
wi
ir
ri
in
ng
g

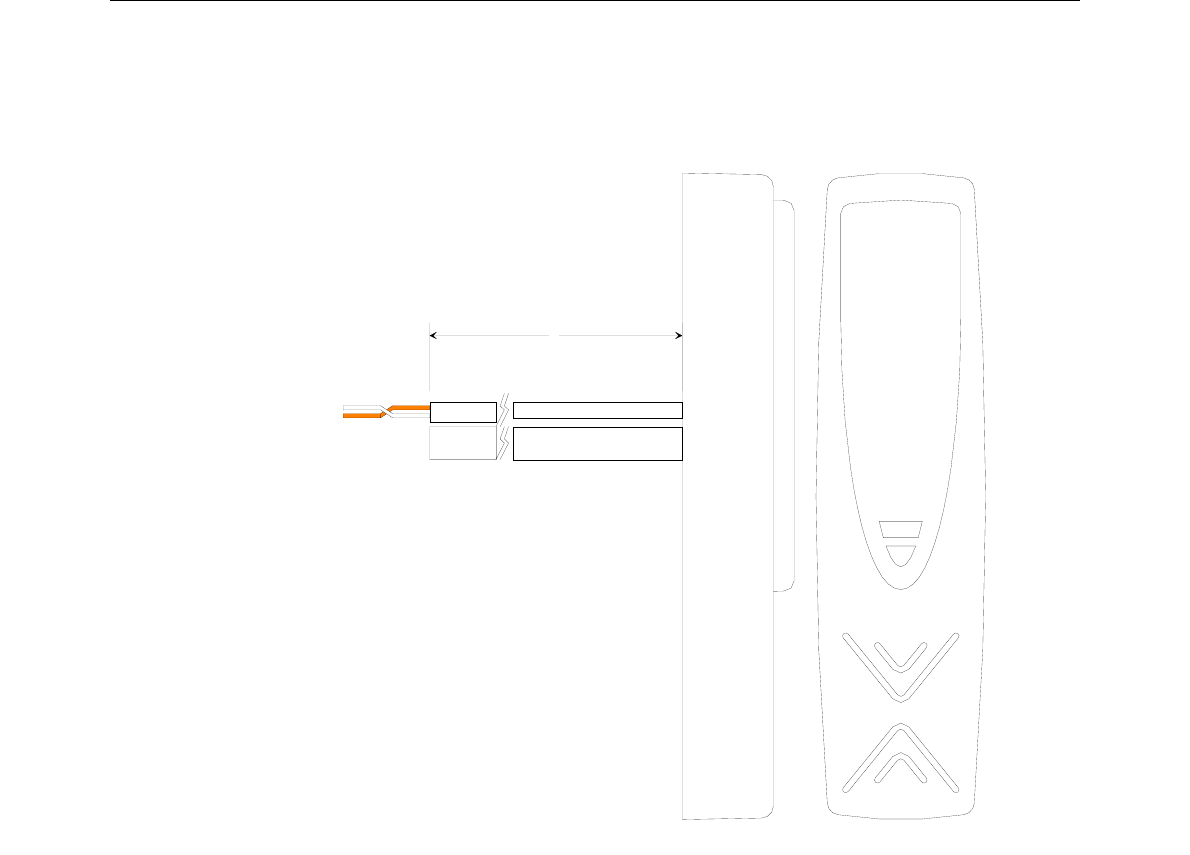

1.5.1 LON Cable
6,10 cm
3 meters
LON A
LON B
Note: connection
not polarized
Figure 6: LON (1) Cable Connection
Page 10

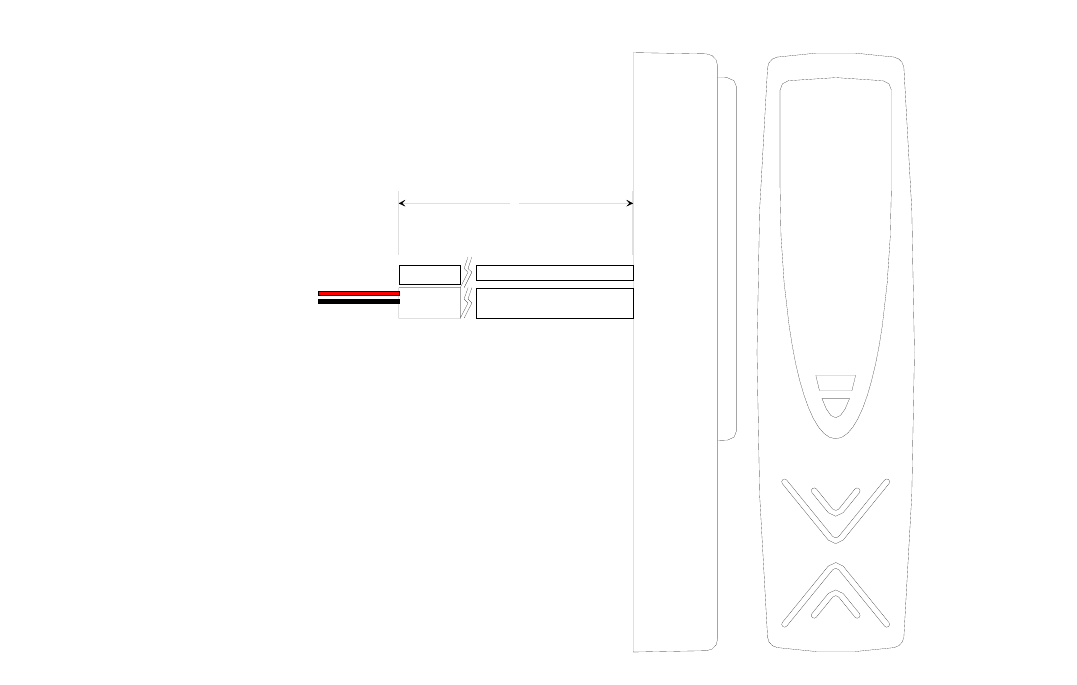

1.5.2 Power Supply Cable +12VDC
6,10 cm
3 meters
12VDC (red)
GND (black)
Figure 7: Power Supply Connection
Page 11

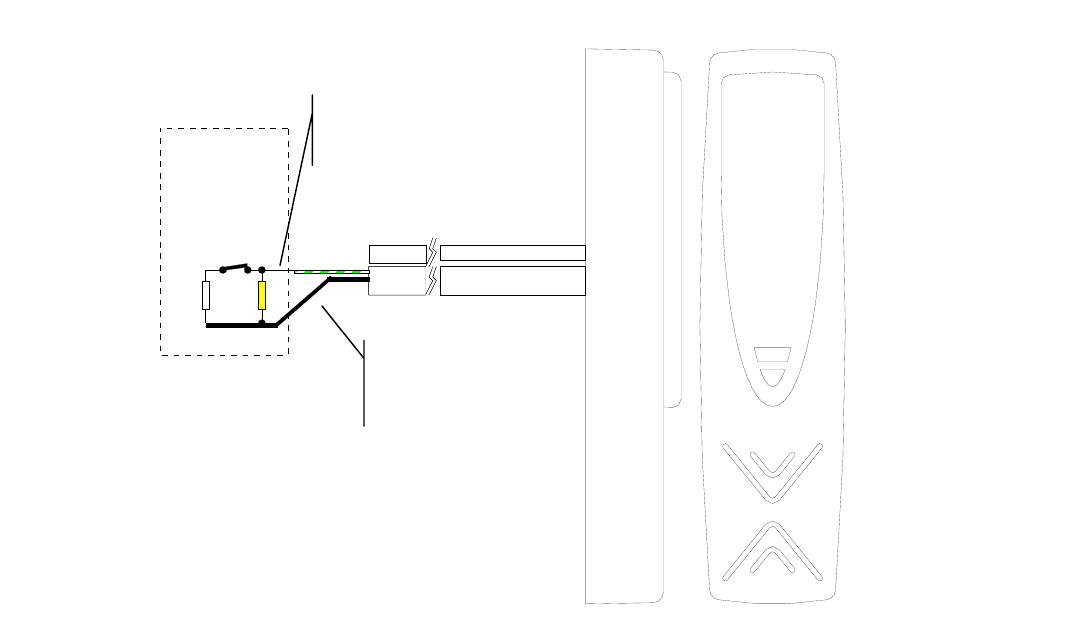

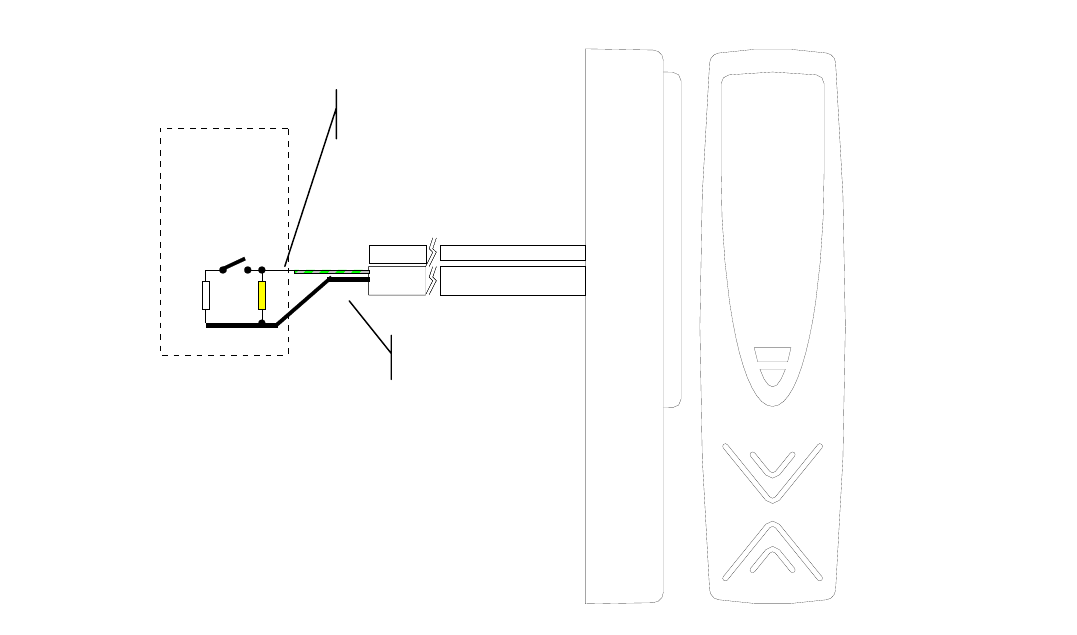

1.5.3 Input Cable 1 – Door Contact
Supervised input1 is for the door status control; resistors must be installed
at the door contacts.
White
Yellow
magnetic door contact
NC CONTACT
Figure 8: Supervised Input 1 connection – Door Contact
IN1 (brown)
GND (black)
Yellow resistor: 1210 Ohm 1%
White resistor: 392 Ohm 1%
Close contact resistance: 296 Ohm
Open contact resistance: 1210 Ohm
Max wires resistance: 25 Ohm
Page 12
1.5.4 Input Cable 2 – Push Button
Supervised input 2 is for the push button status; resistors must be installed
at the door push button contacts.
White
Yellow
button contact
NO CONTACT
IN2 (orange)
GND
Figure 9: Supervised Input 2 connection– Push button
Yellow resistor: 1210 Ohm 1%
White resistor: 392 Ohm 1%
Push button close resistance: 296 Ohm
Push button open resistance: 1210 Ohm (normality)
Max wires resistance: 25 Ohm
Note: in case the push button is unused the INPUT has to be
terminated with the Yellow resistor.
Page 13

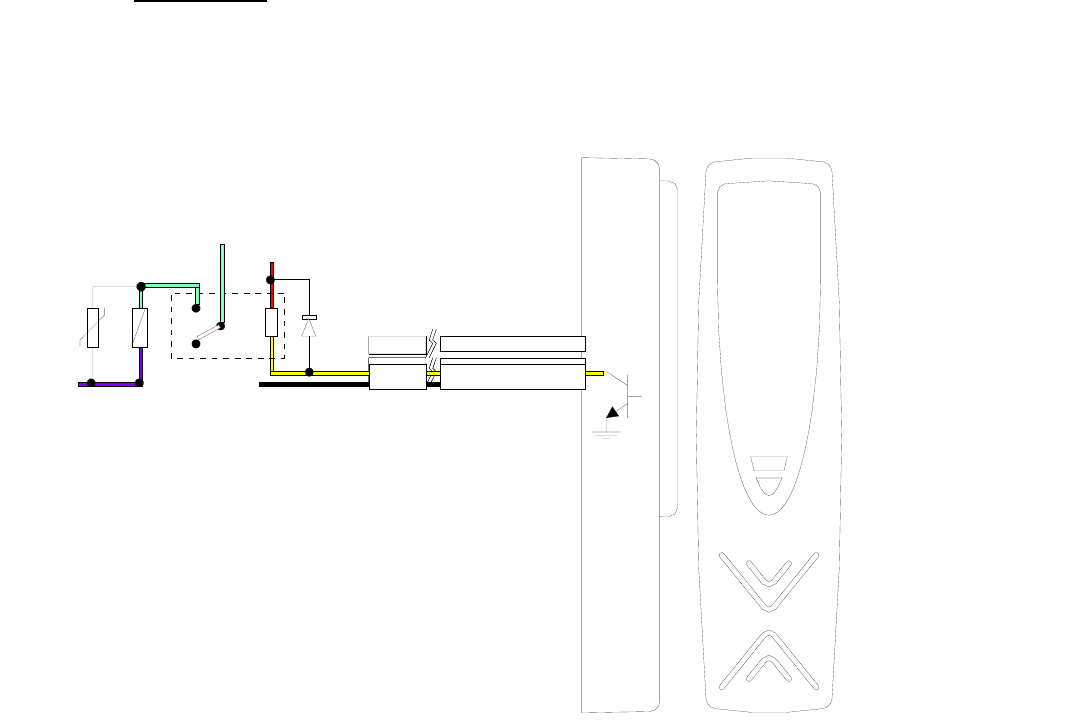

1.5.5 Output 1 – Door lock
The open collector output 1 (I max = 100mA) is used for door lock.
An external DC relay must be installed in accordance with the following
limits:
• Max relay voltage = 28VDC
• Max relay current = 100mA
• Max Vce(sat at 100mA) = 1.2V
It is mandatory to use the 1N4004 (or equivalent) provided diode in
parallel to the coil of the relay.
Inductive load with alternating current: not allowed
VEXT_relè
GND
Relay coil
diode 1N4004
OUT1
Transient
suppressor
Vdc / ac
Vdc / ac
C
NC NO
Electrolock coil
Figure 10: Output 1connection – Door Lock
Page 14

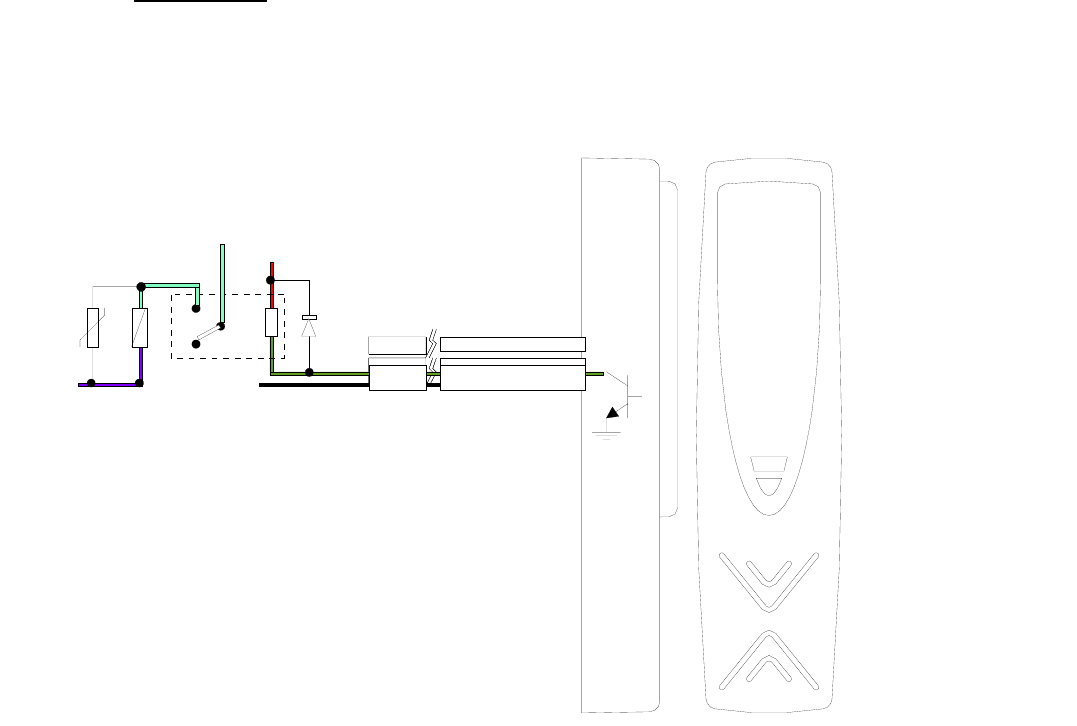

1.5.6 Output 2 – Door status light
The open collector output 2 (I max = 100mA) is used for signaling the
status of the door (gateway occupied / free).
An external DC relay must be installed in accordance with the following
limits:
• Max relay voltage = 28VDC
• Max relay current = 100mA
• Max Vce(sat at 100mA) = 1.2V
It is mandatory to use the 1N4004 (or equivalent) provided diode in
parallel to the coil of the relay.
Inductive load with alternating current: not allowed
VEXT_relè
GND
Relay coil
diode 1N4004
OUT2
Transient
suppressor
Vdc / ac
Vdc / ac
C
NC NO
Electrolock coil
Figure 11: Output 2 connection- door status light
Page 15
1
1.
.6
6
M
Mo
ou
un
nt
ti
in
ng
g
t
th
he
e
D
De
ev
vi
ic
ce
e
o
on
n
t
th
he
e
W
Wa
al
ll
l
B
Br
ra
ac
ck
ke
et
t

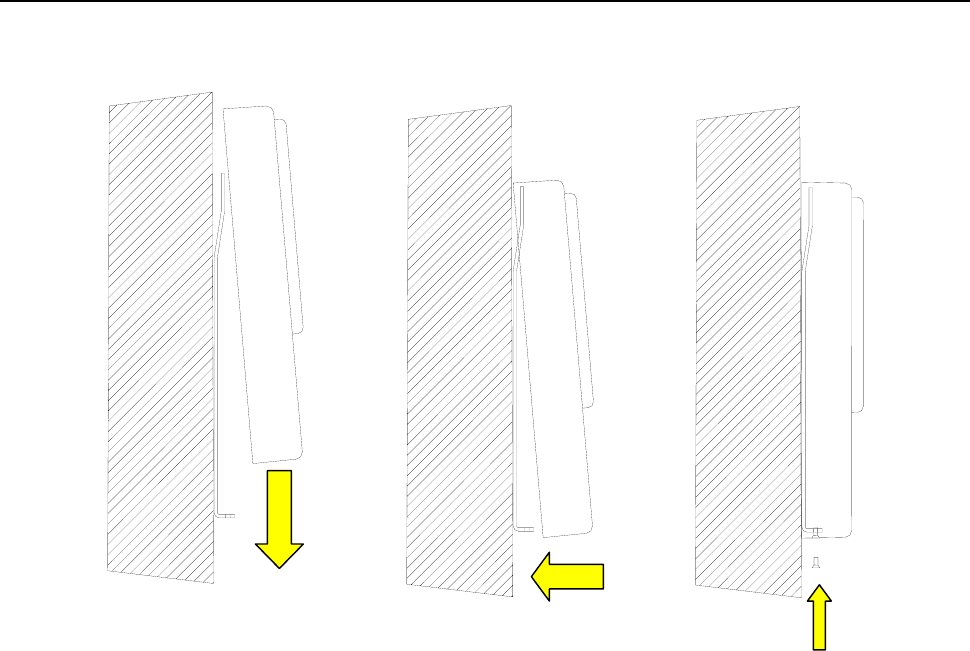

Figure 12: Mounting
1) The RTUL12 is positioned atop the wall bracket protrusion
2) The back part is aligned with the wall by rotating
3) The RTUL12 is mounted onto the bracket using screws
Page 16
ACTIVATION
1
1.
.7
7
I
Id
de
en
nt
ti
if
fi
ic
ca
at
ti
io
on
n
U
Us
si
in
ng
g
t
th
he
e
S
Se
er
rv
vi
ic
ce
e
P
Pi
in
n
To identify the node, you can call the service pin using the relay-reed found
inside the device (see Figure 13). Use the following steps for this procedure:
1. Place a small magnet as indicated in Figure 13 to call the service pin. The
signal is linked to the yellow service LED (at the center), which will blink
throughout the operation.
2. The TemaServer will send a wink command in response to the service pin,
which lights the yellow LED and the buzzer three times. This allows you to
verify that communications are operational to and from the TemaServer.
3. Check to see that the service LED is off at the end of the operation.
Position of
magnet
The LED
goes
yellow

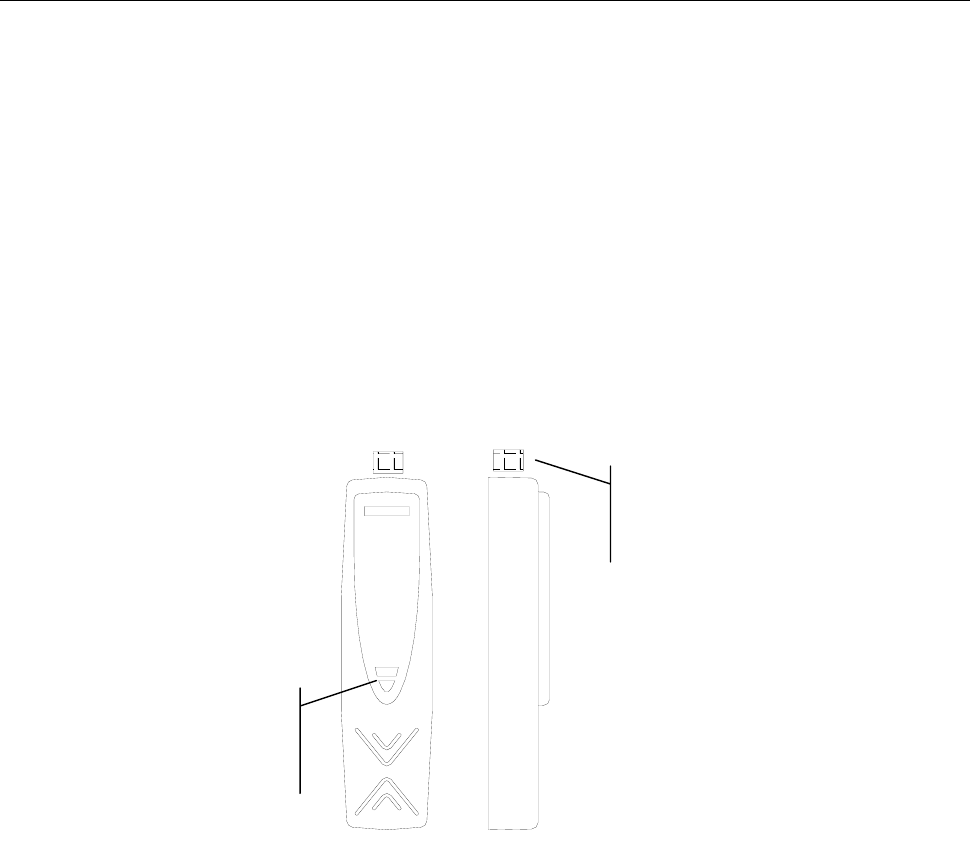

Figure 13: Calling the Service Pin Using a Magnet
Page 17
1
1.
.8
8
I
Id
de
en
nt
ti
if
fi
ic
ca
at
ti
io
on
n
U
Us
si
in
ng
g
t
th
he
e
N
Ne
eu
ur
ro
on
n
I
ID
D
The label with the neuron ID that comes with the kit must be applied by the
installer on the appropriate identification sheet. You also must indicate the
location of the terminal in the appropriate box (see example in Table 3).
Description of Location
Entrance to Offices, First Floor, Stairway E
Description of TemaServer
Panel2, Entrance, First Floor, Stairway E
RTUL19
Table 3: Example of Compiled Identification Sheet
Page 18
2 TECHNICAL DATA
2
2.
.1
1
T
Te
em
ma
aK
Ke
ey
y
T
TK
KL
L1
12
2
(
(R
RT
TU
U-
-L
L1
12
2
c
co
od
de
e
1
15
50
00
01
15
59
9X
XX
X)
)
Parameter Value
Power Supply 12VDC±15% 160mA (2W)
Weight 0.3 kg
Dimensions 156 x 40 x 27 mm (see Figure 14)
Degree of Protection IP55
Operational
Temperature
-20 to 60 °C
Storage Temperature -20 to 70 °C
Relative Humidity of
Storage
0 to 95 % without condensation
LED 1 LED tricolor Red / Green / Yellow
Buzzer 1
Inputs 2 supervised inputs with 4 statuses:
normal, alarm, cut, short
Output OC 1 Electrical Locking Device Command
Vmax = 28VDC
I max = 100mA
Vce(sat) max = 1,2V
Output OC 2 Lamp Command
Vmax = 28VDC
I max = 100mA
Vce(sat) max = 1,2V
Antenna proxy 13,56MHz for 14443A / B cards
Reading range: depending on technology of
card. Typical 4 cm
LONWORKS®2
Connection
"Free Topology" type connected with
unshielded double twisted pair cable
FT3150 Smart Transceiver, 78Kbps
Directive EMC 89/336/EEC, 92/31/EEC,
Low Voltage Directive 72/23/EEC, 93/68/EEC:
EN60950 / EN55022-B / ETSI EN300-330 / EN55024
Conformance to Norms
FCC
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harm ful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC ID: HS9-RTU-L12
Page 19
2 LONWORKS® is a trademark of the Echelon Corporation
2.1.1 Supplied Parts
KIT of resistances for
input balancing
2 White resistances
2 Yellow resistances
Fisher bolts for wall
mounting
2 (S4 type) + screws
Fisher bolt for tamper 1 (S4 type) + screws
1N4004 Diode 2
2.1.2 Optional Parts
TORX TX10 Screwdriver Code 1500108AA
Page 20
2
2.
.2
2
R
Re
ec
cy
yc
cl
li
in
ng
g
In application of directive 2002/96/EC regarding electrical and electronic waste devices, from 13 August 2005,
Honeywell engages, when requested by the customer, to the collection, treatment, recovery, and proper disposal of all
devices produced.
All users within the European Union are hereby informed of the requirement for the proper elimination of the product as
regulated by laws, rules, and local procedures.
Page 21

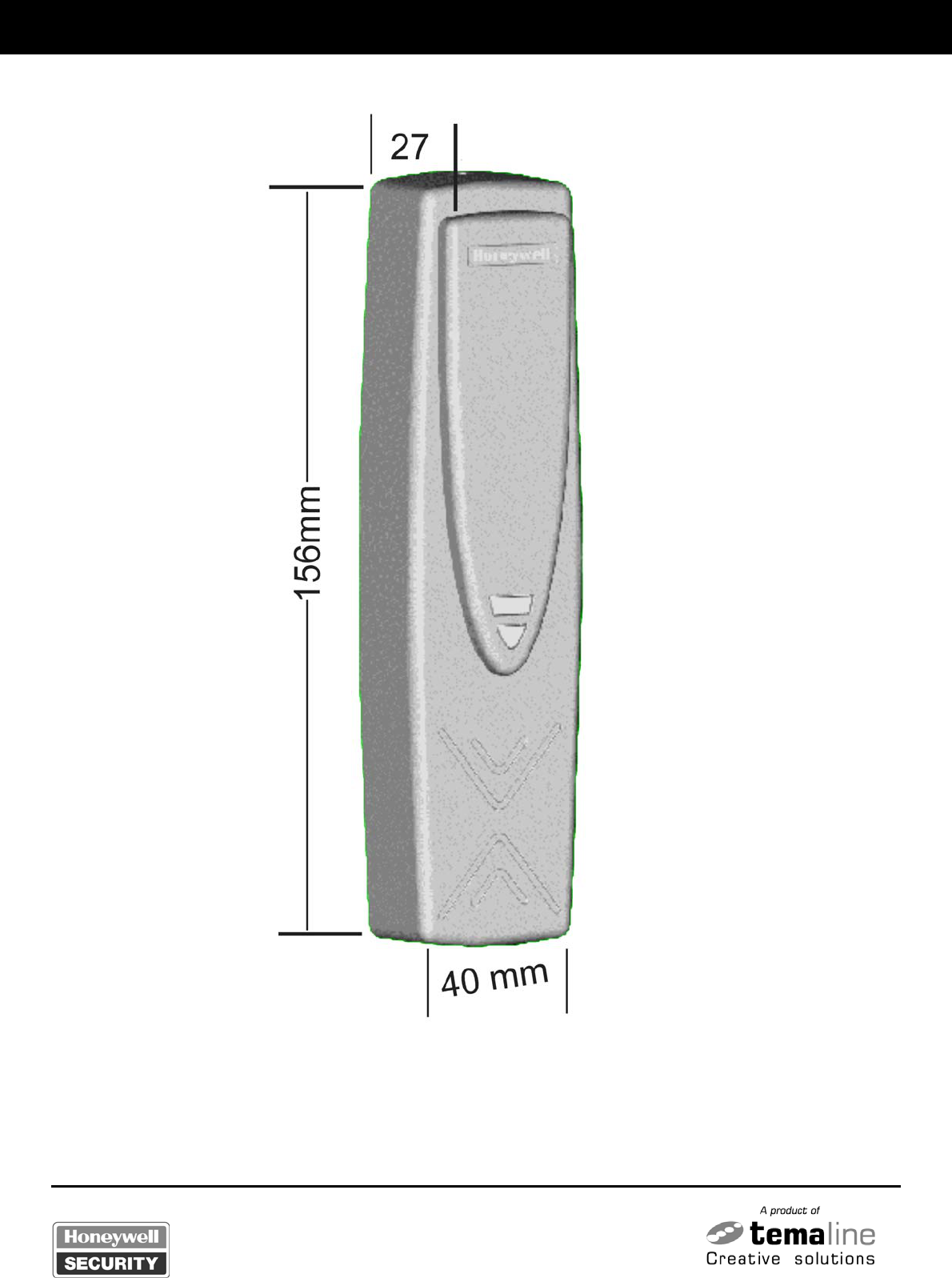

Figure 14: Temakey TKL12
Page 22
