Controller Kit Installation Manual
MIFH1, MRCH1, MCCH1, MOS1
69-2426-01
Installation guide for:
• WirelessReceiverandCable(MIFH1)
• RemoteController(MRCH1)
• PortableCentralController(MCCH1)
• OutdoorAirSensor(MOS1)
DISCONNECT POWER BEFORE BEGINNING INSTALLATION. Can cause
electrical shock or equipment damage.
Must be installed by a trained, experienced technician. Read these
instructionscarefully.Failuretofollowtheseinstructionscandamagetheproductor
cause a hazardous condition.
Installation at a glance
This document covers linking and
installation procedures for the
Mitsubishi Split-Zoning Ductless
and Ducted Systems' RedLINK™
control devices and accessories.
Before you begin, you must attach the cable to the CN105 connector on the indoor unit
control board, then follow the steps in this document.
Remote controllers are linked to specific indoor units. Each indoor unit must have a
dedicated remote controller and wireless receiver.
Wireless receiver
Wireless
outdoor
air sensor
Portable
central
controller
M32309
Remote controller
Wireless System Installation Guide
69-2426—01 2
M28474
1 Install batteries in wireless devices
Installbatteriesinalldevices.Makesurebatteriesareinsertedproperly(seepolaritymarks
onthedevices).
2 Install cable and receiver
M28472A
Remote Controller
Portable Central Controller (optional): Install 3 fresh AA batteries
Outdoor air sensor (optional): Install 2 fresh AA lithium batteries
Install 2 fresh AA batteries
Install quick reference card

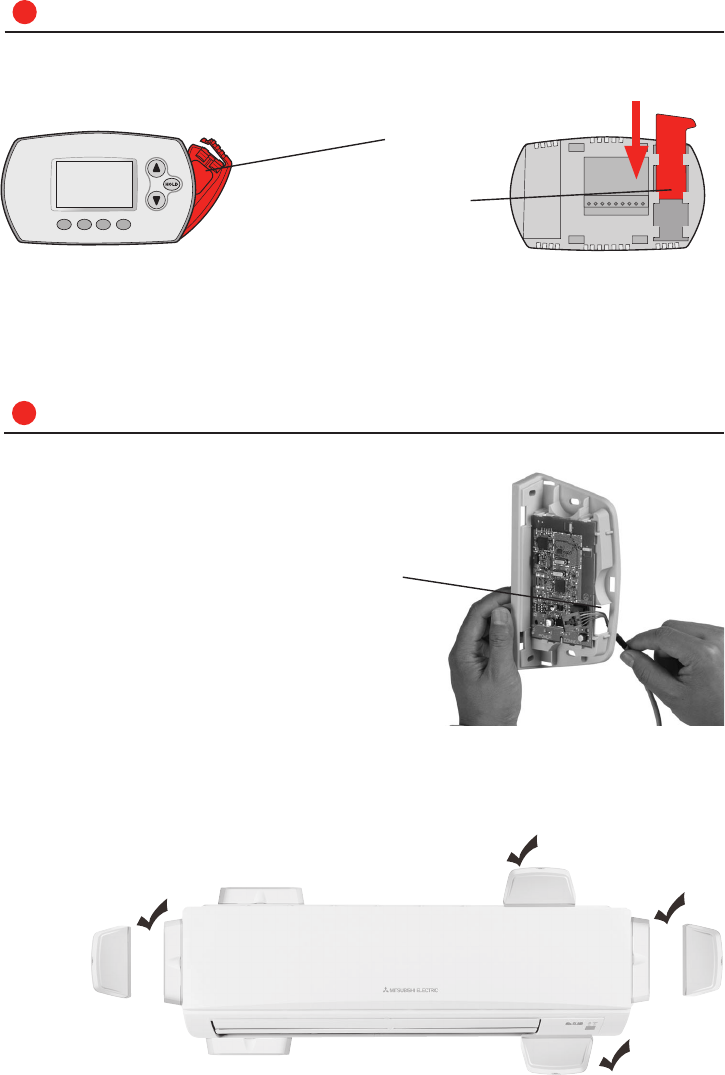

1 Before mounting indoor unit, connect cable to
the 5-pin CN105 connector on the control board
in the indoor unit.
2 Mount indoor unit. Route cable to preferred
location of the wireless receiver.
3 Route cable through hole in base of wireless
receiver and attach to 5 pin connector on
receiver board.
4 Pushtheexcesscablebackthroughtheindoor
unit or behind the wireless receiver. Do not cut
or modify the cable. Use zip tie connections on
back of receiver if needed.

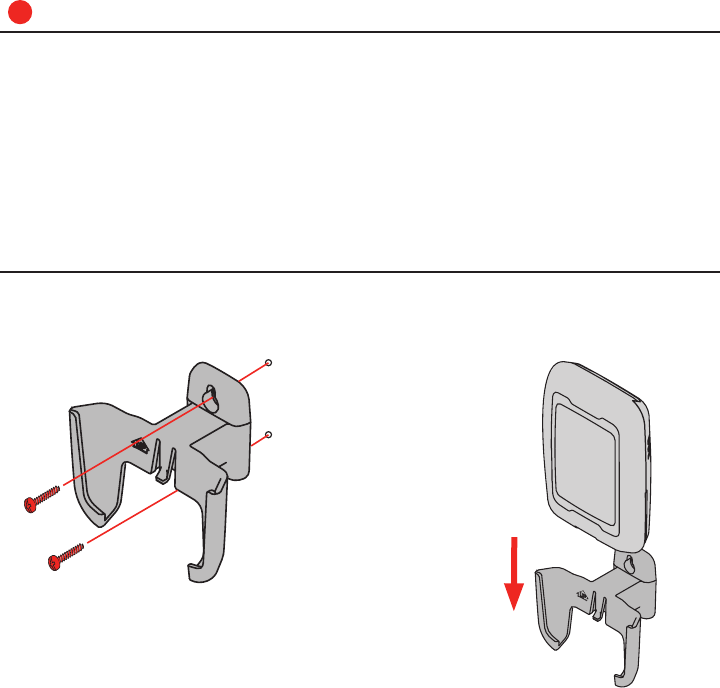

5 Mountwirelessreceivernexttotheindoorunit
(seebelow)orinaremotelocation.
Mount in the orientations shown. Do not block vents.
MCR31400
X
X
OR OR
3 69-2426—01
3 Link all devices to wireless network

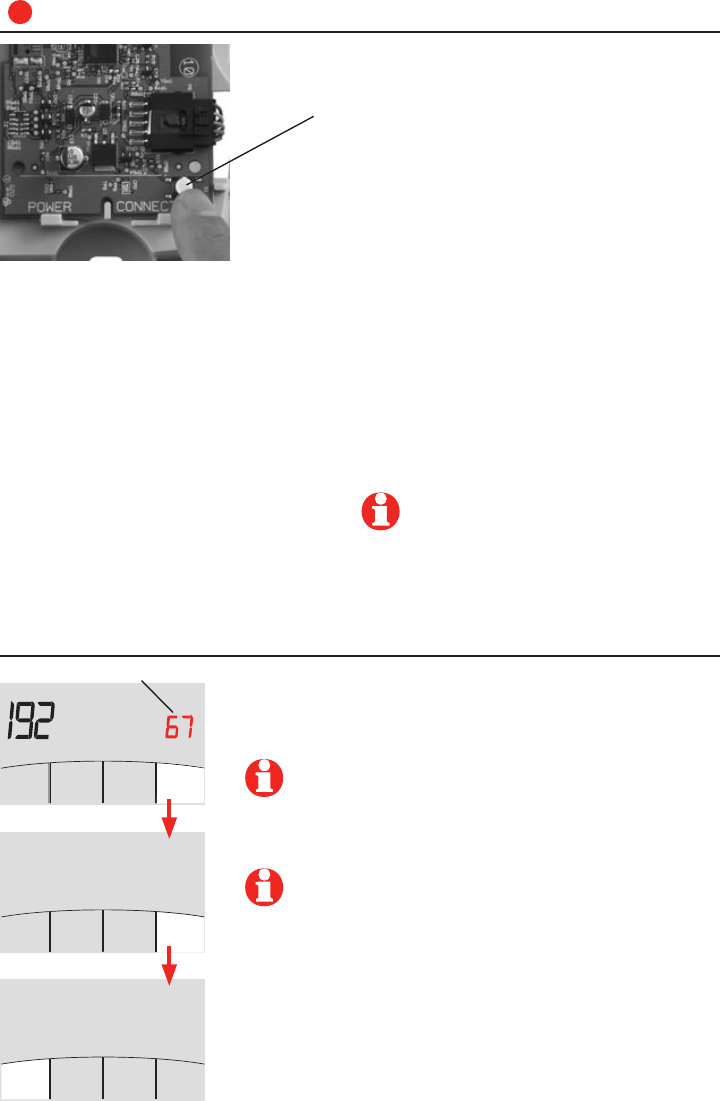

1 Remove cover from wireless receiver.
2 VerifyPOWERlightissolidgreen.
3 PressandreleasetheCONNECT button.
4 IfCONNECTlightdoesnotflash,another
receiver or RedLINK wireless adapter may be in
wirelesssetupmode.Exitwirelesssetupatthe
other device.
M28925
Wireless Setup
Next
Link remote controller to wireless network
Zone name
Presss or t to change the name or location of this zone,
then press NEXT.
Example:67=MeetingRoom
See complete zone list on page 8.
PressCONNECT to establish a link to the wireless network.
If E0 or E1 appears, see error codes on page 10.
After a brief pause, the confirmation screen at left should
be displayed to verify that the wireless connection has been
established.
PressDONE to display the home screen.
POWER LED
Solid Green:Poweredandcommunication
is established.
Slow Flashing Green (1 flash/
second): Receiver is powered.
Waitapproximately30secondsfor
communication to be established
between the wireless receiver and the
indoor unit. Check cable connection if
flashing does not stop after 30 seconds.
Fast Flashing Green (5 flashes/second):
Error in communication between
wireless receiver and the indoor unit.
Check cable connection.
CONNECT LED
Flashing Green: In wireless setup
mode.
Solid Green: RedLINK communication
is established.
Yellow:Pleasewait.
Red: RedLINK device is not
communicating.
Flashingstatuslighttimesout
after15minutesofinactivity.Press
CONNECT again if necessary.
Wireless System Installation Guide
69-2426—01 4
Link Portable Central Controller to RedLINK™ network (optional)
Link outdoor sensor to RedLINK™ network (optional)
CONNECT
WIRELESS SETUP
M28481
M28483
NOYES
CONNECT MORE?
M28482
1 MakesuretheCONNECTlightonthe
wireless receiver is flashing.
2 PressCONNECTatthePortableCentral
Controller. There will be a short delay as the
PortableCentralControllerseeksasignal
from the wireless network.
3 Whenthescreendisplays"Connected,"
press DONE.
4 PressNOatthenextscreentosaveandexit.
(OrpressYES and repeat steps 1-4 to link
anotherreceiver.)
1 MakesuretheCONNECTlightonthe
wireless receiver is flashing.
2 PressandreleasetheCONNECT button on the
back of the sensor.
3 Check remote controller to verify that the
outdoor sensor is working. After about
15 seconds, the remote controller should
display outdoor temperature and humidity.
Presstolink
another receiver
Presstosave
andexit
If E1 appears, see error codes on page 10.
The linking procedure may time out if there is
no keypress within 15 minutes. To begin again,
press and holdtheblankspace(orarrow,if
present)inthelowerrightcornerofthescreen
untilthedisplaychanges(about3seconds).
Pressandrelease
5 69-2426—01
Exit wireless setup

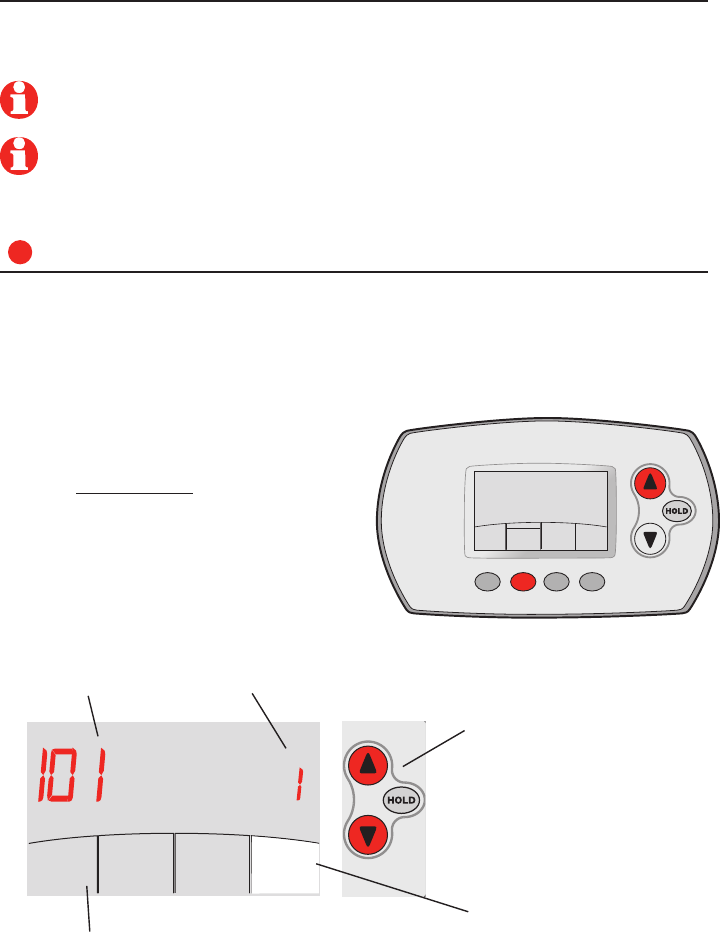

4 Customize remote controller (installer setup)
PressandreleasetheCONNECTbuttonatthewirelessreceivertoexitwirelesssetup(light
shouldstopflashingandremainsolid).Replacecoveronwirelessreceiver.
Followthestepsbelowtobegininstallersetup.Ateachfunctionscreen,presss or t to
change the setting as desired, then press NEXTtoadvancetothenextfunctionscreen.
Seetablesonpages6-8foradescriptionofoptionsforeachfunction.
Presss or t to change
setting(seetablesonpages
6-8).
PressNEXTtodisplaynext
function screen.
Note:Thewirelessreceiverwillautomaticallyexitwirelesssetupafter15minutes
of inactivity.
Note:Ifinstallingmorethanonereceiver,youmustexitwirelesssetupbefore
installing remote controller and additional receiver.

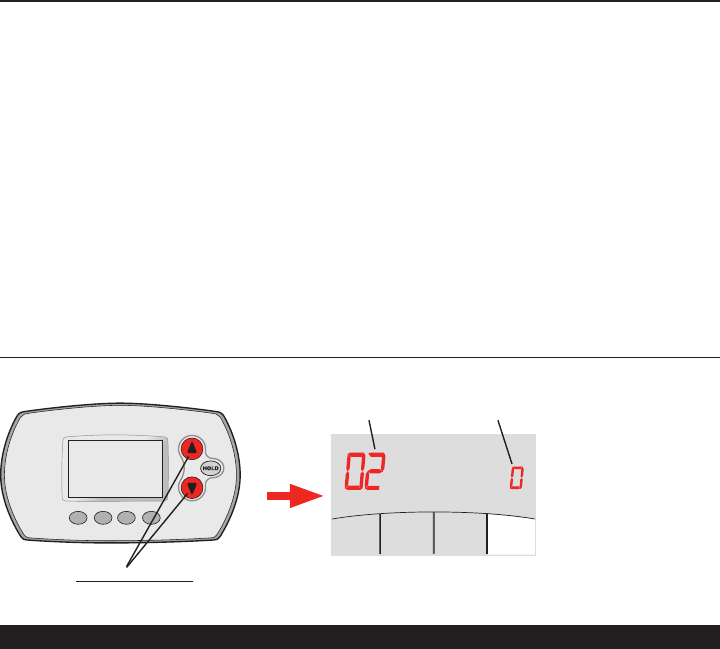

To begin, press and hold the FAN and s
buttonsuntilthedisplaychanges."WAIT"
will be displayed for up to 40 seconds.
Function
PressDONEtosave&exit.
Setting
M28927
Back
Done
Next
M28488A
M289871
Fan
Wireless System Installation Guide
69-2426—01 6
Installer setup tables
Setup function Settings & options (factory default in bold)
101 Unit automatically
restarts after power
outage
1OFF
2ON
3 Not Supported
103 Ventilation Air 1 Not Supported
2IDUdoesnotintakeoutdoorairthroughLOSSNAY
3IDUdoesintakeoutdoorairthroughLOSSNAY
104 Power Voltage 1 230V
2 208V
3 Not Supported
105 Auto energy-savings
operation
1ON
2OFF
3 Not Supported
107 Change Filter Duration 1100Hours
22500Hours
3OFF
108 Auto Fan (speed setting) 1 Quiet
2 Standard
3HighCeiling
109 No. of Air Outlets (PLA
only)
1 4 directions
2 3 directions
3 2 directions
110 High Performance Filter
Installed
1NO
2YES
3 Not Supported
111 Airflow Direction
Settings
1NoVanes(orVane#3forPLA)
2Vane#1Setting(typicallykeptatthedefaultsetting)
3Vane#2Setting(typicallykeptatthedefaultsetting)
115 Indoor Unit Coil Frost
Prevention Temperature
136°F(2°C)
237°F(3°C)
3 Not Supported
117 Defrost Control 1 Standard
2HighHumidity
3 Not Supported
123 Airflow Oscillate Mode 1 Not Available
2 Available
3 Not Supported
124 Heating Mode
Temperature Offset
1ON
2OFF
3 Not Supported
125 Thermal Off Fan
Operation (Heat Mode)
1ExtraLow
2 Stop
3SelectableFanSpeed
127 Thermal Off Fan
Operation (Cool Mode)
1SelectableFanSpeed
2 Stop
3 Not Supported
128 Display System Error 1ON
2OFF
3 Not Supported
DefaultsettingsforSetupfunctions101-128areautomaticallydeterminedbytheHVAC
equipment.Itmaytakeupto40secondstoentersetup,and30secondstoexitsetup.
7 69-2426—01
Installer setup tables
Setup function Settings & options (factory default in bold)
134 Central Controller
(AG-150 or similar)
Present
0 Not Installed
1 Installed
136 Residential/Commercial 1 Commercial
0 Residential
138 Permanent Hold Lock
(Non-programmable)
0 OFF (Programmable)
1ON(Non-programmable)
139 Fahrenheit/Celsius
Display
0 Fahrenheit
1 Celsius
140 Commercial Override
Duration
3 3 Hours
0OFF
1–12 1–12Hours
142 System Type 0 Heat & Cool (Heat Pump)
1CoolOnly
144 System Changeover 1 System Changeover (Auto, Heat, Off, Cool)
0ManualChangeover(Heat,Off,Cool)
2SystemChangeoverOnly(AutoOnly)
3 System Changeover Single Setpoint - only with AG-150 or
similar(Auto,Heat,Off,Cool)
145 System Changeover
Deadband Value
3 3 °F (2 °C)
2–8 2–8°F(1.5–4.5°C)
146 Drying Mode 0 OFF
1ON
148 Schedule Format 0 5-2
1 5-1-1
150 Optimal Start 1 ON
0OFF
152 Scheduled Off 0 Not Shown * See page 9 for feature information
1 Shown
154 Power Off Timer
("Sleep Timer")
0 Not Shown
1Resumeoperationatnextscheduledperiod
2PermanentlyOffuntiluserchangesSystemmode
160 Full Lockout 0 No
1Yes
162 Lockout On/Off 0 No
1Yes
164 Lockout System Mode
(Heat, Cool, Auto,
Drying)
0 No
1Yes
165 Lockout Fan Mode 0 No
1Yes
166 Lockout Setpoint 0 No
1Yes
168 Lockout Set Clock/Day/
Schedule
0 No
1Yes
170 Max Heat Setpoint 90 90 °F (32 °C) * Subject to
40–89 40to89°F(4.5to31.5°C) HVAC Equipment
172 Min Cool Setpoint 50 50 °F (10 °C) * Subject to
51–99 51to99°F(10.5to37°C) HVAC Equipment
173 Sensing Location 1 Sense at Remote Controller
0 Sense at Indoor Unit
174 Indoor Temperature
Display Offset
0 0 °F (0 °C)
-3to3°F(-1.5to1.5°C)
Wireless System Installation Guide
69-2426—01 8
Installer setup tables
Setup function Settings & options (factory default in bold)
176 Outdoor Temperature
Display Offset
0 0 °F (0 °C)
-5to5°F(-2.5to2.5°C)
178 Outdoor Humidity
Display Offset
3 0%
0 -15%
1 -10%
2 -5%
4 5%
5 10%
615%
192 Zone Name 52 THERMOSTAT 34 MASTER BED
1 BASEMENT 35 MEDIAROOM
2BATHROOM 36 MUSICROOM
3BATHROOM1 37 NURSERY
4BATHROOM2 38 OFFICE
5BATHROOM3 39 OFFICE1
6 BEDROOM 40 OFFICE2
7 BEDROOM1 41 PANTRY
8BEDROOM2 42 PLAYROOM
9BEDROOM3 43 POOLROOM
10 BEDROOM4 44 PORCH
11 BOATHOUSE 45 RECROOM
12 BONUSROOM 46 SEWINGROOM
13 COMPUTERROOM 47 SPA
14 DEN 48 STORAGEROOM
15 DININGROOM 49 STUDIO
16 EXERCISEROOM 50 SUNROOM
17 FAMILYROOM 51 THEATER
18 FIREPLACE 52 THERMOSTAT
19 FOYER 53 UPPERLEVEL
20 GAMEROOM 54 UTILITYROOM
21 GARAGE 55 WALKINCLOSET
22 GREATROOM 56 WINECELLAR
23 GUESTROOM 57 WORKSHOP
24 GYM Commercial Names
25 KID’SROOM 64 CONFERENCERM
26 KITCHEN 65 DRESSINGROOM
27 KITCHEN1 66 MACHINEROOM
28 KITCHEN2 67 MEETINGROOM
29 LAUNDRYROOM 68 OPENAREA1
30 LIBRARY 69 OPENAREA2
31 LIVINGROOM 70 SERVER 1
32 LOWERLEVEL 71 SERVER 2
33 MASTERBATH 72 STOCKROOM
194 Wireless Setup 1 Remote controller is connected to wireless system
0 Disconnect Remote controller from wireless system
198 Reset Schedule to
Factory Defaults
0 No
1Yes
199 Reset Installer Setup to
Factory Defaults
0 No
1Yes
9 69-2426—01
Special functions
Installer test
Followtheprocedurebelowtotestforproperoperation.
M28488A
To begin, press and hold the s and t buttons
untilthedisplaychanges(about3seconds).
Presss or t to
check system status
PressNEXT to
advancetonexttest
PressDONE to
terminate system test
M32306
Next
Back
Done
System test number System status
System test System status
02 Wireless test 0 Off
1 Testradiosignal(afterabriefpause,screendisplays5-10toshow
signalstrength;5orhigherrecommended)
50 Cool/Heat test 0 Off
1 Cool
2 Heat
70 Configuration Data 1
(remotecontroller)
71 Softwarerevisionnumber(majorrevisions)
72 Softwarerevisionnumber(minorrevisions)
73 Configurationidentificationcode(major)
74 Configurationidentificationcode(minor)
75 Productionconfigurationdatecode(week)
76 Productionconfigurationdatecode(year)
80 Configuration Data 2
(remotecontroller)
81 Softwarerevisionnumber(majorrevisions)
82 Softwarerevisionnumber(minorrevisions)
83 Softwarerevisionnumber(buildrevisions)
90 Configuration Data 1
(wirelessreceiver)
91 Softwarerevisionnumber(majorrevisions)
92 Softwarerevisionnumber(minorrevisions)
93 Softwarerevisionnumber(buildrevisions)
95 Configuration Data 2
(wirelessreceiver)
95 Softwarerevisionnumber(majorrevisions)
96 Softwarerevisionnumber(minorrevisions)
97 Softwarerevisionnumber(buildrevisions)
Commercial Override (SetupFunction140):Allowsanemployeeduringanunoccupiedperiod
to temporarily activate an occupied temperature. Each press of HOLDextendstheoccupied
temperatureout1hour(orasinstalled).
Optimal Start (SetupFunction150):Allowstheremotecontrollerto“learn”howlongthe
equipment will take to reach programmed temperature settings, so the temperature is reached at
the scheduled time.
Scheduled Off (SetupFunction152):Allowstheusertoscheduleaperiodwherethesplit-zoning
systemiscompletelyoffandresumesoperationatthenextscheduledperiod.
Power Off Timer (SetupFunction154):Allowsusertoscheduleindoorunitcompletelyoffforone
instance:
FollowScheduleOption:indoorunitwillresumeoperationatthenextscheduledperiod.
PermanentlyOffOption:indoorunitwillremainoffindefinitelyuntiltheuserchangesthesystem
mode.
Wireless System Installation Guide
69-2426—01 10
Outdoor sensor (optional)
5 Mount remote controller & outdoor sensor
1 Separate the wallplate from the remote controller.
2 Mount the wallplate using the included screws and anchors 5 feet from the floor on
an interior wall. If the remote controller is configured to sense indoor temperature,
mount in the same room as the indoor unit.
 Drill3/16"holesfordrywall.
Drill7/32"holesforplaster.
3 Snap the remote controller to the wallplate on the wall.
M28491
M28492
Mountthesensoronaverticalexteriorwall,atleast6inchesbelowany
overhang. Choose a location protected from direct sunlight.
Placesensorsecurely
in bracket, facing
away from wall.
RedLINK™ error codes
E0 27 Verify device temperature is within operating range. If within range for at least 30
minutes and problem persists, replace Remote Controller.
E0 91 Communication was established between wireless receiver and the indoor unit,
but communication has been lost for 10 minutes. Check cable connection. Try
replacing the cable.
E1 29 Attempting to connect incompatible wireless devices.
E1 34 Low signal strength. Move wireless device to a different location and try again.
E1 38 Make sure Connect light on wireless receiver is flashing and you are 2+ feet away
from wireless receiver.
E1 54 Indoor unit does not support wireless receiver.
Forfulllistoferrorcodes,pleaserefertoyourequipment'stechnicalservicemanual.
11 69-2426—01
Replacing system components
Note:OnlyuseMitsubishiElectriccomponentsorotherdesignatedcomponents
forinstallation.Failuretocomplymaydamagetheproductorcauseahazardous
condition.
Remote Controller
To replace a remote controller, install batteries and follow the procedures on page
3tolinkittothewirelessnetwork.Ifnecessary,modifysettingsasneeded(see
tablesonpages6–8).
Portable Central Controller & outdoor sensor
ToreplaceaPortableCentralControlleroroutdoorairsensor,installbatteriesand
follow the procedures on page 4 to link it to the wireless network.
Wireless receiver
After installing a new wireless receiver, you must re-set the remote controller and
PortableCentralControllertocommunicatewiththenewequipment,asdescribed
below.
Removing all wireless devices:
1 Pressandhold the CONNECT button on the wireless receiver for 10 seconds.
2 To reconnect, see procedure on page 3.
Attheremotecontroller:
1 Pressandhold the FAN and s buttons for 3 seconds until display changes.
"WAIT"willbedisplayedforupto17seconds.
2 PressNEXTuntilFunction194isdisplayed(wirelesssetup).
3 PressttochangeFunction194settingto0(disconnectfromoldwireless
receiver).
4 Followtheproceduresonpage3tolinktonewwirelessreceiver.
AtthePortableCentralController:
1 Pressandholdtheblankspace(orarrowif
present)inthelowerrightcornerofthescreen
untilthedisplaychanges(about3seconds).
2 PressREMOVE, then YES to disconnect from old
wireless receiver.
3 Followtheprocedureonpage4tolinktonew
wireless receiver.
© 2010 Mitsubishi Electric & Electronics USA, Inc.
Suwanee, GA 30024 All Rights Reserved.
The three diamond logo is a registered trademark
of Mitsubishi Electric Corporation
69-2426—01M.S.11-10
PrintedinU.S.A.
Regulatory information
FCC Compliance Statement (Part 15.19) (USA only)
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause undesired operation.
FCC Warning (Part 15.21) (USA only)
Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthorityto
operate the equipment.
FCC Interference Statement (Part 15.105 (b)) (USA only)
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15ofthe
FCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Wireless receiver, remote controller and outdoor sensor
TocomplywithFCCandIndustryCanadaRFexposurelimitsforgeneralpopulation/uncontrolledexposure,theantenna(s)used
for these transmitters must be installed to provide a separation distance of at least 20 cm from all persons and must not be
co-locatedoroperatinginconjunctionwithanyotherantennaortransmitter.
Portable Central Controller
ThisportabletransmitterwithitsantennacomplieswithFCCandIndustryCanadaRFexposurelimitsforgeneralpopulation/
uncontrolledexposure.Thisdevicemustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaortransmitter.
Section 7.1.5 of RSS-GEN
Operationissubjecttothefollowingtwoconditions:
1 this device may not cause interference, and
2 this device must accept any interference, including interference that may cause undesired operation of the device.
Specifications & replacement parts
Operating Ambient Temperature
Remote Controller:32to120°F(0to48.9°C)
Portable Central Controller:32to120°F(0to
48.9°C)
Wireless receiver:-40to165°F(-40to73.9°C)
Outdoor air sensor:-40to140°F(-40to60°C)
Operating Relative Humidity
Remote Controller:5%to90%(non-
condensing)
Portable Central Controller:5%to90%(non-
condensing)
Wireless receiver:5%to95%(non-condensing)
Outdoor air sensor:0%to100%(condensing)
Physical Dimensions(height,width,depth)
Remote Controller:3-9/16x5-13/16x1-1/2
inches(91x147x38mm)
Wireless receiver:6-7/16x3-1/4x1-5/16
inches(164x82.5x34mm)
Outdoor air sensor:5x3-1/2x1-11/16inches
(127x89x43mm)
Portable Central Controller:6-1/4x3-1/8x
1-5/8inches(158.2x79.9x42mm)
Item Part Number
PortableCentralController MCCH1
Outdoorairsensor MOS1
RemoteController MRCH1
ReceiverandCable MIFH1
Cable MRC1
Accessories & Replacement Parts

Navigation menu
