Advance Multimedia Internet Technology CDW571AM002 WIFI BROADBAND ROUTER User Manual 1

Advance Multimedia Internet Technology Inc. WIFI BROADBAND ROUTER Users Manual 1

Users Manual 1

1
CDW571AM-002
WiFi Broadband Router
User Manual
2
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored,
transcribed in an information retrieval system, translated into any language, or transmitted in any
form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or
otherwise, without the prior written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against radio interference in a commercial environment. This equipment can generate, use and
radiate radio frequency energy and, if not installed and used in accordance with the instructions in
this manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference, in which case the user, at his own
expense, will be required to take whatever measures are necessary to correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022/A1 Class B.
3
Table of contents
COPYRIGHT ............................................................................................................................. 2
FCC INTERFERENCE STATEMENT....................................................................................... 2
CHAPTER 1 INTRODUCTION............................................................................................. 4
1.1 PACKAGE LIST.............................................................................................. 4
1.2 HARDWARE INSTALLATION........................................................................ 5
CHAPTER 2 GETTING STARTED WITH EASY SETUP UTILITY...................................... 7
2.1 EASY SETUP BY WINDOWS UTILITY.......................................................... 7
2.2 EASY SETUP BY CONFIGURING WEB PAGES........................................ 12
CHAPTER 3 MAKING CONFIGURATION ........................................................................ 16
3.1 BASIC SETTING............................................................................................. 16

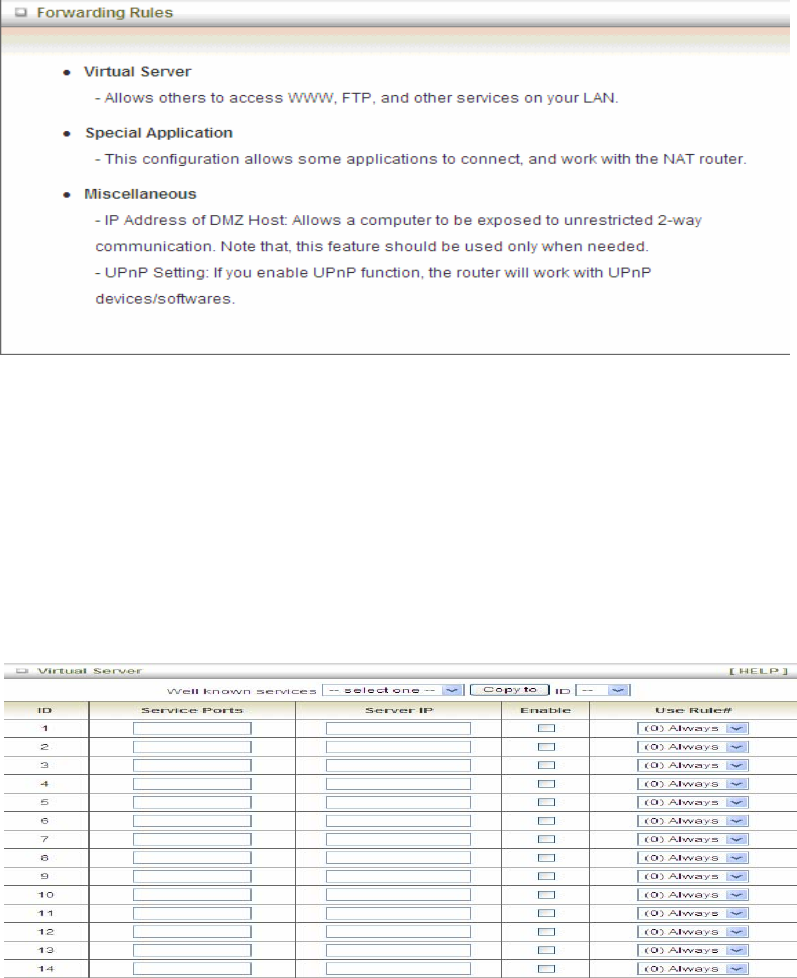

3.2 FORWARDING RULES.................................................................................. 33
3.2.1 VIRTUAL SERVER............................................................................... 33
3.2.2 SPECIAL AP......................................................................................... 34

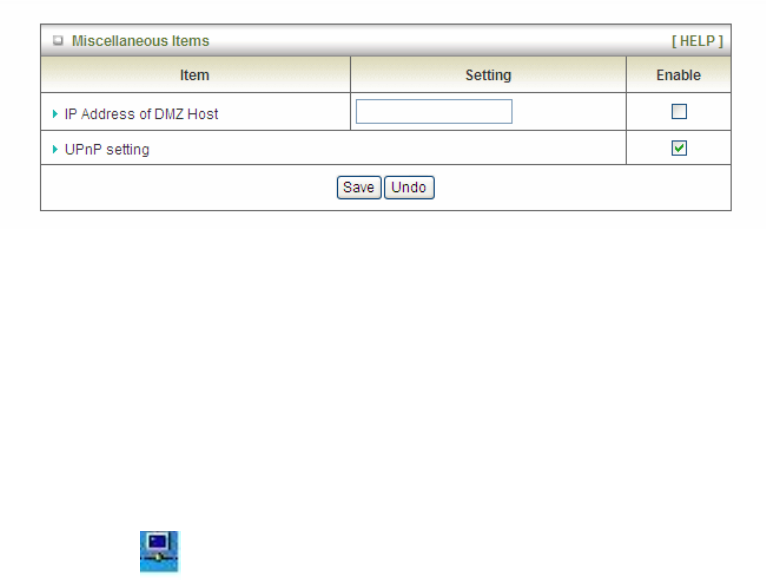

3.2.3 MISCELLANEOUS............................................................................... 35

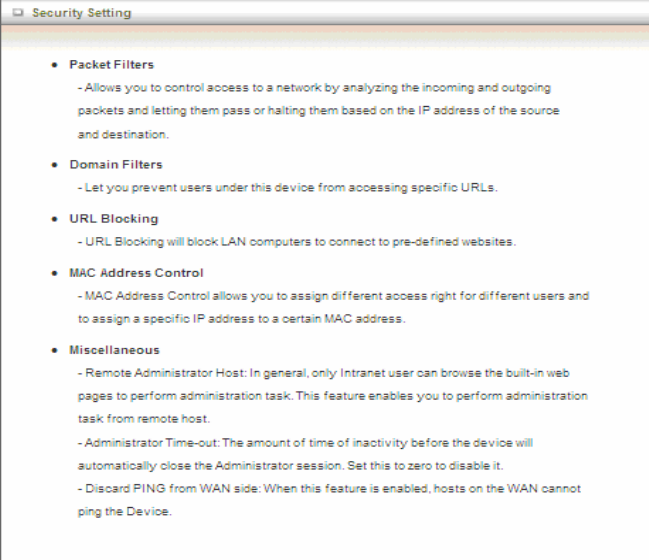

3.3 SECURITY SETTING ....................................................................................... 36
3.4 ADVANCED SETTING ..................................................................................... 42

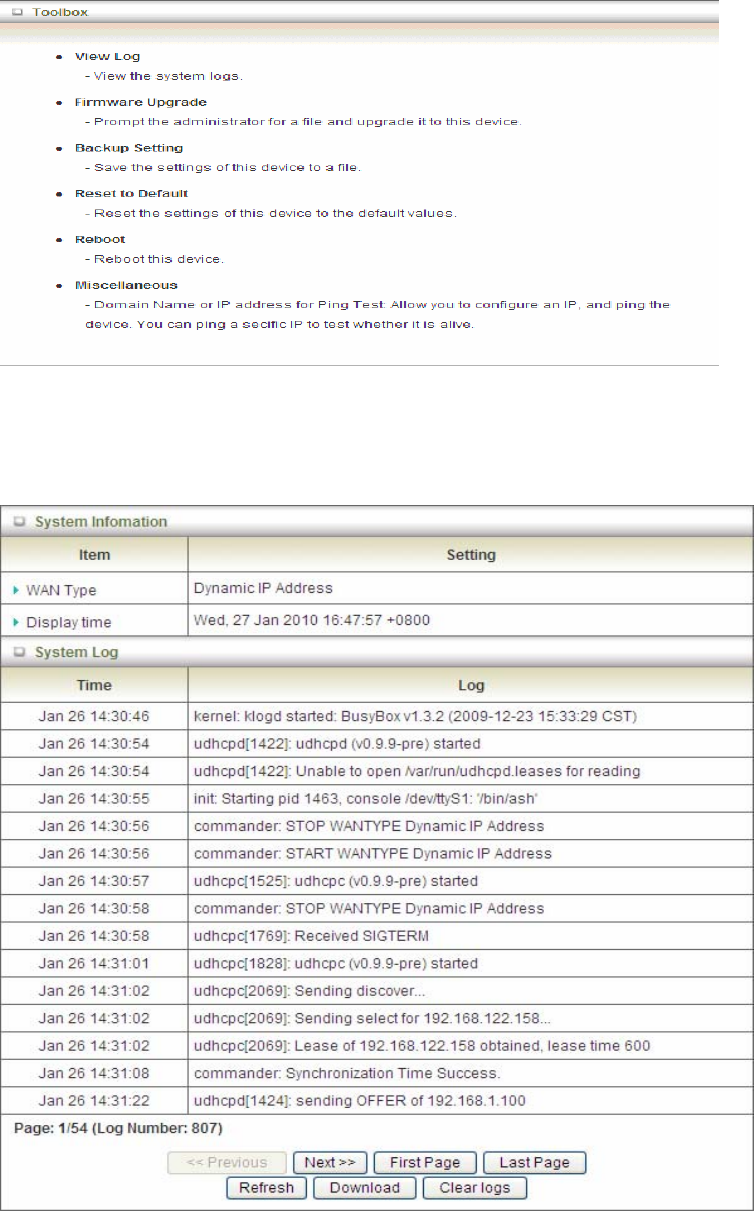

3.5 TOOL BOX........................................................................................................ 54
CHAPTER 4 TROUBLESHOOTING.................................................................................. 57
APPENDIX A. SPEC SUMMARY TABLE.............................................................................. 61
APPENDIX B. LICENSING INFORMATION .......................................................................... 62
4
Chapter 1 Introduction
The Wi-Fi Combo Router is a high-performance tool that supports wireless networking at home,
work, or in a public place. The Wi-Fi Combo Router supports a USB 3G modem card, either
WCDMA or EVDO and even HSDPA as well, and supports wireless data transfers up to 300M bps,
and wired data transfers up to 1Gbps. The WiFi Combo Router is compatible with industry security
features.
1.1 Package List
Items Description Contents Quantity
1 Wi-Fi Combo Router 1
2 Power adapter
1
3 CD
1
5
1.2 Hardware Installation

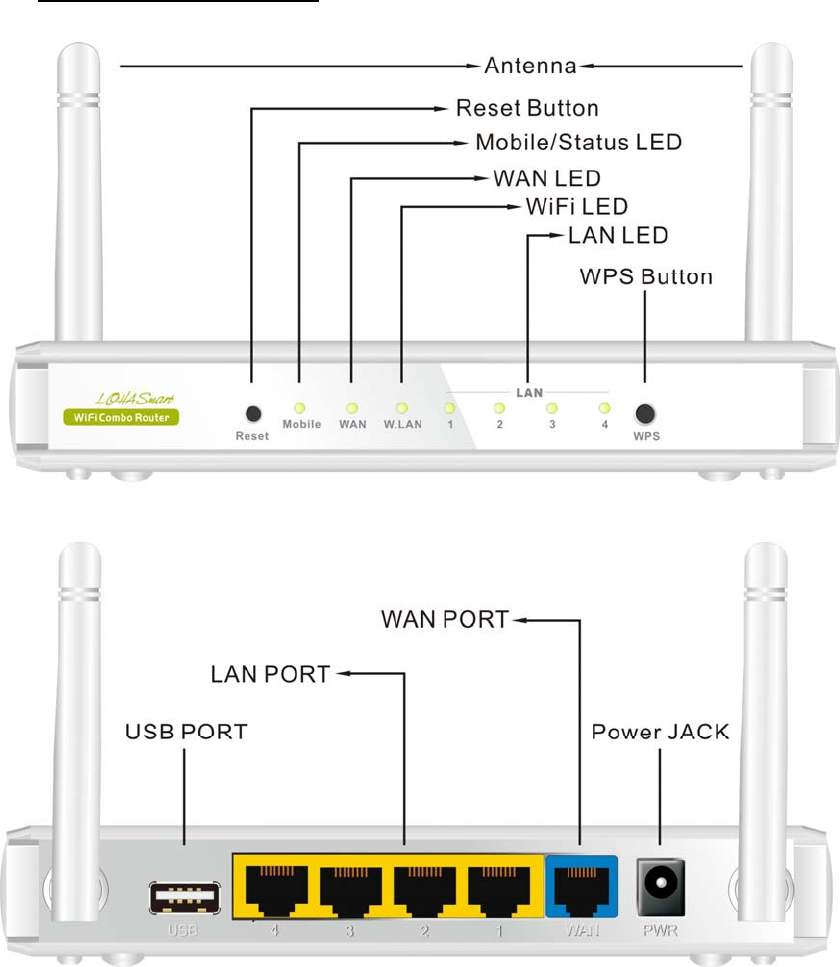

A. Hardware configuration
6

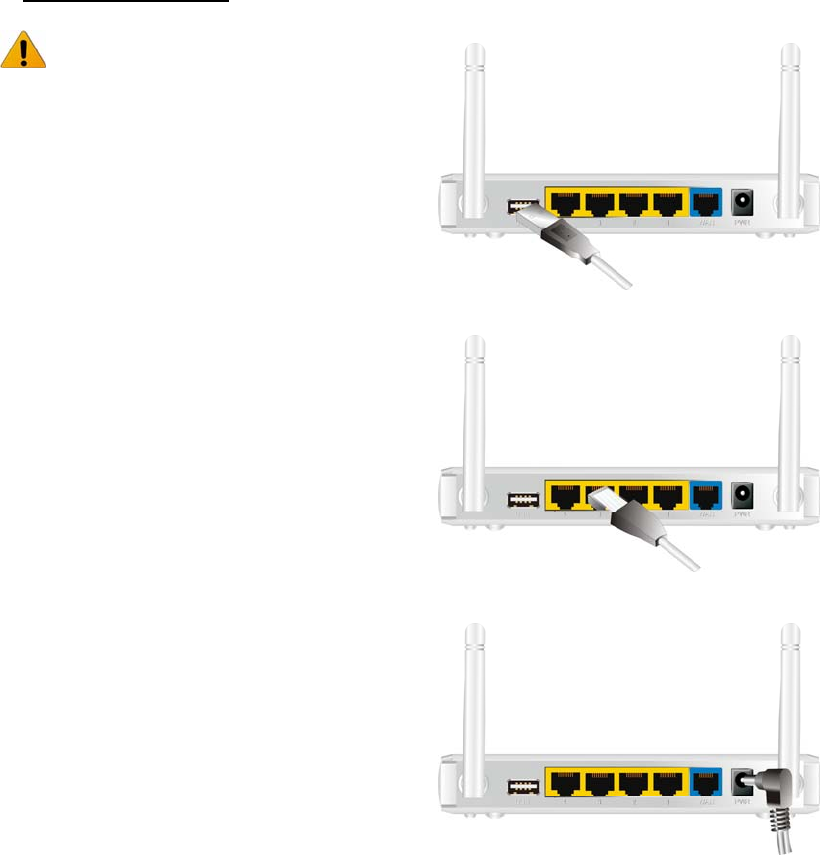

B. Installation Steps
Note: DO NOT connect the router to
power before performing the installation
steps below.
Step 1.
Plug a USB modem into USB port.
Step 2.
Insert RJ45 cable into LAN Port on the back
panel of the router. Then plug the other end of
into computer.
Step 3.
Plug the power jack into the receptor on the
back panel of the router. Then plug the other
end into a wall outlet or power strip.
7
Chapter 2 Getting Started with Easy Setup Utility
There are two approaches for you to set up the Wi-Fi Combo Router quickly and easily. One is
through executing the provided Windows Easy Setup Utility on your PC, and the other is through
browsing the device web pages and configuration.
2.1 Easy Setup by Windows Utility
Step 1：
Install the Easy Setup Utility
from the provided CD then
follow the steps to configure
the device.

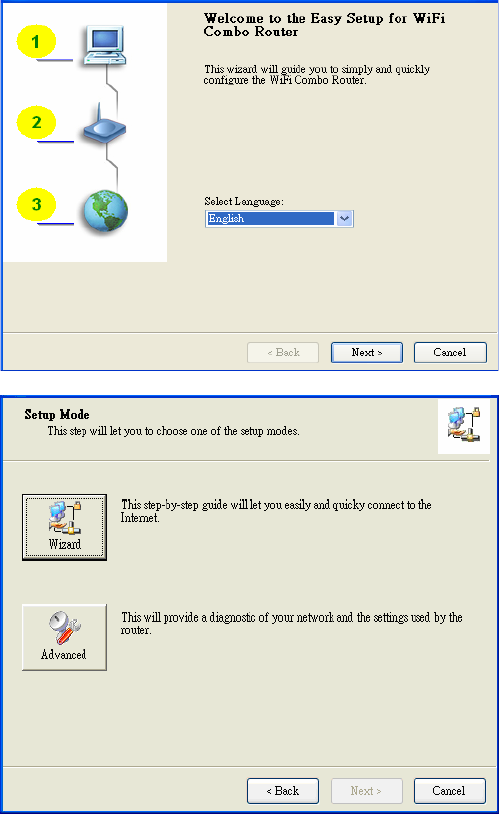

Step 2：
Select Language then click
“Next” to continue.
Step 3：
Then click the “Wizard” to
continue.
8

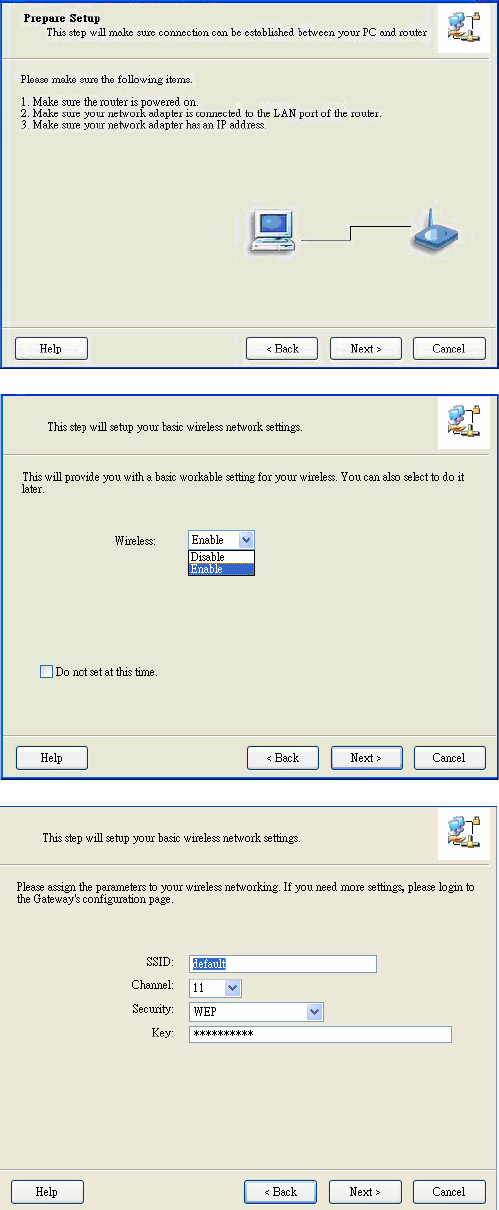

Step 4：
Click “Next” to continue.
Step 5：
Select Wireless Enable, and
then click “Next” to continue.
Step 6：
Enter SSID, Channel and
Security options, and then
click “Next” to continue.
9

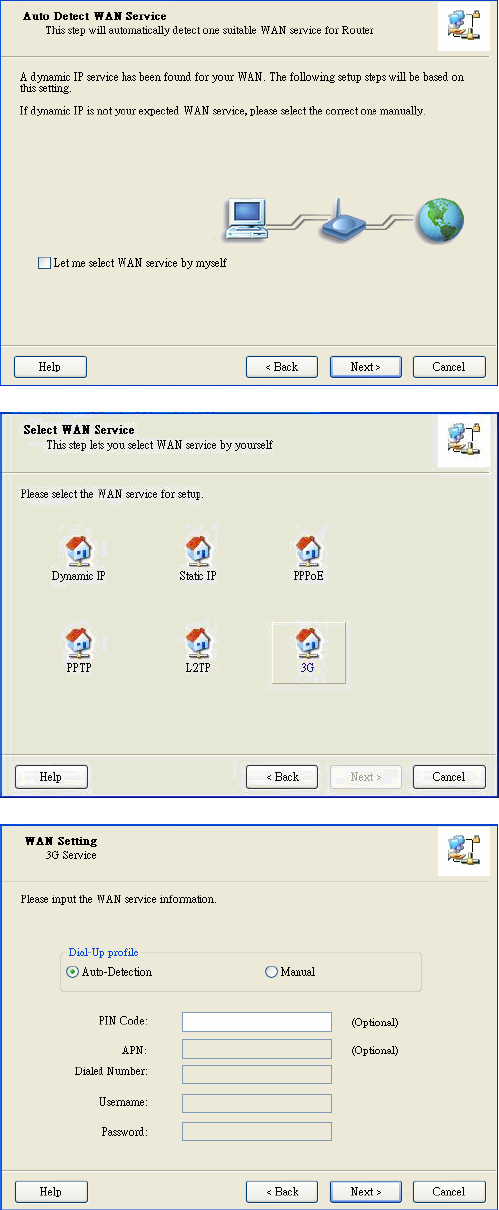

Step 7：
Click” Let me select WAN
service by myself” to select
WAN service manually.
Step 8：
Select 3G Service by clicking
3G icon to continue.
Step 9-1：
Select “Auto-Detection” and
the Utility will try to detect and
configure the required 3G
service settings automatically.
Click “Next” to continue.
10

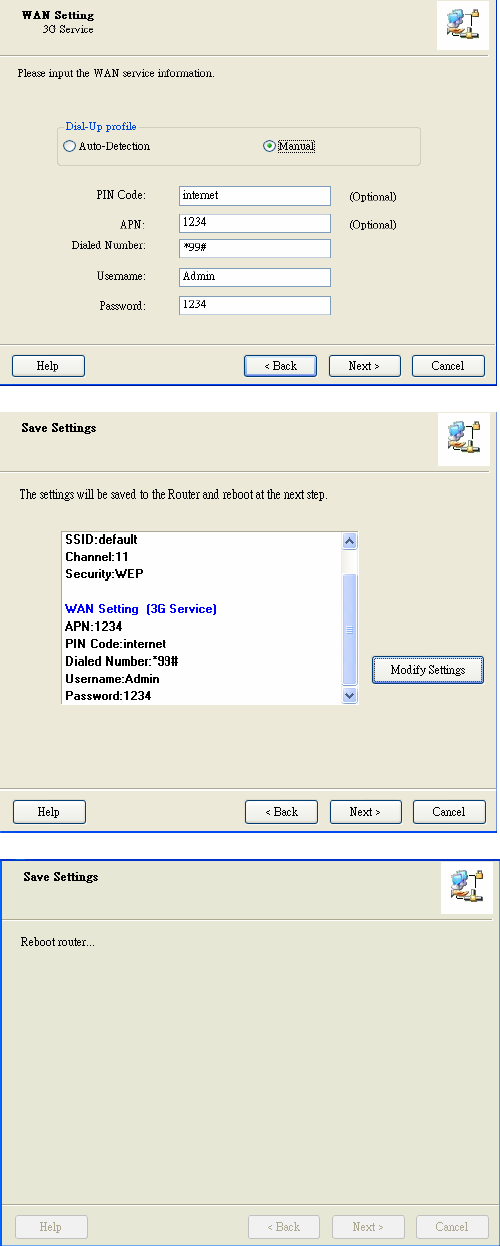

Step 9-2：
Or you can select “Manual”
and manually fill in the
required 3G service settings
provided by your ISP.
Click “Next” to continue.
Step 10:
Click “Next” to save your
setting.
Step 11：
The Wi-Fi Combo Router is
rebooted to make your entire
configuration take effect.
11

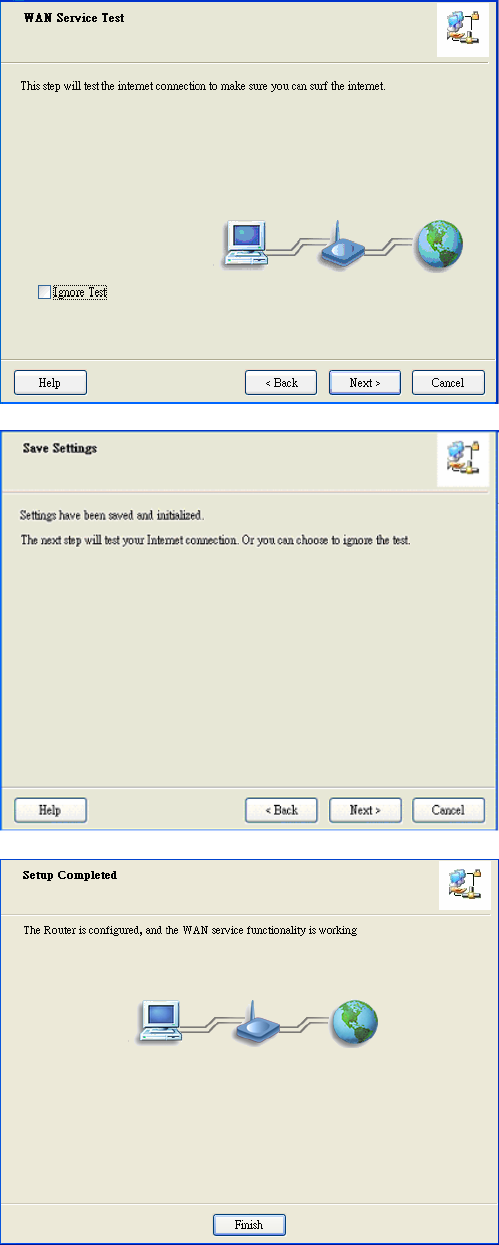

Step 12：
Click “Next” to test the
Internet connection or you
can ignore test.
Step 13：
Click “Next” to test WAN
Networking service.
Step 14：
Setup is completed.
12
2.2 Easy Setup by Configuring Web Pages
You can also browse web UI to configure the device.

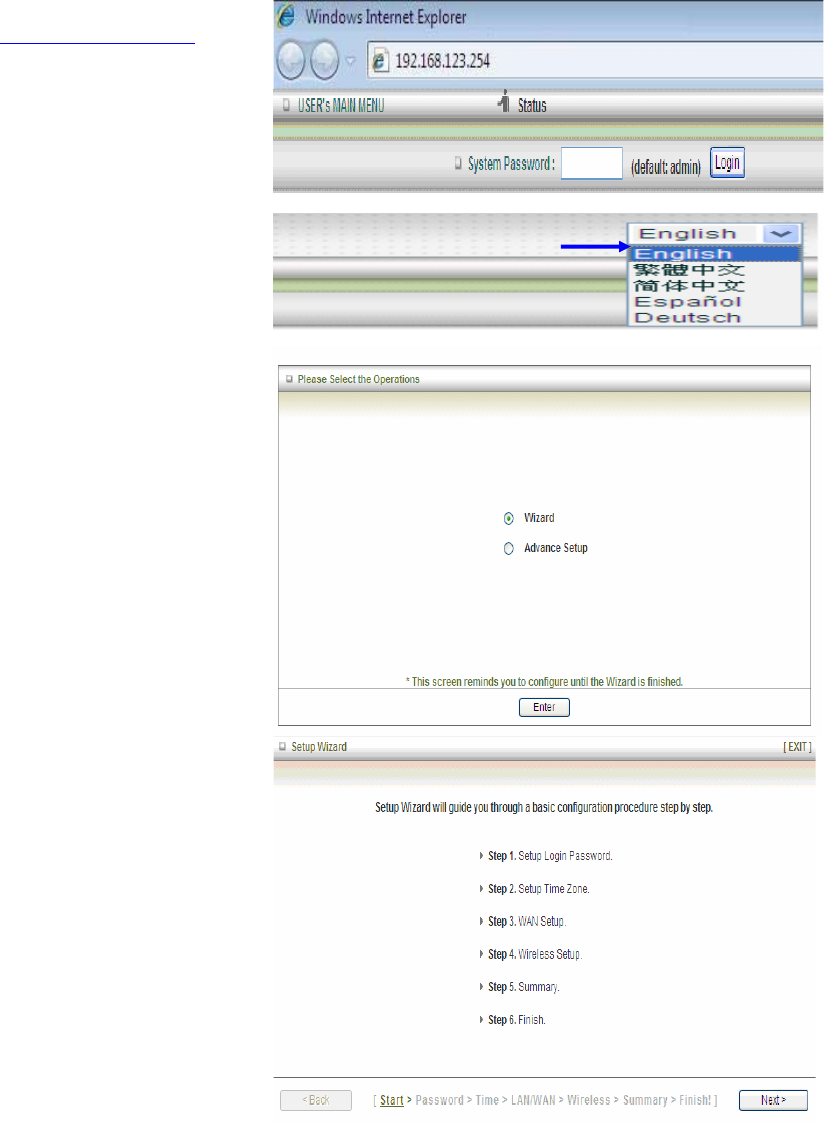

Browse to Activate the Setup Wizard
Type in the IP Address
(http://192.168.123.254)
Type in the default password
“admin” in the System
Password and then click
‘login’ button.
Select your language.
Select “Wizard” for basic
settings with simple way.
Press “Next” to start the Setup
Wizard.
13
Configure with the Setup Wizard

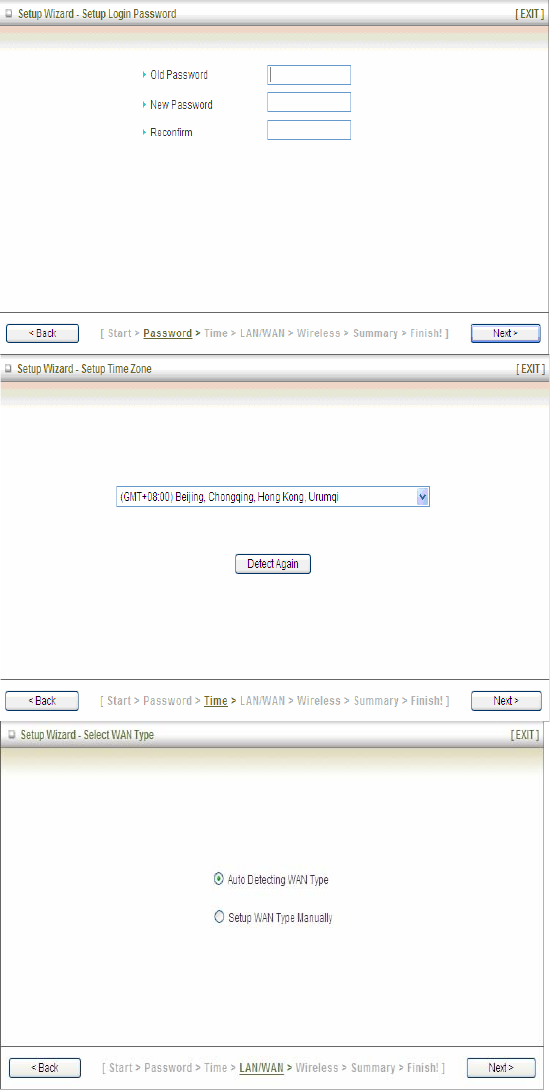

Step 1: Change System
Password.
Set up your system password.
(Default：admin)

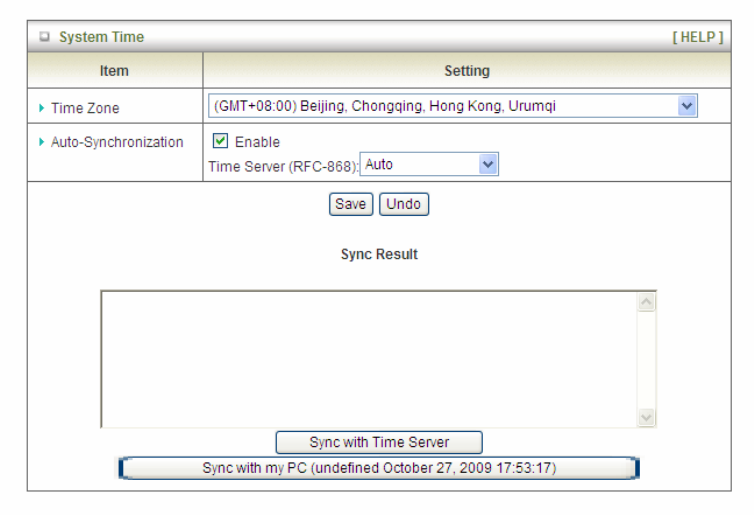

Step 2: Select Time Zone.
Step 3: Select WAN Type.
Choose Auto-Detecting or
Manually to set WAN Type.
14
Step 4: Select Wan Type.
If you want to use 3G service
as the main internet access,
please set the WAN interface
as “Wireless WAN” and the
WAN type as “3G”.
Step 5: 3G Mode.
Select Auto-Detection then
click “Next” to continue.
Step 6: Set up your Wireless
Network.
Set up your SSID.
15

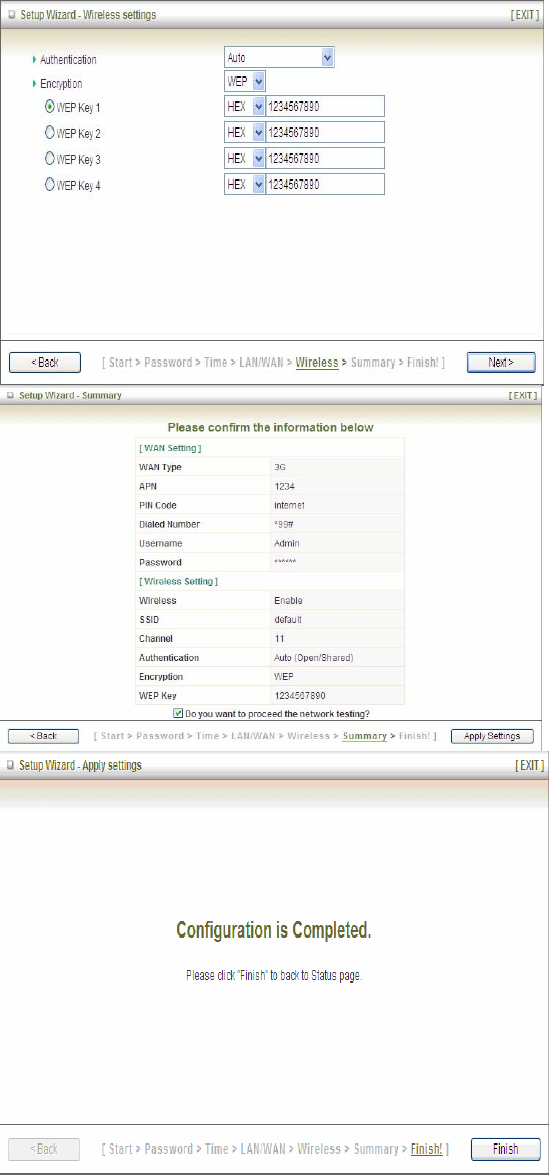

Step 7: Setup your Encryption
Key here, then click”Next” to
continue.
Step 8: Apply your Setting.
Then click Apply Setting.
Step 9:
Click Finish to complete it.
16
Chapter 3 Making Configuration

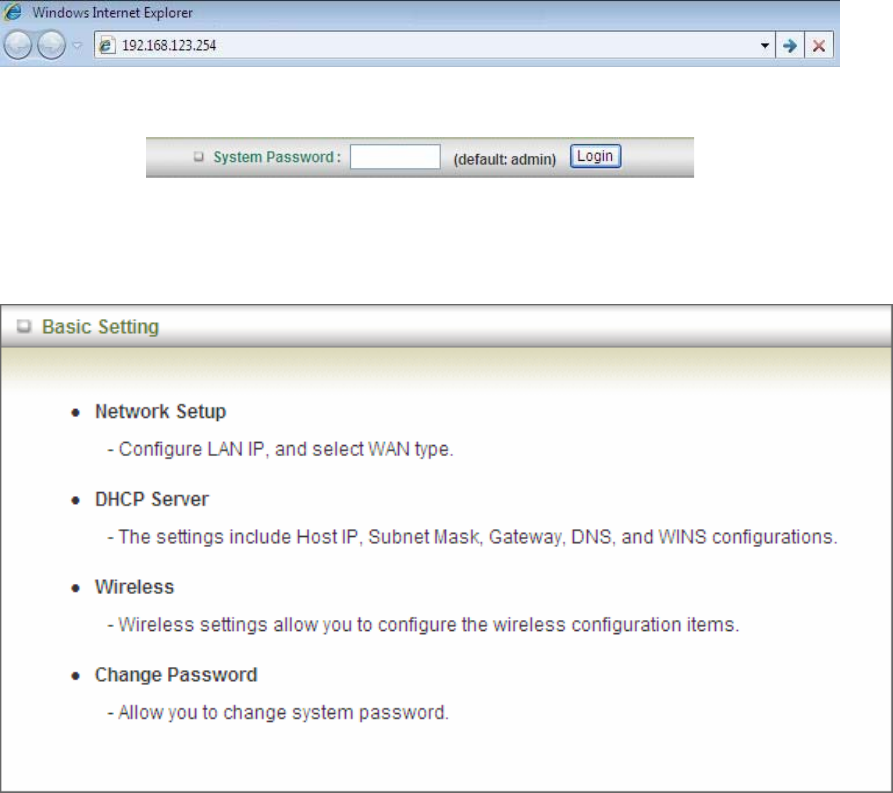

Whenever you want to configure your network or this device, you can access the Configuration
Menu by opening the web-browser and typing in the IP Address of the device. The default IP
Address is: 192.168.123.254
Enter the default password “admin” in the System Password and then click ‘login’ button.
Then, you can browse the “Advanced” configuration pages for configuring this device.
3.1 Basic Setting
17

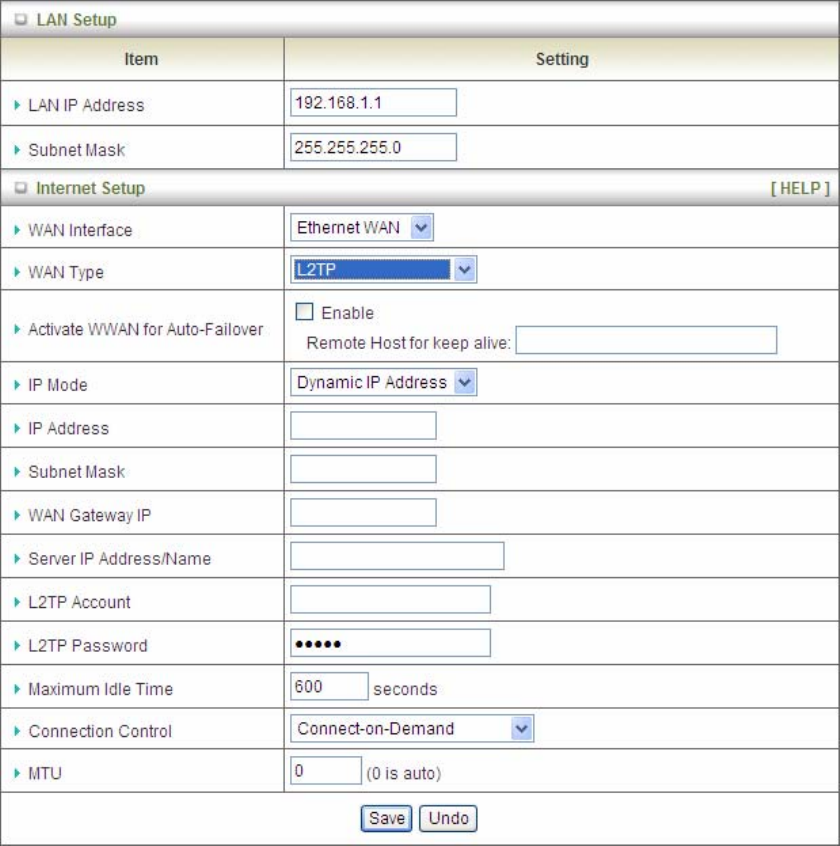

3.1.1. Network Setup
1. LAN IP Address: The local IP address of this device. The computers on your network
must use the LAN IP address of this device as their Default Gateway. You can change it
if necessary.
2. Subnet Mask: Input your Subnet mask. (All devices in the network must have the same
subnet mask.) The default subnet mask is 255.255.255.0.
3. WAN Interface: Select Ethernet WAN or Wireless WAN to continue.

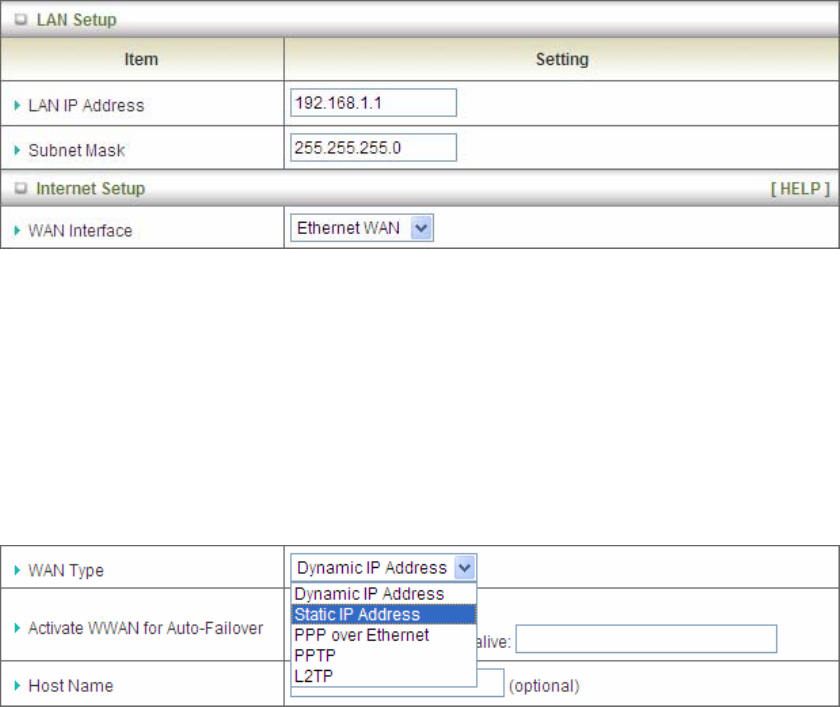

4. WAN Type: WAN connection type of your ISP. You can click WAN Type combo button
to choose a correct one from the following options:
18

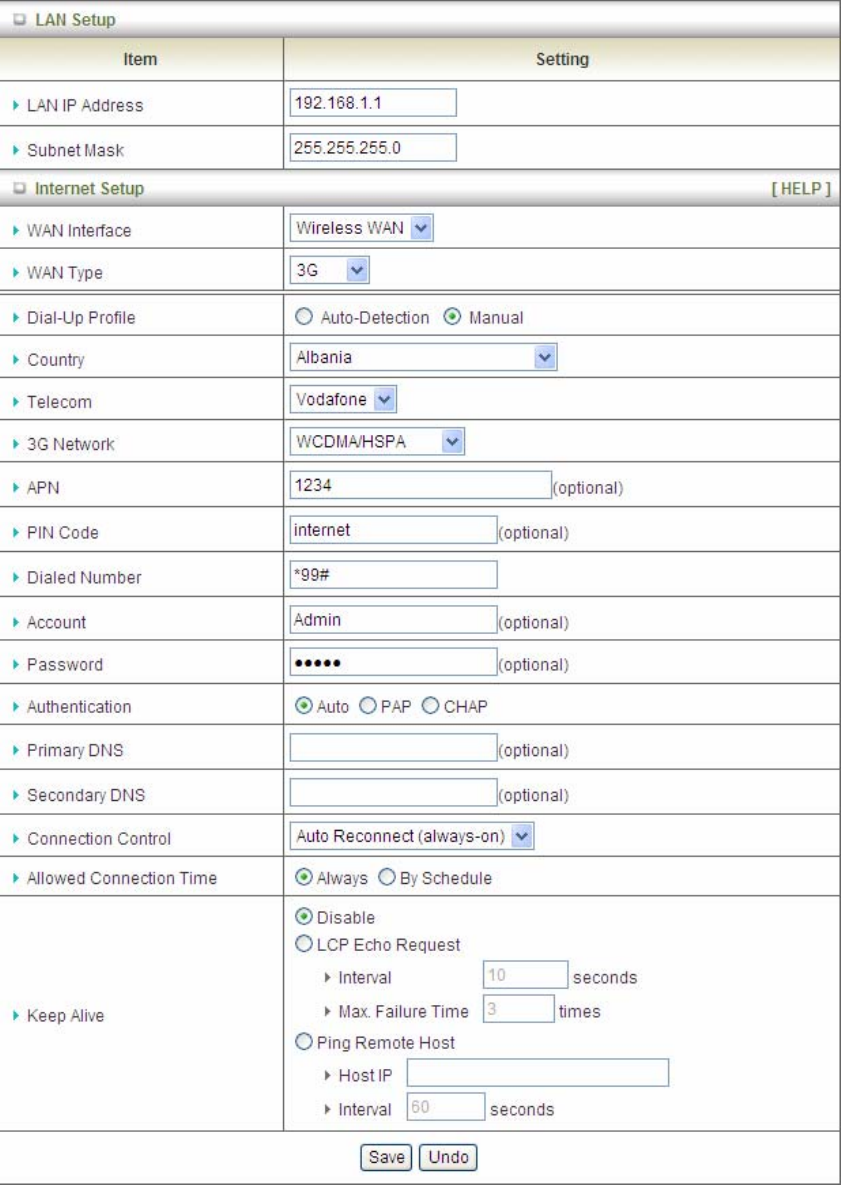

A. 3G
19
For 3G WAN Networking. The WAN fields may not be necessary for your connection. The
information on this page will only be used when your service provider requires you to enter a
User Name and Password to connect with the 3G network.
Please refer to your documentation or service provider for additional information.
1. Dial-Up Profile: Select “Auto-Detection” or “Manual” to continue. If “Auto-Detection” is
selected, the device will try to configure some ISP specific dial-up parameters
automatically according to the Country, Telecom, and 3G Network information you
entered..
2. Country: Select your country.
3. Telecom: Select your telecom.
4. 3G Network: Select the 3G Network
5. APN: Enter the APN for your PC card here.(Optional)
6. Pin Code: Enter the Pin Code for your SIM card. (Optional)
7. Dial-Number: This field should not be altered except when required by your service
provider.
8. Account: Enter the new User Name for your PC card here, you can contact to your ISP to
get it. (Optional)
9. Password: Enter the new Password for your PC card here, you can contact to your ISP to
get it. (Optional)
10. Authentication: Choose your authentication.
11. Primary DNS: This feature allows you to assign a Primary DNS Server, contact to your
ISP to get it. (Optional)
12. Secondary DNS: This feature allows you to assign a Secondary DNS Server, you can
contact to your ISP to get it. (Optional)
13. Connection Control: Select your connection control. There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send outgoing
packets.
Auto Reconnect (Always-on): The device will link with ISP until the connection is
established.
Manually: The device will not make the link until someone clicks the connect-button in
the Status-page.
14. Keep Alive: This feature must collocate with the function "Auto" of "Auto Connect".
Enable it to keep the connection always be established.
15. LCP Echo Request: Enter the time interval and the maximum failure count. The device
will constantly send out the LCP packets for keeping the connection alive.
16. Ping Remote Host: Enter the Remote host IP and the time interval to send the ping
packets for keeping the connection alive.
20

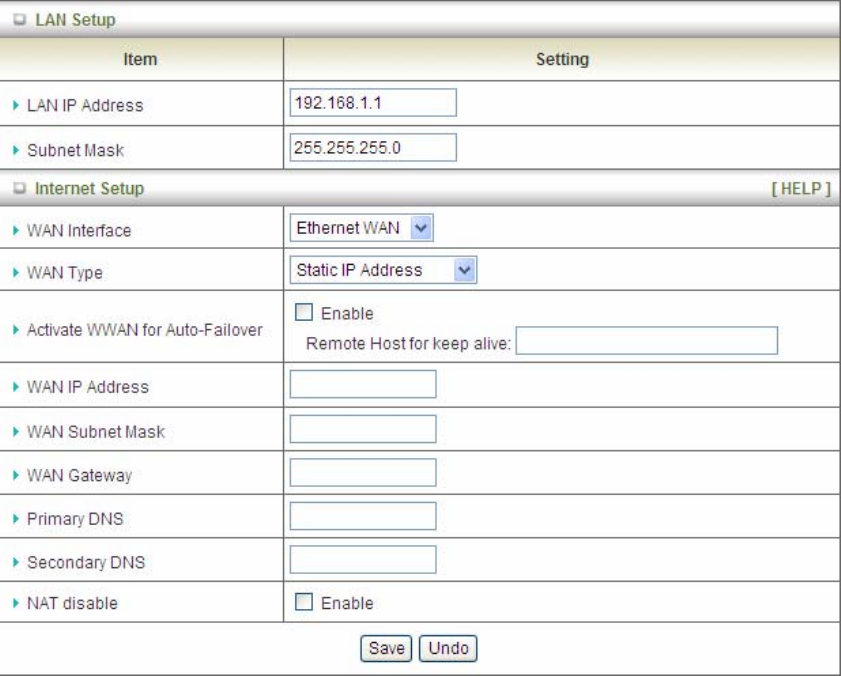

B. Static IP Address:
1. Activate WWAN for Auto-Failover: With this function enabled, when the Ethernet WAN
connection is broken, the device will automatically activate the WWAN connection and
keep you connected to internet with the alternative WWAN broadband service. Meanwhile,
if the device detected that the Ethernet WAN connection is recovered, your broadband
connection will be switched to use the Ethernet WAN service.
2. WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS: Enter the
proper settings provided by your ISP.
21

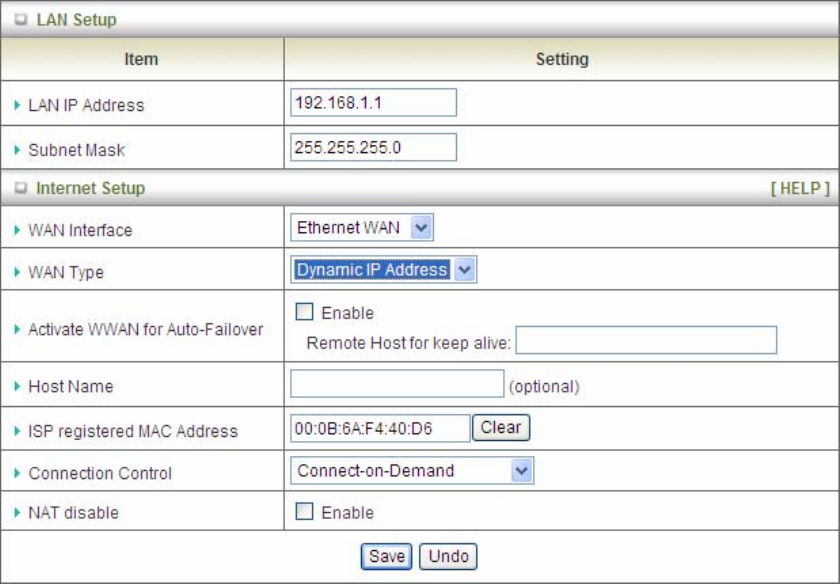

C. Dynamic IP Address:
1. Activate WWAN for Auto-Failover: With this function enabled, when the Ethernet WAN
connection is broken, the device will automatically activate the WWAN connection and
keep you connected to internet with the alternative WWAN broadband service. Meanwhile,
if the device detected that the Ethernet WAN connection is recovered, your broadband
connection will be switched to use the Ethernet WAN service
2. Host Name: Optional, required by some ISPs, for example, @Home.
3. Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send
outgoing packets.
Auto Reconnect (Always-on): The device will link with ISP until the connection is
established.
Manually: The device will not make the link until someone clicks the
connect-button in the Status-page.
22

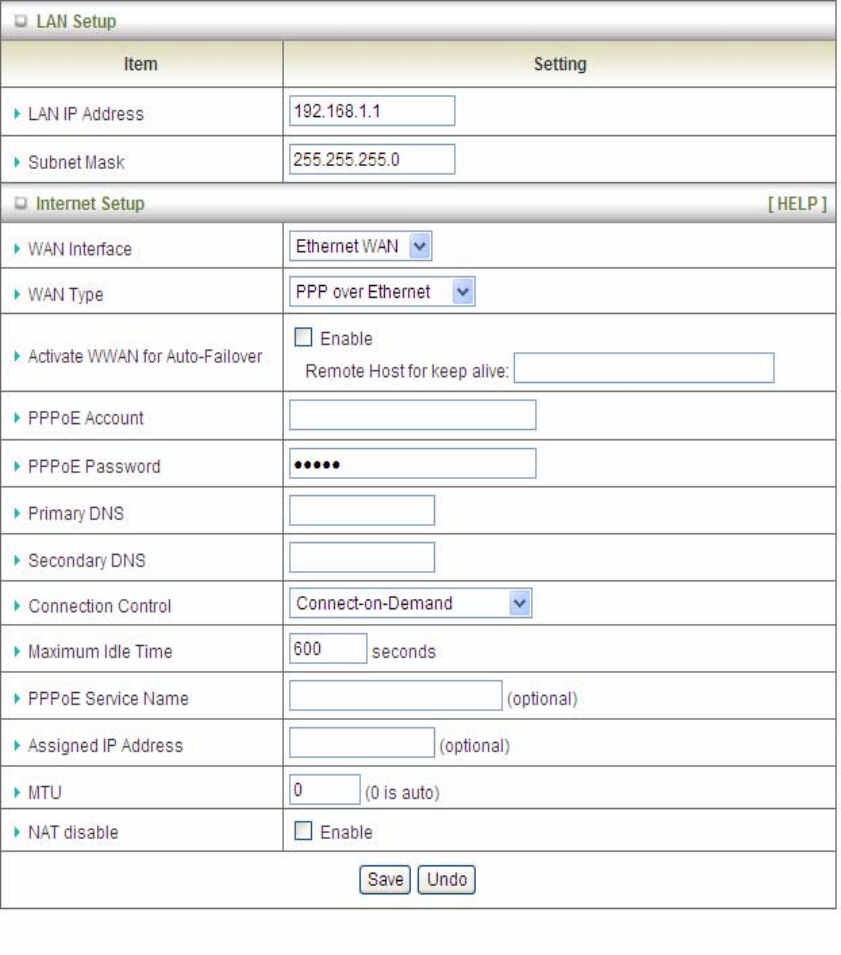

D. PPP over Ethernet
1. Activate WWAN for Auto-Failover: With this function enabled, when the Ethernet WAN
connection is broken, the device will automatically activate the WWAN connection and
keep you connected to internet with the alternative WWAN broadband service. Meanwhile,
if the device detected that the Ethernet WAN connection is recovered, your broadband
connection will be switched to use the Ethernet WAN service
2. PPPoE Account and Password: The account and password your ISP assigned to you.
For security, this field appears blank. If you don't want to change the password, leave it
blank.
23
3. Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send
outgoing packets.
Auto Reconnect (Always-on): The device will link with ISP until the connection is
established.
Manually: The device will not make the link until someone clicks the
connect-button in the Status-page.
4. Maximum Idle Time: the amount of time of inactivity before disconnecting your PPPoE
session. Set it to zero or enable “Auto-reconnect＂ to disable this feature.
5. PPPoE Service Name: Optional. Input the service name if your ISP requires it. Otherwise,
leave it blank.
6. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The default
MTU value is 0 (auto).
24
E. PPTP
1. Activate WWAN for Auto-Failover: With this function enabled, when the Ethernet WAN
connection is broken, the device will automatically activate the WWAN connection and
keep you connected to internet with the alternative WWAN broadband service. Meanwhile,
if the device detected that the Ethernet WAN connection is recovered, your broadband
connection will be switched to use the Ethernet WAN service
2. IP Mode: Please check the IP mode your ISP assigned, and select “Static IP Address” or
“Dynamic IP Address”.
3. My IP Address and My Subnet Mask: The private IP address and subnet mask your ISP
assigned to you.
25
4. Gateway IP and Server IP Address/Name: The IP address of the PPTP server and
designated Gateway provided by your ISP.
5. PPTP Account and Password: The account and password your ISP assigned to you. If
you don't want to change the password, keep it blank.
6. Connection ID: Optional. Input the connection ID if your ISP requires it.
7. Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it to
zero or enable “Auto-reconnect” to disable this feature. If Auto-reconnect is enabled, this
device will connect with ISP automatically after system is restarted or connection is
dropped.
8. Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send
outgoing packets.
Auto Reconnect (Always-on): The device will link with ISP until the connection is
established.
Manually: The device will not make the link until someone clicks the
connect-button in the Status-page.
9. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The default
MTU value is 0 (auto).
26
F. L2TP
1. Activate WWAN for Auto-Failover: With this function enabled, when the Ethernet WAN
connection is broken, the device will automatically activate the WWAN connection and
keep you connected to internet with the alternative WWAN broadband service. Meanwhile,
if the device detected that the Ethernet WAN connection is recovered, your broadband
connection will be switched to use the Ethernet WAN service
2. IP Mode: Please check the IP mode your ISP assigned, and select “Static IP Address” or
“Dynamic IP Address”.
3. My IP Address and My Subnet Mask: The private IP address and subnet mask your ISP
assigned to you.
4. Gateway IP and Server IP Address/Name: The IP address of the L2TP server and
designated Gateway provided by your ISP.
27
5. L2TP Account and Password: The account and password your ISP assigned to you. If
you don't want to change the password, keep it blank.
6. Connection ID: Optional. Input the connection ID if your ISP requires it.
7. Maximum Idle Time: The time of no activity to disconnect your L2TP session. Set it to
zero or enable “Auto-reconnect” to disable this feature. If Auto-reconnect is enabled, this
device will connect with ISP automatically, after system is restarted or connection is
dropped.
8. Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send
outgoing packets.
Auto Reconnect (Always-on): The device will link with ISP until the connection is
established.
Manually: The device will not make the link until someone clicks the
connect-button in the Status-page.
9. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The default
MTU value is 0 (auto).

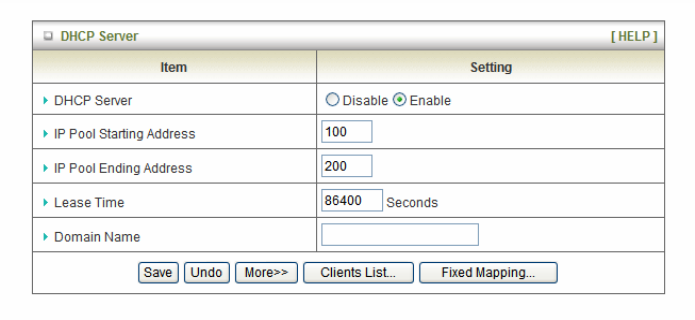

3.1.2. DHCP Server
1. DHCP Server: Choose either Disable or Enable. If you enable the DHCP Server function,
the following settings will be effective.
2. IP Pool Starting/Ending Address: Whenever there is a request, the DHCP server will
automatically allocate an unused IP address from the IP address pool to the requesting
computer. You must specify the starting / ending address of the IP address pool.
3. Lease Time: DHCP lease time to the DHCP client.
4. Domain Name: Optional, this information will be passed to the clients.
Press “More>>” and you can find more settings
5. Primary DNS/Secondary DNS: Optional. This feature allows you to assign a DNS
Servers
28
6. Primary WINS/Secondary WINS: Optional. This feature allows you to assign a WINS
Servers
7. Gateway: Optional. Gateway Address would be the IP address of an alternate Gateway.
This function enables you to assign another gateway to your PC, when DHCP server
offers an IP to your PC.
Click on “Save” to store your settings or click “Undo” to give up the changes.

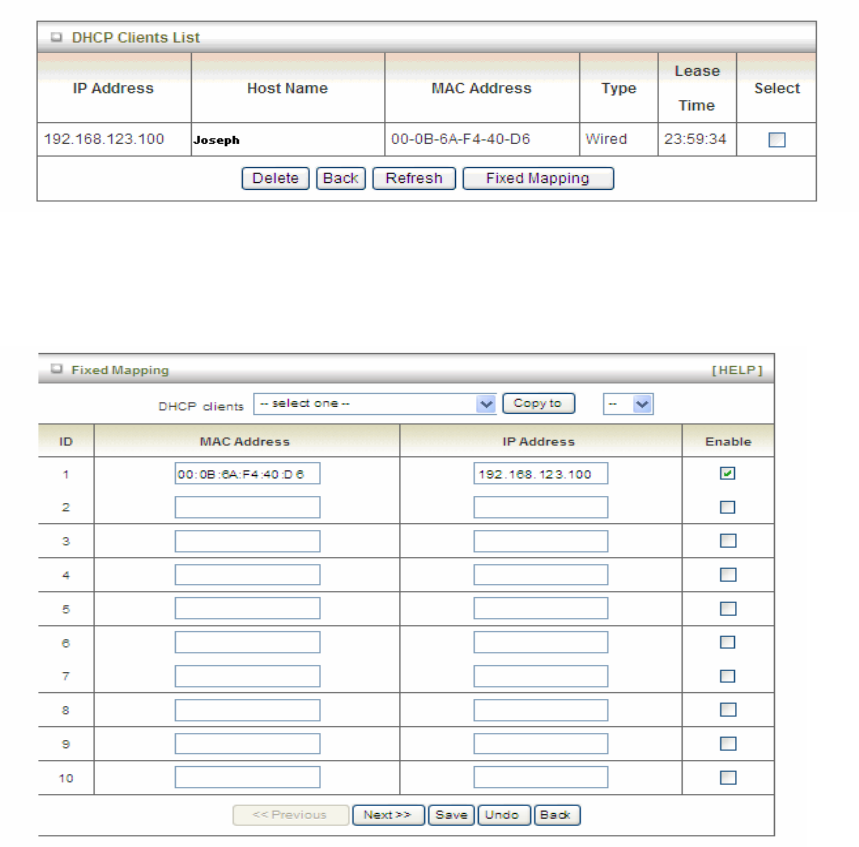

Press “Clients List” and the list of DHCP clients will be shown consequently.
Press “Fixed Mapping” and the DHCP Server will reserve the special IP for designated MAC
address.
29

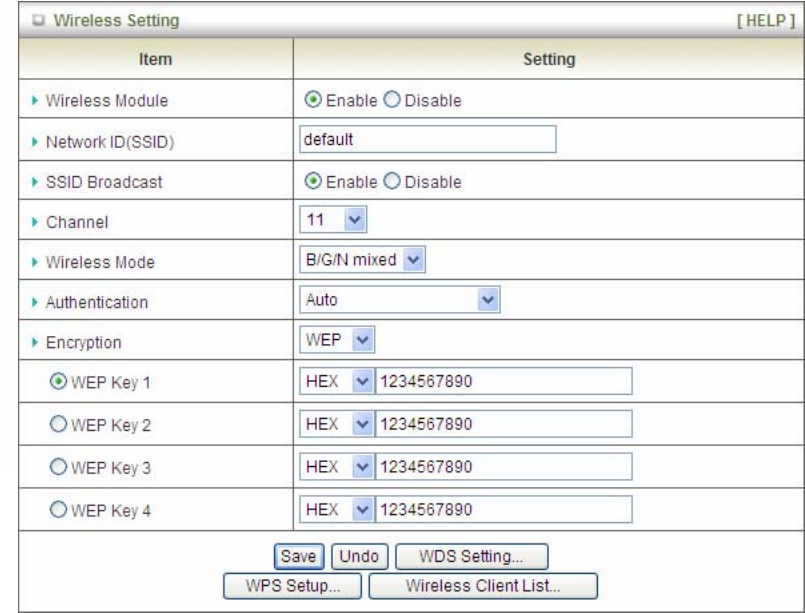

3.1.3. Wireless Settings
Wireless settings allow you to set the wireless configuration items.
1. Wireless Module: You can enable or disable wireless function.
2. Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client
stations can roam freely over this device and other Access Points that have the same
Network ID. (The factory default setting is “default”)
3. SSID Broadcast: The router will broadcast beacons that have some information,
including SSID so that wireless clients can know how many AP devices by scanning the
network. Therefore, if this setting is configured as “Disable”, the wireless clients can not
find the device from beacons.
4. Channel: The radio channel number. The permissible channels depend on the Regulatory
Domain. The factory default setting is as follow: channel 1~11 for North America. (Channel
1~13 for European (ETSI); channel1~ 14 for Japan).
5. Wireless Mode: Choose “B/G mixed”, “B only”, “G only”, “N only”, “G/N mixed” or “B/G/N
mixed”. The factory default setting is “B/G/N mixed”.
6. Authentication mode: You may select one of authentication to secure your wireless
network: Open Shared, Auto, WPA-PSK, WPA, WPA2-PSK, WPA2,
WPA-PSK/WPA2-PSK, or WPA /WPA2.
30
Open
Open system authentication simply consists of two communications. The first is an
authentication request by the client that contains the station ID (typically the MAC
address). This is followed by an authentication response from the AP/router containing a
success or failure message. An example of when a failure may occur is if the client's MAC
address is explicitly excluded in the AP/router configuration.
Shared
Shared key authentication relies on the fact that both stations taking part in the
authentication process have the same "shared" key or passphrase. The shared key is
manually set on both the client station and the AP/router. Three types of shared key
authentication are available today for home or small office WLAN environments.
Auto
The AP will Select the Open or Shared by the client’s request automatically.
WPA-PSK
Select Encryption and Pre-share Key Mode
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.
If you select ASCII, the length of pre-share key is from 8 to 63.
Fill in the key, Ex 12345678
WPA
Check Box was used to switch the function of the WPA. When the WPA function is
enabled, the Wireless user must authenticate to this router first to use the Network
service. RADIUS Server IP address or the 802.1X server’s domain-name.
Select Encryption and RADIUS Shared Key
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits
If you select ASCII, the length of pre-share key is from 8 to 63.
Key value shared by the RADIUS server and this router. This key value is consistent with
the key value in the RADIUS server.
WPA-PSK2
WPA-PSK2 user AES and TKIP for Same the encryption, the others are same the
WPA-PSK.
31
WPA2
WPA2 add uses AES and TKIP for encryption, the others are same the WPA.
WPA-PSK/WPA-PSK2
Another encryption options for WPA-PSK-TKIP and WPA-PSK2-AES, the others are same
the WPA-PSK.
WPA/WPA2
Another encryption options for WPA-TKIP and WPA2-AES, the others are same the WPA.

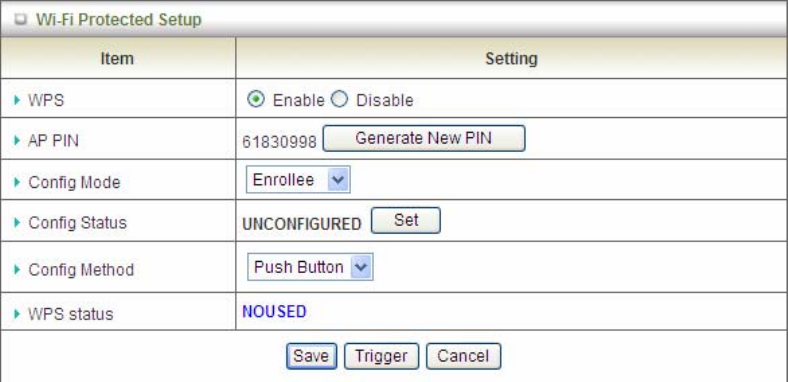

By pressing “WPS Setup”, you can configure and enable the easy setup feature WPS (Wi-Fi
Protection Setup) for your wireless network.
1. WPS: You can enable this function by selecting “Enable”. WPS offers a safe and easy way
to allow the wireless clients connected to your wireless network.
2. AP PIN: You can press Generate New Pin to get an AP PIN.
3. Config Mode: Select your config Mode from “Registrar” or “Enrollee”.
4. Config Status: It shows the status of your configuration.
5. Config Method: You can select the Config Method here from “Pin Code” or “Push Button”.
6. WPS status: According to your setting, the status will show “Start Process” or “No used”
32

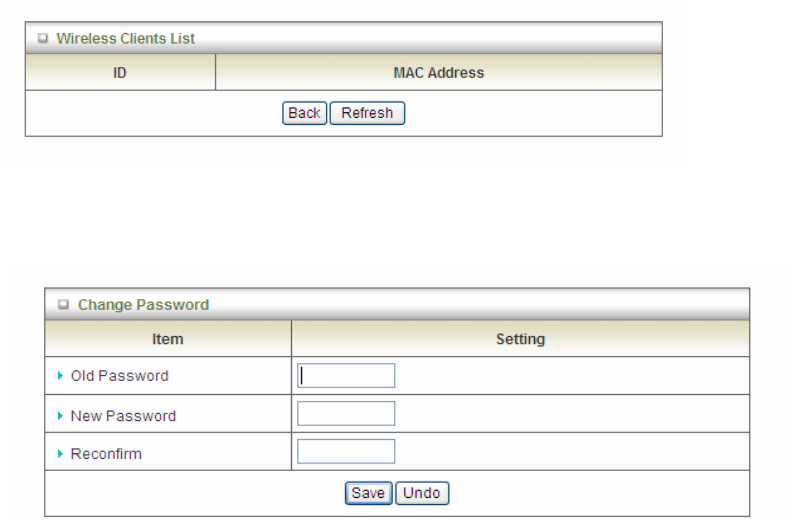

Press “Wireless Clients List” and the list of wireless clients will be shown consequently.
3.1.4. Change Password
You can change the System Password here. We strongly recommend you to change the
system password for security reason.
Click on “Save” to store your settings or click “Undo” to give up the changes.
33
3.2 Forwarding Rules
3.2.1 Virtual Server
This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all
hosts behind this product are invisible to the outside world. If you wish, you can make some of
them accessible by enabling the Virtual Server Mapping.
A virtual server is defined as a Service Port, and all requests to this port will be redirected to
the computer specified by the Server IP. Virtual Server can work with Scheduling Rules,
and give user more flexibility on Access control. For the details, please refer to Scheduling
Rule.
For example, if you have an FTP server (port 21) at 192.168.123.1, a Web server (port 80) at
192.168.123.2, and a VPN server at 192.168.123.6, then you need to specify the following
virtual server mapping table:
34
Service Port Server IP Enable
21 192.168.123.1 V
80 192.168.123.2 V
1723 192.168.123.6 V
Click on “Save” to store your settings or click “Undo” to give up the changes.
3.2.2 Special AP
Some applications require multiple connections, like Internet games, Video conferencing,
Internet telephony, etc. Because of the firewall function, these applications cannot work with a
pure NAT router. The Special Applications feature allows some of these applications to work
with this product. If the mechanism of Special Applications fails to make an application work,
try setting your computer as the DMZ host instead.
1. Trigger: The outbound port number issued by the application.
2. Incoming Ports: When the trigger packet is detected, the inbound packets sent to the
specified port numbers are allowed to pass through the firewall.
This device provides some predefined settings. Select your application and click “Copy to” to
add the predefined setting to your list.
Click on “Save” to store your settings or click “Undo” to give up the changes.
35
3.2.3 Miscellaneous
1. IP Address of DMZ Host
DMZ (Demilitarized Zone) Host is a host without the protection of firewall. It allows a
computer to be exposed to unrestricted 2-way communication for Internet games, Video
conferencing, Internet telephony and other special applications.
2. UPnP Setting
The device supports the UPnP function. If the OS of your client computer supports this
function, and you enabled it, like Windows XP, you can see the following icon when the
client computer gets IP from the device.
Click on “Save” to store your settings or click “Undo” to give up the changes.
36
3.3 Security Setting

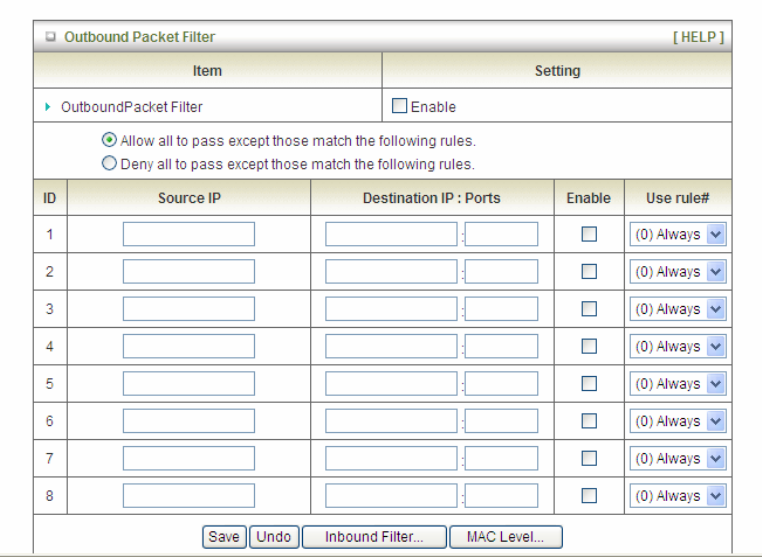

3.3.1 Packet Filters
Packet Filter includes both outbound filter and inbound filter. And they have same way to
setting.
Packet Filter enables you to control what packets are allowed to pass the router. Outbound
filter applies on all outbound packets. However, inbound filter applies on packets that destined
to Virtual Servers or DMZ host only. You can select one of the two filtering policies:
1. Allow all to pass except those match the specified rules
2. Deny all to pass except those match the specified rules
37
You can specify 8 rules for each direction: inbound or outbound. For each rule, you can define
the following:
• Source IP address
• Source port
• Destination IP address
• Destination port
• Protocol: TCP or UDP or both.
• Use Rule#
For source or destination IP address, you can define a single IP address (4.3.2.1) or a range
of IP addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses.
For source or destination port, you can define a single port (80) or a range of ports
(1000-1999). Add prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53,
U2000-2999, No prefix indicates both TCP and UDP are defined. An empty implies all port
addresses. Packet Filter can work with Scheduling Rules, and give user more flexibility on
Access control. For Detail, please refer to Scheduling Rule.
Each rule can be enabled or disabled individually.
Click on “Save” to store your settings or click “Undo” to give up the changes.
38

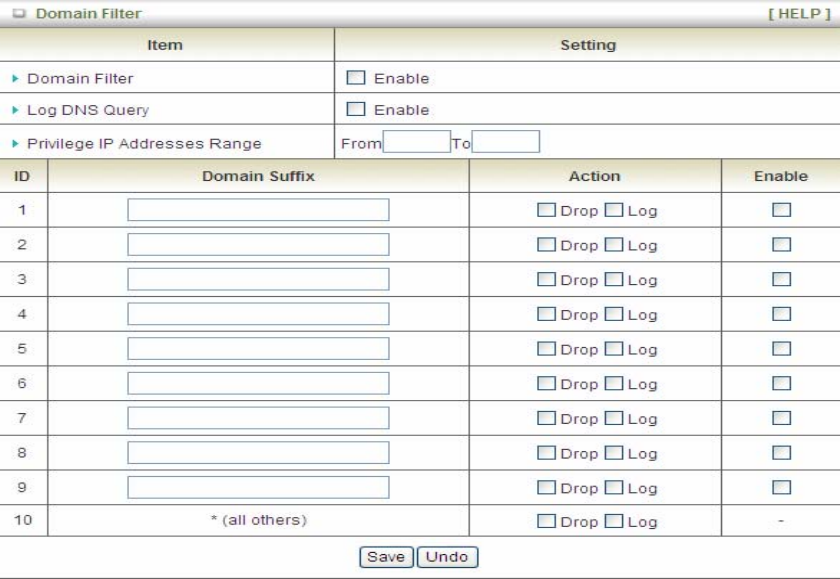

3.3.2 Domain Filters
Domain Filter prevents users under this device from accessing specific URLs.
1. Domain Filter: Check if you want to enable Domain Filter.
2. Log DNS Query: Check if you want to log the action when someone accesses the specific
URLs.
3. Privilege IP Address Range: Setting a group of hosts and privilege these hosts to access
network without restriction.
4. Domain Suffix: A suffix of URL can be restricted, for example, ".com", "xxx.com".
5. Action: When someone is accessing the URL met the domain-suffix, what kind of action
you want.
Check “Drop” to block the access. Check “Log” to log this access.
6. Enable: Check to enable each rule.
Click on “Save” to store your settings or click “Undo” to give up the changes.
39

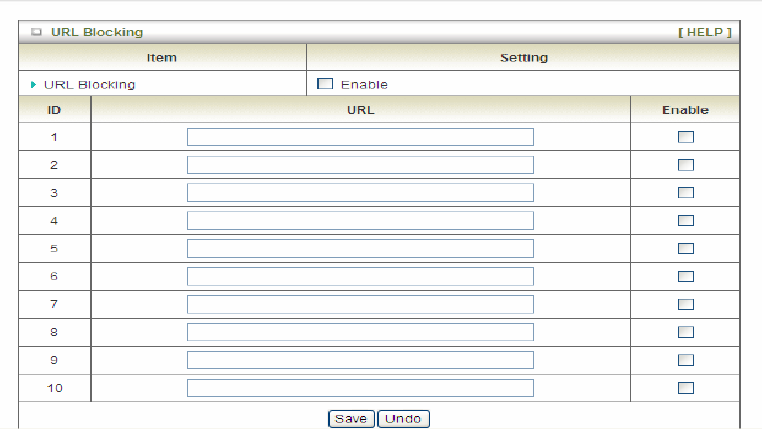

3.3.3 URL Blocking
URL Blocking will block LAN computers to connect with pre-define Websites. The major
difference between “Domain filter” and “URL Blocking” is Domain filter require user to input
suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only. In other
words, Domain filter can block specific website, while URL Blocking can block hundreds of
websites by simply a keyword.
1. URL Blocking: Check if you want to enable URL Blocking.
2. URL: If any part of the Website's URL matches the pre-defined word, the connection will
be blocked.
For example, you can use pre-defined word "sex" to block all websites if their URLs
contain pre-defined word "sex".
3. Enable: Check to enable each rule.
Click on “Save” to store your settings or click “Undo” to give up the changes.
40

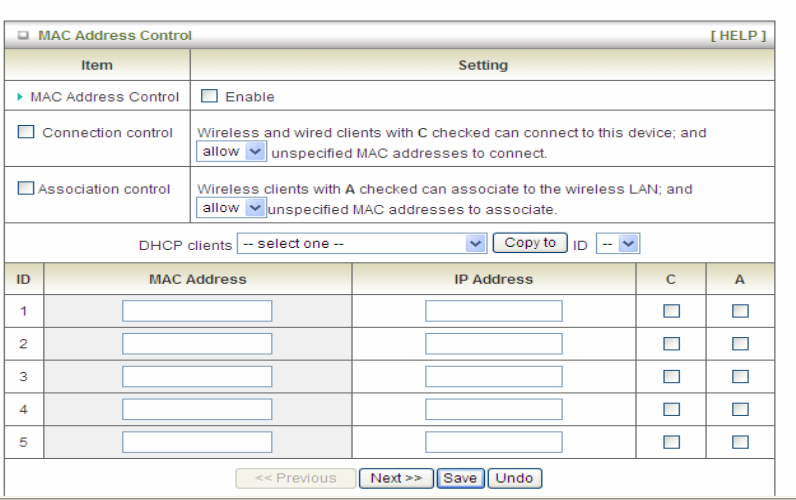

3.3.4 MAC Control
MAC Address Control allows you to assign different access right for different users and to assign a
specific IP address to a certain MAC address.
1. MAC Address Control: Check “Enable” to enable the “MAC Address Control”. All of the
settings in this page will take effect only when “Enable” is checked.
2. Connection control: Check "Connection control" to enable the controlling of which wired
and wireless clients can connect with this device. If a client is denied to connect with this
device, it means the client can't access to the Internet either. Choose "allow" or "deny" to
allow or deny the clients, whose MAC addresses are not in the "Control table" (please see
below), to connect with this device.
3. Association control: Check "Association control" to enable the controlling of which
wireless client can associate to the wireless LAN. If a client is denied to associate to the
wireless LAN, it means the client can't send or receive any data via this device. Choose
"allow" or "deny" to allow or deny the clients, whose MAC addresses are not in the
"Control table", to associate to the wireless LAN.
Click on “Save” to store your settings or click “Undo” to give up the changes.
41

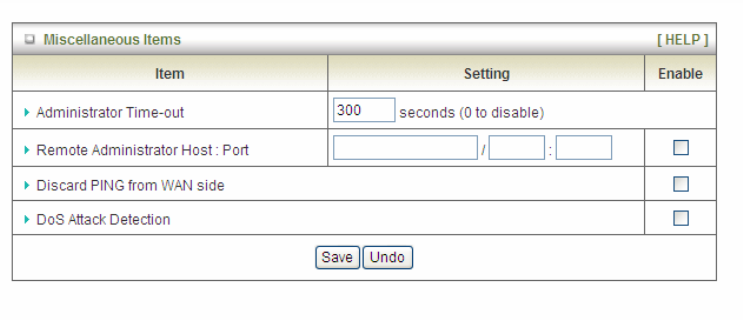

3.3.5 Miscellaneous
1. Administrator Time-out: The time of no activity to logout automatically, you may set it to
zero to disable this feature.
2. Remote Administrator Host/Port
In general, only Intranet user can browse the built-in web pages to perform administration
task. This feature enables you to perform administration task from remote host. If this
feature is enabled, only the specified IP address can perform remote administration. If the
specified IP address is 0.0.0.0, any host can connect with this product to perform
administration task. You can use subnet mask bits "/nn" notation to specified a group of
trusted IP addresses for example, "10.1.2.0/24".
NOTE: When Remote Administration is enabled, the web server port will be shifted to 80.
You can change web server port to other port, too.
3. Discard PING from WAN side: When this feature is enabled, any host on the WAN
cannot ping this product.
4. DoS Attack Detection: When this feature is enabled, the router will detect and log the
DoS attack comes from the Internet. Currently, the router can detect the following DoS
attack: SYN Attack, WinNuke, Port Scan, Ping of Death, Land Attack etc.
Click on “Save” to store your settings or click “Undo” to give up the changes.
42

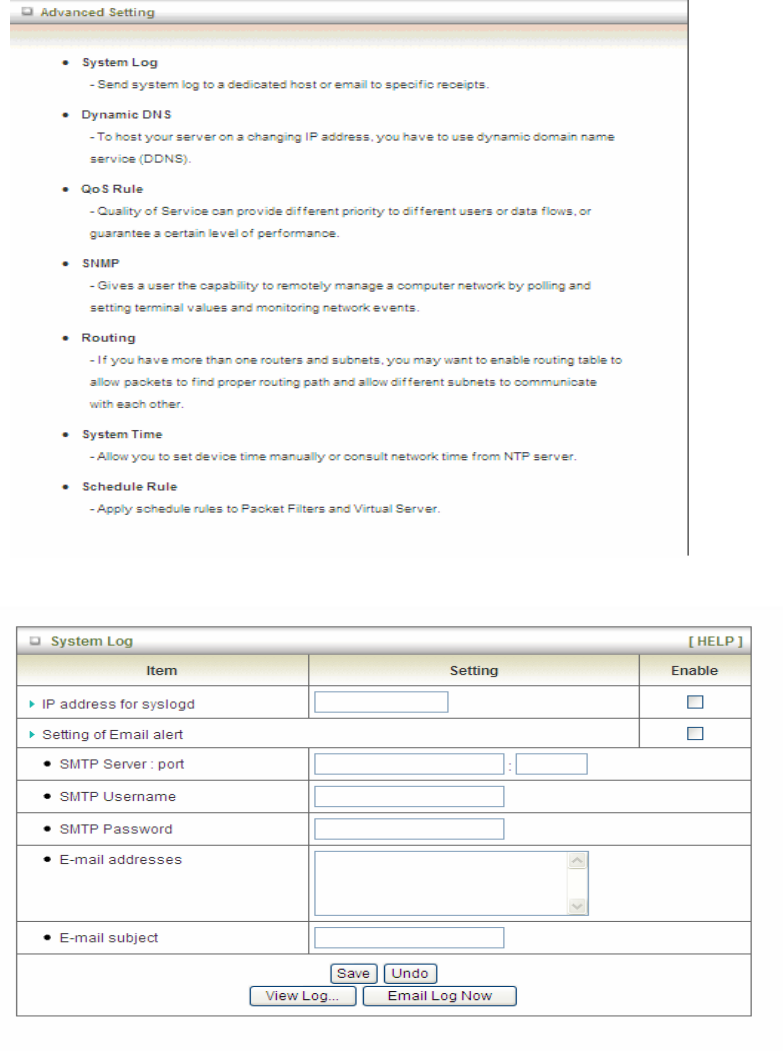

3.4 Advanced Setting
3.4.1 System Log
This page support two methods to export system logs to specific destination by means of
syslog (UDP) and SMTP(TCP). The items you have to setup including:
43
1. IP Address for Sys log: Host IP of destination where sys log will be sent to. Check
Enable to enable this function.
2. E-mail Alert Enable: Check if you want to enable Email alert (send syslog via email).
3. SMTP Server IP and Port: Input the SMTP server IP and port, which are connected with
':'. If you do not specify port number, the default value is 25.
For example, "mail.your_url.com" or "192.168.1.100:26".
4. Send E-mail alert to: The recipients who will receive these logs, you can assign more
than 1 recipient, using ';' or ',' to separate these email addresses.
5. E-mail Subject: The subject of email alert, this setting is optional.
Click on “Save” to store your settings or click “Undo” to give up the changes.

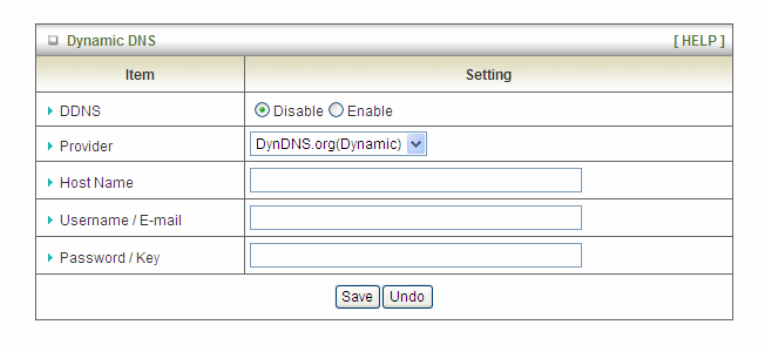

3.4.2 Dynamic DNS
To host your server on a changing IP address, you have to use dynamic domain name service
(DDNS). So that anyone wishing to reach your host only needs to know the name of it.
Dynamic DNS will map the name of your host to your current IP address, which changes each
time you connect your Internet service provider.
Before you enable Dynamic DNS, you need to register an account on one of these Dynamic
DNS servers that we list in Provider field.
To enable Dynamic DNS click the check box next to Enable in the DDNS field. Next you have
to enter the appropriate information about your Dynamic DNS Serve .Provider, Host Name,
Username/E-mail, and Password/Key. You can get this information when you register an
account on a Dynamic DNS server.
Click on “Save” to store your settings or click “Undo” to give up the changes.
44

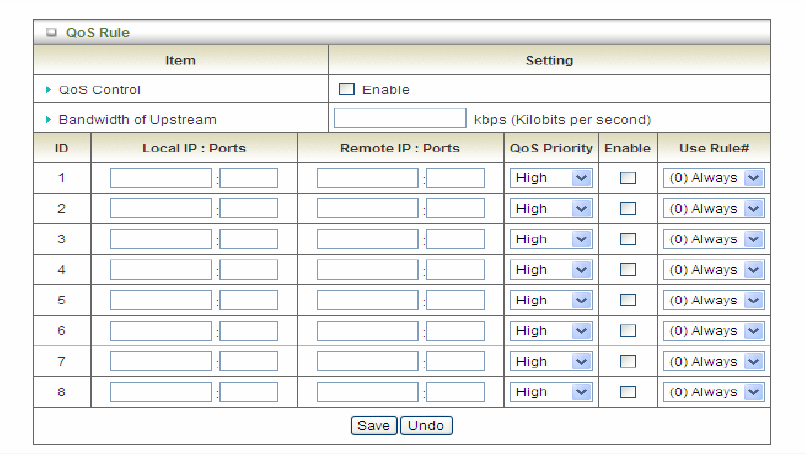

3.4.3 QOS
Provide different priority to different users or data flows, or guarantee a certain level of
performance.
1. QOS Control: Check Enable to enable this function.
2. Bandwidth of Upstream: Set the limitation of upstream bandwidth
3. Local IP : Ports: Define the Local IP address and ports of packets
4. Remote IP : Ports: Define the Remote IP address and ports of packets
5. QoS Priority: This defines the priority level of the current Policy Configuration. Packets
associated with this policy will be serviced based upon the priority level set. For critical
applications High or Normal level is recommended. For non-critical applications select a
Low level.
6. Enable: Check to enable the corresponding QOS rule.
7. User Rule#: The QoS rule can work with Scheduling Rule number#. Please refer to the
Section 3.1.4.7 Schedule Rule.
Click on “Save” to store your settings or click “Undo” to give up the changes.
45

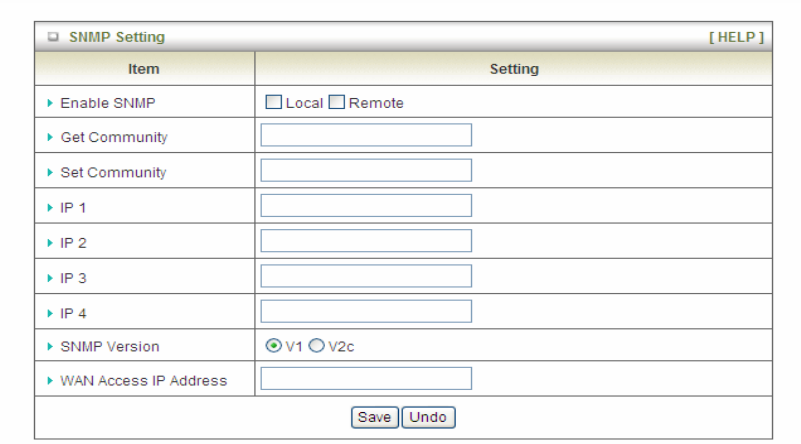

3.4.4 SNMP
In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a
user the capability to remotely manage a computer network by polling and setting terminal
values and monitoring network events.
1. Enable SNMP: You must check “Local”, “Remote” or both to enable SNMP function. If
“Local” is checked, this device will response request from LAN. If “Remote” is checked,
this device will response request from WAN.
2. Get Community: The community of GetRequest that this device will respond.
3. Set Community: The community of SetRequest that this device will accept.
4. IP 1, IP 2, IP 3, IP 4: Enter the IP addresses of your SNMP Management PCs. User has to
configure to where this device should send SNMP Trap message.
5. SNMP Version: Select proper SNMP Version that your SNMP Management software
supports.
6. WAN Access IP Address: If you want to limit the remote SNMP access to specific
computer, please enter the PC’s IP address. The default value is 0.0.0.0, and it means
that any internet connected computer can get some information of the device with SNMP
protocol.
Click on “Save” to store your settings or click “Undo” to give up the changes.
46
3.4.5 Routing
If you have more than one routers and subnets, you will need to enable routing table to allow
packets to find proper routing path and allow different subnets to communicate with each other.
The routing table allows you to determine which physical interface address to use for outgoing
IP data grams.
1. Dynamic Routing: Routing Information Protocol (RIP) will exchange information about
destinations for computing routes throughout the network. Please select RIPv2 only if you
have different subnet in your network. Otherwise, please select RIPv1 if you need this
protocol.
2. Static Routing: For static routing, you can specify up to 8 routing rules. You can enter the
destination IP address, subnet mask, gateway, and hop for each routing rule, and then
enable or disable the rule by checking or un-checking the Enable checkbox.
Click on “Save” to store your settings or click “Undo” to give up the changes.
47
3.4.6 System Time
1. Time Zone: Select a time zone where this device locates.
2. Auto-Synchronization: Check the “Enable” checkbox to enable this function. Besides,
you can select a NTP time server to consult UTC time.
3. Sync with Time Server: Click on the button if you want to set Date and Time by NTP
Protocol manually.
4. Sync with my PC: Click on the button if you want to set Date and Time using PC’s Date
and Time manually.
.
Click on “Save” to store your settings or click “Undo” to give up the changes.
48

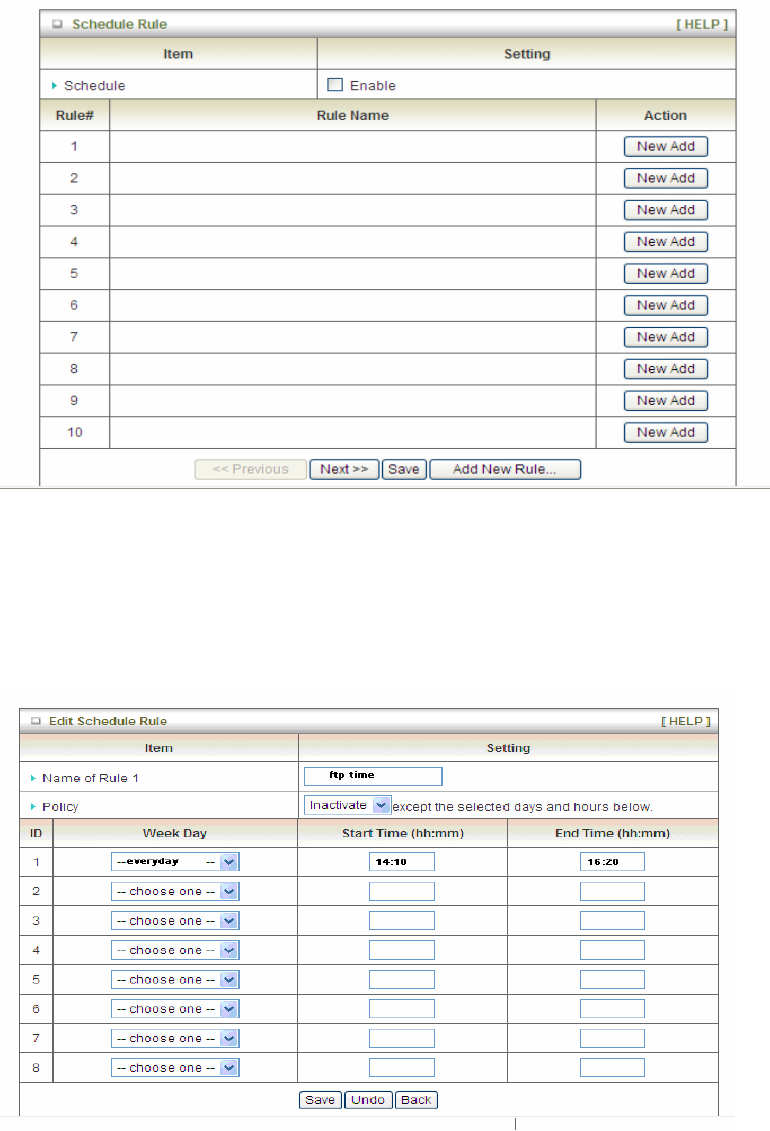

3.4.7 Scheduling
You can set the schedule time to decide which service will be turned on or off.
1. Schedule: Check to enable the schedule rule settings.
2. Add New Rule: To create a schedule rule, click the “Add New Rule” button. You can edit
the Name of Rule, Policy, and set the schedule time (Week day, Start Time, and End
Time). The following example configures “ftp time” as everyday 14:10 to 16:20.
Click on “Save” to store your settings or click “Undo” to give up the changes.
49
3.4.8 IPv6
This device supports several IPv6 applications. You can choose Static IPv6, DHCPv6,
PPPoEv6, 6to4, and IPv6 in IPv4 tunnel according to your requirements.

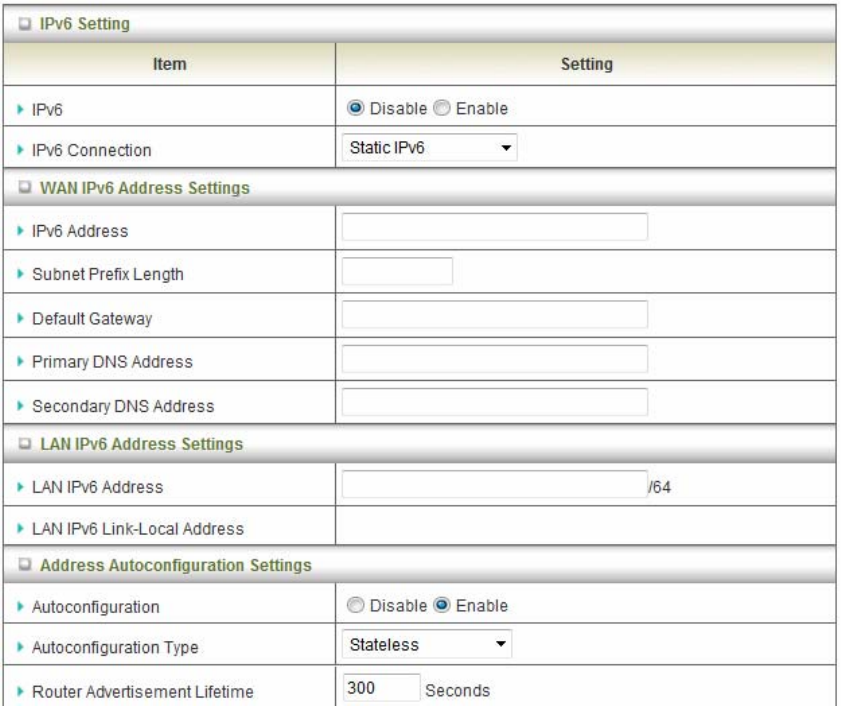

3.4.8.1 Static IPv6
1. IPv6: Disable or enable the IPv6 functions.
2. IPv6 Connection: you can choose Static IPv6 from the list.
3. WAN IPv6 address settings: you can add IPv6 address / subnet prefix length / default
Gateway / Primary DNS address and secondary DNS address.
4. LAN IPv6 address settings: you can add LAN IPv6 address, and IPv6 Link-Local address
will be showed automatically.
5. Address auto configuration setting: Disable or enable this auto configuration setting.
You may set stateless or stateful( Dynamic IPv6), and also check if need to send Router
advertisement messages periodically.
50

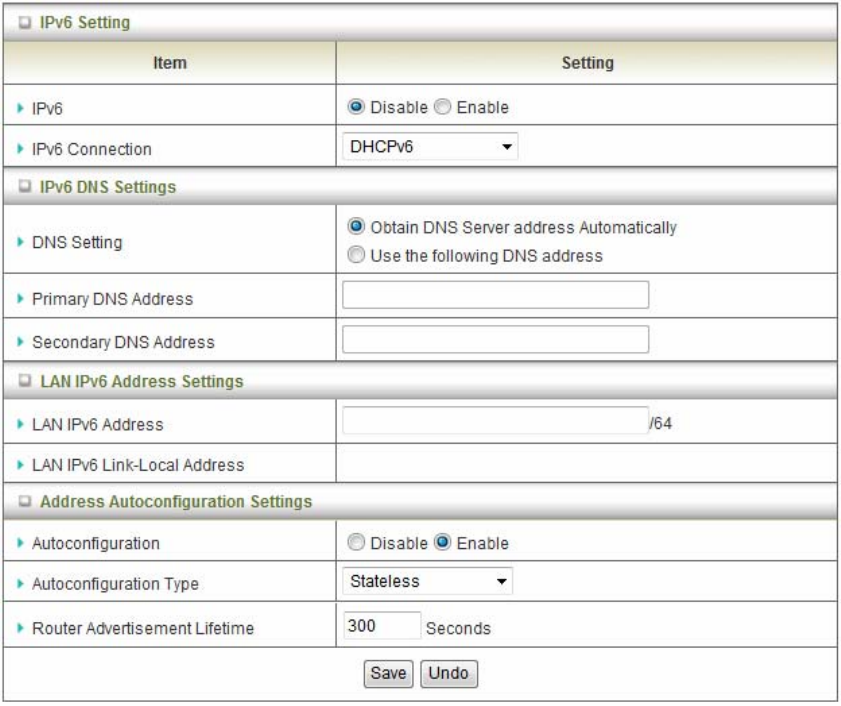

3.4.8.2 DHCPv6
1. IPv6 DNS settings: you may obtain IPv6 DNS automatically or set DNS address manually
for Primary DNS address and secondary DNS address.
2. LAN IPv6 address settings: you can add LAN IPv6 address, and IPv6 Link-Local address
will be showed automatically.
3. Address auto configuration setting: Disable or enable this auto configuration setting.
You may set stateless or stateful( Dynamic IPv6), and also check if need to send Router
advertisement messages periodically.
51

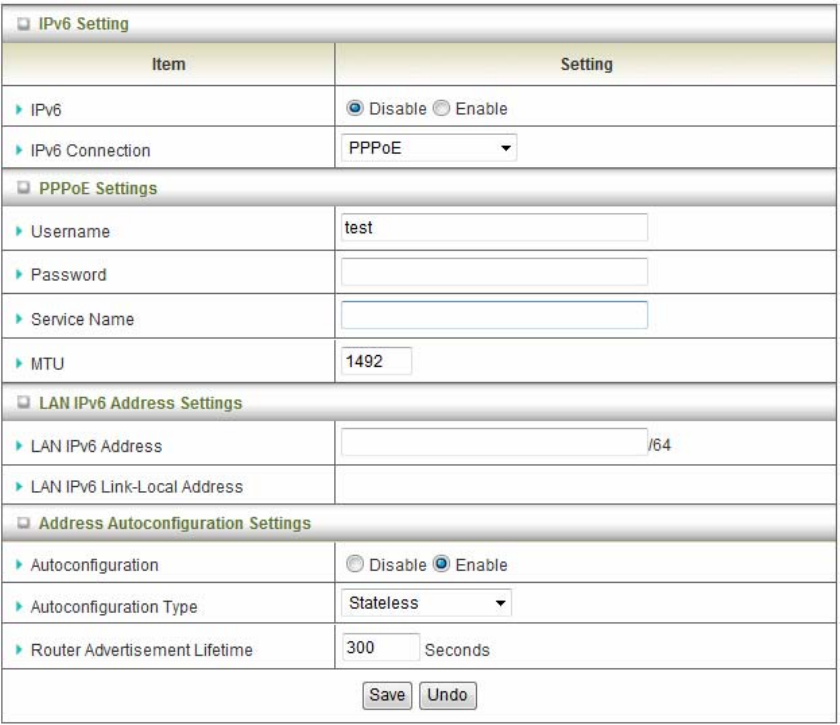

3.4.8.3 PPPoEv6
1. PPPoE settings: you need to type username and password of PPPoE connection. The
service name is only required when ISP asks you to input it. MTU is 1492 by default.
2. LAN IPv6 address settings: you can add LAN IPv6 address, and IPv6 Link-Local address
will be showed automatically.
3. Address auto configuration setting: Disable or enable this auto configuration setting.
You may set stateless or stateful( Dynamic IPv6), and also check if need to send Router
advertisement messages periodically.
52

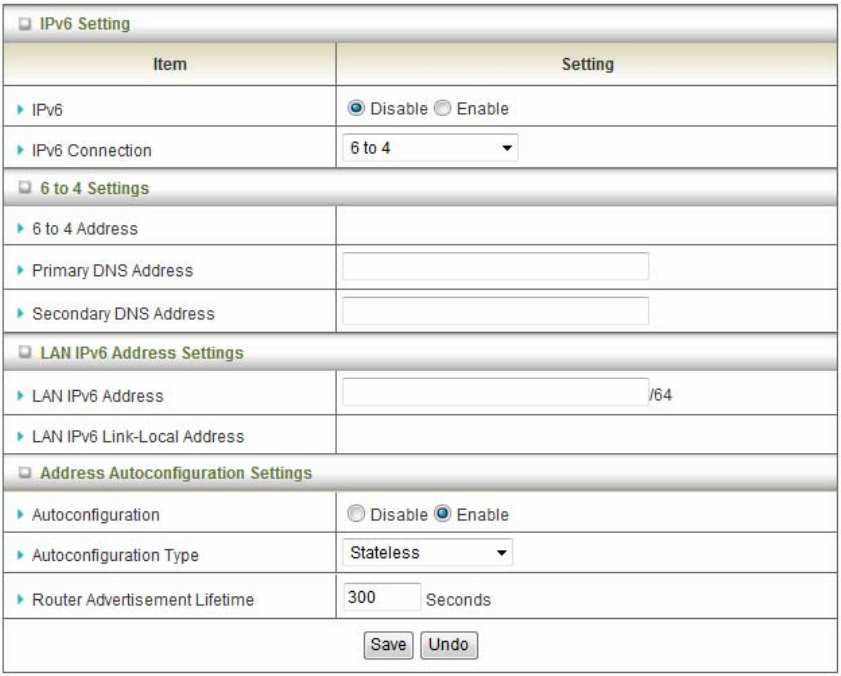

3.4.8.4 6 to 4
1. IPv6 DNS settings: The 6 to 4 address will be showed automatically when WAN gets a
public IPv4 address. You may set DNS address manually for Primary DNS address and
secondary DNS address.
2. LAN IPv6 address settings: you can add LAN IPv6 address, and IPv6 Link-Local address
will be showed automatically.
3. Address auto configuration setting: Disable or enable this auto configuration setting.
You may set stateless or stateful( Dynamic IPv6), and also check if need to send Router
advertisement messages periodically.
53

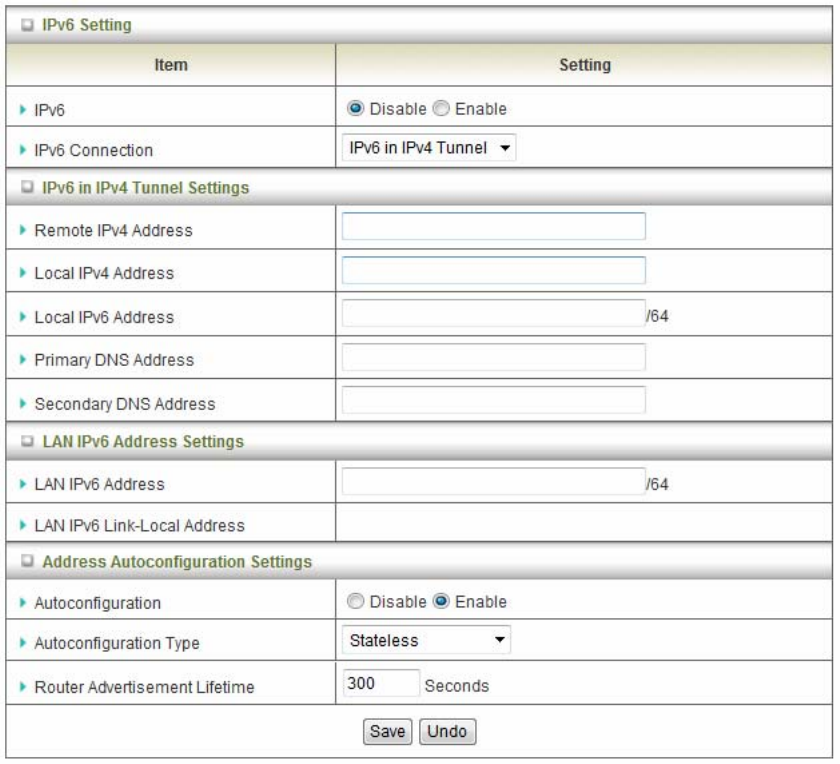

3.4.8.5 IPv6 in IPv4 Tunnel
1. IPv6 address in IPv4 Tunnel settings: you may add remote / local IPv4 address and local
IPv6 address, and then set DNS address manually for Primary DNS address and
secondary DNS address.
2. LAN IPv6 address settings: you can add LAN IPv6 address, and IPv6 Link-Local address
will be showed automatically.
3. Address auto configuration setting: Disable or enable this auto configuration setting.
You may set stateless or stateful( Dynamic IPv6), and also check if need to send Router
advertisement messages periodically.
54
3.5 Tool Box
3.5.1 System Info
You can view the System Information and System log, and download/clear the System log, in
this page.
55

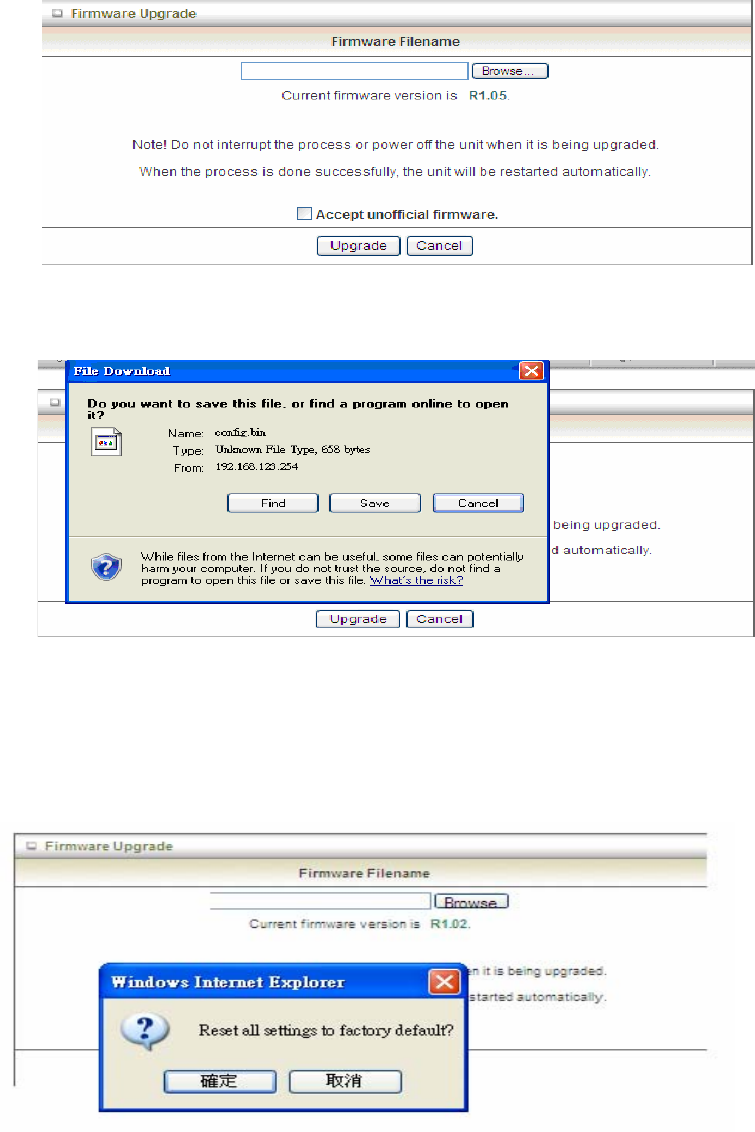

3.5.2 Firmware Upgrade
You can upgrade firmware by clicking “Upgrade” button.
3.5.3 Backup Setting
You can backup your settings by clicking the “Backup Setting” function item and save it as a
bin file. Once you want to restore these settings, please click Firmware Upgrade button and
use the bin file you saved.
3.5.4 Reset to Default
You can also reset this device to factory default settings by clicking the Reset to default function
item.
56

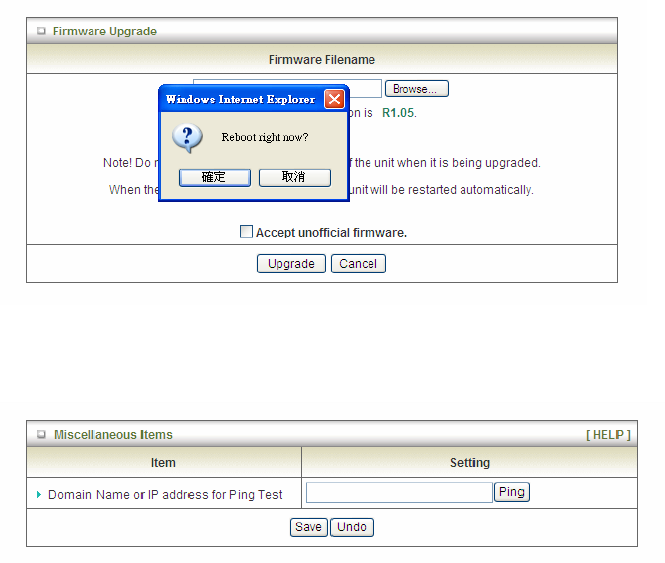

3.5.5 Reboot
You can also reboot this device by clicking the Reboot function item.
3.5.6 Miscellaneous
1. Domain Name or IP address for Ping Test: Allow you to configure an IP, and ping the
device. You can ping a specific IP to test whether it is alive.
Click on “Save” to store your settings or click “Undo” to give up the changes.
57
Chapter 4 . Troubleshooting
This Chapter provides solutions to problems for the installation and operation of the WiFi Combo
Router. You can refer to the following if you are having problems.
1 Why can’t I configure the router even the cable is
plugged and the LED is lit?
Do a Ping test to make sure that the WiFi Combo Note: It is recommended that you use
Router is responding. an Ethernet connection to configure it.
Go to Start > Run.
1. Type cmd.
2. Press OK.
3. Type ipconfig to get the IP of default gateway.
4. Type “ping 192.168.123.254”. Assure that you ping the correct IP Address assigned
to the WiFi Combo Router. It will show four replies if you ping correctly.
Ensure that your Ethernet Adapter is working, and that all network drivers are installed
properly. Network adapter names will vary depending on your specific adapter. The
installation steps listed below are applicable for all network adapters.
1. Go to Start > Right click on “My Computer” > Properties.
2. Select the Hardware Tab.
3. Click Device Manager.
4. Double-click on “Network Adapters”.
5. Right-click on Wireless Card bus Adapter or your specific network adapter.
58
6. Select Properties to ensure that all drivers are installed properly.
7. Look under Device Status to see if the device is working properly.
8. Click “OK”.
9.
2 What can I do if my Ethernet connection does not
work properly?
A. Make sure the RJ45 cable connect with the router.
B. Ensure that the setting on your Network Interface Card adapter is “Enabled”.
C. If settings are correct, ensure that you are not using a crossover Ethernet cable, not all
Network Interface Cards are MDI/MDIX compatible, and use a patch cable is
recommended.
D. If the connection still doesn’t work properly, then you can reset it to default.
3 Problems with 3G connection?
A. What can I do if the 3G connection is failed by Auto detection?
Maybe the device can’t recognize your ISP automatically. Please select “Manual” mode,
and filling in dial-up settings manually.
B. What can I do if my country and ISP are not in the list?
Please choose “Others” item from the list, and filling in dial-up settings manually.
C. What can I do if my 3G connection is failed even the dongle is plugged?
Please check the following items:
I. Make sure you have inserted a validated SIM card in the 3G data card, and the
subscription from ISP is still available
II. If you activate PIN code check feature in SIM card, making sure the PIN code you
fill in dial-up page is correct
III. Checking with your ISP to see all dial-up settings are correct
IV. Make sure 3G signal from your ISP is available in your environment
D. What can I do if my router can’t recognize my 3G data card even it is
plugged?
There might be compatibility issue with some certain 3G cards. Please check the latest
compatibility list to see if your 3G card is already supported.
E. What should I insert in APN, PIN Code, Account, Password, Primary DNS,
and Secondary DNS?
The device will show this information after you choose country and Telcom. You can
also check these values with your ISP.
F. Which 3G network should I select?
It depends on what service your ISP provide. Please check your ISP to know this
information.
59
G. Why my 3G connection is keep dropping?
Please check 3G signal strength from your ISP in your environment is above middle
level.
4 Something wrong with the wireless connection?
A. Can’t setup a wireless connection?
I. Ensure that the SSID and the encryption settings are exactly the same to the
Clients.
II. Move the WiFi Combo Router and the wireless client into the same room, and
then test the wireless connection.
III. Disable all security settings such as WEP, and MAC Address Control.
IV. Turn off the WiFi Combo Router and the client, then restart it and then turn on the
client again.
V. Ensure that the LEDs are indicating normally. If no, make sure that the AC power
and Ethernet cables are firmly connected.
VI. Ensure that the IP Address, subnet mask, gateway and DNS settings are correctly
entered for the network.
VII. If you are using other wireless device, home security systems or ceiling fans,
lights in your home, your wireless connection may degrade dramatically. Keep
your product away from electrical devices that generate RF noise such as
microwaves, monitors, electric motors…
B. What can I do if my wireless client can not access the Internet?
I. Out of range: Put the router closer to your client.
II. Wrong SSID or Encryption Key: Check the SSID or Encryption setting.
III. Connect with wrong AP: Ensure that the client is connected with the correct
Access Point.
i. Right-click on the Local Area Connection icon in the taskbar.
ii. Select View Available Wireless Networks in Wireless Configure. Ensure you
have selected the correct available network.
iii. Reset the WiFi Combo Router to default setting
C. Why does my wireless connection keep dropping?
I. Antenna Orientation.
i. Try different antenna orientations for the WiFi Combo Router.
ii. Try to keep the antenna at least 6 inches away from the wall or other objects.
II. Try changing the channel on the WiFi Combo Router, and your Access Point and
Wireless adapter to a different channel to avoid interference.
III. Keep your product away from electrical devices that generate RF noise, like
microwaves, monitors, electric motors, etc.
60
5 What to do if I forgot my encryption key?
1. Go back to advanced setting to set up your Encryption key again.
2. Reset the WiFi Combo Router to default setting
6 How to reset to default?
1. Ensure the WiFi Combo Router is powered on
2. Find the Reset button on the right side
3. Press the Reset button for 8 seconds and then release.
4. After the WiFi Combo Router reboots, it has back to the factory default settings.
61
Appendix A. Spec Summary Table
Hardware & Port Configuration CDW571AM-002
Wireless WAN USB 2.0 for external 3G/4G modem 1
Ethernet WAN RJ-45 port, 10/100/1000Mbps,
auto-MDI/MDIX 1
Ethernet LAN RJ-45 port, 10/100/1000Mbps,
auto-MDI/MDIX 4
Antenna 1.8 dBi fixed antenna 2
WPS/ WiFi On-Off For WPS connection or WiFi On/Off 1
Reset Button Reset router setting to factory default 1
LED Indication Mobile/ WAN/ WLAN/ LAN1~4 ●
Power Jack DC 5V/2A switching power 1
Wireless LAN (WiFi)
Standard IEEE 802.11b/g/n compliance ●
SSID SSID broadcast or in stealth mode ●
Channel Auto-selection, manually ●
Security WEP, WPA, WPA2, WPA-PSK,
WPA2-PSK ●
WPS/ WIfi On-Off WPS / WIfi On-Off ●
WMM WMM (Wi-Fi Multimedia) ●
Functionality
PPP (for WCDMA/HSPA) ●
Wireless WAN PPPoE (for iBurst) ●
Ethernet WAN PPPoE, DHCP client, Static IP, PPTP,
L2TP ●
WAN Connection Auto-reconnect, dial-on-demand,
manually ●
One-to-Many NAT Virtual server, special application, DMZ ●
IPv6 Supported ●
SPI Firewall IP/Service filter, URL blocking, MAC
control ●
DoS Protection DoS (Deny of Service) detection and
protection ●
Routing Protocol Static route, dynamic route (RIP v1/v2) ●
Management SNMP, UPnP IGD, syslog ●
Administration Web-based UI, remote login,
backup/restore setting ●
Environment & Certification
Operation Temp. Temp.: 0~40oC, Humidity 10%~90%
non-condensing ●
Storage Temp. Tem p .: -10~70 oC, Humidity: 0~95%
non-condensing ●
RoHS RoHS compliance ●
62
Appendix B. Licensing information
This product includes copyrighted third-party software licensed under the terms of the GNU
General Public License. Please refer to the GNU General Public License below to check the
detailed terms of this license.
The following parts of this product are subject to the GNU GPL, and those software packages are
copyright by their respective authors.
Linux-2.4.28 system kernel
busybox_1_00_rc2
bridge-utils 0.9.5
dhcpcd-1.3
ISC DHCP V2 P5
util-linux 2.12b for fdisk application
e2fsprogs 1.27
mini-lpd
samba 2.2.7a
syslogd spread from busybox
wireless tools
ntpclient of NTP client implementation
RT61apd for 802.1X application
vsftpd-2.0.3
quota-tools 3.13
GNU Wget
Availability of source code
Please visit our web site or contact us to obtain more information.
63
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By
contrast, the GNU General Public License is intended to guarantee your freedom to share and
change free software--to make sure the software is free for all its users. This General Public
License applies to most of the Free Software Foundation's software and to any other program
whose authors commit to using it. (Some other Free Software Foundation software is covered by
the GNU Library General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public
Licenses are designed to make sure that you have the freedom to distribute copies of free
software (and charge for this service if you wish), that you receive source code or can get it if you
want it, that you can change the software or use pieces of it in new free programs; and that you
know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or
to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if
you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give
the recipients all the rights that you have. You must make sure that they, too, receive or can get
the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license
which gives you legal permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands
that there is no warranty for this free software. If the software is modified by someone else and
passed on, we want its recipients to know that what they have is not the original, so that any
problems introduced by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the
danger that redistributors of a free program will individually obtain patent licenses, in effect making
the program proprietary. To prevent this, we have made it clear that any patent must be licensed
for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
64
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the
copyright holder saying it may be distributed under the terms of this General Public License. The
"Program", below, refers to any such program or work, and a "work based on the Program" means
either the Program or any derivative work under copyright law: that is to say, a work containing the
Program or a portion of it, either verbatim or with modifications and/or translated into another
language. (Hereinafter, translation is included without limitation in the term "modification".) Each
licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they
are outside its scope. The act of running the Program is not restricted, and the output from the
Program is covered only if its contents constitute a work based on the Program (independent of
having been made by running the Program). Whether that is true depends on what the Program
does.
1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in
any medium, provided that you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this
License and to the absence of any warranty; and give any other recipients of the Program a copy
of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work
based on the Program, and copy and distribute such modifications or work under the terms of
Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files
and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is
derived from the Program or any part thereof, to be licensed as a whole at no charge to all
third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it,
when started running for such interactive use in the most ordinary way, to print or display an
announcement including an appropriate copyright notice and a notice that there is no warranty
(or else, saying that you provide a warranty) and that users may redistribute the program
under these conditions, and telling the user how to view a copy of this License. (Exception: if
the Program itself is interactive but does not normally print such an announcement, your work
based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are
not derived from the Program, and can be reasonably considered independent and separate
works in themselves, then this License, and its terms, do not apply to those sections when you
distribute them as separate works. But when you distribute the same sections as part of a whole
which is a work based on the Program, the distribution of the whole must be on the terms of this
License, whose permissions for other licensees extend to the entire whole, and thus to each and
every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely
by you; rather, the intent is to exercise the right to control the distribution of derivative or collective
works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with
a work based on the Program) on a volume of a storage or distribution medium does not bring the
other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code
or executable form under the terms of Sections 1 and 2 above provided that you also do one of the
following:
65
a) Accompany it with the complete corresponding machine-readable source code, which
must be distributed under the terms of Sections 1 and 2 above on a medium customarily used
for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a
charge no more than your cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding
source code. (This alternative is allowed only for noncommercial distribution and only if you
received the program in object code or executable form with such an offer, in accord with
Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it.
For an executable work, complete source code means all the source code for all modules it
contains, plus any associated interface definition files, plus the scripts used to control compilation
and installation of the executable. However, as a special exception, the source code distributed
need not include anything that is normally distributed (in either source or binary form) with the
major components (compiler, kernel, and so on) of the operating system on which the executable
runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated
place, then offering equivalent access to copy the source code from the same place counts as
distribution of the source code, even though third parties are not compelled to copy the source
along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided
under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program
is void, and will automatically terminate your rights under this License. However, parties who have
received copies, or rights, from you under this License will not have their licenses terminated so
long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing
else grants you permission to modify or distribute the Program or its derivative works. These
actions are prohibited by law if you do not accept this License. Therefore, by modifying or
distributing the Program (or any work based on the Program), you indicate your acceptance of this
License to do so, and all its terms and conditions for copying, distributing or modifying the Program
or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient
automatically receives a license from the original licensor to copy, distribute or modify the Program
subject to these terms and conditions. You may not impose any further restrictions on the
recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance
by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other
reason (not limited to patent issues), conditions are imposed on you (whether by court order,
agreement or otherwise) that contradict the conditions of this License, they do not excuse you
from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent license would not permit
royalty-free redistribution of the Program by all those who receive copies directly or indirectly
through you, then the only way you could satisfy both it and this License would be to refrain
entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the
balance of the section is intended to apply and the section as a whole is intended to apply in other
circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right
claims or to contest validity of any such claims; this section has the sole purpose of protecting the
66
integrity of the free software distribution system, which is implemented by public license practices.
Many people have made generous contributions to the wide range of software distributed through
that system in reliance on consistent application of that system; it is up to the author/donor to
decide if he or she is willing to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest
of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or
by copyrighted interfaces, the original copyright holder who places the Program under this License
may add an explicit geographical distribution limitation excluding those countries, so that
distribution is permitted only in or among countries not thus excluded. In such case, this License
incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public
License from time to time. Such new versions will be similar in spirit to the present version, but
may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number
of this License which applies to it and "any later version", you have the option of following the
terms and conditions either of that version or of any later version published by the Free Software
Foundation. If the Program does not specify a version number of this License, you may choose
any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution
conditions are different, write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will be guided by the two goals of preserving
the free status of all derivatives of our free software and of promoting the sharing and reuse of
software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY
FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES
PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK
AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING
WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT
LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES
SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE
WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS

Navigation menu
