Advance Security T62 Remote Control User Manual IM QR SL 3S rev A

Advance Security Inc Remote Control IM QR SL 3S rev A

Users Manual

2 Ignition
controlled door
locks &
unlocks
Ignition controlled
door locks only
Ignition controlled
door unlocks only
Without ignition
controlled door
locks & unlocks
3 0.8-second
Door lock
pulses.
3.5-second Door
lock pulse.
Double pulse
unlock
Comfort
feature
4 3rd Channel
Trunk Pulsed,
3rd Channel
Trunk Momentary
5 + Button =
Silent
Arm/Disarm
Button =
channel 4 AUX 1
6 + Gray Wire =
Trunk (Channel
3) Output
Gray Wire = Two
Step Door Unlock
Output
7. +Horn chirp 20
mS
Horn chirp 50 mS Horn chirp 30 mS Horn chirp 10
mS
SL-3S

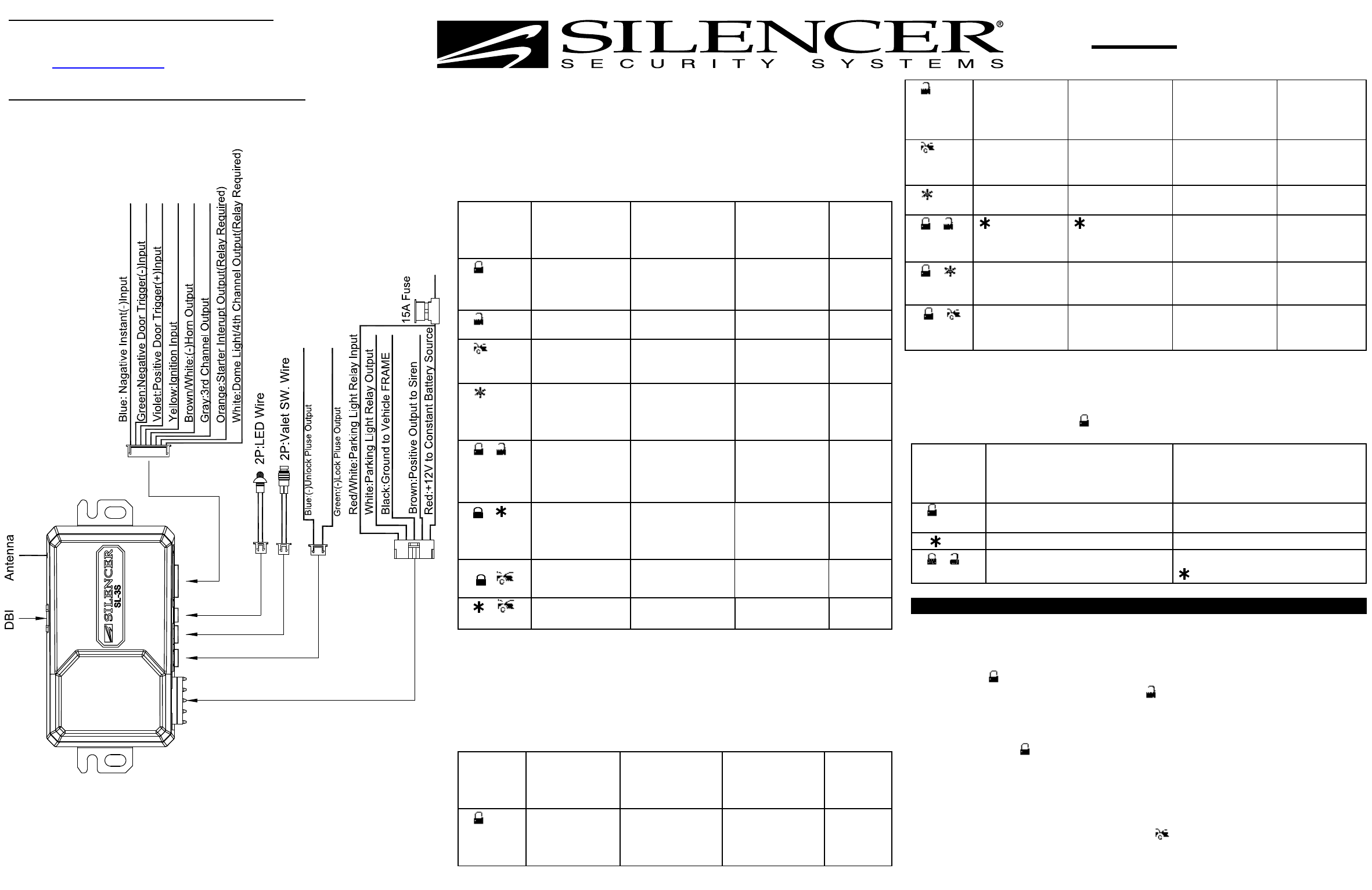

QUICK START INSTALLATION MANUAL
If you are not proficient in the installation of this product or would
like a full version of the installation manual, Please visit our web
site @ www.silencer.com
FOR PROFESSIONAL INSTALLATION ONLY! ALARM FEATURE “A” PROGRAMMING:
1. Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 3 times and hold in on the 3
rd
push. When a long chirp is heard,
release the valet switch. You are now in the Alarm feature A programming mode.
3. Press the transmitter button corresponding to the feature you want to program.
4. Press the transmitter button again to change the feature. Simply keep pressing the
transmitter button again until the module advances to your desired setting.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /LED
two pulses
Three Chirps
/LED three
pulses
Four
Chirps
/LED four
pulses
1
Active arming
Passive arming
without passive
door locking
Passive arming
with passive
door locking.
2 Automatic
Rearm off
Automatic Rearm
on
3 45 seconds
delay Door Ajar
error chirp.
Instant Door Ajar
error chirp
4 Siren
Confirmation
chirp on only
All Confirmation
chirps On
Horn
Confirmation
chirp on only
All
Confirmat
ion chirps
off
5 + White wire=
Dome Light
Output
White wire= 4th
Channel pulsed
White =4th
channel
Momentary
White
=4th
channel
Latched
6 + Lock/Arm &
Unlock/Disarm
Confirmation
Chirps
Lock/Arm
Confirmation Chirp
Only
7. + ALARM with
Keyless Entry
Keyless Entry
ONLY
8. + Car Jacking
feature Off
Car Jacking
feature On
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. 3 long chirps will confirm
exit.
ALARM FEATURE “B” PROGRAMMING:
1 Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2 Push the Valet switch 4 times and hold in on the 4
th
push. When a long chirp is
heard, release the valet switch. You are now in the Alarm feature ʻBʼ programming
mode.
3 Press the transmitter button corresponding to the feature you want to program.
Press
Transmitter
Button
One Chirp / LED
one pulse
Factory Default
Setting
Two Chirps / LED
two pulses
Three Chirps /
LED three pulses
Four
Chirps /
LED four
pulses
1 Pathway
illumination
feature “off”
Parking light turns
“on” for 30-
second upon an
unlock signal
Parking light turns
“on” for 30-
second unlock
signal & 10- lock
ALARM FEATURE “C” PROGRAMMING:
1. Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 5 times and hold on the 5
th
push until a long chirp is heard then
release the valet switch. You are now in the Alarm feature ‘C’ programming mode.
3. Press and hold the transmitter button for two seconds to enter shock sensor program
mode.
Press
Transmitter
Button
One Chirp /
LED one pulse Factory Default
Setting
Two Chirps /
LED two pulse
1 Shock Sensor Program Mode
2. ADS DBI protocol Fortin DBI Protocol
3 + No Function DBI start output on channel 4
ADJUST AND TEST THE SENSITIVITY LEVEL OF THE SHOCK SENSOR
Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
Push the Valet switch 5 times holding in on the 5th push. until a long chirp will be
heard. Release the valet switch. You are now in the feature ‘Shock Sensor’ programming
mode.
Press and hold button for 2 seconds. One long siren chirp will indicate the unit is ready to
accept adjustments of the shock sensor. Press button on the transmitter once. This will
decrease sensitivity level by one. Each time the button is pushed and a decrease is made
the siren/horn chirp will respond with [1] chirp. Two chirps indicate the minimum sensitivity.
Warn away & full trigger will be deleted when minimum sensitivity is selected. Shock
sensor OFF. Press button on the transmitter once. This will increase sensitivity level by
one. Each time an increase is made the siren/horn chirp will respond with [1] chirp. Two
chirps indicate the maximum sensitivity. Hit the bumper or strong metal part of the vehicle to
test the threshold level of the sensor.
a). Activate the warn-away (first stage the shock sensor), the siren will emit a short chirp.
b). Activate the full alarm (second stage the shock sensor), the siren will emit a long chirp.
When you are satisfied with the setting, press the button to lock in the adjustment. One
long siren chirp will indicate the unit has locked in the adjustment.
Note: If 30 seconds of inactivity expires or you turn ON the ignition during of above steps,
the unit will exit the program mode. Three long chirps will confirm exit.
Button
IM-QR-SL-3S rev A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Quick Start
OPERATIONS MANUAL
Please register your product at www.silencer.com/manual .

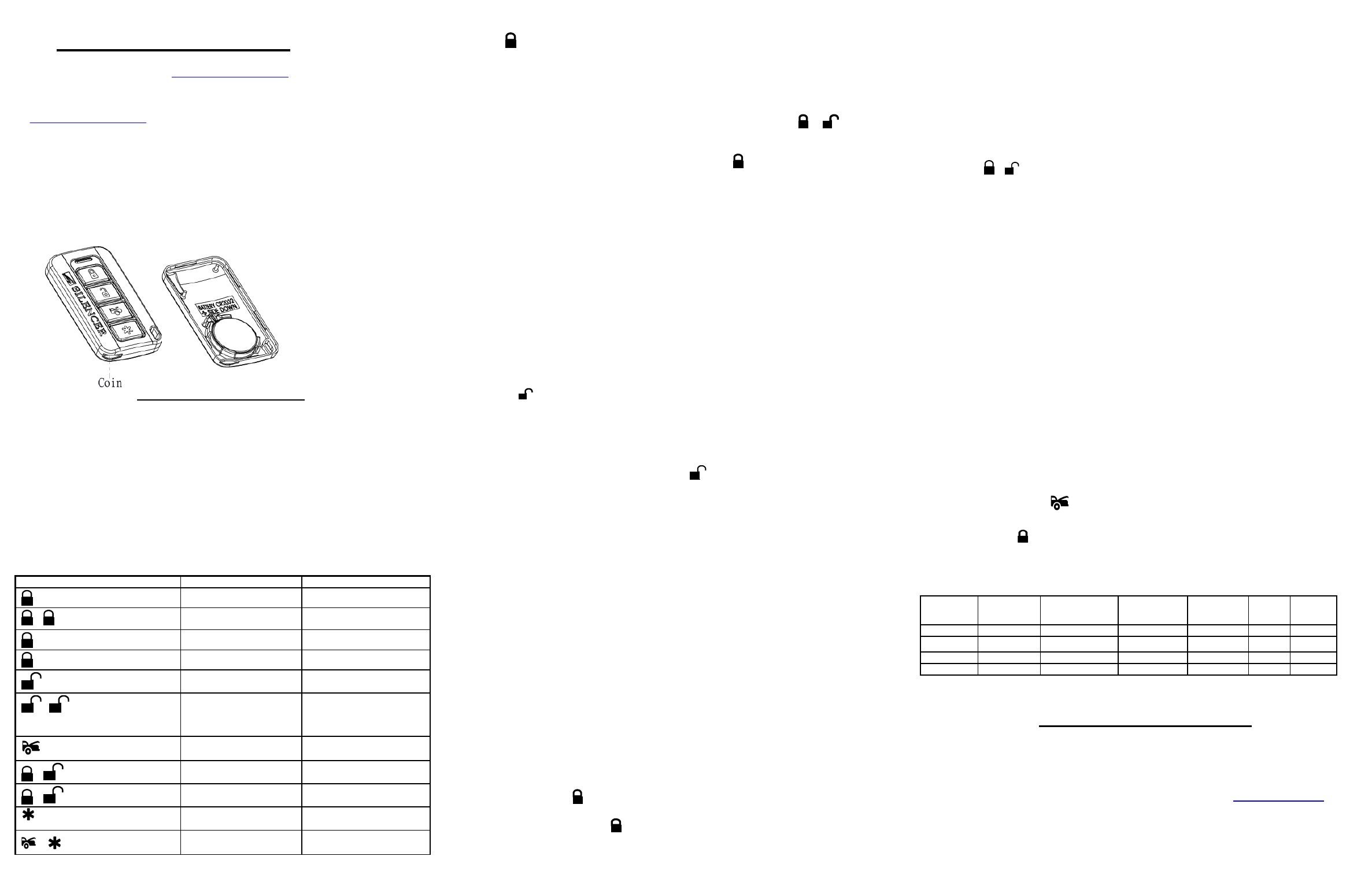

CHANGING THE BATTERY IN YOUR TRANSMITTERS
TRANSMITTER OPERATION
Transmitter Button
System Function
Remark
Button Lock door / ARM ARM (OPTIONAL)
–Button Arm and Delete Optional
Sensor
Press twice.
(OPTIONAL)
Button Car Locator While System Armed.
Button for 3 seconds Panic function Press 3 seconds
Button
Unlock Door / DISARM
–Button
Two Steps Door Unlock &
Disarm System
