Advance Security TR26 Remote Control User Manual MODEL 6876
Advance Security Inc Remote Control MODEL 6876
Users Manual
MODEL X11RF-LCD
REMOTE ENGINE STARTER
WITH ALARM SYSTEM
OWNER’S MANUAL
WARNINGS:
As with any product that performs automatic functions, there are certain safety precautions that you must
practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or garage.
5. Always apply the parking brake and lock the vehicle as you exit the vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is corrected.
8. The use and operations of this system is the sole responsibility of the operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets.
10. Do not start the vehicle by remote while the standard transmission vehicle is parked at a steep place.
1
TABLE OF CONTENTS:
A. REMOTE TRANSMITTER OPERATION ……………………………………….………………….……………………….. 4
B. 2-WAY LCD REMOTE CONTROL TRANSCEIVER OPERATION ..…………………………….…………………..…... 4
C. LED DISPLAY .……………..……………………………………………………………………….…………………….……. 4
D. CHIRP INDICATOR ..………..……………………………………………………………………………..…………………... 4
E. PARKING LIGHT …….……..…………………………………………………………………………..………………………. 4
F. ACTIVE ARMING – ARM & LOCK .………………………………………………………………………………………..…. 4
Ajar Warning / Silent Arming / Disarming / Sensor By-Pass / Hidden Alarm Mode
G. PASSIVE ARMING .…………………………………………..………………………………………………………….…..… 5
Passive Arming with Passive Door Locking / Passive Arming By-Pass
H. ACTIVE DISARMING – UNLOCK & DISARM .………………………………………………………………..……………. 5
Tamper Disarming / Pathway Illumination / Two Steps Door Unlock / Automatic Re-Arm
I. DISARMING WITHOUT A TRANSMITTER .……………..…………………………………………………………………... 6
Overrides the Alarm without Password Pin Code / Overrides the Alarm With Password Pin Code
J. VALET MODE .……………..…………………………………………………………………….………….………………….. 6
K. CAR LOCATOR .……………………………………………………………………….……………………………………..… 7
L. PANIC FUNCTION .……………………………………………………………………………..….……………………….….. 7
M. TRIGGER THE SYSTEM .………………………………………..………………………..…………………………………... 7
Stop The Melody Sound / Noise Abatement Circuit
N. ANTI CAR- JACKING .………………………………………………………………………………….………………..…….. 7
O. SYSTEM’S TRIGGER CHECK ……………………………………………………………….….….…..……………………. 8
P. SYSTEM’S STATUS CHECK ……………………………………………………………..……….……………………….…. 8
Q. DRIVER PAGING / LOSE AND FOUND ………………………….…………..……………………...…………………...… 8
R. DOME LIGHT CONVENIENCE DELAY & SUPERVISION ……………………..………………….……………………... 8
S. IGNITION CONTROL THE DOOR LOCK/UNLOCK. ………..………………….……………………………………….…. 9
T. TRUNK RELEASE (CHANNEL 3) OUTPUT ………..……………………………………………….………………………. 9
U. CHANNEL 4 / 5 / 6 / 7 TIMER CONTROL OUTPUT ………..…………………………………………………………..….. 9
V. POWER ON MEMONRY: ………..……………………………………………………………….…….….…………………... 9
REMOTE START OPERATION:
A. TO REMOTE START THE VEHICLE ………..………………………………………………………………………..……... 9
B. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE START ……………………………………..…... 9
C. TEMPORARY STOP FEATURE ……………………………………………….………………….…….………………….… 9
D. TURBO TIMER MODE ……………………..………………………………….……………….………...…………………… 10
E. TIMER / TEMPERATURE START …………………………………………….…………….……..………………………… 10
3 (2 or 1) Hours Timer Start / Daily Timer Start / Cancel the Timer Start
F. TEMPERATURE CHECK …………….……………………………………………….….……….……………………….… 10
G. TO TURN OFF THE REMOTE START ……………………………………………….….…….………………………………11
H. SHUT-DOWN INPUT FOR REMOTE STARTER ………………………….………………………..……………………... 11
I. DISABLING THE REMOTE START SYSTEM …………………………….……………………..…….………………….… 11
LCD REMOTE TRANSCEIVER:

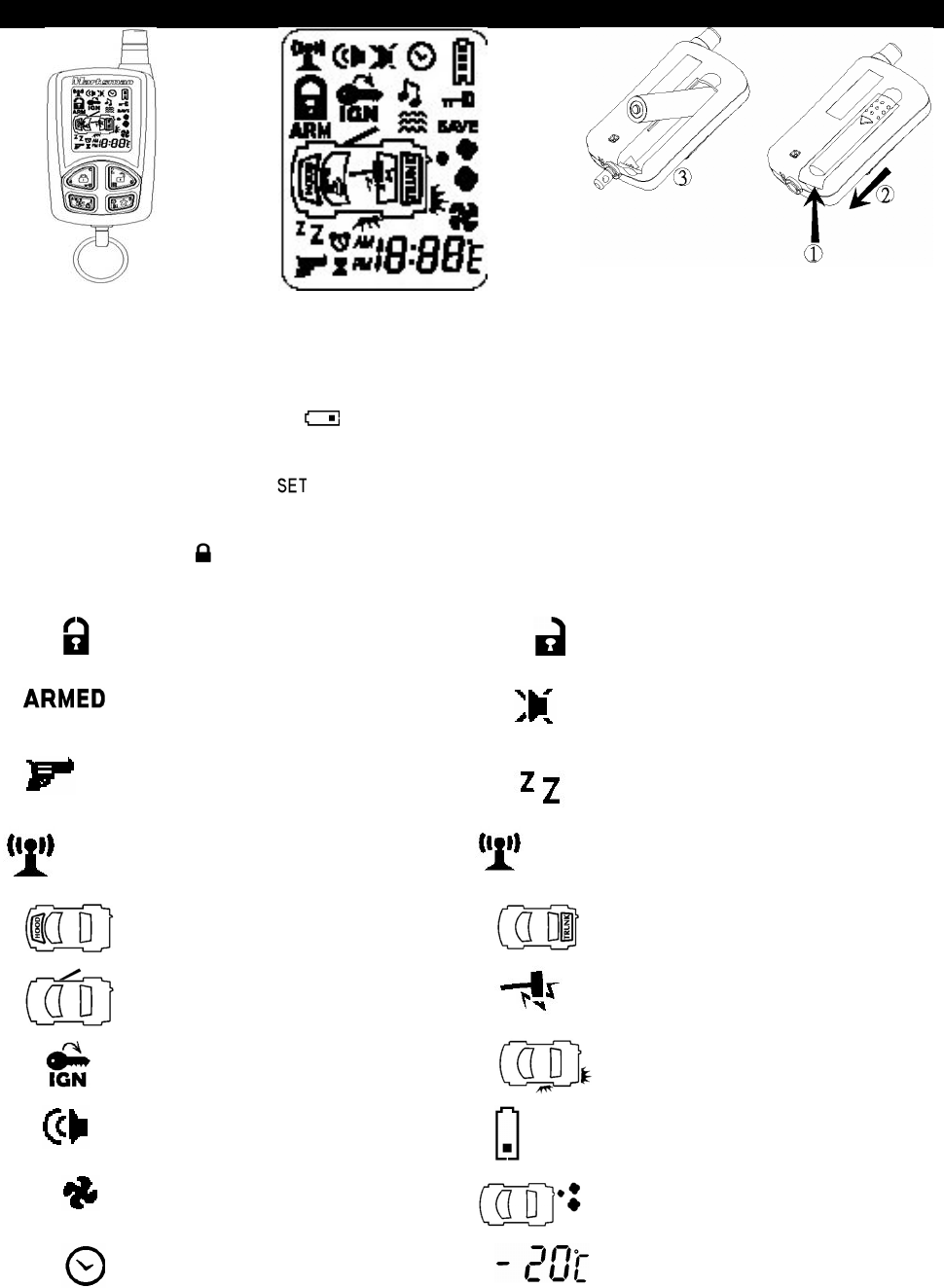

A. BATTERY REPLACEMENT ……………………………….……………………………………………………………….….. 11
B. THE REMOTE LCD ICONS WITH FUNCTION ……….……………………………………………………………………... 11
C. PROGRAMMING OF THE LCD REMOTE TRANSCEIVER …………………………………………………………….…. 12
1. Screen Lamp ON
2. Power Save Mode
3. Clear The Flash Icon and Melody Sound
4. Stop The Melody Sound.
5. Button Lock
6. Vibration / Melody Mode
7. Enable / Disable Bi Sound While Pressing Button:
8. Low Battery Indication.
9. Set Up Fixed Count Down Timer
10. Out Of The Range Check
11. Illumination
12. Second Vehicle Security System Operation
D. TIMER SETTING ……………………………….………………………………………………….………………………..… 14
1. Timer Setting.
2. Alert Alarm Timer Setting
3. Count Down Timer Setting
4. Time Set-Up For “Daily Timer Start”
2
OPERATION:
A. REMOTE TRANSMITTER OPERATION:
Transmitter Button System Function Remark
Lock Doors & Arm System
- Arm and Bypass The Sensor 1 (Zone 4). Press twice within 3 seconds
- Arm and Bypass The Sensor 2 (Zone 6). Press within 5 seconds
- - Arm and Bypass The Sensor 1 and 2 Press within 5 seconds
- Arm System and Hidden Alarm Function Press within 3 seconds
Car Locator Upon armed
(3-second) Panic function Press and Hold for 3 seconds.
+ Silent Arming / Disarming Ignition in "off" position.
+ (2-second) Active Anti Car-Jacking Mode Ignition in "on" position press and
hold for 2 seconds
Unlock Doors & Disarm System
- Two Steps Door Unlock & Disarm System Press twice within 3 seconds.
Trunk Release (Channel 3) Press and Hold for 1 sec.
- Passive Arming By-pass While the system Disarmed.
- Activate or Turn Off The Remote Start Press twice within 3 seconds.
+ Channel # 4 Timer Output
+ Channel # 5 Timer Output
+ Channel # 6 Timer Output
+ Channel # 7 Timer Output Defrost output will be auto active 30
sec after R/S succeed; Output will be
1 sec. (-) pulse.
-
+ Switching code For 2nd Car Operation. For regular remote transmitter
B. 2-WAY LCD REMOTE CONTROL TRANSCEIVER OPERATION ONLY:
Transceiver Button System Function Remark
- (C) System’s Trigger Check Press within 3 seconds
- - (C) System’s Status Check Press within 3 seconds
- ( ) Optional Driving Pager Press within 3 seconds
- ( ) Monitor Indoor Temperature Press within 3 seconds
SET- + 2nd car Operation Press within 3 seconds
C. LED display:
LED Function LED Function
Off Disarmed 1 flashes... pause Zone 1 / Trigger on Hood
Slow Flash Armed 2 flashes... pause Zone 2 / Trigger on Trunk
Fast Flash Passive Arming 3 flashes... pause Zone 3 / Trigger on Door Switch
On (Solid) Valet Mode 4 flashes... pause Zone 4 / Trigger on Sensor 1
Pause On Password Lock-Out 5 flashes... pause Zone 5 / Trigger on Ignition Switch
6 flashes... pause Zone 6 / Trigger on Sensor 2
D. CHIRP INDICATORS: E. PARKING LIGHT:
Chirp Function Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Ajar Warning 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start
3
F. ACTIVE ARMING – LOCK & ARM:
1. Press button on the transmitter.
2. The siren will chirp once and parking light will flash once indicating that the system is now armed. The
vehicle door will lock upon arming when interfaced with the security system.

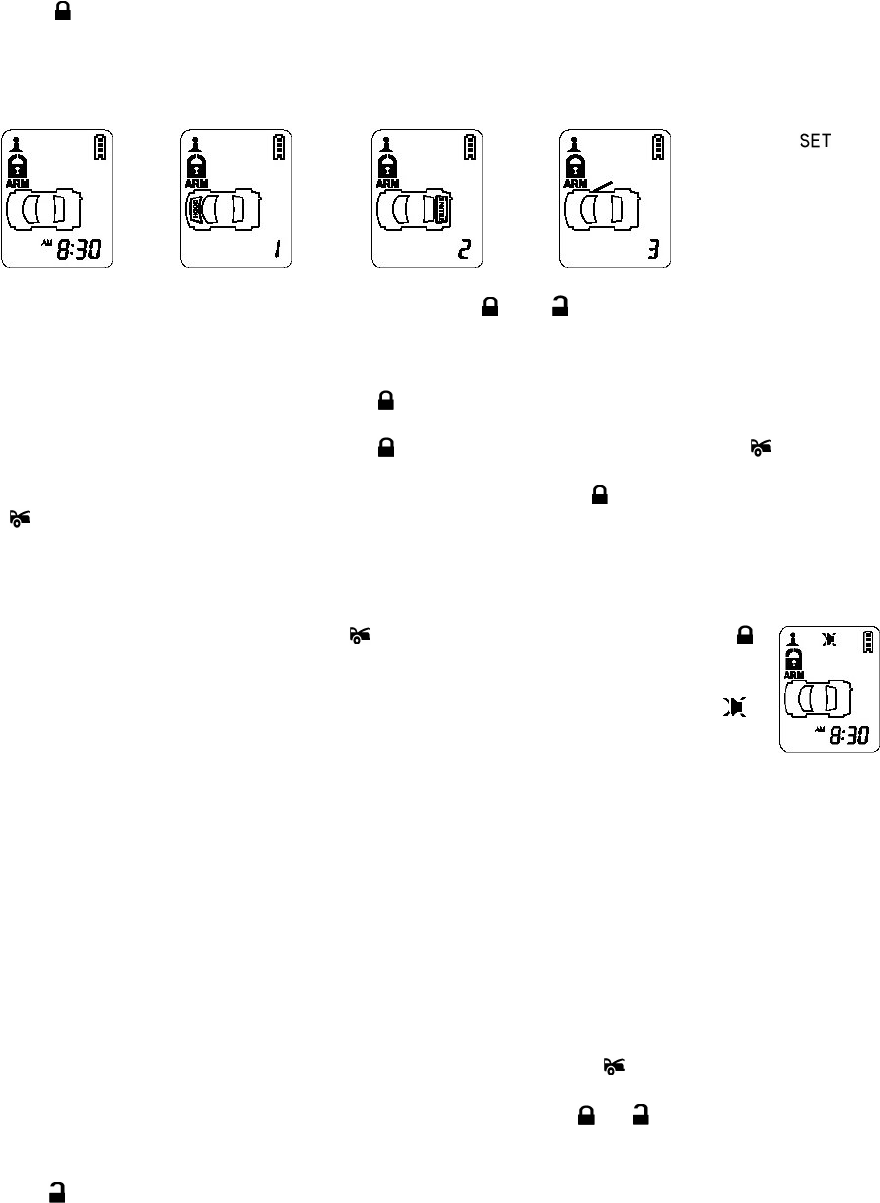

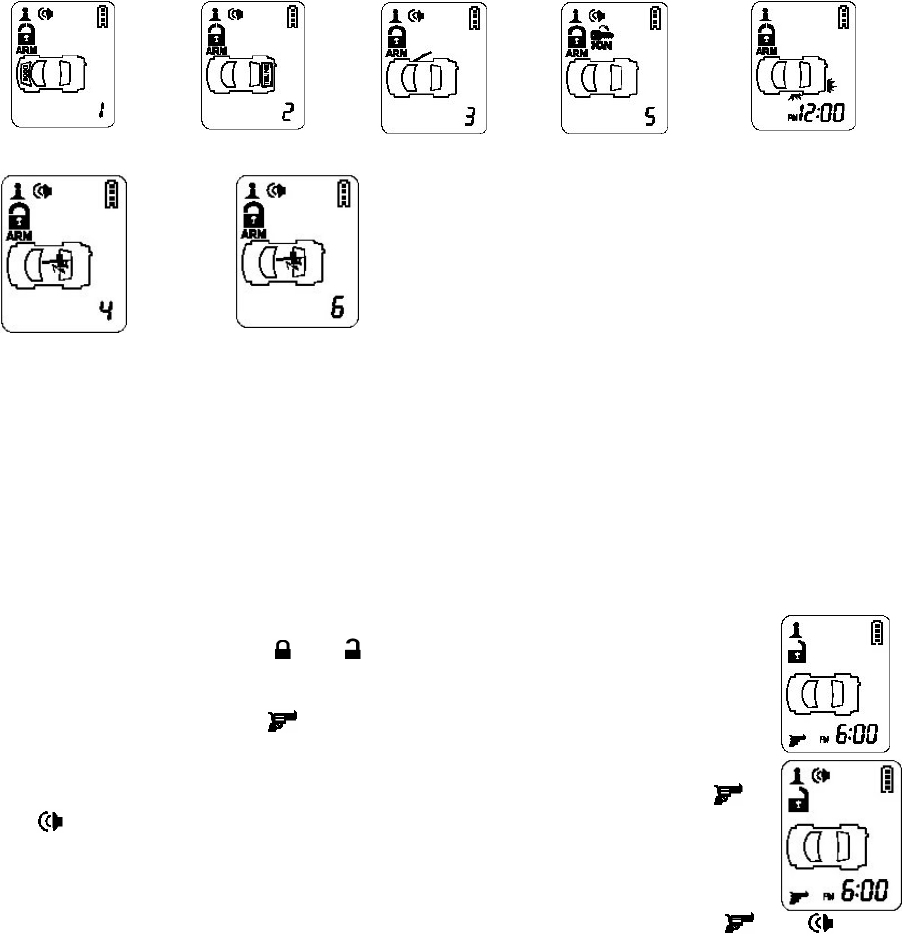

System Arm
Hood Ajar
Trunk Ajar
Door Ajar
.
Clear The Flash Icon:
Press the button 3
times within 3 seconds
will clear the flash icon
on the LCD screen
transmitter
AJAR WARNING: If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid ajar.
SILENT ARMING / DISARMING: Press the transmitter and buttons at the same time will arm or
disarm your security system, No chirp sound will be heard, arm / disarm confirmation will be through the
vehicles parking lights only.
SENSOR BY-PASS:
Bypass The Sensor 1 (Zone 4): Press the button on the transmitter two times within 3 seconds will
arm the security system and by-pass the sensor 1 (zone 4 shock sensor).
Bypass The Sensor 2 (Zone 6): Press the button first, with 3 seconds press the button will arm
the security system and by-pass the zone 6 optional sensor 2.
Bypass The Sensor 1 (Zone 4) and Sensor 2 (Zone 6): Press the button first, with 3 seconds press
the button twice will arm the security system and by-pass the sensor 1 (zone 4 shock sensor) and
zone 6 optional sensor 2.
The system will chirp one additional time to confirm the sensor bypass mode was activated. The sensor
bypass feature is programmed to activate for one arming cycle only. The security system will return to
normal operation during the next arming cycle.
HIDDEN ALARM FUNCTION: Press the button first; within 3 seconds press the
button to activate the hidden alarm function. The security system will arm and with
“Hidden Alarm Function” The siren / horn will be silenced even if the sensor is triggered
in the armed status. (A melody sounding from your Remote LCD transceiver and “ ”
icon will display on the LCD screen to confirm the hidden alarm was activated.)
G. PASSIVE ARMING
Active arming / disarming is controlling your security system via the remote transmitter. This security
system is equipped with an optional Passive Arming feature, which allows the security system to arm 30
seconds after the last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any
door / hood / trunk, the security system LED will stop flashing. It will begin flashing again once the
vehicle all entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically “ARM”. The siren will chirp [1]
time and the parking lights will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING:
The vehicle doors will automatically lock after passive arming cycle has been completed.
PASSIVE ARMING BY-PASS: While the system disarmed, Press the button twice, the security will
respond with [1] chirp and LED will turn “ON”. The security system will remain in this temporally state for
as long as you wish. To exit passive by-pass, press the transmitter or button and the system will
return to normal status.
H. ACTIVE DISARMING – UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and parking light flash twice to indicating that the security system is now
disarmed. The vehicle’s door will unlock and dome light turns on for 30 seconds upon disarming when
interfaced with the security system.
4

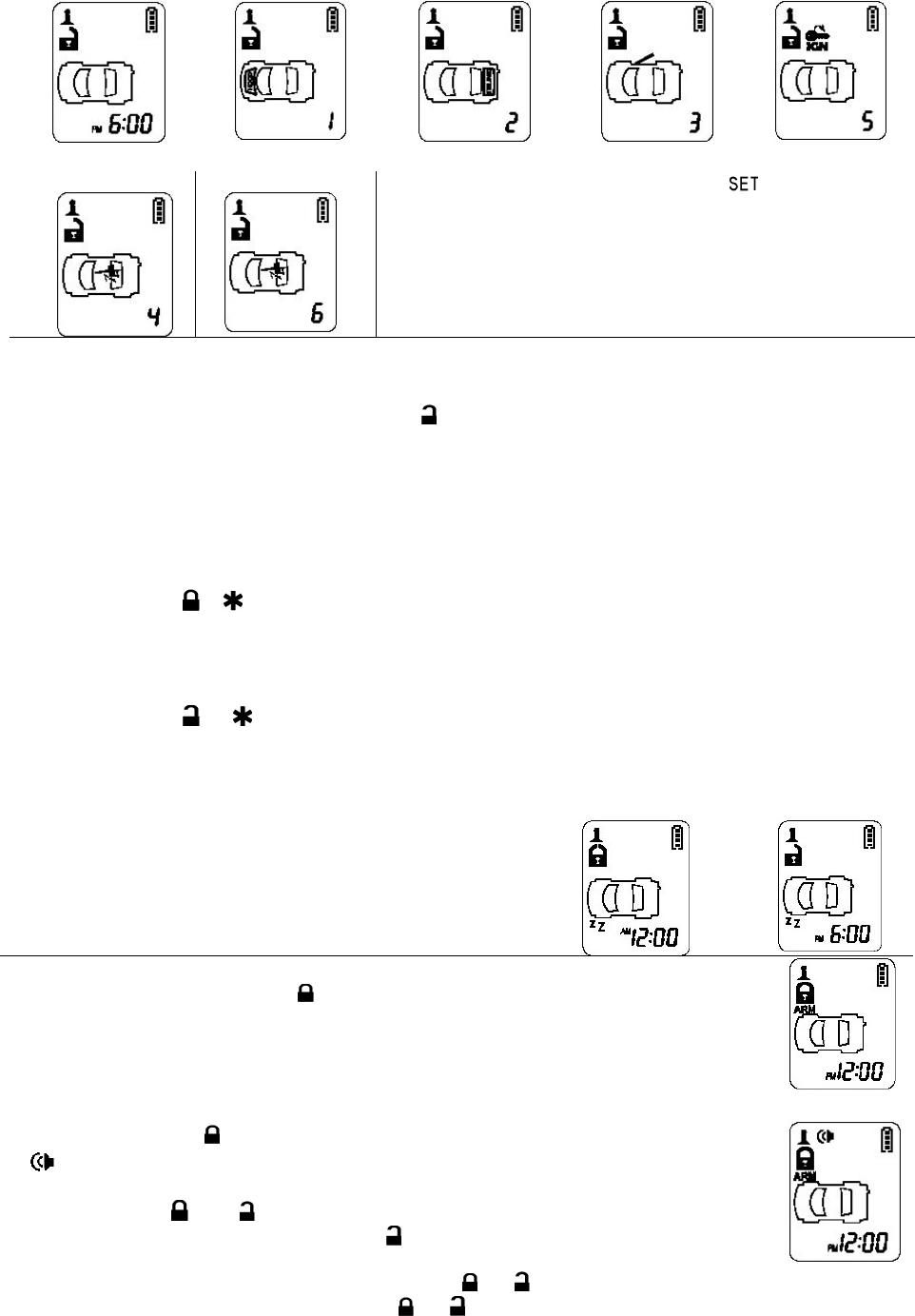

System Disarm
Hood Trigger
Trunk Trigger
Doors Trigger
Ignition Trigger
Sensor 1 Trigger
Sensor 2 Trigger
CLEAR THE FLASH ICON: Press the button 3 times
within 3 seconds will clear the flash icon on the LCD screen
transceiver.
TAMPER DISARMING: If alarm triggered, upon disarm the
system, siren chirp 4 times, parking light flash 3 times.
PATHWAY ILLUMINATION: This feature turns the parking light “ON” for 30 seconds upon a unlock
signal and for 10 seconds upon the lock signal
TWO STEPS DOOR UNLOCK: This feature will independently unlock the driver’s door only when
disarming the security system. Pushing the button a second time within 3 seconds will unlock the
other doors.
AUTOMATIC RE-ARM: If this feature is selected, the security system will automatically re-arm itself in
60 seconds after disarming with remote transmitter. Automatic rearm will cancel if any door is opened
before the 60 seconds timer has elapsed.
J. VALET MODE: (System in Disarm or Valet mode)
Activate Valet Mode:
1. Turn the ignition to “Off” position and open any door.
2. Press and hold +
3. The door locks will lock and unlock. Release the button
4. The LED will begin to flash every 5 sec. indicating that the system is in valet mode
Exit Valet Mode:
1. Turn ignition 'Off' and open any door.
2. Press and hold +
3. The door locks will lock and unlock. Release the button
4. The LED will be off indicating that the system is out of Valet mode.
Remote Door Lock
Remote Door Unlock
K. CAR LOCATOR
Under armed mode, press the button to active car locator function. The siren will
chirp 6 times. The parking light will flash 12 times, for you to easily locate your car.
L. PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm in case emergency.
1. Press and hold the button for 3 second. The alarm will immediately sound and the
icon will display on the LCD screen.
2. During panic mode, the normal function of this transmitter button will be suspended.
The transmitter and buttons can be used to lock and unlock the door (if the
option is installed), however once the button is pressed, the vehicle’s starter
disable device, (where installed) will be enable allowing the vehicle to start.
3. To stop the alarm, press and hold the transmitter or button on the transmitter again for 3 seconds.
Also if any transmitter buttons other than or button is pressed and released, the panic mode will
be turned off immediately.
4. If the button is not pressed, the alarm will automatically stop after 30 seconds.
5
M. TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
1. Light impact will trigger the warn-away signal.
2. Heavy impacts / Doors open / Hood open / Trunk open / Turn on the ignition key will trigger the
programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The siren, horn, parking
lights, and dome light will turn on to alerting of an intrusion for 30 seconds. Then it will stop and automatic
reset and re-arm. If the one of sensors or detectors still active, the alarm system will sound a maximum of
6 times of 30 seconds cycles.
Hood Trigger
Trunk Trigger
Doors Trigger
Ignition Trigger
Warn-away Trigger
Sensor 1 (Zone 4) Trigger
Sensor 2 (Zone 6) Trigger
Stop The Melody Sound: While triggering the
alarm the LCD screen will alert user through melody
sound and flashing trigger icon, press any button on
the LCD remote transceiver to stop melody sound.
NOISE ABATEMENT CIRCUIT: You system has “Noise Abatement Circuit”. It prevents annoying
repetitive trigger sequences due to faulty door pin switches or environmental condition such as thunder,
jackhammers airport noise, etc.
Here’s how “Noise Abatement Circuit” works: The alarm triggers five times or ten times for warn-away
triggers. Each time, the same sensor (zone 4 or zone 6) is triggering the alarm. “Noise Abatement Circuit”
will interpret this pattern of triggers as false alarm. After the fifth trigger (tenth for warn-away), “Noise
Abatement Circuit” ignores, or bypasses that sensor until the other sensor or switch is trigger.
“Noise Abatement Circuit” covers doors (Hood/Trunk) differently: If the alarm is triggered by an open door
for six full cycles, the doors will be bypassed until the trigger ceases.
N. ANTI CAR- JACKING
Warning: If you don't need the car jacking function in this alarm system, be sure to set car jacking feature
“OFF”. This system is default setting all cars jacking “OFF”.
ACTIVE ANTI CAR JACKING:
1. Press and hold the transmitter and buttons at the same time for 2 seconds
while the vehicle’s ignition are ON. The parking lights will turns on for 1.5 seconds to
indicate the system enters the car-jacking mode. (A melody sounding from your
Remote LCD transceiver and “ ” icon will display on the LCD screen to confirm the
car-jacking mode was activated.)
2. Once the system in car-jacking mode, If you are forced from the vehicle, the system
will be trigger when the door is opened and closed while the ignition is “ON”, the
and icon will display on the LCD screen.
PASSIVE ANTI CAR- JACKING:
1. Turn the ignition switch to “ON” position; the system enters the car-jacking mode.
2. Once the system in car-jacking mode, If you are forced from the vehicle, the system
will trigger when the door is opened and closed while the ignition is “ON”, the and icon will
display on the LCD screen.
TRIGGER THE ANTI CAR -JACKING MODE:
a). 50 seconds after the system has beer triggered. The siren will start chirping for 15 seconds.
b). During this 15 seconds period of chirping, you will be alerting to push the valet switch once to turn off
the car-jacking feature. If not, it will enter second timer car jacking.
c). 65 seconds after the system has beer triggered. The siren starts alarming and the parking light starts
flashing.
d). 90 seconds after the system has beer triggered
1. The siren still alarming and the parking light flashing, and
2. The starter disable will activate to prevent the vehicle from starting.
3. It will remain active until the vehicle's battery power exhausted.
6
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch, the siren will stop and
the system disarmed
O. SYSTEM’S TRIGGER CHECK (For two-way transceiver operation only)
Press the transceiver button first, within 3 seconds press (C) button. It
responds with one melody sound and all trigger’s records will immediately displayed on
the LCD screen.
Note: If it has no responds then you are out of range.
P. SYSTEM’S STATUS CHECK (For two-way transceiver operation only)
When you want to check the system’s present status through the LCD screen, Press the
transceiver button twice, within 3 seconds press (C) button. It responds with
one melody sound and all vehicles’ status records will immediately displayed on the
LCD screen.
Note: If it has no responds then you are out of range.

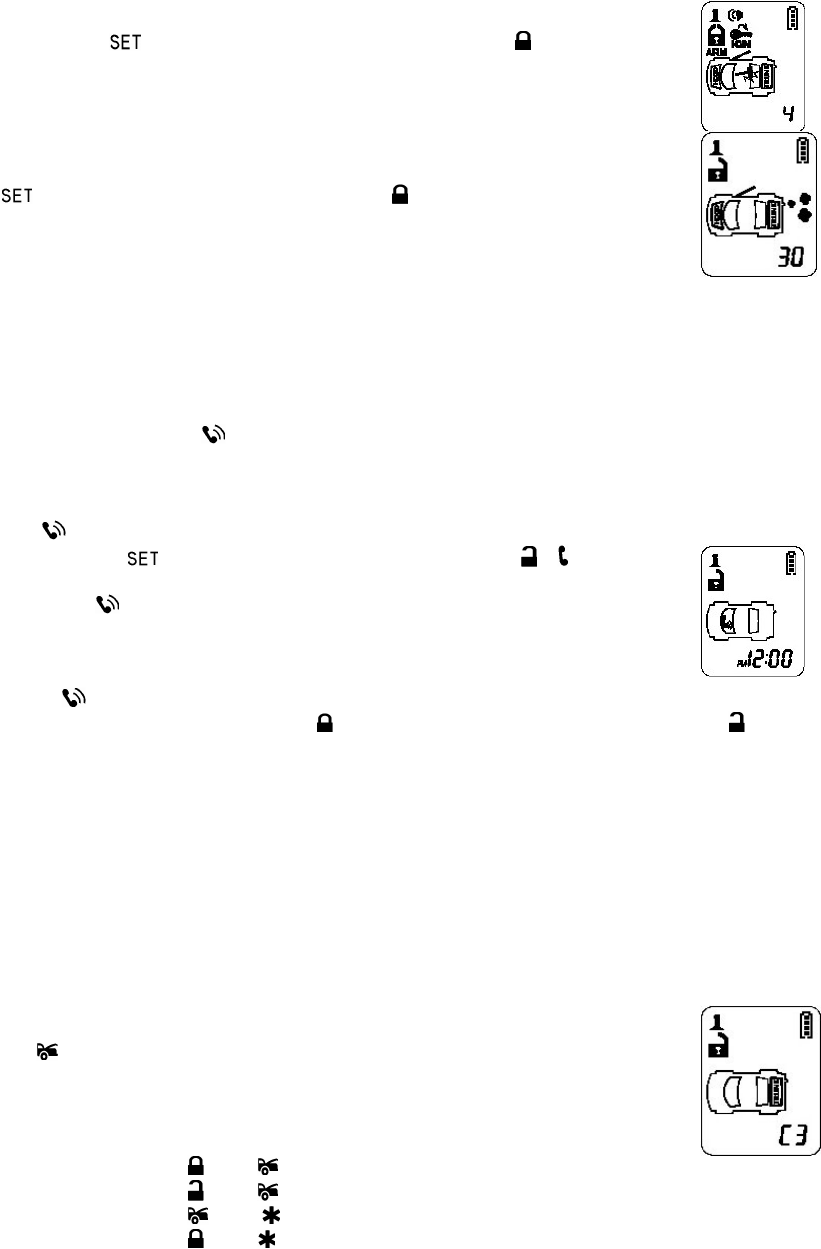

Q. DRIVER PAGING / LOSE & FOUND (For two-way transceiver operation only)
It is useful the event that someone wants to page the driver of the parked vehicle or someone cannot find
his LCD remote transceiver.
Indoor Driving Paging
Under the ignition switch “off” condition, press and hold the valet switch for 2 seconds to page the driver,
one chirp sound shall be emitted from the vehicle and the paging melody sound continues sounding from
you Remote LCD transceiver and “ ” indication flashes on the LCD screen.
Outdoor Driving Paging
If someone tries to page you by tapping the paging (knock) sensor (optional) which is usually mounted on
the bottom part of front window, the paging melody sound continues sounding from you Remote LCD
transceiver and “ ” indication flashes on the LCD screen.
1. Press the transceiver button first, within 3 seconds press ( ) button to
activate outdoor driver paging function, It responds with chirps of the vehicle, a
melody sound and " " indication flashes on the LCD screen to confirm the function
is on.
2. When tapping the paging (knock) sensor, one chirp sound shall be emitted from the
vehicle and the paging melody sound continues sounding from you Remote LCD
transceiver and “ ” indication flashes on the LCD screen.
3. Turn on the ignition switch; OR press the button to arm the system; OR press the button to
disarm the system, this outdoor driver paging function will exit.
R. DOME LIGHT CONVENIENCE DELAY & SUPERVISION
The alarm with a unique feature which will turn on your vehicle dome light as following:
1. Upon disarming, the interior light will remain on for 30 seconds.
2. If the vehicle is intruded, the interior light will flash for the same duration as the siren.
Note: Turn on the ignition switch or arm the alarm will turn off the dome light.
S. IGNITION CONTROL DOOR LOCK/UNLOCK.
If the vehicles door locks have been interfaced to the security system, the system will automatically lock
the vehicle's doors when the ignition is turned “ON” and /or unlock the vehicle’s doors when the ignition is
turned “OFF”.
T. TRUNK RELEASE (CHANNEL 3) OUTPUT.
Press and hold button on the transmitter for one seconds to remote control the trunk
release or other electric devices.

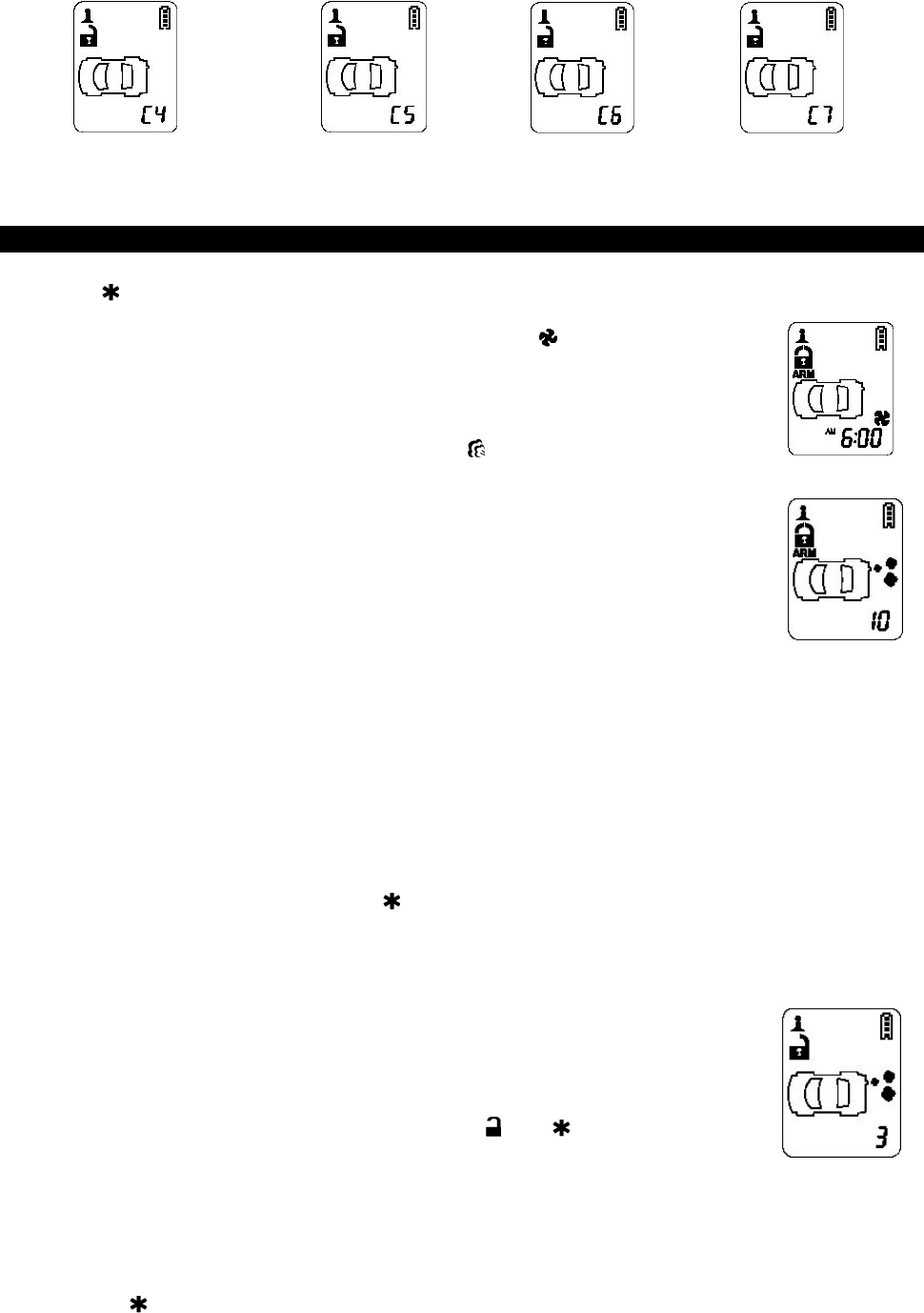

U. CHANNEL 4 /5 /6 /7 TIMER CONTROL OUTPUT
Activate The Channel 4: Press and buttons at the same time to active Channel 4 function.
Activate The Channel 5: Press and buttons at the same time to active Channel 5 function.
Activate The Channel 6: Press and buttons at the same time to active Channel 6 function.
Activate The Channel 7: Press and buttons at the same time to active Channel 7 function.
The channel output is user-programmable timer output. This timer output may be used to turn on the
headlight, power window or sunroof. (Factory defaults setting at momentary output.)
7
V. POWER ON MEMONRY:
This security system is equipped with circuitry that will allow the unit to remember its alarm state if the
power is lost and then reconnected.
REMOTE START OPERATION:
A. TO REMOTE START THE VEHICLE:
1. Press button twice on the transmitter.
2. The parking light will activate to indicate the remote start received the signal. (A
melody sounding from your Remote LCD transceiver and “ ” icon will flashes on the
LCD screen to confirm the remote start was activated.)
3. The engine will start approximately 5 seconds.
4. Once the engine is running, after couple seconds the parking light will turn on again
and climate controls will activate and adjust the vehicles interior temperature to your
preset setting. (While the vehicle is running, the “ ” icon and the “minutes” digit on
the LCD screen will flash and it will indicate count down timer based on the 5, 10, 20
or 30 minute run time set up by your installation center.)
5. The vehicle will run for 5 to 30 minute cycle and automatically shut down. (When the
unit shuts off the count down timer will turn off and the transmitter will play a melody.)
Note: The Remote Start Unit will not start the vehicle if any one of the following
conditions exists:
1. The hood is opened.
2. The brake pedal is pressed.
Activate Remote
Start
Engine Running
3. Move the optional remote start enable toggle switch to OFF position. (If installed)
4. The gear selector is in any gear other then “PARK” or “NEUTRAL”
B. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE START:
To operate the vehicle while engine running on the remote start.
1. Insert the ignition key and turn it to “ON” (not the start) position.
2. Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the ON position, the engine will shut down.
C. TEMPORARY STOP FEATURE:
This feature allows the vehicle to remain running after the key has been removed from the ignition. This
feature is useful for occasions when you wish to exit and lock the vehicle for short periods of time, but
would like to leave the motor running and the climate control on.
1. Before turning off the engine, press the button twice on the transmitter.
-- The LED indicator will flash 3 times to confirm enter.
2.Turn the ignition key to OFF position. (The engine will stay running.)
3.The engine will run until the pre-programmed time elapsed or shutdown input is received.
D. TURBO TIMER MODE:
Turbo timer mode keeps the engine running after arriving at you destination for a
programmable period of 3/ 5 or 10 minutes, This allows the system’s time to
conveniently cool down the turbo after you have left the vehicle. To activate:
1. While engine is running, place the transmission gear in the park position and pull up
the hand brake.
2. Before turning off the engine, press and release and buttons at the same
time.
-- The parking light will activate to indicate the remote start has entered turbo charge mode. --
3. Pull off the “Ignition Key” from the key cylinder.
-- Engine keeps running. --
4. Exit and secure the vehicle.
-- Engine continues running until the pre-programmed time elapsed. --
If you do not want the vehicle to continue to run for one cycle, simply step on the vehicle's brake, or
activate the button in succession. Any of these will cause the engine to turn off.
E. TIMER START:
Your system has the ability to automatically start the vehicle every 1,2 or 3 hours, run for the
pre-programmed time (5, 10, 20 or 30 minutes), and then shut off. This will continue for 48 hours. This
8
feature is especially useful in cold climates where the only means to keep the engine and engine fluids
warm is to periodically start the engine.
If the system is set up to start in temperature mode, the system can be programmed to automatically start
the vehicle engine whenever the temperature inside the vehicle reaches or drops below the
preprogrammed temperature level. The system will monitor the air temperature every 3 (2 /1) hour and will
only start the engine during extreme cold temperatures.
WARNING! Be certain that the vehicle is outdoors before using this or any remote vehicle-starting device.
A running engine produces dangerous carbon monoxide fumes, which can be harmful or fatal if prolonged
exposure occurs. DO NOT remote start the vehicle if it is garaged.

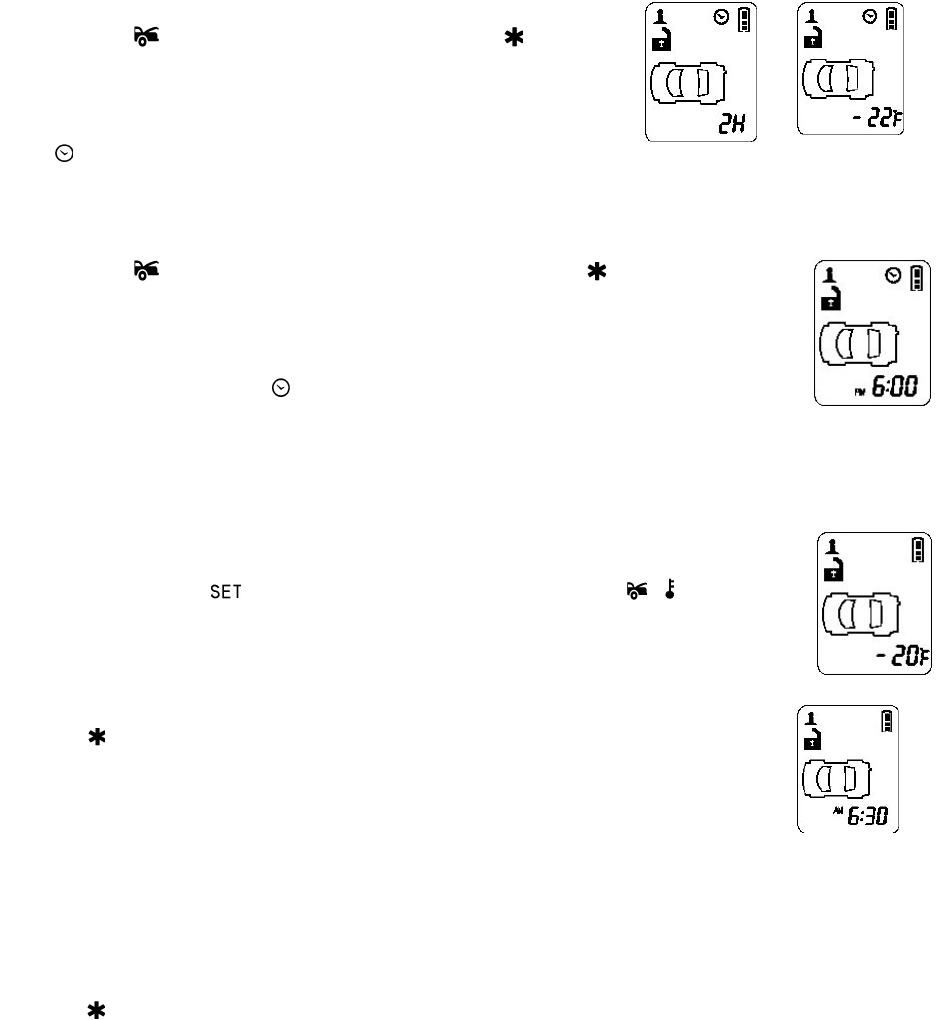

Timer Start Operation:
1. Turn the ignition key on then off. Within 15 seconds …..
2. Press the button first, with 3 seconds press the button.
3. The parking lights will flash and the siren will chirp 3 times
indicating the timed start mode is activated.
Your set the timer icon or the temperature icon for engine start
flashes for approx. 3 seconds on the LCD screen. After 3 seconds
the icon stays displayed on the LCD screen
Timer Start
Temperature Start
Daily Timer Start Operation: The feature is very useful for the driver who wants to run the vehicle
punctually at the same time next morning. Before set-up of the “Daily Timer Start”, you should set you time
for engine start.( see Timer Setting / Timer set-up for “Daily Timer Start, page 16)
1. Turn the ignition key on then off. Within 15 seconds …..
2. Press the button first, with 3 seconds press and hold the button for three
seconds.
3. The parking lights will flash and the siren will chirp 6 times indicating the daily timed
start mode is activated.
Your set time for the next day engine start flashes for approx. 3 seconds on the LCD
screen. After 3 seconds the icon stays displayed on the LCD screen.
Daily Timer Start
Cancel the timer start: To cancel the timer start do one of the following;
1. Start the vehicle manually with the use of the ignition key.
2. Remote starts the vehicle using your keychain RF transmitter.
F. TEMPERATURE CHECK
You can monitor through the LCD screen, the present indoor temperature of the
passenger compartment before cooling or heating your vehicle.
Press the transceiver button first, within 3 seconds press the ( ) button; the
in-door temperature will be shown on the LCD screen. This reading may be higher than
actual ambient temperature due to the greenhouse and is relative only the inside vehicle
temperature.
G. TO TURN OFF THE REMOTE START:
When the engine is running (by remote start), if you want to stop it,
1. Press button twice on the remote transmitter under remote start mode.
2. Move the optional remote start enable toggle switch to OFF position. (If installed)
3. Press the brake pedal.
The vehicle will shut down and turn off the parking light to indicate engine stopped.
H. SHUT-DOWN INPUT FOR REMOTE STARTER:
If any of the following conditions exist while the system is operating, the engine will not start or will shut
down immediately:
1. The hood is opened.
2. The brake pedal is pressed.
3. Engine is over-revved. {“Tachometer checking type” only}
4. The pre-programmed run time (5 / 10 /20 / 30 minutes) has elapsed.
5. Press button twice on the remote transmitter under remote start mode.
6. Move the optional remote start enable toggle switch to OFF position. (If installed)
8. The vehicle refused to start running after {3} unsuccessful attempts.
I. DISABLING THE REMOTE START SYSTEM: (If installed)
This feature allows your system’s remote start unit to be temporarily disabled to prevent the vehicle from
being remote started accidentally. This feature is useful if the vehicle is being serviced or stored in an
enclosed area. To disable the remote start, move the optional remote start enable toggle switch to the
OFF position.
9
LCD REMOTE CONTROL TRANSCEIVER:
Note: If the system is interfered by stronger radio frequency around, sources of high voltage electric power
or such Obstacles like tall buildings and so on, the transmission range may get shorter as the
system uses low out put powered frequency.
A. BATTERY REPLACEMENT:
A 1.5V type AAA Lithium / digital camera use / Alkaline battery powers the Remote Transmitter. When the
power of the battery weakens a icon shall be displayed on the LCD screen. When the old battery is
replaced to new one, there will be beep sounds indicate the power is up and the clock on the LCD screen
returns to AM12:00 after displaying all the icons.
Correct the time by pressing for 3 seconds before using (See Timer Setting).
Note : 1. 1.5V type AAA Lithium battery (highly recommend) / 1.5V type AAA Hi-power battery for digital
camera use (suggest) / 1.5V type AAA Alkaline battery (at least)
2. Press the button two times when the battery compartment is empty, then insert the new
battery.
B. THE REMORE LCD ICONS WITH FUNCTION:
Door Lock
Your vehicle doors are locked
Door Unlock
Your vehicle doors are unlocked and
the system is Disarmed
Armed Mode
Your vehicle is in armed mode
Hidden Alarm Mode
Your vehicle is in armed with hidden
alarm mode
Car Jack Mode
Activate the car jacking mode
Valet Mode
All the function shall be temporarily
on hold.
Remote Transmission
You are transmitting the signal to
control unit
In – Range Indicator
Your are within the remote control
range.
Hood Trigger
Hood is illegally opened (Zone 1)
Trunk Trigger
Trunk is illegally opened (Zone 2)
Door Open Warning
Doors are illegally opened (Zone 3)
Sensor Trigger
Trigger on Sensor 1 (Zone 4) or
Optional Sensor 2 (Zone 6)
Ignition Trigger
Ignition switch is illegally turned on
(Zone 5)
Warn Away Trigger
Warn Away Trigger on Sensor 1 or
Optional Sensor 2.
System Trigger
Low Battery
You have to replace the battery of
remote control.
Engine Cranking
Your vehicle engine Cranking by
remote control
Engine Running
Your vehicle's engine is running
Timer Control Start
Engine start automatically at the
same time next day or every 2 /
3-hour.
Temperature Monitor
Indoor temperature of your vehicle
C3 Activate Channel 3 (Trunk
Release). C4 Activate Channel 4
C5 Activate Channel 5 C6 Activate Channel 6
10
C7 Activate Channel 7
Time Monitor
Alert Alarm
You have set morning call alarm
Count Down Timer
Reminder when time is up for
parking
Power Save Mode
Save the battery power
Melody Mode
Remote Control alert user through
melody sound
Vibration Mode
Remote Control vibrates when the
system is triggered
Button Lock
Disable the transmission function
temporarily
Driver paging / Lose and Found
Someone is paging you in front of
your vehicle
C. PROGRAMMING OF THE LCD REMOTE TRANSMITTER:
Transmitter Button Description Operation
(1 second) LCD screen lamp turns on for
5 seconds. Press and hold for 1 second
1 melody sound to confirm
enters.
(3 seconds) Timer Programming Mode. Press and hold for 3 seconds
2-melody sounds to confirm
enter.
(5 seconds) Power Save Mode Press and hold for 5 seconds
1 melody sound to confirm
enters.
- - Clear the Flash Icon and Melody Sound
on the LCD Screen Transmitter Press within 3 seconds
- (2-second) Button Lock ( ) enable / disable Press within 3 seconds
- (2-second) Melody ( ) / Vibration ( ) Mode Press within 3 seconds
- (2-second) Program Count Down Timer ( )
(10-Minute / 20M / 30 M /1Hour /1.5H /
2.0H)
Press within 3 seconds cycling
*leave the buttons starting count
down then flashes
- (2-second) Enable / Disable Bi Sound (Bi) While
Pressing Button
- -
(2-second)
Illumination On /Off Press within 3 seconds
- + (2-second) Switching code for 2nd / 1st Car
Operation Press within 3 seconds
1. Screen Lamp ON: Press and hold the button one second, with one melody sound and the LCD
screen lamp will turns on for 5 seconds
2. Power Save Mode: While the power save mode, the LCD remote transceiver uses “0”
current to save the battery power.
Entry: Press & hold the button for 5 seconds, with one melody sound and
icon on the LCD screen to indicate entry the “power save mode”.
Exit: Press any button of the LCD remote transmitter to exit the “Power Save Mode”.
3. Clear the Flash Icon and Melody Sound: Press the button 3 times within 3 seconds will clear the
flash icon and melody sound on the LCD screen transceiver
4. Stop The Trigger Melody Sound: While triggering the alarm the LCD screen will alert user through
melody sound and flashing trigger icon, press any button on the LCD remote transmitter to stop melody
sound only.
5. Button Lock: It is useful if you want to disable the transmission function of the remote
control temporarily to prevent from any inadvertent pressing of buttons by others. Press
the button first, within 3 seconds press and hold the () button for 2 seconds to
activate or cancel the button lock function, the icon will displayed on the LCD screen
to show the LCD remote transmitter is on “Button Lock”.

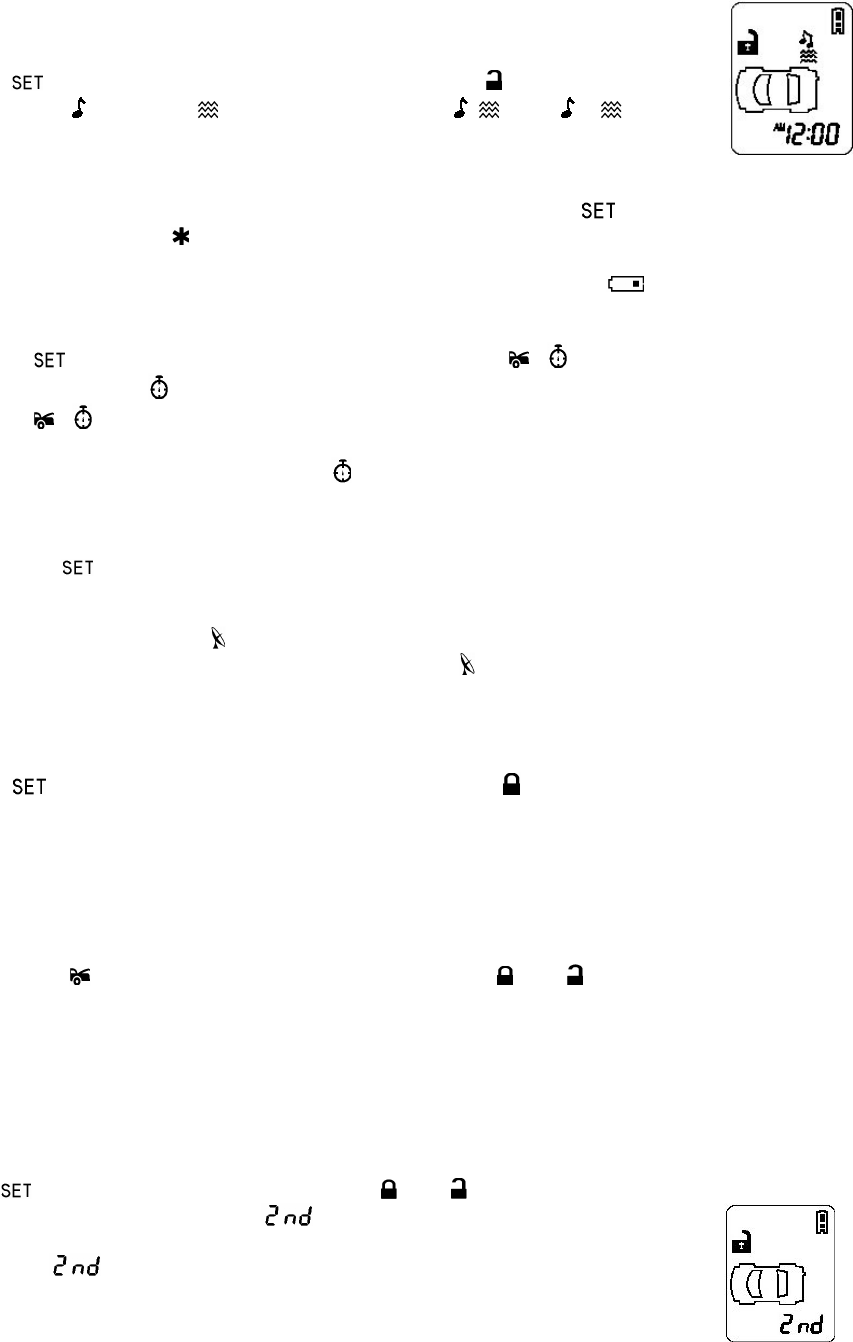

6. Vibration / Melody Mode:
11
It is useful when you are in a noisy place and difficult to hear beep sound from the
remote control as the remote control in this mode, vibrates itself if your security system is
triggered.
Press the button first, within 3 seconds press and hold the button to select the
mode of melody ( ) / vibration ( ) or melody with vibration ( ) , the / icon will
displayed on the LCD screen.
7. Enable / Disable Bi Sound While Pressing Button:
It has a short “bi” sound while pressing the button of the LCD screen transceiver
If you want mute the “bi” sound mute always while press button. Press the button first, within 3
seconds press and hold the (Bi) button for 2 seconds to disable the “bi” sound.
8. Low Battery Indication:
When the power of the battery weakens, it has two short “bi” sound and flash icon while pressing the
button of the LCD screen transceiver.
9. Set Up Fixed Count Down Timer:
1. Press the button first, within 3 seconds press and hold the () button for 2 seconds, the
LCD screen will shows icon and timer (ie. 0:10) ,
2. Press the () button again showing next order time on the screen ( ie.0:20), press them again
(ie.0:30)…..and so on.
3. Leave the buttons starting count down then icon flashes
Note: 1.The count down period is fixed as 10 minutes, 20 minutes, 30 minutes, 1 hour, 1.5 hours and 2
hours maximum.
2.When count down timer showing 0:00 means to turn off the timer.
3. Press
button for real time indication when the timer is counting down.
10. Out Of Range Indication:
If this feature is selected, the system will automatically check the range every 30 minutes.
1. If user is within the range, the icon will display on the LCD screen.
2. If user is out of range, it has five short “bi” sounds and the icon will disappear on the LCD screen.
Note: Programming “Out Of Range Indication” will decrease the life expectancy of battery.
11. Illumination
Illumination for the LCD display can be programmed “On” or “Off”. When programmed “On”, the LCD will
illuminate every time the remote control receives a page or transmits a command.
Press the button twice, within 3 seconds press and hold the button for 2 seconds. The remote will
beep once for “On”, twice for “Off” and the light will turn on/off with each press.
Note: Programming “illumination “On” will decrease the life expectancy of battery.
12. Second Vehicle Security Operation:
Your remote transmitter can be utilized to control a second vehicle security system, To program the
remote control transmitter to a second vehicle, follow the instructions for Transmitter programming. All
programming parameters be the same except for the following:
For 1-way Remote Control Transceiver:
1. Press the button first within 3 seconds press and hold and buttons at the same time for 2
seconds
2. Once button is pressed, the LED on the transmitter will illuminate for 3 sec. to indicate second
vehicle transmitter operation.
3. While the LED is illuminated, press any button on the transmitter to control the 2nd car security
system or alarm function (arm/ disarm/ trunk/ remote start)
Note: Button functions are the same for the second car as they are for the first car.
For 2-way LCD Remote Control Transceiver:
2nd Car Operation: you can remote control and communicate with a second vehicle security system.
1. Press first, within 3 seconds press and hold and buttons at the same time for 2 seconds
with two beeping sound and the “ ” icon will display on the LCD screen to
indicate the second transceiver pin code has built-in.
2. While the “ ” icon display on the LCD screen, you can remote control and
communicate with a second vehicle security system. It has two short “bi” sounds while
pressing the button of the LCD screen transceiver.
Back to 1st Car Operation:
12
1. Press first, within 3 seconds press and hold and buttons at the same time
for 2 seconds with one long beeping sound and the “ ” timer icon will display on
the LCD screen to indicate the system is back to first transceiver pin code.
2. While the “ ” timer icon display on the LCD screen, you can remote control
and communicate with a first vehicle security system. It has one short “bi” sound
while pressing the button of the LCD screen transceiver.
D. TIMER SETTING:

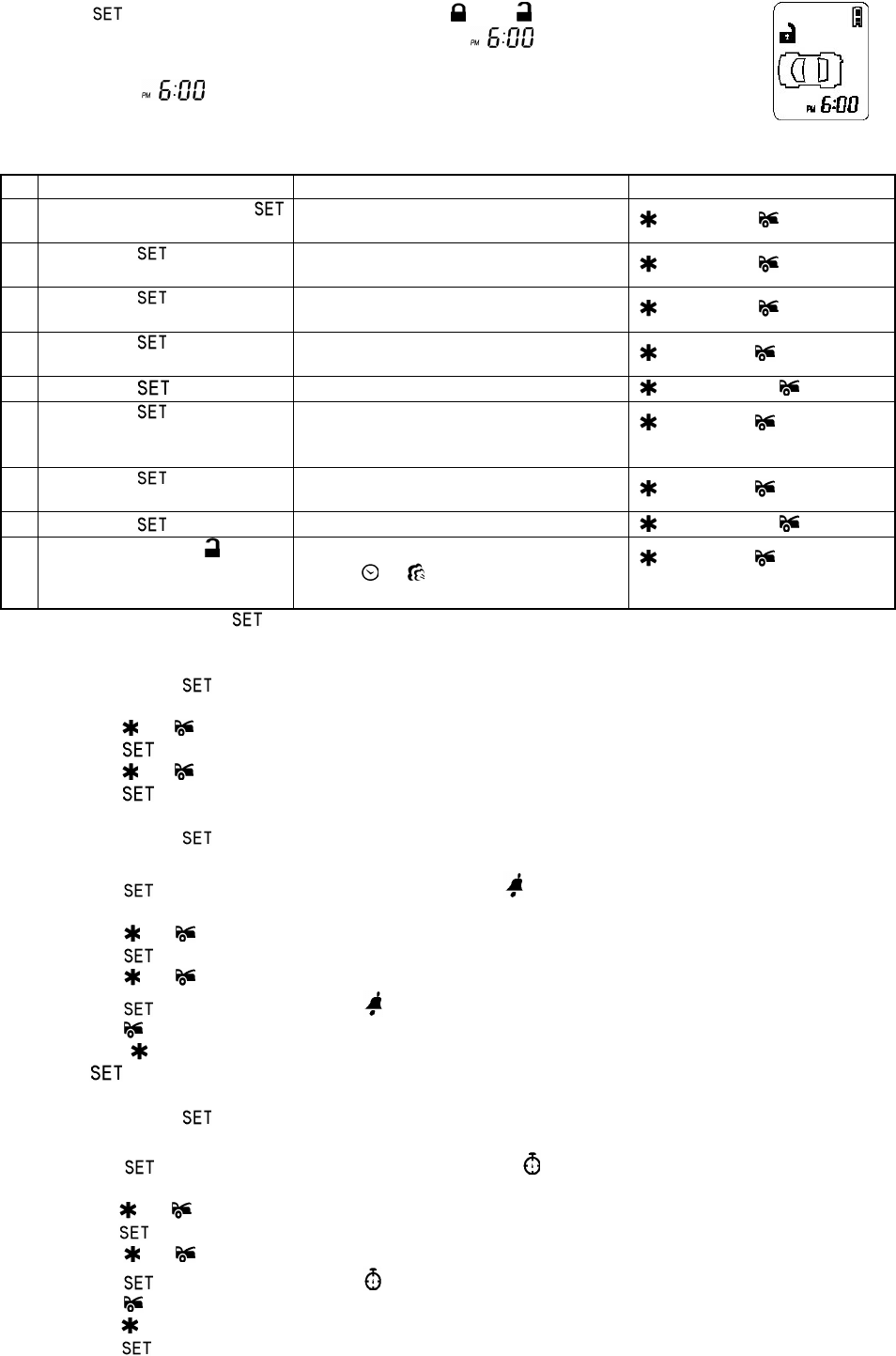

Transceiver Button Description Press Transceiver Button
1 Press & Hold the
button for 3 seconds Timer Setting (Hour)
*Flash digit for adjusting for – and for +
Press the button once Time setting (Minute)
*Flash digit for adjusting for – and for +
2 Press the button once. Alert Alarm Time Setting (Hour)
*Flash digit for adjusting for – and for +
Press the button once Alert Alarm Time Setting (Minute)
*Flash digit for adjusting for – and for +
Press the button once Alert Alarm Setting ON / OFF for OFF and for ON
3 Press the button once Count Down Timer Setting (Hour)
*Flash digit for adjusting
(Max.19 hours 59 minutes)
for – and for +
Press the button once Count down Timer Setting (Minute)
*Flash digit for adjusting for – and for +
Press the button once Count down Timer Setting ON / OFF for OFF and for ON
4 Press & hold the button
for 2 seconds.
Daily Timer Start Timer Setting
Flash / icon and “Hours” for
adjusting
for – and for +
EXIT: Press and hold the button for 2 seconds or leave it for 10seconds, the system will exit the
programming mode.
1. Timer Setting: Example to AM10:30
1. Press & hold the button for 3 seconds, with two-melody sound and the “Hours” digit flashes for
adjusting.
2. Press the or button to decrease or increase the “Hour” digit until AM10:xx
3. Press the button once again then the “Minute” digit flashes for adjusting.
4. Press the or button to decrease or increase the “Minutes” digit until AM 10:30
5. Press the button for 2 seconds with one-melody sound to confirm exit the timer program mode.
2. Alert Alarm Timer Setting: Example to PM 6:30
1. Press & hold the button for 3 seconds, with two-melody sound and the “Hours” digit flashes for
adjusting.
2. Press the button twice, the LCD screen will shows icon and “Hours” digit is flashes for
adjusting.
3. Press the or button to decrease or increase the “Hour” digit until PM 6:xx
4. Press the button once again then the “Minutes” digit flashes for adjusting.
5. Press the or button to decrease or increase the “Minutes” digit until PM 6:30
6. Press the button once again then icon flashes for alert alarm “ON / OFF” setting
7. Press the button to start the “Alert Alarm Timer”, and the “ON” icon will show on the LCD screen.
Press the button to stop the “Alert Alarm Timer”, and the “OFF” icon will show on the LCD screen.
8. Press button for 2 seconds with one-melody sound to confirm exit the timer program mode.
3. Count Down Timer Setting: Example Set count down timer at 2:30
1. Press & hold the button for 3 seconds, with two-melody sound and the “Hours” digit flashes for
adjusting.
2. Press the button 5 times, the LCD screen will shows icon and “Hours” digit is flashes for
adjusting.
3.Press the or button to decrease or increase the “Hour” digit until 2:xx
4.Press the button once again then the “Minutes” digit flashes for adjusting.
5. Press the or button to decrease or increase the “Minute” digit until 2:30
6. Press the button once again then icon flashes for alert alarm “ON / OFF” setting
7. Press the button to start the count down timer, and the “ON” icon will show on the LCD screen.
Press the button to stop the count down timer, and the “OFF” icon will show on the LCD screen.
8. Press the button for 2 seconds with one-melody sound to confirm exit the timer program mode.
13
Note: Maximum is 19 hours.
4. Time Set-Up For “Daily Timer Start”: Example to AM 6:30
1. Press & hold the button for 3 seconds, with two-melody sound and the “Hours” digit flashes for
adjusting.
2. Press & hold the button for 2 seconds, the LCD screen will flash / icon and “Hours”
digit for Hour set-up.
3. Press the or button to decrease or increase the hour digit until AM 6:00
4. Press the button once again then the minute digit flashes.
5. Press the or button to decrease or increase the minutes digit until AM 6:30
6. Press the button for 2 seconds with one-melody sound to confirm exit the timer program mode.
A. PROGRAMMING THE REMOTE TRANSMITTER:
Note: This mode will only retain the last 4 remote transmitters programmed. If the transmitter memory is
exceeded, the security system will start deleting transmitters from memory in chronological order.
1. Turn the Ignition 'switch ‘OFF/ON’ 3 TIMES and stay in ON position. Within 15 seconds.
2. Push the Valet switch 3 times and holding in on 3rd push until a long chirp is hearing then release the
valet switch. You are now in the Transmitter programming mode.
3. Press and hold any button of the transmitter until the siren responds with a confirming chirp, indicating
the signal has been stored into memory.
4. If you have additional transmitters (up to 4) that need to be programmed, repeat step 3 for each
transmitter.
Exit: Turn Ignition to 'OFF' position, or leave it for 15 seconds to exit the program mode and the siren will
chirp three long chirps.
B. FEATURES PROGRAMMING:
ALARM FEATURE “I” PRORAMMING:
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 2 times and holding in on 2nd push until one chirp with a long chirp is hearing then
release the valet switch. You are now in the Alarm feature ‘I’ programming mode.
3. Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
a. The siren chirps and LED pause will indicate previously setting.
b. The factory default settings is always [1] LED flash, [1] chirp.
4 Depress the transmitter button ‘A’ again to change the feature. Simple keep re-depressing the
transmitter button ‘A’ again until the module advances to your desired setting.
a. In this case, Press button ‘A’ again, the module would advance to [2] LED flash, [2] chirps.
b. Press button ‘A’ again, the module would advance to [3] LED flash, [3] chirps etc.
5. Depress the transmitter button ‘B’ corresponding to the feature ‘B’ you wants to program.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /
LED two pulses
Three Chirps /
LED three pulses
Four Chirps /
LED four pulses
1
All Siren/Horn
arming, disarming
and tamper
indicator chirps on
Siren/Horn arming
Chirps OFF
w/second TX button
push confirmation,
Disarm chirp OFF. All
tamper indicator
chirps ON
All Siren/Horn
arming, disarming
and tamper
indicator chirps off
Siren/Horn arming
and disarming
chirps off with all
tamper indicator
chirps on
2 Active arming Passive arming
without passive door
locking
Passive arming
with passive door
locking.
3 Automatic Rearm
off
Automatic Rearm on
4 Instantly Door Ajar
Warning
45 seconds delay
Door Ajar Warning.
5 + Without Car-jack
mode
Active Car-jack mode Passive Car-jack
mode
6 + Panic with Ignition
off
Panic with Ignition on
& off
Panic with Ignition
on & off. Panic
with No time limit.
Without Panic
function.
14
7 + Standard Horn
output Function
Horn output for alarm
trigger, panic and
car- finder only
8 + Standard horn
pulse
“SOS” type
S-S-S - L-L-L - S-S-S S-L-S-L S-S-S - L
Five Chirps /
LED five pulses
Six Chirps /
LED six pulses
S-M-L-S-M-L S-S - L - S-S
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds to exit the program mode and the siren will
chirp three long chirps.
ALARM FEATURE “II” PRORAMMING:
1 Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2 Push the Valet switch 4 times and holding in on the 4th push until two chirps with a long chirp is hearing
then release the valet switch. You are now in the Alarm feature ‘II’ programming mode.
3 Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
Press
Transmitter
Button
One Chirp / LED
one pulse
Factory Default
Setting
Two Chirps / LED
two pulses
Three Chirps / LED
three pulses
Four Chirps / LED
four pulses
0.8 second door
lock & unlock
3.5 second door
lock & Unlock
0.8 second Lock,
0.35 second Unlock
0.8 sec. dbl Lock,
0.8 sec. dbl Unlock
1
Five Chirps = 0.8 second Lock, double 0.8 second. Unlock
Six Chirps = Double 0.8 second Lock, 0.8 second Unlock
Seven Chirps = Door lock with “Comfort Feature”
2 Ignition controlled
door locks &
unlocks
Ignition controlled
door locks only
Ignition controlled
door unlocks only
Without ignition
controlled door
locks & unlocks
3 Pathway illumination
feature “off”
Parking light turns
“on” for 30- second
upon an unlock
signal
Parking light turns
“on” for 30- second
upon an unlock
signal & 10-second
upon a lock signal.
4 Horn Chirp
Output16 mS
Horn Chirp Output
30 mS
Horn Chirp
Output40 mS
Horn Chirp
Output10 mS
5 + The Vehicle without
Turbo Timer mode Press and
buttons at the same
time to control
Engine running
three minute.
Press and
buttons at the same
time to control
Engine running five
minutes
Press and
buttons at the same
time to control
Engine running ten
minutes
6 + Enable the out of
range check
Disable the out of
range check.
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds to exit the program mode and the siren will
chirp three long chirps.
Comfort Feature:
Some Vehicles have a special “COMFORT feature”. When you lock the door with the key, you just have to
keep on turning the key on the door about 5 or 7 seconds and the window will close directly.
If your vehicle with “COMFORT feature” and you wish the door being locked and the window being closed
automatically at the same time by remote control, you can set the alarm feature II-1 “with comfort feature
ALARM FEATURE “III” PRORAMMING:
1 Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2 Push the Valet switch 6 times and holding in on the 6th push until three chirps with a long chirp is
hearing then release the valet switch. You are now in the Alarm feature ‘III’ programming mode.
3 Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /
LED two pulses
Three Chirps /
LED three pulses
Four Chirps /
LED four pulses
15
1 H1/6 Pink Wire =
Ignition 2 on during
Crank
H1/6 Pink Wire =
Ignition 2 off during
Crank
H1/6 Pink Wire =
Ignition 2 same as
accessory
2 H11/5 Brown Wire =
Constant Siren
output
H11/5 Brown Wire =
5-second pulse
Siren output
H10/5 Brown Wire =
Horn Output
3 H3/9 White / Blue
Wire =
1 pulse activate
H3/9 White / Blue
Wire =
2 pulse activate
4 H4/4 White / Yellow
Wire Disarm Signal
Output = One Pulse
Output
H4/4 White / Yellow
Wire Disarm Signal
Output = Same as
Door Unlock Output
5 + H3/13 Yellow Wire =
Ignition 3 on during
Crank
H3/13 Yellow Wire =
Ignition 3 off during
Crank
H3/13 Yellow Wire =
same as accessory
6 + H3/17 Black / Green
Wire Channel 4
Output =
1 pulse output
H3/17 Black / Green
Wire Channel 4
Output =
Latched output until
IGN ON
H3/17 Black / Green
Wire Channel 4
Output =
As long as TX
button is held
H3/17 Black / Green
Wire Channel 4
Output =
Output for 15-sec.
FIVE Chirps= Output for 30 sec.
7 + H3/18 Black / Red
Wire Channel 5
Output =
1 pulse output
H3/18 Black / Red
Wire Channel 5
Output =
Latched output until
IGN ON
H3/18 Black / Red
Wire Channel 5
Output =
As long as TX
button is held
H3/18 Black / Red
Wire Channel 5
Output =
Output for 15-sec
FIVE Chirps= Output for 30 sec.
H3/19 Black / Violet
Wire Channel 6
Output =
1 pulse output
H3/19 Black / Violet
Wire Channel 6
Output =
Latched output until
IGN ON
H3/19 Black / Violet
Wire Channel 6
Output =
As long as TX
button is held
H3/19 Black / Violet
Wire Channel 6
Output =
Output for 15-sec
8 +
FIVE Chirps= Output for 30 sec.
*9 + H3/20 Black /
Yellow Wire
Channel 7
Output =
1 pulse output
H3/20 Black /
Yellow Wire
Channel 7
Output =
Latched output until
IGN ON
H3/20 Black /
Yellow Wire
Channel 7
Output =
As long as TX
button is held
H3/20 Black / Yellow
Wire Channel 7
Output =
Output for 15-sec
FIVE Chirps= Output for 30 sec.
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds to exit the program mode and the siren will
chirp three long chirps.
REMOTE START FEATURE PROGRAM MODE.
START FEATURE “I” PRORAMMING:
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 8 times and holding in on the 8th push until four chirps with a long chirp is hearing
then release the valet switch. You are now in the Start feature ‘I’ programming mode.
3. Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /
LED two pulse
Three Chirps /
LED three pulse
Four Chirps /
LED four pulse
1
+
Gasoline Engine
16
Diesel Engine with
Wait-To-Start Light
(H3/9 White/Green
wire must be
connected)
10 seconds warn-up
timer for Diesel
Engine
15 seconds warn-up
timer for Diesel
Engine
20 seconds warn-up
timer for Diesel
Engine
Five Chirps/
30 seconds warn-up
timer for Diesel
Engine
Six Chirps/
45 seconds warn-up
timer for Diesel
Engine
2 10 minutes run time 20 minutes run time 30 minutes run time 5 minutes run time
3 Factory alarm
disarm with channel
3 on
Without this feature
4 Flashing parking
light output
Constant parking
light output
5 Door lock before
start
Door lock after
shut-down
Door lock before
start and Door lock
after shut-down
Without this feature
6 + 3 Hour Time start 2 Hour Time Start 1 Hour Time Start
7 + Temperature-Contro
l Start OFF
Temperature-Contro
l Start 5F (-15C)
Temperature-Contro
l Start – 4F (-20C)
Temperature-Contro
l Start – 22F(-30C)
8 + Fahrenheit display
for temperature
Celsius display for
temperature
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds to exit the program mode and the siren will
chirp three long chirps.
START FEATURE “II” PRORAMMING:
1. Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and holding in on the 10th push until five chirps with a long chirp is
hearing then release the valet switch. You are now in the Start feature ‘II’ programming mode.
3. Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /
LED two pulse
Three Chirps /
LED three pulse
Four Chirps /
LED four pulse
1 Exit the programming mode.
2 + Engine Checking
Voltage
Engine Checking
TACH..
Engine Checking
OFF
RPM learning
3
Start Timer:
0.6-second
0.8-second (2 chirps), 1.0-second (3 chirps), 1.2-second (4 chirps),
1.4-second (5 chirps), 1.6-second (6 chirps), 1.8-second (7 chirps),
2.0-second (8 chirps), 3.0-second (9 chirps), 4.0-second (10
chirps),
4 Hi check level Low check level
5 - Start or Stop the system for TESTING & ADJUSTMENT
6 + Test Mode for
Trigger input
Test Mode for
Sensor 1 / Shock
Sensor (Zone 4).
Test Mode for
Optional Sensor 2
(Zone 6)
Exit: Press the button to exit the program mode and the siren will chirp three long chirps.
ENGINE CHECKING TACH. / RPM LEARNING
Important Note: You must program the “Tach Signal” before trying to remote start.
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and holding in on the 10th push until five chirps with a long chirp is
hearing then release the valet switch.
3. Press and buttons at the same time once to set the “Engine Checking TACH.” One chirp
confirms this setting.
4. Press the button once, one chirp to indicate the system in features “RPM Learning mode”.
5. Start the vehicle with the key.
17
-- While the engine is running, the parking light & LED will flash, If don’t, please check tach. wire
connection. (H3/7 White/Red) --
6. Press and hold the valet switch for 2 seconds until a long chirp. The RPM signal is learned.
7. Turns off the ignition switch to stop engine running.
Once you complete step 7, you can adjust and test “Check Level” as below:
CHECK LEVEL PROGRAMMING: (TEST and ADJUST)
1. Press the button twice to start the vehicle.
2. If everything goes well:
a. Press the button twice to stop engine running. You have been completed this programming
successfully.
b. Press button once to exit the program mode and the siren will chirp three long chirps.
3. If the crank time is too short, -- The engine did not successfully run before the starter quit cranking --:
a. Press the button twice on the transmitter to stop engine running.
b. Press button to set proper “Check Level ” to Hi position. Two chirps confirm this setting.
c. Repeat the step1 – 4.
4. If the crank time is too long, -- Engine is successfully running, while the starter is still cranking --:
a. Press the button twice on the transmitter to stop engine running.
b. Press button to set proper “ Check Level ” to Low position. One chirp confirm this setting
c. Repeat the step1 – 4.
ENGINE CHECKING VOLTAGE
Important Note: The voltage “Check Level” for most vehicles would be set in “Hi Check Level”, while in
“Engine Check Voltage” mode, the “Check Level” must be set at “HI” position first.
1. Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and holding in on the 10th push until five chirps with a long chirp is
hearing then release the valet switch.
3. Press and buttons at the same time twice to set the “Engine Checking Voltage”. Two chirps
confirm this setting.
4. Press button twice to set “Check Level” to “HI” position. Two chirps confirm this setting.
Once you complete step 4, you can adjust and test “Start Timer” as below:
START TIMER PROGRAMMING: (TEST and ADJUST)
1. Press the button twice on the transmitter to start the vehicle.
2. If everything go well, Wait for 20 seconds:
a. If the engine still running.
I. Press the button twice to stop engine running. You have been completed this programming
successfully.
II. Press button once to exit the program mode and the siren will chirp three long chirps.
b. If the engine shut down after the vehicle has been started.
I. Press the button twice to stop engine running.
II. Press button once to set “Check Level” to “LOW” position. One chirp confirm this setting
III. Repeat the step1 – 2.
3. If the crank time is too long. -- Engine is successfully running, while the starter is still cranking --:
a. Press the button twice to stop engine running.
b. Press button to set proper “Start Timer”. The chirp will confirm these enter.
-- Decrease “Start Timer” is necessary. --
c. Repeat the step1 – 4.
4. If the crank time is too short. -- The engine did not successfully run before the starter quit cranking --:
a. Press the button twice to stop engine running.
b. Press button to set proper “Start Timer”. The chirp will confirm these enter.
-- Increase “Start Timer ” is necessary.--
c. Repeat the step1 – 4.
ENGINE CHECKING OFF
1. Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and holding in on the 10th push until five chirps with a long chirp is
hearing then release the valet switch.
3. Press and buttons together three times to set the “Engine Checking Off”. Three chirps confirm
this setting.
Once you complete step 3, you can adjust and test “Start Timer” as below:
START TIMER PROGRAMMING: (TEST and ADJUST)
1. Press the button twice on the transmitter to start the vehicle.
2. If everything goes well:
18
a. Press the button twice to stop engine running. You have been completed this programming
successfully.
b. Press button once to exit the program mode and the siren will chirp three long chirps.
3. If the crank time is too long. -- (Engine is successfully running, while the starter is still cranking --:
a. Press the button twice to stop engine running.
b. Press the button to set proper “Start Timer”. The chirp will confirm these enter.
-- Decrease “Start Timer” is necessary --
c. Repeat the step1 – 4.
4. If the crank time is too short. -- The engine did not successfully run before the starter quit cranking --:
a. Press the button twice to stop engine running.
b. Press button to set proper “Start Timer”. The chirp will confirm these enter.
-- Increase “Start Timer ” is necessary --
Repeat the step1 – 4.
RETURN TO FACTORY DEFAULT SETTING:
1. Turn the ignition ON then OFF 3 TIMES and stay in OFF position.
2. Push the Valet switch 12 times and holding in on the 12th push until six chirp with a long chirp is hearing
then release the valet switch. You are now in the “Return To Factory Default Setting” programming
mode.
ALARM FEATURE ALL RETURNS TO FACTORY DEFAULT SETTING:
3. Press and hold the and buttons at the same time for 5 seconds, there will be a confirmation six
chirp with 3 long chirp to confirm the system “Alarm Feature I & II & III Programming all returns to
factory default setting.
START FEATURE ALL RETURNS TO FACTORY DEFAULT SETTING:
4. Press the first, within 3 seconds press and hold the and buttons at the same time for 5
seconds, there will be a confirmation six chirp with 3 long chirp to confirm the system “Start Feature I &
II Programming all returns to factory default setting.
TEST MODE
In this test mode, this system can test the all of the trigger input. The installer can save time to test the
sensitivity of the 2-stage shock sensor and optional sensor without using the traditional arming/disarming
procedures to test the sensors.
Enter:
1. Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and holding in on the 10th push until five chirps with a long chirp is
hearing then release the valet switch. You are now in the Start feature ‘II’ programming mode.
a. Test the Trigger Input:
Press and release and buttons at the same time once. One chirp to indicate you are in test
mode.
Trigger sensor Siren short chirps
Zone 1 / Hood trigger (H3/4 White/ Black wire) 1
Zone 2 / Trunk trigger (H3/1 Blue wire) 2
Zone 3 / Door trigger (H3/2 Green or H3/3 Violet wire) 3
b. Test the Sensor 1 / Shock Sensor (Connected to H7 4 Pin Plug):
Press and release and buttons at the same twice. Two chirps to indicate you are in the shock
sensor (connected to H7 4 pin plug) test mode.
1. Activate the warn-away (first stage of the shock sensor); system will emit a short chirp.
2. Activate the full alarm (second stage of the shock sensor); system will emit a long chirp.
3. Continue to test the shock sensor until reach the proper sensitivity.
c. Test the Optional Sensor 2 (Connected to H6 4 Pin Plug):
Press and release the transmitter and buttons together three times. Three chirps to indicate you
are in the optional sensor (connected to H6 4 pin plug) test mode.
1. Activate the warn-away (first stage of the optional sensor); system will emit a short chirp.
2. Activate the full alarm (second stage of the optional sensor); system will emit a long chirp.
3. Continue to test the optional sensor until reach the proper sensitivity.
Exit: While in test mode, turns the ignition on or press any button to exit the test mode.
19
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution :To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment. (Example - use only shielded interface cables
when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired
operation.
To satisfy FCC RF exposure compliance requirements, this device should be used in
hand-held, hand-operated configurations only. The device and its antenna must
maintain a separation distance of 20cm or more from a person’s body, except for the
hand and wrists, to satisfy RF exposure compliance.
This device is designed to be used in a person’s hands and its operating configurations
do not support normal transmissions while it is carried in pockets or holsters next tot a
person’s body.
