Security and Remote Start Installation Guide

for models:

CA 6150

CA 6550

Before You Begin ...................................................................................... 4

Wire Connection Guide ........................................................................... 5

5 Pin Main Harness ................................................................................... 7

6 Pin Start Harness ................................................................................... 8

6 Pin Output Harness ............................................................................. 10

8 Pin Input Harness................................................................................. 11

2 Pin Door Lock Output Harness ........................................................... 14

Additional Ports ...................................................................................... 18

Antenna / LED / Programming Port ....................................................... 18

DBI Port .................................................................................................... 18

Set Up & Programming .......................................................................... 19

Transmitter Programming ........................................................................ 19

Manual Feature Programming................................................................. 19

Programming Feature Banks .................................................................. 20

Tach Programming .................................................................................. 21

Adjusting the Shock Sensor .................................................................. 22

Testing the Shock Sensor ...................................................................... 22

Dome Light Delay / Theater Dimming ..................................................... 22

Chirp Delete - User Accessible .............................................................. 22

Table of Contents

Feature Descriptions ............................................................................. 23

Transmitter Button Functions ............................................................. 27

Security Trigger Zones ......................................................................... 28

Remote Start Shutdown Diagnostics ................................................ 28

System Layout......................................................................................... 29

PROFESSIONAL INSTALLATION

STRONGLY RECOMMENDED

Installation Precautions:

Roll down window to avoid locking keys in vehicle

during installation

Avoid mounting components or routing wires near

hot surfaces

Avoid mounting components or routing wires near

moving parts

Tape or loom wires under hood for protection and

appearance

Technical Support (800) 421-3209

or go to

http://techservices.codesystems.com

Use a Digital Multi Meter for testing and verifying

circuits. DO NOT USE A TEST LIGHT, OR

"COMPUTER SAFE PROBE" as these can set off air

bags or damage vehicle computers.

Use grommets when routing wires through metal

surfaces

BEFORE YOU BEGIN

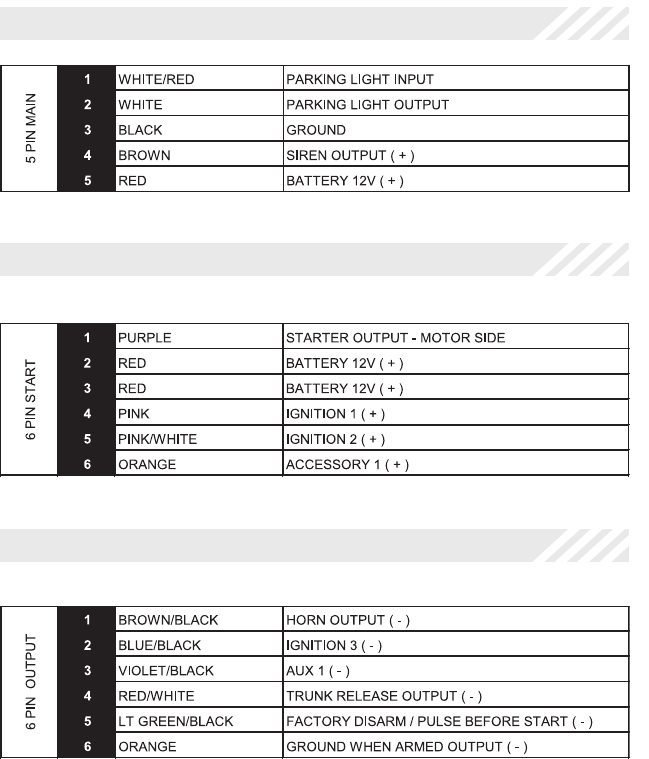

6 Pin Start Harness

5 Pin Main Harness

6 Pin Output Harness

8 Pin Input Harness

2 Pin Lock Output Harness

3 BLACK GROUND

Connect the BLACK wire to a solid chassis ground point using a ring terminal and

self tapping screw (not supplied). Scrape away paint from the grounding point to

ensure a good connection. The recommended grounding point is a metal surface

in the driver’s side kick panel area.

NOTE: Do not ground the BLACK wire with any other vehicle components.

5 Pin Main Harness

1 WHITE/RED PARKING LIGHT INPUT

2 WHITE PARKING LIGHT OUTPUT

Locate the parking light output wire at the vehicle’s light switch.

Verification: This wire registers positive voltage when the parking lights are

turned on.

Positive switching Parking Lights:

Connect the WHITE/RED wire to a 15 Amp max fused battery source.

Connect the WHITE wire to the parking light output wire.

Negative switching Parking Lights:

Connect the WHITE/RED wire to a good chassis ground.

Connect the WHITE wire to the parking light output wire.

4 BROWN SIREN OUTPUT ( + )

Locate a suitable mounting location in the engine compartment for the siren, away

from moving parts.

With the bell of the siren aiming downwards, secure the siren in place using self

tapping screws, being careful not do drill into any hoses, wiring or components.

Connect the BLACK siren wire to a chassis ground using a ring terminal and self

tapping screw (not supplied).

Route the BROWN siren output wire from the control module through the firewall

and connect to the RED wire on the siren.

NOTE: Be sure to loom the siren wires, and seal the grommet.

5 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

6 Pin Start Harness

1 PURPLE STARTER OUTPUT ( + )

Locate the vehicle starter wire.

Verification: This wire registers voltage only when the key is turned to the

START position. Cut the vehicle's starter wire in half when installing the

starter kill relay.

Verification after starter wire is cut:

KEY SIDE of starter wire registers voltage when the key is turned to the

START position.

MOTOR SIDE of starter wire registers no voltage.

Connect the PURPLE wire to the vehicle starter wire, use the MOTOR SIDE of the vehicle

starter wire when installing the starter kill relay.

2 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

6 ORANGE ACCESSORY 1 ( + )

Locate the vehicle’s accessory wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to ACC

(Accessory) and the ON (or RUN) position. The voltage drops out when the

key is turned to the START (or CRANK) position.

Connect the ORANGE wire to the vehicle’s accessory wire.

5 PINK/WHITE IGNITION 2 ( + )

Locate the vehicle’s 2nd ignition wire at the ignition switch (if equipped).

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position, but not the ACC (Accessory) position. The voltage does not

drop out when the key is turned to the START (or CRANK) position.

Connect the PINK/WHITE wire to the vehicle’s ignition 2 wire.

Programmable output: IGN, ACC, Start.

4 PINK IGNITION 1 ( + )

Locate the vehicle’s ignition wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position. The voltage does not drop out when the key is turned to the

START (or CRANK) position.

Connect the PINK wire to the vehicle’s Ignition wire.

This wire is also used for Ignition 1 Output.

3 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

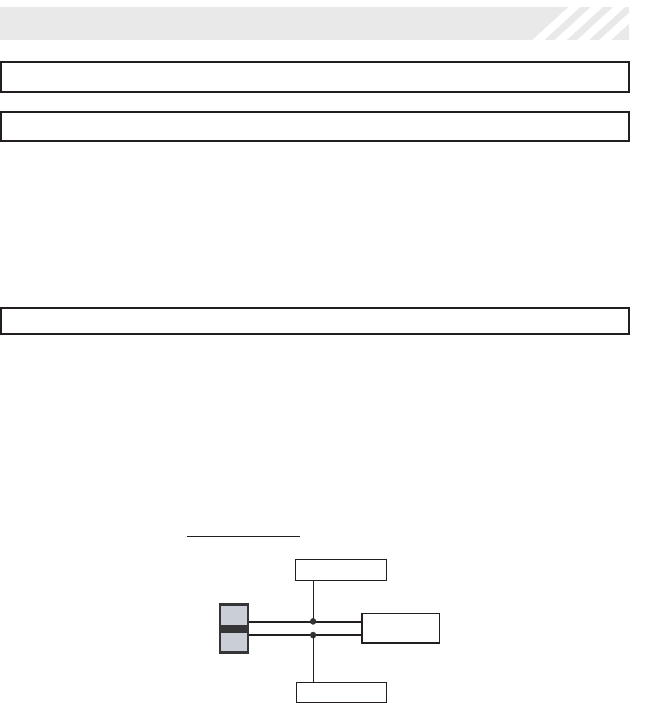

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK ActiveOutput

Wire

VATS Control Module

Matching Value

Resistor

Ignition Switch

VATS Wire #1, WHITE or WHITE/BLACK

VATS Wire #2, WHITE or VIOLET/WHITE

X CUT

GM VATS

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or

3rd Ignition Wire

Jump To PINK

Ignition Output

Wire From

Control Module

Ignition 3 Accessory 2/3

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or 3rd

Accessory Wire

Jump To ORANGE

Accessory Output

Wire From

Control Module

2 BLUE/BLACK IGNITION 3 / ACTIVE OUTPUT ( - )

The Active Output/Ignition 3 output wire provides a ground output when the remote

start function is activated and remains until 4 seconds after the remote start is

shutdown. The Ignition 3 output wire can be used for several functions listed

below. If this wire will be used for multiple application's a 1 amp diode is required

in-line with the stripe facing the control module.

Factory transponder (coded key) bypass.

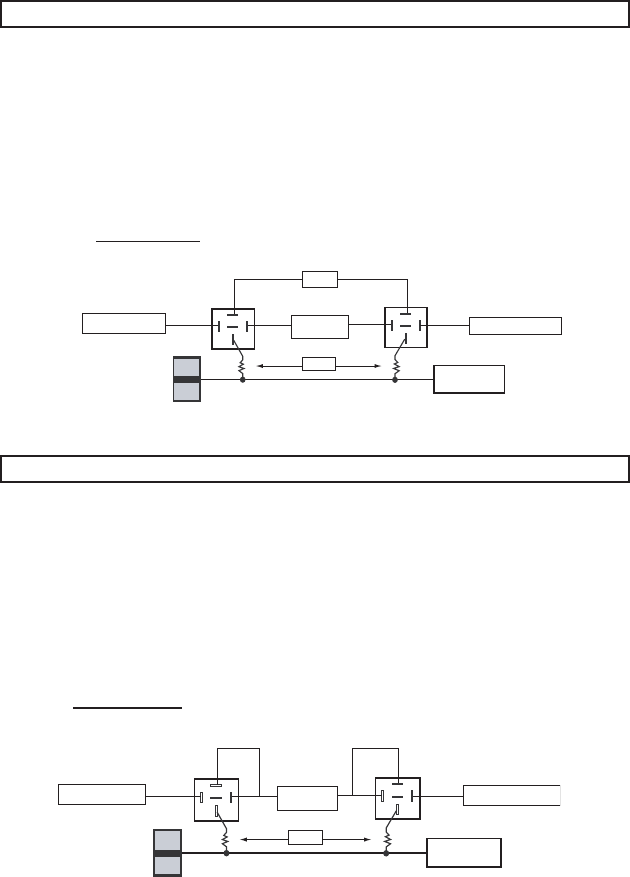

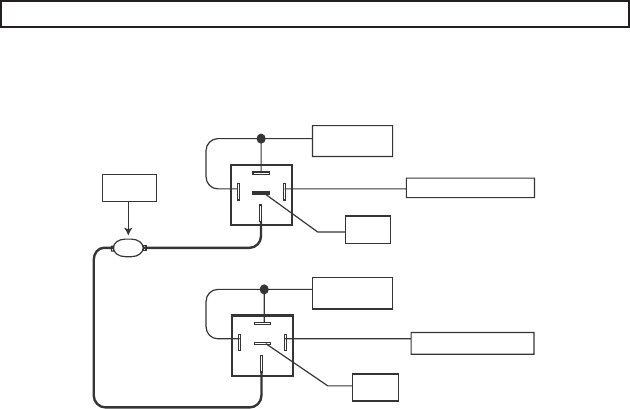

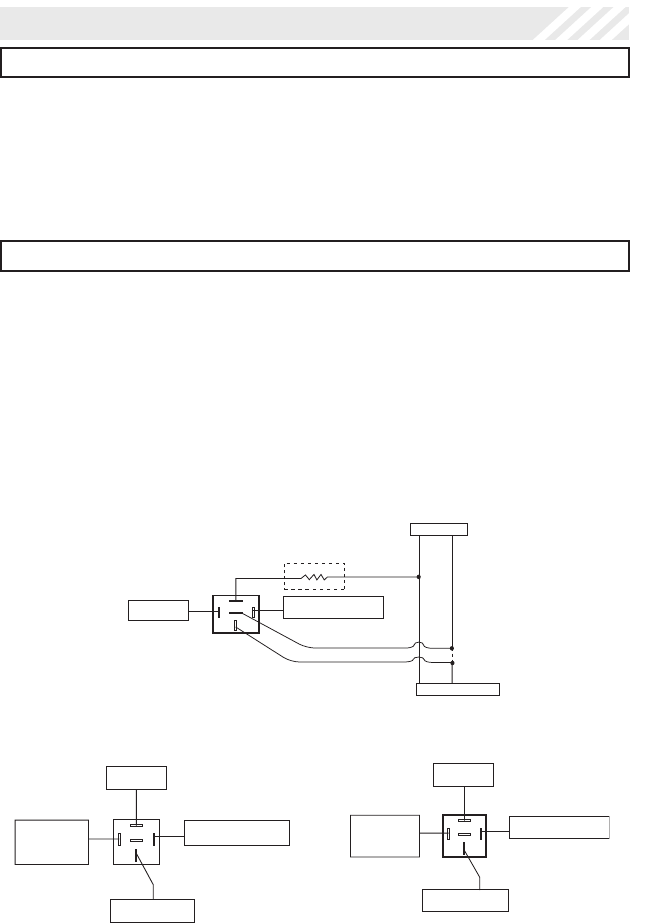

General Motors VATS bypass, see the following diagram. Use an SPDT relay (not

supplied).

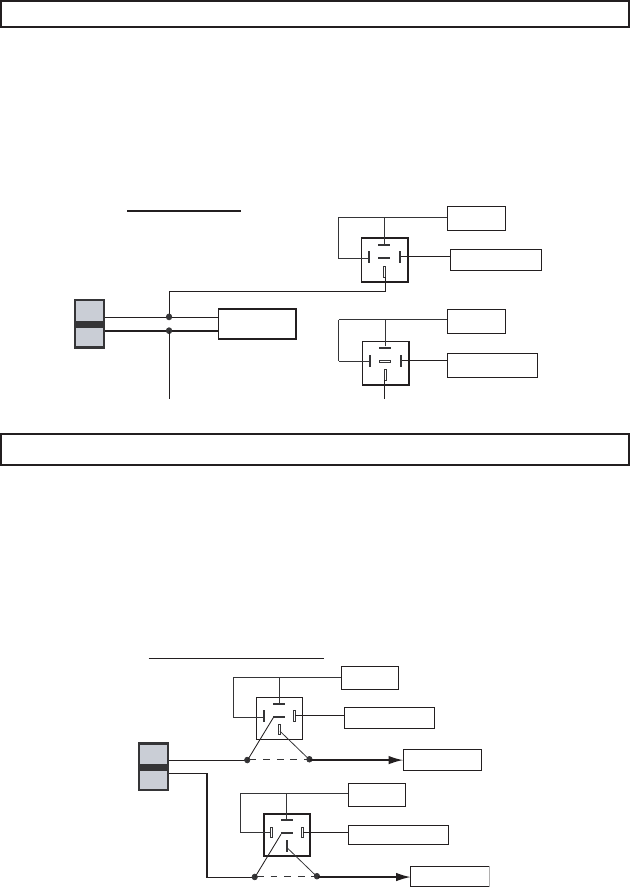

Ignition 3 output, see the following diagram. Use an SPDT relay (not supplied).

Accessory 2/3 output, see the following diagram. Use an SPDT relay (not

supplied).

6 Pin Output Harness

1 BROWN/BLACK HORN OUTPUT ( - )

Locate the vehicle’s horn wire.

Verification: This wire will register at positive voltage and register

ground when the horn switch is pressed.

Connect the BROWN/BLACK wire to the vehicle’s horn wire. This is a low current

output, 500mA.

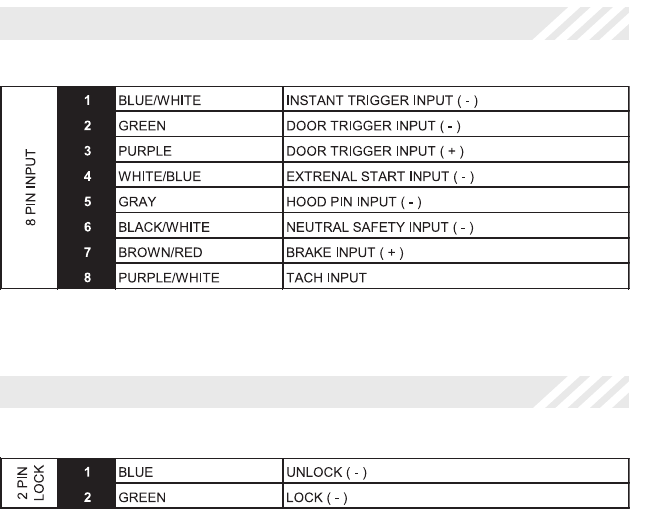

8 Pin Input Harness

5 LT GREEN/BLACK FACTORY DISARM /

PULSE BEFORE START ( - )

This wire will supply a ( - ) 500mA pulse both upon disarming the system and when

the remote start feature is activated. Locate the factory perimeter alarm disarm

wire from the key cylinder inside the drivers door.

Verification: This wire registers ground if the key is turned to the unlock

position in the driver’s door cylinder.

Connect the LIGHT GREEN/BLACK wire to the factory alarm disarm wire.

3 VIOLET/BLACK AUX 1

This wire provides a ( - ) 500mA output capable of driving relays. For Control of

optional accessories (i.e. Power Window/Sunroof, etc.).

To activate refer to the transmitter button configuration chart. Please refer to the

selectable options for timing.

4 RED/WHITE TRUNK RELEASE OUTPUT ( - )

Locate the vehicle’s trunk release wire at the trunk release switch.

Verification: This wire will register either positive voltage or ground when the trunk

release is activated.

This is a low current output, 500mA.

6 ORANGE GROUND WHEN ARMED OUTPUT ( - )

This wire will have a continuous ( - ) 500mA output when the system is Armed. This

wire is typically used for controlling window modules or additional sensors.

1 BLUE/WHITE INSTANT TRIGGER INPUT ( - )

This wire is a GROUND input for an external sensor or secondary pin switch.

Verification: This wire when connected will trigger the security system.

3 PURPLE DOOR TRIGGER INPUT ( + )

Locate the vehicle’s dome light or door pin switch wire.

Verification: This wire will register positive voltage (POS) when the door is

opened and the interior light is on. This wire will

off.

Connect the PURPLE wire to the vehicle’s positive door input wire(s).

NOTE: Certain vehicles may require multiple connections. Refer to vehicle

application guide

2 GREEN DOOR TRIGGER INPUT ( - )

Locate the vehicle’s dome light or door pin switch wire.

Verification: This wire will register ground (NEG) when the door is opened

and the interior light is on. This wire will register positive voltage when the

door is closed and the interior light is off.

Connect the GREEN wire to the vehicle’s negative door input wire(s).

NOTE: Certain vehicles may require multiple connections. Refer to vehicle

application guide

4 WHITE/BLUE EXTERNAL START INPUT ( - )

This wire will activate the Remote Start function when a GROUND pulse is applied to it

from an external device.

5 GRAY HOOD PIN INPUT ( - )

Install a Hood Pin Switch and connect to the GRAY wire. This connection is

required for Remote Start.

Verification: This wire when connected will register ground when the

vehicle's hood is opened.

Connect the GRAY wire to the hood pin.

NOTE: Be sure to loom the wire, and seal the grommet.

7 BROWN/RED BRAKE INPUT ( + )

Locate the vehicle’s brake light wire at the brake pedal mounted switch.

Verification: This wire registers positive voltage when the brake pedal is

pressed.

Connect the BROWN/RED wire to the vehicle’s brake light wire.

6 BLACK/WHITE NEUTRAL SAFETY INPUT ( - )

Locate the vehicle’s neutral safety circuit.

Verification: This wire registers ( - ) voltage when the vehicle’s gear selector

is in park or neutral.

Connect the BLACK/WHITE neutral safety input wire to the neutral safety wire of

the vehicle or an optional toggle switch. The remote start feature will not operate

unless this input is supplied with a ground source.

8 PURPLE/WHITE TACH INPUT

Locate the vehicle’s ignition coil or fuel injector in the engine compartment.

Verification: Test using the following procedure:

1. Set voltmeter to AC VOLTS.

2. Attach positive lead of a volt meter to a constant 12 volt source.

3. Attach negative lead of a volt meter to the wire to be tested.

4. Start the engine.

5. Have someone press on the gas pedal slightly as you monitor the meter. If

connected to the correct wire, the voltage reading will increase as the engine’s

RPM increases.

Connect the PURPLE/WHITE wire to the negative side of the vehicle ignition coil

or fuel injector.

2 Pin Lock Output Harness

1 BLUE UNLOCK ( - )

2 GREEN LOCK ( - )

The door lock / unlock outputs are designed to control several different types of

systems which may require additional parts. Please review the wire and location

chart to see which type of door lock system is in your vehicle. The most common

types are shown in the following diagrams.

Negative Switching Locks

All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock /

unlock switch.

Verification: These wires will register ground when the Lock and Unlock

switches are activated.

Connect the GREEN and BLUE wires shown in the diagram below.

Lock

Unlock

Vehicle Door Lock

Control Relays

GREEN (-) Lock Output

BLUE (-) Unlock Output

Negative Locks:

Positive Switching Locks

All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock /

unlock switch.

Verification: These wires will register positive voltage when the Lock and

Unlock switches are activated.

Connect the GREEN and BLUE wires shown in the diagram below.

Lock

Unlock

87a

86 85

87a

86 85

Vehicle Door Lock

Control Relays

Fused +12 Volt

Battery Souce

Fused +12 Volt

Battery Souce

GREEN (-) Lock Output

BLUE (-) Unlock Output

Positive Locks:

Reverse Polarity Locks (5-Wire Door locks)

All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock /

unlock switch.

Verification: These wires will rest at ground and register positive

voltage when the Lock and Unlock switches are activated.

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram

below using (2) SPDT relays (not supplied).

Lock

Unlock

87a

86 85

87a

86 85

Fused +12 Volt

Battery Souce

Fused +12 Volt

Battery Souce

GREEN (-) Lock Output

BLUE (-) Unlock Output

Reverse Polarity Locks:

Cut

To Door Lock Motor

Negative Multiplexed Locks

All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock /

unlock switch.

Verification: This wire will show variable ground when the switch is activated.

Please consult the wire and location chart for specific resistor values for

your vehicle.

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram

below using (2) SPDT relays (not supplied).

Lock

Unlock

Vehicle Door Lock

Control Relays

GREEN (-) Lock Output BLUE (-) Unlock Output

Multiplex Locks:

87a

85 85

Fused +12 Volt

Battery Source

Ground

Resistor

Positive Multiplexed Locks

All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock /

unlock switch.

Verification: This wire will show variable positive voltage when the switch is

activated. Please consult the wire and location chart for specific resistor

values for your vehicle.

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram

below using (2) SPDT relays (not supplied).

Lock

Unlock

Vehicle Door Lock

Control Relays

GREEN (-) Lock Output BLUE (-) Unlock Output

Multiplex Locks:

87a

85 85

Fused +12 Volt

Battery Source

Resistor

Adding Aftermarket Actuators

After installing aftermarket actuators, (not supplied). Connect the GREEN and

BLUE wires shown in the diagram below using (2) SPDT relays (not supplied).

87a

86 85

Fused +12 Volt

Battery Source

Door Lock

Actuator

87a

86 85

Chassis

Ground

Chassis

Ground

GREEN (-) Lock Output

BLUE (-) Unlock Outpu

Fused +12 Volt

Battery Source

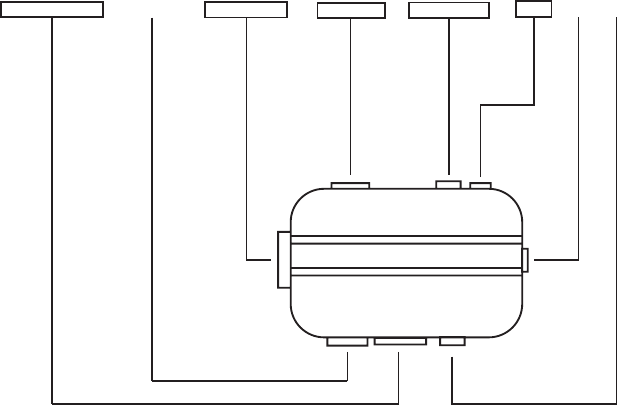

Data Bus Interface Port

This 4 pin port is used for Flashlogic Door Lock and Transponder Databus

Interfaces to communicate with the vehicle's Databus. When using the DBI port to

control the Flashlogic Door Lock and Transponder Interface modules the

following options may be available. Please refer to the D2D (Data to Data)

function list available per vehicle on the tech service web site.

Tach Input Brake Safety Shut Down

Door Trigger Trunk/Hatch Open

Door Lock Control Passlock / Passkey Interface (GM Only)

Dome Light Supervision Transponder Interface Activation

Factory Alarm Arm / Disarm Diesel Glow Plug Input

Manual Arm / Disarm Inputs (factory keyless controls system)

Antenna / LED / Programming Port

Mount the supplied antenna/receiver to a clear spot on the vehicle's windshield

that will not block the driver's vision. A good location is usually high on the

windshield near the rear view mirror. Be careful not to mount the antenna/receiver

on any metallic window film, as this will effect system range. Route the antenna/

receiver cable to the control module and plug into the antenna port.

Additional Ports

Manual Feature Programming - Feature Bank 2 - 4 chirps

1. Turn the ignition ON.

2. Press and hold the valet/override button.

3. Within 10 seconds the system will chirp (3) three times.

4. Use the valet/override button to advance through each option bank. For

feature programming advance to Feature Bank 2, 3 or 4, which is (4) four, (5)

five, and (6) six chirps.

5. Use the transmitter button to scroll through the selections in each feature

bank, the system will chirp to match the feature number.

6. Press the transmitter button to change the desired feature. The LED will

flash indicating the changed feature.

Set Up & Programming

Transmitter Programming - Feature Bank 1 - 3 chirps

1. Turn the ignition ON.

2. Press and hold the valet/override button.

3. Within 10 seconds the system will chirp (3) three times.

4. Press 1 button of each transmitter you wish to program.

5. The system will respond with 1 chirp for each accepted transmitter.

6. Pressing the override button at anytime during programming will advance to the

next bank.

NOTE: The system will exit transmitter programming after 15 seconds of inactivity.

NOTE: This system has 1 button programming which programs all channels of the

system.

NOTE: The system will hold up to 4 transmitters in memory, programming a 5th

transmitter will erase the oldest transmitter in memory.

Transmitter programming for 2 Car Mode *2 way system only:

1. Enter the transmitter into 2 Car Mode. (Refer to transmitter operation in the

owners manual for 2 car operation)

2. Follow the steps above for transmitter programming.

NOTE: 2 car mode requires an additional security system installed in a second

vehicle.

Feature Bank 1 - 3 Chirps

Transmitter Programming

Refer to transmitter programming.

Defaulting All Features: Pressing the button anytime while in any of the

feature banks will default all features and return you to feature bank 2 - 4 chirps.

NOTE: The system will remain in feature programming mode as long as the

ignition is on, there is no time limit. To exit programming turn the IGNITION OFF.

Tach Programming

The unit will not operate unless tach is programmed or tachless option is

turned ON. If an attempt is made to start the vehicle via the remote start without

first programming tach, the unit will flash the parking lights 7 times indicating tach

has not been learned and stored. If the tach rate is not properly programmed to

the specific vehicle, the unit may not realize that the vehicle is running in certain

instances and reengage the starter motor.

The Remote Start unit will learn the tach rate of most vehicle's single coil, multiple coil

packs, or single injector. To learn tach:

1. Turn the ignition key to the ON position.

2. Press and release the valet/override button 3 times.

3. Immediately turn the ignition key OFF.

4. Press and hold the valet/override button, then start the vehicle using the

key.

5. When the unit senses the tach signal, the parking lights will begin to flash.

6. Allow the vehicle to settle to a normal idle speed.

7. Release the valet/program push-button switch. The parking lights will

turn on for 2 seconds indicating that the learned tach signal is stored and

the unit has exited tach learn mode.

Dome Light Delay / Theater Dimming

The system can be programed to delay arming after the lock button is pressed (60

second max) for vehicles with a dome light delay or theater dimming feature. Once

programed the system will ‘learn’ the timing of the dome light delay and add 2

seconds before arming.

1. Close all doors with ignition off.

2. Using the transmitter press LOCK, UNLOCK, LOCK ,UNLOCK, LOCK ,

UNLOCK, LOCK. The LED will light solid to indicate the system has entered

DOME DELAY LEARN MODE.

3. Immediately OPEN then CLOSE the door WITHOUT disarming the

system. The system will then monitor the door trigger wire. Once the dome

light turns off, the system will then add 2 seconds and then exit the learning

mode.

4. The LED will begin to flash indicating the system has exited the learning

mode and is now armed.

Chirp Delete - User Accessible

System ARM/DISARM chirps can be toggled ON or OFF without entering the

programming feature banks.

1. Turn the ignition ON then OFF.

2. Press and release the valet/programming button 3 times. The system will

respond with 1 chirp for ON or 2 chirps for OFF.

NOTE: If the unit fails to learn tach rate due to an improper tach connection or a

poor tach source, the parking lights will not flash. To correct this situation, locate

and connect the PURPLE/WHITE wire to the proper tach signal, and then repeat

the tach learn routine.

Adjusting the Shock Sensor

1. Increase sensitivity by turning the adjustment dial clockwise.

2. Decrease sensitivity by turning the adjustment dial counter clockwise.

Testing the Shock Sensor

Arm the system and wait 6 seconds for the zone to stabilize, then firmly strike

the vehicles bumper.

2 - Passive Locks: Determines manual or automatic locking of the vehicle’s

doors.

Active - Requires use of the transmitter to lock the vehicle’s doors.

Passive - Automatically locks the vehicle’s doors 1 minute after the last door

is closed

3 - Passive Arming: Determines manual or automatic locking of the vehicle’s

doors.

Active - Requires use of the transmitter to arm the security system.

Passive - Automatically arms the security system 1 minute after the last door

is closed

4 - Siren / Horn: This feature selects which output(s) will sound the system’s

arm/disarm chirps. This feature does not effect the triggered state of the security

system and during a triggered cycle, both the siren and horn outputs will activate

respectively.

5 - Security: Controls security functionality - ON / OFF.

ON - Full security functionality.

OFF - The security system does not trigger. Panic, Remote Start and all

other convenience features operate as normal.

6 - Hi Jack: Controls hi jack mode - ON / OFF.

OFF - Standard security system operation.

ON - Enables Hi Jack mode functionality as described in the owners manual

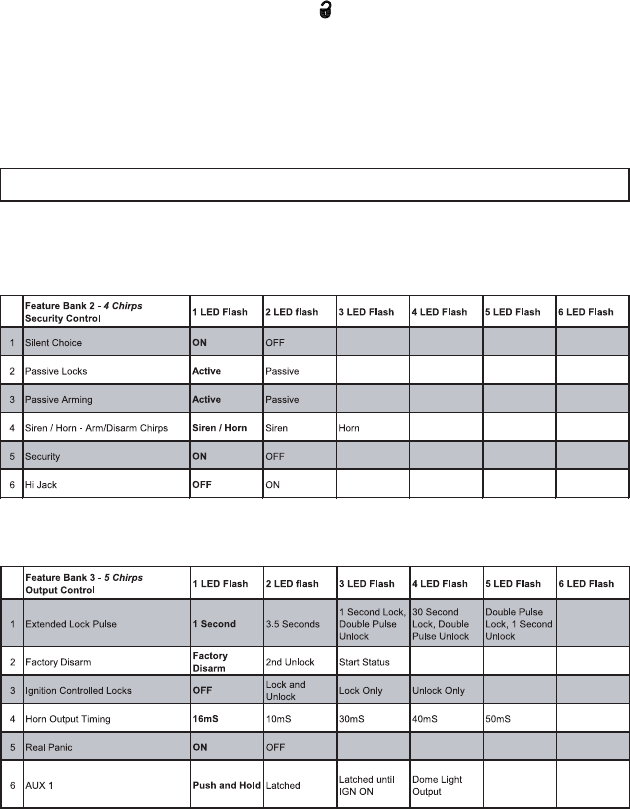

Feature Bank 2 - Security

1 - Silent Choice: Controls the normal arm/disarm chirps of the security system.

ON - Silent arming/disarming upon first press of lock/unlock, pressing lock/

unlock a second time will activate the arm/disarm chirps respectively. The

system will only sound the arm/disarm chirps upon a second press of the

lock/unlock buttons.

OFF - normal arm/disarm chirps upon the first press of lock/unlock.

Feature Descriptions

Feature Bank 3 - Output Control

1 - Extended Lock Pulse: Controls the timing of the BLUE and GREEN lock

output wires.

1 Second - Single 1 second lock pulse, single 1 second unlock pulse.

3.5 Seconds - Single 3.5 second lock pulse, single 3.5 second unlock pulse.

1 Second Lock, Double Pulse Unlock - Single 1 second lock pulse, double 1

second unlock pulse.

30 Second Lock, Double Pulse Unlock - Single 30 second lock pulse, double

1 second unlock pulse.

Double Pulse Lock, 1 Second Unlock - Double 1 second lock pulse, single 1

second unlock pulse.

2 - Factory Disarm: Controls the timing of the LT. GREEN/BLACK factory disarm

output.

Factory Disarm - Single 1 second pulse with unlock and remote start

activation.

2nd Unlock - Single 1 second pulse with 2nd press of unlock only.

Start Status - Continuous ( - ) output during the remote start cycle.

3 - Ignition Controlled Locks: Control of door locks when the ignition is cycled

ON or OFF.

OFF - Door locks not activated by ignition.

Lock and Unlock - Doors lock when ignition is turned on and unlock when

ignition is turned off.

Lock Only - Doors lock when ignition is turned on.

Unlock Only - Doors unlock when ignition is turned off.

4 - Horn Output Timing: Control the minimum horn pulse time in milli seconds,

some vehicle will require a longer pulse to activate the factory horn.

16mS 10mS 30mS 40mS 50mS

5 - Real Panic: Controls the panic out when triggered from the transmitter.

ON - Randomized horn honks when panic is triggered.

OFF - Standard pattern horn honks when panic is triggered.

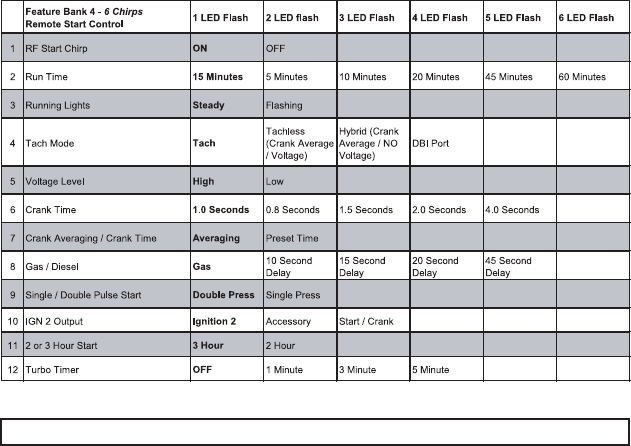

Feature Bank 4 - Remote Start Control

1 - RF Start Chirp: Turns remote start activation confirmation chirps ON or OFF.

2 - Run Time: Controls the time in minutes that the vehicle will stay running

under control of the remote start until the system times out. The system may also

be shut down at any time by use of the transmitter or system shutdowns.

3 - Running Lights: Controls the WHITE parking light output wire during remote

start.

Steady - Parking lights constant during the remote start cycle.

Flashing - Parking lights flash at a slow pace during the remote start cycle.

4 - Tach Mode: Determines how the system monitors the engine running during

remote start.

Tach - Hard wired directly to the tach wire of the vehicle to monitor AC

voltage.

Tachless (Crank Average/Voltage) - Determines crank time by averaging the

last 8 times the vehicle was started with the key and then monitors the

change in voltage after remote start.

Hybrid (Crank Average / No Voltage) - Determines crank time by averaging

the last 8 times the vehicle was started with the key.

DBI Port - Monitors the vehicle’s tach rate through an interface module

connected to the DBI port.

6 - AUX 1: Controls the VIOLET/BLACK AUX 1 output activation type and timing.

Push and Hold - Output is continuously active until transmitter button is

released.

Latched - Output stays active until button is pressed again.

Latched until IGN ON - Output stays active until the ignition is turned on.

Dome Light Output - Output is used for illuminated entry and is not controlled

by the AUX 1 function of the transmitter.

5 - Voltage Level: The voltage variance for remote start when set to tachless.

(see tach mode)

HIGH - The variance in battery voltage from before the remote start

is activated to after the engine is running must be greater than 0.5 volts.

LOW - The variance in battery voltage from before the remote start

is activated to after the engine is running may be less than 0.5 volts.

6 - Crank Time: Preset output times for the PURPLE starter wire.

7 - Crank Average / Crank Time: The length of time in which the remote start

will crank the vehicle’s starter.

Crank Average - Determines crank time by averaging the last 8 times the

vehicle was started with the key.

Preset Time - Preset starter output time. (see crank time)

8 - Gas / Diesel: Selects engine type and delay time for the starter output wire

during remote start activation.

Gas - Gasoline engine, no delay for the starter output wire.

10 Second Delay - Diesel engine, delays the starter output wire for 10

seconds after the ignition has been powered up by the remote start.

15 Second Delay - Diesel engine, delays the starter output wire for 15

seconds after the ignition has been powered up by the remote start.

20 Second Delay - Diesel engine, delays the starter output wire for 20

seconds after the ignition has been powered up by the remote start.

45 Second Delay - Diesel engine, delays the starter output wire for 45

seconds after the ignition has been powered up by the remote start.

9 - Single / Double Pulse Start: Switches the remote start activation between

a single or double press from the transmitter.

10 - IGN 2 Output: Programmable high current output.

Ignition 2 - Ignition output during remote start.

Accessory - Accessory output during remote start.

Start / Crank - Crank output during remote start.

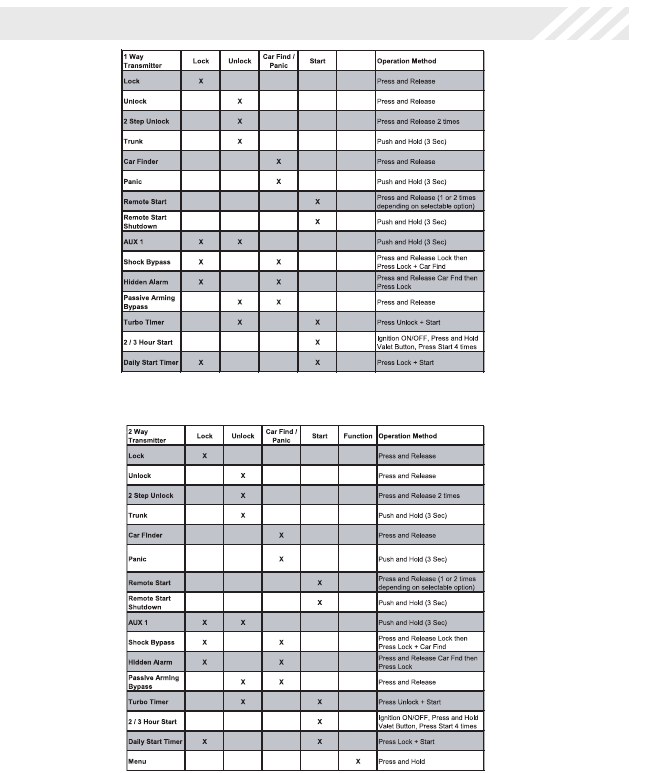

Transmitter Button Functions

11 - 2 or 3 Hour Start: When activated, the remote start will activate and run for

the programmed time and shut down every 2 or 3 hours.

12 - Turbo Timer: When activated, the vehicle will run for the programmed time.

OFF 1 Minute 3 Minutes 5 Minutes

* 2 Way Transmitter - CA 6550 Only

Security Trigger Zones

If the security system has been triggered the LED will flash one of the patterns

below indicating the zone.

LED FLASHES TRIGGER ZONE

2 Flashes Hood / Trunk Input

3 Flashes Door Input

4 Flashes Shock Sensor

5 Flashes Ignition Input

Remote Start Shutdown Diagnostics

If the remote start shuts down or fails to start, the parking lights will flash one of

the patterns below indicating the shutdown input.

To manually enter diagnostics and view the last shutdown, turn the ignition ON

and press and release the button.

LED FLASHES SHUTDOWN ZONE

3 Flashes Hood Input

Brake Input

4 Flashes Remote Start Valet Mode

7 Flashes Tach not learned / Crank Average not learned

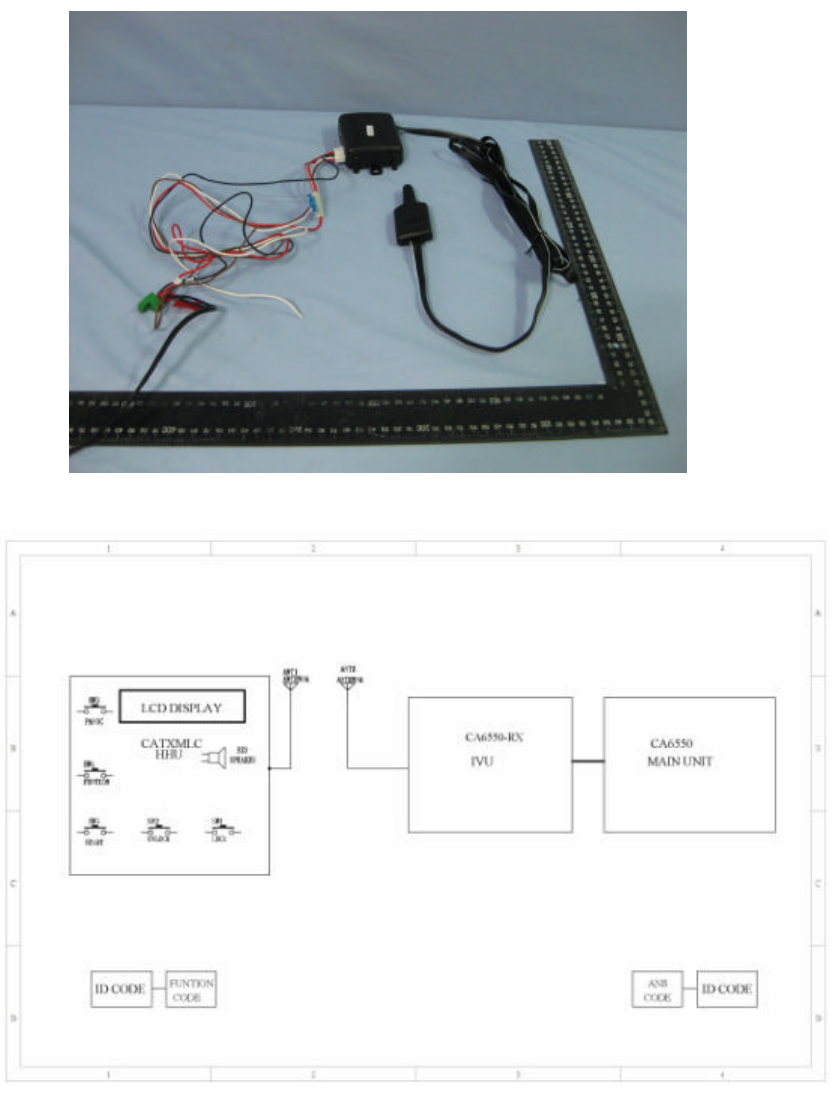

BLUE UNLOCK ( - )

GREEN LOCK ( - )

PURPLE STARTER OUTPUT - MOTOR SIDE ( + )

RED BATTERY 12V ( + )

PINK IGNITION 1 ( + )

PINK/WHITE IGNITION 2 ( + )

ORANGE ACCESSORY 1 ( + )

WHITE/RED PARKING LIGHT INPUT

WHITE PARKING LIGHT OUTPUT

BLACK GROUND

BROWN SIREN OUTPUT ( + )

RED BATTERY 12V ( + )

BROWN/BLACK HORN OUTPUT ( - )

BLUE/BLACK IGNITION 3 / ACTIVE OUTPUT ( - )

VIOLET/BLACK AUX 1 ( - )

RED/WHITE TRUNK RELEASE OUTPUT ( - )

LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )

ORANGE GROUND WHEN ARMED ( - )

DBI PORT

IVU(EUT) ANTENNA

LED

VALET

SHOCK SENSOR PORT

BLUE/WHITE INSTANT TRIGGER INPUT ( - )

GREEN DOOR TRIGGER INPUT ( - )

PURPLE DOOR TRIGGER INPUT ( + )

WHITE/BLUE EXTERNAL START INPUT ( - )

GRAY HOOD INPUT ( - )

BLACK/WHITE NEUTRAL SAFETY INPUT ( - )

BROWN/RED BRAKE INPUT ( + )

PURPLE/WHITE TACH INPUT

CA 6150 / CA 6550

Audiovox Electronics Corporation.

Customer Service 1-800-421-3209

WWW.CODE-ALARM.COM

FCC COMPLIANCE

This device complies with Part 15 of the FCC rules and with RSS-210 of

Industry Canada. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including any interference

that may cause undesired operation.

Warning!

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Advance Security TR34 Car Alarm Transceiver User Manual CA Elite 6 series Install rev A 4 13 09

Advance Security Inc Car Alarm Transceiver CA Elite 6 series Install rev A 4 13 09

User manual

Navigation menu

Namespaces

Views

Navigation
