Advance Security TR64 Remote Control User Manual

Advance Security Inc Remote Control Users Manual

Users Manual

1CA4B - CA2LED Owners rev A.
Owners Guide
for models:
CA2LCD
CA2RELCD
Flashlogic FLRS / AS9234E
RF Upgrade Kit
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the conguration of some vehicles, some functions AND/OR
SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.
22015 Audiovox Electronics Corporation. All rights reserved.
Table of Contents
Flashlogic Functionality .............................................................3
Using Your Remote Control .......................................................3
Remote Start Valet Mode ............................................................4
2 Way LCD Transmitter Functions ............................................5
Transmitter Programming ..........................................................6
2 Way LCD Transmitter Icon’s ...................................................7
Replacing Remote Control Batteries ........................................8
AS9234E Functionality ...............................................................9
Operating the AS9243E ..............................................................9
3CA4B - CA2LED Owners rev A.
Flashlogic Functionality
Using Your Remote Control
Two Stage Door Unlock (Optional)
If this feature is enabled on your system, pressing the button one time will unlock
only the driver’s door. Press again within three seconds to unlock the remaining
doors.
Activating the Trunk Release Feature (Optional)
If this feature is enabled on your system, pressing and holding the button for 3
seconds will open the vehicle’s trunk or hatch.
Door Lock
To lock the vehicle doors press and release the button.
Door Unlock
To unlock the vehicle doors press and release the button.
Remote Starting Your Vehicle
To activate the remote vehicle start function, press and release the button 2 times
within 2 seconds.
Using the Personal Protection Alarm (Panic)
Press and hold the button for 3 seconds to activate the personal protection alarm.
To stop the alarm, press and hold the button on the transmitter again for 3
seconds.
Remote Start Shutdown
Press and hold the button for 3 seconds to turn the vehicle off. Pressing the
vehicle’s brake will also shutdown the remote start.
42015 Audiovox Electronics Corporation. All rights reserved.
Remote Start Valet Mode
Enter / Exit Valet mode for systems using an Flashlogic FLRS kit.
1. Cycle ignition ON ve times [5x OFF/ON] rapidly. (complete this step
within 7 seconds)
2. Wait, LED 1 (on the FLRS kit) will turn solid RED for 2 seconds.
3. Turn ignition to OFF position.
4. Valet Mode Programming Procedure completed.
NOTE: In Valet Mode, the Remote starter is not functional. On units with Keyless
Entry, Lock and Unlock will remain functional. To exit valet mode: repeat steps 1 to 4.
Entering the Vehicle while it is Running via Remote Vehicle Start
1. Unlock the vehicle’s doors.
2. Enter the vehicle. DO NOT PRESS THE BRAKE PEDAL!
3. Insert the key into the ignition switch and turn to the ON or RUN
position.
4. Press the brake pedal. The remote vehicle starter will disengage and
the vehicle will operate normally.
Preheating or Precooling the Vehicle’s interior
Before exiting the vehicle, set the temperature controls to the desired setting and
operation. After the system starts the vehicle, the heater or air conditioner will
activate and heat or cool the vehicle’s interior to your setting.
5CA4B - CA2LED Owners rev A.
2 Way LCD Transmitter Functions
Display Illumination
Press and hold the button for 1 second. The display will illuminate for 5 seconds.
Melody / Vibration Mode
To have the remote control vibrate, play a melody tone or both each time it receives a
response from the vehicle press and release then press and hold for 2
seconds.
Button Beeps
To toggle button beeps on or off press and release then press and hold for 2
seconds.
Battery Save Mode
While in POWER SAVE MODE the 2-way LCD transmitter will NOT look for any
incoming signals from the main unit until a button is pressed. The LCD screen will
display SAVE to indicate that power save mode is ON. To enter power save mode
press and hold for 5 seconds.
Button Lock
Press and release then press hold the for 2 seconds to toggle the button lock
on or off. When the button lock is active, the remote control will beep/vibrate 2 times
when a button is pressed indicating it is locked.
Illumination
Press and release 2 times then press and hold for 2 seconds to toggle
illumination on or off. When on, the display will illuminate when it receives or sends a
command.
2 Car Mode
To control a second security system enter 2 car mode by pressing then press
and together for 3 seconds. When the icon appears on the transmitter’s LCD
screen it will control the second security system. Use the same method to exit 2 car
mode and resume control of the original vehicle’s security system.
NOTE: A second security system must be installed and the LCD transmitter must be
learned to it before this feature will operate the additional system.
62015 Audiovox Electronics Corporation. All rights reserved.
Transmitter Programming
1. Turn the ignition ON.
2. Press and hold the valet/override button located on the antenna.
3. Within 10 seconds the LED’s will begin to ash.
4. Press 1 button of each transmitter you wish to program, the LED’s will
ash to conrm each transmitter.
5. Turn the ignition OFF
NOTE: This system has 1 button programming which programs all channels of the
system.
NOTE: The system will hold up to 4 transmitters in memory, programming a 5th
transmitter will erase the oldest transmitter in memory.
Parking Meter Countdown
The parking meter countdown timer has 6 preset times, to access the preset times
and begin countdown press and release then press and hold for 2 seconds,
each additional press of will increase the countdown time.
Adjusting the Clock and Timer Settings
The clock, alarm clock and programmable countdown timer are accessed through the
Function Menu. Press and hold for 3 seconds to access the function menu, once
you have accessed the feature menu press and release to scroll through each
feature and follow the steps below to adjust the settings for each. Press and hold
for 2 seconds to exit the menu.
Clock Hour Press to increase or to decrease
Clock Minute Press to increase or to decrease
Alarm Clock Hour Press to increase or to decrease
Alarm Clock Minute Press to increase or to decrease
Alarm Clock ON / OFF Press to turn ON or to turn OFF
Countdown Timer Hour Press to increase or to decrease
Countdown Timer Minute Press to increase or to decrease
Countdown Timer ON / OFF Press to turn ON or to turn OFF
7CA4B - CA2LED Owners rev A.

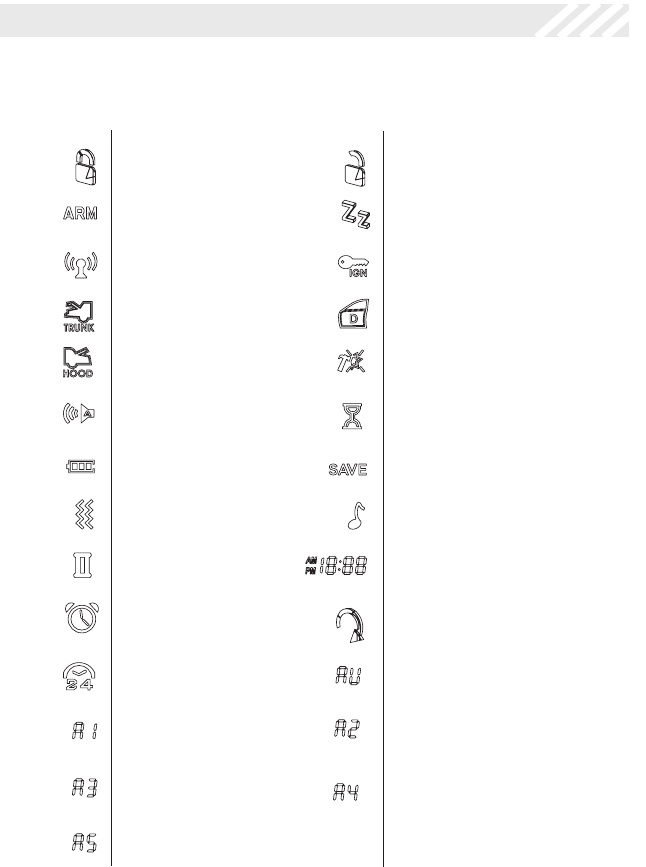

LOCK UNLOCK
SYSTEM ARMED VALET MODE
TRANSMITTING
TRUNK TRIGGER DOOR TRIGGER
FULL SHOCK TRIGGER
IGNITION ON/TRIGGER
ENGINE RUNNING
2 CAR MODE
BATTERY INDICATORBATTERY SAVE MODE
VIBRATE/SILENT MODE
HOOD TRIGGER
SYSTEM TRIGGER TIME COUNT DOWN
MELODY MODE
TIME DISPLAY
TIMER / TEMP.
START MODES
ALARM CLOCK
AUX 1 OUTPUT
AUX MODE
AUX 5 OUTPUT
AUX 4 OUTPUT
AUX 3 OUTPUT
AUX 2 OUTPUT
2 Way LCD Transmitter Icon’s
NOTE:
Icons shown below are only be available when the host system connected
supports the available feature. Refer to the host system’s installation/user guide for
details of supported features.
82015 Audiovox Electronics Corporation. All rights reserved.
Replacing Remote Control Batteries
2 Way LCD Remote Control - Part # CATLCD
The AAA battery inside the 2-way LCD remote control should last approximately
6 months under normal use. When the battery becomes weak you will notice the
remote control range (the distance from the vehicle the remote control will work)
deteriorate and the BATTERY icon on the LCD remote control will show 1 bar or less.
1. Gently slide the battery cover off of the remote control.
2. Remove the old AAA battery, observing the +/- symbols on the
battery, and replace with a new AAA battery.
3. Gently slide the battery cover on to the back of the remote control.
4. Test operation of the remote control.
2 Way LED Remote Control - Part # CATRLCD (CA2RELCD Only)
The battery inside the 2 way LCD remote control is rechargeable, use the supplied
battery charger to charge the battery until the battery icon on the LCD screen shows
3 bars indicating charging is complete. It is recommended that the battery be fully
charged before normal use.
9CA4B - CA2LED Owners rev A.
AS9234E Functionality
Operating the AS9234E System
Note: The follow instruction is for you with the AS9234E system only and
is separate from the Flashlogic FLRS functionality previously listed in this
guide.
Activating the Trunk Release Feature (Optional)
If this feature is enabled on your system, pressing and holding the button for 3
seconds will open the vehicle’s trunk or hatch.
Door Lock
To lock the vehicle doors press and release the button.
Door Unlock
To unlock the vehicle doors press and release the button.
Remote Starting Your Vehicle
To activate the remote vehicle start function, press and release the button 2 times
within 2 seconds. The vehicle will start and run the predetermined time set up during
installation (5 to 60 minutes selectable).
Entering the Vehicle During Remote Start
Enter the vehicle, insert your key and turn it to the run, NOT START, position, then
step on the brake, the vehicle is now in control of the ignition key.
NOTE: For push to start vehicle systems, simply enter the vehicle
with your key in hand, and step on the brake.
Using the “Quick-stop” Feature
With vehicle running, if you wish to make a quick stop and leave the vehicle running,
once you arrive at your destination:
a) place the gear selector in Park,
b) set the parking brake,
c) with your foot off the brake, press the transmitter button two times
in succession.
The vehicle will now be under control of the remote start system. Turn your
ignition switch off, WITHOUT, stepping on the brake, and exit the vehicle. Lock
the doors with the key to insure security.
10 2015 Audiovox Electronics Corporation. All rights reserved.
Timed Start Program:
The Remote Start unit has the ability to start the vehicle automatically at timed
intervals. This feature is useful in extremely cold climates where starting the engine
is the only means to keep the battery charged and uids warm. The operator has the
option to have the unit start every 2 or 4 hours for a maximum of 48 hours. Factory
preset is to start at 4 hour intervals. To select 2 or 4 hour automatic start timer:
1. Start By Holding the Push Button Switch found on the windshield mount
receiver on.
2. While Holding the Push Button Switch Turn The Ignition Switch On Then
Off
3a) Within 10 seconds of turning the ignition switch off, Release and then
Push On and release the Push Button Switch 2 times holding it on the
second time until the siren and or lights ash and chirp 2 times indicating
that the 2 Hour Start Interval has successfully been set. or
3b) Within 10 seconds of turning the ignition switch off, (Step 2) Release
and then Push On and release the Push Button Switch 4 times holding
it on the fourth time until the siren and or lights ash and chirp 4 times
indicating that the 4 Hour Start Interval has successfully been set.
NOTE: Once selected, 2 or 4, this timer interval will remain in memory until it is
manually changed. To change, the above sequence will have to be followed.
Timed Start Operation:
To begin the start timer, within 10 seconds of turning off the ignition switch, activate
the RF command to start 2 times. (Press the start button four times). The lights
will ash and the siren will chirp 4 times. Indicating timed interval mode has been
initiated. The vehicle will automatically start every 2 or 4 hours as programmed. To
cancel the timed start mode start the vehicle either by RF or by the ignition key.
Remote Start Shutdown:
To cancel the remote vehicle start function, press and release the button 2 times
within 2 seconds.
11CA4B - CA2LED Owners rev A.
Remote Start Override Mode (Valet Mode) - AS9234E
The intent of the remote start override / manual shut down circuit is to allow the
vehicle operator to prevent operation of the Remote Start Unit regardless of the RF
transmitter operation.
Enter Remote Start Override:
1. With the system disarmed/unlocked, and the ignition switch off Press and
Hold the PBLED push button switch (dash mounted).
2. Turn the ignition switch on, off, on, off, on, off.
3. The LED begins to ash two short ashes followed by one long ashes
and continues this pattern until returned to normal mode of operation.
The action above puts the unit into the Remote Start Override mode or vehicle service
mode and will not start from the RF transmitter or any other input.
Exit Remote Start Override:
1. With the system disarmed, Press and Hold the PBLED push button
switch (dash mounted) on.
2. Turn the ignition switch on, off, on, off, on, off.
3. The LED turns off indicating that the R/S unit is fully functional one again.
Valet Mode: (Alarm Systems Only) Dash-Mounted Push-Button LED Valet/
Override Switch:
The Push-Button LED switch (PBLED Switch) located on vehicle’s dash allows you to
temporarily bypass all alarm functions, eliminating the need to hand your transmitter
to parking attendants or garage mechanics. When the system is in valet mode,
all alarm functions are bypassed, however the remote panic feature and remote
door locks will remain operational. To use the valet mode, the system must rst be
disarmed either by using your keychain transmitter, or by activating your personalized
manual override code.
1. Enter the vehicle, and turn the ignition key to the on position.
2. Press and hold the Push-Button switch until the LED turns on solid. The
system will remain in the valet mode.
3. To return to normal operation, press and release the Push-Button switch
any time the ignition is on.
NOTE: Always remember to return the vehicle to the valet off position. This will
ensure that the vehicle remains protected at all times.
12 2015 Audiovox Electronics Corporation. All rights reserved.
Manually Overriding Your Alarm System (Alarm Systems Only):
Using the Dash Mounted PBLED Push-Button Valet/Override Switch your Security
System can be disarmed without the use of the keychain transmitter. This is
necessary, since you will need the ability to operate your vehicle if the transmitter is
lost or its battery fails. To bypass the alarm system;
1. Open the vehicle door. The alarm will sound.
2. Turn the ignition key to the on position.
3. Within 5 seconds, press and release the push-button override switch.
The alarm system will stop sounding and enter the (bypassed) mode. You can now
start and operate the vehicle normally.
Typically this override mode is used only if the transmitter has become inoperative.
Programming Your Custom Code (Alarm Systems Only):
Unlike override switches easily found, and defeated, this security system allows the
consumer to program a personal override code, offering a higher level of security.
To take advantage of this option, programmable feature # 9 must be selected for
the Custom Code Option. Consult your installation center for programming details.
The system comes from the factory with a preprogrammed override code of 11. To
change this default override code, do the following:
1. Disarm the system by use of the transmitter, or by use of the emergency
override sequence.
Turn the ignition switch to the on position.
2. Within 10 seconds, press and release the PBLED switch, 3 times.
3. Within 10 seconds turn the ignition switch off, on, off, on, off, on. (The
siren or horn will beep and the lights will ash one time.)
4. Within 10 seconds, begin to enter your chosen 10ths digit by pressing
and releasing the PBLED switch from 1 up to 9 times.
5. Within 10 seconds of the last entered 10ths digit, turn the ignition switch
off then on.
6. Within 10 seconds, begin to enter your chosen units digit by pressing and
releasing the PBLED switch from 1 up to 9 times.
7. Finish by turning the ignition switch to the off position. If the new code
was accepted, the unit will report back the newly entered code, by
ashing the LED, rst indicating the 10ths digit, pause and then the units
digit. The unit will report the new code three times with a one second
pause between each code, then the system will begin arming. If the LED
ash pattern reports the previously stored code, the new code was not
entered correctly. Please repeat steps 1 through 7 above considering the
following.
13CA4B - CA2LED Owners rev A.
NOTE: Acceptable digits 10ths or units are 1 through 9. The unit will not recognize a
0 (Zero), or no digit entered in any place, units or tenths.
NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for more
then 5 seconds during any of the above steps, the unit will revert back to the last
successfully stored code.
Custom Code Programming Example:
To Change the code from the factory preassigned code of 11 to “52” you would do
the following:
1. Disarm the system by use of the transmitter, or by use of the emergency
override sequence.
2. Turn the ignition switch to the on position.
3. Within 10 seconds, press and release the PBLED switch, 3 times.
4. Within 10 seconds turn the ignition switch off, on, off, on, off, on. (The
siren or horn will beep and the lights will ash one time.)
5. Within 10 seconds, begin to press and release the PBLED switch to set
the tenths digit. (As per the example, press and release 5 times to set the
tenths digit to 5)
6. Within 10 seconds of the last press of the PBLED, turn the ignition switch
off then on.
7. Within 10 seconds, begin to press and release the PBLED switch to set
the units digit. (As per the example, press and release 2 times to set the
units digit to 2).
8. Turn the ignition switch to the off position. Immediately observe the LED
ash pattern.
You will notice the LED ashing ve times, pause, and then ash two times, pause.
This pattern will be repeated three times indicating the new code (52) has been
accepted and stored in memory.
NOTE: If after step 7, the LED ashes a code other than what was just entered,
this indicates that the code has not been changed. You will have to repeat steps 1
through 7 above being certain to note the following:
Acceptable digits 10ths or units are 1 through 9. The unit will not recognize a 0
(Zero), or no digit entered in any place, units or tenths.
NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for more
then 5 seconds during any of the above steps, the unit will revert back to the last
successfully stored code.
14 2015 Audiovox Electronics Corporation. All rights reserved.
Manually Overriding Your system - Using the Custom Code:
Assuming the override code programmed has not been changed, and the default
override code of 11 is in the system’s memory.
1. Enter the vehicle and turn the ignition switch to the on position.
NOTE: The siren will sound.
2. Within 5 seconds, press and release the Receivers push-button switch 1
time.
3. Within 5 seconds, turn the ignition switch off then on.
4. Within 5 seconds, press and release the Receivers push-button switch 1
time.
5. Turn the ignition switch off then on and start the vehicle.
NOTE: If you have changed the programmed override code then substitute your new
code tenths for step 2 above, and units for step 5 above.
15CA4B - CA2LED Owners rev A.
16 2015 Audiovox Electronics Corporation. All rights reserved.
Voxx Electronics Corporation.
Customer Service 1-800-421-3209
WWW.CODE-ALARM.COM
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference that
may cause undesired operation.
Warning!
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment. (Example - use only shielded interface cables
when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 0.5 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The antennas used for this transmitter must be installed to provide a separation
distance of at least 0.5 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.

Navigation menu
