1.0.
Description
The ACM1252 NFC Reader module is a 13.56MHz transceiver designed to read Radio Frequency
Identification (RFID) tags. This module is based on an NXP Semiconductors PN512 completely
integrated for all kinds of passive contactless communication methods and protocols at 13.56MHz.
The ACM1252’s antenna is integrated into the circuit board so there is no external antenna required.
2.0. Features
USB 2.0 Full Speed Interface
Contactless Smart Card Reader:
o 13.56MHz Carrier Frequency
o Read/Write speed of up to 424 kbps
o Detachable antenna for contactless tag access, with card reading distance of up to 50
mm (depending on tag type)
o Support for ISO 14443 Part 4 Type A and B cards, MIFARE, FeliCa, and all four types of
NFC (ISO/IEC 18092 tags)
o Built-in anti-collision feature (only one tag is accessed at any time)
o NFC Support:
Card reader/writer mode
Peer-to-Peer mode
Card Emulation mode
Built-in Peripherals:
o user-controllable bi-color LED
o user-controllable Monotone Buzzer
USB Firmware Upgradability
Support Android TM 3.1 or above
Compliant with the following standards:
o ISO 18092
o ISO 14443
o LASCOM
o CE
o FCC
o VCCI
o MIC
o KC Mark
o N-Mark
o PC/SC
o CCID
o Microsoft® WHQL
o RoHS2
o REACH
ACM1252 NFC Reader Module Reference Information info@acs.com.hk
1.00 www.acs.com.hk
Page 5 of 7
3.0. Absolute Maximum Ratings
SYMBOL Description Min Max Units
VDD Support Voltage to J5’s Pin 5 and Pin 2 4.2 5.5 V
Tamb,abs Storage Temperature Range -40 85
Stress beyond those listed under the Absolute Maximum Ratings may cause permanent damage to
device. These are stress ratings only and functional operation of the device at these or any other
conditions beyond those indicated under Recommended Operating Conditions are not implied.
Exposure to absolutemaximumrated conditions for extended periods may affect device reliability
4.0. Recommended Operation Conditions
SYMBOL Description Min Normal
Max Units
VDD Support Voltage to J5’s Pin 5 and Pin 2 4.75 5 5.25 V
Tstorage Storage Temperature Range -10 25 60
Toperation Operation Temperature Range 0 25 50
Humidity Humidity Range - - 90 %
Fc Carrier Frequency Range 13.553
13.56 13.567
MHz
Ioperation Current Consumption - 100 200 mA
5.0. Pin Descriptions
The ACM1252 has a five pins connector interface between the module and the host, identified by ref
J7. Pins assignment are given in the table below
PIN NAME Type Description
5 UVCC Power Supply Voltage
4 D- Input/output Differential data lines that conform to the
USB v2.0 standard
3 D+ Input/output Differential data lines that conform to the
USB v2.0 standard
2 UGND Power Power Ground
1 GND Power Shielding Ground
6.0. Antenna
The Detachable antenna is etched in the copper on the Top layer of the circuit board. The antenna
consists of three loops of 0.04” wide copper with 0.02” spacing.
ACM1252 NFC Reader Module Reference Information info@acs.com.hk
1.00 www.acs.com.hk
Page 6 of 7
7.0. Mechanical Dimensions

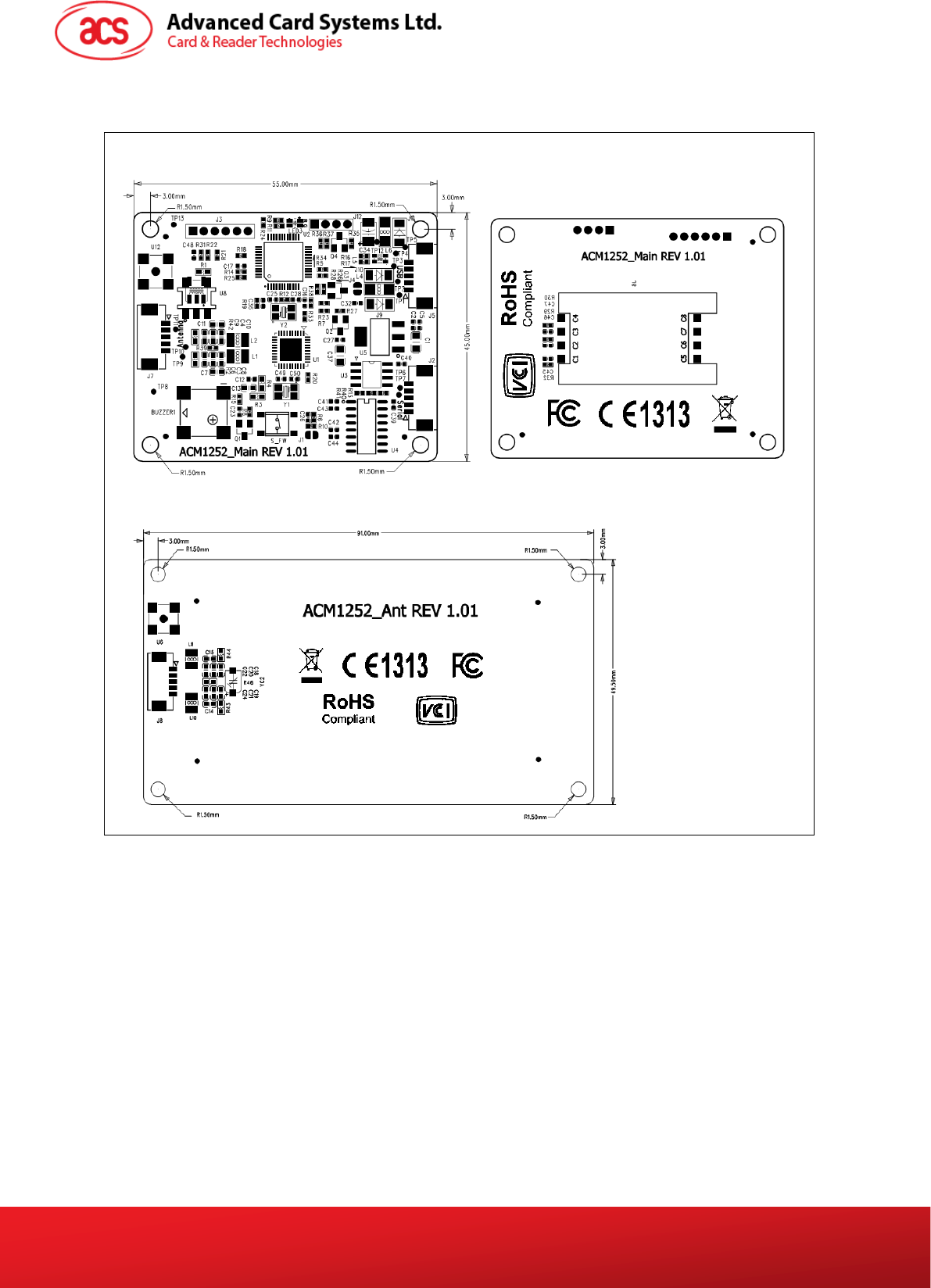

MAIN Board:
Antenna Board:
8.0. Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC/IC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
The device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation
ACM1252 NFC Reader Module Reference Information info@acs.com.hk
1.00 www.acs.com.hk
Page 7 of 7
Warning: Changes or modifications not expressly approved by the Advanced Card Systems Ltd.
could void the user's authority to operate the equipment.
Installation in enduser equipment
This device has been modularly approved and is intended solely for use in Advanced Card Systems
Ltd. products. Advanced Card Systems Ltd. will retain control over the final installation of the device,
such that compliance in the end user equipment is assured. The end user equipment will be tested
for spurious and radiated emissions to ensure the end device complies with FCC Part 15 limits.
9.0. Labeling of enduser equipment
This device has been modularly approved. The manufacturer, product name, and FCC this product
must appear on the outside label of the enduser equipment as follows:
FCC ID: V5MACM1252
Product Code: ACM1252
