Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 2 of 43
Glossary
The following is a list of abbreviations and terms used throughout this
document.
Abbreviation/Term Definition
AGC Automatic Gain Control
ALC Automatic Level Control
AROMS ADRF’ Repeater Operation and Management
System
BTS Base Transceiver Station
CDMA Code Division Multiple Access
CW Continuous Wave (unmodulated signal)
DAS Distributed Antenna System
DL Downlink
Downlink The path covered from the Base Transceiver
Station (BTS) to the subscriber’s service area
via the Repeater
HPA High Power Amplifier
HW Hardware
iDEN Integrated Digital Enhanced Network
IF Intermediate Frequency
LNA Low Noise Amplifier
MS Mobile Station
PLL Phased Locked Loop
PS Power Supply
RF Radio Frequency
SQE Signal Quality Estimate
SW Software
UL Uplink
Uplink The path covered from the subscriber’s service
area to the Base Transceiver Station(BTS) via
the Repeater
VSWR Voltage Standing Wave Ratio
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 3 of 43
Version 1.4 (Released March 31, 2008)
Information in this document is subject to change without notice.
Advanced RF Technologies, Inc. 1996-2008.
All rights reserved.
Please send comments to:
E-Mail: info@adrftech.com
Phone: (323) 254-8131
(800) 313-9345
Fax: (323) 254-4928
Address: Advanced RF Technologies, Inc.
Attention: Technical Publications Department
2607 Colorado Blvd., 1st Floor
Los Angeles, CA 90041
USA
www.adrftech.com
Revision History
Version Author Description Date
1.0 Julie Song April 9, 2007
1.1 Julie Song May 11, 2007
1.2 Namchul Lee October 17, 2007
1.3 Namchul Lee Update for UL approval & modem box January 3 , 2008
1.4 Namchul Lee Update for FCC March 31, 2008
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 4 of 43
TABLE OF CONTENTS
1. TRILOGUE-1NM ...................................................................................................... 6
1.1 Introduction........................................................................................................ 6
1.1.1 Highlights ..................................................................................................... 6
1.1.2 Parts List....................................................................................................... 7
1.1.3 Repeater Quick View.................................................................................... 8
1.2 Warnings and Hazards ....................................................................................... 9
2. TRILOGUE-1NM OVERVIEW............................................................................. 11
2.1 Operation Modes.................................................................................................. 11
2.1.1 Local Web GUI .......................................................................................... 11
2.1.1. Remote Web GUI...................................................................................... 11
2.2 Switches & Indicators .......................................................................................... 12
2.2.1 LEDs........................................................................................................... 12
2.2.2 AC Power Switch & DC Power Port for External Modem Box ................ 13
2.2.3 Mode Selection Switch and Ethernet Port.................................................. 13
2.3 Installation............................................................................................................ 14
2.3.1 Tools........................................................................................................... 14
2.3.2 Procedure.................................................................................................... 14
2.3.3 Grounding................................................................................................... 16
2.3.4 Antenna Separation/Isolation ..................................................................... 17
2.3.5 Line of Sight............................................................................................... 18
3. TRILOGUE-1NM AROMS SETUP ...................................................................... 19
3.1 Repeater/PC Connection Using AROMS ............................................................ 19
3.2 Repeater Status..................................................................................................... 21
3.3 Control.................................................................................................................. 25
3.3.1 General Setting........................................................................................... 26
3.3.2 Manual Gain Control.................................................................................. 26
3.3.3 System ........................................................................................................ 26
3.3.4 Heartbeat Time ........................................................................................... 27
3.3.5 Alarm Setting.............................................................................................. 27
3.4 Install.................................................................................................................... 28
3.4.1 Band Selection............................................................................................ 29
3.4.2 SNMP ......................................................................................................... 30
3.4.3 Location...................................................................................................... 31
3.4.4 Static IP/ Dynamic IP ................................................................................. 31
3.4.5 Repeater...................................................................................................... 31
3.4.6 Repeater Location....................................................................................... 31
3.4.7 Repeater Installer Info ................................................................................ 31
3.4.8 Date & Time............................................................................................... 31
3.5 System.................................................................................................................. 32
4. MAINTENANCE GUIDE FOR TRILOGUE-1NM............................................. 34
4.1 Periodic Inspection Checklist............................................................................... 34
4.2 Preventive Measures for Optimal Operation........................................................ 34
4.2.1 Recommendations ...................................................................................... 34
4.2.2 Precautions.................................................................................................. 34
5. WARRANTY AND REPAIR POLICY ................................................................. 35
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 5 of 43
5.1 General Warranty................................................................................................. 35
5.2 Limitations of Warranty....................................................................................... 35
5.3 Limitation of Damages......................................................................................... 35
5.4 No Consequential Damages ................................................................................. 35
5.5 Additional Limitation on Warranty...................................................................... 35
5.6 Return Material Authorization (RMA) ................................................................ 35
APPENDIX A: SPECIFICATIONS.............................................................................. 36
A.1 Electrical Specifications...................................................................................... 36
A.2 Mechanical Specifications................................................................................... 37
A.3 Environmental Specifications.............................................................................. 37
A.4 Power Specifications........................................................................................... 38
A.5 Other Specifications............................................................................................ 38
APPENDIX B: MECHANICAL DRAWING .............................................................. 39
APPENDIX C: TRILOGUE-1NM OVERVIEW ........................................................ 40
C.1 Block Diagram..................................................................................................... 40
- 1 Layer [iDEN] -.............................................................................................. 40
- 2 Layer [CDMA] -........................................................................................... 40
C.2 Components......................................................................................................... 41
- 1 Layer [iDEN] -.............................................................................................. 41
- 2 Layer [CDMA] -........................................................................................... 42
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 6 of 43
1. Trilogue-1NM
1.1 Introduction
Trilogue-1NM is a tri-band (PCS 1900 MHz, iDEN 800 & 900 MHz) RF repeater
which enhances in-building wireless coverage in the most effective and cost
efficient way. For its intelligent design and versatility, the Trilogue-1NM is the
ideal choice for wireless coverage problems indoors. Trilogue-1NM can be used
as a stand-alone repeater with passive antennas connected to it or it can also be
used as a feeder repeater to a DAS (Distributed Antenna System).
1.1.1 Highlights
• Covers the 65 MHz PCS band (including G band) for CDMA, and Dual
iDEN bands (800 & 900 MHz) for iDEN.
CDMA:
• Covers the 65 MHz PCS band including G band
• Supports up to three (3) non-contiguous band combinations
• Supports up to six (6) different instantaneous bandwidths;
5, 10, 15, 20, 25 and 30 MHz
• 24 dBm composite output power
• 80 dB gain
• 40 dB AGC Range @ 0.5 dB Step
• Sharp out-of-band rejection; 50 dBc @ 1 MHz Sub-band edge
• Automated installation
• Web GUI via DHCP
• Remote Monitoring Capability using External Modem Box (MBOX-DET1)
iDEN:
• Dual Band Repeater (800 & 900 MHz)
• 25 dBm Composite Output Power
• 65 dB gain
• 25 dB AGC Range @ 0.5 dB Step
• Excellent Out of Band Rejection Characteristics with Sharp Roll-Offs
@ 65 dBc
• Re-Banding Capability via Digital Filtering
• Band Adjustable Option @ 200 kHz Step
• Automated installation
• Web GUI via DHCP
• Remote Monitoring Capability using External Modem Box (MBOX-DET1)
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 7 of 43

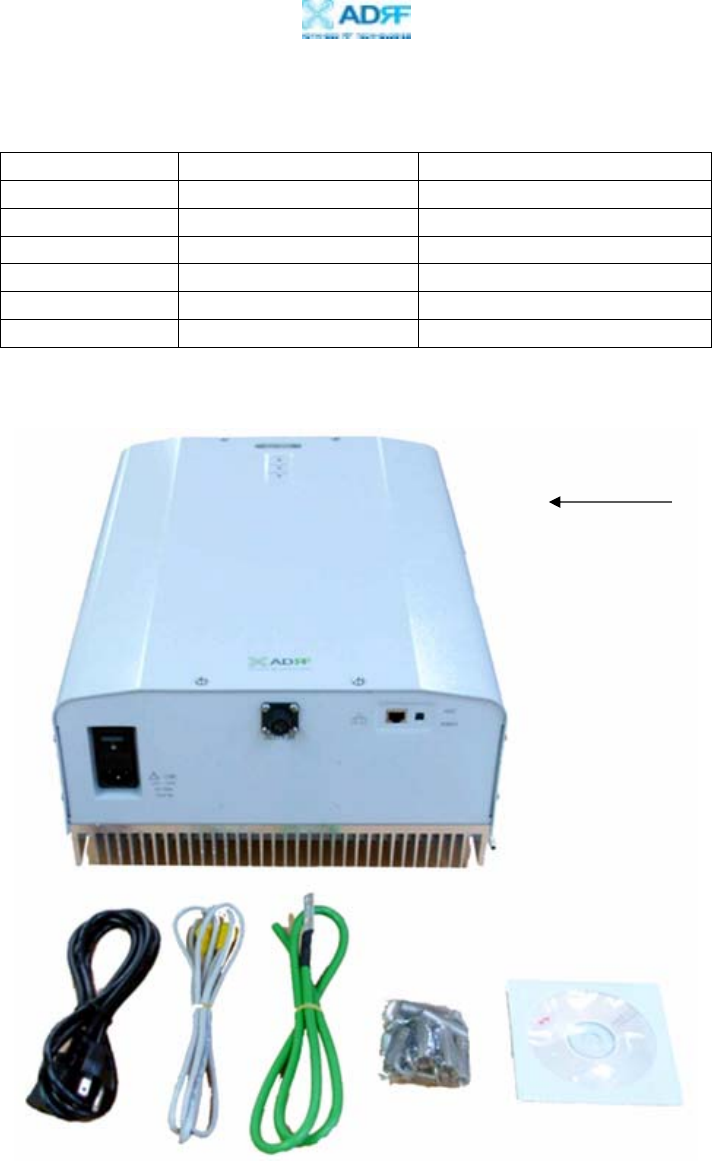

1.1.2 Parts List
Label Qty Description
A 1 Trilogue-1NM Repeater
B 1 AC Power Cable
C 1 Ethernet Cable (cross over)
D 1 Ground Cable
E 6 Anchor Bolts
F 1 CD**
** CD includes: (1) Trilogue-1NM User Manual & (2) Trilogue-1NM Quick Start
Guide
Figure 1 – Trilogue-1NM Repeater Parts List
Table 1 – Parts List
A
B DC E F
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 8 of 43

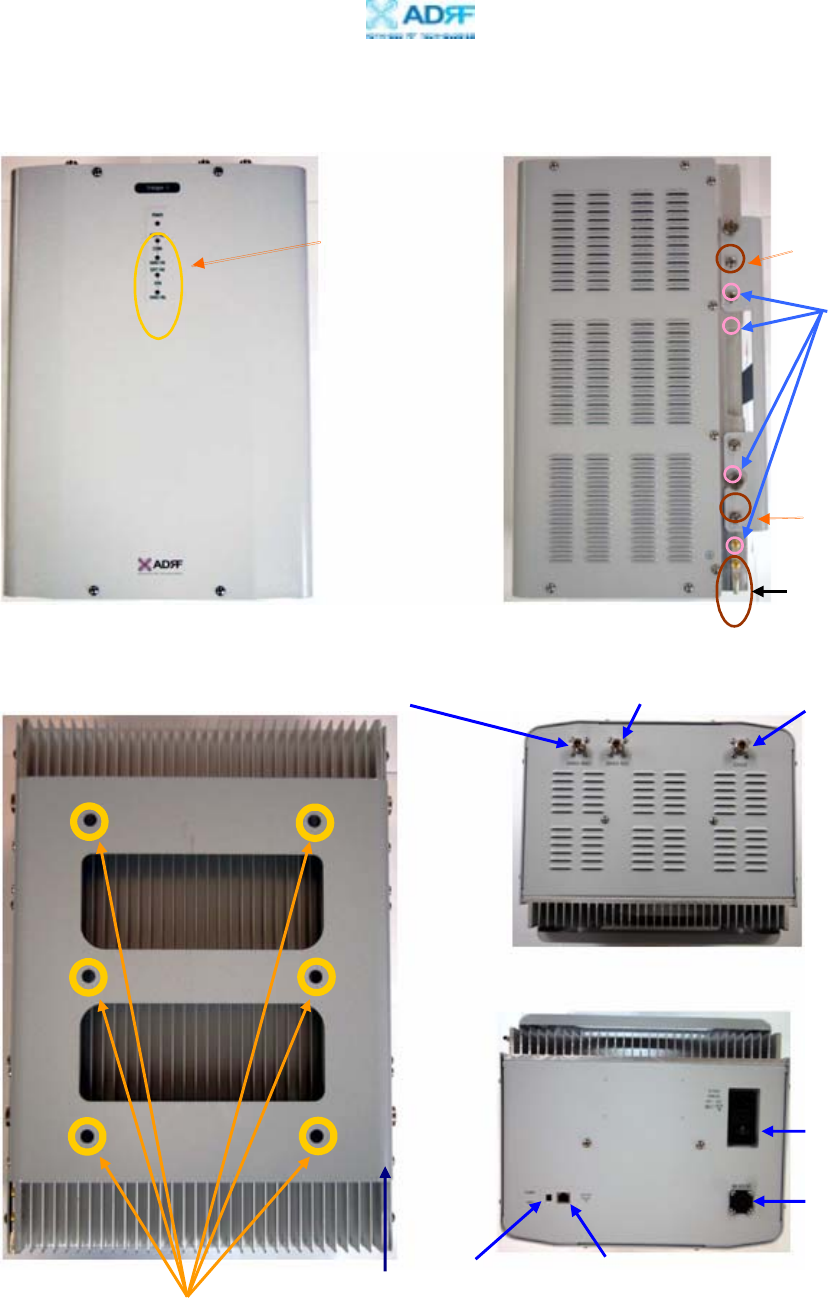

1.1.3 Repeater Quick View
Lower Guard Screw
(Page14)
Bracket Screw
(Page14)
Ground Hole
(Page16)
Power port
for modem box
Power switch
(page12)
Server Antenna Port
(Page17)
Figure 3 – Trilogue-1NM Back & Bottom Views
Display LED
(Page11) Upper Guard Screw
(Page14)
Wall Mounting
Bracket (page14)
Anchor Bolt
Hole (page14)
Ethernet Port (page12)
Mode Selection
Switch (page12)
CDMA Donor Antenna Port
(Page17) iDEN Donor Antenna Port
(Page17)
Figure 2 – Trilogue-1NM Front & Side Views
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 9 of 43
1.2 Warnings and Hazards

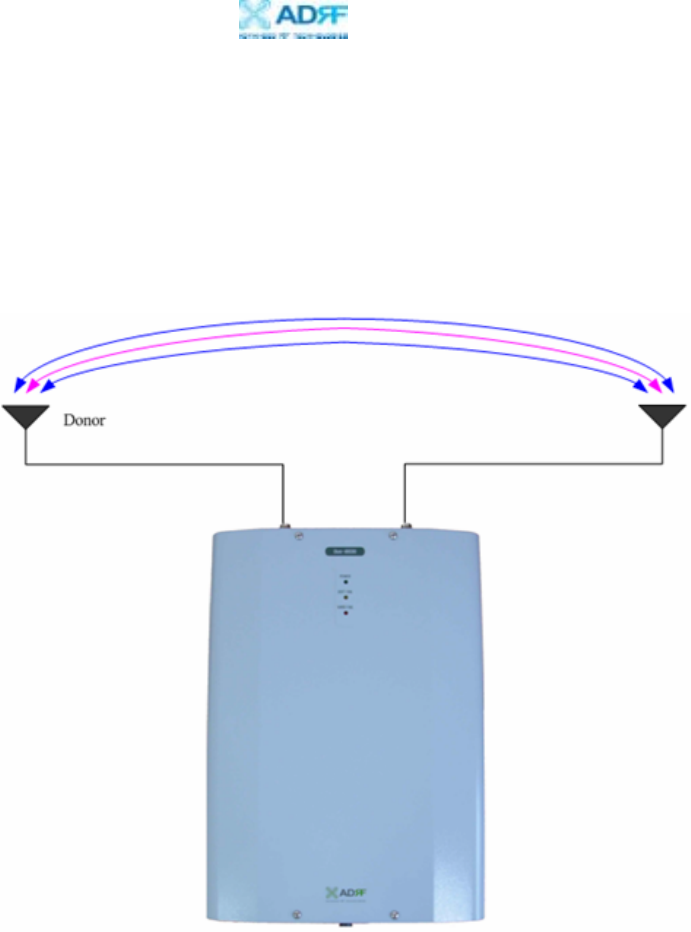

Actual separation distance is determined upon gain of antenna used.
Please maintain a minimum safe distance of at least 40 cm while operating near the
donor and the server antennas. Also, the donor antenna needs to be mounted
outdoors on a permanent structure.
RF EXPOSURE & ANTENNA PLACEMENT Guidelines
Operating the Trilogue-1NM with antennas in very close
proximity facing each other could lead to severe damage to
the repeater.
WARNING! DAMAGE TO REPEATER
Working with the repeater while in operation, may expose the
technician to RF electromagnetic fields that exceed FCC rules for
human exposure. Visit the FCC website at www.fcc.gov/oet/rfsafety
to learn more about the effects of exposure to RF electromagnetic
fields.
WARNING! EXPOSURE TO RF
Opening the Trilogue-1NM could result in electric shock and may
cause severe injury.
WARNING! ELECTRIC SHOCK
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 10 of 43
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC Part 15 Class A
Lithium Battery : CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS.
Ethernet Instructions: This equipment is for indoor use only. All cabling should be
limited to inside the building.
Opening or tampering the Trilogue-1NM will void all warranties.
WARRANTY
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 11 of 43
2. Trilogue-1NM Overview
2.1 Operation Modes
2.1.1 Local Web GUI

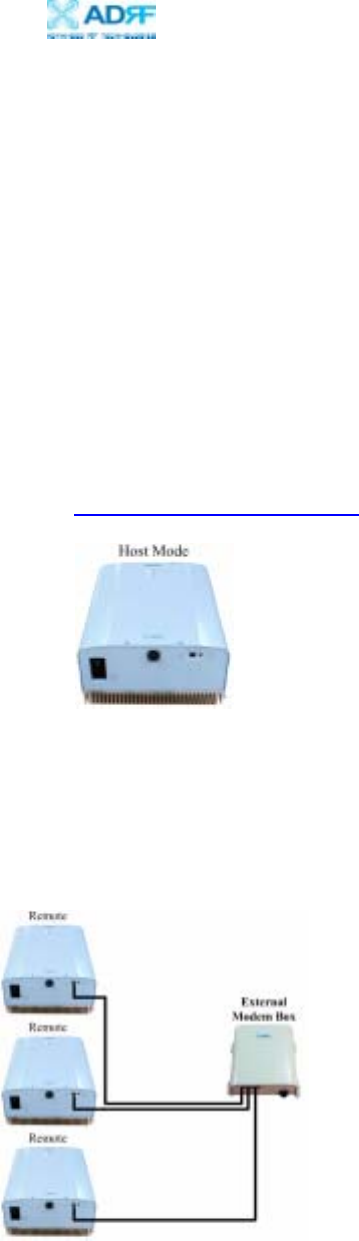

Host Mode
This mode should be selected only if a Trilogue-1NM is used alone without
being connected to any other device functioning as a host.
Simply connect one end of the Ethernet cable on the repeater monitor port and
the other end on the PC’s LAN port. After doing so, launch the Microsoft
Internet Browser (Internet Explorer) and the Local Web GUI will be launched
through typing the IP address (http://192.168.63.1/home.asp)
2.1.1. Remote Web GUI
Remote Mode
This mode should be selected if an external modem box (MBOX-DET1) is
being installed along with the Trilogue-1NM for monitoring purposes. In this
case, the Trilogue-1NM works as a remote unit sending its information to the
collocated external modem box.
Note: ADRF’s Web GUI has not been developed for Microsoft Internet Explorer and other
web browsers (e.g. Netscape, FireFox, Mozilla, etc.) may not be compatible. ADRF’s Web
GUI has not been tested with Microsoft Internet Explorer versions higher than 6.0.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 12 of 43
2.2 Switches & Indicators
2.2.1 LEDs
Trilogue-1NM has five LEDs on the front panel of the repeater as shown
below in Figure 4.
POWER
If the LED is lit GREEN, it indicates that there is AC power to the repeater
SOFT FAIL
If the LED is lit YELLOW, it indicates that there is a soft fail alarm in the
system. The detailed alarm information can be viewed via the local web GUI.
In the event of a soft fail alarm, the repeater will still function, but the alarm
needs to be addressed promptly.
HARD FAIL
If the LED is lit RED, it indicates that there is a hard fail alarm in the system.
The detailed alarm information can be viewed via the local web GUI. In the
event of a hard fail alarm, the repeater will not function and immediate
attention is required.

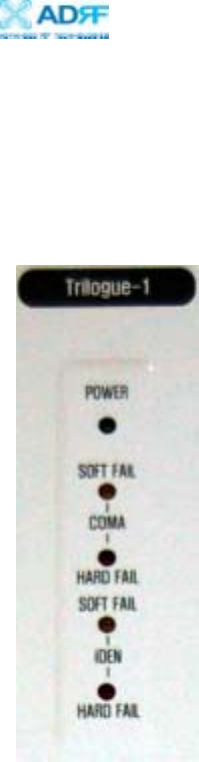

Figure 4 – Trilogue-1NM Repeater LED View
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 13 of 43
2.2.2 AC Power Switch & DC Power Port for External Modem Box

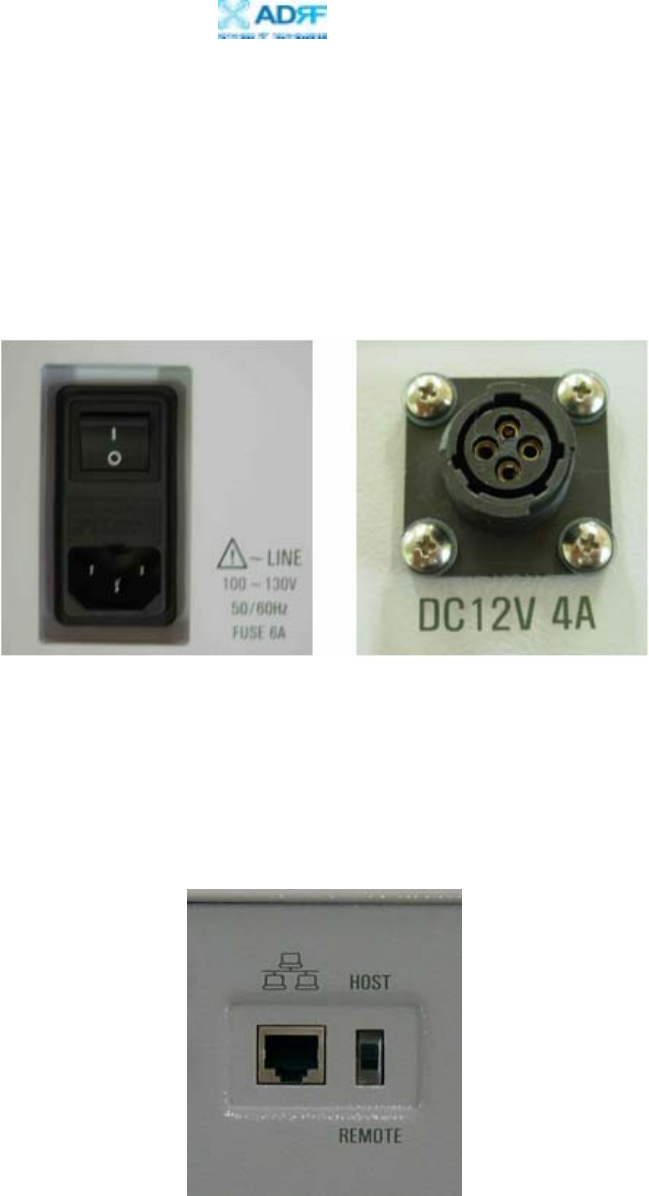

The AC Power on/off switch is located on the bottom of repeater (Figure 5).
The switch should be powered on after the repeater has been installed properly.
The DC Power Port can be used to provide power to the optional External
Modem Box (Figure 5).
2.2.3 Mode Selection Switch and Ethernet Port
The Ethernet ports and the mode selection switch for DHCP are located on the
bottom of the repeater as shown below in Figure 6. The mode selection
switch has two modes: Host Mode & Remote Mode.
Figure 6 – Ethernet Port & Mode Selection Switch
Figure 5 – Trilogue-1NM Repeater Power Switch
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 14 of 43
2.3 Installation
2.3.1 Tools
No special tools or equipments are needed to install the Trilogue-1NM
2.3.2 Procedure
Six mounting holes are located on the wall-mounting bracket to attach it to the
wall. The wall bracket must be securely attached to sufficiently carry the
weight of the Trilogue-1NM, which is bolted to the wall bracket through the
four aligned mounting holes.

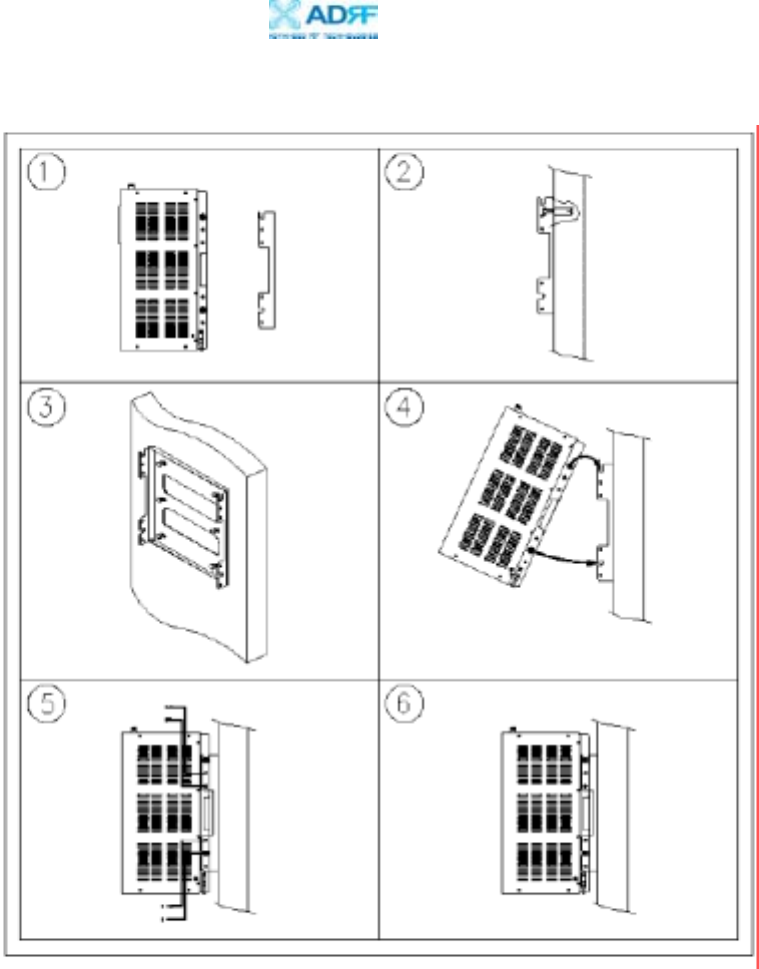

The following steps should be followed while mounting the repeater:
Installation Procedure
① Take the Trilogue-1NM out of the box
② Using the four anchor bolts, mount the bracket on the wall
③ Make sure the bracket is securely mounted
④ Slightly tilt the repeater and mount the repeater onto the wall as shown in
the picture. Hook the upper 2 guard screws first and then slide/push in
the lower 2 guard screws into the place.
⑤ Make sure the Trilogue-1NM is securely placed onto the wall bracket
⑥ Fasten the 8 bracket screws back properly
⑦ Inspect that everything is secure
* Rack Mount option is also available. Please contact ADRF for additional
information.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 15 of 43
Figure 7 – Repeater Mounting Instructions
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 16 of 43
2.3.3 Grounding
A ground cable is included in the packaging and should be properly connected
to the repeater as shown below.

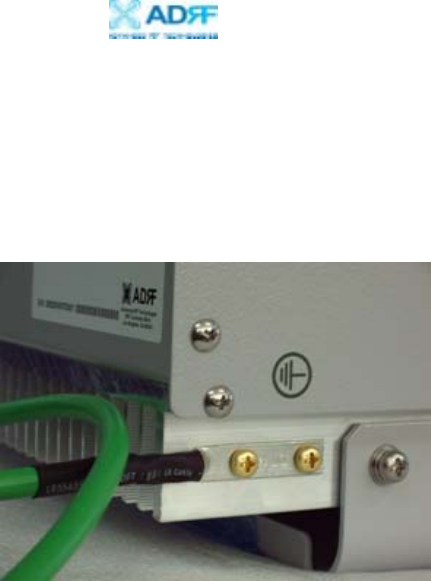

Figure 8 – Ground Cable Connection
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 17 of 43
2.3.4 Antenna Separation/Isolation
Separation between the antennas is necessary to prevent oscillation.
Oscillation occurs when the signal entering the system continually reenters,
due to the lack of separation between the donor and server antennas. In other
words, the signal is being fed back into the system. This creates a constant
amplification of the same signal. As a result, the noise level rises above the
signal level.
Figure 9 – RF Repeater Oscillation
To prevent feedback, the donor and server antennas must be separated by an
appropriate distance to provide sufficient isolation. Isolation is attained by
separating antennas a sufficient distance so that the output of one antenna does
not reach the input of the other. This distance is dependent on the gain of the
repeater.
A sufficient isolation value is 13 ~ 15 dB greater than the maximum gain of
the repeater. For example, if the gain of the repeater is 50 dB, then an
isolation of 63 ~ 65 dB or greater is required. In the same manner, because
the Trilogue-1NM has a maximum gain of 80 dB, it requires an isolation of at
least 93 ~ 95 dB.
Server
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 18 of 43
2.3.5 Line of Sight
The donor antenna which points towards the base station typically has a
narrow beam antenna pattern. As a result, a slight deviation away from the
direction of the BTS can lead to less than optimum results. In addition,
obstacles between the repeater and the BTS may impair the repeater from
obtaining any BTS signal. As a result, the repeater cannot transmit signal to
the coverage area. Therefore, a direct line of sight to the BTS for the donor
antenna is vital to the function of a repeater. For the same reason, placing the
server antenna in direct line of sight of the coverage area is also necessary.

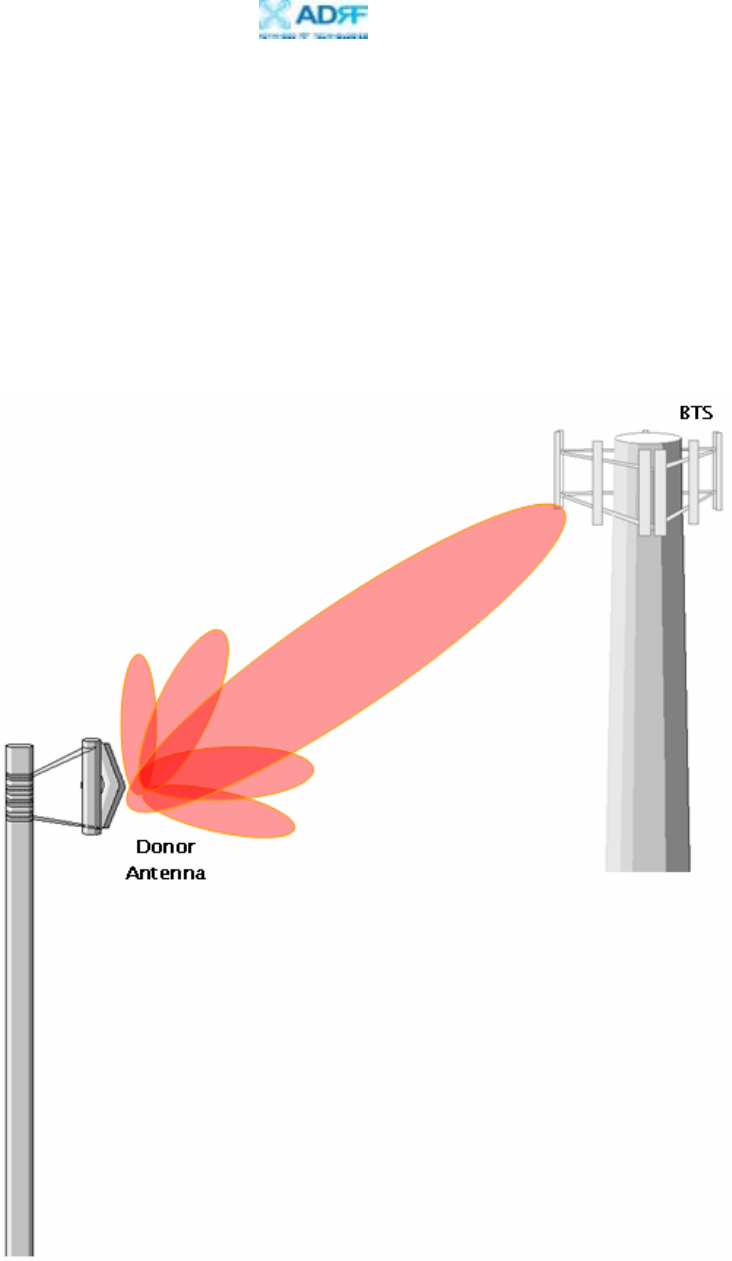

Figure 10 - Direct Line of Sight to the BTS
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 19 of 43
3. Trilogue-1NM AROMS Setup
3.1 Repeater/PC Connection Using AROMS
i) Wait until the Power LED is lit in green. Connect the LAN cable between the
laptop’s Ethernet port and the repeater’s Ethernet port.

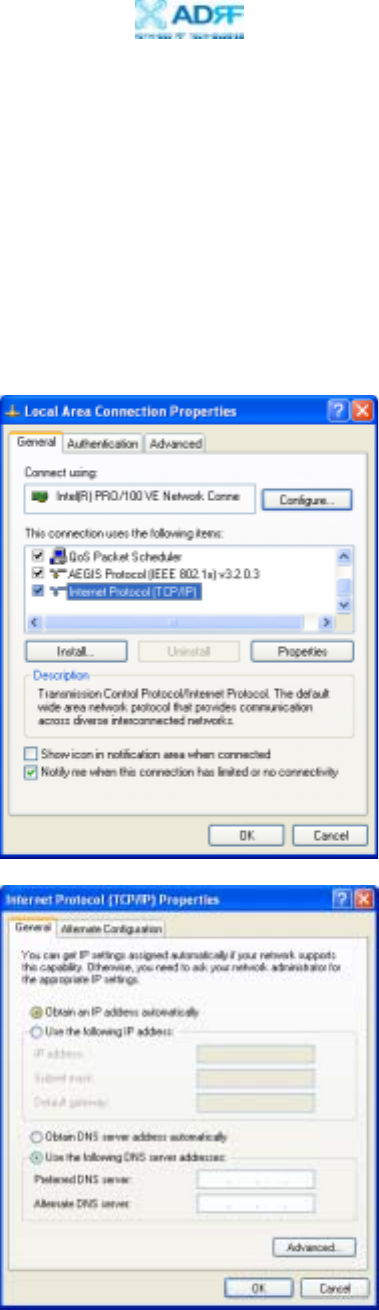

Note: Under Local Area Connection in Network Settings, make sure to select
Obtain an IP address automatically under Internet Protocol (TCP/IP) properties.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 20 of 43
ii) Launch MS Internet Explorer (Version 6.0)
Note: ADRF’s Web GUI has not been tested for compatibility with any other web
browsers (e.g. Netscape, FireFox, Mozilla, etc.).
iii) Type the following IP address into the address bar of MS Internet Explorer:
http://192.168.63.1/home.asp

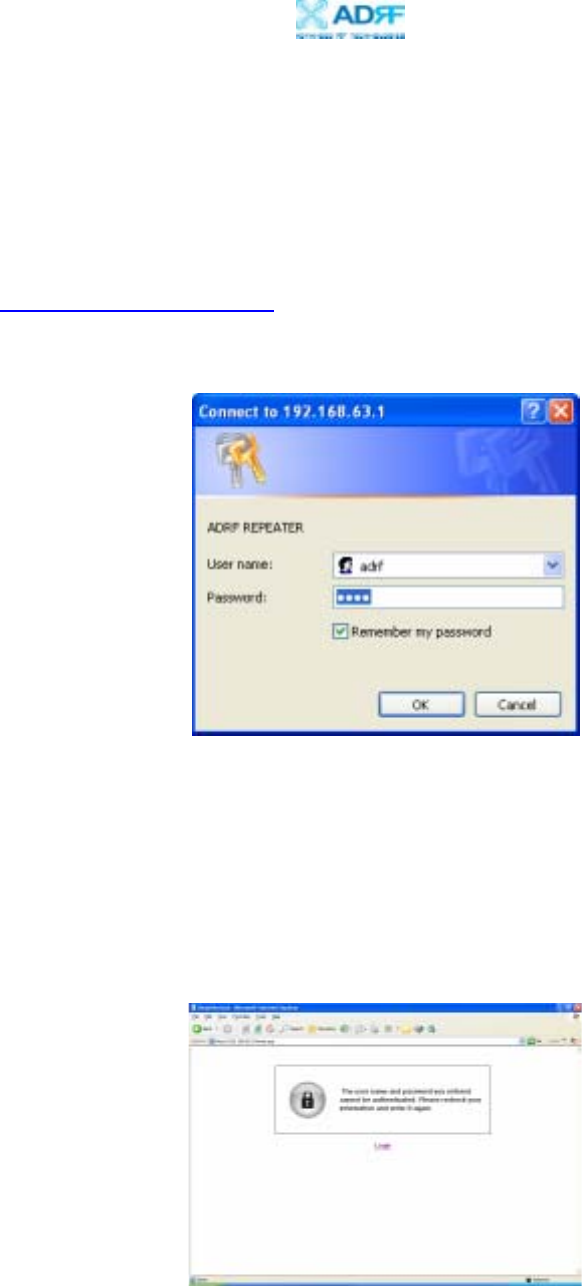

iv) The following login screen will appear:
If you are not the Super-User, please type in your assigned username & password
which you should have received from the Super-User.
The default username and password for the General User is adrf & adrf,
respectively.
If the username & password is typed in incorrectly, the following screen will
appear:
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 21 of 43
3.2 Repeater Status

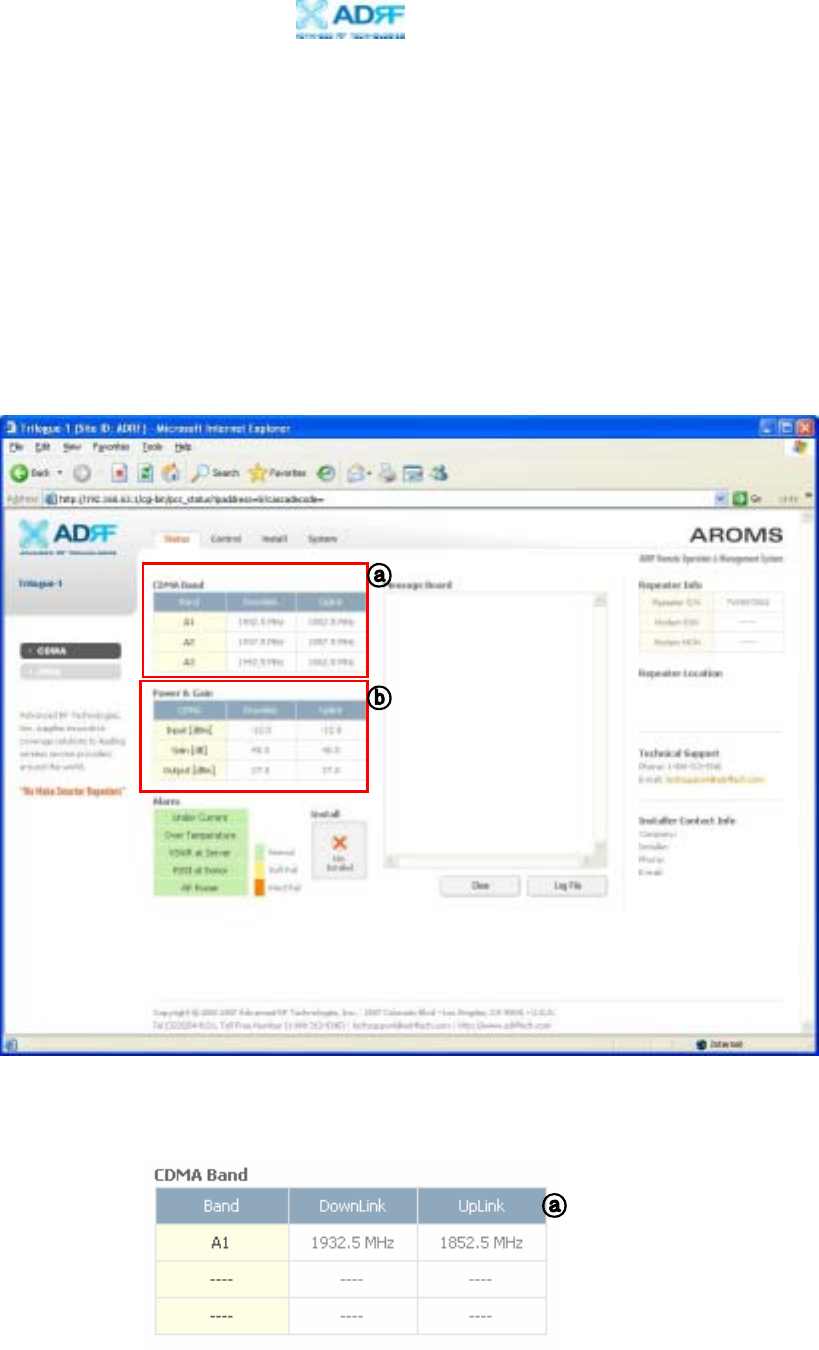

If you click on Status tab, the following window will appear:
In this window, the user can view the following:

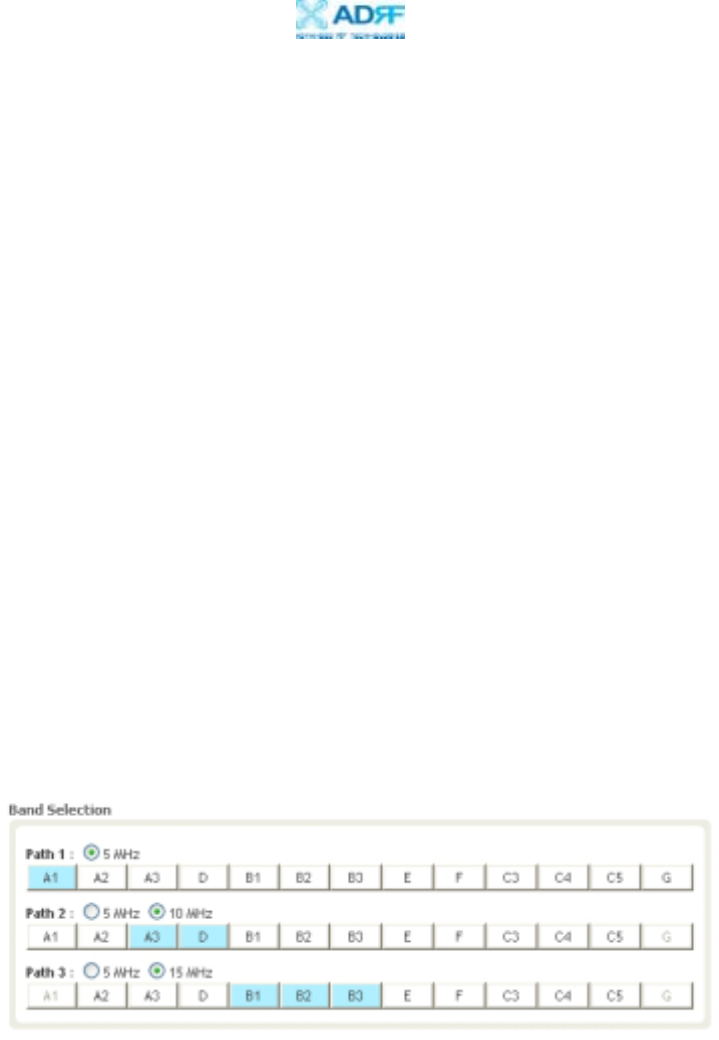

(To change any parameters, e.g., PCS Sub-Bands, Instantaneous Band Width,
Gain Settings, AGC Level, etc., you must go to the Install or the Control
window.)
By clicking the CDMA button, the user can check the status of the CDMA
subsystem. The CDMA button turns black and the iDEN button turns gray.
- CDMA Band: Will display the center frequencies of the 1900 MHz
spectrums on the downlink and uplink respectively.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 22 of 43
- Power & Gain(CDMA): Will display the repeater input, gain and output
power on the downlink and uplink.
Parameters Range Step Size
DL/UL Output Power -10 ~ 24 dBm 0.1 dB
DL/UL Input Power -12 ~ -97 dBm 0.1 dB
Gain 40 ~ 80 dB 0.5 dB
By clicking the iDEN button, the user can check the status of the iDEN subsystem.
The iDEN button turns black and the CDMA button turns gray.
Table 2 – The displayed value ranges on the CDMA status.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 23 of 43
- iDEN Band: Will display the center frequencies of the 800 and 900 MHz
spectrums on the downlink and uplink respectively.
- Power and Gain(iDEN): Will display the repeater input, gain and output
power on the downlink and uplink, except only uplink input.
Parameters Range Step Size
DL/UL Output Power -10 ~ 25 dBm 0.1 dB
DL Input Power -10~ -95 dBm 0.1 dB
Gain 40 ~ 65 dB 0.5 dB
- Alarm: Will display five alarms with three different status conditions (Normal,
Soft Fail or Hard Fail). ‘Under Current’, ‘Over Temperature’, and ‘VSWR at
Server’ are common alarms for Trilogue-1NM itself. But ‘RSSI at donor’ and
‘RF Power’ are respective alarms for iDEN and CDMA.
- Message Board (CDMA): Will show up to recent 20 log messages for
CDMA operation (alarms) & Heartbeats on the CDMA status window.
- Message Board (iDEN): Will show up to recent 20 log messages for iDEN
operation (alarms) & Heartbeats on the iDEN status window.
- Installation (CDMA): Will display CDMA repeater’s installation status (Not
Installed or Installed).
- Installation (iDEN): Will display iDEN repeater’s installation status (Not
Installed or Installed).
- Repeater Info: Will display the Trilogue-1NM’s serial number, and location
Table 3 – The displayed value ranges on the iDEN status
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 24 of 43
information (latitude and longitude coordinates).
- Repeater Location: Will display the address where the Trilogue-1NM is
installed.
- Technical Support: Will display ADRF’s technical support contact
information.
- Installer Contact Info: Will display the installer’s name, phone and e-mail
address.
Note: Once successfully logged in, the repeater model name and the site/cascade
ID will be displayed on the top of all the windows.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 25 of 43
3.3 Control

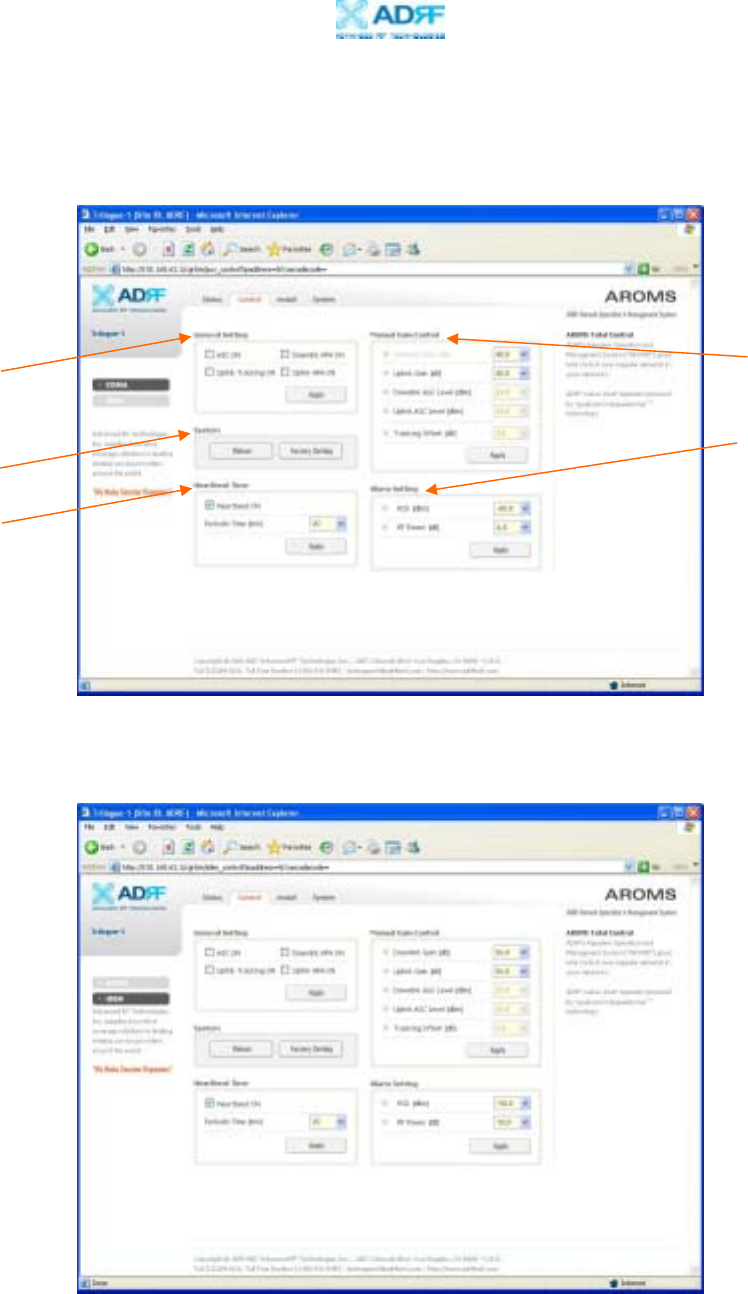

If you click on Control window at CDMA, the following window will appear:
If you click on Control window at iDEN, the following window will appear:
3.3.1 3.3.2
3.3.3
3.3.4
3.3.5
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 26 of 43
At these windows, the user can adjust the following parameters:
3.3.1 General Setting
CDMA
- Automatic Gain Control (Default mode is Off)
- Downlink HPA on/off (Default mode is On)
- Uplink HPA on/off (Default mode is On)
- Uplink Tracking Mode on/off (Default mode is Off)
iDEN
- Automatic Gain Control (Default mode is Off)
- Downlink HPA on/off (Default mode is On)
- Uplink HPA on/off (Default mode is On)
- Uplink Tracking Mode on/off (Default mode is Off)
3.3.2 Manual Gain Control
- Downlink Gain Control
CDMA: 40 to 80 dB @ 0.5 dB step
iDEN: 40 to 65 dB @ 0.5 dB step
- Uplink Gain Control
CDMA: 40 to 80 dB @ 0.5 dB step
iDEN: 40 to 65 dB @ 0.5 dB step
- Downlink AGC Level
CDMA: 0 to 24 dBm @ 0.5 dB step, default value: 24 dBm
iDEN: 15 to 25 dBm @ 0.5 dB step, default value: 25 dBm
- Uplink AGC Level
CDMA: 0 to 24 dBm @ 0.5 dB step, default value: 24 dBm
iDEN: 15 to 25 dBm @ 0.5 dB step, default value: 25 dBm
- Uplink Tracking Offset
CDMA: (0 to 10 dB @ 0.5 dB step, default value is 3 dB)
iDEN: (0 to 10 dB @ 0.5 dB step, default value is 3 dB)
3.3.3 System

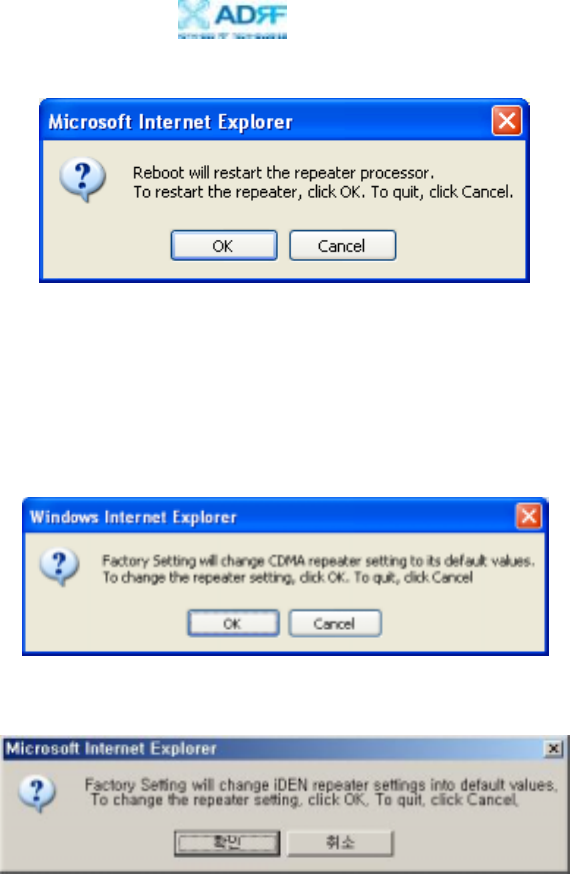

- If you click the Reboot button, the following message box will appear:
When the system reboots, the last settings for CDMA and iDEN will be saved.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 27 of 43
- If you click the Factory Setting buttons for CDMA and iDEN respectively,
the following message boxes will appear:
Factory setting will erase the saved settings by the user and change all the
parameters to the factory default settings.
When you click the CDMA Factory Setting;
When you click the iDEN Factory Setting;
3.3.4 Heartbeat Time
- Heartbeat on and off (Default mode is On)
- Heartbeat periodic time
(Range: 1 to 59 min @ 1 min step, default period is 20 min)
3.3.5 Alarm Setting
CDMA
- RSSI Alarm at Donor (-100 ~ -50 dBm @ 0.5 dB step,
default value is -85 dBm)
- RF Power Alarm (2 ~ 10 dB @ 0.5 dB step, default value is 6 dB)
iDEN
- RSSI Alarm at Donor (-95 ~ -50 dBm @ 0.5 dB step,
default value is -75 dBm)
- RF Power Alarm (2 ~ 10 dB @ 0.5 dB step, default value is 6 dB)
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 28 of 43

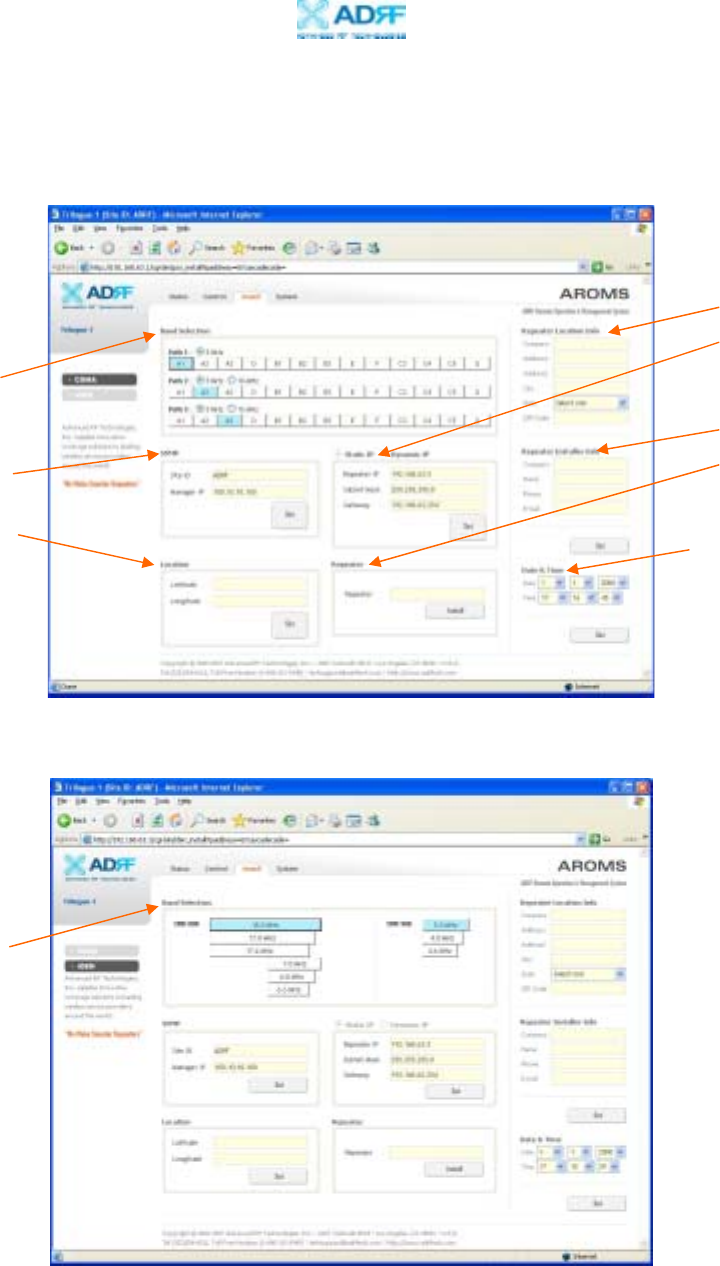

3.4 Install
If you click on the Install window for CDMA, the following window will appear:
If you click on the Install window for iDEN, the following window will appear:
3.4.1.1
3.4.1.2
3.4.2
3.4.3
3.4.4
3.4.6
3.4.7
3.4.5
3.4.8
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 29 of 43
3.4.1 Band Selection
Simply click on the desired operating bandwidth. The selected band will be
highlighted in blue. To deselect, click again on the undesired band. The
deselected band will turn back gray. Please see below Band Selection screen
shot.
3.4.1.1 CDMA Band Selection
The CDMA subsystem of the Trilogue-1NM has three (3) independent RF
paths:
Path 1 supports 5 MHz bandwidth;
Path 2 supports 5 or 10 MHz bandwidths; and
Path 3 supports 5 or 15 MHz bandwidths.
One can use only one Path (single band: Path 1, Path 2 or Path 3), any of the
two Paths (Two contiguous or non-contiguous sub-bands: Path 1 and Path 2,
Path 2 and Path 3, Path 1 and Path 3), or all three Paths (Three contiguous or
non-contiguous sub-bands: Path1, Path 2 and Path 3). Therefore, the
instantaneous bandwidths that the Trilogue-1NM support are 5, 10, 15, 20, 25
or 30 MHz.
The following Band Selection shows that A1 (5 MHz) is selected in Path 1,
A3+D (10 MHz) is selected in Path 2, and the entire B band (15 MHz) is
selected in Path 3. With this setting, Trilogue-1NM amplifies A1+A3+B
bands.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 30 of 43
3.4.1.2 iDEN Band Selection
The iDEN subsystem of the Trilogue-1NM covers dual bands (800 and 900
MHz paths) and can support rebanding via software.
Simply click the desired band. The selected band will be highlighted in blue.
See below iDEN Band Selection screen shot.
SMR 800: There are five (6) bandwidth options:
DOWN UP
18.0 MHz 851 ~ 869 806 ~ 824
17.8 MHz 851 ~ 868.8 806 ~ 823.8
17.6 MHz 851 ~ 868.6 851 ~ 823.6
7.0 MHz 862 ~ 869 817 ~ 824
6.8 MHz 862 ~ 868.8 817 ~ 823.8
6.6 MHz 862 ~ 868.6 817 ~ 823.6
SMR 900: There are three (3) bandwidth options:
DOWN UP
5.0 MHz 935 ~ 940 896 ~ 901
4.8 MHz 935 ~ 939.8 896 ~ 900.8
4.6 MHz 935 ~ 939.6 896 ~ 900.6
3.4.2 SNMP
Type in the assigned Site/Cascade ID and Manager IP Address.
Default Site ID is ADRF.
Default Manager IP address is 100.10.10.100
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 31 of 43
3.4.3 Location
Please type in the location information (Latitude & Longitude) where the
repeater is installed. If there are no location information with latitude and
longitude, any heartbeat will not be sent out to NOC (Network Operation
Center).
3.4.4 Static IP/ Dynamic IP
Will display the Repeater’s Static IP Address, Subnet Mask, and Gateway.
This information is necessary when using the Repeater in conjunction with the
External Modem Box (MBOX-DET1). Default values are:
Repeater IP: 192.168.63.5
Subnet Mask: 255.255.255.0
Gateway: 192.168.63.254
3.4.5 Repeater
There are two Repeater Install buttons for CDMA and iDEN, respectively.
Please click the Install button to automatically setup the repeater on both
Install windows.
It may take up to 3 minutes to complete the CDMA(or iDEN) install. You
will see a gradual progress bar display. After the process is completed, a pop-
up window will display “Installation Successfully Completed” message.
Click on Status window, the Installation box now changes from “Not
Installed” to “Installed.”
If the Trilogue-1NM detects a problem during the installation process, it will
show a prompt message, e.g., “Low RSSI.” Please follow the instructions and
address the problem to finish the installation process.
If the problem persists, please contact our technical support.
3.4.6 Repeater Location
Please type in the physical address where the repeater is installed.
3.4.7 Repeater Installer Info
Please type in the installer’s name, phone number and e-mail address for
technical support.
3.4.8 Date & Time
Sets the date and time for the internal clock (required for Log Messages)
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 32 of 43
3.5 System
If you click on the System window, the following window will appear:
Note: If you are the Super-User, you will see account management section under
the System Window. If you are a local user, you will not be able to see the
account management portion.

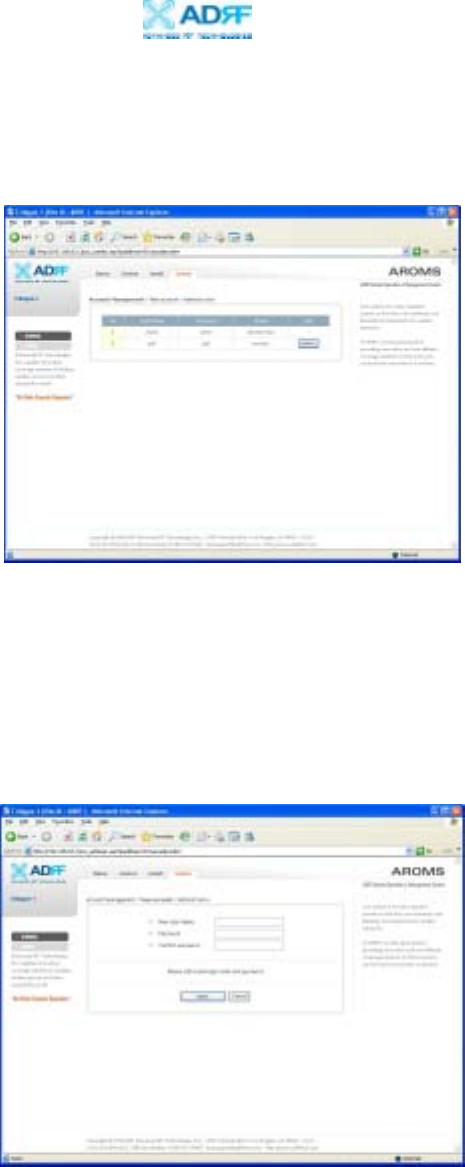

Super-User
Only the Super-User can add, delete and modify a user. The following window
illustrates how a new user can be added by simply clicking on New Account.
Administrator
The following window illustrates how a new administrator can be added by
simply clicking on Administrator.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 33 of 43

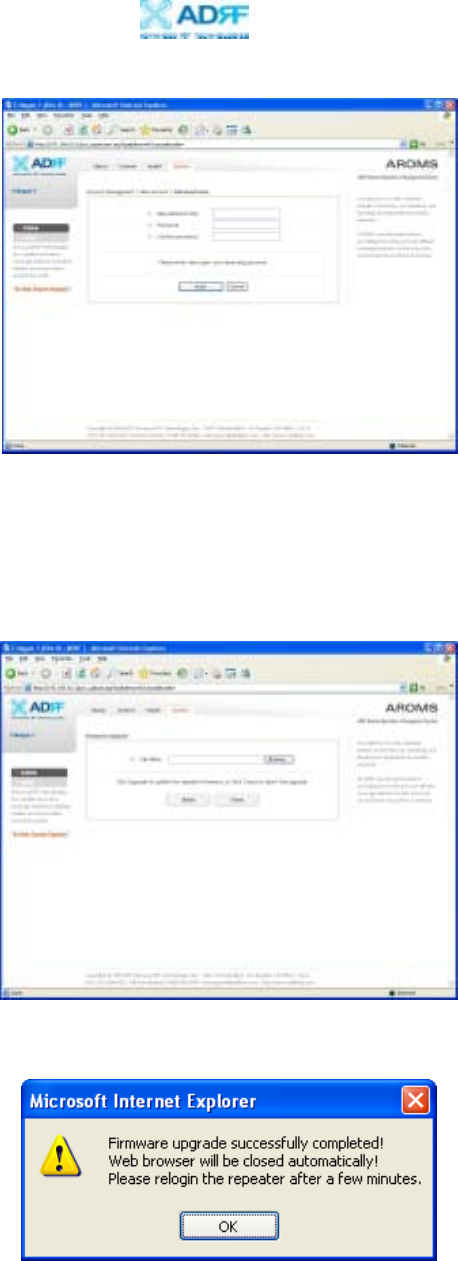

Firmware Upgrade
If you click on Firmware Upgrade, the following window will appear. You can
browse through your PC and locate the firmware file. Once it’s selected, simply
click on Update and it’ll upload the desired firmware automatically and close the
session. You will need to re-login again.
After the firmware update process in done, you will see the following pop-up
window.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 34 of 43
4. Maintenance Guide for Trilogue-1NM
4.1 Periodic Inspection Checklist
a. Check for loose connections between the repeater and antennas. If
connections are loose, make sure that all connections are tightly fastened
properly.
b. Cables and connectors are in good condition.
c. Ensure that the repeater brackets are in good condition and that the repeater
is securely fastened.
4.2 Preventive Measures for Optimal Operation
4.2.1 Recommendations
• Perform the Periodic Inspection Checklist quarterly or semiannually.
4.2.2 Precautions
• Do not operate the repeater with the antennas in extremely close proximity
to one another as this may cause damage to the repeater.
• Do not change the parameters unless instructed to do so by an authorized
supervisor.
• Do not move the repeater unless instructed to do so by an authorized
supervisor.
• Do not detach any cables to the repeater unless repair of respective
components is necessary.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 35 of 43
5. Warranty and Repair Policy
5.1 General Warranty
The Trilogue-1NM carries a Standard Warranty period of five (5) years unless
indicated otherwise on the package or in the acknowledgment of the purchase
order.
5.2 Limitations of Warranty
Your exclusive remedy for any defective product is limited to the repair or
replacement of the defective product. Advanced RF Technologies, Inc. may elect
which remedy or combination of remedies to provide in its sole discretion.
Advanced RF Technologies, Inc. shall have a reasonable time after determining
that a defective product exists to repair or replace the problem unit. Advanced RF
Technologies, Inc. warranty applies to repaired or replaced products for the
balance of the applicable period of the original warranty or ninety days from the
date of shipment of a repaired or replaced product, whichever is longer.
5.3 Limitation of Damages
The liability for any defective product shall in no event exceed the purchase price
for the defective product.
5.4 No Consequential Damages
Advanced RF Technologies, Inc. has no liability for general, consequential,
incidental or special damages.
5.5 Additional Limitation on Warranty
Advanced RF Technologies, Inc. standard warranty does not cover products
which have been received improperly packaged, altered, or physically damaged.
For example, broken warranty seal, labels exhibiting tampering, physically abused
enclosure, broken pins on connectors, any modifications made without Advanced
RF Technologies, Inc. authorization, will void all warranty.
5.6 Return Material Authorization (RMA)
No product may be returned directly to Advanced RF Technologies, Inc. without
first getting an approval from Advanced RF Technologies, Inc. If it is determined
that the product may be defective, you will be given an RMA number and
instructions in how to return the product. An unauthorized return, i.e., one for
which an RMA number has not been issued, will be returned to you at your
expense. Authorized returns are to be shipped to the address on the RMA in an
approved shipping container. You will be given our courier information. It is
suggested that the original box and packaging materials should be kept if an
occasion arises where a defective product needs to be shipped back to Advanced
RF Technologies, Inc. To request an RMA, please call (323) 254-8131 or send an
email to techsupport@adrftech.com.
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 36 of 43
Appendix A: Specifications
A.1 Electrical Specifications
Specifications
Parameters SMR800/900 PCS1900 Remarks
SMR800 851~869 MHz
Downlink SMR900 935~940 MHz
1930~1995 MHz
SMR800 806~824 MHz
Frequency
Range
Uplink SMR900 896~901 MHz
1850~1915 MHz
Frequency Error ≤ ±0.05 ppm ≤ ±0.05 ppm
Band Selection N/A 5/10 MHz+5/15 MHz
+5 MHz
Downlink 851~869 MHz Î 862~869 MHz
Band
Reconfiguration Uplink 806~824 MHz Î 817~824 MHz N/A
SMR800
Downlink Default: 869 MHz
Adjust: 868.8 MHz, 868.6 MHz
Adjustable band
edge SMR900
Downlink Default: 940 MHz
Adjust: 939.8 MHz, 939.6 MHz
N/A
Full band ≤ ±1.25 dB ≤ ±1.25 dB
Gain Flatness Each band ≤ ±1.25 dB ≤ ±1.25 dB
Maximum 65 dB 80 dB
Step 0.5 dB 0.5 dB
Range 25 dB 40 dB
Gain
Tolerance ≤ ±0.5 dB ≤ ±0.5 dB
Downlink 25 dBm 24 dBm
Output Uplink 25 dBm 24 dBm
Composite
power
≤ 20% @25 dB ALC
ALC
(SQE Degradation) ≤ 10% @15 dB ALC N/A
AGC Control Error N/A AGC ± 0.5 dB
Spurious emissions ≤ -15 dBm
OIP3 ≥ 45 dBm N/A
Inter modulation ≤ -105 dBm N/A
Roll offs > 65dBc @ 0.5 MHz outside
Passband > 50 dBc @ 1 MHz
outside passband
Delay ≤ 8 us ≤ 5 us
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 37 of 43
Noise Figure ≤ 8 dB @max gain ≤ 4.5 dB @max gain
VSWR ≤ 1.5:1 ≤ 1.5:1
Coupling for Modem 15 ± 2 dB
A.2 Mechanical Specifications
Parameters Specifications Remarks
Cabinet Wall Mounting
Casing Class IP 20 Minimum Indoor Type
Weight 72.75 lbs
Size 13.95 x 19.5 x 10.58 Inches
Color 7414B
Input/output N Female
Ethernet RJ45 Female
Connector
Type
Frame ground Hex Nut(M6)
Cooling Air Convection
Rack Mount Bracket 19” Provide an option
Plenum Option Plenum rated device Provide an option
A.3 Environmental Specifications
Parameters Specifications Remarks
Operating Temperature -10 ~ +50℃ Ambient
Relative humidity 5~90%, non-condensing
dust Industrial dust per Telcordia GR63 core
Cooling Method Convection Cooling (No fan)
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 38 of 43
A.4 Power Specifications
Parameters Specifications Remark
AC Power 100~130 VAC
AC Frequency 45~65 Hz
AC Supply Protection Fuse
DC Power Option -40 ~ -60 VDC or
+20 ~ 30 VDC Change Power
Supply Module
Power Consumption ≤ 205 W
Ground External threaded stud
A.5 Other Specifications
Parameters Specifications Remarks
MTBF > 100,000 hours
UL 60950
FCC CFR47 part 24
FCC CFR47 part 15
Certificates
FCC CFR47 part 90
Warranty 5 Years
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 39 of 43

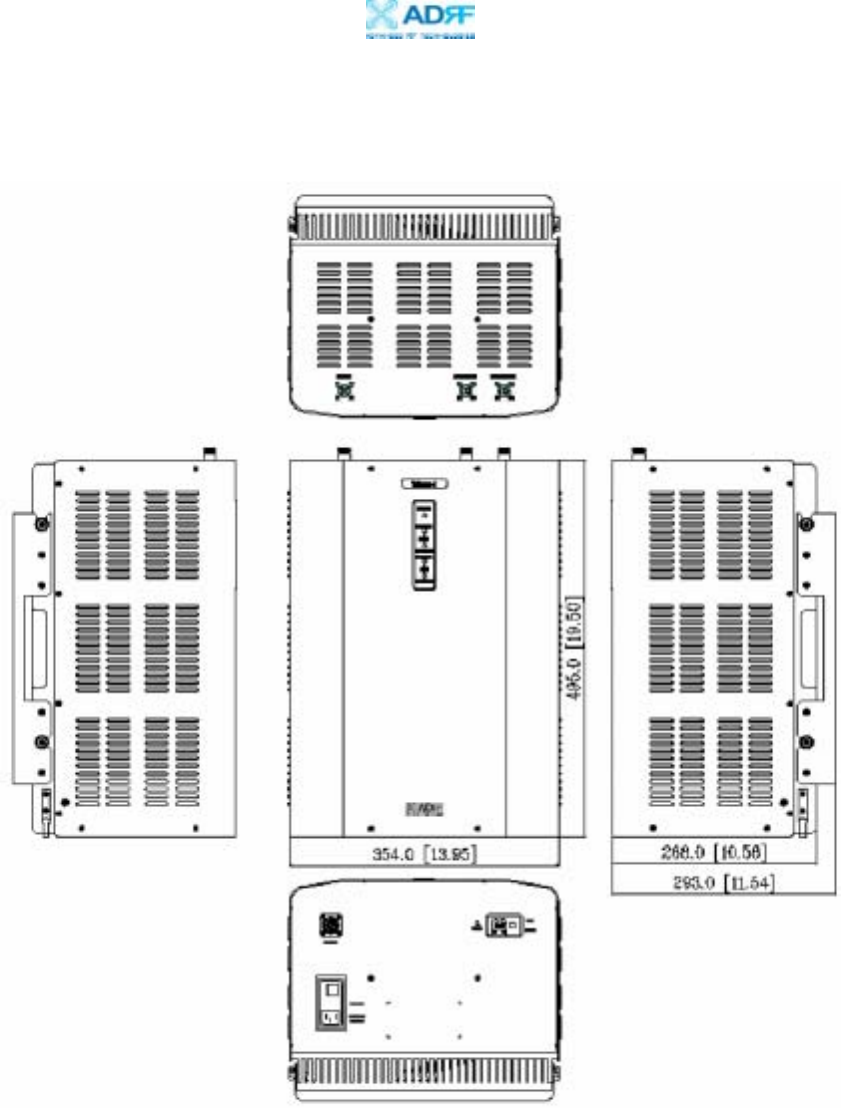

Appendix B: Mechanical Drawing
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 40 of 43

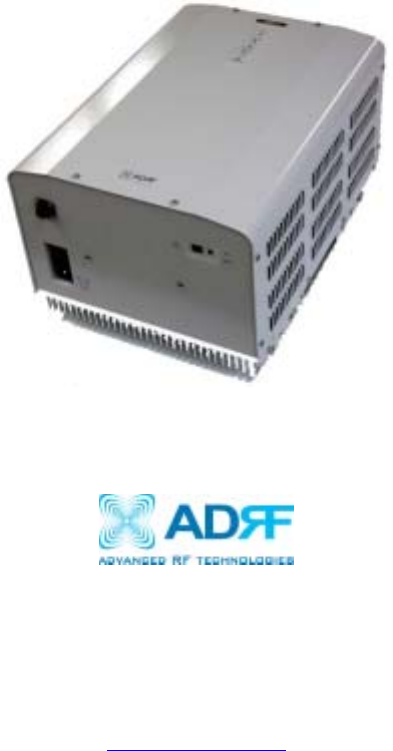

Appendix C: Trilogue-1NM Overview

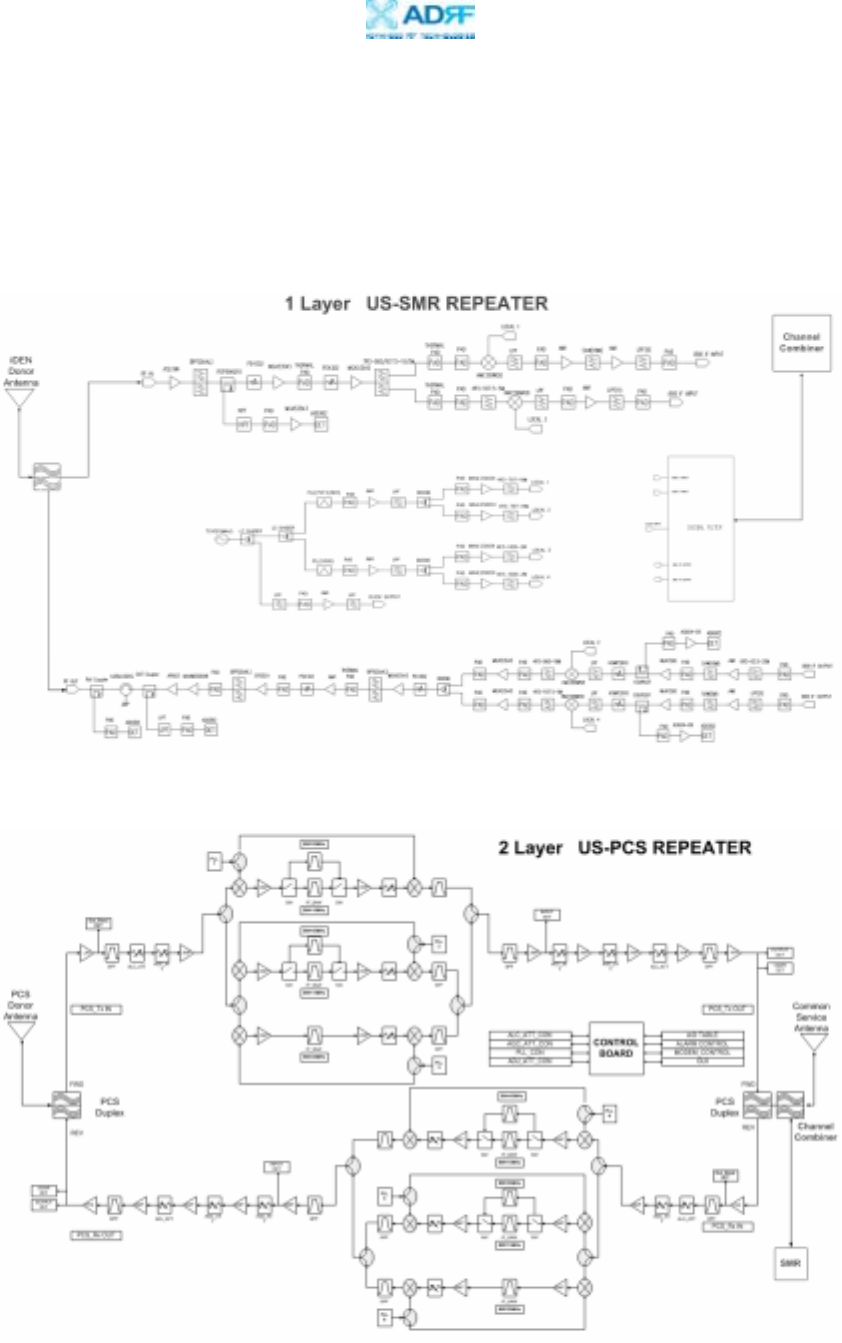

C.1 Block Diagram
- 1 Layer [iDEN] -
- 2 Layer [CDMA] -
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 41 of 43

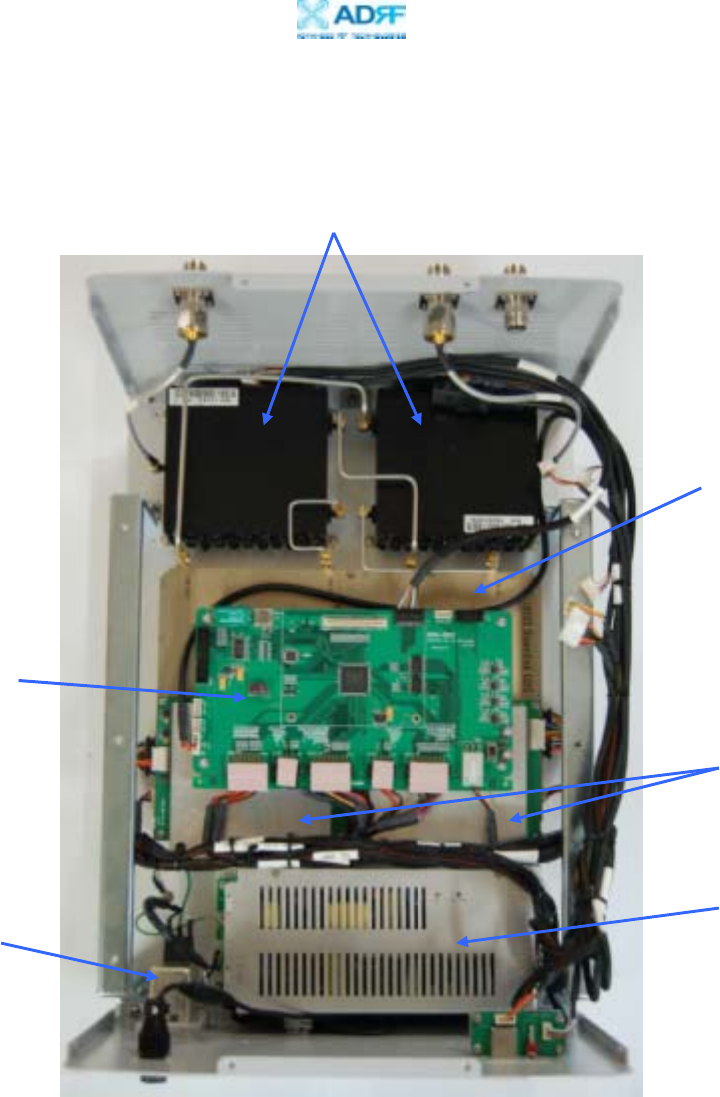

C.2 Components
- 1 Layer [iDEN] -
Quad plexer
Power Supply
UP/Down Converter
Digital Filter
Noise Filter
Controller
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 42 of 43
- 2 Layer [CDMA] -
Power port for modem box
CDMA Duplexer
Combiner
Controller
Server Port iDEN Donor Port CDMA Donor Port
DHCP Sub Board
UP/Down Converter
Downlink UDC
Uplink UDC
Adapter for modem box
Trilogue-1NM
User Manual V1.4
Advanced RF Technologies, Inc. Proprietary Document Page 43 of 43
Power Supply
It provides DC power to each module within the repeater.
Controller
It is responsible for monitoring the status of each module and controls the
parameters.
Down Converter Module
The downlink RF signal that enters through the cavity filter is converted to IF
frequency, which is later converted back to RF frequency through SAW filtering.
Up Converter Module
The uplink RF signal that enters through the cavity filter is converted to IF
frequency, which is later converted back to RF frequency through SAW filtering.
Duplexer
It consists of two BPFs (band-pass filters): PCS TX (1930 ~ 1995 MHz) & RX
(1850 ~ 1915 MHz)
HPA
It receives the output signal from the Up/Down converter module and amplifies
the signal to the repeater’s rated maximum power level.
Modem Box Adapter
Adapter for modem box
