1. Introduction
The Flex ECO radio remote control systems are designed for control of industrial
equipment and machinery such as overhead traveling cranes, jib cranes, gantry cranes, tower
cranes, electric hoists, winches, monorails, conveyor belts, mining equipment, and other
material handling equipment where wireless control is preferred.
Each Flex ECO system consists of a transmitter handset and a receiver unit. Other
standard-equipped accessories include transmitter lanyard, belt clip, clear vinyl pouch,
pushbutton labels, output cable, and instruction manual.
List of notable features include:
* 62 user-programmable channels – advanced synthesized RF controls with 62 built-in
programmable channels.
* Wireless remote pairing function – system pairing can be done easily and wirelessly.
* Over one million unique ID codes (20bit) – each and every Flex ECO system has its own
unique ID codes and serial number, never repeats.
* Advanced controls – the Flex ECO system utilizes advanced microprocessor controls with
32bit CRC and Hamming Code, which provide ultra fast, safe, precise, and error-free
encoding and decoding.
* Dual-way communication – transmitter and receiver communicates with one another for safe,
precise and uninterrupted operation.
* Reliable pushbuttons – the pushbuttons are rated for more than five million press cycles.
* Low power consumption – requires only two “AA” Alkaline batteries for more than 150
hours of operation between replacements.
* Ultra-durable nylon and fiberglass composite enclosures – highly resistance to breakage
and deformation even in the most abusive environments. The receiver enclosures and
output cables are UL94-V0 rated.
* Fully sealed enclosures – the transmitter and receiver enclosures are IP66 rated.
* Full compliance – all systems are fully complied with the FCC Part-15 Rules and European
Safety Standards.
* Other optional accessories and features – transmitter magnet mount, transmitter waist belt,
2 and 3-position rotary select switch, transmitter rubber guards, miniature indicator lights
and buzzer, dual-crane tandem function, multi-crane random access function, and many
others.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 5 of 36
2. Radio Controlled Safety
WARNINGS and CAUTIONS
Throughout this document WARNING and CAUTION statements have been deliberately placed to highlight items
critical to the protection of personnel and equipment.
WARNING – A warning highlights an essential operating or maintenance procedure, practice, etc. which if
not strictly observed, could result in injury or death of personnel, or long term physical hazards.
Warnings are highlighted as shown below:
WARNING
CAUTION – A caution highlights an essential operating or maintenance procedure, practice, etc. which if
not strictly observed, could result in damage to, or destruction of equipment, or loss of functional
effectiveness. Cautions are highlighted as shown below:
CAUTION
WARNINGS and CAUTIONS SHOULD NEVER BE DISREGARDED.
The safety rules in this section are not intended to replace any rules or regulations of any applicable local, state,
or federal governing organizations. Always follow your local lockout and tagout procedure when maintaining any
radio equipment. The following information is intended to be used in conjunction with other rules or regulations
already in existence. It is important to read all of the safety information contained in this section before installing
or operating the Radio Control System.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 6 of 36
2.1 CRITICAL INSTALLATION CONSIDERATIONS
WARNING
PRIOR TO INSTALLATION AND OPERATION OF THIS EQUIPMENT, READ AND DEVELOP AN
UNDERSTANDING OF THE CONTENTS OF THIS MANUAL AND THE OPERATION MANUAL OF THE
EQUIPMENT OR DEVICE TO WHICH THIS EQUIPMENT WILL BE INTERFACED. FAILURE TO FOLLOW
THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT.
ALL EQUIPMENT MUST HAVE A MAINLINE CONTACTOR INSTALLED AND ALL TRACKED CRANES,
HOISTS, LIFTING DEVICES AND SIMILAR EQUIPMENT MUST HAVE A BRAKE INSTALLED. FAILURE TO
FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT.
AN AUDIBLE AND/OR VISUAL WARNING MEANS MUST BE PROVIDED ON ALL REMOTE CONTROLLED
EQUIPMENT AS REQUIRED BY CODE, REGULATION, OR INDUSTRY STANDARD. THESE AUDIBLE
AND/OR VISUAL WARNING DEVICES MUST MEET ALL GOVERNMENTAL REQUIREMENTS. FAILURE TO
FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT.
FOLLOW YOUR LOCAL LOCKOUT TAGOUT PROCEDURE BEFORE MAINTAINING ANY REMOTE
CONTROLLED EQUIPMENT. ALWAYS REMOVE ALL ELECTRICAL POWER FROM THE CRANE, HOIST,
LIFTING DEVICE OR SIMILAR EQUIPMENT BEFORE ATTEMPTING ANY INSTALLATION PROCEDURES.
DE-ENERGIZE AND TAGOUT ALL SOURCES OF ELECTRICAL POWER BEFORE TOUCH-TESTING ANY
EQUIPMENT. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND
DAMAGE TO EQUIPMENT.
THE DIRECT OUTPUTS OF THIS PRODUCT ARE NOT DESIGNED TO INTERFACE DIRECTLY TO TWO
STATE SAFETY CRITICAL MAINTAINED FUNCTIONS, I.E., MAGNETS, VACUUM LIFTS, PUMPS,
EMERGENCY EQUIPMENT, ETC. A MECHANICALLY LOCKING INTERMEDIATE RELAY SYSTEM WITH
SEPARATE POWER CONSIDERATIONS MUST BE PROVIDED. FAILURE TO FOLLOW THIS WARNING
COULD RESULT IN SERIOUS INJURY OR DEATH OR DAMAGE TO EQUIPMENT.
2.2 GENERAL
Radio controlled material handling equipment operates in several directions. Cranes, hoists, lifting devices and
other material handling equipment can be large, and operate at high speeds. Quite frequently, the equipment is
operated in areas where people are working in close proximity to the material handling equipment. The operator
must exercise extreme caution at all times. Workers must constantly be alert to avoid accidents. The following
recommendations have been included to indicate how careful and thoughtful actions may prevent injuries,
damage to equipment, or even save a life.
2.3 PERSONS AUTHORIZED TO OPERATE RADIO
CONTROLLED CRANES
Only properly trained persons designated by management should be permitted to operate radio controlled
equipment.
Radio controlled cranes, hoists, lifting devices and other material handling equipment should not be operated by
any person who cannot read or understand signs, notices and operating instructions that pertain to the equipment.
Radio controlled equipment should not be operated by any person with insufficient eyesight or hearing or by any
person who may be suffering from a disorder or illness, is taking any medication that may cause loss of
equipment control, or is under the influence of alcohol or drugs.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 7 of 36
2.4 SAFETY INFORMATION AND RECOMMENDED TRAINING
FOR RADIO CONTROLLED EQUIPMENT OPERATORS
Anyone being trained to operate radio controlled equipment should possess as a minimum the following
knowledge and skills before using the radio controlled equipment.
The operator should:
have knowledge of hazards pertaining to equipment operation
have knowledge of safety rules for radio controlled equipment
have the ability to judge distance of moving objects
know how to properly test prior to operation
be trained in the safe operation of the radio transmitter as it pertains to the crane, hoist, lifting device or
other material handling equipment being operated
have knowledge of the use of equipment warning lights and alarms
have knowledge of the proper storage space for a radio control transmitter when not in use
be trained in transferring a radio control transmitter to another person
be trained how and when to report unsafe or unusual operating conditions
test the transmitter emergency stop and all warning devices prior to operation; testing should be done on
each shift, without a load
be thoroughly trained and knowledgeable in proper and safe operation of the crane, hoist, lifting device, or
other material handling equipment that utilizes the radio control
know how to keep the operator and other people clear of lifted loads and to avoid “pinch” points
continuously watch and monitor status of lifted loads
know and follow cable and hook inspection procedures
know and follow the local lockout and tagout procedures when servicing radio controlled equipment
know and follow all applicable operating and maintenance manuals, safety procedures, regulatory
requirements, and industry standards and codes
The operator shall not:
lift or move more than the rated load
operate the material handling equipment if the direction of travel or function engaged does not agree
with what is indicated on the controller
use the crane, hoist or lifting device to lift, support or transport people
lift or carry any loads over people
operate the crane, hoist or lifting device unless all persons, including the operator, are and remain clear
of the supported load and any potential pinch points
operate a crane, hoist or lifting device when the device is not centered over the load
operate a crane, hoist or lifting device if the chain or wire rope is not seated properly in the sprockets,
drum or sheave
operate any damaged or malfunctioning crane, hoist, lifting device or other material handling equipment
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 8 of 36
change any settings or controls without authorization and proper training
remove or obscure any warning or safety labels or tags
leave any load unattended while lifted
leave power on the radio controlled equipment when the equipment is not in operation
operate any material handling equipment using a damaged controller because the unit may be unsafe
operate manual motions with other than manual power
operate radio controlled equipment when low battery indicator is on
WARNING
THE OPERATOR SHOULD NOT ATTEMPT TO REPAIR ANY RADIO CONTROLLER. IF ANY PRODUCT
PERFORMANCE OR SAFETY CONCERNS ARE OBSERVED, THE EQUIPMENT SHOULD IMMEDIATELY BE
TAKEN OUT OF SERVICE AND BE REPORTED TO THE SUPERVISOR. DAMAGED AND INOPERABLE
RADIO CONTROLLER EQUIPMENT SHOULD BE RETURNED TO MAGNETEK FOR EVALUATION AND
REPAIR. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND
DAMAGE TO EQUIPMENT.
2.5 TRANSMITTER UNIT
Transmitter switches should never be mechanically blocked ON or OFF. When not in use, the operator should
turn the transmitter OFF. A secure storage space should be provided for the transmitter unit, and the transmitter
unit should always be placed there when not in use. This precaution will help prevent unauthorized people from
operating the material handling equipment.
Spare transmitters should be stored in a secure storage space and only removed from the storage space after the
current transmitter in use has been turned OFF, taken out of the service area and secured.
2.6 PRE-OPERATION TEST
At the start of each work shift, or when a new operator takes control of the crane, operators should do, as
a minimum, the following steps before making lifts with any crane or hoist:
Test all warning devices.
Test all direction and speed controls.
Test the transmitter emergency stop.
2.7 BATTERIES
WARNING
KNOW AND FOLLOW PROPER BATTERY HANDLING, CHARGING AND DISPOSAL PROCEDURES.
IMPROPER BATTERY PROCEDURES CAN CAUSE BATTERIES TO EXPLODE OR DO OTHER SERIOUS
DAMAGE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND
DAMAGE TO EQUIPMENT.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 9 of 36
3. General System Information
3.1 Transmitter
3.1.1 External Illustration

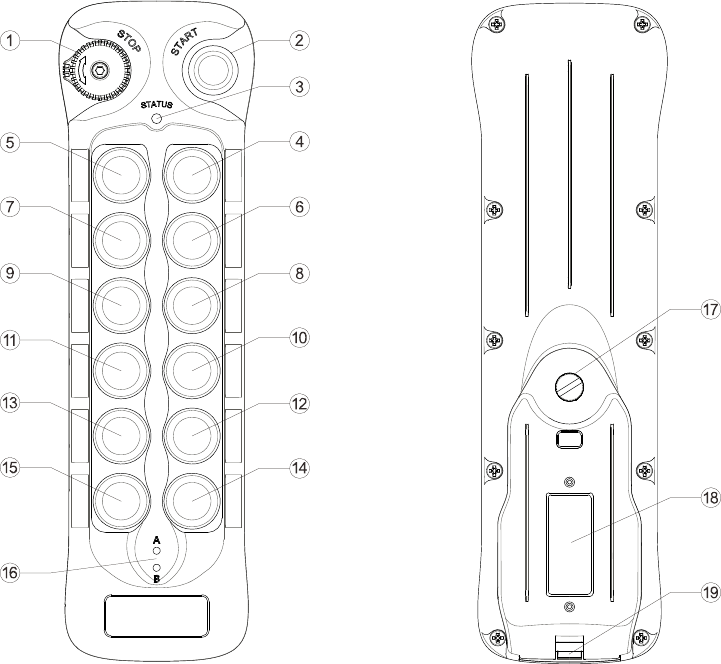

1. STOP Button 11. Pushbutton 8 (PB8)
2. START Button 12. Pushbutton 9 (PB9)
3. Status LED Indicator 13. Pushbutton 10 (PB10)
4. Pushbutton 1 (PB1) 14. Pushbutton 11 (PB11)
5. Pushbutton 2 (PB2) 15. Pushbutton 12 (PB12)
6. Pushbutton 3 (PB3) 16. A/B LED Indicators
7. Pushbutton 4 (PB4) 17. Battery Cover Screw
8. Pushbutton 5 (PB5) 18. System Information
9. Pushbutton 6 (PB6) 19. Lanyard and Waist Belt
10. Pushbutton 7 (PB7) Attachment
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 10 of 36

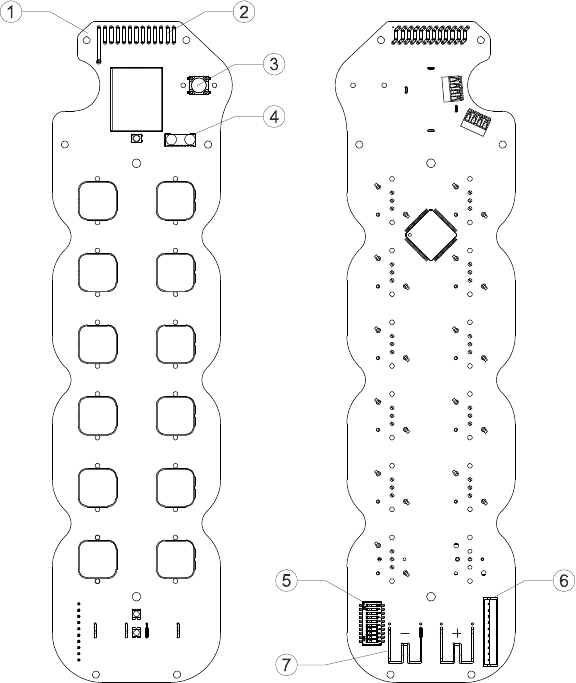

3.1.2 Internal Illustration
1. RF/Encoder Board 5. Function Dipswitch
2. Antenna 6. Programming Port
3. START Button 7. Battery Contacts
4. Infrared Sensors
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 11 of 36
3.2 Receiver
3.2.1 External Illustration

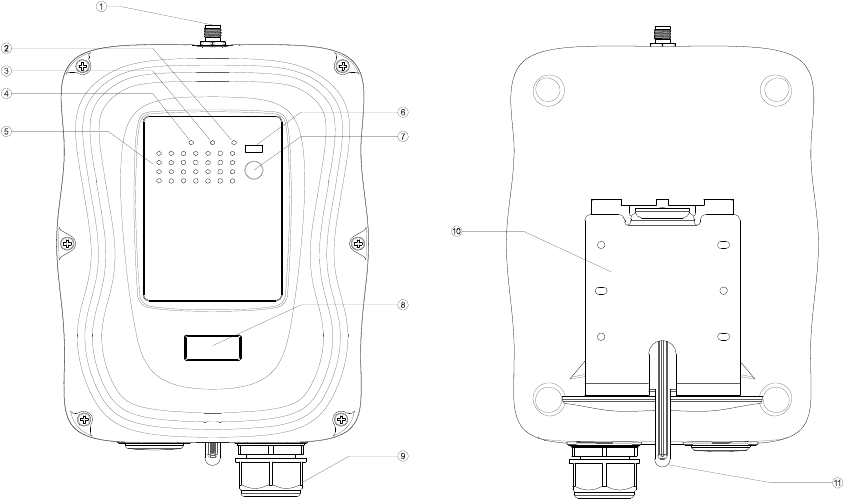

1. External Antenna Port (optional) 7. Remote Pairing Button
2. COM LED Indicator 8. System Information
3. Status LED Indicator 9. Cord Grip
4. Power LED Indicator 10. Mounting Bracket
5. Output Relay LED Indicators 11. Mounting Bracket Release
6. Infrared Sensor
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 12 of 36
3.2.2 Internal Illustration

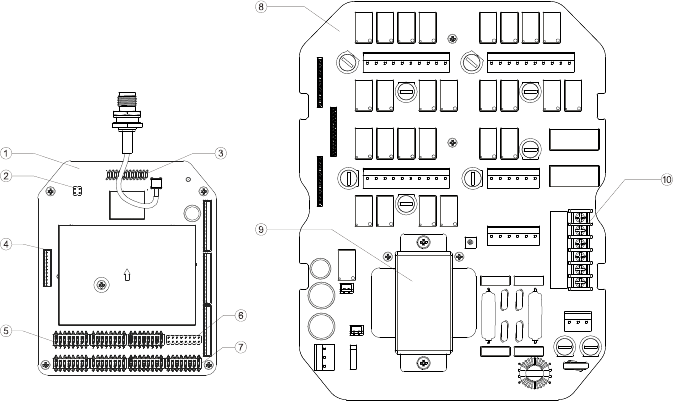

1. RF/Decoder Board 6. Function Jumpers
2. INT/EXT Antenna Jumpers 7. Channel Dipswitch
3. Internal Antenna 8. AC Line Filter/Relay Board
4. Programming Port 9. Power Transformer
5. Function Dipswitches 10. Voltage Selector
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 13 of 36
4. Function Settings
4.1 Transmitter
4.1.1 Enter Function Setting Mode

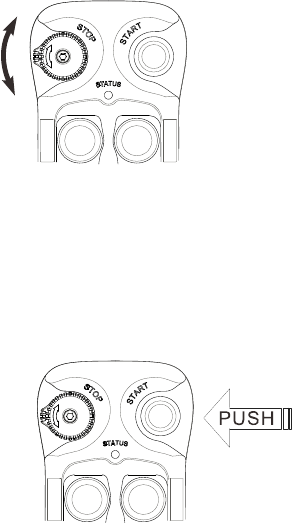

1) Press down the STOP button.
2) Open the battery cover.
3) Set dip position #10 to “1” or ON position.
4) Reset the STOP button (transmitter power on).
5) Entered Function Setting Mode.
6) Status LED displays firmware version.
4.1.2 Channel Settings
1) After entering the Function Setting Mode (refer to section
4.1.1 Enter Function Setting Mode).
2) Press and hold PB3 for up to 1 second to enter the
Channel Setting Mode (Status LED blinks orange).
3) Release PB3 (Status LED displays current channel). A
green blink represents the tens (+10) and a red blink
represents the units (+1). For example, 1 green blink
followed by 5 red blinks is channel 15.
4) Press PB1 to increment the units (+1) and PB2 to
increment the tens (+10). For example, press PB2 two
times and then PB1 four times is channel 24. When finished the transmitter Status
LED will display the newly selected channel.
5) Transfer the newly selected transmitter channel to the receiver by press and hold
PB3 for up to 10 seconds or until the Status LED turns off; the transferring process
is completed. Make sure the receiver power is turned on during the entire process.
Skip step 5 if changing receiver channel is not required or needed.
6) Exit Function Setting Mode by pressing down the STOP button and set the dip
position #10 back to “0” or OFF position.
7) Reset the STOP button and then press the START button to resume operation.
Note : When selecting a new channel make sure each button press do not exceed 3 seconds.
Important Note:
Step 5 illustrated above is strictly required if you are changing the entire system channel (both
transmitter and receiver). If you exit the Channel Setting Mode without pressing PB3 for up to
10 seconds to transfer the newly selected channel to the receiver then the system channel will
no longer match (new transmitter channel vs. old receiver channel). In this case you would
have to change the newly selected transmitter channel back to its previous setting by reentering
the Function Setting Mode and then press and hold PB1 and PB3 at the same time for up to 2
seconds; this will reset the newly selected transmitter channel back to its previous setting. Or
perform section 4.1.3 Receiver-to-Transmitter Pairing process; this will transfer the receiver
channel to the transmitter. Then repeat the channel setting process if you would like to select a
new channel.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 14 of 36

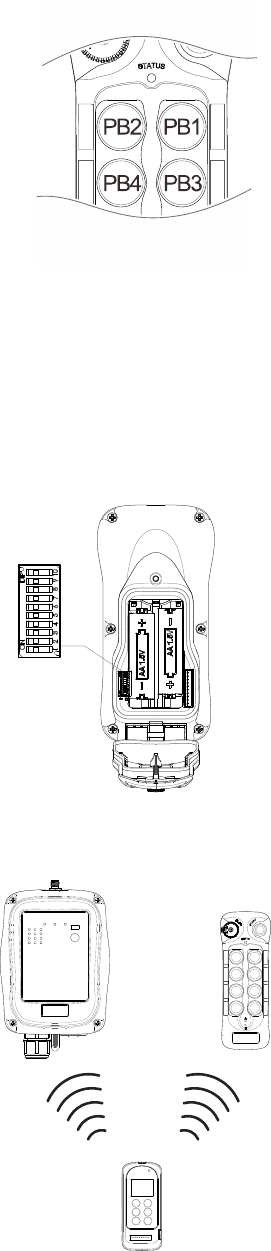

4.1.3 Remote Pairing

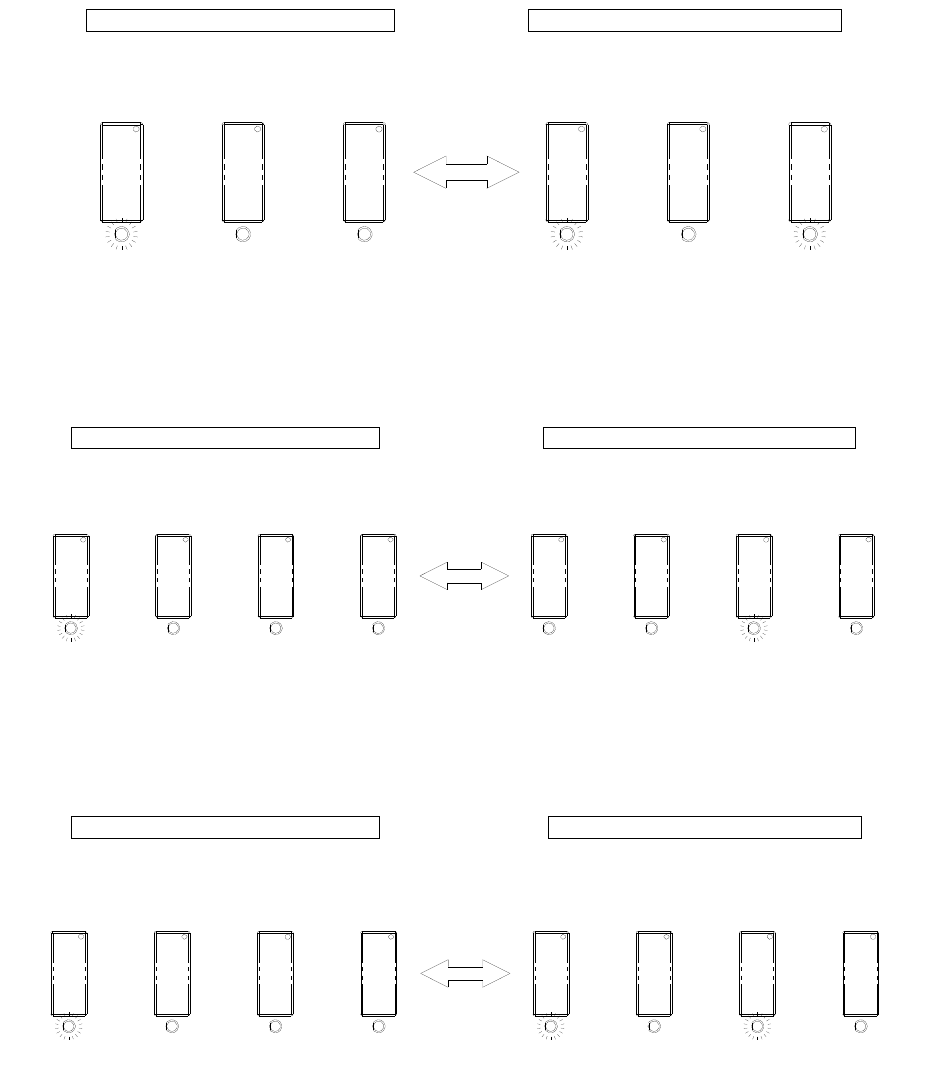

A. Transmitter-to-Transmitter Pairing:
1) After entering the Function Setting Mode (refer to
section 4.1.1 Enter Function Setting Mode).
2) Press and hold both PB3 and PB4 for up to 1
second (Status LED blinks orange).
3) Release PB3 and PB4 (Status LED turns off).
4) Entered Remote Pairing Mode.
5) Output data (original transmitter) by press and hold
PB3 (Status LED blinks green).
6) Receive data (new transmitter) by press and hold
PB4 (Status LED blinks green).
7) When the Status LED (receiving data end) turns to constant green while both
pushbuttons are still pressed down the pairing is completed.
8) Exit Function Setting Mode by pressing down the STOP button and set the dip
position #10 back to “0” or OFF position.
9) Reset the STOP button and then press the START button to resume operation.
→
Output data – original transmitter Receive data – new transmitter
(press and hold PB3) (press and hold PB4)
B. Receiver-to-Transmitter Pairing:
JP8 Open Method: After entering the Remote Pairing Mode, output receiver data by press
and hold the Pairing button located on the receiver cover and receive data by press and hold
PB4 on the transmitter, both at the same time. When the transmitter Status LED turns to
constant green while both pushbuttons are still pressed down the pairing is completed.
→ →
Set JP8 to “Open” Output data - receiver Receiving data – transmitter
(Press and hold the Pairing button) (Press and hold PB4)
JP8 Short Method (wireless pairing): After entering the Remote Pairing Mode, press PB1 on
the transmitter one time and then press and hold PB3 for up to 6 seconds. The Status LED blinks
green when PB3 is pressed. Release PB3 when Status LED turns off the pairing is completed.
Make sure the pairing process is executed within a distance of 10 meters from one another.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 15 of 36
4.1.4 Start Function Settings
When transmitter goes into sleep mode (MAIN relays deactivated) press the START button or
any pushbutton to wake up the system (MAIN relays reactivated).
1) After entering the Function Setting Mode (refer to
section 4.1.1 Enter Function Setting Mode).
2) Press PB4 for up to 1 second (Status LED orange).
3) Release PB4 (Status LED with 1 or 2 red blinks).
4) Entered Start Function Mode.
5) Press PB1 to toggle between “START” button and
“ANY” pushbutton reactivation.
* START button reactivation → 2 red blinks
* ANY pushbutton reactivation → 1 red blink.
6) Exit Function Setting Mode by pressing down the
STOP button and set the dip position #10 back to “0” or OFF position.
7) Reset the STOP button and then press the START button to resume operation.
Note : When selecting a new setting make sure each button press do not exceed 3 seconds.
4.1.5 Inactivity Timer Settings
Set how long the system enters the sleep mode after
transmitter inactivity (pushbutton not pressed).

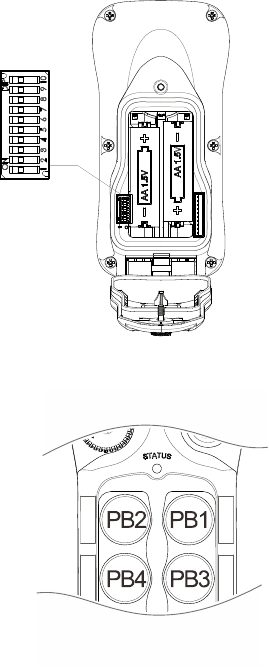

1) Press down the STOP button.
2) Open the battery cover.
3) Set dip position #9 to “0” or OFF for 1 minute.
4) Set dip position #9 to “1” or ON for 3 minutes.
5) Please contact ARC representative if your
application requires a different timer value other
than 1 and 3 minutes.
4.1.6 Infrared Programming
Functions not listed in this manual can be programmed via
the infrared programmer unit, such as the system serial
number, system channel, transmitter output power,
Function output relay settings, etc… Please contact ARC
representative in your country for more details.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 16 of 36
4.1.7 Pushbutton Function Settings

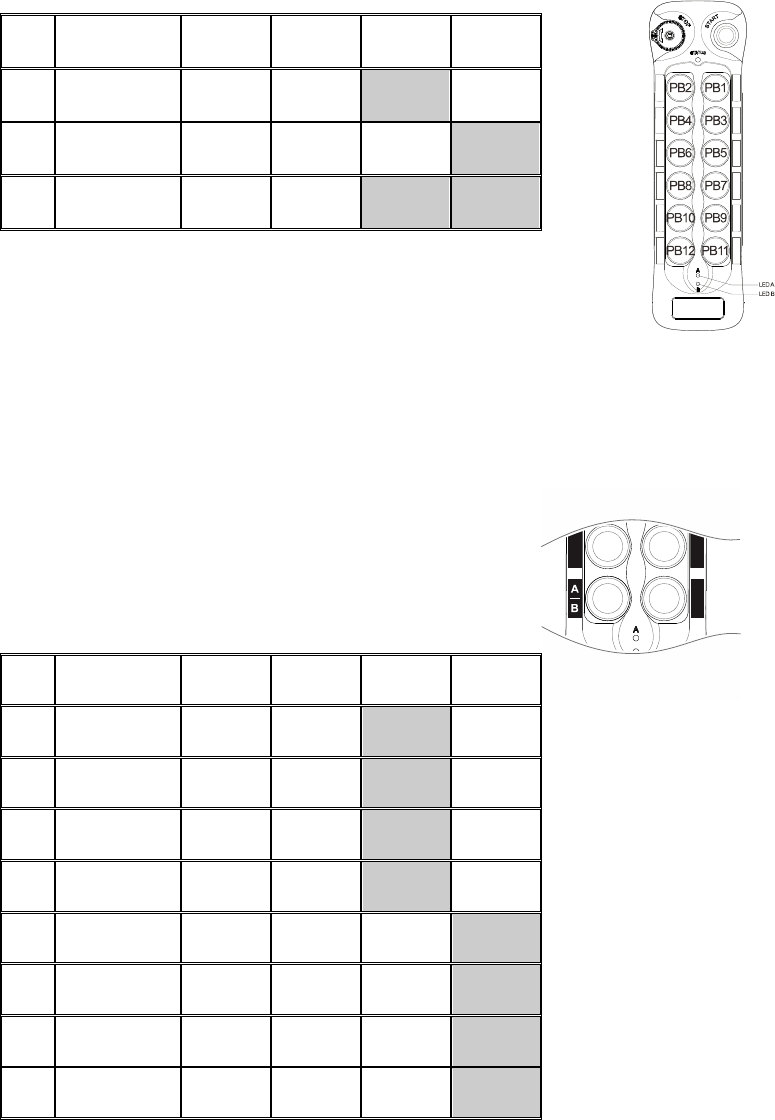

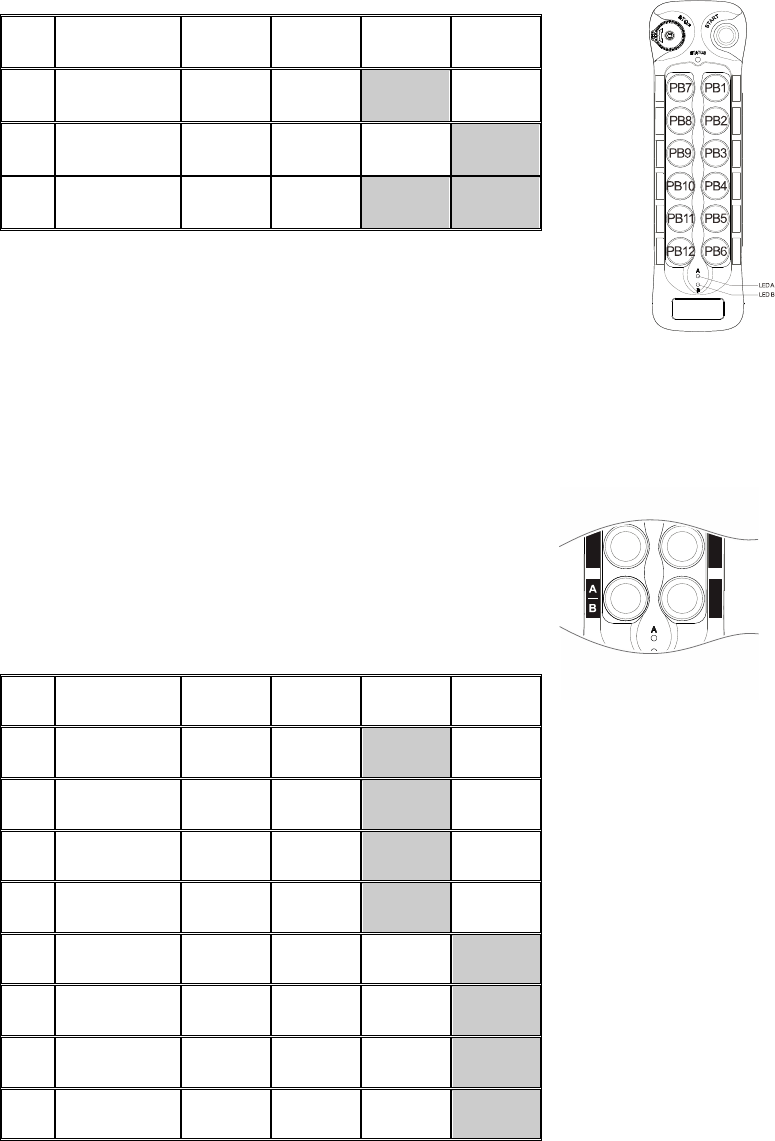

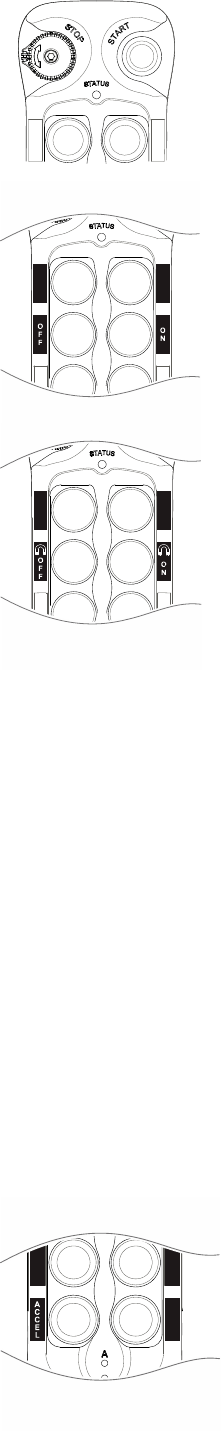

4.1.7.1 Toggled Pushbutton with LED Indication – Standard Right/Left
Pushbutton Configuration
Set pushbutton toggled function (latching output relay) by configuring the 10-position
function dipswitch located inside the battery compartment. The “LED A” and “LED B”
shown inside the shaded boxes illustrates which LED on the transmitter will light up
when the designated pushbutton is pressed (PB11 & PB12).
* PB9…PB12 → Pushbutton number.
* Normal → Normal momentary contact.
* LED A & LED B → Pushbutton toggled function with designated LED indication.

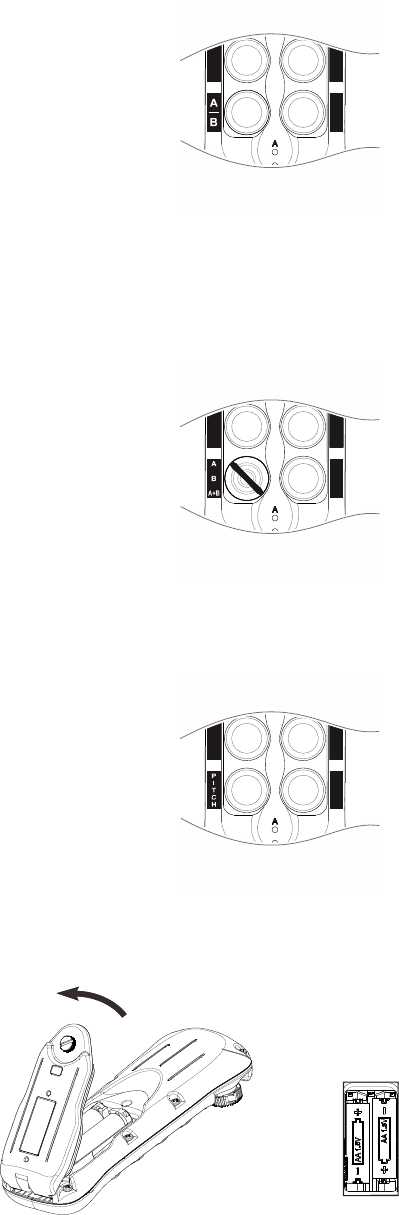

4.1.7.2 A/B Pushbutton Select with LED Indication – Standard Right/
Left Pushbutton Configuration
There are 4 different types of A/B selector sequence available. Choose one that is
most suitable for your application. Refer to section 5.1 output relay connections.
Type-A selector sequence : A → B
Type-B selector sequence : Off → A → B
Type-C selector sequence : A → B → A+B
Type-D selector sequence : Off → A → B → A+B
DIP PB9 PB10 PB11 PB12
1 0001101000 Normal Normal A/1&2 Normal
2 0001101100 Normal Normal B/1&2 Normal
3 0001110000 Normal Normal C/1&2 Normal
4 0001110100 Normal Normal D/1&2 Normal
5 0001111000 Normal Normal Normal A/1&2
6 0001111100 Normal Normal Normal B/1&2
7 0010000000 Normal Normal Normal C/1&2
8 0010000100 Normal Normal Normal D/1&2
* PB9…PB12 → Pushbutton number.
* Normal → Normal momentary contact.
* A/1&2 ~ D/1&2 → A/B pushbutton select function with designated LED indication.
DIP PB9 PB10 PB11 PB12
1 0000011100 Normal Normal LED A Normal
2 0000100000 Normal Normal Normal LED B
3 0000100100 Normal Normal LED A LED B
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 17 of 36
4.1.7.3 Toggled Pushbutton with LED Indication – Inline Top/Bottom
Pushbutton Configuration
Set pushbutton toggled function (latching output relay) by configuring the 10-position
function dipswitch located inside the battery compartment. The “LED A” and “LED B”
shown inside the shaded box illustrates which LED on the transmitter will light up
when the designated pushbutton is pressed (PB11 & PB12). Refer to section 4.2.4
JP4/JP5 inline jumper settings.
* PB9…PB12 → Pushbutton number.
* Normal → Normal momentary contact.
* LED A & LED B → Pushbutton toggled function with designated LED indication.
4.1.7.4 A/B Pushbutton Select with LED Indication – Inline Top/Bottom
Pushbutton Configuration
There are 4 different types of A/B selector sequence available. Choose one that is
most suitable for your application. Refer to section 4.2.4 JP4/JP5 inline jumper
settings and section 5.1 output relay connections.
Type-A selector sequence : A → B
Type-B selector sequence : Off → A → B
Type-C selector sequence : A → B → A+B
Type-D selector sequence : Off → A → B → A+B
DIP PB9 PB10 PB11 PB12
1 1010010000 Normal Normal A/1&2 Normal
2 1010010100 Normal Normal B/1&2 Normal
3 1010011000 Normal Normal C/1&2 Normal
4 1010011100 Normal Normal D/1&2 Normal
5 0001111000 Normal Normal Normal A/1&2
6 0001111100 Normal Normal Normal B/1&2
7 0010000000 Normal Normal Normal C/1&2
8 0010000100 Normal Normal Normal D/1&2
* PB9…PB12 → Pushbutton number.
* Normal → Normal momentary contact.
* A/1&2 ~ D/1&2 → A/B pushbutton select function with designated LED indication.
DIP PB9 PB10 PB11 PB12
1 1001101000 Normal Normal LED A Normal
2 0000100000 Normal Normal Normal LED B
3 1001101100 Normal Normal LED A LED B
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 18 of 36
71 423 56 8
4.2 Receiver
4.2.1 Channel Settings
Set the receiver channel by configuring the channel
dipswitch located on the RF/decoder board, only the first 6
dip positions are used for channel programming. The
system channels table on section 4.2.7 illustrates which
dipswitch setting corresponds to which channel. Once the
receiver channel is altered do make sure to change the
transmitter channel as well. The channel on both transmitter
and receiver must be identical in order for the system to
work (refer to section 4.1.2 Transmitter Channel Settings).
Example:
Top position → “1”
Bottom position → “0”
The above dipswitch setting “1 0 0 1 0 0” corresponds to “channel 36” in the system channels table
on section 4.2.7.
4.2.2 Output Relay Configurations
4.2.2.1 Output Relay Types

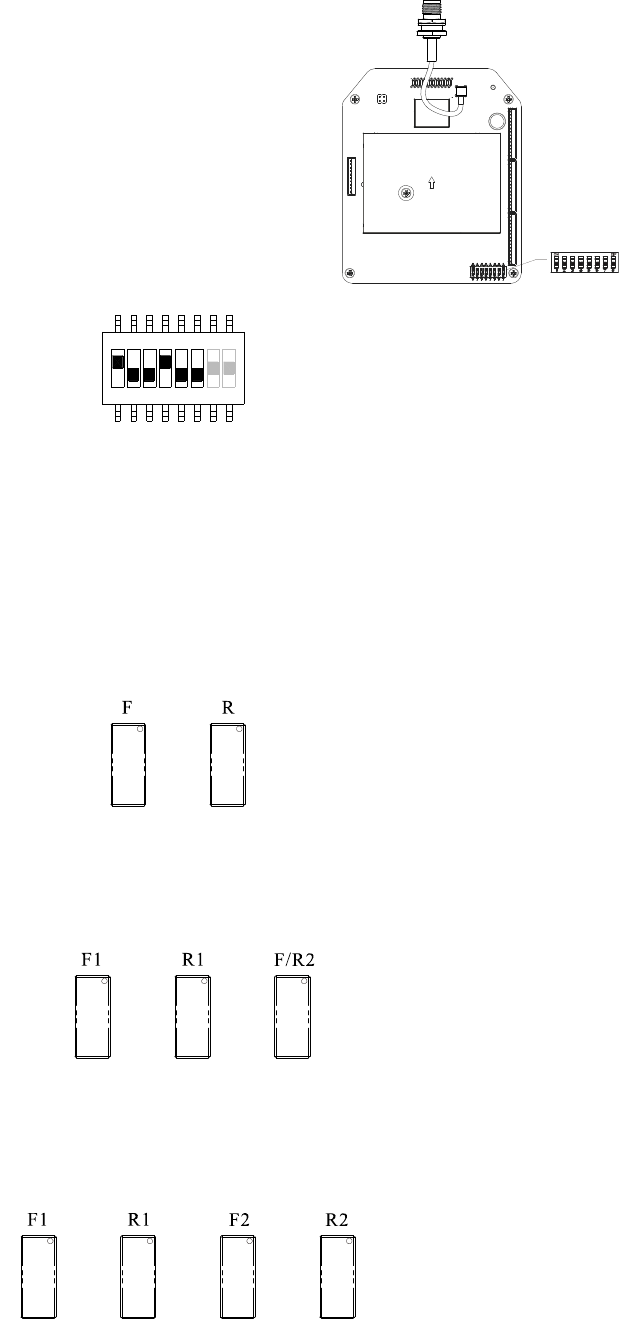

1. 2 output relays per motion – single speed only
Output relays with Forward (F) and Reverse (R) speed.
2. 3 output relays per motion – shared 2nd speed output relay
Output relays with Forward 1st speed (F1), Reverse 1st speed (R1) and
Forward/Reverse 2nd speed (F/R2). Forward and Reverse 2nd speed (F/R2)
shared the same output relay.
3. 4 output relays per motion – separate 1st and 2nd speed output relays
Output relays with Forward 1st speed (F1), Reverse 1st speed (R1), Forward
2nd speed (F2) and Reverse 2nd speed (R2). Forward and Reverse 2nd speed
with separate output relays.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 19 of 36
F1 F/R2
R1 R1F1 F/R2
F1 R1 F2 R2R2F2R1F1
R2F2R1F1 R2F2R1F1
4.2.2.2 Output Relay Actions at 2nd Speed (Flex ECO 12X only)
1. 3 output relays configuration with Closed/Closed contact at 2nd speed
At 2nd speed, both 1st speed (F1 or R1) and 2nd speed (F/R2) output
relays are closed. Refer to section 4.2.3.1 on how to set to this function.
Forward 1st speed pushbutton pressed Forward 2nd speed pushbutton pressed
↓ ↓
2. 4 output relays configuration with Opened/Closed contact at 2nd speed
At 2nd speed, only the 2nd speed (F2 or R2) output relay is closed. Refer to
section 4.2.3.1 on how to set to this function.
Forward 1st speed pushbutton pressed Forward 2nd speed pushbutton pressed
↓ ↓
3. 4 output relays configuration with Closed/Closed contact at 2nd speed
At 2nd speed, both 1st speed (F1 or R1) and 2nd speed (F2 or R2) output relays
are closed. Refer to section 4.2.3.1 on how to set to this function.
Forward 1st speed pushbutton pressed Forward 2nd speed pushbutton pressed
↓ ↓
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 20 of 36
4.2.2.3 START + AUX Function
After initiating the START function at transmitter startup the
same START button becomes an auxiliary function with
momentary contact connected through K25 Function output
relay. There are other types of auxiliary functions made
available for K25 and K26 Function output relays. Please
contact ARC representative if your application requires other
types of auxiliary function connected to these Function output
relays.
4.2.2.4 ON/OFF Pushbutton Function
The user can set any of the two adjacent pushbuttons on the
transmitter to behave like a mechanical ON & OFF rocker or
toggle switch. ON output relay closes when ON pushbutton
is pressed (OFF output relay opens) and OFF output relay
closes when OFF pushbutton is pressed (ON output relay
opens). Refer to section 4.2.3.1 on how to set to this
function.
4.2.2.5 Magnet ON/OFF Pushbutton Function
The user can set any of the two adjacent pushbuttons on the
transmitter to control industrial magnet left. Activate the
magnet by pressing the Magnet ON pushbutton. Deactivate
the magnet by first press and hold the Magnet ON
pushbutton and then press the Magnet OFF pushbutton.
Pressing the Magnet OFF pushbutton alone is unable to
deactivate the magnet. Refer to section 4.2.3.1 on how to
set to this function.
4.2.2.6 Brake Function (Flex ECO 12X only)
When the transmitter pushbutton is released from 2nd speed up to 1st speed, both 1st
and 2nd speed output relays will open for up to 1 second and then with 1st speed
output relay closed thereafter. Refer to section 4.2.3.1 on how to set to this function.
4.2.2.7 External Warning Function
The user can install an external warning device (rotating lights, horn, etc…) to the
K26 Function output relay (or to K30 Function output relay, refer to section 4.2.6)
located inside the receiver. The user can choose which pushbutton pair (or pairs)
triggers the external warning device when pressed. Refer to section 4.2.3.1 on how
to set to this function.
4.2.2.8 Momentary Contact
When pushbutton is released the corresponding output relay will open or deactivate.
This type of relay action is usually applies to external applications such as horn and
buzzer. Refer to section 4.2.3.2 on how to set to this function.
4.2.2.9 Toggled Contact
When pushbutton is released the corresponding output relay will maintained contact
or closure until next time the user presses the same pushbutton again. This type of
relay action is usually applies to external application such as lights. Refer to section
4.2.3.2 on how to set to this function.
4.2.2.10 Acceleration Function
This function allows the crane or equipment to travel beyond
2nd speed. For example, while the operator press and hold
the “UP” pushbutton at 2nd speed, pressing the ACCEL
pushbutton one time will trigger the 3rd speed, press the ACCEL
pushbutton again will revert back to the 2nd speed. Refer to
section 4.2.3.2 on how to set to this function.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 21 of 36
41 32 65 87
4132 65 87
42317856
41 2 3 65 78
4.2.2.11 Auxiliary STOP Function
The auxiliary STOP function acts as a 2nd emergency stop
button. When pressed, the receiver MAIN relays are
deactivated (refer to section 4.2.3.2 on how to set to this
function). When set to this function the Start Function on
section 4.1.4 must set to “START” button reactivation.

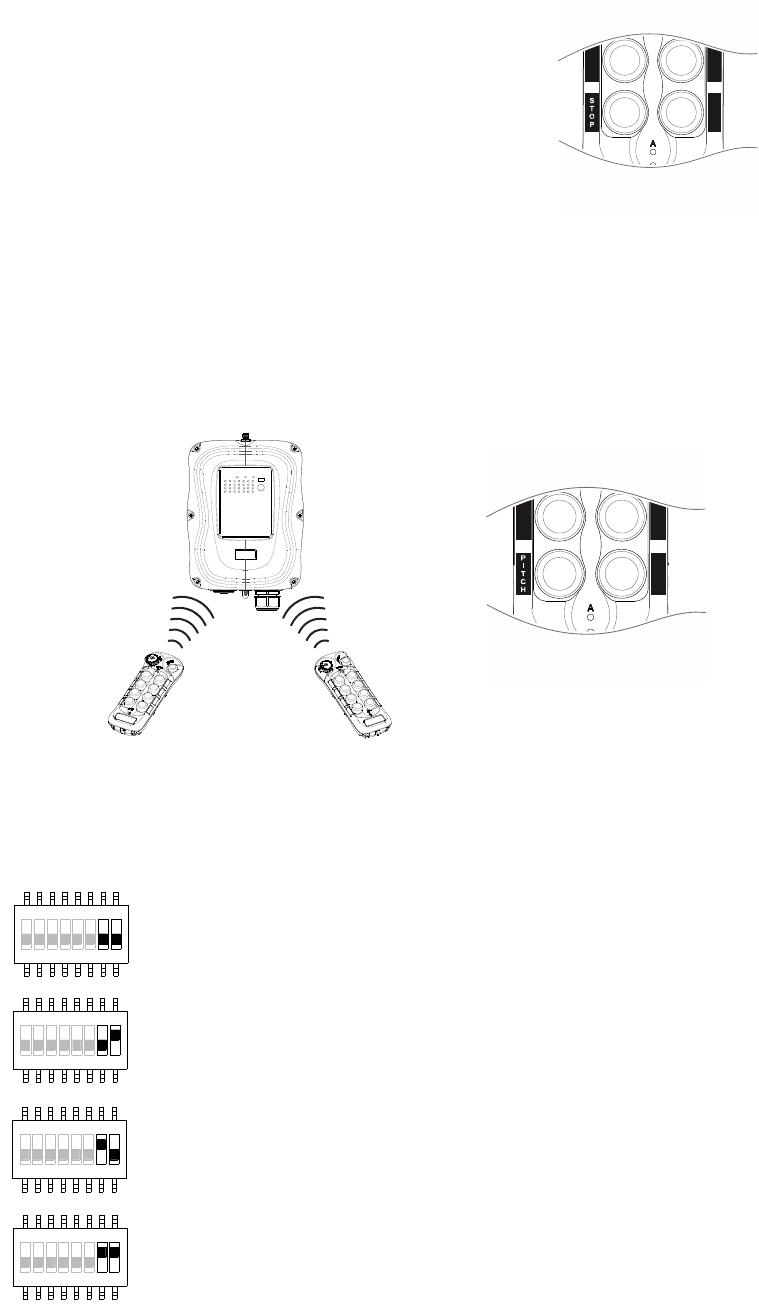

4.2.2.12 Pitch & Catch Function
This function allows two operators controlling a crane, hoist or equipment from
opposite ends of the facility. When set to “Pitch & Catch” make sure the 2nd
transmitter is set to the next upper channel (channel X+1). For example, if the
original (1st) transmitter and receiver are set to channel 01 then the newly added 2nd
transmitter must set to channel 02 (all with same serial number). Furthermore, the
Channel dipswitch position #7 and #8 on the RF/decoding board in the receiver must
set to “10” for 2-channel scanning (scans channel 01 and 02). Refer to section
4.2.2.13 and 4.2.3.2 on how to set to this function.

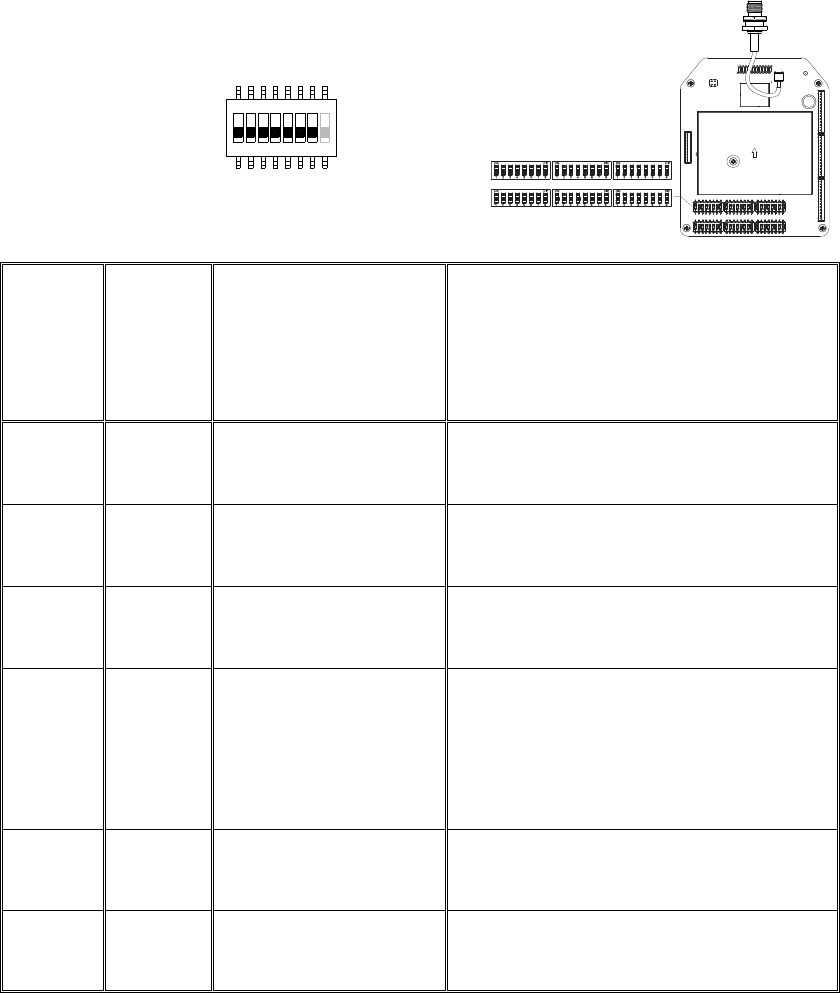

4.2.2.13 Receiver Channel Scanning Function
(1) → “00” manufacture preset (channel X)
(2) → “01” scans 2 channels (channel X and channel X+1)
(3) → “10” scans 3 channels (channel X… channel X+2)
(4) → “11” scans 4 channels (channel X… channel X+3)
* Channel X → channel set on the Channel dipswitch
Example: If the first 6 dipswitch positions are set to channel 01 (000001), when set to 2-channel
scanning (type-2 above) the receiver will only scan channel 01 and 02.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 22 of 36

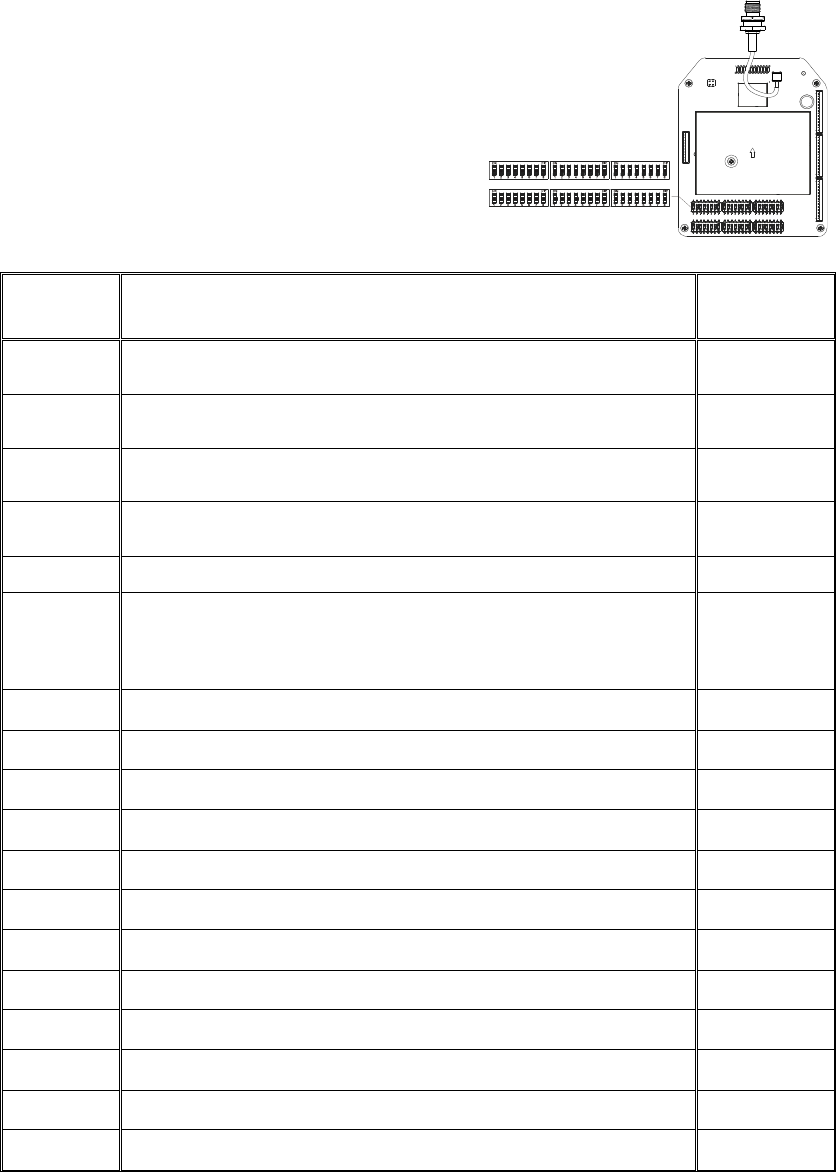

4.2.3 Dipswitch Settings
4.2.3.1 Interlocked Pushbutton Pair
Interlocked means the pushbutton pair
can not be activated at the same time,
as it will cancel each other out.
Interlocked settings are usually applied
to electric motors with forward/reverse
motion and On & Off switches. Each
dipswitch on the RF/decoder board
corresponds to a pushbutton pair.

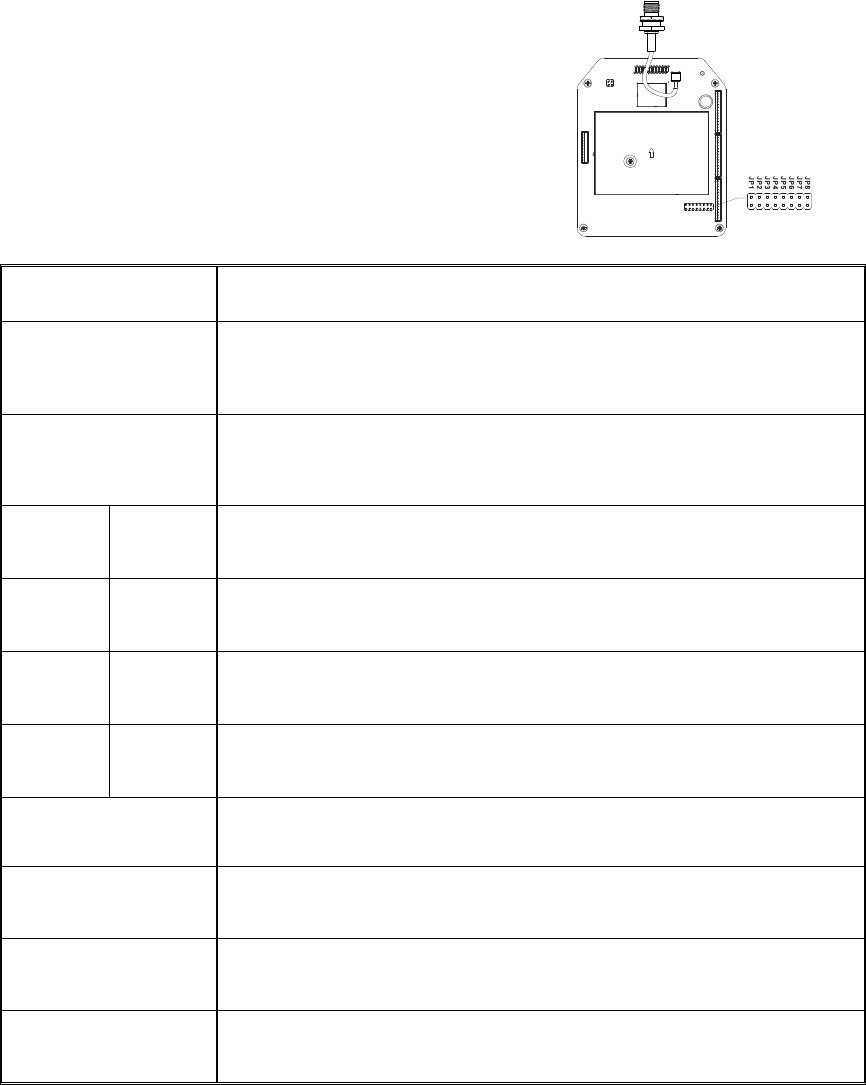

Dip
Settings Function Descriptions # of Relays
Used
00000000 Single speed
(F2, R2 and F/R2 relays not used) 2
00000010 Closed / Closed relay action at 2nd speed
(separate 2nd speed relay) 4
00000100 Closed / Closed relay action at 2nd speed
(shared 2nd speed relay) 3
00000110 Opened / Closed relay action at 2nd speed
(separate 2nd speed relay) 4
00001100 On (right button) & Off (left button) 2
00010010
On + Start / Off + Start - For added safety, you must first
press and hold the START button and then press the
On or Off pushbutton to activate the output relay.
2
00001110 Magnet Left On & Off 2
00010100 FWD / REV toggled (latching) 2
00100000 Single speed + External Warning* 2
00100010 Closed / Closed relay action + External Warning* 4
00100100 Closed / Closed relay action + External Warning* 3
00100110 Opened / Closed relay action + External Warning* 4
01000010 Closed / Closed relay action + Brake 4
01000100 Closed / Closed relay action + Brake 3
01000110 Opened/ Closed relay action + Brake 4
01100010 Closed / Closed relay action + Brake + External Warning* 4
01100100 Closed / Closed relay action + Brake + External Warning* 3
01100110 Opened / Closed relay action + Brake + External Warning* 4
* External warning function requires installing an external warning device such as horn and lights
to K26 Function output relay, or to K30 Function relay using the in-house designed miniature
lights and buzzer illustrated on section 4.2.6.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 23 of 36
1 324 756 8
4.2.3.2 None-Interlocked Pushbutton Pair
Non-interlocked settings allow the pushbutton pair be used at the same time. Non-
interlocked settings are usually applied to crane’s or equipment’s auxiliary functions
such as lights, horn or buzzer. Each dipswitch on the RF/decoder board
corresponds to a pushbutton pair. Only the first 7 dipswitch positions are used
(counting from left to right), the 8th dipswitch position (far right) is not used.
Function
Code
Dip
Position
#1
Dip Position
#2~#4 (left button)
&
#5~#7 (right button)
Function Description
A 1 000 Normal (momentary) contact
B 1 001 Toggled (latching) contact
C 1 010 Acceleration (3rd speed)
D 1 100
Normal + Start function - For added
safety, you must first press and hold the
START button and then press the
intended pushbutton to activate the
output relay.
E 1 110 Pitch & Catch
F 1 111 Auxiliary Stop
Example #1: Left button (set to function code A) / right button (set to function code B) → 1 000 001
Example #2: Left button (set to function code C) / right button (set to function code D) → 1 010 100
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 24 of 36
4.2.4 Jumper Settings
Jumper settings are applied to functions such as the Start
function, transmitter standard right/left or inline pushbutton
configurations, firmware version, system testing and remote
pairing function.
Jumper Settings Function
JP3
(Opened)
Standard A/B selector sequence - Output
relay A activated at A position, output relay B activated at B position,
both relays activated at A+B position.
JP3
(Inserted)
Reversed logic A/B selector sequence - Output
relay B activated at A position, output relay A activated at B position,
both relays deactivated at A+B position.
JP4
(Opened)
JP5
(Opened) Standard right/left pushbutton configuration.
JP4
(Inserted)
JP5
(Opened) Inline top/bottom pushbutton configuration for PB1 to PB8.
JP4
(Opened)
JP5
(Inserted) Inline top/bottom pushbutton configuration for PB1 to PB12.
JP4
(Inserted)
JP5
(Inserted) Inline top/bottom pushbutton configuration for PB1 to PB4.
JP6
(Inserted) System firmware version.
JP7
(Inserted) For system testing only, receiver MAIN relays disabled.
JP8
(Blank)
Receiver-to-transmitter remote pairing.
(requiring pressing the PAIRING button on receiver)
JP8
(Inserted)
Receiver-to-transmitter remote pairing.
(do not require pressing the PAIRING button on receiver)
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 25 of 36
4.2.5 Voltage Settings

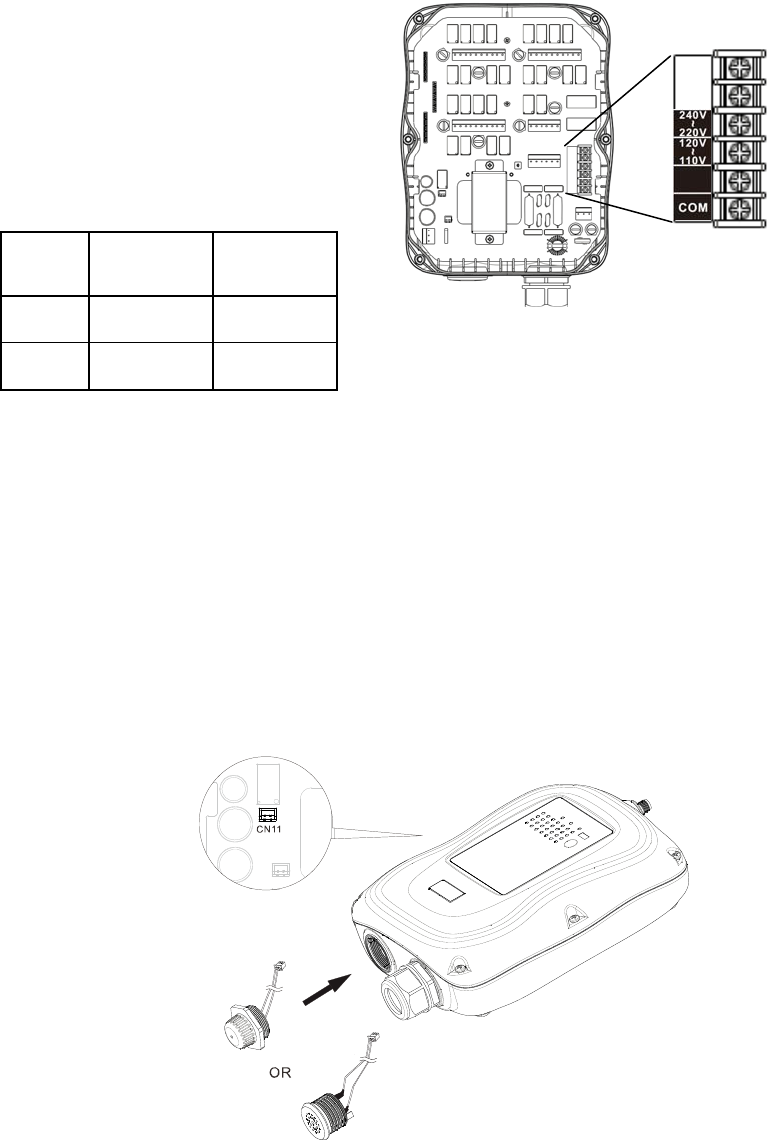

Prior to installation always check the voltage setting is correct for your application.
Position 1 → 110~120VAC
Position 2 → 220~240VAC
FUSE # 110~120VAC 220~240VAC
F3 ~ F10 5.0A 5.0A
F1 ~ F2 0.5A 0.5A
4.2.6 Lights Indicator and Buzzer Installation
In-house designed miniature lights indicator and buzzer can be easily fitted onto the receiver
enclosure. The lights indicator or buzzer works simultaneously with the receiver MAIN relays
(manufacture preset). When receiver MAIN relays are activated the lights indicator or buzzer
is also activated, and vise versa. Make sure the lights indicator or the buzzer is connected to
the K30 Function output relay CN11 port located on the AC line filter/relay board inside the
receiver. Please contact ARC representative if you would like the lights indicator or the
buzzer work differently than described above.
COM
1
2
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 26 of 36
4.2.7 System Channels Table
Channel Frequency Dipswitch
Setting Channel Frequency Dipswitch
Setting
01 433.050MHZ 000001 32 433.825MHZ 100000
02 433.075MHZ 000010 33 433.850MHZ 100001
03 433.100MHZ 000011 34 433.875MHZ 100010
04 433.125MHZ 000100 35 433.900MHZ 100011
05 433.150MHZ 000101 36 433.925MHZ 100100
06 433.175MHZ 000110 37 433.950MHZ 100101
07 433.200MHZ 000111 38 433.975MHZ 100110
08 433.225MHZ 001000 39 434.000MHZ 100111
09 433.250MHZ 001001 40 434.025MHZ 101000
10 433.275MHZ 001010 41 434.050MHZ 101001
11 433.300MHZ 001011 42 434.075MHZ 101010
12 433.325MHZ 001100 43 434.100MHZ 101011
13 433.350MHZ 001101 44 434.125MHZ 101100
14 433.375MHZ 001110 45 434.150MHZ 101101
15 433.400MHZ 001111 46 434.175MHZ 101110
16 433.425MHZ 010000 47 434.200MHZ 101111
17 433.450MHZ 010001 48 434.225MHZ 110000
18 433.475MHZ 010010 49 434.250MHZ 110001
19 433.500MHZ 010011 50 434.275MHZ 110010
20 433.525MHZ 010100 51 434.300MHZ 110011
21 433.550MHZ 010101 52 434.325MHZ 110100
22 433.575MHZ 010110 53 434.350MHZ 110101
23 433.600MHZ 010111 54 434.375MHZ 110110
24 433.625MHZ 011000 55 434.400MHZ 110111
25 433.650MHZ 011001 56 434.425MHZ 111000
26 433.675MHZ 011010 57 434.450MHZ 111001
27 433.700MHZ 011011 58 434.475MHZ 111010
28 433.725MHZ 011100 59 434.500MHZ 111011
29 433.750MHZ 011101 60 434.525MHZ 111100
30 433.775MHZ 011110 61 434.550MHZ 111101
31 433.800MHZ 011111 62 434.575MHZ 111110
5. Receiver Installation
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 27 of 36

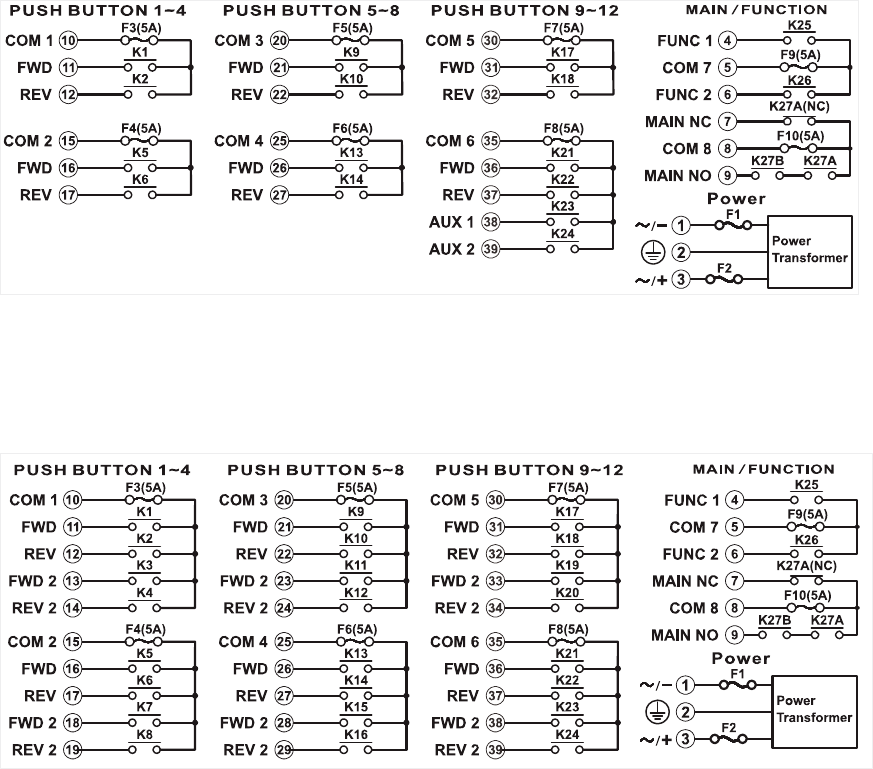

5.1 Output Relay Contact Diagrams
Flex ECO 12S (single speed model)
Flex ECO 12X (dual speed model)
* For 9~36VDC power supply, wire #1 corresponds to the negative charge (-) and wire #3 corresponds
to the positive charge (+), wire #2 is GROUND.
* If PB11 (or PB12) is set to A/B pushbutton select or A/B rotary switch select function, output A connects
to K21 (or K22), output B connects to K23 (or K24). Refer to section 4.1.7.2 on how to set to this
function.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 28 of 36
5.2 Pre-installation Precautions
1. Make sure the transmitter and receiver are with identical serial number and channel.
2. Make sure the receiver is not set to the same channel as any other systems in use in the
surrounding area.
3. Make sure the crane or equipment is working properly prior to installation.
4. Make sure the power source to the receiver is set correctly.
5. Switch off the main power source to the crane or equipment prior to installation.
5.3 Step-By-Step Installation

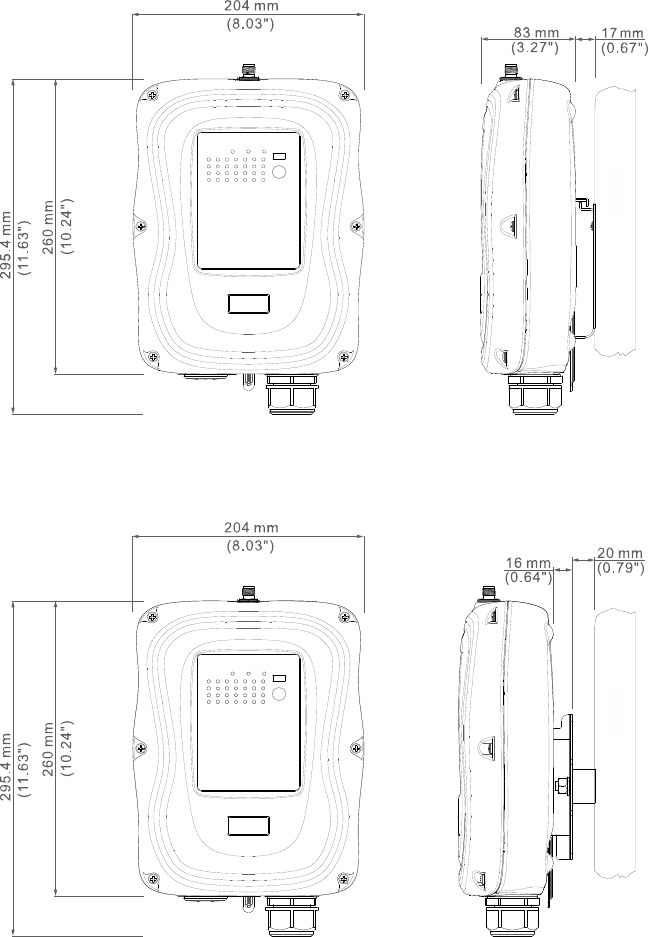

Mounting Bracket Type 1
Mounting Bracket Type 2
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 29 of 36
432 mm
Control
Panel

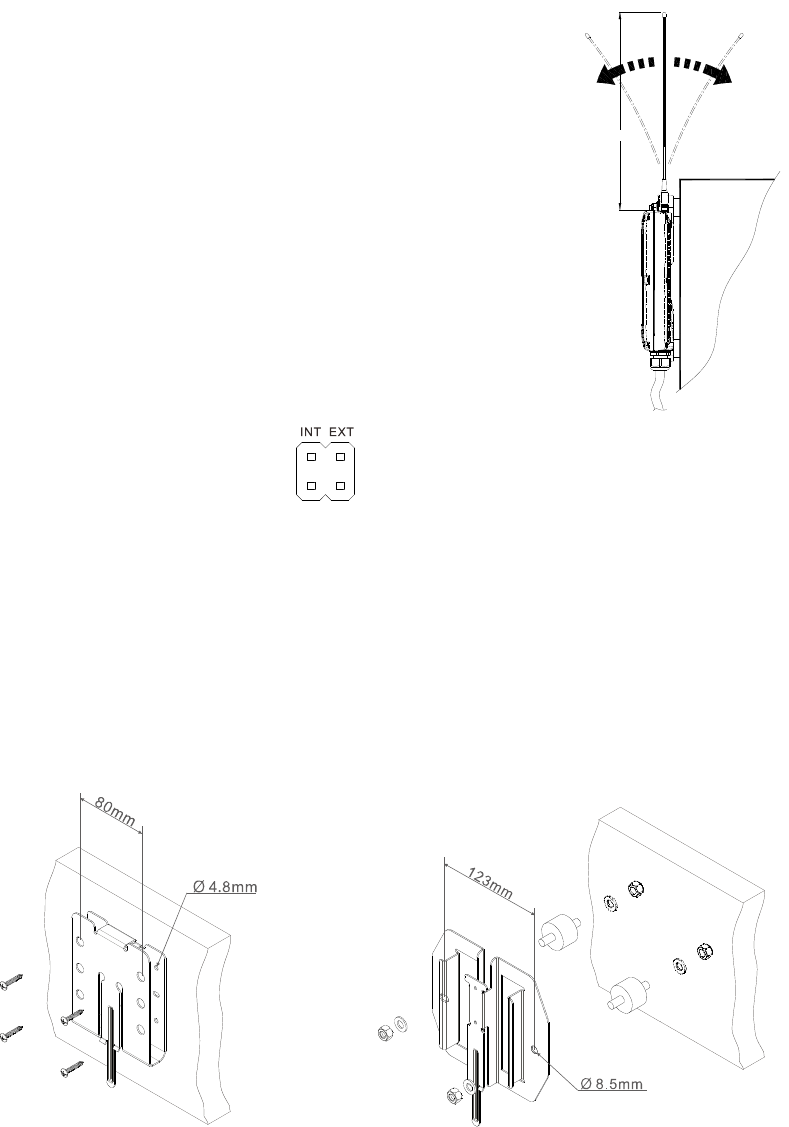

1. For best reception the location of the receiver should be visible
to the operator at all time.
2. The location selected should not be exposed to high levels of
electric noise. Mounting the receiver next to an unshielded
variable frequency drive may cause radio interference. Always
locate the receiver as far away from variable frequency drive
and electric motor as possible.
3. Ensure the selected location has adequate space to
accommodate the receiver. If an external antenna is used, to
avoid the possibility of antenna damage always locate the
receiver where the antenna is free from any obstacles.
4. When installing an external antenna make sure the SMA jack
located on the RF/decoder board inside the receiver is
connected and jumper set to “EXT” position.
5. For better reception, make sure the receiver is in an upright position.
6. Drill four holes for mounting bracket type 1 and two holes for mounting bracket type 2
on the control panel, wall or location where the receiver is to be installed.
7. Make sure the screws, bolts or shock absorbers are tightened after installation (not
provided with the system).
Mounting Bracket Type 1 Mounting Bracket Type 2
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 30 of 36

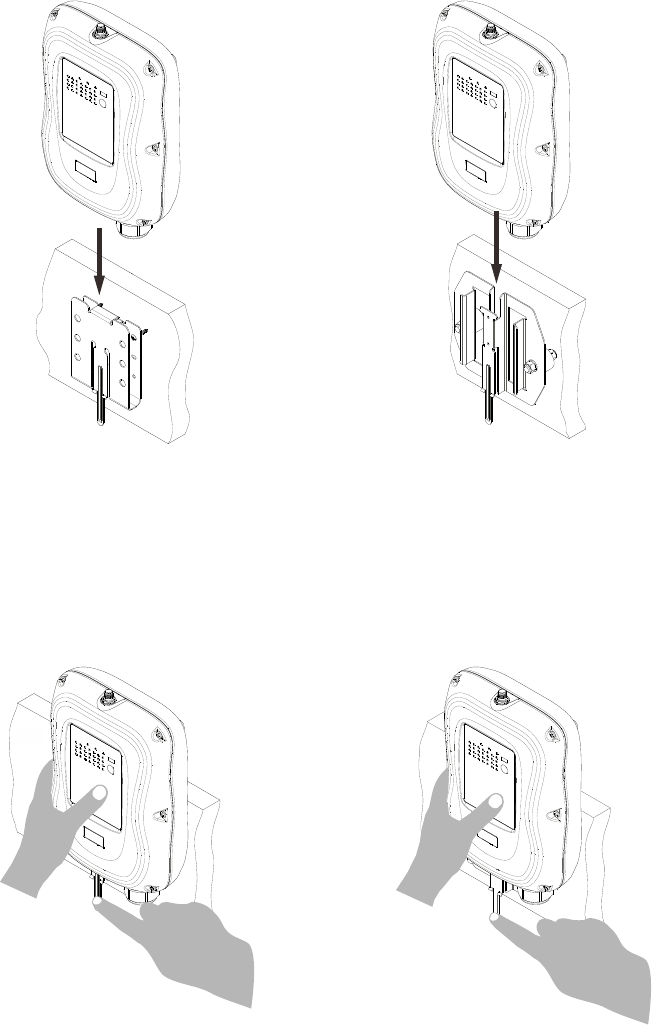

8. Slide down the receiver along the guided track to secure the receiver to the mounting
bracket.
9. Remove the receiver by pressing down the bracket release and pull the receiver
upward until it clears the guided track.
Install
Mounting Bracket Type 1 Mounting Bracket Type 2
Remove
Mounting Bracket Type 1 Mounting Bracket Type 2
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 31 of 36
6. Operating Procedures
6.1 General Operation
a. Reset the STOP button located on the top left hand
corner of the transmitter by rotating it clockwise or
counter clockwise, the button will pop up. Transmitter is
powered on when the STOP button is elevated.
b. After turning on the transmitter power, check the Status LED on the transmitter for
any sign of system irregularities (refer to section 6.6.1 Transmitter Status
Indications). If the transmitter is in good working order the Status LED will blink
green for up to 2 seconds at startup (no faults detected).
c. Press the START button for up to 1 second to activate the
receiver MAIN relays. The same START button becomes an
auxiliary function thereafter (refer to section 4.2.2.3 START +
AUX Function). Then press any pushbutton on the
transmitter to begin operation. Pressing any pushbutton
prior to initiating the START command at startup will result in
no signals transmitted (Status LED blinks orange).
d. In case of an emergency, press down the STOP button to disconnect the receiver
MAIN relays and as well as the transmitter power. To resume operation, rotate the
STOP button clockwise or counter-clockwise, it will pop up. Then press the START
button for up to 1 second to reconnect the receiver MAIN relays. For safety,
pressing the START button is strictly required every time when the transmitter is
turned on or after every STOP button reset.
e. After 1 minute or 3 minutes of inactivity (pushbutton not pressed) the receiver MAIN
relays are temporarily disconnected (refer to section 4.1.5 Inactivity Timer Settings).
Press any pushbutton or the START button to resume operation (refer to section
4.1.4 Start Function Settings). The receiver MAIN relays are also temporarily
disconnected when the system encounters strong radio interference, dead spots, low
battery condition, and system out of operating range.
f. Turn off the transmitter power by pressing down the STOP button, it will disconnect
the transmitter power and the receiver MAIN relays altogether.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 32 of 36
6.2 A/B Pushbutton Select Operation
Press the “A/B” pushbutton repeatedly toggles between output
relay A, B and A+B respectively. There are 4 different types of
Select A/B sequence available (refer to section 4.1.7.2).
Standard – Output relay A activated at A position, output relay
B activated at B position, both output relays activated at A+B
position.
Reversed logic - Output relay A activated at B position,
output relay B activated at A position, both output relays deactivated
at A+B position. Refer to section 4.2.4 JP3 jumper settings.
6.3 A/B Rotary Select Operation
Standard - Rotate to A position activates output relay A, rotate
to B position activates output relay B, rotate to A+B position
activates both output relays.
Reversed logic - Rotate to A position activates output relay B,
rotate to B position activates output relay A, rotate to A+B
position deactivates both output relays. Refer to section 4.2.4
JP3 jumper setting.
6.4 Pitch & Catch Operation
Press the “PITCH” pushbutton for up to 2 seconds to release
control of the receiver. Press the START button for up to 1
second to gain control of the receiver. The 2nd operator is
unable to take control of the receiver unless the 1st operator
presses the “PITCH” pushbutton. Refer to section 4.2.2.12
and section 4.2.3.2 on how to set to this function.
6.5 Changing Batteries
Changing transmitter batteries (“AA”
alkaline battery x 2) by unscrewing the
battery cover located on the backside of
the transmitter. During battery installation
make sure the batteries are installed
correctly, with “+” to “+” charge and “–” to
“–” charge. Also make sure the screw is
tightened after battery installation to avoid
water, moisture, dirt, grease, and other
liquid penetration.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 33 of 36
6.6 System Status Light Indications
6.6.1 Transmitter Status Indications
Type Display Type Indication
1 Constant red
Voltage below 1.9V at initial power on.
Transmitter power and receiver MAIN
relays shuts off.
Voltage below 1.8V during operation.
Transmitter power and receiver MAIN
relays shuts off.
2 1 red blink followed by a
2-second pause
Voltage below 1.85V during operation.
Change batteries suggested.
3 2 red blinks followed by a
2-second pause
Defective or jammed pushbutton detected
at initial power on.
4 No light displayed
When defective pushbutton condition
occurs (2 red blinks, type 3 above), find
out which pushbutton is defective by
pressing all of them one at a time. If the
pushbutton is in good working order when
pressed, the Status LED is off. If the Status
LED maintained 2 red blinks then
the pushbutton is defective.
5 3 red blinks followed by a
2-second pause EEPROM error.
6 4 red blinks followed by a
2-second pause
Transmitter is unable to lock onto the
assigned channel.
7 Constant green for up to
2 seconds Transmitter power on with no faults detected.
8 Blinking green Transmission in progress.
9 Blinking orange Pressing any pushbutton prior to initiating
the START command at power on.
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 34 of 36
6.6.2 Receiver Status Indications
Type Display Type (Green & Red) Indication
1 Fast green blinks Decoding in process
2 Slow green blinks Decoding on standby
3 Two red blinks Receiver MAIN relays jammed or defective
4 Fast red blinks Incorrect transmitter serial number
5 Constant red Receiver low voltage
6 No light displayed Decoding processors defective
6.6.3 Receiver Power Indications
Type Display Type (Red) Indication
1 On Power to receiver
2 Off No power to receiver
6.6.4 Receiver COM Indications
Type Display Type
(Red) Indication
1 On Power to relay Board
2 Off No power to relay board
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 35 of 36
7. General Specifications
Frequency Range : 433 ~ 434 MHz
Number of Channels : 62 channels
Channel Spacing : 25 KHz
Modulation : Digital Frequency Modulation based
on Manchester Code, 20bit address,
32bit CRC and Hamming Code.
Encoder & Decoder : Microprocessor-controlled
Transmitting Range : ＞100 Meters (300 feet)
Hamming Distance : ＞6
Frequency Control : Synthesized PLL
Receiver Type : Frequency Auto Scanning
Receiver Sensitivity : -116dBm
Spurious Emission : -50dB
Antenna Impedance : 50 ohms
Responding Time : 40 Milliseconds (average)
Transmitting Power : 1.0mW
Enclosure Type : NEMA-4X
Enclosure Rating : IP66
Output Contact Rating : 250V @ 8 Amps
Transmitter Operating Voltage : DC 3.0V
Receiver Power Consumption : 7.0 ~ 22.0VA
Available Receiver Voltages : 110~120VAC
220~240VAC
Operating Temperature : -25℃ ~ 50℃
Transmitter Dimension : 233mm (L) x 69mm (W) x 35mm (H)
Receiver Dimension : 260mm (L) x 204mm (W) x 84mm (H)
Transmitter Weight : 245g (8.6oz)
Receiver Weight : 1.85kg (4.0lb)
Flex ECO 4S/4X/8S/8X/12S/12X Instruction Manual
April 2015
Page 36 of 36
EU Declaration of Conformity
(EMC, R&TTE, SAFETY & MACHINERY)
For the following equipment:
Product : Flex ECO Series Radio Remote Control System
Multiple Listee Model No. : Flex ECO 4S/4X, ECO 8S/8X, ECO 12S/12X
Manufacturer’s Name : Advanced Radiotech Corporation
Manufacturer’s Address : 1F, 288-1, Hsin Ya Road, Chien Chen District,
Kaohsiung, Taiwan
We herby declare, that all major safety requirements, concerning the CE Mark Directive
2006/42/EC and Low Voltage Directive 2006/95/EC, Electromagnetic Compatibility
Directives 2004/108/EC, R&TTE Directive 1999/5/EC are fulfilled, as laid out in the
guideline set down by the member states of the EEC Commission.
The standards relevant for the evaluation of the electrical safety requirements are
as follow:
EMC : EN 301 489-1 + EN 301 489-3
R&TTE : EN 300 220-1 V2.3.1 + EN 300 220-2 V2.3.1
SAFETY : EN 60950:2006+A1+A11+A12
MACHINERY : EN 60204-32:2008, EN 13557:2003+A1:2008
EN ISO 13849-1:2008 (PL=d), EN 60529 (IP66)
Test reports issued by:
EMC : SGS
R&TTE : SGS
SAFETY : SGS
MACHINERY : SGS
Person responsible for marking this declaration:
Tom Jou / President
Name and signature of authorized person
