Advanced System Technology AST-R12 Glass Reader User Manual en 300328v020200a

Advanced System Technology Limited Glass Reader en 300328v020200a

Users Manual

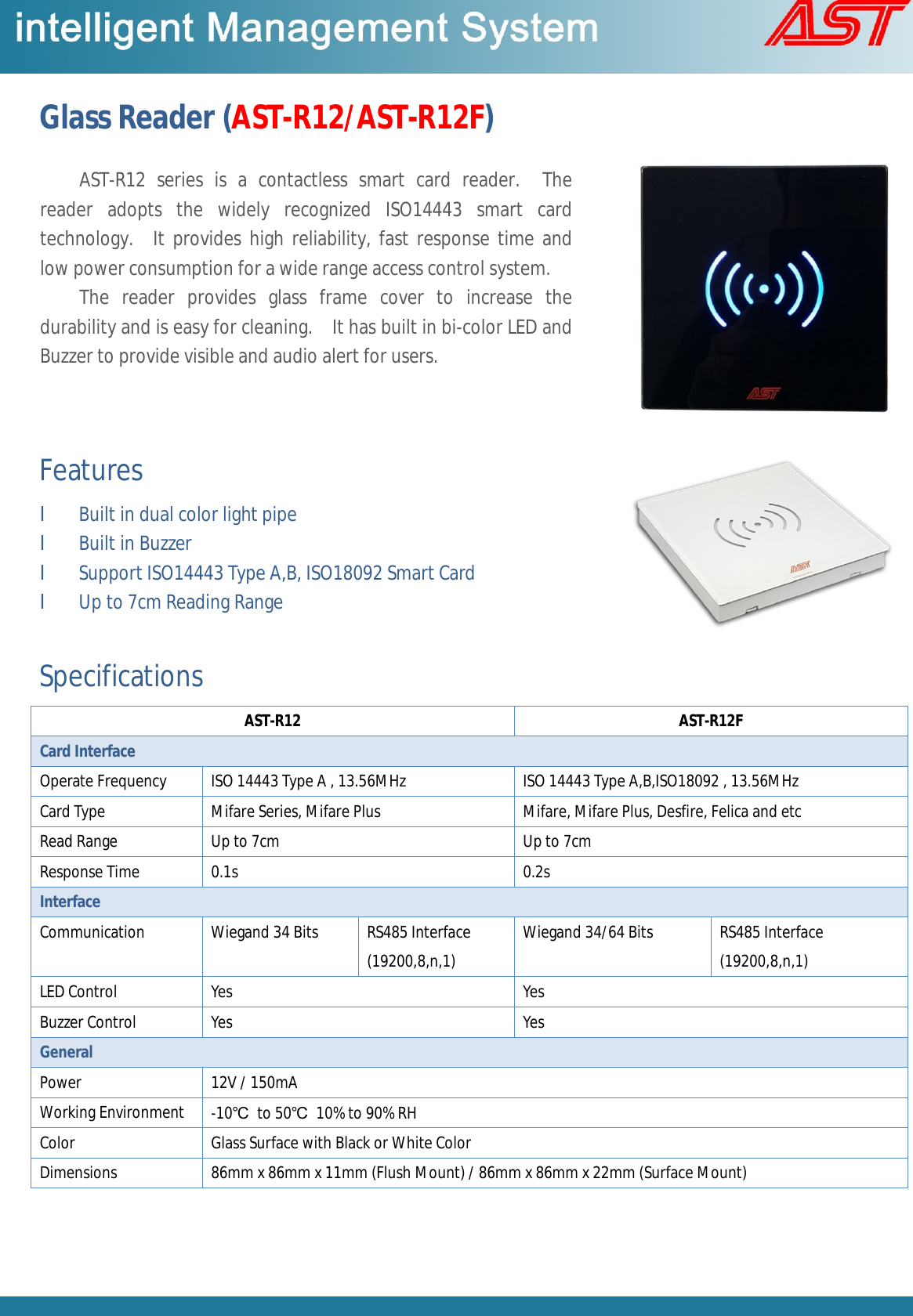

Glass Reader (AST-R12/AST-R12F)  Features l Built in dual color light pipe l Built in Buzzer l Support ISO14443 Type A,B, ISO18092 Smart Card l Up to 7cm Reading Range  Specifications AST-R12  AST-R12F Card Interface Operate Frequency  ISO 14443 Type A , 13.56MHz  ISO 14443 Type A,B,ISO18092 , 13.56MHz Card Type  Mifare Series, Mifare Plus  Mifare, Mifare Plus, Desfire, Felica and etc Read Range  Up to 7cm  Up to 7cm Response Time  0.1s  0.2s Interface  Communication  Wiegand 34 Bits   RS485 Interface (19200,8,n,1) Wiegand 34/64 Bits   RS485 Interface (19200,8,n,1) LED Control  Yes  Yes Buzzer Control  Yes  Yes General Power   12V / 150mA Working Environment  -10℃ to 50℃ 10% to 90% RH Color  Glass Surface with Black or White Color Dimensions  86mm x 86mm x 11mm (Flush Mount) / 86mm x 86mm x 22mm (Surface Mount)    AST-R12 series is a contactless smart card reader.  The reader adopts the widely recognized ISO14443 smart card technology.  It provides high reliability, fast response time and low power consumption for a wide range access control system.  The reader provides glass frame cover to increase the durability and is easy for cleaning.  It has built in bi-color LED and Buzzer to provide visible and audio alert for users.

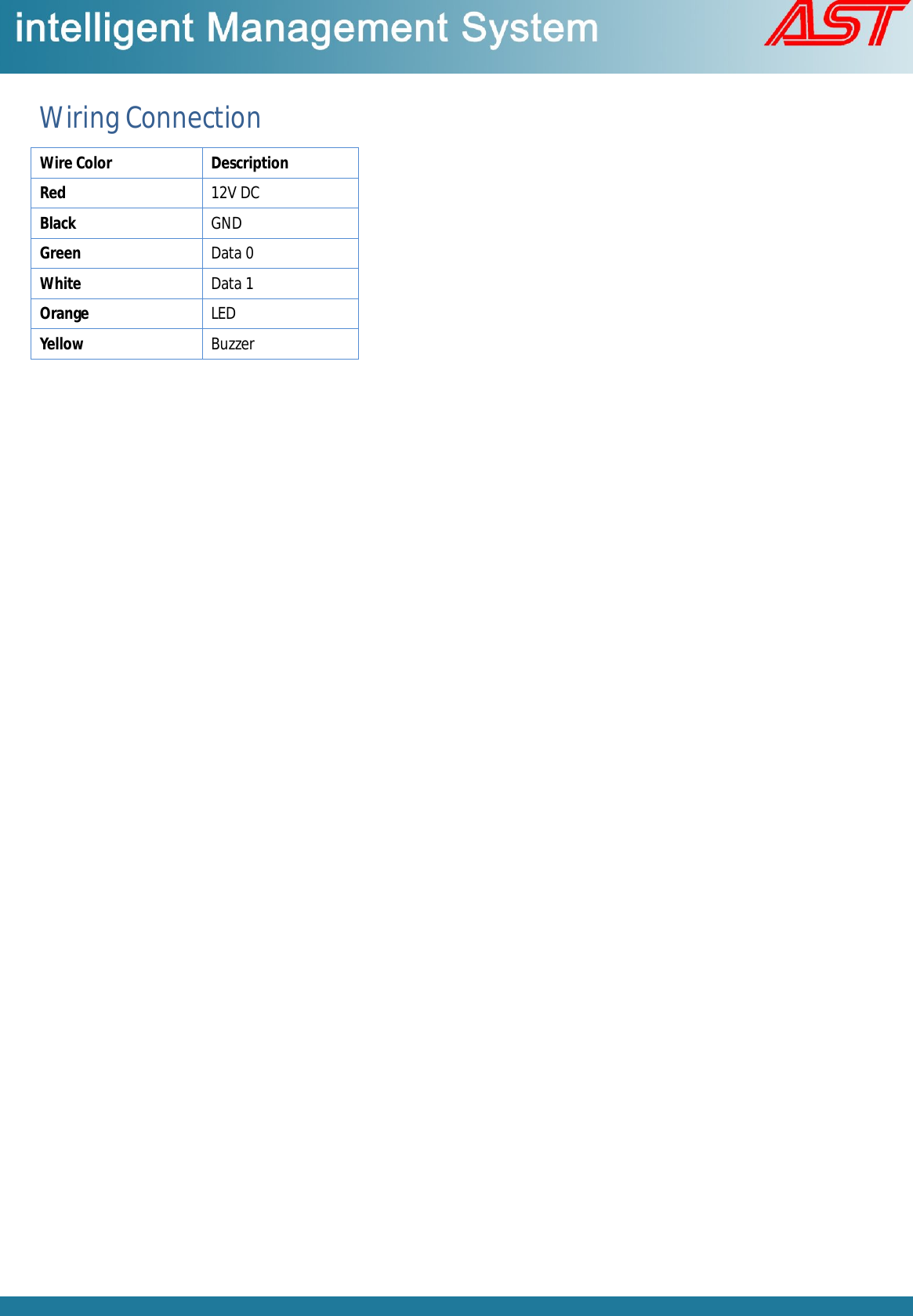

Wiring Connection Wire Color  Description Red  12V DC Black GND Green  Data 0 White Data 1 Orange  LED Yellow Buzzer

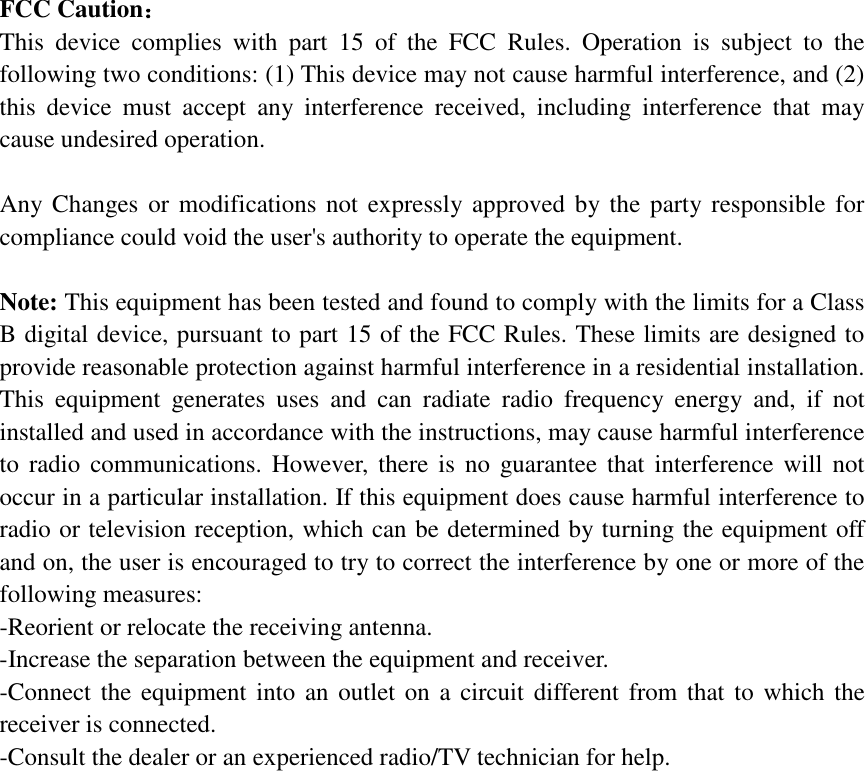

FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.-Consult the dealer or an experienced radio/TV technician for help.
