Users Manual

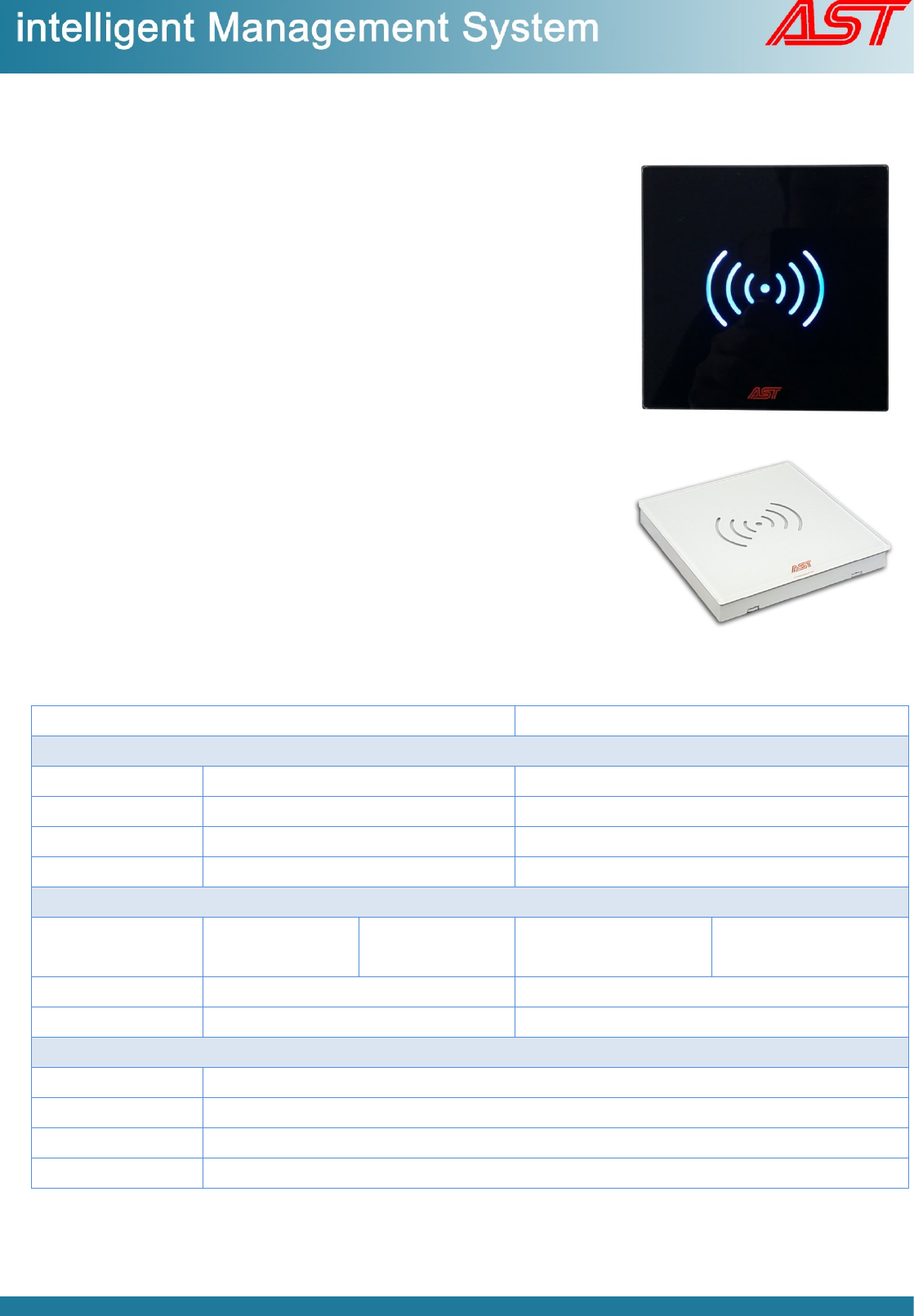

Glass Reader (AST-R12/AST-R12F)
Features
l Built in dual color light pipe
l Built in Buzzer
l Support ISO14443 Type A,B, ISO18092 Smart Card
l Up to 7cm Reading Range
Specifications
AST-R12 AST-R12F
Card Interface
Operate Frequency ISO 14443 Type A , 13.56MHz ISO 14443 Type A,B,ISO18092 , 13.56MHz
Card Type Mifare Series, Mifare Plus Mifare, Mifare Plus, Desfire, Felica and etc
Read Range Up to 7cm Up to 7cm
Response Time 0.1s 0.2s
Interface
Communication Wiegand 34 Bits RS485 Interface
(19200,8,n,1)
Wiegand 34/64 Bits RS485 Interface
(19200,8,n,1)
LED Control Yes Yes
Buzzer Control Yes Yes
General
Power 12V / 150mA
Working Environment -10℃ to 50℃ 10% to 90% RH
Color Glass Surface with Black or White Color
Dimensions 86mm x 86mm x 11mm (Flush Mount) / 86mm x 86mm x 22mm (Surface Mount)
AST-R12 series is a contactless smart card reader. The
reader adopts the widely recognized ISO14443 smart card
technology. It provides high reliability, fast response time and
low power consumption for a wide range access control system.
The reader provides glass frame cover to increase the
durability and is easy for cleaning. It has built in bi-color LED and
Buzzer to provide visible and audio alert for users.
Wiring Connection
Wire Color Description
Red 12V DC
Black GND
Green Data 0
White Data 1
Orange LED
Yellow Buzzer
FCC Caution：
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
