Users Manual

FWA-1010VC Network system with Intel®

Atom® C2000 Processor Platform

Packing List

Specifications

Before you begin installing your card, please make

sure that the following items have been shipped:

• One FWA-1010VC System

• One space of accessories

• One warranty certificate

If any of these items are missing or damaged, please

contact your distributor or sales representative

immediately.

Note 1: Acrobat Reader is required to view any PDF

file.Acrobat Reader can be downloaded at:

www.adobe.com/Products/acrobat/readstep2.

html (Acrobat is a trademark of Adobe)

Main Board Functions

• CPU:

Dual Intel® C2000, L2 Catch: 2MB/4MB (by CPU SKU)

• Memory:

Supports two DDR3/DDR3L Memory DIMMs

up to 1600 MHz, depending on CPU SKU

• Storage:

Up to 1 x 2.5" SSD bracket(by product sku),

1x M.2 2280 SSD slot

• Dimensions:

250 x 44 x 190.4mm (W x H x D)

• Power Supply:

60W, 100 V ~ 240 V @ 50 ~ 60 Hz, full range

For more information on this and other

Advantech products, please visit our website at:

http://www.advantech.com.tw/support

http://www.advantech.com

For technical support and service, please visit

our support website at:

http://www.advantech.com/support

This manual is for the CGS6000 series Rev. A

Part No. TBA

Print in China

Draft Edition,

1. FEDERAL COMMUNICATIONS COMMISSION (FCC)

STATEMENT:

15.21

You are cautioned that changes or modifications not expressly approved by the part

responsible for compliance could void the user’s authority to operate the equipment.

15.105(b)

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1) this device may not cause harmful interference and

2) this device must accept any interference received, including interference that may

cause undesired operation of the device.

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with a

minimum distance of 20 centimeters between the radiator and your body

2. HARDWARE INSTALLATION INTRODUCTION

2.1 MEMORY INSTALLATION

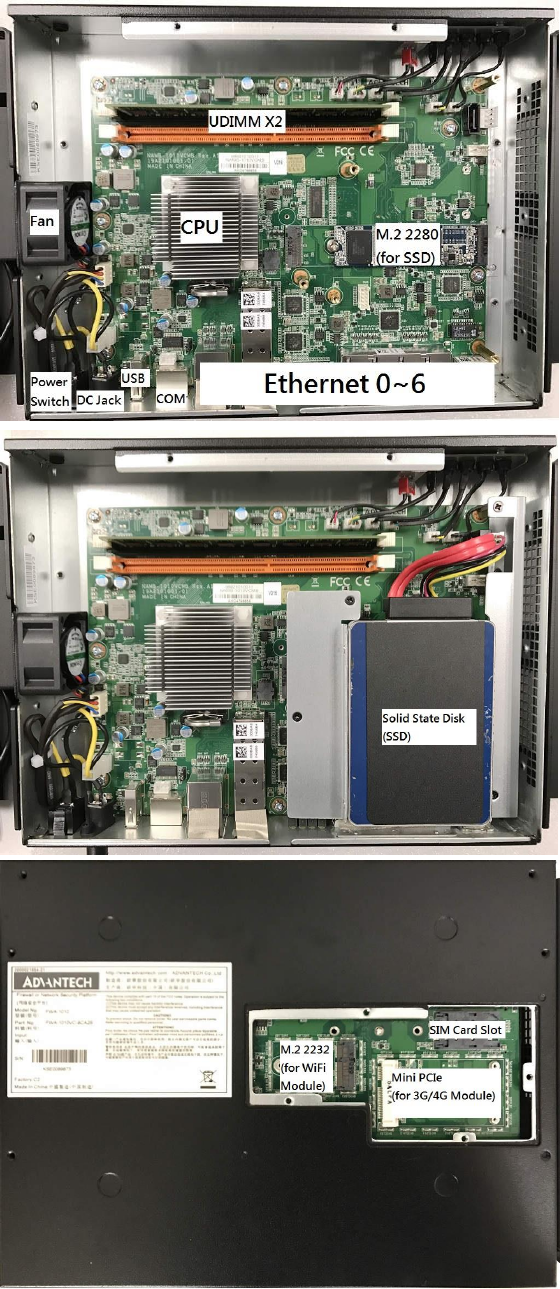

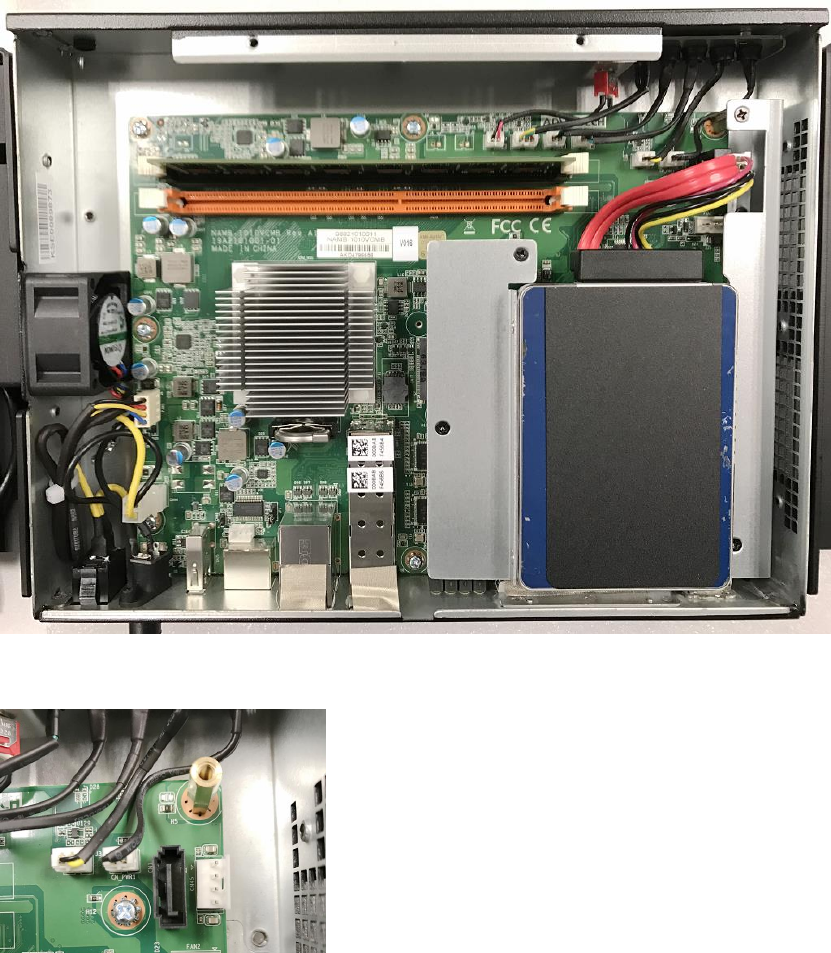

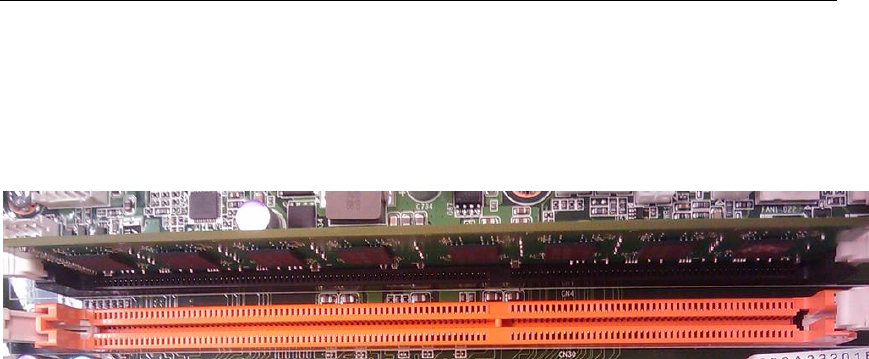

2.1.1 Open the top cover and insert DDR3 UDIMM module into the socket,

insert RAM module into black socket first then insert RAM module in orange

socket

2.2 2.5” SSD BRACKET INSTALLATION=>

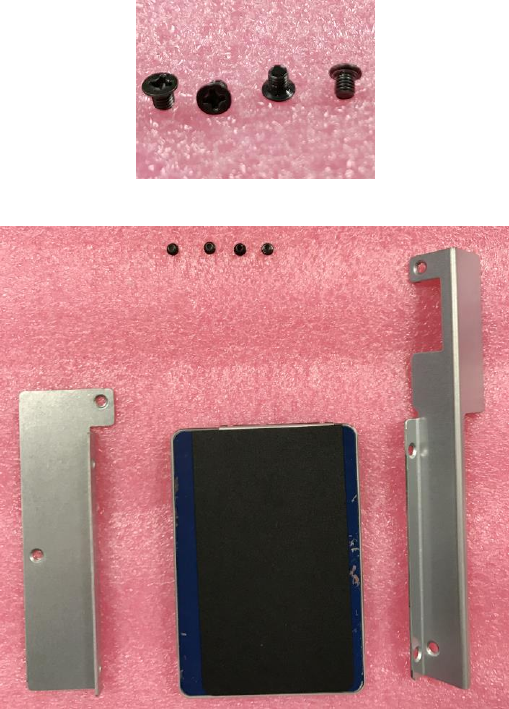

2.2.1 Get 4 pcs M3*4.0L screws & SSD bracket from accessory box

M3*4.0L screw

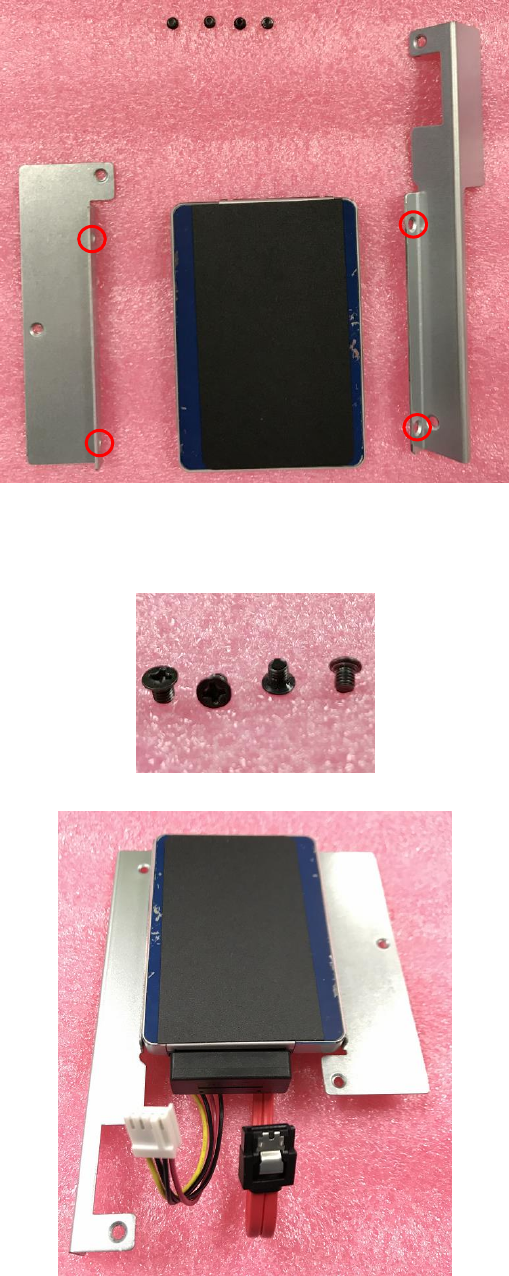

2.2.2 Use screwdriver locking 4 screws to fix 2.5” SSD in SSD bracket.

2.2.3 Get 4 pcs M3*4L screws from accessory box

M3*4 screw

2.2.4 Use screwdriver locking 4 screws to fix SSD bracket on FWA-1010VC,

SSD SATA & power connector side needs face from chassis side.

2.2.5 Please connect SATA & Power cable to SSD connectors.

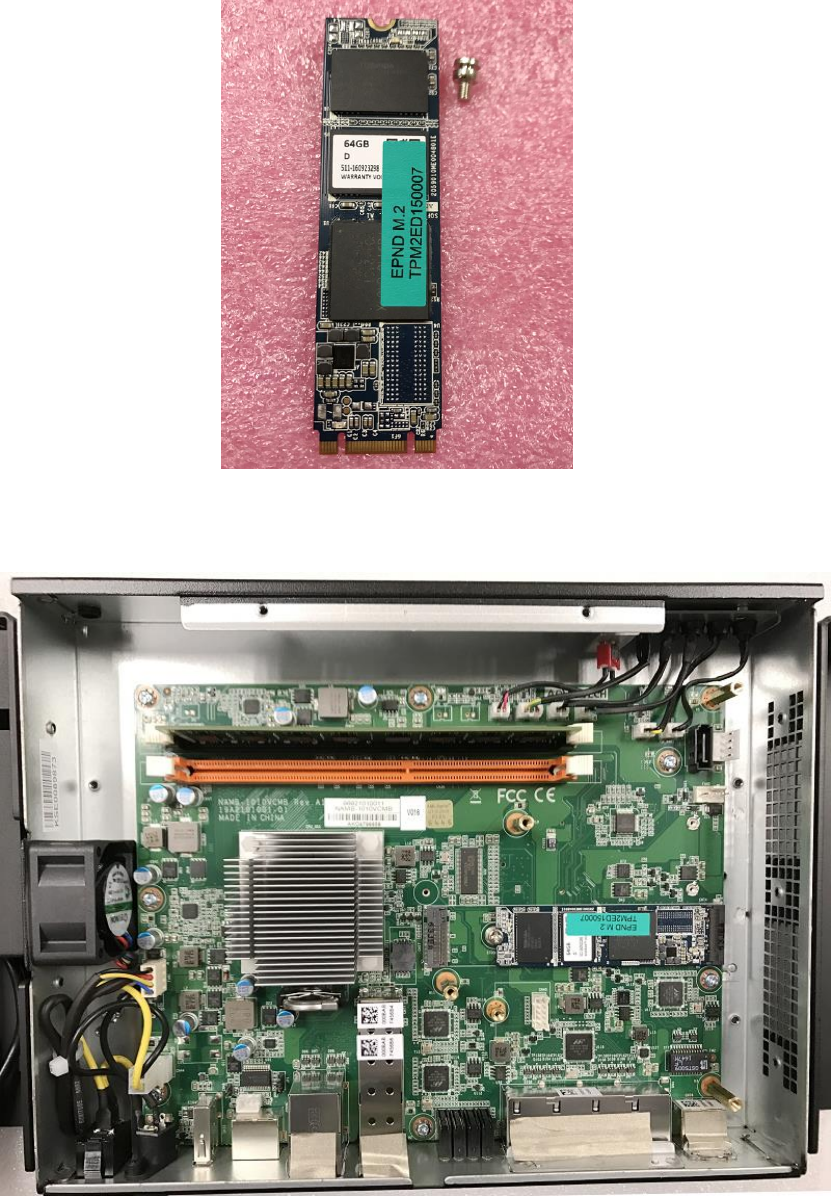

2.3 M.2 SSD INSTALLATION

2.3.1 Get M.2 module & Screw M3*3.5 (P/N: 1930006888-01)

2.3.2 Use screwdriver locking a screw to fix M.2 module and FWA-1010VC

M/B.

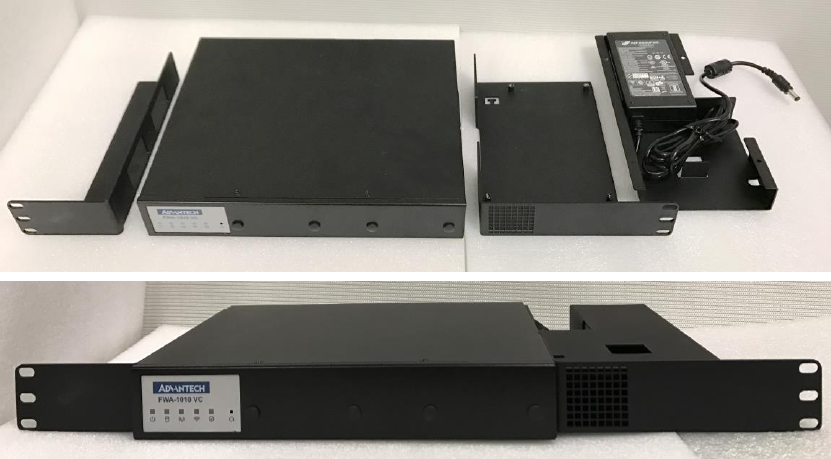

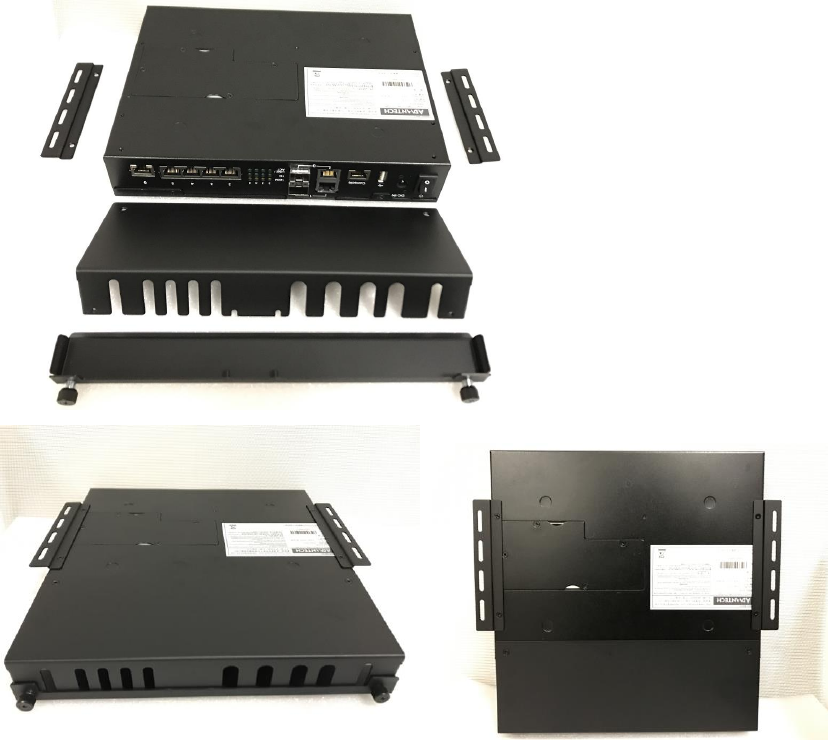

2.4 WallMount Kit Installation

Get 6 pcs M3*4L screws from accessory box

Use screwdriver locking 6 screws to fix WallMount Kit bracket on FWA-1010VC

2.5 RackMount Kit Installation

Get 6 pcs M3*4L screws from accessory box

Plug in Power Adaptor into power Adaptor bracket

Revert power adaptor bracket into rack-mounting bracket

Please use screwdriver locking 6 screws to fix RackMount Kit bracket on FWA-1010VC

3. BIOS CONSOLE REDIRECTION SETTING

3.1 CONSOLE REDIRECTION FUNCTION INSTALL &SETTING

3.1.1 FWA-1010VC doesn’t have a VGA function; user needs to use

console-redirection cable(please contact your Advantech contact window to

order this cable) to control FWA-1010VC function,

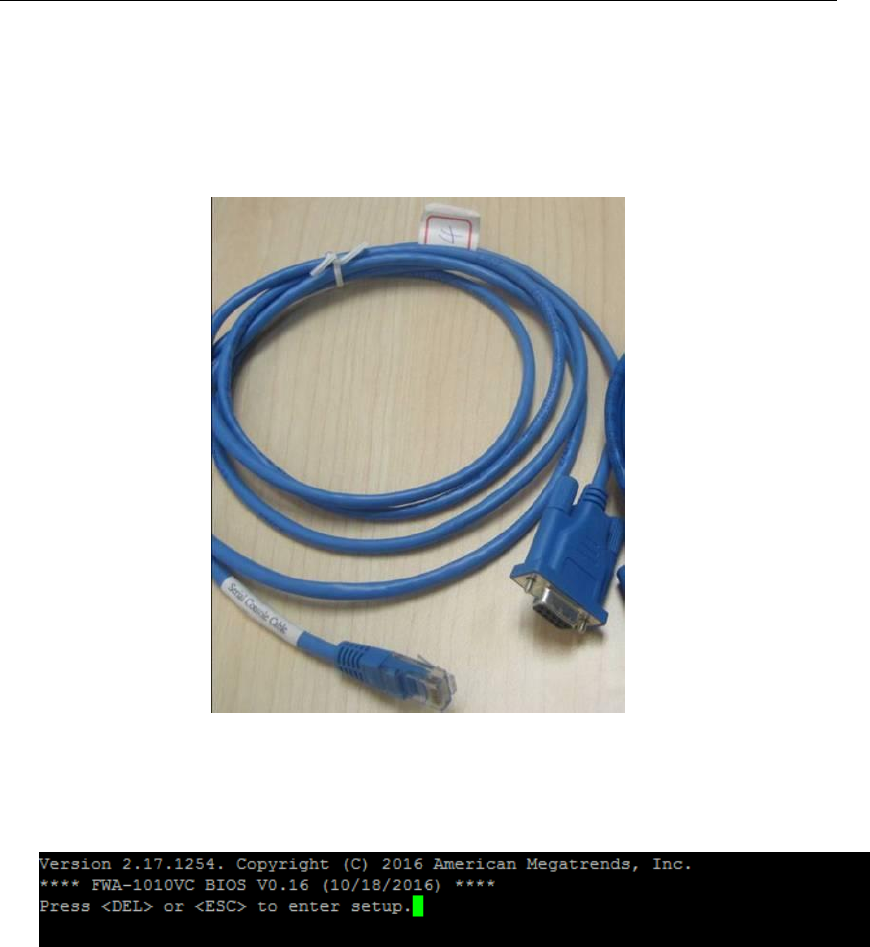

3.1.2 Please use RJ45 to console cable to connect FWA-1010VC’s Console

port and Test PC’s RS232 COM port, user may press “DEL” or “ESC” key into

BIOS by console-redirection utility

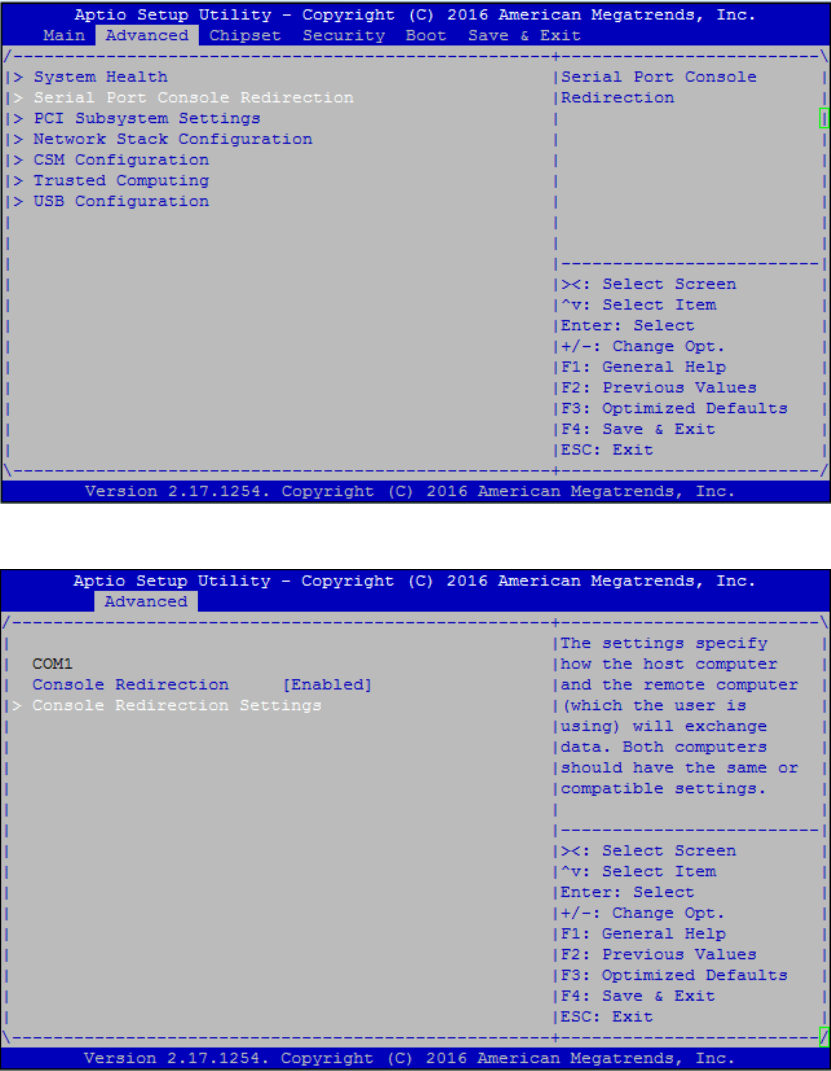

3.1.3 Choose “Advanced” “Serial Port Console Redirection” item.

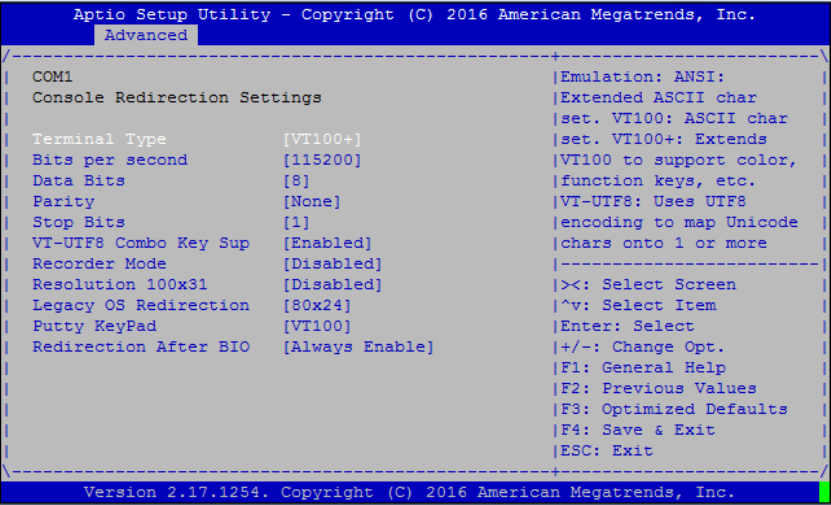

3.1.4 Default console redirection setting of FWA-1010VC BIOS is COM1

3.1.5 Baud rate setting is 115200,8,n1, and “Redirection after BIOS POST” is

Always.

4. FWA-1010VC QUICK START IMAGE INSTALLATION AND

SETTING

Advantech provided FWA-1010VC Quick Start Linux image which is based on

Ubuntu Linux distribution and is configured to run on FWA-1010VC for vE-CPE

and SD-WAN applications. Useful software utilities and tools which are either

Advantech proprietary or are under opens source license are integrated into

the image to provide customers with a quick and easy approach for platform

evaluation.

Please contact your Advantech representative for getting FWA-1010VC Quick

Start Linux image and Getting Started Guide.

5. FWA-1010VC BIOS FLASH STEP

5.1 FWA--1010VC BIOS flash step.

FWA-1010VC BIOS V016 or latest version are support flash BIOS by UEFI

shell, when user needs flash er below step to flash FWA-1010VC BIOS.

5.1.1 Please copy BIOS & flash tool (ex: fpt.efi) in USB flash, and insert USB

flash to FWA-1010VC.

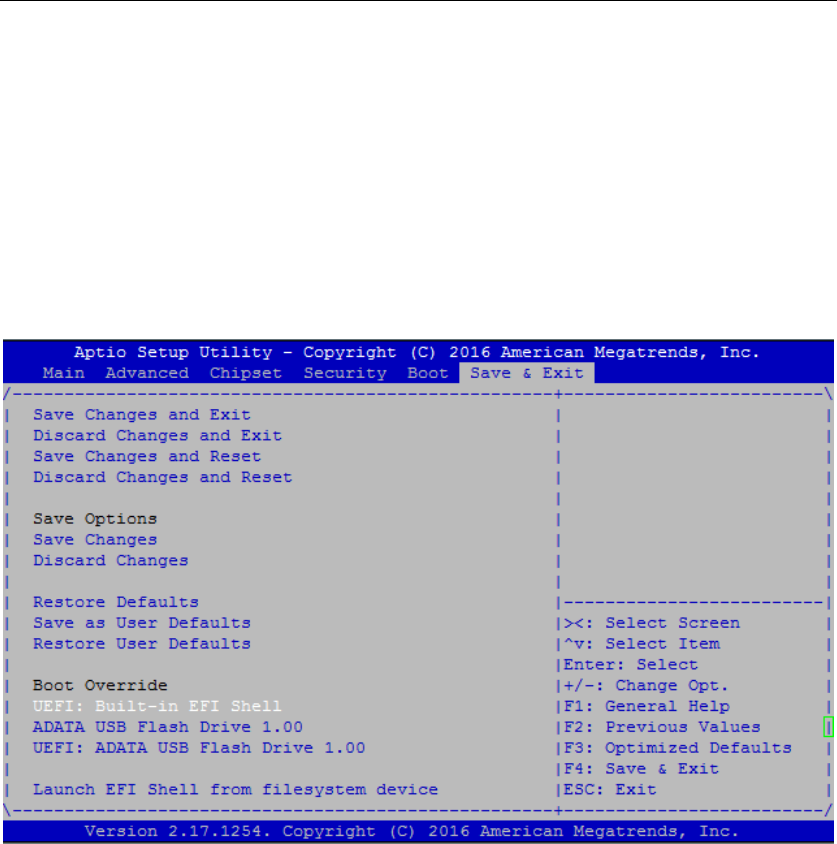

5.1.2 Kindly power up system, and choose “Save & Exit” “Boot Overider”

“UFEI: Bulit-in EFI Shell”

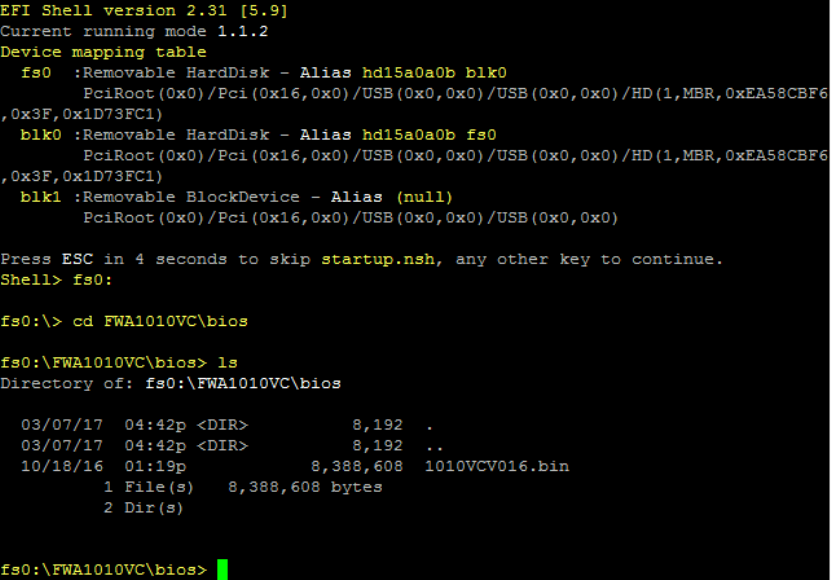

5.1.3 Please press “ESC” to skip startup.nsh, it will show “Shell >” message

5.1.4 When system only install a USB flash, EFI shell will detect USB flash as

“fs0”, if system install 2 USB flash , EFI shell will detect USB flash as “fs0” and

“fs1”.

5.1.5 Kindly key-in “USB ID” whether BIOS file is located. (Example: the

system only install a USB flash, it needs key-in “fs0” into USB flash)

5.1.6 Kindly key-in sub-directories whether BIOS file is located. (Example: the

BIOS file put in /FWA1010VC/BIOS)

5.1.7 Kindly key-in “fpt.efi 0f “BIOS file” to flash FWA-1010VC BIOS, and

please don’t power off system during the flash BIOS.

5.1.8 When BIOS flash finish. Please power off and re-power on system, the

system BIOS will flash to new version.

6. SYSTEM PLATFORM SKUS

FWA-1010VC-4CA2S:

 Tabletop

 1x 60W Power Adaptor, CPU 4Core C2558 1x M.2 2280 SSD

slot, 7x 1GbE Ethernet port, 2x 1GbE SFP port and 4x 1GbE

switched Ethernet port with 1GbE uplink to CPU

FWA-1010VC-8CA2S:

 Tabletop

 1x 60W Power Adaptor, CPU 8Core C2758, 1x 2.5” SSD

bracket, 1x M.2 2280 SSD slot, 7x 1GbE Ethernet port, 2x

1GbE SFP port and 4x 1GbE switched Ethernet port with 1GbE

uplink to CPU

6.1 System Architecture

FWA-1010VC System Architecture

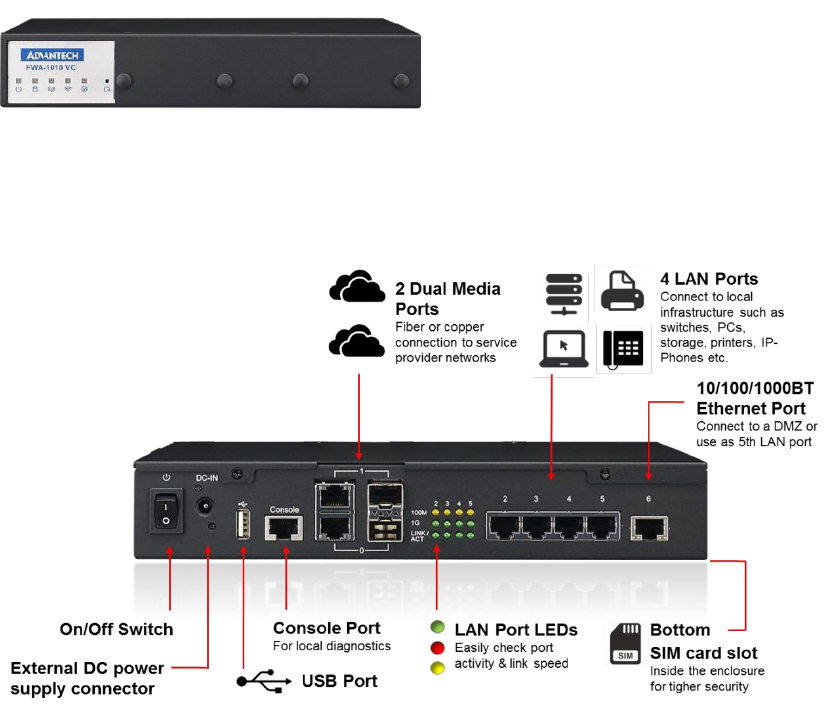

6.1.1 Front Side

FWA-1010VC System Front View

6.1.2 Rear Side

FWA-1010VC System Rear View

6.2 System Block Diagram

FWA-1010VC System Block Diagram

7. NAMB-1010VCMB JUMPER SETTING AND CONNECTOR

LIST

7.1 Connector

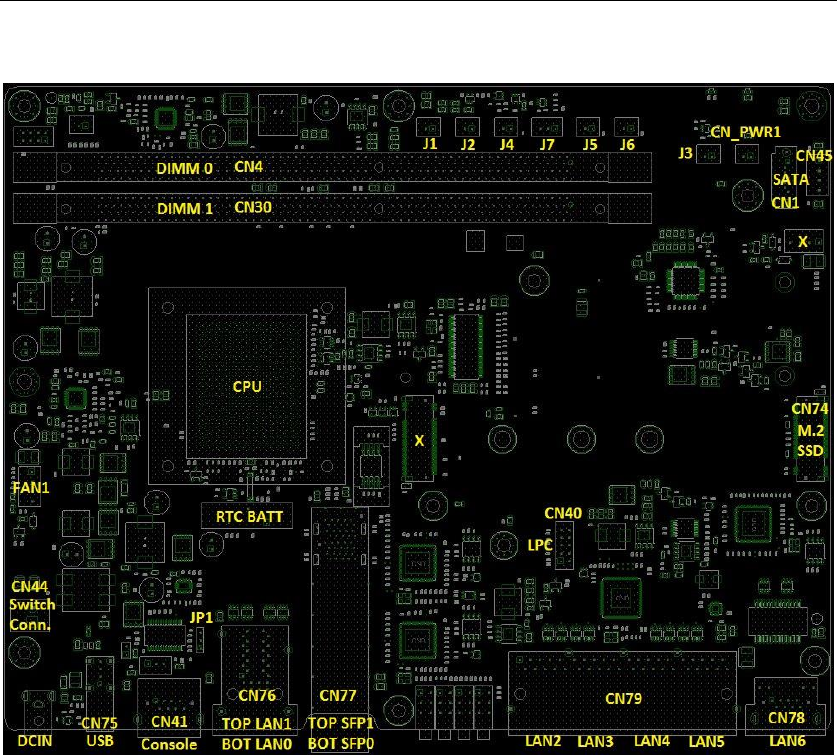

NAMB-1010VCMB Top side Connector Placement

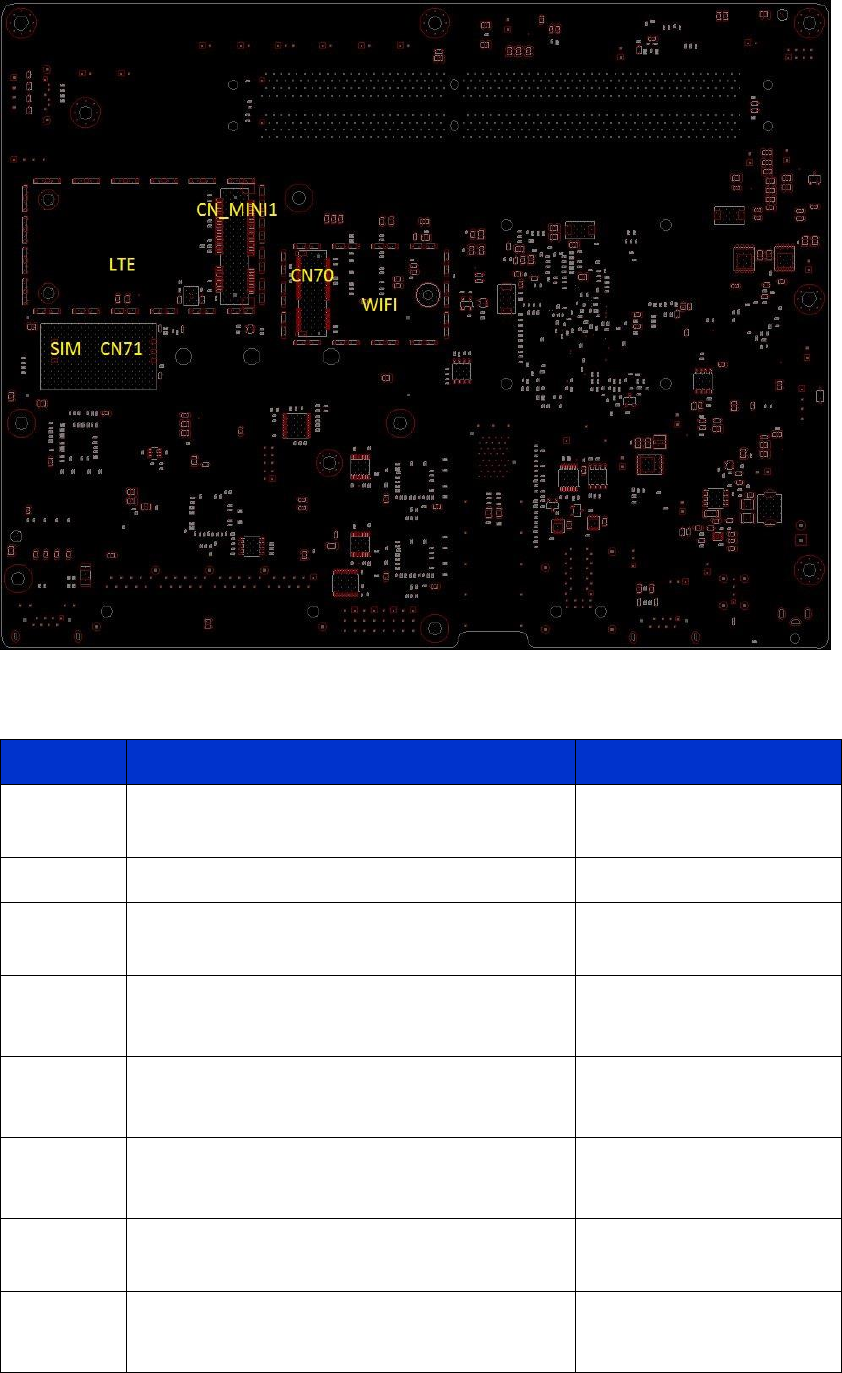

NAMB-1010VCMB Bot side Connector Placement

Location

Description

Comment

DC_JACK1

DC POWER JACK 4P 90D(M) DIP

2DC-0006-B01

DC12V Power Input.

CN75

USB Conn 4P 90D(F) DIP USB-1F0401-2W

For USB Function.

CN41

PHONE JACK RJ45 8P 1.02mm 90D(F) DIP

C20GY0-500

For Console.

CN76

PHONE JACK RJ45 28P 2.54mm 90D(F) DIP

RM3-1TJA9V

For 2x1 LAN w/ Combo

Media.

CN77

SFP+ 1x2 Cage 90D(M) 3S1020F7-AJ4-4F

For 2x1 SFP w/ Combo

Media.

CN79

RJ45_40P_RB4-109D9F1D

For 1x4 LAN w/ 88E6141

switch.

CN78

PHONE JACK RJ45 12P 1.02mm 90D(F) DIP

C23GY0-590

For single LAN function.

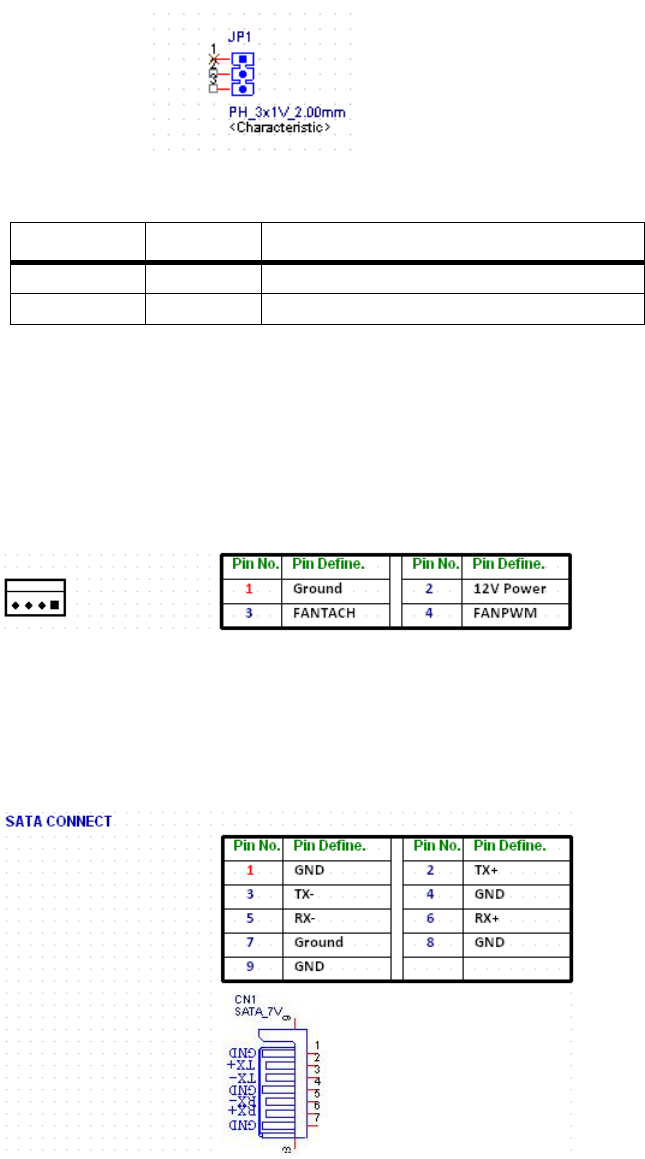

JP1

PIN HEADER 3x1P 2.0mm 180D(M) DIP

2000-13 WS

For CPU CMOS Clean w/

Jumper.

Location

Description

Comment

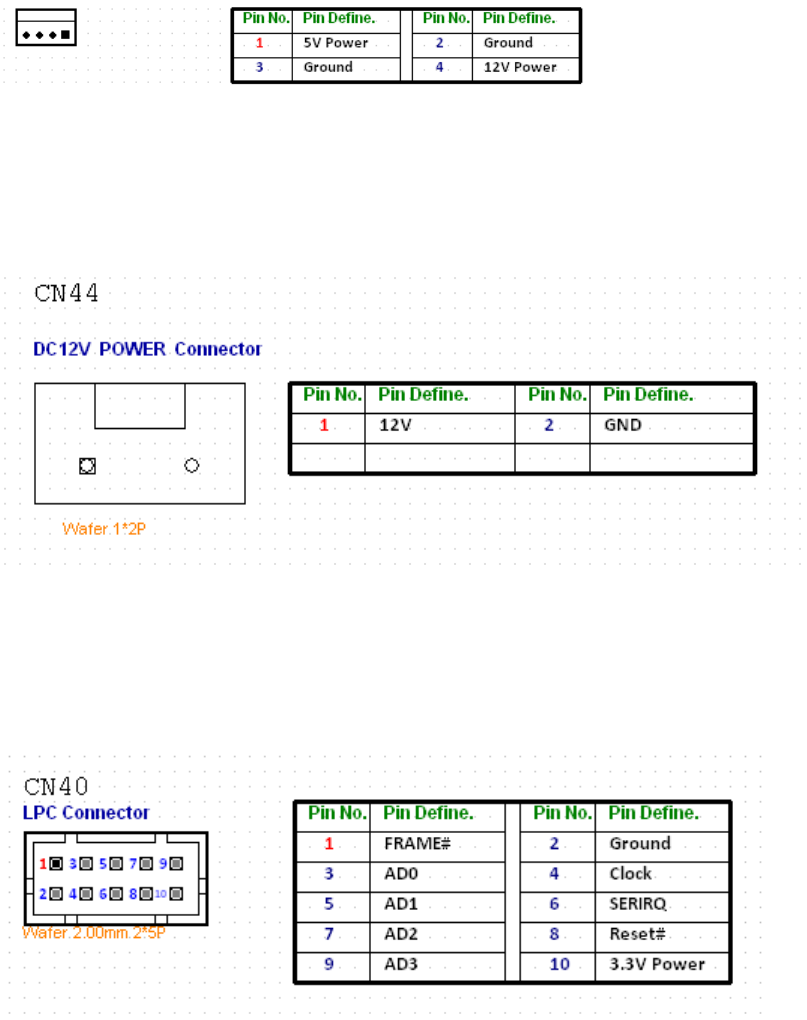

CN44

WAFER BOX 2P 3.96mm 180D(M) DIP

3961-WS-2-LF

For Power Switch Cable.

FAN1

WAFER 2.54 1*4P 180D(M) DIP

744-81-04TW30

For system cooler use.

SPI1

IC SKT 8P SMD 8P SMD ACA-SPI-004-K01

For CPU BIOS EEPROM.

CN40

WAFER BOX 2x5P 2.00mm 180D(M) DIP

24W2140-10S10

For TPM and LPC function.

CN74

PCI-E MKEY NGFF_75P_AS0BC21-S40BM-7H

For SATA3 6G SSD Card.

CN45

WAFER 4P 2.5mm 180D(M) DIP

24W1161-04S10-01T

For SATA3 6G HDD Power.

CN1

Serial ATA 7P 1.27mm 180D(M) DIP

WATM-07DBN4A3B8

For SATA3 6G function.

CN30

DIMM DDR3 240P orange DIP 15u inch

ATH4017-P3E-4F

For DDR DIMM A2

( Second )

CN4

DIMM DDR3 240P orange DIP 15u inch

ATH4017-P3E-4F

For DDR DIMM A0 ( Main )

CN_PWR1
