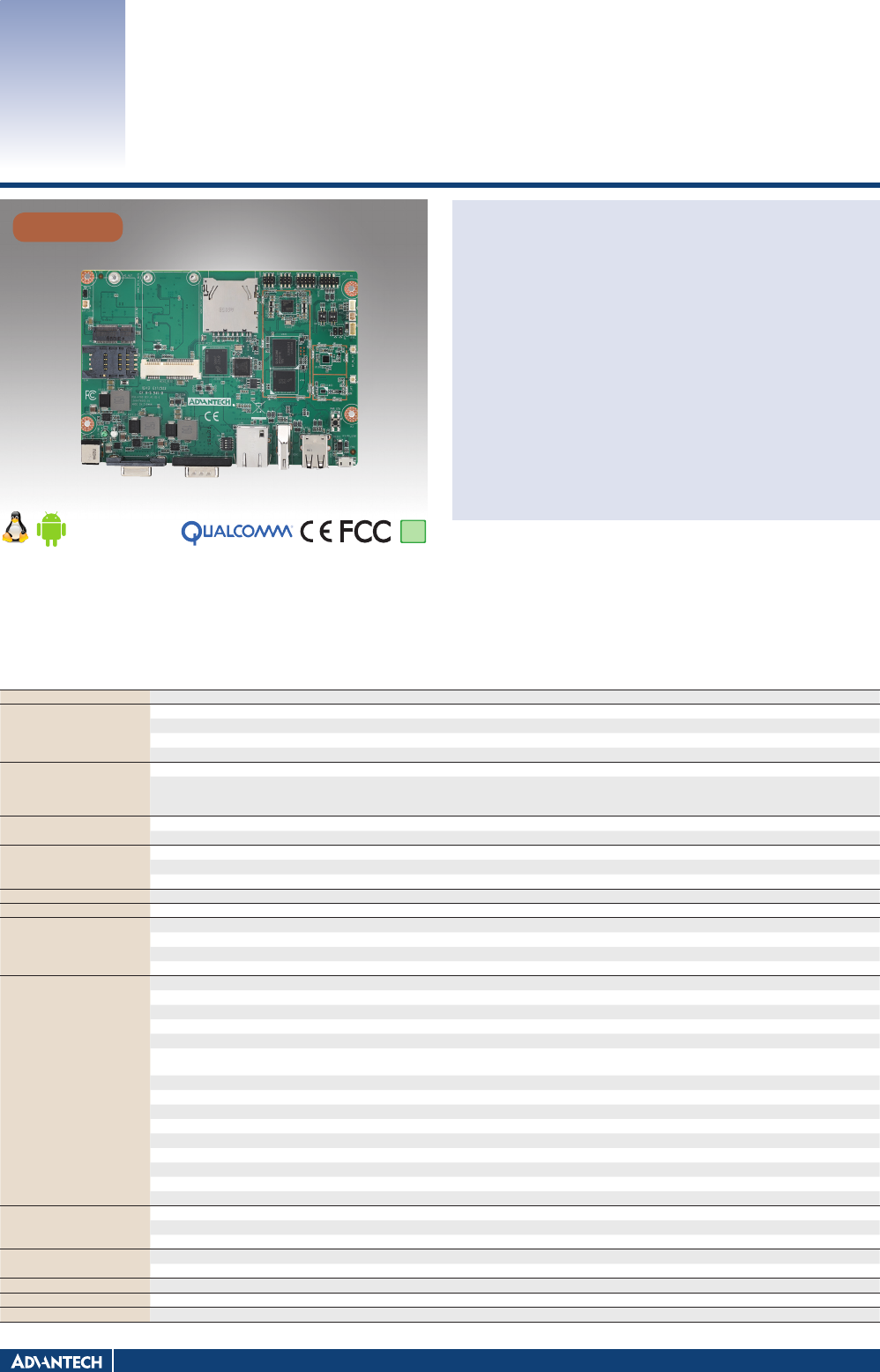

Advantech Co RSB-4760 Motherboard User Manual x
Advantech Co Ltd Motherboard x
Users Manual revised
Industrial Motherboards & Systems
Features
Qualcomm ARM® Cortex®-A53 APQ8016 Quad core up to 1.2 GHz
Onboard 1GB/2GB LPDDR3 memory and 8GB eMMC
1 HDMI, 1 RS-232/422/485, 1 GbE, 4 USB 2.0, 16 GPIO, 1 I2C, 1 SPI
Highly intergrated on-board wireless connectivity - Wi-Fi, BT, and GNSS
Connevtivity expansion capability - M.2, mini-PCIe
Wide voltage range DC power input
Support Android, Linux and Win 10 IoT Core
RSB-4760 Qualcomm ARM® Cortex®-A53 APQ8016
3.5" SBC
Introduction
RSB-4760 is a RISC 3.5" single board computer (SBC) powered by Qualcomm ARM® Cortex®-A53 APQ8016 processor that supports full HD display and intergrades on board
wireless solution – Wi-Fi, BT and GNSS. RSB-4760 also features in mini PCIe, M.2, and SIM card slots for expanding connectivity capability, like 3G, 4G/LTE modules. Equipped
with complete Android, Linux and Win10 IoT core BSPs, this SBC enables customers to easily develop unique application on specific OS.
Specifications
Form Factor 3.5" SBC
Processor System
CPU Quad-core ARM® Cortex® A53 APQ8016
Technology LPDDR3 1066MHz
Capacity On-board 1GB / 2GB LPDDR3
Flash 8GB
Graphics
HDMI 1 HDMI, 1920 x 1080 at 60Hz
H/W Video Codec
Encode: 30 fps 720p (H.264 Baseline/MPEG-4)
30 fps 1080p (MPEG-4/H.264/VP8/H.263)
Decode: 30 fps 1080p (MPEG-4/H.264/H.263/DivX/MPEG2/VC1/Soreson/VP8)
Ethernet Chipset Microchip LAN7500
Speed 1 10/100/1000 Mbps
Connectivity
Wi-Fi WCN3620 802.11 b/g/n 2.4GHz
Bluetooth WCN3620 Bluetooth 4.1
GNSS WGR7640
RTC Yes
WatchDog Timer Yes
Expansion
SD socket 1 x SD socket
M.2 1 x M.2 2230 Key.E
mini PCIe 1 x Full size mini PCIe slot (USB signal only)
SIM 1 x mini-SIM slot
I/O
SATA -
SATA Power -
USB 2 x USB 2.0 Type A / 2 x USB 2.0 pin header / 1 micro USB client
Audio 1 x line-out, 1 x mic-in via pin header
SPDIF -
Serial Port 1 x 4 wires RS-232/422/485 via D-SUB 9
1 x 4 wires console via pin header (Configurable for general purpose UART or M.2 UART signal)
SPI 1
CAN -
GPIO 8 x GPIO via D-SUB 9 / 8 x GPIO via pin header (3.3V TTL level)
I2C 1
System Bus -
Touch -
I/R -
LED 1 x Power LED, 1 x Wi-Fi&BT LED
Button 1 x Power Button, 1 x Reset Button
Power
Power Supply Voltage 9-36V
Power Type DC-in
Power Consumption TBD
Environment Operational Temperature 0 ~ 60° C
Operating Humidity 5% ~ 95%
Mechanical Dimensions (W x D) 102 x 146 mm
Operating System Android / Yocto Linux / Windows 10 IoT Core
Certifications CE/FCC Class B
Preliminary
RoHS
COMPLIANT
2002/95/EC
All product specifications are subject to change without notice Last updated: 25-Jan-2017
www.advantech.com/products
Online Download
Block Diagram
Ordering Information
Part Number CPU Memory Flash HDMI LAN Serial Port USB Host SD Operating
Temperature
RSB-4760CQ-QNA1E Qualcomm APQ8016
Quad Core 1.2GHz 1GB 8GB 1 1 1 x 4 wires RS-232/422/485
1 x 4 wires UART (Console) 4 1 0 ~ 60 °C
RSB-4760CQ-WNA1E Qualcomm APQ8016
Quad Core 1.2GHz 2GB 8GB 1 1 1 x 4 wires RS-232/422/485
1 x 4 wires UART (Console) 4 1 0 ~ 60 °C
RSB-4760
Packing List
Part Number Description
RSB-4760 RSB-4760 3.5" SBC
Optional Accessories
Port Number Description
96PSA-A36W12R1 Adapter 100-240 36W 12V 3A 9NA0362308
170203183C Power cord 3P Europe (WS-010+WS-083) 183 cm
170203180A Power cord 3P UK 2.5A/3A 250 V 1.83 M
1700001524 Power cord 3P UL 10A 125 V 180 cm
1700026931-01 Debug cable
ROM-ED20-00A1E Debug adapter board
TBD RSB-4760 metal chassis
Exrernal I/O
Dimensions Unit: mm
4-Ø3.20
4-Ø6.40
0
3.30
6.50
57.84
97.22
104.25
120.30
142.70
146
0
20.50
98.70
102
27.20
92.70
35.85
142.70
73.13
60.10
35.90
98.05
49.69
15.50
27.25
138.20
13
18 18
98
DC-in USB ClientRS-232/422/485 HDMI
GPIO Ethernet USB
USB 6
WiFi I/Q + DATA/CLK
BT CTRL
I2C 1
I2C 2
MIPI-DSI
UART 0
GPIO x 8
SD Socket
HDMI Conn.ADI ADV7535
DB9(M) Conn.
DB9(F) Conn.
USB Conn.
USB Client
RS-232/422/485 transceiver
SDIO
Microchip USB2517
USB0
USB1 & 2
SPI
UART 1
Audio In/Out
USB 4 & 5
GPIO x 8
WCN3620
Watchdog Timer
Pin header
Pin header
Pin header
Pin header
Pin header
Pin header
M.2 Conn.
802.11 b/g/n 2.4GHz
Bluetooth 4.1
WGR7640
GNSS
SSBI + I/Q
PM8916
Data/Clk
APQ8016
Codec
PDM
I2C 0
RTC
JUMPER
USB Switch
USB3
LPDDR3 eMMC
RJ45
miniPCIE conn.
Microchip LAN7500
FCC
Federal Communications Commission (FCC) Statement
15.19
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may
cause undesired operation of the device.
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 cm between the radiator and your body.
This transmitter module is authorized only for use in devices where the antenna may be
installed such that 20 centimeter may be maintained between the antenna and users.
The final end product must be labeled in visible area with the following:
“Contains FCC ID: M82-RSB-4760”
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2)
this device
must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappar
eils radio
exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
RF Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This radio transmitter (IC NO.: 9404A-RSB4760) has been approved by Industry
Canada to operate with the antenna types listed below with the maximum permissible
gain indicated. Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this device.
Antenna Type
Frequency
Peak Antenna Gain
(dBi)
Dipole Type external antenna
2.4GHz
2.89
Dipole Type external antenna
2.4GHz
3.50
Dipole Type external antenna
2.4GHz
2.89
Dipole Type external antenna
2.4GHz
2.93
This transmitter module is authorized only for use in devices where the antenna may be
installed such that 20 centimeter may be maintained between the antenna and users.
The final end product must be labeled in visible area with the following:
“Contains IC: 9404A-RSB4760”
