PRODUCT INTRODUCTION
1. Package Contents
Before you start using this product, please check if there is anything
missing in the package and contact your dealer to claim the missing
item(s):
BLE/ Wi-Fi Intelligent Sensor Gateway (WISE-2400)
USB Cable (60cm)
User Manual
USB Adapter 5V/1A
2. LED & Button Definitions

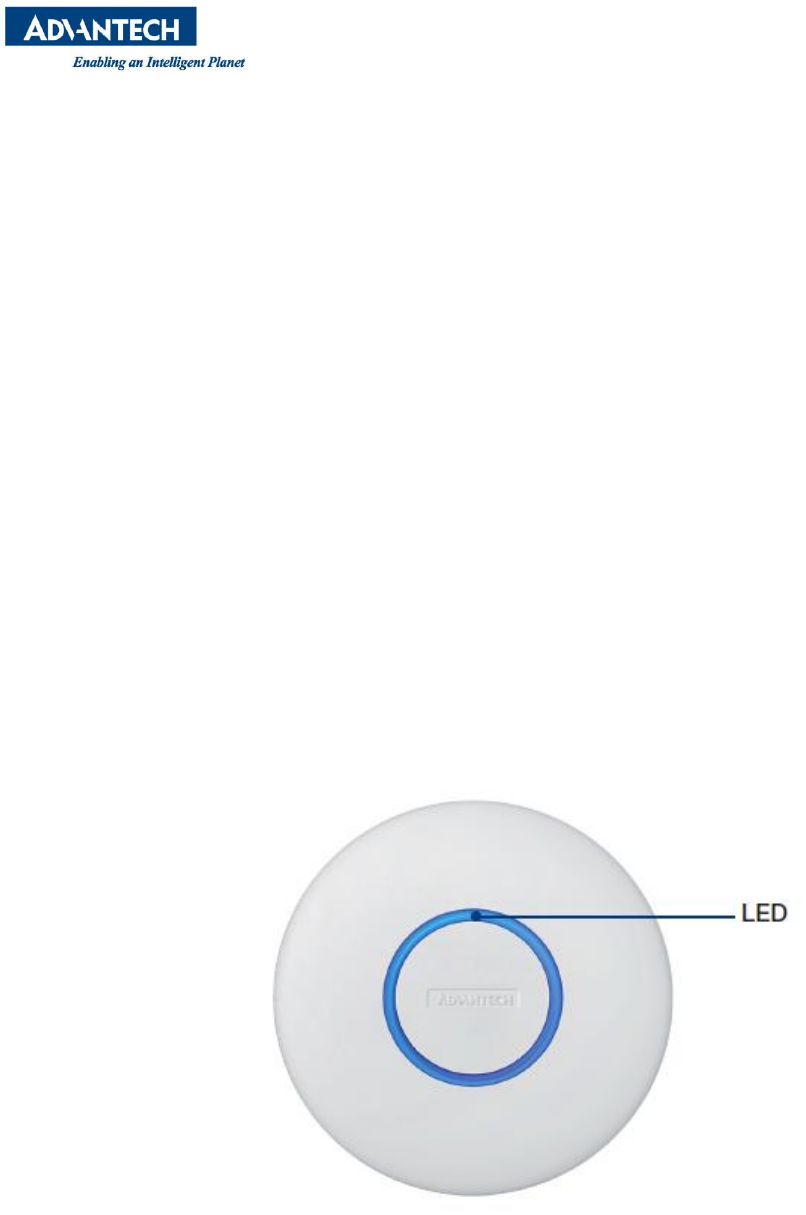

Front Panel
1
LEDs
Color
Status
Description
Power Status
Blue
ON
Power on
OFF
Power off
Active Status
Blue
BLINK
Data Transmission
Red
BLINK
Data Transmission failed

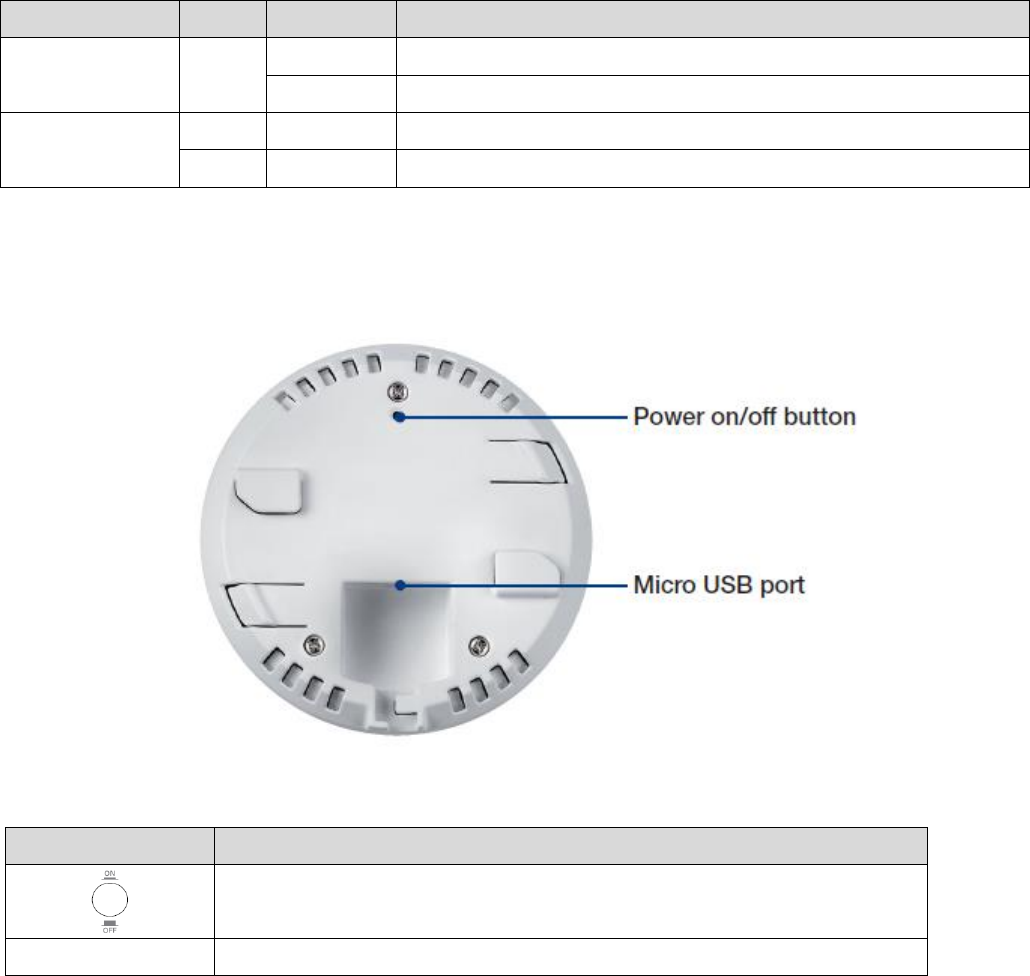

Rear Panel
Items
Description
Power ON/OFF
USB Power connector
3. Hardware Installation

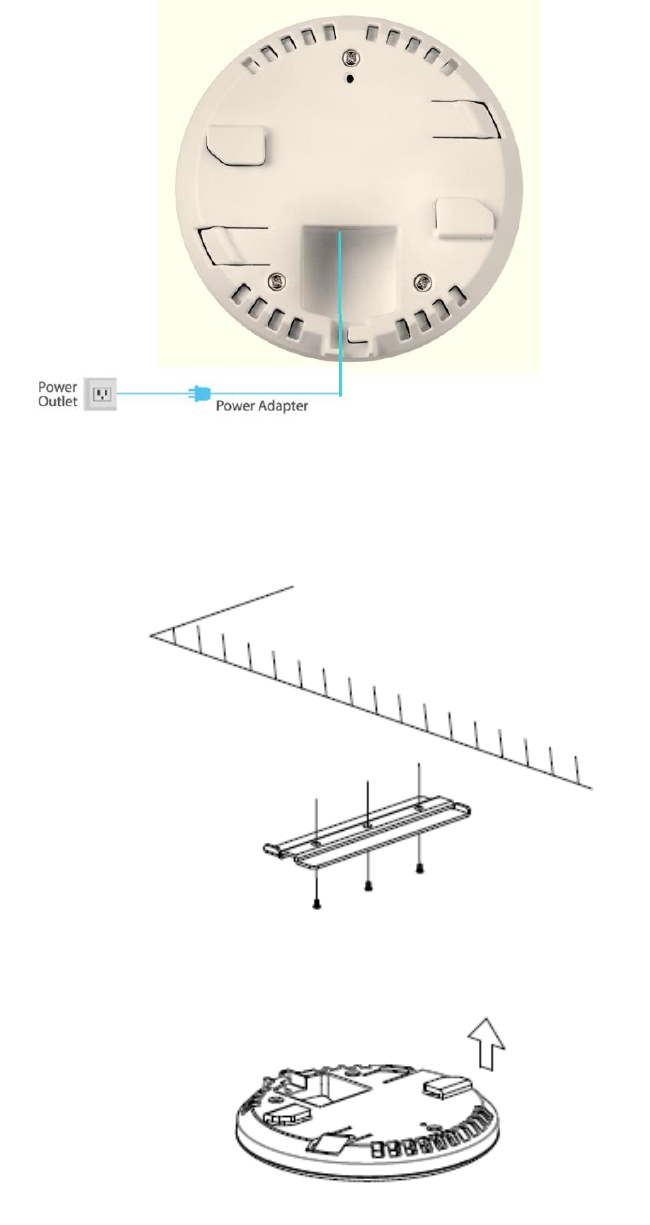

Step 1: Connect the power adapter to the WISE-2400
Plug one end of the power adapter into a power outlet and connect the
other end to the 5V interface of the device.
2
Step 2: Fixed WISE-2400 with mounting kit
Please follow below steps. to mount the WISE-2400.
3
4. GETTING STARTED
A. First 2400 setting

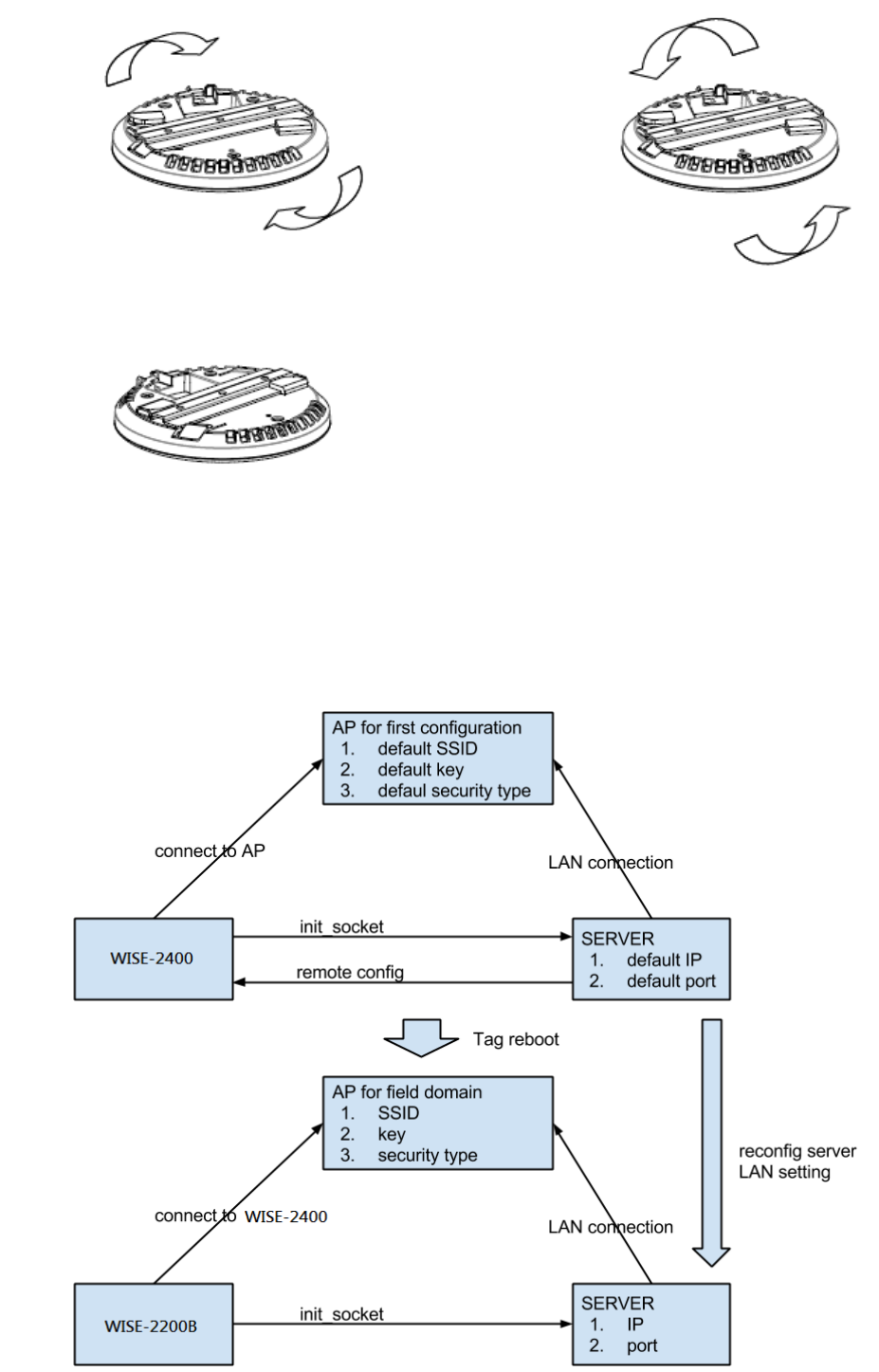

Start to use WISE-2400, please follow below flowchart to do the setting.
4
B. WISE-2400 Default Setting
WISE-2400 default config as following table. Please follow the setting item to
match wifi and RTLS server setting environment.
Config
Value
Description
SSID
WISE_AP
SSID of Connect AP
security key
12345678
Security key of connected AP
security type
WPA/WPA2
Security type of connected AP
Server IP
192.168.2.58
Server port
4242
WISE-2200W port
7000
For remote config connection
Battery low power alert
40
Send alert if battery is low power
RTLS Operation on/off
off
Turn on/off RTLS function
Operation mode
client
Switch operation mode of RTLS
Scan interval
10
Setting scan interval of RTLS function
G-sensor sensitivity
off
Turn on/off G-sensor and set sensitivity(2G~16G),
RTLS data will be sent if G-sensor is triggered
Wifi AP config
Key
Config
Note
SSID
WISE_AP
key
12345678
Security type
WPA
RTLS Server config
IP
192.168.2.58
port
4242
Factory default
C. WISE-2400 connection
Start the RTLS server with Wifi AP, then open WISE-2400 and WISE-2200B ,
WISE-2400 will be automatically registered to the RTLS server.
5

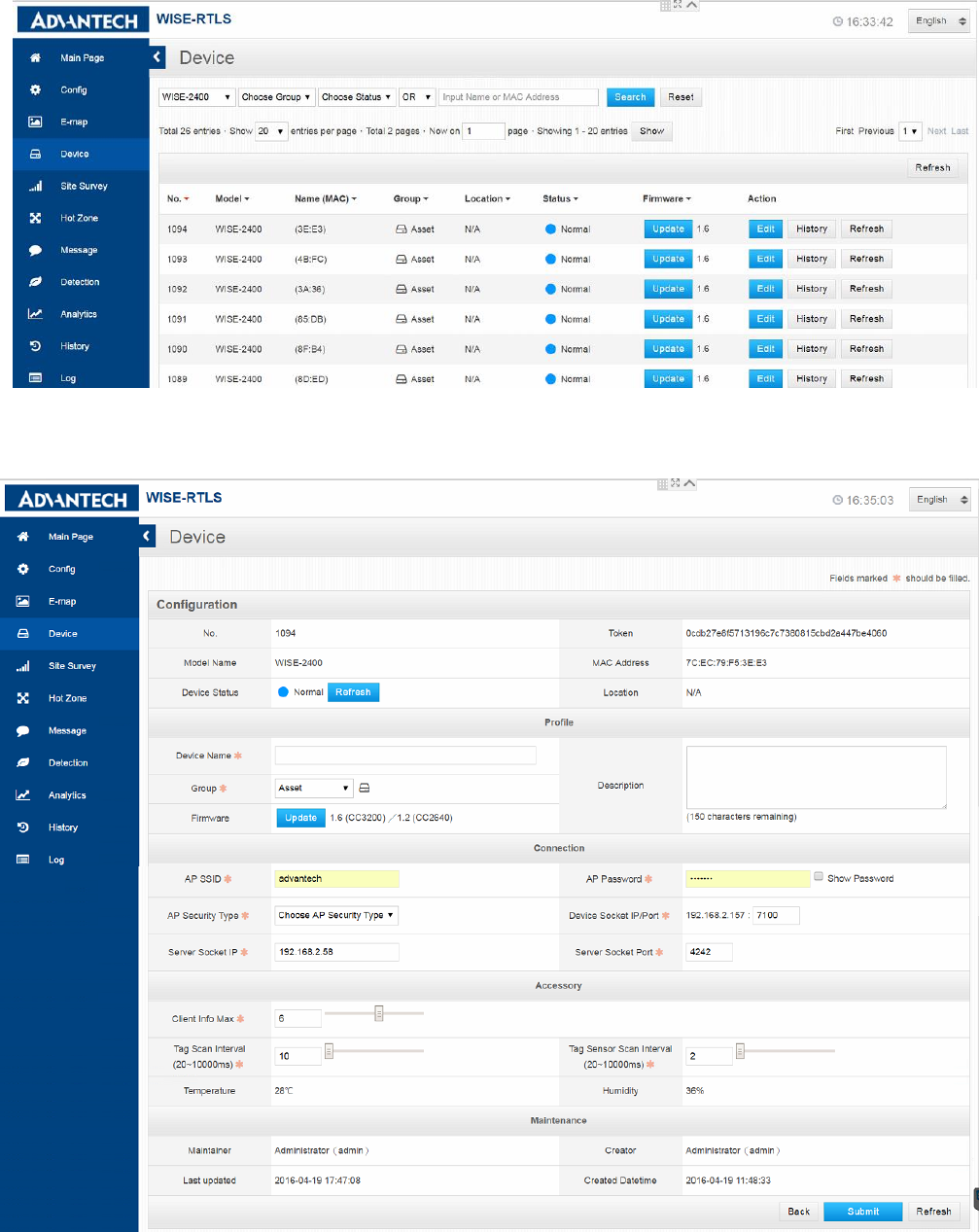

Can check all the WISE-2200B status from RTLS server "DEVICE
MANAGEMENT "function.
6
